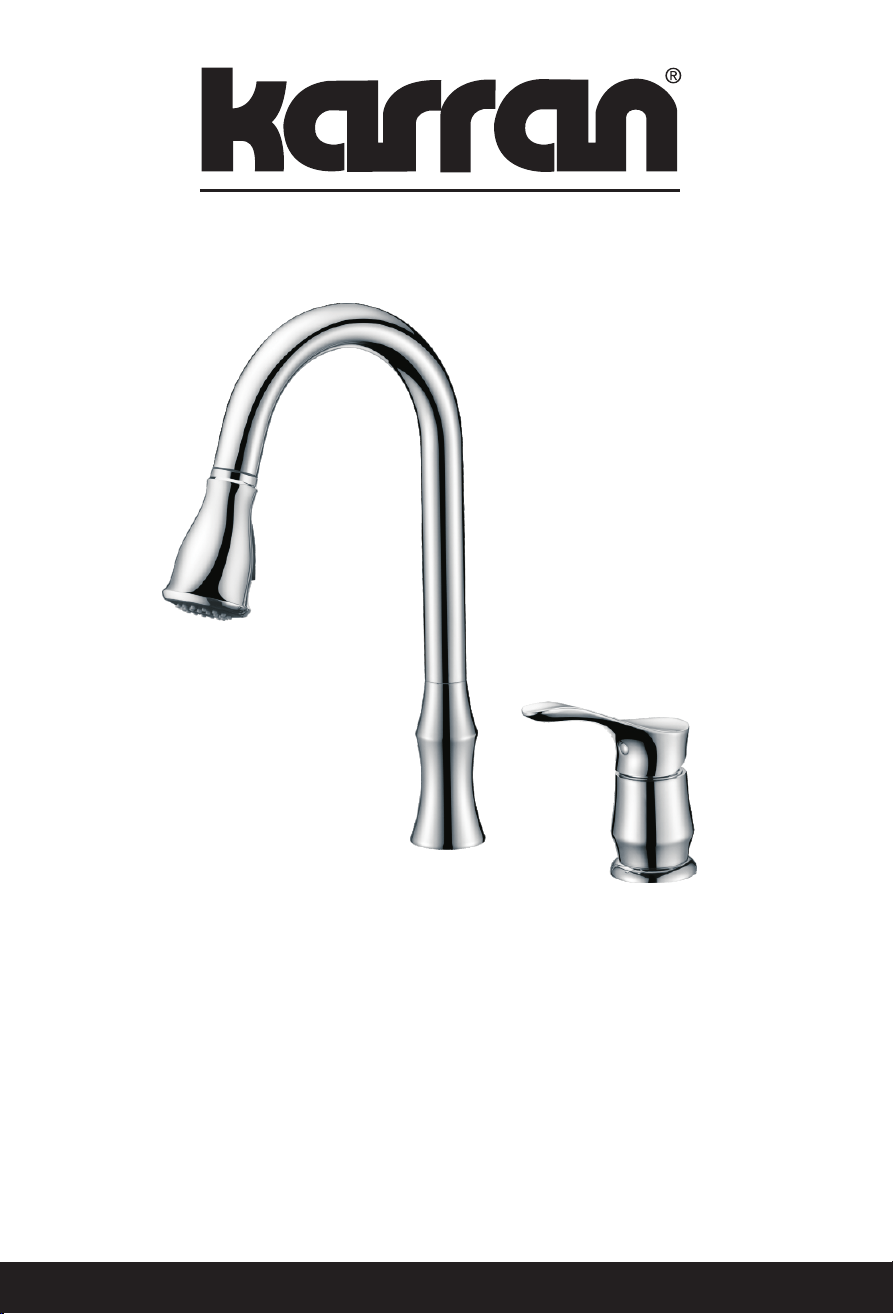

INSTALLATION GUIDE
KKF260C KKF260SS
Models:
Karran USA Tel: 866.452.7726 www.karran.com info@karran.com
Hillwood

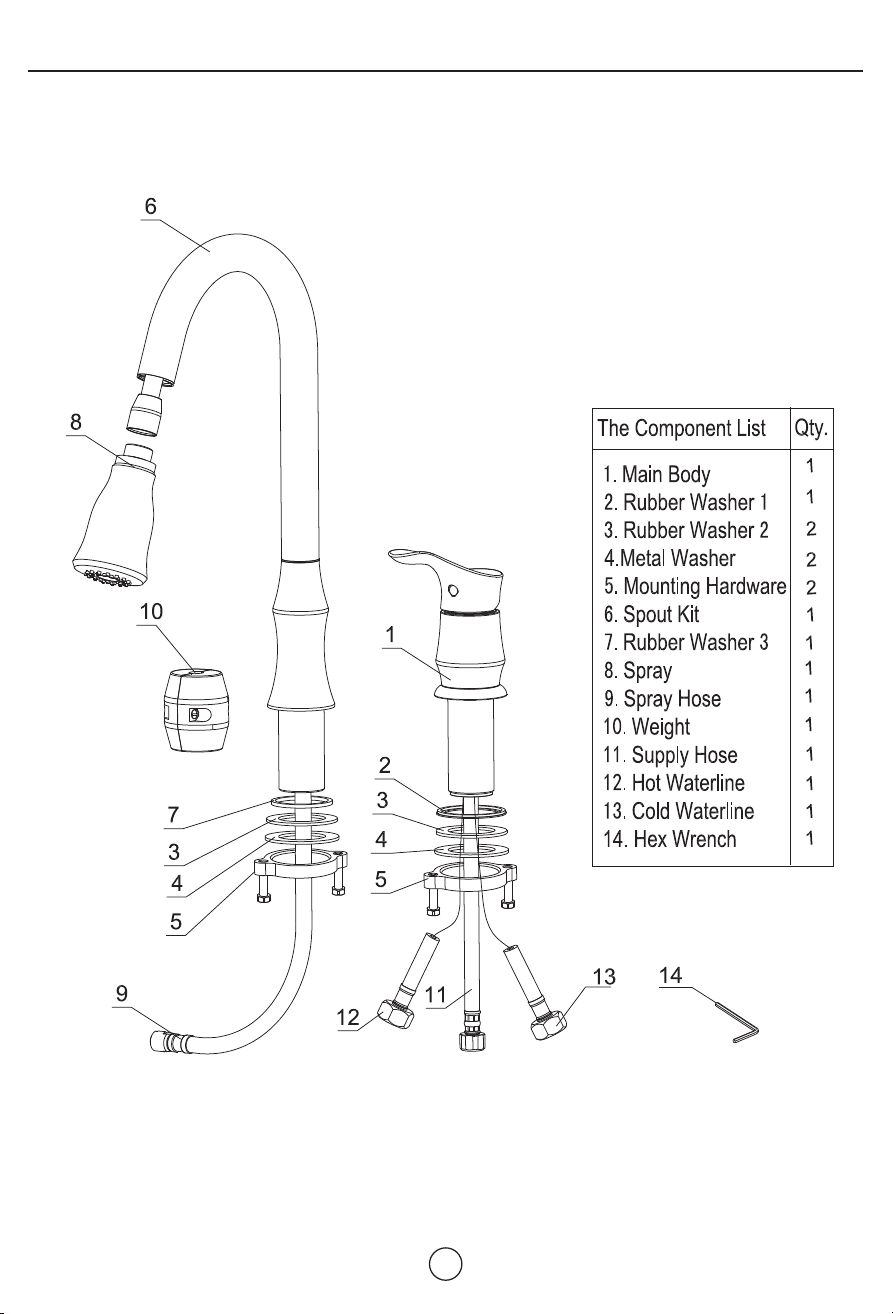

PARTS SHEET KKF260**
1

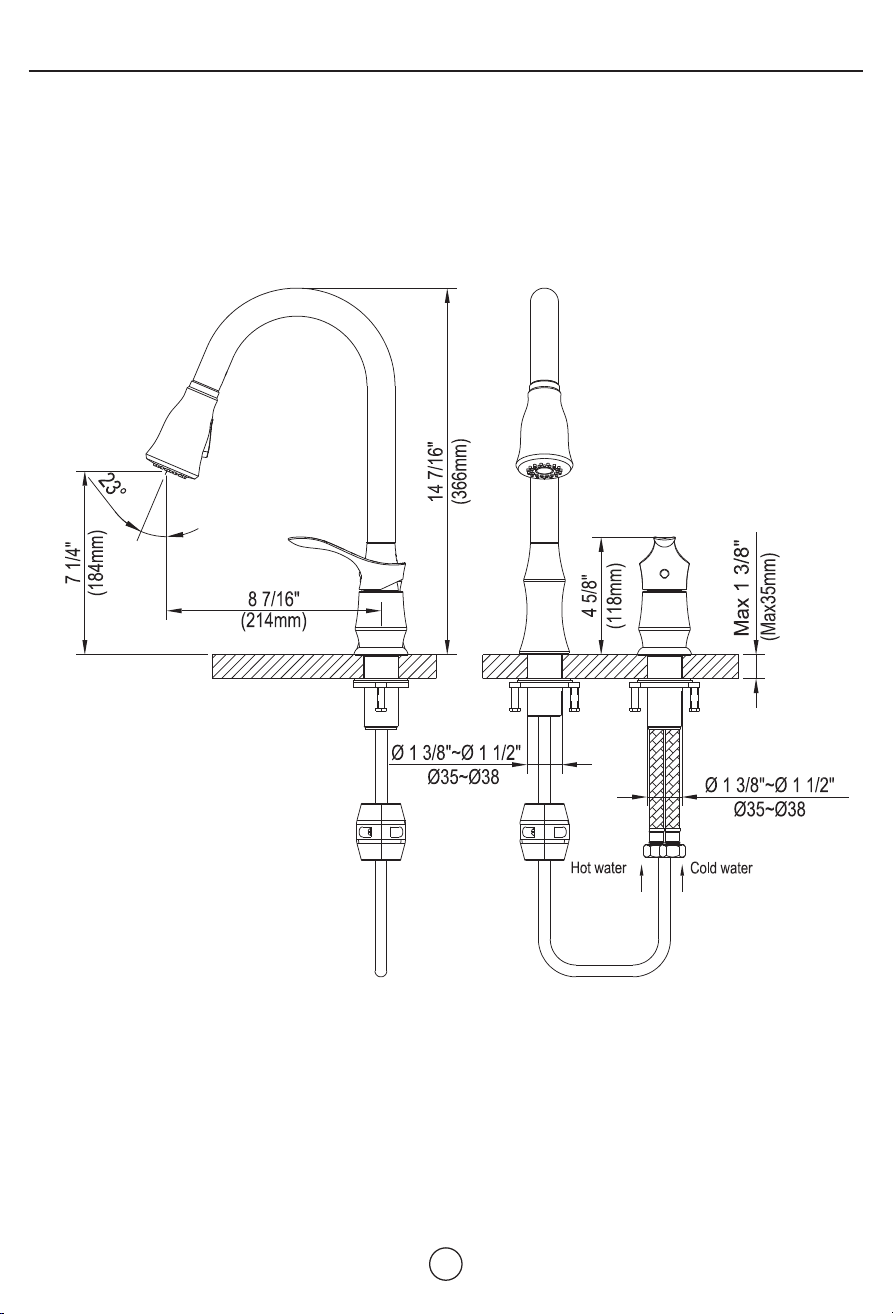

TECHNICAL DRAWING
2
3
INSTALLATION GUIDE

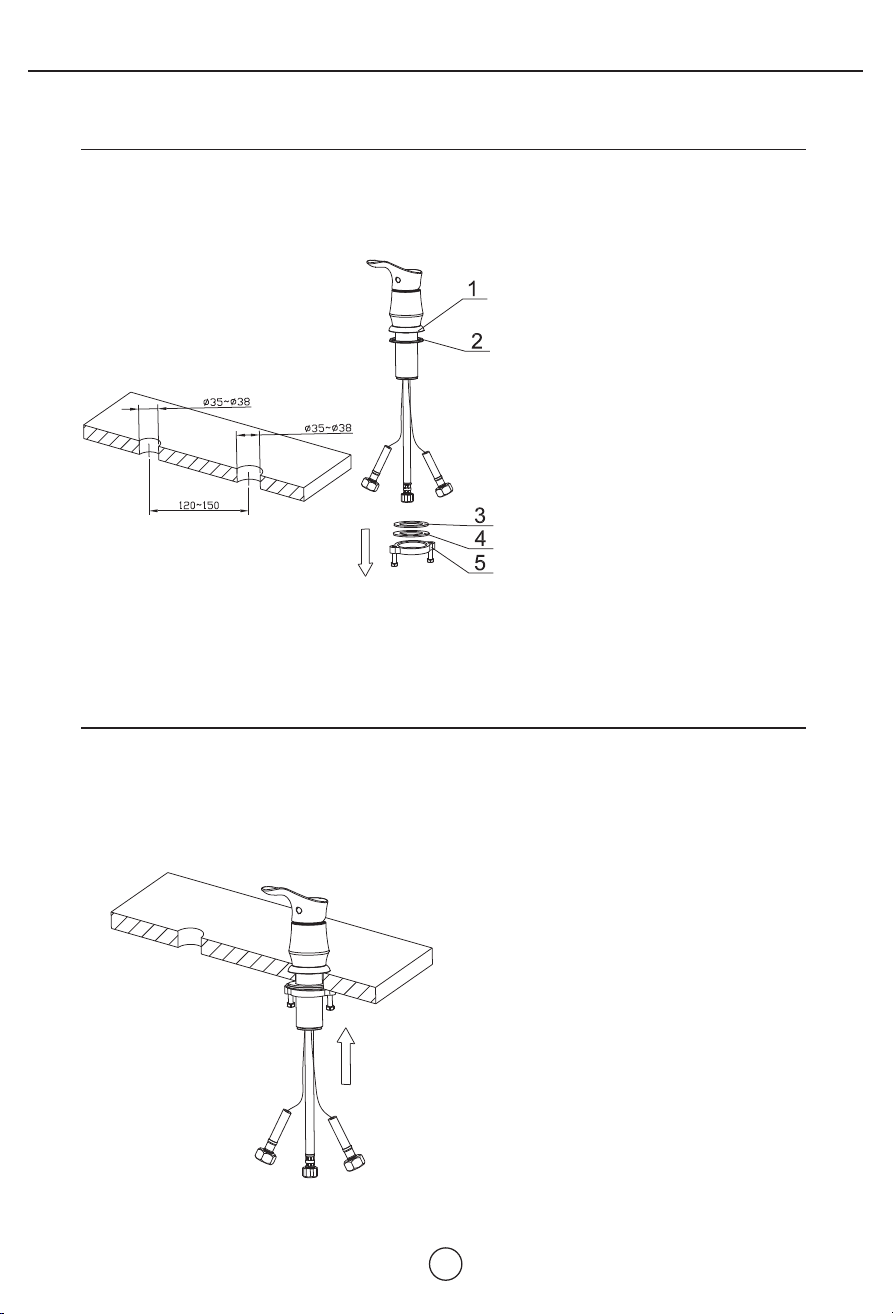

STEP 1
STEP 2
1. Remove main body (1), mounting
harware(5), metal wahser(4) and
rubber washer(2)(3).
2. Insert main body(1) into the hole,
refix rubber(2)(3), metal washer(4)
and mounting hardware(5). After
adjusting the direction of main body,
tighten the mounting hardware (5)
with hands and tighten screws with
a Philips screwdriver.
4

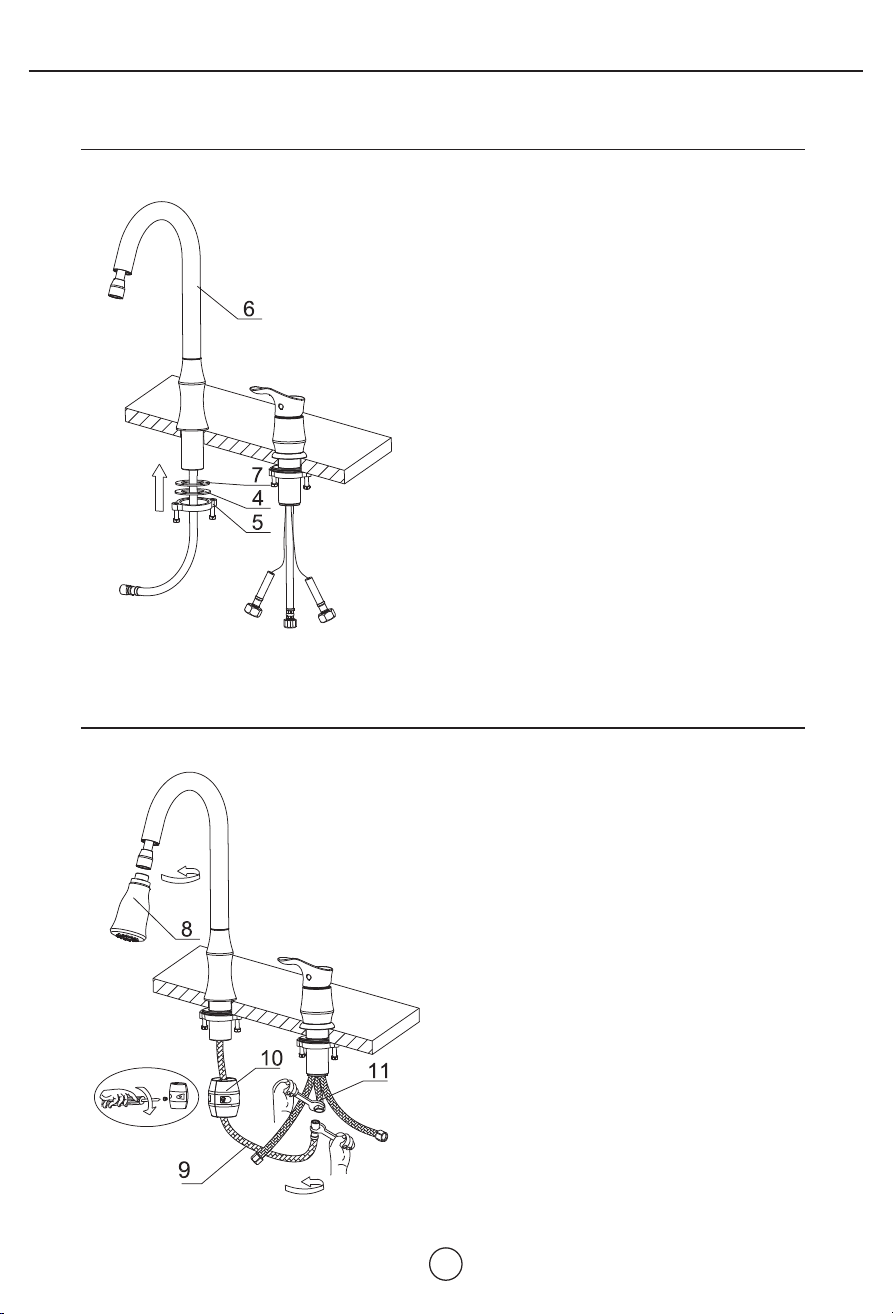

STEP 3
STEP 4
3. Remove mounting hardware(5), metal
washer(4) and rubber washer(7) from spout
kit(6). Insert the spout kit into hole, refix
rubber washer(7), metal washer(4) and
mounting hardware(5). After adjusting the
direction of spout kit, tighten the mounting
harware (5)with hands and tighten screws
with a Philips screwdriver.
4.Connect spray hose(9) with supply hose(11)
and install spray head(8).Attach weight(10) to
proper position of spray hose.
INSTALLATION GUIDE
5
INSTALLATION GUIDE

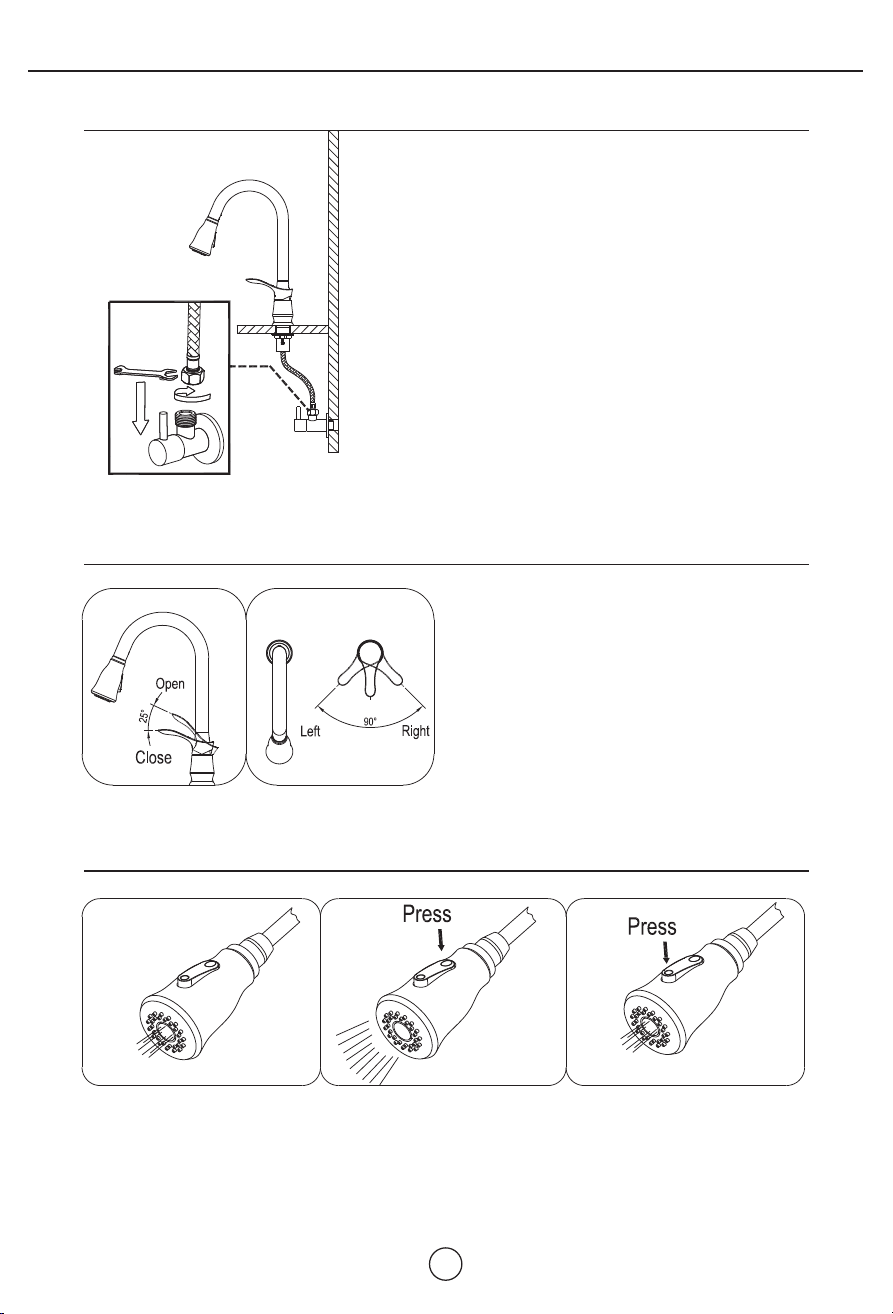

STEP 5
5. Connect the waterlines with outlet tightly.
Turn on the outlet and check for leaks.
How to operate the handle:
Spray
1) Open the handle lever to turn water on.
Push to turn off.
2) Turn the handle lever to the left to increase
hot water flow with higher water temperature,
while lower the water temperature by
operating reversely.
The Operation of the spray diverter:
1) When first turned on, water comes from aerator.
2) Press the botton back, water sprays from nozzles.
3) Press the botton front, water comes from aerator.
4) Diverter button automatically returns to normal position once handle closed.
6

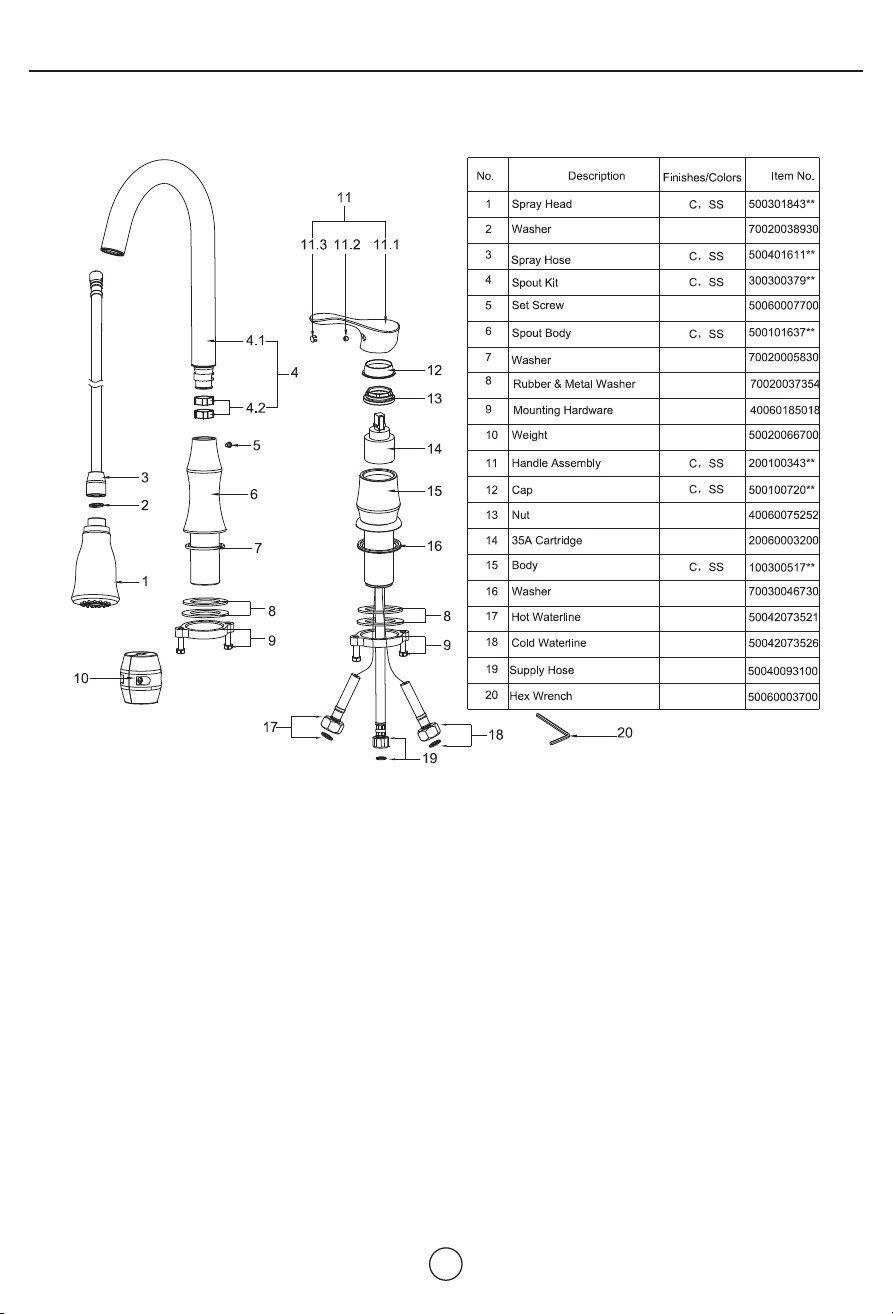

REPLACEMENT PARTS
** Denotes faucet component color options:
C - Chrome
SS - Spot Free Stainless Steel
