! For installation help, missing or replacement parts -
PLEASE CONTACT KARRAN FIRST
1-866-452-7726
SCOTTSDALE
TM
SINGLE HANDLE
COMMERCIAL STYLE PULL
DOWN KITCHEN FAUCET
Register Online:
www.karran.com/productregistration
Save this instruction sheet for future reference
Tools you may need:
Silicone
Karran USA - 1291 East Ramsey Rd, Vincennes, IN 47591 - T: 866.452.7726 F: 812.885.2440 - www.karran.com
We reserve the right to update product installation
instructions without notice. Please visit karran.com
for the most current installation instructions.
Image is for reference only
Installation Guide
REV. 01/15/2026
KKF210SFSS
MODEL
Spot Free Stainless Steel
Chrome
Matte Black
Brushed Copper
Oil Rubbed Bronze
Spot Free Champagne Bronze
Matte Black/Spot Free Brushed Gold
Matte Black/Spot Free Stainless Steel
Matte Black/Spot Free Champagne Bronze
Matte Black/Spot Free Gunmetal Grey
FINISH
KKF210C
KKF210MB
KKF210BC
KKF210ORB
KKF210SFCB
KKF210MBSFBG
KKF210MBSFSS
KKF210MBSFCB
KKF210MBSFGG
Gold
KKF210G
KKF210SS
Stainless Steel
R
Spot Free Brushed Gold
KKF210SFBG
Spot Free Gunmetal Grey
KKF210SFGG
! TIPS FOR REMOVING YOUR OLD FAUCET
Turn your water supply off before removing your old faucet. Open the faucet handle to relieve
any water pressure and to make sure that complete water shut off has been achieved.
Care & Maintenance
To clean, rinse with clean water and dry with a soft cloth. Do not clean with soaps, polish,
abrasives or harsh cleaners, they can cause damage to the finish. Do not use any cloth with a
coarse finish. Clean the aerator when needed.
2
Parts List
1. Spray Head
2. Main Body
3. Base
4. Rubber Washer A
5. Rubber Washer B
6. Metal Washer
7. Mounting Hardware
8. Spray Hose
9. Weight
10. Hex Wrench
1
6
2
4
3
7
8
5
9
10
R
3
Technical Drawing
8 5/8"
(219mm)
18 5/8"
472mm)
6 5/8"
(169mm)
Max 1 3/8"
(35mm)
Ø1 11/32"
~
1 13/32"
(Ø34
~
36mm)
Hot
water
Cold
water
R
4
1. Remove the mounting harware (7), metal washer
(6) and rubber washer B (5) from the main body (2).
Ø1 11/32"
~
1 13/32"
(Ø34
~
36mm)
2. Insert the main body (2) into the hole with the
base (3) and rubber washer A (4). Refix the rubber
washer B (5), metal washer (6) and mounting
hardware (7) from below the countertop or sink.
1
7
6
5
2
2
Installation Steps
2
5
6
7
3
4
RR
4. Connect the spray hose (8) and the spray head
(1) to the faucet.
5
3. After adjusting the direction of the main body (2),
tighten the mounting hardware (7) by hand and
tighten the screws with a Phillips screwdriver.
4
3
5. Attach the weight (9) onto the spray hose (8).
6. Connect the waterlines to the water valves until
snug. Turn on the water valves and check for leaks.
5 6
8
9
Weight here
1
8
9
2
7
R
6

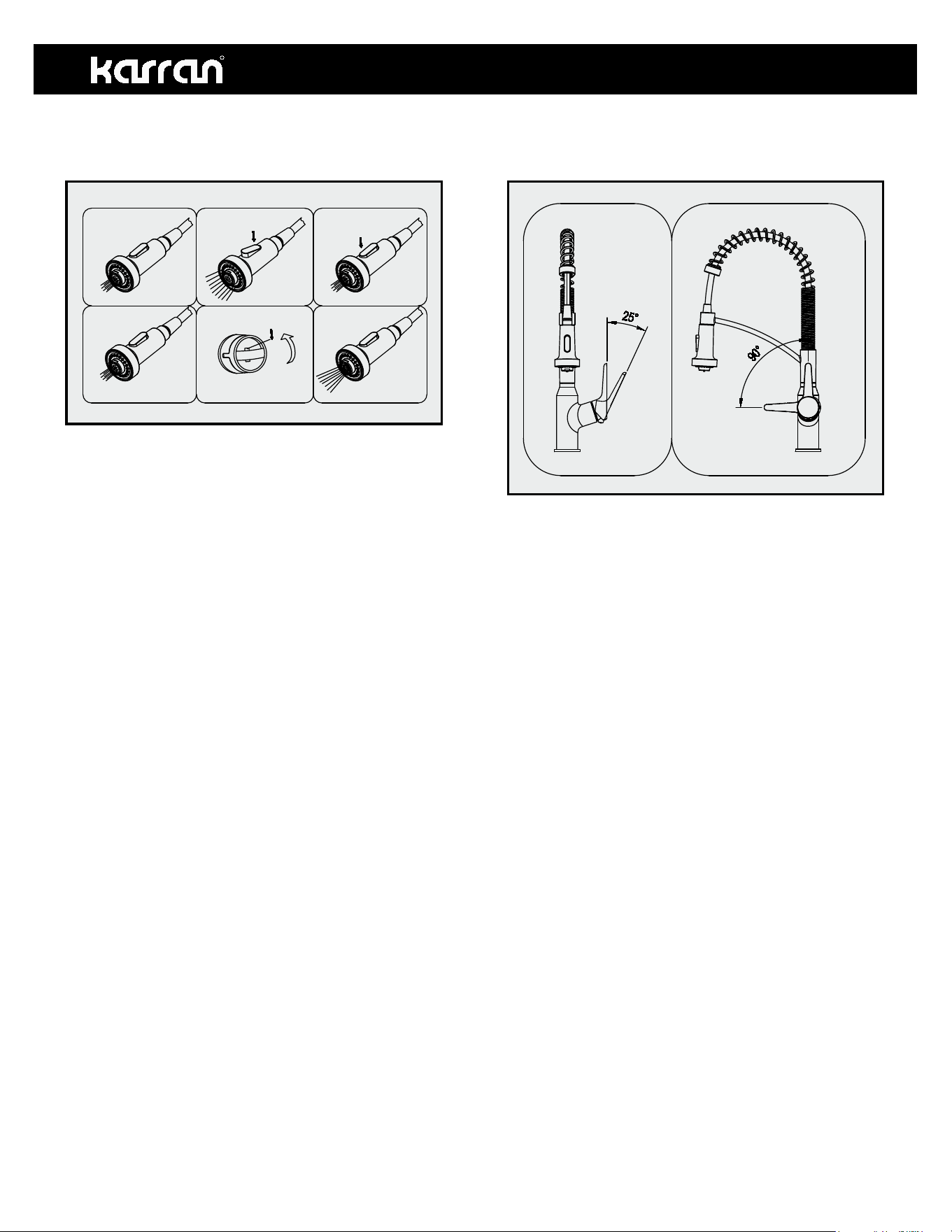

1. Open the handle lever to turn the water on. Push
closed to turn off.
2. Turn the handle lever to the left to increase hot
water flow with higher water temperature, turn the
handle lever to the upright position to increase cold
water flow with lower water temperature.
1. When first turned on, water comes from the
aerator.
2. Press the top of the button and water comes from
the spray nozzles.
3. Press the bottom of the button and water comes
from the aerator.
4. The spray head button automatically returns to
normal position once the handle is closed.
5. You can rotate the aerator 180° by hand using
the little knob. One side is stream and the other is
focused. You must make sure the knob is flat once
flipped or you may see an uneven water distribution.
Faucet Operation
Handle
Spray Head
OPEN
CLOSE
Left
Hot water
Right
Cold
water
Press
Press
Rotate
Aerator
Focused
R
1. Spray Head
2. Washer
3. Spray Hose
4. Spring Assembly
5. Spray Support Assembly
7. Main Body
8. 35A Cartridge
9. Nut
10. Cap
11. Handle
15. Weight
16. Waterline
17. Waterline
13. Rubber & Metal Washers
14. Mounting Nut & Screws
18. Supply Hose
19. Hex Wrench
Description Finishes Item No.
KPFSH001
70020051130
KPFSL001
500600410
400601991
50060033800
100300513
KPFCT001
40060191418
500101091
KPFHD001
500101638
70020037354
40060185018
KPFW001
50042078561
50042078566
50040196200
50060003700
7
6. Set Screw
12. Base
BC, SFCB, C, G, MB,
MBSFBG, MBSFSS,
MBSFCB, MBSFGG,
SFSS, ORB, SFGG,
SFBG, SS*
BC, SFCB, C, G, MB,
MBSFBG, MBSFSS,
MBSFCB, MBSFGG,
SFSS, ORB, SFGG,
SFBG, SS*
BC, SFCB, C, G, MB,
MBSFBG, MBSFSS,
MBSFCB, MBSFGG,
SFSS, ORB, SFGG,
SFBG, SS*
BC, SFCB, C, G, MB,
MBSFBG, MBSFSS,
MBSFCB, MBSFGG,
SFSS, ORB, SFGG,
SFBG, SS*
Replacement parts
17
13
12
15
16
14
4
5.2
6
7
9
11.2
8
10
11.1
11.3
5.1
5
11
3
1.2
1.1
1
2
19
18.1
18.2
18.3
18
1.3
1.4
1.5
1.4. Aerator
KPFAR001
R
*Denotes faucet component color options:
BC - Brushed Copper
SFCB - Spot Free Champagne Bronze
C - Chrome
G - Gold
MB - Matte Black
MBSFBG - Matte Black/Spot Free Brushed Gold
MBSFSS - Matte Black/Spot Free Stainless Steel
MBSFCB - Matte Black/Spot Free Champagne Bronze
MBSFGG - Matte Black/Spot Free Gunmetal Grey
SFSS - Spot Free Stainless Steel
ORB - Oil Rubbed Bronze
SS - Stainless Steel
SFBG - Spot Free Brushed Gold
SFGG - Spot Free Gunmetal Grey
BL - Black
GR - Grey
BL, GR*
Warranty
Products Subject to this Limited Lifetime Warranty
This Limited Lifetime Warranty applies only to faucets manufactured and sold by Karran USA (the “Company”) (the “Products”).
Who is Entitled to this Limited Lifetime Warranty
The Company grants this Limited Lifetime Warranty solely in favor of the original purchaser of the Products (the “Original Purchaser”), but to no other person or entity whatsoever. No person or entity, other than
the Original Purchaser, shall have any right to assert any claim under this Limited Lifetime Warranty, or otherwise, in connection with the Products. This Limited Lifetime Warranty is personal to the Original
Purchaser and may not be transferred by the Original Purchaser to any other person or entity, by contract, operation of law, transfer of the property into which the Products are installed, or otherwise.
Commercial Warranty
The Company warrants its Products for a period of (1) year to commercial purchasers of Products used in industrial, commercial and business applications.
Length of this Limited Lifetime Warranty
This Limited Lifetime Warranty shall begin on the date the Products are purchased from an authorized Company dealer. The structure and finish of the product are warranted to be free from defects in material and
workmanship under normal usage for the lifetime of the product. The mechanical components such as but not limited to sprayer head assembly (includes engine, aerators, structure, restrictors, back flow
preventers, sprayer hoses, braided supply line hoses which encompasses nylon, silicone and stainless steel, etc.) of the product are warranted to be free from defects in material and workmanship under normal
usage for a period of one (1) year from the date of purchase. The mechanical component (cartridge) of the product is warranted to be free from defects in material and workmanship under normal usage for a
period of five (5) years from the date of purchase. THIS LIMITED LIFETIME WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED
WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE AND MERCHANTABILITY.
Please note that some states/provinces (including Quebec) do not allow limitations on how long an implied warranty lasts, so the below limitations may not apply to you. TO THE MAXIMUM EXTENT
PERMITTED BY APPLICABLE LAW, ANY IMPLIED WARRANTY, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND OF FITNESS FOR A PARTICULAR PURPOSE, IS LIMITED TO
THE STATUTORY PERIOD OR THE DURATION OF THIS WARRANTY, WHICHEVER IS SHORTER.
What is Warranted
Subject to the conditions and limitations set forth in this Limited Lifetime Warranty, the Company warrants to the Original Purchaser that during the Warranty Period the Products will be free from manufacturing and
design defects when used under normal conditions and maintained properly.
What the Company Will Do
In the event that any Product fails to comply with this Limited Lifetime Warranty, the Company will free of any cost to you:
1. Provide a replacement part, or component that proves to be defective, or
a. If the product cannot be economically repaired, replace the product with the same or a comparable product, or
b. If the same or a comparable model product is not available, make a reasonable monetary adjustment, taking into account the age of the defective product; provided that
c. In no event will our liability exceed the price you paid for the product (including tax and shipping).
2. We will pay all shipping costs of returning a product to us for inspection (if we make that request) and of sending replacement parts, components, or products to you.
THE FOREGOING DESCRIBES THE COMPANY'S SOLE LIABILITY, AND THE ORIGINAL PURCHASER'S SOLE REMEDY, FOR ANY BREACH OF WARRANTY IN RESPECT OF THE PRODUCTS. THE
COMPANY SHALL NOT BE LIABLE FOR, ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING LABOR CHARGES TO REPAIR, REPLACE, INSTALL OR REMOVE THIS PRODUCT),
WHETHER ARISING OUT OF BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, BREACH OF CONTRACT, TORT, OR OTHERWISE.
How to Make a Claim
To make a claim under this Limited Lifetime Warranty, the Original Purchaser must notify the Company in writing or by phone of any claimed defect in a Product. Such notice must be given promptly following
discovery of the claimed defect. The Original Purchaser must submit with such notice proof of purchase and proof of the date of purchase of the Product claimed to be defective. Notification shall be provided to:
USPS Email: [email protected]
Karran USA Phone: 866-452-7726
Attention: CLAIMS
PO Box 667
Vincennes, IN 47591
The Company shall then promptly inspect, by means of digital photography or video supplied by the customer, the claimed defect and if such examination does disclose a defect covered by this warranty, shall,
within thirty (30) days after inspection provide replacement parts for the defective Product (as it shall elect in its sole and absolute discretion), subject to the terms set forth above.
Limitations
1. The Company shall not be liable under this Limited Lifetime Warranty for any of the following:
A. Defects in or failure of the Products caused by accidents, physical abuse or misuse of the Products.
B. Defects in or failure of the Products caused by installation of the Products not in strict adherence with the written instructions of the Company.
C. Defects in or failure of the Products caused by improper care or maintenance of the Products abrasive cleaners such as powders, ammonia, alcohol or chlorine or chlorine or the use of abrasive pads,
steel wool or wire brushes.
D. Breakage of the Product that is not due to a defect in the manufacture of the Products.
E. Any damage to the Products caused by impact of foreign objects, earthquake, or other acts of God or by fire, explosion or other casualty.
F. Defects in, failure of, or damage to the Products caused by materials adjacent to the Products.
G. Damage to the Products caused by alteration after completion of their installation by anyone who is not authorized by the Company in writing, whether such alteration be by structural additions,
changes, replacements or by equipment installation.
H. Changes in the Products due to gloss reduction, scratching, staining or alkaline etching of the finish over time due to use, cleaning practices or water conditions, all of which are not manufacturing
defects but are indicative of normal wear and tear.
I. This warranty does not cover Products that were discontinued when purchased or display Products, whether such Products were purchased at discount outlets, unauthorized dealers, and/or sold on
clearance. This warranty does not cover any free gifts included with purchase.
2. IN NO EVENT SHALL THE COMPANY BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES OF ANY KIND, INCLUDING, BUT NOT LIMITED TO, ANY DAMAGE TO THE PROPERTY IN
WHICH A PRODUCT IS INSTALLED, ITS CONTENTS OR ANY PERSON THEREIN. NO FIELD REPRESENTATIVE, DISTRIBUTOR OR DEALER OF THE COMPANY IS AUTHORIZED TO MAKE ANY
CHANGE OR MODIFICATION TO THIS LIMITED LIFETIME WARRANTY. SOME STATES/PROVINCES (INCLUDING QUEBEC) MAY NOT ALLOW LIMITATIONS ON OR THE EXCLUSION OF INCIDENTAL
OR CONSEQUENTIAL DAMAGES, SO THE ABOVE EXCLUSIONS MAY NOT APPLY TO YOU.
The invalidity, illegality or unenforceability of any one or more provisions of this Limited Lifetime Warranty shall in no way affect or impair the validity, legality or enforceability of the remaining provisions, which shall
remain in full force and effect.
Legal Remedies
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state and province to province. 04-1-24
8
