INSTALLATION GUIDE
KKF240C KKF240SS
Models:
Karran USA Tel: 866.452.7726 www.karran.com info@karran.com
Weybridge

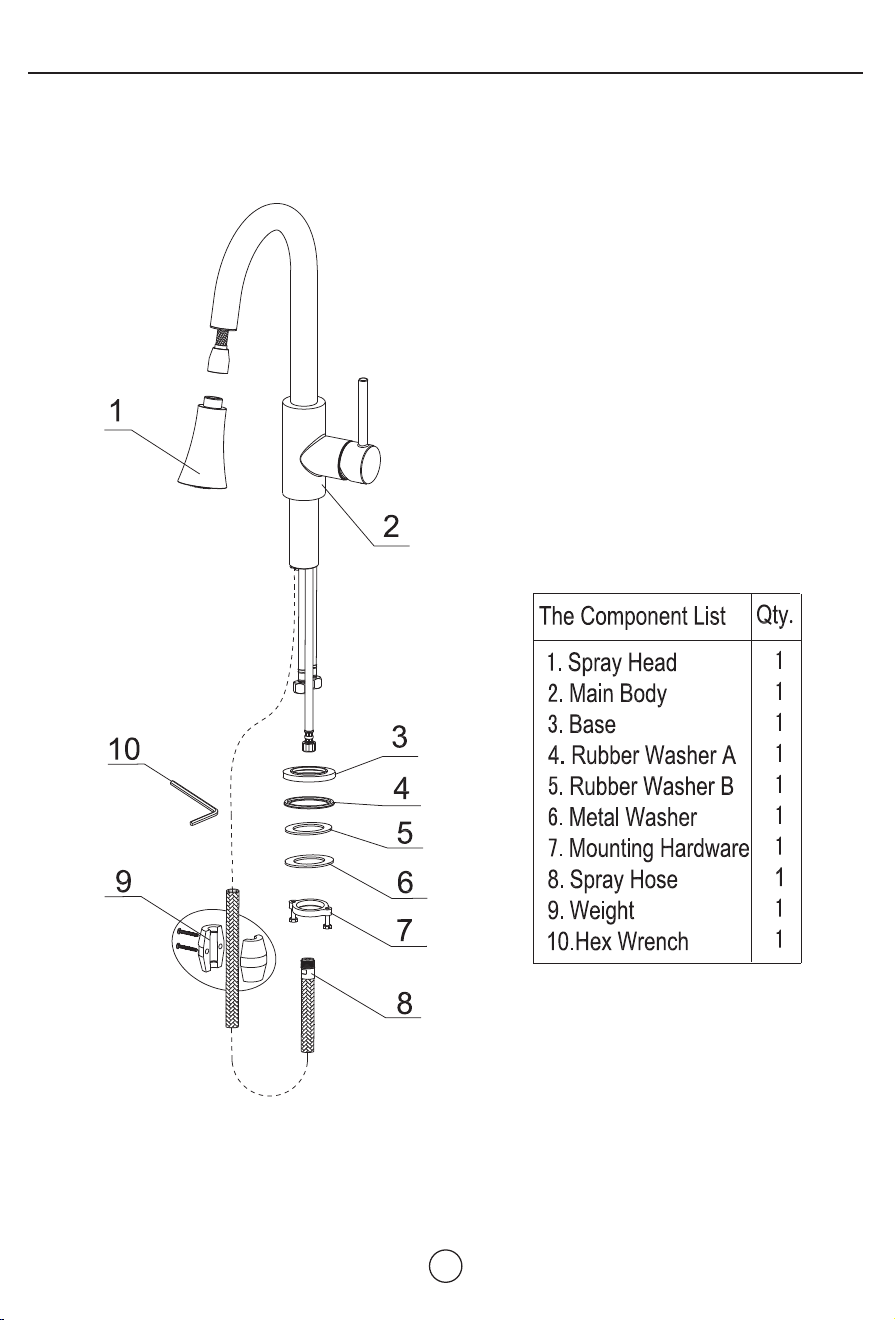

PARTS SHEET KKF240**
1

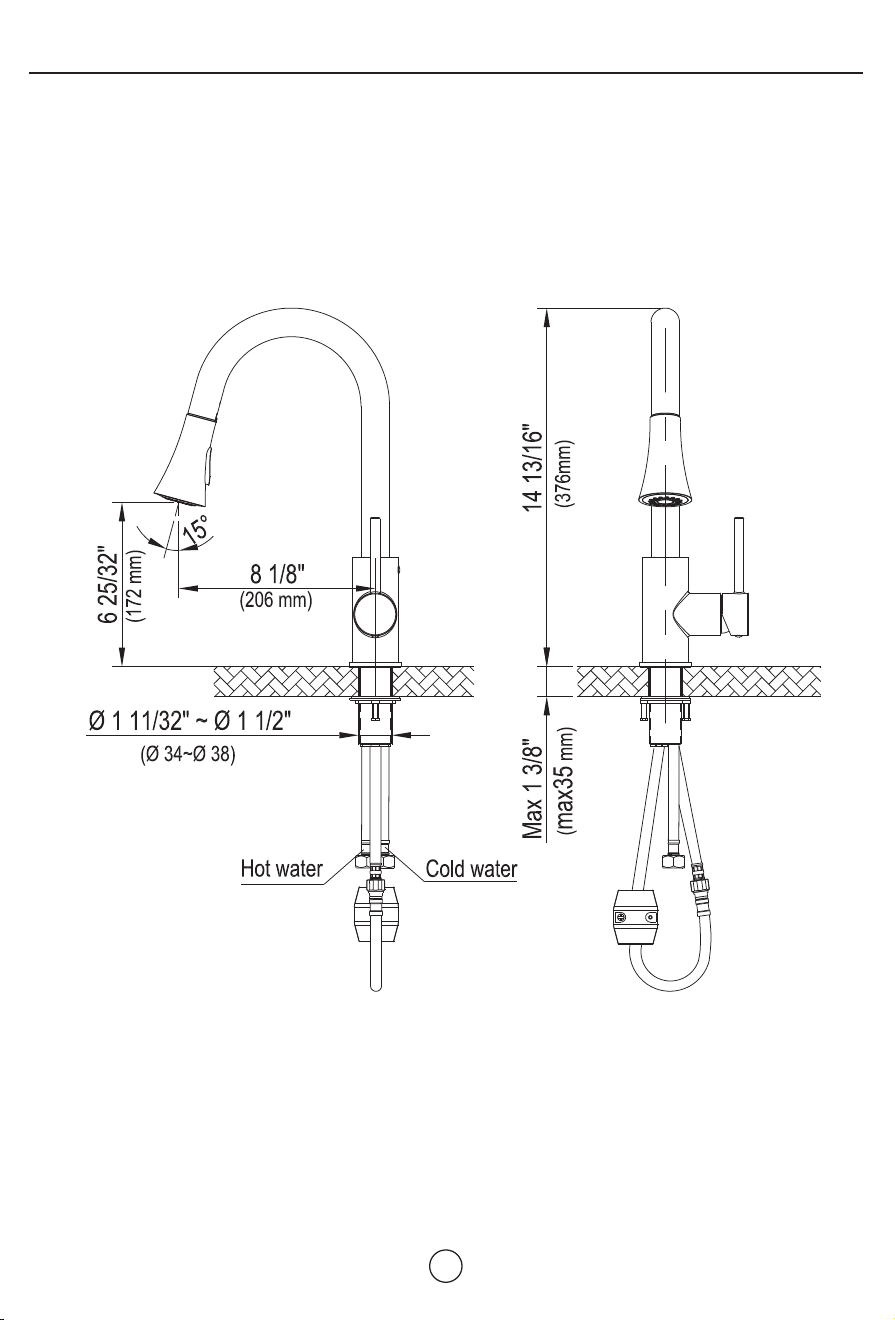

TECHNICAL DRAWING
2
3
INSTALLATION GUIDE
STEP 1
STEP 2

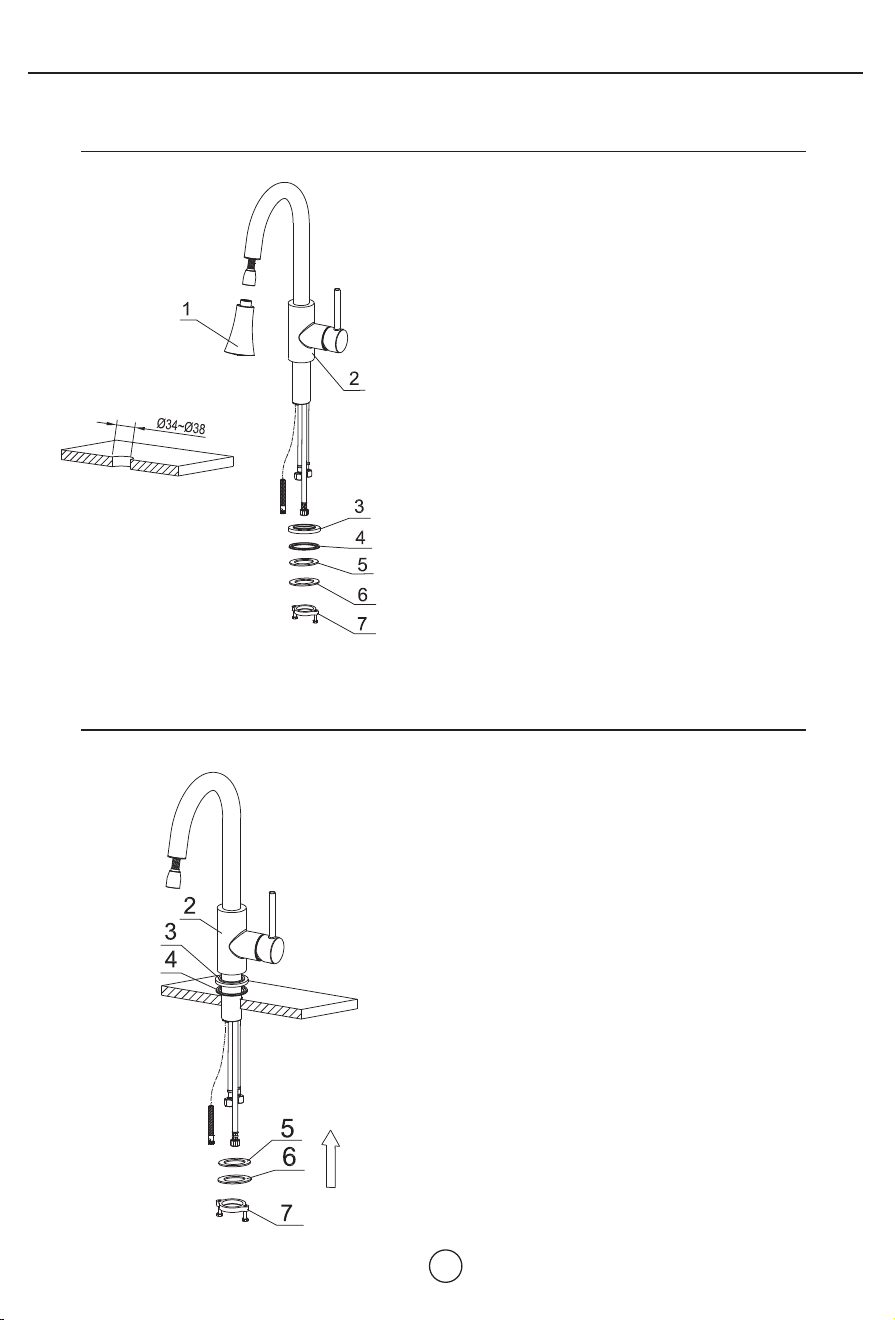

1. Remove the mounting hardware(7),
metal washer(6), rubber washer B(5)
from the main body(2)；
2. Insert the main body into the hole with
base(3) and rubber washer A(4), refix
the rubber washer B(5), metal washer(6)
and mounting hardware(7) from the bottom.
4
STEP 3
STEP 4
INSTALLATION GUIDE

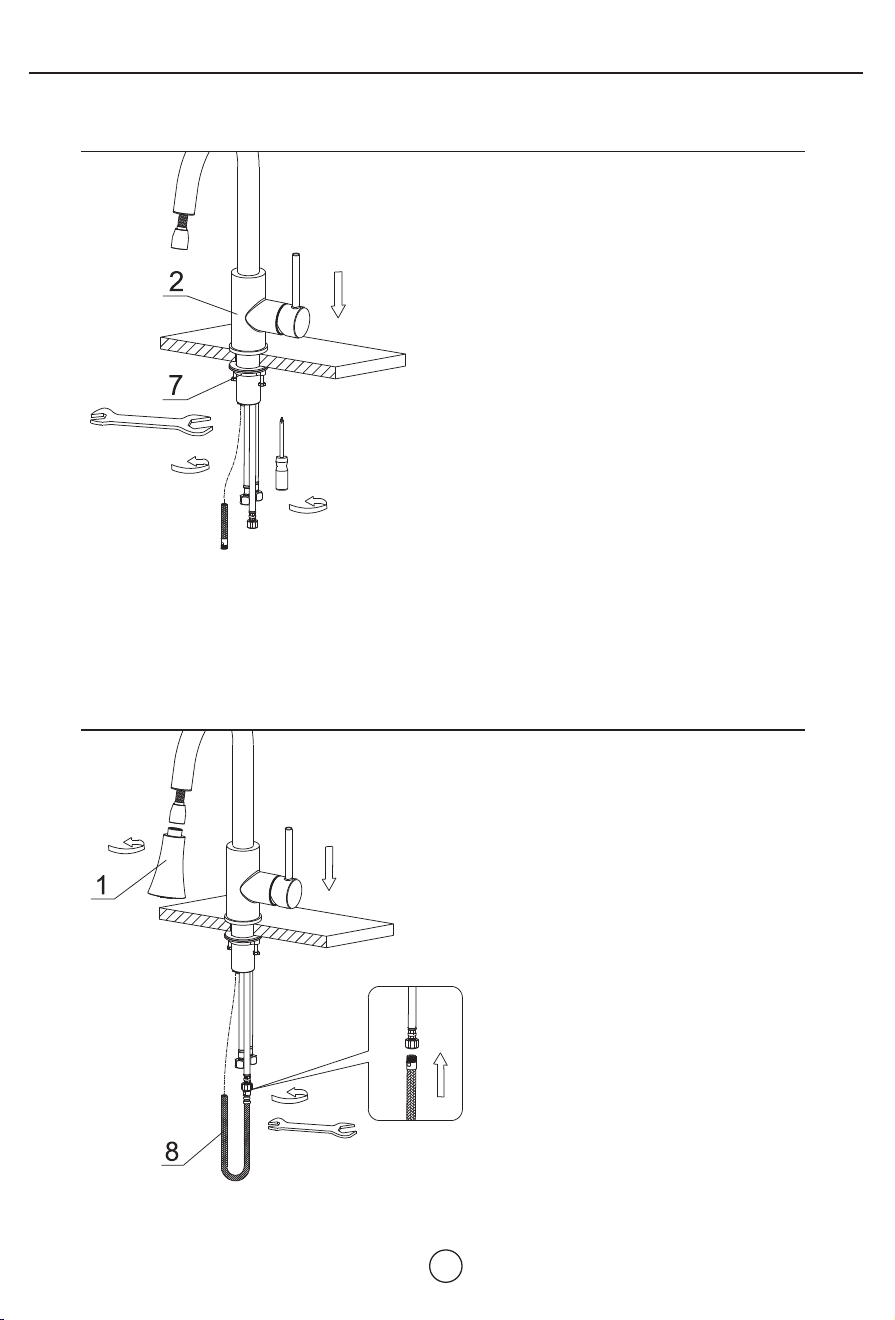

3. After adjusting the direction of the main
body(2), tighten the mounting nut(7) with
hands and tighten the screws with a
Philips screwdriver.
4. Connect the spray hose(8) and spray
head(1) to finish installation.
INSTALLATION GUIDE
5
STEP 5
STEP 6

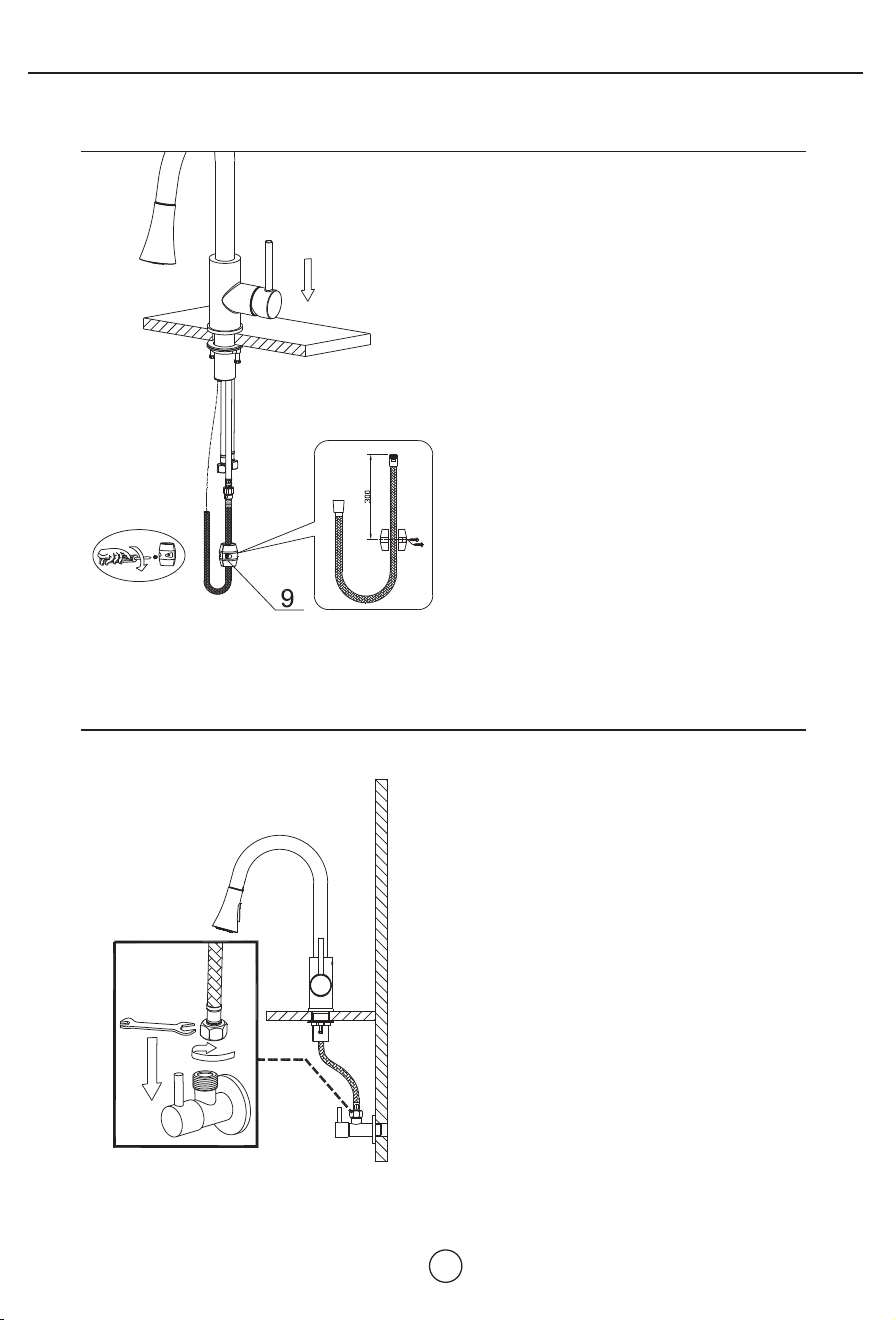

5. Attach the weight(9) on the
spray hose(8).
6. Connect the waterlines to outlet tightly.
Turn on the outlet and check for leaks.
OPERATION
6

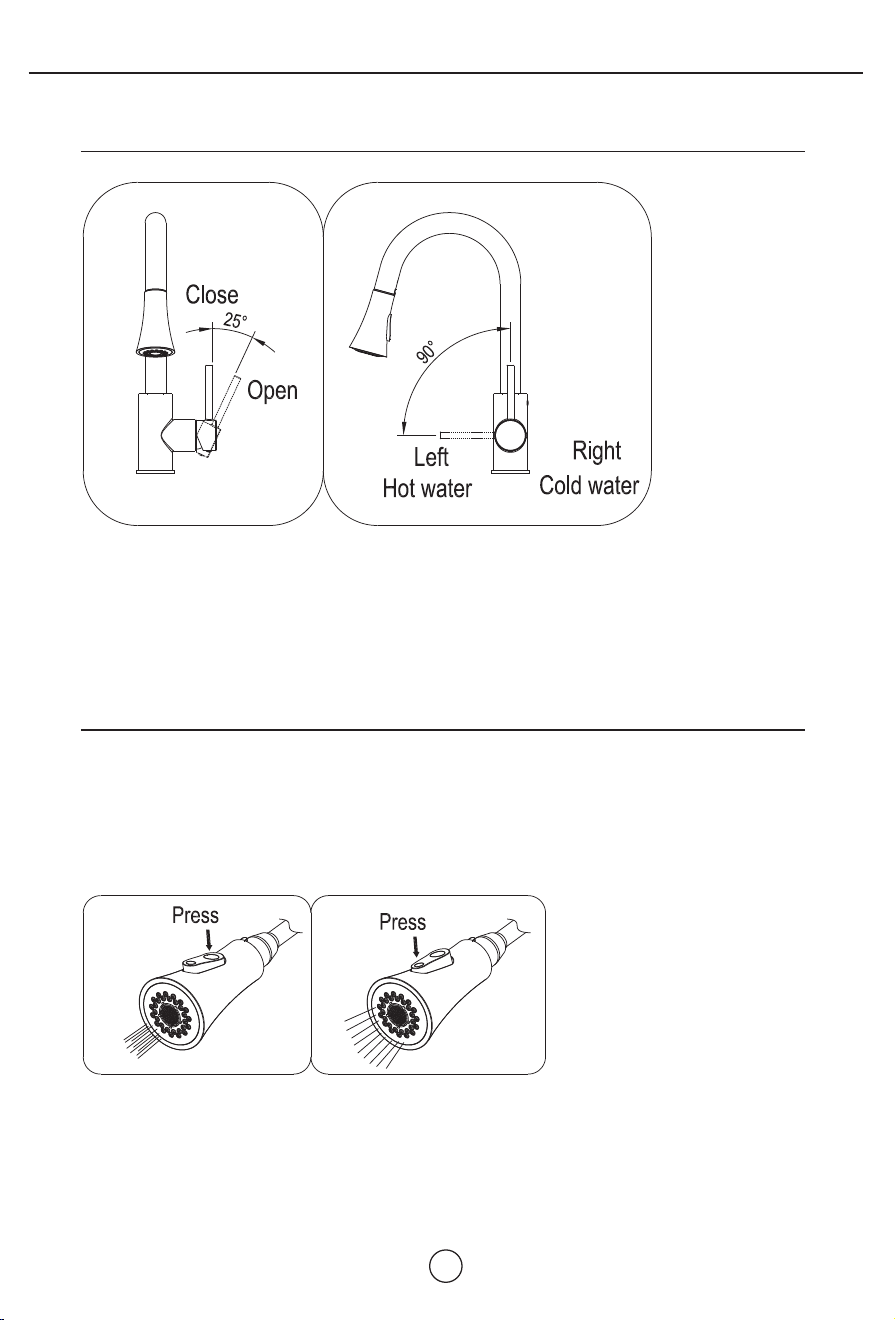

How to operate the handle:
Spray
1) Open the handle lever to turn water on. Push to turn off.
2) Turn the handle lever to the left to increase hot water flow with higher water temperature,
while lower the water temperature by operating reversely.
The operation of the spray diverter:
1) When first turned on, water comes from aerator.
2) Press the botton back, stream water comes from aerator.
3) Press the botton front, spray water comes from nozzles.

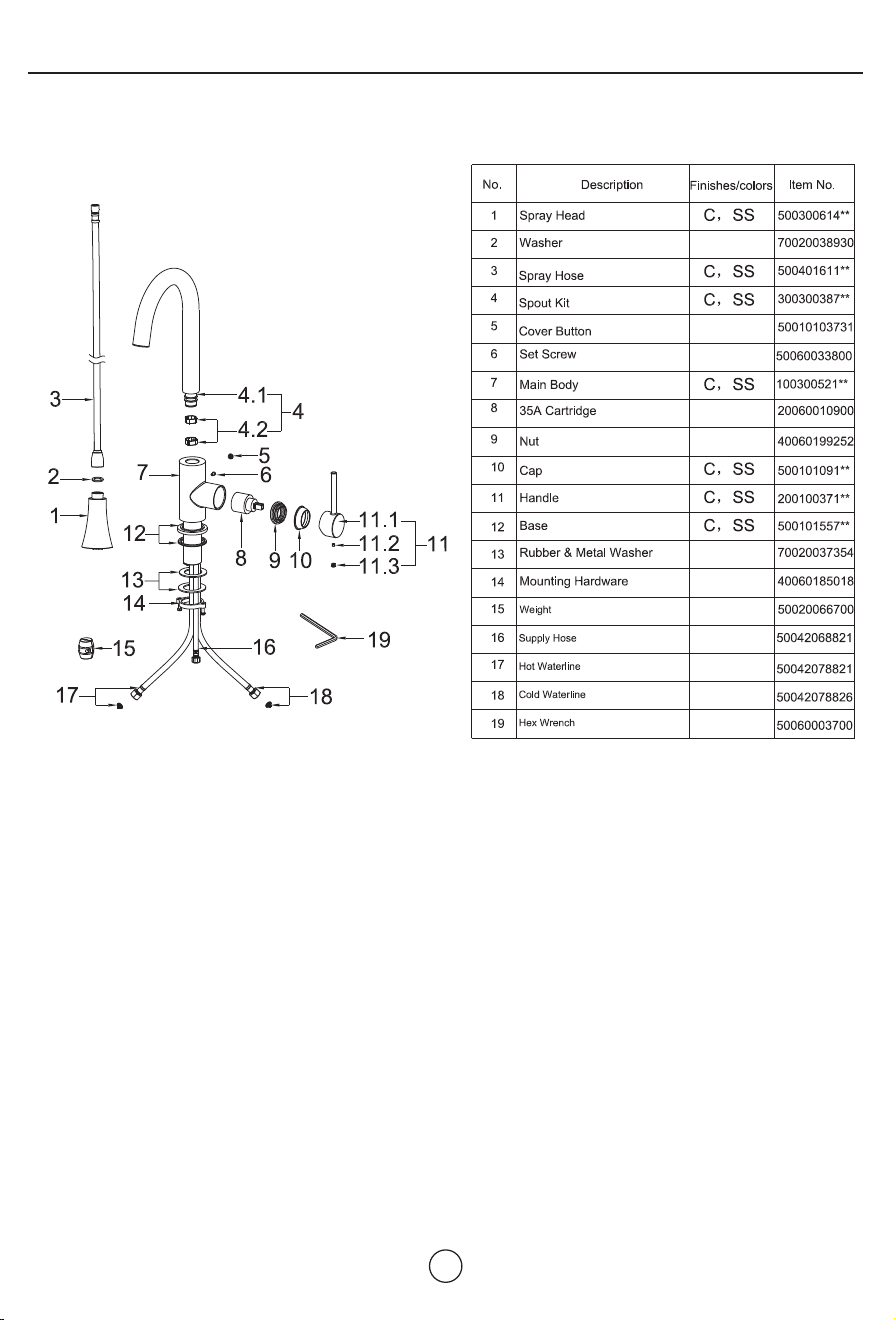

REPLACEMENT PARTS
** Denotes faucet component color options:
C - Chrome
SS - Spot Free Stainless Steel
7
