Thank you for purchasing this KOBALT product.
Questions, problems or missing parts?
Before returning, contact us on:
888-356-2258, 8 a.m. - 8 p.m., EST, Monday - Sunday or [email protected].
2
FCC DECLARATION
TABLE OF CONTENTS
Introduction...........................................................................................................................................
Features, Controls and On -Product Hazard Labels.............................................................................
Operating Instructions...........................................................................................................................
Maintenance - Storage..........................................................................................................................
Troubleshooting- Specications............................................................................................................

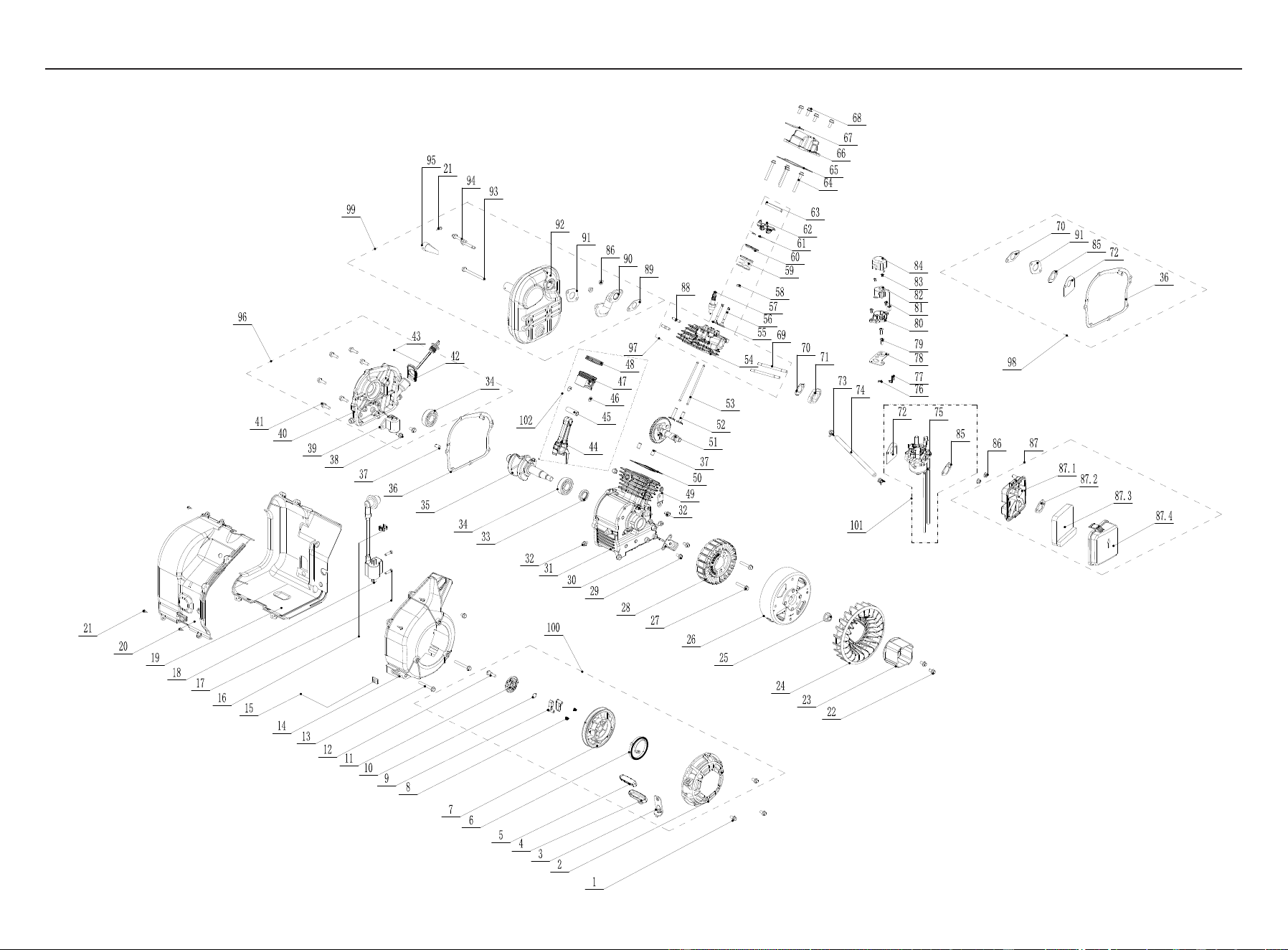

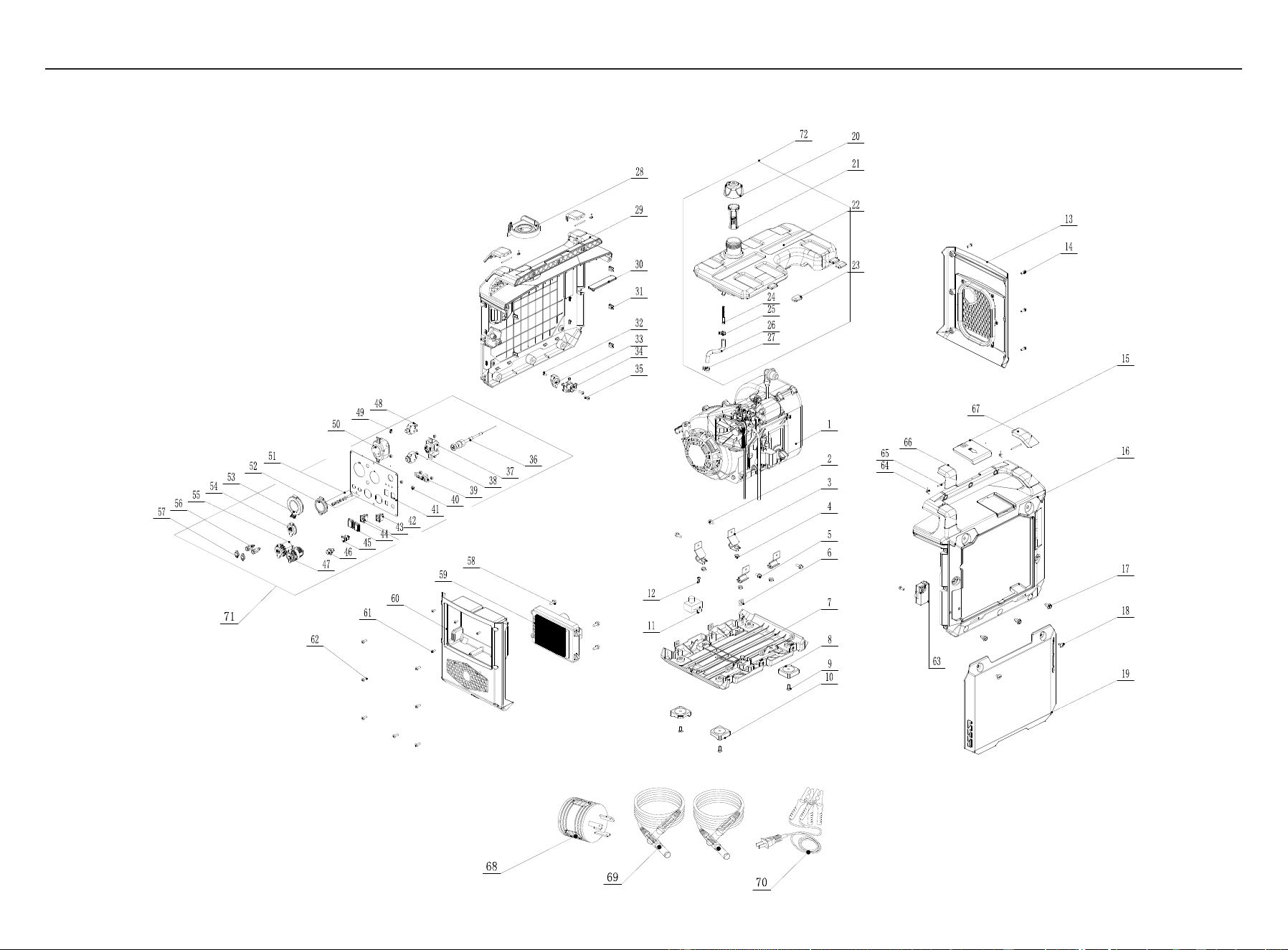

Replacement Parts Lists ......................................................................................................................

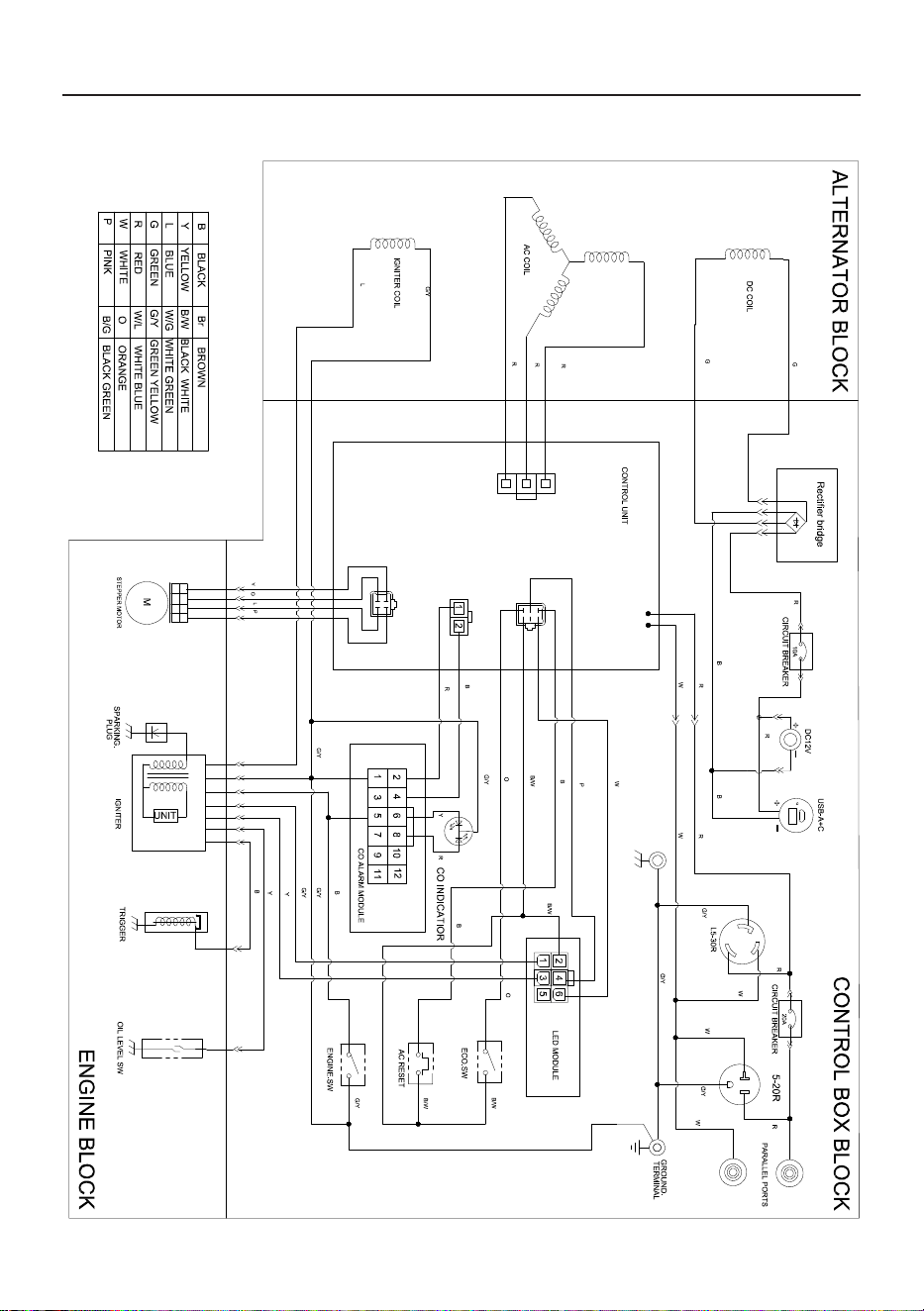

Wiring Diagram ....................................................................................................................................
Service - Warranty ................................................................................................................................
3
7
14
27
33
35
38
40
Supplier’s Declaration of Conformity
47 CFR § 2.1077 Compliance Information
KOBALT W02083 INVERTER GENERATOR
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1a. This device may not cause harmful interference.
1b. This device must accept any interference received, including interference that may cause
undesired operation.
2. Changes or modications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
NOTE: The KOBALT W02083 inverter generator has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the
equipment o and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
FCC/IC Compliance Statement
Changes or modications to equipment not expressly approved by KOBALT could void the user’s
authority to operate the equipment.
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit dierent from that to which the receiver is
connected.
● Consult the dealer or an experienced radio/TV technician for help.
3
Thank you for purchasing a KOBALT generator. You have selected a high-quality, precision engineered
generator set designed and tested to give you years of satisfactory service. This generator is designed
to run only on unleaded gasoline. This generator is not intended to be run unattended or to supply
power to life safety support.
This manual contains safety information to make you aware of the hazards and risks associated with
generator products and how to avoid them. This generator is designed and intended only for supplying
electrical power for operating compatible electrical lighting, appliances, tools and motor loads, and
is not intended for any other purpose. It is important that you read and understand these instructions
thoroughly before attempting to start or operate this inverter generator. Save these original instructions
for future reference.
All information in this publication is based on the latest production information available at the time of
approval for printing. The manufacturer reserves the right to change, alter or otherwise improve the
generator and this documentation at any time without prior notice.
INTRODUCTION
4
INTRODUCTION

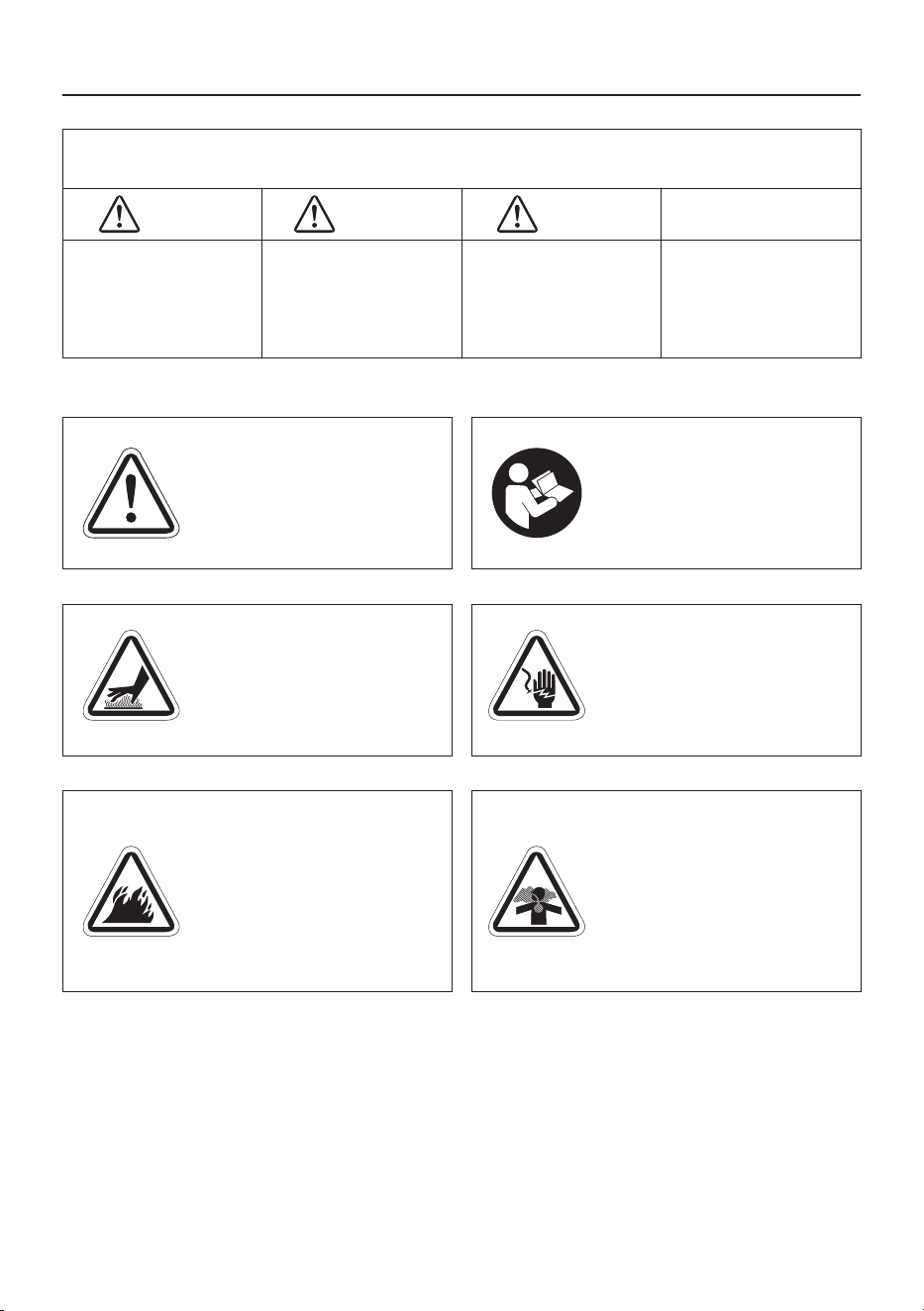

SIGNAL WORDS
WARNING
Indicates a hazard
which, if not avoided,
could result in death
or serious injury.
DANGER
Indicates a hazard
which, if not avoided,
will result in death or
serious injury.
Safety Alert Symbol Indicates
a potential personal injury
hazard.
Operator's Manual Failure to
follow warnings, instructions
and operator's manual could
result in death or serious injury.
Toxic Fumes- Engine exhaust
contains carbon monoxide, a
poisonous gas that will kill
you in minutes. You cannot
smell it or see it.
Generator could cause
electrical shock resulting in
death or serious injury.
Fire- Fuel and its vapors are
extremely ammable which
could cause burns or re
resulting in death or serious
injury. Engine exhaust could
cause re resulting in death
or serious injury.
Hot Surface- Muffler could
cause burns resulting in
serious injury.
CAUTION
Indicates a hazard
which, if not avoided,
could result in minor or
moderate injury.
NOTICE
Indicates information
considered Important,
but not hazard-related.
5
INTRODUCTION
WARNING! This product can expose you to chemicals including gasoline engine
exhaust, which is known to the State of California to cause cancer, and carbon
monoxide, which is known to the State of California to cause birth defects or other
reproductive harm. For more information go to www.P65Warnings.ca.gov.
This outdoor generator can be used to power outdoor items using extension cords .
NOTICE
：
If you have questions about intended use, contact KOBALT customer service. This inverter
generator is designed to be used only with KOBALT authorized parts.
System Ground
The generator neutral is oating, which means that the AC stator winding is isolated from the grounding
fastener and the AC receptacle ground pins. On a oating neutral generator the AC receptacle ground
pins are not functional. Electrical devices, such as a ground fault circuit interrupter (GFCI), requiring a
functioning AC receptacle ground pin will not operate.
Compliance Requirements
There may be Federal or State regulations, local codes, or ordinances that apply to the intended
use of the generator. Consult a qualied electrician, electrical inspector, or the local agency having
jurisdiction. This generator is not intended to be used at a construction site or similar activity as dened
by NFPA 70-2020 (NEC) section 590.6.
To Restore Power Using Extension Cords
6
INTRODUCTION
1. Only use grounded cords marked for outdoor use rated for your loads.
2. Follow cord safety instructions.

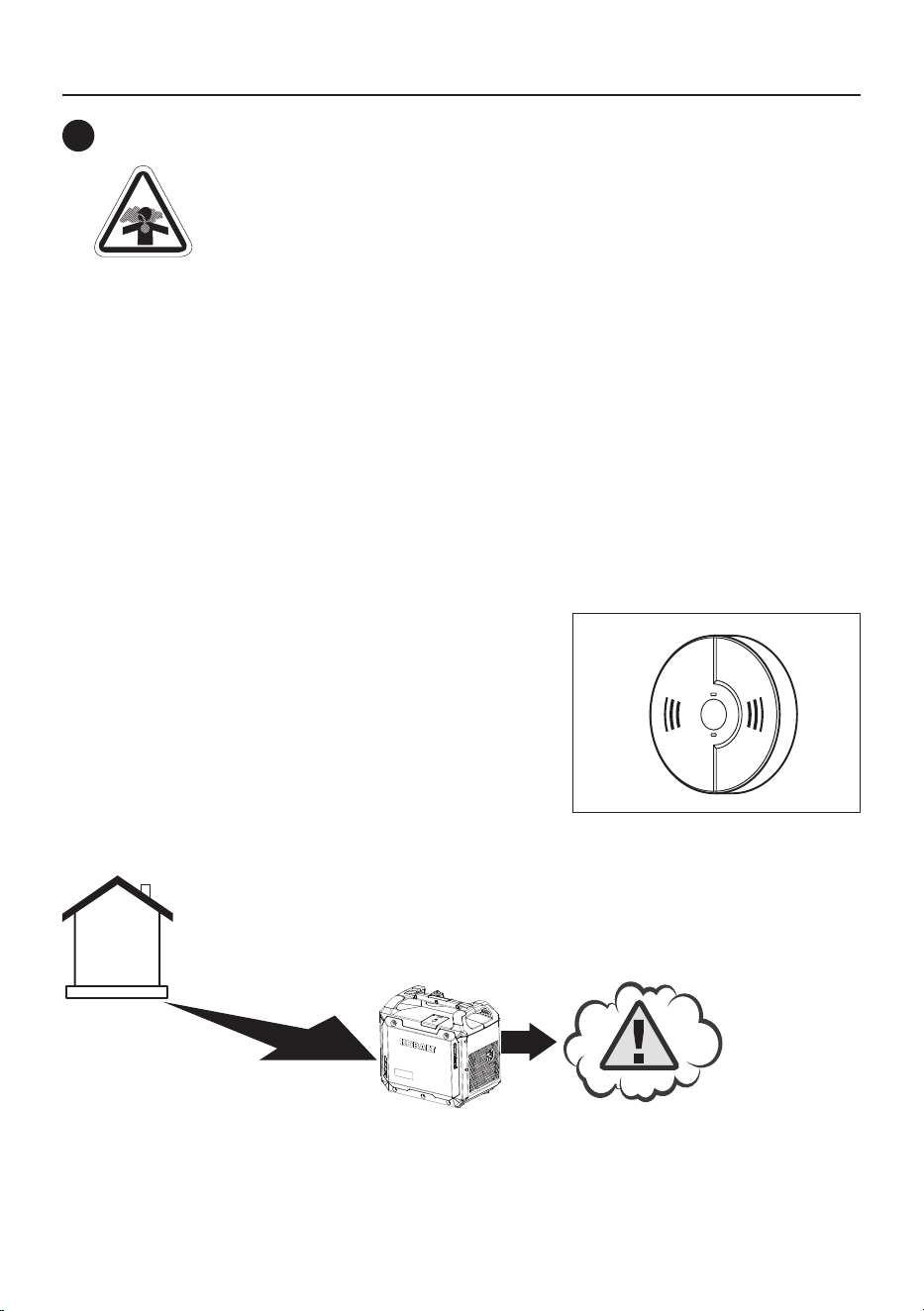

3. Install carbon monoxide alarm(s).
4. When operating portable generator with extension cords, make sure portable generator is located
in an open, outdoor area, at least 20 ft. (6 m) from occupied spaces with exhaust pointed away.
5. Extension cords running directly into your home, powering indoor items IS NOT RECOMMENDED.
Total
Amperage
Up to 13A
Up to 15A
Up to 20A
Up to 30A
Minimum Gauge, Outdoor Rated
Up to 50 FT (15m)
To provide power using
extension cords
16
14
12
10
DANGER! Engine exhaust contains carbon monoxide, a poisonous gas that will kill
you in minutes. You cannot smell it, see it, or taste it. Even if you do not smell
exhaust fumes, you could still be exposed to carbon monoxide gas.
● Extension cords running directly into the home increase your risk of carbon monoxide poisoning
through any openings.
● If an extension cord running directly into your home is used to power indoor items, the operator
recognizes that this increases the risk of CO poisoning to people inside the home and assumes
that risk.
7

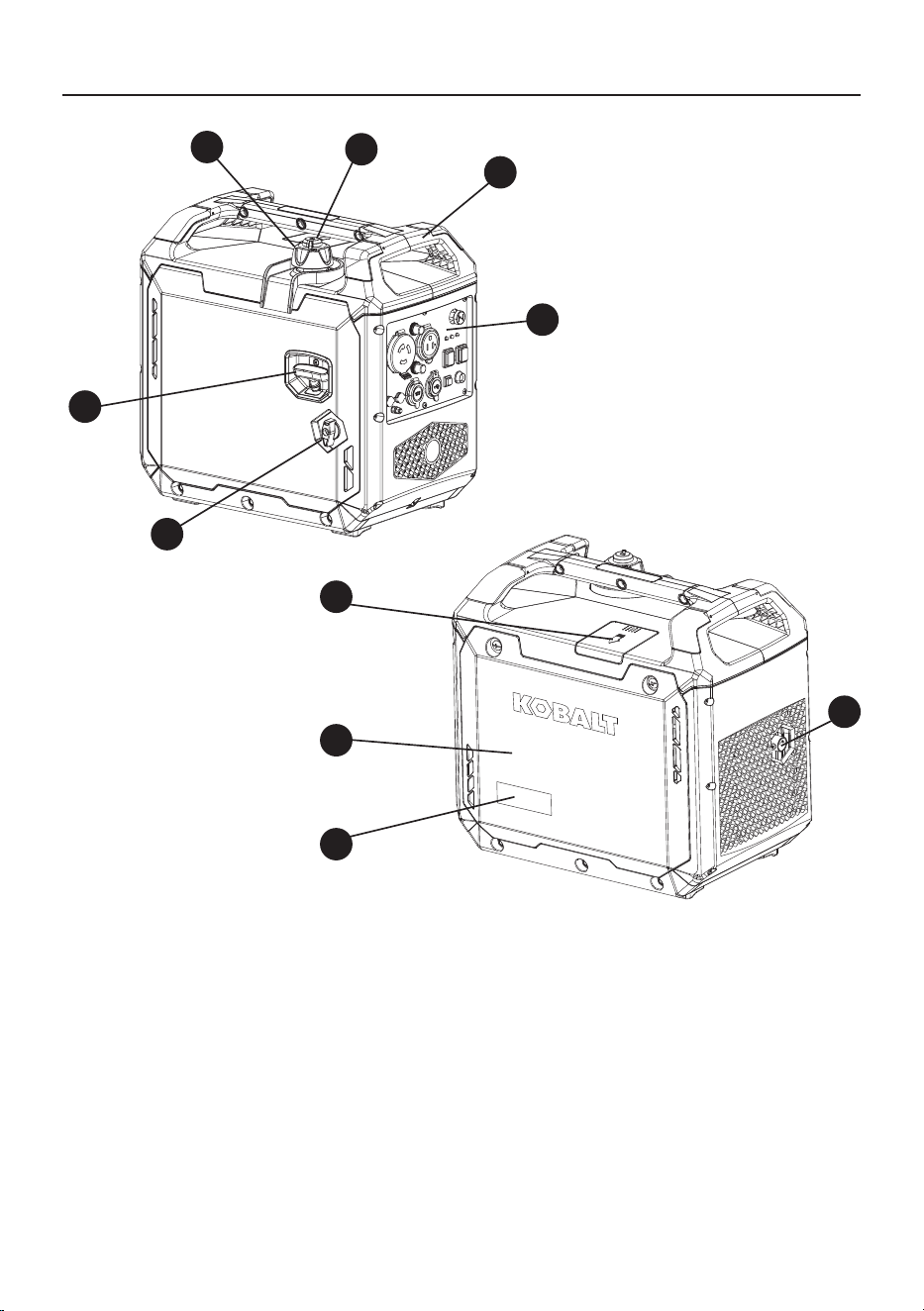

FEATURES, CONTROLS AND ON-PRODUCT HAZARD LABELS
1- Fixed Carrying Handle
2- Fuel Lever Vent
Turn this valve to the “ON” position to supply air to the tank.
3- Fuel Cap
4- Recoil Starter
5- Fuel Valve switch
6- Control Panel
7- Spark Plug Maintenance Cover
8- Muer/Spark Arrester
9- Maintenance Cover – Oil ller and air lter access.
10- Data Decal / Serial Number
*We are always working to improve our products. Therefore, the enclosed product may dier slightly
from the image on this page.
3
2
6
1
4
5
7
9
10
8
8
FEATURES, CONTROLS AND ON-PRODUCT HAZARD LABELS

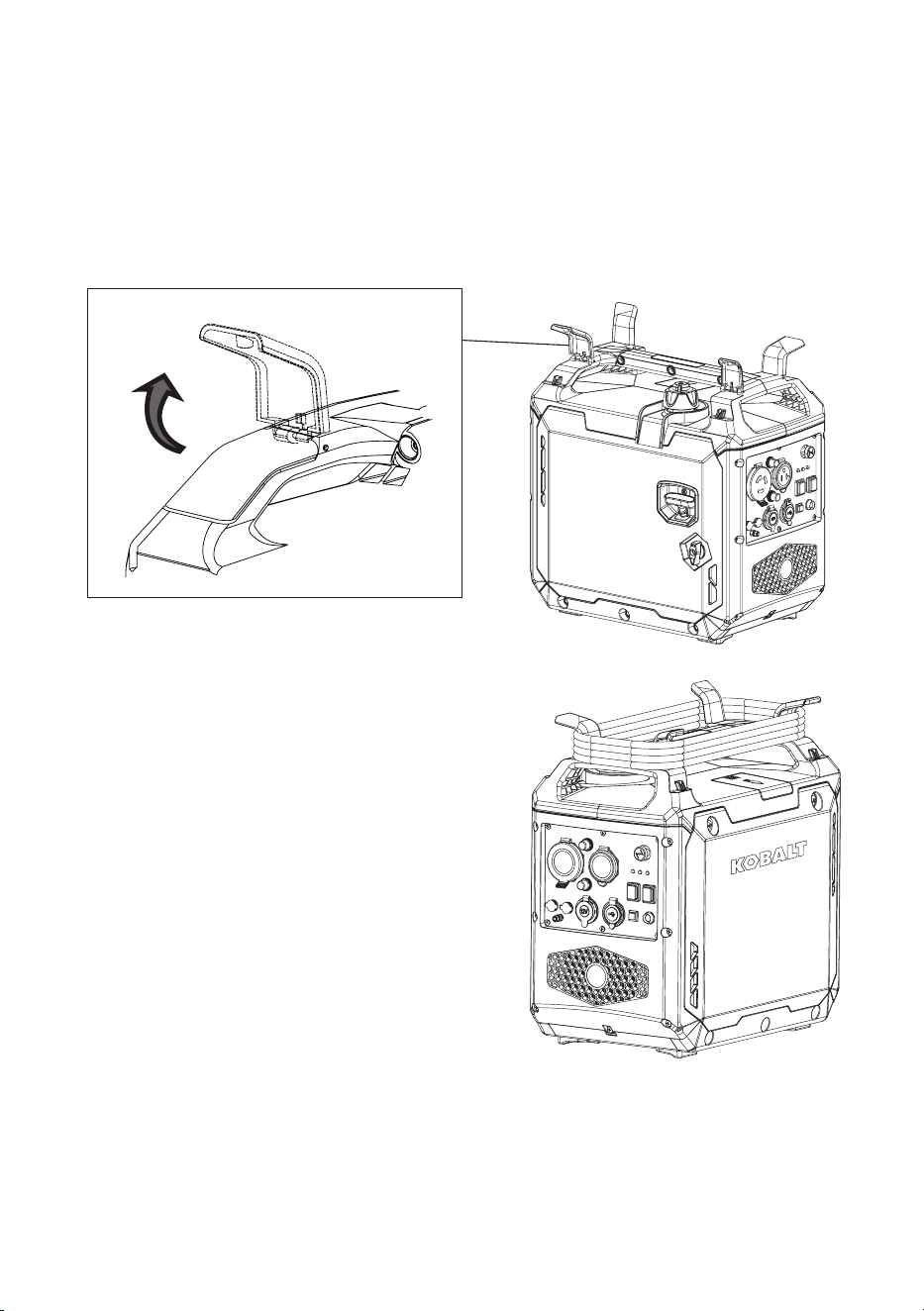

Cord Wrap
Open four tabs provided to easily wrap and store your power cord. When cord storage is not in use,
return tabs to their lowered position.
9
FEATURES, CONTROLS AND ON-PRODUCT HAZARD LABELS

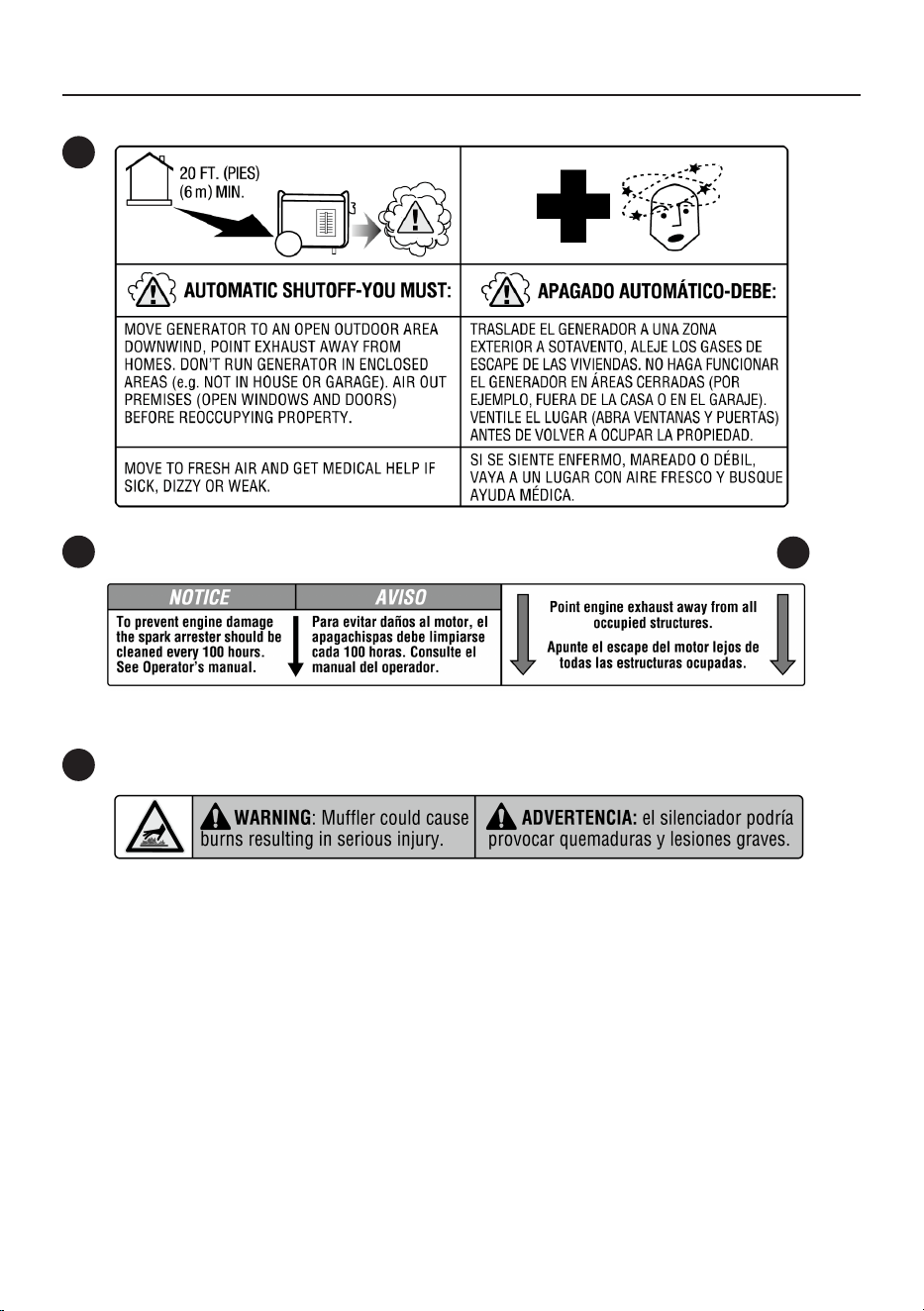

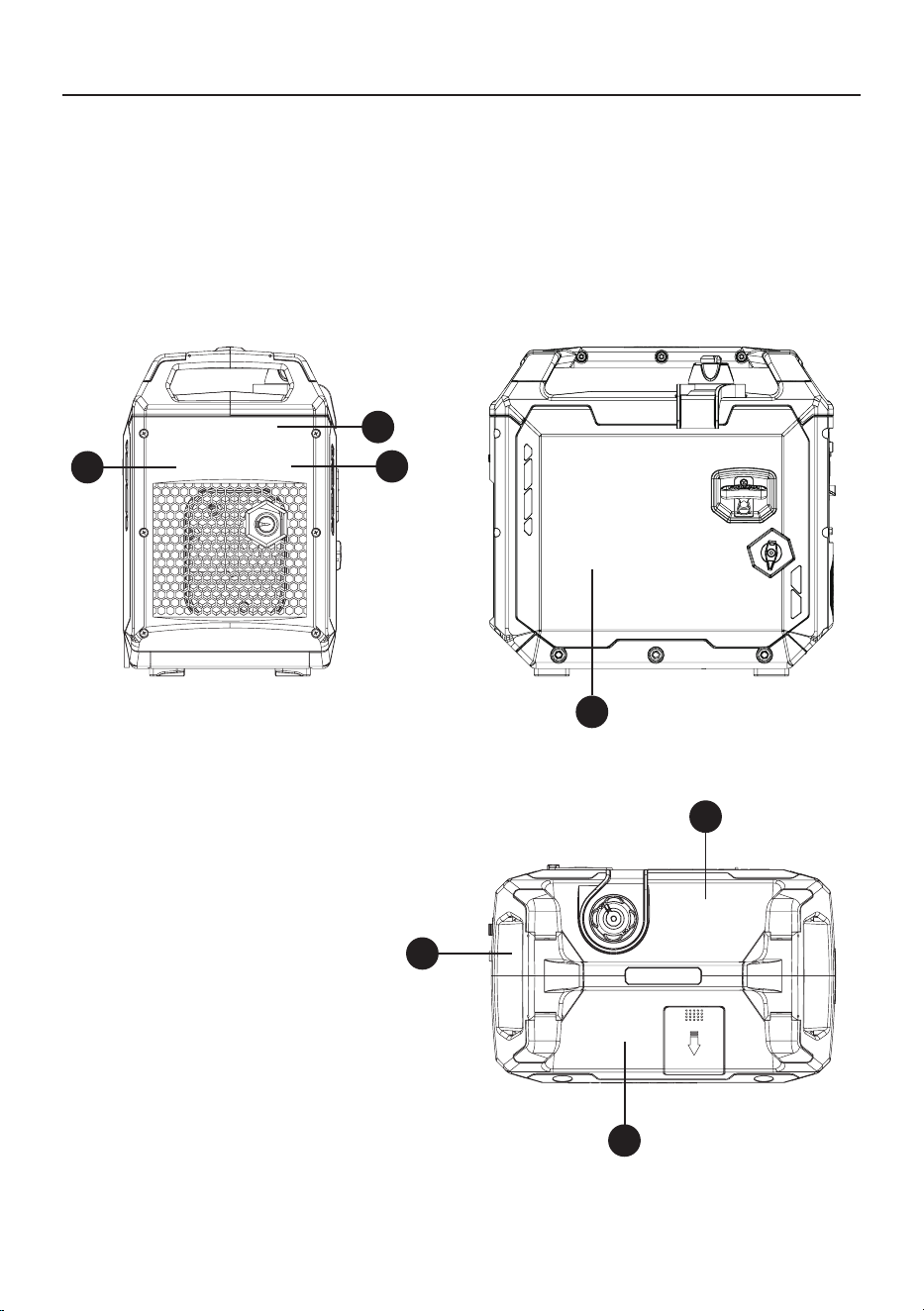

Location and content of on-product hazard labels
FREE WARNING LABEL REPLACEMENT. If hazard labels become illegible or are missing, contact
KOBALT customer service for a free replacement.
2
1
4
3
6
7
5
10
FEATURES, CONTROLS AND ON-PRODUCT HAZARD LABELS
1
2
3
11
FEATURES, CONTROLS AND ON-PRODUCT HAZARD LABELS
4
5
7
6
12
NOTICE:
Total power drawn from all receptacles must not exceed the data decal rating.
1. 120V, 30A – NEMA L5-30R
A maximum of 16.7 Amps current may be drawn from this receptacle.
2. AC Circuit Breaker – If the generator is overloaded or an external short circuit occurs, the
circuit protector will trip. If tripping occurs, disconnect all electrical loads and determine the cause
before attempting to continue using the generator. Reset tripped circuit protector.
If multiple receptacles are used at the same time, the total current must be kept with-in the
portable generator data decal rating.
3. 120V, 20A Receptacle - NEMA 5-20R (Not GFCI protected)
A maximum of 16.7 Amps current may be drawn from this receptacle.
4. Output Ready Indicator Light – Remains “ON” during normal operating conditions. Shuts
“OFF” when generator is overloaded. The green AC Power Indicator Light comes on when the
engine starts and generates power.
5. Choke Knob
6. Overload Indicator Light – This light turns “ON” when the generator is overloaded and will cut
power to the receptacles. If the engine overload indicator light comes on, the generator’s wattage /
amperage capacity has been exceeded by connected electrical devices . When this occurs, the
green AC Power Indicator Light will go o. The engine will continue to run, but the red Engine
Overload Indicator Light will stay on and power will no longer be supplied to connected electrical
devices.
FEATURES, CONTROLS AND ON-PRODUCT HAZARD LABELS

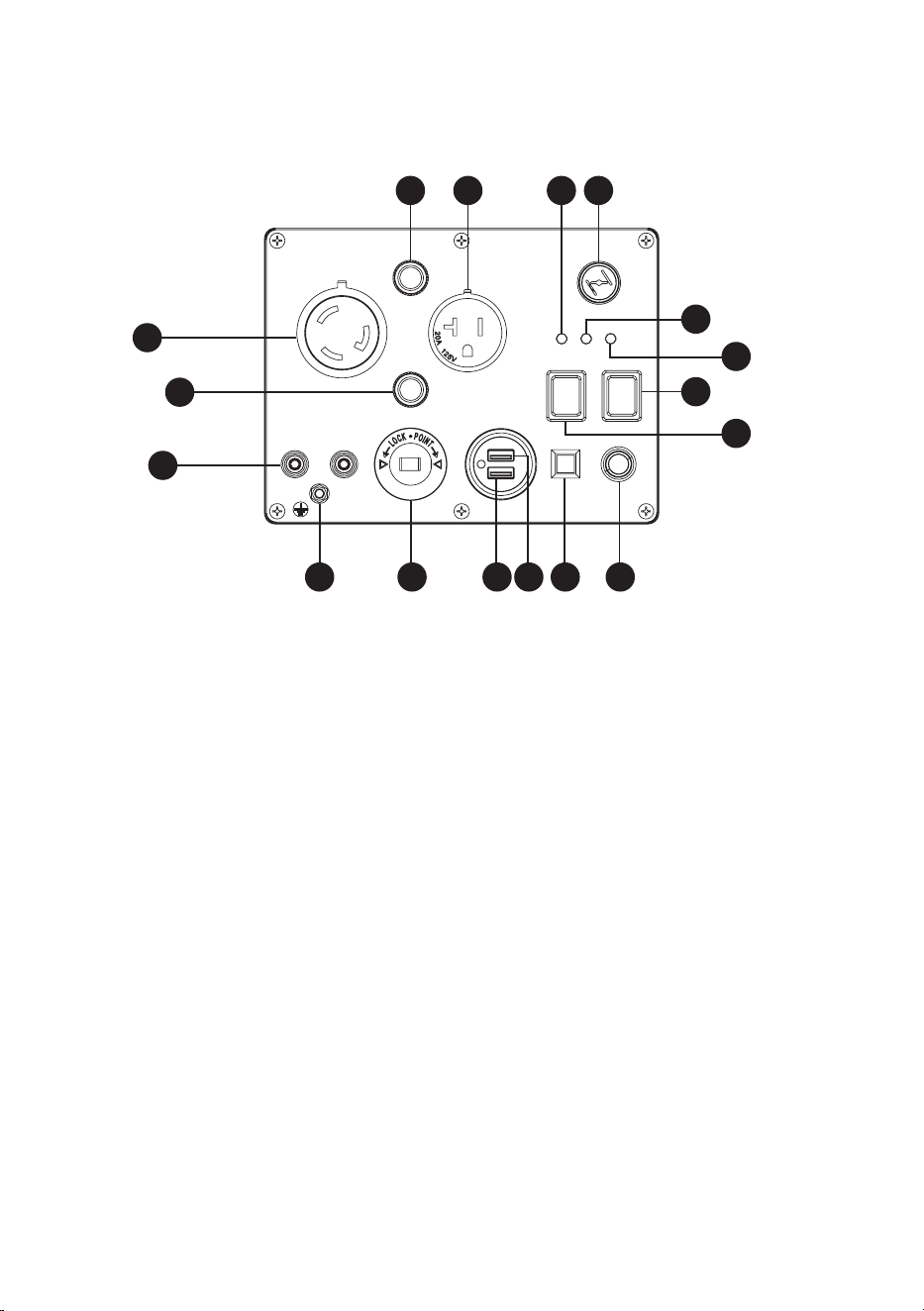

Control Panel
1
16
14
2 5
8
43
6
7
9
10111213
17
15
13
7. Oil Warning Indicator Light – Check oil level when this light turns “ON”. Engine will not run
when indicator is lit. When the oil falls below the minimum level, the oil warning indicator light
comes on and the engine stops automatically. The engine will not start until the proper amount of
oil is in the crank case.
8. Engine Start Switch – Flip the switch to the “ON” position and pull the recoil starter to start the
generator. Turn to the “OFF” position to turn o the generator.
9. Economy Control Switch - The Economy Control switch can be activated in order to minimize
fuel consumption and noise while operating the unit during times of reduced electrical output,
allowing the engine speed to idle during periods of non-use. The engine speed returns to normal
when an electrical load is connected. When the economy switch is o, the engine runs at normal
speed continuously.
10. CO Alert Carbon Monoxide (CO) Shutdown Indicator Light — Indicates the engine shutdown due
to carbon monoxide accumulation around the generator or a CO Alert system fault occurred.
11. AC Reset Button - When the inverter is protected, the output can be restored using this button.
12. USB-A Output Port
Charge a wide array of devices such as your iPhone, tablet, GoPro, speakers, or similar products
that use a USB-A port.
13. USB-C Output Port
Charge a wide array of devices such as your MacBook Pro, Android phone, or similar products that
use a USB-C port.
14. DC 12V Output - 8.3 Amps of DC current may be drawn from this receptacle. Use this outlet to
charge 12V automotive type batteries ONLY. See 12V DC outlet (Battery Charger) section.
15. Ground Terminal – Consult an electrician or authority having jurisdiction for local grounding
requirements.

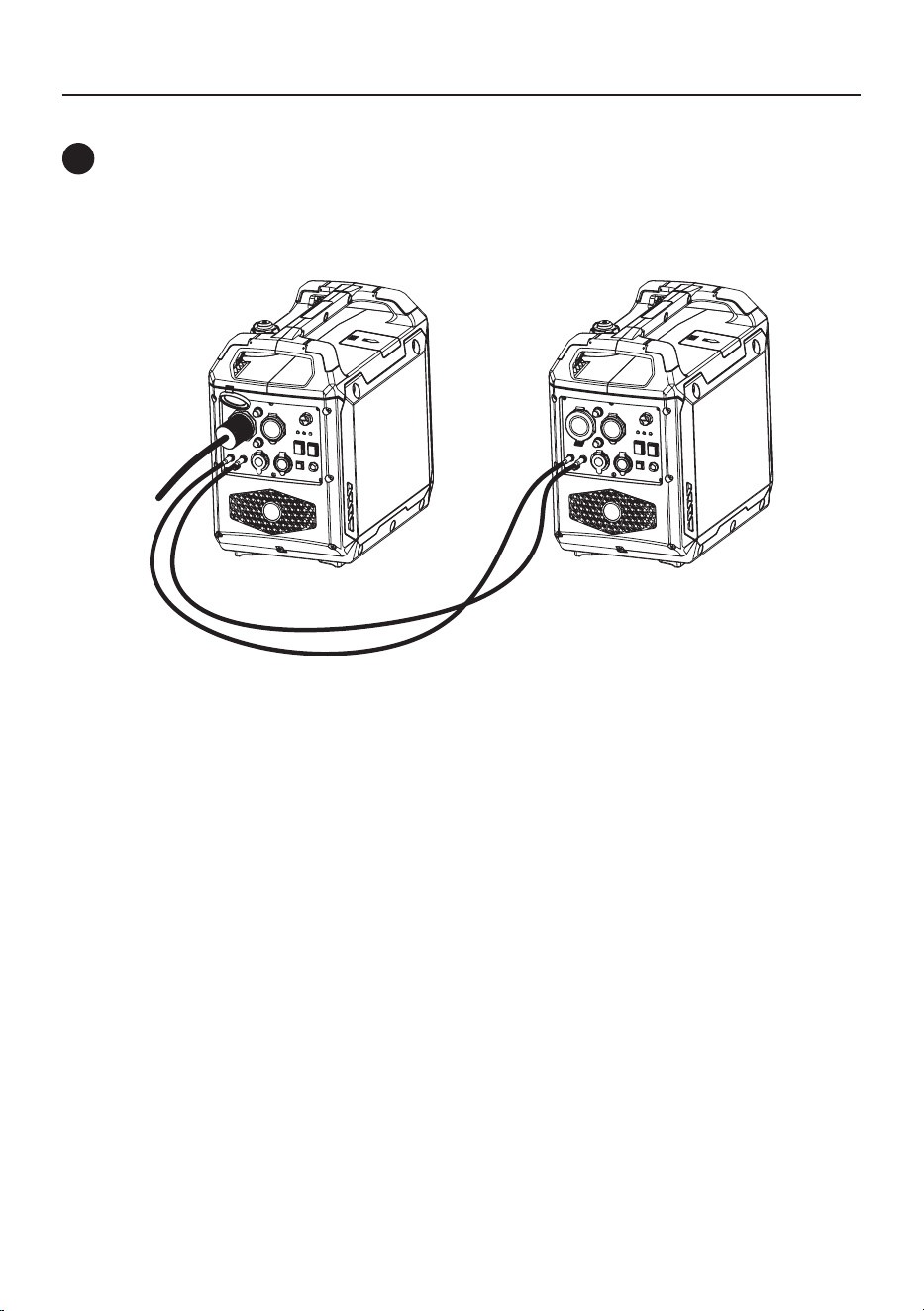

16. Parallel Operation Outlets - These outlets are used for connecting two W02083 inverter
generators for parallel operation. See Parallel Operation section.
17. DC Circuit Breaker – The DC receptacles are protected by a DC circuit protector. If the DC output
is overloaded or an external short circuit occurs the circuit protector will trip.
If tripping occurs, disconnect all electrical loads and determine the cause before attempting to
continue using the generator. Reset tripped circuit protector.
FEATURES, CONTROLS AND ON-PRODUCT HAZARD LABELS
14
OPERATING INSTRUCTIONS
LOCATION
DANGER! Engine exhaust contains carbon monoxide, a poisonous gas that could
kill you in minutes. You CANNOT smell it, see it, or taste it. Even if you do not
smell exhaust fumes, you could still be exposed to carbon monoxide gas.

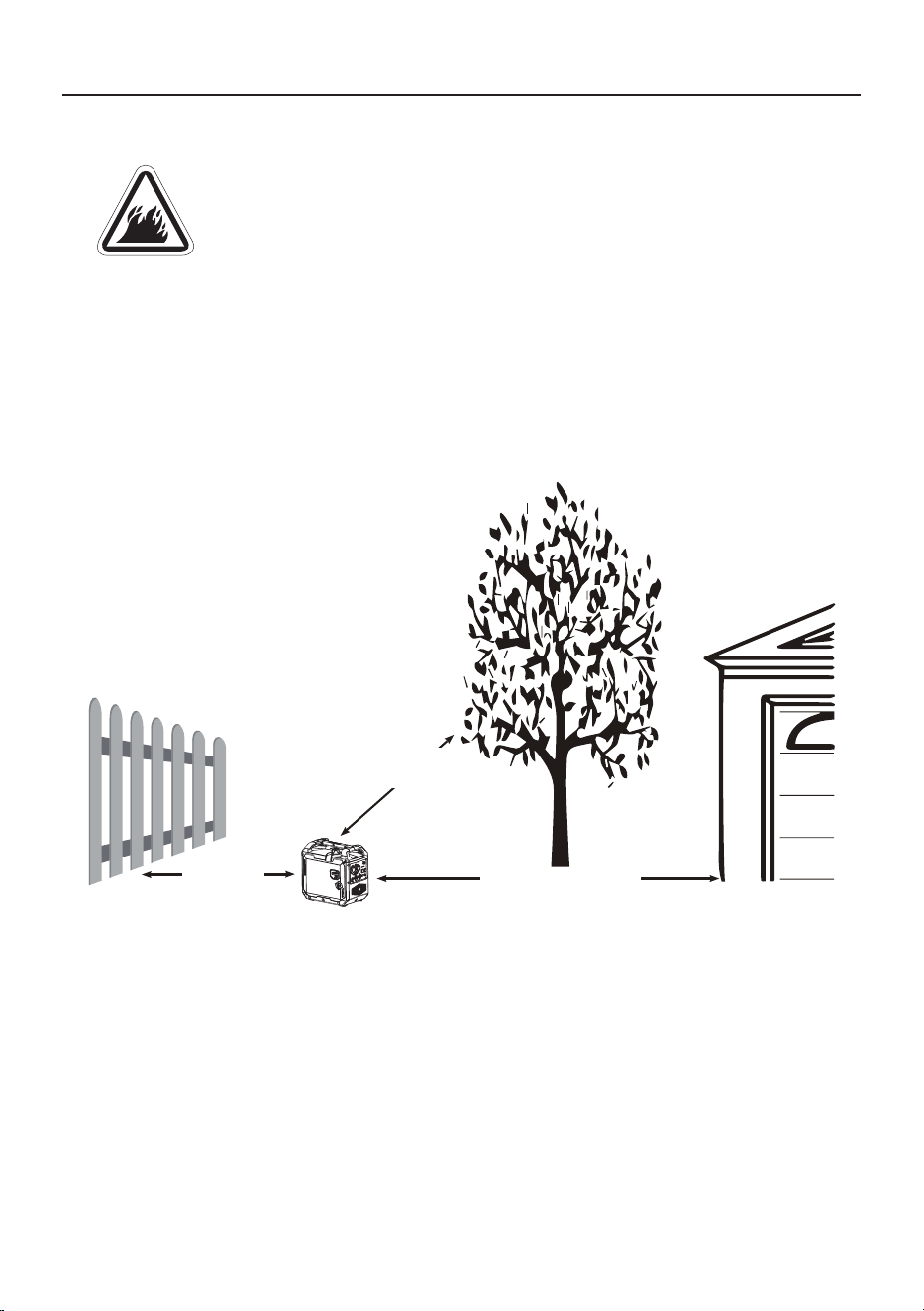

● Operate portable generator only outdoors, at least 20 ft.(6 m) from occupied spaces with exhaust
pointed away to reduce the risk of carbon monoxide accumulating.
● Install battery-operated carbon monoxide alarms or plug-in carbon monoxide alarms with battery
back-up according to the manufacturer's instructions.
Smoke alarms cannot detect carbon monoxide gas.
● Do not run this portable generator inside homes, garages, basements, crawlspaces, sheds, or other
partially-enclosed spaces even if using fans or opening doors and windows for ventilation.
Carbon monoxide can quickly build up in these spaces and can linger for hours, even after this
product has shut o.
● If you start to feel sick, dizzy, weak or your home’s carbon monoxide alarm sounds, get to fresh air
right away. Call emergency services. You may have carbon monoxide poisoning.
A. Carbon Monoxide Alarm(s)
Install carbon monoxide alarms inside your home.
Without working carbon monoxide alarms, you
will not realize you are getting sick and dying from
carbon monoxide poisoning.
Prevent Carbon Monoxide (CO) Poisoning
Use outdoors at least 20 ft. (6 m) from any home.
Point exhaust away from all homes and occupied spaces.
Install CO alarms inside your home.
20 ft. (6 m) min.
To better educate yourself about all carbon monoxide risks, go to
www.takeyourgeneratoroutside.com.
1
15
OPERATING INSTRUCTIONS
B
.
Reduce Risk of Fire
WARNING! Exhaust heat/gases could ignite combustibles, structures or damage
fuel tank causing a re, resulting in death or serious injury.
● Keep portable generator at least 5 ft. (1.5 m) from any structure, trees or vegetation over 12 in.
(30 cm) in height.
● Select an outdoor site that is dry and protected from the weather. Do not move portable generator
indoors to protect it from the weather.
● Do not locate the portable generator under a deck or other similar structure that may conne heat
and airow.
5 ft.(1.5 m)
min.
5 ft.(1.5 m)
min.
20 ft.(6 m) min.
16

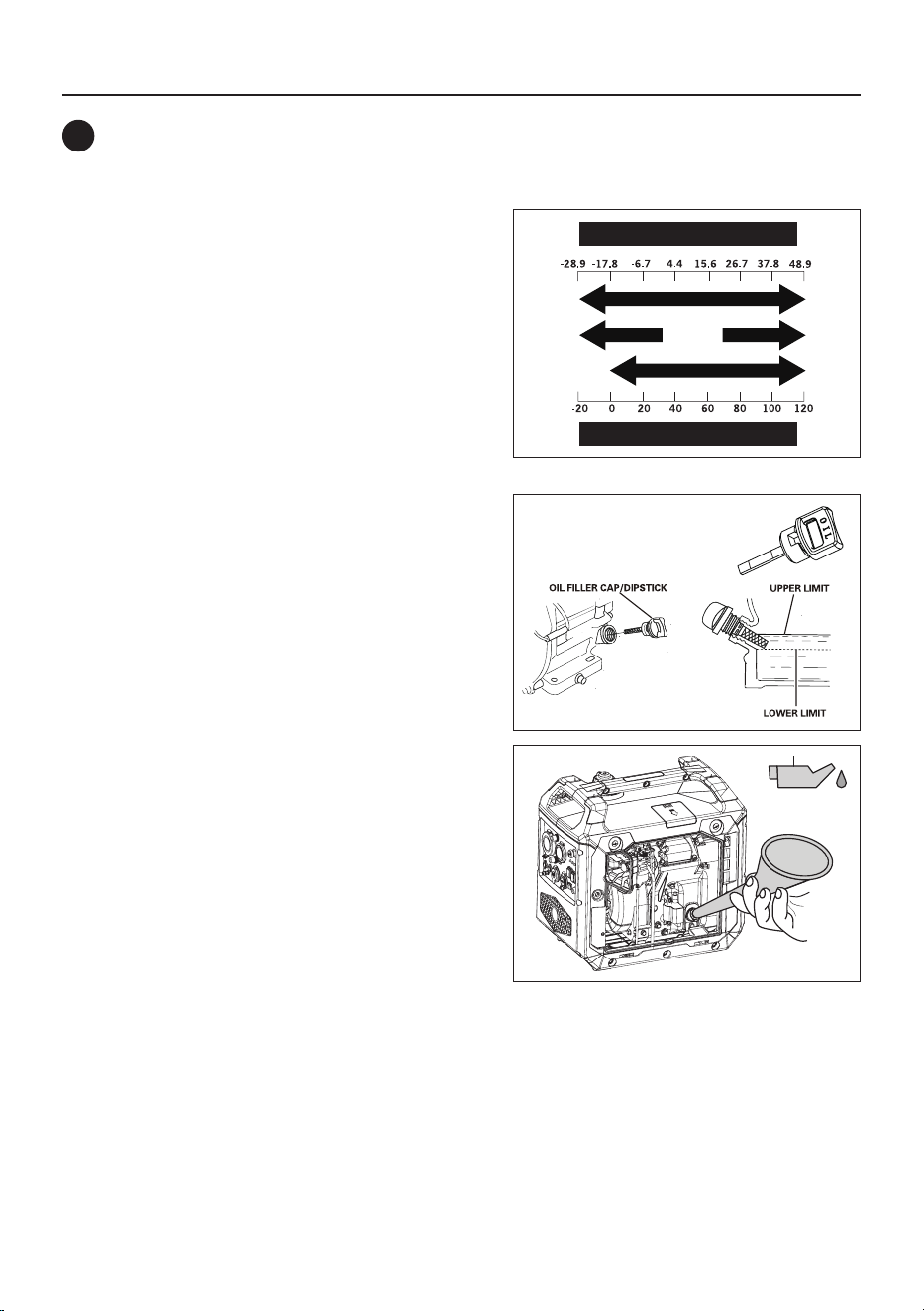

OIL AND GASOLINE

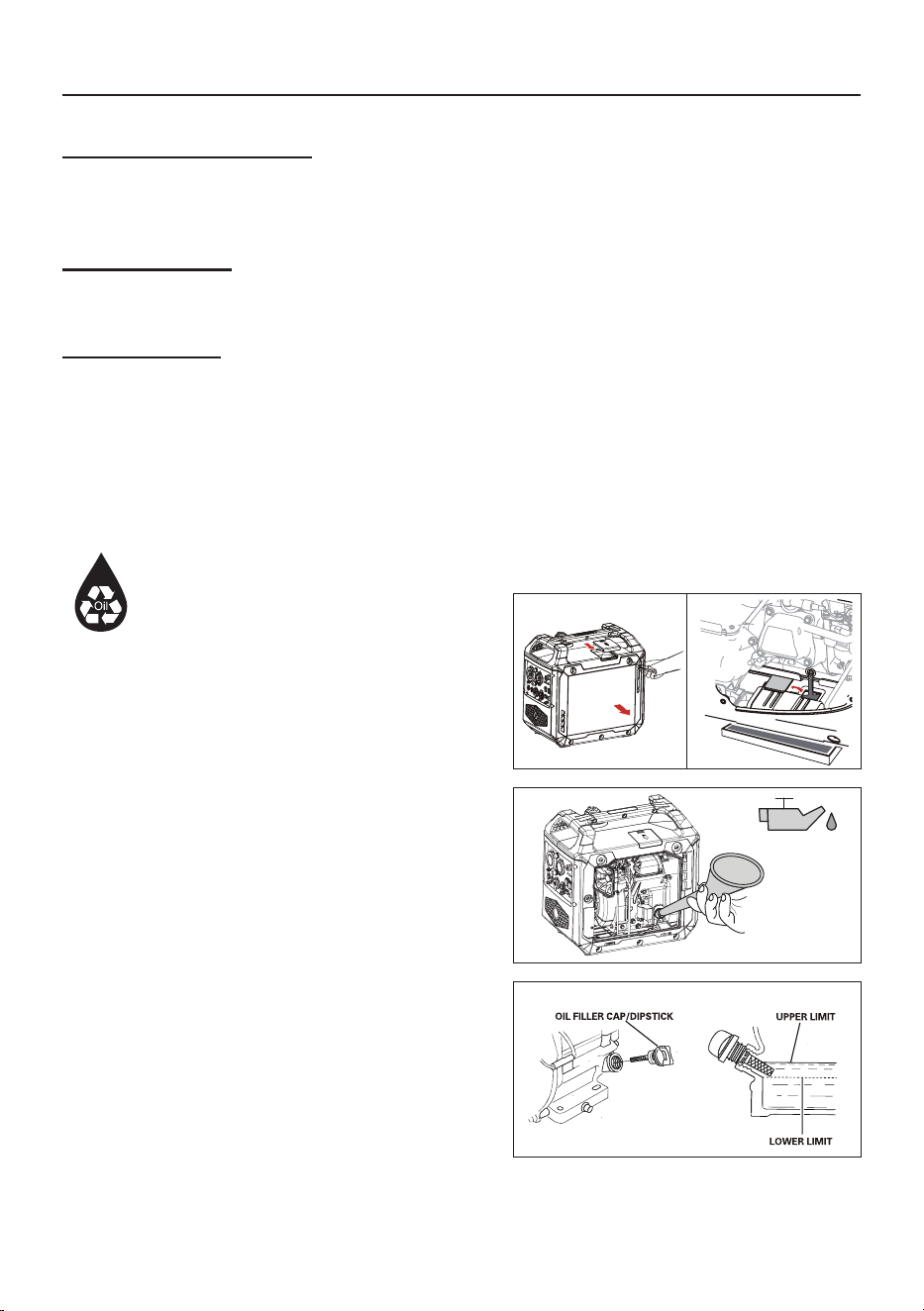

2A. Add Engine Oil
Low Oil Shutdown
OPERATING INSTRUCTIONS
We recommend using SAE 10W-30 API SJ or
higher oil for best performance. Do not use special
additives. Ambient temperature determines the
proper oil viscosity for the engine. Use the chart to
select the proper oil for the outdoor temperature
range expected.
NOTICE
:
Do not attempt to crank or start the
engine before it has been properly lled with the
recommended type and amount of oil. Damage
due to operation with no oil will void your warranty.
1. Place generator on a at, level surface.
2. Loosen the cover screw and remove the
maintenance cover.
3. Clean area around oil ll and remove yellow oil
ll cap/dipstick.
4. Wipe dipstick clean.
NOTICE
:
Do not screw in cap/dipstick when
checking oil level.
5. Using oil funnel, slowly pour contents of
provided oil bottle into oil ll opening until oil
reaches upper limit "H" mark on the dipstick.
Be careful not to overll. Overlling could cause
engine starting problems or engine damage.
6. Replace oil ll cap/dipstick and fully tighten.
7. Reinstall maintenance cover and tighten screws.
8. Oil level should be checked prior to each use or
at least every 8 hours of operation.
Keep oil level maintained.
The portable generator is equipped with a low oil shutdown. If the oil level drops below the minimum
required level, a sensor will activate an internal switch stopping the engine. If the engine shuts o
and the oil level is within specications, check to see if generator is sitting at an angle. Place portable
generator on an even surface to correct this. If engine fails to start, the oil level may not be high
enough to deactivate the internal low oil level switch. Make sure the sump is completely full of oil to
the upper limit (H). Do not operate engine until oil level issue is corrected. Contact KOBALT customer
service.
H
L
(H)
(L)
2
Degrees Celsiusº(Outside)
Full Synthetic 5W-30
5W-30
10W-30
10W-40
Degrees Fahrenheitº(Outside)
17

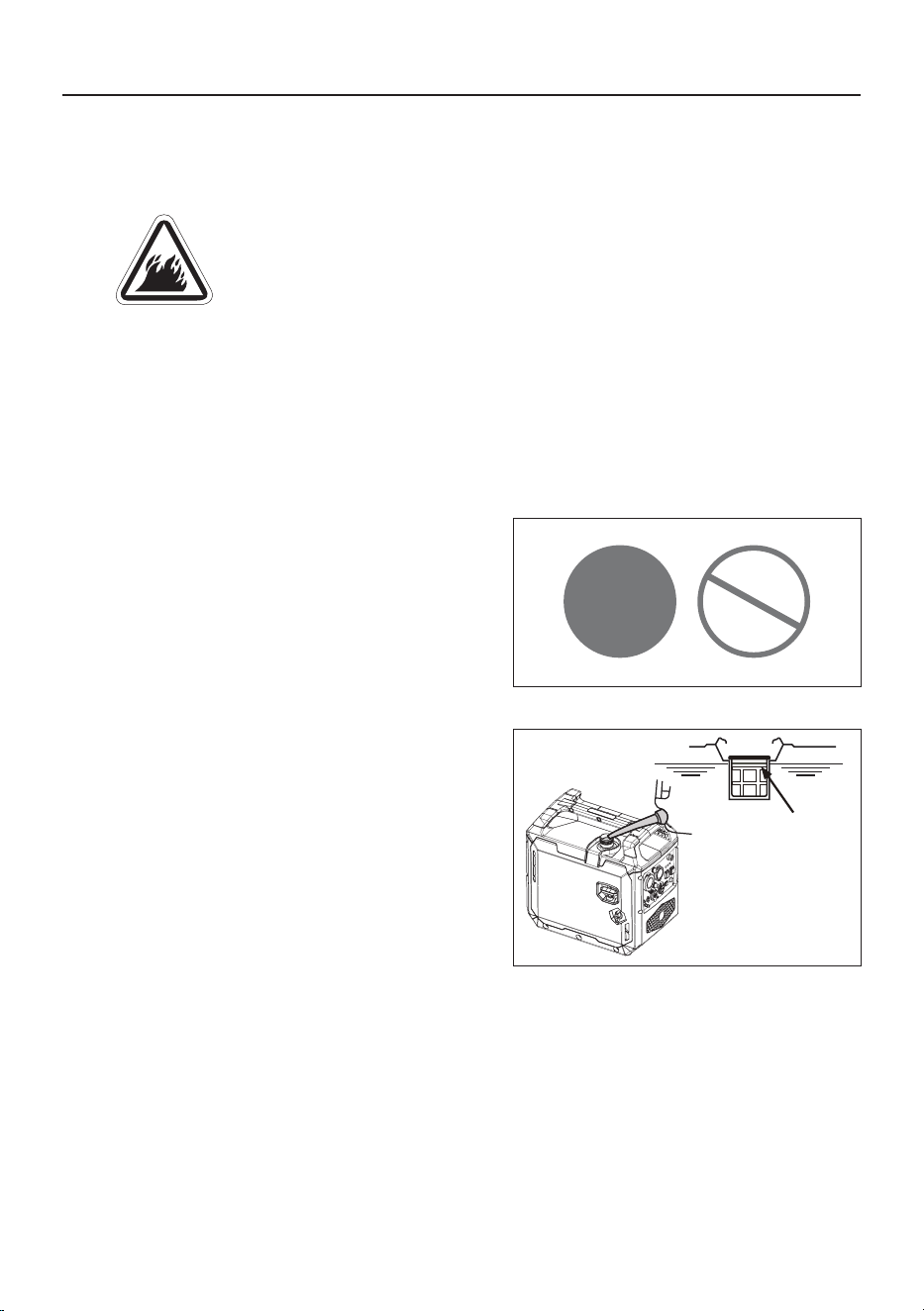

2B. Add Gasoline
OPERATING INSTRUCTIONS
WARNING! Fuel and its vapors are extremely ammable which could cause
burns or re resulting in death or serious injury.
● Turn generator engine OFF and let it cool at least 2 minutes before removing fuel cap.
● Do Not refuel or move generator when engine is running.
● Move generator outdoors prior to adding or draining fuel
● Keep fuel away from any ignition sources.
● Do not overll tank, allow space for fuel expansion.
● If any fuel spills, wait until it evaporates before starting engine
● Check and replace fuel lines, tank, cap, and ttings prior to each use if any damage or leaks are
found.
Fuel must meet these requirements:
● Clean, fresh, unleaded gasoline with a minimum
of 87 octane.
● Gasoline with no more than 10% ethanol is
acceptable.
E10 E15
Operation at High Ambient conditions
NOTICE:
Do not mix oil in gasoline or modify
engine to run on alternate fuels not described
in this manual. Use of unapproved fuels could
damage engine and will not be covered under
warranty.
1. Clean area around fuel ll cap, remove cap.
2. Slowly add unleaded fuel to fuel tank. Be careful
not to ll above the RED fuel level indicator.
This allows adequate space for fuel expansion.
3. Install fuel cap and let any spilled fuel evaporate
before starting engine.
Your KOBALT Power Equipment product is designed and rated for continuous operation at ambient
temperatures up to 104°F (40°C). The generator may be operated at temperatures ranging from
5°F(-15°C) to 122°F(50°C) for short periods. If the generator is exposed to temperatures outside
this range during storage, the generator should be brought back within this range before operation.
When operated above 77°F(25°C) there may be a decrease in power.
Maximum wattage and current are subject to and limited by such factors as ambient temperature,
altitude, engine conditions etc.
Red Line
Indicator
18
OPERATING INSTRUCTIONS

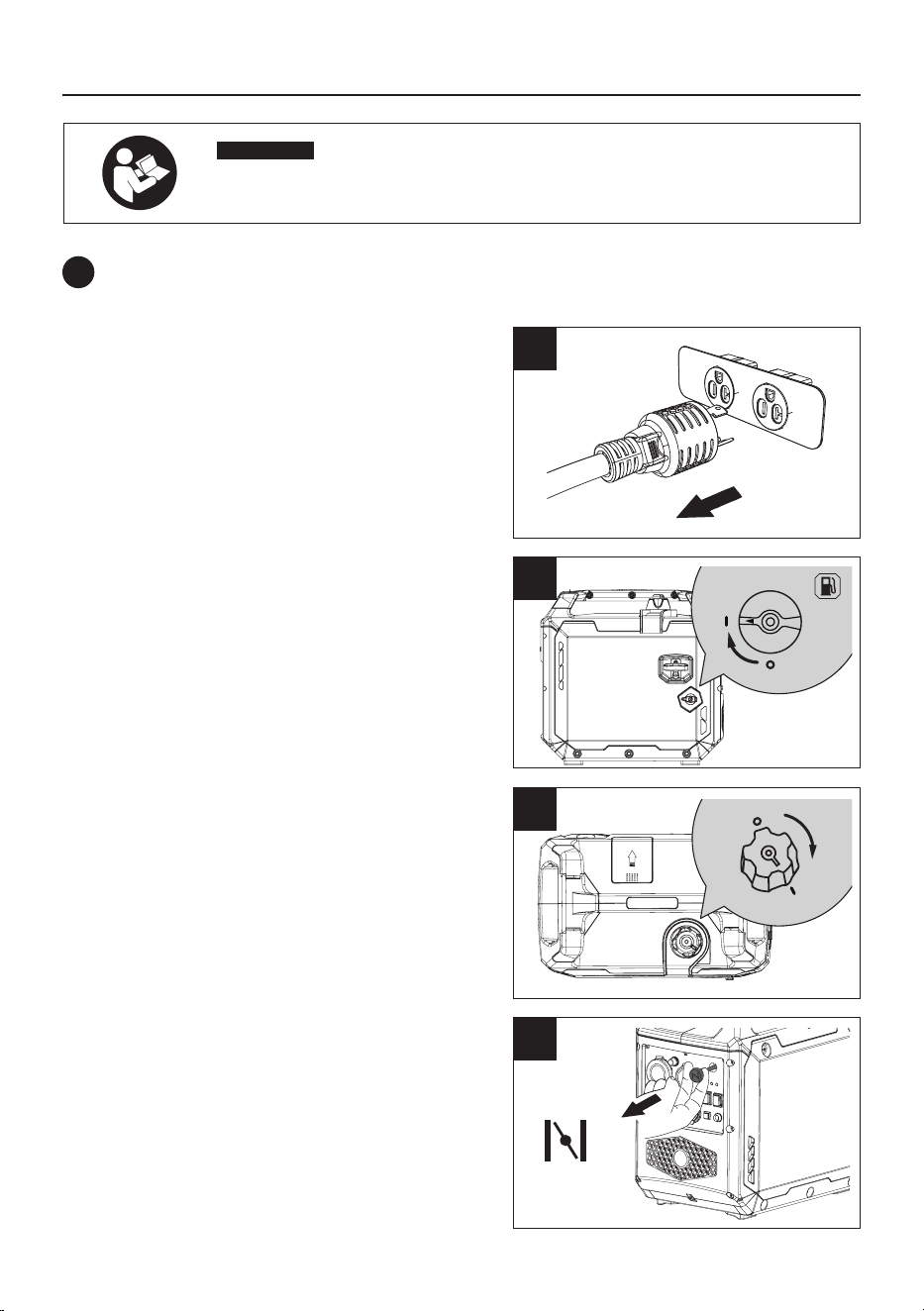

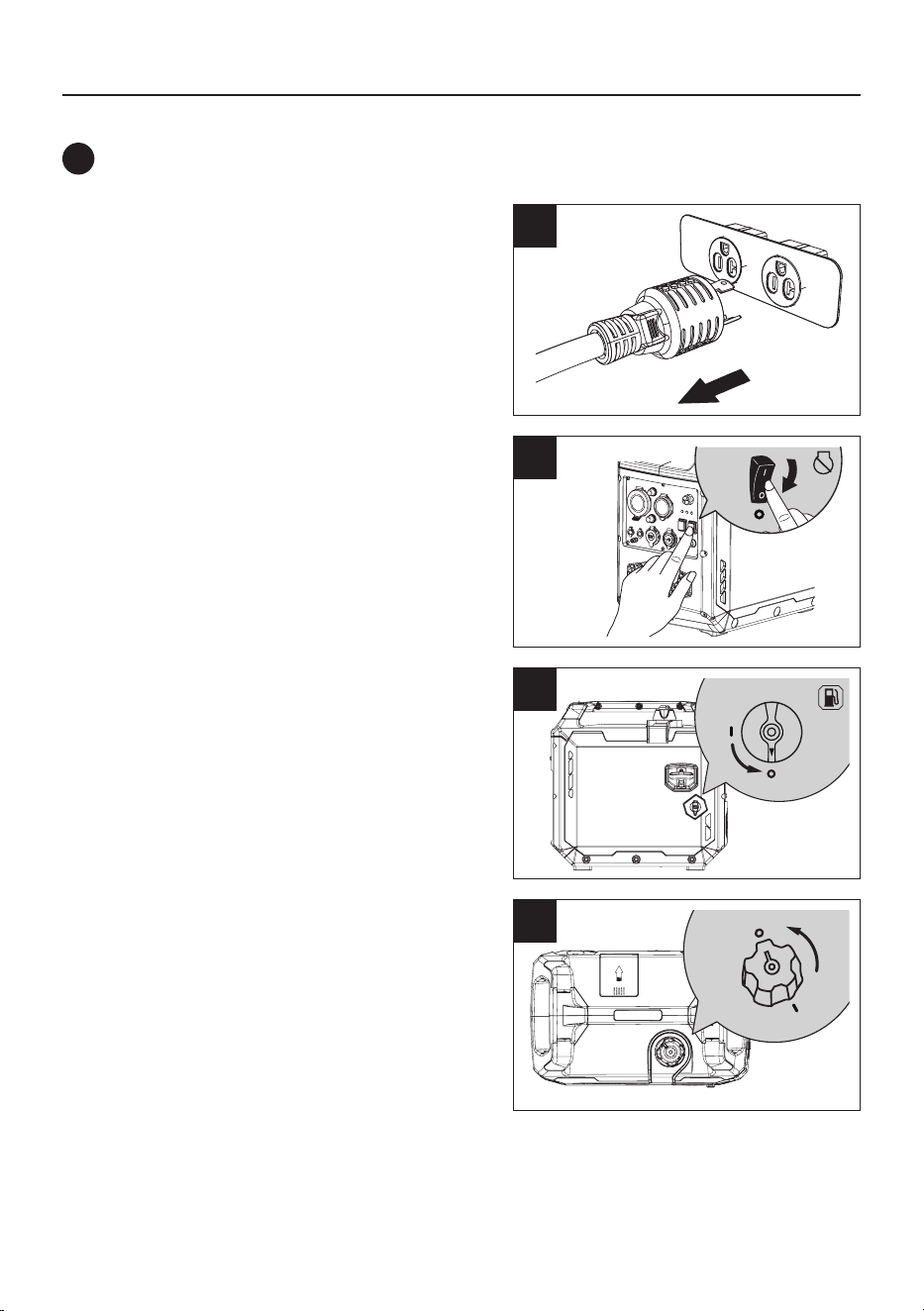

1. Before starting the generator, check for loose or
missing parts and for any damage which may
have occurred during shipment.
Ensure spark plug, muer, fuel cap, and air
cleaner are all in place.
2. Move portable generator outdoors to safe
operating location downwind and at least 20 feet
from any occupied spaces.
3. Disconnect all electrical loads from the
generator. Never start or stop the generator with
electrical devices plugged in.
4. Turn the fuel valve to the “ON” (l) position.
5. Turn the fuel cap vent lever to the “ON” (l)
position.
6. Pull the choke knob out to the “START”
position.
3
4
5
6
START
WARNING! Failure to read and follow all warnings and instructions in this
manual and on-product labels before attempting to start or operate this
portable generator could result in death or serious injury.
STARTING THE GENERATOR
3
19
OPERATING INSTRUCTIONS
7
8
9
RUN

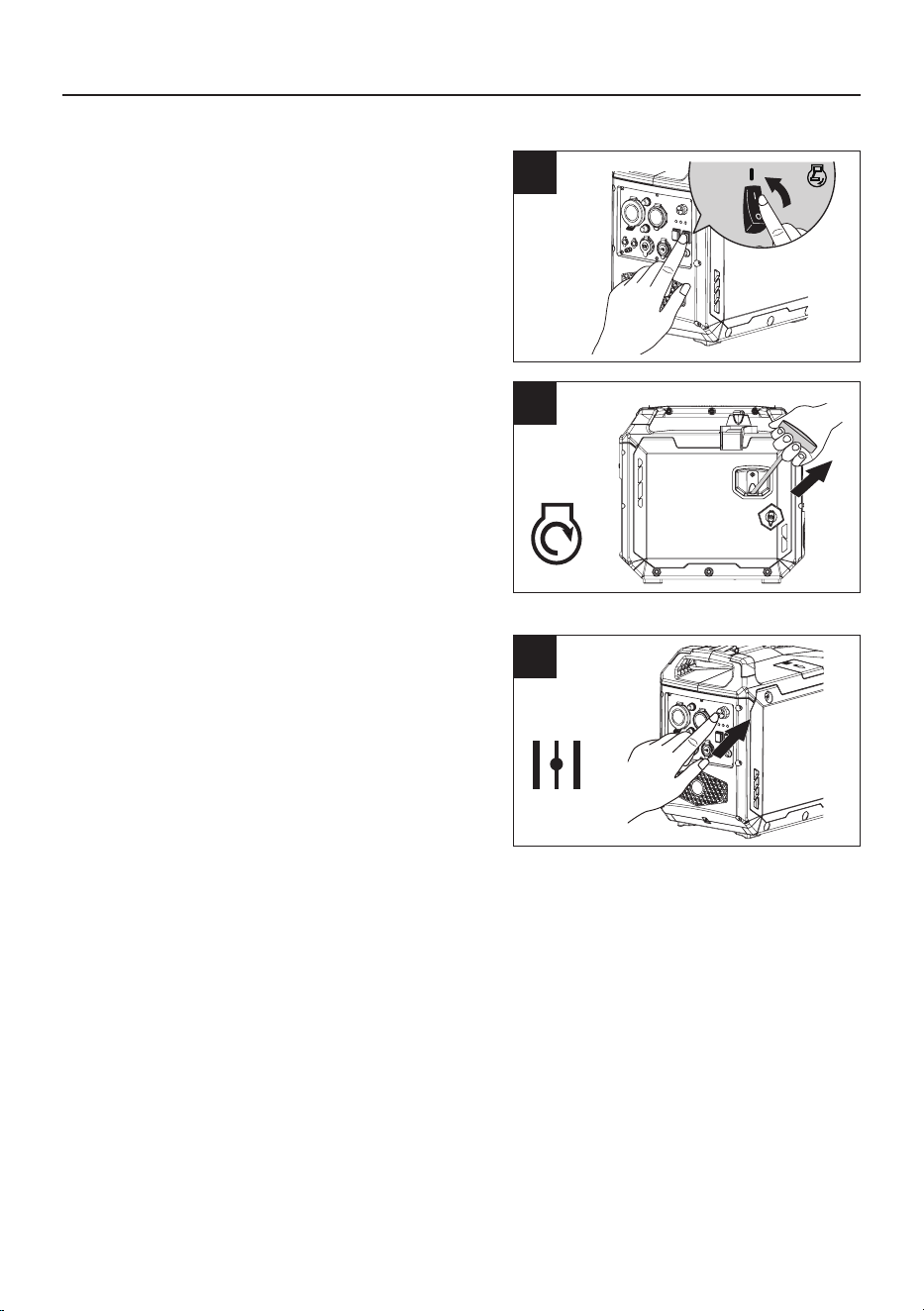

7. Flip the engine switch to the “ON” (l) position.
8. Pull the starter cord slowly until resistance is felt
and then pull rapidly.
9. Do not over-choke. As soon as engine starts and
warms up, move the choke button to the “RUN”
position.
10. Allow portable generator to run at no load for a
few minutes to stabilize before plugging in any
electrical devices.
NOTICE:
If engine starts but fails to run, or if
portable generator shuts down during operation,
check oil level. See Low Oil Shutdown section for
more information.
20
OPERATING INSTRUCTIONS
This portable generator has been pretested and adjusted to handle its full capacity. The voltage is
regulated using an automatic voltage regulator (AVR). Readjusting the AVR will void warranty.
● Damaged or overloaded extension cords could overheat, arc, and burn resulting death or serious
injury.
● Use a ground fault circuit interrupter (GFCI) in any damp or highly conductive area, such as metal
decking.
● Do not touch bare wires or receptacles.
● Do not use generator with electrical cords which are worn, frayed, bare or otherwise damaged.
● Do not operate generator in the rain or wet weather.
● Do not run indoors to avoid wet conditions.
● Do not handle generator or electrical cords while standing in water, while barefoot, or while
hands or feet are wet.
1.Ensure circuit breaker on control panel is in the
closed (on) position.
2. Start the generator with no electrical load
attached.
3. Allow the engine to run for several minutes to
stabilize.
4. Plug in and turn on the rst item. It is best to
attach the item with the largest load rst.
5. Allow the engine to stabilize.
6. Plug in and turn on the next item.
7. Allow the engine to stabilize.
8. Repeat steps 5-6 for each additional item.
WARNING! Generator voltage could cause electrical shock or burn
resulting in death or serious injury.
Surge Protection
There is a remote chance that voltage uctuations may impair the proper functioning of some sensitive
electronic equipment. Electronic devices, including computers and many programmable appliances
may use components that are designed to operate within a narrow voltage range and may be aected
by the portable generator’s momentary voltage uctuations. While there is no way to prevent all voltage
uctuations, you can take steps to protect your sensitive electronic equipment. Install a plug-in surge
suppressor on the receptacles feeding your sensitive equipment. Surge suppressors come in single or
multi-outlet styles. They are designed to protect against short duration voltage uctuations.

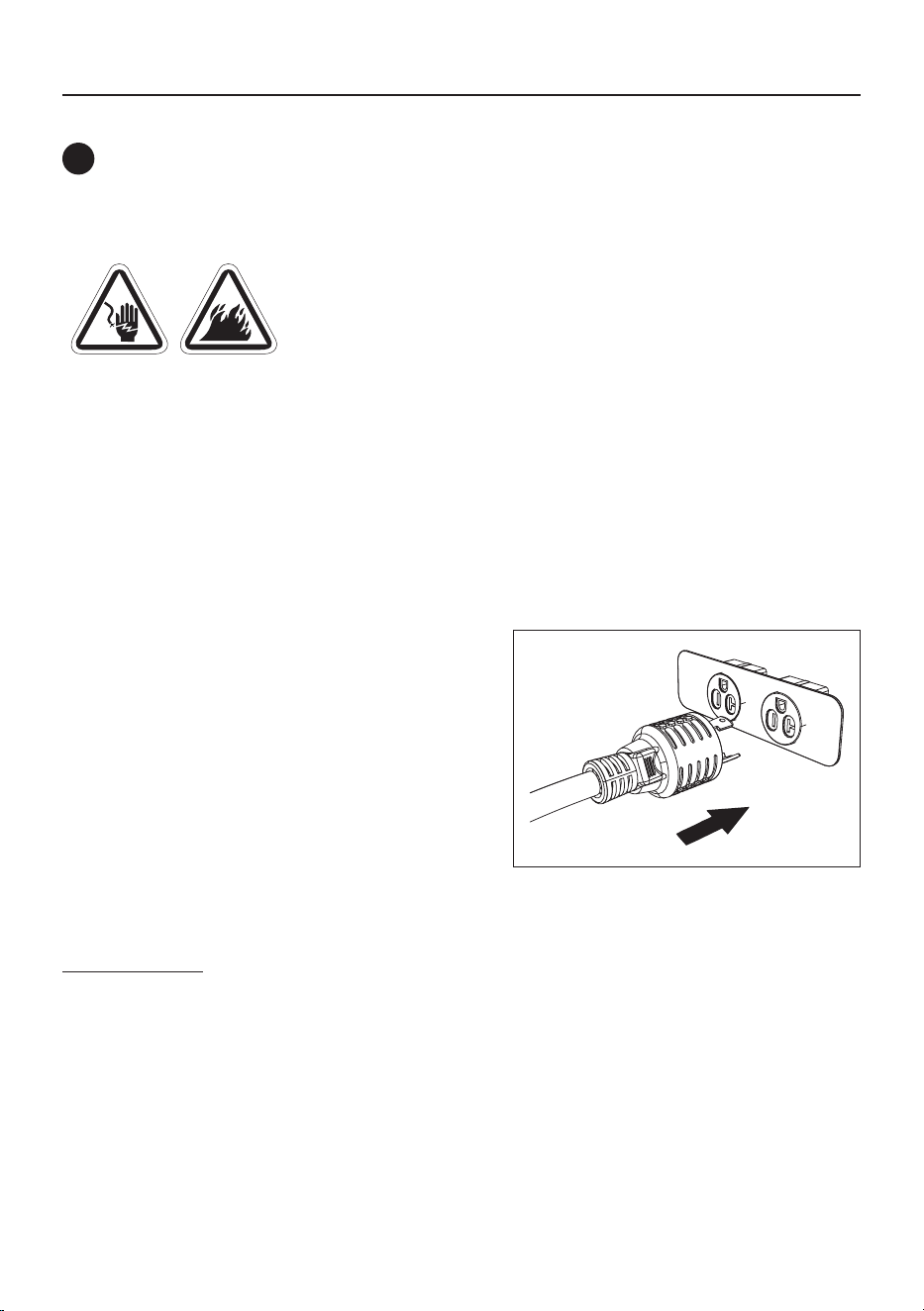

CONNECTING ELECTRICAL LOADS
4
21
OPERATING INSTRUCTIONS
CO Alert
Carbon Monoxide (CO) Shutdown System
CO Alert automatically shuts down the engine when harmful levels of carbon monoxide accumulate
around the generator or a CO Alert fault occurs. After shutdown, the CO Alert indicator light will blink
for at least ve minutes per the chart below. CO Alert DOES NOT replace carbon monoxide alarms.
Install battery-powered carbon monoxide alarm(s) in your home. Don’t run generator in enclosed
areas.
*Yellow light will blink for ve seconds at the startup of generator to show CO ALERT is functioning
properly.
Color
RED
Yellow
Carbon monoxide accumulated around generator. Prior to restart move
generator to an open, outdoor area 20 ft. (6 m) from occupied spaces
with exhaust pointed away. Air out premises (open windows and doors)
before reoccupying property. Automatic shuto is an indication
generator was improperly located.
If you start to feel sick, dizzy, weak, or your homes carbon monoxide
alarm sounds while using this product, get to fresh air right away. Call
emergency services. You may have carbon monoxide poisoning.
CO Alert fault occured*.
See FIRMAN authorized service dealer.
Description
22
OPERATING INSTRUCTIONS
Economy Control Switch
12V DC Outlet (Battery Charger)
WARNING!
The Economy Control switch can be activated in
order to minimize fuel consumption and noise while
operating the unit during times of reduced electrical
output, allowing the engine speed to idle during
periods of non-use. The engine speed returns
to normal when an electrical load is connected.
When the economy switch is o, the engine runs at
normal speed continuously.
NOTICE
:
For periods of high electrical load or
momentary uctuations, the Economy Control
Switch should be turned OFF.
The 12V DC outlet is ONLY intended to charge vented automotive type wet lead acid batteries with
supplied battery charging cables. The DC output is unregulated and will damage other 12V DC
products. Disconnect battery charge cables once battery has fully charged. Normally a period of
30 to 120 minutes is required to recharge weak batteries. During charging periodically check the
battery charge level.
NOTICE
:
When using 12V DC always place ECO mode in the OFF position.
●Storage batteries give o EXPLOSIVE hydrogen gas while charging. Do not allow smoking, open
ames, sparks, or spark producing equipment in the area while charging.
●Battery electrolyte uid is comprised of sulfuric acid that can be very dangerous and cause severe
burns. Do not allow this uid to contact eyes, skin, clothing, etc. If contact or spillage does occur,
ush the area with water immediately.
●Do not continue to charge a battery that becomes hot or is fully charged. Over charging or attempting
to charge other than vented wet lead acid batteries may cause battery to burst that could result in
death or serious injury.
1. Before connecting the battery charging cable to a battery that is installed in a vehicle, disconnect
the vehicle battery ground cable from the negative (–) battery terminal.
2. Plug the battery charging cable into the DC receptacle of the generator.
3. Connect the red (+) battery charger lead to the red (+) battery terminal.
4. Connect the black (–) battery charger lead to the black (–) battery terminal.
5. Start the generator. During charging periodically check the battery charge level and remove battery
cables when battery is fully charged.
23
OPERATING INSTRUCTIONS
STOPPING THE GENERATOR
5
1. Turn o and remove all electrical loads.
Never stop the generator with electrical devices
plugged in and turned on.
Never stop the engine by moving the choke to the
start position.
2. Flip the engine switch to“OFF” (O)
3. Turn the fuel valve to the “OFF” (O) position.
4. Turn the fuel cap vent lever to the “OFF” (O)
position.
If a cover is used, do not install until unit has
cooled.
Let the generator run at no-load for one minute to
stabilize internal temperatures of the engine and
generator.
1
2
3
4
24
OPERATING INSTRUCTIONS
Low Oil Shutdown
If the engine oil drops below a preset level, an oil switch will stop the engine. Check oil level with
dipstick.
If oil level is between the
LOW
and
HIGH
mark on dipstick:
1.DO NOT try to restart the engine.
2.Contact an Authorized FIRMAN Service Dealer.
3.DO NOT operate engine until oil level is corrected.
If oil level is below the
LO
W mark on dipstick:
1.Add oil to bring level to
HIGH
mark.
2.Restart engine and if the engine stops again a low oil condition may still exist. DO NOT
try to restart
the engine.
3.Contact an Authorized FIRMAN Service Dealer.
4.DO NOT operate engine until oil level is corrected.
Do Not Overload Generator
Overloading a generator in excess of its rated wattage capacity can result in damage to the
generator and to connected electrical devices. To prolong the life of your generator and attached
devices, follow these steps to add electrical load:
1. Start the generator with no electrical load attached.
2. Allow the engine to run for several minutes to stabilize.
3. Plug in and turn on the rst item. It is best to attach the item with the largest load rst.
4. Allow the engine to stabilize.
5. Plug in and turn on the next item.
6. Allow the engine to stabilize.
7. Repeat steps 5-6 for each additional item.
Overload Operation
The overload indicator light will blink when the load exceeds 3080 W (approximately) and cut power
to the receptacles in 30 seconds. If the load exceeds 3150 W (approximately), the light will turn on and
cut power to the receptacles in 2 seconds.
How to Correct
1. Disconnect any electrical devices, and then stop the engine.
2.
Reduce the total wattage of connected electrical devices until it is within the generator’s rated
output.
3. Inspect the Air Inlet and Control Panel for any blockage. Remove blockage if found.
4. Restart Engine.
25
OPERATING INSTRUCTIONS
1. Connect the two parallel cables ( black ) to the corresponding parallel ports of two W02083.
2. Start the two W02083 generators,
3. Connect the power cable plug (NEMA L5-30P) of the electric device to the receptacle (NEMA
L5-30R) on either one of the generator to get up to 3600W power supply.
NOTICE:
During parallel operation the NEMA 5-20R receptacle is limited to a maximum of 2400W.
Two KOBALT 120V inverters, model W02083, can be paralleled to increase the total available
electrical power to 3600 watts.
PARALLEL OPERATION
6
26
To be performed by knowledgable/experienced owner or by authorized service center.
General Recommendations
Regular maintenance will improve the performance and extend the life of the generator. See any
authorized dealer for service.
The generator's warranty does not cover items that have been subjected to operator abuse or
negligence. To receive full value from the warranty, the operator must maintain the generator as
instructed in this manual.
Some adjustments will need to be made periodically to properly maintain your generator.
All service and adjustments should be made at least once each season. Follow the requirements in the
maintenance shedule chart above.
NOTICE:
Once a year you should clean or replace the spark plug and replace the air lter. New
spark plug and clean air lter assure proper fuel-air mixture and help your engine run at peak
performance and last longer.
MAINTENANCE SCHEDULE
Check condition. Adjust gap
and clean. Replace if necessary.
Clean fuel tank strainer.
Replace if necessary.
Check fuel hose for cracks or other
damage. Replace if necessary.
Check for leakage. Retighten or
replace gasket if necessary.
Check spark arrester screen.
Clean/Replace if necessary.
Clean, replace if necessary.
Check adjust valve clearance.
Clean combustion chamber.
Check. Replace if necessary.
Check oil level.
Replace.
√
√
Daily
(Before
operation)
Initial
25
hours
Every
50
hours
Every
250
hours
Every
100 hours
(or annual)
√
√
√
√
√
√
√
√
√
√
MAINTENANCE - STORAGE
NOTES
ITEM
Fittings/
Fasteners
Exhaust
System
Fuel Line
Air Filter
Engine Oil
Spark Plug
Fuel
Engine
27
When Transporting Generator
Transport with fuel tank EMPTY or with fuel valve in OFF position.
Do not tip generator at an angle which causes fuel to spill.
Engine Maintenance
To prevent accidental starting, remove and ground spark plug wire before performing any service.
Change Engine Oil
Change engine oil every 100 hours (for a new engine, change oil after 25 hours). If you are using your
generator under extremely dirty or dusty conditions, or in extremely hot weather change the oil more
often.
CAUTION!
Avoid prolonged or repeated skin contact with used motor oil. Used motor oil has been
shown to cause skin cancer in certain laboratory animals. Thoroughly wash exposed areas with soap
and water.
MAINTENANCE - STORAGE
(a) Loosen the cover screws and remove the
maintenance cover.
(b) Remove the oil ller cap/dipstick.
(c) Tilt the generator on its side and allow the oil to
drain completely.
(d) Fill the engine with oil until it reaches the HIGH
level on the oil ller cap. DO NOT OVERFILL.
NOTICE
:
Do not screw in cap/dipstick when
checking oil level.
(e) Reinstall the maintenance cover and tighten the
cover screws.
(f) Dispose of used oil at an approved waste
management facility.
NOTICE
:
We recommend using SAE 10W-30 API
SJ or higher oil for best performance. Do not use
special additives. See Oil and Gasoline.
Keep Out Of Reach Of Children. Don’t
Pollute. Conserve Resources. Return
Used Oil To Collection Centers.
(H)
(L)
28
MAINTENANCE - STORAGE

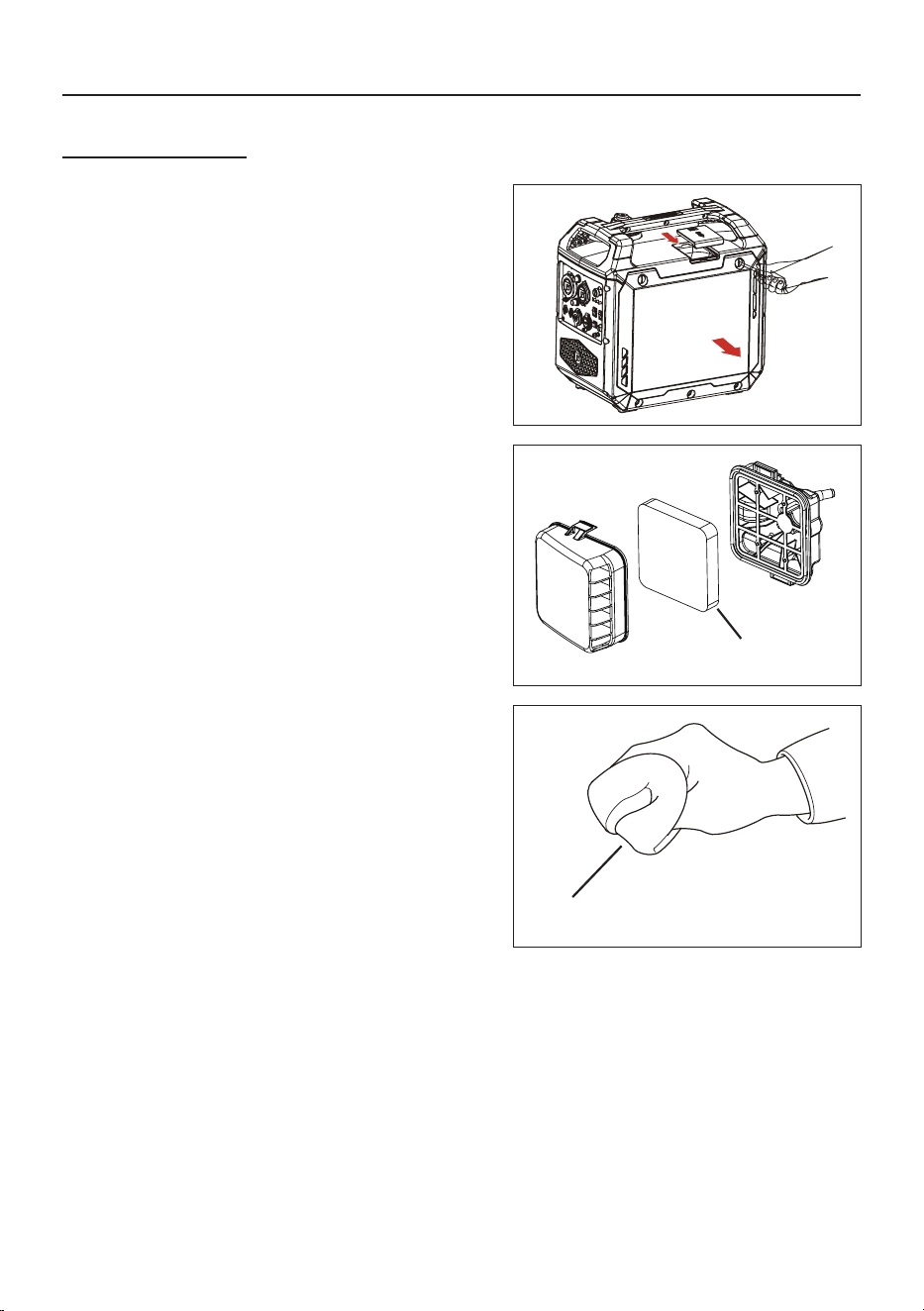

Air Filter Maintenance
(a) Remove the air cleaner cover and locate the air
lter plastic cover.
Foam Element
Air Filter Element
(b) Carefully remove foam air lter element and
wash it with liquid detergent and water only.
Squeeze dry in a clean cloth.
( c) Saturate foam air lter element with clean
engine oil and squeeze in a clean cloth to remove
excess oil.
(d) Reinstall clean or new air lter element.
(e) Reattach the air lter cover.
(f) Reinstall the air cleaner cover and tighten the
cover screw securely.
29
MAINTENANCE - STORAGE

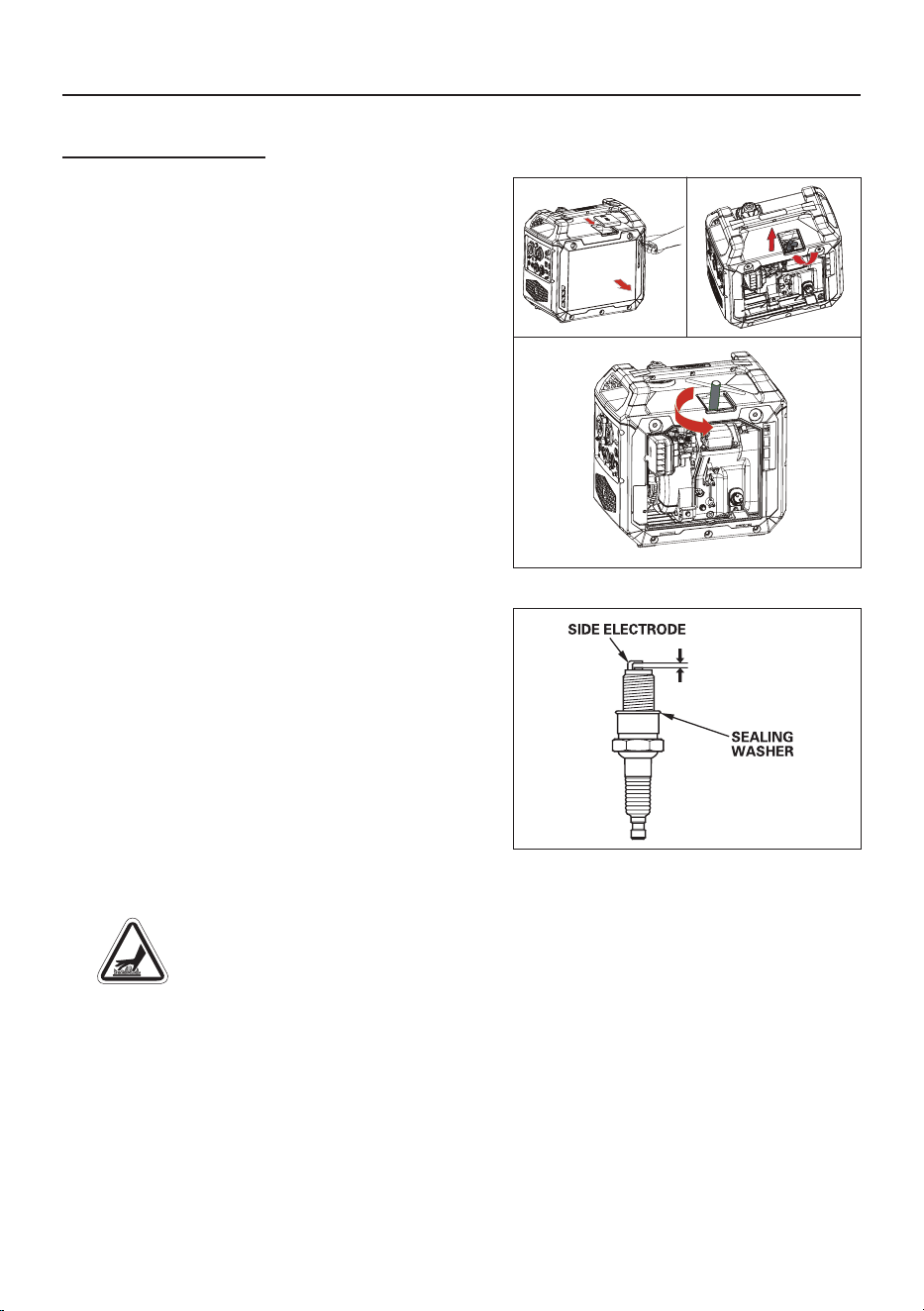

Spark Plug Maintenance
Changing the spark plug will help your engine start
easier and run at peak performance.
(a) Remove the maintenance cover.
(b) Remove the spark plug boot.
(c) Remove spark plug using provided wrench.
(d) Inspect spark plug for damage and clean with a
wire brush before reinstalling. Replace if damaged.
(e) Adjust the electrode gap to 0.028 - 0.031 in.
( 0.7 - 0.8 mm).
(f) Seat spark plug in position and thread by hand to
prevent cross threading.
(g) Tighten plug with provided wrench and put the
spark plug boot back on spark plug.
0.028-0.031in
(0.7-0.8mm)
● Do not touch hot parts.
● It is a violation of California Public Resource Code, Section 4442, to use or operate the engine on
any forest covered, brush-covered, or grass-covered land unless the exhaust system is equipped
with a spark arrester, as dened in Section 4442, maintained in eective working order. Other states
or federal jurisdictions may have similar laws, reference Federal Regulation 36 CFR Part 261.52.
WARNING! Contact with muer area could cause burns resulting in serious injury.
Spark Plug: TORCH F6RTC, NGK BPR6ES,
CHAMPION
RN9YC Or equivalent.
Maintenance Valve Clearance
Intake: 0.004 – 0.006 in. (0.10 – 0.15 mm)
Exhaust: 0.004 – 0.006 in. (0.10 – 0.15 mm)
30
MAINTENANCE - STORAGE

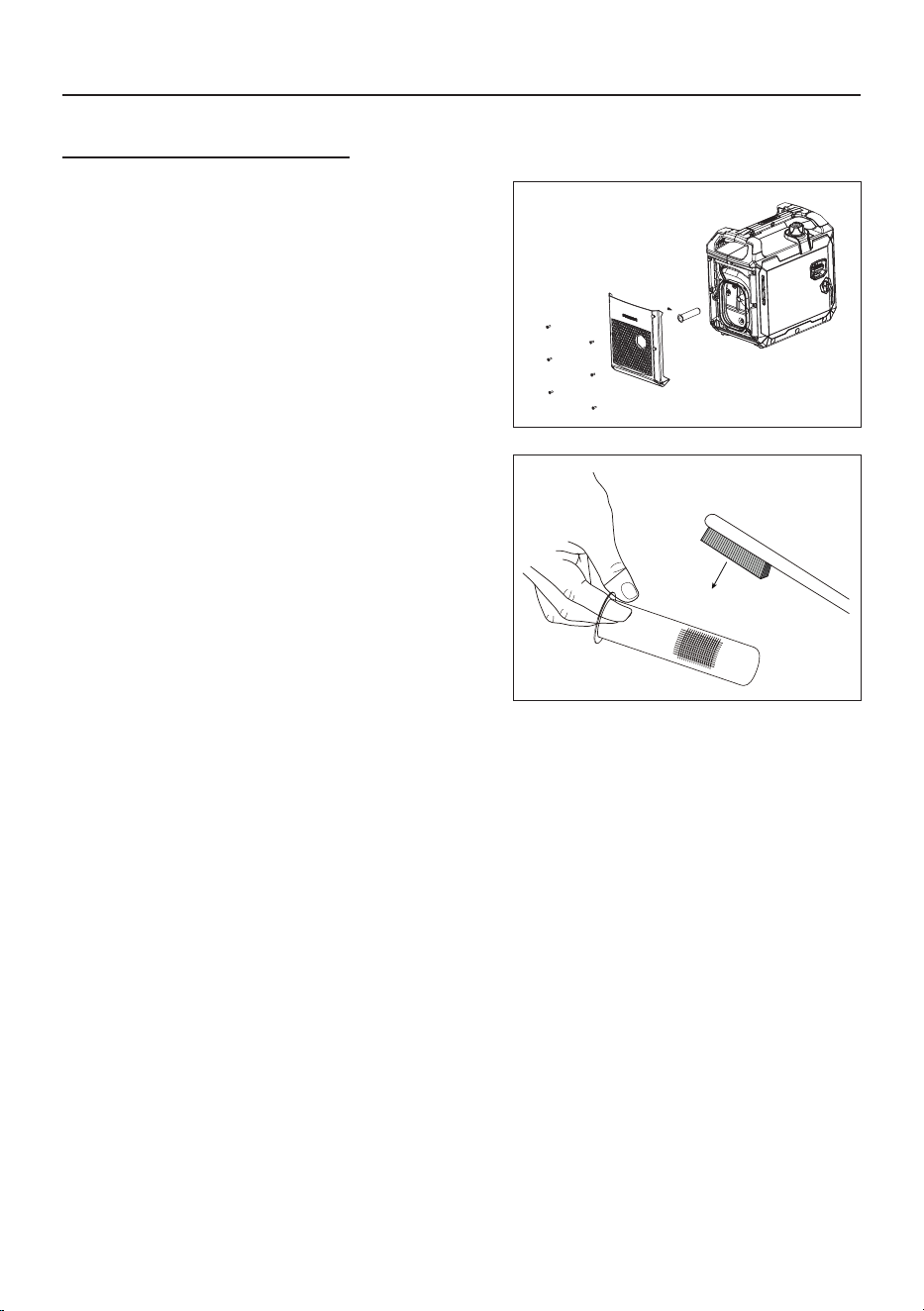

Inspect Muer and Spark Arrester
1. Inspect the muer for cracks, corrosion, or other
damage.
2. Loosen the spark arrester clamp, remove the
spark arrester cover, and remove the spark arrester
with a screwdriver .
3. Carefully remove the carbon deposits from the
spark arrester screen with a wire brush.
4. Replace the spark arrester if it is damaged. If
replacement parts are required, make sure to use
only KOBALT original equipment replacement
parts.
5. Position the spark arrester in the muer and
attach spark arrester cover with the screws.
NOTICE:
Failure to clean or replace spark arrester
may result in decreased engine performance.
31
MAINTENANCE - STORAGE
GENERATOR MAINTENANCE
● Run the generator at least 30 minutes every month.
● Make certain that the portable generator is kept clean and dry.
● Do not expose the unit to excessive dust, dirt, moisture or corrosive vapors.
● Do not insert any objects through cooling slots.
● Before each use inspect underneath the generator for signs of oil or fuel. Clean any accumulated
Long Term Storage
It is important to prevent gum deposits from forming in essential fuel system components such as
the carburetor, fuel hoses or tank during storage. Ethanol-blended fuels (called gasohol, ethanol or
methanol) attract moisture, which leads to separation and formation of acids during storage.Acidic gas
can damage the fuel system of an engine while in storage.
When the generator set is being stored for more than one month, follow these instructions to avoid
engine problems:

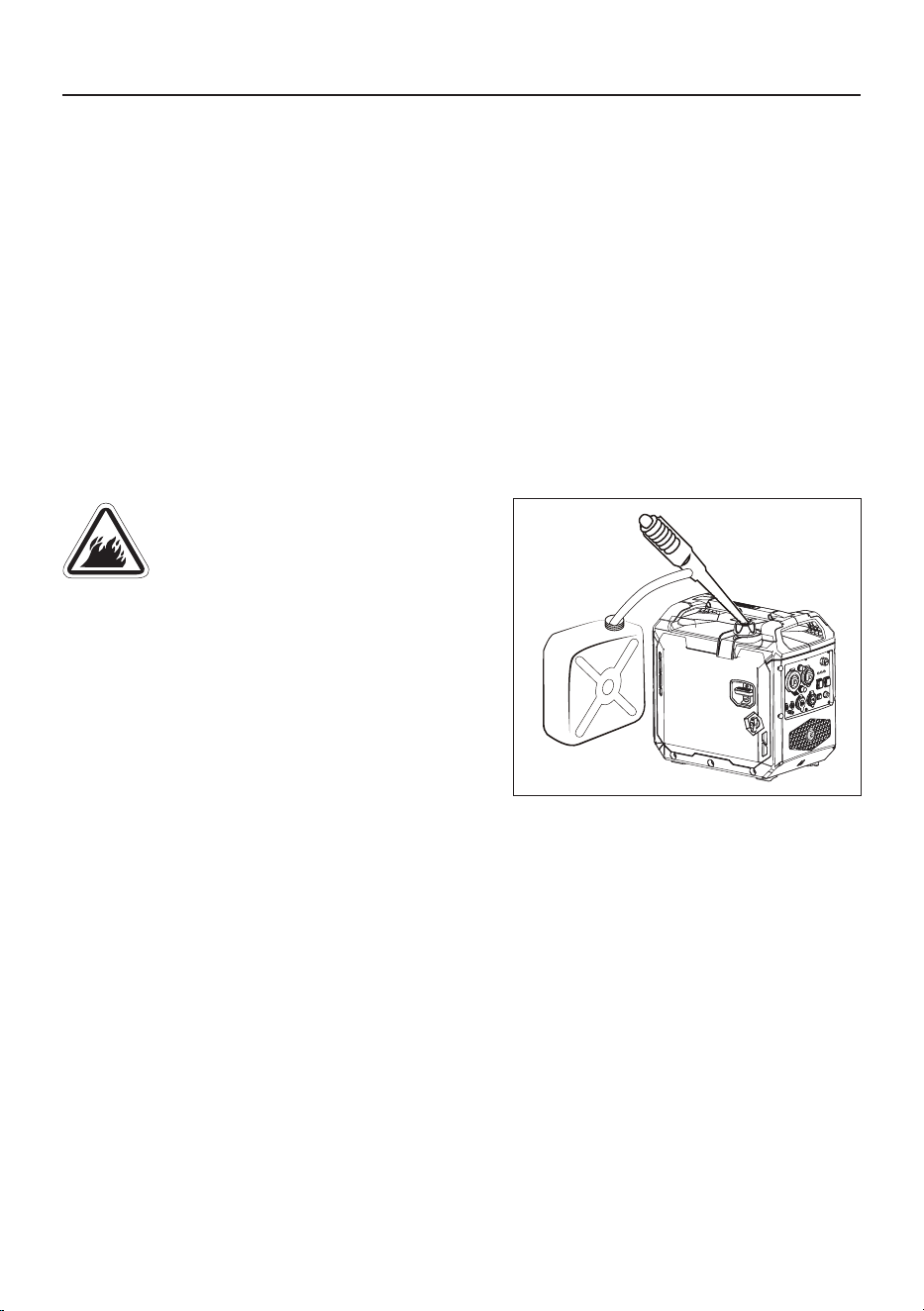

WARNING!
Fuel and its vapors are extremely
ammable which could cause burns or
re resulting in death or serious injury.
Do not store fuel near any ignition sources.
When draining fuel move generator outdoors and
use a commercially available non-conductive
vacuum siphon. Fuel must be drained into an
approved container.
1-Treat any stored fuel with fuel stabilizer.
2-When storing generator with gasoline in fuel tank, operate the engine for 5-10 minutes to circulate
treated fuel into fuel lines and carburetor before shutdown.
3- There is no need to drain gasoline from the generator fuel tank if fuel stabilizer is added.
4-FUEL STARVATION: If you elect to drain fuel tank move generator outdoors. Once fuel tank is drained
turn fuel valve to on position. Start and run the portable generator outdoors until engine stops from lack
of gasoline. This will drain remaining gasoline from tank, fuel lines, and carburetor.
5-Always turn fuel valve to OFF position prior to storage.
6-Allow the portable generator to cool before cleaning and storage.
7-Change oil .
8-Remove spark plug boot and spark plug. Pour about one teaspoon of engine oil through the spark plug
hole, then slowly pull the recoil starter several times to distribute the oil in the cylinder. Pull recoil slowly
until resistance is felt. This will close the valves so no moisture enters the engine cylinder. Reinstall the
spark plug and attach the spark plug boot.
9-Cover the portable generator and store in a clean, dry place out of direct sunlight and away from any
ignition sources.
Any damage or hazards caused by using improper fuel, improperly stored fuel, and/or improperly
formulated stabilizers, are not covered by manufacturer's warranty. Do not store gasoline from one
season to another season.
debris. Keep area around muer free from any debris. Use a soft bristle brush to remove dirt or
caked on oil. Use a damp cloth to clean all exterior surfaces.
32
TROUBLESHOOTING
Troubleshooting
Problem Cause Correction
Engine is running,
but no AC output is
available.
1. Circuit breaker is open.
2. Fault in generator.
3. Poor connection or defective cord
set.
4. Connected device is bad.
1. Reset circuit breaker.
2. Contact authorized service facility.
3. Check and repair.
4. Connect another device that is in
good condition.
Engine runs
good at no-load
but “bogs down”
when loads are
connected.
1. Short circuit in a connected load.
2. Engine speed is too slow.
3. Generator is overloaded.
4. Shorted generator circuit.
5. Clogged or dirty fuel lter.
1. Disconnect shorted electrical load.
2. Contact authorized service facility.
3. See Don’t Overload Generator.
4. Contact authorized service facility.
5. Clean or replace fuel lter.
Engine will not
start; starts and
runs rough or
shuts down when
running.
1. Engine switch set to OFF (O)
position.
2. Fuel shuto lever is in OFF (O)
position.
3. Low oil level.
4. Dirty air cleaner.
5. Out of fuel.
6. Stale fuel.
7. Spark plug wire not connected to
spark plug.
8. Bad spark plug.
9. Water in fuel.
10. Flooded.
11. Excessively rich fuel mixture.
12. Intake valve stuck open or
closed.
13. Engine has lost compression.
14. Clogged or dirty fuel lter.
1. Set engine switch to ON (l) position.
2. Move fuel shuto lever to ON (l)
position.
3. Fill crankcase to proper level or
place generator on level surface.
4. Clean or replace air cleaner.
5. Fill fuel tank.
6. Drain fuel tank and carburetor; ll
with fresh fuel.
7. Connect wire to spark plug.
8. Replace spark plug.
9. Drain gas tank and carburetor; ll
with fresh fuel.
10. Wait 5 minutes and re-crank
engine.
11. Contact authorized service facility.
12. Contact authorized service facility.
13. Contact authorized service facility.
14. Clean or replace fuel lter.
Engine lacks
power.
1. Load is too high.
2. Dirty air lter.
3. Clogged or dirty fuel lter.
4. Clogged spark arrester.
1. Don’t Overload Generator
2. Replace air lter.
3. Clean or replace fuel lter.
4. Clean or replace spark arrester.
Engine “hunts”
or falters.
1. Carburetor is running too rich or
too lean.
2. Clogged or dirty fuel lter.
1. Contact authorized service facility.
2. Clean or replace fuel lter.
Engine shuts down
when running.
1. Out of fuel.
2. Dirty air cleaner.
3. Low oil level.
1. Fill fuel tank.
2. Clean or replace air cleaner.
3. Fill crankcase to proper level or
place generator on level surface.
Engine shuts down
and yellow CO
fault light blinking.
1. CO system fault 1. Contact authorized KOBALT
service facility.
For all other issues, contact authorized dealer or KOBALT customer service.
33
TROUBLESHOOTING – SPECIFICATIONS
Model
Starting Watts
Running Watts*
Rated AC Voltage
Rated Fequency
DC Output
USB-A
USB-C
Phase
Voltage Regulator
Power Factor
Total Harmonic Distortion(THD)
Alternator Type
Engine
Engine Type
Displacement
Low Oil Shutdown
Ignition System
Starting System
Fuel
Capacity Fuel Tank
Lubricating Oil Capacity
Carburetor Type
Air Cleaner
P.T.O. Shaft Rotation
Oil Type
AC Grounding System
W02083
2500
2000
120V
60Hz
12V/8.3A
5V/3.6A 9V/2.5A 12V/2A
5V/3A 9V/3A 12V/2.25A
Single
Digital
1
<3%
Magneto Inductor
FIRMAN
Single Cylinder, 4-Stroke OHV Air Cooled
80cc
Yes
Breakless Ignition Type, Flywheel Magneto
Recoil
Unleaded Automotive Gasoline
1.1 U.S. Gallons (4.2L)
18.6 oz (0.55L)
Float
Polyurethane Type
Counter Clockwise (Facing P.T.O.)
See “Add Engine Oil” Section
Neutral Floating
*Complies with PGMA (Portable Generator Manufacturers’ Association) standard ANSI/PGMA
G300-2023, Safety and Performance of Portable Generators.
Specications
REPLACEMENT PARTS LIST
W02083 Parts Diagram
For replacement parts, call our customer service department at 888-356-2258, 8 a.m. - 8 p.m., EST, Monday - Sunday. You may also contact us at [email protected].
34
REPLACEMENT PARTS LIST
80cc Engine Parts Diagram
35
36
REPLACEMENT PARTS LIST
W02083 Portable Generator
All replacement parts are covered under warranty.
#
37
W02088 Portable Generator
N
N
O
O
.
.
P
P
a
a
r
r
t
t
N
N
u
u
m
m
b
b
e
e
r
r
D
D
e
e
s
s
c
c
r
r
i
i
p
p
t
t
i
i
o
o
n
n
Q
Q
t
t
y
y
.
.
N
N
O
O
.
.
P
P
a
a
r
r
t
t
N
N
u
u
m
m
b
b
e
e
r
r
D
D
e
e
s
s
c
c
r
r
i
i
p
p
t
t
i
i
o
o
n
n
Q
Q
t
t
y
y
.
.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
320463005
336723526
317713512
336723555
320715500
333717014
320725500
320725501
336718301
320725502
330713574
336718397
320723008
336718397
320725504
320725505
317713001
320715503
320723012
317713529
317713528
320715504
317713526
333717008
333717020
320725508
330713508
320725509
320723013
3207
23004
317713524
317713550
330713581
320715505
336718397
320715506
320755500
329713610
320755501
336718324
320715507
317718303
317718305
316735503
330713630
336755002
320753005
336713585
330713596
317713580
320715508
320723006
336725506
320723011
317713565
330713603
320753006
336718301
320755503
320723005
336718383
336718397
320753007
320715549
320715550
320725524
320725525
317713584
317713583
320755504
320413008
320413009
Engine Subassembly
F
lange bolt M6×15
Isolator
Nut M6
Flange Bolt M6×10
Nut M6
Base Assy
Isolator Assy. I
Flange Bolt M6×12
Isolator Assy. II
Rectifier
Screw M5×14
Right Side Cover Assy
Screw M5×14
Maintenance Cover
Front Cover Assy
Bolt M6
Bolt M6
Maintenance Cover
Fuel Tank Cap Comp
Fuel Filter
Fuel Tank Assy
Mounting, Fuel Tank
Fuel Filter, Wire Mesh
Clamp Ø12×8
Hose, Fuel
Clip (φ10.5×8)
Fuel Guide Plate
Supporter, Back Cover
Logo Plate
Cage Nut M5
Screw M4×10
Fuel Valve Knob
Fuel Cock Comp.
Screw M5×14
Chock Cable Assy.
Socket 5-20R
Pilot Lamp
Nut M4
Co
ntrol Panel
Engine Switch
Economic Switch
Switch Cover
Switch
Indicator Light
USB
Nut M4
Socket L5-30R
Ground Bolt Assy
Outlet Cover 5-20R
Outlet Cover L5-30R
Outlet Cover
Cigar Lighter
Parallel Terminal
Flange Bolt M6×14
Control Module
Left Cover Assembly
Screw Assy M4×14
Screw M5×14
Co Module
Torsional Spring
Pin
Warp Cord Bracket I
Warp Cord Bracket II
Adapter L5-30P to TT-30R
Parallel Cable
12V DC Charge Cable
Control Panel Assy
Fuel Tank Sub Assy
D.C 10A Breaker,Push Button
A
.C 20A Breaker,Push Button
Outlet Cover (parallel Terminal)
1
2
4
4
2
6
1
2
4
2
1
2
1
2
1
1
6
2
1
1
1
1
3
1
1
1
3
1
1
1
13
1
1
1
2
1
1
1
1
4
1
1
1
2
1
1
1
1
4
1
1
1
1
1
1
2
2
4
1
1
6
16
1
4
4
2
2
1
2
1
1
1
PARTS DIAGRAMS - PARTS LISTS - WIRING DIAGRAM
37
80cc Engine
REPLACEMENT PARTS LIST
All replacement parts are covered under warranty.
#
38
80cc Engine
336718338
316715528
320715509
320723014
320723015
316715526
316715525
316715524
316715521
316715522
316715520
316715519
317723559
320715511
320715512
320715551
330713502
320715514
320725514
320725515
330713523
336718338
320715515
320725516
317723505
320715516
320715517
320715518
336718338
317723521
320715519
336723522
320725517
317723511
320715520
320725518
317723516
336718301
320715521
320715522
336723577
320715523
320715524
317723537
3177
23536
317723535
320715525
316415502
320715526
317723561
317723540
317723541
317723542
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
N
N
O
O
.
.
P
P
a
a
r
r
t
t
N
N
u
u
m
m
b
b
e
e
r
r
D
D
e
e
s
s
c
c
r
r
i
i
p
p
t
t
i
i
o
o
n
n
Q
Q
t
t
y
y
.
.
Flange Bolt M6×12
Case Comp.,recoil Starter
Handle Guide Plate
Recoil Starter Knob
Handle Cover
Spring, Starter Return
Pulley, Recoil Starter
Spring, Pawl
Pawl, Starter
Retaing Ring Ø14
Pawl Guide
Screw, Pawl Guide
Flange Bolt M6×50
Fan Cover Comp
Nut
Wire Clip
Screw M5×20
Ignition Coil
Air Guide Lower
Wind Guide, Top
Screw St4.2×16
Flange Bolt M6×12
Pulley, Starter
Cooling Fan
Nut M12
Rotor Comp
Flange Bolt M5×35
Stator Assy
Flange Bolt M6×12
Trigger Assy
Crankcase Suba
ssembly.
Flange Bolt M6×8
Oil Seal
Bearing 6204
Crankshaft Comp
Case Cover Packing
Dawl Pin
Flange Bolt M6×12
Oil Level Switch Assy
Cover, Crankcase
Flange Bolt M6×20
Oil Nozzle
Oil Dipstick Assembly
Conn. Rod Assy.
Piston Pin
Piston Pin Clip
Piston
Piston Rings Set
Pawl Guide
Gasket, cylinder
Camshaft Comp.
Valve Lifter
Push Rod
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
87.1
87.2
87.3
87.4
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
N
N
O
O
.
.
P
P
a
a
r
r
t
t
N
N
u
u
m
m
b
b
e
e
r
r
D
D
e
e
s
s
c
c
r
r
i
i
p
p
t
t
i
i
o
o
n
n
Q
Q
t
t
y
y
.
.
320715527
320715528
317723583
320715548
317723580
330723559
330723560
330723561
317723576
317723577
316715515
317723557
316715512
320715530
336723526
317723562
320715531
320715532
320725519
330713508
320725520
320715533
336723601
316715508
320715534
336718362
316725504
317713550
320715535
316715504
336723605
317723567
336723555
320715536
320715545
320715546
320725523
320715547
317723544
320725521
320715537
320725522
320715538
320715539
3207
15540
317723532
320715541
320715542
320415500
320715544
320423001
320413006
320413007
3
1
1
1
1
1
1
2
2
1
1
1
2
1
2
1
2
1
1
1
7
2
1
1
1
1
2
1
2
1
1
4
1
2
1
1
4
2
1
1
7
1
1
1
1
2
1
1
1
1
1
2
2
1
1
1
1
1
2
2
2
2
1
4
1
1
1
4
2
1
1
1
2
1
1
1
1
1
2
1
2
1
2
1
1
6
1
1
1
1
1
2
1
1
1
1
1
2
1
1
1
1
1
1
1
1
Connecter, Throttle Valve Axis
PARTS DIAGRAMS - PARTS LISTS - WIRING DIAGRAM
Cylinder Head
Valve, Intake
Valve, Exhaust
Spark Plug
Oil Seal, Valve
Spring, Valve
Ret., Valve Spring
Lock Clip. Valve
Arm, Valve Rocker
Shaft, Screw Rocker
Bolt M6x50
Cylinder Cover Gasket
Cylinder Head Cover
Cover of Air Hood
Flange Bolt M6×15
Carburetor Bolt
Gasket, Inlet
Gasket, Carburetor
Clip (ø10.5×8)
Hose, Fuel
Carburetor
Spring, Connecter
Step Motor Holder
Stepper Motor Base
Screw M4×10
Step Motor
Cover, Stepper Motor
Gasket, Air Cleaner
Nut M6
Air Cleaner Case Assy
Air Cleaner Base
Flange
Element, Air Cleaner
Co
ver, Air Cleaner
Stud Bolt
Muffler Gasket
Exhaust Pipe
Gasket, Exhaust
Muffler Assembly
Flange Bolt M6×75
Stud Bolt M6×50
Spark Arrester
Crankcase Cover
Cylinder Head Assy
Gasket Assy.
Muffler Assembly
Recoil Start Assy.
Carburetor Set
Piston Assy.
Plate, Carburetor Insulator
Screw&washer Assy M5×14
Screw&washer Assy M3×6
38
WIRING DIAGRAM
Wiring Diagram
39
SERVICE – WARRANTY
For service information contact KOBALT customer service at 888-3KOBALT (888-356-2258)
or at [email protected] to obtain warranty service information or to order replacement parts or
accessories.
HOW TO ORDER REPLACEMENT PARTS
Even quality-built equipment such as this electric generator may need occasional
replacement parts to maintain it in good condition over the years. To order replacement parts,
please give the following information:
● Model No. Rev. Level and Serial No. found on the Data Decal.
● Parts number or numbers as shown in the Parts List section.
● A brief description of the trouble with the generator.
KOBALT 3 YEARS LIMITED WARRANTY
Warranty Qualications
KOBALT GENERATOR will register the warranty upon receipt of your Warranty Registration Card and
a copy of your sales receipt from one of KOBALT’s retail locations as proof of purchase.
Please submit your warranty registration and your proof of purchase within ten(10) days of the date of
purchase.
Repair/Replacement Warranty
KOBALT warrants to the original purchaser that the mechanical and electrical components will be
free of defects in material and workmanship for a period of one (1) year (parts and labor) and 3 years
(parts and technical support) from the original date of purchase 90 days [parts and labor] and 180
days [parts] for commercial & industrial use. Transportation charges on product submitted for
repair or replacement under this warranty are the sole responsibility of the purchaser . This warranty
only applies to the original purchaser and is not transferable.
Do Not Return the Unit to the Place of Purchase
Contact the KOBALT customer service and KOBALT will troubleshoot any issue via phone or e-mail.
If the problem is not corrected by this method, KOBALT will, at its option, authorize evaluation,
repair or replacement of the defective part or component at a KOBALT Service Center. KOBALT
will provide you with a case number for warranty service. Please keep it for future reference.
Repairs or replacements without prior authorization, or at an unauthorized repair facility, will not be
covered by this warranty.
Warranty Exclusions
This warranty does not cover the following repairs and equipment.
Normal Wear
Your product needs periodic parts and service to perform well. This warranty does not cover repair
when normal use has exhausted the life of a part or the equipment as a whole.
40
SERVICE – WARRANTY
INSTALLATION, USE AND MAINTENANCE
This warranty will not apply to parts and/or labor if your product is deemed to have been misused,
neglected, involved in an accident, abused, loaded beyond the generator’s limits, modied,
installed improperly or connected incorrectly to any electrical component. Normal maintenance is
not covered by this warranty.
Other Exclusions
This warranty excludes:
– cosmetic defects such as paint, decals, etc.
– wear items
– accessory parts
– failures due to acts of God and other force majeure events beyond the manufacturer’s control
– problems caused by parts that are not original KOBALT parts
– units used for prime power in place of existing utility power where utility is present or in place
of utility power where utility power service does not normally exist.
LIMITS OF IMPLIED WARRANTY AND CONSEQUENTIAL DAMAGE
KOBALT disclaims any obligation to cover any loss of time, use of this product, freight, or any
incidental or consequential claim by anyone from using this product. THIS WARRANTY IS IN LIEU OF
ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANT
ABLILITY OR FITNESS FOR A PARTICULAR PURPOSE.
A unit provided as an exchange will be subject to the warranty of the original unit. The length of the
warranty governing the exchanged unit will remain calculated by reference to the purchase date of the
original unit.
This warranty gives you certain legal rights which may change from state to state. Your state may
also have other rights you may be entitled to that are not listed within this warranty.
Contact Information
You may contact KOBALT at:
888-356-2258
E-mail：[email protected]
41
SERVICE – WARRANTY
CALIFORNIA AND FEDERAL EXHAUST AND EVAPORATIVE EMISSIONS CONTROL WARRANTY
STATEMENT
YOUR WARRANTY RIGHTS AND OBLIGATIONS
The California Air Resources Board, US Environmental Protection Agency (“US EPA”) and FIRMAN
POWER EQUIPMENT INC.(FIRMAN) are pleased to explain the emissions control systems warranty
on your 2025-2026 or later Small O-Road Engine (“SORE”) and engine powered equipment. In
California, new equipment that use small o-road engines must be designed, built and equipped to
meet the State’s stringent anti-smog standards. FIRMAN must warrant the emissions control systems
on your SORE and engine powered equipment for the periods of time listed below provided there has
been no abuse, neglect or improper maintenance of your small o-road engine or equipment leading
to the failure of the emissions control system.
Your emissions control system may include parts such as the carburetor or fuel-injection system, the
ignition system, catalytic converter, fuel tanks, fuel lines (for liquid fuel and fuel vapors), fuel caps,
valves, canisters, lters, clamps and other associated components. Also included may be hoses,
belts, connectors, and other emission-related assemblies.
Where a warrantable condition exists, FIRMAN will repair your SORE and engine powered equipment
at no cost to you including diagnosis, parts and labor.
MANUFACTURER’S WARRANTY COVERAGE:
The exhaust and evaporative emissions control system on your small o-road engine and engine
powered equipment is warranted for two years. If any emissions-related part on your small o-road
engine and engine powered equipment is defective, the part will be repaired or replaced by FIRMAN.
OWNER’S WARRANTY RESPONSIBILITIES:
As the SORE and engine powered equipment owner, you are responsible for the performance of
the required maintenance listed in your operator’s manual. FIRMAN recommends that you retain all
receipts covering maintenance on your SORE and engine powered equipment, but FIRMAN cannot
deny warranty coverage solely for the lack of receipts or for your failure to ensure the performance of
all scheduled maintenance.
As the SORE and engine powered equipment owner, you should however be aware that FIRMAN may
deny you warranty coverage if your small o-road engine or engine powered equipment or a part has
failed due to abuse, neglect, or improper maintenance or unapproved modications.
You are responsible for presenting your small o-road engine and engine powered equipment to a
FIRMAN distribution center or service center as soon as the problem exists. The warranty repairs
shall be completed in a reasonable amount of time, not to exceed 30 days.
If you have any questions regarding your warranty rights and responsibilities, you should contact
FIRMAN at 1-844-347-6261.
FIRMAN Emission Control Defects Warranty Provisions
The warranty period begins on the date the engine/equipment is delivered to an ultimate purchaser.
FIRMAN warrants to the ultimate purchaser and each subsequent purchaser that the engine is:
Designed, built, and equipped so as to conform with all applicable regulations adopted by the Air
Resources Board and US EPA; and Free from defects in materials and workmanship that cause the
failure of a warranted part to be identical in all material respects to the part as described in the engine
manufacturers application for certication.
FIRMAN POWER EQUIPMENT INC.
Emission Control System Warranty
42
SERVICE – WARRANTY
The warranty on emissions-related parts is as follows:
(1) Any warranted part that is not scheduled for replacement as required maintenance in the owner’s
manual supplied, is warranted for the warranty period stated above. If any such part fails during the
period of warranty coverage, the part will be repaired or replaced by FIRMAN at no charge to the
owner. Any such part repaired or replaced under the warranty will be warranted for the remaining
warranty period.
(2) Any warranted part that is scheduled only for regular inspection in the owner’s manual supplied, is
warranted for the warranty period stated above. Any such part repaired or replaced under warranty will
be warranted for the remaining warranty period.
(3) Any warranted part that is scheduled for replacement as required maintenance in the owner’s
manual supplied, is warranted for the period of time prior to the rst scheduled replacement point for
that part. If the part fails prior to the rst scheduled replacement, the part will be repaired or replaced
by FIRMAN at no charge to the owner. Any such part repaired or replaced under warranty will be
warranted for the remainder of the period prior to the rst scheduled replacement point for the part.
(4) Repair or replacement of any warranted part under the warranty must be performed at no charge to
the owner at a warranty station.
(5) Notwithstanding the provisions of Subsection (4) above, warranty services or repairs must be
provided by FIRMAN that are franchised to service the subject engines.
(6) The owner must not be charged for diagnostic labor that leads to the determination that a
warranted part is in fact defective, provided that such diagnostic work is performed at a warranty
station.
(7) FIRMAN is liable for damages to other engine components proximately caused by a failure under
warranty of any warranted part.
(8) Throughout the emissions warranty period dened in Subsection (b)(2), FIRMAN will maintain a
supply of warranted
parts sucient to meet the expected demand for such parts.
(9) Any replacement part may be used in the performance of any warranty maintenance or repairs and
must be provided without
charge to the owner. Such use will not reduce the warranty obligations of the manufacturer.
(10) Add-on or modied parts that are not exempted by the Air Resources Board may not be used. The
use of any non-exempted
add-on or modied parts by the ultimate purchaser will be grounds for disallowing a warranty claim.
The manufacturer will not be liable to warrant failures of warranted parts caused by the use of a non-
exempted add-on or modied part
PARTS COVERED BY WARRANTY.
Listed below are the parts (if equipped) covered by the Federal and California Emission Control
System Warranty.
43
SERVICE – WARRANTY
LIMITATIONS
This Emission Control System Warranty shall not cover any of the following:
(a) Consequential damages such as loss of time, inconvenience, loss of use of the engine or
equipment, etc.
(b) Diagnosis and inspection fees that do not result in eligible warranty service being performed.
FIRMAN POWER EQUIPMENT INC.
www.rmanpowerequipment.com
1. Ignition system including:
- Spark plug
- Ignition coil
2. Fuel metering system:
- Fuel tank
- Fuel cap
- Fuel lines(for liquid fuel and fuel vapors) and
related ttings/clamps
- Fuel regulator, carburetor and internal parts.
3. Catalytic muer assembly including:
- Exhaust manifold
- Catalytic converter
- Muer gasket
-pulse valve
4. Air induction system including:
- Intake pipe/manifold
- Air cleaner
5. Crankcase breather assembly including:
- Breather connection tube
6. Fuel tank evaporative emission control
system including:
- Purge valves
- Carbon canister
- Vapor hoses and tting/clamps
PARTS COVERED BY WARRANTY.
Listed below are the parts (if equipped) covered by the Federal and California Emission Control
System Warranty.
