SIM 3400SS
EN
ICE MAKER
Translation of the original manual
SIM 3400SS
A
2
1
3
4
5
6
7
5
8
A
13
14
9
12
10
11
B
6 7 8
1 2 3 4
5
C
- 1 -
12/2024
2024, .
EN
Ice Maker
User Manual
Important Safety Instructions
READ CAREFULLY AND STORE FOR FUTURE USE.
• This appliance may be only used by children aged
8 years and older and by persons with physical, sensory
or mental impairments or lack of experience and
knowledge, if they are supervised or have been instructed
on the safe use of the appliance and understand the
potential hazards.
• Children aged 3 to 8 years can insert and remove ice
cubes into and out of the ice maker.
• Children must not play with the appliance. Cleaning and
maintenance must not be performed by children without
supervision.
• If the power cord is damaged, have it replaced in
aprofessional service centre in order to prevent
adangerous situation. It is forbidden to use the appliance
with the power cord damaged.
• The appliance is not intended to be permanently
connected to the water supply and is not intended for
camping or similar use. The appliance is intended for
domestic and indoor use only.
WARNING:
Fill with potable water only.
ICE MAKER
- 2 -
12/2024
2024, .
WARNING:
The ventilation openings inthe cover of the
appliance or inits construction must be kept clear.
WARNING:
Do not use mechanical devices or means other
than those recommended by the manufacturer to
accelerate the defrosting process.
WARNING:
Do not damage the cooling circuit. There is arisk of
fire, explosion or injury to persons. It is forbidden to
use the appliance if the cooling circuit is damaged.
WARNING:
Do not use electrical appliances inside the appliance
unless they are of the type recommended by the
manufacturer.
• This appliance is intended for domestic use only. It is also
suitable for personal non-commercial use in spaces such
as:
– kitchenettes in shops, offices and other workplaces;
– hotels, motels and other residential spaces;
– bed and breakfast establishments;
– catering and similar non-retail environments.
WARNING:
When placing the appliance, make sure that the
power supply cord is not trapped or damaged.
- 3 -
12/2024
2024, .
WARNING:
Do not place multiple portable sockets or portable
extension cords on the rear of the appliance.
• This appliance is intended to be free standing. Do not use it
as abuilt-in appliance.
• – Keeping the lid open for along time may cause
asignificant increase in the temperature inside the
appliance.
• Regularly clean surfaces that may come into contact
withfood andaccessible drainage systems.
• Clean the water containers if they have not been used
for 48 h; flush the water system connected to the water
supply if the water has not flowed for 5 days.
• If the cooling appliance is left empty for along time, turn
it off, defrost, clean, dry andleave the lid open to prevent
mould forming inside the appliance.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Additional Important Safety Instructions forUse of the Appliance
• Before plugging the power cord plug into the mains socket, make sure that the voltage at your mains socket matches the voltage indicated on the
rating plate of the appliance.
• Do not remove any safety, warning or other elements from the appliance. Do not modify the appliance.
• The appliance is intended only for domestic and indoor production of ice cubes. Do not use it for purposes other than those for which it was
designed. Do not use it in commercial surroundings or outdoors.
• The appliance must be grounded. Only plug the power plug into aproperly grounded power socket.
• Do not use extension cords. We recommend connecting the appliance to an independent circuit.
• Do not place the appliance on aplace with atablecloth, towel or other cloth that achild could accidentally pull on and knock the appliance over.
• Do not expose the appliance to direct sunlight. Do not place the appliance on or near heat sources.
• Do not store explosive substances, such as sprays with flammable propellant, in this appliance. Do not store or use any explosive substances near
the appliance.
• To ensure correct operation of the appliance, leave at least 20 cm of free space on all sides. Do not block the ventilation openings or insert objects
into them.
• Do not let the power cord hang over the edge of atable or worktop, touch hot surfaces, or become tangled. Do not place heavy objects on the power
cord.
• Only use accessories specifically recommended by the manufacturer. It is forbidden to use other than the recommended accessories with this
appliance.
• Do not touch the cooling element while the appliance is in operation.
• To prevent electric shock, fire or explosion, do not immerse the appliance, its power cord or plug in water or other liquids.
• Switch off the appliance by pressing the on/off button and then disconnect the power cord plug from the mains socket.
• Never touch or control the appliance with wet hands.
• Always turn off the appliance, disconnect it from the power socket when not be using it, when leaving it without supervision, and before assembling,
disassembling, cleaning or moving it.
• Do not use flammable substances to clean the appliance. Fumes may cause afire or explosion.
• Do not turn the appliance upside down. If the appliance tips over, leave it in ahorizontal position for about 2 hours. During this time, do not switch it
on or plug it into amains socket.
- 4 -
12/2024
2024, .
• If you are moving the appliance fromavery cold room, allow the appliance to warm up to room temperature for several hours.
• Do not leave the appliance unattended when in use.
• This appliance is not intended for operation through an external timer switch or aremote control.
• When cleaning, follow the instructions inthis manual.
• Do not repair the appliance by yourselves. It does not contain user serviceable parts. All repairs should be carried out only by an authorised service
centre.
Special instructions concerning the refrigerant
WARNING:
Fire or explosion hazard. Use of flammable coolant.
• Only have the appliance repaired by aqualified service centre.
• Dispose of the appliance according to valid codes. Otherwise, there is arisk of fire, explosion or personal injury.
• Use the appliance according to the instructions in this manual. Otherwise, there is arisk of personal injury.
• This appliance contains approximately 24 g of R600a refrigerant gas. It is arefrigerant gas that meets European environmental protection directives.
• Do not drill holes into any part of the cooling circuit.
• The room in which this appliance is installed, operated or stored must be such as to prevent the containment of any escaped refrigerants which
could cause an explosion or fire as aresult of the refrigerant igniting when electric stoves, cookers or other ignition sources are switched on.
• The appliance must be stored in such amanner that its mechanical damage is prevented.
• Persons working with or repairing cooling circuits must have the appropriate authorisation issued by an authorised institution that certifies this
person'scompetence.
• Maintenance tasks must be performed solely on the basis of the recommendations of this appliance'smanufacturer. Maintenance and repair tasks
that required the contribution of other qualified expert personnel may only be performed under the supervision of specialists in the flammable
refrigerants sector.
• Check the rating label for the type of refrigerant gas used in your appliance.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
EXPLANATION OF SYMBOLS PLACED ON THE PRODUCT OR INTHE ACCOMPANYING DOCUMENTATION
The product meets all the basic requirements of the applicable EU directives.
This symbol on products or original documents means that used electric or electronic products must not be added to ordinary municipal
waste.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
- 5 -
12/2024
2024, .
• Thank you for purchasing our SENCOR product; we hope it will serve
to your satisfaction.
• Prior to using this appliance, please read the user manual thoroughly,
even in cases when you are already familiar with the use of similar
types of appliances. Use the appliance only as described in this
user manual. Keep the manual for future reference. If you pass the
appliance on to another person, ensure that this user manual is
included.
• Carefully unpack the appliance and make sure not to discard any part
of the packaging material until you have found all its components. It
is recommended to keep the original packaging, packing material,
receipt and confirmation of the extent of the seller'sliability or warranty
certificate at least for the duration of the legal right of defective
performance or quality guarantee. When transporting the appliance,
we recommend packaging it again in the original box provided by the
manufacturer.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DESCRIPTION OF THE ICE MAKER
A1 Lid with viewing window
A2 Control panel
A3 Ventilation openings
A4 Ice maker body
A5 Infrared sensors
A6 Water tank with MAX line
A7 Drain hole
A8 Filling hole witharemovable
filter
A9 Ice moulds
A10 Ice tray (located under the ice
moulds)
A11 Moving ice tray arm
A12 Cooling element
A13 Ice basket
A14 Scoop

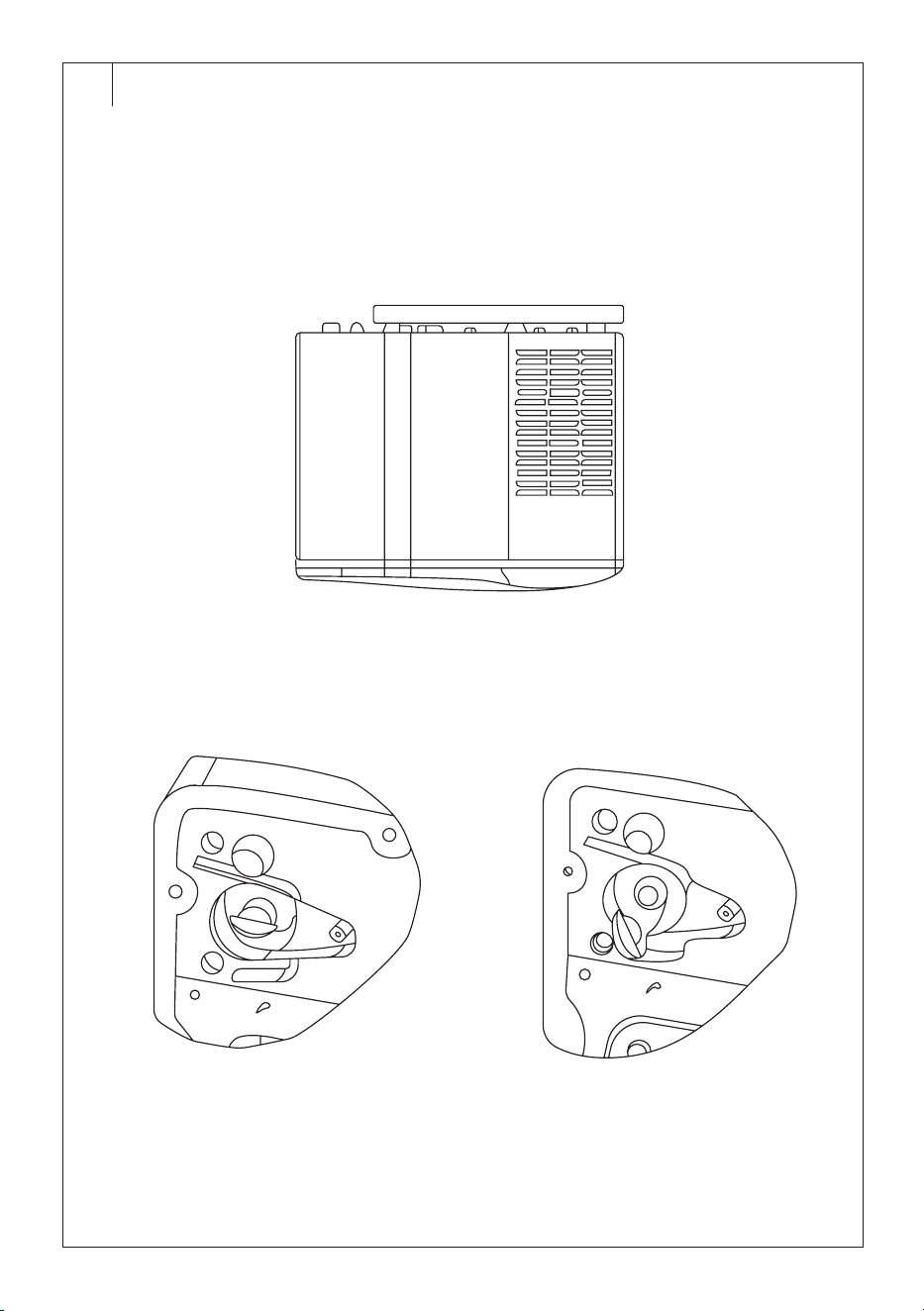

Without illustration: anti-slip feet (located at the bottom), drain valve with
plug (located at the bottom)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DESCRIPTION OF THE CONTROL PANEL
B1 Power on/off button
B2 SMALL indicator (thin ice
cubes)
B3 LARGE indicator (thick ice
cubes)
B4 CLEAN indicator (cleaning
programme)
B5 SELECT button (ice cube size
selection andcleaning)
B6 POWER indicator (switching
on the ice maker)
B7 ADD WATER indicator (empty
water tank)
B8 ICE FULL indicator (full ice
basket)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PURPOSE OF USE
• The Sencor SIM 3400SS ice maker is designed to produce hat-
shaped cubes from drinking water.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
BEFORE FIRST USE
• Before first use, remove the appliance and its accessories form the
packaging and discard all promotional labels and tags. Check that
neither the appliance nor any of its components is damaged.
Before First Use
• Wipe the outer surface of the ice maker with asoft sponge slightly
moistened in warm water. Wipe dry with aclean cloth.
• Open the lid andremove the ice basket andscoop. Wipe the inner
space with asoft sponge dipped inwarm water withalittle vinegar.
Wipe again with asoft sponge dipped inclean warm water and wipe
dry with aclean cloth.
• Wash the ice basket and scoop in warm water with alittle dishwashing
liquid. Rinse and wipe dry.
• Insert the ice basket back into the inside area of the ice maker.
Note:
If the ice maker is tilted or tipped over during transport,
place it on afirm, level surface and let it stand for about 2
hours. During this time, the refrigerant flows back into the
cooling circuit. If you switch on the ice maker immediately,
it may be irreversibly damaged. There is arisk of fire or
explosion.
However, for safety reasons, we recommend leaving the ice
maker standing for about 2 hours before plugging it into the
mains socket and turning it on, even if it has not been tilted
or tipped over during transport.
If you move the ice maker, let it stand for about 30minutes.
Placement of the Ice Maker
• Place the ice maker on aclean, level and firm surface well away from
the mains socket.
• Make sure that there is sufficient free space around the ice maker, at
least 20cm on each side.
• Ensure that the air supply is not blocked by afixed obstacle, hinge,
etc. Damage to the appliance might occur if ventilation is insufficient.
• Do not use the ice maker in avery cold room (below 5°C).
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
OPERATION
Using the Ice Maker
• Before switching on the ice maker, make sure that the drain valve
andplug are properly secured in thebody of the ice maker.
• Open the lid and remove the ice basket.
• Fill the tank with clean cold water up to the MAX mark. Put the basket
back in and close the lid.
• Plug the power cord into the mains socket.
• The LARGE indicator light will light up green and the POWER indicator
light will flash slowly.
• Press the SELECT button repeatedly to select the dice size:
- thin ice cubes: the SMALL indicator is lit;
- thick ice cubes: the LARGE indicator is lit.
• Press the button to start the ice maker. The POWER Indicator
will be lit.
• Water will be pumped through the filling hole into the ice tray. The
cooling element is designed so that ice will form around the ice
moulds that are immersed in water. The ice formation process can
take 7–15 minutes depending on the temperature in theroom, the
initial water temperature as well asthe size selection.
• Once the ice is formed, the ice tray tilts backwards, the ice falls off the
moulds and the moving arm moves the ice cubes over the edge into
the ice basket. This movement brings the ice tray back to its starting
position and the excess water flows into the water tank. After that,
anew ice formation process will start.
• Once enough ice has been made, press and hold the button for 3
seconds until the POWER indicator flashes to stop making ice. The ice
maker will switch to the standby mode. Then, unplug the power cord
from the mains socket. Remove the ice cubes from the basket and
store them in afreezer.
• Open the lid and allow the ice maker to warm up to room temperature
before cleaning. Drain the unused water through the drain hole
anddry the inside of the machine.
• We recommend starting the cleaning programme.
Note:
Dependingon the room temperature, the ice in the ice
maker will last up to 18 hours. However, we recommend
moving it to the freezer as soon as the preparation is
complete. Store the ice only in thefreezer.
EN
Ice Maker
User Manual
- 6 -
12/2024
2024, .
Note:
Empty the water tank after each use. Do not allow water to
remain init for more than 2 days.
4. Remove the ice basket. Wash the ice basket and scoop in warm
water with alittle dishwashing liquid. Rinse and wipe dry.
5. Wipe the inside of the ice maker with asoft sponge dipped inwarm
water withalittle vinegar. Wipe again with asoft sponge dipped
inclean warm water and wipe dry with aclean cloth.
6. Remove the filter andclean it using asoft brush. Wipe the area
under the filter and the filling hole.
7. Leave the lid open to allow the inside of the appliance to dry
sufficiently.
Note:
Avoid contact with the cooling element when cleaning.
Cleaning Programme
The ice maker is equipped with acleaning programme to help facilitate
cleaning of the machine.
1. Pour water into the water tank up to the MAX line.
2. Plug the power cord into the mains socket.
3. The LARGE indicator light will light up green and the POWER
indicator light will flash slowly.
4. Press the SELECT button repeatedly to select the cleaning function.
The CLEAN indicator lights up.
5. Press the button and the cleaning function will switch on and all
four indicators will flash sequentially.
6. Allow the ice maker to complete the cleaning function. As soon as
the POWER indicator flashes, the cleaning function is completed.
Storage
• When not using the appliance for an extended period of time,
disconnect the power plug from the power socket and clean it
according to the instructions provided above.
• Before storing, ensure that the appliance and all accessories are
thoroughly clean and dry. Make sure there is no water in the tank.
• Store the appliance in adry, clean, and well-ventilated place away
from extreme temperatures and out of the reach of children or pets.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TROUBLESHOOTING
• If apower outage occurs or you press the button during the ice
production cycle, small ice crystals may form, which may get caught
on the moving arm and cause it to block. If this occurs, turn off the ice
maker, gently push the arm backwards andremove the ice crystals.
• If the moving arm cannot move the ice into the basket, check that the
machine is located on an even surface. If it is not, move the machine
to aflat surface.
Problem Possible Cause
Solution
The ADD WA-
TER indicator
is lit.
There'sno water in the
tank.
Refill the water tank.
The pump is full of air. Turn off the ice maker
and turn it on again after
awhile.
The ICE FULL
indicator is lit.
The ice basket is full. Remove the ice cubes
from the basket.
If the ice basket is not
full, the infrared sensors
are dirty.
Wipe the infrared sensors
(No. 5 in Figure A).
At the same
time, the
ADD WATER
andICE FULL
indicators
are lit.
The ice tray arm is
blocked.
Eliminate the cause of
the blockage.
Astrong light is shining
on the infrared sensors
(e.g. sunlight).
Relocate the ice maker.
Warning:
Never use hot or warm water to prepare ice.
Warning:
During use, the outer surface of the machine around
the compressor may heat up. Take extra care when
coming into contact with heated surfaces.
Note:
During the first three cycles of ice production, it may
happen that the cubes will not be regular andwill be small.
This is anormal phenomenon that will disappear with
further production.
Note:
The compressor starts approximately 3 minutes after the
machine has been interrupted, e.g. the water in the tank has
run out. This is anormal phenomenon that does not affect
the functionality of the appliance.
Note:
As aresult of rapid freezing, the ice cubes can become
dull. This is air trapped in the water. This does not affect the
quality or taste of the ice.
Full Ice Basket
• As soon as the ice basket is full, the ICE FULL indicator will light up on
the control panel and the ice formation process will be automatically
interrupted. Open the lid and carefully remove the ice from the basket
with ascoop. To resume theprocess automatically, close the lid.
Transfer the ice to afreezer immediately.
Refilling the Water Tank
• If the ADD WATER indicator lights up on the control panel, it is
necessary to refill the water tank. The ice formation process will
stop automatically. Remove the ice basket andrefill with clean cold
water. Put the basket back andpress the button to resume the ice
formation process.
Note:
If you refill the water but forget to press the ON/OFF button,
the ice formation process will automatically resume after
30 minutes.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CLEANING AND MAINTENANCE
• Before cleaning, disconnect the power plug from the mains socket and
allow the appliance to warm up to room temperature.
• The appliance must be properly cleaned after each use.
• Do not use abrasive cleaning agents, solvents, etc. to clean any parts
of the appliance, as these could damage the surface of the appliance.
None of the components of this appliance are dishwasher safe.
Warning:
To prevent the risk of electric shock, do not immerse
the appliance, power cable, or plug into water or any
other liquid.
1. Slide the ice maker to the edge of the worktop so that the drain valve
can be released to easily drain the water from the tank.
2. Place acontainer under the drain valve into which the water will flow.
3. Release the valve andwait for all water to drain from the tank – see
Figure C. Then replace it firmly.
- 7 -
12/2024
2024, .
The ice cubes
stick together.
Ice formation takes too
long.
Cancel the ice formation
cycle, let the ice melt
andturn on the ice maker
again.
The water inthe tank has
avery low temperature.
Fill the tank with water
at atemperature of 8
to 25°C.
Ice cubes are
not of good
quality.
The ice maker is over-
heating.
Provide at least 15cm of
clear space around the
ice maker.
The water inthe tank has
avery high temperature.
Fill the tank with water
at atemperature of 8
to 25°C.
The ambient temperature
is too high.
Relocate the ice maker to
acooler room.
Note:
If your problem is not listed in the table or persists, turn
off the ice maker, unplug the power cord from the mains
socket andstop using the ice maker. Contact an authorised
service centre.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TECHNICAL SPECIFICATIONS
Rated voltage range ..............................................................................220−240 V~
Rated frequency ...................................................................................................50 Hz
Rated input power ............................................................................................... 150 W
Rated input ................................................................................................................... 1A
Refrigerant / amount of refrigerant ...................................................R600a/ 24 g
Climate class ..............................................................................................ST/SN/N/T
Refill Insulating gas ................................................................................................EPS
Water tank capacity .................................................................................................1.8 l
Noise level ...................................................................................................... 55 dB (A)
Quantity of ice produced..............................................................10–12 kg /24 hod
Ice basket capacity ..............................................................................................500 g
Dimensions ............................................................................330 × 228 × 292mm
Weight ........................................................................................................................ 8 kg
The declared noise emission level of the appliance is 55 dB(A), which
represents a level A of acoustic power with respect to a reference acoustic
power of 1 pW.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
INSTRUCTIONS AND INFORMATION ON DISPOSAL OF USED
PACKAGING MATERIAL
Dispose of used packaging material at the location designated by the
municipality for waste disposal.
DISPOSAL OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT
Used electrical andelectronic products must not be added to ordinary
municipal waste. For proper disposal and recycling of these products,
deliver them to designated collection points. Alternatively, in some
European Union states or other European countries the products can be
returned to the local retailer when buying an equivalent new product. By
properly disposing of this product, you help preserve valuable natural
resources and contribute to preventing potential negative impacts on the
environment and human health resulting from improper waste disposal.
For further details, contact your local authorities or the nearest collection
point. Fines may be imposed for improper disposal of this type of waste in
accordance with national regulations.
For Business Entities in European Union States
To dispose of electric or electronic equipment, request necessary
information from your retailer or supplier.
Disposal in Other Countries Outside the European Union
To dispose of this product elsewhere, request necessary information on
the correct disposal method from local authorities or your retailer.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Changes to text and technical parameters are reserved.
