Quick Reference Guide
TPC-B/TPC-R Wireless Temperature Clamp
Thank you for purchasing the TPC-B/TPC-R Wireless Temperature Clamp. When used
with Autel diagnostic tools (sold separately), the clamp measures the temperature of the
automotive air conditioning piping and transmits data via Bluetooth, providing
parameter-based evidence for air conditioning systems diagnostics.
Our products are manufactured to a high standard and — when used according to these
instructions and properly maintained — will provide years of trouble-free performance.
Product Description

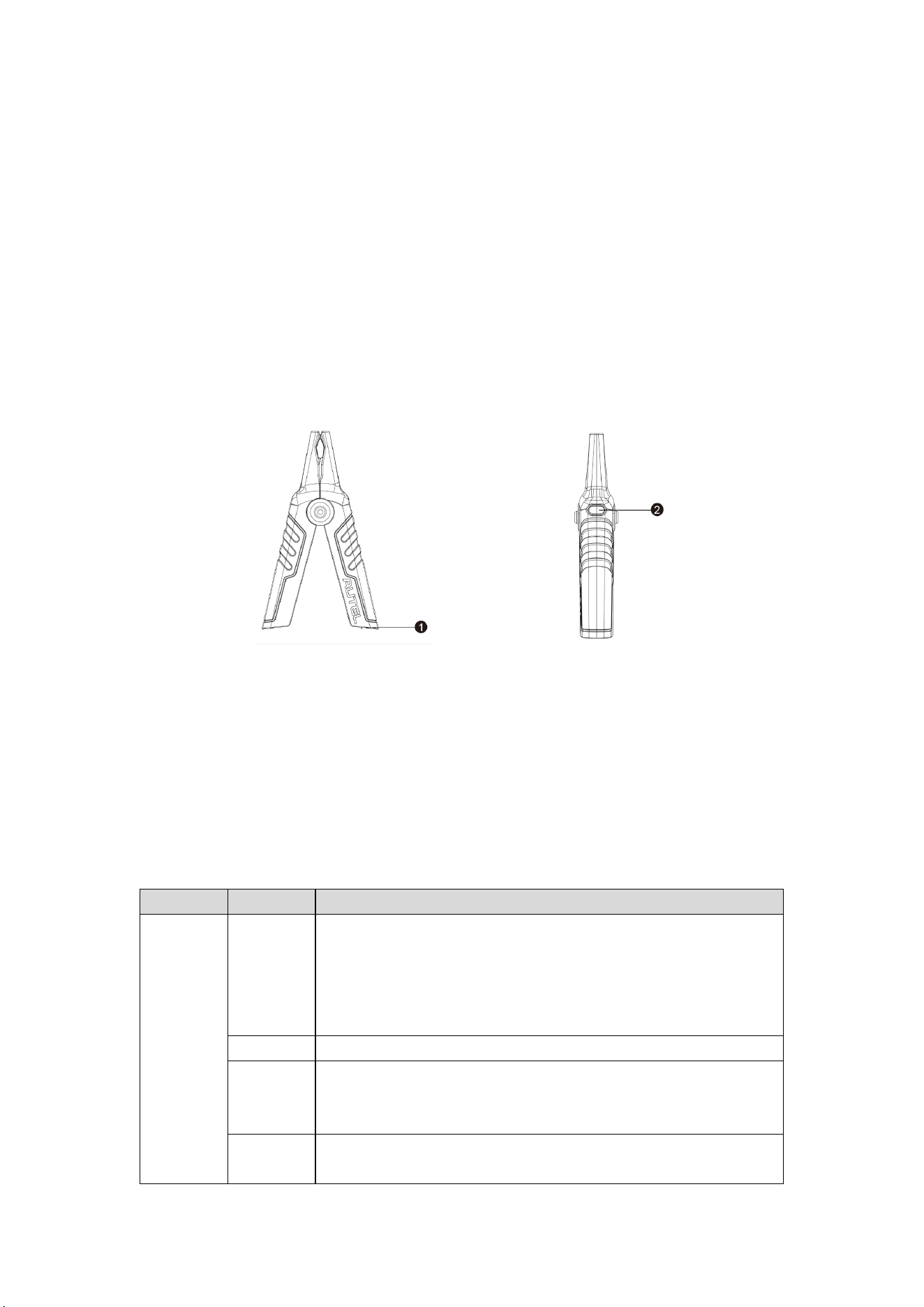

Front View Right View
1. Battery Compartment — holds 2 x AAA batteries. Slide the latch switch to the
Unlock position to open the cover. Slide the latch switch to the Lock position to
secure the cover.
2. Power Button/Status LED — long press to power on/off the device. Refer to Table
1-1 Status LED Description for details on status LED.
Table 1-1 Status LED Description
LED
Color
Description
Status
Yellow
Flashes yellow when the clamp is upgrading its software
or flashes yellow three times quickly before shutting
down.
Lights solid yellow when the clamp is performing a self-
test or when a Bluetooth error occurs during self-test.
Green
Lights solid green when the clamp battery level is normal.
Blue
Lights solid blue when the clamp is connected via
Bluetooth, but there is no data being transmitted.
Flashes blue when transmitting Bluetooth data.
Red
Lights solid red when the clamp battery level is low.
Flashes red when the clamp
is open or incorrectly
clamped.
Technical Specifications
Item
Description
Connectivity
BT V5.0
Battery Type
2 x AAA
Pipe Size Compatibility 6 mm to 30 mm (0.2" to 1.2")
Measurement Range -46°C to 125°C (-50.8°F to 257°F)
Accuracy ±0.5℃ (±0.9°F)
Wireless Range 50 m (164")
Radio Frequency 2.4 GHz
Operating Temperature
-20℃ to 50℃ (-4°F to 122°F)
Storage Temperature
-20℃ to 60℃ (-4°F to 140°F)
Weight
143 g (0.32 lbs.)
Dimensions (H x W x D)
161.5 mm (6.36") x 100 mm (3.94") x 34 mm (1.34")
Getting Started
WARNING: Before operating or maintaining this device, please read these instructions
carefully, paying extra attention to the safety warnings and precautions. Failure to do so
may cause damage and/or personal injury and will void the product warranty.
1. Install the batteries into the battery compartment. (2 x AAA batteries)
2. Long press the Power button to power on the clamp.

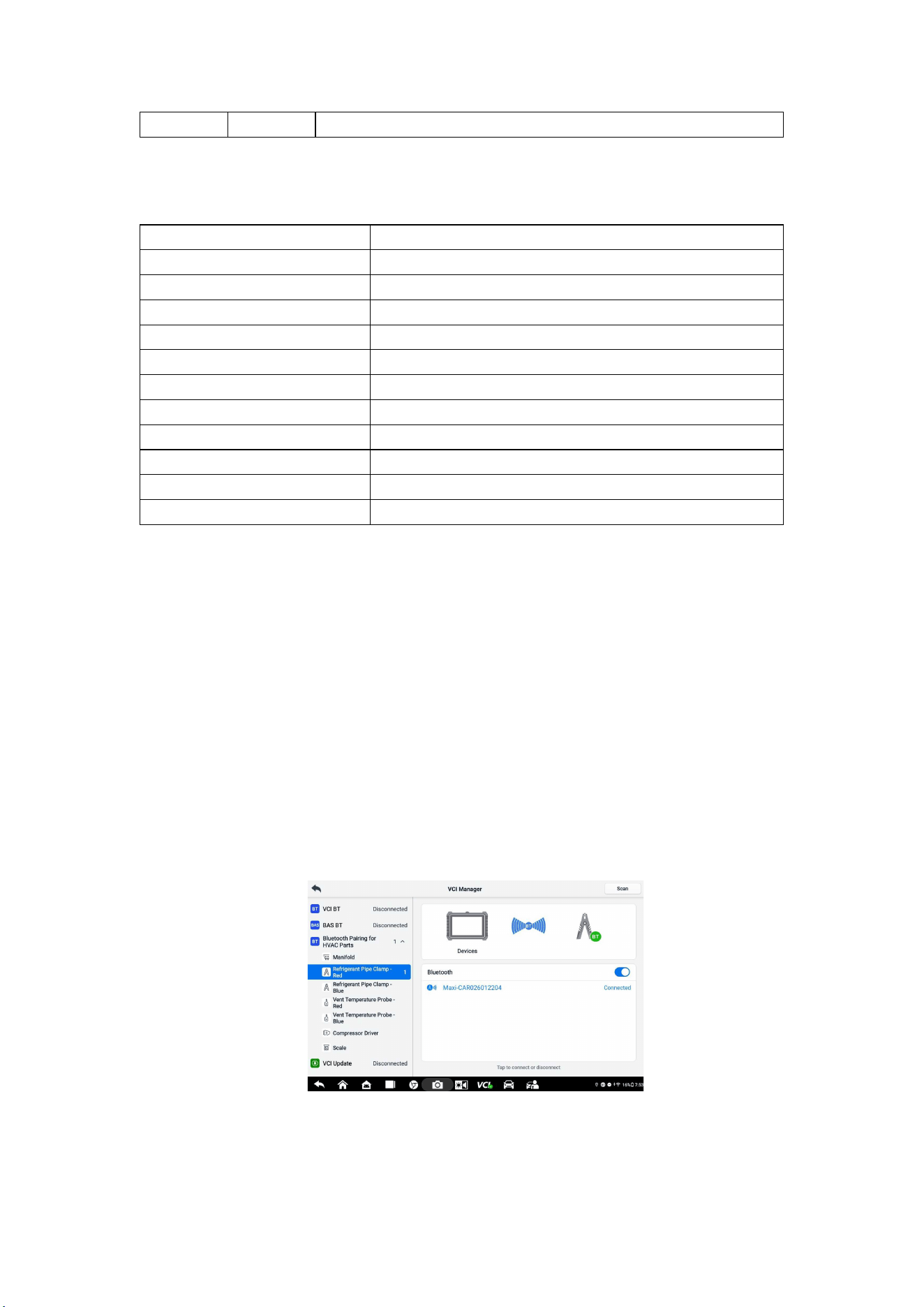

3. After powering on the MaxiHVAC tablet, connect the clamp to the MaxiHVAC tablet
via Bluetooth.
(The Bluetooth ID will match the product serial number which can be found on the
product label.)

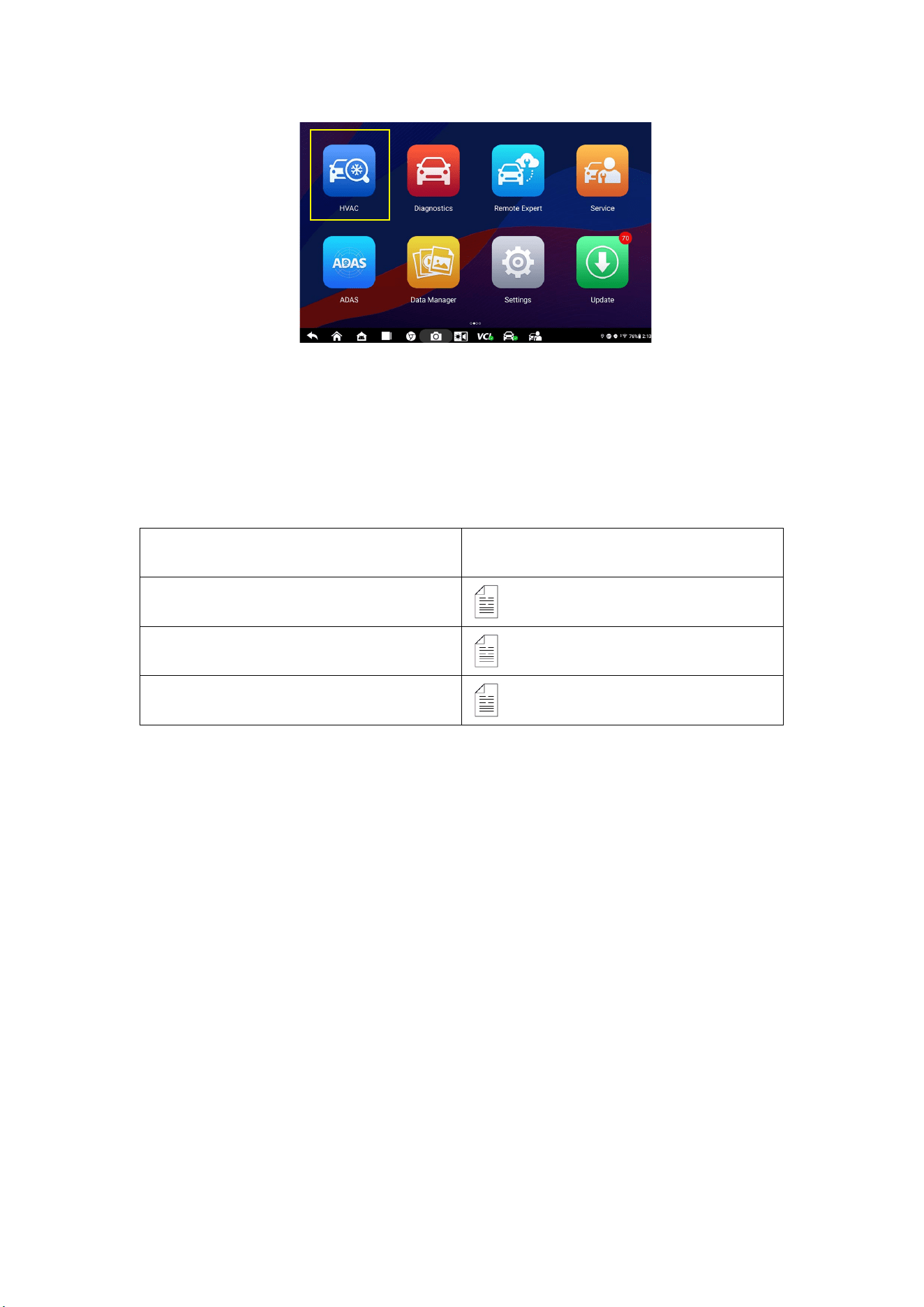

4. Tap HVAC on the MaxiHVAC Job Menu.
5. Follow the dynamic graphic instructions on the screen to use the clamp.
Maintenance
Clean the exterior of the clamp with a damp cloth. Do not use detergents or solvents.
Packing List
Wireless Temperature Clamp – Red/Blue
2 PCS
放 200001415 框图
Quick Reference Guide (This document)
Multilingual Safety Instruction (Optional)
Multi-
language Documentation
Download Guide (Optional)

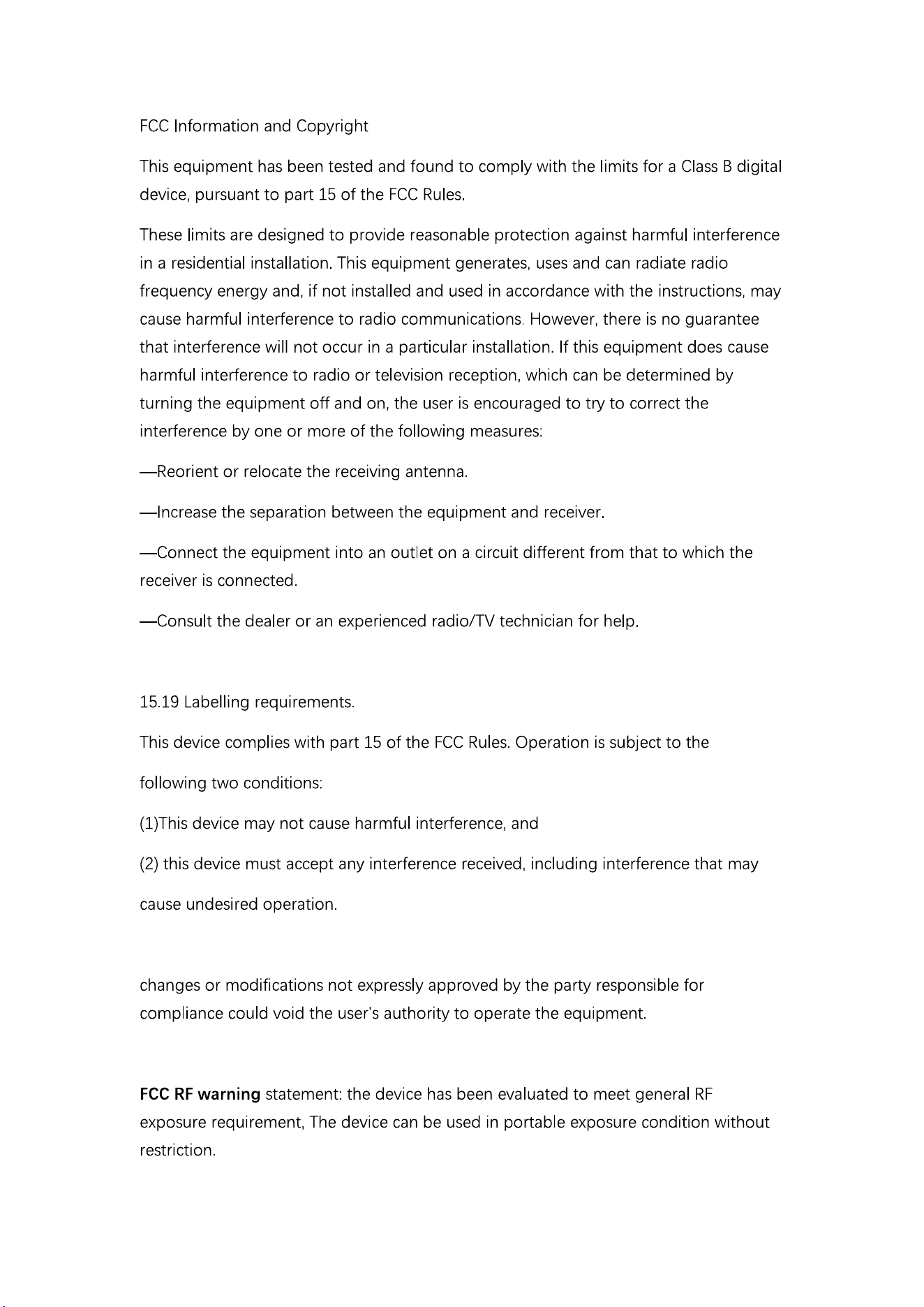

Warranty
Autel guarantees that the clamp is free from material and manufacturing defects for a
period of 12 months. Autel will replace at its own discretion any merchandise determined
to be defective during the warranty period. The warranty shall be void if any of the
following occurs:
1. Improper installation of the product;
2. Improper use;
3. Product damage due to collision, man-made damage or natural disasters;
4. Exceeding the product-specific use restrictions.
