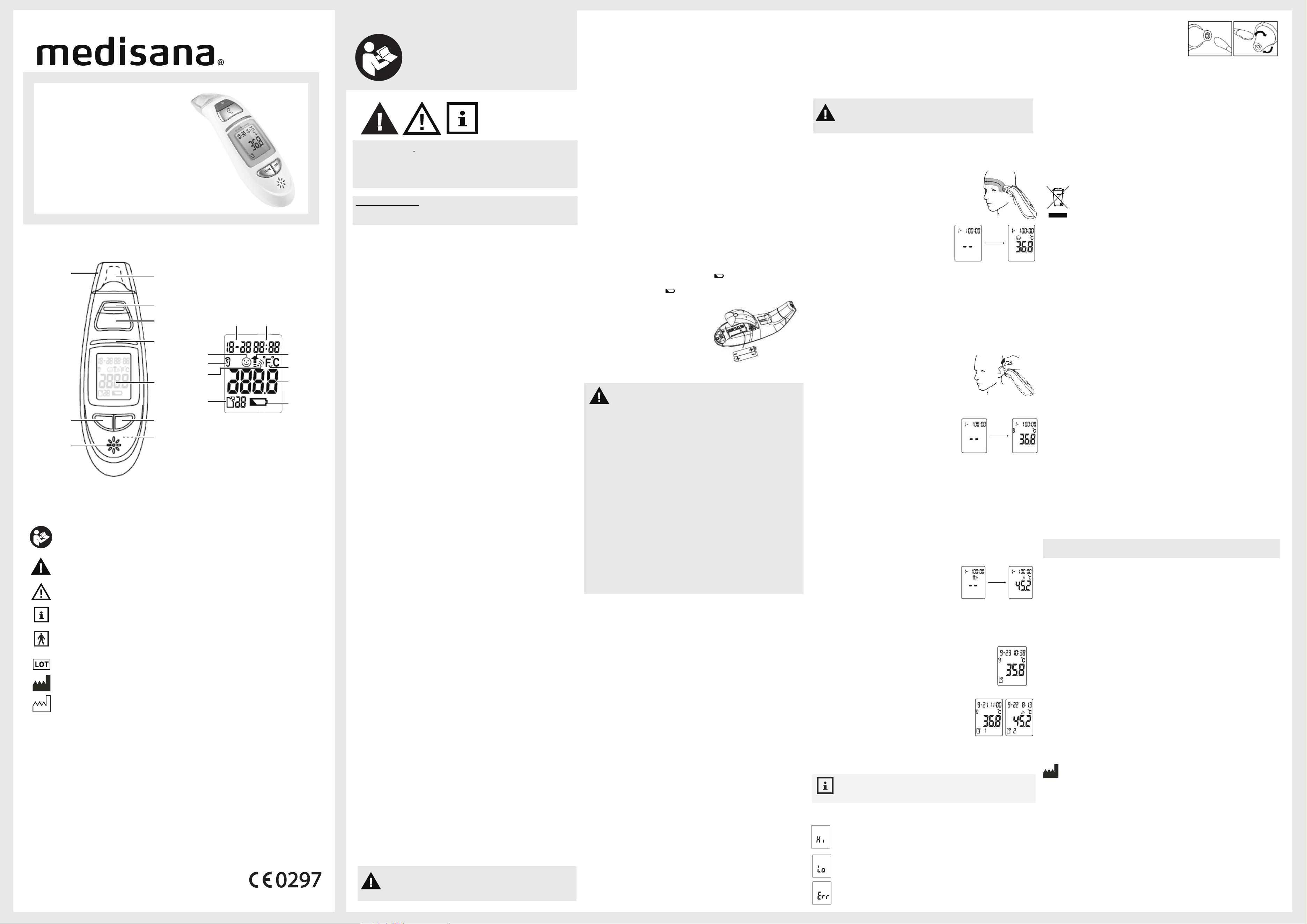

Infrared
thermometer
TM 750
Instruction Manual
Please read carefully!
GB Unit and controls
GB
Important information!
Retain for future use!
Read the instruction manual carefully before using this device,
especially the safety instructions, and keep the instruction manual
for future use. Should you give this device to another person, it is
vital that you also pass on these instructions for use.
INTENDED USE:
The medisana Infrared thermometer TM 750 is suitable to measure the body
temperature of humans. The measurement is carried out in the ear or on the
forehead. Additionally the thermometer is suitable to measure the temperature of
objects in the range of 0°C to 100°C (32°F - 212°F).
CONTRAINDICATION:
The device is not suitable for measuring the temperature of infants up to 6 months
of age
Safety Information
• Only use the unit for the specic purpose described in the instruction manual. Any
misuse will void the warranty.
• The unit is not designed for commercial use.
• Using this thermometer is no substitute for consulting a doctor.
• The thermometer and the patient must remain in a stable environment for at least
30 minutes before measuring the temperature.
• This device is not designed to be used by persons (including children) with limited
physical, sensory or mental abilities, or by persons with insufcient experience and/
or knowledge, unless under observation by a person responsible for their safety, or
unless they have been instructed in the use of the device.
• Children must be supervised to ensure that they do not play with the device.
• The temperature in the forehead and temple area differs from the internal
temperature, which is taken orally or rectally. Vasoconstriction, an effect which
constricts the blood vessels and cools the skin, can occur during the early stages
of a fever. In this case, the temperature measured by this thermometer may
be unusually low. If the measurement therefore does not match the patient’ s
own perception or is unusually low, repeat the measurement every 15 minutes.
As a reference, you can also measure the internal body temperature using a
conventional oral or rectal thermometer.
• A control measurement using a conventional thermometer is re-commended in the
following cases:
1. If the reading is surprisingly low;
2. For children under three years of age who have a weakened immune system or
who react unusually in the presence or absence of fever;
3. If you are using the thermometer for the rst time or want to familiarize yourself
with it.
• Babies’ skin reacts very quickly to the ambient temperature. There-fore, do not take
their temperature with this thermometer during or after breastfeeding, because the
skin temperature may then be lower than the internal body temperature.
• If a fault occurs or the unit is damaged, do not attempt to repair the unit yourself, as
this will void the warranty. Contact your dealer and only have repairs carried out by
authorized service partners.
• Do not use the thermometer if it is damaged.
• Do not open up the device. It contains small parts which might be swallowed by
children.
• Do not use the thermometer in damp environments. Do not immerse the
thermometer in water or other liquids. It is not watertight.
• For cleaning, follow the instructions in 4.1 Cleaning and maintenance.
• Do not shake or tap the thermometer. Do not drop it.
• Protect the device from direct sunlight, extremely high or low temperatures, dirt and
dust.
• If the thermometer is not going to be used for a long period, remove the batteries.
• Measurements in the ear should always be carried out in the same ear.
• Do not measure on hurt or dirty parts of the body.
• The use of the thermometer by different persons may lead to infections with
contagious diseases. Consult your doctor.
Thank you very much for your condence and congratulations!
By purchasing the Infrared thermometer TM 750, you have acquired a high-quality
product by medisana. To ensure the best results and long-term satisfaction with
your medisana Infrared thermometer TM 750, we recommend that you read the
following operating and maintenance instructions carefully.
Unit and LCD display
q Sensor cover w Sensor e Button for Forehead measurement mode
r Button for Ear measurement mode t Indicator LED
y Backlight LCD display u SET -button
i Battery compartment (on backside) o Memory -button
a Beeper s Date d Time
f Symbol for continuous temperature measurement
g Measurement unit (°C or °F) h Measurement result
j Battery exchange symbol k Memory display
l Surface temperature measurement mode
; Ear measurement mode 2) Forehead measurement mode
Items supplied and packaging
The following parts are included:
• 1 medisana Infrared thermometer TM 750
• 2 Batteries (AAA type, LR03) 1.5V
• 1 Instruction manual
The packaging can be reused or recycled. Please dispose properly of any
packaging material no longer required. If you notice any transport damage
during unpacking, please contact your dealer without delay.
WARNING
Please ensure that polythene packing is kept away from the reach of
children! Risk of suffocation!
Useful information on taking temperature with the infrared
thermometer TM 750
What is fever?
Our normal body temperature is between 36°C (96.8°F) and 37.5°C (99.5°F).
Fluctuations are quite normal, depending on time of day and the body’s
condition, for example in the female menstruation cycle. However, when body
temperature rises above 38°C (100.4°F), the phenomenon is known as fever.
Fever often occurs in the case of infections, and is a sign that the body’ s
immune system is working overtime. This perfectly normal reaction to foreign
bodies, germs and microorganisms should be checked at regular intervals. If the
fever should exceed 39°C (102.2°F) and not fall again within 1 to 2 days, you
should denitely contact your doctor.
A fever is often associated with fatigue, pains in the limbs, shivering and
chills. The course of an illness can be best monitored by taking a temperature
reading 2 to 3 times a day at 4 to 6 hour intervals. Always take the temperature
at the same place and on the same part of the body. If you have to take the
temperature several days in succession, always do it at approximately the
same time of day so that the results are comparable.
Taking a temperature reading - quickly and accurately!
The medisana Infrared thermometer TM 750 allows a precise measurement
of body temperature. The temperature is taken between the forehead and
the temple or alternatively in the ear. The reading is displayed within a few
seconds.
Additional function
Apart from measuring body temperature, the Infrared thermometer TM 750
from medisana can also be used to measure the temperature of objects (e.g.
uids, surfaces, ambient temperature).
The temperature range for this function is between 0° and 100°C (32°F -
212°F).
Getting started
Removing / inserting batteries
For correct function, the included 2 batteries 1.5V (LR03,AAA) need to be
inserted. When the battery exchange symbol j appears in the display
after a longer time of usage, the batteries should be replaced soonest. When
the battery exchange symbol
j appears together with “Lo” or nothing at all
appears in the display
y
, the batteries need to be replaced immediately.
Cleaning and maintenance
• The sensor w is the most delicate part of
the medisana Infrared thermometer TM 750.
Protect it from dirt and damage. Clean the
sensor with a cotton bud dipped in warm water
or 70% isopropyl alcohol.
•
Do not immerse the thermometer in water or
any other liquid. It is not watertight.
•
To clean the thermometer, use a soft cloth slightly dampened with mild soapy water
or 70% isopropyl alcohol. Do not let water get into the unit. Only use the unit again
when completely dry.
•
Never use aggressive cleaning agents, thinners, benzine or tough brushes.
•
Take care not to scratch the lens of the sensor, the display or the housing.
• Do not use or store the unit in an environment where the ambient temperature
or humidity is too high or too low (see operating conditions in the “Technical
specications” section), in direct sunshine, in the vicinity of static electricity or in a
dusty environment.
• Remove the batteries if you do not wish to use the unit for an extended period of
time. Otherwise there is a danger that the batteries may leak.
• If the thermometer is used as described in these instructions, no regular
maintenance or calibration is required.
Disposal
This product must not be disposed of together with domestic waste. All users
are obliged to hand in all electrical or electronic devices, regardless of whether
or not they contain toxic substances, at a municipal or commercial collection
point so that they can be disposed of in an environmentally acceptable manner.
Please remove the batteries before disposing of the device / unit. Do not
dispose of old batteries with your household waste, but at a battery collection
station at a recycling site or in a shop. Consult your municipal authority or your
supplier for information about disposal.
Warranty and repair terms
Please contact your dealer or the service centre in case of a claim under the
warranty. If you have to return the unit, please enclose a copy of your receipt and
state what the defect is.
The following warranty terms apply:
1. The warranty period for medisana products is three years from date of purchase.
In case of a warranty claim, the date of purchase has to be proven by means of
the sales receipt or invoice.
2. Defects in material or workmanship will be removed free of charge within the
warranty period.
3. Repairs under warranty do not extend the warranty period either for the unit or
for the replacement parts.
4. The following is excluded under the warranty:
a. All damage which has arisen due to improper treatment,
e.g. nonobservance of the user instructions.
b. All damage which is due to repairs or tampering by the customer or
unauthorised third parties.
c. Damage which has arisen during transport from the manufacturer to the
consumer or during transport to the service centre.
d. Accessories which are subject to normal wear and tear.
5. Liability for direct or indirect consequential losses caused by the unit are
excluded even if the damage to the unit is accepted as a warranty claim.
medisana GmbH
Carl-Schurz-Str. 2, 41460 NEUSS, GERMANY
In accordance with our policy of continual product improvement, we reserve the
right to make technical and optical changes without notice.
Removal:
Remove the lid of the battery
compartment i and take out the
batteries.
Insertion:
Put in two new 1.5V batteries of type LR03 / AAA.
Make sure the batteries are the right way around (see the diagram in the
battery compartment i). Put the battery compartment lid back.
WARNING
BATTERY SAFETY INFORMATION
• Do not disassemble batteries!
• Clean the battery and device contacts if necessary before putting in the
batteries!
• Remove discharged batteries from the device immediately!
• Increased risk of leakage, avoid contact with skin, eyes and mucous
membranes! If battery acid comes in contact with any of these parts, rinse
the affected area with copious amounts of fresh water and seek medical
attention immediately!
• If a battery has been swallowed seek medical attention immediately!
• Replace all of the batteries simultaneously!
• Only replace with batteries of the same type, never use different types of
batteries together or used batteries with new ones!
• Insert the batteries correctly, observing the polarity!
• Keep the battery compartment well sealed!
• Remove the batteries from the device if it is not going to be used for an
extended period!
• Keep batteries out of children’s reach!
• Do not attempt to recharge these batteries! There is a danger of explosion!
• Do not short circuit! There is a danger of explosion!
• Do not throw into a re! There is a danger of explosion!
• Keep unused batteries in their packaging away from metal objects in order
to prevent short circuiting!
• Do not throw used batteries into the household refuse; put them in a
hazardous waste container or take them to a battery collection point, at the
shop where they were purchased!
Before use
Acclimatise the thermometer to the temperature of the room:
For an accurate reading of a patient’s temperature, their body must rst
acclimatise to the temperature of the room where the measurement with be
made. The same applies to the Infrared thermometer TM 750. When taken
somewhere else, it automatically adjusts itself to the new environment. The
thermometer takes a certain amount of time to equalise its own temperature to
that of the room. This depends on the difference between the two temperatures
and can take more than 30 minutes. Precise readings can only be process is
completed.
Setting the unit of measure, the time and the date:
When the thermometer is used for the rst time or after a battery change, the
unit of measure, the time and the date must rst be set. If you want to return
to the setting mode later on, press and hold the SET -button u for approx. 5
seconds, when device is switched on.
After the self-test (where all the display symbols are shown in succession
in the display y ) two short beeps can be heard. Now you adjust the unit of
measure (°C or °F) with the SET -button u . Press the Memory-button o to
conrm the setting. Use the same procedure (SET -button u to adjust a value
and Memory-button 9 o to conrm) for setting the year, month, day, hour and
minute. After the last press on the Memory-button o the display y shows
“OFF” and then the device with switch off automatically.
Information on measuring temperature
• The sensor w of the thermometer must be kept clean and intact at all times in
order to guarantee that the measurements are accurate.
• Ear wax affects the measuring accuracy. If necessary, clean your ear and the
sensor tip of the thermometer before measuring in order to avoid erroneous
measurements.
• Before taking a measurement on the forehead, clean the area and remove
any dirt, sweat or cosmetics before moving the sensor to the measuring
position as otherwise erroneous results could be measured.
• Do not measure your temperature immediately after eating, training or
bathing. Wait for half an hour.
• Do not take successive measurements at intervals of less than one minute.
If you have to take your temperature at shorter intervals, the results may
uctuate slightly.
• The human body temperature uctuates with a natural range. There is no
such thing as a standard body temperature.
• Measure and record your body temperature on normal days. This will allow
you to detect a fever more easily.
• In order to make an accurate measurement in the ear, the sensor must be
directed at the eardrum and be inserted far enough into the ear canal.
• Some people will have different reading for the right and left ears. Always
measure the same person in the same ear when measuring temperature
changes.
• The measurements can also be inuenced by your sleeping position.
If someone has slept on a particular ear for a considerable period, the
temperature will be higher than normal in this ear. In this case, measure in the
other ear or wait for a few minutes before measuring.
Measuring the temperature at your forehead
NOTE
Forehead temperatures should only be taken for checking purposes,
since the skin temperature at the forehead is easily affected by outside
inuences, meaning that the measurement can be falsied.
1. Switch on the thermometer by shortly pressing the button for forehead
measurement mode e . The device performs a self-test and emits two short
beeps.
2. In order to measure the body temperature on the forehead correctly, the sensor
cover q needs to be put on the sensor.
3. Place the measuring head with the sensor (and the put
on sensor cover) on a temple and press the button for
forehead measurement mode e. The symbol for forehead
measurement mode 2) appears in the display. Slowly move
the thermometer smoothly over the forehead (button still
pressed down) to the other temple. Release the button for
forehead measurement mode e.
4. After the temperature has been determined, the
device emits a signal tone. The result will be
shown in the display y.
5. If the measurement result is 38,0°C (100.4°F) or higher, the indicator LED
t
lights
up in red (= fever alarm). In all other cases the indicator LED
t
lights up in green.
6. The measurement result will automatically be saved. After some seconds
without pressing any button the device will switch off automatically.
Measuring the temperature in your ear
1. To measure the temperature in your ear, rst remove the sensor cover q.
2. Switch on the thermometer by shortly pressing the button for ear measurement
mode r. The device performs a self-test and emits two short beeps.
3. Stretch your ear canal by pulling your ear backwards and upwards and
carefully insert the sensor into the ear. For children under the age of 1 year,
the sensor should be inserted into the ear canal, while
the child is lying at (e.g. on a bed) with the head slightly
turned, so that the ear points upward. Press and hold
the button for ear measurement mode r for approx.
1 second. The symbol for ear measurement mode ;
appears in the display.
4. Release the button. After the measurement process is
complete, you will hear a beep and the body temperature will be displayed in
the display y.
5. If the measurement result is 38,0°C (100.4°F) or
higher, the indicator LED t lights up in red (= fever
alarm). In all other cases the indicator LED t lights
up in green.
6. The measurement result will automatically be
saved. After some seconds without pressing any
button the device will switch off automatically.
Measuring the temperature of an object
1. Switch on the thermometer by shortly pressing button for forehead
measurement mode e or the button for ear measurement mode r. The device
performs a self-test and emits two short beeps.
2. Press and hold the set u & memory o buttons at the same time for at least
3 seconds. The symbol for the surface temperature measurement mode l
appears in the display y.
3. To begin the measurement, point the sensor w at the middle of the object
(resp. of the liquid) at a distance of approx. 3cm. Press the button for forehead
measurement mode e or the button for ear measurement mode r. If the object
has water, dust or dirt on it, remove this rst so that the reading is as accurate
as possible.
4. Release the button. After the measurement process
is complete, you will hear a beep and the object
temperature will be displayed in the display y.
5. The measurement result will automatically be saved. Again press and hold the
set u & memory o buttons at the same time for at least 3 seconds to return to
body temperature measurement mode. After some seconds without pressing
any button the device will switch off automatically.
Recalling stored data
The medisana Infrared thermometer TM 750 can store up to 30
results. You can call up your stored data with a short press of the
memory button
o
. Firstly, the average value of all stored measurement
results appears in the display
y
, e.g.:
After another short press on the memory button o , the memory
slot number 1 (the most recently saved value) will appear
in the display, together with the temperature reading and
the symbol for the measurement mode (ear or forehead
measurement mode or surface temperature mode). With
a further press of the memory button o , you can call up
the result stored in memory slot “2”. A total of 30 memory
slots are available, and these will be displayed in order if
you continue to press the memory button o.
If a memory slot is empty, the symbol “- „ - -” will appear next to it in the display.
NOTE
In case all memory slots are used, a new measurement result will be
saved by deleting the oldest slot (slot no. 30) automatically.
Error messages
Display Description
The measured temperature is too high.
Hi appears in the display if the reading is above 43°C / 109.4°F (body
mode) or 100°C / 212°F (object mode)
The measured temperature is too low.
Lo appears in the display if the reading is below 34°C / 93.2°F (body
mode) or 0°C / 32°F (object mode)
The ambient temperature is not in the tolerance range of 15°C - 40°C
(59°F - 104°F).
Technical specications
Name and model:
Display system:
Power supply:
Measuring range:
Accuracy of
measurement:
(laboratory readings);
(under operating conditions)
Display resolution:
Memory capacity:
Operating conditions:
Storage /
transport conditions:
Dimensions:
Weight:
Article No.:
EAN Code:
medisana Infrared thermometer TM 750
Digital display (LCD)
3 V= , 2 batteries 1,5 V (type LR03, AAA)
Body temperature measurement mode:
34°C - 43°C (93.2°F - 109.4°F)
Surface temperature measurement mode:
0°C - 100°C (32°F - 212°F)
Forehead: In the measuring range of
35°C- 42°C (95°F-107.6°F)/ ±0.2°C (±0.4°F);
Ear: In the measurement range of
35°C- 42°C (95°F-107.6°F)/ ±0.2°C (±0.4°F)
outside of above mentioned measurement
range: ± 0.3°C (0.5°F);
Surface mode: ≤ 30°C (86°F): ± 1.5°C
(2.7°F), > 30°C (86°F): ±5% (3 cm distance)
0.1°C (0.2°F)
up to 30 readings
15°C-40°C (59°F - 104°F),
rel. humidity up to 95%, 700~1060 hPa
-25°C-55°C (-13°F - 131°F),
rel. humidity up to 95%, 700~1060 hPa
approx. 134.3 x 42.4 x 47.6 mm
approx. 65 g without batteries
48618
40 15588 48618 0
The CE-mark of this device refers to the EC-directive 93/42/EEC MDD.
The unit is designed for home use only. For commercial use, a metrological
inspection must be carried out once every year. This calibration will be charged for
and can be carried out by an appropriate authority or an authorised service centre -
in accordance with the regulations for users of medical equipment.
Electromagnetic compatibility:
The device complies with the EN 60601-1-2 standard for electromagnetic
compatibility. Please check the supplementary sheet for details on this measurement
data.
48618_TM 750_manual_GB_202107_L4
Explanation of symbols
IMPORTANT
Follow the instructions for use!
Non-observance of these instructions can result in serious injury or damage to the
device.
WARNING
These warning notes must be observed to prevent any injury to the user.
CAUTION
These notes must be observed to prevent any damage to the device.
NOTE
These notes give you useful additional information on the installation or operation.
Device classication: type BF applied part
LOT number
Manufacturer
Date of manufacture
