SilverStone SST-ST85F st85f User Manual

Product's Documents

Below are documents related to this product, you can read online or download:
User Manual

ST85F Manual - (English) Read Online | Download pdf

Other Documents

Restricted substance declaration - (English) Download

Installation Instruction

Multilanguage installation manual - (English) Download

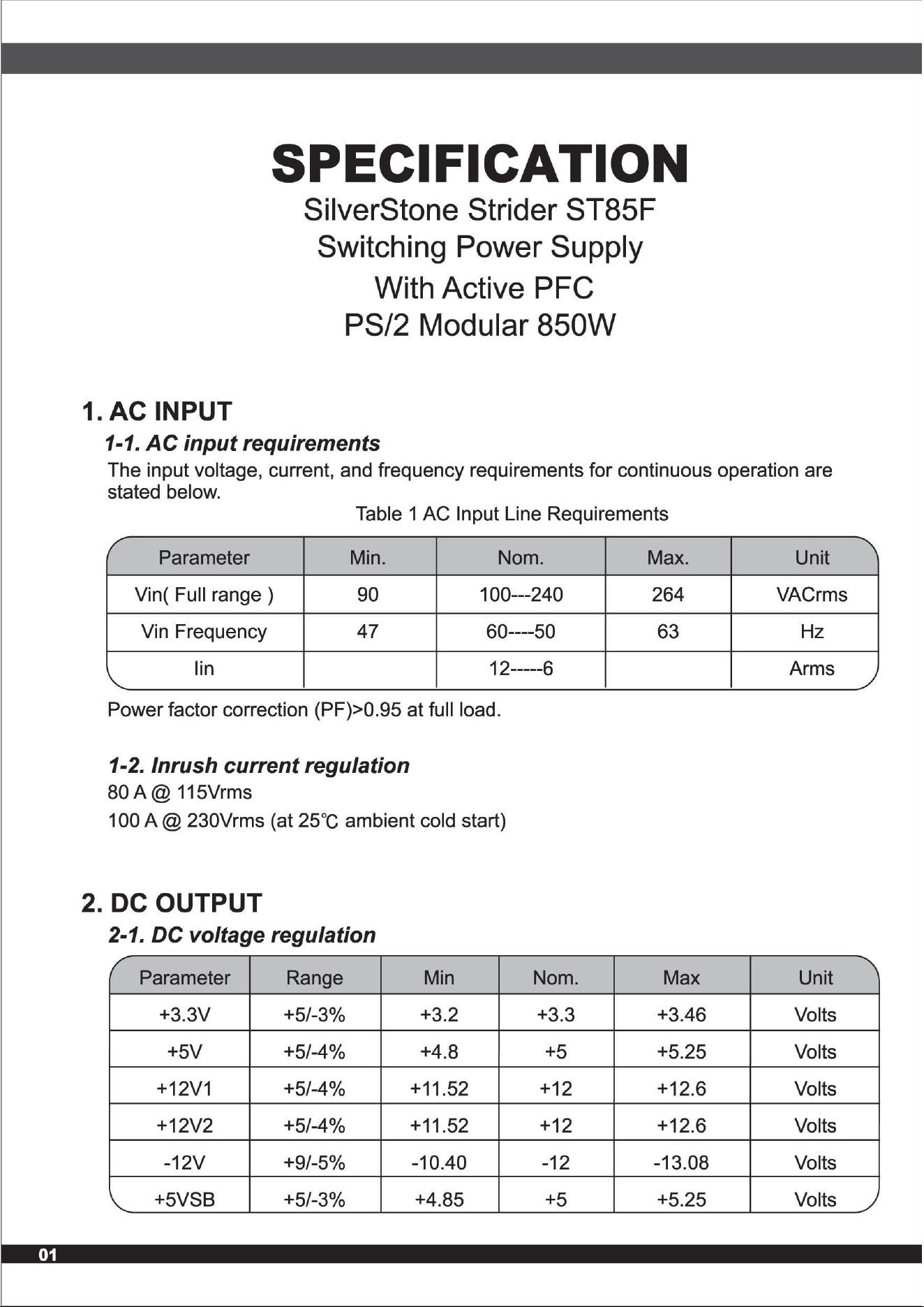

Specifications

Brand: SilverStone

Model: SST-ST85F

Power density: 366W per liter

Input Voltage: 90V ~ 264V Auto Range

Input Frequency Range: 47Hz ~ 63Hz

Efficiency: >80%

Operating temperature: 0 ~ 40°C

Noise Level: 20 dBA minimum

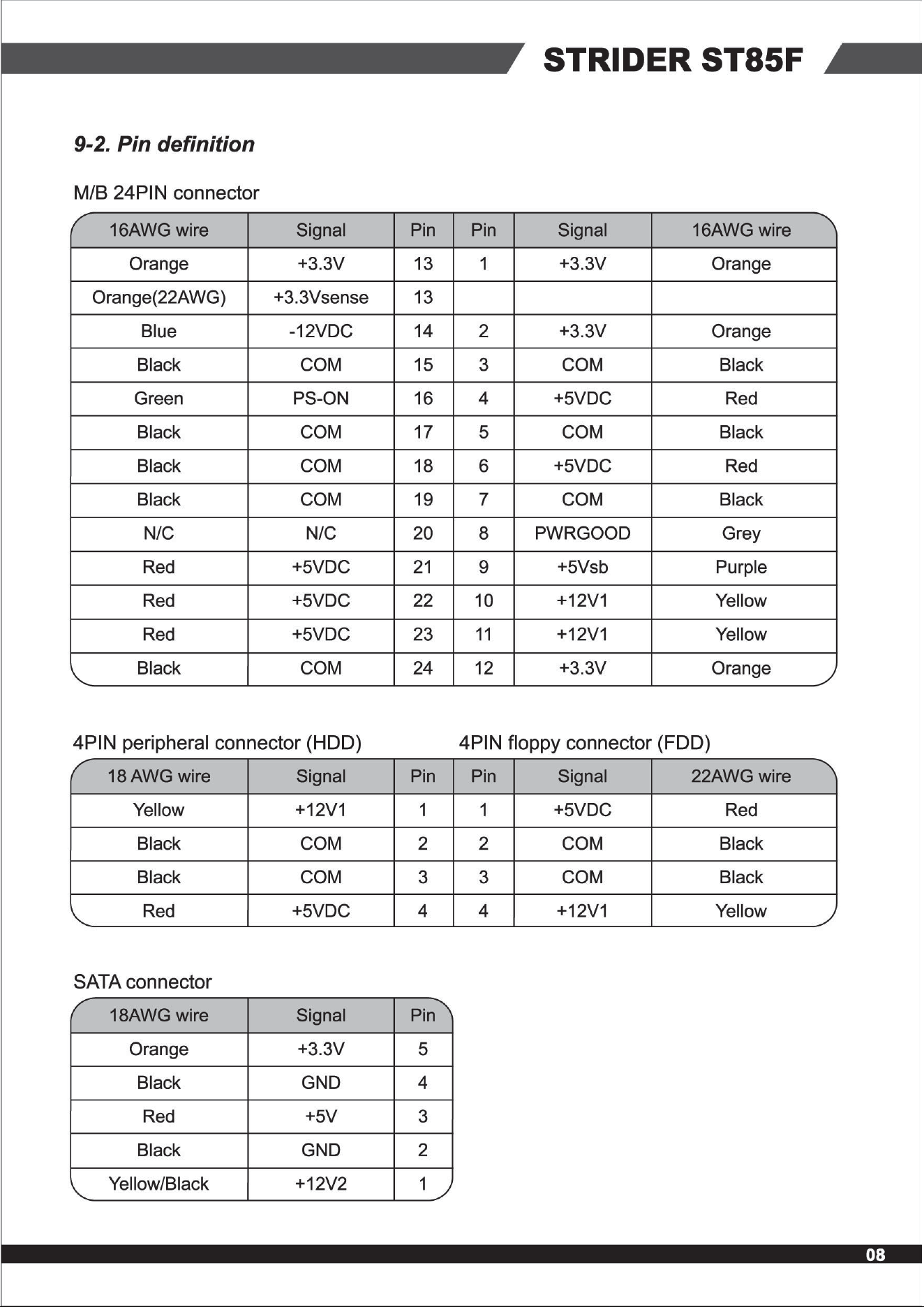

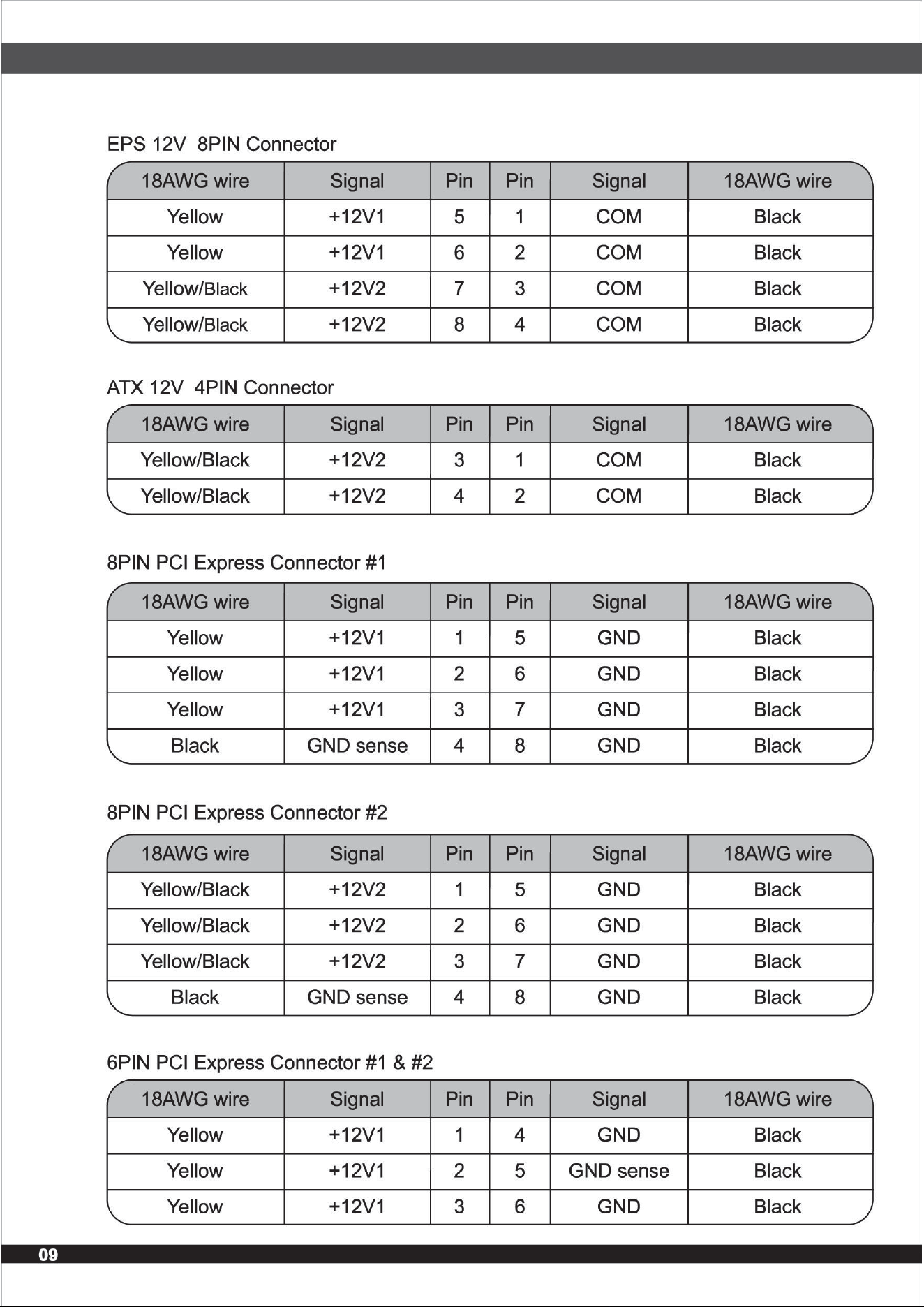

Connectors: 1 x 24-pin motherboard connector 550mm1 x 8-pin EPS12V connector 550mm1 x 4-pin ATX12V connector 550mm1 x 6-pin AUX connector 550mm2 x 8-pin PCI-E connector 550mm4 x 6-pin PCI-E connector 550mm 2 x triple SATA connector 500mm +250mm + 250mm2 x Dual 4-pin IDE power connectors 500mm + 250mm2 x Dual 4-pin IDE & single floppy power connectors 500mm + 250mm + 150mm

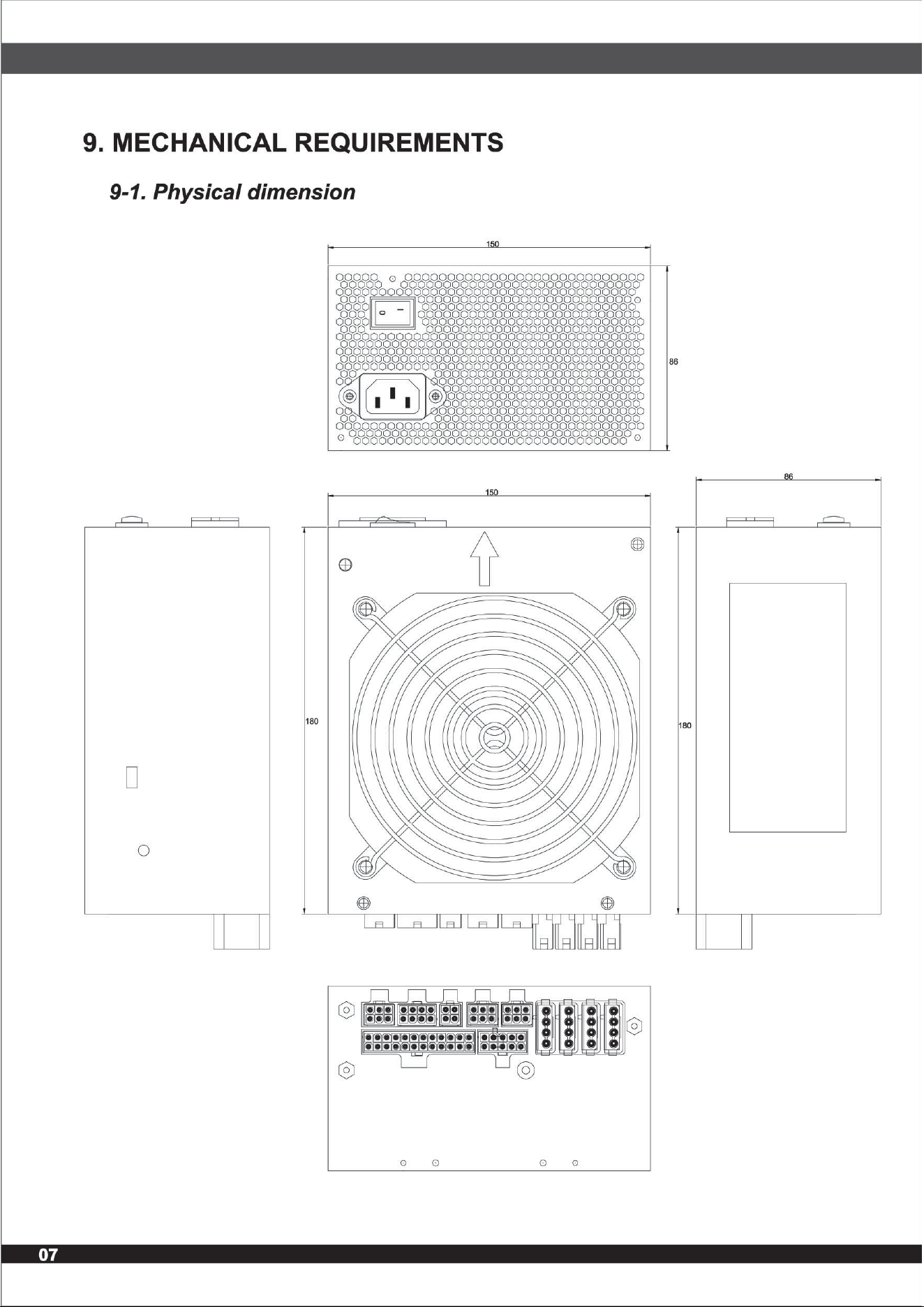

Dimension: 150 mm W x 86 mm H x 180 mm D

Weight: 2.9 kg

Indexed Terms: Power Supply, Modular
