Models: KBF412C
KBF412MB
KBF412ORB
KBF412SS
COMPONENT LIST QTY

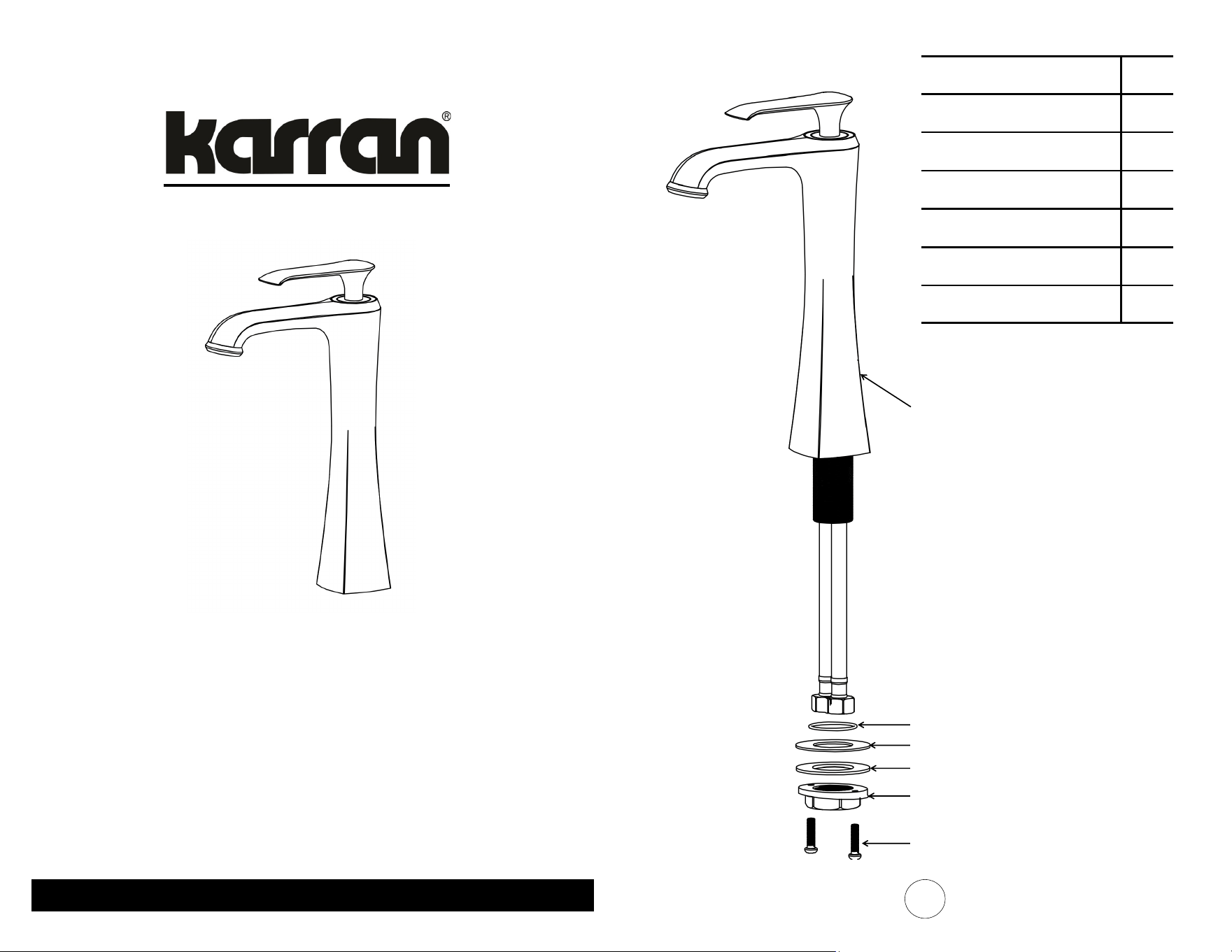

1 - Faucet Body 1
2 - O-Ring 1
3 - Rubber Washer 1
4 - Metal Washer 1
5 - Mounng Hardware 1
6 - Screw 2
1
2
1
6
5
4
3
2

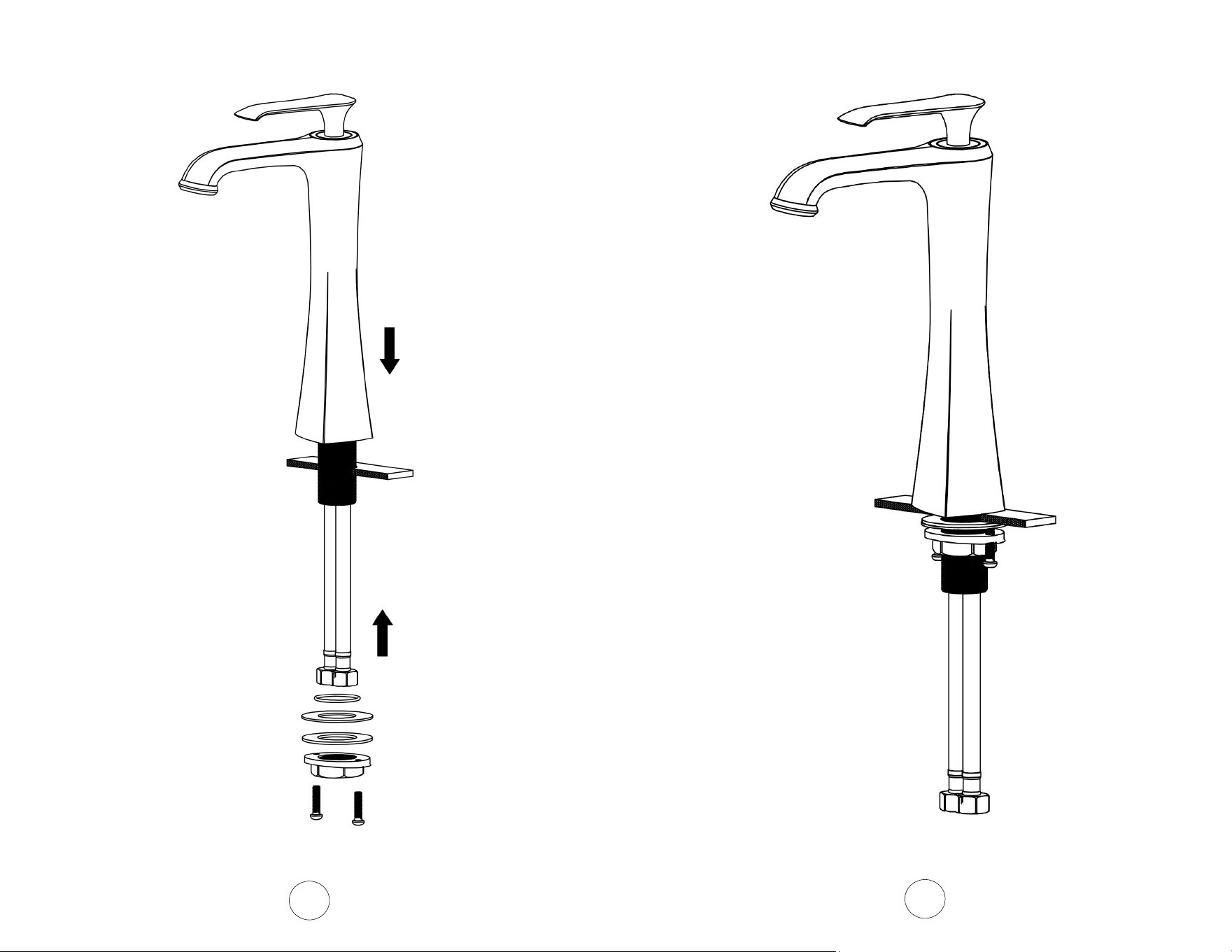

INSTALLATION GUIDE
Karran USA Tel: 866.452.7726 www.karran.com [email protected]
Woodburn
3
2

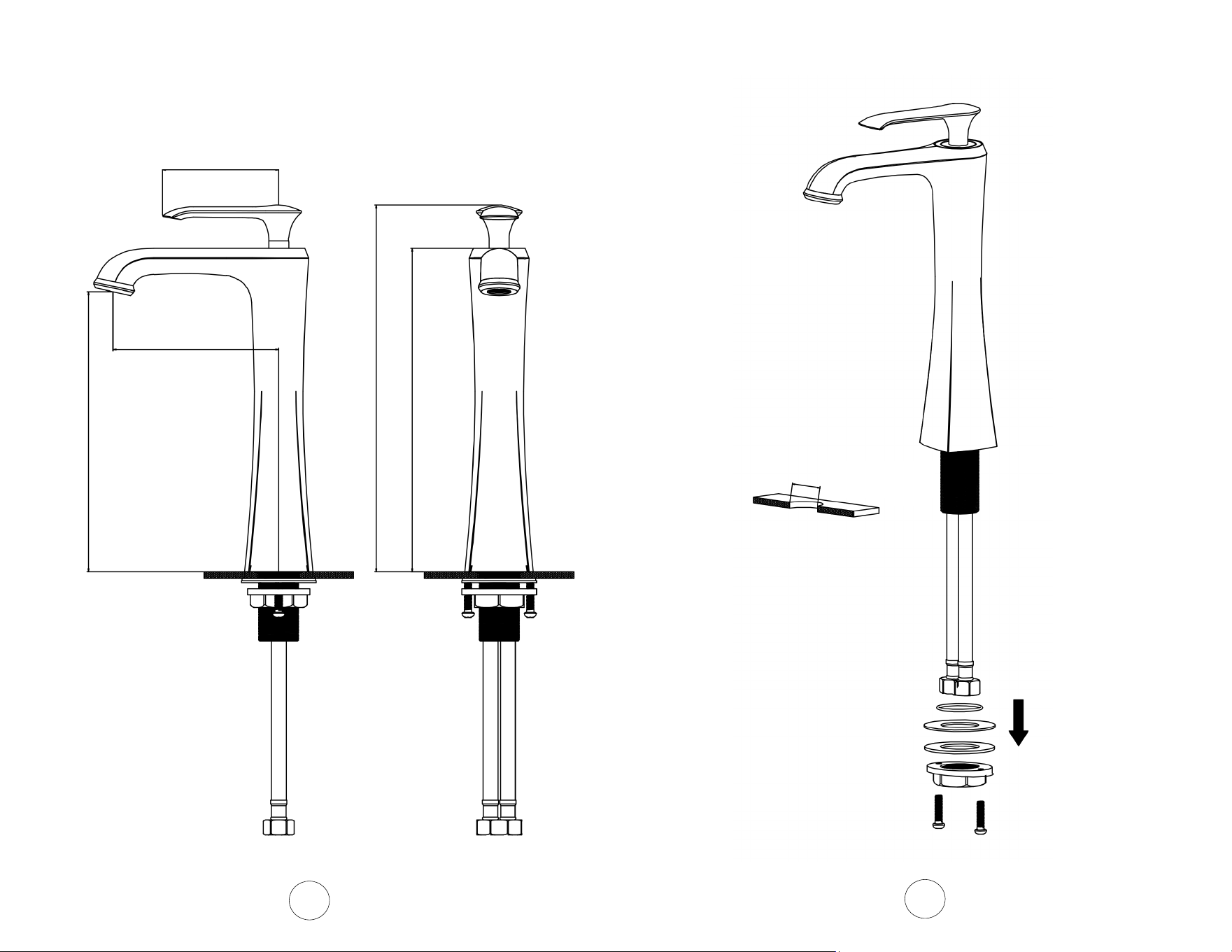

10-1/4”
5-1/4”
11-5/8”
3-11/16”
8-7/8”
1-1/4” to 1-3/8”
5
4
7
6

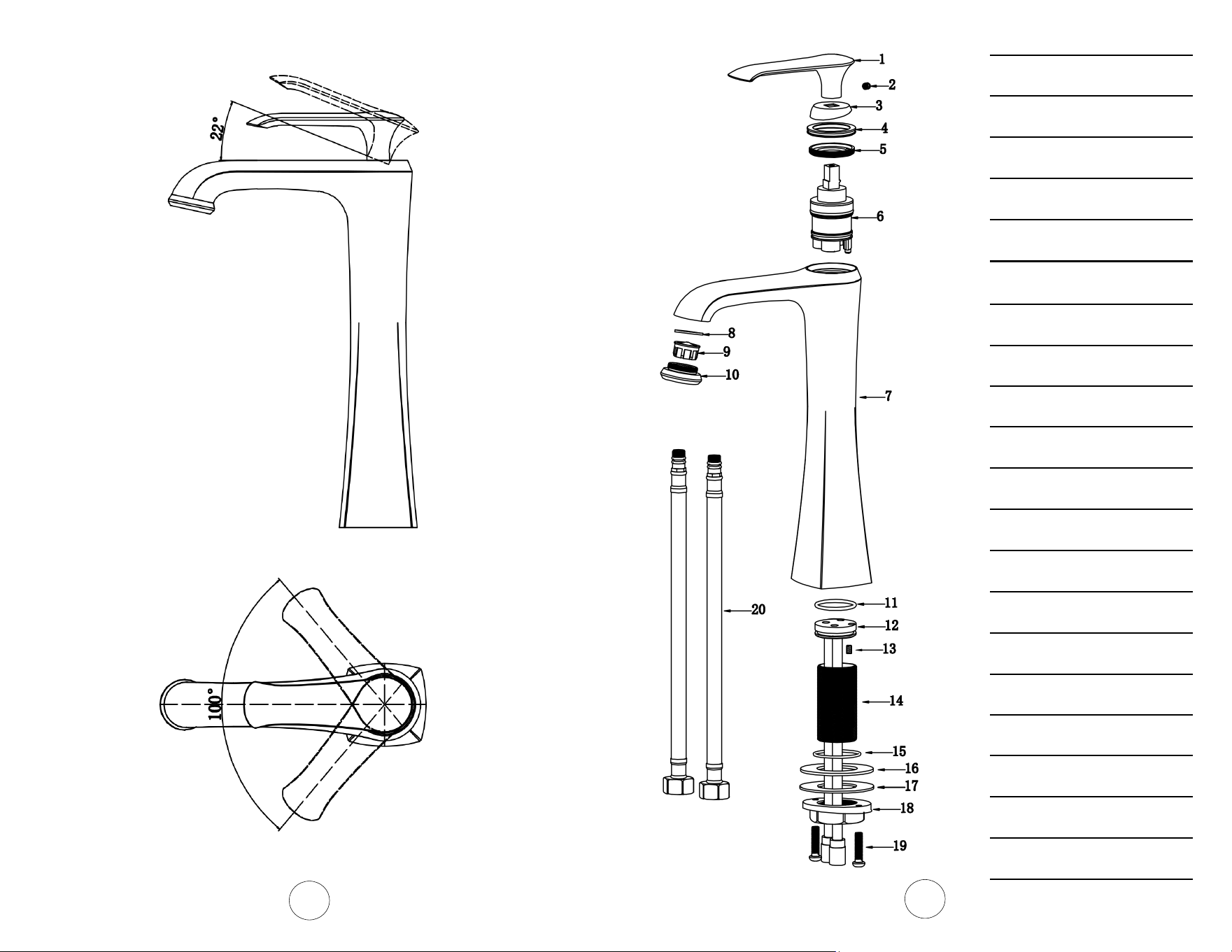

1 - Handle
2 - Screw
3 - Cover
4 - Cover
5 - Nut
6 - Cartridge
7 - Faucet Body
8 - Gasket
9 - Aerator
10 - Aerator Cover
11 - O-Ring
12 - Cartridge Base
13 - Screw
14 - Base
15 - O-Ring
16 - Rubber Washer
17 - Metal Washer
18 - Mounng Hardware
19 - Screw
20 - Water Lines
