Safety & Warning
Read and understand this entire manual before assembling, installing,
operating, or servicing this product. Failure to follow these warnings and
instructions can cause death, personal injury or damage to valuable property.
Adhere to all Department of Transportation (D.O.T.) requirements when using
this product. Use ropes and tie downs (not included) to securely hold all cargo
in place.
For the vehicle that will support the Cargo Carrier, read all pertinent vehicle
instructions and warnings provided in the owner's manual. Make sure the
vehicle's engine is OFF, with parking brake set, before loading or unloading
the Cargo Carrier.
This Cargo Carrier must be attached to a 2’’x2’’ Class III or Class IV hitch
receiver. The hitch must be properly installed by a qualified service technician
and be certified to support the weight of this Cargo Carrier and its contents.
This Cargo Carrier is designed to haul firewood, coolers and other similar
loads. Do not modify the Carrier and do not use this product for purposes that
it was not designed for.
Do not overload the Cargo Carrier. Never exceed the maximum weight
capacity.
When assembly is complete, check and test all vehicle systems including
lights and brakes; make sure no damage occurred during product installation.
Frequently check the condition of the Cargo Carrier and the vehicle's hitch
receiver. Make sure all components are in good condition. If the Cargo Carrier
or hitch receiver become damaged through accident, or if any weld damage is
noted, the product should be replaced. Check to make sure that all hardware
is tightly secured in place. Keep the Cargo Carrier clean.
Use common sense when working. Stay alert and concentrate when setting
up and using the Cargo Carrier. Never work while under the influence of
alcohol, drugs or medications.
While assembling and using the Cargo Carrier keep work area clean and well
lighted. Keep spectators and children out of the work area.
Dress appropriately. Never wear loose fitting clothing or jewelry when working.
- 3 -
Contain long hair, and keep hair, clothing and gloves away from moving parts.
Be aware of the danger of ''dynamic loading''. This situation arises when a
load is dropped onto the Carrier, resulting in a short term excessive load.
Dynamic loading can result in damage and failure of the Carrier and/or hitch
receiver, and personal injury to the person loading the Carrier.
Never load people or animals into the Cargo Carrier.
Weight inside the Cargo Carrier should be evenly distributed, with heavier
items positioned towards the center of the Carrier.
Note the position of the vehicle's exhaust pipes before setting up the Cargo
Carrier. Make sure exhaust pipes are not in close proximity of the Cargo
Carrier; flammable goods in the Cargo Carrier could catch on fire due to heat
from the exhaust. If this risk exists on your vehicle, do not use the Cargo
Carrier.
Do not ride in vehicle being loaded or unloaded. Load and unload vehicle
slowly, according to manual instructions.
Specifications
WARNING
Before setting up or using this product, read the entire “IMPORTANT SAFETY
INFORMATION” section at the beginning of this manual, including all the text
under the sub - headings therein.
Note: For additional information about the parts listed on the following pages, refer
to the Parts List and Assembly Diagram on page 7.
Model Series
GJ0085
Maximum Load Capacity（lbs）
500
Cargo Basket Dimensions
（
mm
）
1778X762X152
Gross Weight(kg)
31.4
- 4 -
Note: Only finger - tighten the bolts until the carrier is fully
assembled.
PRODUCT DESCRIPTION

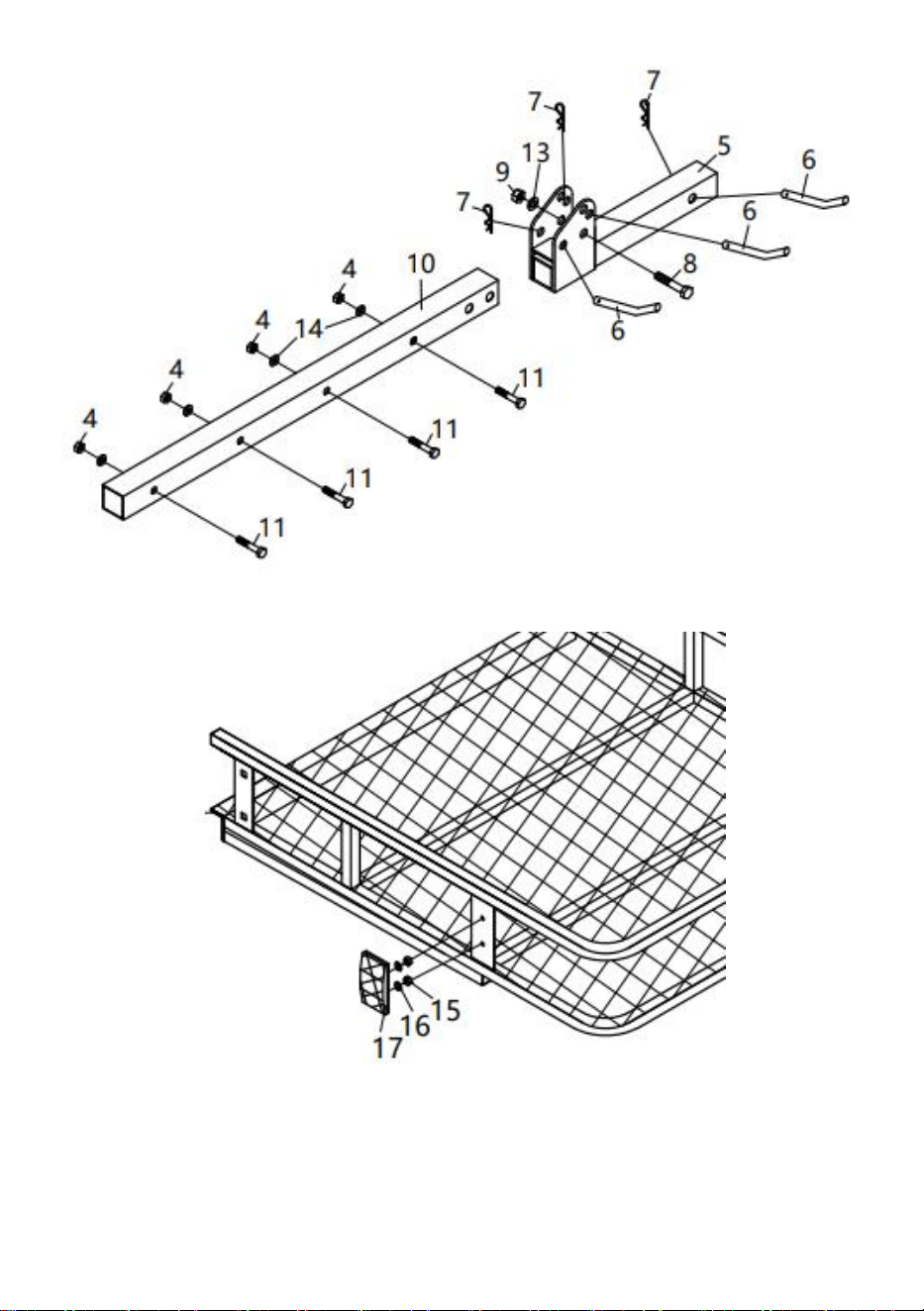

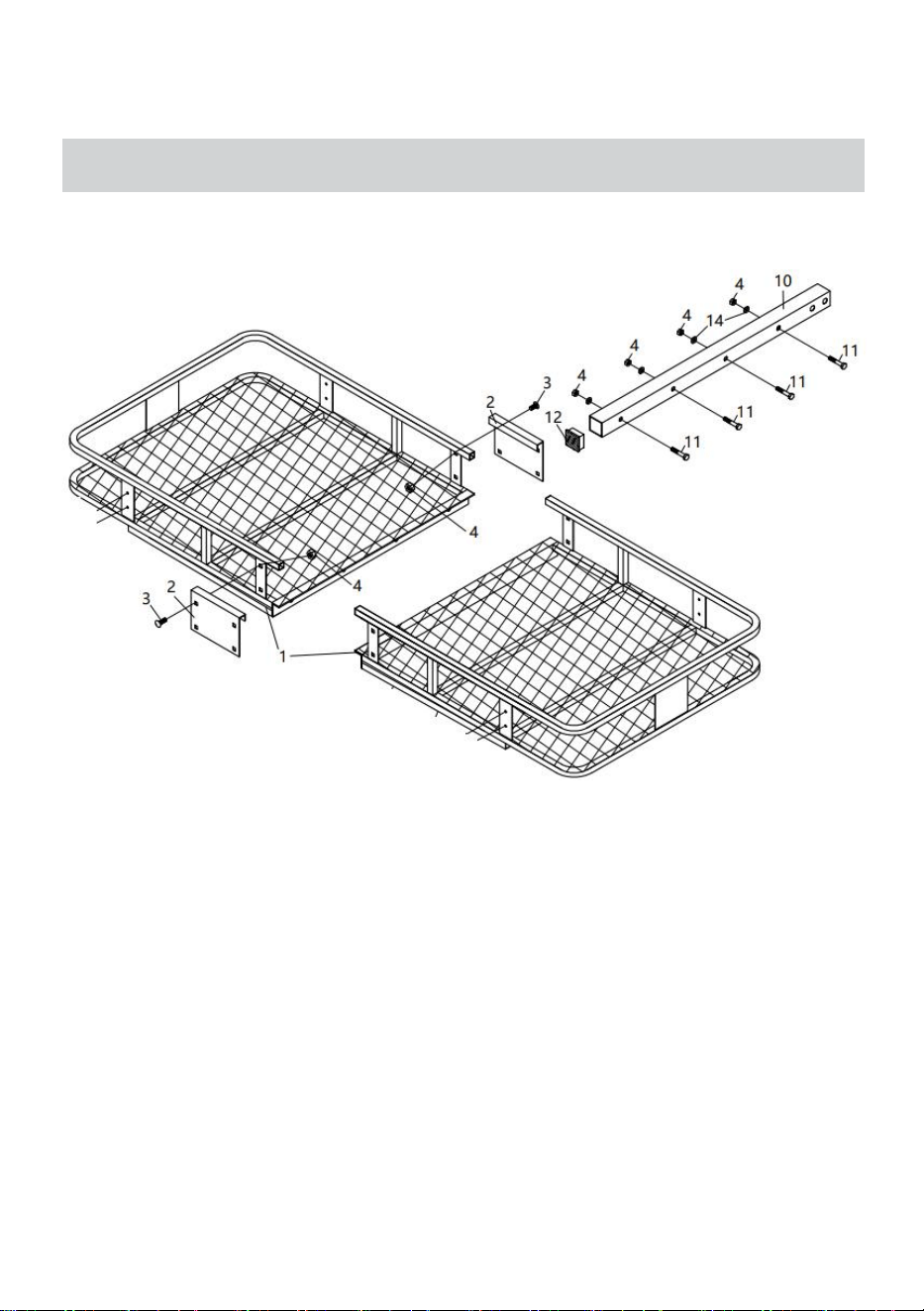

A. Open frame(1) first, insert the Support Tube(10), and lock the frame
and support tube with screws and nut washers (11/14/4).
B. Use Carriage Bolt (3), nuts (4), spring washers (10), to lock Connecting
Plate (2)
- 5 -
C. Connect Hitch Tube(5) to Support Tube(10)
D. Fix the Reflector (17 16 15)，
- 6 -

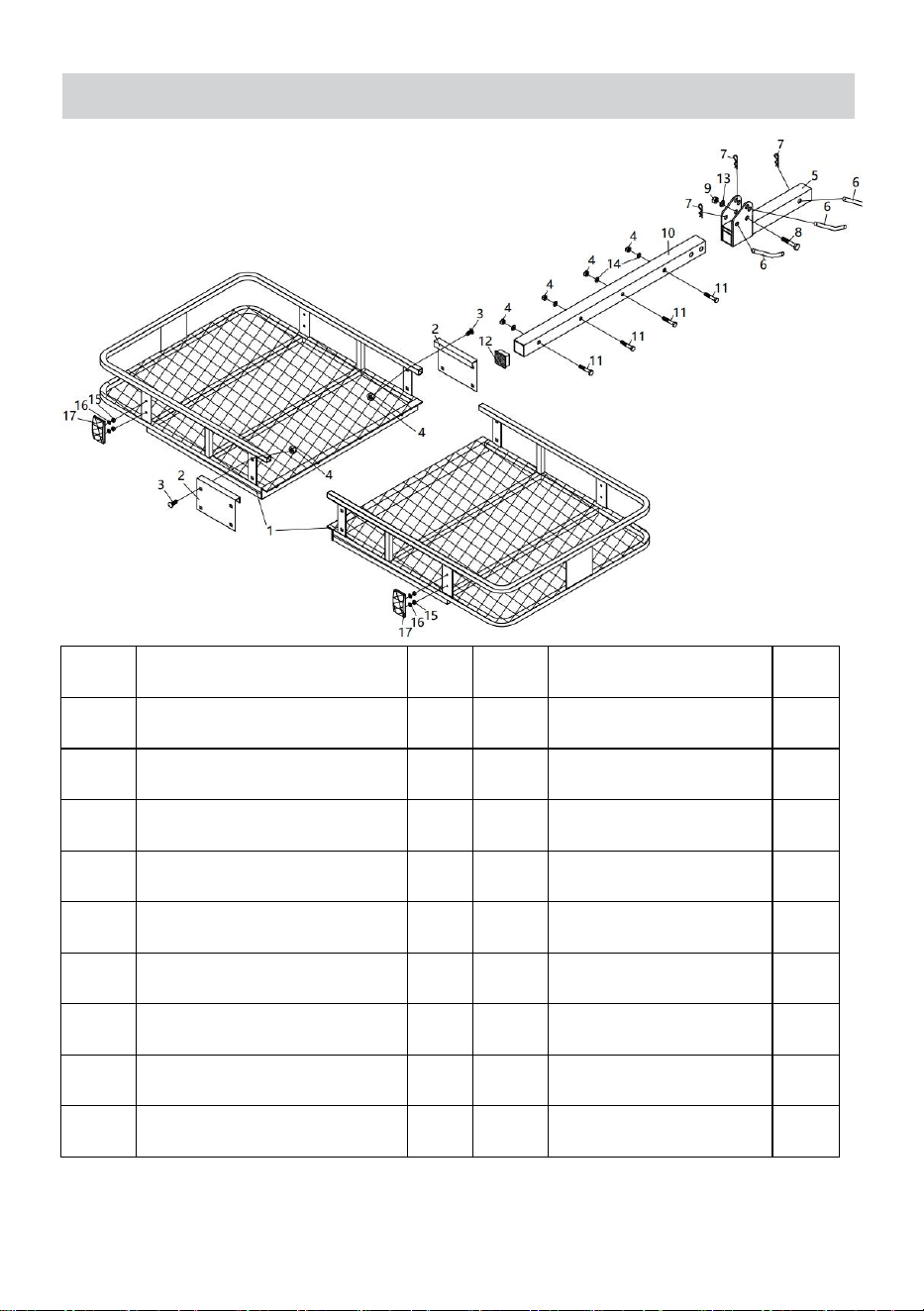

PARTS LIST AND ASSEMBLY DIAGRAM
Part
Description/mm
Qty
Part
Description/mm
Qty
1
Frame
2
10
Support Tube
1
2
Connecting Plate
2
11
Bolt M10*75
4
3
Carriage Bolt M10*25
8
12
End Cap
1
4
Nut M10
12
13
Washer M16
1
5
Hitch Tube
1
14
Washer M10
4
6
Hitch Pin 16
3
15
Nut M5
2
7
R-Pin
3
16
Spring Washer M5
2
8
Bolt M16*85
1
17
Reflector
2
9
Nut M16
1
- 7 -
Operation Instructions
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the
beginning of this document, including all text under sub - headings therein,
before setting up or using this product.
Before setting up or using this product, read the entire IMPORTANT SAFETY
INFORMATION section at the beginning of this document, including all the text
under its sub - headings.
WARNING! Do not exceed this carrier's maximum weight capacity of 500 pounds.
1. Remove the R - Pin (7) from the carrier's Hitch Pin (6).
2. With assistance, lift the carrier by the post and insert the hitch end into the
towing vehicle's tow hitch (not included).
3. Slide the Hitch Pin through the pin holes and fasten it in place with the R - Pin.
4. With assistance, place the items to be loaded onto the carrier. Make sure the
load is evenly balanced on the carrier. Secure the load in place using appropriate
tie - downs, ropes, flags, etc. (not included).
NOTICE! Contact the local Department of Transportation to verify that all safety
guidelines are being followed before transporting the load.
Maintenance and Servicing
Procedures not specifically explained in this manual must be performed
solely by a qualified technician.
Cleaning, Maintenance, and Lubrication
1. BEFORE EACH USE, inspect the general condition of the Carrier. Check for:
loose hardware;
misalignment or binding of parts;
cracked or broken parts; and
any other condition that may affect its safe operation.
- 8 -
2. Clean the carrier after each use. Make sure there is no dirt, oil, grease or
debris on the carrier.
PLEASE READ THE FOLLOWING CAREFULLY.
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS
LIST IN THIS DOCUMENT AS A REFERENCE TOOL ONLY. NEITHER THE
MANUFACTURER NOR THE DISTRIBUTOR MAKES ANY REPRESENTATION
OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS
QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE
IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE
MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY STATES THAT ALL
REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY
CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE
BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER
REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THEREOF,
OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS
THEREOF.
- 9 -
