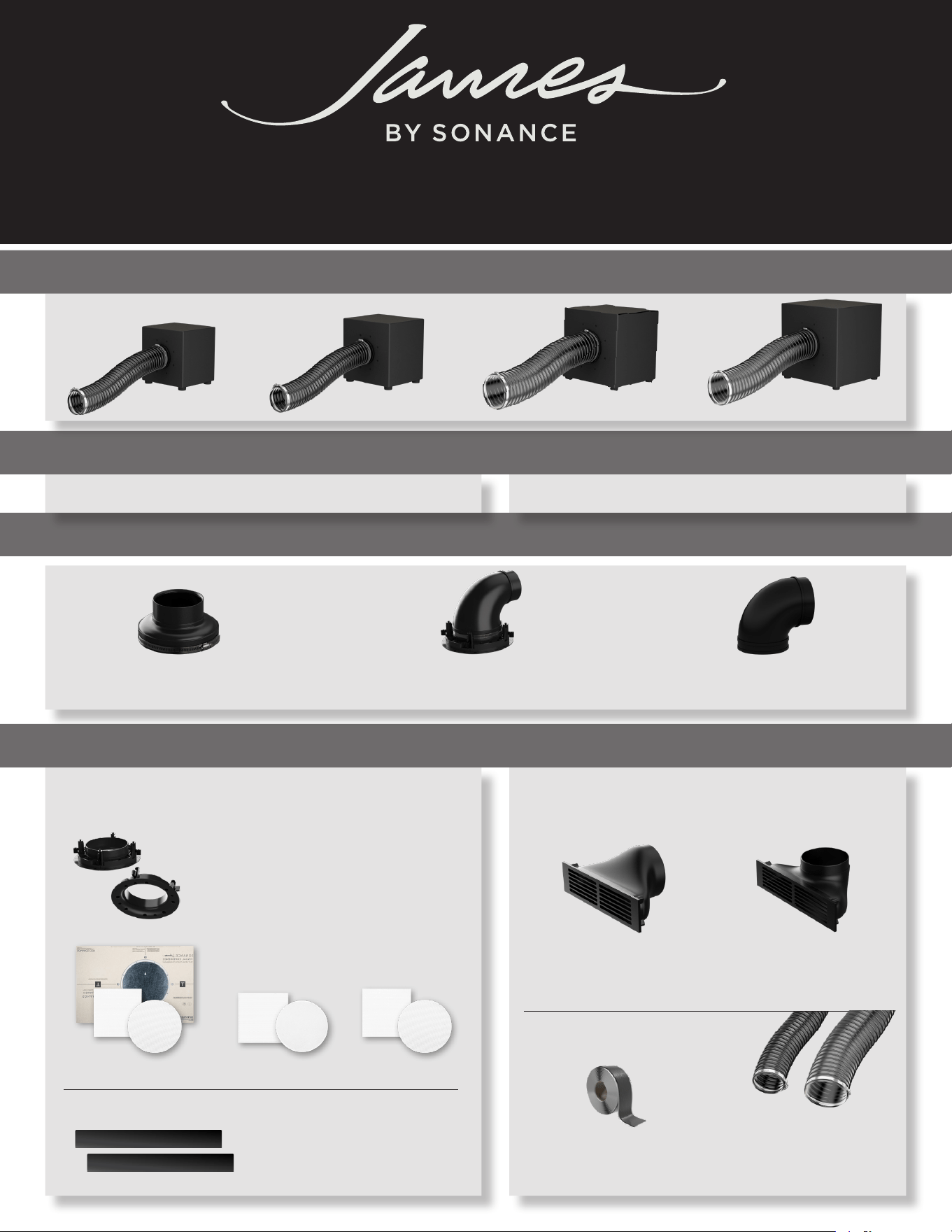

POWERPIPE X SERIES CONFIGURATION GUIDE
James by Sonance PowerPipe X Series Congifuration Guide assists in identifying the installation surface and
desired finish to select the required components to complete a project.
IN-CEILING
PPX RUBBER STRAP | 93826
Suspend between joists
(24” L x 2” W x 0.172” D)
SELECT A SUBWOOFER (ONE REQUIRED)
IN CABINET | IN CLOSET | BEHIND WALL
APPLICATION
PARTS FOR SUCCESSFUL INSTALL
FIND YOUR FINISH
PPX8-M | 60665
BUTYL TAPE
Seal openings
(not supplied by Sonance)
PPX10-M | 60667 PPX15-M | 60669
PPX STRAIGHT TOEKICK
CONNECTOR AND GRILLE
PPX-3.5X16-2-STR | 93790
PPX 8” XPC-STYLE GRILLE CONNECTOR
PPX-8R | 93796
PPX 6” XPC-STYLE GRILLE CONNECTOR
PPX-6R | 93795
PPX 4” XPC-STYLE GRILLE CONNECTOR*
PPX-4R | 93794
*only compatible with PPX8 and PPX10 models
TOEKICK FINISH
(select one)
PPX 90-DEGREE TOEKICK
CONNECTOR AND GRILLE
PPX-3.5X16-2-90 | 93789
90-DEGREE ADAPTER
PPX-6-90-ADAPTER | 93793
For 6” pipe installs using PPX12-M or PPX15-M
PPX12-M | 60668
MICRO TRIM TRIMLESSTRUFIG FLUSH
XPC-STYLE FINISH
(select one connector and one grille)
or or
4TO6 90-DEGREE ADAPTER
PPX-4TO6-90-ADAPTER | 93792
For 4” pipe installs using PPX8-M or PPX10-M
4TO6 STRAIGHT ADAPTER
PPX-4-6-STR-ADAPTER | 93791
For 4” pipe installs using PPX8-M or PPX10-M
OPTIONAL
OPTIONAL
EXTENDED PORT TUBE
(DOUBLE LENGTH)
4” Diameter | 60731
6” Diameter | 60732

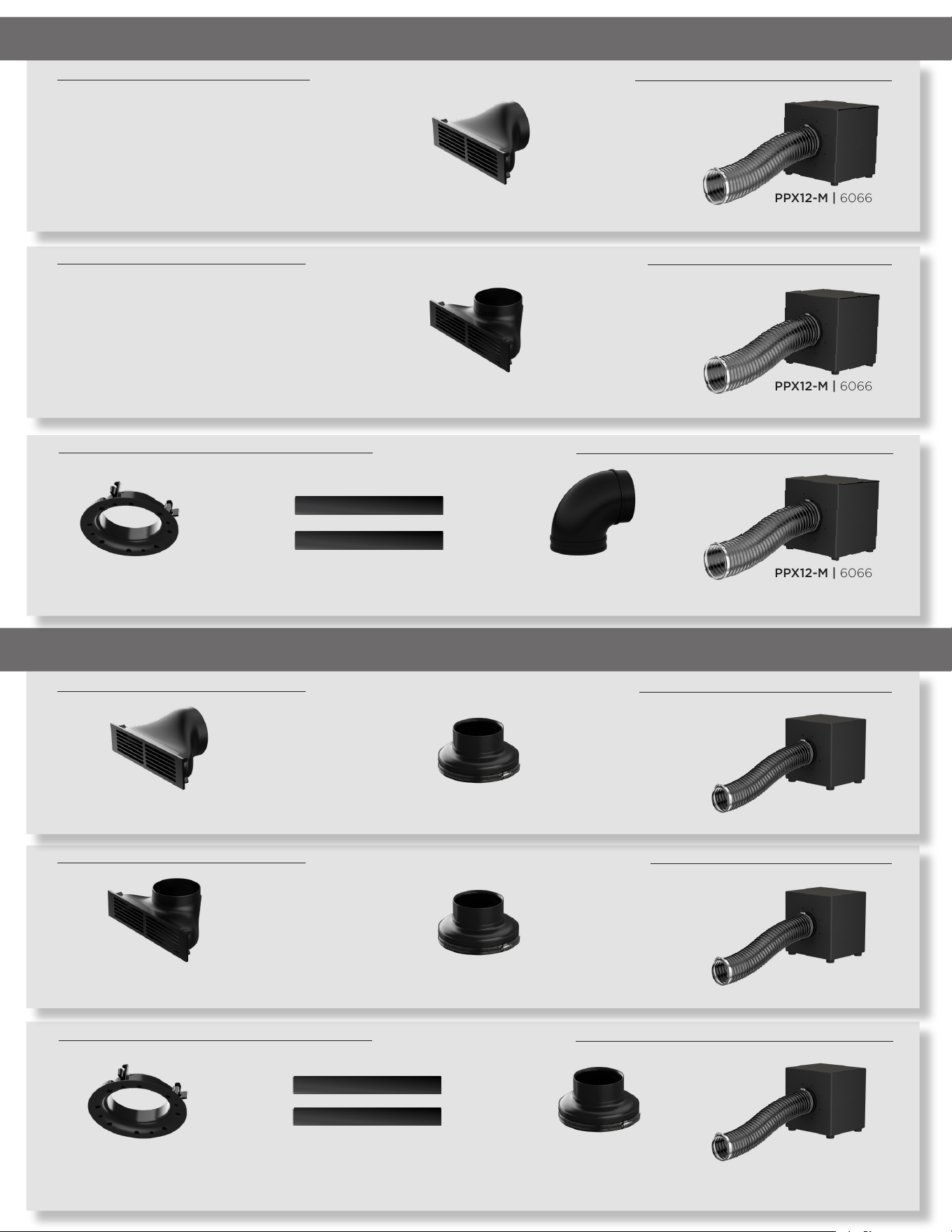

PPX12-M | PPX15-M INSTALLS (6” PIPE MODELS)
+
+
90-DEGREE TOEKICK MOUNT
STRAIGHT TOEKICK MOUNT
PPX-3.5x16-2-STR CONNECTOR
AND GRILLE | 93790
PPX-3.5x16-2-90 CONNECTOR
AND GRILLE | 93789
PPX-6-90
ADAPTER | 93793
PPX8-M | PPX10-M INSTALLS (4” PIPE MODELS)
+
CEILING MOUNT
PPX-6R CONNECTOR | 93795
PPX-8R CONNECTOR | 93796
(Requires XPC round or square grille)
PPX RUBBER STRAP | 93826
+
+
+
90-DEGREE TOEKICK MOUNT
STRAIGHT TOEKICK MOUNT
PPX-3.5x16-2-STR CONNECTOR
AND GRILLE | 93790
PPX-3.5x16-2-90 CONNECTOR
AND GRILLE | 93789
CEILING MOUNT
PPX RUBBER STRAP | 93826
+ +
PPX-4-6-STR
ADAPTER | 93791
PPX10-M | 60667
PPX8-M | 60665
PPX10-M | 60667
PPX8-M | 60665
PPX10-M | 60667
PPX8-M | 60665
+
PPX-4-6-STR
ADAPTER | 93791
+
+
PPX-4-6-STR
ADAPTER | 93791
PPX12-M | 60668
PPX15-M | 60669
PPX-4R CONNECTOR | 93794
PPX-6R CONNECTOR | 93795
PPX-8R CONNECTOR | 93796
(Requires XPC round or square grille)
+
PPX12-M | 60668
PPX15-M | 60669
PPX12-M | 60668
PPX15-M | 60669
