Box Contents
VX52R UTL
(1) Quickstart guide / cutout
template
(2) Speakers
(2) Paintable grilles
VX52R UTL ULTRA THIN-LINE SPEAKER
INSTRUCTION MANUAL
Introduction
Thank you for purchasing Sonance Visual Experience
Series Ultra Thin-line Speakers.
Before Installation: Retro-fit
1. Determine the location for the speaker.
2. Perform an obstruction survey to be certain that
there are no studs, conduit, pipes, heating ducts,
pocket doors or air returns in the wall cavity that will
interfere with the speaker.
3. Position the included cutout template where the
speaker is to be located and pencil an outline on the
wall or ceiling.
• If you are unsure about obstructions, drill a small
hole in the center of the outline and insert a coat
hanger wire into the hole to feel-around for possible
obstructions.
4. Cut the mounting hole using tools appropriate for
the construction, and run the speaker wires from
the mounting hole to the amplifier location.
Installation
Sonance Visual Experience Series Speakers feature
an exclusive integral RotoLock
®
mounting system
for quick mounting directly into existing walls and
ceilings.
1. Strip 1/4” – 1/2” (6mm – 13mm) of insulation
from each speaker lead. Twist the strands or tin the
exposed wire with solder to ensure that there are no
stray strands.
1
NOTE: CONSULT LOCAL BUILDING CODES BEFORE
RUNNING SPEAKER WIRES THROUGH WALLS.
NOTE: STRAY STRANDS THAT TOUCH EACH
OTHER CAN CAUSE A SHORT- CIRCUIT THAT CAN
DAMAGE THE AMPLIFIER.
2. The speaker’s connector posts are spring-loaded.
Push the top of each connector post down to open
the connector and insert the exposed wires into the
holes in the posts (see Figure 1).
3. The speaker’s positive post is labeled with a red dot;
the negative post is labeled with a black dot.
4. After making all connections, double-check that you
connected amplifier “+” to speaker “+” and amplifier
“–” to speaker “–”.
5. Make sure all the Roto-Lock toggle feet are
retracted so that they are tucked within the
mounting hole’s border.

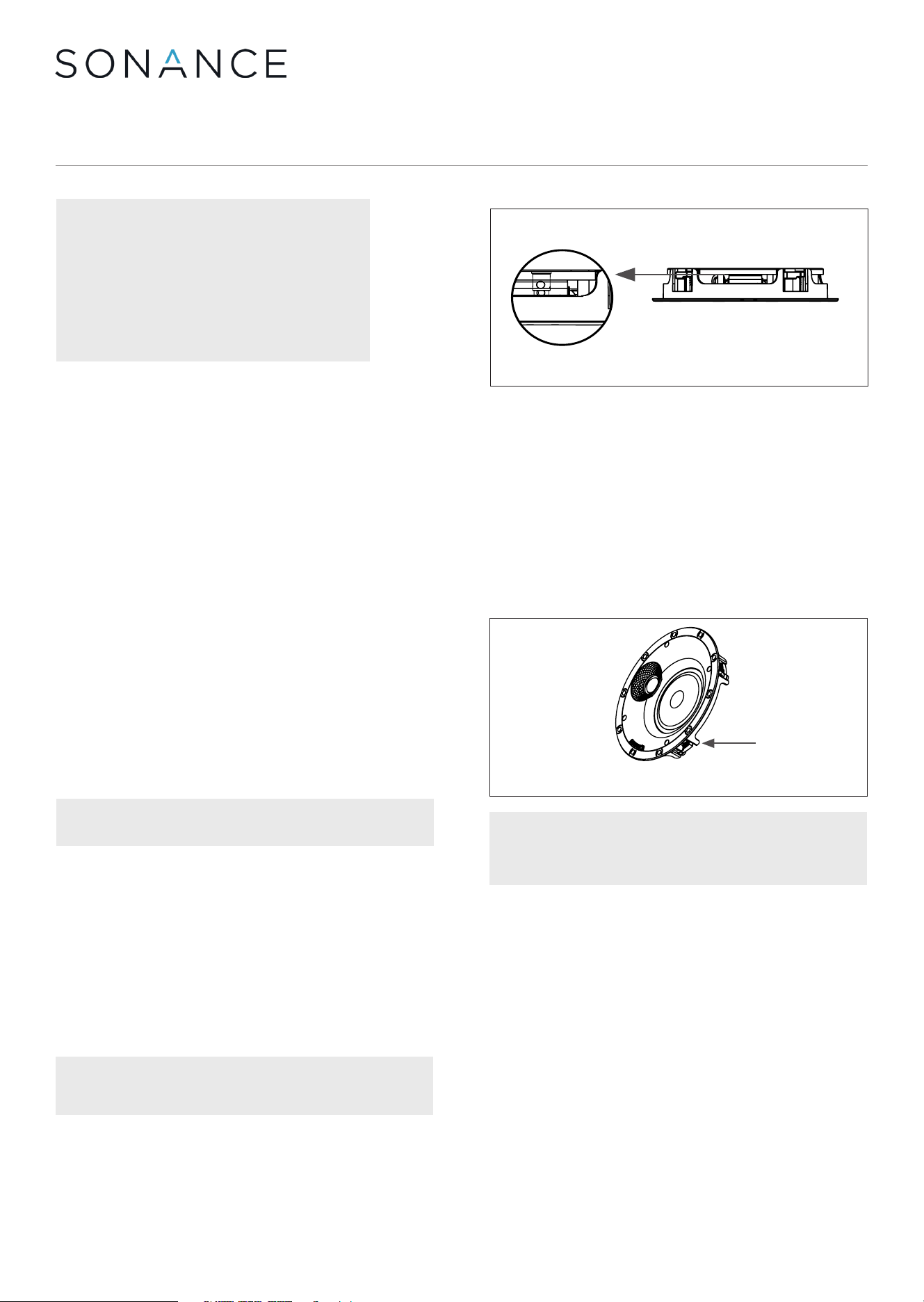

Figure 1: Connection Terminals
(one on each side of the speaker)
Figure 2: Roto-Lock Toggle Feet Retracted
Connection Terminals
NOTE: THE ROTO-LOCK SYSTEM CAN
ACCOMMODATE A WALL MATERIAL THICKNESS
OF 1 1/4” (32MM).
VISUAL EXPERIENCE ULTRA THIN-LINE SPEAKERS INSTRUCTION MANUAL
6. Insert the speaker into the mounting hole (Figure
4) and tighten the four screws on the front of the
speaker bae. (Figure 5).
7. The Roto-Lock clamps will automatically rotate into
position and begin clamping the speaker.

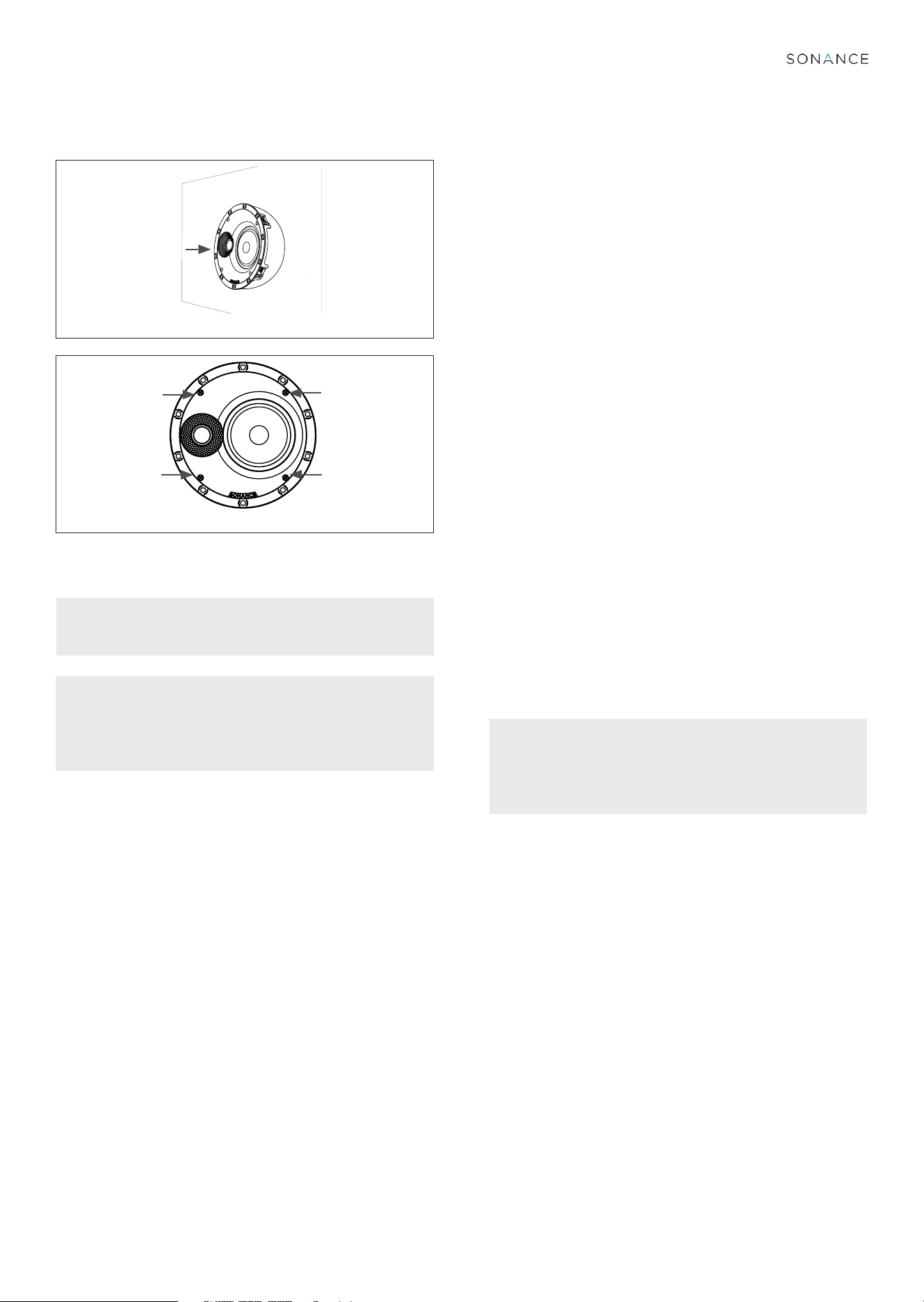

Figure 5: Tightening the Roto-Lock Screws
Figure 4: Inserting the Speaker into the Mounting Hole
IMPORTANT: ALWAYS USE LOW-TORQUE
SETTINGS WHEN USING A SCREW GUN; NEVER
OVER TIGHTEN.
NOTE: ADJUSTING THE TENSION OF THE ROTO-
LOCK CLAMPS SO THAT THE SPEAKER FRAME
IS FLAT WILL HELP ENSURE THAT THE GRILLE
CONTACTS THE WALL ALL THE WAY AROUND
THE SPEAKER FOR A PROPER FIT.
2
PAINTING THE GRILLES
Sonance Visual Experience Series speaker grilles
completely cover the exposed speaker frame, so
only the grilles (not the speakers themselves) require
painting.
1. Prime the grille with a metal primer/bonder in
a spray can. Carefully follow the manufacturerʼs
directions on the can.
2. We recommend using water-based latex paint on
the grilles. Thin the paint with a proper thinning
agent to a ratio of 1:1 paint-to-thinner, and strain
it through a standard mesh strainer to remove any
lumps.
3. Use a small touch-up gun or cap-spray gun with a
#3 tip for painting.
(A) Set the nozzle with a medium to wide fan.
(B) Set the pressure regulator to 60psi.
(C) Lightly spray the front of the grille in 3 quick
strokes from approximately 10 inches away.
(D) Let the paint set for a minute, then turn the grille
90º and lightly spray the grille again in 3 quick
strokes.
Repeat this step until all four sides of the grille have
been evenly painted.
4. While the paint is still wet, inspect the grille
and make sure that excess paint has not collected
underneath the grille frame, and that none of
the grille perforations are filled with paint. If any
are, use compressed air to blow the paint out of the
perforations.
5. Once the paint has thoroughly dried, mount the
grille on the speaker.
IMPORTANT: IF YOU FIND ANY GRILLE
PERFORATIONS THAT ARE PLUGGED WITH PAINT
AFTER THE PAINT HAS DRIED, USE A STRAIGHT
PIN OR SEWING NEEDLE TO CAREFULLY REMOVE
THE PAINT.
©2018 Sonance. All rights reserved. Sonance and Visual Experience are registered trademarks of Dana Innovations. Due to continuous
product improvement, all features and specifications are subject to change without notice. For the latest Sonance product specification
information visit our website: www.sonance.com
SONANCE • 991 Calle Amanecer • San Clemente, CA 92673 USA • PHONE: (949) 492-7777 • Technical Support: (949) 492-7777
07.14.2026
VISUAL EXPERIENCE ULTRA THIN-LINE SPEAKERS INSTRUCTION MANUAL
LIMITED FIVE (5) YEAR WARRANTY
Sonance warrants to the first end-user purchaser that this Sonance-brand product (“Product”), when purchased from an authorized Sonance
Dealer/Distributor, will be free from defective workmanship and materials for the period stated below. Sonance will at its option and expense
during the warranty period, either repair the defect or replace the Product with a new or remanufactured Product or a reasonable equivalent.
EXCLUSIONS
TO THE EXTENT PERMITTED BY LAW, THE WARRANTY SET FORTH ABOVE IS IN LIEU OF, AND EXCLUSIVE OF, ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, AND IS THE SOLE AND EXCLUSIVE WARRANTY PROVIDED BY SONANCE. ALL OTHER EXPRESS
AND IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY, IMPLIED WARRANTY OF FITNESS FOR
USE, AND IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE ARE SPECIFICALLY EXCLUDED.
No one is authorized to make or modify any warranties on behalf of Sonance. The warranty stated above is the sole and exclusive remedy
and Sonance’s performance shall constitute full and final satisfaction of all obligations, liabilities and claims with respect to the Product.
IN ANY EVENT, SONANCE SHALL NOT BE LIABLE FOR CONSEQUENTIAL, INCIDENTAL, ECONOMIC, PROPERTY, BODILY INJURY, OR
PERSONAL INJURY DAMAGES ARISING FROM THE PRODUCT, ANY BREACH OF THIS WARRANTY OR OTHERWISE.
This warranty statement gives you specific legal rights, and you may have other rights which vary from state to state. Some states do not
allow the exclusion of implied warranties or limitations of remedies, so the above exclusions and limitations may not apply. If your state does
not allow disclaimer of implied warranties, the duration of such implied warranties is limited to period of Sonance’s express warranty.
Your Product Model and Description: VX52R UTL.
Warranty Period for this Product: Five (5) years from the date on the original sales receipt or invoice or other satisfactory proof of purchase.
Additional Limitations and Exclusions from Warranty Coverage: The warranty described above is non-transferable, applies only to the initial
installation of the Product, does not include installation of any repaired or replaced Product, does not include damage to allied or associated
equipment which may result for any reason from use with this Product, and does not include labor or parts caused by accident, disaster,
negligence, improper installation, misuse (e.g. overdriving the amplifier or speaker, excessive heat, cold or humidity), or from service or repair
which has not been authorized by Sonance. Obtaining Authorized Service: To qualify for the warranty, you must contact your authorized
Sonance Dealer/Installer or call Sonance Customer Service/Technical Support at (949) 492-7777 within the warranty period, must obtain a
return merchandise number (RMA), and must deliver the Product to Sonance shipping prepaid during the warranty period, together with the
original sales receipt, or invoice or other satisfactory proof of purchase.
3
VX52R UTL
SKU
Tweeter
Woofer
Frequency Response
Impedance
Power Handling (RMS)
Sensitivity (2.83V/1m)
Round Micro Trim Grille (Dia)
Round Trimless Grille (Dia)
Square Micro Trim Grill (WxH)
Square Trimless Grille (WxH)
Speaker (Dia)
Speaker Mounting Depth (D)
Cut-Out Dims (Dia)
Product Weight (w/o Grille)
Product Only Weight (w/ Grille)
Shipping Weight
93654 - Pair
1” (25mm) cloth dome, Ferrofluid-cooled, acoustic back chamber
5.25” (130mm) Anodized aluminum cone, rubber surround
55Hz - 20kHz +/-3dB
8 ohms nominal; 6 ohms minimum
5 watts minimum; 100 watts maximum
89dB SPL
9.62” (244.4mm)
9.28” (235.6mm)
9.62” x 9.62” (244.4mm x 244.4mm)
9.28” x 9.28” (235.6mm x 235.6mm)
9.17” (232.8mm)
1.41” (35.7mm)
8.25” (210mm)
1.96 lbs (0.89kg) Each
2.34 lbs (1.06kg) Each
7.1 lbs (3.22kg)
