PROFESSIONAL SERIES
HIGH OUTPUT PENDANT LOUDSPEAKER
PS-P85T
MANUAL
2
TABLE OF CONTENTS
2 Box Contents
2 Product Features
3 Amplifier Selection
3 Wire Selection (70V/100V and 8 ohm Systems)
3 Speaker Placement
3 Grille Painting
4 Installation

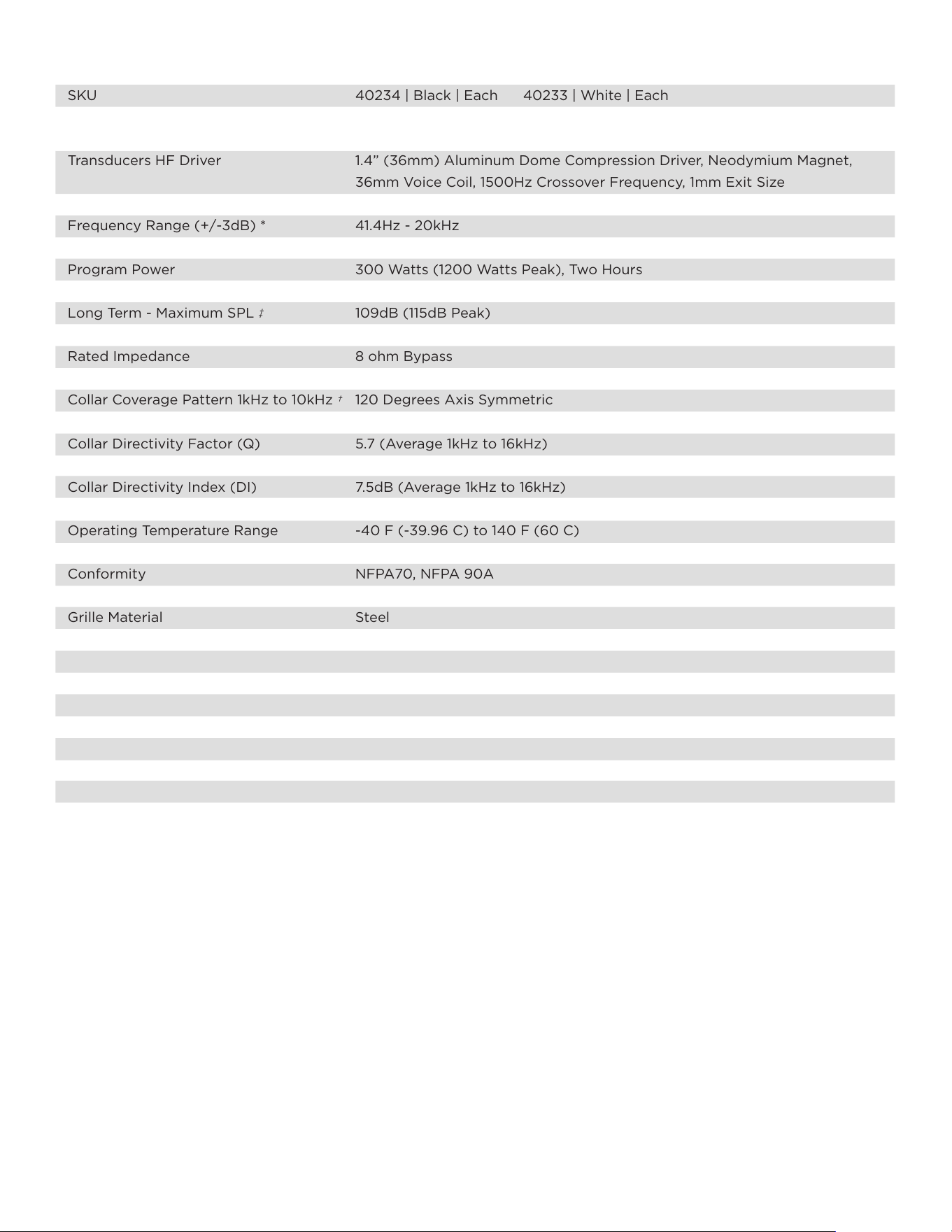

9 PS-P85T Technical Specifications
10 Certifications and Safety Agency
10 Technical Assistance and Service
11 Warranty
INTRODUCTION
Sonance Professional Series High Output is a range of
70V/100V impedance-selectable loudspeakers available
as in-ceiling, surface mount, or pendant models. These
High Output models achieve exceptional SPL playback
with the ability to define each loudspeaker for wide
or narrow directivity. Their shared voicing across
form factors ensure seamless sonic integration when
deployed together throughout commercial spaces.
The Pendant speakers utilize a minimalistic design
similar to pendant lighting to blend discretely into the
environment, and take advantage of the same one-
piece grille design as the In-Ceiling speakers to deliver
consistent sight lines when installed in the same space.
The integrated top cover hides the hanging hardware
and wiring connector. Available in either black or white.
BOX CONTENTS
PENDANT SPEAKER
(1) PS-P85T
(1) Round Grille
(1) Screw-On Top Cover
(1) Euroblock Wire Connector
(1) Variable Dispersion Horn
(1) Collar Claw Removal Tool
(1) Water-Resistant Terminal Boot
HANGING KITS CONTAINING
(2) Stainless Steel Cables with Snap Hooks
(2) Gripple® Hangers
(1) Gripple® Adjustment Tools
(1) Hanging Instructions
PROFESSIONAL SERIES HIGH OUTPUT
PENDANT SPEAKER
PS-P85T
3

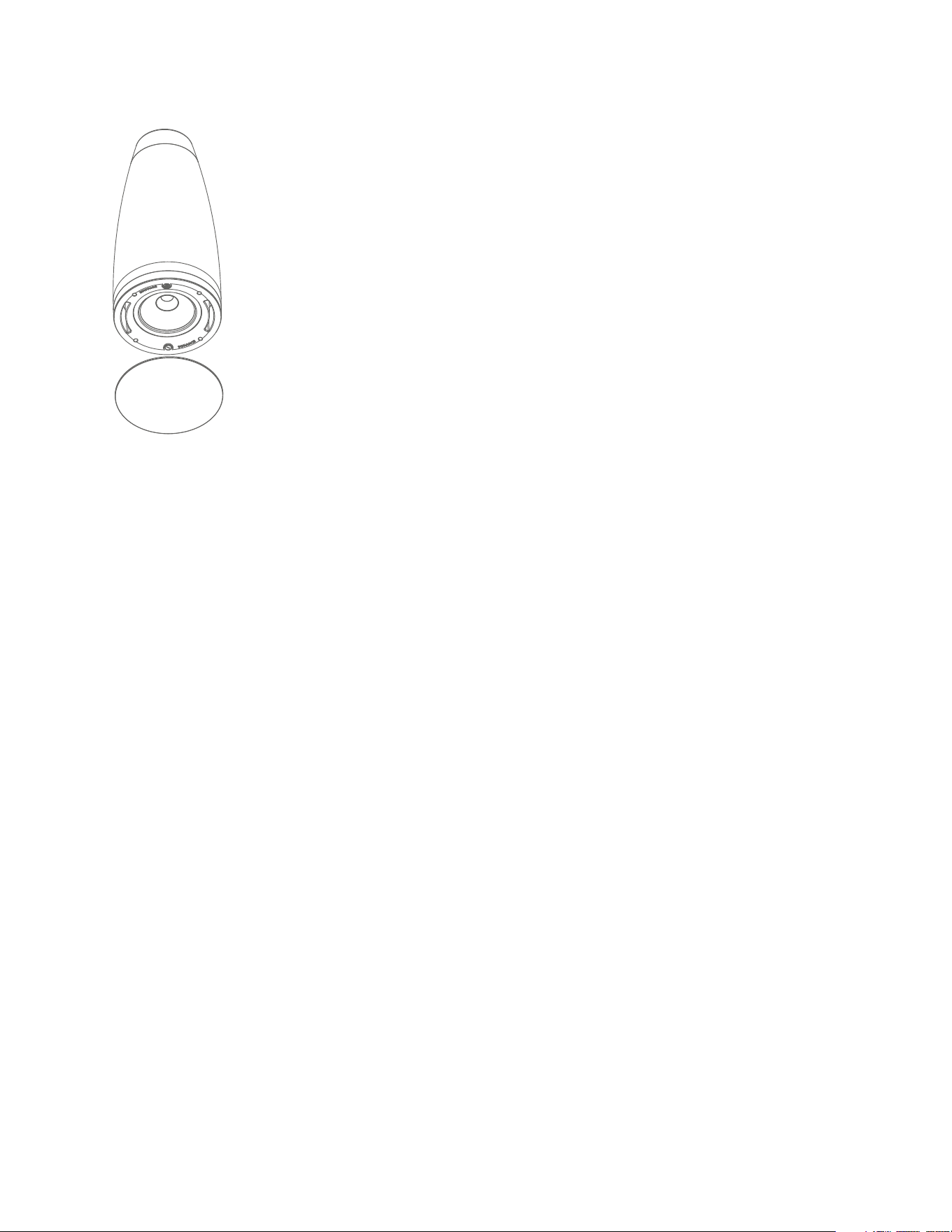

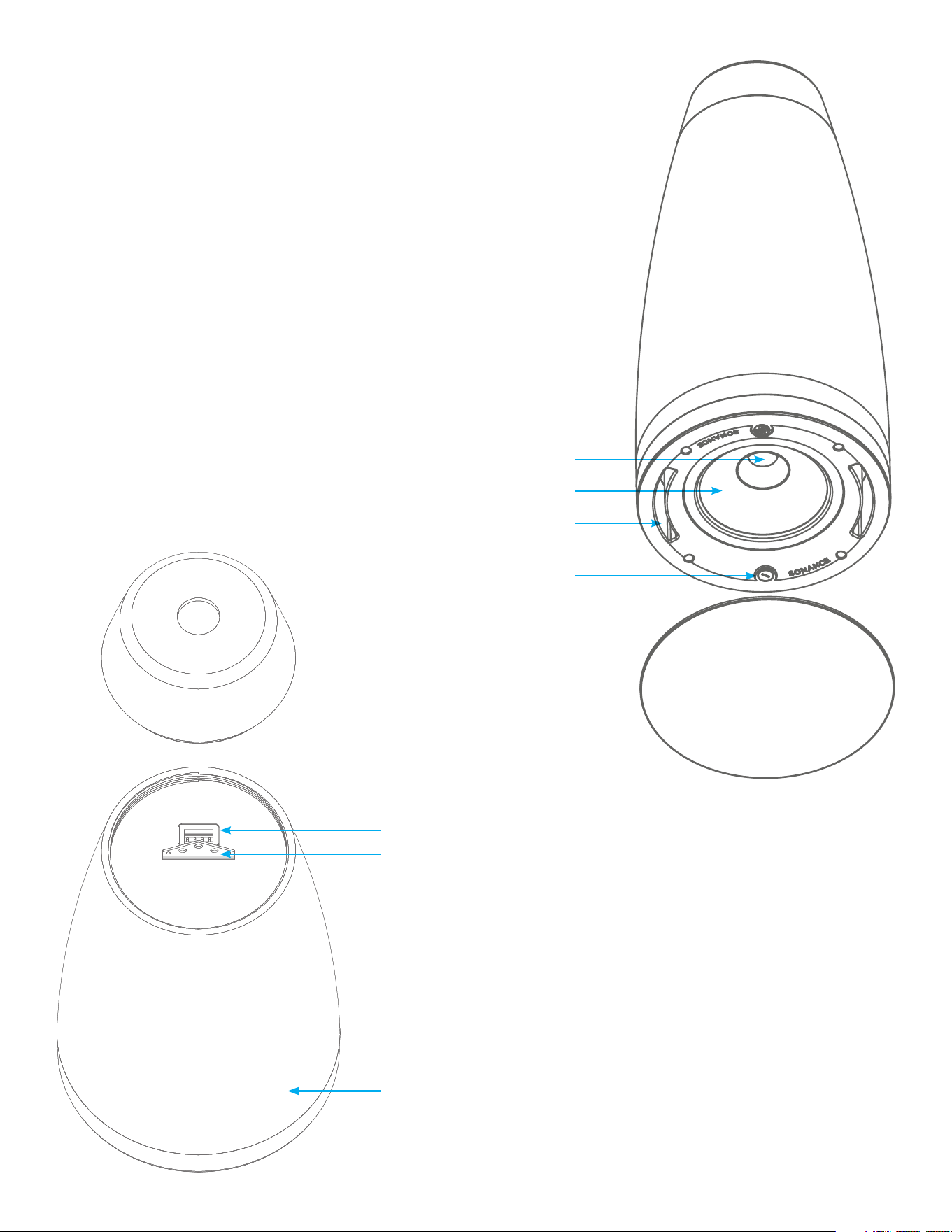

PRODUCT FEATURES
Euroblock Connector
with Loop Through
Screw-On Top Cover
Paintable Shell
(white only)
Hanging Point
High Excursion Woofer
Transformer Tap and Bypass Selector
Once Piece Paintable
Grille with Magnetic
Retention
Variable Dispersion
Horn/Collar Assembly
High Eciency Ported Design
4

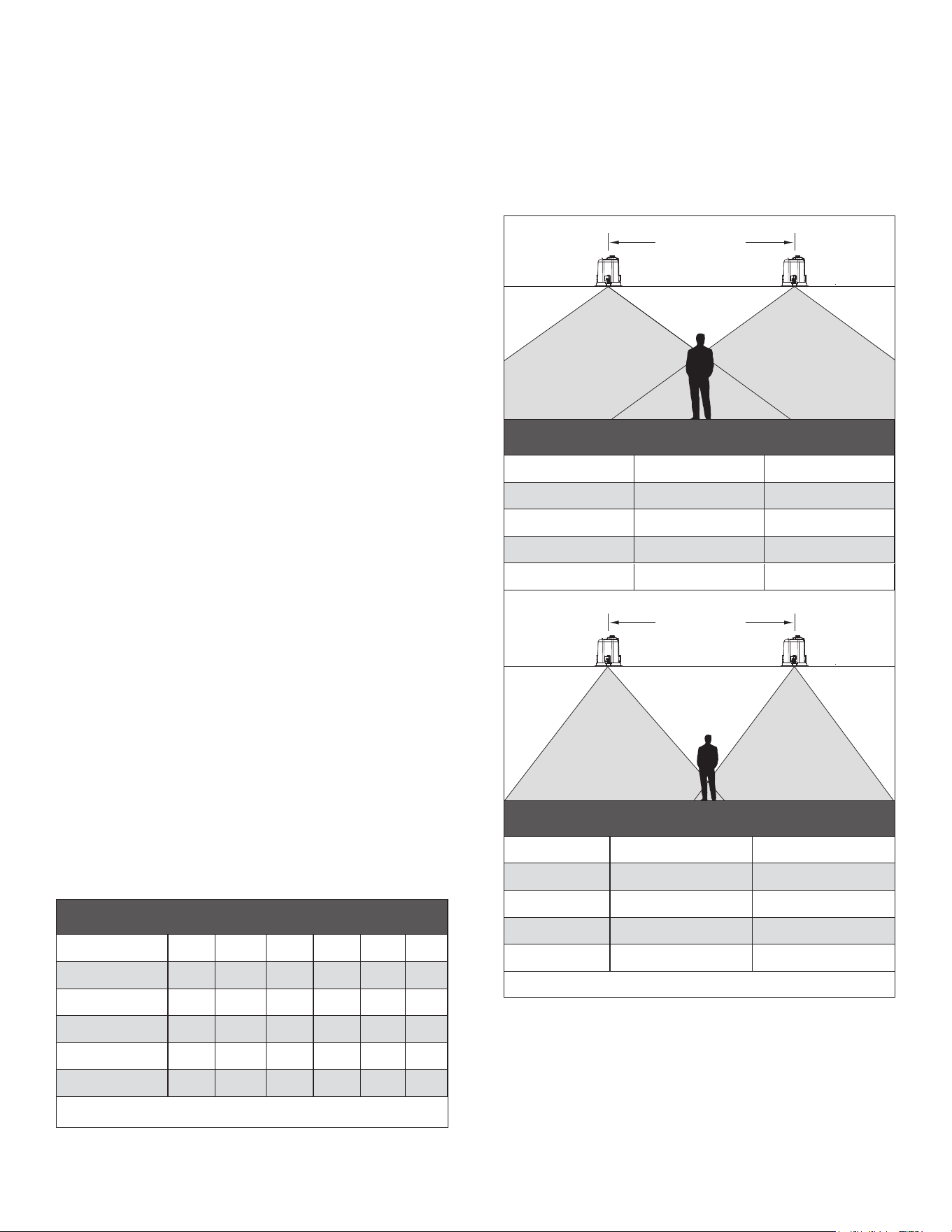

SPEAKER PLACEMENT
Sonance Professional Series speakers possess extremely
smooth and predictable o-axis frequency response.
The chart below shows how far apart the speakers can
be placed in a distributed audio system (see Figure
2). The calculations are based on +/- 45 degrees of
coverage from the speaker, and listener ear heights of
62” for standing and 40” for seated.
AMPLIFIER SELECTION
When choosing an amplifier the maximum number of
speakers and the output level of each speaker must be
known. The sum of the tap settings should never exceed
80% of the amplifier’s rated output. For example, if
there are five speakers and the taps are set at 15 watts,
the load would be 75 watts (5 x 15 watts = 75 watts). To
arrive at the needed power for this number of speakers,
simply divide the total load by 0.8. In this case, 75/0.8 =
93.75 watts. Therefore, a standard 100 watt amp would
safely drive this load. To calculate the amount of usable
power an amp oers, simply multiply the rated output
by 0.8, i.e., 100 watts x 0.8 = 80 watts.
WIRE GAUGE – 70V/100V SYSTEM
The most common wire used on commercial 70 volt
systems is 18 AWG, 2 conductor, stranded, and jacketed
without a shield. The wire starts at the amplifier location
and is paralleled at each speaker location. Wire length
using 18 AWG is appropriate up to 700ft with a 100
watt load. If you double the load (sum of your tap
settings), you will reduce the footage by half, to 350ft.
Conversely, if you halve the load, you may double the
acceptable wire length, i.e., a 50 watt load is safe over
1,400ft of 18 AWG. Stepping up to 16 AWG wire extends
the allowable run length by approximately 35%. For
example, a 100 watt load can go 700ft on 18 AWG; the
same load may be placed on 1,100ft of 16 AWG.
WIRE GAUGE – 8 OHM SYSTEM
When using Sonance Professional Series loudspeakers
in an 8 ohm system the total wire resistance should be
less than 10% of the speaker impedance. The speakers
are nominally 8 ohms impedance, so your total wire
resistance should be no more than 8 ohms. In simple
terms, the extra resistance from the wire will have a very
negative aect on the sound quality of the speaker.
The sound can be less dynamic, definition of bass
frequencies can be reduced, and in extreme cases, the
high frequencies can be attenuated. Amplifier power is
also wasted in the wire, reducing the maximum output
level of the system. Please refer to the following chart
when deciding on the appropriate wire gauge for your
installation (see Figure 1).
Figure 1: Wire Resistance
PAINTING THE GRILLES
1. Prime the grille with a metal primer/bonder in
a spray can. Carefully follow the manufacturer’s
directions on the can.
2. We recommend using water-based latex paint on
the grilles. Thin the paint with a proper thinning
agent to a ratio of 1:1 paint-to-thinner, and strain it
through a standard mesh strainer to remove any
lumps.
SPEAKER
SPACING
COVERAGE
AREA
COVERAGE
AREA
Speaker Spacing in Feet for a Distributed Audio System
8-Foot Ceiling
5.7’ (1.7m) Apart
9.7’ (3.0m) Apart
13.7’ (4.2m) Apart
17.7’ (5.4m) Apart
9.5’ (2.9m) Apart
13.5’ (4.1m) Apart
17.5’ (5.3m) Apart
21.5’ (6.6m) Apart
Standing Listener Seated Listener
10-Foot Ceiling
12-Foot Ceiling
14-Foot Ceiling
Figure 2
LOUDSPEAKER SPACING WHEN NARROW HORN IS
INSTALLED/SELECTED FOR DISTRIBUTED AUDIO SYSTEM
Standing Listener Seated Listener
16ft Ceiling 17.9ft (5.5m) Apart 21.2ft (6.5m) Apart
20ft Ceiling 24.6ft (7.5m) Apart 28ft (8.5m) Apart
24ft Ceiling 31.3ft (9.5m) Apart 34.7ft (10.6m) Apart
28ft Ceiling 38ft (11.6m) Apart 41.4ft (12.6m) Apart
SPEAKER
SPACING
COVERAGE
AREA
COVERAGE
AREA
Speaker Spacing in Feet for a Distributed Audio System
8-Foot Ceiling
5.7’ (1.7m) Apart
9.7’ (3.0m) Apart
13.7’ (4.2m) Apart
17.7’ (5.4m) Apart
9.5’ (2.9m) Apart
13.5’ (4.1m) Apart
17.5’ (5.3m) Apart
21.5’ (6.6m) Apart
Standing Listener Seated Listener
10-Foot Ceiling
12-Foot Ceiling
14-Foot Ceiling
LOUDSPEAKER SPACING WHEN WIDE COLLAR IS
INSTALLED/SELECTED FOR DISTRIBUTED AUDIO SYSTEM
Standing Listener Seated Listener
8ft Ceiling 5.3ft (1.6m) Apart 9.3ft (2.8m) Apart
10ft Ceiling 9.3ft (2.8m) Apart 13.3ft (4m) Apart
12ft Ceiling 13.3ft (4m) Apart 17.3ft (5.3m) Apart
14ft Ceiling 17.3ft (5.3m) Apart 21.3ft (6.5m) Apart
WIRE RESISTANCE IN OHMS VS. LENGTH OF CABLE RUN
Distance in Feet 50’ 100’ 150’ 200’ 250’ 300’
20 AWG 0.86 1.73 2.59 3.45 4.32 5.18
18 AWG 0.65 1.3 1.94 2.59 3.24 3.89
16 AWG 0.43 0.85 1.28 1.71 2.14 2.56
14 AWG 0.27 0.53 0.81 1.08 1.35 1.62
12 AWG 0.17 0.34 0.51 0.68 0.85 1.02
5
3. Use a small touch-up gun or cap-spray gun with a
#3 tip for painting.
• Set the nozzle with a medium to wide fan
• Set the pressure regulator to 60psi
• Lightly spray the front of the grille in three quick
strokes from approximately 10” away
• Let the paint set for one minute, then turn the grille
90 degrees and lightly spray the grille again in three
quick strokes. Repeat this step until all four sides of
the grille have been evenly painted.
4. While the paint is still wet, inspect the grille and
make sure that excess paint has not collected
underneath the grille frame, and that none of the
grille perforations are filled with paint. If any are,
use compressed air to blow the paint out of the
perforations. IMPORTANT: If you find any grille
perforations that are plugged with paint after the
paint has dried, use a straight pin or sewing needle
to carefully remove the paint.
5. Once the paint has thoroughly dried, replace the
scrim cloth on the back of the grille and mount the
grille on the speaker.
PAINTING THE SPEAKER SHELL
Sonance Professional Series Pendant speakers feature
a tough polypropylene enclosure that can be painted.
Sonance recommends using a weather-resistant
outdoor paint and a spray gun.
1. If they have already been installed, remove the
grilles from the speakers.
2. To protect the speaker driver units during painting,
place the grilles on a piece of cardboard and trace
around their outlines. Then cut the cardboard just
inside of the trace line and fit these “paint plugs”
into the speakers’ baes. Be careful not to damage
the driver components while fitting the paint plugs.
3. Paint the speakers the desired color according to
the paint manufacturer’s instructions. Remove the
paint plugs after the paint has thoroughly dried.
INSTALLING THE SPEAKERS USING
GRIPPLE SUSPENSION SYSTEM
CAUTION: Installation must be done by qualified
persons using safe rigging standards. Use equipment
only in accordance with manufacturer’s instructions.
Do not alter or modify. Do not use equipment if
the equipment is not functioning correctly or if the
equipment is defective.

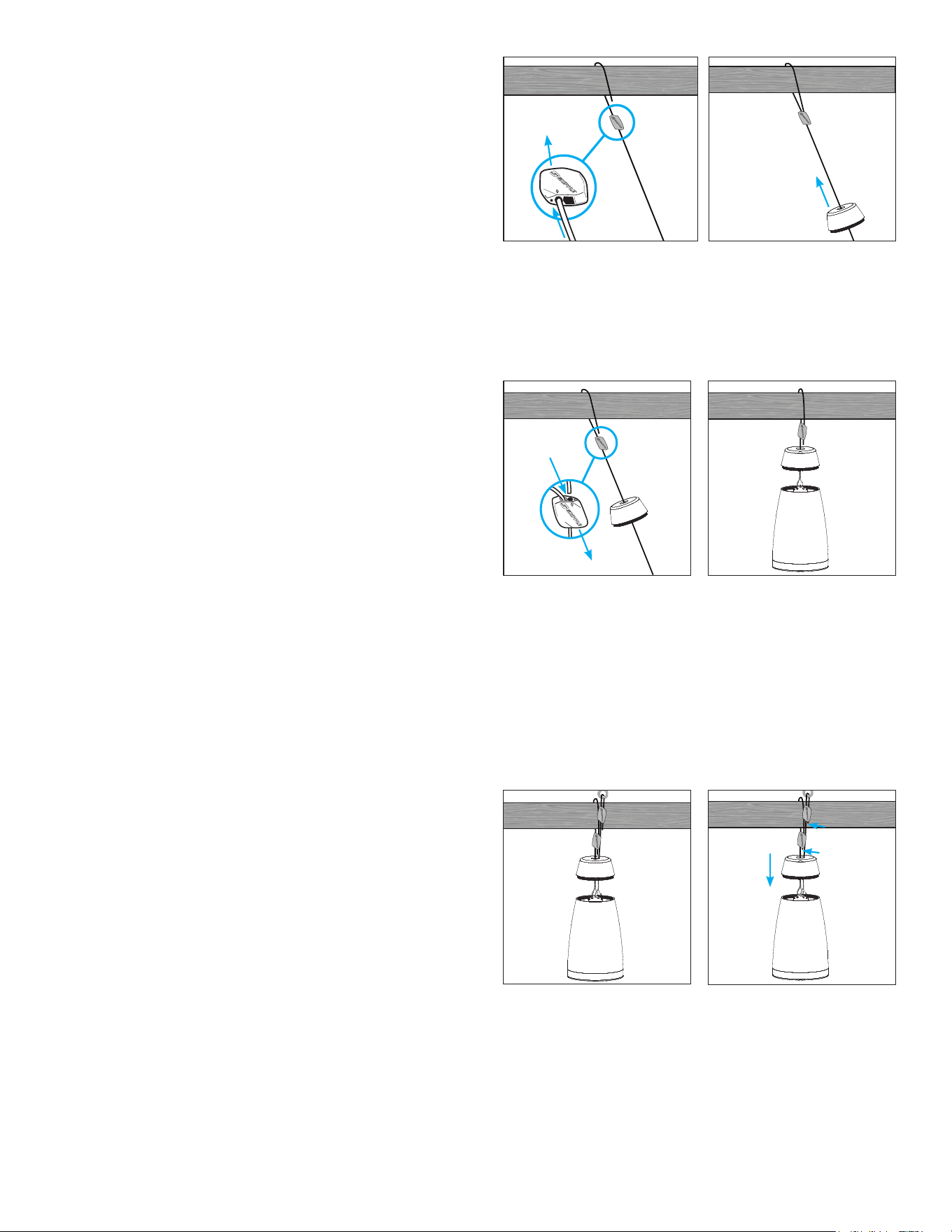

1. Thread Gripple onto cable. Pass over ceiling anchor
point or through other secure anchor point of
the building structure. Installer is responsible for
ensuring that anchor point is secure to building
structure see Figure 4).
2. Thread cable through top cover of speaker (see
Figure 5).
3. Pass tail end of cable through the other channel of
the Gripple (see Figure 6).
4. With speaker supported, snap main support hook
hanger onto the center hole in the top bracket of
the speaker. Adjust to proper height by pulling
cable through either end of Gripple (see Figure 7).
5. Snap secondary support safety cable hook hanger
onto one of the side holes in the top bracket of the
speaker, and attach the top to a dierent ceiling
support point of the building structure, per steps 1
and 2 (see Figure 8).
6. After height adjustment is final, trim any extra cable
tail wires with trimmer suitable for 2mm (0.077”)
diameter stranded aircraft-type cable. Screw
back on top cover of speaker after speaker wire is
connected (see Figure 9).
Figure 4 Figure 5
Figure 6 Figure 7
Figure 8 Figure 9
6

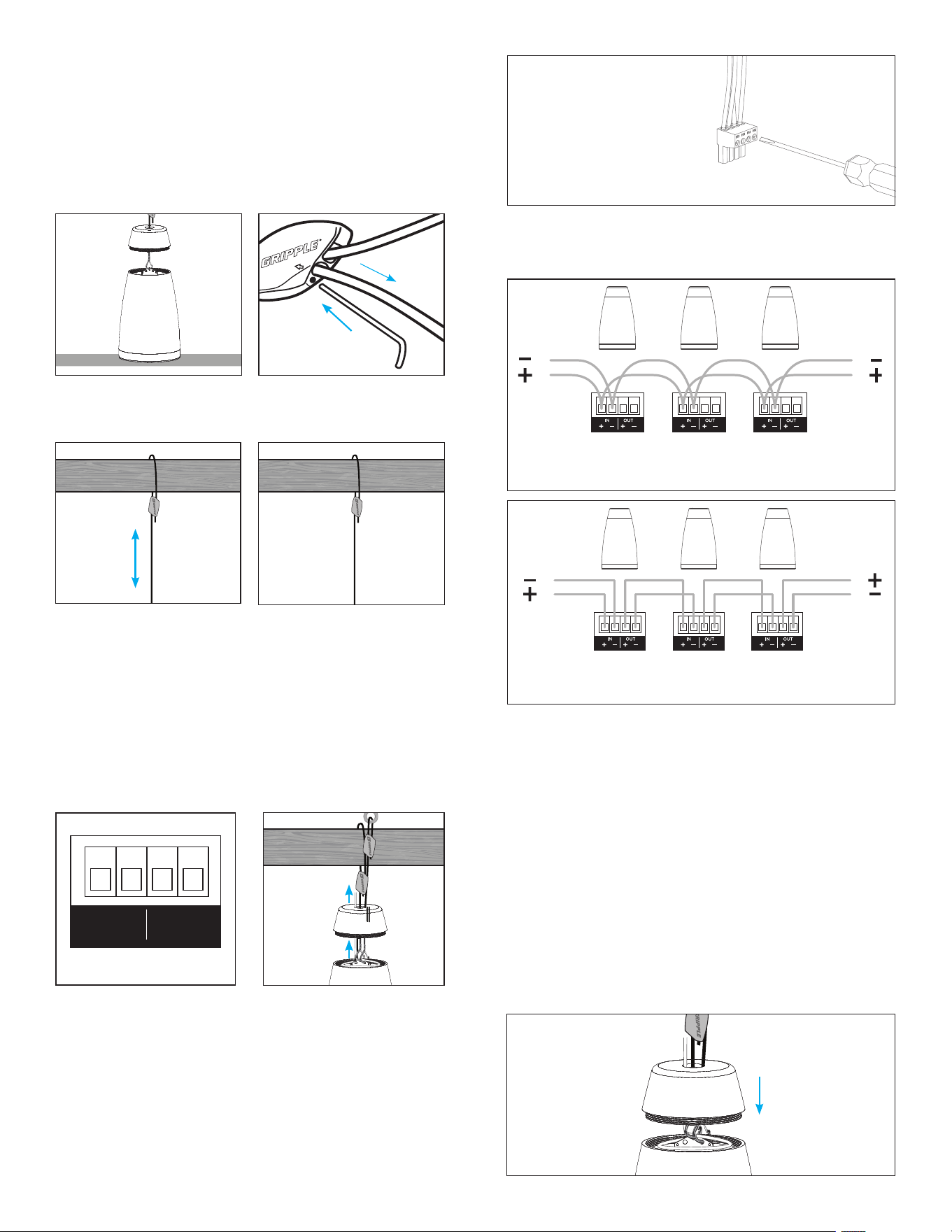

HOW TO USE RELEASE KEY TO ADJUST SPEAKER
HEIGHT
7. Make sure the weight of the load is supported (see
Figure 10).
8. Insert key into small hole at bottom of Gripple.
Push in 0.25” (6.35mm) to release the cable (see
Figure 11).
9. Adjust height (see Figure 12).
10. Remove key and re-secure the load (see Figure 13).
11. Connect the wires from your amplifier to the
Euroblock connector (see Figure 14).
12. Feed speaker wire through the hole in the top of
the screw-on top cover. Determine length of wire
needed to the connector. Add 12” (305mm) extra
for strain relief (see Figure 15).
+
_
IN OUT
+
_
Parallel
Connection
To Next
Speaker
From Power
Amplifier
Loop Thru
Connection
To Next
Speaker
From Power
Amplifier
13. Strip approximately 0.1875” (5mm) of the insulation
o each wire. Add the rubber guard onto the wire.
Insert the wire into the correct square opening on
the connector. Use a small flat head screwdriver to
tighten the corresponding screw to secure the wire
(see Figure 16).
Pin 1 + Positive In
Pin 2 - Negative In
Pin 3 + Positive Out
Pin 4 - Negative Out
14. When using multiple speakers you can connect the
speakers either in parallel or in the loop through
method as shown below (see Figures 17 and 18).
Figure 17: Parallel Connection
Parallel
Connection
To Next
Speaker
From Power
Amplifier
Loop Thru
Connection
To Next
Speaker
From Power
Amplifier
Figure 18: Loop Through Connection
IMPORTANT: Speaker wire must have 12” (305mm)
of extra length to act as a strain relief to prevent the
Euroblock connector from becoming disconnected.
Figure 10
Figure 11
Figure 12 Figure 13
Figure 14
Figure 15
Figure 16
15. Lay the extra wire slack in a coiled circle on the top
of the speaker enclosure. Secure the top cover onto
the speaker, covering the coiled wire. The extra wire
will act as a strain relief (see Figure 19).
16. Install the appropriate dispersion assembly.
Sonance Professional Series High Output
loudspeakers feature a magnetic interchangeable
collar/horn assembly that can be swapped out to
achieve the desired coverage. For wide dispersion
applications, leave the collar assembly in place
(comes installed as default). For narrow dispersion
applications, remove the collar and install the horn.
The selector located on the bae must be assigned
to the appropriate position to match the installed
assembly (see Figure 20).
Figure 19
7
18. Adjust the transformer tap to the appropriate
setting. Sonance Professional Series High Output
loudspeakers are factory set for maximum output
when used with a Sonance DSP 2-750 MKIII or
another 70V/100V amplifier. No additional work is
necessary if the speakers are operating in 70V or
100V and can run at their full volume capacity.
WIDE/COLLAR
This Professional Series High Output loudspeaker ships
with the collar installed.
• For applications requiring wide loudspeaker
coverage, no assembly changes are needed.
• Ensure the selector on the front bae is in the
“WIDE/COLLAR” position.
NARROW/HORN
For applications requiring narrow loudspeaker
dispersion, the collar will need to be removed for the
horn to be installed. Sonance includes a collar claw
removal tool for easy collar removal.

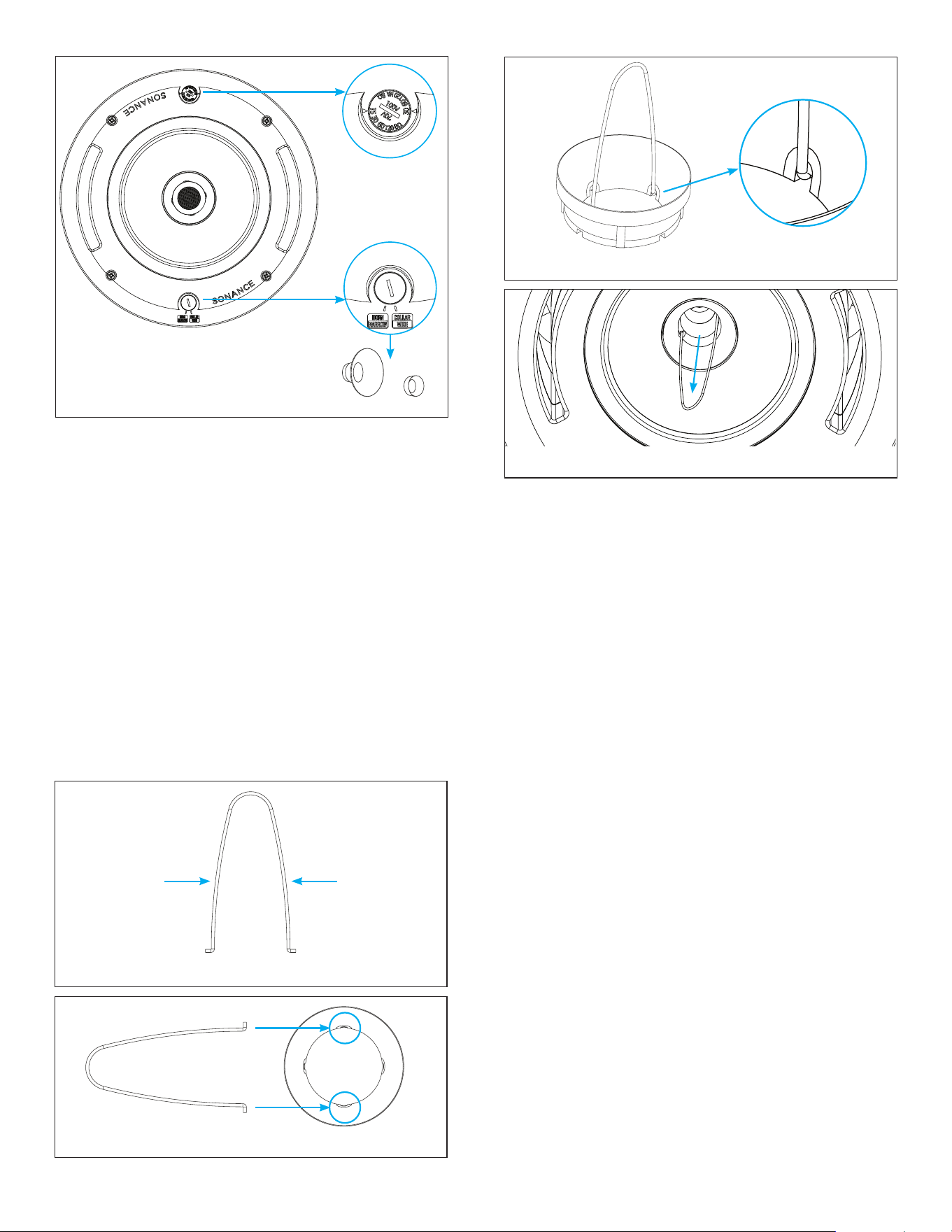

• Identify the four slots on the collar marked by blue
rings.
• Align the collar removal tool with two of the slots
and snap the claw into place.
Figure 20
CollarHorn
I
• Pull up to remove the collar. The collar can be
discarded unless the installer plans to relocate the
loudspeaker in the future, in which case the collar
can be reserved.
• The horn attaches magnetically. Align the horn into
position and it will snap into place.
• Switch the selector on the front bae to the
“NARROW/HORN” position.
NOTE: If removal of the horn is required, no tool is
needed. The horn attaches magnetically and can be
installed and removed by hand.
17. Adjust the transformer tap to the appropriate
setting. Sonance Professional Series High Output
loudspeakers are factory set for maximum output
when used with a Sonance DSP 2-750 MKIII or
another 70V/100V amplifier. No additional work is
necessary if the loudspeakers are operating in 70V
or 100V and can run at their full volume capacity.
Applications for changing the tap switch from factory
default:
• Loudspeakers are to be installed in sensitive areas
and need to be “tapped down” for lower volume.
• More loudspeakers are needed to be added to
a 70V/100V amplifier already operating at full
capacity.
• A small zone is to be driven by an 8 ohm amplifier.
Step 1: Squeeze Tool
Step 3: Tool Snaps into Place
Step 4: Remove Collar with Tool
Squeeze
Tool
Squeeze
Tool
Step 2: Insert Tool into Collar
8
Applications for changing the tap switch from factory
default:
• Speakers are to be installed in sensitive areas and
need to be “tapped down” for lower volume.
• More speakers are needed to be added to a
70V/100V amplifier already operating at full
capacity.
• A small zone is to be driven by an 8 ohm amplifier.
8 OHM TAP SETTINGS
Aligning the values on the dial with the arrow
indicators on either side to the “8 ohm” bypasses the
internal transformer for operation with low impedance
amplifiers.
70V TAP SETTINGS
Align the arrow positioned with the 70V values to the
desired wattage setting. Turning the dial one click stop
in either direction increases or decreases the speaker’s
input power.

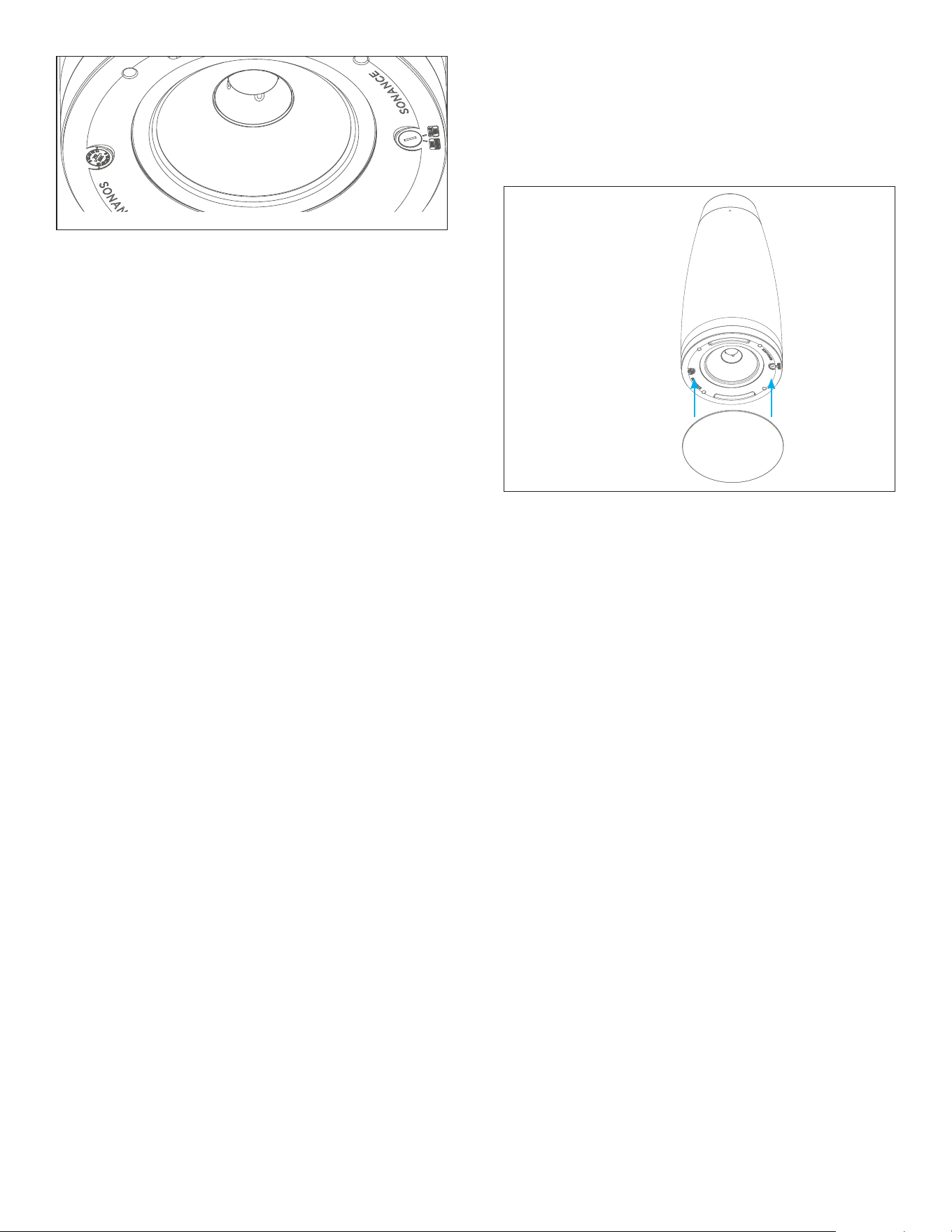

Figure 22: Transformer Tap
Figure 23:
Fitting the
Grille
100V TAP SETTINGS
Align the arrow positioned with the 100V values to the
desired wattage setting. Turning the dial one click stop
in either direction increases or decreases the speaker’s
input power.
18. Fit the grille onto the speaker (see Figure 23).
9
PS-P85T TECHNICAL SPECIFICATIONS
OPTIONAL ACCESSORIES
• Replacement Round Grille White (PR) | 40154
• Replacement Round Grille Black (PR) | 40157
• Replacement Hanging Hardware Kit | 40176
INCLUDED ACCESSORIES
• (1) Round Grille
• (1) Screw-On Top Cover
• (1) Euroblock Wire Connector
• (1) Variable Dispersion Horn
• (1) Collar Claw Removal Tool
• (1) Water-Resistant Terminal Boot
HANGING KITS CONTAINING
• (2) Stainless Steel Cables with Snap Hooks
• (2) Gripple® Hangers
• (1) Gripple® Adjustment Tools
• (1) Hanging Instructions
SKU
Transducers LF Drive
Transducers HF Driver
Frequency Range (-10dB) *
Frequency Range (+/-3dB) *
Long Term Power Handling (IEC) ‡
Program Power
Sensitivity (2.83V/1M) §
Long Term - Maximum SPL ‡
Program Power - Maximum SPL ‡
Rated Impedance
Transformer Taps (8 ohm Bypass)
Collar Coverage Pattern 1kHz to 10kHz †
Horn Coverage Pattern 1kHz to 10kHz †
Collar Directivity Factor (Q)
Horn Directivity Factor (Q)
Collar Directivity Index (DI)
Horn Directivity Index (DI)
Operating Temperature Range
Agency Listings
Conformity
Enclosure and Bae Material
Grille Material
Suspension Points
Enclosure Cubic Volume
Enclosure/Port Tuning
Input Connector
Round Trimless Grille (Dia)
Speaker (Dia x D)
Product Weight (no Grille)
Product Weight (with Grille)
Shipping Weight
40234 | Black | Each 40233 | White | Each
8” (203mm) Aluminum cone, Santoprene Surround, Ferrite Magnet, 60.55mm
Voice Coil
1.4” (36mm) Aluminum Dome Compression Driver, Neodymium Magnet,
36mm Voice Coil, 1500Hz Crossover Frequency, 1mm Exit Size
36.6Hz - 25kHz
41.4Hz - 20kHz
150 Watts (600 Watts Peak), 100 Hours
300 Watts (1200 Watts Peak), Two Hours
88dB SPL
109dB (115dB Peak)
112dB (118dB Peak)
8 ohm Bypass
70V: 120W, 60W, 30W, 15W | 100V: 120W, 60W, 30W
120 Degrees Axis Symmetric
80 Degrees Axis Symmetric
5.7 (Average 1kHz to 16kHz)
8.65 (Average 1kHz to 16kHz)
7.5dB (Average 1kHz to 16kHz)
9dB (Average 1kHz to 16kHz)
-40 F (-39.96 C) to 140 F (60 C)
UL 1480A, CSA-C22.2 No.205
NFPA70, NFPA 90A
Polypropylene Plastic (UL94V-0)
Steel
Back
0.83 Cubic Feet (23.5 Cubic Liters)
41.1Hz
Four Pin, Euroblock with Loop Output Connections
11.17” (283.8mm)
11.17” x 24.69” (283.8mm x 627mm)
23.04 lbs. (10.45kg) EA
23.55 lbs. (10.68kg) EA
30.21 lbs. (13.7kg) PR
* In half space | † Average 1 kHz to 10 kHz | ‡ IEC 268-5 standard, with
6 dB crest factor | § Measured in half space, ave 100 Hz – 10 kHz | UL
evaluated frequency range of 50-20kHz
10
CERTIFICATIONS
SAFETY AGENCY COMPLIANCE
Sonance Professional Series Pendant Loudspeaker
model PS-P85T meets the following standards::
NFPA-70 National Electric Code 1996, article 300-
22(c).
NFPA-90A Installation of Air Conditioning and
Ventilation Systems, section 2-3.10.1 (a), exception 3.
UL-1480A
IMPEDANCE 8 OHMS
MAX RATED POWER 150 WATTS
SUITABLE FOR USE IN AIR HANDLING SPACES
LISTED GENERAL SIGNALING EQUIPMENT SPEAKER
TECHNICAL ASSISTANCE | SERVICE
The Technical Assistance Department at Sonance is
available at (949) 492-7777 to answer any questions
concerning the operation and installation of your
speakers between the hours of 7:00 AM and 5:00 PM
Pacific time, Monday through Friday, except holidays.
In the event your unit should need repair or service, you
may return the unit to your authorized dealer or use the
following guidelines:
PLEASE KEEP ORIGINAL PACKAGING WHEN
POSSIBLE.
1. Be prepared to state the model number and/or
serial number, date of purchase, and dealer name
and address when calling.
2. Contact Sonance directly at (949) 492-7777 or at
www.sonance.com
YOU MUST HAVE PRIOR AUTHORIZATION TO RETURN
YOUR UNIT.
3. If you are returning the product directly to Sonance,
call us to obtain a return authorization number
before shipping.
4. Ship the product via United Parcel Service, Federal
Express, or other package delivery service. Please
do not use the U.S. Postal Service.
5. Write the return authorization number on the
outside of the box.
6. Ship to:
Attn: Quality Assurance Department
Sonance
991 Calle Amanecer
San Clemente, CA 92673
11
LIMITED FIVE (5) YEAR WARRANTY
Sonance warrants to the first end-user purchaser that this Sonance-brand product (“Product”), when purchased from
an authorized Sonance Dealer/Distributor, will be free from defective workmanship and materials for the period stated
below. Sonance will at its option and expense during the warranty period, either repair the defect or replace the Product
with a new or re-manufactured Product or a reasonable equivalent.
EXCLUSIONS
TO THE EXTENT PERMITTED BY LAW, THE WARRANTY SET FORTH ABOVE IS IN LIEU OF, AND EXCLUSIVE OF,
ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, AND IS THE SOLE AND EXCLUSIVE WARRANTY PROVIDED
BY SONANCE. ALL OTHER EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF
MERCHANTABILITY, IMPLIED WARRANTY OF FITNESS FOR USE, AND IMPLIED WARRANTY OF FITNESS FOR A
PARTICULAR PURPOSE ARE SPECIFICALLY EXCLUDED.
No one is authorized to make or modify any warranties on behalf of Sonance. The warranty stated above is the sole and
exclusive remedy and Sonance’s performance shall constitute full and final satisfaction of all obligations, liabilities and
claims with respect to the Product.
IN ANY EVENT, SONANCE SHALL NOT BE LIABLE FOR CONSEQUENTIAL, INCIDENTAL, ECONOMIC, PROPERTY,
BODILY INJURY, OR PERSONAL INJURY DAMAGES ARISING FROM THE PRODUCT, ANY BREACH OF THIS WARRANTY
OR OTHERWISE.
This warranty statement gives you specific legal rights, and you may have other rights which vary from state to state.
Some states do not allow the exclusion of implied warranties or limitations of remedies, so the above exclusions and
limitations may not apply. If your state does not allow disclaimer of implied warranties, the duration of such implied
warranties is limited to period of Sonance’s express warranty. Your Product Model and Description: PS-P85T. Warranty
Period for this Product: Five (5) years from the date on the original sales receipt or invoice or other satisfactory proof
of purchase. Additional Limitations and Exclusions from Warranty Coverage: The warranty described above is non-
transferable, applies only to the initial installation of the Product, does not include installation of any repaired or replaced
Product, does not include damage to allied or associated equipment which may result for any reason from use with this
Product, and does not include labor or parts caused by accident, disaster, negligence, improper installation, misuse (e.g.
overdriving the amplifier or loudspeaker, excessive heat, cold or humidity), or from service or repair which has not been
authorized by Sonance. Obtaining Authorized Service: To qualify for the warranty, you must contact your authorized
Sonance Dealer/Installer or call Sonance Customer Service at (949) 492-7777 within the warranty period, must obtain
a return merchandise number (RMA), and must deliver the Product to Sonance shipping prepaid during the warranty
period, together with the original sales receipt, or invoice or other satisfactory proof of purchase.
©2025 Sonance. All rights reserved. Sonance is a registered trademarks of Dana Innovations. Due to continuous product improvement, all features and
specifications are subject to change without notice. For the latest Sonance product specification information visit our website: www.sonance.com
SONANCE • 991 Calle Amanecer • San Clemente, CA 92673 USA | PHONE: (949) 492-7777 08.29.2025
