Technical Support and E-Warranty Certificate www.vevor.com/support
Patient Transfer Chair
MODEL:XFL-QX-YW01-1
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
- 1 -
MODEL:XFL-QX-YW01-1
Note:The product picture is for reference, the actual details shall prevail
Have product questions? Need technical support? Please feel free to
contact us:
Technical Support and E-Warranty Certificate
www.vevor.com/support
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
Patient Transfer Chair
- 2 -
Thank you very much for choosing this Patient Transfer Chair
Please read all of the instructions before using it.The information will help
you achieve the best possible results.
Operation safety
Please put this manual in a place easy to check and keep it properly.This
instructionmanual clearlyindicateshowto use the equipment safely and correctly,
so astopreventanyharmorpropertylosscausedfro youandothers.
Warning
1. Must use matched adapter with this product when charging.2.
This chair is not recommended to use for showering, if you have to
must turn off the power and put the waterproof cover on the
charging port.
3. The light on adapter will be on red while charging, it will stop
charging automatically when the battery is fully charged, and the
light will turn green.4. The maintenance of this machine must be
carried out by professionals.
Prohibition
1. Do not open the battery box when it is charging
2. Do not use the product during the charging process
3. Do not use it if the weight over 300 lbs(150kg)
4. Do not put it in the place that the kids can touch it to avoid injury5. lt is
strictly forbidden to operate the machine when there are objects blocking
it , otherwise the machine will be damaged
*Our company will not be responsible for any loss or damage caused by
operation neglecting warning and attention. Please pay attention on.
- 3 -
Product introduction
Intended use
Electric lift transfer chair is the nursing device which helps disabled people moving
without barrier,it is designed for short distance transferring and rehabilitation nursing.
The caregivers can transfer the patients easily by controlling the lift button, which
improve the nursing efficiency greatly.lt help the caregivers to transfer patient who is
immobile to car, living room, toilet, and bath room.In summary, it can greatly reduce the
nursing intensity for caregivers and lower the nursing risk of secondary injury during
the transfer process.

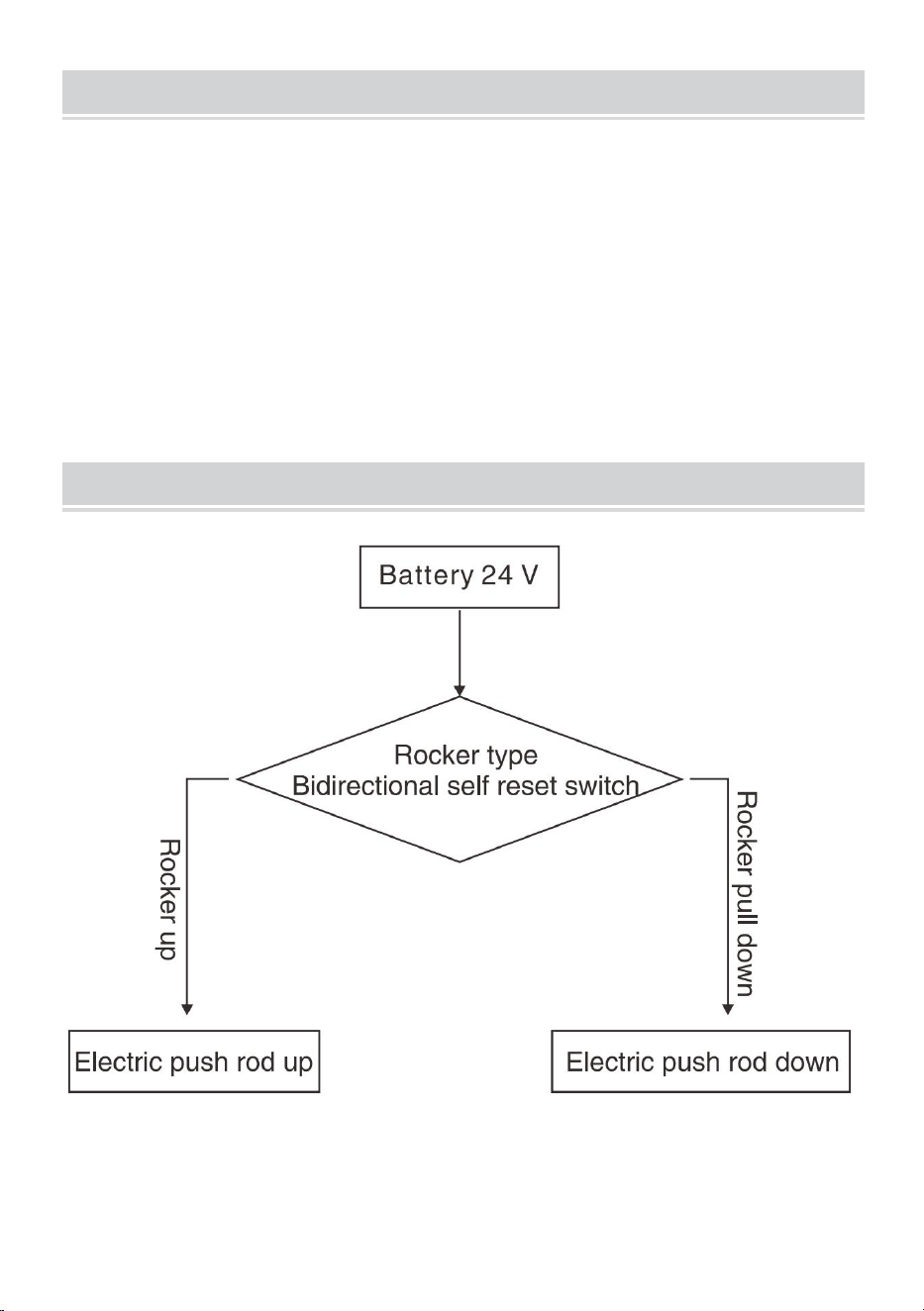

Circuit principle block diagram
- 4 -
Environmental requirements
◆Use environment:
Ambient temperature range:+10℃~+40℃Relative humidity
range:30%~75%Atmospheric pressure range: 700hPa~1060hPaNo
corrosive and combustible materials, dry and less dust indoor
◆Storage environment:
Ambient temperature:0℃~+50℃relative humidity: s93%Atmospheric
pressure:500hPa~1060hPaNo corrosive gas, well ventilated room.
◆During transportation and storage, handle with care, and do not throw or
drop objects.
Do not store the equipment in a place where liquid may splash.
Do not store the equipment under the risk of combustible gas.

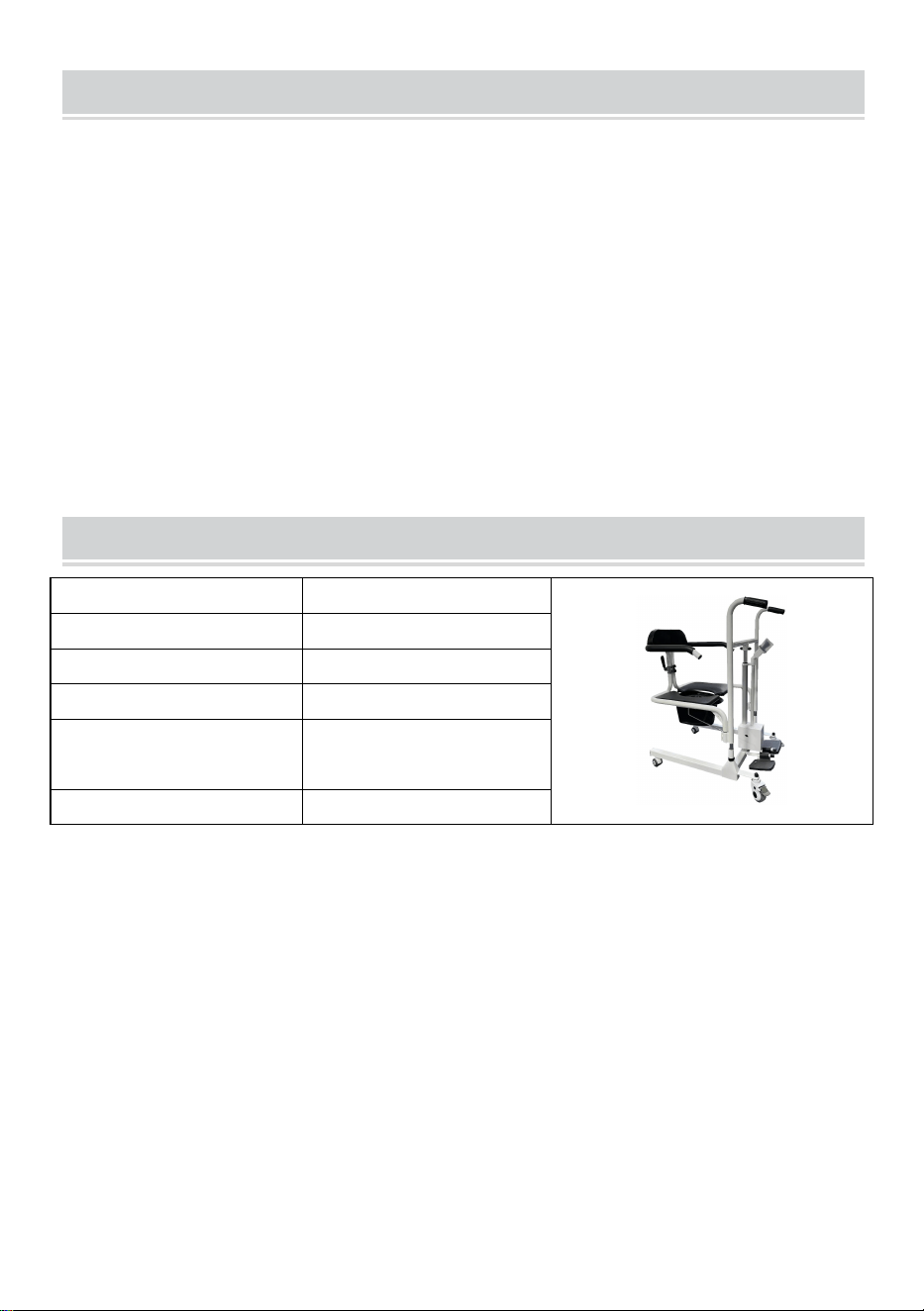

Product parameter
Model
XFL-QX-YW01-1
Colour
White + black
Lift Range
330mm
Waterproof Class
IPX44
Maximum Load
≤150 KG（330 lbs）
Product Size
810 x 530x 940 mm
- 5 -

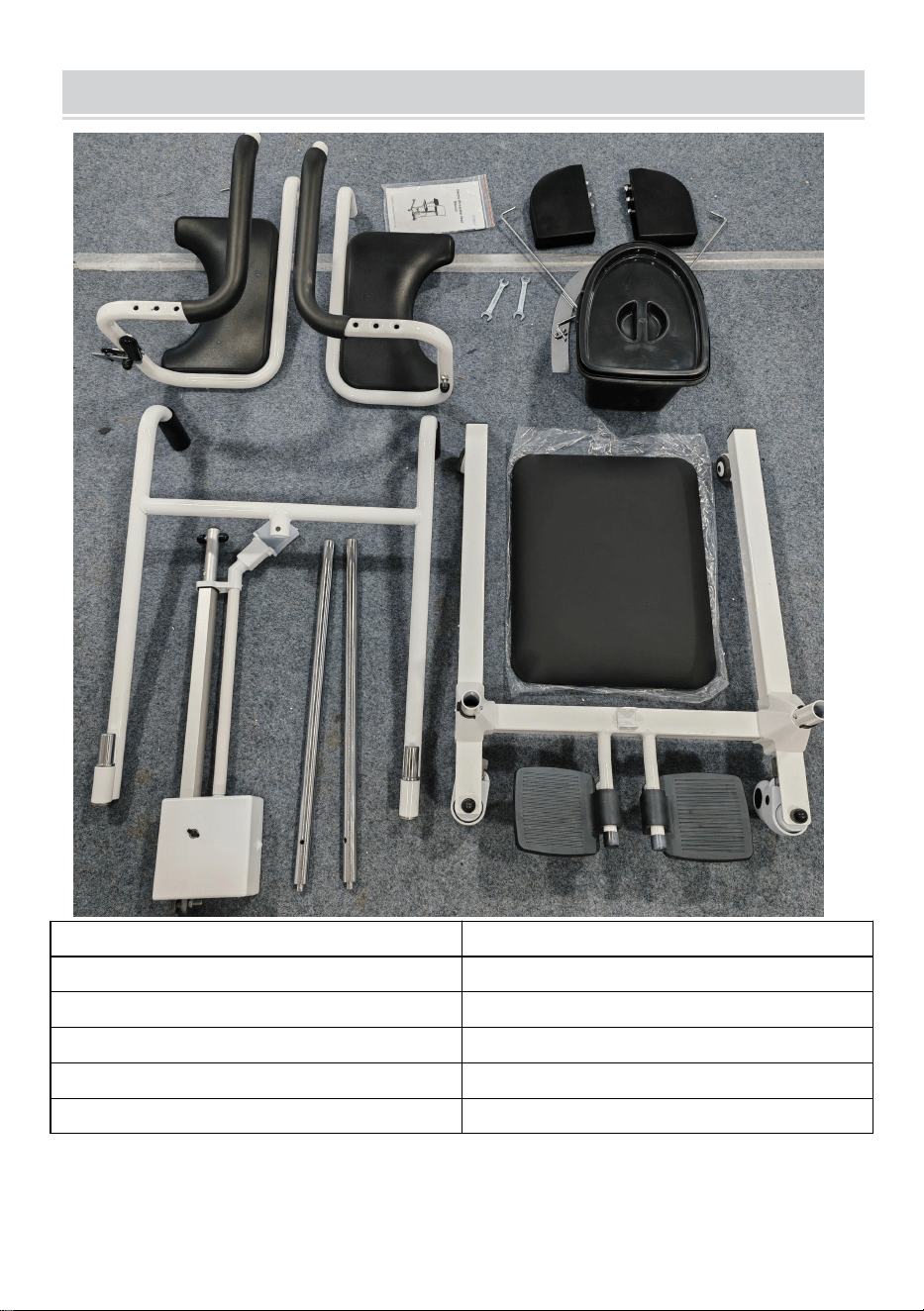

Part List
1.Backrest x2
2.Frame component x1
3.Handrail gantryx1
4.Left seat cushion side frame x1
5.Right seat cushion side frame x1
6.Mandrel x2
7.Power adapter x1
8.Electric push rod assembly x1
9.Toilet bucket x1
10.Toilet bucket stand x 1
11.Soft seat cushion x 1
12.Mounting fittings x 1set
- 6 -

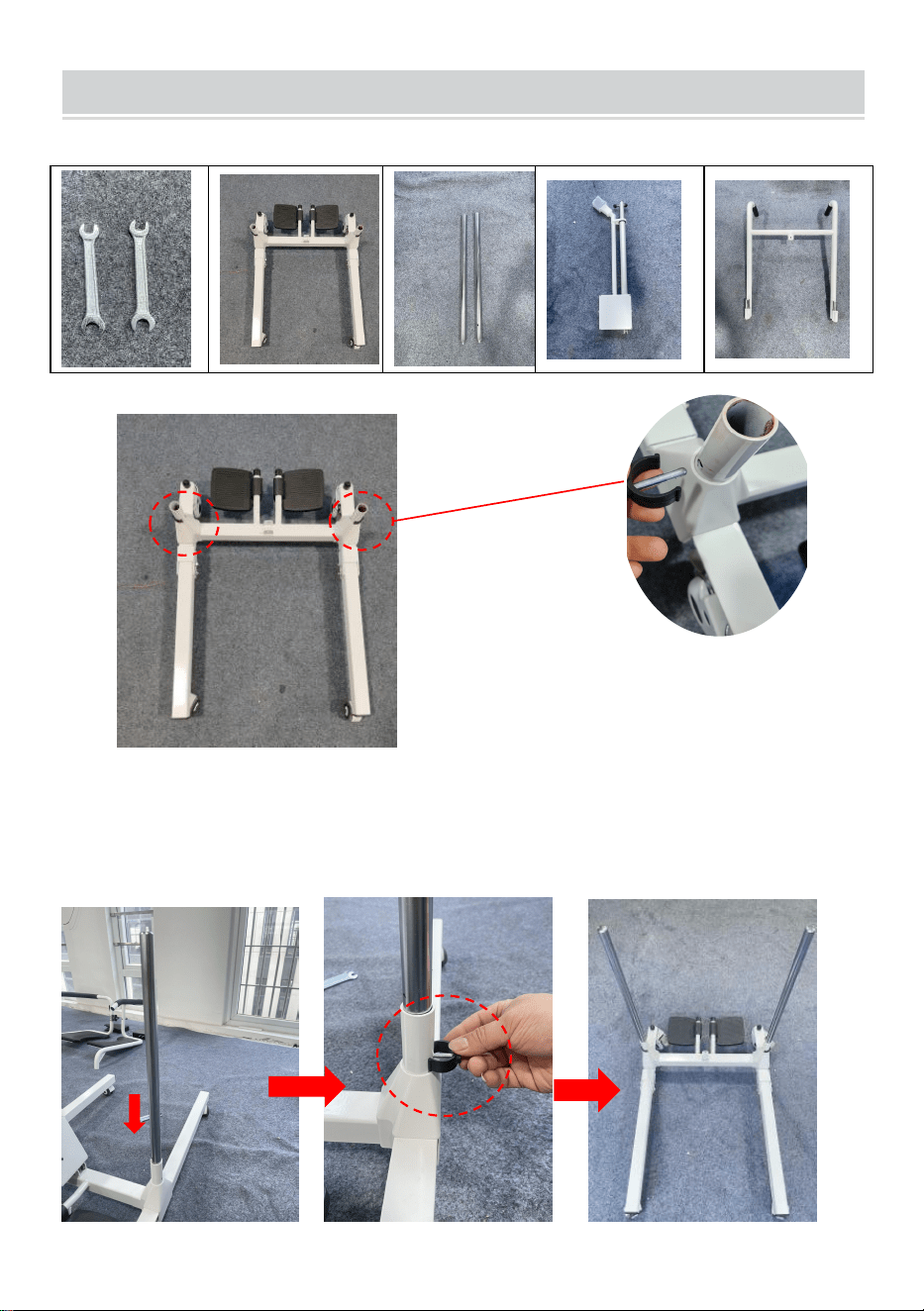

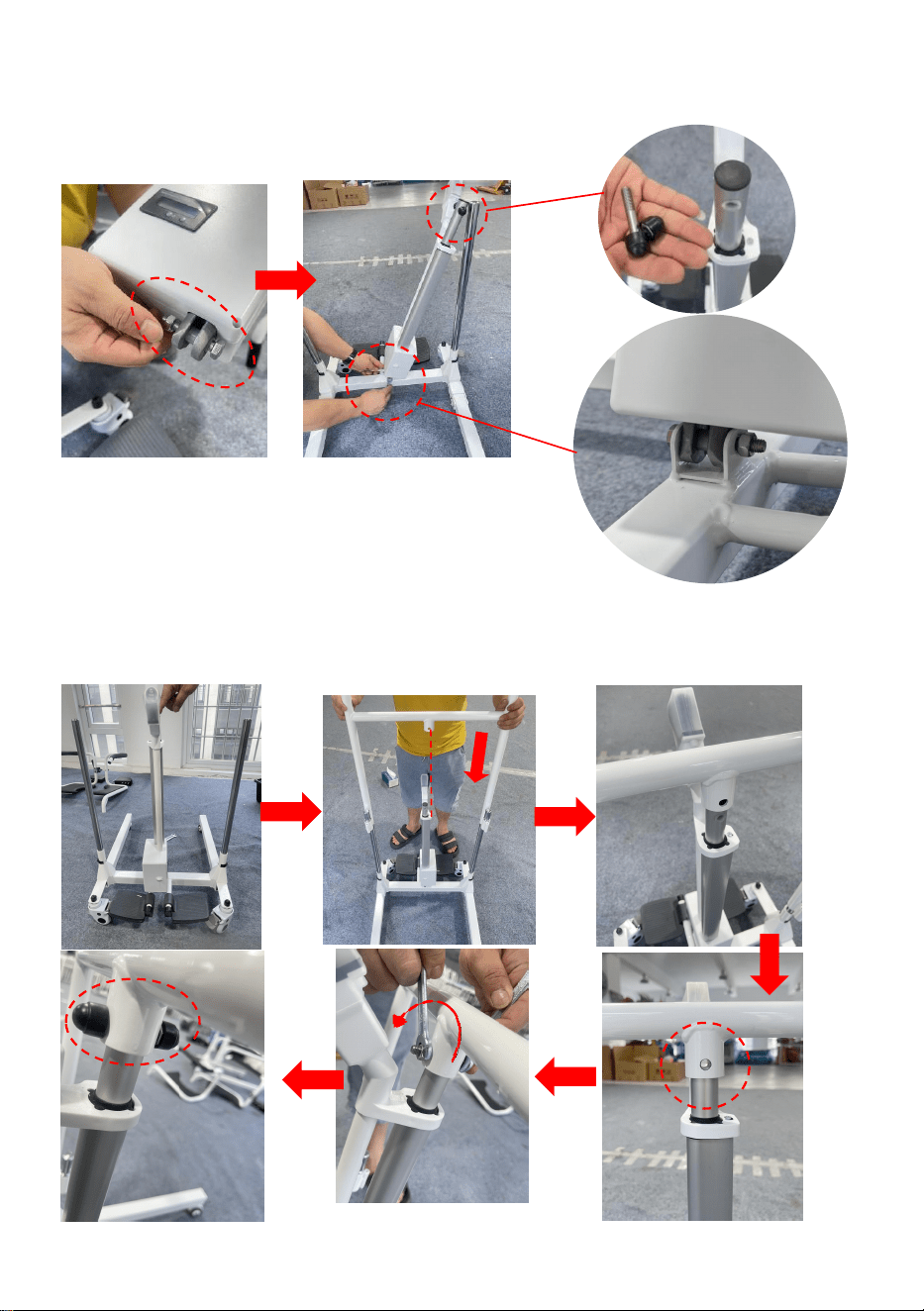

Installation instructions
Step 1: Mounting body
1.1 Pre-unplug the latch on the frame assembly
1.2 Insert the mandrel into the mounting holes on the left and right sides of
the frame assembly and insert the latch
(Note: The perforated end of the mandrel is the insert end)
- 7 -
1.31.3Remove the screws upper and lower ends of the push rod assembly.
Then attach the lower end of the push rod assembly to the base frame with
wrench.
1.4 After installation, the push rod assembly is kept upright and then
inserted into the handrail gantry.Align the mounting holes and lock the
screws.
- 8 -

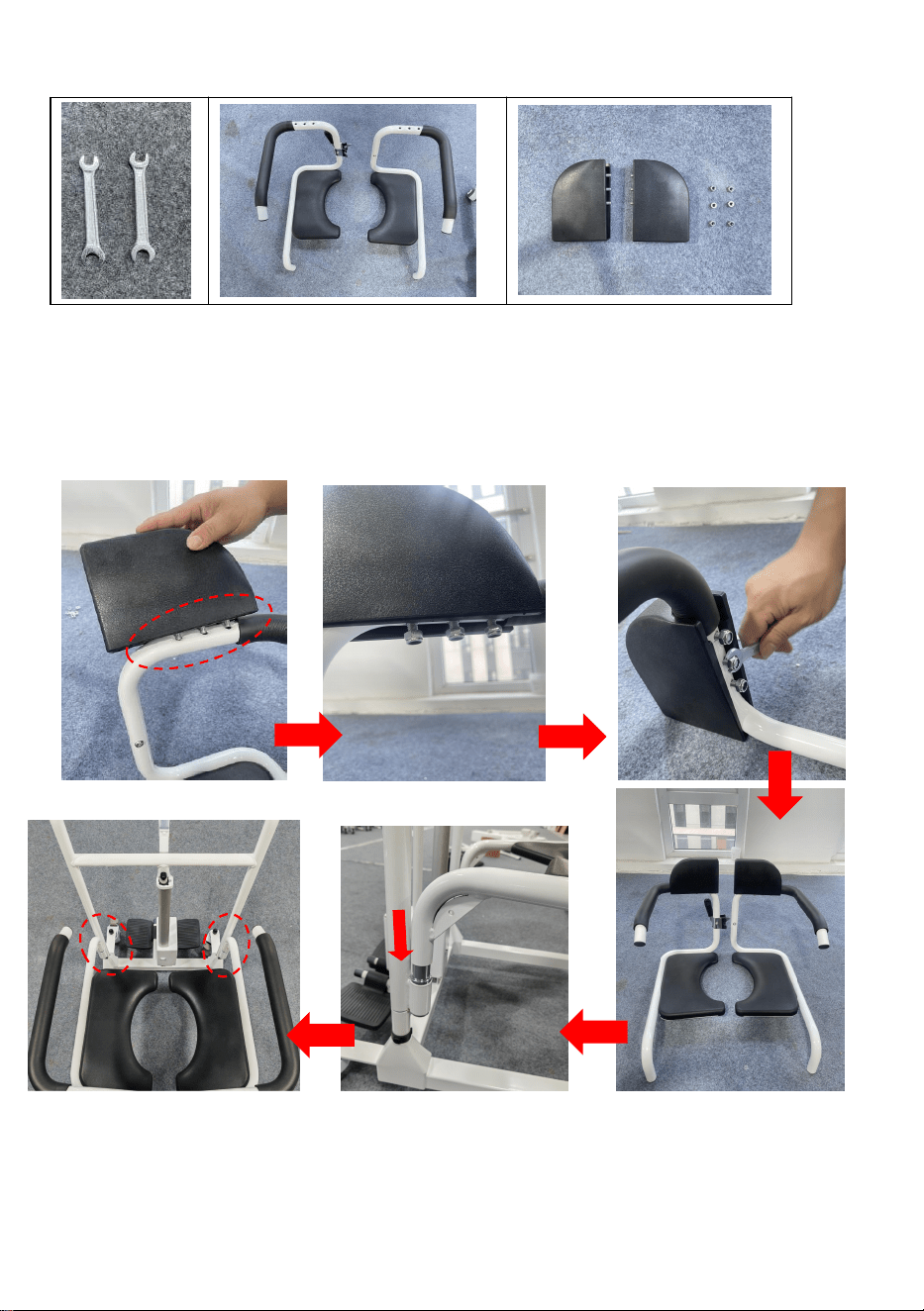

Step 2: Mounting cushion
2.1 Install the backrest separately on the left and right cushion
frames,Tighten the nut with a wrench.
2.2Then insert the left and right seat cushion side frames respectively into
the mounting holes on the left and right sides of the frame assembly
- 9 -

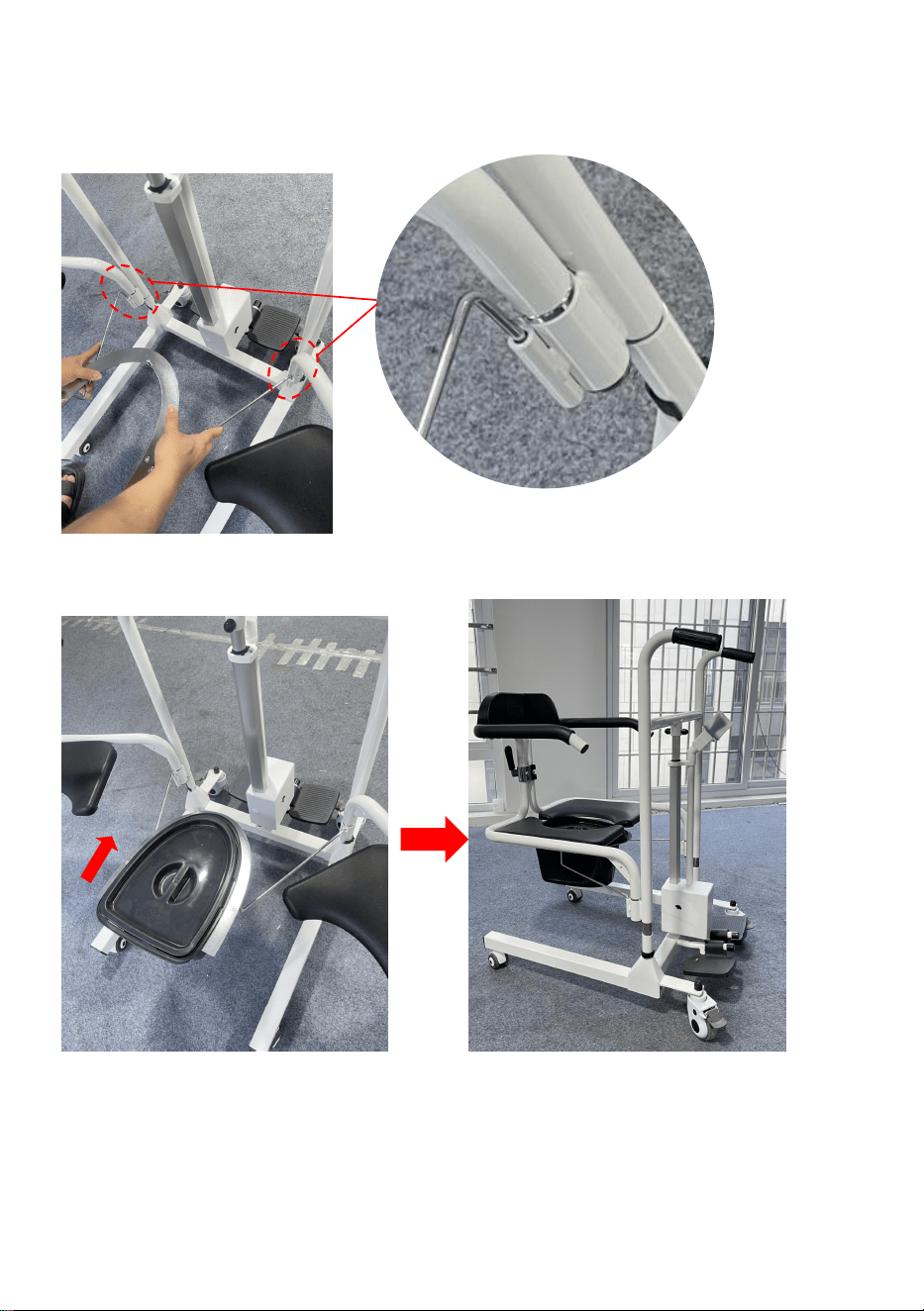

Step 3: Mounting Toilet
3.1 First, insert the two ends of the toilet support into the mounting holes on
the left and right seat cushion frames.
3.2 Insert the toilet into the toilet holder from behind,And the left and right
cushion frame close buckle, finished.
- 10 -

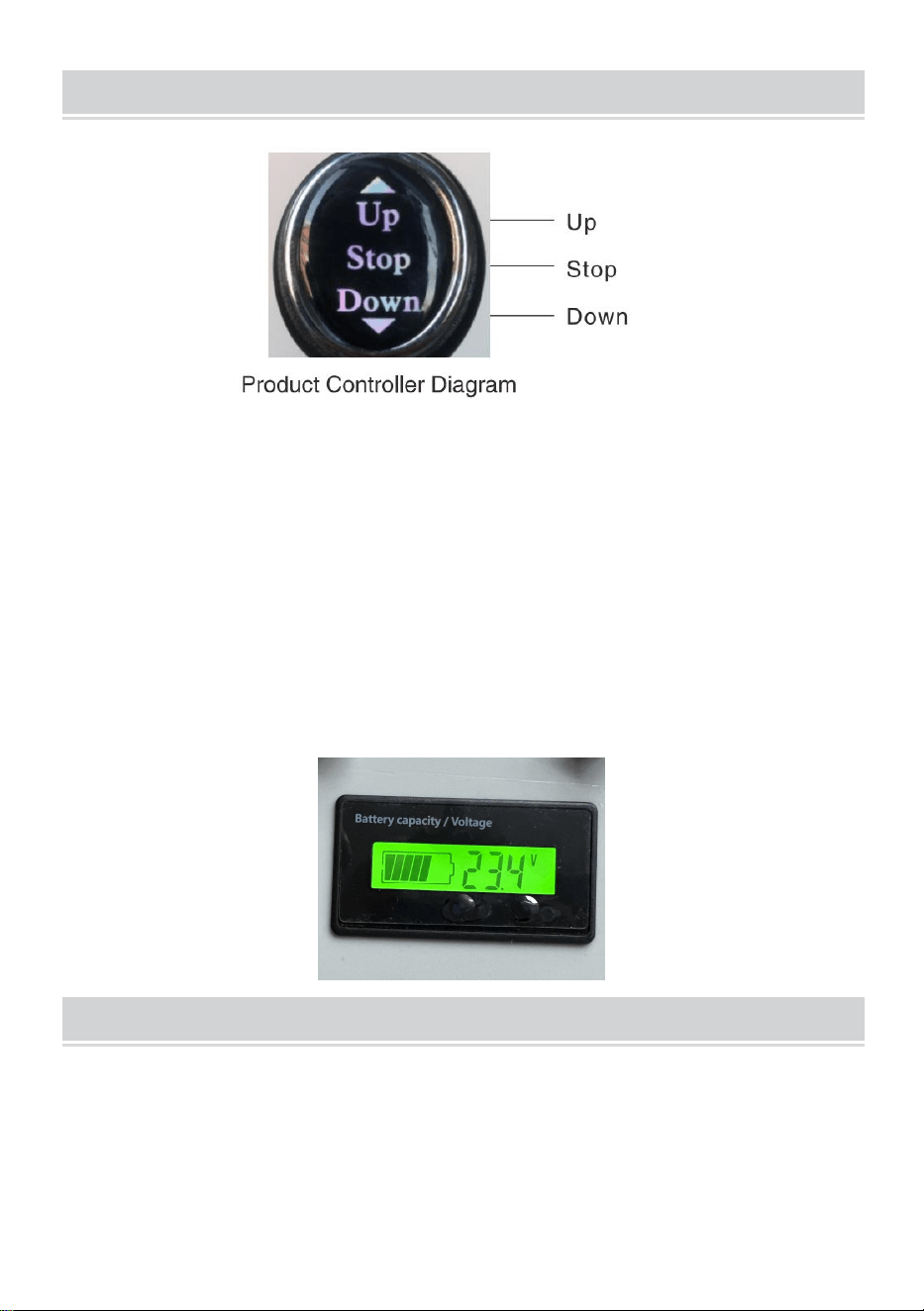

Instructions
After charging, it can be used normally. It can be adjusted up and down.
The proper height can be moved. Before use, it must be confirmed that the
spindle of the frame is inserted to ensure safety. According to the height of
the product, press the up button to the appropriate height, release and stop.
If the key is not released, the product automatically stops at its highest
point. The power supply designed for this product is low voltage power
supply, please rest assured.
Note :There is a power display on the battery box. Please check the power
display on the monitor regularly and charge it in time
Troubleshooting
In the event of a failure, please contact our after-sales personnel or log on
to our official website for contact information. With the trust of our technical
staff, we will solve the problem. If we can't solve this problem, we will return
it to the manufacturer free of charge. If the warranty period ends or is
- 11 -
caused by personnel, our company will not give you a free warranty.
Materials and shipping are required.
Maintenance
Warning: Do not disassemble and repair the machine without the
permission of the manufacturer.
Cleaning and disinfection
It is recommended to wipe the seat ring with a soft cotton cloth and alcohol
before use, and disinfect it after cleaning. The conveyor shell and
accessories should be scrubbed with medical alcohol or other
non-corrosive disinfectants.
Warning:
When cleaning and disinfecting, do not charge or use the machine.
It is forbidden to wash or disinfect the transfer machine and accessories in
liquid.
It is forbidden to use corrosive detergent to clean the shifter and
accessories.
It is forbidden to use corrosive disinfectant to disinfect the moving machine
and accessories.
Only after the detergent and disinfectant are dried, can the shifter and
accessories be used.
When the machine is not used for a long time, please take it out and
charge it regularly to avoid battery failure
Safe use and maintenance
1. Do not always plug in power supply during the process. At least once a
week, the battery should be used to work, and until the battery is
exhausted, it is necessary to ensure that the battery is recharged when the
battery is exhausted. Although the lithium battery has no memory effect, it
can prolong the life span of the battery.2. Please destroy the battery
according to the relevant local regulations when the machine is scrapped.
3. After using the machine, it is not necessary to clean and maintain it
every time. It can be used normally after charging when the battery is not
- 12 -
powered. lf it is found that there will be jitter when the machine is rising or
falling, touch the electric lubricating oil on both long shafts.
4. After using the product for a period of time, check whether the screws of
each part are loose. lf there is any looseness, it should be tightened in
time.
5. The internal power supply of this product is DC low voltage power supply.
lf there is water on the surface of the body, it can be dried with towel. Do
not bubble in water directly.
CORRECT DISPOSAL
This product is subject to the provision of european Directive
2012/19/EU. The symbol showing a wheelie bin crossed through
indicates that the product requires separate refuse collection in
the European Union. This applies to the product and all
accessories marked with this symbol. Products marked as such may not
be discarded with normal domestic waste, but must be taken to acollection
point for recycling electrical and electronic devices.
BATTERY DISPOSAL
To minimize hazards to health and the environment at the end of
this product's life，laws dealing with Waste Electrical and
Electronic Equipment（WEEE）and The Waste Battery Directive
require you to dispose of this product at a suitable collection facility where
it will be sent in order to remove the batteries and for appropriate
recycling.Please contact your local authorities for more details on recycling
and safe disposal of these in your area.
