PRELIMINARY
Conekt Mobile Smartphone
Access Control Solution
Frequency: 13.56 MHz and 2.4 GHz
Read
Range:
Physical Credentials: Up to 1.5 inches (38 mm)
Mobile Credentials: Up to 1.5 inches (38 mm)
NFC Support
Supports OEM Smartphone Wallet Apps
Bluetooth
Low
Energy
Supports Conekt Smartphone Mobile Access Credentials
Optimized
for
MIFARE
®
DESFire
®
EV2/EV3
ISO 14443 Contactless Smartcard Support
ValidID™
Fraudulent Data Detection Solution
Optimized
for
Battery
Power
Ideal for standalone applications
200
ULTRA
LOW POWER
MOBILE
-READY
CONTACTLESS
SMARTCARD MODULE
AES
PRELIMINARY

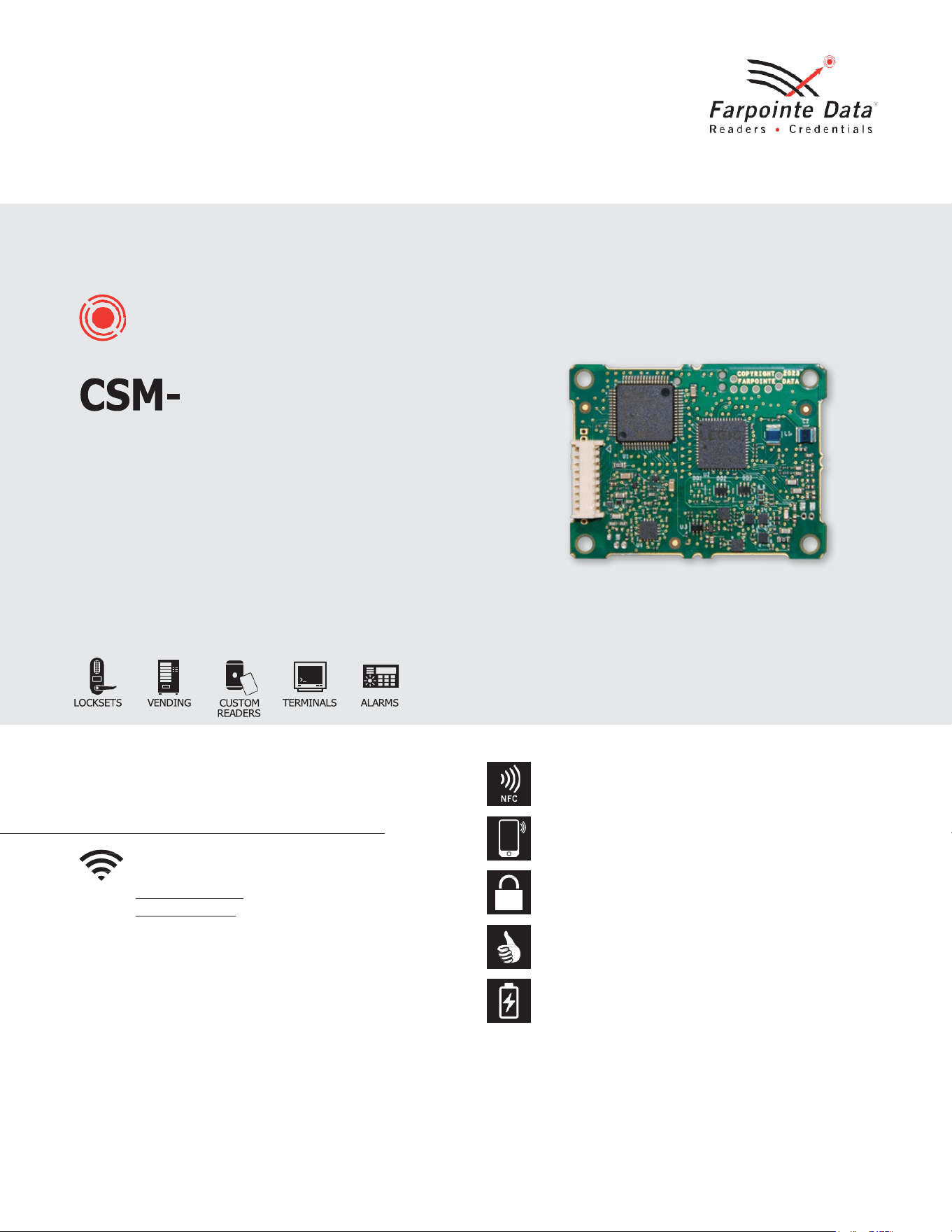

CSM-200 CONEKT
®
CSM-200 ULTRA LOW POWER MOBILE-READY
CONTACTLESS SMARTCARD MODULE
Optimized for ultra-low power applications, such as those powered by batteries, the CSM-200 Ultra Low Power Mobile-Ready Contactless
Smartcard Module is a member of Farpointe’s CONEKT
®
line of mobile-ready modules, readers, and credentials. Making use of the proven
LEGIC
®
contactless digital radio frequency identification (RFID) platform, the CSM-200 is intended to be embedded into applications, such as
electro-mechanical solutions, where the use of mobile smartphone credentials, such as those making use of BLE and NFC, and/or physical
contactless smartcard credentials, is desired.
The CSM-200’s compact design allows it to be embedded in tight places. Physical size is 1.7" W × 1.3" H × 0.26" D at coil connector (43.2 × 33
× 6.6 mm). The CSM-200 is typically capable of delivering non-contact read ranges up to 1.5 inches (38 mm) with mobile or traditional physical
credentials. Operating at 6 VDC, the typical idle mode current draw is less than 25 uA with default settings. Standard output formats include
open collector Wiegand or serial communication protocols. In addition to traditional contactless smartcard access credentials, such as clamshell
cards and key tags, the platform also offers the option of mobile access credentials loaded on NFC- or BLE-enabled smartphones. This allows the
smartphone to function as a contactless electronic access control credential.
NOTES:
1
Optimized for use with devices support-
ing BLE version 4.2 or newer.
2
Assemble with #2 screws or snap fits
designed for 0.1" (2.5 mm) holes.
3
Designed for battery powered operation,
such as that provided by four AA
batteries. Never exceed 6.5 VDC.
4
Using CSC-2 CONEKT Clamshell
Contactless Smartcard with 6 VDC at the
module. Other credentials may be less,
subject to the installation and operational
environment. Mobile read ranges are
further subject to the type of smartphone,
including, but not limited to, the manner
in which it is used, covers or external
batteries affixed.
www.farpointedata.com
Farpointe Data reserves the right to change
specifications without notice.
Dec 12 2025
5
CSN = Card Serial Number.
6
Examples include, but are not limited to,
CSC-2, CSM-2, and CSK-2.
7
Conekt Mobile Access BLE Credentials
are intended to be supported by the
current
and preceding versions of Apple
®
iOS and
standard compliant Google Android™
mobile operating software (OS). Custom
OS variants may result in a loss of
functionality.
8
Implementation of Apple Wallet involves
a collaboration between the end-user,
Farpointe and its technology partners.
Additional technologies supported.
Contact Farpointe directly with specific
requirements.
PIN
Description
J2
Internal Use Only
(programming port)
J3-1&2
13.56-MHz Antenna
(no polarity)
J5-1
Spare I/O
J5-2
Spare I/O
J5-3-
11
Wired in parallel with
J1-1 through J1-9
J5-12
Spare I/O
J5-13
Spare I/O
FCC Statement
FCC ID: T8I-CONEKT6
Changes or modifications not expressly
approved by the manufacturer could void the
user’s authority to operate the equipment.
This device complies with part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interference
received, including interference that may
cause undesired operation.
FCC rules 15.225 and 15.247 apply to this
module.
ISED Canada
Statement
IC: 6504A-CONEKT6
This device contains licence-exempt
transmitter(s)/receiver(s) that comply with
Innovation, Science and Economic
Development Canada’s licence-exempt
RSS(s). Operation is subject to the following
two conditions:
(1)
This device may not cause interference.
(2)
This device must accept any
interference, including interference that
may cause undesired operation of the
device.
Cet appareil contient des émetteurs/
récepteurs exempts de licence qui sont
conformes aux RSS exemptes de licence
d'Innovation, Sciences et Développement
économique Canada. Son fonctionnement
est soumis aux deux conditions suivantes:
(1)
Cet appareil ne doit pas provoquer
d'interférences.
(2)
Cet appareil doit accepter toutes les
interférences, y compris les
interférences susceptibles d'entraîner
un fonctionnement indésir-able de
l'appareil.
ISED rules RSS-210 and RSS-247 apply to
this module.
FCC/ISED RF Exposure Statement
This equipment complies with the FCC and
ISED RF radiation exposure limits set forth for
an uncontrolled environment.
This transmitter must be installed and
operated with a minimum separation
distance of 20 cm between the
radiator
and any part of your body. End users and
installers must ensure that this distance is
maintained during normal operation.
This device must not be co-located or
operated in conjunction with any other
antenna or transmitter, except in
accordance with FCC multi-transmitter
product procedures.
Specifications
CSM-
200
Technology
1
Contactless smartcard, NFC, and Bluetooth Low Energy (BLE), via onboard
antenna
Frequency
13.56 MHz (contactless smartcard and NFC) and 2.4 GHz (BLE)
Mounting
Four 0.1" (2.5 mm) holes, one at each corner for simple installation
2
Dimensions
1.7" W × 1.3" H × 0.26" D (43.2 mm × 33 mm × 6.6 mm)
Operating Voltage
3
3.6VDC to 6.5VDC
Idle Current
Typically less than 25 uA with default settings
Read Current
65 mA typical, 85 mA peak (depending on coil)
Operating Temperature
–40° F to 149° F (–40° C to +65° C)
Read Range (typical)
4
Mobile or physical credentials: up to 1.5 inches (38 mm)
Host Interface Wiegand (Card Present, Data 0, Data 1, Open Collector Default, weak pullup to
3.3V optional)
Serial communication
Coil Interface
13.56-MHz
LED Indicator
Onboard, amber-colored LED flash indicates credential read
Warranty
12 months
Compliance
Designed to comply with FCC, ISED Canada and UL requirements. OEM is
responsible for regulatory and safety approvals.
Optional Functionality
Available I/O pins to support external beeper, LED, I2C interface, external mode
control, or other functions
Technologies Supported
Default Technologies Supported: CONEKT mobile and physical credentials
Optional Technologies Supported: Interoperable with contactless smartcard
CSN
5
(may include ISO 14443 compliant credentials and MIFARE
®
Class 1K &
4K, MIFARE
®
DESFire
®
EV2 & EV3, MIFARE UltraLight
®
and MIFARE Plus
®
),
Sector (may include Delta Card Sector
6
, such as MIFARE
®
Class 1K & 4K,
INSIDE Secure
®
/PICOPASS
®
classic-type transponders*), File (MIFARE
®
DESFire
®
EV2 and EV3), as well as FIPS201 [PIV Type A], TWIC, and CAC
credentials, Conekt
7
, or Switch™ Tech (“Switch Keys”) Mobile Access
Credentials, as well as Conekt DESFire-based NFC credentials, Conekt Mobile
Access BLE Credentials, and support for OEM smartphone NFC wallet apps
such as Apple Wallet and Google Wallet.
8
PIN
Description
J1-1
+VDC Input
J1-2
GROUND Input
J1-3
Spare I/O
J1-4
Spare I/O
J1-5
CARD PRESENT
Output Signal
J1-6
DATA 0 Output
J1-7
DATA 1 Output
J1-8
Serial RX
J1-9
Serial TX
PRELIMINARY
CONNECTOR PART NUMBERS
J1
main
connector
on
PCB
—
Mating
Connector:
Molex
510210900
J3
1
3.56-MHz
antenna
on
PCB
—
Mating
Connector:
Molex
0781720
Farpointe
Data,
Inc.
2195 Zanker Road
San Jose, CA 95131 USA
Office: +1-408-731-8700
Fax: +1-408-731-8705
support@farpointedata.com
P/N: 01131-005 ∙ Rev. 1
