MultiNav Pro+ BLE Module

Overview

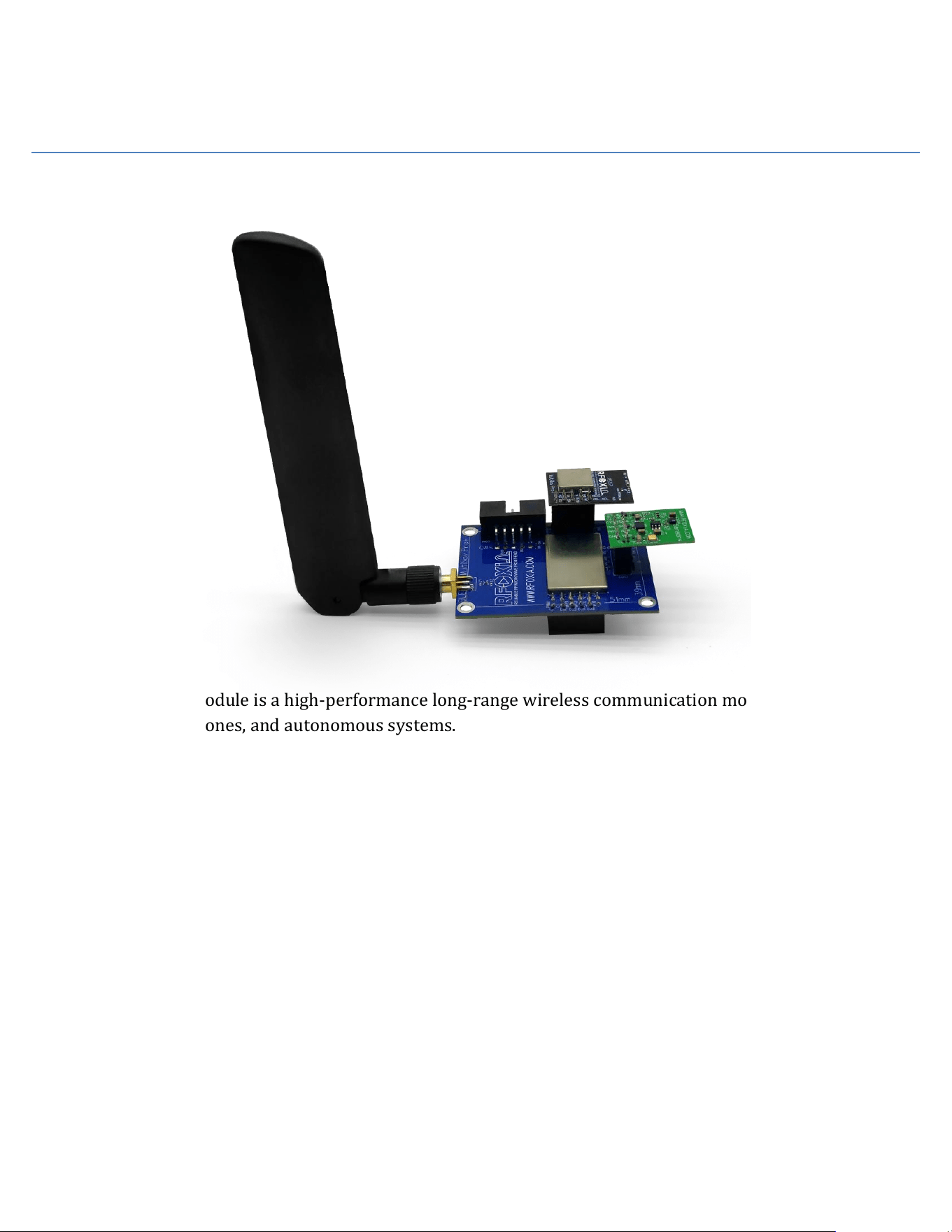

MultiNav Pro+ BLE Module is a high-performance long-range wireless communication module designed for

advanced robotics, drones, and autonomous systems.

It combines powerful processing, high-speed BLE communication, and seamless ecosystem integration into a

compact and programmable platform.

Key Features

• Long-Range Connectivity: Up to 50KM (Drone-to-Drone), 15KM (Man-to-Drone), 5KM (Man-to-Man)

• High-Speed Data Transmission: Up to 2 Mbps

• Powerful Processing Core: STM32WB07CCV6 (ARM Cortex-M0, 64MHz)

• Compact Design: 57mm x 47mm module size, 140mm antenna

• Seamless Integration with GNSS, Sensors, and Motor/Battery modules

• RFOXiA Connect App support (iOS & Android)

• BLE Chat (text, voice, calls without internet)

• Open Source & Programmable via SWD

• Integrated high-accuracy RTC

RFOXiA: Premium Design

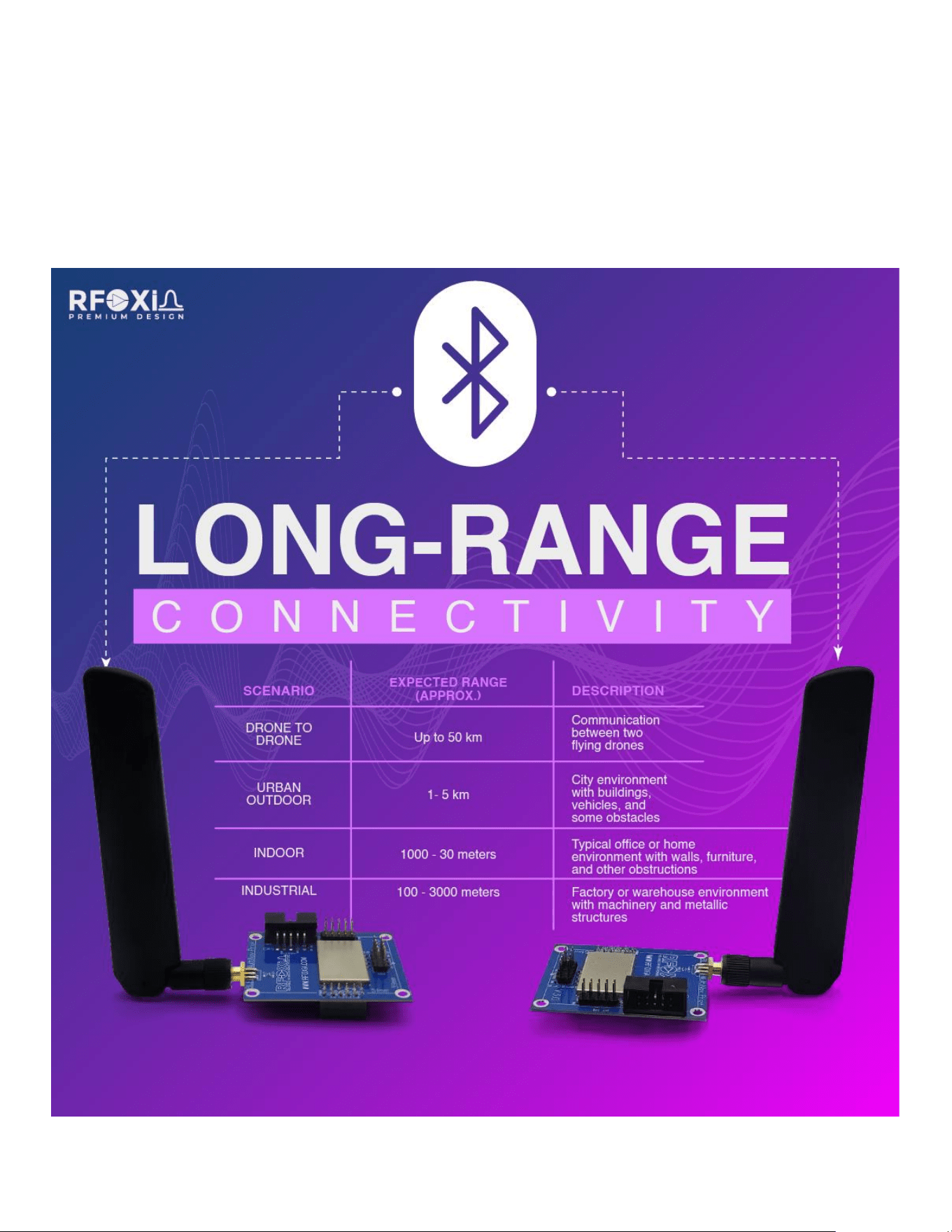

Long-Range Connectivity

Up to 50KM communication range.

5KM Man-to-Man

15KM Man-to-Drone

50KM Drone-to-Drone

Ideal for drones, robotics, and remote systems.

RFOXiA: Premium Design

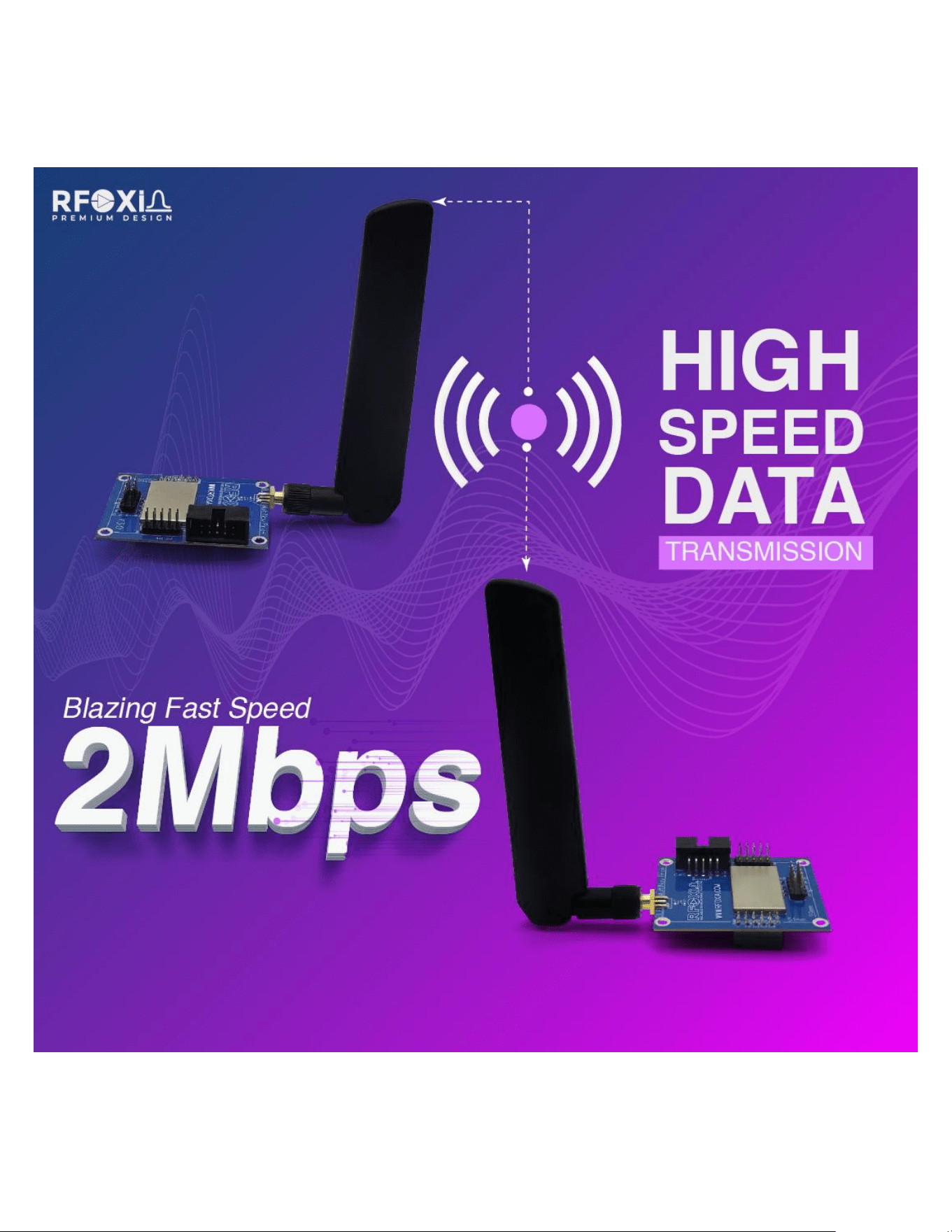

High-Speed Data Transmission

Supports up to 2 Mbps data rate ensuring low latency and reliable communication.

RFOXiA: Premium Design

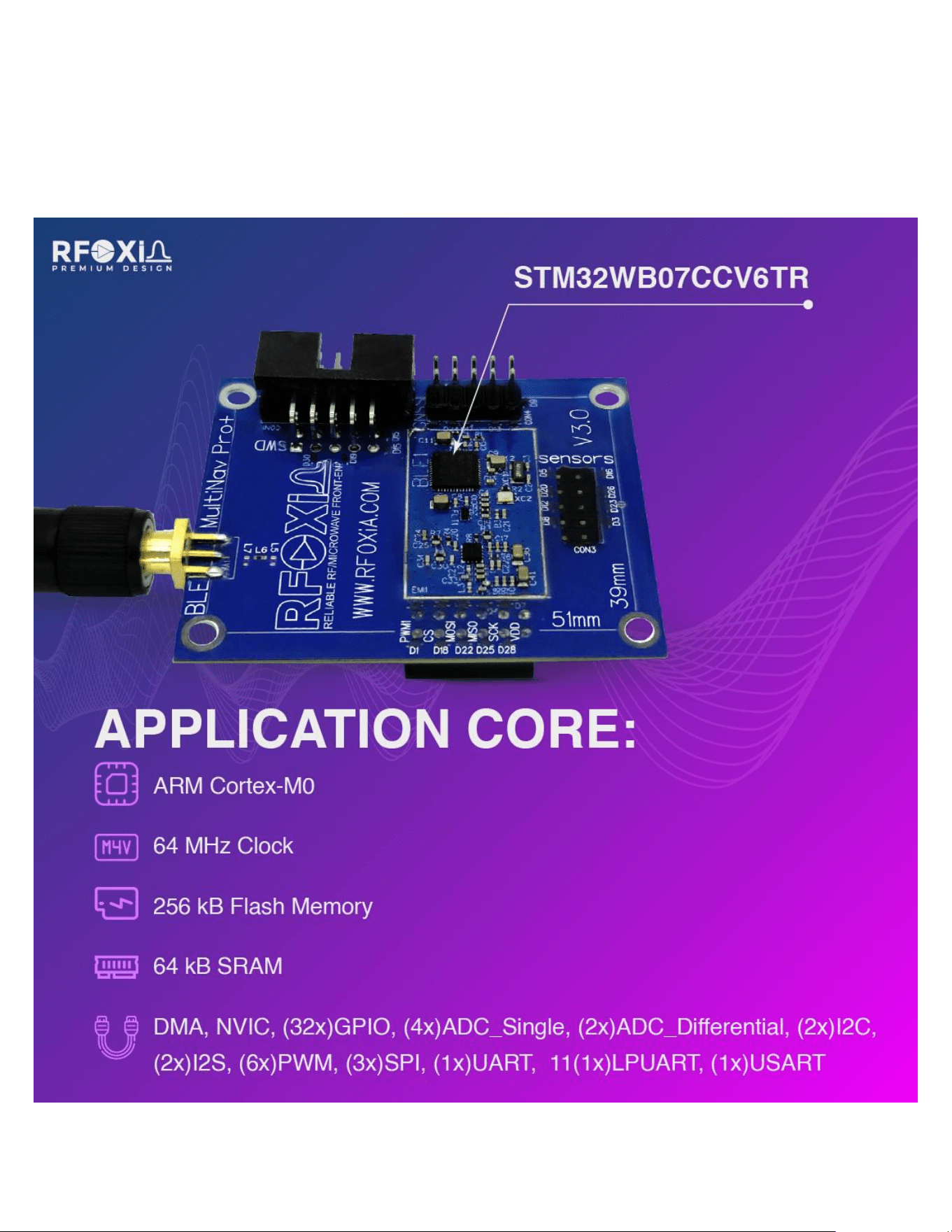

Powerful Processing Core

STM32WB07CCV6 (ARM Cortex-M0 @64MHz)

256KB Flash, 64KB SRAM

Rich peripherals: GPIO, ADC, SPI, I2C, UART, PWM.

RFOXiA: Premium Design

Compact Design

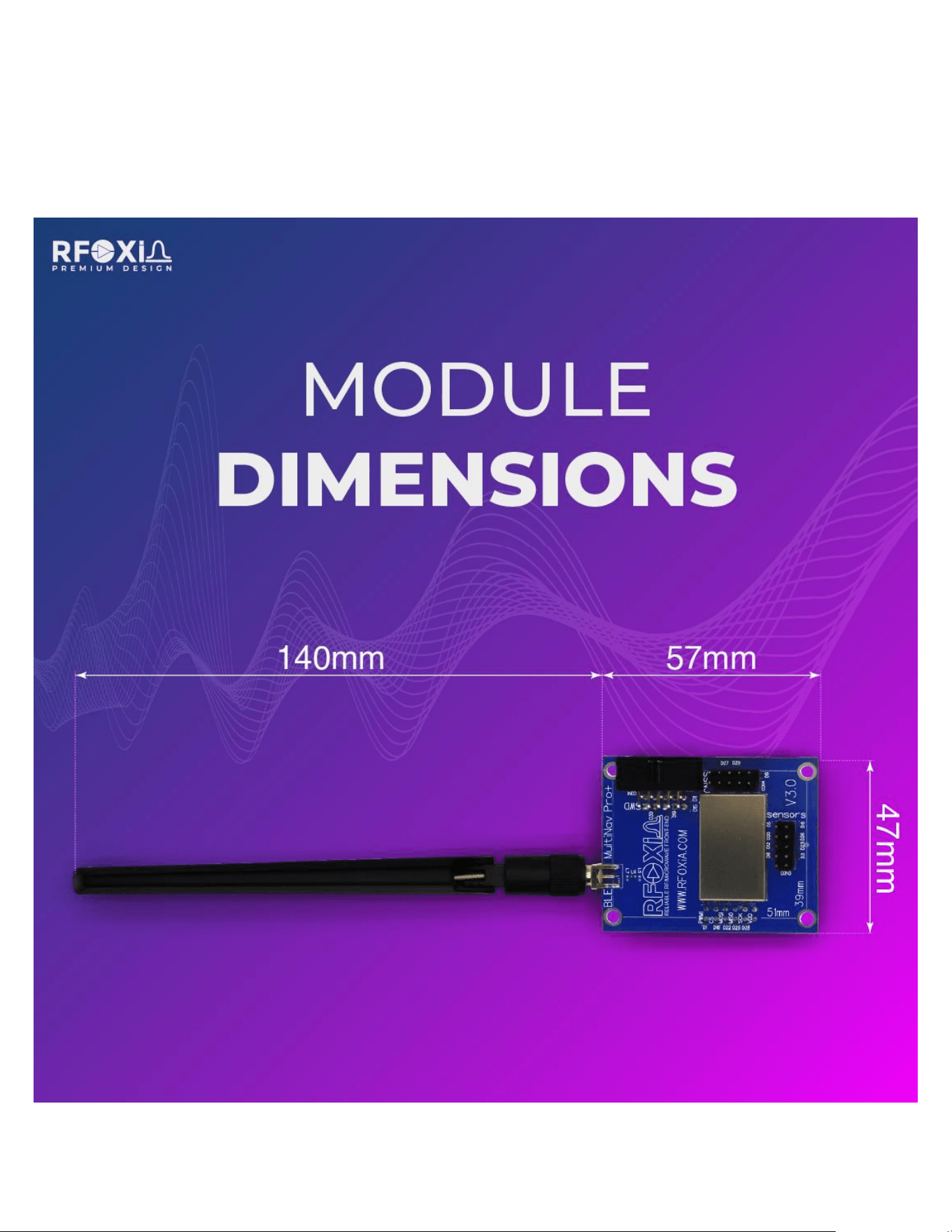

Module size: 57mm x 47mm

Antenna: 140mm

Mounting: 51mm x 39mm frame.

RFOXiA: Premium Design

Ecosystem Integration

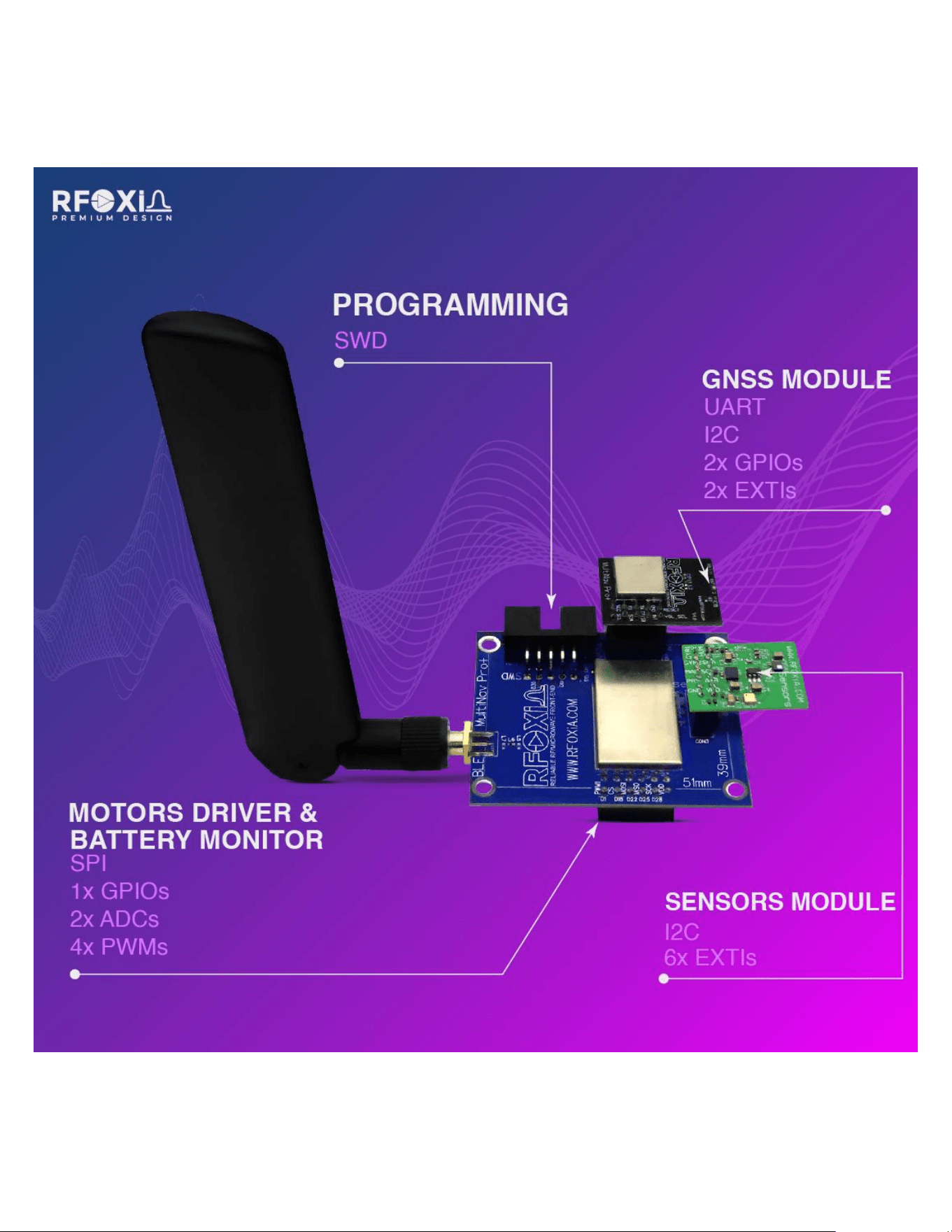

Compatible with GNSS, Sensors, Motor/Battery modules forming a unified system.

RFOXiA: Premium Design

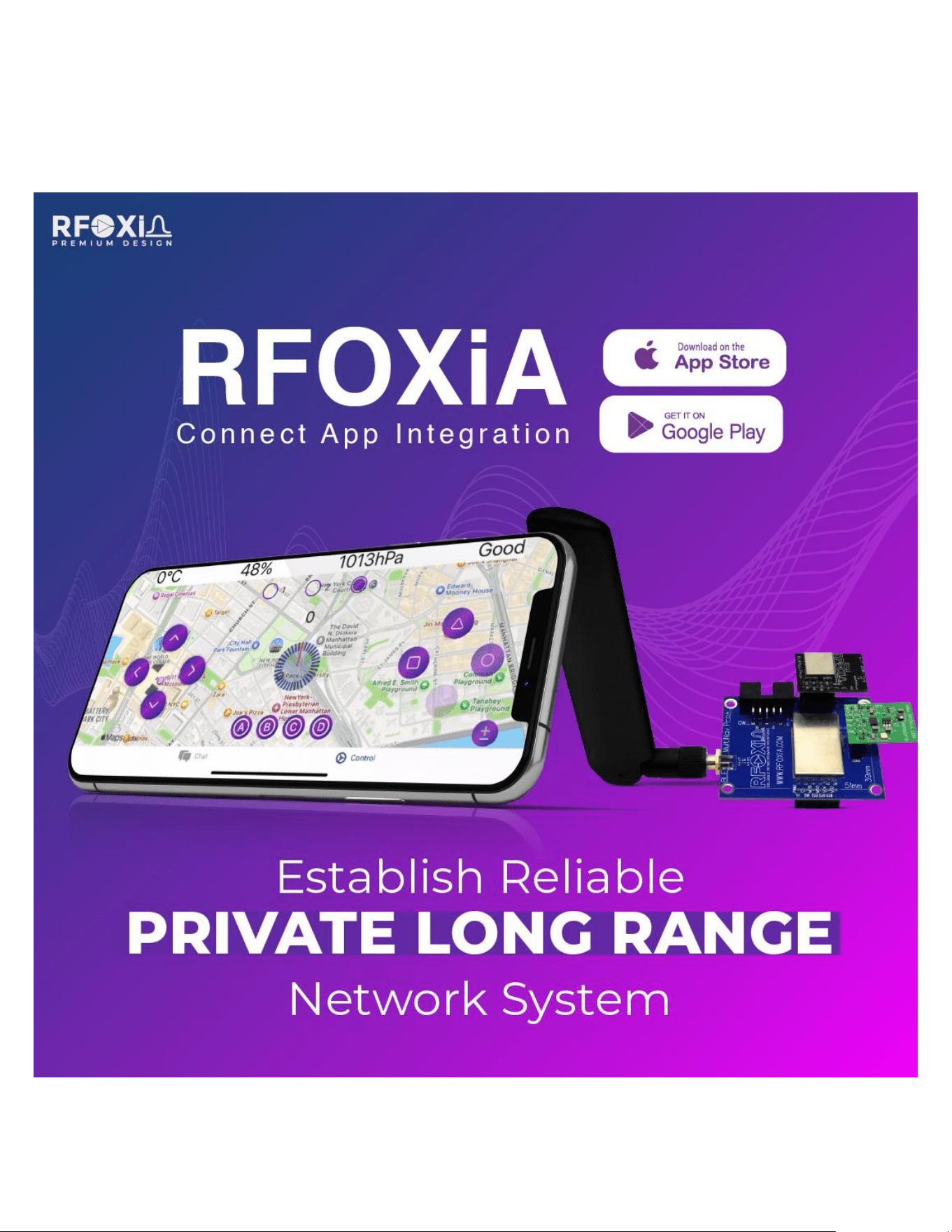

RFOXiA Connect App

Map view, sensor monitoring, control interface, automation center.

Available on iOS and Android.

RFOXiA: Premium Design

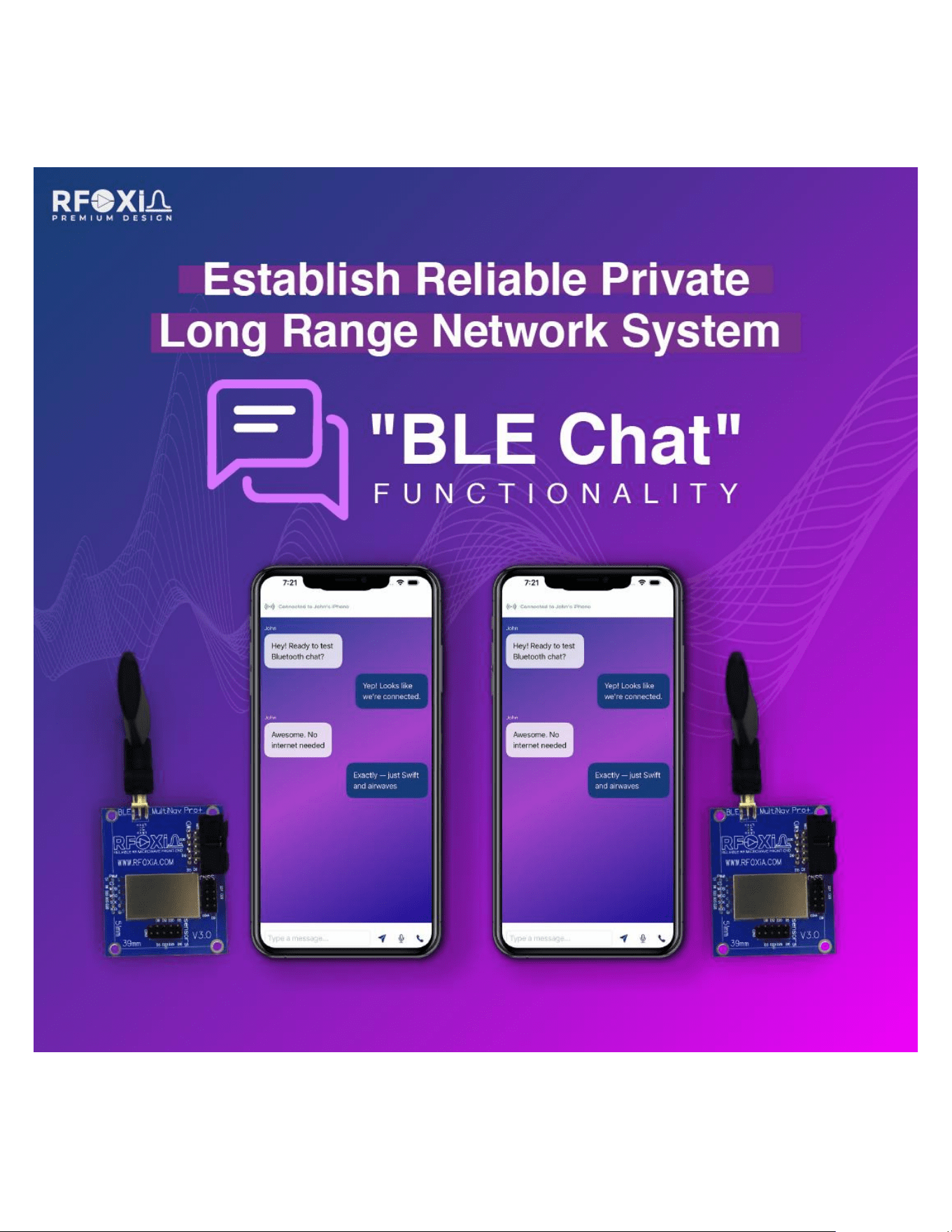

BLE Chat

Text, voice, and call communication without internet.

RFOXiA: Premium Design

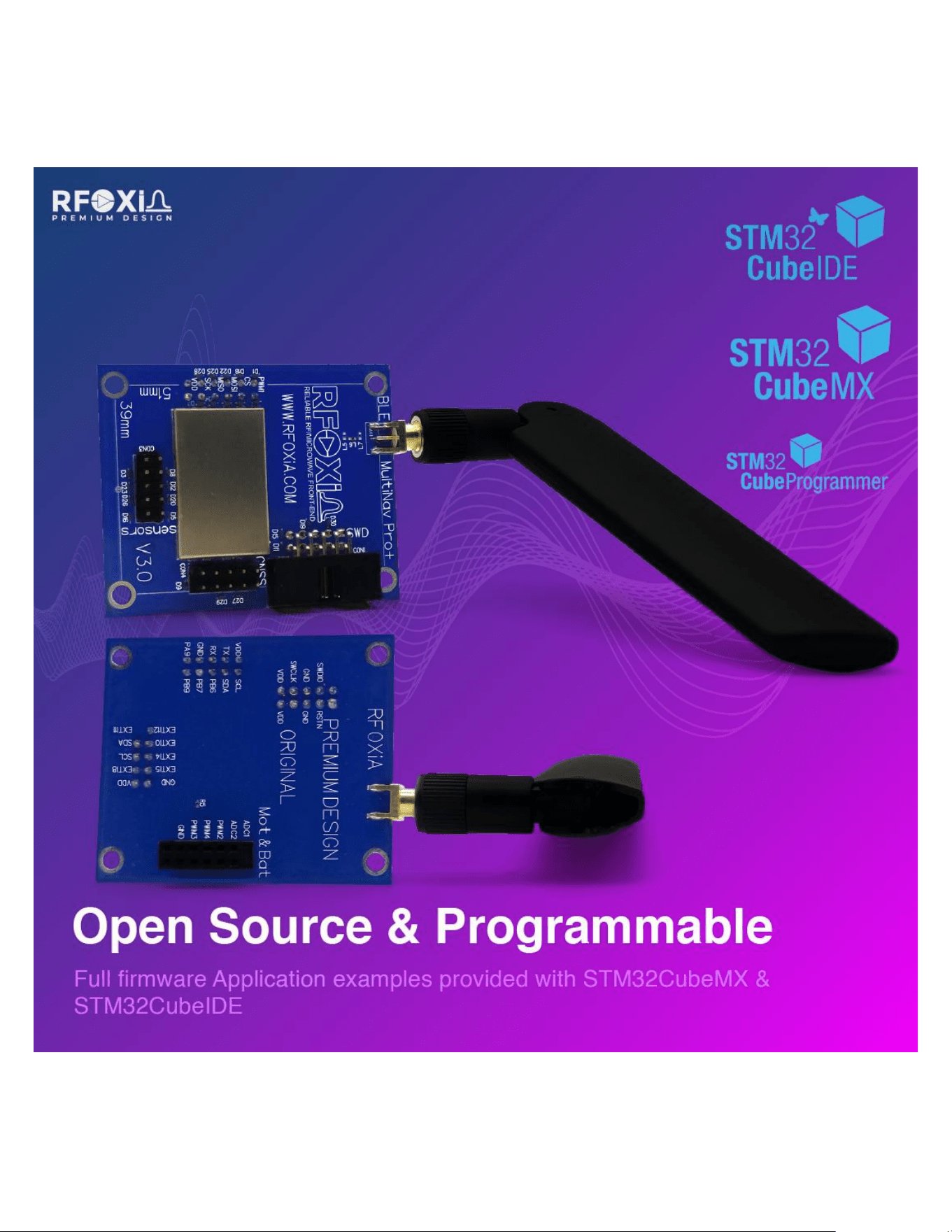

Open Source & Programmable

Fully programmable via SWD with open-source firmware support.

RFOXiA: Premium Design

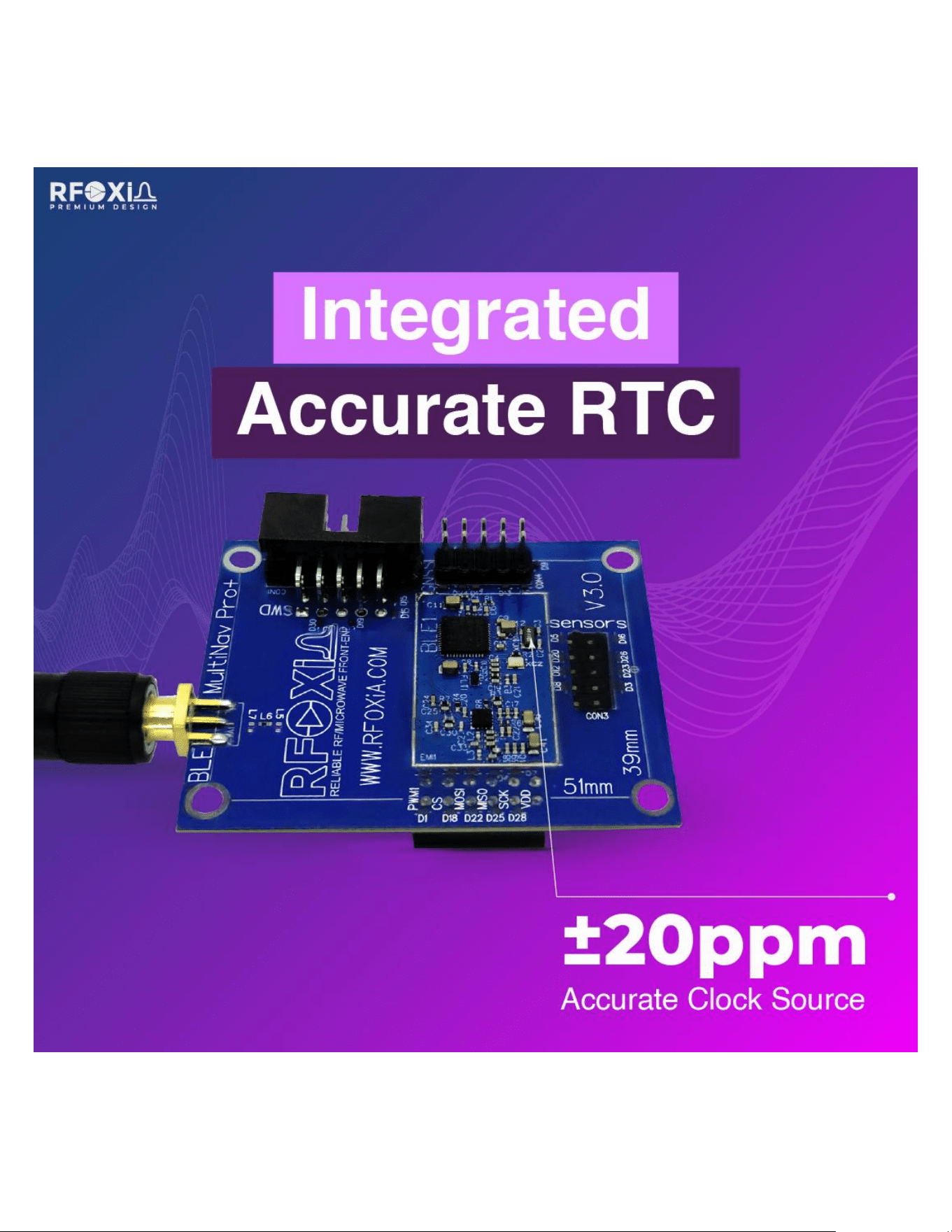

Accurate RTC

Integrated RTC crystal for precise timing and synchronization.

RFOXiA: Premium Design

Technical Specifications

MCU: STM32WB07CCV6

CPU: Cortex-M0 64MHz

Flash: 256KB

SRAM: 64KB

GPIO: 32

ADC: 4 Single, 2 Differential

Interfaces: 3x SPI, 2x I2C, , 2x I2S, UART, USART, LPUART

PWM: 6 channels

Sensitivity: -104 dBm

Receiver LNA Gain: 12 dB

ESD Protection: up to 30KV on all exposed pins.

Certifications: FCC, CE

RFOXiA: Premium Design

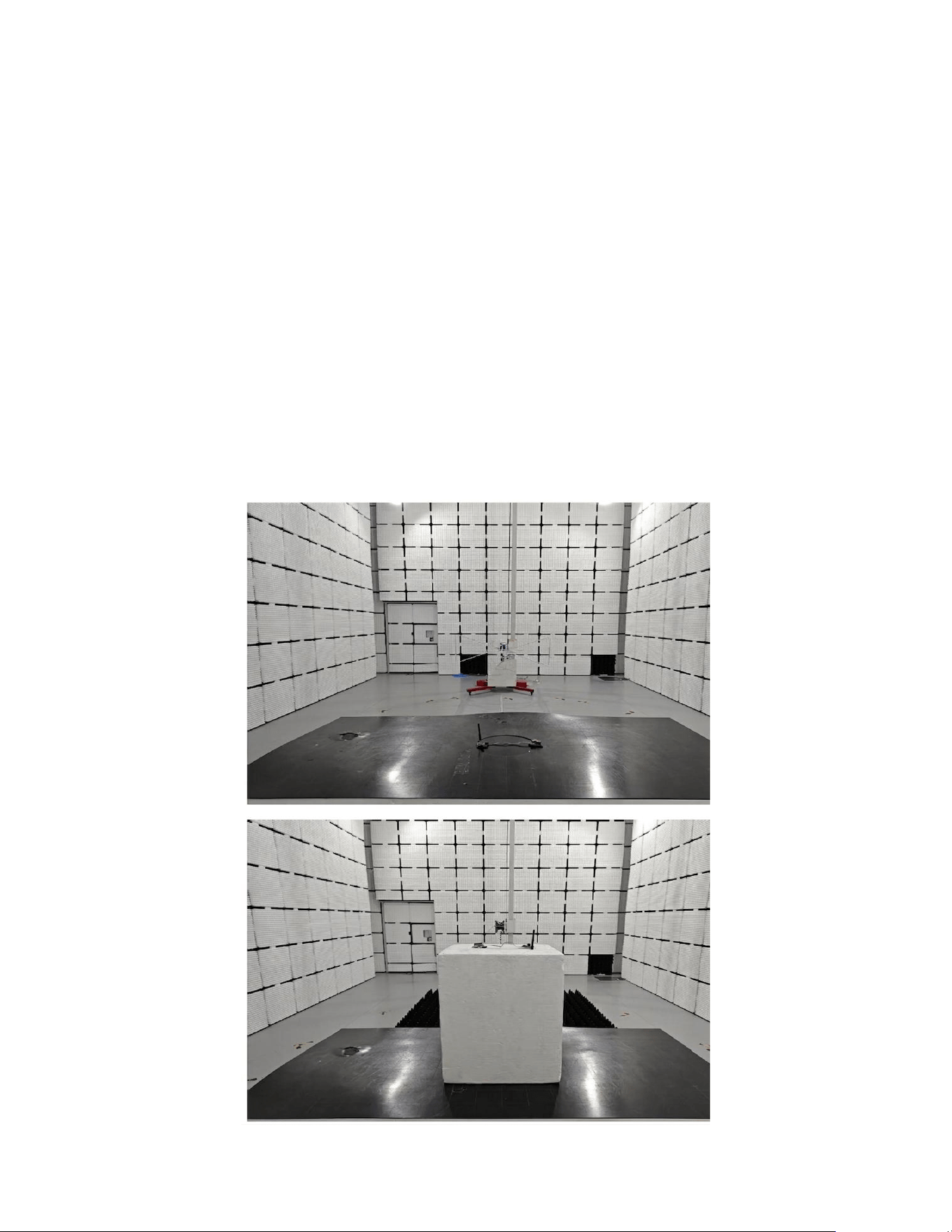

RF Performance

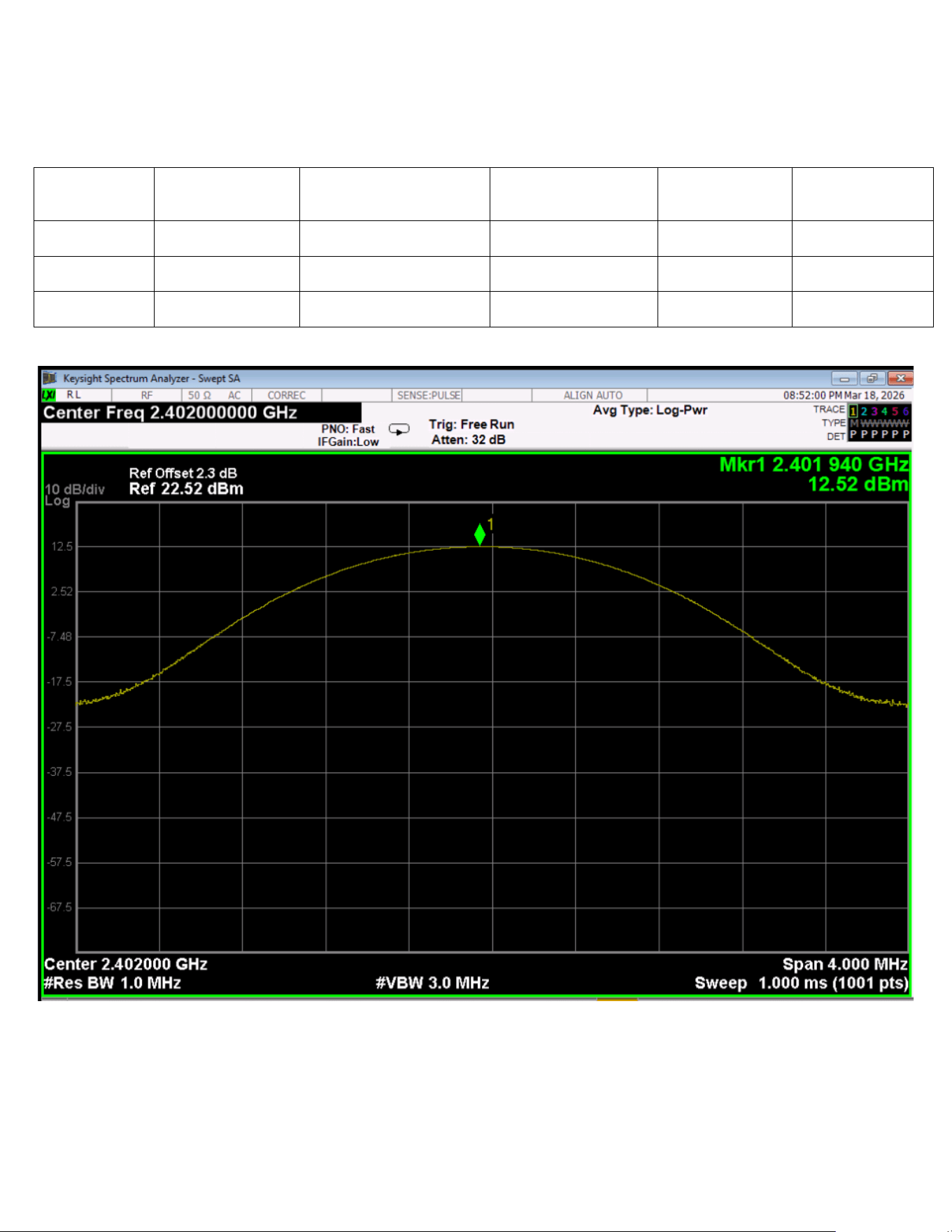

TX Power: 12.52 dBm @ 2402MHz

Condition

Mode

Frequency(MHz)

Peak Power(dBm)

Limit (dBm)

Results

NVNT

1M,PHY

2402

12.52

30

Pass

NVNT

1M,PHY

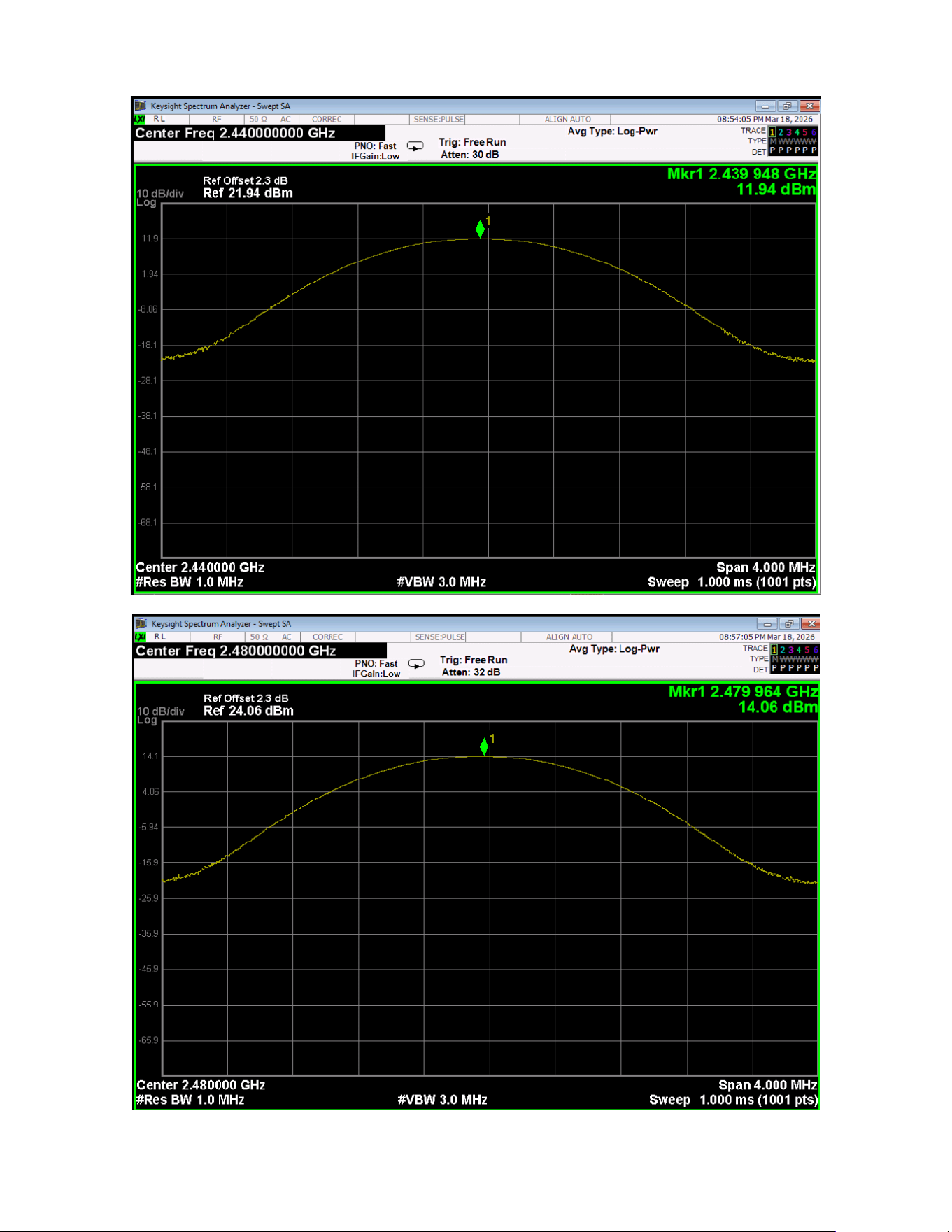

2440

11.94

30

Pass

NVNT

1M,PHY

2480

14.06

30

Pass

RFOXiA: Premium Design

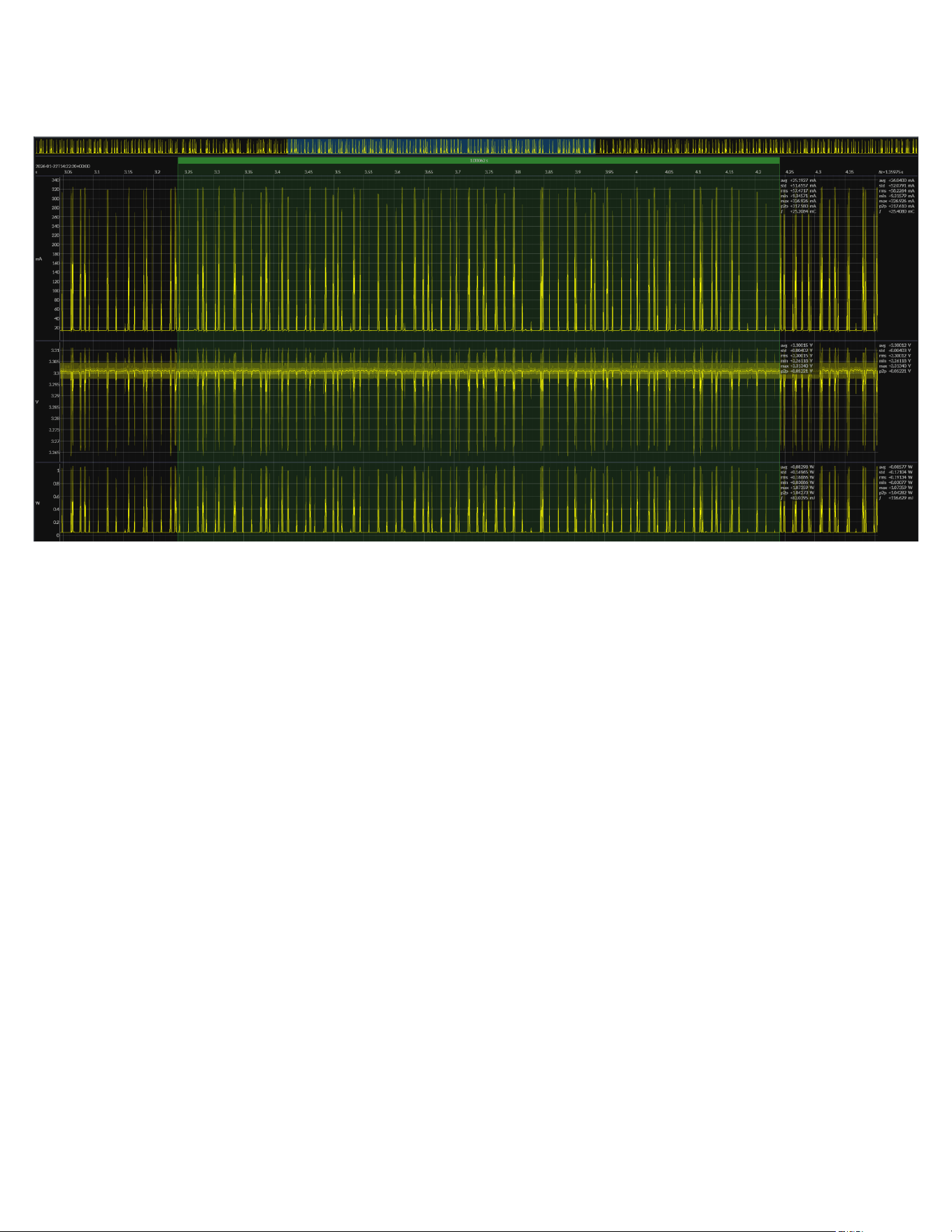

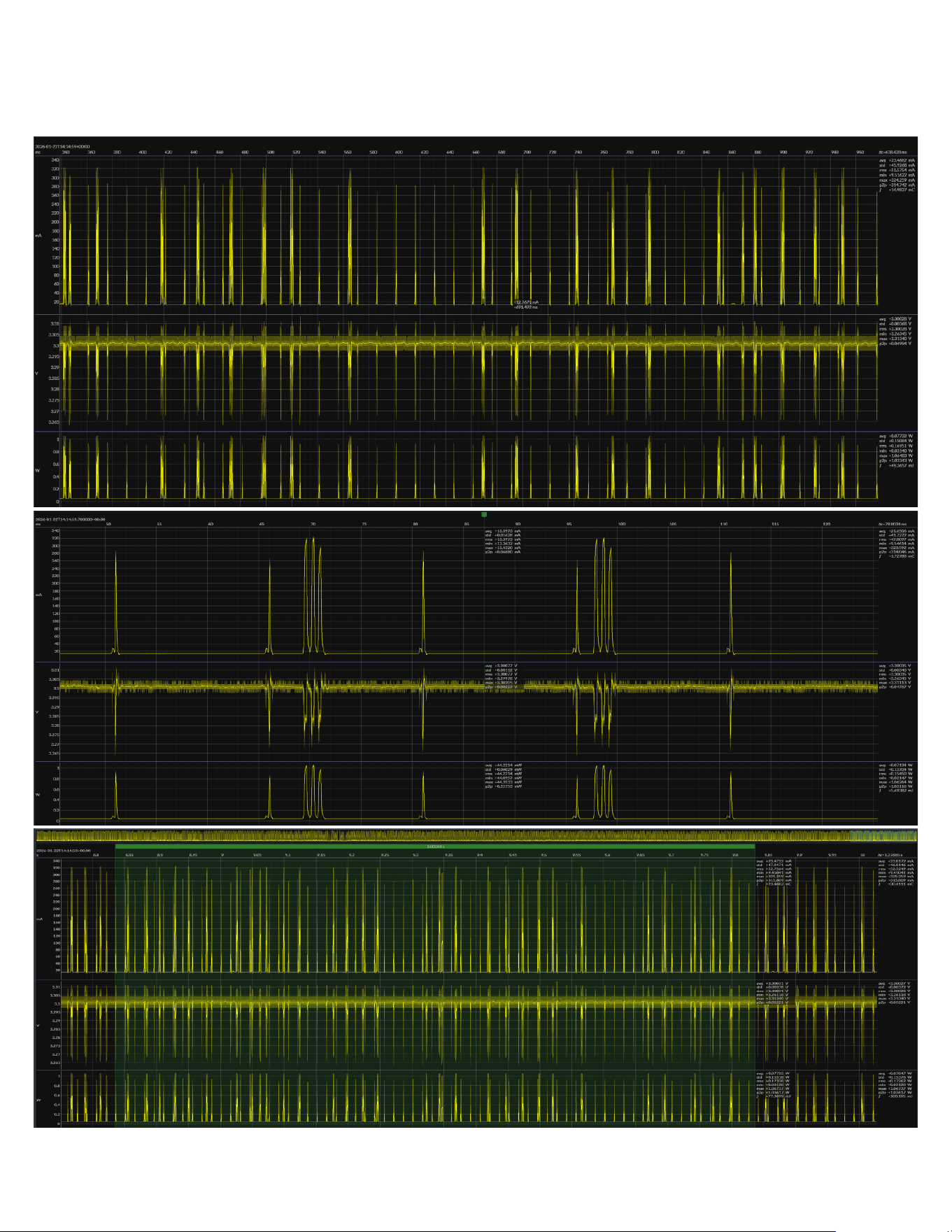

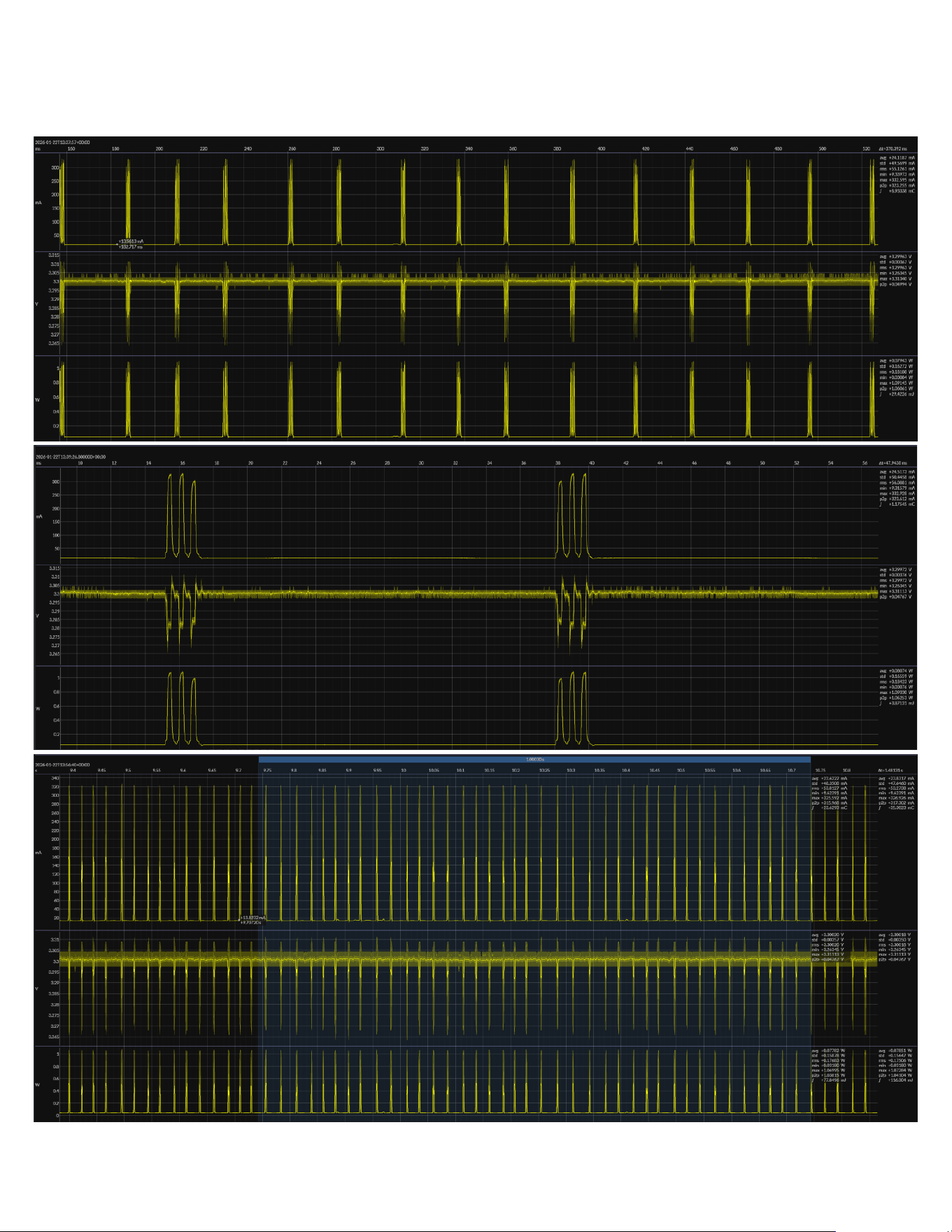

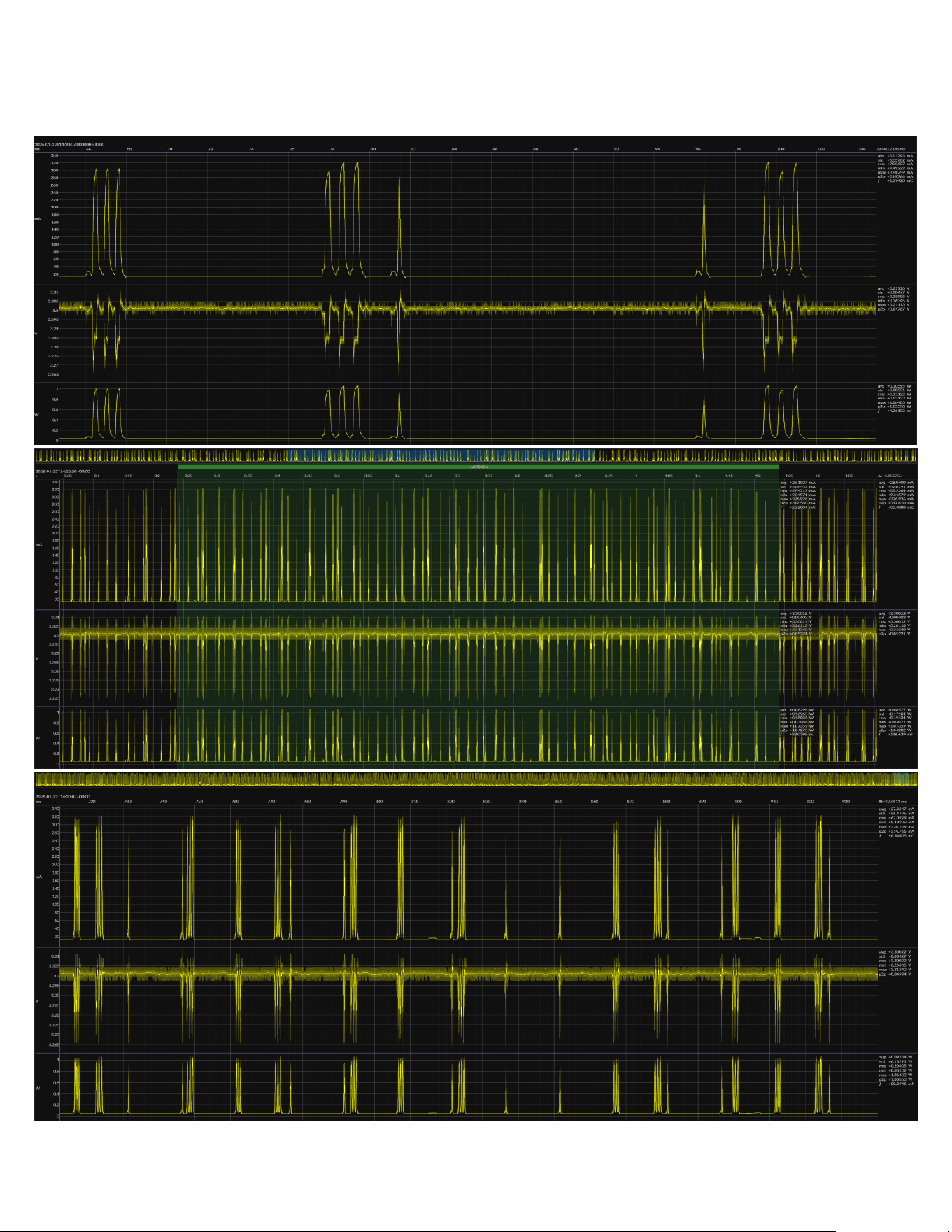

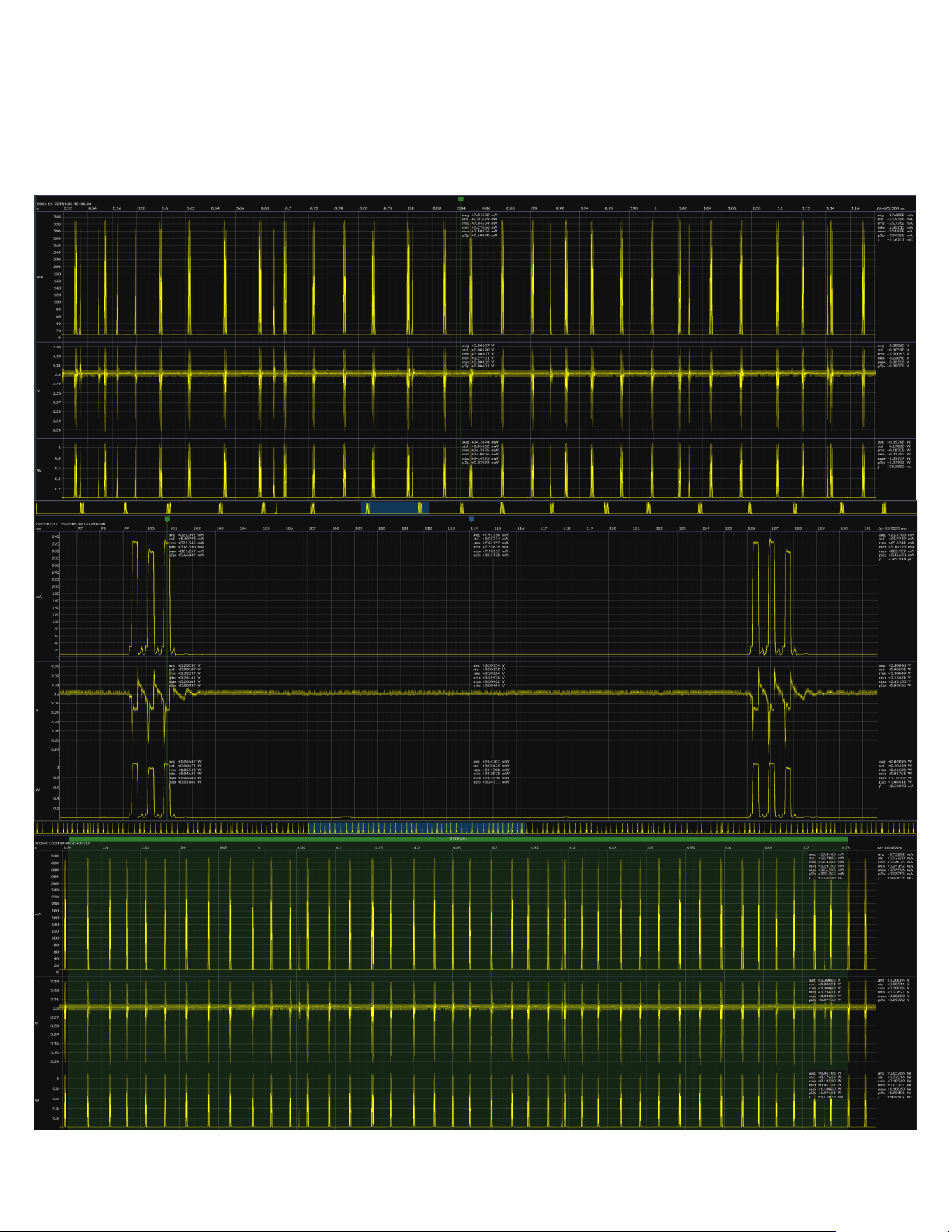

Power Consumption

Insert measurement screenshots for each case below:

- BLE initialization

RFOXiA: Premium Design

- BLE + GNSS + Sensors initialization

RFOXiA: Premium Design

- Map View operation

RFOXiA: Premium Design

- 3D View operation

RFOXiA: Premium Design

- Dual BLE Mesh communication

FCC ID:

2BUYBMULTINAV

RFOXiA: Premium Design

Quick Start Guide

Pre-requirements:

1- 2 BLE Modules, GNSS Module, Sensors Module

2- Power/Program Kit

3- STM32CubeProgrammer software

4- BLE Module latest firmware Hex file from RFOXiA Club Resources

5- RFOXiA Connect APP, Android or IOS Version

- Update the BLE Module Firmware:

1- Open BLE Module package, connect the antenna to the BLE Module

2- User the Power/Program Kit to install the latest firmware to the BLE Module, Connect the BLE Module with

STLink Programmer using the flat ribbon cable, then plug it to the computer

3- Open STM32CubeProgrammer software, drag and drop the hex file to it, press connect and download to

install the latest firmware in couple of seconds

- Start pairing with the APP in Control View:

4- Mount the GNSS Module and Sensors Module on the BLE Module

5- Connect the BLE Module to the Power kit instead of the programmer using the same cable to power it

6- Open RFOXiA Connect APP on your phone, Scan and pair with the BLE Module, open Control Screen to see

live location from the GNSS Module, real time Temperature, Humidity, Air pressure and Air quality from the

Sensors Module

7- Press on the 3D view to see the interactive 3D view with real time data from the Accelerometer, Gyroscope,

Magnetometer from the Sensors Module

8- Press on the Camera view to get Live camera view when you connect the Wifi/Camera Module

- Use the Module in Dual Bluetooth Module to relay sensors data over the long range:

9- Install the latest firmware on the 2nd BLE Module as well

10- Power the 2nd BLE Module using 2nd Power kit

11- Use the APP to scan and connect for the 2nd BLE Module (the module without GNSS nor Sensors Modules)

12- Open Chat window, press "Scan for BLE Modules" which let's your BLE Module scan for other BLE Module

to find the BLE Module with the GNSS and Sensors Modules, once found press connect

13- Go back to the Control Screen, you will find the same GNSS and Sensors Data but this time they are not

directly coming from the paired module, instead they are coming from the peer module, the connection

between the 2 BLE Modules can work in exceptionally long range

Integration instructions for host product manufacturers according to KDB 996369 D03OEM Manual v01

2.2 List of applicable FCC rules

FCC Part 15.247

KDB558074 D01 15.247 Meas Guidance v05r02

ANSI C63.10:2020

2.3 Specific operational use conditions

The module can be used for mobile applications with a maximum 8.4dBi antenna. The host manufacturer

installing this module into their product must ensure that the final composite product complies with the FCC

requirements by a

technical assessment or evaluation to the FCC rules, including the transmitter operation. The host manufacturer

has

to be aware not to provide information to the end user regarding how to install or remove this RF module in the

user's manual of the end product which integrates this module. The end user manual shall include all required

regulatory information/warning as show in this manual.

2.4 Limited module procedures

The device is a Single module and complies with the requirement of FCC Part 15.247.

2.5 Trace antenna designs

Not applicable, The module has its own antenna, and doesn’t need a host sprinted board micro strip trace

antenna etc

2.6 RF exposure considerations

The device has been evaluated to meet general RF exposure requirement. The device can be used in portable

exposure condition without restriction; and if RF exposure statement or module layout is changed, then the host

product manufacturer required to take responsibility of the module through a change in FCC ID or new

application

The FCC ID of the module cannot be used on the final product In these circumstances, the host manufacturer

will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC

authorization

2.7 Antennas

Antenna Specification are as follows:

Type of antenna: hardware Antenna

Gain of antenna:8.4dBi.

This device is intended only for host manufacturers under the following conditions: The transmitter module may

not be co-located with any other transmitter or antenna; The module shall be only used with the internal

antenna(s)

that has been originally tested and certified with this module. The antenna must be either permanently attached

or

employ a “unique" antenna coupler As long as the conditions above are met, further transmitter test will not be

required. However, the host manufacturer is still responsible for testing their end-product for any additional

compliance requirements required with this module installed (for example, digital device emissions, PC

peripheral requirements, etc)

2.8 Label and compliance information

Host product manufacturers need to provide a physical or e-label stating " Contains FCC ID:

2BUYBMULTINAV"

with their finished product

2.9 Information on test modes and additional testing requirements

Host manufacturer must perform test of radiated & conducted emission and spurious emission, e.t.c according to

the actual test modes for a stand-alone modular transmitter in a host, as well as for multiple simultaneously

transmitting modules or other transmitters in a host product.

Only when all the test results of test modes comply with FCC requirements, then the end product can be sold

legally.

2.10 Additional testing, Part 15 Subpart B disclaimer

The modular transmitter is only FCC authorized for FCC Part 15.247

KDB558074 D01 15.247 Meas Guidance v05r02, ANSI C63.10:2020 and that the host product manufacturer is

responsible for compliance to any other FCC rules that apply to the host not covered by the modular transmitter

grant of certification. If the grantee markets their product as being Part 15 Subpart B compliant (when it also

contains unintentional-radiator digital circuit), then the grantee shall provide a notice stating that the final host

product still requires Part 15 Subpart B compliance testing with the modular transmitter installed

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1)This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant

to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation.

This equipment generates uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications. However, there is

no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment off and on,

the user is encouraged to try to correct the interference by one or more of the following measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

This equipment should be installed and operated with a minimum distance of 20cm between the radiator &

your body. This transmitter must not be co-located or operating in conjunction with any other antenna or

transmitter.

Any Changes or modifications not expressly approved by the party responsible for compliance could void the

user's authority to operate the equipment.

It is essential for module grantees to clearly and explicitly state the RF exposure conditions that permit a host

product manufacturer to use the module. Two types of instructions are required for RF exposure information:

(1) to the host product manufacturer, to define the application conditions (mobile, portable – xx cm from a

person’s body); and (2) additional text needed for the host product manufacturer to provide to end users in their

end-product manuals. If RF exposure statements and use conditions are not provided, then the host product

manufacturer is required to take responsibility of the module through a change in FCC ID:2BUYBMULTINAV

Document revision number 1.1.0

Multinav Pro+ Ble Module

Product's Documents

User Manual

Specifications

RFOXiA MultiNav Pro+ BLE Module Questions and Answers
