MANUAL
使用手冊
CUSTOMER
Item P/N
CS63076
DESCRIPTION
BLE Low Engergy Module
Document Number
CS63076
DATE
This document contains confidential and proprietary information of CORESTARCo., Ltd and shall not be
duplicated or otherwise transferred to a third party without the express written consent of CORESTAR.
page 2 / 7
本文件所包含內容所屬於合興數位股份有限公司(CorsStar Co., Ltd)之規格文件及專有技術資料所有，不得未經由合興數
位公司同意而擅自轉載或以不明確的書面或其他方式轉讓給第三方。
page 3 / 7
1. ABSOLUTE MAXIMUM RATING
Symbol
Parameter
Value
Unit
Vin
Input Differential
Voltage
3.6
V
Operating Junction
Temperature
10 to 40
℃
2. Hardware overview

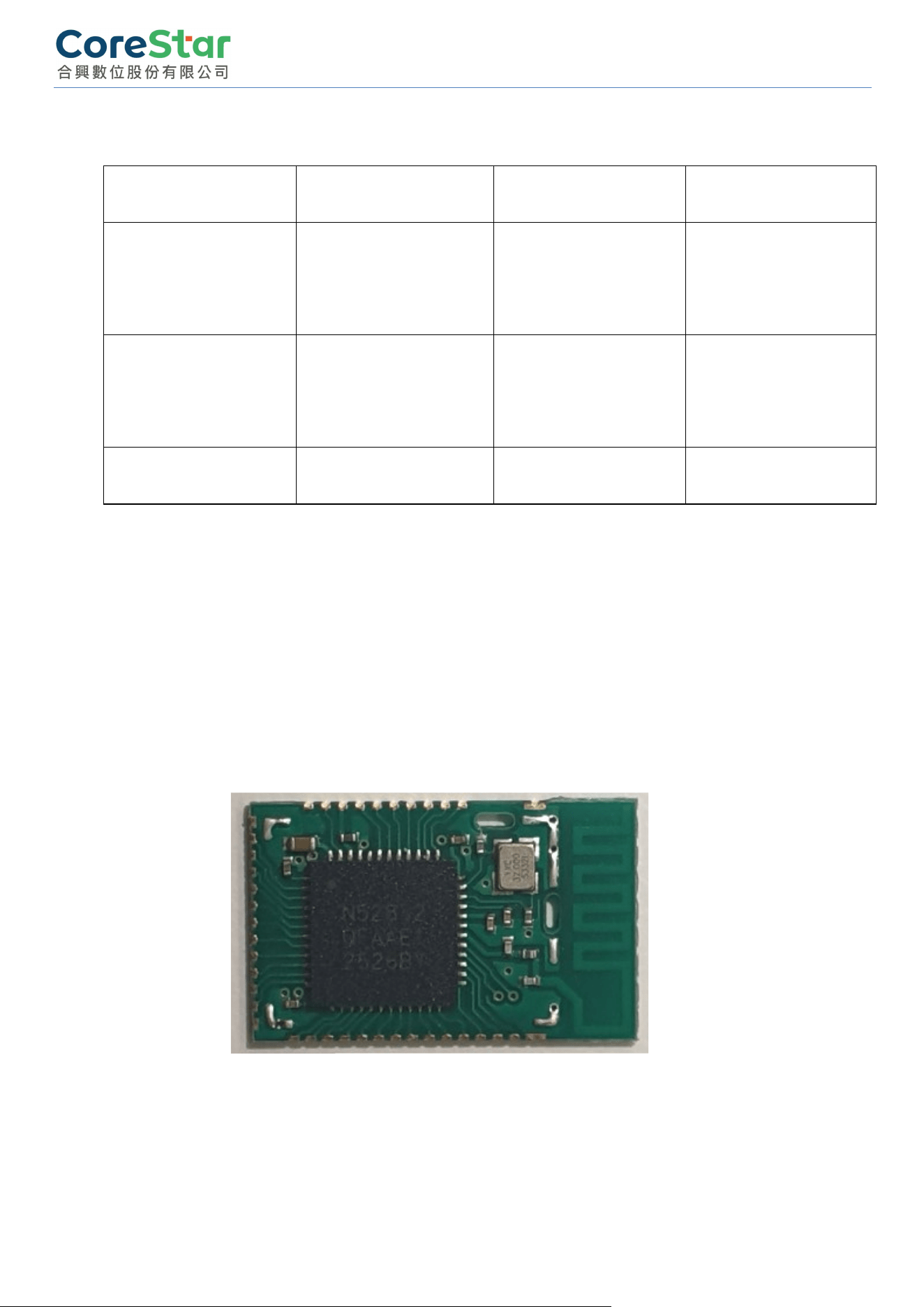

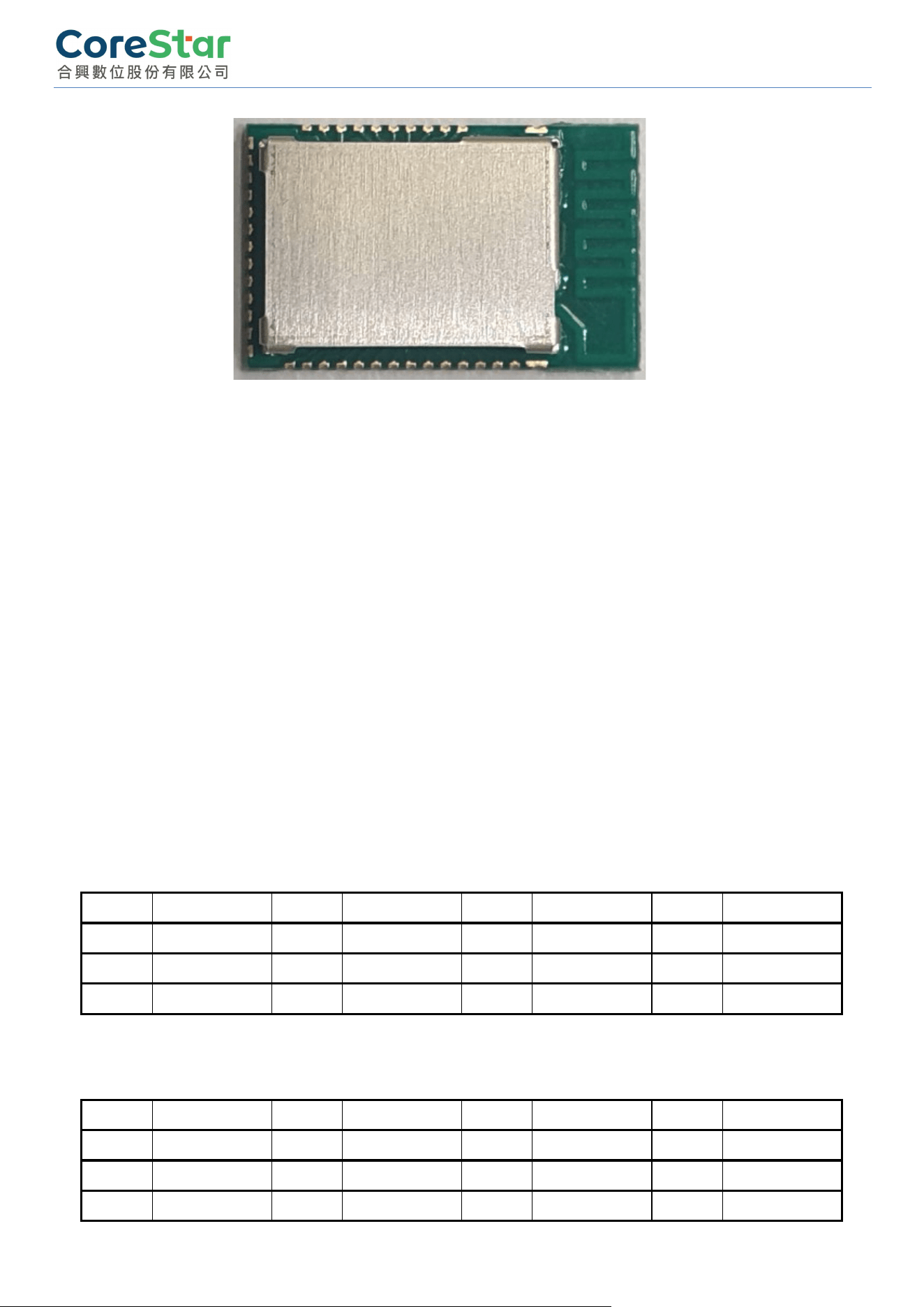

2.1 Main Board PCB Physical Specifications
page 4 / 7
2.2 Connector Definitions
J1 CTRL CON
Pin No.
DESCRIPTION
Pin No.
DESCRIPTION
Pin No.
DESCRIPTION
Pin No.
DESCRIPTION
1
GND
2
P0.25
3
P0.26
4
P0.27
5
P0.28
6
P0.29
7
P0.30
8
P0.31
9
DEC4
10
DCC
11
VDD
J2 CTRL CON
Pin No.
DESCRIPTION
Pin No.
DESCRIPTION
Pin No.
DESCRIPTION
Pin No.
DESCRIPTION
12
GND
13
P0.00
14
P0.01
15
P0.02
16
P0.03
17
P0.04
18
P0.05
19
P0.06
20
P0.07
210
P0.08
22
P0.09
23
P0.10
page 5 / 7
24
GND
J3 CTRL CON
Pin No.
DESCRIPTION
Pin No.
DESCRIPTION
Pin No.
DESCRIPTION
Pin No.
DESCRIPTION
25
P0.11
26
P0.12
27
P0.13
28
P0.14
29
P0.15
30
P0.16
31
P0.17
32
P0.18
33
P0.19
34
P0.20
35
P0.21
36
SWDCLK
37
SWDIO
38
P0.22
39
GND
40
P0.24
41
P0.23

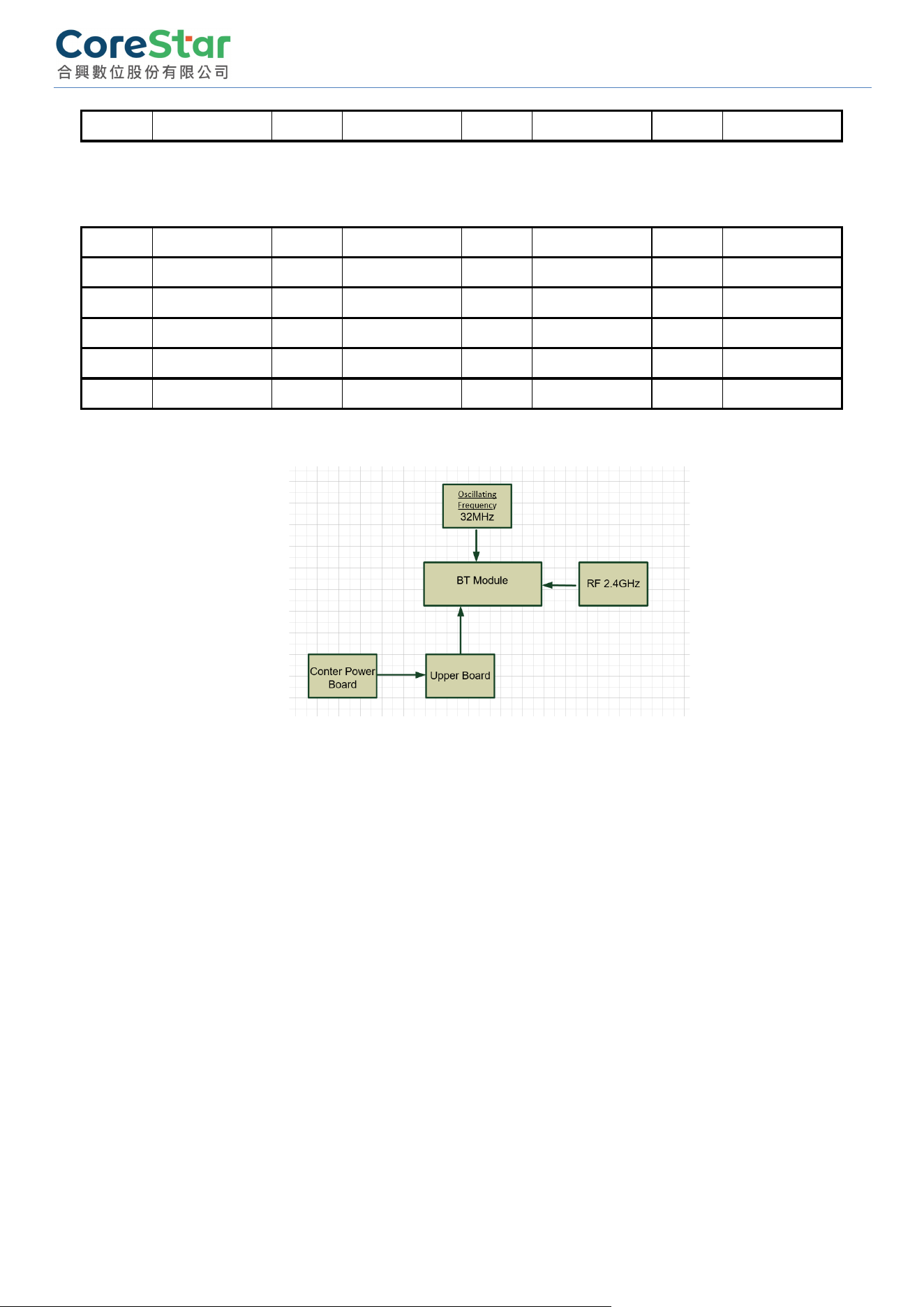

Operational description
2.3 The Conter Power Board provides power to the Upper Board, which supplies power to
the BT Module
2.4 Mobile phone open Fitness_Sole APP search BT Module device use。
3. Operating frequency : 2402 ~ 2480MHz
4. 調變: GFSK
5. PCB antenna / 0dbi
标签-FCC PART 15C
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
产品使用说明书-FCC PART 15C
Caution: The user is cautioned that changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2) this device must accept any interference received,
page 6 / 7
including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
transmitter must not be co-located or operating in conjunction with any other antenna or transmitter
This equipment should be installed and operated with a minimum distance of 20cm between the radiator
and your body.
The module in this product is labeled with its own FCC ID. The FCC ID is not visible when the module is
installed inside another device. Therefore, the outside of the device into which the module is installed must
also display a label referring to the module. The final end device must be labeled in a visible area with the
following
“Contains FCC ID: 2ANCG-CS63076”
产品使用说明书-IC
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and
Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two
conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired operation of
the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de
licence. L’exploitation est autorisée aux deux conditions suivantes :
(1) l’appareil ne doit pas produire de brouillage, et
page 7 / 7
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d’en compromettre le fonctionnement.
IC Radiation Exposure Statement:
This equipment complies with Canada radiation exposure limits set forth for an uncontrolled environment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Déclaration d’IC sur l’exposition aux radiations:
Cet équipement est conforme aux limites d’exposition aux radiations définies par le Canada pour des
environnements non contrôlés.
Cet émetteur ne doit pas être installé au même endroit ni utilisé avec une autre antenne ou un autre é
metteur.
This equipment should be installed and operated with a minimum distance of 20cm between the radiator
and your body.
Cet équipement doit être installé et utilisé à une distance minimum de 20 cm entre l’antenne et votre
corps.
The module for the host product shall be labeled with its own IC. The IC is not visible when the module is
installed inside another device. Therefore, the outside of the device into which the module is installed must
also display a label referring to the module. The final end device must be labeled in a visible area with the
following
“Contains IC: 22282-CS63076”
