User Manual
Website
Address
Products:
WSE6670BA
WSE6670SA
1
1
1
2
1
2
13
1
4
16
17
4
5
6
7
8
10
15
Contents
Important safety instructions
Installing your new refrigerator
Refrigerator operation

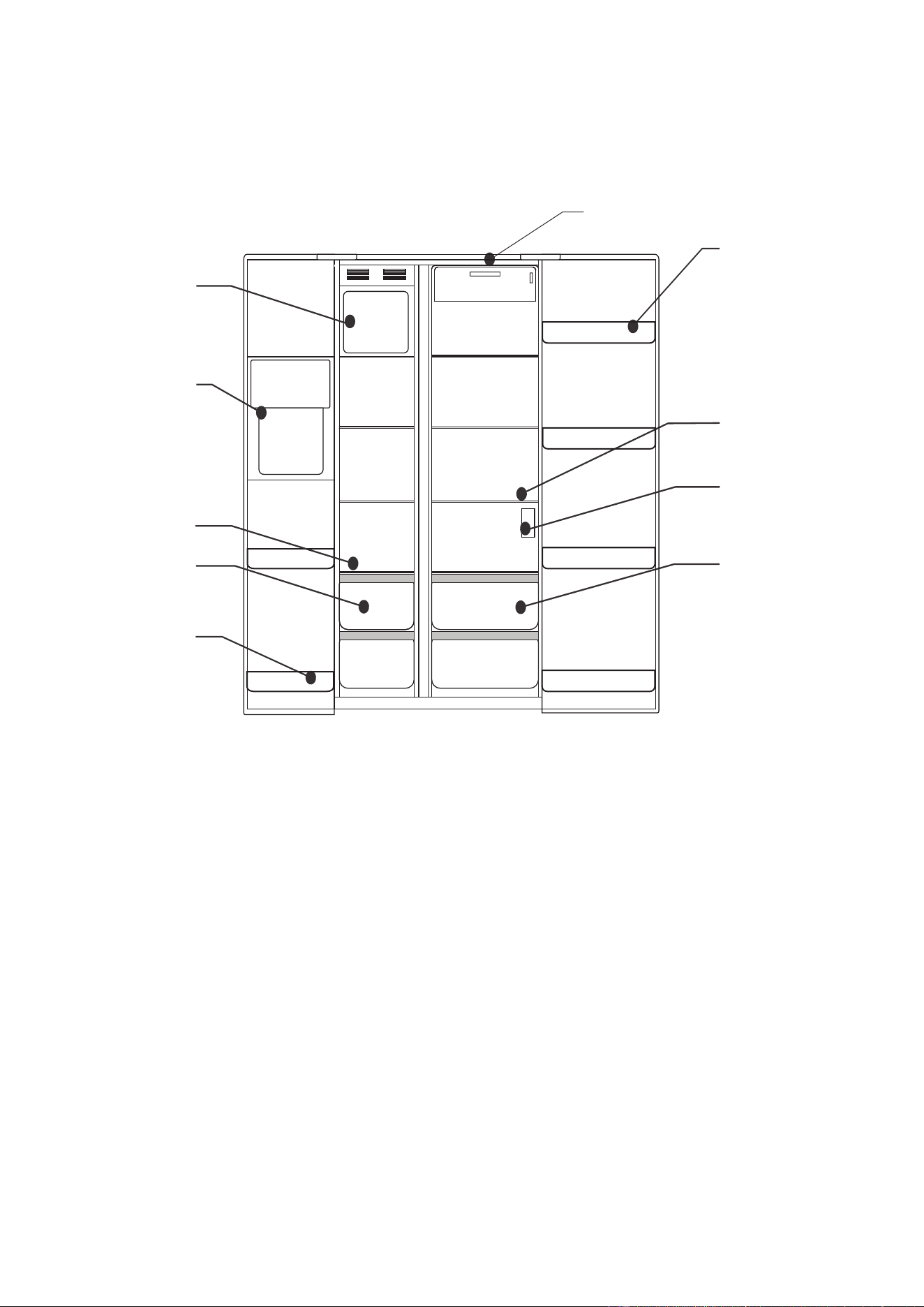

Refrigerator features

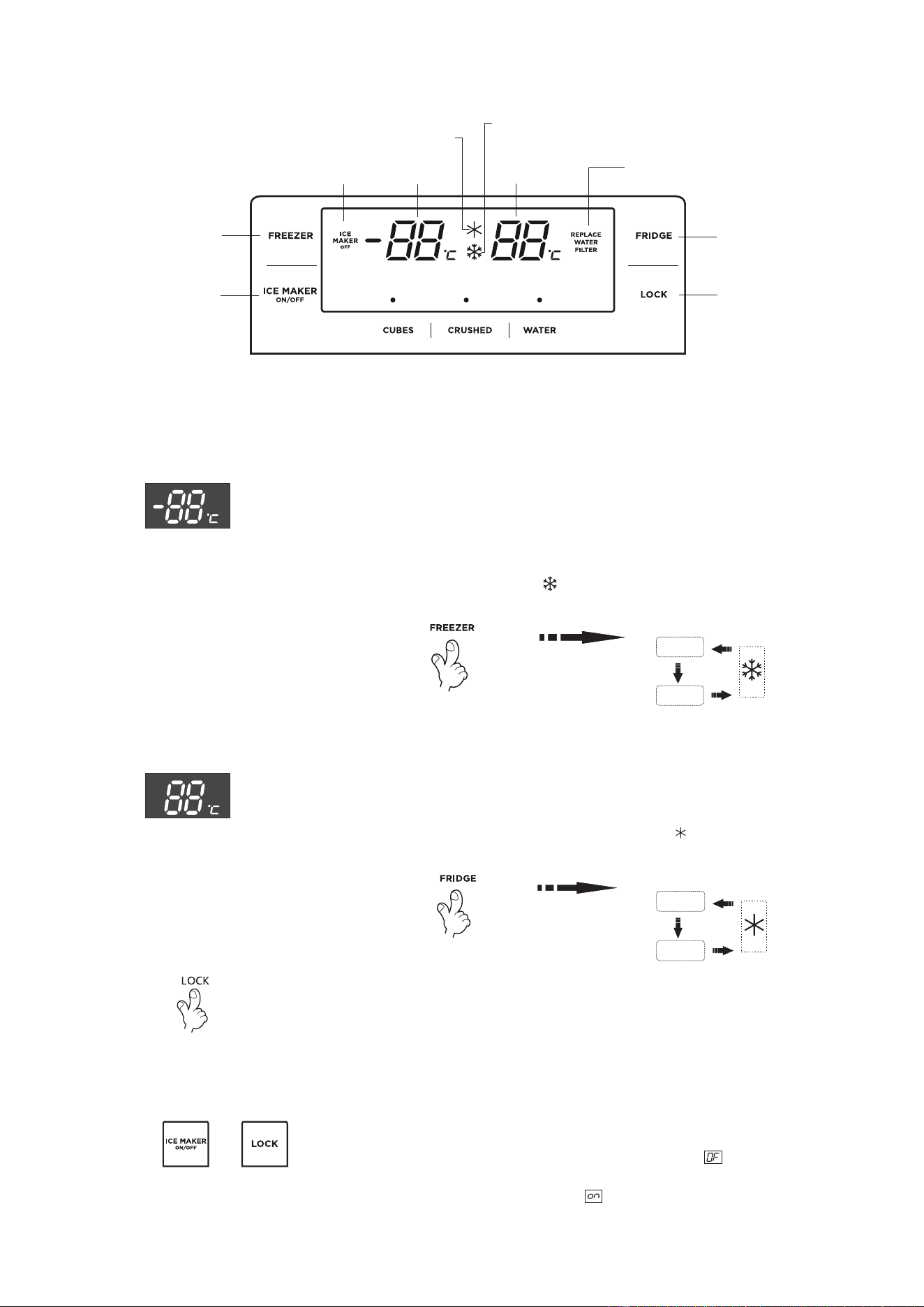

Using the control panel

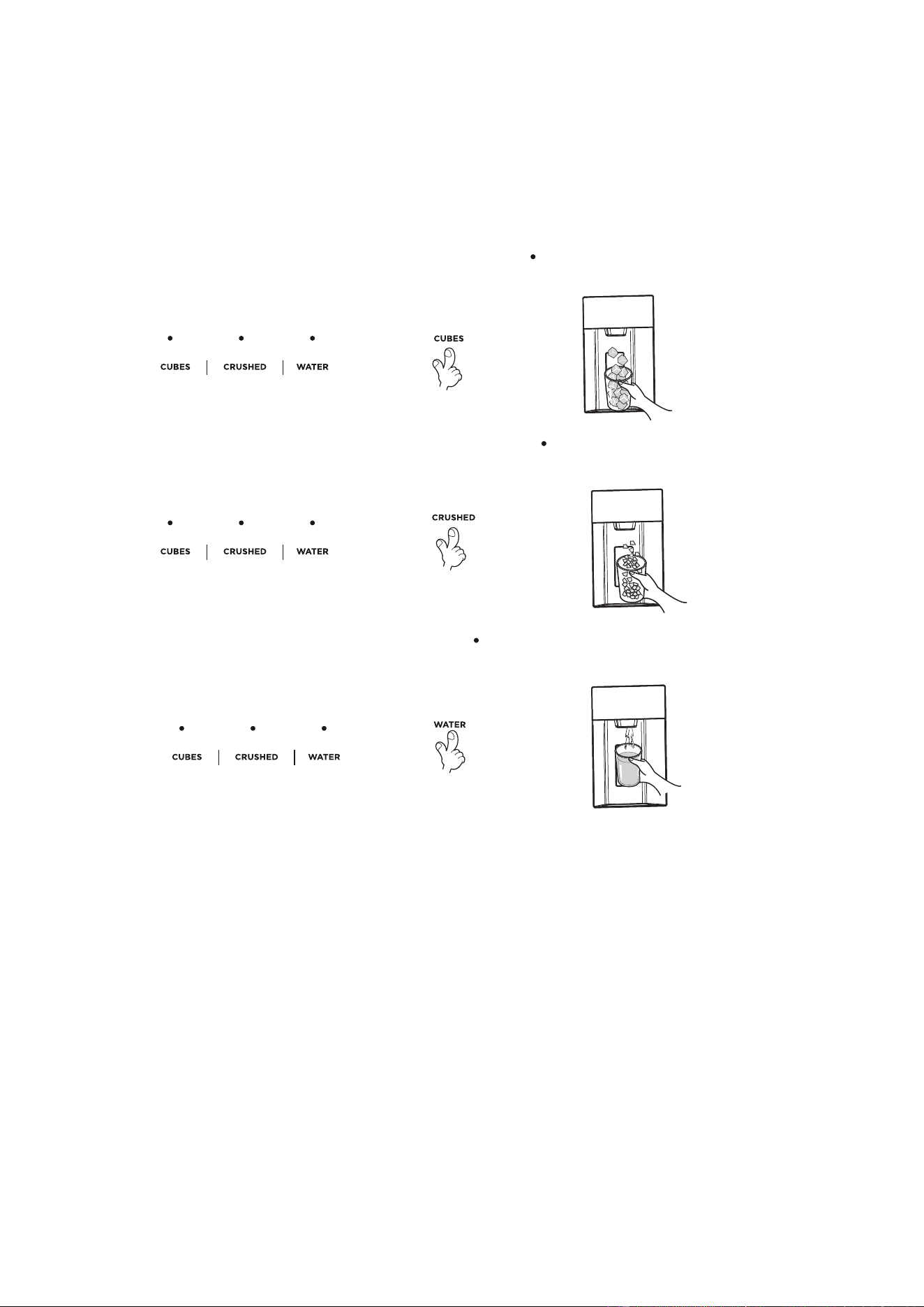

Dispenser and Feature

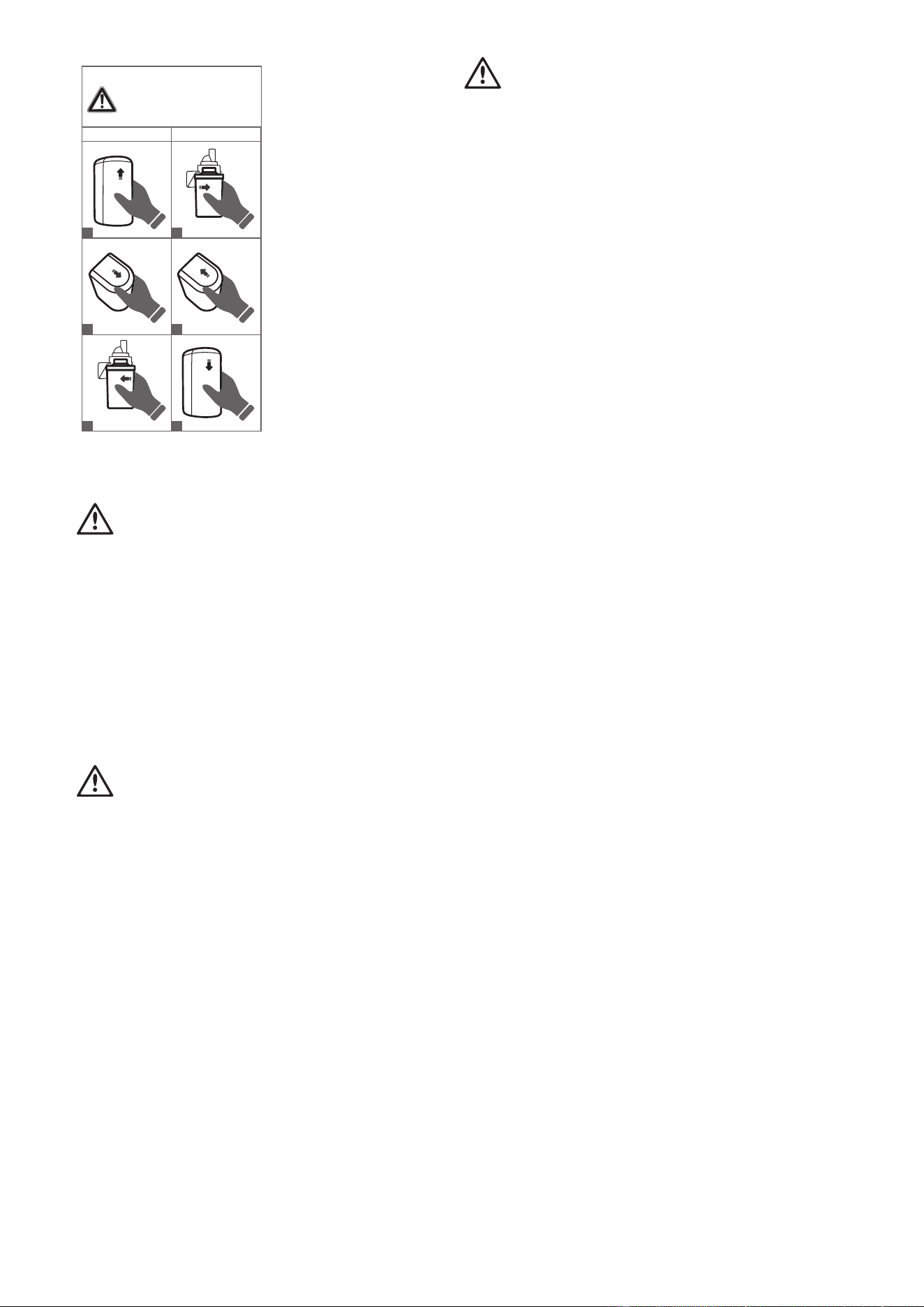

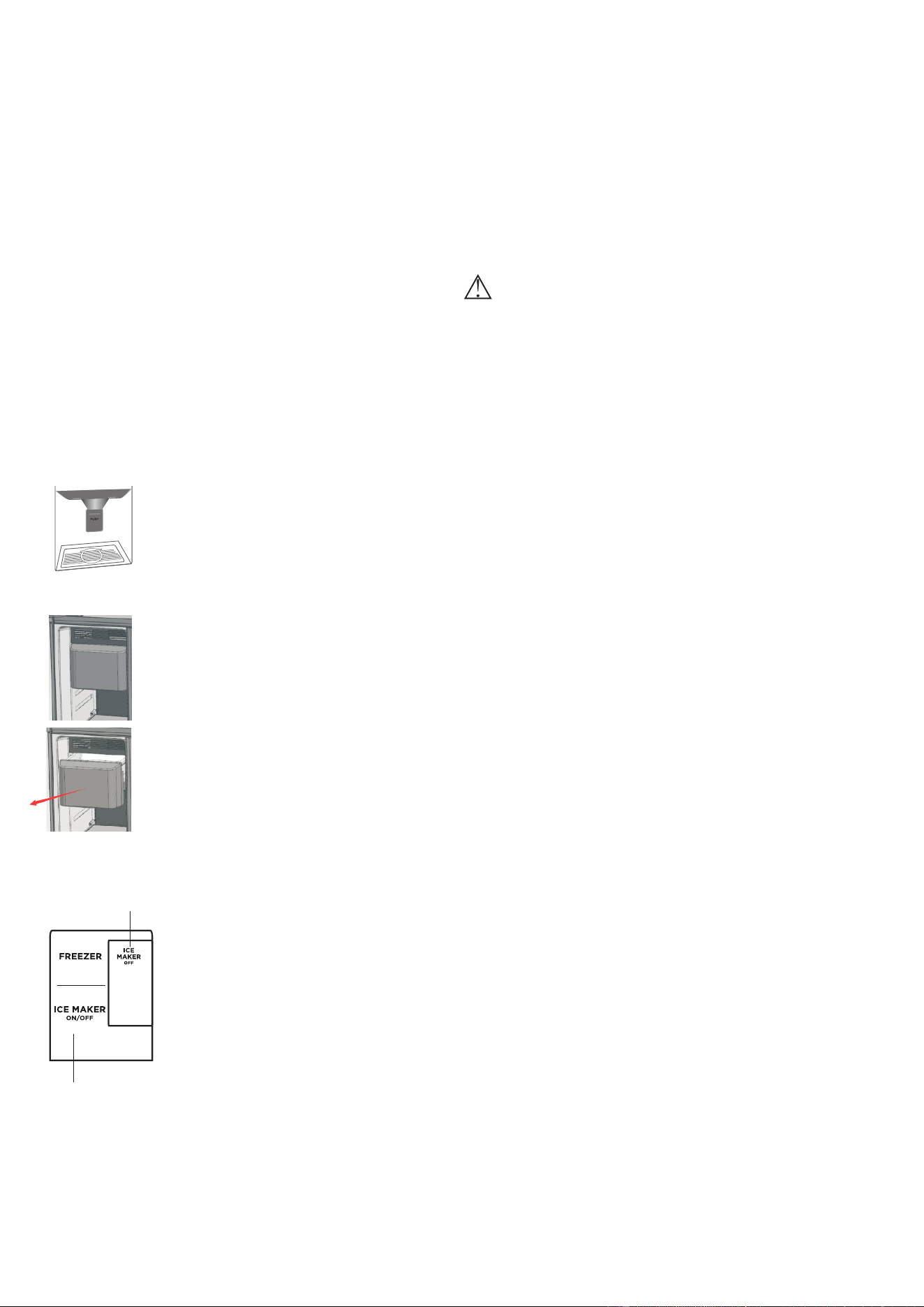

Ice maker and water filter
Cleaning your refrigerator
Energy consumption

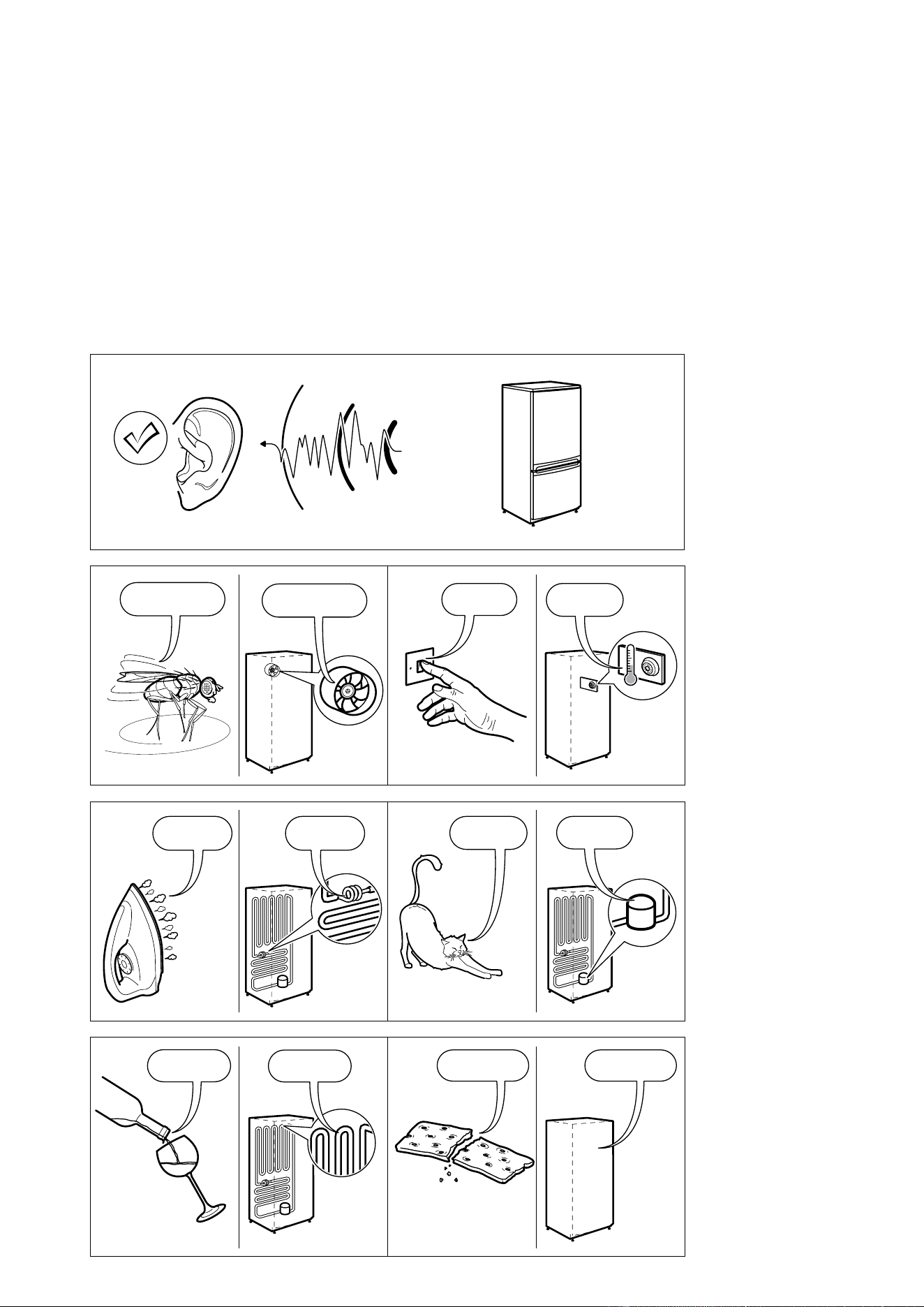

Noises
Guidelines for water pipe installation and removal of ice maker

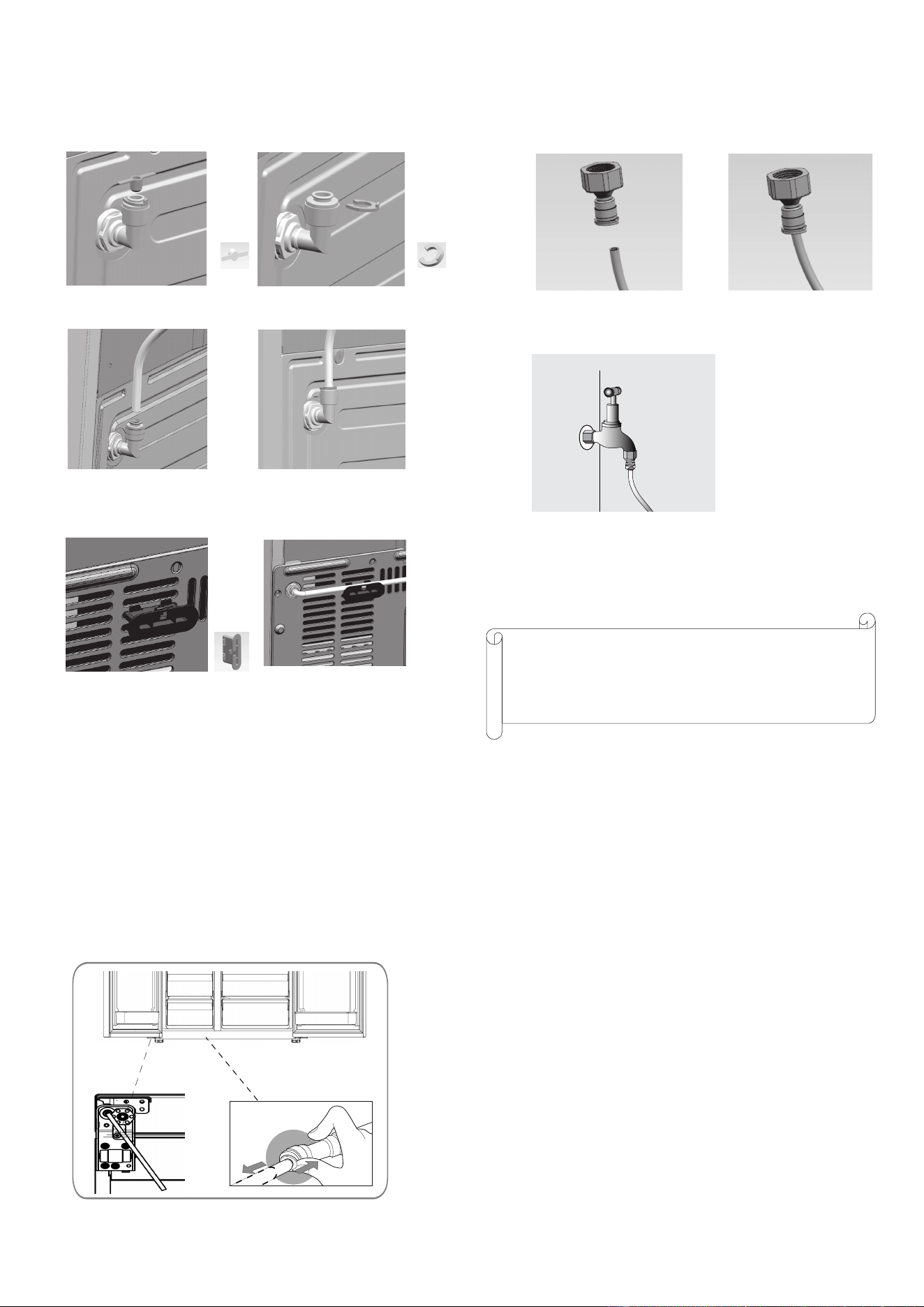

Water supply connection
Food storage guide
Troubleshooting/Water injection time adjustment
2
Contents
..................................................................................................................................................................................
..............................................................................................................................................................................
...............................................................................................................................................................................................
...................................................................................................................................................................................................
..............................................................................................................................................................................................
...............................................................................................................................................................................................
........................................................................................................................................................................................
........................................................................................................................................................................................
...................................................................................................................................................................................................
.................................................................................................................................................................................................................................
..........................................................................................................
...........................................................................................................................................................................................
......................................................................................................................................................................................................
.........................................................................................................................................
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
HAPPY TO HELP
Thank you for choosing Westinghouse. We have designed
this product to make your life simpler and deliver
impeccable performance for many years. Please spend a
few minutes reading this document to get the best from
your new Westinghouse appliance.
Visit our website to:
Get usage advice or service information:
www.westinghouse.com.au
Register your product for better service:
register.westinghouse.com.au
Contents
3
Buy Accessories, Consumables and Original
spare parts for your appliance:
shop.westinghouse.com.au
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service
Centre, ensure that you have the following
data available: Model, PNC, Serial Number.
The information can be found on the rating
plate which is located inside the product.
Warning / Caution-Safety information.
General information and tips.
Environmental information.
Westinghouse is committed to continuous
improvemnet，therefore product and user
manual are subject to change without notice.
warning
This symbol indicates information concerning your
personal safety
caution
This symbol indicates information on how to avoid damaging
the appliance
tips and information
This symbol indicates tips and information about
use of the appliance
environmental tip
This symbol indicates tips and information about economical
and ecological use of the appliance
Meanings of symbols used in this manual are shown below:
This symbol indicates never to do this
This symbol indicates always do this
warning
• If pressurised aerosol containers bear the
word ‘flammable’ and/or a small flame
symbol, do not store them inside any
refrigerator or freezer. If you do so, you
may cause an explosion.
• This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person
responsible for their safety.
• Children should be supervised to ensure that they
do not play with the appliance.
• When you dispose of your old refrigerators and
freezers, remove any doors. Children can suffocate if
they get trapped inside.
• This appliance contains insulation formed with
flammable blowing gases. A
void safety hazards by
carefully disposing of this appliance.
Important safety instructions
Please read the user manual carefully and store in a handy
place for later reference.
The symbols you will see in this booklet have these meanings:
Warning: Risk of fire / flammable materials
4 Important safety instructions
This appliance is intended to be used in household and
similar applications such as
–
staff kitchen areas in shops, offices and other working
environments;
–
farm houses and by clients in hotels, motels and other
residential type environments;
– bed and breakfast type environments;
– catering and similar non-retail applications.
warning
The
appliance
must
be
plugged
into
its
own
dedicated 220-240V, 50Hz AC electrical outlet.
Ensure
that
the electric
outlet
is
properly earthed to
ground. Consult
a
qualified
electrician
if
you are
unsure.
The
plug
must
be
accessible
when
the
appliance is
in position.
Do
not
use
an extension cord
or
adapter plug.
If
the power cord is damaged, it must be replaced
by
the manufacturer, its service
agent
or
similarly
qualified
persons to avoid a hazard.
Unplug
the
appliance before
cleaning
and before
changing
the light
bulb
to avoid
electric shock.
Never unplug the appliance by pulling on the
power cord. Always grip the plug fi rmly, and
pull
straight out of the receptacle to prevent damaging
the power cord.
For optimal performance，it is recommended to
install the product where the ambient temperature
is between 10 to 43℃.
Put
the
appliance in
a
dry
place,
avoiding areas of
high moisture
or
humidity.
Don’t
put
the
appliance in frosty
or
unprotected
areas, for example in
a
garage or on
a
verandah.
Don’t
put
the
appliance in
direct
sunlight.
Don’t put the appliance near stoves,
fires
or
heaters.
Do not use mechanical devices or other means to
accelerate the defrosting process, other than those
recommended by the manufacturer.
Do
not
damage
the refrigerant circuit.
Do
not
use electrical
appliances
inside
the
food storage
compartments
of
the
appliance,
unless
they are of
the
type recommended by the
manufacturer.
Do
not
store explosive substances
such
as aerosol
cans
with
a
flammable
propellant
in
this appliance.
Always use the new hose set supplied with the
appliance, never use old hose sets.
When positioning the appliance, ensure the supply
cord is not trapped or damaged.
Do not locate multiple portable socket-outlets or
portable power supplies at the rear of the
appliance.
Installing your refrigerator
The appliance should arrive with the stability foot wound fully
up so it will not interfere with the operation of the rollers (see
diagram in Step 3 below).
caution
The rollers are designed for forward or backward
movement only. They are not castors. Moving the
refrigerator sideways may damage your floor and
the rollers.

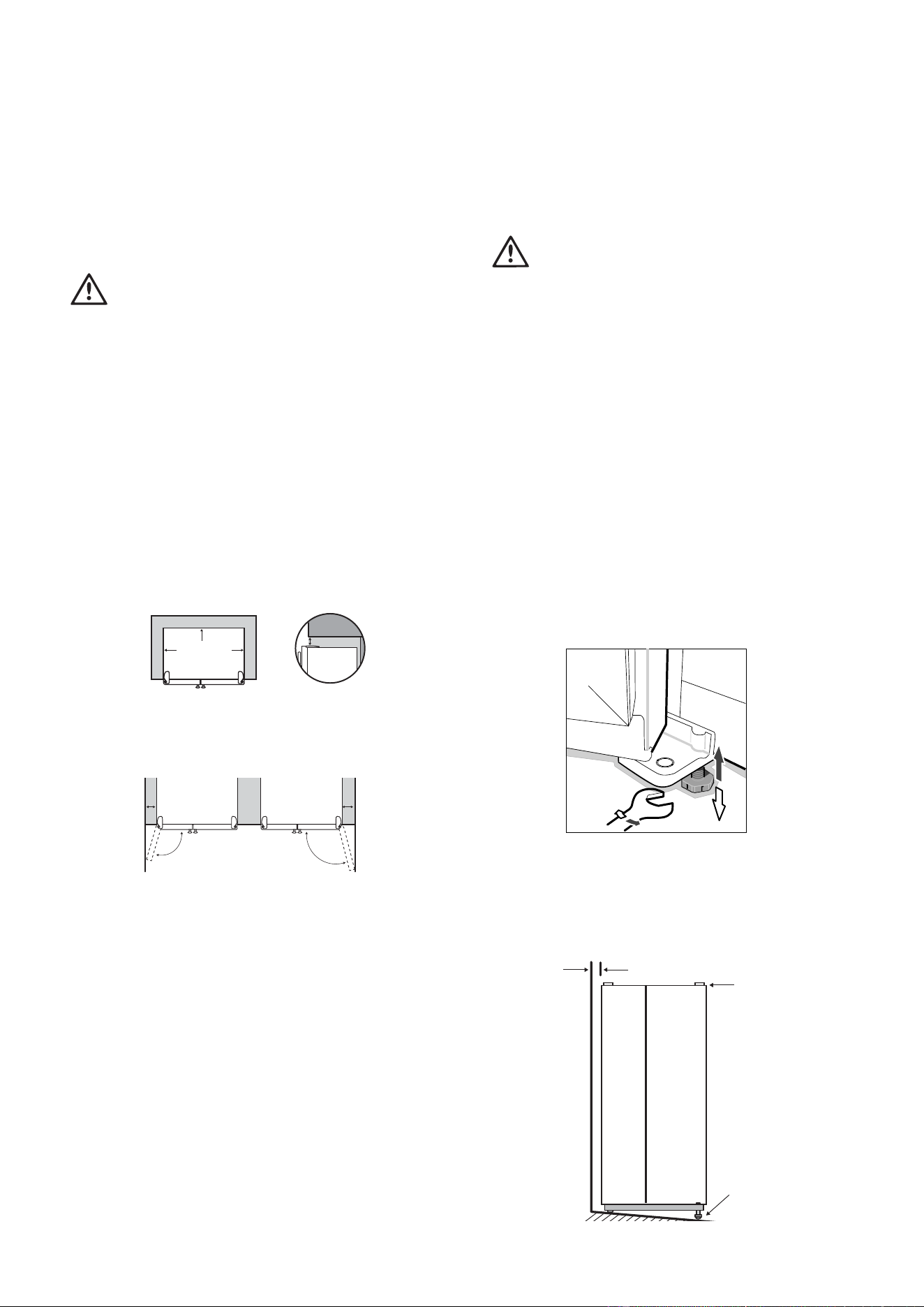

1. Roll the refrigerator into its final position.
2. The top of the refrigerator should be tilted back by
approximately 20mm. This will allow the doors to
self-close providing a consistent door seal and stability
when the doors are open.
3. When you have the appliance in its final position,
it needs to be stabilized Wind the stability foot down to
the floor until it just makes contact with the floor.
Whenever you need to move the appliance, be sure to
wind the foot back up so that the appliance can roll
freely and be sure to reset it when reinstalling.
( The wrench opening size 30mm )
4. Allow a 349 or 427mm clearance on the hinge side of the
doors, if you place the refrigerator next to the wall. This
will make cleaning easier.
5. Make sure that cupboards or fixtures do not stick out
further than the refrigerator cabinet.
Note: Refrigerator doors on all models are designed to
sit proud of cabinetry (not flush).
Aligned to
cupboards
ie. even gap
Recommended
airspace
CABINET
DOORS
Freezer
Door
Refrigerator
Door
349mm
427mm
4. Check the alignment of the refrigerator to the surrounding
cupboards. The top of the refrigerator
should be on the
same level
from side to side (see diagram below).
If you need to
adjust the level, use the adjustable rollers
as discussed in
Step 3.
Adjust front rollers
for uneveness of
floor eg. wind this
foot down or up
T
Top of refrigerator on
the same levelie.
horizontal
Installing your new refrigerator
5
Installing your new refrigerator
Clearance
around your
refrigerator
Your Side by Side Refrigerator can be installed between
cupboards or
fixtures but you must consider the following
spaces around the cabinet:
1. Allow a minimum of 50mm clearance on both sides.
2. Allow 50mm clearance at the back of the refrigerator.
3. Allow 20mm clearance above the hinge covers.
50mm
50mm
50mm
20mm
• Have the stability foot in place (see diagram on page
4)
to prevent the appliance falling forward when a door
with heavy food load is opened.
When correctly installed, your appliance should:
• have adequate clearance to the back and sides
for air circulation (refer to page 4).
• be aligned to the surrounding cupboards.
• have doors that will self-close from a partially
open position.
warning
caution
5. If the refrigerator
rocks from
one
corner to the
opposite rear corner, this means that the
floor
is
uneven;
you will need to
put
some packing under
one
of the
rear
rollers.
You
could use thin pieces of solid
material,
such
as thin board, vinyl
floor
tiles or
laminate. Place
the packing so that
it
will sit
under
one
of the rear
rollers
when
the refrigerator
is
rolled into
position.
6. You may
now need
to
fine-tune
the installation by
repeating Steps 3, 4
and
5.
7. Whenever you need to move the refrigerator, be sure
to
wind the foot
back
up
so
that the refrigerator can
roll freely.
8.
Clean your refrigerator thoroughly following the
i n s t r u c t i o n s o n p a g e 9 a n d w ip e o ff a n y d u st
that was
accumulated during shipping.
9. Leave standing in stable upright position for 2-3 hours
prior to turn “on”.
10. Plug the refrigerator into the power point. Don’t use
a double adaptor. If you need to roll the refrigerator
out to get at the power point, remember to raise the
stability foot before you do so.
11. We recommend that you let your refrigerator run for two
to three hours before you put any food in it
.
It
will
allow you to check that it is operating properly.
Your new refrigerator has been supplied with protective
plastic film
on the doors and cabinet, you can choose to
remove this film
as needed.
Congratulations! You have successfully installed your
new refrigerator.
caution
Sufficient ventilation is crucial for best performance of
the refrigerator, please do not block it.
Refrigerator
Operation
The refrigerator
transfers
heat
from
food placed inside the
appliance
to
the
outside
air.
This
process
makes
the rear,
the sides
and
the
area
adjacent
to
the
doors, particularly
at
initial start
up,
feel
warm
to
hot,
this
is
normal.
There is a cooling coil located behind the rear wall of the
cabinet. This coil cools and removes moisture from the air.
A fan then circulates cold, dry air throughout the cabinet.
Avoid placing
food
against
air
outlets
as
this
will
affect
air
circulation.
A
light
frosting
may
occasionally
occur
on
the
cold
interior of the freezer when the door is opened frequently.
This
is normal
and
will
disappear
after
a
few days in most
climates.
6 Refrigerator operation
Make sure you fully close the freezer door after you load or
remove food. If the door is left partly open, a heavy frost will
coat the inside of the freezer. If a frost develops, remove it.
Ensure to properly close the door, so the frost will not reoccur.
Your new energy
efficient
appliance uses a high-speed
compressor
and
other
energy
efficient
components that
may
produce
different
noises
to
your old
appliance.
These sounds are normal and includes:
• compressor running noise.
• air movement noise from the small fan motor.
• occasional gurgling, similar to water boiling.
• a popping noise, heard during automatic defrosting.
•
a clicking noise, just prior to the compressor starting up.
These noises are normal
and will not cause the unit to alarm.
Temperature
Control
The factory default
settings;
Refrigerator = 4°c
Freezer
=
-18°c
If you want to change
the tempe
rature, follow the
instructions
in
the section
about the user interface for your
model.
Ensure that you make
only
small
adjustments
and
wait 24 hou
rs to see i
f
it’s correct to your
liking.
Note:When you set a temperature, you set an average
temperature for the whole refrigerator cabinet.
Checking
the softness of
ice cream
i
s a good indication
that your freezer is the right period,
while checking
the tempe
rature of water kept
in
the
refrige
rator
is a
good way of
checking
the tempe
rature of
the food
compartment.
Tempe
rature
inside each
compartment
may vary,
depending
on h
ow much
food
you
store and where
you
place i
t.
Refrigerator Light
Dispenser
Water filter
Ice storage
box
Refrigerator
shelves
Door Bins
Crisper Bins
Refrigerator features
Freezer Shelf
Freezer
Drawers
Freezer Bins
Refrigerator features 7
Function setting of the LED display
Note: the display will turn off after 20 seconds of inactivity, while the display will wake up if the button is touched again.
Using the control panel
Set Temperature
-15 ℃
-23 ℃
-15 ~ -16 -18℃ ~ -19℃ ~ -20℃ ~ -21℃ ~ -22
~ -23℃ ~ -23℃ + (Super freezer) ~ -15℃
℃ ℃ ~ -17℃ ~ ℃
Set Temperature
8 ℃
2 ℃
8℃ ~ 7℃ ~ 6℃ ~ 5℃ ~ 4℃ ~ 3℃ ~ 2℃ ~ 2℃+ (Super fridge) ~ 8℃
+
Auxiliary heating control switch *
8 Using the control panel
When whether is dry, for better energy, customer can press "Lock + Ice MAKER
ON/OFF "and hold for 5 seconds to close auxiliary hold for 5 seconds to close
auxiliary heating wire, when freezer temp dispaly shows " "; Press "Lock + Ice
MAKER ON/OFF " again and hold for 5 seconds to activate auxiliary heating
wire, when freezer temp dispaly shows " ".
The
default
temperature
of
the
freezer
is
-18°C.To
change
the
temperature press the FREEZER button to cycle through the set temperatures.
This
product
has
button
lock
funtion.When
lock
the
control
panel,the
other
buttons are
inoperable,if touch
other
buttons, REFRIGERATOR
and FREEZER
icon
will flash.
To exit lock mode,press and hold the lock button for 3s.
CAUTION:
Do not put fresh foods directly on the frozen foods.
The
default
temperature of
the
fridge is
4°C.To change the
temperature
press
the
REFRIGERATOR
button to cycle through the set temperatures.
FRZ. TEMP
icon
REF. TEMP
icon
REF.temperature
adjustment button
Lock/Unlock button
FRZ.temperature
adjustment button
Super fridge icon
Super freezer icon
Reminder to change
WATER FILTER icon
Ice maker
OFF icon
Ice maker
on/off button
Open door alarm
When the refrigerator door is open for above 1 min, the buzzer will alarm to
remind users to close the door. After the door is closed, the alarm sound will
stop automatically.
Using the control panel 9
Touch
“CUBES ICE” button;
Ice and water dispenser
if
indicator comes on, press and hold ice
discharge button with the glass cup, and ice cubes will come out.
indicator comes on, press and hold
ice discharge button with the glass cup, and crushed ice will come out.
Touch “WATER” button; if indicator comes on, press and hold ice
discharge button with the glass cup, and cold water will come out.
Touch “
CRUSHED ICE ”
button; if
Ice and water dispenser
WARNING
Features of your refrigerator
This section tells you how to make the most of the many
useful features and how to clean them.

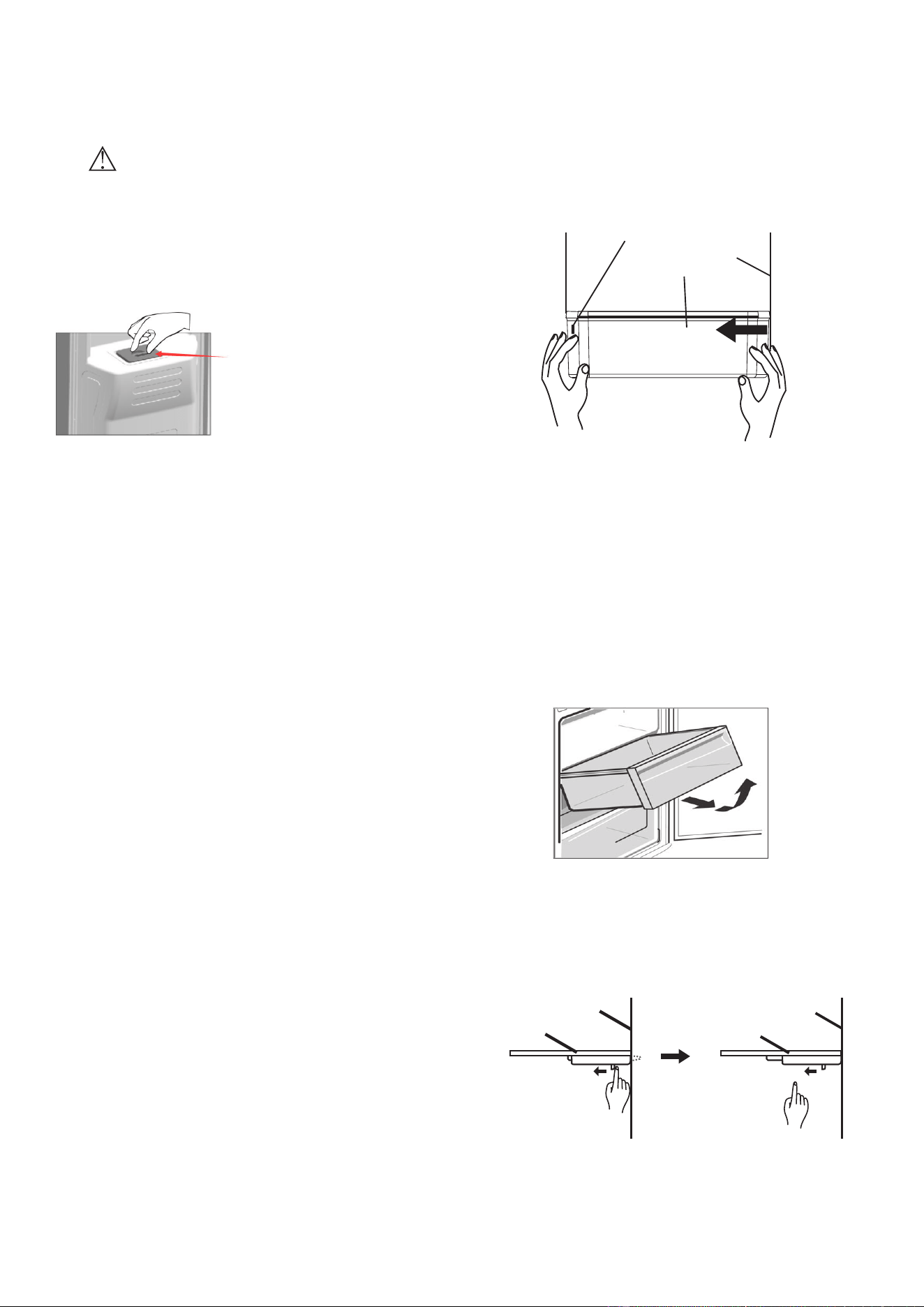

Door storage bins
Gl
ass shelve
liner of cabinet
Glass shelve
liner of cabinet
Here is a boss on the liner
liner of door bottle
shelf
LED lighting
Your refrigerator is fitted with long life LED lighting.
In the unlikely event the LED lights should fail, then the LED
lights should be serviced by the manufacturer, its service
agent or similarly qualifi ed technician. Refer to the
warranty page for contact details.
Do not take ice cubes with fragile containers to avoid
injuries caused by breakage.
Do not touch the ice outlet with fingers to prevent crushed
Glass
Shelves
When removing the glass shelf, please press the movable
pin under the shelf with both hands and push inward at the
same time. Then the glass shelf will be removed.
Ensure locking pins on both sides securely lock and
engage into the liner slot before using the glass shelf.
Disassembly:
Hold
both sides of
the
door bin with
both
hands.
Push
it
from
the
side
until dislodge from lugs
and
push
it
inward as
the
direction of the arrow.
When
pushing
hard,please note that the buckle
on the edge of
bottle shelf
is
separated
from
the
groove
of
the
liner.
Then
door bin
can be removed.
Installation
:Hold
both
sides
of
the
door bin
with
both
hands. Install the door bin to one side of lug firstly, then
push other side inward slightly until both lugs lock the
Door Bin in place.
Crisper
Bin
You
can
use
the
crisper
bin
to
store
vegetables,
fruit
or smallgoods. To remove, pull it forward then up and
out.
Thermal insulation cover
10 Dispenser and Feature
When a new refrigerator is started, attention shall be paid
to the following:
When refrigerator is started, please take off the thermal
insulation cover; while no use for a long time,please make
sure the thermal insulation cover is refitted .
When
taking
water
from
a
new
refrigerator
for
the
first
time,
press and hold the ice-water
button, take the first 1~2
L
of
water
and
discard,
and
then
take
water
for
drinking;
When using the ice maker for the first time, the first box of
ice is not suitable for eating from the point of sanitation.
Other precautions:
Do not use too deep, narrow or soft cups, and put the cup
close to the ice outlet to prevent ice cubes from jumping
on the ground; keep a proper distance between the cup
and ice outlet; if the cup is too close to the ice outlet, it
may obstruct ice discharge; after the cup is full, release the
ice discharge button to prevent ice cubes from spilling on
the ground.
When taking ice or water, please keep the cup at the ice
outlet for 2s ~ 3s after releasing the ice discharge button,
because there may be ice or water coming out at the
moment. After confirming there is no ice or water
coming out, just take away the cup.
If using crushed ice function only, the ice outlet may be
blocked by crushed ice, and remove residual crushed ice;
when selecting ice cube after crushed ice, there may be a
little crushed ice.
In case
of power-off
for
a
long
time,
ice
in the
ice
storage
box
may
melt into water
which then flows
into
the
freezing
chamber;
in
this case, take out the ice
storage
box and discard
ice, and wipe away water in the
ice
storage box and freezing chamber.
Switch off the ice maker
It is suggested to remove the ice maker
stoerage box, clean, and then install
when it is used for the first time or for a
long time. Please power off the
refrigerator before removal.
Take out the ice storage box , lift
forcibly with both hands, and then pull it
out;Clean, dry and then install.
When installing the ice storage box ,
align the bottom with the rails at both
sides, put into the rails, and then push;
Ice maker and water filter 11
Ice maker
storage box
install and uninstall
CAUTION:
Before switching off the ice maker, you must disconnect the
water system of refrigerator several hours in advance; after
switching off the ice maker, empty and clean the ice storage
box, and then put it back.
When the ice maker function is enabled, if there is ice in the
ice
storage box still, ice may fall during self-check of the
refrigerator.
Water filter
CAUTION
The water filter should not be used on water that is micro
biologically unsafe or with water of unknown quality. The
service life of the filter may be reduced in water supplies that
contain an excess of particles or other impurities. Reduced
flow rate is an indication that a new filter is required. Failure
to replace the filter when required can affect the function of
the ice maker. Service calls caused by a failure to replace
the filter are not covered by warranty.
Do not use the ice and water dispenser system in regions
where the water quality is poor or where the water pollution
is not confirmed.
Replacement water filters can be purchased from the
Westinghouse After-Sales Service Centre or online on
shop.westinghouse.com.au
When the 'REPLACE WATER FILTER' indicator is illuminated,
the water filter needs to be replaced. Change the water filter
every 6 months. After replacing the water filter, press and
hold the button 'WATER' for 5 seconds. The 'REPLACE
WATER FILTER' icon will then disappear.
If the refrigerator is idle for a long time or drinking water
has abnormal taste, clean the water system fully, and just
take water from the ice and water dispenser for several
minutes. If there is bad odor or taste, the filter shall be
replaced.
Replace the filter
Before replacing the filter, you must disconnect the power
plug of refrigerator or turn off the main power switch, and
cut off the water source.
Unscrew and take down the filter according to the arrow
indication on the filter;Insert the new filter, and tighten;
After replacing the filter, take some water from the ice and
water dispenser to remove air from the water system;
Discard the old water filter follow local recycling rules.
Switch off the ice maker
-
If the ice maker function is not
needed
for a long time, please switch
off the ice
maker temporarily;
Hint:
This only disables the ice making
function; the remaining ice in the ice
storage box can be taken still, and
water system operates normally.
-
Press “ICE MAKER ON/OFF” button
for 3s
to switch off the ice maker,then
the ICE
MAKER ON/OFF icon is
lighted.
-
After the ice maker is turned off, the
ice/water icon on the control panel is
displayed
still, and “CUBES/
CRUSHED /WATER” button is
enabled, not affecting
ice/water
discharge.
Automatic ice maker
The ice maker and ice storage box are arranged at the
upper part of freezing chamber. When using the ice
maker, please make sure that the ice maker switch is
turned on and the water system is connected, and the
ice maker will make ice automatically; when the ice
storage box is full of ice, the ice making process will
stop automatically.
The ice maker can make about
1.2 kg excludeing first 7
hours
ice every 24
hours.when the freezer temperature
is stabilized.
CAUTION:
When the ice maker is making ice cubes, you may
hear the beep from water valve, flowing sound of
water into ice maker, and falling sound of ice cubes.
The catch basin shall be cleared timely to prevent
water from spilling to destroy the floor.
Ice maker
on/off button
Ice maker
OFF icon
Cleaning your refrigerator
Energy consumption
The following guide will help you reduce the running cost
of your new refrigerator. This will save you money and help
conserve our valuable energy resources.
1.
2.
3.
4.
5.
6.
7.
8.
warning
12 Cleaning your refrigerator/energy consumption
Turning off the refrigerator
If
you are leaving for a short holiday, there is
no
need
to
turn
o
ff
your refrigerator .
If
you are
going
on
a long holiday
and
want to
turn
the refrigerator
o
ff
,
follow the steps below.
1. Take
all
the
food out of the refrigerator and freezer
compartments.
2. Switch off
the refrigerator and remove the electric cord
from the power
point.
3. Clean
the inside.
4. Leave
the
doors
open.
This
prevents bacteria
from
growing
and
causing smells
in
the refrigerator.
Power failure
If there is a power
failure in your area, keep
the
door to the
freezer
closed. Most foods
in your freezer will stay frozen
for
24 hours.
Do
not
block
air vents. Doing so
may
cause
the
refrigerator to run longer and use more energy.
Do not set your freezer temperature too low. After 24
hours,
ice
cream should be
firm
but
able
to be scooped
out
with a spoon without bending the handle. If ice
cream is
firmer
than this (or too soft), adjust the freezer
temperature
controls
(see
‘Set Temperature’, page 7).
Ensure that the refrigerator doors seal properly as
you
close
them.
Before you
open
the refrigerator doors,
decide
what
you
want to
put
in
or take out.
This will minimize
the
time you
have
the
doors open.
It
is
best
to
have
the refrigerator
in
a place that
is
out of
direct
sunlight
and
away from heating appliances of any
kind. For
example, do
not
place
the refrigerator
next to a
cooker, stove or dishwasher.
Allow hot
foods to
cool
to
room
temperature
before you put them in your freezer.
Thaw
frozen
foods in
the refrigerator
section.
If
you keep
the
freezer compartment
filled
to
capacity,
your food mass will help
maintain
the
freezer temperature when you
open the
door.
Before cleaning: Turn appliance off
at the power point,
then remove power cord
from socket.
This will make sure
there is
no chance
of
getting
an electric shock.
Doors and exterior
You
should
only
clean the
doors
with
lukewarm
soapy water
and
a soft
cloth. Rinse
with
clean
water
and
then
wipe
the
surface
with
clean
water and
a soft
clean
cloth
to
remove
soap
residue.
caution
Do not use stainless steel cleaners, abrasive pads or
other cleaners as they are likely to scratch the surface.
Damage to this product after delivery is not covered
by your warranty.
Interior
You should
clean
the
appliance interior
regularly. It will be
easiest to clean when the food supply is low.
Wash the interior
with
a soft
cloth
and use an unscented mild soap with luke-
warm water. Thoroughly dry all surfaces and removable parts.
Avoid getting water on appliance controls. If you have taken
out any removable parts, replace them and switch the power
on
before
re-stocking
the
appliance
with
food.
Naturally,
you should keep the interior of
your appliance hygienic by
promptly
and
thoroughly wiping up any food spills.
Door
seals
Take care with Ensure to keep door seals clean. Sticky
food and drink can cause seals to stick to the cabinet and
tear when you open the door.
Wash seal with a mild detergent and warm water. Rinse
thoroughly and dry.
warning
Never use hot water, solvents, commercial kitchen cleaners,
aerosol cleaners, metal polishes, caustic or abrasive cleaners,
or scourers to clean this appliance,as they will damage it.
Many commercially available cleaning products and
detergents contain solvents that will damage your
refrigerator. When cleaning, use only a soft cloth with an
unscented mild soap and lukewarm water.
1
2
1
2
Unl ock
3
Lo ck
3
InstallUninstall
WARNING:
Use the appliance with water filter
supplied by Electrolux Home Products Pty
Ltd or its authorised service agent only.
Note: When ordering your replacement
filter, please reorder the same filter type
that is currently in your refrigerator.
BRRR
!
HISSS!
CLICK!
BLUBB!
CRACK!
SSSRR
R!
OK
CLICK!
CLICK!
SSSRRR!
SSSRRR!
BRRR!
BRRR!
HISSS!
HISSS!
BLUBB!
BLUBB!
CRACK!CRACK!
NOISES
Appliance noise
Your new refrigerator may make sounds that your old
one didn’t make. Because the sounds are new to you,
you might be concerned about them. Most of the new
sounds are normal. Hard surfaces, like the floor, walls
and cabinets, can make the sounds seem louder than
they actually are. The following describes the kinds of
sounds and what may be making them.”
NOISES 13
Block
Step 5) Install block
Step 6) Install PE soft tube
(Sketch map)
Step 7) Make sure the end of the
water piper insert into
connector.
Step 8) Make sure will not loosen
after insert.
Remarks:
1) Connected to water pipe to check if there is leakage after the
above steps finished;
2) The above materials are put in the poly bag for instruction;
3) Any questions of installation,please contact with after sale
service staff.
Step 1) Remove the dust cap
Dust cap
Security clamp
Step 2) Removethe security clamp
Step 3) Connect the PE soft tube
Step 4) Installthe security clamp
Guidelines for water pipe installation
and removal
of ice maker
Installation
Removal
Removing the left (freezer) door with water pipe connection Pull up the water feed tube while pressing the collet
down(Figure 1) as shown in the figure below.
NOTE: If a tube end is deformed or abraded, trim the part away. Disconnecting the tube under the door causes
about 0.13 gallons (0.5 liters) of water to fow out. Put a large container at the end of the tube to prevent water from
draining onto the floor.
Figure 1
14 Guidelines for water pipe installation and removal of ice maker
Step 9)
No tools shall be used，hand
tighten ONLY to avoid damage
or split the tap fitting is over
tightened.
Water supply connection 15
Water supply connection
WARNING: Connect to potable water supply only.
The water supply system must be installed and connected by a professional technician.
Connect the refrigerator with the cold water pipe:
Min pressure: 140KPa or 20 PSI; Max pressure: 690KPA or 100 PSI;
When using the function of ice maker, please make sure that the tap water pipe is connected normally and the
water valve is opened. Enough space shall be reserved for the faucet connecting water source.
After the refrigerator operates stably, the ice maker will make ice. Upon power-on for the first time, cold water is
available after 5 hours since the refrigerator operates normally, and ice cubes or crushed ice is available after 12
hours.
The new hose-sets supplied with the appliances must be used and old hose-sets should not be reused.
Never connect the appliance to a hot water supply.
Do not use with water that is microbiologically unsafe or with water of unknown quality without adequate
disinfection.
Automatic ice maker
The refrigerator has the function of automatic ice making, and users can take ice cube, crushed ice and cold
water through the door.
Food storage guide
Product Storage tipsCategory FreezerRefrigerator
Meat
1-2 Days Keep cold meat at the back of theSausages and mince 2-3 Months
refrigerator where it is coldest.
Plastic can cause meat to sweat if
stored in refrigerator for more than
a day.
Roast can take up to 48 hours to
defrost properly, transfer frozen roast
to the refrigerator 2 days before use.
4-6 Months3-4 DaysChops and steak
4-6 Months3-5 DaysCold meats
12 Months3-5 DaysRoasts
Poultry
If poultry takes on a smell or colour2 Months1-2 DaysChicken
you are unsure about it is best to
throw it out.
Whole eggs are not suitable for
freezing, slightly beaten eggs may
be frozen for four months.
3-5 DaysRoast Chicken 12 Months
6 WeeksEggs
Not Suitable
Seafood
2-3 Days Store in an airtight container or foil.Whole fish and fille 2 Months
Never freeze prawns in salty water
as this will dehydrate the flesh
1-2 DaysLobster and crabs 2 Months
2 Months1-2 DaysPrawns
Dairy
Milk
If dairy takes on a smell or colourNot SuitableUntil Expiry Date
and you are unsure about it, it is best
to throw it out.
Depending on the variety hard
cheese can last from 2 weeks to
2 months.
7-10 DaysYoghurt
Not Suitable
2 Weeks – 2 MonthsHard Cheeses
2 Months (Grated)
1-2 WeeksSoft Cheeses Not Suitable
12 MonthsButter 8 Weeks
Fruit&
Vegetables
Every fruit and vegetable has a different
shelf life. Some stay fresh for a couple of
days e.g beans, others can last for a
couple of months e.g. onions.
8-12 Months
When freezing
chop and blanch
in small portions.
Keep vegetables in the crisper and
away from the air vents to avoid
freezing.
Don’t wash fruit and vegetables
before storing them in the
refrigerator as this can make them
susceptible to rotting.
Left overs
Store in sealed container.3-4 Days 2-6 MonthsHomemade meals
Freeze meals in small portion sizes to
limit wastage.
TIPS & INFORMATION
IMPORTANT
Please note, use this information as a guide only,
actual storage times will vary depending on how
you use your refrigerator, climatic conditions and the
freshness of the food.
16 Food storage guide
Troubleshooting
If you think something may be wrong with your refrigerator, you can carry out some easy checks before calling
for service. You may locate the problem, sparing yourself from inconvenience and saving time and money.
SolutionProblem
When your appliance is
not operating
• Make sure that the power cord is plugged into the power outlet properly and that the outlet
is switched ‘ON’.
• Try running another appliance from the power outlet. If no power is coming from the outlet
you may have blown a fuse or tripped a circuit of your household power supply.
• Try adjusting the temperature control to a slightly “colder” position.
• It is normal for the freezer fan NOT to operate during the automatic defrost cycle, or for a short time after the
appliance is switched on.
When there
is refrigerator/
freezer noise
Modern refrigerators/freezers with increased storage capacity use high speed compressors. These can provide a
seemingly high level of sound which is quite normal. Normal operational sounds include:
• Occasional gurgling, similar to water boiling.
• Air f ow noise (air circulates because of a small fan).
• A popping noise heard during automatic defrost.
Other strange sounds may mean that you need to check and take action. For example, noises may mean that:
• The cabinet is not level.
• The floor is uneven or weak.
• Bottles are badly placed and rattling.
• There are vibrations from an object on top of or behind or beside the refrigerator.
• The back of the refrigerator cabinet is touching the wall.
Remember it is quite normal for noise to seem louder when the refrigerator starts operating, or during quieter
periods such as night time.
If there are
odours inside
the appliance
• The interior may need cleaning.
• Some food produce odours.
• Some containers and wrapping can cause odours.
• Ask yourself if the odour started about the same time you started storing something unusual.
When the motor seems
to run more than
expected
Your new appliance provides you with large capacities in both the refrigerator section and the
separate freezer. It is normal for the motor to operate frequently. However, to keep operation to
a minimum, check the following:
• Are doors kept open too long or too often?
• Are controls set too cold? refer to “Using the control panel” for how to adjust.
• Have large amounts of warm food just recently been stored? Summer, festive seasons and holidays usually
mean a lot more work for your appliance.
• If the day is hot or the room is very warm, the appliance will need to run more than normal.
• The appliance will run more than normal just after you install it or when it has been turned off for a long time.
If the temperature in
the refrigerator is too
cold
• Refer to “Using the control panel” for how to adjust.
• Increase the temperature to avoid high energy consumption.
If heavy frosting occurs
in the freezer
Make sure you fully close the freezer and fridge doors. If the doors are left partly open a heavy frost will coat
the inside of the freezer. If a frost develops, remove it. Make sure properly close the doors and
the frost will not
reoccur.
If water drips
on the floor
The defrost water tray, (located at the back of the cabinet), may not be properly positioned, or the drain tube
may not be properly positioned to direct water into this tray. You may need to pull the refrigerator away from the
wall to check the tray and tube.
Freezer Door opens
after closing fridge
door
It is normal for the freezer door to momentarily open and re-close when the food compartment door is closed. If
the freezer door stays open, it indicates that the refrigerator cabinet needs to be tilted backwards a little further.
If you call a service person to solve this problem, you will be charged for the cost of a service call, as this is not a
warranty fault.
When temperature is
hot/warm on the
outside and rear side
of the Fridge
In normal operation, the fridge transfers heat from inside to outside of the cabinet. It is normal for the side and
rear of the fridge to feel warm/hot while operating. This will be more noticeable during start up and hot ambient
conditions.
Water injection time adjustment
If ice cube is too small, please turn up water injection time;
If ice cube is bridged together, please turn down water injection time.
The default time is 5 seconds, but if another time is set, the power is switched back on after the power is off, the water
injection time is resumed to previous saved water injection time.
Long press the "Crushed Ice"button 5S to open the water injection time adjustment, corresponding to the
flashing of the display the current set value, click the "Crushed Ice"button to adjust time to 0.5S accumulation;
Adjustment range: (0-10s) The corresponding value is (00-99), cyclic adjustment.
Troubleshooting/Water injection time adjustment 17
Water leakage from ice outlet upon power-on for the
first time
When the refrigerator is powered on for the first time, the
system will execute self-check; at the moment,
there may be a little water flowing out from the ice outlet
of ice maker; this is self-check action and is normal.
No ice out from dispenser
If the temperature of freezing chamber is high or the door
is opened and closed frequently, ice cubes in the ice
storage box may join together; take out ice cubes from
the ice storage box, break them and then put back, and
discard ice that is not broken;
When the successive time of taking ice exceeds 1 minute,
stop for 5 minutes and then take ice again;
Whether the valve is opened, the ice maker starts to make
ice after the water system works normally;
The door of freezing chamber is not closed, make sure
that all doors are closed.
No water out from dispenser
Wh
en the ambient temperature is lower than
-
2°C,
no
water will come out due to low-
temperature
icing of the water pipe, and try to take water after the
ambient temperature rises;
If you take water for above 3 minutes once, the
refrigerator will execute automatic protection, release the
ice discharge button for a while, and then take water
again.
Warm water out from dispenser
Because the water pipe has a section exposed outside
the refrigerator, the temperature of the
first cup of water
taken may be high, just continue to take water to get cold
water.
Dispenser blocked
Ice melted is frozen on the screw rod, this is due to
infrequent use or sharp temperature change. Empty the
ice storage box, clean, wipe
dry, and then put back.
Ice frozen together when ice maker operates stably
If ice is not used regularly, ice cubes may freeze together;
take out the frozen ice cubes from the
ice storage box,
dispose and allow new ice to be made.
Risk of not replacing the filter: water dispensing speed will
be reduced, ice harvest quantity will be reduced too.
Troubleshooting
Button failure
Please check the control board whether the fridge under
lock mode.When under lock mode, all buttons can't work.
Low voltage,the compressor can't start
We recommended to connect to mains power supply 220
-240V,50HZ for optimal performance.
Long time to start
When the ambient temperature too high,
it will take
longer time to reach the set temperature.
Middle beams feel hot
Middle beams feel hot after a period of time of the
appliance run,it belongs to the normal phenomenon.
Dew drops
When external air flows into the cool inner surface of the
fridge,dew drops can be formed. If the humidity of the
installed location is high or during the rainy season,dew
drops can form on the outer side of the fridge.This is a
natural phenomenon that occurs during the humid
weather,Wipe the water drops with a dry cloth.
Noise
When you operate the fridge for the first time,the fridge
will operate at high speed to cool fast and the sound can
seem louder.When the internal temperature falls below a
certain level,the noise will subside.
When the operation of the compressor is starting or
ending;various parts expanding/contracting or various
control devices operating or temperature change within
the fridge,you will hear the sounds,these are normal
sounds.
Compressor hot
When working,the temperature of the compressor outer is
more than 80℃,please do not touch the compressor,it
may cuase serious injury.
Compressor long time running
When the ambient temperature too high or put too much
fresh foods into the fridge,it will
take long time to cool down until the appliance run at the
setting temperature.
Abnormal odors in refrigerator
Odorous foods shall be packaged tightly; check for bad
foods; the inside of refrigerator shall be cleaned.
Ice maker failing to work normally
Check
the ice maker switch is turned on; whether the
freezing chamber door is closed or ajar;
Whether the water valve is opened; whether water supply
is obstructed, or water pressure is too low;
Whether the temperature of freezing chamber is high due
to just power connection or frequent use;
18 Troubleshooting
This document sets out the terms and conditions of the product
warranties for Westinghouse Appliances. It is an important
document. Please keep it with your proof of purchase documents
in a safe place for future reference should there be a manufacturing
defect in your Appliance. This warranty is in addition to other rights
you may have under the Australian Consumer Law.
1. In this warranty:
(a) ‘ACL’ or ‘Australian Consumer Law’ means Schedule 2 to the
Competition and Consumer Act 2010;
(b) ‘Appliance’ means any Electrolux product purchased by you and
accompanied by this document;
(c) ‘ASC’ means Electrolux’s authorised serviced centres;
(d) ‘Westinghouse’ is the brand controlled by Electrolux Home Products
Pty Ltd of 163 O’Riordan Street, Mascot NSW 2020, ABN 51 004
762 341 in respect of Appliances purchased in Australia and Electrolux
(NZ) Limited (collectively “Electrolux”) of 3-5 Niall Burgess Road, Mount
Wellington, in respect of Appliances purchased in New Zealand;
(e) ‘WarrantyPeriod’meanstheperiodspeciedinclause3ofthis
warranty;
(f) ‘you’ means the purchaser of the Appliance not having purchased
the Appliance for re-sale, and ‘your’ has a corresponding meaning.
2. Application: This warranty only applies to new Appliances, purchased
and used in Australia or New Zealand and is in addition to (and does not
exclude, restrict, or modify in any way) other rights and remedies under
a law to which the Appliances or services relate, including any non-
excludable statutory guarantees in Australia and New Zealand.
3. Warranty Period: Subject to these terms and conditions, this warranty
continues for in Australia for a period of 24 months and in New Zealand
for a period of 24 months, following the date of original purchase of the
Appliance.Speciccomponentsarewarrantedagainstmanufacturing
defects in Australia and New Zealand for the periods listed below;
• Compressor – Further 3 years
• External Condenser – Further 3 years
• Evaporator – Further 3 years
• Drier – Further 3 years
4. Repair or replace warranty: During the Warranty Period, Electrolux
or its ASC will, at no extra charge if your Appliance is readily accessible
for service, without special equipment and subject to these terms and
conditions, repair or replace any parts which it considers to be defective.
Electrolux may, in its absolute discretion, choose whether the remedy
oeredforavalidwarrantyclaimisrepairorreplacement.Electroluxorits
ASC may use refurbished parts to repair your Appliance. You agree that
any replaced Appliances or parts become the property of Electrolux.
5. Travel and transportation costs: Subject to clause 7, Electrolux will
bear the reasonable cost of transportation, travel and delivery of the
Appliance to and from Electrolux or its ASC. Travel and transportation will
be arranged by Electrolux as part of any valid warranty claim.
6. Proof of purchase is required before you can make a claim under this
warranty.
7. Exclusions: You may not make a claim under this warranty unless the
defect claimed is due to faulty or defective parts or workmanship. This
warranty does not cover:
(a) lightglobes,batteries,ltersorsimilarperishableparts;
(b) parts and Appliances not supplied by Electrolux;
(c) cosmeticdamagewhichdoesnotaecttheoperationofthe
Appliance;
(d) damage to the Appliance caused by:
(i) negligence or accident;
(ii) misuse or abuse, including failure to properly maintain or service;
(iii) improper, negligent or faulty servicing or repair works done by
anyone other than an Electrolux authorised repairer or ASC;
(iv) normal wear and tear;
(v) power surges, electrical storm damage or incorrect power supply;
(vi) incomplete or improper installation;
(vii) incorrect, improper or inappropriate operation;
(viii) insect or vermin infestation;
(ix) failure to comply with any additional instructions supplied with
the Appliance;
In addition, Electrolux is not liable under this warranty if:
(a) the Appliance has been, or Electrolux reasonably believes that the
Appliance has been, used for purposes other than those for which
the Appliance was intended, including where the Appliance has
been used for any non-domestic purpose;
(b) theApplianceismodiedwithoutauthorityfromElectroluxinwriting;
(c) the Appliance’s serial number or warranty seal has been removed
or defaced.
8. How to claim under this warranty: To enquire about claiming under
this warranty, please follow these steps:
(a) carefully check the operating instructions, user manual and the
terms of this warranty;
(b) have the model and serial number of the Appliance available;
(c) have the proof of purchase (e.g. an invoice) available;
(d) telephone the numbers shown below.
9. Australia: For Appliances and services provided by Electrolux in
Australia: Electrolux goods come with guarantees that cannot be
excluded under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and for compensation for any
other reasonably foreseeable loss or damage. You are also entitled to
have the Appliance repaired or replaced if the Appliance fails to be of
acceptable quality and the failure does not amount to a major failure.
‘Acceptable quality’ and ‘major failure’ have the same meaning as
referred to in the ACL.
10. New Zealand: For Appliances and services provided by Electrolux
in New Zealand, the Appliances come with a guarantee by Electrolux
pursuant to the provisions of the Consumer Guarantees Act, the Sale
of Goods Act and the Fair Trading Act. Where the Appliance was
purchased in New Zealand for commercial purposes the Consumer
Guarantee Act does not apply.
11.Condentiality: You accept that if you make a warranty claim, Electrolux
and its agents including ASC may exchange information in relation to you
to enable Electrolux to meet its obligations under this warranty.
Warranty
FOR SALES IN AUSTRALIA AND NEW ZEALAND
APPLIANCE: WESTINGHOUSE REFRIGERATORS AND FREEZERS
Important Notice
Before calling for service, please ensure that the steps listed in clause 8 above have been followed.
AUSTRALIA
FOR SERVICE
ortondtheaddressofyournearest
authorised service centre in Australia
PLEASE CALL 13 13 49
For the cost of a local call
FOR SPARE PARTS
ortondtheaddressofyournearest
spare parts centre in Australia
PLEASE CALL 13 13 50
For the cost of a local call
NEW ZEALAND
FOR SERVICE
ortondtheaddressofyournearest
authorised service centre in New Zealand
PLEASE CALL 0800 10 66 10
FOR SPARE PARTS
ortondtheaddressofyournearest
spare parts centre in New Zealand
PLEASE CALL 0800 10 66 20
28 www.westinghouse.com.au
and Westinghouse are trademarks of Westinghouse Electric Corporation.
Used under license. All Rights Reserved.
For more information on all Westinghouse
appliances, or for dimension and installation
information, call into your retailer, phone or email
our customer care team or visit our website:
A10883186-A-482023
© 2017 Electrolux Home Products Pty Ltd.
ABN 51 004 762 341
email: [email protected]
web: westinghouse.com.au
web: westinghouse.co.nz
NEW ZEALAND
phone: 0800 436 245
email: customercare@electrolux.co.nz
AUSTRALIA
service: 13 13 49
spare parts: 13 13 50
