XL PARTY SPEAKER
USER GUIDE
Contents & Information
CONTENTS & INFORMATION
IMPORTANT SAFETY INSTRUCTIONS
ADDITIONAL SAFETY PRECAUTIONS
WHAT'S IN THE BOX ?
GET TO KNOW YOUR WIRELESS PARTY SPEAKER
PLACEMENT
CHARGING YOUR SPEAKER
USING YOUR SPEAKER
SPECIFICATIONS
TROUBLESHOOTING
1
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions carefully.
2. Retain these instructions for future reference.
3. Observe all warnings.
4. Follow all instructions.
5. Do not use this product near water.
6. Clean only with a dry cloth.
7. Do not block any of the ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install this product near heat sources such as radiators, heat registers, stoves, or other
equipment (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or ground-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug has two blades and a third grounding prong. The
wide blade or the grounding prong is provided for your safety. When the provided plug does not fit into
your outlet, consult an electrician for replacement of the obsolete outlet.
10.
receptacles, and where it exits the product.
11. Only use attachments/accessories specified by the manufacturer.
12.
tip-over and potential injury.
13. Unplug this product during lightning storms or when unused for long periods of time.
14.
been damaged in any way, including damage to the power cord or plug, liquid spilled on the product,
objects falling into the product, exposure to rain or moisture, abnormal operation, or if the product has
been dropped.
2
All servicing must be performed by qualified service personnel, Service is required if the product has
Route the power cord so it will not be walked on or pinched, particularly at plugs, convenience
Use the product only with a cart, stand, tripod, bracket, or table specified by the manufacturer or sold
with the product. If a cart is used, use caution when moving the cart and product together to prevent
FCC Statement
1.
operation.
2.
user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
This equipment generates uses and can radiate radio frequency energy and, if not installed and used in
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
3
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
Changes or modifications not expressly approved by the party responsible for compliance could void the
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation.
accordance with the instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following
1. Do not expose the battery pack or installed batteries to excessive heat, including direct sunlight, fire, or
similar heat sources.
2. Do not replace the battery with an incorrect type, as this may disable built-in safety protections.
3. Do not dispose of batteries in fire or a hot oven, and do not crush or cut them, as this may result in an
explosion.
4. Do not expose batteries to extremely high or low temperatures, as this may cause an explosion or the
leakage of flammable liquid or gas.
5. Do not expose batteries to extremely low air pressure, as this may result in an explosion or the leakage
of flammable liquid or gas.
4
Radiation Exposure StatementGPS'$$*%"57
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20 cm between the radiator & your
body.
Built-in Battery
AA Alkaline Batteries
1. The wireless microphone is supplied with AA alkaline batteries. If swallowed, a battery can pose a
choking hazard. Even if it does not reach the stomach, a swallowed battery can cause severe internal
or death.
2.
and keep it out of reach of infants and children.
3.
minimize the risk of serious injury or death.
4. Never attempt to recharge or open the batteries. Doing so may cause an explosion.
5. Never damage or deform the batteries.
6. Do not dispose of batteries in fire or a hot oven, and do not crush or cut them, as this may result in an
explosion.
7. Do not expose batteries to extremely high or low temperatures, as this may cause an explosion or the
leakage of flammable liquid or gas.
8. Do not expose batteries to extremely low air pressure, as this may result in an explosion or the leakage
of flammable liquid or gas. Failure to follow these guidelines may result in battery fluid leakage, which
can cause skin irritation. In case of contact:
9. Rinse the affected area with plenty of clean water.
10. Do not rub your eyes. If battery fluid comes into contact with the eyes, rinse immediately with clean
water for at least 10 minutes and seek medical attention.
11. Only use batteries of the same or an equivalent type. Replacement of the batteries with an incorrect
type can result in explosion or leakage.
12.
used for an extended period of time.
13. Dispose of used batteries in accordance with local environmental regulations.
5
Remove the batteries from the battery compartment once they are depleted, or if the device will not be
burns and perforation of the esophagus within as little as two hours, potentially resulting in serious injury
If the battery compartment on your device does not close securely, stop using the device immediately
Seek immediate medical attention if you think an infant or child has swallowed a battery or inserted one
into any part of the body. Batteries must be removed immediately by qualified medical personnel to
WARNING: The mains plug or appliance coupler serves as the disconnect device. Make sure it remains
easily accessible at all times.
CAUTION:
Double Pole/Neutral Fusing
The audio filtering and vocal removal functions provided by this product are intended solely for real-time
personal playback and sound adjustment.
Audio content processed by this product must not be recorded, saved, uploaded, publicly shared,
distributed, adapted,
Users are responsible for ensuring that their use of these functions complies with applicable copyright laws
and other relevant regulations.
6
publicly performed, made available for download, or used for any commercial purpose.
Do not stare at operating lamp.
Can be harmful to the eyes.
ADDITIONAL SAFETY PRECAUTIONS
• Do not expose this product or the AC/DC adaptor to dripping or splashing water. Keep liquids and liquid-
filled objects, such as vases, away from the product and the adapter.
• To completely disconnect the product from power, unplug it from the wall outlet.
• Ensure that the AC/DC adaptor is easily accessible.
• Refer to the information printed on the bottom of the product.
• Do not block the ventilation openings. Keep them clear of items such as newspapers, tablecloths, or
• Keep open flames, such as lit candles, away from the product.
• Do not place the product in enclosed spaces without adequate ventilation, such as bookcases or racks.
7
curtains.
What's in the Box?
LR/AA 1.5VLR/AA 1.5V
User Guide, 1 pc
8
Quick Start Guide, 1 pc
XL Party Speaker, 1 pc AC Power Cord, 1 pc Wireless Microphones, 2 pcs
AA Alkaline Battery for Wireless
Microphones, 4 pcs
Top Panel
32 4 6 7 85
1
0
1
Interactive
Screen
Display
• Shows information such as input source, sound mode, connection status, and battery
level
2 Power • Press for 0.5 seconds to turn the speaker on or off
3 Play/Pause
• Press to play or pause audio (USB and Bluetooth source)
• Double press to skip to next song (USB and Bluetooth source)
• Triple press to skip to previous song (USB and Bluetooth source)
4 Bluetooth
• Press to open the Connect menu
• Press and hold for 3 seconds to enter Bluetooth pairing mode
9
5
VOL and
Main Control
Knob
• Rotate to adjust the volume when in the Volume menu
• Press to open the home menu, rotate to switch between options, and press to
confirm, or double press to return to the home menu
• Press and hold for 2 seconds to mute or unmute the audio input
6 Sound Mode
• Press to open the Sound menu
• Press to switch between options
• Press and hold for 2 seconds to set to Normal mode
7
Karaoke
Mode
• Press to open the Karaoke menu
• Press to switch between options
• Press and hold for 2 seconds to enable the wireless microphone searching
8
Light Mode
•
• Double press to turn the disco light on or off
• Press and hold for 2 seconds to turn off all lights
10
Press to open the Light menu and switch to the next party light mode
Input source
One Bluetooth device connected
Two Bluetooth devices connected
Sound mode
Auracast
Charging state indicator
Karaoke mode
Vocal removal
Guitar removal
Wireless Mic
Mute
Charging state Icon
Charging: Battery is charging
Fully charged: Charging is complete
Not charging: 67%–100% battery remaining
Not charging: 34%–66% battery remaining
Not charging: 16%–33% battery remaining
Not charging: 0%–15% battery remaining
11
Rear Panel
MIC2 / Guitar
RESET
AUX IN
MIC2 / Guitar
VOL
MIC2 / Guitar
AC 100
-
240V
Gain
MIC1 VOL
MIC1 Gain
USB
2 / 1
1
5 8
7
2 3 4
11
9
10
6
MIC2 / Guitar
RESET
AUX IN
MIC2 / Guitar
VOL
MIC2 / Guitar
AC 100
-
240V
Gain
MIC1 VOL
MIC1 Gain
USB
2 / 1
1
• Connect to a USB device for audio playback
•
2 MIC2/Guitar Switch • Switch to select MIC2 or Guitar as the input source
3 • Connect a wired microphone/microphone dongle or guitar
4 • Connect a wired microphone/microphone dongle
5
Reset Pinhole
•
Insert a small tool (not supplied) into the pinhole to reset the device
if it has stopped working or is frozen
6
• Connect an external audio device using an 3.5mm AUX cable (not
supplied)
12
7 MIC2/Guitar VOL Knob
• Rotate to adjust the volume of the connected microphone or guitar (MlC2
or Guitar)
8
MIC1 VOL Knob
• Rotate to adjust the volume of the connected microphone (MlC1)
and wireless microphone
9 MIC2/Guitar Gain Knob
• Use a small tool (not supplied) to adjust the gain of the connected
microphone or guitar (MIC2 or Guitar)
10 MIC1 Gain Knob
• Use a small tool (not supplied) to adjust the gain of the connected
microphone (MIC1) and wireless microphone
11 •
13
AC Power Port Connect the AC power for more powerful audio playback
Wireless Microphone
SET
VOL+
VOL-
1 3
2
4
1
Power Button
• Press to turn the wireless microphone on, the microphone will be automatically
connected. If connection fails, check the Karaoke Menu on the speaker, ensure
“Wireless Mic Searching” is enabled
• Press and hold for 1 second to turn the wireless microphone off
2
Display
Screen
• Displays information such as the current frequency band, volume, and channel
3
Channel/
Volume
Buttons
• Press the SET button to select the desired channel when the microphone is on
• Press the VOL+/VOL- button to increase/decrease the microphone volume when
the microphone is on
4
Lid
• Unscrew the bottom half of the microphone handle to access the microphone channel
and volume buttons or to replace the batteries
Install Batteries in the Microphone
1. Unscrew the bottom half of the microphone handle to locate the battery compartment.
2.
3. Reassemble the microphone handle by screwing the bottom half of the handle onto the microphone.
Ensure it is securely closed.
4. Press the Power button to turn on the wireless microphone and check the display to ensure it powers
on.
14

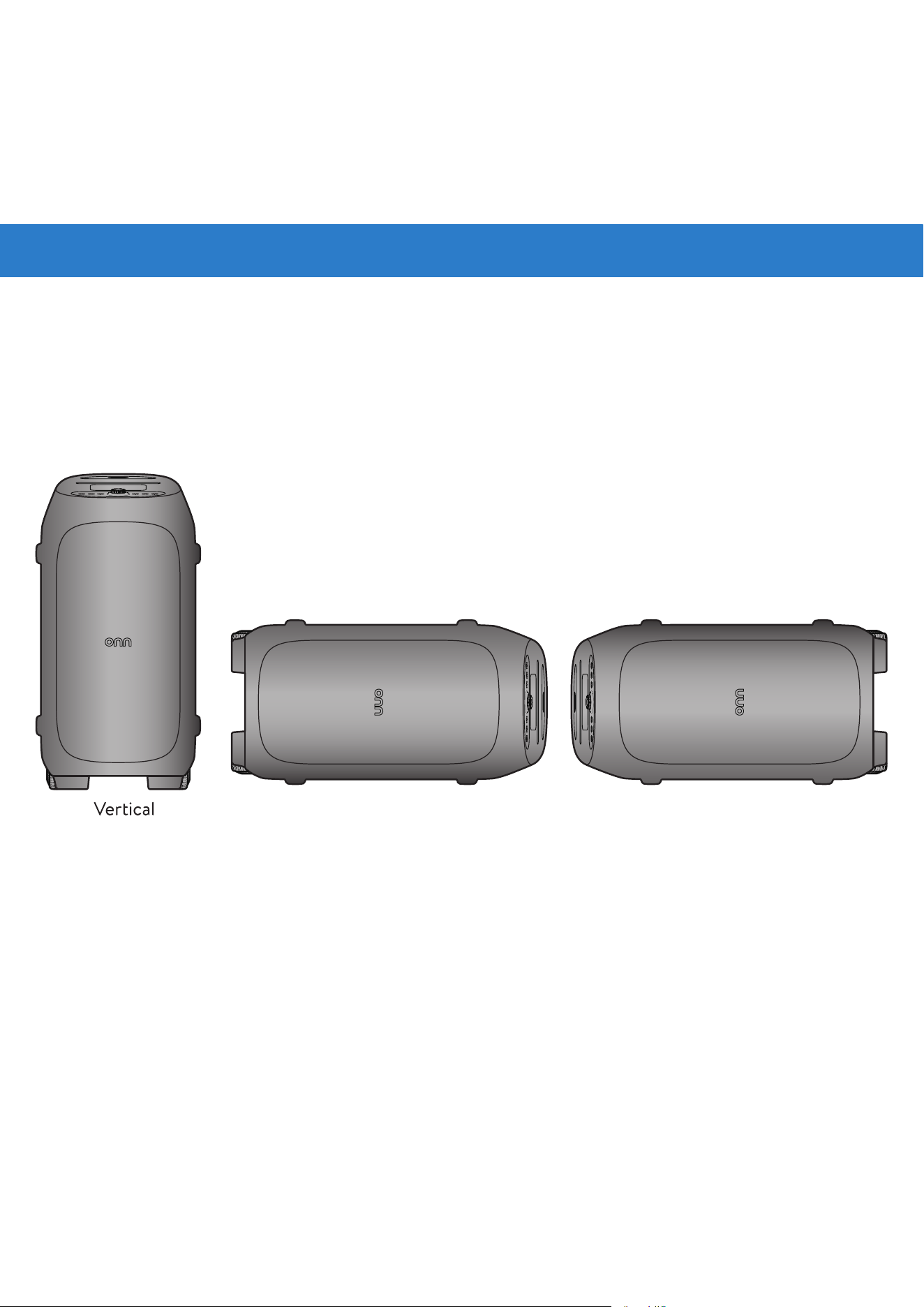

Placement
NOTE
• Do not sit on, lean against, or push the speaker. Doing so may cause malfunction and could result in
different positioning.
Horizontal
15
personal injury or property damage.
Place the speaker on a flat, stable surface with the rubber feet facing downward. The speaker can be
positioned either vertically or horizontally. The sound output will be optimized automatically with speaker's

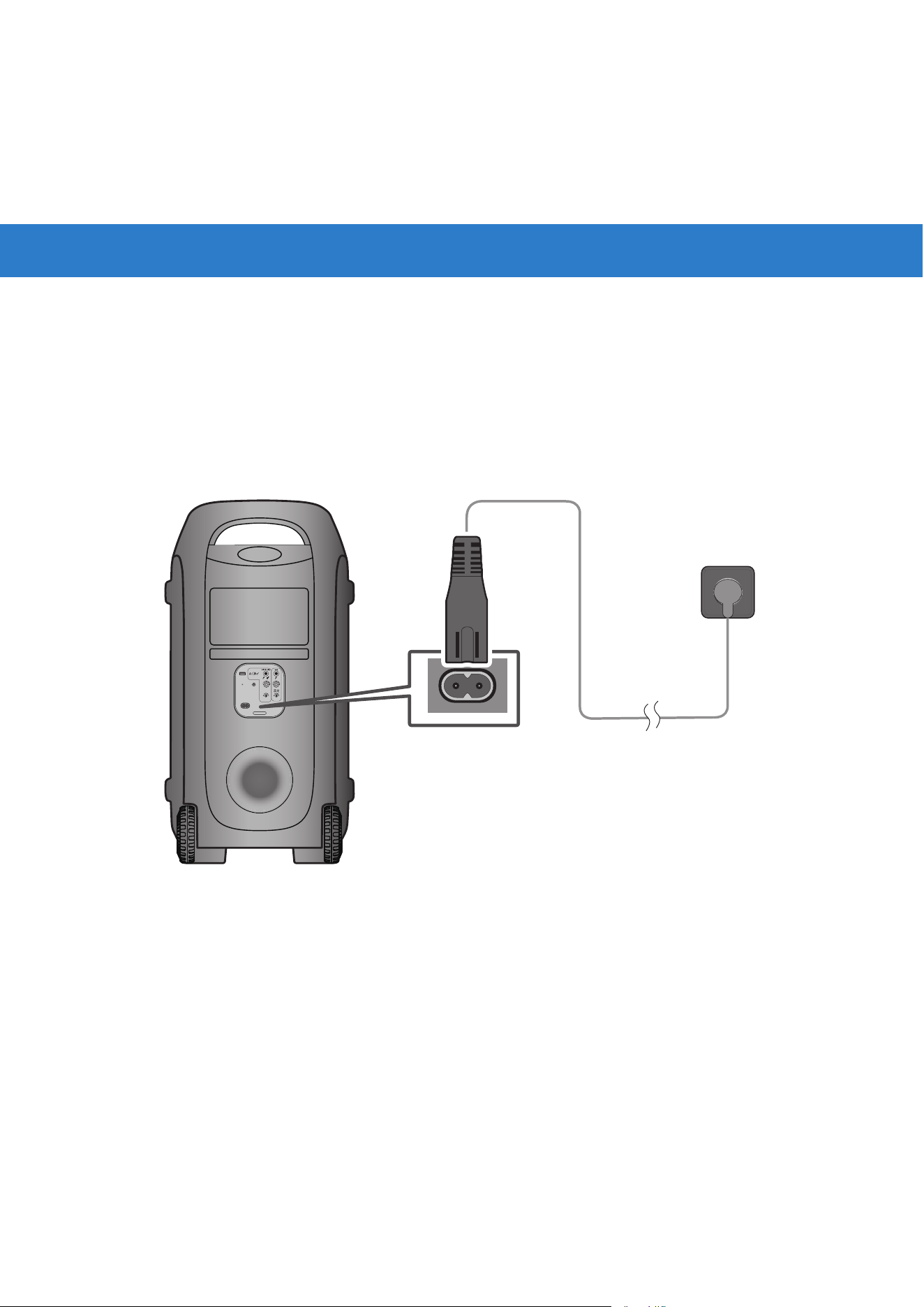

Charging Your Speaker
1. Charging the Speaker
CAUTION
• Use only the provided power cord.
• Disconnect the power cord from both the speaker and the wall outlet when it is not in use.
To charge the speaker, connect the power cord to the speaker first, then plug the other end into a wall
outlet.
MIC2 / Guitar
RESET
AUX IN
MIC2 / Guitar
VOL
MIC2 / Guitar
AC 100
-
240V
Gain
MIC1 VOL
MIC1 Gain
USB
2 / 1
NOTE
• Before using the speaker for the first time, fully charge it to activate the battery.
• When the AC power cord is connected, the speaker will begin charging until it is fully charged.
• A full charge may take approximately 3.5 hours when the battery is empty.
16
2. Charging a Device using the Speaker
The speaker can function as a power bank to charge mobile phones and other USB-rechargeable devices. To
MIC2 / Guitar
RESET
AUX IN
MIC2/ Guitar
VOL
MIC2/ Guitar
AC 100
-
240V
Gain
MIC1VOL
MIC1Gain
USB
2/ 1
USB
NOTE
•
• To maintain water resistance, ensure you close the protective cover securely after use.
17
Make sure the charging port is completely dry before connecting a device.
charge your device, simply connect it to the USB port on the rear panel.
Using Your Speaker
Power
On/Off
Play/
Pause
Bluetooth Volume +/-
Control Knob
Sound
Mode
Karaoke Lighting
Volume menu by default. You can press the control knob to
access the home menu.
18
1. Adjusting the Volume
Volume menu.
1. To access volume settings, select the Volume menu from the home menu.
2. Rotate the knob clockwise to increase or counter-clockwise to decrease the level. If you set the volume
to Level 0, the Mute icon
will appear on the top status bar.
3. Press the control knob to return to the home menu.
NOTE:
• The system automatically optimizes the screen brightness based on activities: the screen dims to 25%
brightness after 30 seconds and turns off completely after 30 minutes if no operations. Press any button
or rotate the control knob to wake up the screen.
• The volume adjustment menu is displayed by default. If there is no user interaction within 10 seconds
(or 30 seconds for the Karaoke menu), the screen will automatically return to the volume menu for easy
adjustment.
19
2. The Sound Mode
The Sound Mode provides three equalizer presets including Bass Boost, Outdoor, and Normal to optimize
1. To access the Sound menu, press the Sound button on the top panel. Alternatively, you can select
the Sound menu from the home menu.
2. To select a specific mode, rotate the control knob to the desired option and then press the control knob
to confirm.
When Bass Boost or Outdoor mode is selected, the corresponding icon
or appears on the top
status bar. When Normal mode is selected, no mode icon will be displayed in the status bar.
3. To return to the home menu, rotate the control knob to the Return icon
and press the knob to
confirm.
To instantly reset the speaker to the Normal mode, you can press and hold the Sound button
on the top
panel for two seconds.
20
3. The Light Mode
The light mode offers three lighting effects: and Strobe Light. These effects are
designed to enhance your audio experience by synchronizing dynamic lighting with your music, creating an
immersive atmosphere.
1. To access the Light menu, press the Light button on the top panel. Alternatively, you can select the
Light menu from the home menu.
2. In the Light menu, rotate the control knob to select a lighting option (
Light) and then press the knob to confirm.
In
3. To turn on or turn off the disco light, rotate the control knob to the Disco Light option and then press
the knob to confirm.
4. To turn on or turn off the strobe light, rotate the control knob to the Strobe Light option and then press
the knob to confirm.
5. To return to the home menu, rotate the control knob to the Return icon
and press the knob to
confirm.
21
4. The Karaoke Mode
The Karaoke Mode utilizes integrated voice presets and real-time audio adjustments to enhance vocal
Accessing the Karaoke Menu
To enter the Karaoke menu, press the Karaoke button
on the top panel of the speaker. Alternatively,
you can select the Karaoke menu from the home menu.
Pairing the Speaker with a Wireless Microphone
Each time the speaker is powered on, the wireless microphone search mode is enabled automatically. If no
wireless microphone is connected in over 15 minutes, the search mode will automatically turn off to save
battery. To re-enable the wireless microphone search, refer to the following steps.
1. Press and hold the Karaoke button
on the top panel for two seconds. Alternatively, you can select
the Karaoke menu from the home menu.
2. In the Karaoke menu, rotate the control knob to the Wireless Mic Searching option and then press the knob to
will appear in the top status bar.
If a wireless microphone is successfully connected, the microphone connection icon
will appear in the
top status bar. For more details, refer to the status table below.
Wireless Microphone Status Display Color Top Status Bar
Searching Wireless Mic Searching Green
Solid
Paired Wireless Mic Paired Green
Solid
Search timeout/Turned off Wireless Mic Search Blue
Hidden
Note: If no microphone is connected, all options except for Wireless Mic Searching and Vocal Removal will
be grayed out and cannot be selected or adjusted.
22
Selecting the Karaoke Mode
After the microphone is connected, rotate the control knob to the desired option across modes and then
press the knob to confirm.
• Pop Star Mode:
• Studio Mode: Provides a dry, clean acoustic profile ideal for polished and balanced singing.
•
Simulates the acoustics of a large venue with expanded spatial depth.
Adjusting the Echo Level
Use this feature to fine tune vocal resonance.
1. Rotate the control knob to the Echo option on the Karaoke menu and then press to confirm.
2. Rotate the control knob to adjust the echo level from Level 0 to 3.
3. Press the control knob to quit the Echo level option.
Enabling Vocal Removal
The vocal removal feature allows you to perform with live vocals by suppressing the lead vocals in the
original audio.
1. Rotate the control knob to the Vocal Removal option in the Karaoke menu and then press to confirm.
The status icon
will appear on the top status bar when Vocal Removal is working.
2. Rotate the control knob to set the level from Max to Min until you achieve the desired balance between
the background music and your live vocal.
3. Press the control knob to quit the Vocal Removal option.
Note:
• Vocal removal and guitar removal cannot be enabled simultaneously.
• To return to the home menu, rotate the control knob to the Return icon
and press the knob to
confirm.
23
5. Guitar Removal
original audio. This function allows for real-time adjustment of suppression intensity from three levels.
1. Navigate to the home menu and select the Guitar Removal option.
2. In the Guitar Removal menu, rotate the control knob to choose a level from three different levels.
The status icon
will appear on the top status bar when Guitar Removal is working.
Note: Vocal removal and guitar removal cannot be enabled simultaneously. You need to disable vocal
removal before enabling guitar removal.
24
6. Input Sources
The input function allows you to switch between music sources from different devices.
Preparing Input Devices
device, refer to the instructions below.
AUX Input
MIC2 / Guitar
RESET
AUXIN
MIC2/Guitar
VOL
MIC2/Guitar
AC 100
-
240V
Gain
MIC1VOL
MIC1Gain
USB
2/ 1
AUX IN
(not supplied)
You can connect an external device to the speaker via an analog audio (3.5mm Aux in) cable.
1.
the rear panel of the speaker.
2. Navigate to the home menu and then select the Input menu.
3. In the Input menu, rotate the control knob to select AUX and press the control knob to confirm. If you
see the AUX icon
in the top status bar, then you can play music from that external device.
25
USB Input
MIC2 / Guitar
RESET
AUX IN
MIC2 / Guitar
VOL
MIC2 / Guitar
AC100
-
240V
Gain
MIC1 VOL
MIC1 Gain
USB
2/ 1
USB
USB storage device
(not supplied)
1.
2. Press the control knob to access the home menu and then select the Input menu.
3. In the Input menu, rotate the control knob to the USB option and then press the knob to confirm.
You should see the USB icon
on the top status bar if the USB input is active. A flashing USB icon
indicates that data is being read. Once reading is complete, the icon remains solid.
4. Play music from that USB storage device. If the device contains MP3 or WAV audio files, playback will
Switching from Input Sources
The speaker can connect to multiple input sources; however, it can only play audio from one source at a
time. The following steps describe how to switch sources.
1. Navigate to the home menu and access the Input menu.
2. In the Input menu, rotate the control knob to the desired option and press the knob to confirm. The
corresponding icon will appear in the top status bar.
Note: If the speaker is connected to Bluetooth, AUX, and USB devices simultaneously, the top status bar
will display only the currently selected source.
26
7. Connecting Devices
Connect menu.
Adding a Device via Bluetooth
1. Press the control knob to access the home menu and then select the Connect menu.
Alternatively, you can press the Bluetooth button
on the top panel to enter the Connect menu.
2. In the Connect menu, rotate the control knob to the Add Another Device option and press the knob to
confirm.
The speaker will enter Bluetooth pairing mode. If a device is already paired, a notification indicating
"Bluetooth Connected" will appear on the left.
3. To add a second device, repeat the previous steps. Once done, a notification indicating "Bluetooth
Connected" will appear on the left. To cancel Bluetooth pairing, press the control knob again.
Note:
•
plays from only one device at a time. Initiating playback on the other device will automatically switch the audio
from the current device.
• If the speaker is currently connected to two Bluetooth devices and you want to reconnect a previously
paired device, first manually disconnect one of the connected devices, then follow above steps to
reconnect the paired device.
• Connection stability depends on the distance and environment between the speaker and the source. A
voice prompt will notify you when a Bluetooth connection is disconnected.
27
Broadcasting with Auracast
Auracast allows you to connect multiple speakers together to create a larger audio system. It operates by
selecting one speaker as the transmitter (TX) and then setting up speakers as receivers (RX) based on that speaker
to create an audio system.
RX 1
RX 2
TX
MIC2/ Guitar
RESET
AUXIN
MIC2 /Guitar
VOL
MIC2/Guitar
AC100
-
240V
Gain
MIC1VOL
MIC1Gain
USB
2 / 1
MIC2/ Guitar
RESET
AUXIN
MIC2 /Guitar
VOL
MIC2/Guitar
AC100
-
240V
Gain
MIC1VOL
MIC1Gain
USB
2 / 1
MIC2/ Guitar
RESET
AUXIN
MIC2 /Guitar
VOL
MIC2/Guitar
AC100
-
240V
Gain
MIC1VOL
MIC1Gain
USB
2 / 1
1. Select a speaker as the transmitter (TX).
To set up a speaker as the transmitter, access the Connect menu and rotate the control knob to the
Auracast option and press the knob to confirm.
The Auracast icon
will appear in the status bar. Play audio from the connected speaker, and this
speaker will act as the transmitter (TX).
2. Add speakers (RX1) and (RX2) as receivers.
To add a speaker as a receiver, repeat Step 1 to turn on Auracast on this speaker. Once done, this speaker
will automatically search for and connect to the transmitter (TX).
When Auracast is enabled on all speakers, you can play audio across all connected speakers.
28
Note:
• Playback quality may be affected by environmental conditions or by the connected devices.
• The receiver must be set to Bluetooth mode with no active audio input. Otherwise, the device will
automatically switch to the transmitter mode.
• When adjusting parameters such as Volume, Sound Mode, Light Mode, Karaoke Modes, Echo, Guitar
Removal, and Vocal Removal on the transmitter, the settings will be synchronized to the receiver to
maintain consistency. Once a speaker is identified as a receiver, Sound Mode, Karaoke modes, Echo,
Guitar Removal, and Vocal Removal will be grayed out but you can still adjust its volume and light. If
any of the above settings are changed on the transmitter, the receiver will return to its home menu and
synchronize these changes to stay consistent with the transmitter.
• When the speaker is connected via Auracast:
-The device operates as a transmitter when the input source is AUX or USB.
-The device operates as a transmitter when the input source is Bluetooth and audio is playing.
-The device operates as a receiver when the input source is Bluetooth and no audio is playing.
29
8. System Settings
The Setting
Adjusting Screen Brightness
You can adjust the display brightness from Max to Min. This setting allows for optimal screen readability in
different lighting conditions.
1. In the Setting menu, rotate the control knob to the Screen Brightness option and press to confirm.
2. To select the desired brightness level, rotate the control knob. Press the control knob again to quit the
Screen Brightness option.
permanently erases all paired devices history and settings.
In the Setting menu, rotate the control knob to the Factory Reset option and press to confirm. A
confirmation dialog will appear on the screen. Select Ye s
30
9. Connecting a Wired Microphone
MIC2/ Guitar
RESET
AUX IN
MIC2 / Guitar
VOL
MIC2 / Guitar
AC 100
-
240V
Gain
MIC1 VOL
MIC1 Gain
USB
2/ 1
1
1.
of the speaker.
2. Adjust the microphone volume using the MIC1 Volume knob.
3. Adjust the microphone gain using the MIC1 Gain knob. Once done, you can use the microphone to speak
Note
two wired microphones.
31
10. Connecting a Guitar
You can connect a guitar with the speaker using a standard plug (not provided) and play it through the
speaker.
MIC2 / Guitar
RESET
AUX IN
MIC2 / Guitar
VOL
MIC2 / Guitar
AC 100
-
240V
Gain
MIC1 VOL
MIC1 Gain
USB
2 / 1
2 /
1.
of the speaker.
2. Toggle the MIC2/Guitar switch to the Guitar position, then adjust the volume using the MIC2/Guitar
VOL knob.
3. Adjust the gain of the guitar using the MIC2/Guitar Gain knob. Once done, you can play the guitar.
32
Specifications
Product Name
Dimensions (W x H x D) 15.56 × 15.96 × 29.92 in
Net Weight 41 lb
Operating Temperature Range 32°F to 104°F (0°C to 40°C)
Operating Voltage 100~240 V
USB 5 V/2 A
Built-in Battery Li-ion (rechargeable), 8.4 Ah, 7.4 V
Battery Playback Time Up to 16 hours
Battery Charging Time Approx. 3.5 hours
33
Product Name
"OUFOOB5ZQF *OUFHSBM
(BJOE#J .BY
8JSFMFTT.JD
Troubleshooting
CAUTION
• Do not attempt to repair the product yourself. If you experience any issues while using the speaker,
review the information below before requesting service.
Problem Solution
The speaker will not
turn on
• Check the battery level. If the battery is depleted, connect the power
cord to charge the speaker and turn it on.
• Make sure the power cord is securely connected to both the wall outlet
and the speaker.
No sound from the
speaker
• Make sure the speaker is powered on.
• Check that the volume is set to an audible level.
• Make sure the speaker is connected to a valid audio source.
No light from the
speaker
• Make sure the speaker is powered on.
• Confirm that a light mode is selected and that the lights are not turned
off.
Device cannot connect
to the speaker
• Make sure Bluetooth is enabled on the device.
• The speaker may already be connected to another Bluetooth device. Press
and hold the Bluetooth button to enter pairing mode and pair the new
device. The speaker will connect to the new device without disconnecting
the previously connected device.
Poor audio quality from
a connected Bluetooth
device
• Bluetooth reception may be poor. Move the device closer to the speaker
and remove any obstacles between the device and the speaker.
34
The speaker cannot
connect, has poor audio
quality, or behaves
unexpectedly
Reset the speaker using one of the following methods:
•
• Press the VOL and Main Control knob to open the Settings menu. Rotate
the VOL and Main Control knob to select the "Setting" option, and press to
confirm. Rotate the VOL and Main Control knob to select "Factory Reset", and
Both wireless
microphones are set to
the same channel (both
CHA or both CHB)
• Switch the channel of one wireless microphone to ensure that one is CHA
and the other is CHB.
• When the microphone is off, press and hold the Power and Set buttons
for 10 seconds to switch between Channel A (CHA) and Channel B (CHB).
35
