Installation Guide
© 2025 TP-Link 7100002179 REV1.0.1
Omada 2.5G PoE++ Easy Managed Switch
The images in this guide are for demonstration only and may dier from your actual product.
LED Explanation
LED Explanation
Power On/O: Power on/o
Link/Act
For technical support, user guides and other information, please visit
https://support.omadanetworks.com/, or simply scan the QR code.
(For ports 1-5)
PoE
PoE Max
On (Green): Running at 2.5 Gbps
On (Yellow): Running at 100/1000 Mbps
Blinking: Transmitting/receiving data
O: No connected device
On (Green): Running at 10 Gbps
On (Yellow): Running at 1000 Mbps
Blinking: Transmitting/receiving data
O: No connected device
SFP+
(For ports 1-4)
(For port 6)
On: Providing PoE power
Blinking: Current-overload/Short-circuit
O: Not providing PoE Power
On: 113 W ≤ Total power supply < 120 W
Blinking: Total power supply keeps ≥ 113 W
for more than 2 minuites
O: Total power supply < 113 W

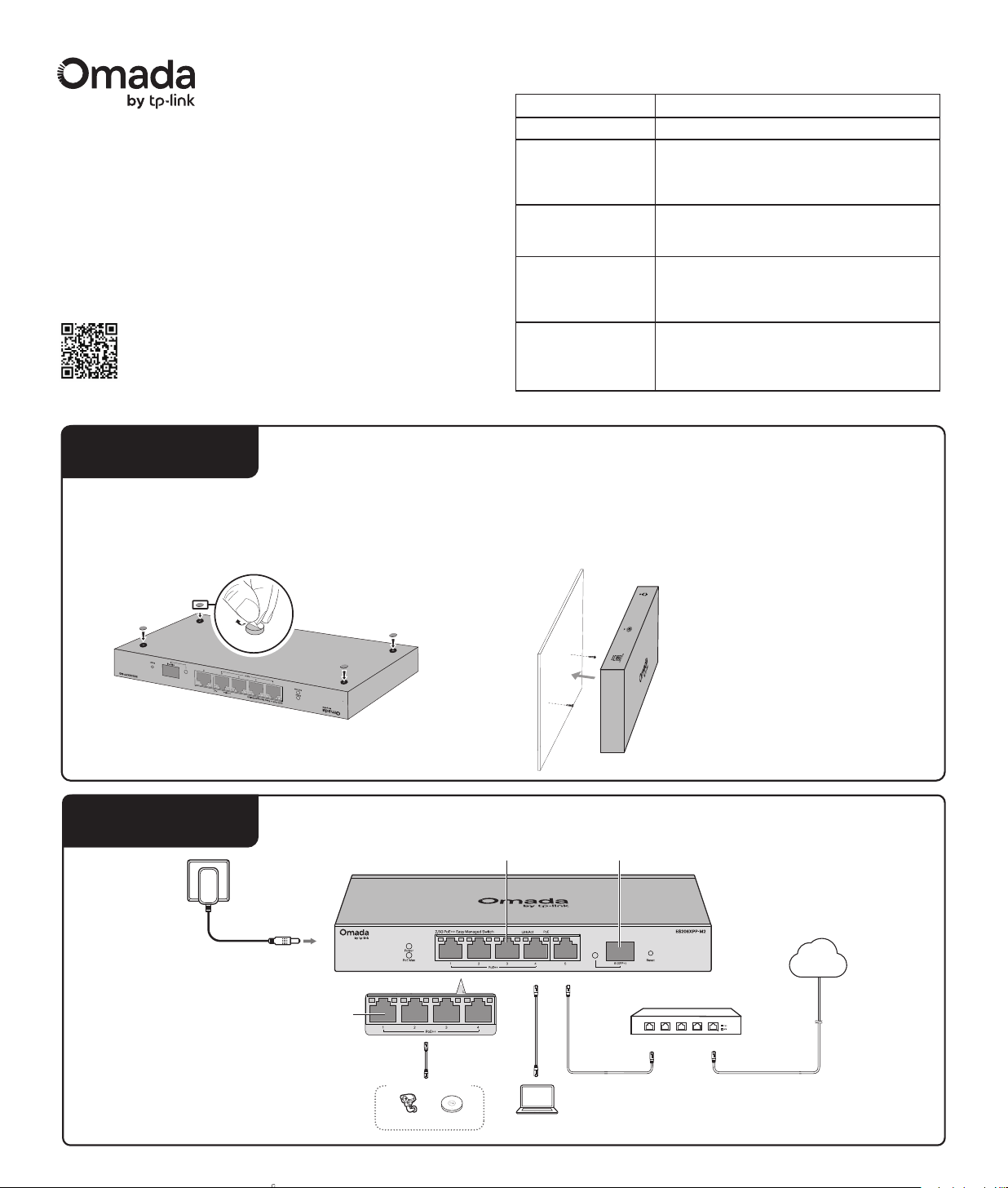

Desktop:
Attach the supplied rubber feet to the bottom of the switch to
prevent it from slipping when placed on a desktop.
Note: For detailed information, please
refer to the Wall Mounting Guide on the
device’s support page.
Wall-mounting:
Drill two holes on the wall according to the mounting holes on the
bottom of the switch, then secure the switch to the wall with two
suitable screws (not provided).
Connection
Power Adapter
Ethernet Ports (1–5) SFP+ Port (6)
Installation
Gateway
LAN Port
WAN Port
PC
PoE++ Ports
(1-4)
Internet
Note:
1. The PoE ports can also connect to non-PoE
devices, but only transmit data.
2. The PoE ports shall not be used to charge
lithium batteries or devices supplied by
lithium batteries.
3. Maximum PoE power is 90 W for each PoE
port, and total PoE budget is 120 W.
4. PoE budget calculations are based on
laboratory testing. Actual PoE power budget
is not guaranteed and will vary as a result of
client limitations and environmental factors.
IP Camera AP
Powered Device (PD)
Environmental and Physical Specications
-5˚C to 40˚C (23˚F to 104˚F)
-40˚C to 70˚C (-40˚F to 158˚F)
10% to 90%RH non-condensing
5% to 90%RH non-condensing
Operating Temperature
Storage Temperature
Operating Humidity
Storage Humidity
EU declaration of conformity
TP-Link hereby declares that the switch is in compliance with the essential requirements and other
relevant provisions of directives 2014/30/EU, 2014/35/EU, 2011/65/EU and (EU)2015/863.
The original EU declaration of conformity may be found at https://www.tp-link.com/en/support/ce/
UK declaration of conformity
TP-Link hereby declares that the switch is in compliance with the essential requirements and other
relevant provisions of the Electromagnetic Compatibility Regulations 2016 and Electrical
Equipment (Safety) Regulations 2016.
The original UK declaration of conformity may be found at https://www.tp-link.com/support/ukca/
Safety Information
packing of this product. If you have any questions, please don’t hesitate to contact us.
Use only power supplies which are provided by manufacturer and in the origin
Do not use any other chargers than those recommended.
Keep the device away from water, re, humidity or hot environments.
Do not use damaged charger or USB cable to charge the device.
Adapter shall be installed near the equipment and shall be easily accessible.
Do not attempt to disassemble, repair, or modify the device. If you need service,
please contact us.
Place the device with its bottom surface downward.
Conguration
Omada App
With the TP-Link Omada app, you can access and manage your Omada devices at
a local site or remotely with a tap of your phone. You can download and install the
TP-Link Omada app from the App Store or Google Play.
For detailed instructions on device conguration, refer to the user guides of the
Controller and switches. The guides can be found in the support center of our ocial
website: https://support.omadanetworks.com/document/.
The switch supports two conguration methods:
Scan for Standalone
Conguration Guide
Scan for Controller
Conguration Guide
Standalone Mode: Congure and manage the switch individually.
To set up a standalone Omada switch, scan the QR code or refer to
https://www.omadanetworks.com/support/faq/4097/.
Controller Mode: Congure and manage the network devices
centrally. This mode is recommended for large-scale networks
with numerous devices, including access points, switches, and
gateways.
To set up an Omada switch with an Omada Controller, scan the
QR code or refer to the Omada Controller conguration guide
at https://www.omadanetworks.com/support/faq/4096/.
Warranty
For details on the warranty period, policy, and procedures, visit
https://support.omadanetworks.com/warranty-services/.
More Resources
Main Site
Video Center
Documents
Product Support
Technical Support
https://www.omadanetworks.com/
https://support.omadanetworks.com/video/
https://support.omadanetworks.com/document/
https://support.omadanetworks.com/product/
https://support.omadanetworks.com/contact-support/
Auto-Negotiation MDI/MDIX;
Frequently Asked Questions (FAQ)
The Power LED should be lit when the power system is working normally. If the Power LED
is not lit, please check as follows:
A1:
Make sure the switch and power source are properly connected through the power
adapter.
A2:
Make sure the power source voltage meets the input voltage requirements of both the
power adapter and the switch.
A3:
Make sure the power source is on.
Q1. The Power LED is not lit.
It is recommended that you check the following items:
A1:
Make sure that the cable connectors are rmly plugged into the switch and the device.
A2:
Make sure the connected device is turned on and working well.
A3:
The cable must be less than 100 meters long (328 feet).
Q2. Why is the Link/Act LED not lit while a device is connected to
the corresponding port?
When the total power consumption of connected PoE devices exceeds the maximum, the
PoE port with a smaller port number has a higher priority. The system will cut o power to the
ports with larger port numbers to ensure supplying to other ports.
For example, if port 1, 2 and 4 are consuming 30 W respectively, and an additional PoE device
with 60 W is connected to port 3, the system will cut o the power of port 4 to compensate
for the overload.
Q3. Why is PoE Port not supplying power for PoE devices?
Specications
General Specications
Standard
IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3bz, IEEE 802.3ae,
IEEE 802.3az, IEEE 802.3x, IEEE 802.1p, IEEE 802.1q
IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Interface
4 100M / 1G / 2.5G RJ45 PoE++ Ports
1 100M / 1G / 2.5G RJ45 Port
1 10G SFP+ Port
Transmission
Media
100BASE-TX: UTP category 5, 5e cable (maximum 100 m)
1000BASE-T: UTP category 5e cable or above (maximum 100 m)
1000BASE-SX: 62.5 μm MMF (2 m ~ 275 m) or 50 μm MMF (2 m ~
550 m)
1000BASE-LX: 62.5/50 μm MMF (2 m ~ 550 m) or 9 μm SMF (2 m ~
5000 m)
1000BASE-LX10: B1.1, B1.3 SMF (2 ber) (0.5 m ~ 10 km)
1000BASE-BX10: B1.1, B1.3 SMF (1 ber) (0.5 m ~ 10 km)
2.5GBASE-T: UTP category 5e cable or above (maximum 100 m)
10GBASE-SR: OM1/OM2/OM3 or above MMF (2 m ~ 300 m)
10GBASE-LR: IEC B1.1 and B1.3 SMF (2 m ~ 10 km)
Switching
Capacity
45 Gbps
Transfer Method Store-and-Forward
MAC Address
Learning
Automatically learning, automatically aging
Power Supply
Input: 100-240 VAC, 50/60 Hz
Output: 53.5 V DC/2.43 A
Wall Mountable Yes
Distance Between
Mounting Holes
150 mm
