Thank you for purchasing the amaran Ray 660c.
Designed for home studios and on-location spaces that need more punch, the amaran Ray
660c is a 660W full-color point-source LED light powered by the OmniColor light engine –
delivering true-to-life color and powerful, studio-quality output in a streamlined, monolight
design that runs on a single AC cable. With DMX control via USB-C
1
and an IP54-rated build
for real-world shoots, the amaran Ray 660c keeps setups simple and efficient – from larger
studios to expansive outdoor spaces.
03
Introduction
1
*The amaran USB-C to 5-Pin DMX In&Out Adapter is sold separately.
04
Components List

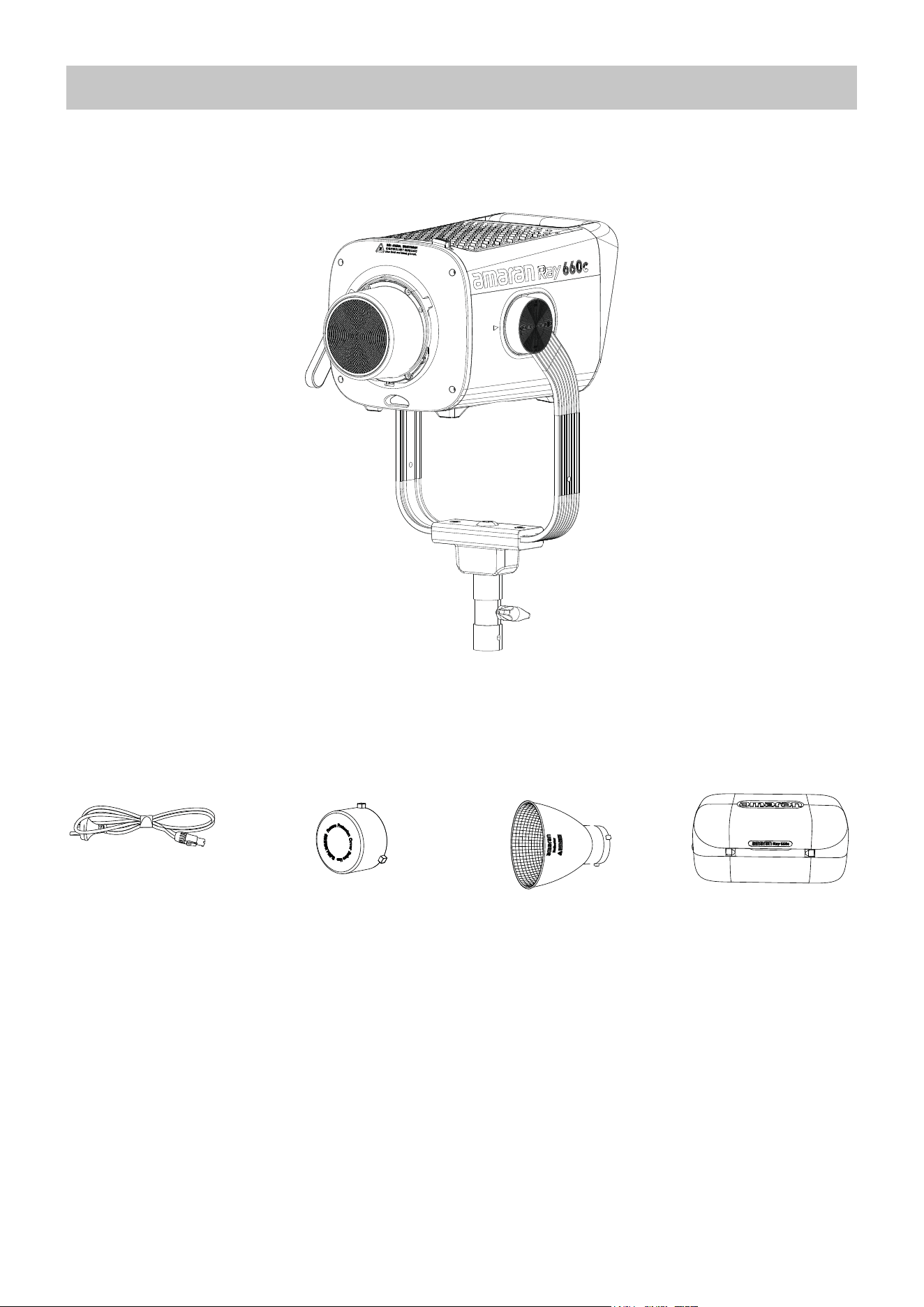

amaran Ray 660c ×1
amaran
AC Power Cable (5m) x 1
amaran Ray 660c
EPP Carrying Case x 1
amaran Reflector×1
amaran Blue Bowens
Mount Protection Cover x 1
Tip: The illustrations in the manual are diagrams for reference only. Due to the continuous
development of new versions of the product, if there are any differences between the
product and the user manual diagrams, please refer to the product itself.
Please make sure all accessories listed below are complete before using. If not, please
contact your sellers immediately.
05

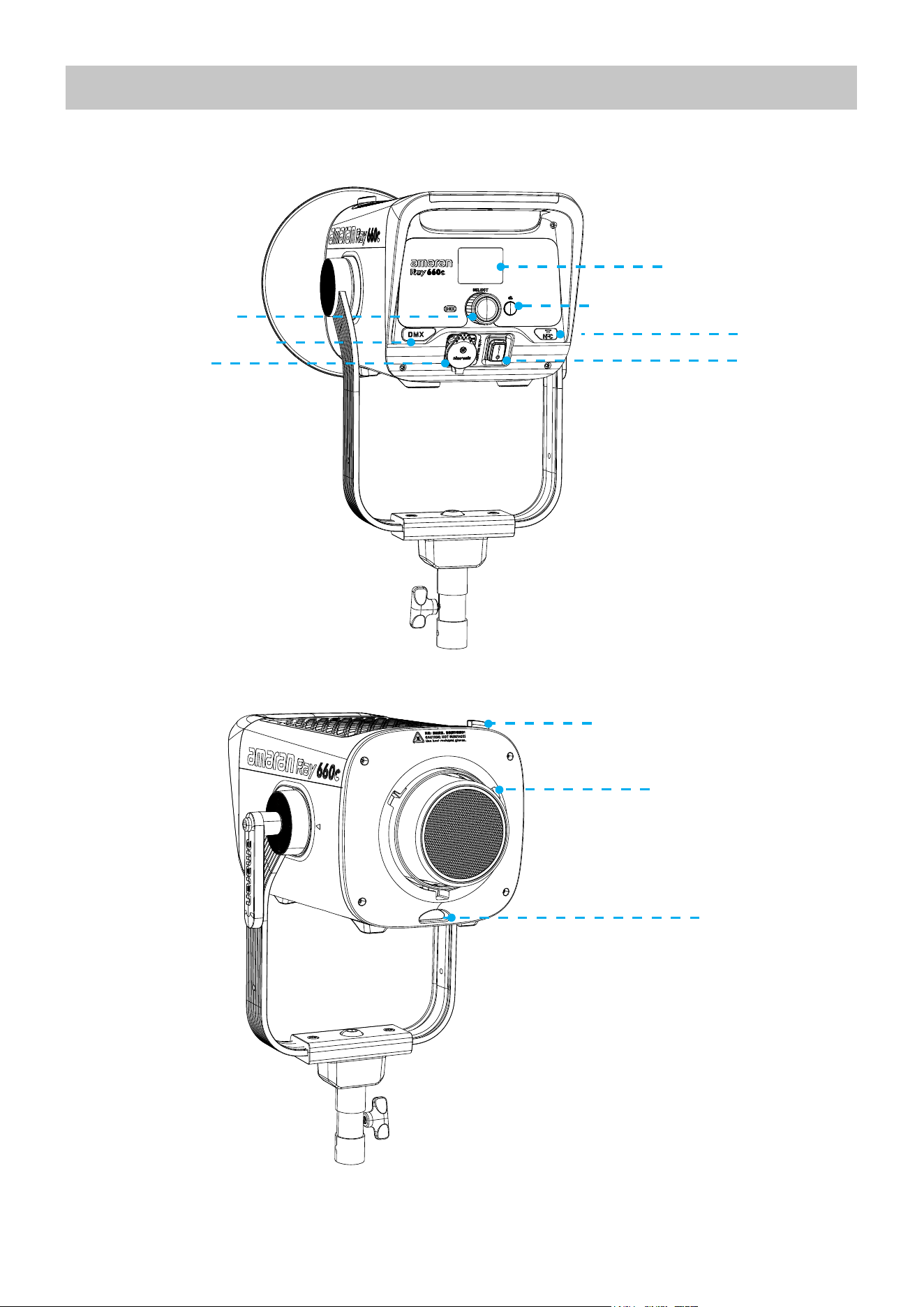

Product Overview
Display Menu Screen
Return Button / Custom Button
NFC Antenna
FlowTurn Knob
Power Input
USB-C to DMX Port
Power Switch
Full-Size Bowens Mount
Bowens Mount Release Button
Safety Cable Hole
Display Menu Screen
FlowTurn Knob
Return Button /
Custom Button
NFC Antenna
USB-C to DMX Port
Displays settings and status of your light.
Power Switch
Toggle to turn the light on or off.
06
Used for NFC pairing. When a smartphone is brought close to
the light’s NFC area, it can quickly trigger a Bluetooth connec-
tion, enabling seamless pairing and control via the amaran app
without the need to manually search for the device.
Supports a universal voltage range to provide stable mains
power to the light.
Press to release the Bowens Mount accessory.
Compatible with a variety of full-size, standard Bowens
Mount accessories.
Used for attaching a safety cable or tether. When the light is
used in elevated or complex environments, it provides addi-
tional security and fall protection, ensuring the safety of both
the equipment and personnel.
Power Input
(AC IN 100–240V)
Bowens Mount Release
Button
Full-Size Bowens Mount
Safety Cable Hole
Rotate to toggle the menu or adjust values and lighting
settings, such as brightness, color temperature, and color
mode.
Click to return to the previous menu screen. Hold or double
click on the return button to execute customizable shortcuts
set in Custom Mode.
Connect the USB-C to DMX Adapter cable to achieve wired
DMX control. This fixture does not support power supply via
this USB-C port.
07
Operations
1.Power Supply
2.Power On/Off

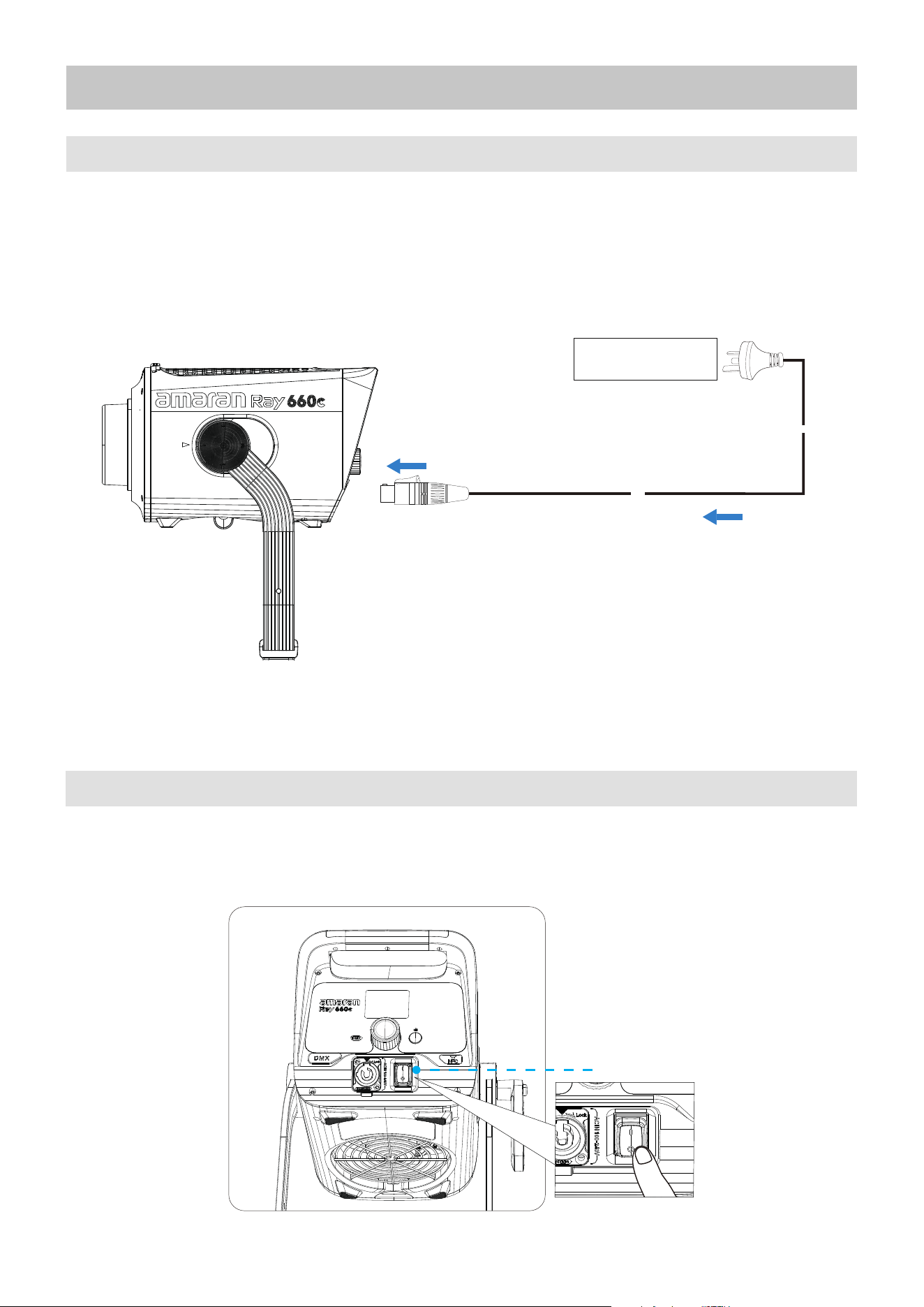

1.After connecting to power, you can turn the light on or off by toggling the power switch.
AC 100V-240V
~
~
~
~
Insert one end of the AC power cable into the light’s AC power input port, and the other end
into an AC power outlet to supply mains power to the light. Ensure the plugs are securely
connected to ensure proper operation.
Power Switch
08

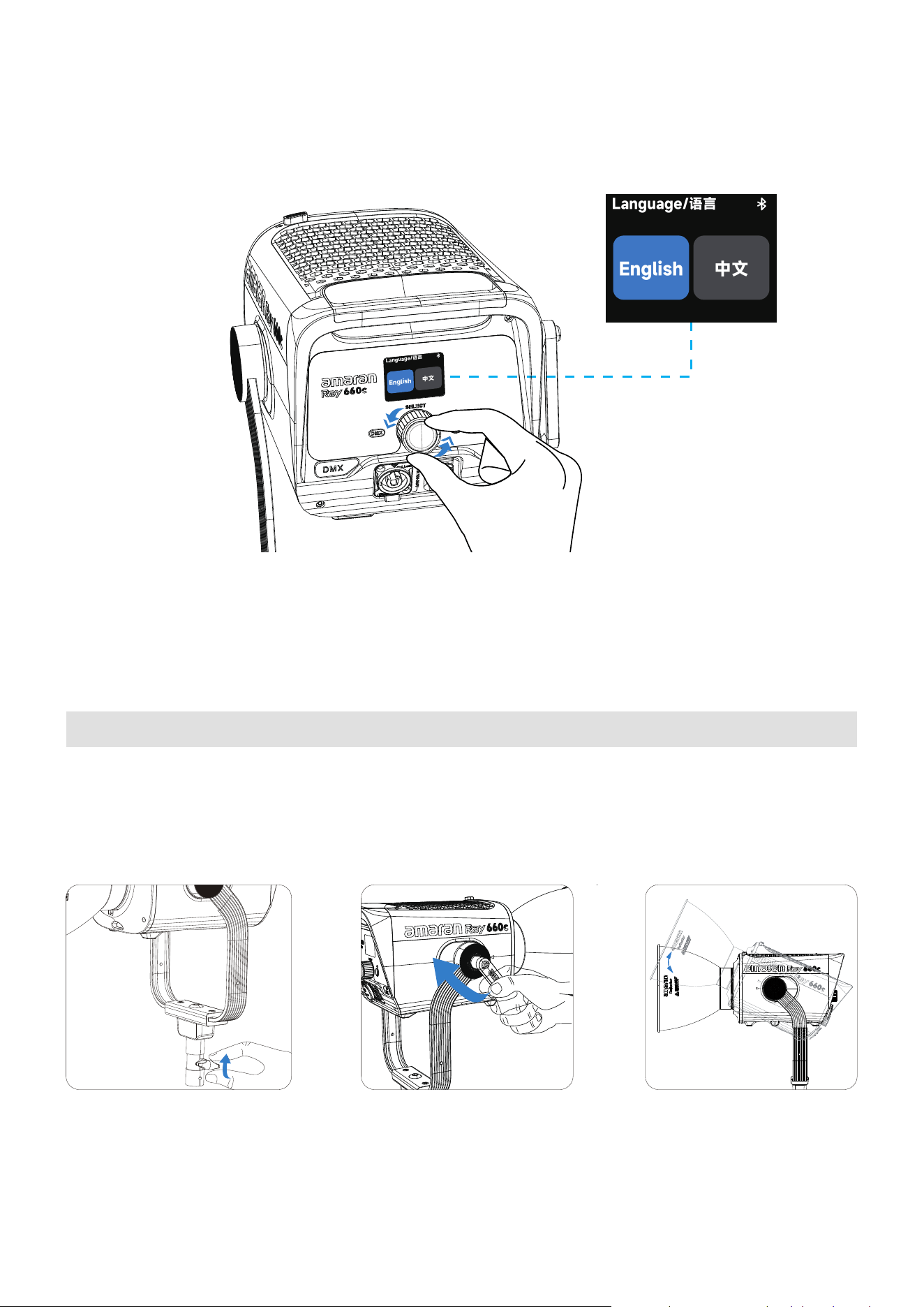

3.Light Installation
2.You can select your preferred language when you turn the light on for the first time.
Rotate the knob to select your language. Click to confirm.
English
中文
Language/语言
English
中文
Language/语言
1.With the mounting bracket installed onto the light, place the end of the mounting bracket
onto the light stand and turn the locking knob to secure into place. Adjust the angle of the
light and turn the tilting bracket knob to seucre into place.
09

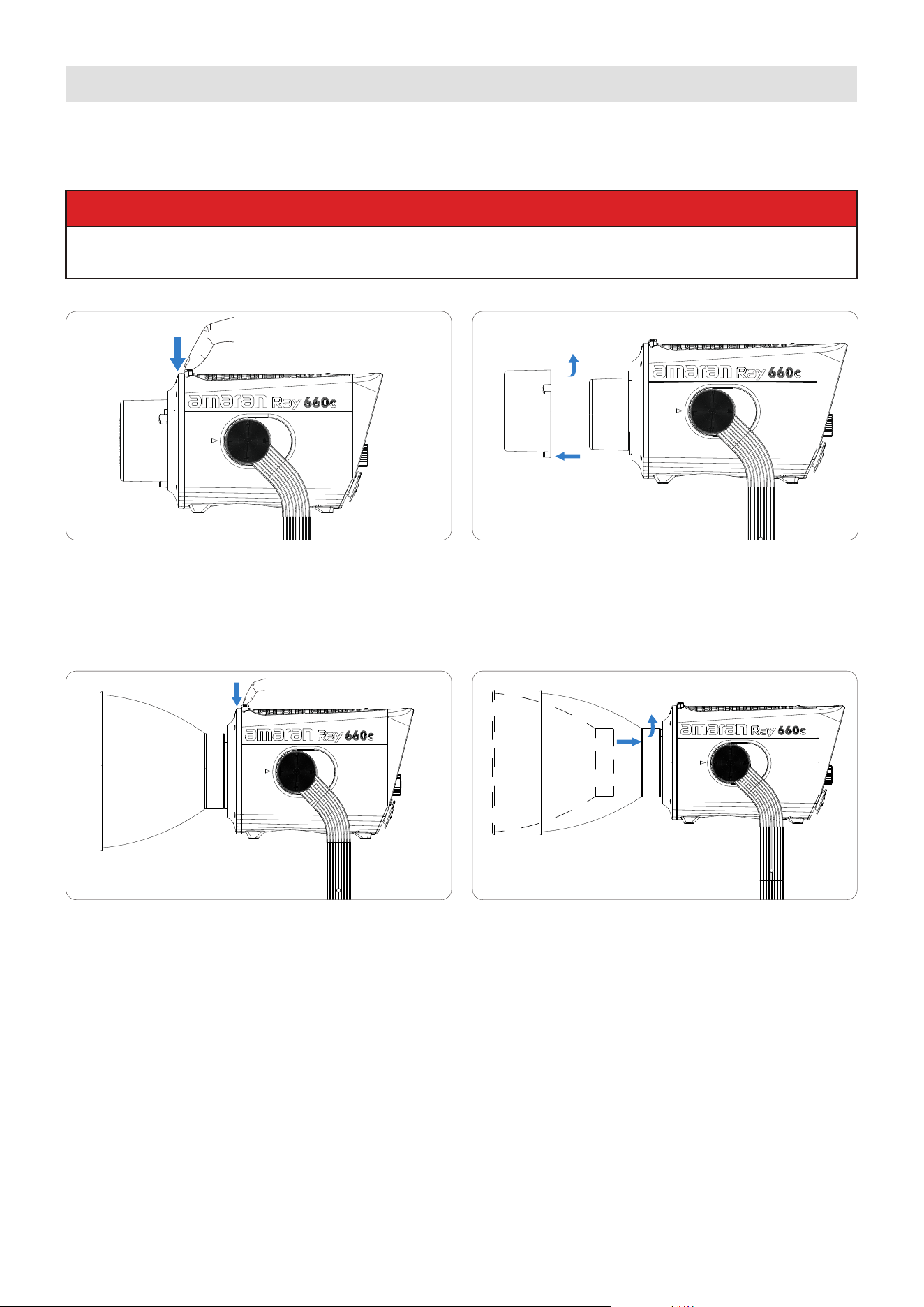

4.Protection Cover & Modifier Installation/Removal
1.This fixture uses a Bowens Mount, and the installation/removal method is the same for
both the protection cover and modifiers
To install: Align and insert the protection cover or modifier into the Bowens Mount, rotate
clockwise until the release button pops out.
To remove: Press and hold the release button, then rotate counterclockwise to detach.
WARNING
Always remove the protection cover prior to turning on the light. Always re-install the cover when
packing it away.
*When replacing with other accessories, please ensure compatibility with the fixture. For
detailed compatibility information, refer to the official website.
10
5.Main Menu
Rotate the control knob to browse through options, then press the knob to select a light-
ing mode or adjust function settings.
5.1 CCT Mode

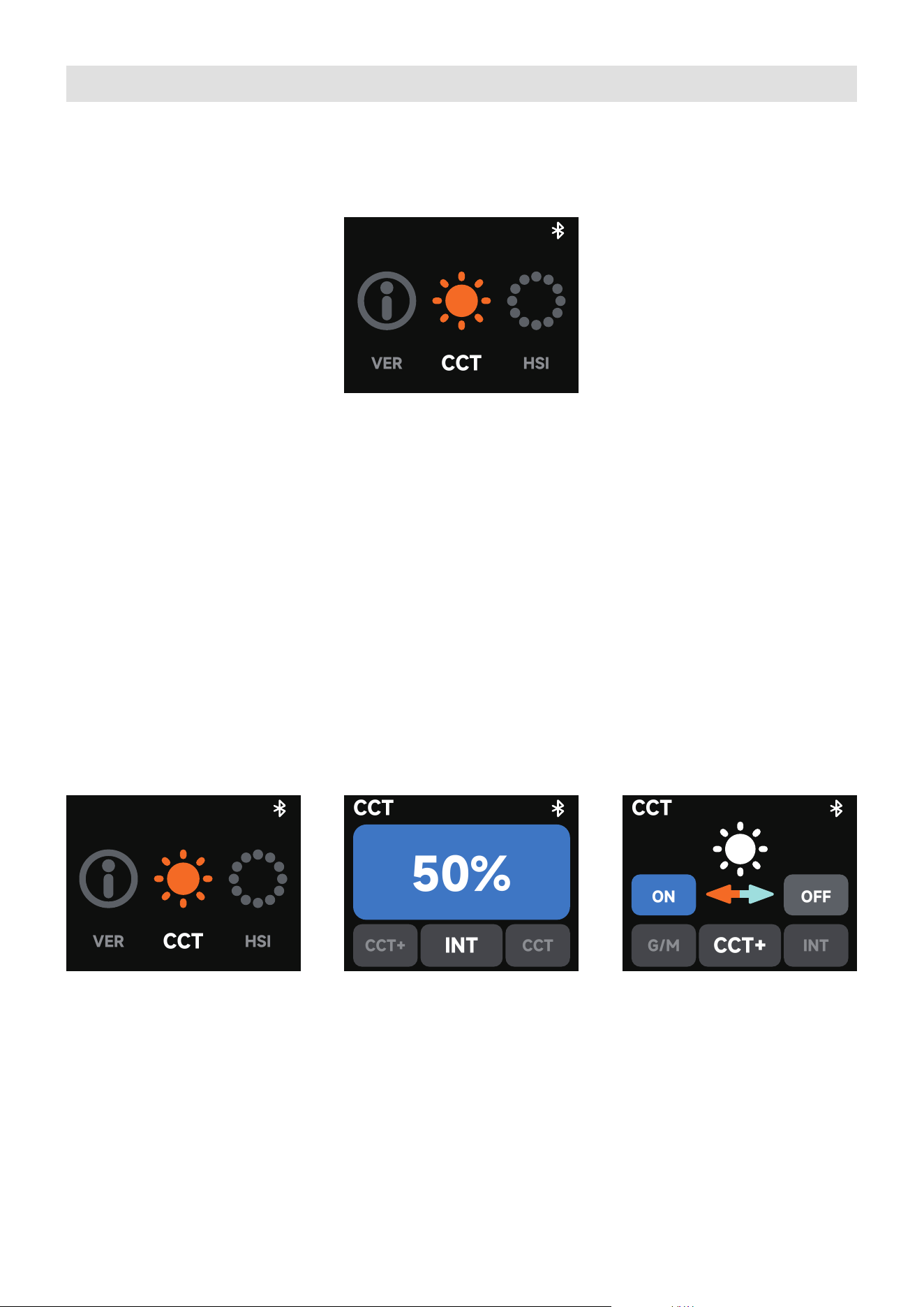

Rotate the knob and press the knob to enter CCT Mode from the main menu. In this mode,
press the knob to toggle between parameters, and rotate the knob to adjust the corre-
sponding values.
INT (Intensity): Adjust your light's brightness from 0%-100%.
CCT (Correlated Color Temperature): Adjust your light's color temperature from warm
white (2,300K CCT) to cool white (10,000K CCT).
G/M (Green-Magenta): Adjust the green-megenta shift in ±10 increments.
CCT+ (Expanded CCT): Enables or disables extended CCT range. When enabled, the
adjustable color temperature in CCT mode is expanded to 1,800K to 20,000K CCT.
Please note that the color rendering when in the expanded CCT range is lower.
Rotate the knob and press the knob to enter HSI Mode from the main menu. In HSI, press
the knob to select INT, HUE, or SAT and rotate the knob to adjust the corresponding value.
INT (Intensity): Adjust your light's brightness from 0%-100%.
HUE: Adjust your light's hue value from 1º to 360º.
SAT (Saturation): Adjust the saturation of the color from 0%-100%.
CCT
VER
HSI
CCT
VER
HSI
INT
CCT+
CCT
CCT
50%
CCT+
INT
CCT
G/M
ON
OFF
11
5.4 FX Mode
5.3 RGB Mode

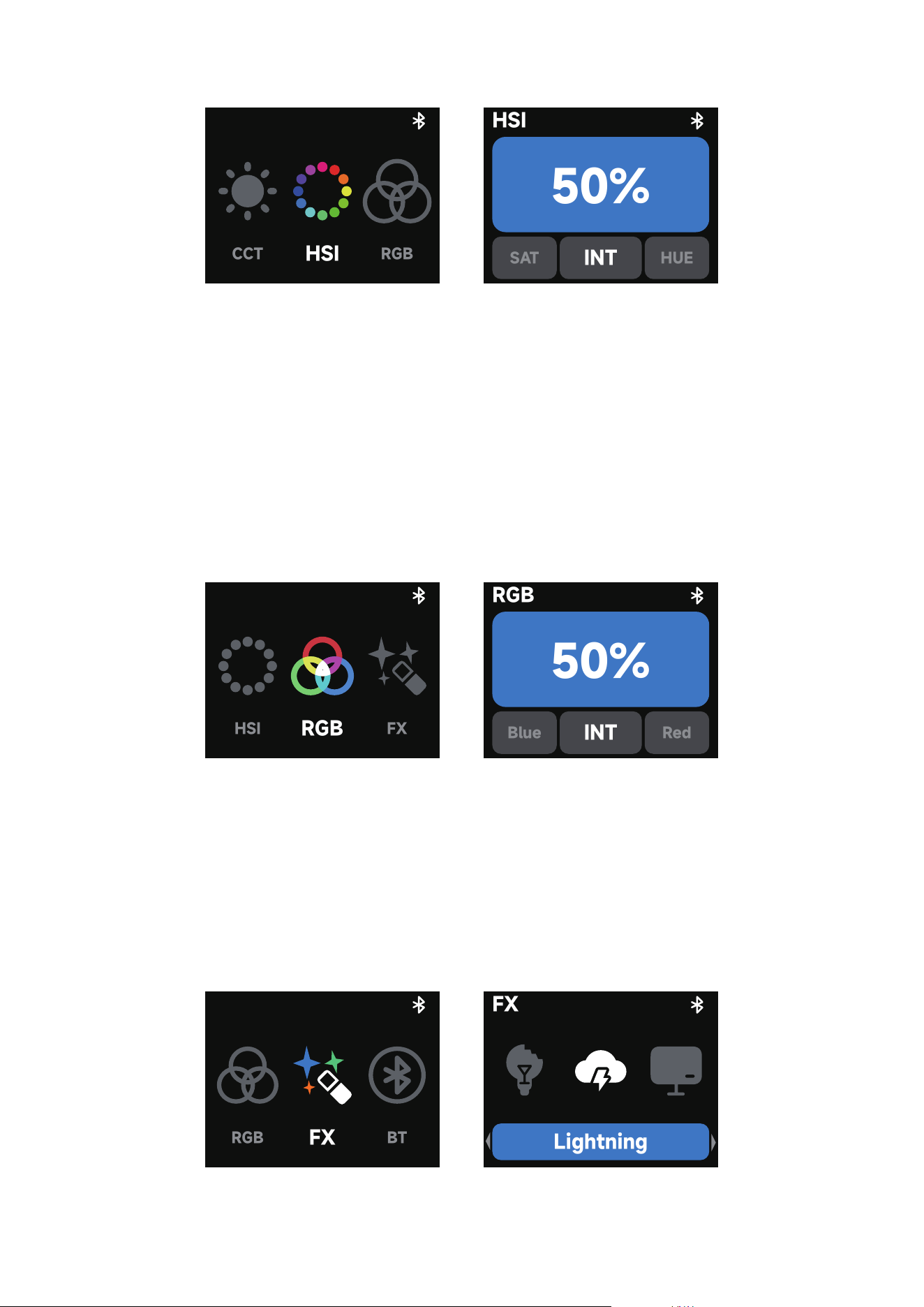

Rotate the knob and press the knob to enter RGB Mode from the main menu. In this mode,
press the knob to select INT, Red, Green, or Blue and rotate the knob to adjust the corre-
sponding value.
INT (Intensity): Adjust your light's brightness from 0%-100%.
Red: Adjust your light's Red value from 0%-100%.
Green: Adjust your light's Green value from 0%-100%.
Blue: Adjust your light's Blue value from 0%-100%.
Rotate the knob and press the knob to enter FX Mode from the main menu. In FX mode,
rotate the knob to switch between different lighting effects. After entering an effect’s set-
tings, you can rotate the knob to adjust the corresponding value.
RGB
HSI
FX
INT
50%
Blue
Red
RGB
HSI
CCT
RGB
INT
SAT
HUE
50%
HSI
FX
RGB
BT
FX
Lightning
12
Supported lighting effects:

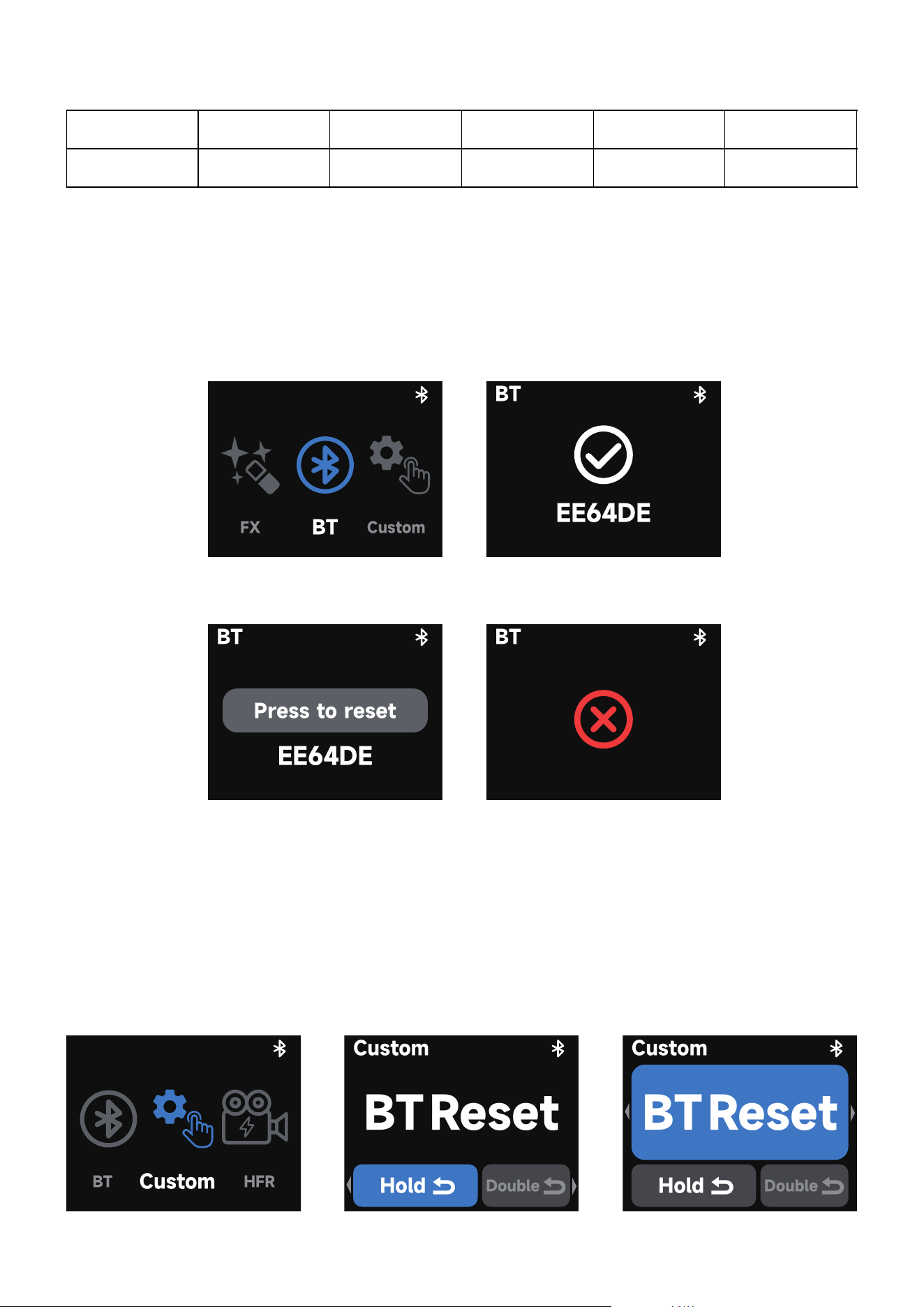

5.5 BT Bluetooth Reset
1.Bluetooth reset is successful.
2.Bluetooth reset is unsuccessful. Please reset Bluetooth again.
5.6 Custom Mode
蓝牙
Fireworks
Faulty Bulb Lightning
TV
Pulsing
Strobe
Explosion
Fire
Paparazzi
Welding
Cop Car
Party Lights
Rotate the knob and press the knob to enter BT mode from the main menu. Press and hold
the knob until the end of the progress bar. Release the knob to cancel.
Rotate the knob and press the knob to enter Custom Mode from the main menu.
In Custom mode, you can assign a custom shortcut function to either a long-press or dou-
ble-press of the back button.
Press the knob to enter the settings. Rotate the knob to choose from the following functions:
No / SOS / Bluetooth Reset / CCT Mode / HSI Mode / RGB Mode / FX Mode / Rotation /
CCT+ / Fan Mode. Press the knob again to confirm your selection.
BT
FX
Custom
BT
Press to reset
EE64DE
BT
EE64DE
BT
Custom
BT
HFR
Custom
Hold
Double
Reset
BT
Custom
Hold
Double
Reset
BT
13

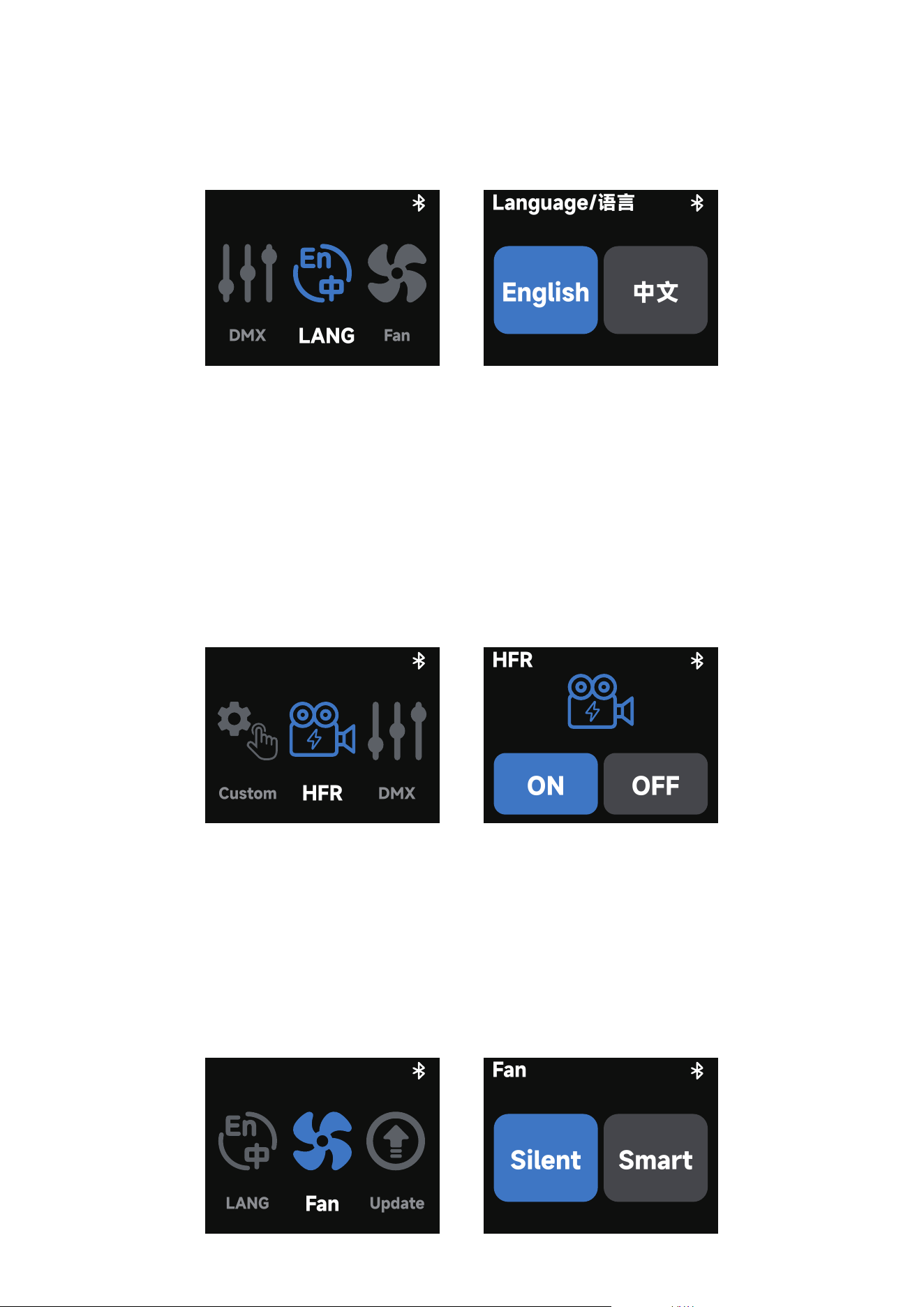

5.7 LANG (Language)
Rotate the knob and press the knob to enter Language settings from the main menu.
In this menu, rotate the knob to switch between English and Chinese. Press the knob to
confirm your selection.
5.8 HFR Mode (High Frame Rate)
Rotate the knob and press the knob to enter High Frame Rate Mode from the main menu. In
High Frame Rate mode, rotate the knob to toggle between On and Off, then press the knob
to confirm your selection.
HFR Mode On: Optimized for high-speed shooting at up to 240fps, ensuring minimal flicker
for smooth and stable image capture.
HFR Mode Off: The fixture operates in standard mode.
5.9 Fan Mode
Rotate the knob and and press the knob to enter Fan mode from the main menu. In Fan
mode, rotate the dial to toggle between Silent and Smart fan mode. Press the knob to
confirm your settings.
Silent Mode: The fan will be completely turned off, and the light will not produce any noise.
To ensure safe operation, the maximum power output will be limited to 99W.
Smart Mode: The fan speed will automatically adjust according to the temperature of the
light.
LANG
Fan
DMX
English
中文
Language/语言
HFR
DMX
Custom
HFR
ON
OFF
Fan
LANG
Update
Fan
Silent
Smart
*When High Frame Rate Mode is enabled, the minimum brightness will be limited to 50%.To
adjust the brightness below 50%, please disable High Frame Rate Mode first.
14

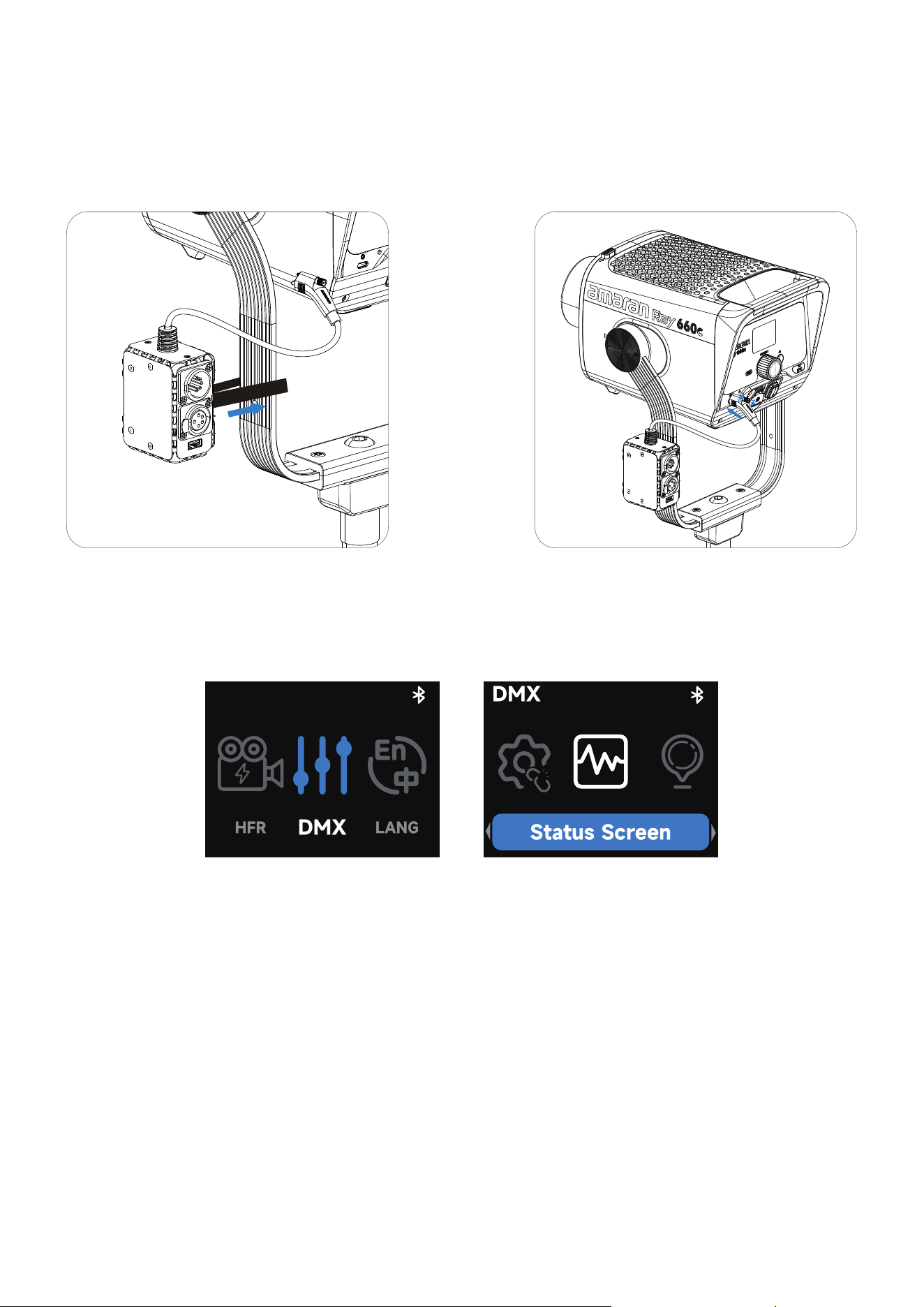

5.10 DMX Control Settings
Insert the USB-C connector of the amaran USB-C to 5-Pin DMX In&Out Adapter into the
USB-C port of the fixture, and tighten the locking screw to secure the connection. You may
use the included Velcro strap to attach the adapter to the fixture’s handle for convenient
cable management and stability.
The USB-A port on the adapter provides a 5V/1A power output and supports firmware
updates via USB flash drive.
To enter DMX Mode, follow these steps:
● Rotate the control knob and press it to select “DMX Mode” from the main menu.
● Once inside, rotate the knob to toggle between the following options:
○ DMX Status Display: View the current DMX address and selected DMX configuration.
○ DMX Address: Set the DMX start address of the fixture, ranging from 1 to 512.
○ DMX Signal Loss Behavior: Choose how the fixture responds to DMX signal loss.
Options include: Hold Last State, Instant Off, Fade Out, or Hold for 2 Minutes then Fade Out.
○ DMX Profile: Select the desired DMX channel profile. For detailed configuration files,
please refer to the official documentation.
*The amaran USB-C to 5-Pin DMX In&Out Adapter is sold separately.
LANG
HFR
DMX
Status Screen
DMX
5.11 Firmware Update
Firmware updates can be updated online via the amaran app.
*The amaran USB-C to 5-Pin DMX In&Out Adapter is sold separately.
Firmware can be updated via a USB flash drive. If using a USB-C flash drive, it can be
plugged directly into the fixture’s DMX port for the update.
When using the amaran USB-C to 5-Pin DMX In/Out Adapter, the firmware can be updated
by inserting the USB drive into the adapter’s USB-A port.

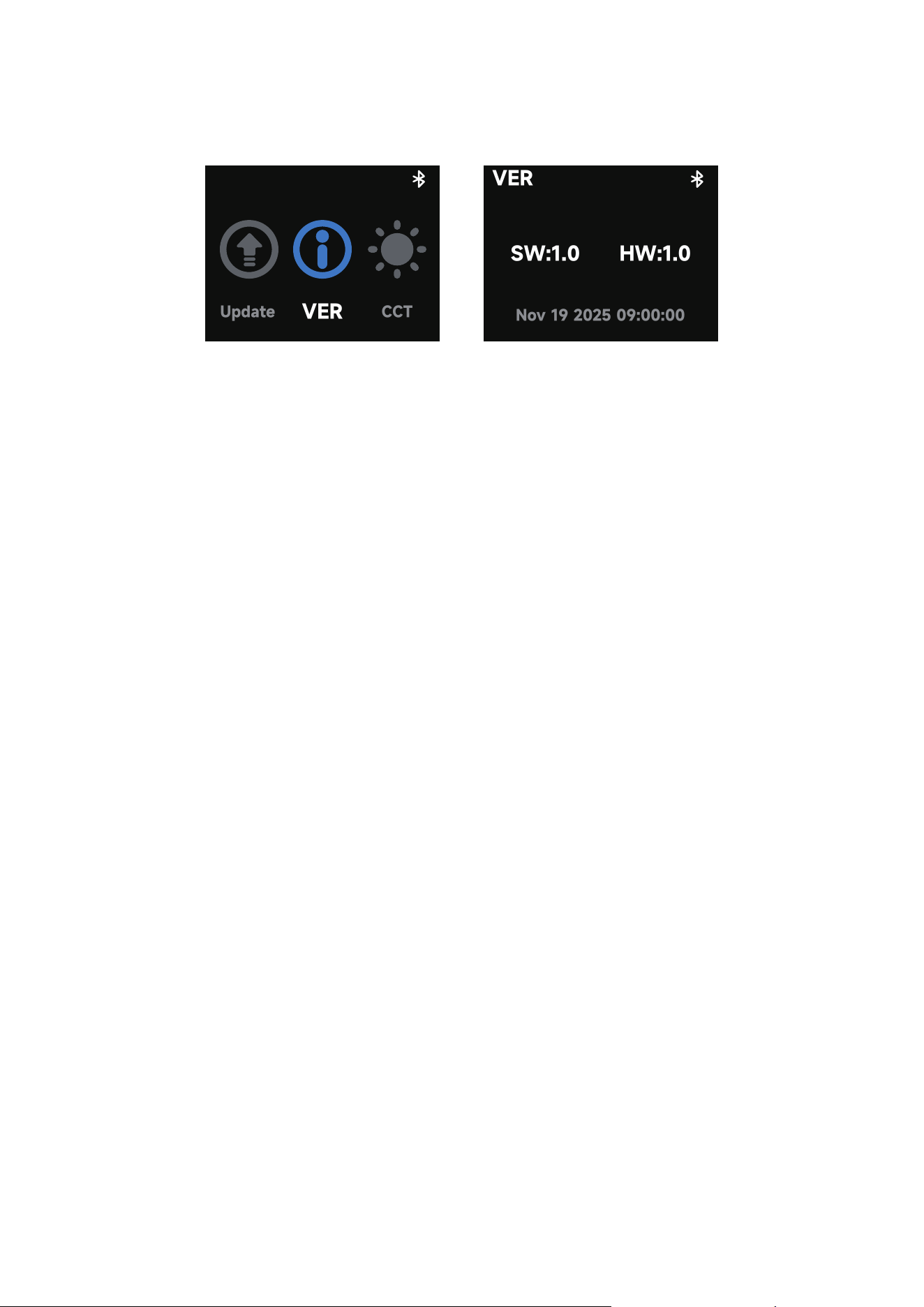

VER
Update
CCT
VER
SW:1.0
Nov 19 2025 09:00:00
HW:1.0
15
16

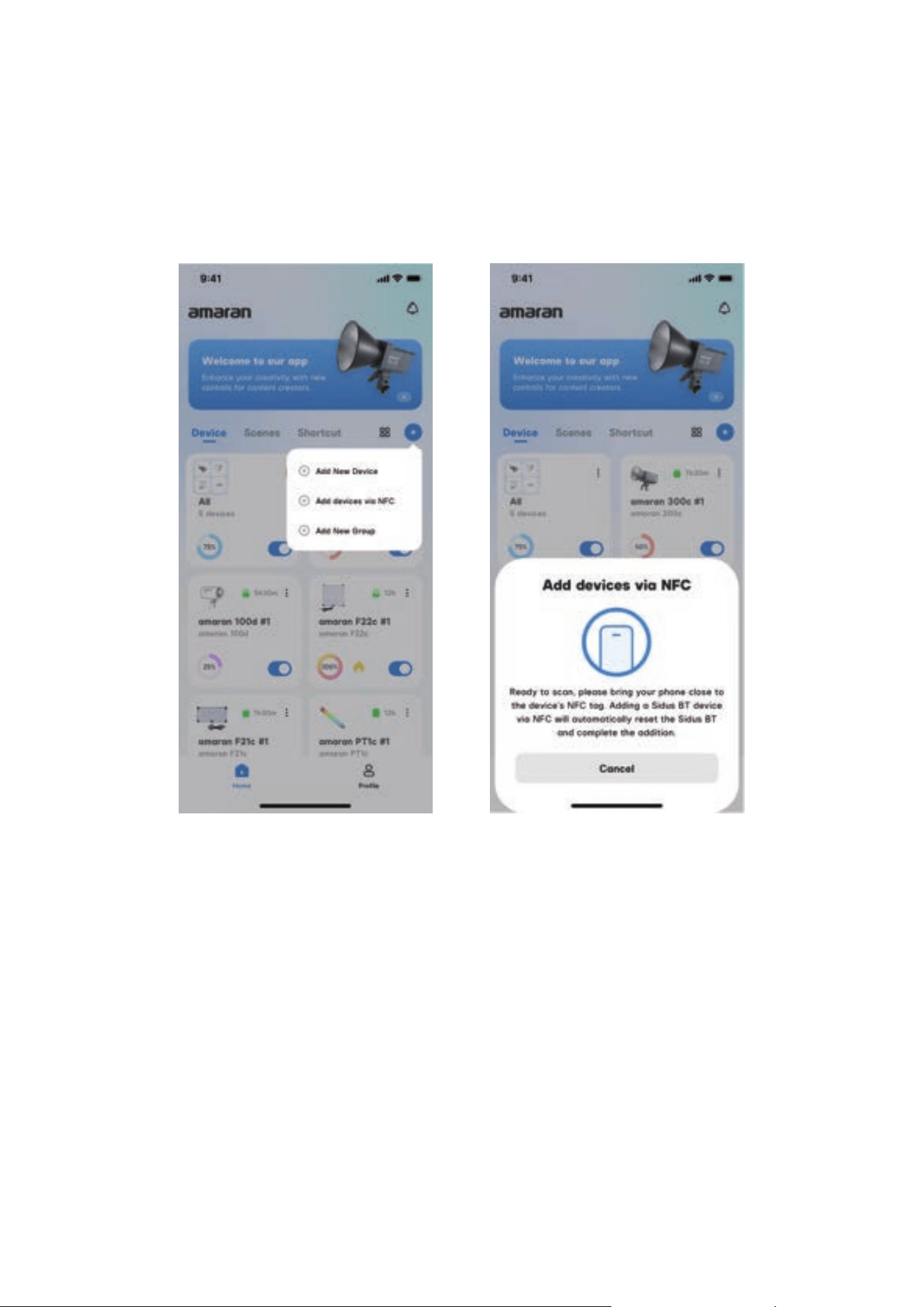

5.12 Pairing via NFC
To pair your light to the amaran app via NFC, open the amaran mobile app, tap the + sign,
and select NFC Add Device. Place the NFC sensor area of your phone to the fixture's NFC
tag. Hold your phone still until the fixture has been detected and successfully paired before
removing your phone.
Even if the light is powered off, pairing via NFC is still supported. The light will automatically
connect to the app once it is turned on.
17
Using the amaran App
You can download the amaran mobile app from the iOS App Store, Google Play Store, and
other platforms to enhance your lighting experience. The amaran desktop app is also avail-
able for download on the amaran website. For more detailed information on how to use the
app to control amaran products, please visit amarancreators.com.
18
Specifications
Power Consumption 750 W（Max） Power Output 660 W（Max）
CCT
Standard：2,300-
10,000K
Expanded(CCT+)：
1,800-20,000K
Luminous Flux 45,904 lumens
CRI 95+ TLCI 95+
TM-30 Rg (Average) 100 TM-30 Rf (Average) 94
SSI(D32) 87 SSI (D56) 80
Operating Voltage AC 100V-240V AC Power Cable Length 5m/16.40ft
Control Methods
On-board, amaran
App,*DMX Control
Firmware Upgradeable amaran App
Screen Type TFT
Wireless Operating
Rang
≤80m / ≤262.5ft
Coolin
g Method Active Cooling Max Noise Level
O
perating Temperature -10℃-40℃ Storage Temperature -20℃-80℃
Fixture Dimensions
29.9x24.1x42cm/
11.77x9.49x16.54in
Fixture Weight 5.7kg/12.57lb
Carrying Bag
Dimensions
59.7x35.5x32cm/
23.5x13.98x12.60in
Carrying Bag Weight 1.11kg/2.45lb
*The amaran USB-C to 5-Pin DMX In&Out Adapter is sold separately.
*The above technical specifications are from the Aputure laboratory, and there may be
some variation betwveen individual units
≤28 dBA @ 30°C
19
Photometrics
amaran Ray 660c
CCT Dis. No Accessories Octa Dome 90 Reflector
2300K
1m
24,640Lux 16,650Lux 58,800Lux
2,289fc 1,547fc 5,463fc
3m
2,860Lux 1,141Lux 5,870Lux
266fc 106fc 545fc
3200K
1m
36,300Lux 24,620Lux 86,900Lux
3,372fc 2,287fc 8,073fc
3m
4,220Lux 1,682Lux 8,670Lux
392fc 156fc 805fc
4300K
1m
38,500Lux 26,060Lux 91,600Lux
3,577fc 2,421fc 8,510fc
3m
4,470Lux 1,776Lux 9,180Lux
415fc 165fc 853fc
5600K
1m
37,900Lux 25,700Lux 90,400Lux
3,521fc 2,388fc 8,398fc
3m
4,420Lux
1,751Lux 9,010Lux
410fc 163fc 837fc
6500K
1m
37,400Lux 25,210Lux 88,900Lux
3,475fc 2,342fc 8,259fc
3m
4,350Lux 1,717Lux 8,860Lux
404fc 160fc 823fc
10000K
1m
35,600Lux 24,080Lux 84,400Lux
3,307fc 2,237fc 7841fc
3m
4,150Lux 1,635Lux 8,440Lux
386fc 152fc 784fc
Red 1m
5,790Lux
/ /
538fc
Green 1m
22,350Lux
2076fc
Blue 1m
3,140Lux
292fc
20
Photometrics
amaran Ray 660c
CCT Dis.
Fresnel
Spot 15° Flood 45°
2300K
3m
20,230Lux 4,250Lux
1879fc 394fc
5m
7,420Lux 1,627Lux
689fc 151fc
3200K
3m
29,900Lux 6,310Lux
2778fc 586fc
5m
10,990Lux 2,414Lux
1021fc 224fc
4300K
3m
31,700Lux 6,680Lux
2945fc 621fc
5m
11,640Lux 2,558Lux
1,081fc 238fc
5600K
3m
31,300Lux 6,600Lux
2,908fc 613fc
5m
11,500Lux 2,525Lux
1,068fc 235fc
6500K
3m
30,900Lux 6,490Lux
2,871fc 603fc
5m
11,310Lux 2,474Lux
1,051fc 230fc
10000K
3m
29,450Lux 6,230Lux
2,736fc 57
9fc
5m
10,790Lux 2,370Lux
1,002fc 220fc
21
Declaration of Toxic and Hazardous Substances in
Electronic Information
Component
Toxic and Hazardous Substances or Elements
Lead
(Pb)
Mercury
(Hg)
Cadmium
(Cd)
Hexavalent
chromium
(Cr VI)
(PBB)
(PBDE)
PCB X O O O O
Plastic O O O O O
Metal X O O O O
Accessories O O
O
O
O
O O O O
This table is prepared in accordance with the provisions of SJ/T 11364.
O: Indicates that the content of the toxic and hazardous substance in all homogeneous
materials of the component is below the limit specified by GB/T 26572.
X: Indicates that the content of the toxic and hazardous substance exceeds the limit speci-
fied by GB/T 26572 in at least one homogeneous material of the component.
The information in this table is provided to suppliers in the form of data and testing results
that comply with RoHS environmental requirements.
Polybrominated
diphenyl ethers
Polybrominated
biphenyls
(PBDE)
22
IC
IC regulatory conformance
This device complies with CAN ICES-003 (B)/NMB-003(B) and CAN RSS-216 / CNR-216.
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation,
Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject
to the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause unde-
sired operation of the device.
Cet appareil est conforme à la norme CAN ICES-003 (B)/NMB-003 (B) et CAN RSS-216 /
CNR-216.
Cet appareil contient des émetteurs / récepteurs exempt (s) de licence qui sont conformes
aux RSS exemptes de licence d'Innovation, Sciences et Développement économique
Canada. Son fonctionnement est soumis aux deux conditions suivantes:
(1) Cet appareil ne doit pas provoquer d'interférences.
(2) Cet appareil doit accepter toute interférence, y compris les interférences susceptibles
de provoquer un fonctionnement indésirable de l'appareil.
This equipment complies with IC radiation exposure limits set forth for an uncontrolled
environment.
Cet équipement est conforme aux limites d'exposition aux radiations de la IC définies pour
un environnement non contrôlé.
23
WARNING
ATTENTION
FCC
FCC regulatory conf
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause
undesired operation.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment.
The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the
user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
UL
NOT FOR RESIDENTIAL USE
NON DESTINÉ À UN USAGE DOMESTIQUE
Notice: This control circuit is not isolated – see installation instructions
Note: ce circuit de commande n’est pas isolé - voir les instructions d’installation
NOT FOR HOUSEHOLD USE
NON DESTINÉ À UN USAGE DOMESTIQUE
DISCONNECT POWER BEFORE SERVICING
COUPER L’ALIMENTATION AVANT L’ENTRETIEN
CSA
24
25
Important Safety Instructions
When using the amaran Ray 660c, basic safety precautions should
always be followed, including the following:
1.Read and understand all instructions before using the fixture.
2.Close supervision is necessary when any fixture is used by or near
children. Do not leave the fixture unattended while in use.
3.Care must be taken as burns can occur from touching hot surfaces.
4.Do not operate the fixture if any power cable is damaged, or if the
fixture has been dropped or damaged, until it has been examined by
qualified service personnel.
5.Position any power cables such that they will not be tripped over,
pulled, or come into contact with hot surfaces.
6.Always unplug the fixture from the power outlet before cleaning, ser-
vicing, or when not in use. Never pull on the power cord to unplug from
the outlet.
7.Allow the fixture to cool down completely before storing. Unplug all
cables and store them properly. If a carrying case is used, place cables
in their designated compartments.
8.Do not immerse the fixture in water or any other liquid to avoid elec-
tric shock.
9.Do not disassemble the fixture to avoid the risk of fire or electric
shock. For service, contact [email protected] or consult qualified service
personnel. Improper reassembly may result in electric shock when the
fixture is in use.
10.Using any accessory not recommended by the manufacturer may
increase the risk of fire, electric shock, or personal injury.
11.Power this fixture only by connecting it to a properly grounded outlet.
12.Remove the protective cover before use.
13.Do not block the ventilation openings. Do not look directly at the LED
light source when it is powered on, and never touch the LED emitters
under any condition.
14.Do not place the fixture near flammable materials or volatile solvents,
as this may cause damage.
15.Use a soft, dry cloth to clean the device.
16.When operating in humid or wet environments, ensure that all ports
and plugs are completely dry to avoid short circuits or electric shock.
17.All service and maintenance should be performed by authorized per-
sonnel only. Any malfunctions caused by unauthorized disassembly are
not covered under warranty and may result in repair costs borne by the
user.
18.When hanging the fixture overhead, always attach an additional
safety measure (such as a certified safety chain) rated for the weight of
the fixture. We strongly recommend using only original Aputure cables
and accessories. Malfunctions caused by the use of unauthorized ac-
cessories are not covered under warranty and may result in repair
costs borne by the user.
19.This product is certified by RoHS, CE, KC, PSE, and FCC. Please
operate the product in full compliance with the regulations of your
country or region. Malfunctions caused by improper use are not cov-
ered under warranty and may result in repair costs borne by the user.
20.This User Manual is based on extensive testing conducted by the
company. Design and specifications are subject to change without prior
notice.
Important Safety Instructions
26
27
Before using this product, please read the product manual to ensure cor-
rect use under the complete understanding. After reading, please keep
the product manual properly for future reference. In case of not operating
this product correctly, it may seriously harm yourself or others, or result
in product damage and property loss. When using this product, it shall be
deemed that you have understood, recognized and accepted all clauses
and contents of this document. The user commits to be responsible for
their own behaviors and all consequences thereof, amaran shall not be
liable for any loss due to the user who does not use this product in accor-
dance with the product manual.
Under the laws and regulations, our company holds the final explanation
right of this document and all related documents of this product. No prior
notice will be given for any update, revision or termination. Please visit the
official amaran website for the latest product information.
Disclaimer
