RIVAIOT LGW-SH
High‑Performance、Full‑Duplex、8‑Channel
LoRaWAN Industrial Gateway
High
‑
Performance
F
ull
‑
Duplex
8
‑
Channel
SX1302
Multiple Internet
Access Modes
Abundant
Interfaces
Temperature
Range -
40
℃
-85
℃
LGW‑SH is an indoor IoT gateway based on LoRa® low‑power wide‑area network technology.
The device integrates the Semtech high‑performance 8‑channel transceiver SX1302 chip,
supports full‑duplex mode and access of thousands of end‑nodes, and delivers LoRa® network
coverage for diverse industrial scenarios. LGW‑SH transmits data to cloud servers via Wi‑Fi or
wired Ethernet.
Compatible with multiple mainstream LoRaWAN® network servers (Tencent Cloud, ChirpStack,
The Things Stack, etc.), LGW‑SH also supports connections with its built‑in Network Server (NS),
the Reach IoT Open Platform and third‑party IoT platforms. It enables rapid deployment of custom
IoT applications and implementation of tailored intelligent services.
Built
‑
in NS
AdoModel Tech Inc.
Application Solutions
Product Highlights
It adopts Espressif’s ESP32
‑
S3, featuring
powerful data
‑
processing capability and stable
operation.
Adopts Semtech high‑performance 8‑channel
SX1302 chip, supporting full‑duplex / half‑duplex
transmission.
Supports Ethernet and Wi
‑
Fi network access
with multi‑link backup to ensure stable data
transmission.
Supports integration with external
LoRaWAN® Network Servers (Tencent Cloud,
ChirpStack, The Things Stack, etc.) via packet
forwarders such as Semtech, ChirpStack and
Basics‑Station, enabling flexible deployment of
custom IoT applications.
Built
‑
in Network Server (NS) is equipped,
with MQTT / HTTP / HTTPS APIs provided for
fast application deployment.
Supports BACnet / Modbus protocols for
quick integration with building intelligent
management systems.
Supports noise
‑
floor scanning and provides
reliable channel deployment recommendations.
Supports LBT (Listen
‑
Before
‑
Talk).
Supports connection to Reach RIV
LoRaWAN Manage Platform, enabling remote
device status monitoring for efficient
management.
Enables fast integration with Reach RIV
LoRaWAN Manage Platform for automatic
device network configuration, pre‑configuration
and batch management.
Compact form factor, supports a wide range
of industrial scenarios.
AdoModel Tech Inc.
Product Specifications
Hardware System
MCU
ESP32-S3
Storage
128 Mbit (16M × 8) storage capacity
LoRaWAN®
Antenna
2 built‑in antenna interfaces with 50Ω characteristic impedance.
Channel
8
Band
US915: 902~928 MHz
(Multi‑band options available：
EU433/IN865/EU868/CN470/AU915/AS923-1&2&3&4)
Receiver Sensitivity
433 band: -140dBm
470 band: -140dBm
868 band: -143dBm
915 band: -143dBm
923 band: -143dBm
Transmit Power
Maximum Transmit Power: 30dBm
Protocol
V1.0.4 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C
Ethernet Port
Rate
1x10/100 Mbps
Transmission Mode
Full
‑
Duplex / Half
‑
Duplex
Wi-Fi Port
Antenna
Built
‑
in on
‑
board antenna, 50Ω characteristic impedance
Frequency
2.4G (802.11b/g/n)
Operation Mode
STA mode, AP Mode
Security Encryption
Supports 64/128/152‑bit WEP encryption, as well as advanced encryption
and security mechanisms such as WPA/WPA2, WPA
‑
PSK/WPA2
‑
PSK.
AdoModel Tech Inc.
Other Interfaces
Reset Button
1 x
Debug Interfaces
1× (TYPE-C)
LED
1× (RGB LED)
Built-in
WDT
Software Functions
Network Protocols
TCP/UDP/PPP/HTTP/NTP/PING/HTTPS/SMTP/SMTPS/SSL
PAP (Password Authentication Protocol) / CHAP (Challenge Handshake
Authentication Protocol)
Device
Management
Web page, Reach RIV LoRaWAN Manage platform
Power Supply and Power Consumption
Power supply
mode
DC 12V
Power
consumption
3.4W (average)
，
5W (peak)
Physical Properties
Housing Material
Imported APS+PC material
Installation
Method
Indoor placement, no installation required
Environmental Requirements
Operating
temperature
-40℃~85℃
Storage
temperature
-50
℃
~100
℃
Electromagnetic
Isolation
Protection
Contact discharge ±4KV
，
Air discharge ±8KV
Relative humidity
10%~90%RH No condensation
AdoModel Tech Inc.

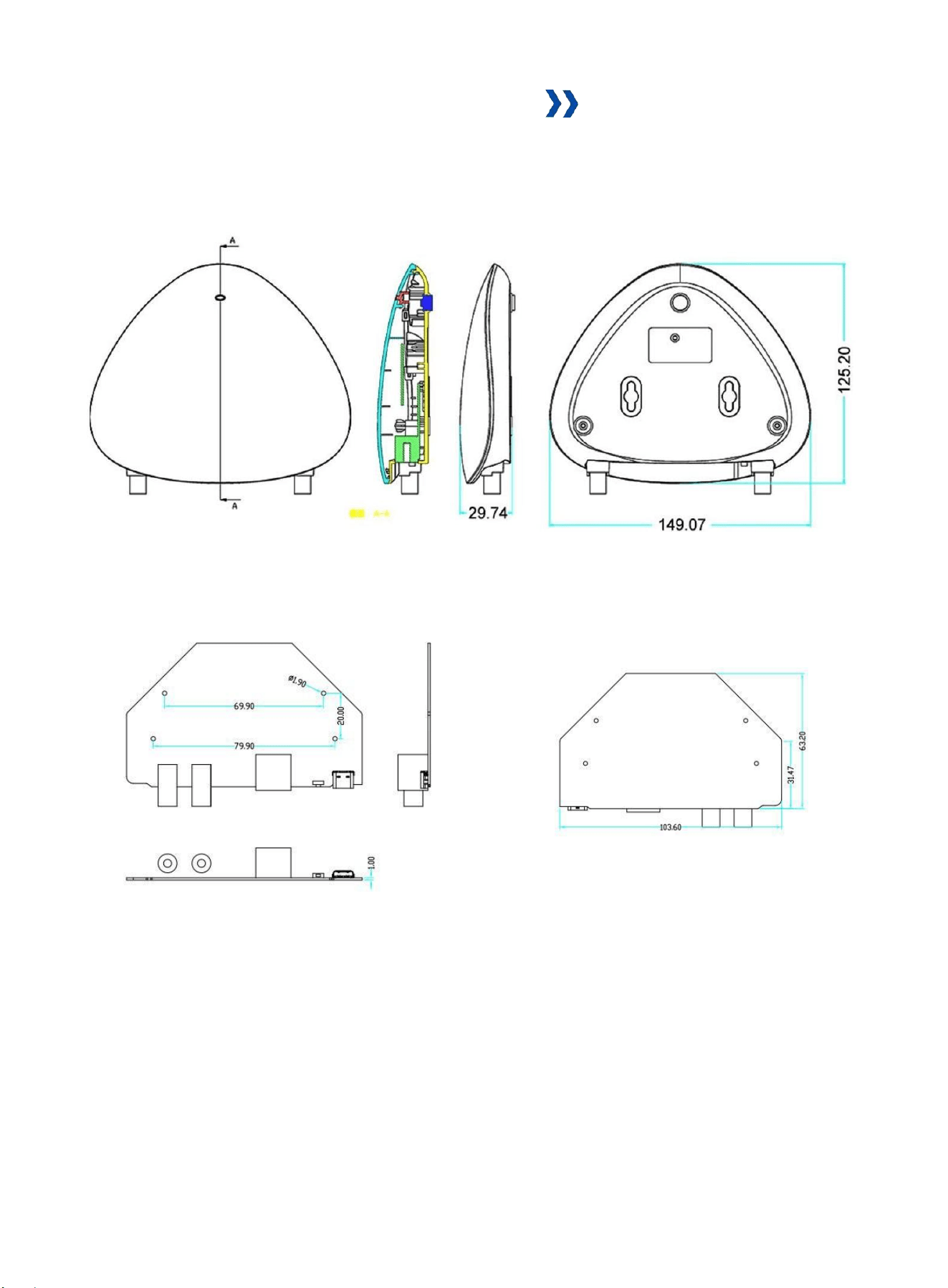

Product Dimensions (mm)
Housing
Internal
FCC Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment. This transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
Radiated Exposure Statement
This device complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
The antenna used for this transmitter must not transmit simultaneously with any other antenna or
transmitter, except in accordance with FCC multi-transmitter product procedures. Users and installers must
be provided with antenna installation instructions and transmitter operating conditions for satisfying RF
exposure compliance.
