Important Safety Instructions
1. This appliance can be used by persons
with reduced physical, sensory or mental
capabilities or lack of experience and
knowledge if they have been given supervision
or instruction concerning use of the appliance
in a safe way and understand the hazards
involved. Children shall not play with the
appliance. The appliance is not to be used if it
has been dropped, if there are visible signs of
damage or if it is leaking. Keep the appliance
out of reach of children when it is energized.
2. Do not use and charge the Appliance in
extremely hot or cold environments (below
0˚C/32˚F or above 40˚C/104˚F, above 85%
humidity), or it may affect battery life span.
3. The Appliance can be used to clean exterior
windows if it is properly tethered to a safe
position with the Carabiner, winds are calm,
and it is not raining or snowing.
4. Before use, please use the Carabiner to lock
the safety tether to a strong indoor railing, and
make sure WINBOT is securely attached to it.
5. Do not leave the Appliance unattended when
using it. To prevent bodily injury or property
damage caused by accidental falling of the
Appliance, please make sure there are no
people, animals, or valuable, fragile objects
under the working area of WINBOT.
6. Do not use the Appliance in whole gale storms
and force-10 winds, or in areas where the
altitude exceeds 2000 meters (6562 feet).
7. Please ensure the Appliance is plugged in
while it is cleaning. The Appliance has a Safety
Battery that charges during use. The Safety
Battery powers the Appliance if it becomes
unplugged or the electricity fails.
8. Do not leave the Appliance unattended when it
is plugged in.
9. For household use ONLY (including exterior
window). Do not use the Appliance in
commercial or industrial environments.
10. Do not use on broken or uneven glass, such
as glass with static cling stickers, advertising
posters, or raised patterns, so as to prevent
glass breaking or Appliance’s falling. Do not
When using an electrical appliance, basic
precautions should always be followed, including
the following:
READ ALL INSTRUCTIONS BEFORE
USING THIS APPLIANCE.
SAVE THESE INSTRUCTIONS
3 EN
use on surfaces with gaps, such as a piece
of glass with gaps or holes, or two pieces of
adjacent, frameless glass with a gap between
them, so as to prevent the Appliance from
falling due to poor attachment.
11. Only use accessories recommended or
supplied by the manufacturer. Only use the
Power Adapter supplied by the manufacturer.
12. Please make sure your power supply voltage
matches the power voltage marked on the
Power Adapter.
13. Do not use the Appliance on a framed glass
with a frame smaller than 5 mm (0.2 in).
14. Do not use on glass less than 3 mm (0.12 in)
thick or mirrors less than 4 mm (0.16 in) thick.
15. Do not use on glass or mirrors with a handle
height of 70~105 mm (2.76~ 4.13 in).
16. Do not use the Appliance on greasy windows.
17. When used in high humidity environment, the
cleaning performance will be affected.
18. Store the Appliance away from heat and
ammable materials.
19. In rainy weather, do not use the Appliance
on the exterior window to avoid the risk of
Appliance’s damage or falling.
20. Do not use the Appliance if it does not rmly
attach to the glass or has visible signs of damage.
21. To reduce the risk of electrical shock, do not
put the Appliance in water or other liquid. Do
not place or store Appliance where it can fall
or be pulled into a tub or sink.
22. Do not touch power plug with wet hands.
23. When charging the Appliance, do not place it
on other electrical appliances and keep it away
from re and liquid.
24. Take care not to damage the power cord. Do
not pull on or carry the Appliance by the power
cord, use the power cord as a handle, close
a window on the power cord, or put heavy
weights on the power cord. Keep power cord
away from hot surfaces.
25. Do not use with a damaged power cord or
receptacle. Do not use the Appliance if it is
not working properly, has been dropped,
damaged, or come in contact with water. It
must be repaired by the manufacturer or its
service agent in order to avoid a hazard.
26. If the supply cord is damaged, it must be
replaced by the manufacturer or its service
agent in order to avoid a hazard.
27. The plug must be removed from the receptacle
before cleaning or maintaining the Appliance.
Do not unplug the Power Adapter by pulling
on the power cord.
4EN
28. The Safety Battery must be replaced by the
manufacturer or its service agent in order to
avoid a hazard.
29. The Safety Battery must be removed and
discarded according to local laws and
regulations before disposal of the Appliance.
30. The Appliance must be disconnected from
the receptacle before removing the battery for
disposal of the Appliance.
31. Please dispose of used batteries according to
local laws and regulations.
32. Do not incinerate the Appliance even if it is
severely damaged. The battery can explode in
a re.
33. The Appliance must be used in accordance
with the directions in this Instruction Manual.
The company cannot be held liable or
responsible for any damages or injuries
caused by improper use.
34. WARNING: For the purposes of recharging
the battery, only use the detachable supply
unit BLJ66WB240275P-D provided with this
Appliance.
35. The robot contains batteries that are only
replaceable by skilled persons.
36. The plug and the Power Adapter must be used
indoor.
To satisfy RF exposure requirements, a separation
distance of 20 cm or more should be maintained
between this device and persons during device
operation.
To ensure compliance, operations at closer than this
distance is not recommended. The antenna used for
this transmitter must not be co-located in conjunction
with any other antenna or transmitter.
37. If the insulated glass, which WINBOT is
working on, is leaking, remove WINBOT
immediately after cleaning is completed.
38. Before cleaning, please observe the area
toattach WINBOT for any small particles. If
thereare any, please remove them or switch to
aparticle-free area to avoid scratching th glass.

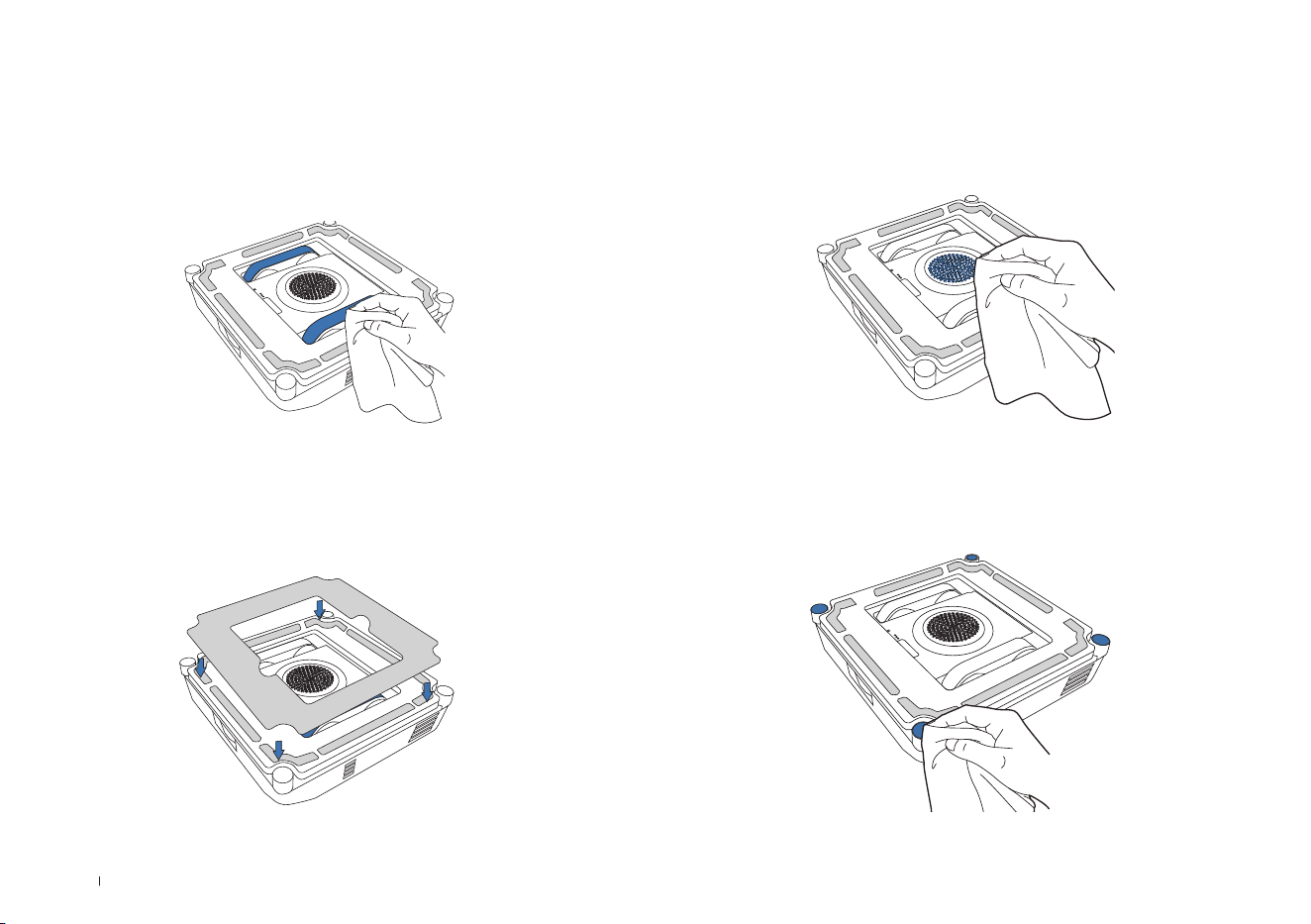

39. Clean the Wiping pad in time and make sure
that any small particles on it are completely
removed to avoid scratching the glass.
40. The appliance is only to be used with the unit
provided.
41. Keep the appliance out of reach of children
when it is energized or cooling down.
42. The appliance has to be unplugged after use
and before carrying out user maintenance on
the appliance.
5 EN
Class II
Short-circuit-proof safety isolating
transformer
Switch mode power supply
For indoor use only
Direct current
Alternating current
For EU Countries
Correct Disposal of this Product
This marking indicates that this product should
not be disposed of with other household
waste throughout the EU. To prevent possible
harm to the environment or human health
from uncontrolled waste disposal, recycle it
responsibly to promote the sustainable reuse of
material resources. To recycle your used device,
please use the return and collection systems
or contact the retailer where the product was
purchased. They can safely recycle this product.
6EN
WINBOT + Safety Rope Power Adapter + Power Cord
Instruction Manual
ECOVACS WINBOT Cleaning Solution Wiping pad
* Figures and illustrations are for reference only and may differ from actual product appearance.
1.1 Package Contents
1. Product Contents
Instruction Manual
7 EN

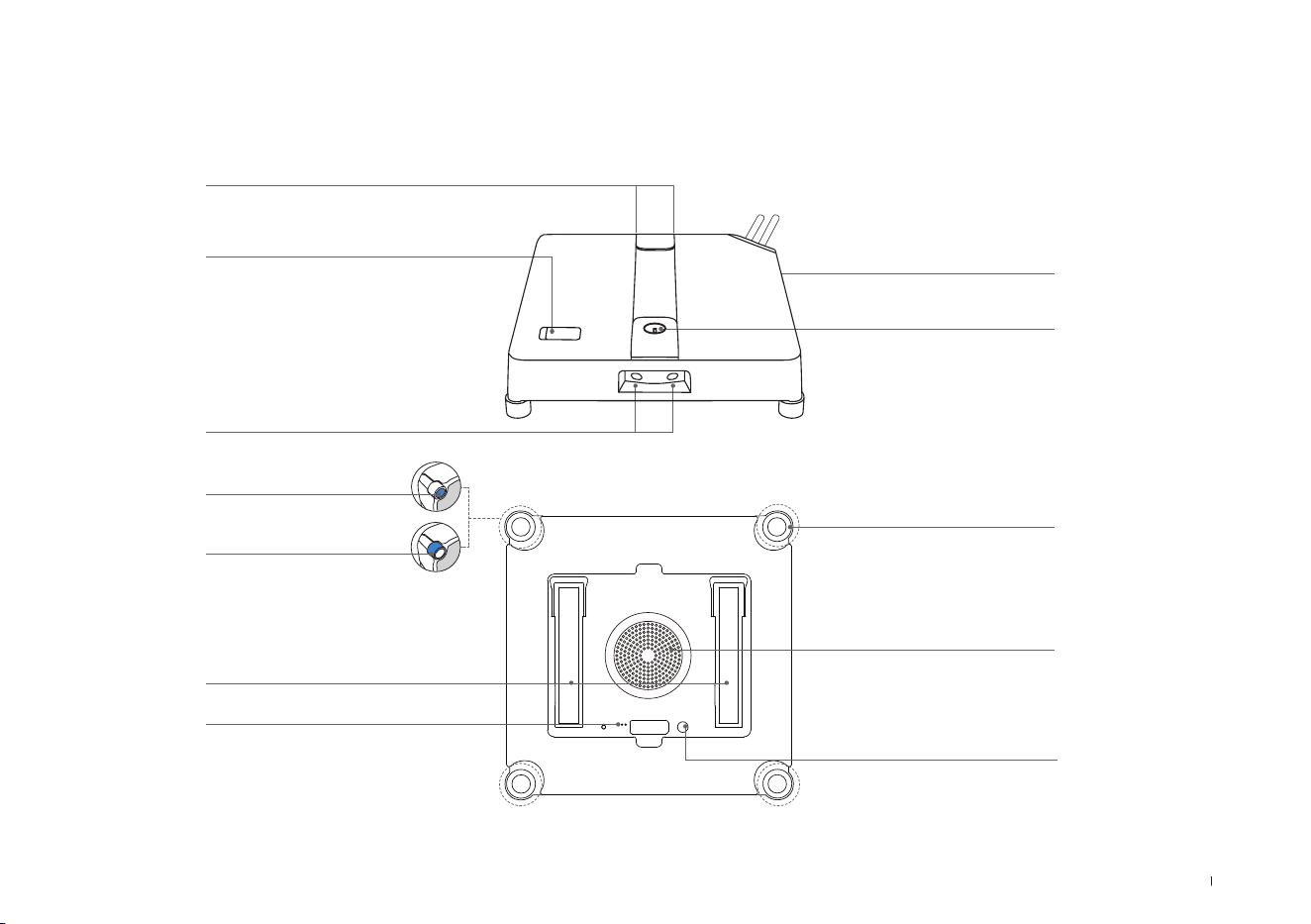

1.2 Product Diagram
Front View
Bottom View
Status Indicator Light/
Start/Pause Button
Spray Nozzles
Speaker
Filling Opening
Fan
Suction Sensor
Side Rollers
Spherical Sensors
Driving Wheel Tracks
Bottom Status Indicator Light
Spray Nozzles
Corner Brush
8EN
2. Quick Start
Do not use WINBOT on windows with
condensation or oil stains or in extremely cold or
hot environments.

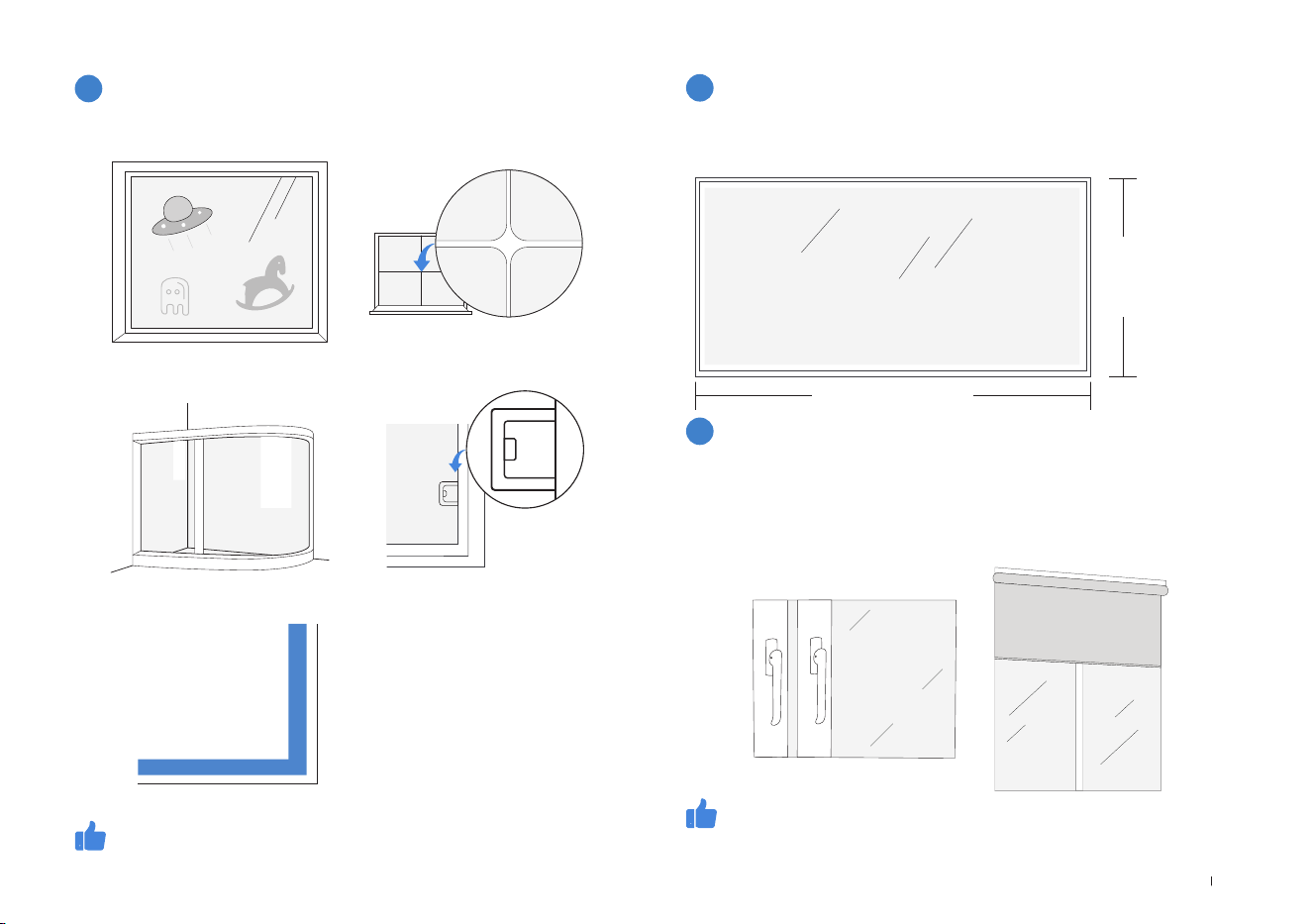

Do not use WINBOT on windows that are too
small or have irregular shapes.
1
2

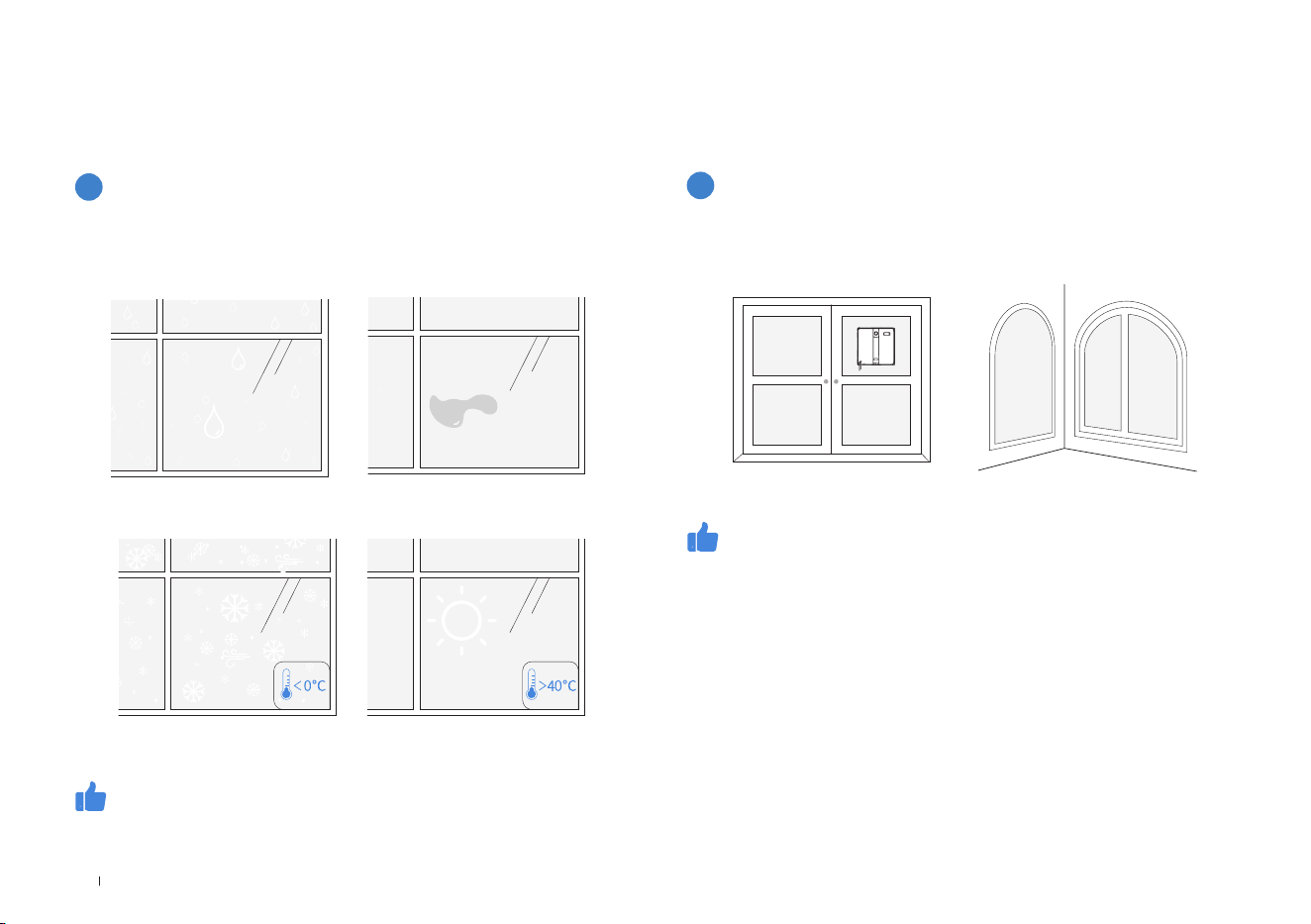

WINBOT may have difficulty moving in the following conditions.
WINBOT cannot move around in the following conditions.
Condensation
Small Glass
Below 0°C Above 40°C
Irregular Shapes
The following situations are not recommended for using WINBOT:
Oil stains
2.1 Notes Before Cleaning
WINBOT performs better on dry surfaces and in temperatures above
0°C.
WINBOT performs better on square and large windows.
9 EN
Do not use WINBOT on uneven windows. Do not use WINBOT on windows that are too
large.
Do not use WINBOT near narrow gaps close to
its height.
3
4
5
WINBOT may experience insufficient air pressure in the following
conditions.
WINBOT may fail to complete the task due to the length limitation of
the connecting cord.
WINBOT may get stuck when nearby narrow spaces, openings
or gaps between window handles/door handles/ curtain boxes/
cabinets and surfaces such as walls/windows, are close to its
height.
Electrostatic Window
Decals, Stickers, etc.
Curved Glass Obstacle Height < 2 mm
Frame Height < 1 mm
Cracks
Frame Height < 1 mm
Length
＞3m
Height＞2.5m
WINBOT performs better on a smooth and flat surface to ensure
stable suction and smooth movement.
Try placing WINBOT between the gap to confirm safe passage; if it's
stuck, refrain from using the robot there to prevent damage to either
itself or surrounding furniture.
10EN

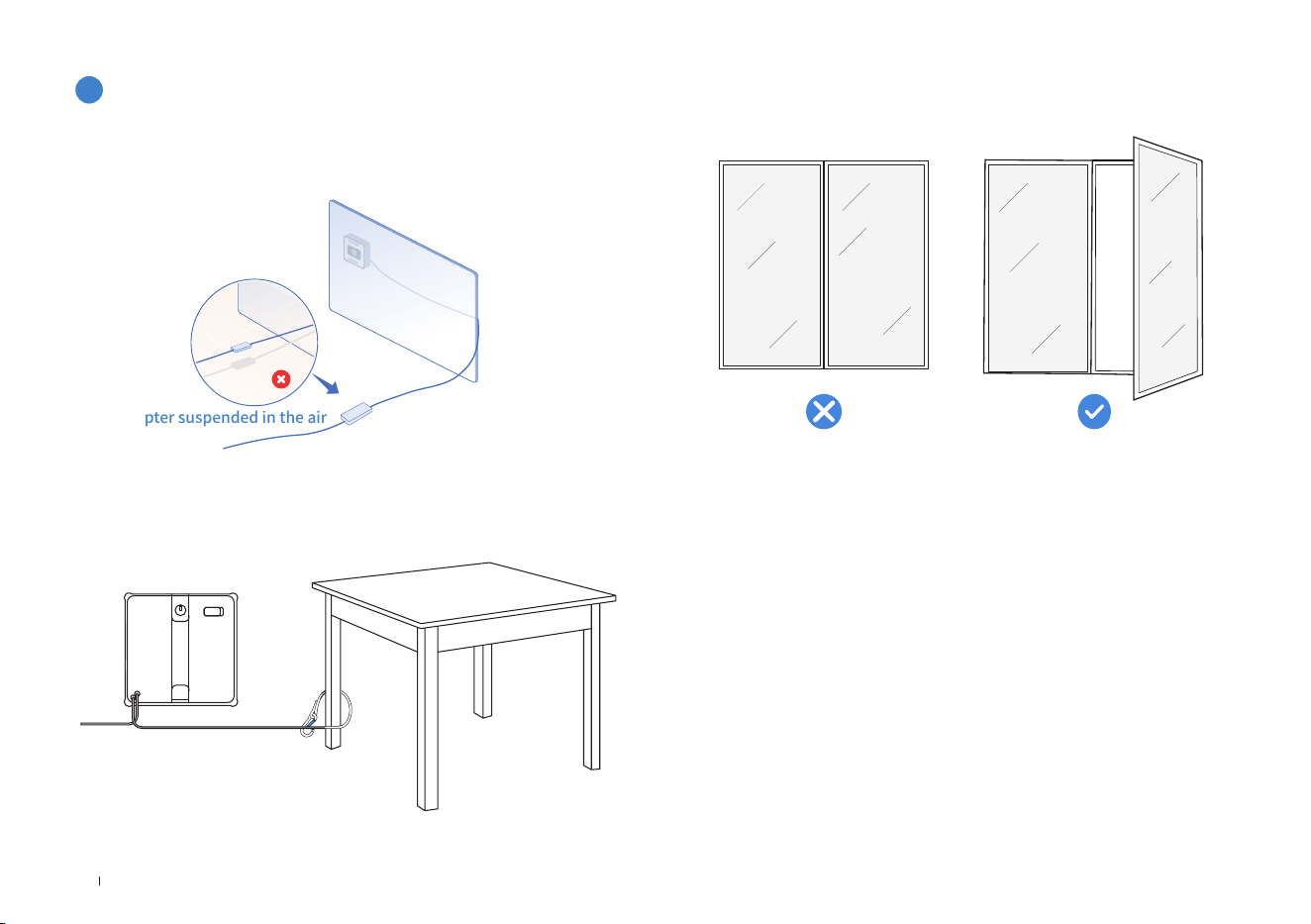

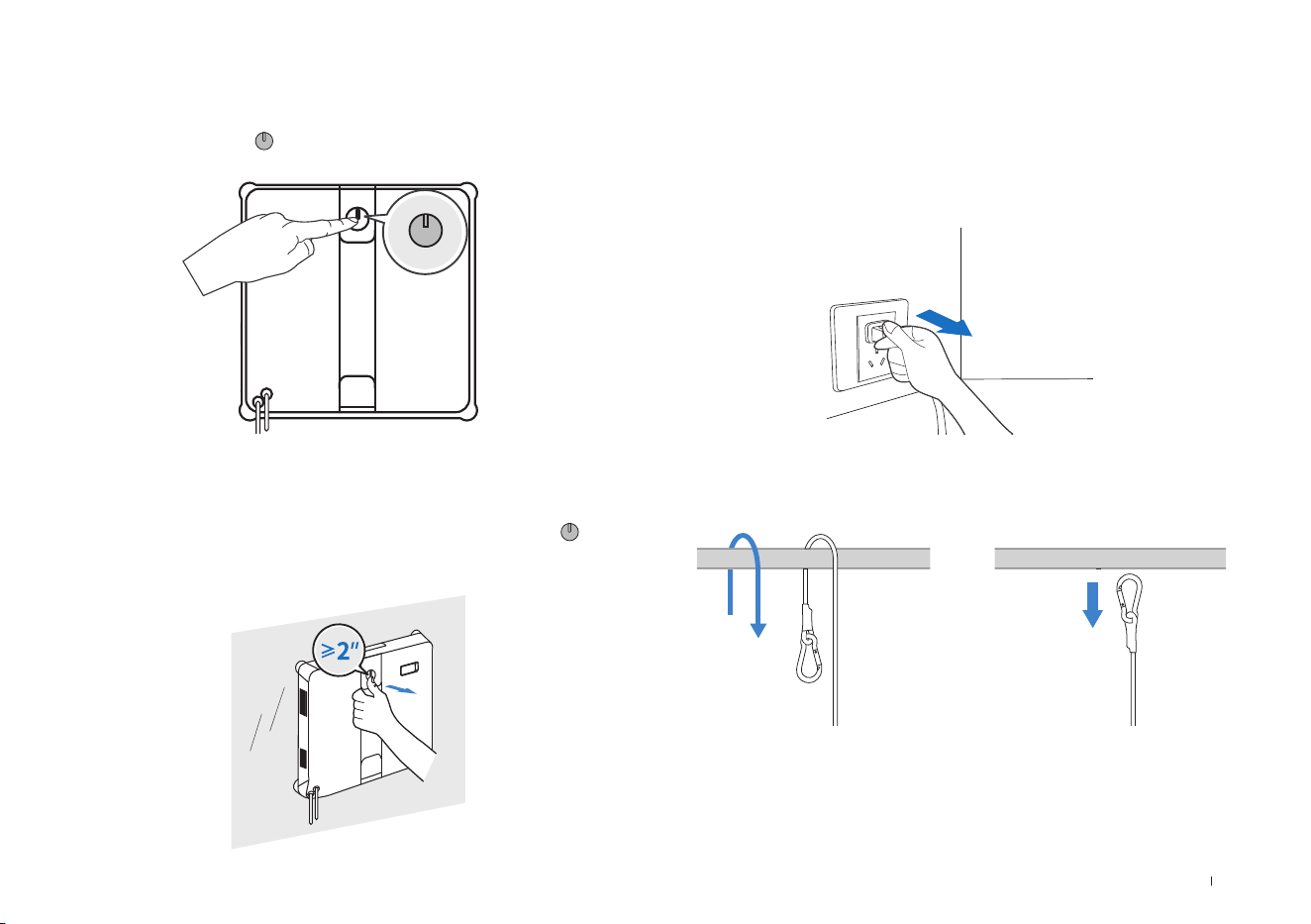

Before use, ensure WINBOT's carabiner is properly installed to
prevent any accidents.
To clean glass panel doors, open the door before attaching
WINBOT to avoid WINBOT falling due to narrow door gaps.
*The safety rope and its carabiner are pre-installed at the factory. Do not
disassemble it at will.
Do not leave the adapter suspended in the air
when cleaning large glass windows.
6
WINBOT may fall due to prolonged suspension. Therefore, always place the
adapter on the ground.
adapter suspended in the air
11 EN
1

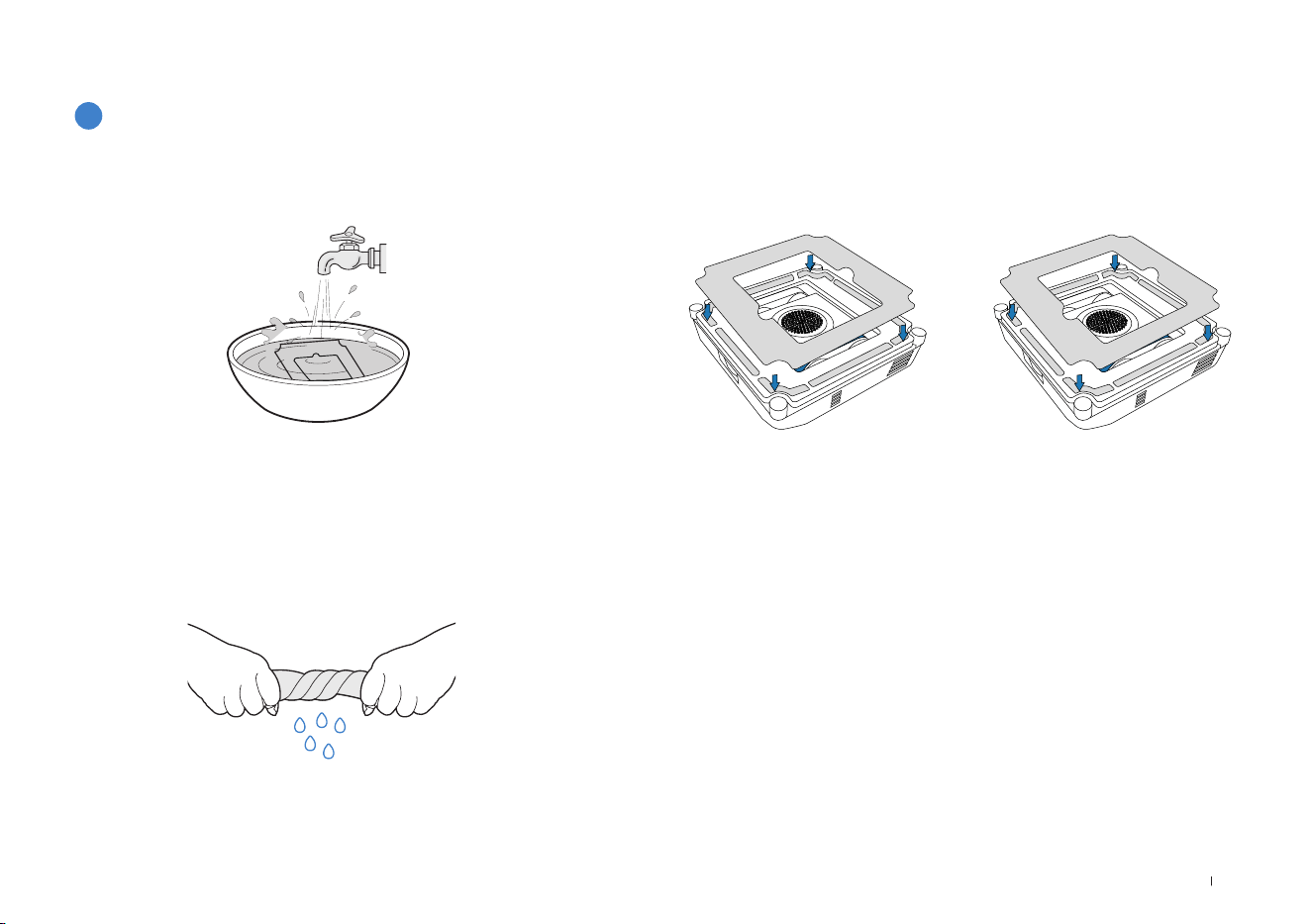

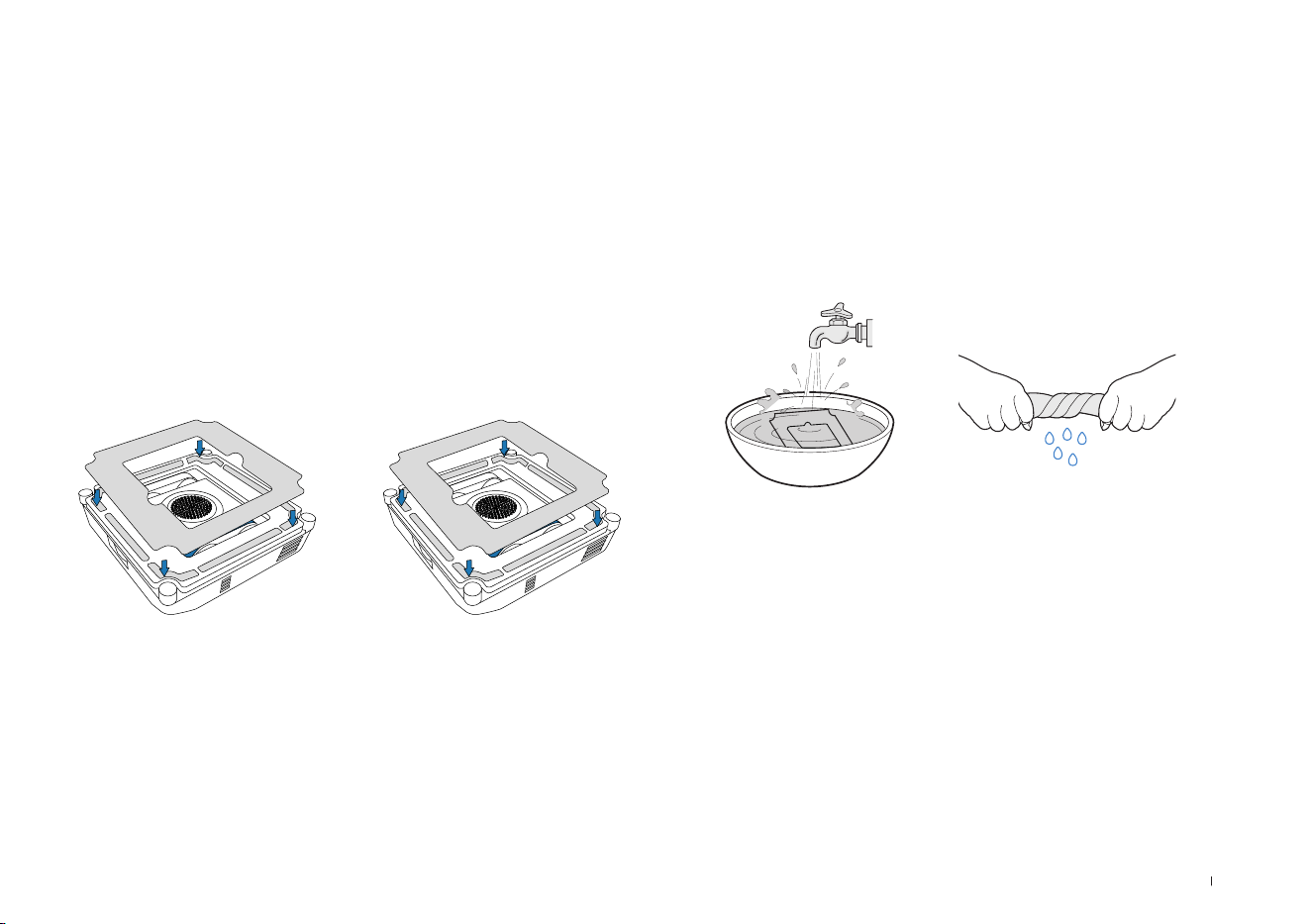

1. Wet the wiping pad
2. Wring out the wiping pad
3. Stick the wiping pad
Before using, wet the wiping pad.
To protect WINBOT, wring the pad out as much as possible until it’s
damp but not dripping.

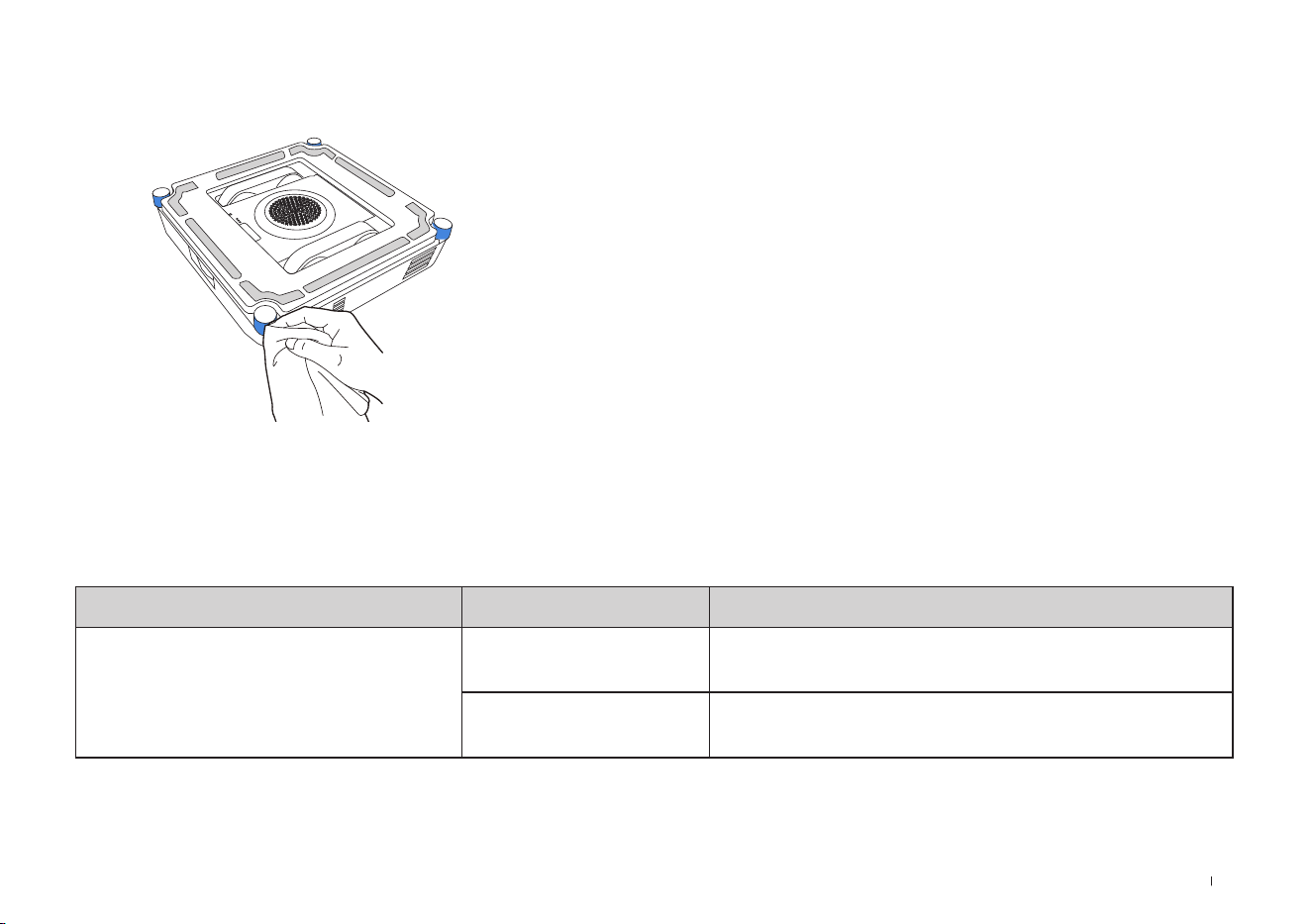

Stick the wiping pad onto the velcro on the bottom of WINBOT,
ensuring the narrow and wide sides are aligned correctly. Then
press firmly to secure the pad in place.
Install Wiping Pad
Wide Side
Wide Side
Narrow Side
Narrow Side
2.2 Preparation before Use
12EN
Add Cleaning Solution

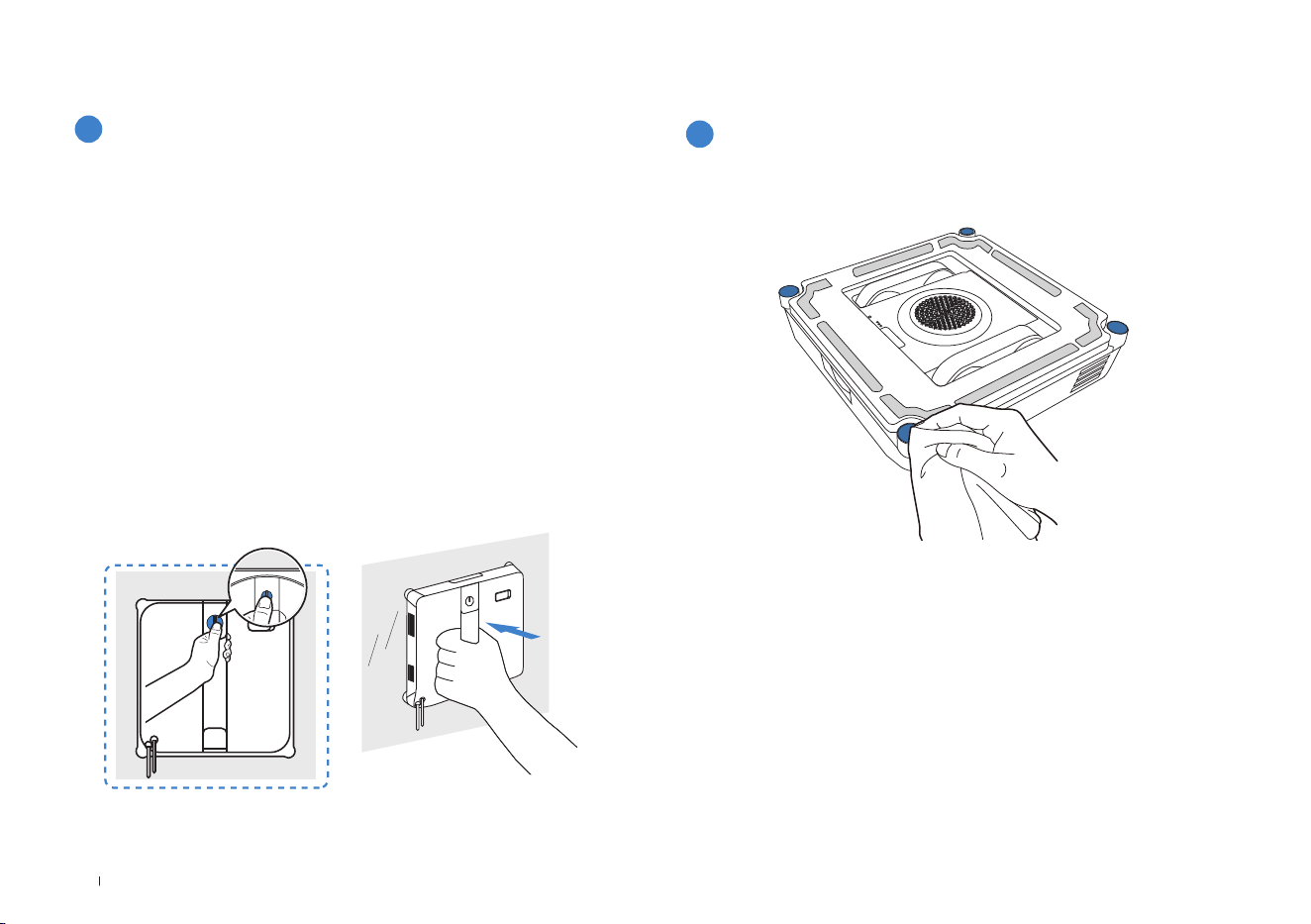

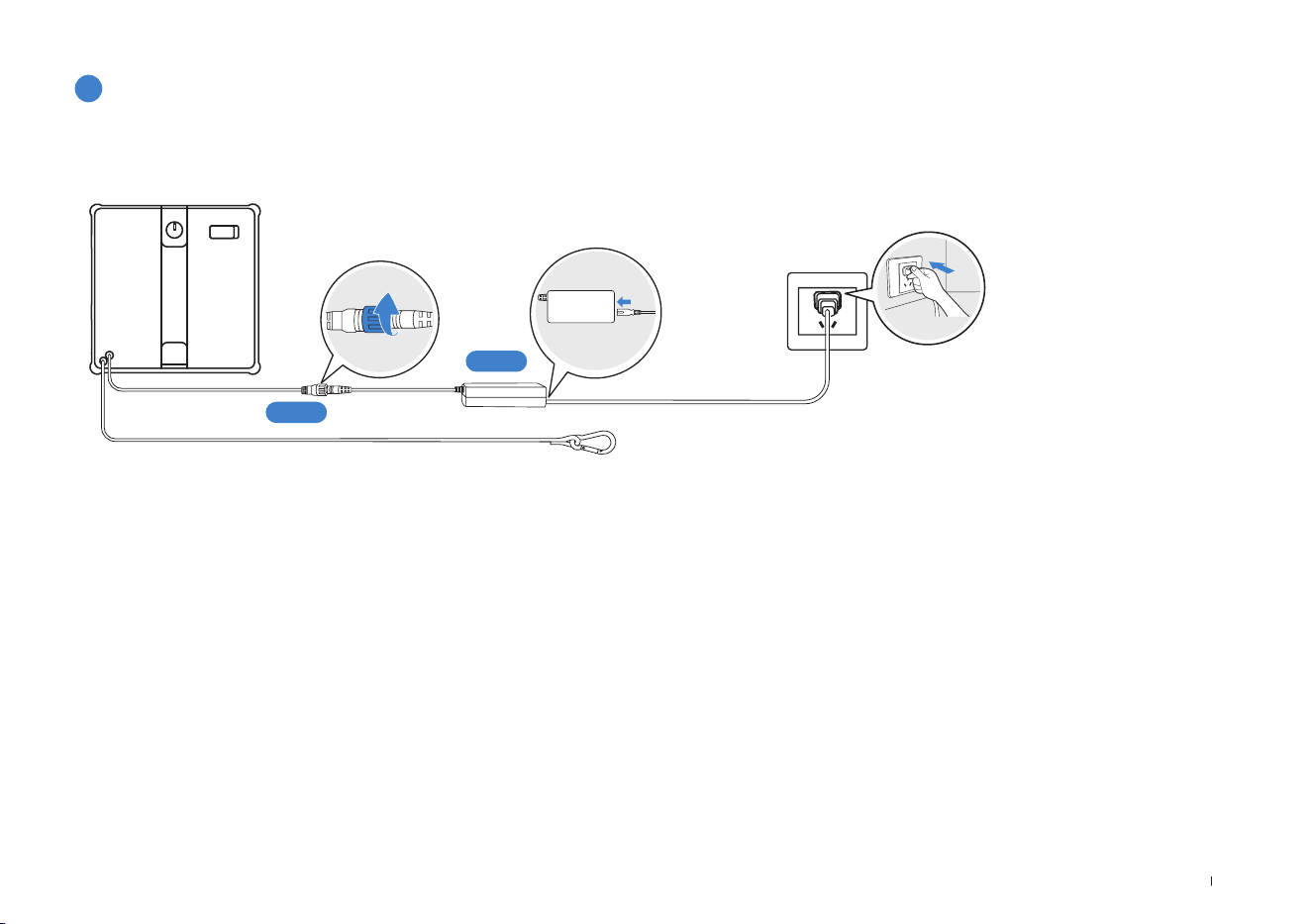

Secure Safety Rope and its Carabiner
2
*
Do not add excessive cleaning solution to overflow the water tank.
*
Do not use purified water or filtered water.
*
It is recommended that the ECOVACS WINBOT cleaning solution be used
for optimal cleaning results. Using any cleaning solutions other than the
ECOVACS WINBOT cleaning solution may reduce cleaning performance or
damage the product.
*
If the ECOVACS WINBOT cleaning solution runs out, tap water can be used
temporarily. However, the ECOVACS WINBOT cleaning solution provides
better cleaning results.
Add the ECOVACS WINBOT cleaning solution to the water tank. The
maximum capacity of the water tank is about 50 ml. In Fast Cleaning,
a full tank can spray approximately 30
㎡
.
Max Capacity: 50ml
Ensure the station's carabiner is securely attached to a stable,
immovable object such as a table leg, chair leg, bed leg, sofa leg,
curtain rod, or staircase handrail. Lock the carabiner as shown below
to prevent any accidents.
Note: Keep someone nearby to monitor WINBOT. Do not allow people
or pets to stand directly below WINBOT, and make sure no valuables or
fragile items are below the cleaning area.
* It is recommended to fasten the safety rope with the carabiner on a firm and
safe metal railing.
To ensure safety, please make sure to secure the carabiner before use.
3
Note:
1.Do not put your fingers into the filling opening.
2.Wipe the water droplets on the body and the four spray outlets clean, so as
not to affect the normal operation.
13 EN
Connect WINBOT's Power Cord, Power Adapter, and Plug
4
Please ensure the battery is fully charged before using. Charging time will be approximately 3 hours.
* Do not cut the power off when WINBOT is running, otherwise it may lead to the risk of falling.
* It is particularly emphasized that the aviation plug needs to be firmly connected.
Step 1
Step 2
Connect correctly in the order shown above. Improper connection may cause charging abnormalities or damage to the battery.
14EN
1.Before cleaning, ensure a clean area larger than WINBOT's size,
then attach to windows.
2.Connect the power supply and long press the WINBOT start button
for 2 seconds.
3.After hearing the fan start, place the bottom of the WINBOT (the
side with the wiping pad) on the glass. WINBOT will adhere to the
window automatically and start cleaning.
* Do not stick the WINBOT too close to the edge when cleaning the frameless
glass. It is recommended to be more than 10cm away from the edge.
* WINBOT can only clean flat surfaces. Please make sure that the glass
thickness is not less than 3mm.
* Do not put the fan close to hair and other small objects after power on, so as
not to block the fan.
* Please dry the water droplets at the spray outlet before cleaning.
* Do not stand below or near the WINBOT while it is cleaning.
1
Start Cleaning
2
Maintenance during Cleaning
For heavily stained glass, wash or replace the wiping pad and corner
brushes as needed, then wipe it repeatedly. Meanwhile, ensure the 4
spherical sensors are cleaned regularly for optimal cleaning performance.
* Clean the wiping pad and corner brushes in time and make sure that any small
particles on them are completely removed to avoid scratching the glass.
2.3 Getting Started
15 EN
Power Off
Turn off the power to shut down.
Unfasten Safety Rope
2.4
Finish
During cleaning, press on WINBOT or pause it via App.
Pause
Remove WINBOT
When cleaning is complete, WINBOT will return to the starting
position and beep. Please hold the handle tightly. Long press
for 2 seconds, and remove it after the fan stops working.
* Please pour out the cleaning solution after cleaning.
16EN
Download the ECOVACS HOME App to unlock more WINBOT
features.
a. Multiple Cleaning Modes
b. Troubleshooting
c. Remote Control
Thorough Clean: Zigzag/N-shaped cleaning + clockwise cleaning
along all four edges.
Fast Clean: Zigzag/N-shaped cleaning.
Spot Clean: Repeated wiping to remove localized dust.
Deep Clean: Two rounds of zigzag/N-shaped cleaning.
Edge Clean: Clockwise cleaning along all four edges.
If WINBOT triggers an alarm, do not panic. Visit the App for detailed
troubleshooting guidance.
Use the App to control WINBOT. Features include: interior and
exterior window views, Spot Cleaning, and manual water spraying.
2.5 Advanced Function
Bottom
Note: When installation is completed, please complete registration, login, and
network connection as guided in the App.
Option 1: Scan the QR Code on WINBOT to download the App.
Option 2: Scan the QR code or search and download the ECOVACS HOME
App in the App Store.
iOS
Android
17 EN
3.Component Maintenance
Remove the wiping pad. Wash it with tap water, and wring it
thoroughly until the pad is not dripping before use.
* Regularly clean the wiping pad to extend its service life. If the wiping pad
becomes worn or no longer adheres securely to the velcro, replace it with a new
one to achieve optimal cleaning performance.
* Explore more accessories at the ECOVACS HOME App or at https://www.
ecovacs.com/global.
Wiping pad
a. Replace Wiping pad
Wide Side
Wide Side
Narrow Side
Narrow Side
b. Wash Wiping pad
Remove the dirty wiping pad and attach a new one flatly within the
wiping pad holder at the bottom of WINBOT.
Ensure that the groove of the wiping pad corresponds to the blue
mark at the bottom of WINBOT. Press and smooth the pad down
to ensure a secure fit. Make sure the wide and narrow sides of the
wiping pad align with those of the holder.
Be careful not to stick the wiping pad outside the holder to avoid affecting
WINBOT's operation.
*If the velcro on the wiping pad holder is dusty, use a cleaning brush to
remove the dust. Do not wash with water to prevent water from entering
WINBOT's bottom, which may cause damage.
18EN
Fan: Wipe clean with a dry cloth to prevent damage to WINBOT's
suction force.
Spherical Sensors: Wipe clean with a dry cloth to maintain their
sensitivity.
Bottom ComponentDriving Wheel Tracks
Before cleaning, ensure the fan is not running. Use the ECOVACS
HOME App to remotely control WINBOT and check the driving wheel
tracks. Pause the driving wheel tracks' operation if dirt is found. Then
wipe the tracks clean with a clean cloth.
After cleaning the driving wheel tracks, install the wiping pad and
resume cleaning tasks.
19 EN
* After WINBOT issues a low battery warning, ensure WINBOT is fully charged before using or storing it to avoid reducing battery service life.
* If WINBOT is not used for an extended period, fully charge it, turn it off, and store it properly. To prevent battery damage and charging failure due to over-discharge,
recharge it at least once every six months.
4. Status Indicator Light
Indicator Light Effect Light Effect Interpretation
START button/ Bottom Status Indicator Light
Solid Blue WINBOT in standby or operation.
Flashing Red Malfunction. WINBOT is unable to function properly.
Corner Brush and Side Roller: After cleaning is complete, clean the corner brush and side roller with a damp cloth to ensure optimal cleaning
performance.
20EN
5. Troubleshooting
NO. Malfunction Possible Causes Solutions
1
WINBOT slips, such as
sliding sideways or body
shaking.
The wiping pad is too wet.
Refer to [Component Maintenance] in this manual to
replace the wiping pad.
WINBOT wipes non-recommended stains,
such as oil stains.
Refer to [Component Maintenance] in this manual to clean
the driving wheel tracks.
2
WINBOT voice prompts
"Insufficient air pressure".
The wiping pad is not attached properly.
Remove the wiping pad and reattach. Make sure the wide
and narrow sides of the wiping pad align with those of the
holder.
There are gaps or cracks on the window. Do not use WINBOT on the surface with gaps.
There are low obstacles on the window
surface.
Manually cover the obstacles before using WINBOT.
3
WINBOT voice prompts
"Stuck".
The Driving Wheel Tracks are stuck.
Check if there is any dust or debris on the driving wheel
tracks. If so, clean them with tools. Then restart WINBOT
for auto cleaning. If the problem persists, please contact
customer service.
There are low obstacles on the window
surface.
WINBOT cannot detect obstacles or frames with a height
lower than 2 mm. In this case, please go to the App and
follow the instructions to help WINBOT out.
4
WINBOT does not spray
water.
There is no cleaning solution in the water
tank.
Please add the ECOVACS WINBOT cleaning solution in
time.
The auto-spraying function is turned off in
the App.
Please go to the App and turn on the auto-spraying
function.
WINBOT is cleaning at a low water level.
If the auto-spraying function is on in the App and there
is cleaning solution in the water tank, go to the App and
follow the auto-spraying precautions to solve the problem.
If the problem persists, please contact customer service.
5.1 Issue Resolution
21 EN
NO. Malfunction Possible Causes Solutions
5
WINBOT voice prompts
"WINBOT encounters an
obstacle".
The internal components are abnormal.
Firmly hold the compound cable and do not stand directly
below WINBOT to prevent being injured by the falling
WINBOT. Slowly drag WINBOT until it can be reached. Press
and hold the START button for 2 seconds, and then remove
WINBOT. Turn off WINBOT, disconnect the power, and then
restart it. If the issue persists after restarting, please contact
customer service.
6
WINBOT has not returned
to the origin and cannot be
removed.
There is an error in the algorithm.
Affected by the calculation accuracy, there may be a
slight error. The normal error is less than 21cm. If the error
of WINBOT returning to the origin is too large and it is
inconvenient to retrieve WINBOT, please go to the App and
remote control WINBOT to return to a position that is easy to
remove.
The remote control function was used
after WINBOT was adhered, so WINBOT
does not know the origin position.
Go to the App and use remote control to help WINBOT
return to a position that is easy to remove.
7
WINBOT voice prompts
"Please avoid the window
corners."
When cleaning frameless glass, the
adhering position of WINBOT is too close
to the window frame.
Hold WINBOT's handle, press and hold WINBOT's START
button for 2 seconds, and then remove and reattach
WINBOT. It is recommended that the adhering position be
more than 10 cm away from the window corners.
22EN
6. Technical Specifications
WINBOT Model WG853-15 Power Adapter Model
BLJ66WB240275P-D
Rated Input 24V 2.75A Input
：
100-240V 50-60Hz 2.0A
Rated Power 66W Output
：
24V 2.75A
215*215*55
Less than 0.50W
2400-2483.5 MHz
WINBOT dimensions
(L × W × H mm)
Off/Standby Mode Power
Frequency Bands
Output power of the wireless module is less than 100 mW.
Note: Technical and design specifications may be changed for continues product improvement.
Ecovacs Home Service Robotics Co., Ltd.
No. 518 Songwei Road, Wusongjiang industry Park, Guoxiang Street,
Wuzhong District, Suzhou, Jiangsu, China.
