User Manual
Smart Elite TL4 Treadmill
SF-T724943
EN
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US.
1
Important Safety Information
When using an electrical appliance, basic precautions should always be followed, including the
following:
Read all instructions before using (this appliance).
DANGER –To reduce the risk of electric shock:
Always unplug this appliance from the electrical outlet immediately after using and before
cleaning.
WARNING – To reduce the risk of burns, fire, electric shock, or injury to persons:
1. An appliance should never be left unattended when plugged in. Unplug from outlet when not
in use, and before putting on or taking off parts.
2. This appliance is not intended for use by persons with reduced physical, sensory, or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety. Keep
children under the age of 13 away from this machine.
3. Use this appliance only for its intended use as described in this manual. Do not use
attachments not recommended by the manufacturer.
4. Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it
has been dropped or damaged, or dropped into water. Please contact Customer Service at
support@sunnyhealthfitness.com.
5. Do not carry this appliance by supply cord or use cord as a handle.
6. Keep the cord away from heated surfaces.
7. Never operate the appliance with the air openings blocked. Keep the air openings free of lint,
hair, and the like.
8. Never drop or insert any object into any opening.
9. Do not use outdoors. Household use only.
10. Do not operate where aerosol (spray) products are being used or where oxygen is being
administered.
11. To disconnect, turn all controls to the off position, then remove plug from outlet.
12. CAUTION: Risk of Injury to Persons – To Avoid Injury, use extreme caution when stepping onto
or off of a moving belt. Read Instruction Manual Before Using.

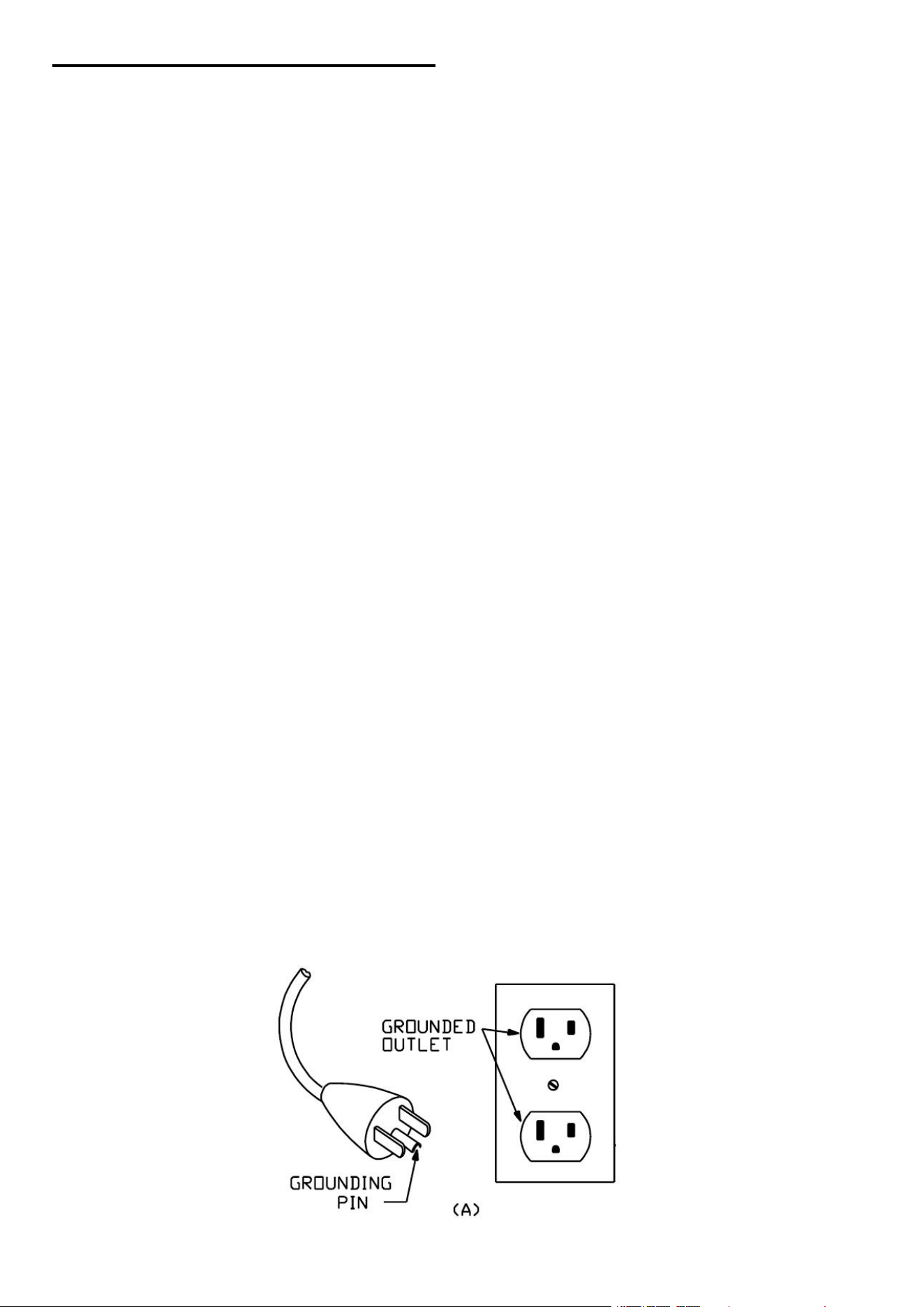

13. Connect this appliance to a properly grounded outlet only. See Grounding Instructions.
14. REMOVE CONTROL BOX (OR KEY, OR SAFETY PIN, AS APPLICABLE) WHEN NOT IN USE, AND
STORE OUT OF REACH OF CHILDREN.
15. Do not operate under blanket or pillow. Excessive heating can occur and cause fire, electric
shock, or injury to persons.
SAVE THESE INSTRUCTIONS
2
Caution: The user is cautioned that changes or modifications not expressly approved
by the party responsible for compliance could void the user's authority to operate the
equipment.
This device contains license-exempt transmitter(s)/receiver(s) that comply with
Innovation, Science and Economic Development Canada’s license-exempt RSS(s) and
Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1) This device may not cause interference.
2) This device must accept any interference, including interference that may cause
undesired operation of the device.
NOTE: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum
distance of 20cm between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
3
Important Safety Information
We thank you for choosing our product. To ensure your safety and health, please use this
equipment correctly. It is important to read this entire manual before assembling and using the
equipment. Safe and effective use can only be achieved if the equipment is assembled,
maintained, and used properly. It is your responsibility to ensure that all users of the equipment
are informed of all warnings and precautions.
1. Before starting any exercise program, you should consult your physician to determine if you
have any medical or physical condition that could put your health and safety at risk or prevent
you from using the equipment properly. Your physician’s advice is essential if you are taking
medication that affects your heart rate, blood pressure, or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest,
irregular heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of nausea. If
you do experience any of these conditions, you should consult your physician before
continuing with your exercise program.
3. Keep children and pets away from the equipment.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet.
To ensure safety, the equipment should have at least 240cm (8 feet) of free space behind it
and 60cm (2 feet) on each side. Do not place the treadmill on any surface that blocks air
openings. To protect the floor or carpet from damage, place a mat under the treadmill.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety of
the equipment can only be maintained if it is regularly examined for damage and/or wear and
tear.
6. Always use the equipment as indicated. If you find any defective components while
assembling or checking the equipment, or if you hear any unusual noises coming from the
equipment during exercise, discontinue use of the equipment immediately and do not use
until the problem has been rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may
become entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 265 lbs (120 kg).
10. This equipment is not suitable for therapeutic use.
11. To avoid bodily injury and/or damage to the product or property, proper lifting and moving are
required.
12. Your product is intended for use in cool and dry conditions. You should avoid storage in
extreme cold, hot, or damp areas as this may lead to corrosion and other related problems.
13. This equipment is designed for indoor and home use only; it is not intended for commercial
use!
4
6
Important Operating Information
1. Insert the power plug directly into the socket.
2. Read the manual before operating the equipment.
3. Changes in speed do not occur immediately. Set your desired speed using the adjustment keys on the
main console. The speed will increase gradually.
4. While on the treadmill, move with caution as distractions may cause you to lose balance and stray from
walking in the center of the belt. This may result in serious injury.
5. This unit starts at a very low speed. To begin use, hold onto the handrails, and stand on the side rails
while it starts up, then step onto the belt once it is in motion.
6. Always hold the handrail when making changes in the settings.
7. A safety key is provided for emergency use. The machine will function only if the safety key is inserted
into the computer console. In case of emergency, remove the safety key to immediately stop the belt
and shut off the treadmill. The display screen will reset once the safety key is reinserted.
8. The console control keys are precisely set and require very little finger pressure to use. To avoid
damaging these keys, do not use excessive pressure when operating these controls.
9. This equipment is designed for adult use only! Children should not be allowed to use or play near this
equipment. When present, children should always be supervised by an adult.
10. Women who are pregnant or nursing should consult a physician before attempting to begin any
exercise program.
11. Always stay hydrated during and after exercise.
IMPORTANT NOTE:
The running belt must be lubricated before the first use! Please see
Page 15
for instructions on
how to properly apply lubricant.
Statement of Purpose
The treadmill is a cardio workout machine that provides indoor running at various speeds.
Waste Disposal
Sunny Health & Fitness products are recyclable. At the end of its useful life please dispose of this article
correctly and safely (local refuse sites).
EU Declaration of Conformity
You can find the declaration of conformity at the following link:
https://sunnyhealthfitness.com/pages/declaration-of-conformity
Technical Data
Connectivity: Bluetooth LE
Frequency Range: 2400~2483.5Mhz
Transmitting Power: 0dBm
5

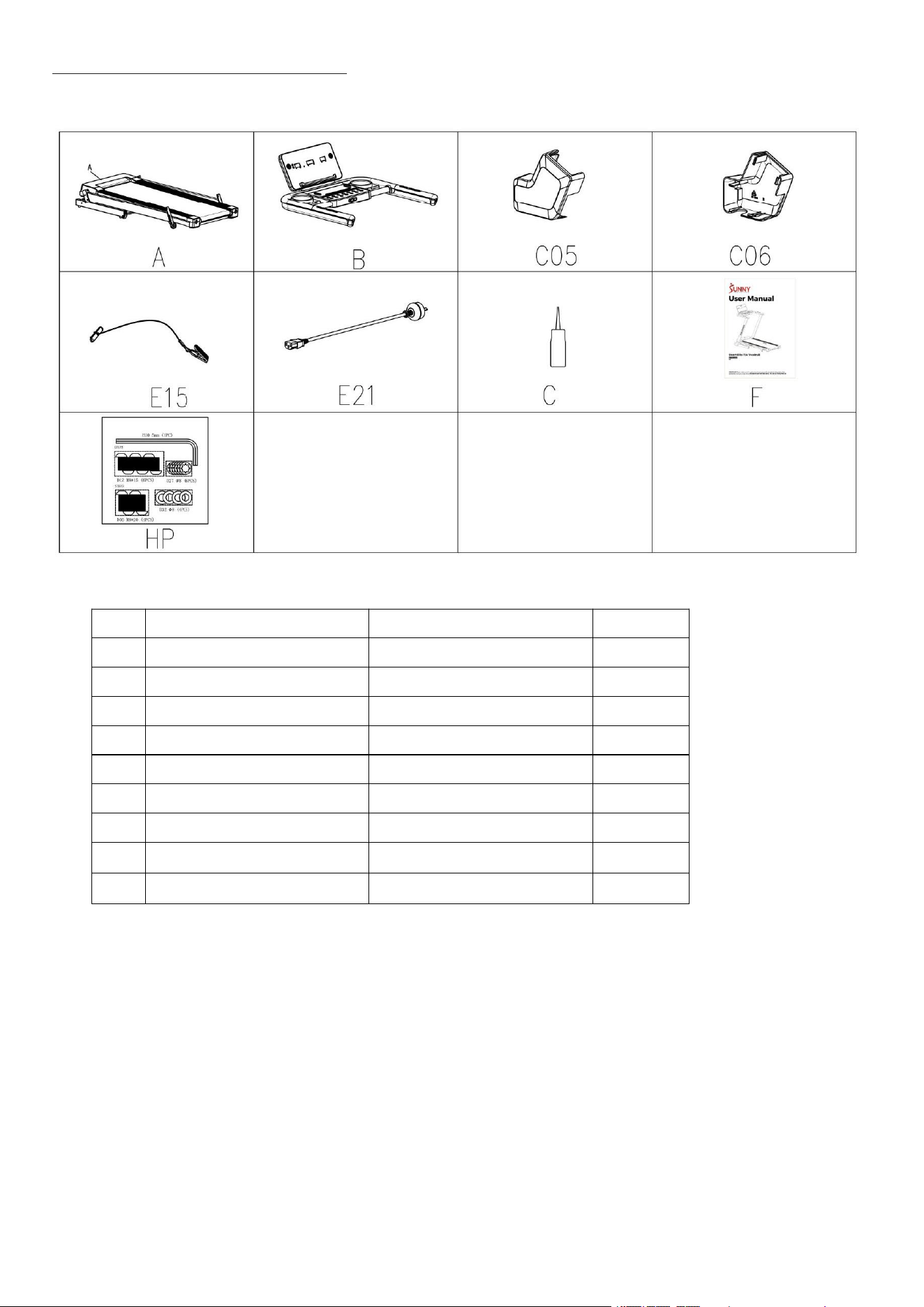

Pre-Assembly Check List
When you open the carton, you will find the following parts:
No.
Description
Spec.
Qty.
A
Main Frame
1
B
Console Assembly
1
C05
Left Upright Tube Cover
1
C06
Right Upright Tube Cover
1
E15
Safety Key
1
E21
Power Wire
1
C
Lubricant Oil
1
F
Manual
1

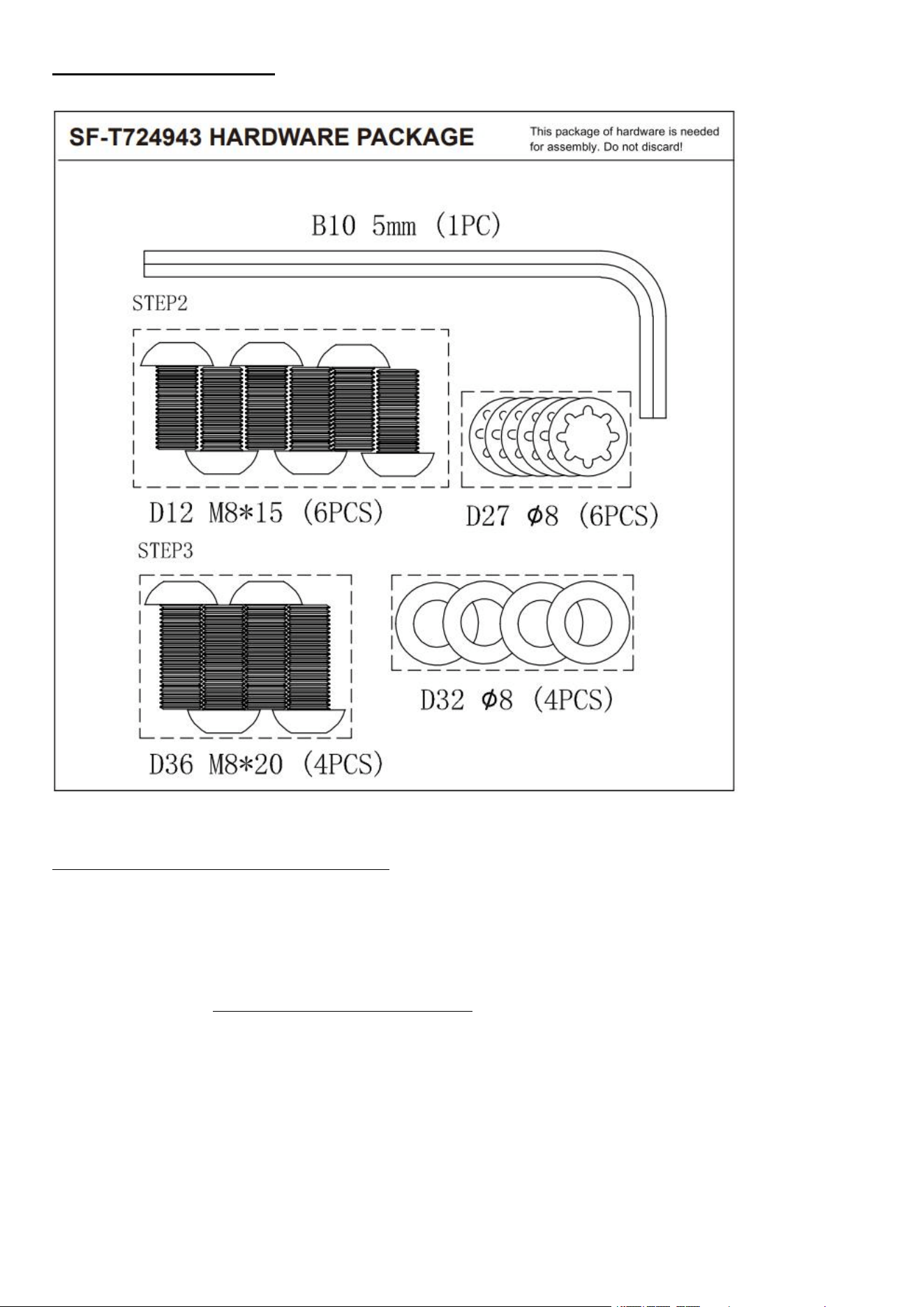

HP
Hardware Package
1
7

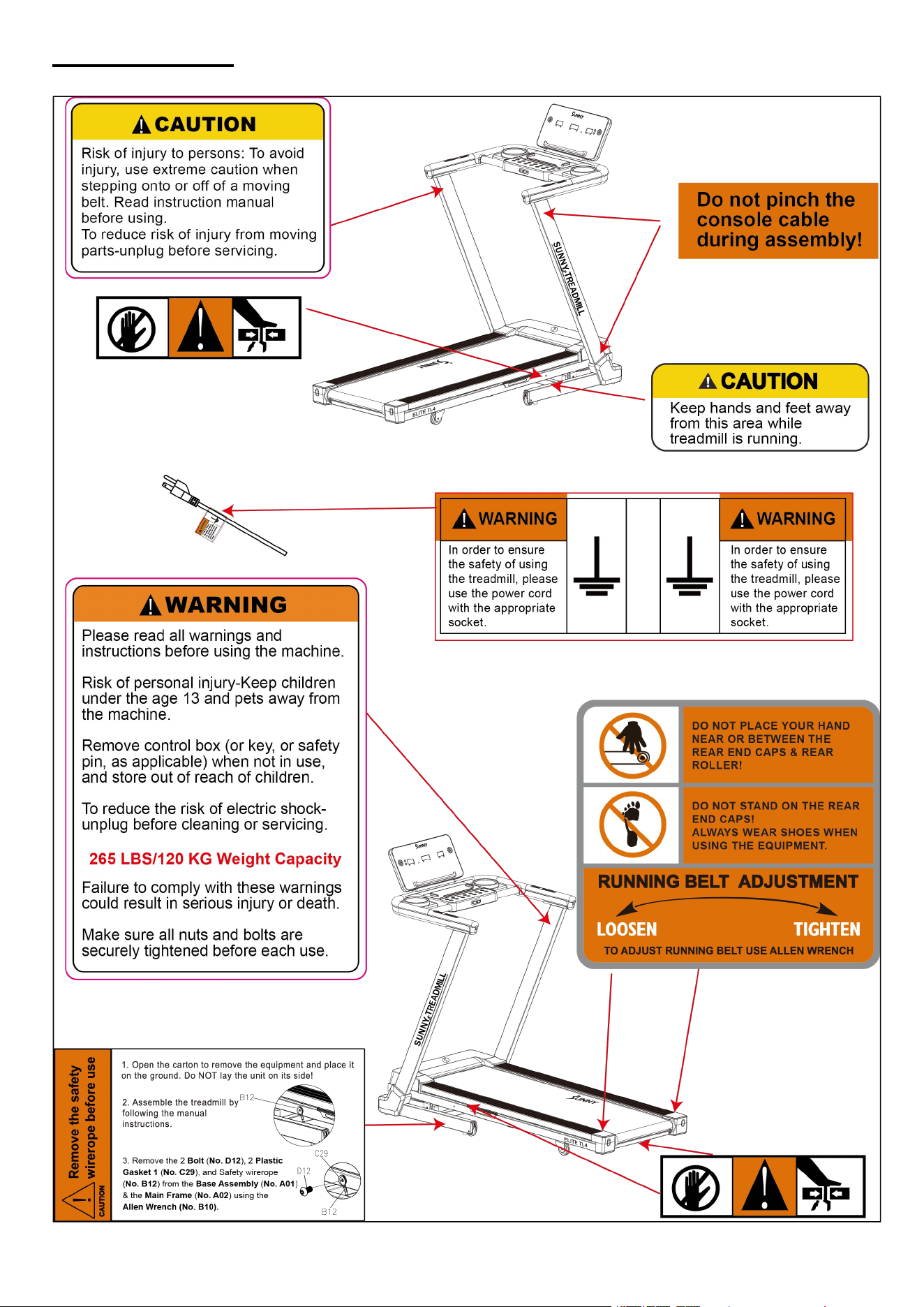

Warning Labels
8

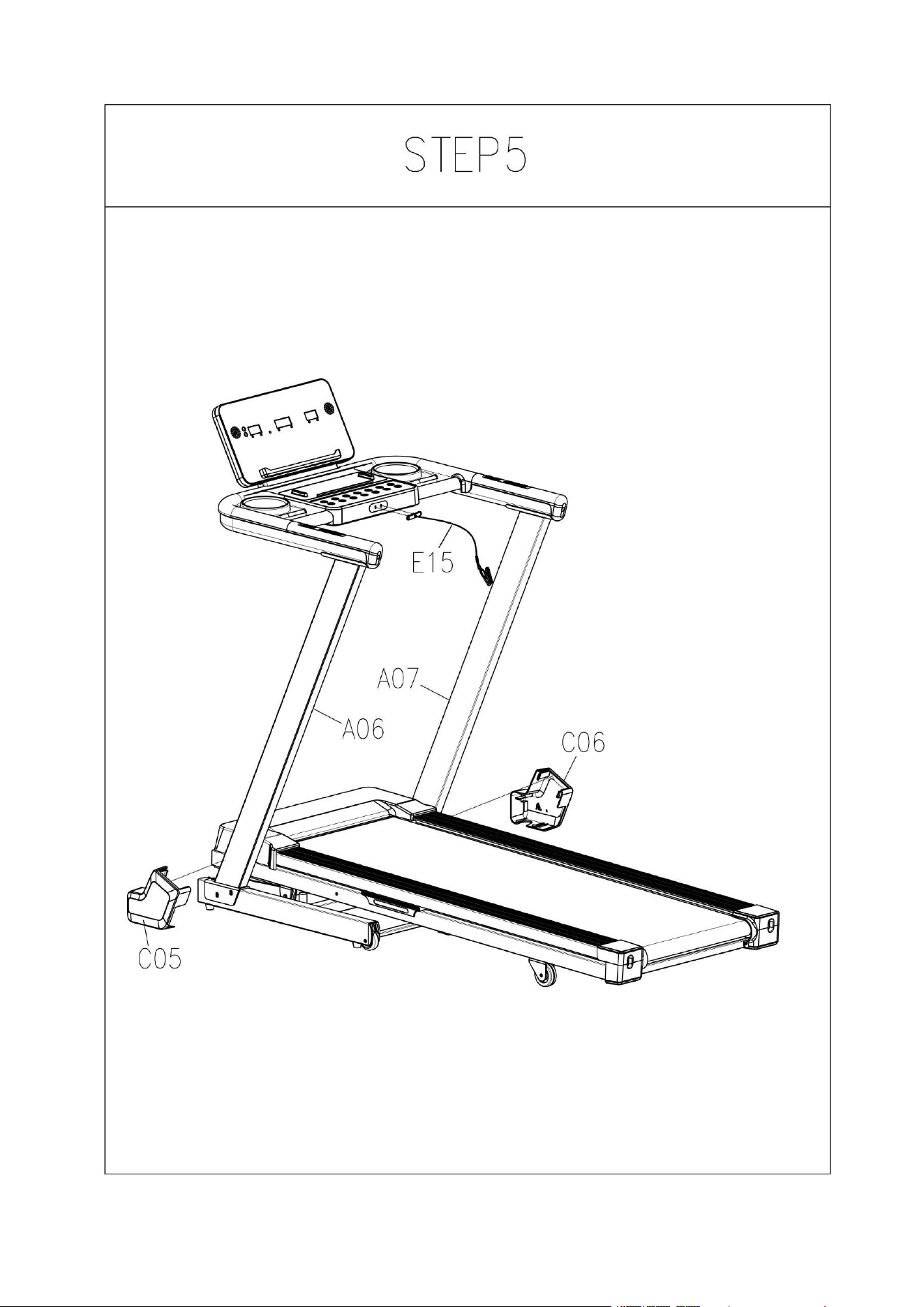

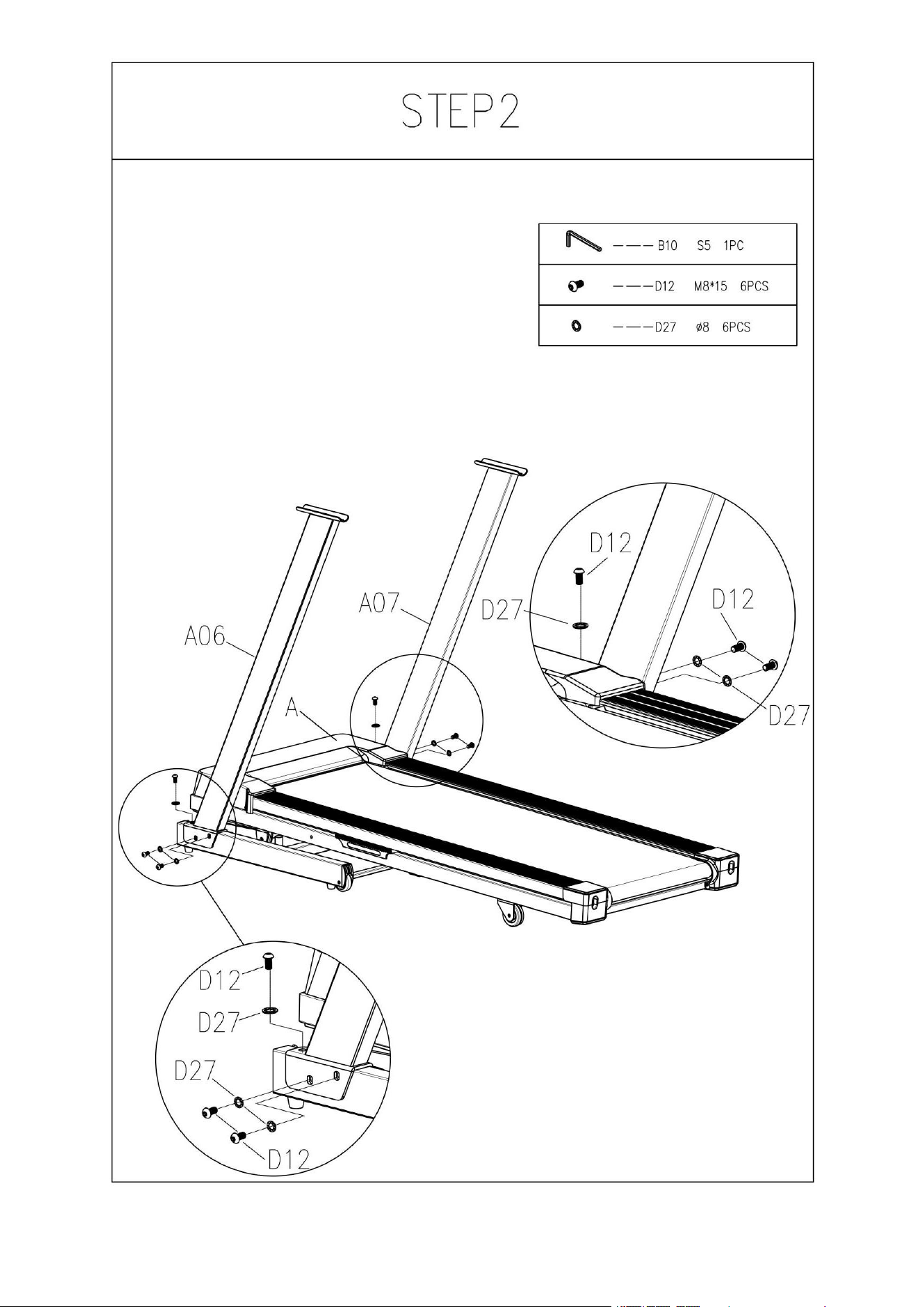

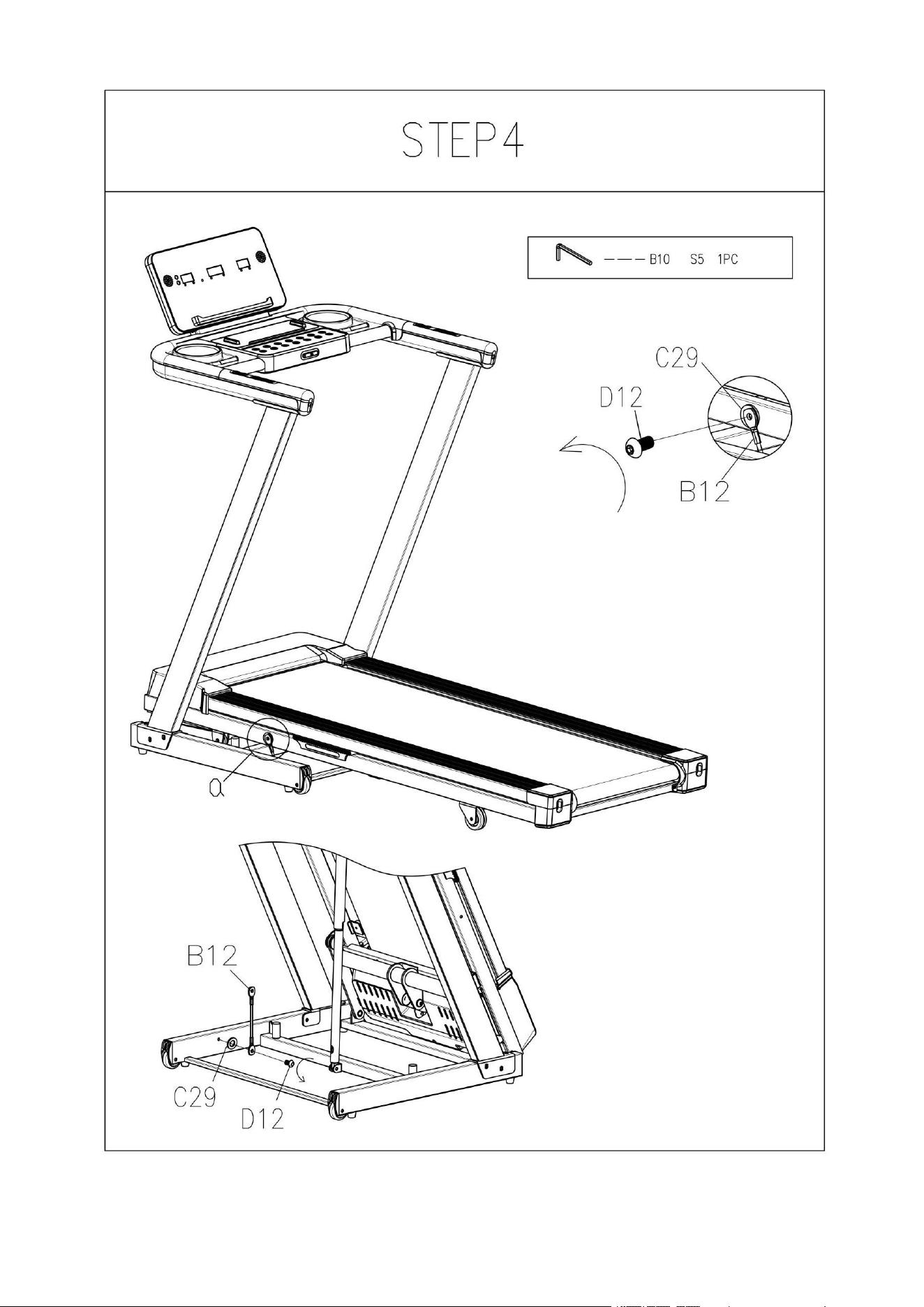

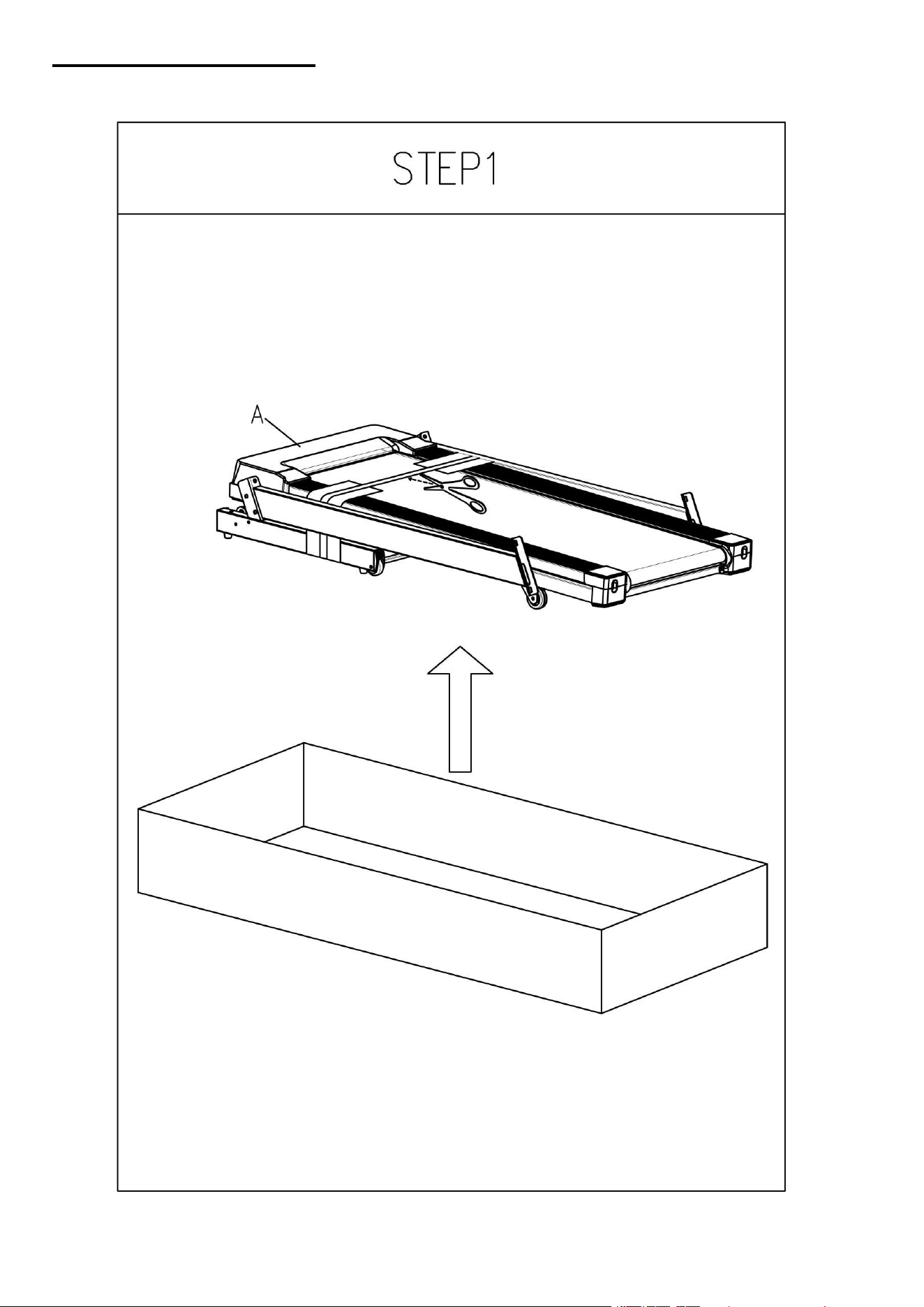

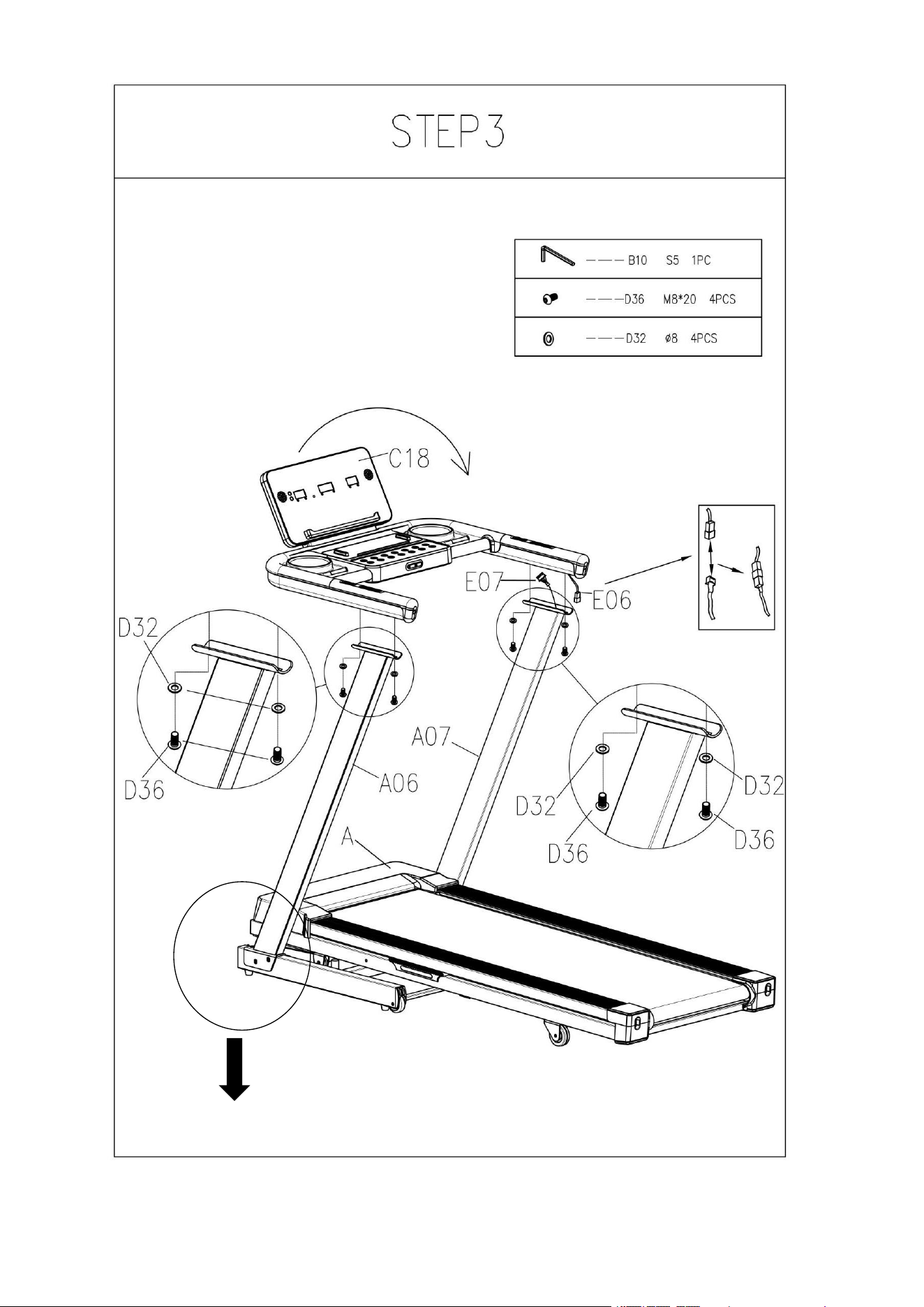

Assembly Instructions
9
Do not tighten all the bolts here.
Do not tighten all the bolts here.
10
Tighten all the bolts after assembling console part.
11
12
13
How To Move the Machine
14

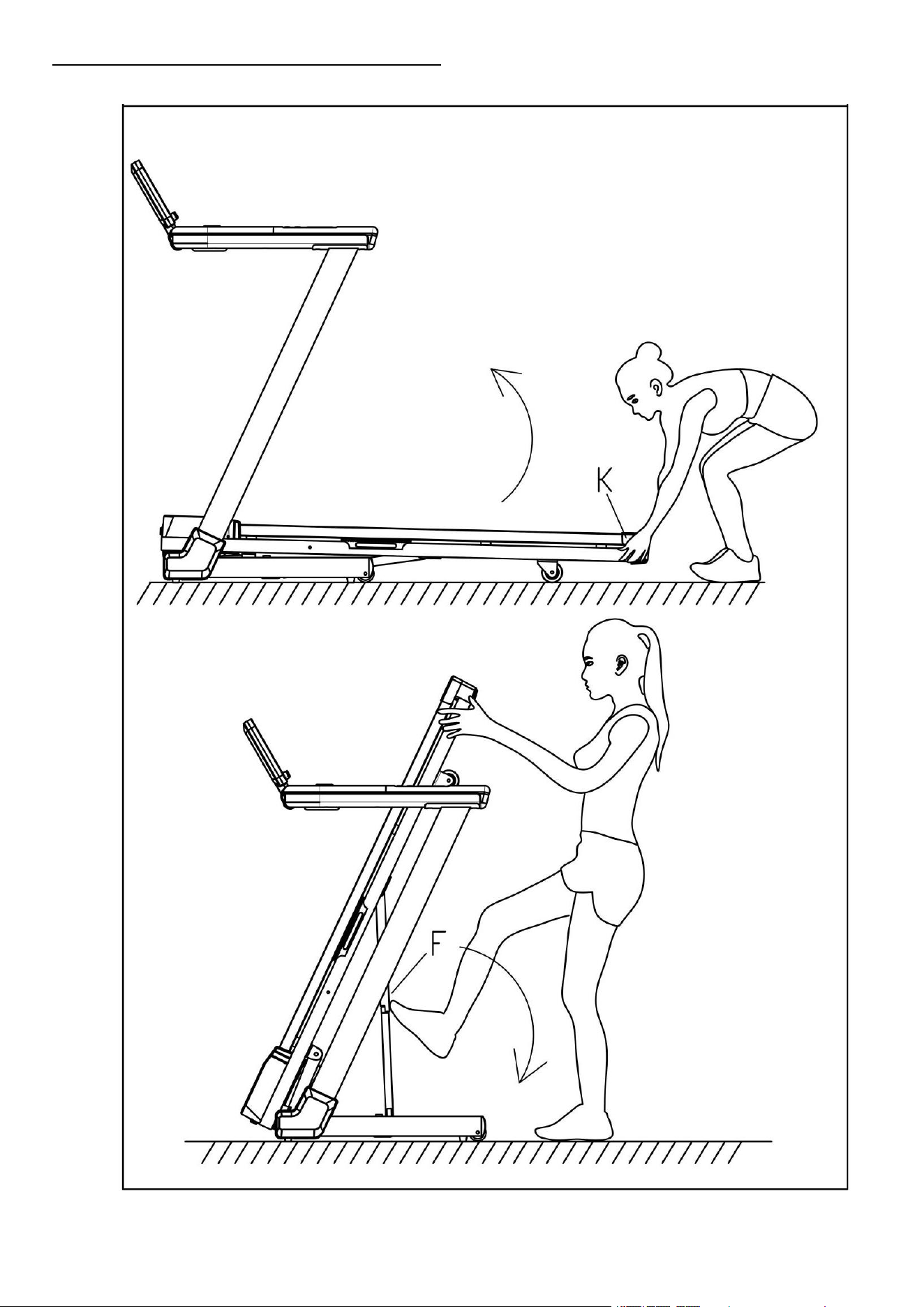

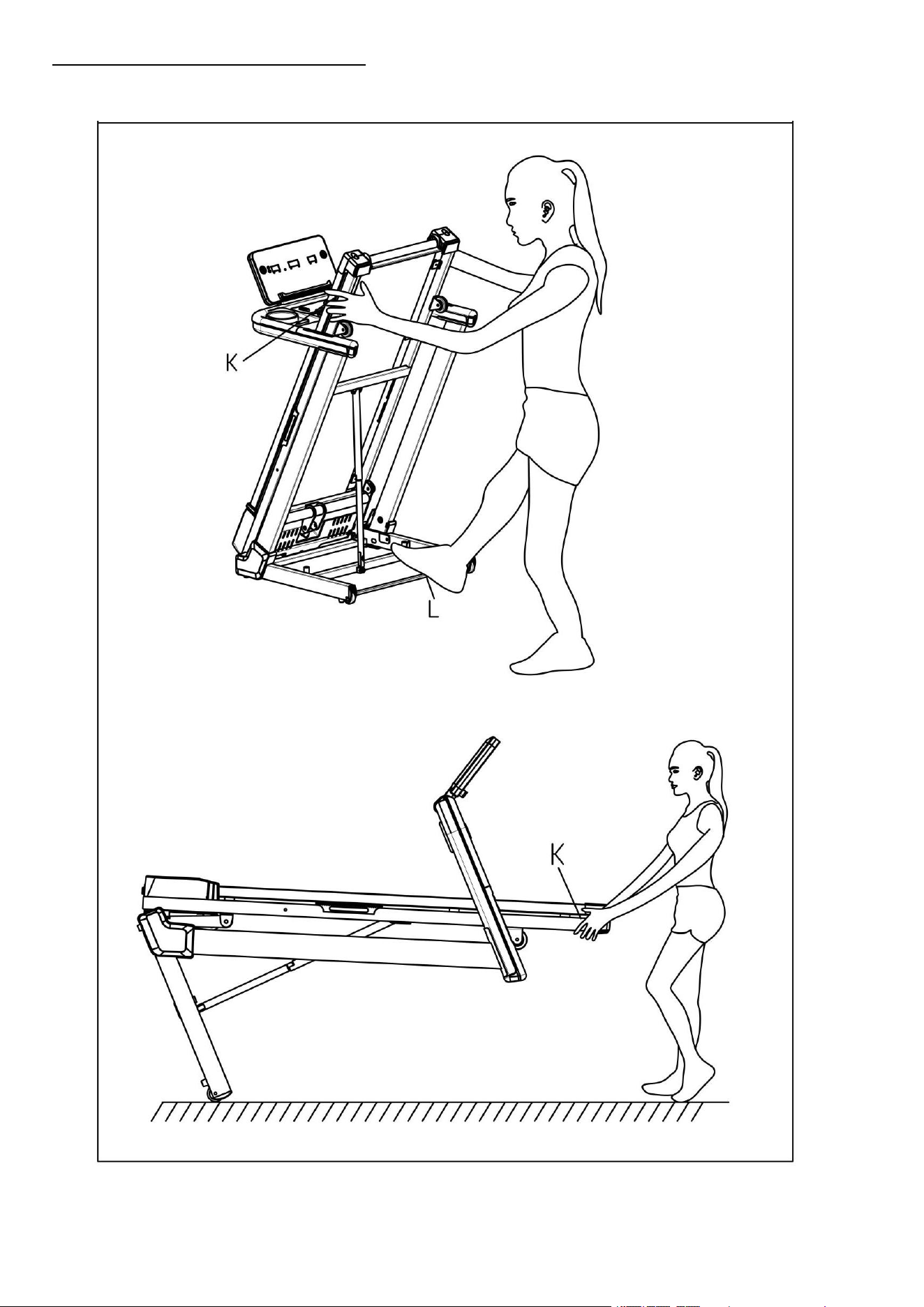

How to Fold/Unfold the Machine
Fold
Unfold
15
Lubricating The Treadmill
IMPORTANT NOTE:
You will need to lubricate your treadmill before the first use.
RUNNING BELTS & TREADMILL LUBRICANT:
Lubricating the Running Board and Running Belt is essential as the friction affects the life span and
operations of the treadmill. Inspect the Running Belt and Running Board regularly. If you find any
wear on the Running Board, please contact us at: support@sunnyhealthfitness.com.
WARNING:
Always unplug the treadmill from the electrical outlet before cleaning, lubricating, or
repairing the unit.

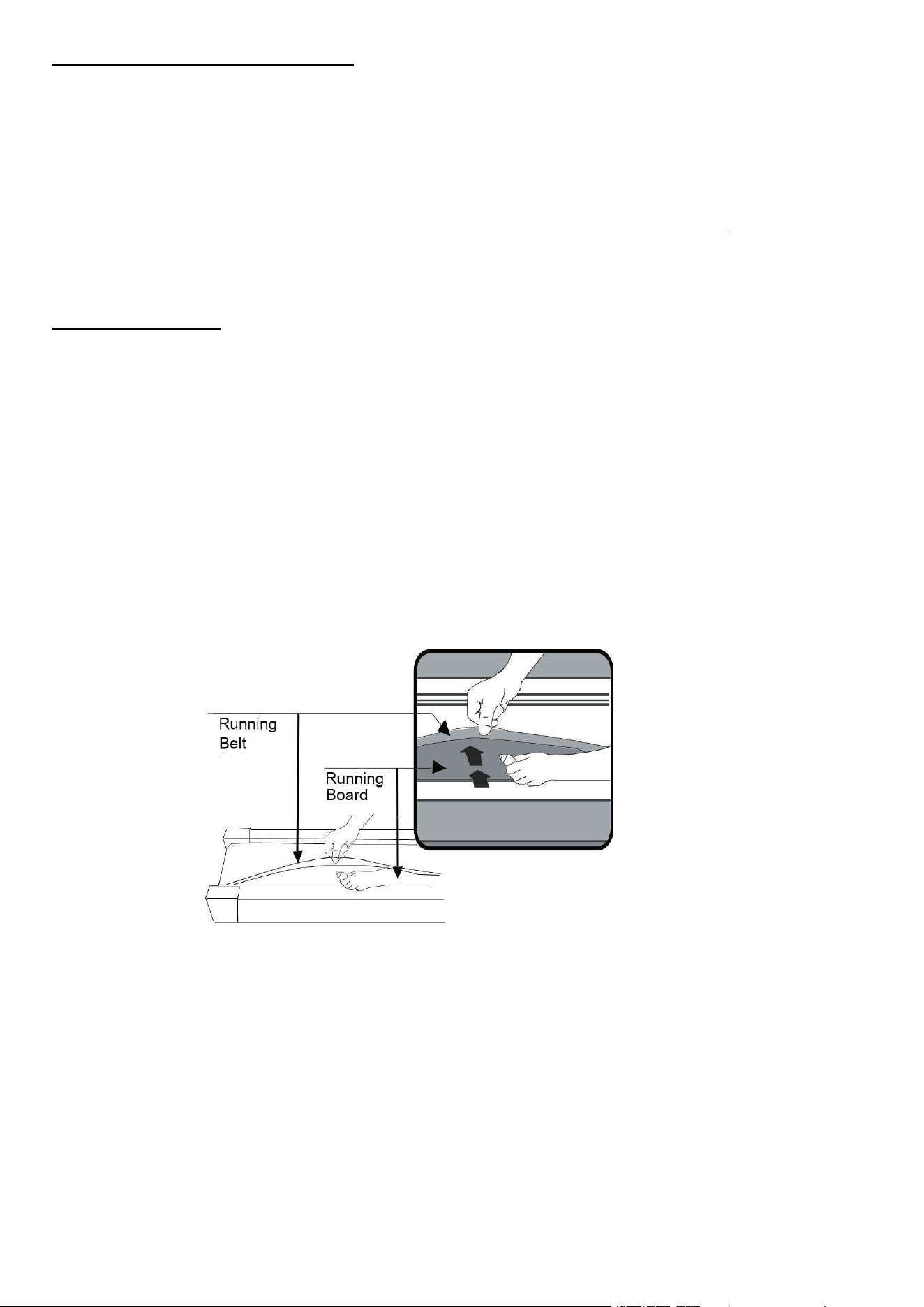

HOW TO LUBRICATE:
1.To apply lubricant, lift one side of the Running Belt and apply oil to the middle of the Running Board.
Next, start the treadmill and place it at the lowest speed setting and allow the oil to spread over the
Running Board. Repeat this process for the other side.
2. The moving parts should turn freely and quietly. Abnormal moving parts will affect the safety of the
equipment. Inspect and tighten bolts regularly.
3. To better maintain the treadmill and prolong its lifespan, it is suggested that maintenance be done
on a regular basis.
4. DO NOT LOOSEN OR MAKE ANY ADJUSTMENTS TO THE RUNNING BELT WHILE APPLYING
LUBRICANT. A loose Running Belt will result in the runner sliding off during use, while too tight of a
Running Belt will negatively affect the motor’s performance and create more friction between the
roller and Running Belt. The most suitable tightness for the Running Belt is when it is pulled out
50-75mm from the Running Board.
The following timetable is recommended:
Light user (less than 3 hours/ week)
every six months
Medium user (3-5 hours/ week)
every three months
Heavy user (more than 5 hours/ week)
every two months
16
Maintenance & Care
General cleaning will help prolong the life and performance of your treadmill. Keep the
unit clean and maintained by dusting the components on a regular basis. Clean both
sides of the Running Belt to prevent dust from accumulating underneath. Keep your
running shoes clean so that dirt from your shoes does not wear the Running Board and
Running Belt. Clean the surface of the Running Belt with a clean, damp cloth. Keep
liquids away from electrical parts and Running Belt.
To better maintain the treadmill and prolong its life, it is suggested that the treadmill be
powered off for 10 minutes every 2 hours and fully powered off whenever not in use.

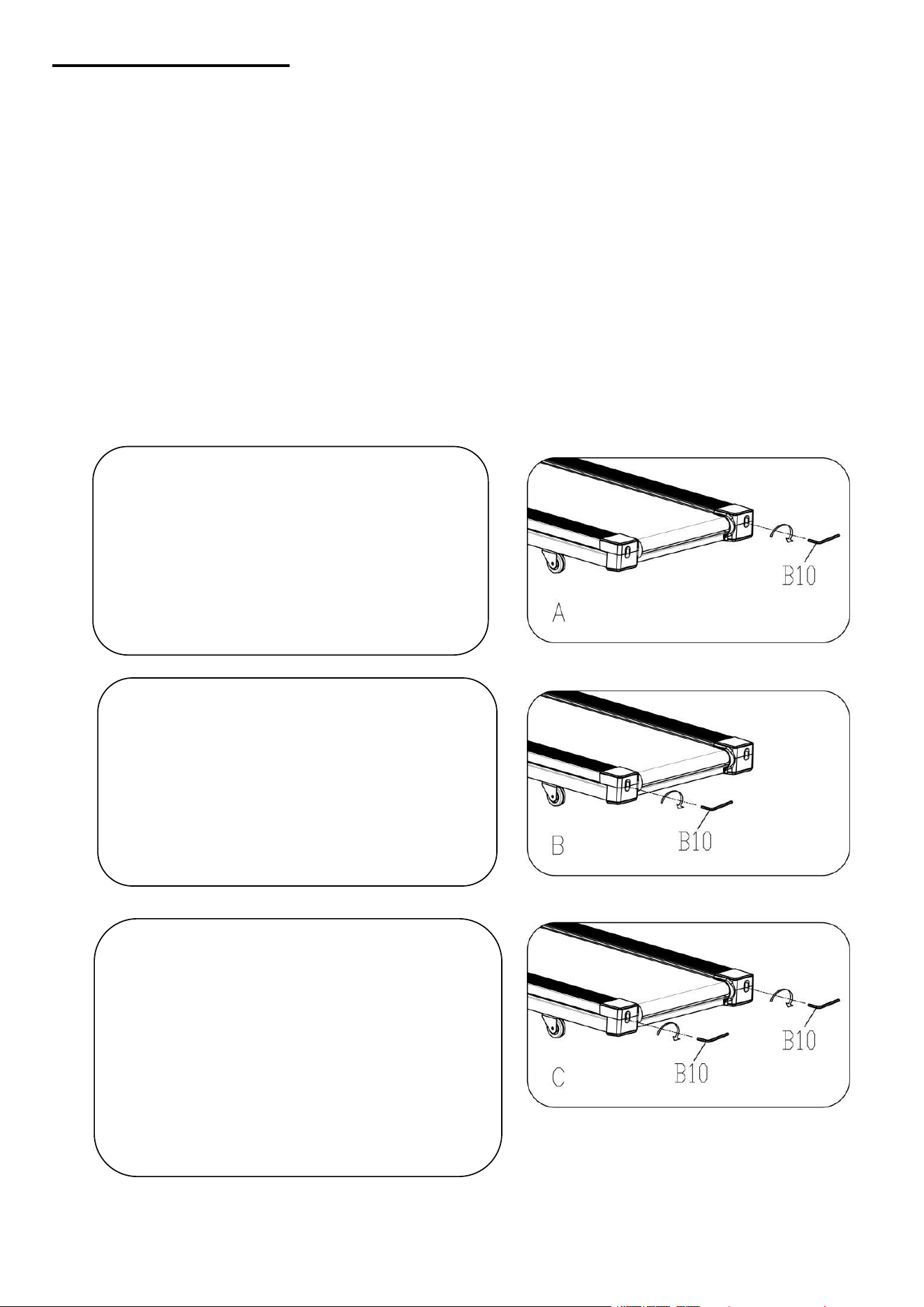

CENTERING THE RUNNING BELT:
Place the treadmill on level ground and set it at 3-5MPH to check if the Running Belt
drifts from the center.
If the Running Belt moves to the right,
turn the right adjusting bolt ¼ turn
clockwise
, then turn the left adjusting
bolt ¼ turn
counter-clockwise
. If the
Running Belt does not move, repeat
this step until it centers. Refer to
Figure A.
If the Running Belt moves to the left,
turn the left adjusting bolt ¼ turn
clockwise
, then turn the right
adjusting bolt ¼ turn
counter-clockwise
. If the Running Belt
does not move, repeat this step until it
centers. Refer to Figure B.
Over time, the Running Belt will
loosen. To tighten the Running Belt,
turn the left & right adjusting bolts one
full turn
clockwise
, check the tension
of the Running Belt. Continue this
process until Running Belt is at the
correct tension. Make sure to adjust
both sides equally to ensure correct
belt alignment. Refer to Figure C.
17
Important Electrical Information
WARNING: This treadmill requires a power source of 10 amps (100-120V) in order to
properly operate. For your safety, as well as the safety of others, please verify that the
power source is correct before plugging in the equipment. Any power source above or
below this level could cause significant damage to the equipment and/or user.
GROUNDING METHODS:
This product must be grounded. Grounding provides a path of the least resistance for
electrical current to reduce the risk of electric shock. The plug must be plugged into an
appropriate outlet that is properly installed and grounded in accordance with all local
codes and ordinances. Ensure that the product is connected to an outlet which contains
the same configuration as the plug. Do not use an adapter for this product.
This product is for use on a nominal 120V circuit and has a grounding plug that looks like
the plug illustrated in sketch A.
DANGER:
Improper connection of the equipment can result in a risk of electric shock. Check with a
qualified electrician or serviceman if you are unsure whether the product has been
properly grounded. Do not modify the plug provided with this product. If it will not fit the
outlet, have a proper outlet installed by a qualified electrician.
WARNING!
1. NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. Route
the power cord away from all moving parts of the treadmill, including the elevation
mechanism and transportation wheels.
2. NEVER operate the treadmill using a generator or UPS power supply.
3. NEVER remove any cover on the treadmill without first disconnecting power cord.
4. NEVER expose the treadmill to rain or moisture. This treadmill is not designed for
outdoor use or use in any high humidity environment.
GROUNDING METHOD
18

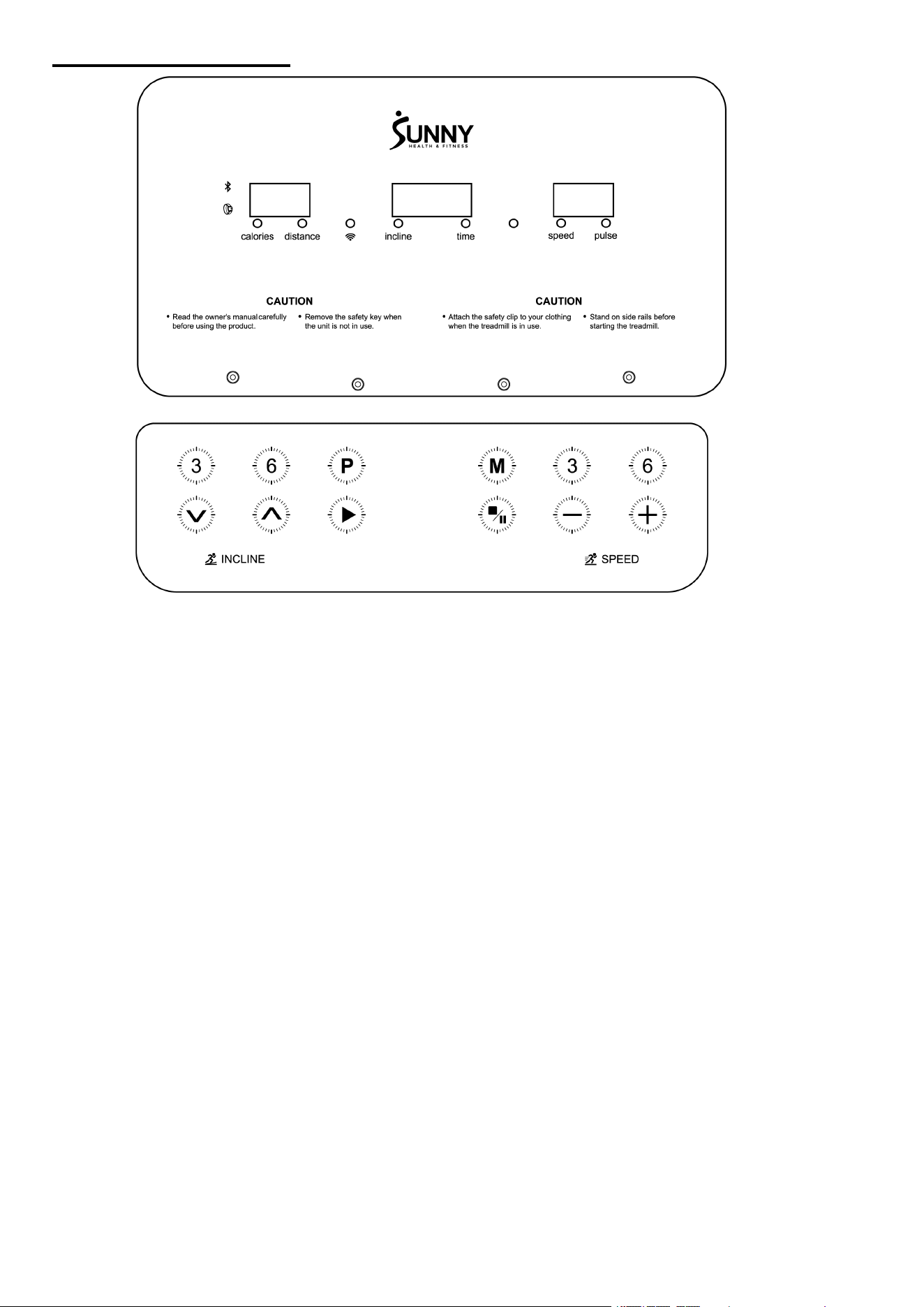

The Display Console
Quick Start:
1. Insert the pin end of the Safety Key into the holes on the Console.
2. Press the START button, and the system will automatically display a 3 seconds countdown. Once the
countdown reaches zero, the Running Belt will start at the initial default speed of 0.6 MPH or 1.0 KM/H.
3. To adjust the speed, you can use the SPEED +/- buttons on the Console, or the QUICK SPEED buttons
3,6.
4. To adjust the incline, you can use the INCLINE∧/∨buttons on the Console, or the QUICK INCLINE
buttons 3,6.
NOTE: The maximum speed on this treadmill is 8.0MPH or 13KM/H.
Window Display:
SPEED/ PULSE: The speed range is 0.6-8MPH(1.0-13.0KM/H). 0.6MPH(1.0KM/H) is the default running speed.
When the runner holds both hands on the pulse sensors (located on the handles), the system will calculate
the runner’s heartbeat and display it in this window. The pulse range is 50-200 beats/min. This treadmill also
can be connected to a wireless heart rate monitor, (heart rate monitor not included). Wireless heart rate
function works with SunnyFit Heart Rate Monitor HR200.
NOTE: This data is for reference only and cannot be used for medical purposes.
INCLINE/TIME: Displays incline and time, switchs display every 5 seconds. When displaying incline, the
range of display is 0-12 section; When displaying time, the range of time is 0:00-99:59 MINS. If the time
reaches 99:59, the treadmill will stop smoothly and display “End” then automatically reset to 0:00 after 5
seconds. When in Countdown Mode, it will countdown from the set time to 0:00. When the clock reaches
0:00, the treadmill will stop smoothly and display “End” then automatically reset itself after 5 seconds.
Maximum Countdown time is 99:00 minutes.
CALORIES/ DISTANCE: Displays calories and distance, switchs display every 5 seconds. Displays the
number of calories burned from 0.0 to 999 KCAL and the distance traveled (0.00-99.9 KM/MILE). When the
count reaches 999 KCAL, it will reset and start back from 0. When in Countdown Mode, it will count down
Fold
19
from the set calories to 0. Once it reaches 0, the treadmill will stop smoothly and display “End”, then
automatically reset to the initial setting after 5 seconds. When the distance reaches 99.9 KM/MILE, it will
reset to 0.00 and begin counting again from 0.0. When in Countdown Mode, it will countdown from the set
distance to 0.00. When it reaches 0.00, the treadmill will stop smoothly and display “End” and
automatically reset to the initial setting after 5 seconds.
When setting PROGRAMS, the speed is programmed in intervals; PROGRAMS are from
P01-P02-P03-…P14-P15-FAT.
Note: Calories and distance are not counted when nobody is walking or running on the machine.
Function Keys:
PROGRAM: Press the “P” button to set your desired interval setting. Programs are displayed as P1-P15, and
FAT and the various intervals are shown on the face of the treadmill. P1-P15 are preset programs.
MODE: When the machine is stopped. Press ”M” button to select a Countdown mode.
15:00 MINS is the set Countdown for TIME.
1.0 KM/Mile is the set Countdown for DISTANCE.
50 KCAL is the set Countdown for CALORIES.
When setting each Countdown Mode, you can press the speed +/– buttons or incline ⋀ / ⋁ buttons to
increase or decrease from the set data. Press START to start the treadmill.
START: To start the treadmill, insert the pin end of the Safety Key into the Console and then press the
START button. This treadmill requires the Safety Key in order to start. 1.0KM/H or 0.6MPH is the default
start speed.
STOP/PAUSE: This button has the functions of PAUSE and STOP. When in use, press this button once to
PAUSE your workout and the current workout data will still be shown. Press STOP again to terminate your
workout session completely and all data will be deleted and reset to the initial setting.
In the STOP state, press and hold this STOP/PAUSE button for 6 seconds to disconnect the heart rate
monitor. To reconnect the heart rate monitor, press and hold this button for 6 seconds again.
SPEED +/– : Press the +/- buttons to increase or decrease the speed in increments of 0.1 KM/H or MPH.
Pressing and holding either of these buttons for a duration of over ½ of a second will increase or decrease
the speed continuously.
3, 6 (QUICK SPEED BUTTONS): These buttons are preset to 3, 6 KM/H or MPH speeds for convenience.
INCLINE ⋀ / ⋁ : Press the ⋀ / ⋁ buttons to increase or decrease the incline in increments of 1. Pressing and
holding either of these buttons for a duration of over ½ of a second will increase or decrease the incline
continuously.
3, 6 (QUICK INCLINE BUTTONS): These buttons are preset to 3, 6 incline for convenience.
PROGRAMS
Initial
Default Value
Set Range
Display Range
TIME (MIN:SECOND)
0:00
15:00
5:00-99:00
0:00－99:59
INCLINE
0
0
0-12
0-12
SPEED (KM/H or MPH)
0.0
1.0KM/H
0.6MPH
1.0-13.0KM/H
0.6-8.0MPH
1.0-13.0KM/H
0.6-8.0MPH
DISTANCE (KM or MILE)
0.00
1.00
0.50-99.9
0.00-99.9
PULSE (BPM)
P
N/A
N/A
50-200
CALORIE (KCAL)
0
50
10-999
0－999
20
Lubrication Reminder:
Your treadmill needs lubrication maintenance every 300km (188 Miles). The system will release a beeping
sound every 10 seconds and display an “OIL” icon on your display to remind you when it is time. Please read
LUBRICATING THE TREADMILL to learn the proper steps to lubricate your treadmill. Apply the lubricant to
the middle of the running board on both sides. After application, press and hold the STOP button for 3
seconds to clear the “OIL” reminder.
How To Switch Between Metric and Imperial Mode：
In standby mode, remove the safety key, press SPEED+ and SPEED- buttons at the same time and hold
for 5 seconds until you hear a beep. The treadmill should switch between metric and imperial mode.
The speed window will show “1.0” in Metric mode and show “0.6” in Imperial mode.
Interval Programs (P1-P15):
Press the PROGRAM button to select an interval setting. Programs are displayed as P1-P15. Select the
desired program, and the Console will display a countdown starting from 10:00 MINS, press SPEED +/- or
INCLINE ⋀ / ⋁ buttons if you wish to increase or decrease the exercise time. Press the START button to start
the interval program. The interval program is divided into 10 sections. Each exercise time equals the setting
time divided by 10. When the speed enters the next interval, the treadmill will beep, and the speed will be
changed according to the set interval. Press SPEED +/- or INCLINE ⋀ / ⋁ buttons to change the SPEED. After
finishing one program, the system will beep and display “End.” The machine will gradually come to a stop,
then automatically reset to the initial setting after 5 seconds.
TIME
PROG
TIME INTERVAL= setting time/10
1
2
3
4
5
6
7
8
9
10
P1
SPEED (KM/H)
3
3
5
5
7
7
5
5
3
3
INCLINE
1
1
2
2
2
3
3
2
1
1
P2
SPEED (KM/H)
10
3
5
7
3
7
5
7
5
3
INCLINE
1
2
2
2
2
3
3
2
3
3
P3
SPEED (KM/H)
3
3
5
7
7
9
7
5
5
1
INCLINE
2
3
3
2
2
3
3
3
4
4
P4
SPEED (KM/H)
3
5
3
7
1
5
7
5
3
1
INCLINE
2
3
3
2
2
3
3
3
4
0
P5
SPEED (KM/H)
5
5
5
7
9
11
9
7
7
5
INCLINE
3
3
3
4
4
5
5
5
5
2
P6
SPEED (KM/H)
3
5
9
11
7
12
9
11
5
3
INCLINE
3
5
5
5
4
4
4
3
4
2
P7
SPEED (KM/H)
3
7
9
11
9
9
9
7
5
5
INCLINE
4
4
4
4
3
3
6
6
8
3
P8
SPEED (KM/H)
5
5
9
9
11
5
11
11
5
3
INCLINE
4
5
5
5
6
6
6
7
10
3
P9
SPEED (KM/H)
2
5
5
8
8
4
6
3
3
2
INCLINE
5
5
5
6
6
6
4
4
8
2
P10
SPEED (KM/H)
2
3
4
6
7
5
5
6
7
3
INCLINE
5
6
6
6
7
5
8
8
5
3
P11
SPEED (KM/H)
3
4
5
9
5
9
5
5
6
3
INCLINE
3
6
5
3
5
3
5
5
4
2
21
P12
SPEED (KM/H)
1
2
3
10
7
7
10
5
4
3
INCLINE
2
5
5
3
5
5
3
3
6
2
P13
SPEED (KM/H)
1
1
3
5
5
5
9
3
1
1
INCLINE
5
5
8
8
8
3
3
7
8
0
P14
SPEED (KM/H)
3
4
7
3
4
6
3
4
5
3
INCLINE
2
4
4
4
4
2
3
3
1
0
P15
SPEED (KM/H)
2
3
5
5
7
7
7
6
4
3
INCLINE
3
3
5
5
5
5
2
2
1
0
TIME
PROG
TIME INTERVAL= setting time/10
1
2
3
4
5
6
7
8
9
10
P1
SPEED (MPH)
1.8
1.8
3.1
3.1
4.3
4.3
3.1
3.1
1.8
1.8
INCLINE
1
1
2
2
2
3
3
2
1
1
P2
SPEED (MPH)
6.2
1.8
3.1
4.3
1.8
4.3
3.1
4.3
3.1
1.8
INCLINE
1
2
2
2
2
3
3
2
3
3
P3
SPEED (MPH)
1.8
1.8
3.1
4.3
4.3
5.6
4.3
3.1
3.1
0.6
INCLINE
2
3
3
2
2
3
3
3
4
4
P4
SPEED (MPH)
1.8
3.1
1.8
4.3
0.6
3.1
4.3
3.1
1.8
0.6
INCLINE
2
3
3
2
2
3
3
3
4
0
P5
SPEED (MPH)
3.1
3.1
3.1
4.3
5.6
6.8
5.6
4.3
4.3
3.1
INCLINE
3
3
3
4
4
5
5
5
5
2
P6
SPEED (MPH)
1.8
3.1
5.6
6.8
4.3
7.5
5.6
6.8
3.1
1.8
INCLINE
3
5
5
5
4
4
4
3
4
2
P7
SPEED (MPH)
1.8
4.3
5.6
6.8
5.6
5.6
5.6
4.3
3.1
3.1
INCLINE
4
4
4
4
3
3
6
6
8
3
P8
SPEED (MPH)
3.1
3.1
5.6
5.6
6.8
3.1
6.8
6.8
3.1
1.8
INCLINE
4
5
5
5
6
6
6
7
10
3
P9
SPEED (MPH)
1.2
3.1
3.1
5
5
2.5
3.7
1.8
1.8
1.2
INCLINE
5
5
5
6
6
6
4
4
8
2
P10
SPEED (MPH)
1.2
1.8
2.5
3.7
4.3
3.1
3.1
3.7
4.3
1.8
INCLINE
5
6
6
6
7
5
8
8
5
3
P11
SPEED (MPH)
1.8
2.5
3.1
5.6
3.1
5.6
3.1
3.1
3.7
1.8
INCLINE
3
6
5
3
5
3
5
5
4
2
P12
SPEED (MPH)
0.6
1.2
1.8
6.2
4.3
4.3
6.2
3.1
2.5
1.8
INCLINE
2
5
5
3
5
5
3
3
6
2
P13
SPEED (MPH)
0.6
0.6
1.8
3.1
3.1
3.1
5.6
1.8
0.6
0.6
INCLINE
5
5
8
8
8
3
3
7
8
0
P14
SPEED (MPH)
1.8
2.5
4.3
1.8
2.5
3.7
1.8
2.5
3.1
1.8
INCLINE
2
4
4
4
4
2
3
3
1
0
P15
SPEED (MPH)
1.2
1.8
3.1
3.1
4.3
4.3
4.3
3.7
2.5
1.8
INCLINE
3
3
5
5
5
5
2
2
1
0
22
Body Mass Index:
Press the PROGRAM button until the window displays FAT to access Body Mass Index. Press MODE to enter
F-1, F-2, F-3, F-4, F-5.
F-1 SEX, F-2 AGE, F-3 HEIGHT, F-4 WEIGHT, F-5 is Body Mass Index
Press SPEED +/- BUTTONS to set F1-F4 (refer to the chart below). Once you have finished setting F1-F4,
press MODE. This will enter you into the set up for F-5 (Body Mass Index). To set F-5, grasp the Pulse Sensors
located on the handles with both hands and hold them for 3 seconds. The window will display your body
mass index. The Body Mass Index is used to test the relation between your height and weight. It is only for
reference only and not suitable for medical use. The Body Mass Index is suitable for both male and female.
NOTE: General Body Mass Index score is 20-25%
Underweight Below 19.0
Normal 19.0 – 25.0
Overweight 26.0 – 29.0
Obesity 30.0 – and above
Body Mass Index (BMI) Chart:
F-1
Sex
1 Male
2 Female
F-2
Age
10---99
F-3
Height
100---200 CM (40---80 INCHES)
F-4
Weight
20---150 KG (44---330 LBS)
F-5
BMI
≤19
Underweight
BMI
=(20---25)
Normal Weight
BMI
=(26---29)
Overweight
BMI
≥30
Obesity
Bluetooth :
1. The Bluetooth icon will flash when the console is on or wakes from power saving mode. If no Bluetooth
connection is established within 3 minutes, the Bluetooth icon will turn off.
2. The Bluetooth icon will stay on when it is connected.
Wireless Heart Rate :
1. The wireless heart rate icon will stay on when the heart rate monitor is connected.
2. The console can be connected to the heart rate monitor at any time except in power saving mode.
3. The wireless heart rate icon will flash when the console is on. If the heart rate monitor is not connected
within 3 minutes, the wireless heart rate icon will turn off.
NOTE: The heart rate monitor is not included. Wireless heart rate function works with SunnyFit Heart Rate
Monitor HR200.
WIFI :
1. If access point is not configured or fails to be configured, the WIFI indicator light will turn off.
2. After configuring access point, the WIFI indicator light will flash during the connection to the server.
3. The WIFI indicator light will stay on when the server is successfully connected.
NOTE:
1. WIFI function only supports 2.4G frequency, not 5G frequency.
2. Please use SunnyFit APP to configure WIFI and configure it according to the wizard on SunnyFit APP.
23
Treadmill Functions
Safety Lock Function:
Removing the Safety Key from the Console while the treadmill is running will cause it to stop
immediately. Once the treadmill reaches a full stop, the window display of the console will show
“- - -” and the speaker will beep 3 times. To start the treadmill again, insert the pin end of the
Safety Key into the Console and press the START button.
Power Save Function:
When the treadmill has been inactive for 10 minutes, it will enter Power Saving Mode. While the
treadmill is in this mode, the window display of the Console will be turned off. To turn it back on,
press any button.
POWER ON:
Flick the power switch to this symbol to turn on the treadmill.
POWER OFF:
Flick the power switch to this symbol to turn the treadmill off at any time. This includes during
exercise.
Safety Note:
We recommend that you maintain a slow speed at the beginning of a session and hold the Left &
Right Handlebar Foam handrails until you have become familiar with the treadmill.
Insert the pin end of the Safety Key into the Console and attach the opposite end (with the safety
clip ) to your clothing before starting your workout. To end your workout, press the STOP button
or remove the Safety Key and the treadmill will stop immediately.
Exercise Instructions
Getting Started:
Before starting any exercise program, you should consult your physician to determine if you have
any medical or physical conditions that could put your health and safety at risk or prevent you
from using the equipment properly.
Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising immediately if you experience any of the following symptoms: pain, tightness in your
chest, irregular heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of nausea.
Get to know your treadmill. Before attempting to use the treadmill take some time to stand
alongside and familiarize yourself with the controls.
1. Once you get on, you can stand with your feet on the Side Rails and stabilize yourself by
holding onto the handrails.
2. Next, attach the clip end of the Safety Key to your clothes and insert the pin end of the key
into the holes on the Console Top Cover.
3. Press the START button to start the treadmill.
4.
The treadmill will start at the system default setting speed of 0.6MPH(1.0KM/H). When you feel
comfortable, you may slowly increase this speed.
5. When you are finished with your exercise, press the STOP button to stop the treadmill or you
can remove the pin end of the to stop the treadmill.
24
APP Connection:
Connect Smart Equipment to SunnyFit App:
1. Scan to download SunnyFit from the app store:
2. Ensure that the Bluetooth function is turned on from your mobile device.
3. If this is your first time using the SunnyFit app, follow the in-app instructions to
register for your free SunnyFit account and log in.
4. Begin any workout activity that matches your smart equipment, then follow the
onscreen prompts to search for and connect to your smart equipment.
5. When connected, your stats and records will be displayed at the end of your
course/session and recorded in your account profile!
App Troubleshooting:
If you are having trouble connecting your smart equipment, visit
www.sunnyfit.com/guide or scan the QR code below:
25
Troubleshooting
PROBLEM
POSSIBLE CAUSE
SUGGESTED ACTION
Treadmill will not start
Not plugged in.
Plug cord into outlet.
Safety Key is not inserted.
Insert Safety Key.
Running belt not
centered
Running belt tension is not
correct on the left or right
sides of the running board.
Tighten the left and right
adjusting bolts of the rear
roller.
E01&E15: Message
failure---Computer not
working
Wires from the console and
bottom control board are
not properly connected.
Check wire from the console
to the control board.
Transformer is damaged.
If the transformer is damaged,
contact customer service.
E03: Without speed
sensing signal
Speed sensing wire is
damaged.
Check if the wire is normal or
not. If it is normal, replace the
control board.
E04: Incline
self-checking
The wire of incline motor is
damaged, or control board
/ incline motor is damaged.
Check if the wire is normal or
not. If it is normal, replace the
control board or incline motor.
E07: Overheating
protection
Mainly due to high
temperature, or control
board is damaged.
Stop using the machine. Wait
till the machine temperature
drops before using the
machine again. If the problem
persists, replace the control
board.
26

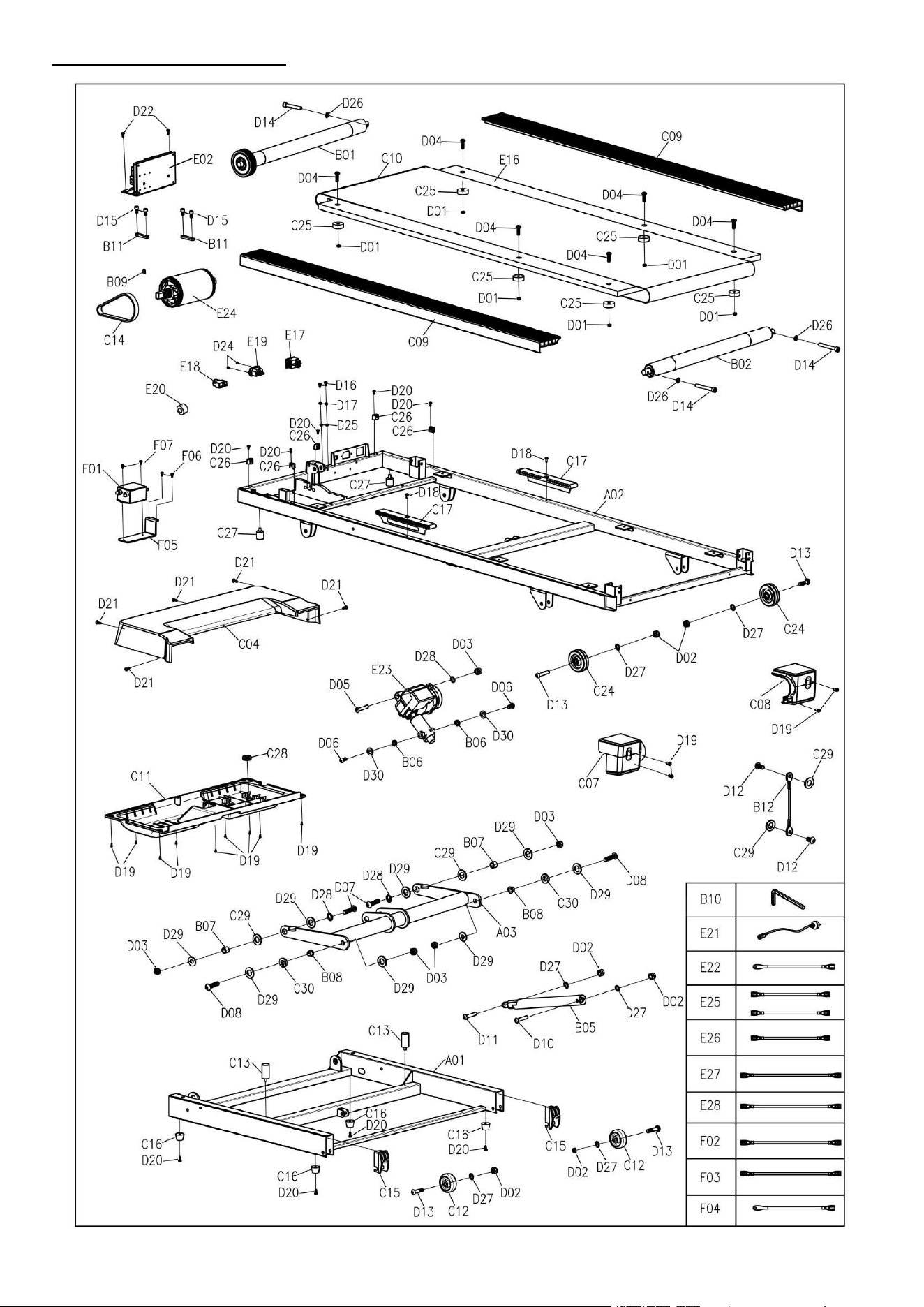

Exploded Diagram 1
27

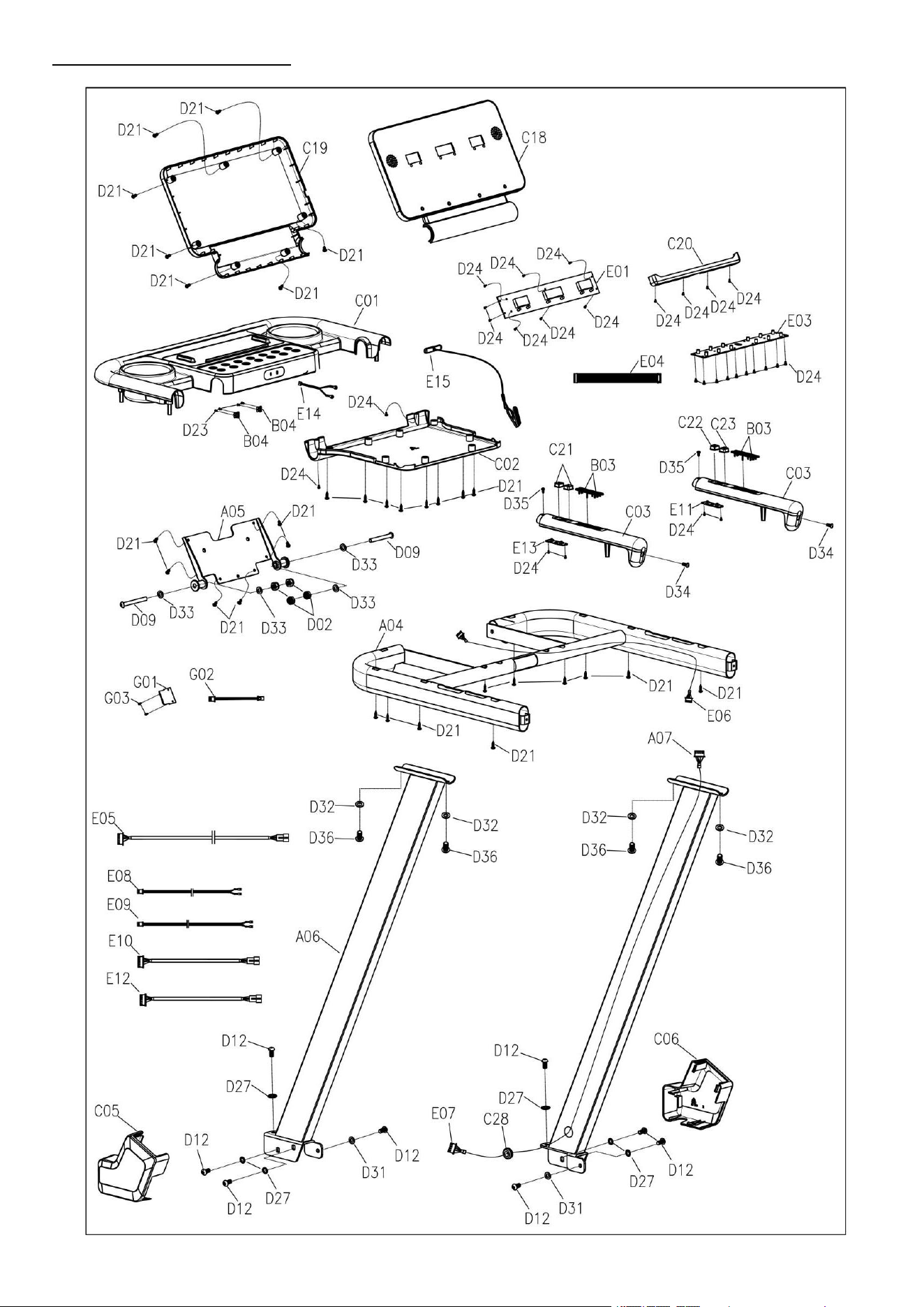

Exploded Diagram 2
28
Parts List
No.
Description
Specification
Qty.
No.
Description
Specification
Qty.
A01
Base Assembly
1
D03
Nut
M10
5
A02
Main Frame
1
D04
Bolt
M6*35
6
A03
Incline Assembly
1
D05
Bolt
M10*40
1
A04
Console Base Bracket
1
D06
Bolt
M10*15
2
A05
Panel Fixed Bracket
1
D07
Bolt
M10*30
2
A06
Left Upright Tube
1
D08
Bolt
M10*35
2
A07
Right Upright Tube
1
D09
Bolt
M8*60
2
B01
Front Roller
1
D10
Bolt
M8*45
1
B02
Rear Roller
1
D11
Bolt
M8*30
1
B03
Hand Pulse Sheet
4
D12
Bolt
M8*15
10
B04
Sleeving
2
D13
Bolt
M8*40
4
B05
Air Cylinder
1
D14
Bolt
M6*45
3
B06
Incline Rotatable Sleeve
2
D15
Bolt
M6*15
4
B07
Rotatable Bushing
2
D16
Bolt
M5*12
2
B08
Incline Frame Bushing
2
D17
Spring Washer
Φ5
2
B09
Grounding Copper Sheet
1
D18
Head with Washer Tapping and
Drilling Screw
ST4.2*20
2
B10
Allen Wrench
1
D19
Head with Washer Tapping and
Drilling Screw
ST4.2*12
13
B11
Motor Pressing Plate
2
D20
Screw
ST4.2*20
9
B12
Safety Wirerope
1
D21
Screw
ST4.2*12
36
C01
Console Top Cover
1
D22
Head with Washer Tapping Screw
ST4.2*12
2
C02
Console Bottom Cover
1
D23
Screw
ST2.0*6
4
C03
Armrest Cover
2
D24
Screw
ST2.9*8
30
C04
Motor Top Cover
1
D25
Locking Washer
Φ5
2
C05
Left Upright Tube Cover
1
D26
Locking Washer
Φ6
3
C06
Right Upright Tube Cover
1
D27
Locking Washer
Φ8
12
C07
Left Rear Cover
1
D28
Locking Washer
Φ10
3
C08
Right Rear Cover
1
D29
Big Washer
Φ10*Φ26*2.0
8
C09
Side Rail
2
D30
Flat Washer
Φ10
2
C10
Running Belt
1
D31
Flat Washer
Φ8
2
C11
Motor Bottom Cover
1
D32
Arc-shaped Washer
Φ8
4
C12
Transport Wheel
2
D33
Big Washer
Φ8*Φ22*2.0
4
C13
Cylindrical Cushion
2
D34
Bolt
M5*10
2
C14
Motor Belt
1
D35
Screw
ST2.9*8
2
C15
Roller Cover
2
D36
Bolt
M8*20
4
C16
Foot Pad
4
E01
Console
1
C17
Silicone Pad
2
E02
Control Board
1
C18
Panel Top Cover
1
E03
Button Board
1
C19
Panel Bottom Cover
1
E04
Button Board Wire
1
C20
Device Holder
1
E05
Upper Signal Wire
1
C21
Button
2
E06
Middle Signal Wire
1
C22
Button+
1
E07
Lower Signal Wire
1
C23
Button-
1
E08
Left Hand Pulse Signal Wire
1
C24
Adjustable Wheel
2
E09
Right Hand Pulse Signal Wire
1
C25
Blue Cushion
6
E10
Quick Speed Top Wire
1
C26
Cover Fixing Seat
5
E11
Quick Speed Bottom Wire
1
C27
Cushion
2
E12
Quick Incline Top Wire
1
C28
Ri
ng Protective Plug
2
E13
Quick Incline Bottom Wire
1
C29
Plastic Gasket 1
4
E14
Safety Key Connecting Wire
1
C30
Plastic Gasket 2
2
E15
Safety Key
1
D01
Nut
M6
6
E16
Running Board
1
D02
Nut
M8
10
E17
Square Switch
1
29
Version 1.0
No.
Description
Specification
Qty.
No.
Description
Specification
Qty.
E18
Overload Protector
1
F01
Filter
1
E19
Power Socket
1
F02
AC Single Line
Brown 350mm
1
E20
Magnetic Core
1
F03
AC Single Line
Blue 350mm
1
E21
Power Wire
1
F04
Grounding Wire
1
E22
Grounding Wire
350mm
1
F05
Filter Connection Wire
1
E23
Incline Motor
1
F06
Screw
ST4.2*12
2
E24
Motor
1
F07
Bolt
M4*10
2
E25
AC Single Line
Brown 200mm
2
G01
USB Module
1
E26
AC Single Line
Blue 200mm
1
G02
USB Charging Wire
1
E27
AC Single Line
Brown 350mm
1
G03
Screw
ST2.9*6.0
2
E28
AC Single Line
Blue 350mm
1
30
Register
Register your product and verify warranty terms:
Sunnyhealthfitness.com/warranty
Download
Track your fitness progress & join FREE workout courses!
Download SunnyFit App today!
Follow
Find us on social media
Contact
Get in touch with us for any questions
1-877-90SUNNY (877-907-8669)
support@sunnyhealthfitness.com
www.sunnyhealthfitness.com
