Connection Instructions
- Input Voltage:
- Output Max Current:
4.5V-7VDC
1A
- RF Frequency:
- RF Max Gain:
2.4GHZ
3.85dBi
- RF Operating Range: 10m
Specifications
US Patent: US10325430
⚠ Install and wire in accordance with
National Electrical Code, ANSI/NFPA70.
© 2026 KINDOO LLP. All rights reserved.
KIN H - CL01
For support, visit:
hps://www.kindoo.tech
Power Input NEG
Power Input POS
Connection Diagram
- Connect the positive power
terminal to Power Input POS Pin
- Connect the negative power
terminal to Power Input NEG Pin
- Place Board and Press Motor
Pogo Pins
- 20 -
FCC Warning
15.19 Labeling requirements.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
15.21 Information to user.
Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
15.105 Information to the user.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.

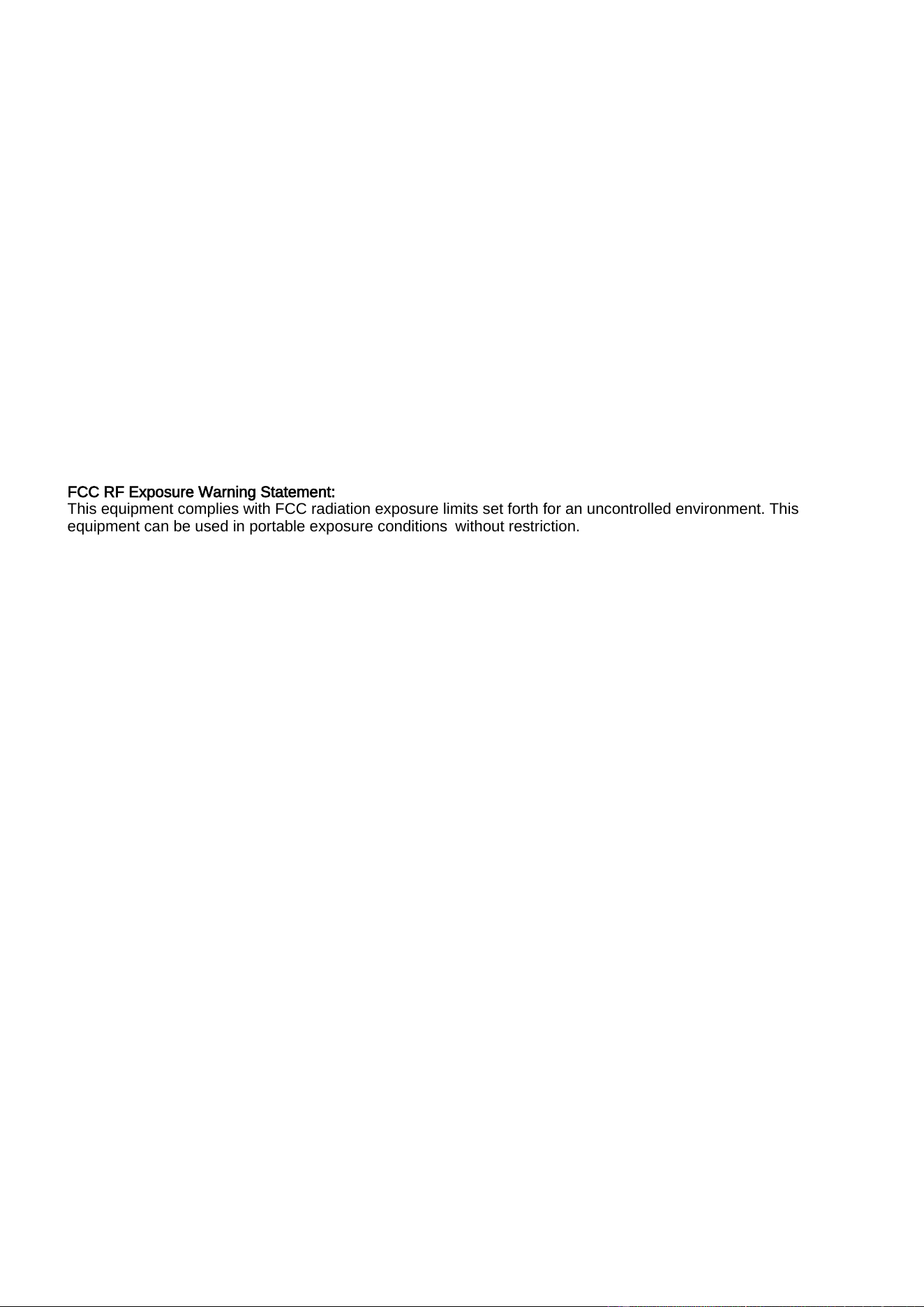

FCC RF Exposure Warning Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment can be used in portable exposure conditions without restriction.
- 21 -
Additional Section: Integration instructions for host product manufacturers according to KDB 996369 D03 OEM Manual v01
2.1 Conditions on using KINDOO LLP regulatory approvals:
A.Customer must ensure that its product (The ”CUSTOMER Product”) is electrically
identical to KINDOO LLP reference designs.
Customer acknowledges that any modifications to KINDOO LLPreference designs may invalidate
regulatory approvals in relation to the CUSTOMER Product, or may necessitate notifications to the relevant regulatory
authorities.
B.Customer is responsible for ensuring that antennas used with the product are of the same type, with same or lower gains
as approved and providing antenna reports to KINDOO LLP
C.Customer is responsible for regression testing to accommodate changes to KINDOO LLP reference designs, new antennas,
and portable RF exposure safety testing/approvals.
D.Appropriate labels must be affixed to the CUSTOMER Product that comply with applicable regulations in all respects.
E.A user’s manual or instruction manual must be included with the customer product that contains the text as required by
applicable law. Without limitation of the foregoing, an example (for illustration purposes only) of possible text to include is
set forth below:
2.7 Antennas
This device is intended only for host manufacturers under the following conditions:
The transmitter module may not be co-located with any other transmitter or antenna;
The module shall be only used with the following
2.2 List of applicable FCC rules (customers' product must also compliant with these rules)
The module complies with FCC Part 15.247
2.3 Specific operational use conditions
The module has been certified for portable applications. The host manufacturer installing this module into their product must
ensure that the final composite product complies with the FCC requirements by a technical assessment or evaluation to the FCC
rules, including the transmitter operation. The host manufacturer has to be aware not to provide information to the end user
regarding how to install or remove this RF module in the user's manual of the end product which integrates this module. The end
user manual shall include all required regulatory information/warning as show in this manual. If the end product manufacturer
use it to a portable product, please provide the SAR compliance.
2.4 Limited module procedures
Not applicable.
2.5 Trace antenna designs
Not applicable.
2.6 RF exposure considerations
The device can be used in portable exposure condition without restriction and if RF exposure statement or module layout is
changed, then the host product manufacturer required to take responsibility of the module through a change in FCC ID or new
application. The FCC ID of the module cannot be used on the final product. In these circumstances, the host manufacturer will be
responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization.
This equipment complies with FCC’s RF radiation exposure limits set forth for an uncontrolled environment.
Note: the OEM product manuals must include a statement in order to alert the users of FCC RF exposure compliance.
antennas of the same type with equal or lower gain.
Antenna Type Antenna Gain Frequency Range
Internal Antenna
3.85dBi 2402MHz to 2480MHz
2.8 Label and compliance information
Host product manufacturers must provide a physical or e-label stating “Contains FCC ID:2A7TP-KINHCL01 ” with their
finished product.
2.9 Information on test modes and additional testing requirements
Host manufacturer must perform test of radiated & conducted emission and spurious emission, etc according to the
actual test modes for a stand-alone modular transmitter in a host, as well as for multiple simultaneously
transmitting modules or other transmitters in a host product. If no other module used and no change to this
module, the product can only to compliance with FCC part 15 B to meet the sale requirement. Only when all the test
results of test modes comply with FCC requirements, then the end product can be sold legally.
2.10 Additional testing, Part 15 Subpart B disclaimer
The modular transmitter is only FCC authorized for FCC Part 15 Subpart C 15.247 that the host product manufacturer
is responsible for compliance to any other FCC rules that apply to the host not covered by the modular transmitter
grant of certification. If the grantee markets their product as being Part 15 Subpart B compliant (when it also
contains unintentional-radiator digital circuity), then the grantee shall provide a notice stating that the final host
product still requires Part 15 Subpart B compliance testing with the modular transmitter installed.
