TROUBLE SHOOTING
Our high-qualified customer services team is waiting to hear from you and
answer any of your questions 24 hours a day and 7 days a week. We are
happy to receive your message about the problems you met so that we can
help you to get out of the trouble. You can contact us through email.
Q: Where can I find the instructional videos on how to set up the
projector?
A: We have prepared detailed operation videos on YouTube, which contains
almost every step of operating the projector, like wifi connection, wired
connection and so on. Just search "Onoayo" on YouTube and you will find it.
Q: I received the projector but it has no remote control. Could you send
it to me?
A: If the product you receive is missing any accessories, please let us know
what accessory do you miss. We will send them to you as soon as possible.-
Just contact us via our e-mail:[email protected]
Q: I can't find the focus ring on the projector,how can I adjust the
focus?
A: This mini projector support electric-focus with remote control,just need to
press the "F+"&"F-" on the remote.Note: Projector and screen/wall must be
in effective distance.
Q: The remote control is unresponsive.
A: ①Make sure remote points at IR receiver directly.
②Do not cover IR receiver.
③Make sure you have put the battery in,this remote control does not come
with batteries.
Q:I don't need the projector lanyard,how can I remove it?
A: The buckle connecting the lanyard has an opening that can be opened
and closed. You only need to open the buckle to remove the lanyard.
Q: The projector is scratched, did I receive a second-hand product?
A: We promise that our projector has been carefully checked before
shipping. However the long time and distance shipping may cause damage-
to the projector. Plz don't worried about that and you can contact us to get a
satisfactory solution.
EN 001
002
025
003
Q: I can't play Netflix video on the projector, why?
A: There are quite a few video platforms like Netflix, Disney+ and Hulu are
under HDCP copyright protection, and thus do not support being displayed
on a projector, this is the same situation for all projectors. You would need a
TV stick to enjoy these video platforms.
Q: Up Side Down Images.

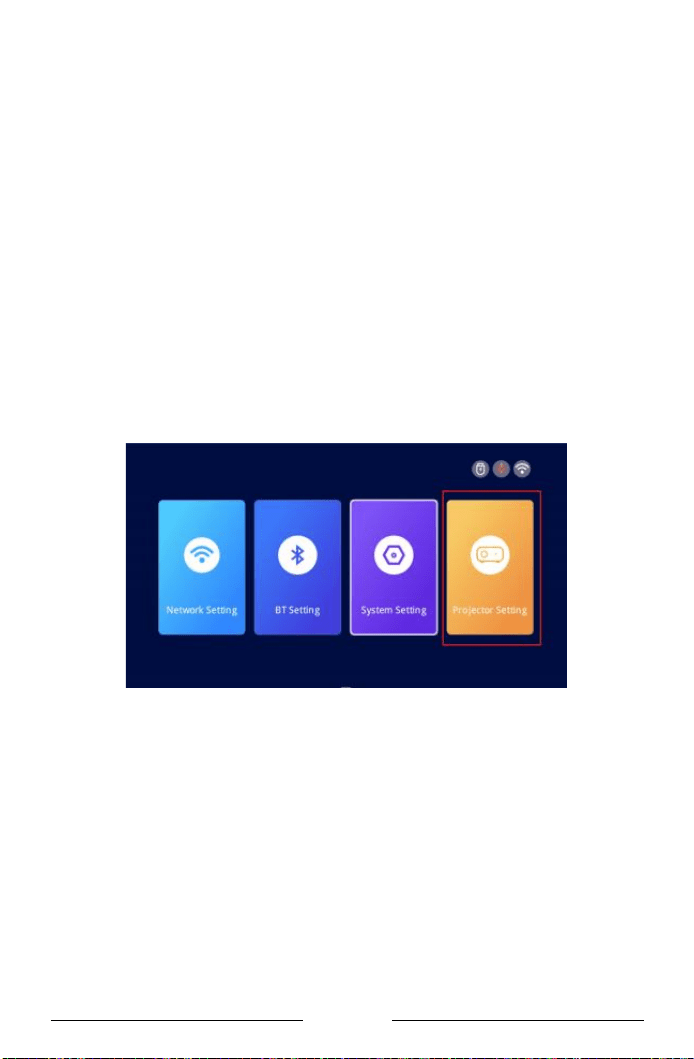

A: Enter [Set], then enter [projector setting] to flip the projection image.
Q: I contact the customer service team as suggested, but has not
received any reply. Why?
A: We promise that we will reply to all the emails within 24 hours. If you
haven’t received any reply from us more than one day, then maybe our email
has been blocked or has gone to the spam email box. Please send us email
again or contact us by Whatsapp or Facebook.
Q: Hello,could you tell me what the size of the mounting screw is at the
bottom of the projector? I am struggling to find a stand.
A: The size of the mounting screw is M4.
EN 002
026
PACKING LIST

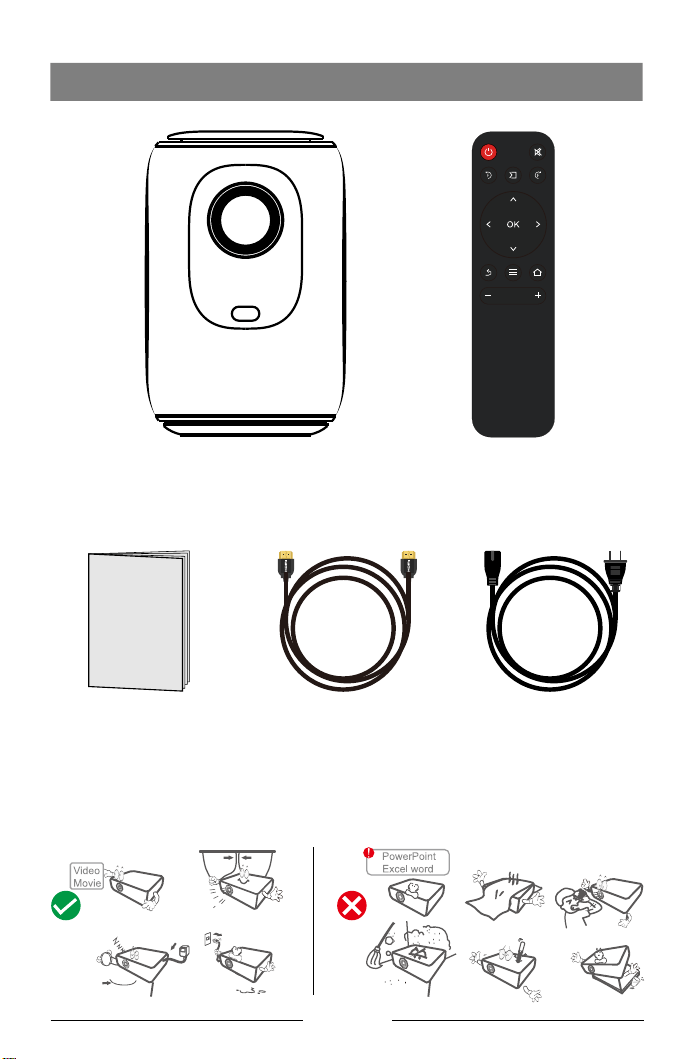

User Manual
Remote
AY2Pro
NOTICE
Recommended Not Recommended
HD Cable Power Cable
EN 003
004
004
004
004
004
004
004
004
004
004
004
004
004
004
027
005
FUNCTION OVERVIEW

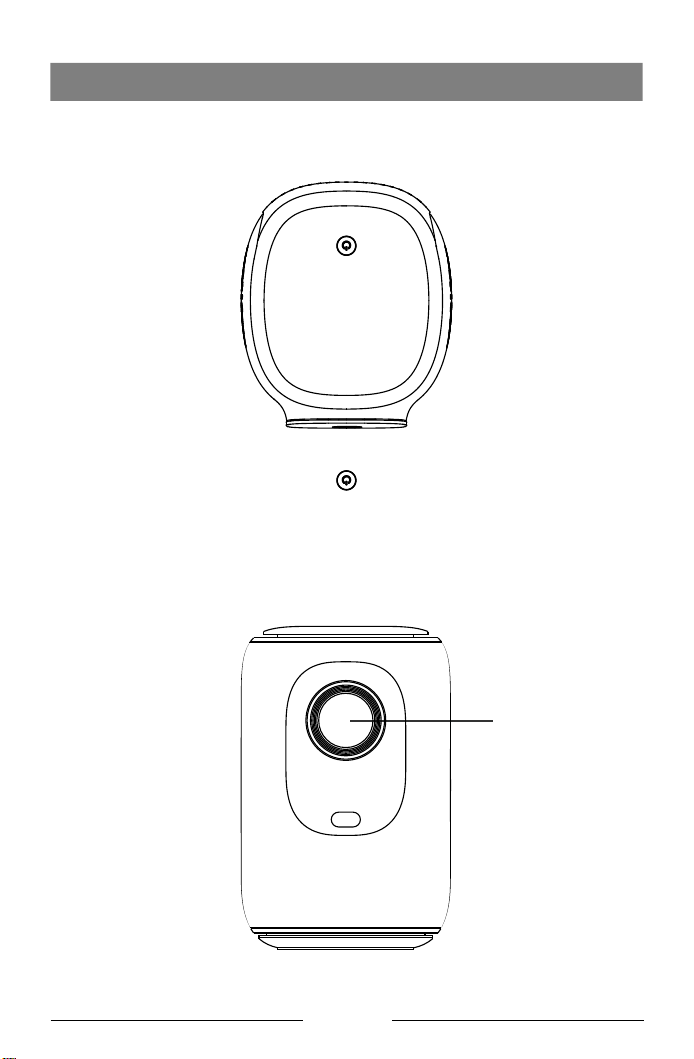

Power
Lens
Top View
Front View
EN 004
005
005
005
005
005
005
005
005
005
005
005
005
005
028
004
004
006
006

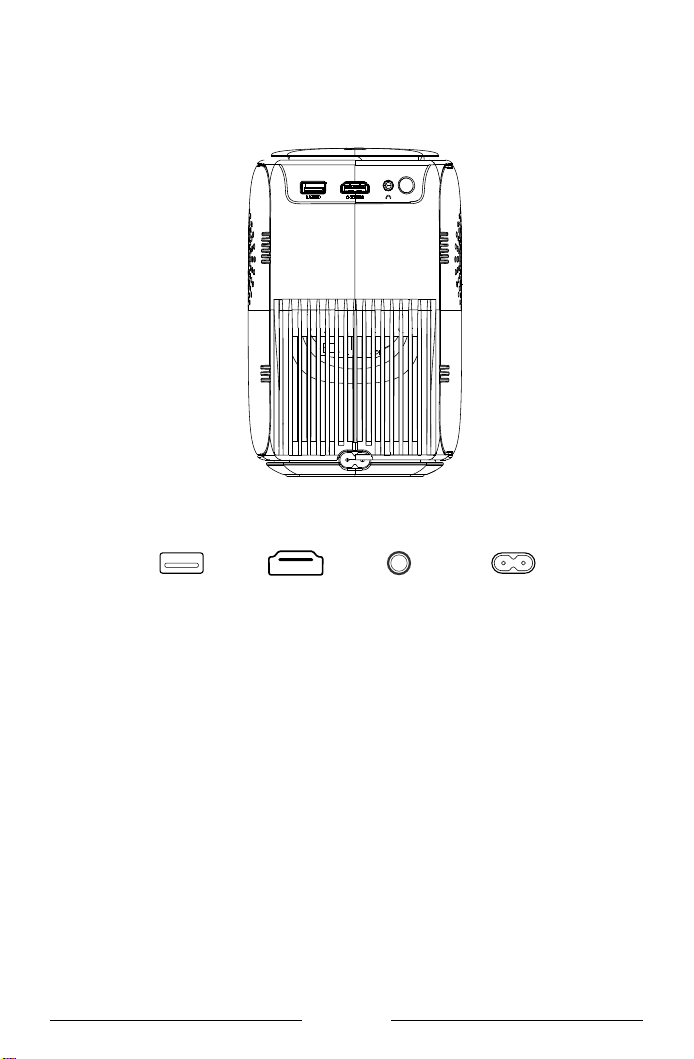

Power InputUSB HDMI
Headphone
Rear View
EN 005
006
006
006
006
006
006
006
006
006
006
006
006
029
005
005
007
007
007
Installation of the remote control
1. Install 2 pieces of AAA batteries into the remote before using it. Do not
combine new batteries with old ones in a remote controller, which can
cause operation failure due to insufficient power supply.
2. When using the remote controller, please make sure that the signal
transmitter of the remote controller aims at the infrared signal receiver of
the projector.

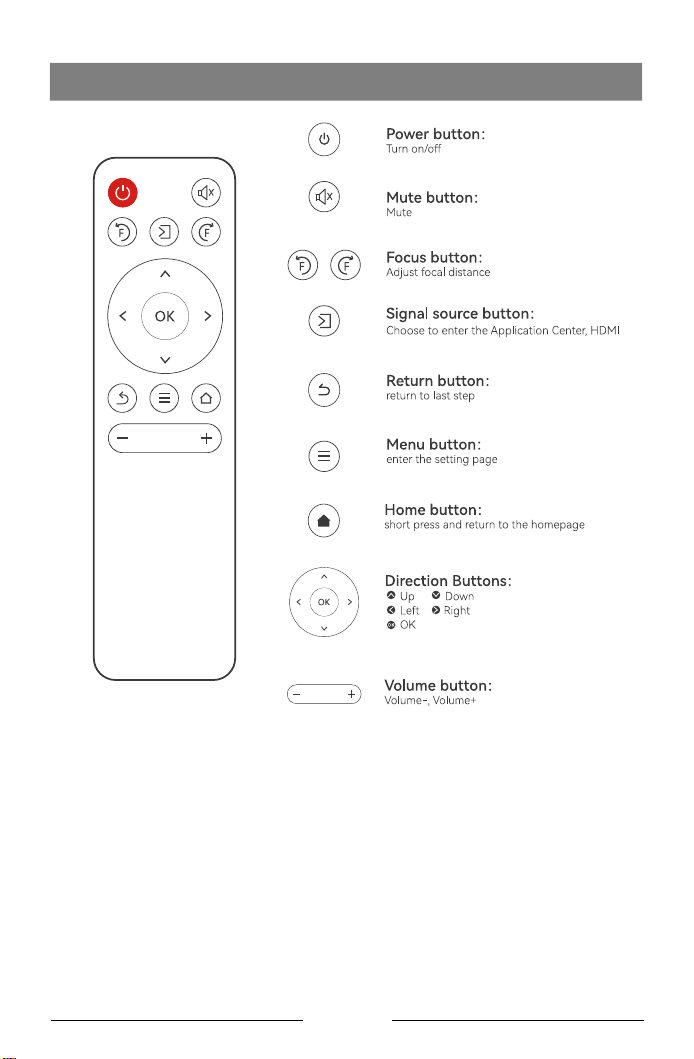

REMOTE CONTROL
EN 006
007
007
007
007
007
007
007
007
007
007
007
006
006
008
008
008
008
QUICK START

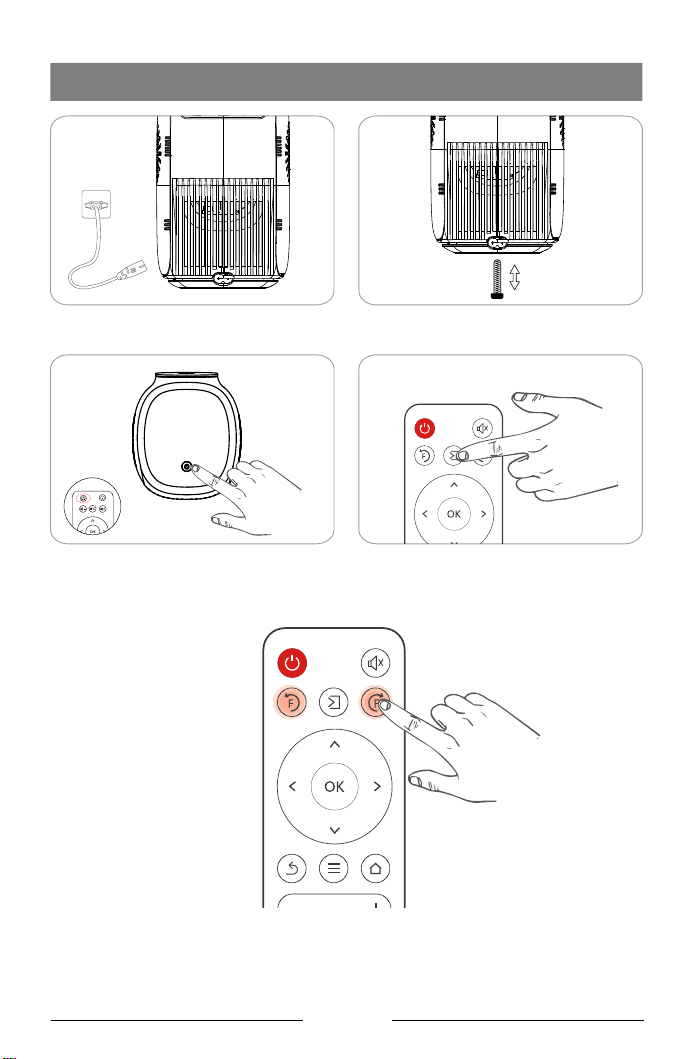

3. Press the power button to turn on
the projector
Press the button F+ or F- on the remote, a focus indicator will appear on
the image. Please adjust according to the focus ring to get the best image
performance.
4. Select the correct input source to
project your device.
2. Adjust the kickstand accordingly
1. Plug the power cord into an outlet
EN 007
008
008
008
008
008
008
008
008
008
008
007
007
009
009
009
009
009
INPUT SOURCE
Press on this button on the projector remote to enter the interface of
input source.
HDMI Connection
HDMI

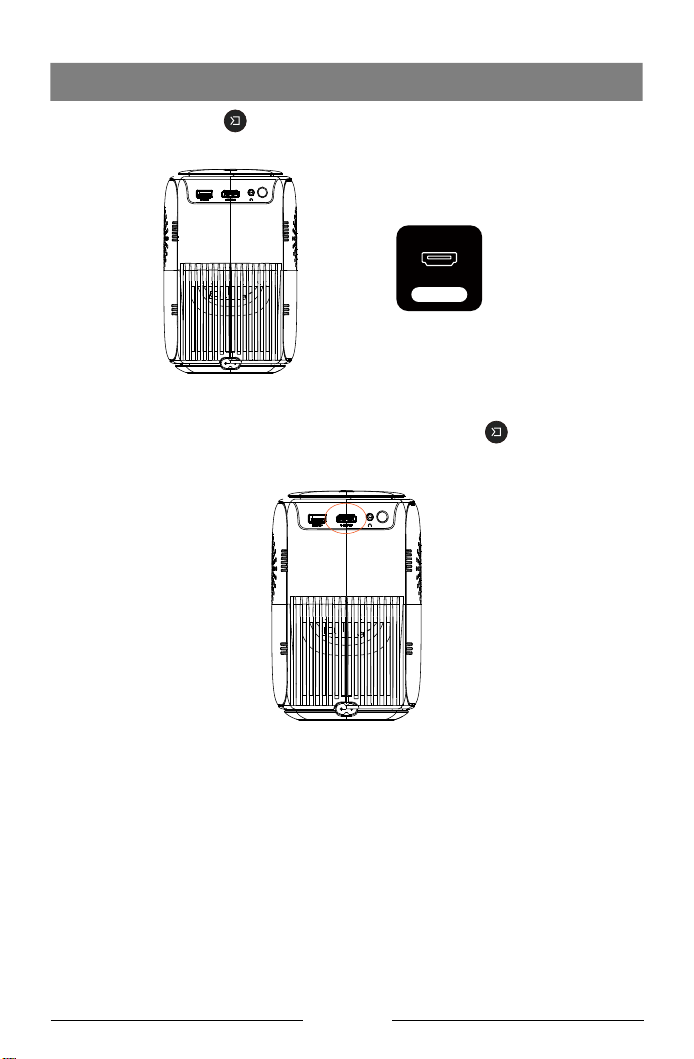

When the HDMI cable is plugged in, presse the button on the remote
and select the [HDMI] mode, then select [HDMI] from the homepage to
play the video.
EN 008
009
009
009
009
009
009
009
009
009
008
008
010
010
010
010
010
010
USB Connection

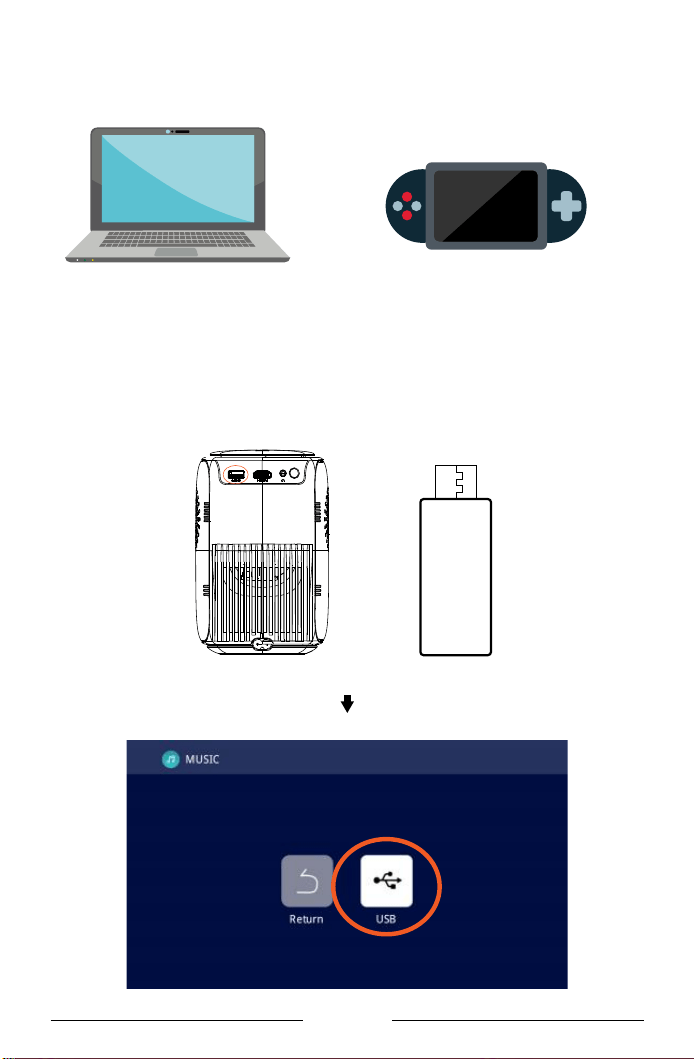

When the U disk is plugged in, and entering the Media, you can play any
document in your USB disk.
Insert U disk
USB
EN 009
010
010
010
010
010
010
010
010
009
009
011
011
011
011
011
011
011
Speaker/Headphones Connection
Directly connect the wired speaker and your headphones/earphones to the
Audio Out port on the projector with a 3.5mm audio cable.
EN 010
011
011
011
011
011
011
011
010
010
012
012
012
012
012
012
012
012
WIRELESS PROJECTION
Warming Tips:
① The fluency of screen mirroring with wireless connection will be affected
by the network environment. A bandwidth of 100Mbit or more is recommend-
ed when using screen mirroring.
② Make sure your mobile device is close to the projector when using
wireless connection. A distance within 1 meter is recommended.
③ Some mobile devices may not support screen mirroring due to the
compatibility.
④ Any questions, please feel free to email Onoayo via
Step 1 : Connect Projector to your Home WiFi
Go to set page -- Select the [Network Setting] Select your home WiFi from
the list -- Connect the projector to your home WiFi.
EN 011
012
012
012
012
012
012
011
011
013
013
013
013
013
013
013
013
013
For iOS Devices:
Step1: Connect the projector and your iOS device to the same WiFi.
Step2: Go to Homepage of the projector and select [iOS Mirroring] to enter
the screen mirroring interface.
Step3: Go to the Control Center of your iOS device and select Screen
Mirroring.
Step4: Select the device name that appears on the projector screen from
the searching list.
EN 012
013
013
013
013
013
012
012
014
014
014
014
014
014
014
014
014
014
For Android&PC Devices
Step1: Connect your Android device or PC and projector to the same WiFi.
Step2: Go to Homepage of the projector and select [Android&PC Mirroring]
to enter the screen mirroring interface.
Step3: Go to the Control Center of your Android device or PC and select
Screen Mirroring.
Step4:Select the device name that appears on the projector screen from
the searching list.
EN 013
014
014
014
014
013
013
015
015
015
015
015
015
015
015
015
015
015
For iOS Cable devices
Step1: Go to Homepage of the projector and select [iOS Wired] to enter
the screen mirroring interface.
Step2: Connect iOS device to device projection using a data cable.
Step3: ln the POP-up window on the iOS device,select 'Trust'
Step4: lf there is a password on the iOS device,enter the password and
Start the same screen.
EN 014
015
015
015
014
014
016
016
016
016
016
016
016
016
016
016
016
016
For APP Screen Cast
Step1: Please keep your device and projector on the same network.
Step2: Go to Homepage of the projector and select [Wireless Screen Cast]
to enter the screen mirroring interface.
Step3: Open the screen projection app
Step4: Find the "Screen Cast" or "Wirelss Projection"button
Step5: Then select the device name that appears on the projector screen
from the searching list.
EN 015
016
016
015
015
017
017
017
017
017
017
017
017
017
017
017
017
017
SETTINGS
EN 016
017
016
016
018
018
018
018
018
018
018
018
018
018
018
018
018
018
BLUETOOTH CONNECTION

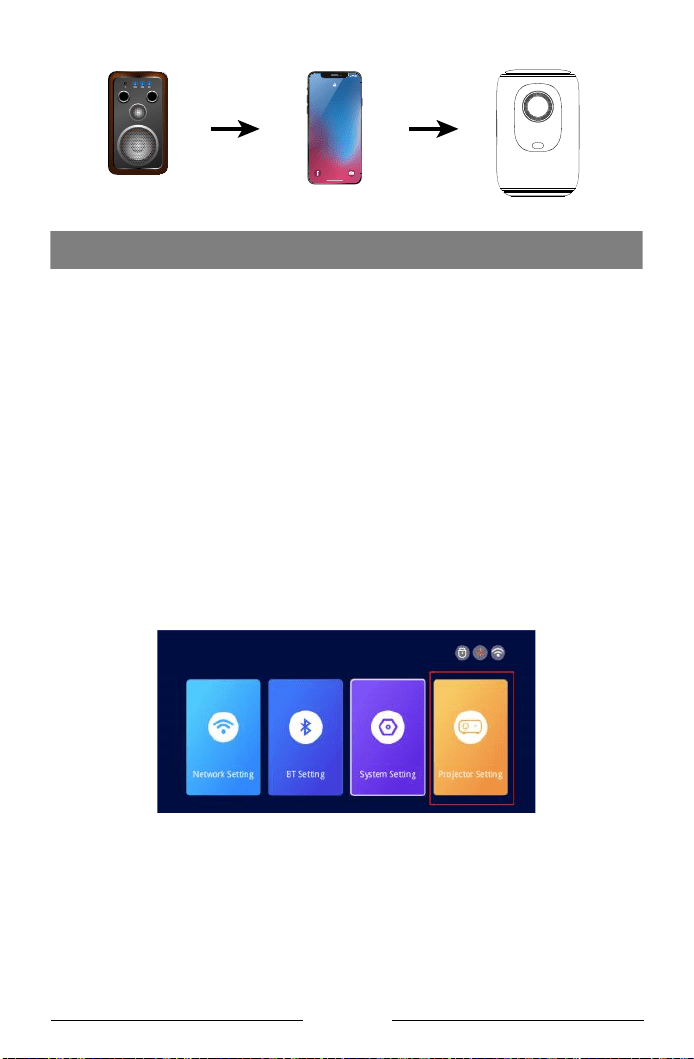

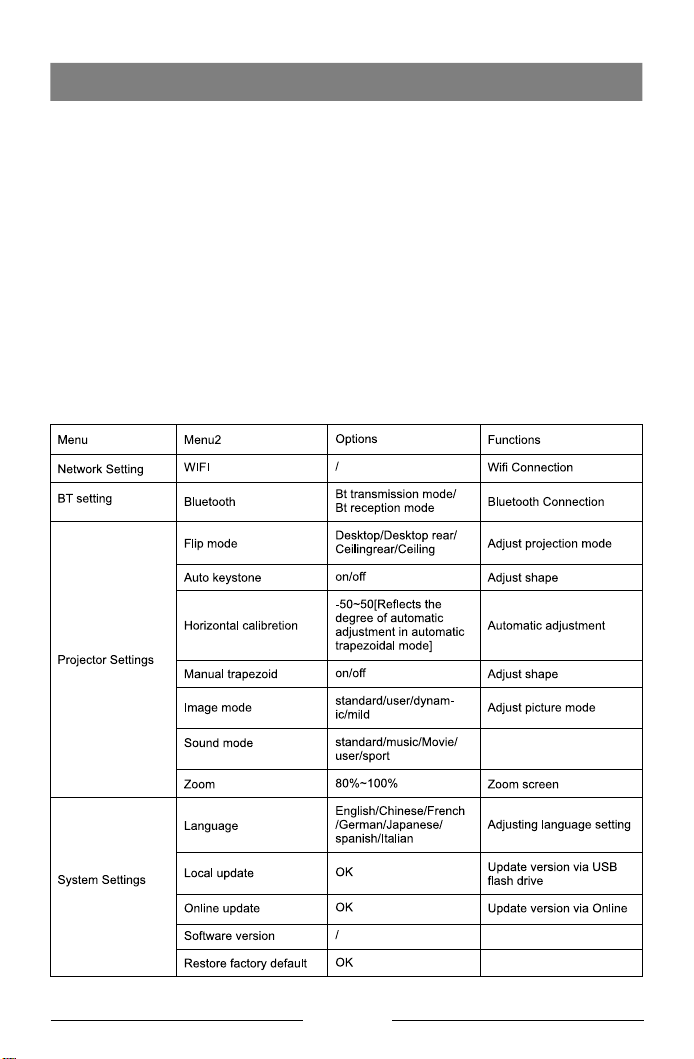

Go to the home page, click the “ Set ” to go to the Setting page. Choose
the [BT Setting] to enter the BT function.

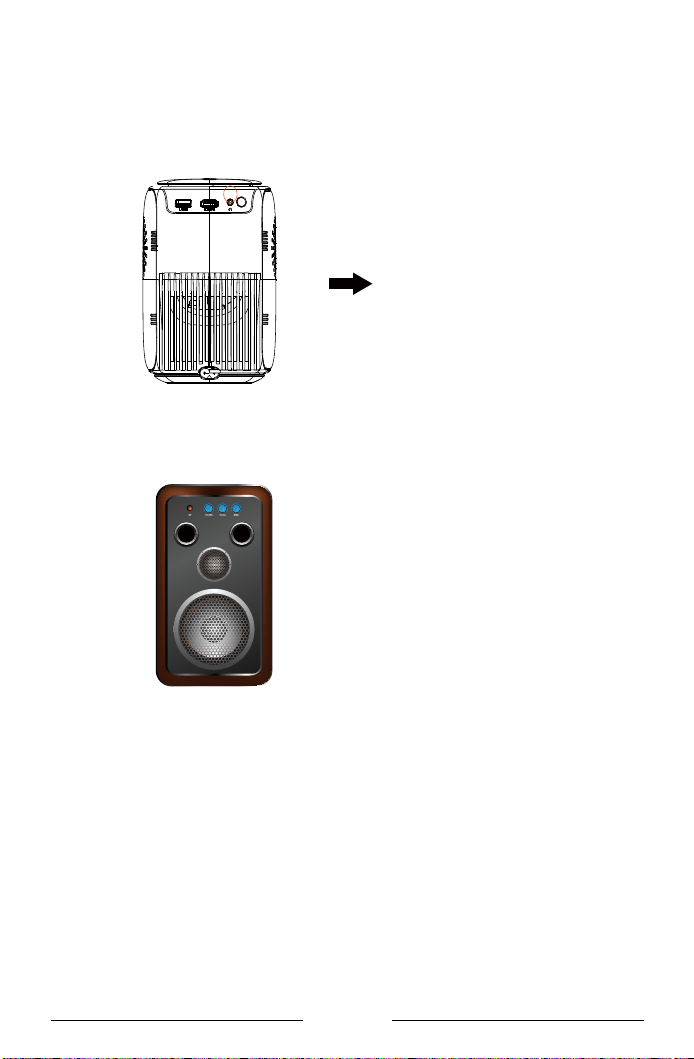

1.Connect the projector to an exterior Bluetooth speaker.
On the BT Setting page, Choose the Bt transmission mode and Press OK
button to turn on the BT and scan for available devices.Choose the
rightBluetooth device name, Press OK button to pair.
EN 017
017
017
019
019
019
019
019
019
019
019
019
019
019
019
019
019
019

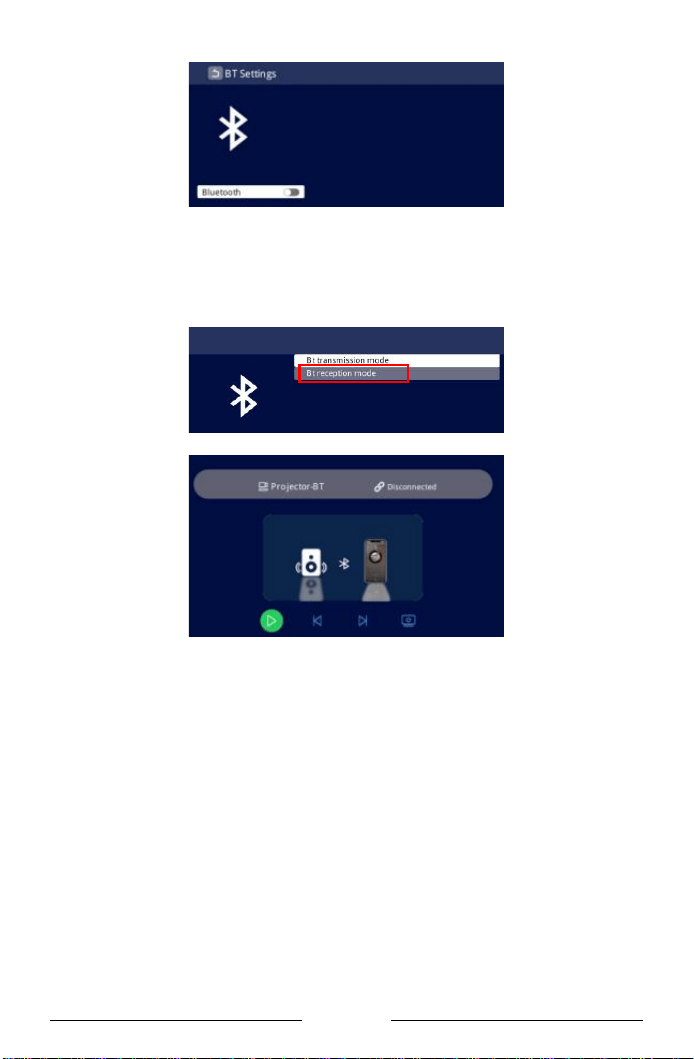

2.Connect your phone to the projector using Bluetooth.
On the Bluetooth settings page, Choose the Bt reception mode and wait on
this page. Then use your phone to search and scan for available devices,
Choose the rightBluetooth device name, Press OK button to pair.
3.Cannot connect Bluetooth speaker?
When the Bluetooth speaker is connected to the projector, it will show up in
paired devices ,it means that the projector has been successfully connect-
ed.If it shows pairing failed, it means that the Bluetooth speaker has not
been connected to the projector.
Please try the following methods:
Method 1: Please click the [UNPAIR] , then connect your BT again.
Method 2: Operate on the projector to turn off Bluetooth (press the “OK”
button on the remote control).
Then turn on BT (the "OK" button on the remote control). Reconnect the
Bluetooth speaker again.
Method 3: Turn off the projector and restart it, then reconnect the Bluetooth
speaker.
Method 4: Restore the factory settings and then reconnect the Bluetooth
speakers.
EN 018
019
019
019
020
020
020
020
020
020
020
018
018
020
020
020
020
020
020
020
020
020
020
020
020
020
020
020
020
4.Audio Delay After Connecting Bluetooth?
If you have an audio delay after connecting Bluetooth, you can try a different
connection method, which is: Connect your Bluetooth speaker with your
phones(or iPads, laptops) first, and then connect your phones with our
projector. Please refer to the following pictures.
Please note: Due to Apple protocols, Apple devices do not support connect-
ing a mobile phone to a Bluetooth speaker and then sharing the screen.

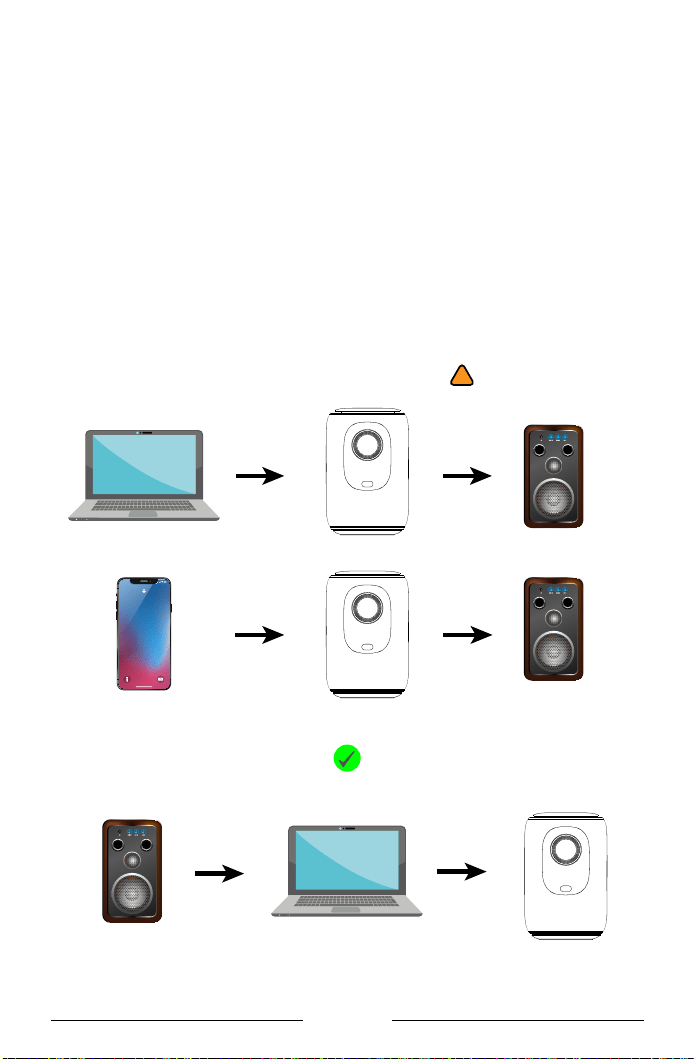

Connection methods that may cause sound delay !
20:30
Monday, September 23
Recommended connection method
If you tried the above methods but still can not solve your problem, please
contact our customer service team to get a more specified checking and
instruction. We promise that you will get a satisfactory solution.
EN 019
020
020
021
021
021
021
021
021
021
019
019
021
021
021
021
021
021
021
021
021
021
021
021
021
021
021
021
021
PROJECTOR IMAGE SETTING
Installation Method
The projector support front and rear projection, it can be table mounted and
ceiling mounted. To set the projection mode, go to the homepage. Click on
the “Set” and find “Projector Setting”. You can see the “Flip Mode” option,
press the left and right button to change to your desired mode.
20:30
Monday, September 23
EN 020
021
022
022
022
022
022
022
022
020
020
022
022
022
022
022
022
022
022
022
022
022
022
022
022
022
022
022
022
Front/ceiling
Rear/ceiling
Front
Rear
1
2
1
2
1
2
1
2
EN 021
021
021
Auto & Manual Vertical Keystone Correction & Electric-focus &
Zoom Function

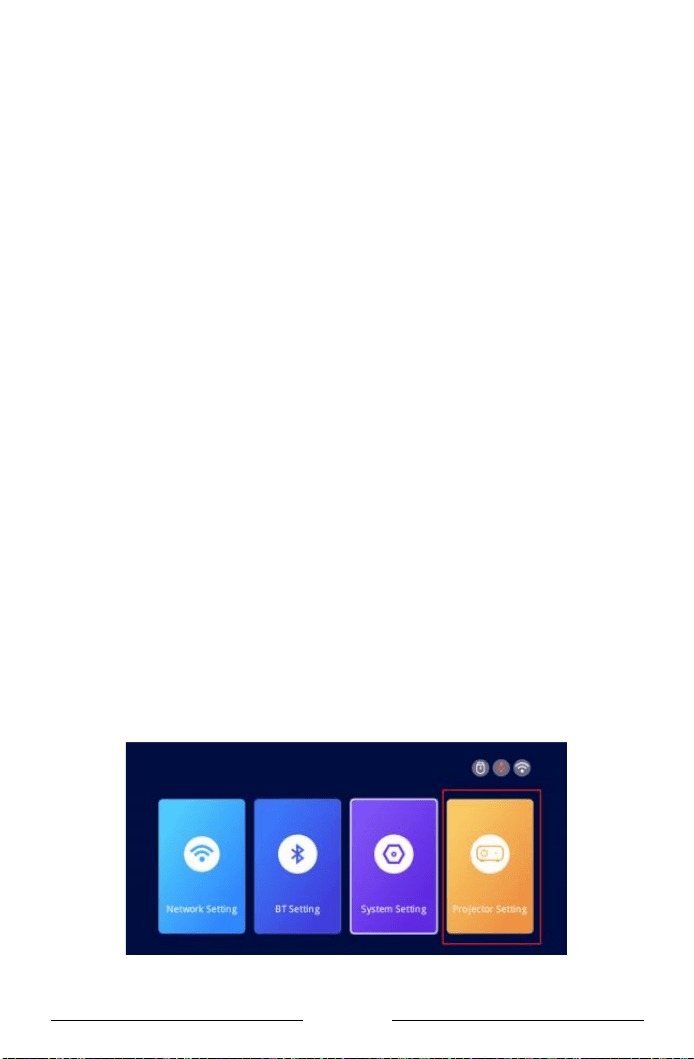

Go to the setting page. Click on the “Projector Setting” then you can see
every option about the adjustment.
>> Auto ±50° Vertical Keystone Correction
For auto vertical keystone correction, simply keep the interface "Auto
Keystone" in the "on" state, and the projector will automatically correct the
image distortion.
>> Manual ±50° Vertical Keystone Correction
If you prefer manual keystone correction, you can disable the automatic
feature,keep it in the "off" state . After that,the "Manual Trapezoid" will
shows "on" state then you can adjust the keystone correction degree using
the left and right buttons on the remote control.
EN 022
023
023
023
023
023
023
022
022
023
023
023
023
023
023
023
023
023
023
023
023
023
023
023
023
023
023
023
024
>> Electric-focus
①This mini projector only support electric-focus with remote control,just
need to press the " "&" " on the remote.
②Note: Projector and screen/wall must be in effective distance.
EN 023
024
024
024
024
024
024
024
024
024
024
024
024
024
024
024
024
024
024
024
024
024
024
024
024
025
025
>> Zoom Function
Go to the setting page. Click on the “Projector Setting” then you can see the
"zoom" adjustment.The projector supports 80%-100% zoom adjustment.
EN 024
025
025
025
025
023
023
025
025
025
025
025
025
025
025
025
025
025
025
025
025
025
025
025
025
025
026
026
026
INSTALLATION
Projection Distance and Size
If you want to get a free projection screen,please email us via

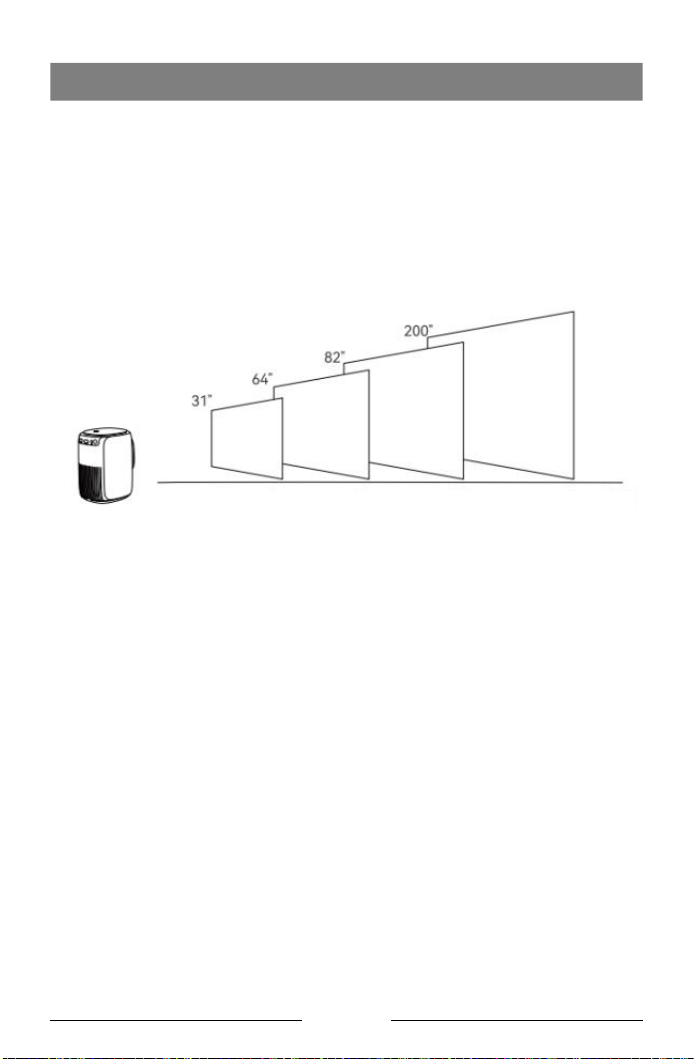

Please follow the data in chart below, to adjust the image size and the
distance.
Please note:
1.The best image quality would be achieved with a projection distance of
3.28ft-19.68ft. A larger screen size would affect the image quality in a
certain degree.
2.The image size depends on the distance between projector and
screen,there may be 3% deviation among above listed data. Different
settings cause various distances.
3.28ft 6.56ft 8.2ft 19.68ft
EN 025
026
026
026
024
024
026
026
026
026
026
026
026
026
026
026
026
026
026
026
026
026
026
026
026
027
027
027
027

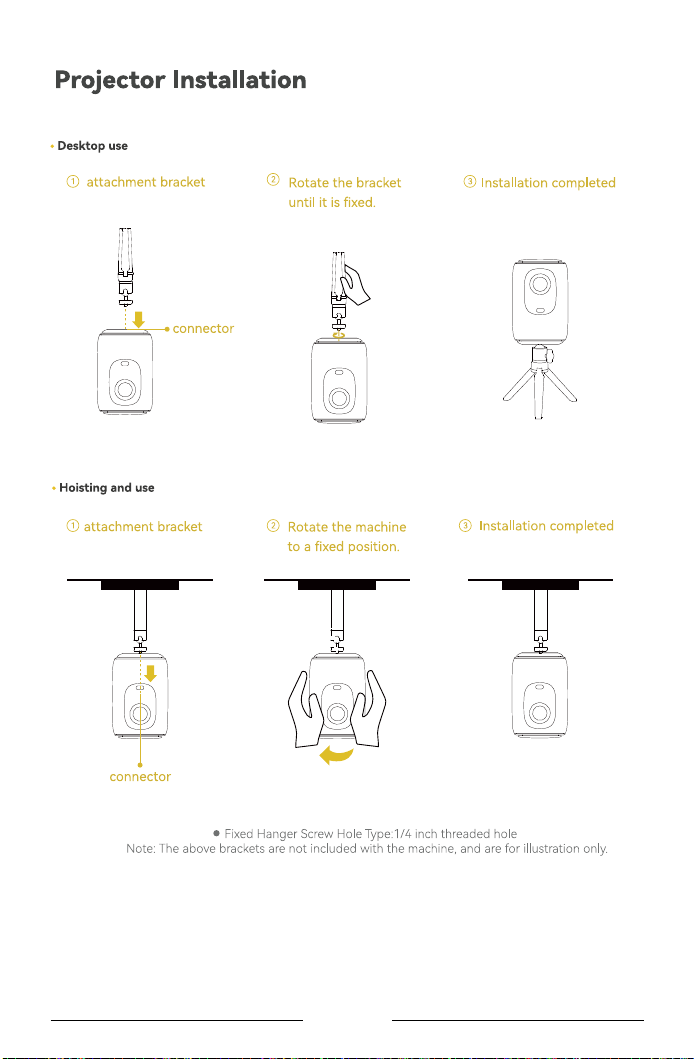

EN 026
027
027
025
025
027
027
027
027
027
027
027
027
027
027
027
027
027
027
027
027
027
027
027
028
028
028
028
028

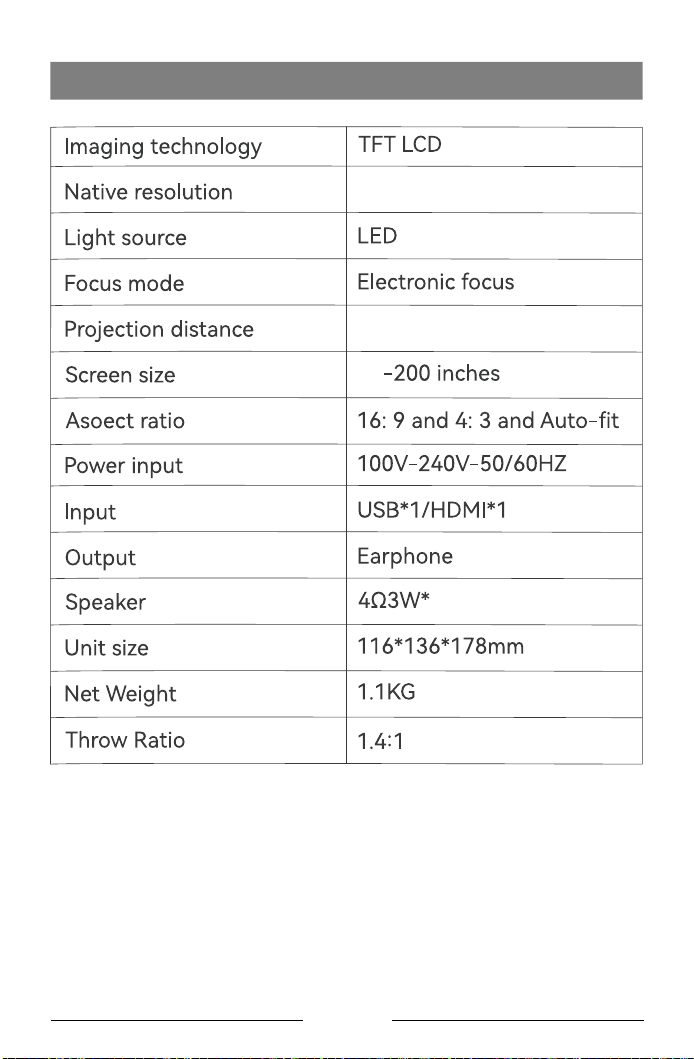

PROJECTOR SPECIFICATIONS
*Any buyer with any questions who comes to contact us will have our
promise to get a satisfactory solution + an Extra 6 Month Warranty+other
surprises to thanks for your support!
Official website: www.hdprojectortech.com
3.28-19.68ft;
1920*1080
31
2
EN 027
028
026
026
028
028
028
028
028
028
028
028
028
028
028
028
028
028
028
028
028
028
028
029
029
029
029
029
029
FCC STATEMENT:
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
(1)This device may not cause harmful interference, and
(2)This device must accept any interference received, including interfer ence
that may cause undesired operation.
Warning: Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate
theequipment.
NOTE:
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:Reorient or relocate the receiving
antenna.Increase the separation between the equipment and receiver.Con-
nect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and
operated with minimum distance 20cm between the radiator & your body.
EN 028
028
028
