1
Installation Manual
Installation and Appliance Setup
NOTICE: DO NOT discard this manual!
In the Commonwealth of Massachusetts
installation must be performed by a licensed
plumber or gas fitter.
See appliance installation manual for
additional Commonwealth of Massachusetts
requirements.
INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
• DO NOT store or use gasoline or other flam-
mable vapors and liquids in the vicinity of this
or any other appliance.
• What to do if you smell gas
- DO NOT try to light any appliance.
- DO NOT touch any electrical switch. DO
NOT use any phone in your building.
- Leave the building immediately.
- Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
- If you cannot reach your gas supplier, call
the fire department.
• Installation and service must be performed
by a qualified installer, service agency, or the
gas supplier.
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death, or
property damage.
Model(s):
CNTMPIPI24-N
CNTMPIPI24-P
CNTMPIPI30-N
CNTMPIPI30-P
Contemporary
Glass Burner
Hearth & Home Technologies • Installation Manual • 4004-901 Rev D • 04/25
2
Safety Alert Key:
• DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury.
• WARNING! Indicates a hazardous situation which, if not avoided could result in death or serious injury.
• CAUTION! Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
• NOTICE: Used to address practices not related to personal injury.

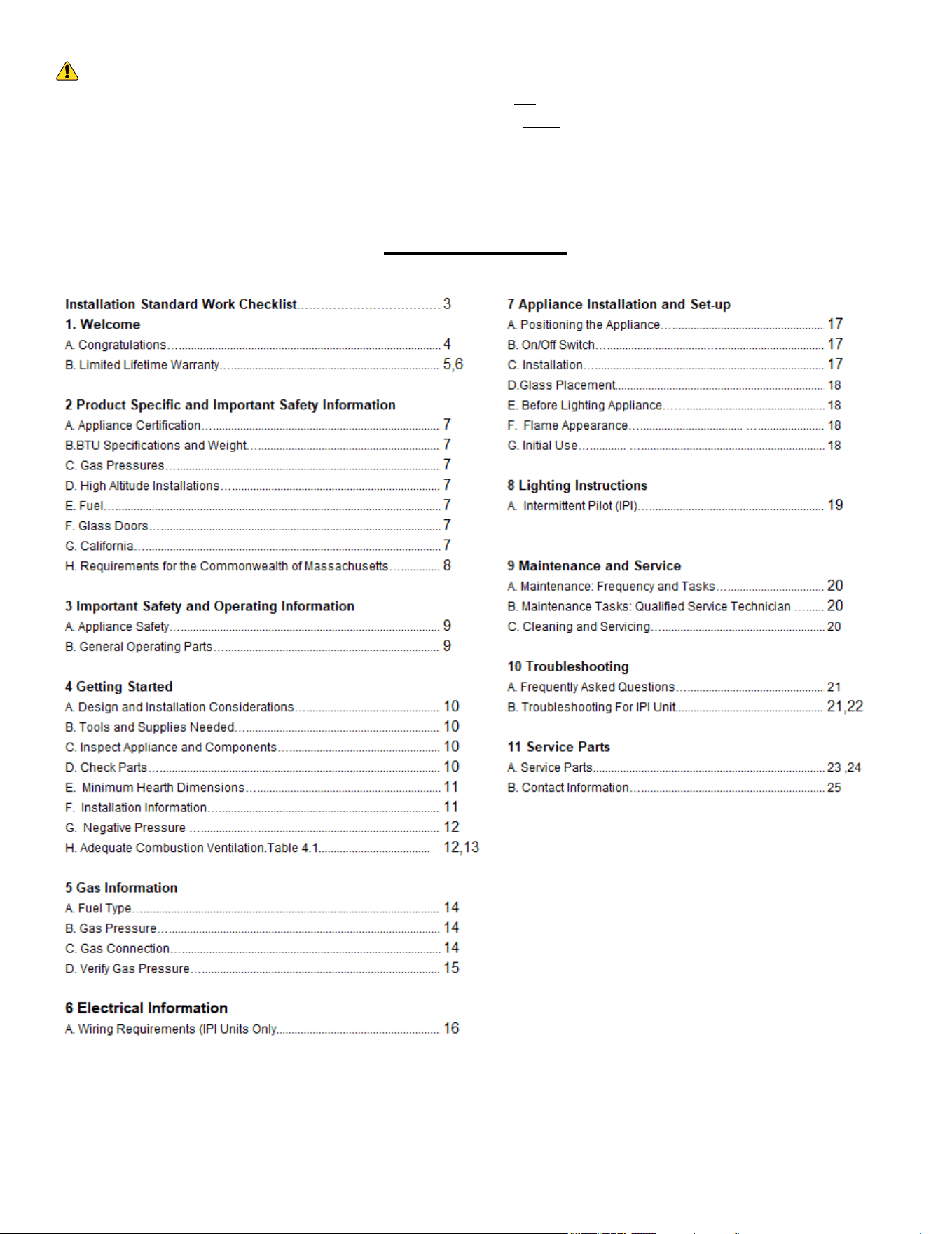

Table of Contents
► = Contains updated information
Hearth & Home Technologies • Installation Manual • 4004-901 Rev D • 04/25
3
Installation Standard Work Checklist
ATTENTION INSTALLER:
Follow this Standard Work Checklist
This standard work checklist is to be used by the installer in conjunction with, not instead of, the instructions contained in
this installation manual.
Customer:
Lot/Address:
Model (circle one):
Date Installed:
Location of Fireplace:
Installer:
Dealer/Distributor Phone #:
Serial #:
WARNING! Risk of Fire or Explosion! Failure to install appliance according to these instructions
could lead to a fire or explosion.
Gas Log Install Sections 2 and 5
• Minimum firebox dimensions met
• Fireplace chimney has been cleaned

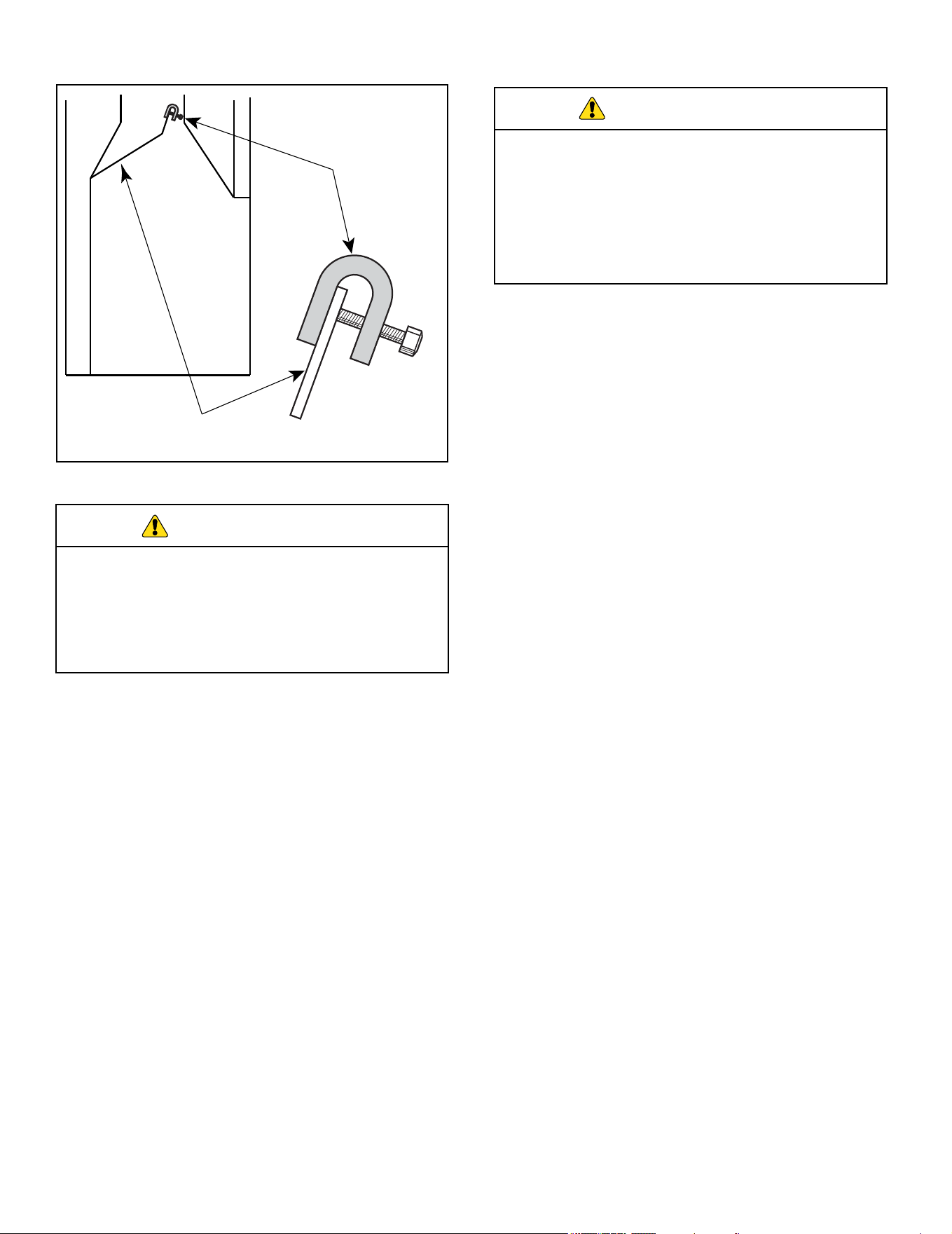

• Damper stop properly installed

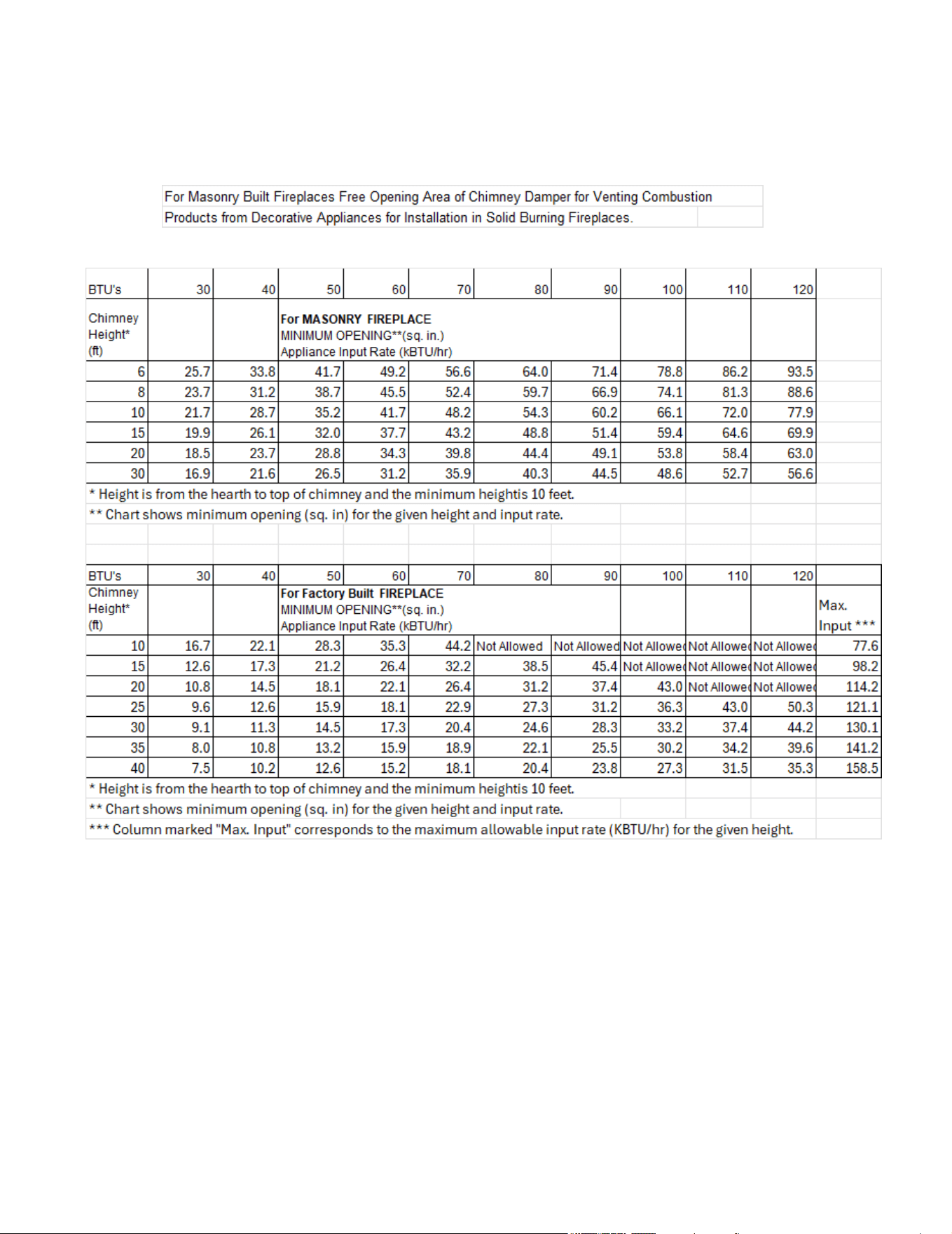

• Verified adequate combustion ventilation air
• Appliance properly positioned and secured
Gas Section 3
• Proper appliance for fuel type

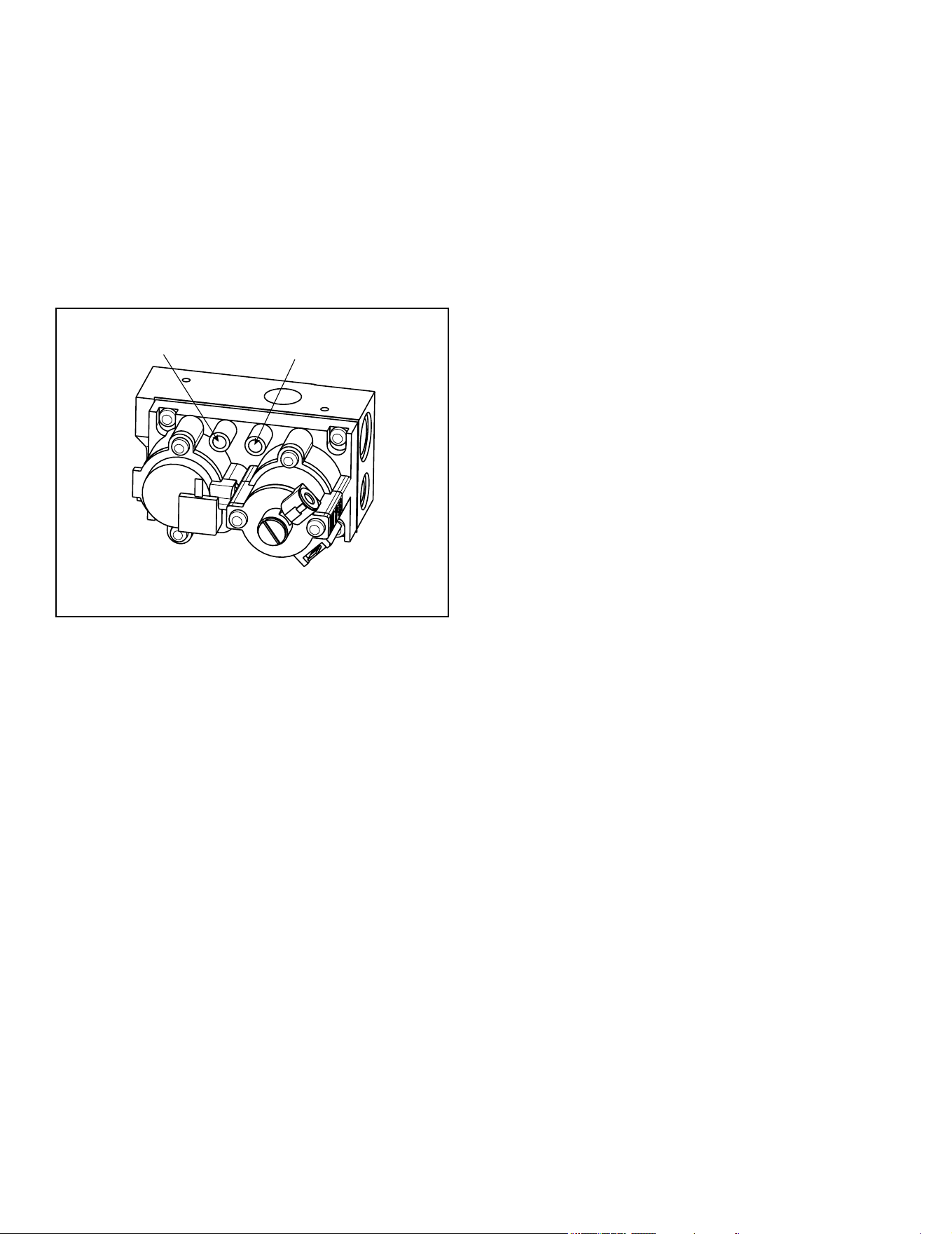

• Verified inlet and outlet pressures
• Leak check performed
• Verified proper air shutter setting for fuel
type
Electrical Section 4
• Verified switch wires and/or remote control properly installed
Media & Logs Section 5
• Verified packaging and protective materials removed

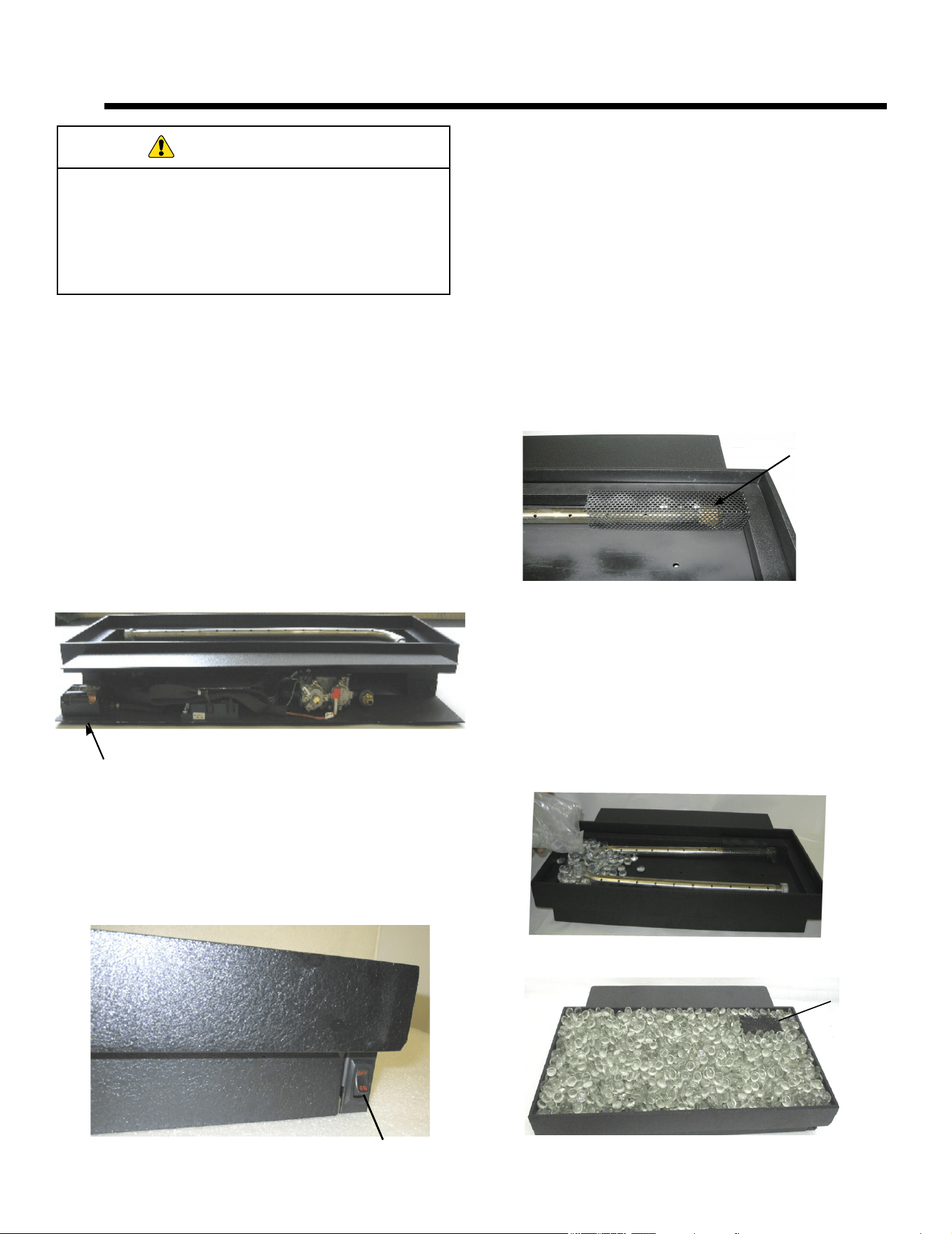

• Media and logs installed correctly

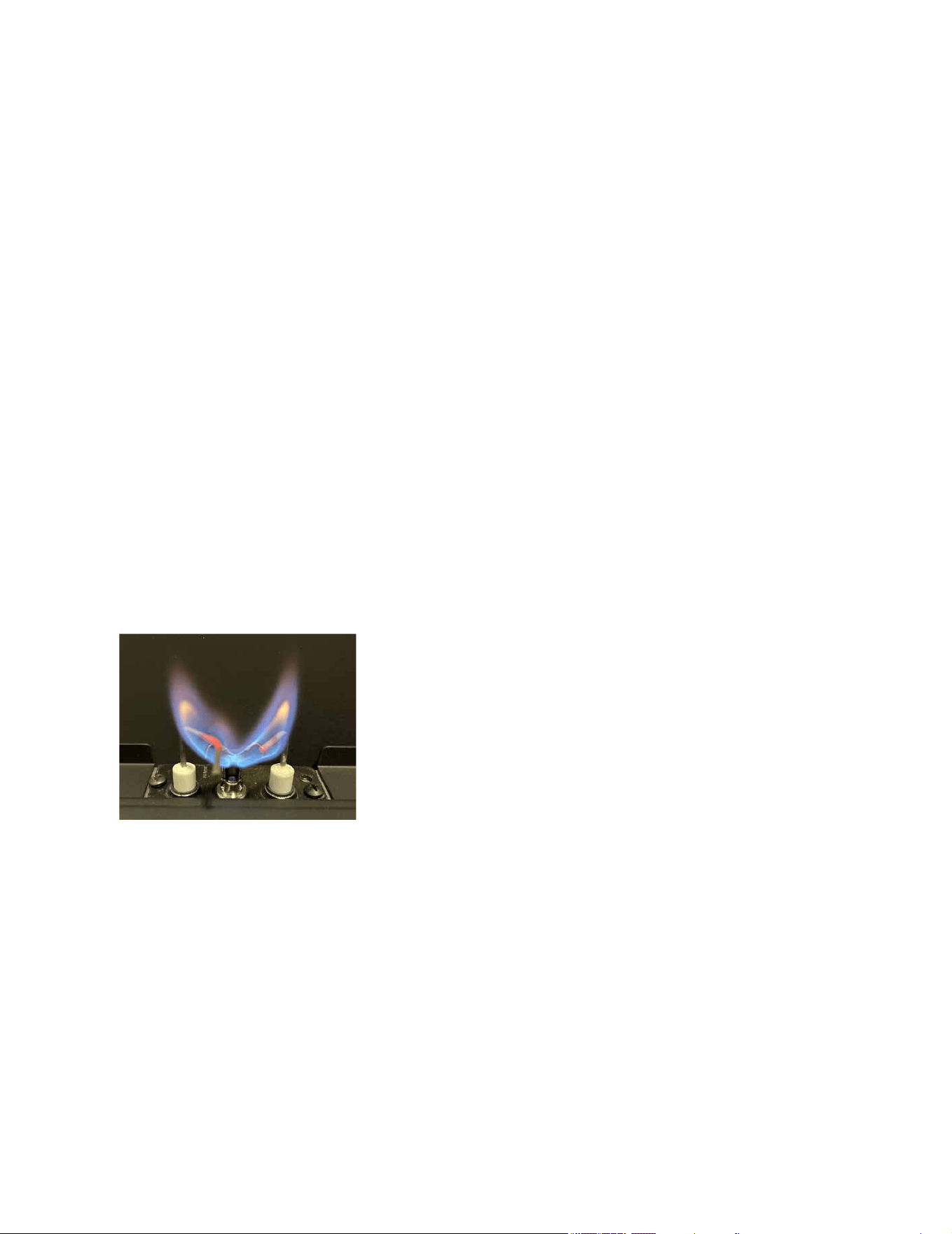

• Verified flame appearance
Finishing
• Verified mantels and wall projections comply with fireplace
installation manual requirements.
• Manual bag and contents given to party responsible for use
and operation.
YES IF NO, WHY?
Hearth & Home Technologies recommends the following:
• Photographing the installation and copying this checklist for your file.
• That this checklist remain visible at all times on the appliance until the installation is complete.
Comments: Further description of the issues, who is responsible (Installer/ Builder/ Other Trades, etc) and corrective ac-
tion needed:
Comments communicated to party responsible: By: On:
(Builder / General Contractor) (Installer) (Date)
CNTMPIPI24-N
CNTMPIPI24-P
CNTMPIPI30-N
CNTMPIPI30-P
Hearth & Home Technologies • Installation Manual • 4004-901 Rev D • 04/25
4

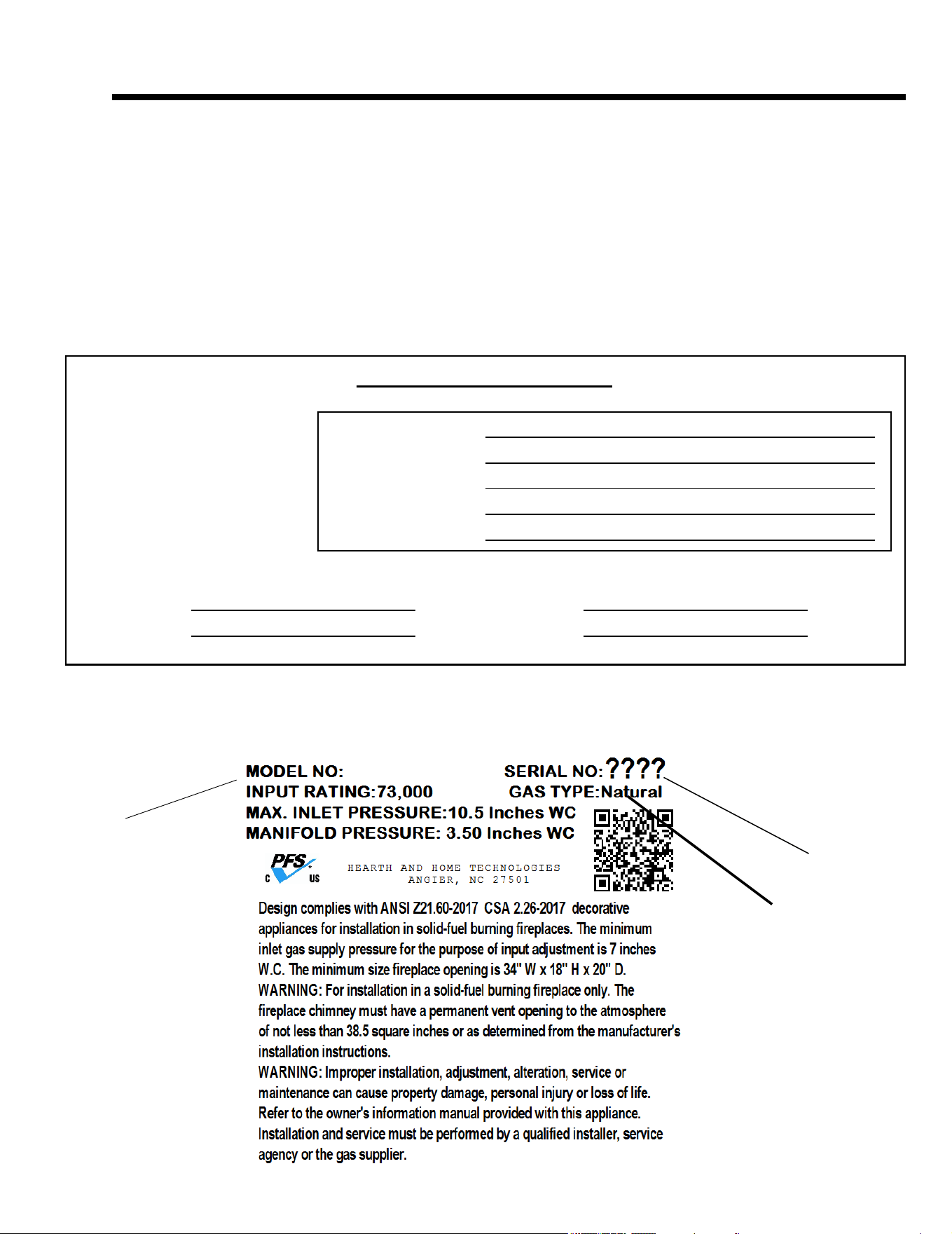

Serial Number
Type of Gas
Listing Label Information/Location
The model information regarding your specific gas log set can be found on the rating plate usually located in the control area
of the gas log set.
Model Number
A. Congratulations
Congratulations and thank you for selecting a Hearth &
Home Technologies vented gas log set, an elegant and
clean alternative to wood burning fireplaces. The gas log
set you have selected is designed to provide the utmost
in safety, efficiency, and style.
As the owner of a new vented gas log set, you’ll want to
read and carefully follow all of the instructions contained in
this owner’s manual. Pay special attention to all cautions
and warnings.
This owner’s manual should be retained for future
reference. We suggest that you keep it with your other
important documents and product manuals.
The information contained in this owner’s manual, unless
noted otherwise, applies to all models and gas control
systems noted on the cover page.
Your new vented gas log set will give you years of durable
use and trouble-free enjoyment. Welcome to the Hearth
& Home family.
Dealer Name:
Address:
Phone Number:
Email:
Local Dealer Information
Dealer: Fill in your name, ad-
dress, phone number and email
information in the space pro-
vided.
Appliance Information:
Brand:
Serial Number:
Model Name:
Date Installed:
11
Welcome
Hearth & Home Technologies • Installation Manual • 4004-901 Rev D • 04/25
5
Hearth & Home Technologies LLCC
LIMITED WARRANTY
Hearth & Home Technologies LLC (“HHT”) extends the following warranty for HHT gas, wood, pellet and electric hearth appliances
(each a “Product” and collecvely, the “Product(s)”) and certain component parts set forth in the table below (“Component Part(s)”)
that are purchased from a HHT authorized dealer or distributor.
WARRANTY COVERAGE:
HHT warrants that the Products and their Component Parts will be free from defects in materials and workmanship for the applicable
period of Warranty coverage set forth in the table below (“Warranty Period”). If a Product or Component Parts are found to be
defecve in materials or workmanship during the applicable Warranty Period, HHT will, at our discreon, repair the applicable
Component Part(s), replace the applicable Component Part(s), or refund the purchase price of the applicable Product(s). The maximum
amount recoverable under this Warranty is limited to the purchase price of the Product. This Warranty is transferable from the original
purchaser to subsequent owners, but the Warranty Period will not be extended in duraon or expanded in coverage for any such
transfer. This Warranty is subject to condions, exclusions, and limitaons as described below.
WARRANTY PERIOD:
Warranty coverage begins at the date of installaon. In the case of new home construcons, Warranty coverage begins six months aer
invoice of the nal sale of the Product(s) by an independent, authorized HHT dealer or distributor. However, the Warranty coverage
shall commence no later than 24 months following the date of Product shipment from HHT, regardless of the installaon or purchase
date.
4021-645N 12/23
Page 1 of 2
Component
Parts
Labor Gas Pellet Wood Electric Component Parts Covered by this Warranty
X
All parts except as covered by Warranty Conditions, Warranty Exclusions, and Warranty
Limitations listed
XX
Glass, Electrical components limited to heating element/igniters, Top feed auger assembly,
Blowers, Junction Box, Remotes/Wall switches, linear actuator, power cord, vacuum switch,
snap disc, wire harnesses and thermocouple
X
Electrical components limited to modules, remotes/wall switches, valves, pilots, blowers,
junction boxes, wire harnesses, transformers and lights (excluding light bulbs)
XX
Cement Refractory Panels, Glass Liner Panels
X
Firepots, burnpots, Harman mechanical feeders
XX
Catalysts, Vented and Vent Free burners and logs
10 years 1 year
X
Burners, logs and metal/fiber refractory components of HHT manufactured fireplaces or stoves,
venting due to poor workmanship
10 years
3 years
XX
Castings, Medallions & Baffles, FlexBurn® System (engine, inner cover, access cover and
fireback), Firebox and heat exchanger, HHT Chimney & Terminations, Manifolds
20 years 3 years X Firebox and heat exchanger
1 Year
None
XXXX
All purchased replacement parts and optional accessories
3 years
5 years
All purchased replacement parts and optional accessories
2 Years
Warranty Period HHT Manufactured Appliances and Venting
All parts including handles, external enameled components and other material except as
covered by Warranty Conditions, Warranty Exclusions, and Warranty Limitations listed
1 Year X XX
Hearth & Home Technologies • Installation Manual • 4004-901 Rev D • 04/25
WARRANTY CONDITIONS:
• Because HHT cannot control the quality of any Products sold by unauthorized sellers, this Warranty only covers Products that are
purchased through an HHT authorized dealer or distributor unless otherwise prohibited by law; a list of HHT authorized dealers
is available on the HHT branded websites.
• This Warranty is only valid while the applicable Product remains at the site of original installaon.
• This Warranty is only valid in the country in which the HHT authorized dealer or distributor that sold the applicable Product is
authorized to sell applicable Product.
• Contact your installing distributor or dealer for Warranty service. If the installing dealer or distributor is unable to provide
necessary parts, contact the nearest HHT authorized dealer or supplier. Addional service fees may apply if you are seeking
Warranty service from a dealer other than the dealer from whom you originally purchased the applicable Product.
• No HHT consumer should bear cost of warranty service or costs incurred while servicing warranty claims (i.e., travel, gas, or
mileage) when the service is performed within the terms of this Warranty. Check with your dealer or distributor in advance for
any costs to you when arranging a warranty call. Travel and shipping charges for parts are not covered by this Warranty.
WARRANTY EXCLUSIONS:
This Warranty does not cover the following:
• Changes in surface nishes as a result of normal use. As a heang appliance, some changes in color of interior and exterior surface
nishes may occur. This is not a aw and is not covered under the Warranty.
• Damage to printed, plated, or enameled surfaces caused by ngerprints, accidents, misuse, scratches, melted items or other
external sources and residues le on the plated surfaces from the use of abrasive cleaners or polishes.
• Repair or replacement of parts that are subject to normal wear and tear during the Warranty Period are not covered. These parts
include: paint, wood and pellet gaskets, rebricks, wood grates, ame guides, baeries and the discoloraon of glass.
• Minor expansion, contracon, or movement of certain parts causing noise. These condions are normal and complaints related to
this noise are not covered by this Warranty.
• Damages resulng from: (1) failure to install, operate, or maintain the applicable Product in accordance with the installaon
instrucons, operang instrucons, and lisng agent idencaon label furnished with the applicable Product; (2) failure to
install the applicable Product in accordance with local building codes; (3) shipping or improper handling; (4) improper operaon,
abuse, misuse, connued operaon with damaged, corroded or failed components, accident, or improperly/incorrectly performed
repairs; (5) environmental condions, inadequate venlaon, negave pressure, or draing caused by ghtly sealed construcons,
insucient make-up air supply, or handling devices such as exhaust fans or forced air furnaces or other such causes; (6) use of fuels
other than those specied in the operaon instrucons; (7) installaon or use of components not supplied with the applicable
Product or any other components not expressly authorized and approved by HHT; (8) modicaon of the appliance not expressly
authorized and approved by HHT in wring; and/or (9) interrupons or uctuaons of electrical power supply to the applicable
Product.
• Non-HHT venng components, hearth connecons or other accessories used in conjuncon with the applicable Product.
• Any part of a pre-exisng replace system in which an insert or a decorave gas applicable Product is installed.
• HHT’s obligaon under this Warranty does not extend to the Product’s capability to heat the desired space. Informaon is provided
to assist the consumer and the dealer in selecng the proper Product for the applicaon. Consideraon must be given to the
Product locaon and conguraon, environmental condions, insulaon and air ghtness of the structure.
This warranty is void if:
• The applicable Product has been over-red, operated in atmospheres contaminated by chlorine, uorine, or other damaging
chemicals. Over-ring can be idened by, but not limited to, warped plates or tubes, deformaon/warping of interior cast iron
structure or components, rust colored cast iron, bubbling, cracking and discoloraon of steel or enamel nishes.
• The applicable Product is subjected to prolonged periods of dampness or condensaon.
• There is any damage to the applicable Product due to water or weather damage which is the result of, but not limited to, improper
chimney or venng installaon.
LIMITATIONS OF REMEDIES AND LIABILITY:
• EXCEPT TO THE EXTENT PROVIDED BY LAW, HHT MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY SPECIFIED
HEREIN. The owner’s exclusive remedy and HHT’s sole obligaon under this Warranty or in contract, tort or otherwise, shall
be limited to, at HHT’s sole opon, replacement of the Component Part(s), repair of the Component Part(s), or refund of the
original purchase price of the applicable Product(s). In no event will HHT be liable for any incidental or consequenal damages
caused by defects in the applicable Product. Some States do not allow the exclusion or limitaon of incidental or consequenal
damages, so the above limitaon or exclusion may not apply to you. This Warranty gives you specic legal rights and you may
also have other rights which vary from State to State. THE DURATION OF ANY IMPLIED WARRANTY IS LIMITED TO DURATION OF
THE EXPRESSED WARRANTY SPECIFIED ABOVE FOR THE APPLICABLE PRODUCT. Some States do not allow limitaons on how long
an implied warranty lasts, so the above limitaon may not apply to you.
6
4021-645N 12/23
Page 2 of 2
Hearth & Home Technologies • Installation Manual • 4004-901 Rev D • 04/25
7

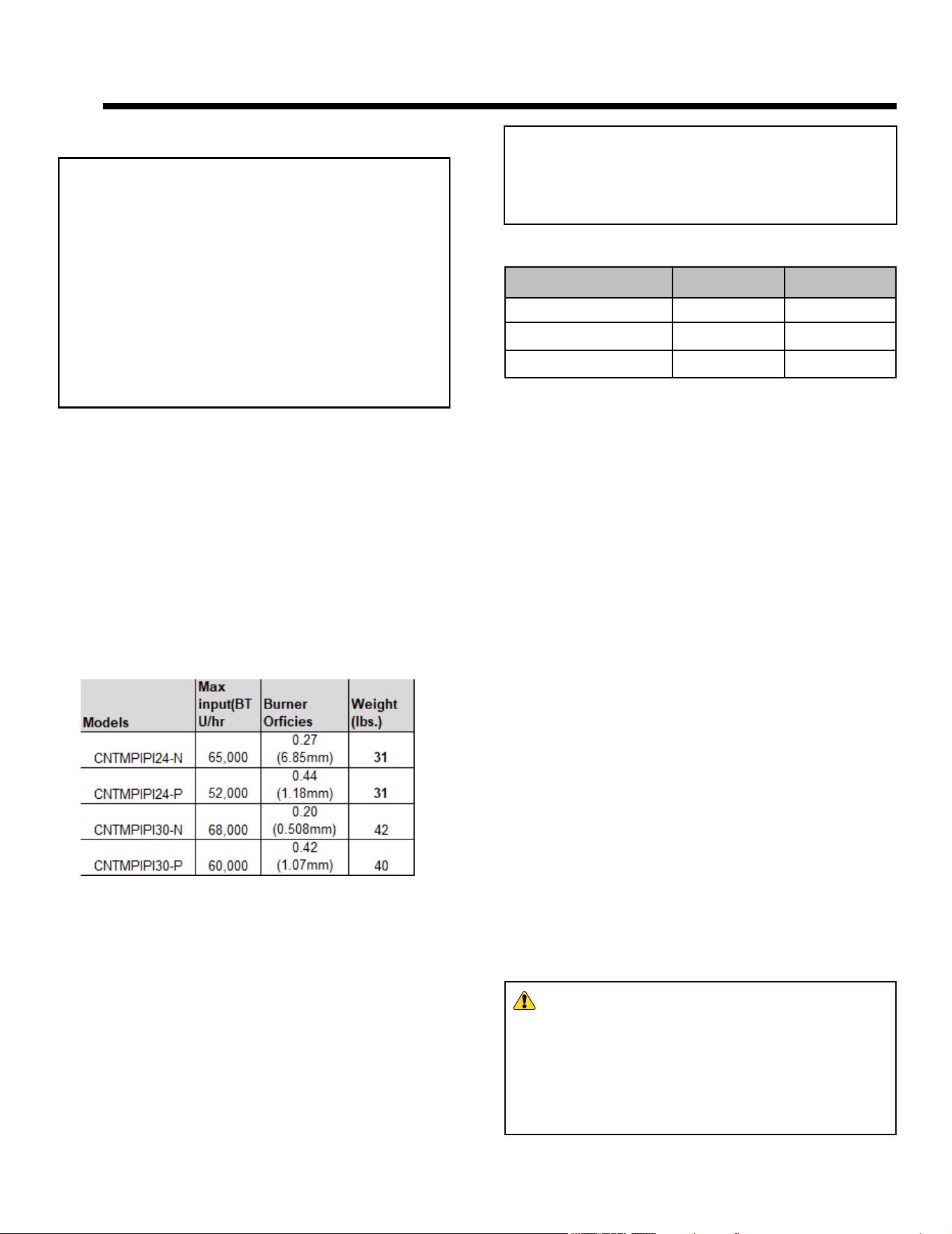

A. Appliance Certification
NOT INTENDED FOR USE AS A PRIMARY HEAT
SOURCE. This appliance is tested and approved as
either supplemental room heater or as a decorative ap-
pliance. It should not be factored as primary heat in
residential heating calculations.
This product is listed to ANSI standards for "Vented Gas
Log Sets” and applicable sections of "Gas Burning Heat-
ing Appliances for Manufactured Homes" and "Gas Fired
Appliances for Use at High Altitude."
NOTICE: This installation must conform with local codes.
In the absence of local codes you must comply with the
National Fuel Gas Code, ANSI Z223.1-latest edition in
the U.S.A.
B. BTU Specifications and Weight
NATURAL GAS: An external regulator is required to
reduce supply pressure to a maximum of 10.0” wc.
PROPANE/LP: An external regulator is required to re-
duce supply pressure to a maximum of 13.0” wc.
D. High Altitude Installations
NOTICE: If the heating value of the gas has been reduced,
these rules do not apply. Check with your local gas utility
or authorities having jurisdiction.
When installing above 2000 feet elevation:
• In the USA: Reduce input rate 4% for each 1000 feet
above 2000 feet.
•
•
In CANADA: Input ratings are certified without a
reduction of input rate for elevations up to 4500
feet (1370 m) above sea level. Please consult
provincial and/ or local authorities having jurisdiction
for installations atelevations above 4500 feet (1370
m).Check with your local gas utility to determine
proper orifice size.
Check with your local gas utility to determine proper
orifice size
C. Gas Pressures
CNTMPIPI24-N
CNTMPIPI24-P
CNTMPIPI30-N
CNTMPIPI30-P
E. Fuel
This appliance must not be used to burn solid fuel.
F. Glass Doors
This appliance must NOT be operated with glass doors in
the closed position.
G. California
WARNING!
This product and the fuels used to
operate this product (liquid propane or natural gas), and
the products of combustion of such fuels, can expose
you to chemicals including benzene, which is known to
the State of California to cause cancer and reproductive
harm. For more information go to: www.P65Warnings.
ca.gov.
Natural Propane (LP)
Inlet Minimum 5.0” wc 11.0” wc
Inlet Maximum 10.0” wc 13.0” wc
Manifold Pressure 3.5” wc 10.0” wc
MODEL(S):
LABORATOR:
TYPE:
STANDARD:
22
Product Specific and Important Safety Information
PFS
Vented Gas Logs
ANSI Z21.60-2017
Decorative gas appliances for
installation in solid-fuel
burning fireplaces
Hearth & Home Technologies • Installation Manual • 4004-901 Rev D • 04/25
8
For all side wall horizontally vented gas fueled equipment
installed in every dwelling, building or structure used in
whole or in part for residential purposes, including those
owned or operated by the Commonwealth and where the
side wall exhaust vent termination is less than seven (7)
feet above finished grade in the area of the venting, in-
cluding but not limited to decks and porches, the following
requirements shall be satisfied:
Installation of Carbon Monoxide Detectors
At the time of installation of the side wall horizontal vented
gas fueled equipment, the installing plumber or gas fitter
shall observe that a hard wired carbon monoxide detector
with an alarm and battery back-up is installed on the floor
level where the gas equipment is to be installed. In addi-
tion, the installing plumber or gas fitter shall observe that
a battery operated or hard wired carbon monoxide detec-
tor with an alarm is installed on each additional level of
the dwelling, building or structure served by the side wall
horizontal vented gas fueled equipment. It shall be the
responsibility of the property owner to secure the services
of qualified licensed professionals for the installation of
hard wired carbon monoxide detectors.
In the event that the side wall horizontally vented gas fu-
eled equipment is installed in a crawl space or an attic,
the hard wired carbon monoxide detector with alarm and
battery back-up may be installed on the next adjacent
floor level.
In the event that the requirements of this subdivision can
not be met at the time of completion of installation, the
owner shall have a period of thirty (30) days to comply
with the above requirements; provided, however, that dur-
ing said thirty (30) day period, a battery operated carbon
monoxide detector with an alarm shall be installed.
Approved Carbon Monoxide Detectors
Each carbon monoxide detector as required in accor-
dance with the above provisions shall comply with NFPA
720 and be ANSI/UL 2034 listed and IAS certified.
Signage
A metal or plastic identification plate shall be permanent-
ly mounted to the exterior of the building at a minimum
height of eight (8) feet above grade directly in line with the
exhaust vent terminal for the horizontally vented gas fu-
eled heating appliance or equipment. The sign shall read,
in print size no less than one-half (1/2) in. in size, “GAS
VENT DIRECTLY BELOW. KEEP CLEAR OF ALL OB-
STRUCTIONS”.
Inspection
The state or local gas inspector of the side wall horizon-
tally vented gas fueled equipment shall not approve the
installation unless, upon inspection, the inspector ob-
serves carbon monoxide detectors and signage installed
in accordance with the provisions of 248 CMR 5.08(2)(a)1
through 4.
Exemptions
The following equipment is exempt from 248 CMR 5.08(2)
(a)1 through 4:
• The equipment listed in Chapter 10 entitled “Equipment
Not Required To Be Vented” in the most current edition
of NFPA 54 as adopted by the Board; and
• Product Approved side wall horizontally vented gas fu-
eled equipment installed in a room or structure separate
from the dwelling, building or structure used in whole or
in part for residential purposes.
MANUFACTURER REQUIREMENTS
Gas Equipment Venting System Provided
When the manufacturer of Product Approved side wall
horizontally vented gas equipment provides a venting
system design or venting system components with the
equipment, the instructions provided by the manufacturer
for installation of the equipment and the venting system
shall include:
• Detailed instructions for the installation of the venting
system design or the venting system components; and
• A complete parts list for the venting system design or
venting system.
Gas Equipment Venting System NOT Provided
When the manufacturer of a Product Approved side wall
horizontally vented gas fueled equipment does not pro-
vide the parts for venting the flue gases, but identifies
“special venting systems”, the following requirements
shall be satisfied by the manufacturer:
• The referenced “special venting system” instructions
shall be included with the appliance or equipment in-
stallation instructions; and
• The “special venting systems” shall be Product Ap-
proved by the Board, and the instructions for that sys-
tem shall include a parts list and detailed installation
instructions.
A copy of all installation instructions for all Product Ap-
proved side wall horizontally vented gas fueled equip-
ment, all venting instructions, all parts lists for venting
instructions, and/or all venting design instructions shall
remain with the appliance or equipment at the completion
of the installation.
See Gas Connection section for additional Common-
wealth of Massachusetts requirements.
H. Requirements for the Commonwealth of
Massachusetts
Hearth & Home Technologies • Installation Manual • 4004-901 Rev D • 04/25
9
DANGER
33
Important Safety and Operating Information

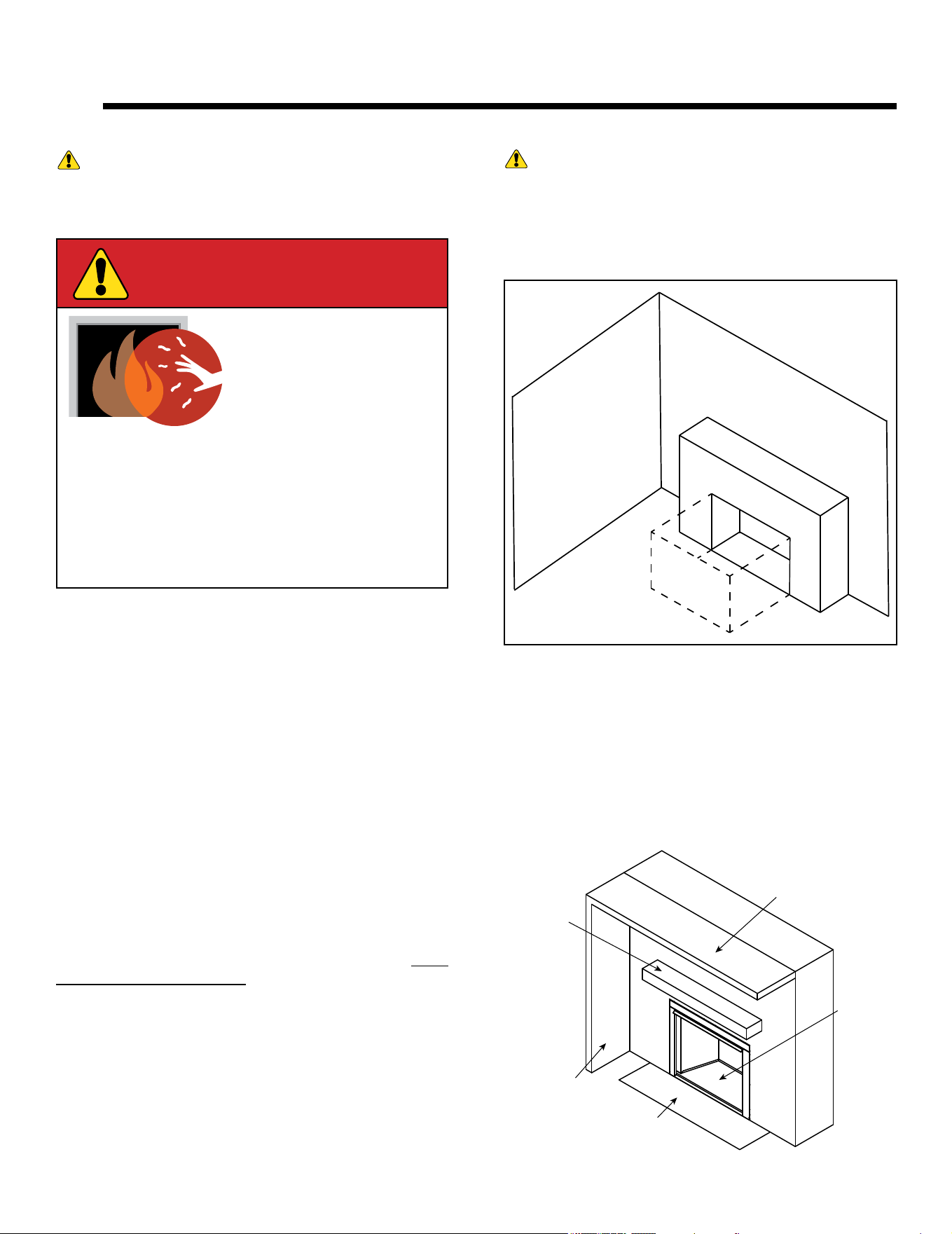

Clear Space
WARNING! DO NOT place combustible objects in
front of the appliance. High temperatures may start a re.
See Figure 3.1.
Avoid placing candles, electronics and other heat-sensitive
objects on mantel or hearth. Heat may damage these
objects.
3 FT
F FIRE
CLEAR SP
. IN FRO
ACE
O OF
NT
F
WARNING! DO NOT operate appliance before
reading and understanding operating instructions.
Failure to operate appliance according to operating in-
structions could cause re or injury.
Young children should be carefully supervised when they
are in the same room as the appliance. Toddlers, young
children and others may be susceptible to accidental
contact burns.
• A physical barrier is recommended if there are at risk
individuals in the house.
• To restrict access to a appliance, install an adjustable
safety gate to keep toddlers, young children and other
at risk individuals out of the room and away from hot
surfaces.
• Install a switch lock or a wall/remote control with child
protection lockout feature.
• Keep remote controls out of reach of children.
• Never leave children alone near a hot appliance,
whether operating or cooling down.
• Teach children to NEVER touch the appliance.
• Consider not using the appliance when children will
be present.
Contact your dealer for more information, or visit: www.
hpba.org/safety-information.
To prevent unintended operation when not using your ap-
pliance for an extended period of time (summer months,
vacations, trips, etc):
• Remove batteries from remote controls.
• Turn off gas shutoff valve.
• Keep children away.
• CAREFULLY SUPERVISE children in same room as
appliance.
• Alert children and adults to hazards of high temperatures.
High temperatures may ignite clothing or other
flammable materials.
• Clothing, furniture, draperies, and other flammable
materials must not be placed on or near the appliance.
A. Appliance Safety
Ceiling or
Overhang
Additional
Structure or
Sidewall
Mantel
Hearth
Firebox
Figure 3.1 Clear Space Requirements
Over Firing
The appliance is considered to be over firing if the flames
are contacting the top of the firebox. Call a qualified service
technician to service the appliance.
B. General Operating Parts
Figure 3.2 references the general operating parts of a
typical installation.
Hearth & Home Technologies • Installation Manual • 4004-901 Rev D • 04/25
10
A. Design and Installation Considerations
Installation MUST comply with local, regional, state and
national codes and regulations. Consult insurance carrier,
local building inspector, fire officials or authorities having
jurisdiction over restrictions, installation inspection and
permits.
Before installing, determine the following:
• Where burner assembly and log set are to be
installed.
• Gas supply piping.
• Whether optional accessories, devices such as
a wall switch or remote control are desired.
• Approved wood burning or masonry fireplace.
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage. For
assistance or additional information, consult a qualified
service technician, service agency or your dealer.
B. Tools and Supplies Needed
Before beginning the installation be sure that the following
tools and building supplies are available.
• Tape measure
• Gloves
• Voltmeter
• Manometer
• Phillips screwdriver
• Safety glasses
• Flat blade screwdriver
• Non-corrosive leak check solution
• Drill and bits
• External regulator (for propane/LP only & 1/2 psi
Natural gas system)
• Piping which complies with local codes
• Pipe sealant approved for use with propane/LP
(Resistant to sulfur compounds)
• Manual shutoff valve
• Sediment trap
• Tee joint
• Pipe wrench
• 3/4” & 7/16” wrench
Gloves are recommended when handling
refractory and logs to prevent skin irritation
from loose fibers. Logs are fragile; handle with
care.
WARNING! Risk of Fire, Explosion or Electric
Shock! DO NOT use this appliance if any part has been
under water. Call a qualied service technician to inspect
the appliance and to replace any part of the control sys-
tem and/or gas control which has been under water.
D. Check Parts
Verify contents to ensure you have received all parts.
You should have the following:
• Contemporay Burner Assembly
• Installation Instructions
• Flex Line & Pipe Fittings
• Damper Clamp
• RCB Remote Control
Installation and service of this appliance should be performed by
qualified personnel. Hearth & Home Technologies recommends
HHT Factory Trained or NFI certified professionals.
CAUTION
• Carefully remove the applaince and components from
the packaging.
• Attached to the appliance are tags identifying the
manufacturer, serial number, model number. Including
log set size, BTU/hr ratings and gas type.
• Review the attached tags before proceeding. Ensure
that all minimum fireplace dimension requirements are
achieved using Figure 4.1.
• Ensure the gas type provided in the fireplace coincide
with the gas type marked on the tag.
• Logs are packaged and sold separately.
•
•
Hearth & Home Technologies disclaims any respon-
sibility for, and the warranty will be voided by, the fol-
lowing actions:
• Installation and use of any damaged appliance.
• Modification of the appliance.
• Installation other than as instructed by Hearth &
Home Technologies.
• Installation and/or use of any component part not
approved by Hearth & Home Technologies.
Any such action may cause a fire hazard.
44
Getting Started
C. Inspect Appliance and Components
Report to your dealer any parts damaged in shipment.
Read all of the instructions before starting the instal-
lation. Follow these instructions carefully during the
installation process to ensure maximum safety and
benefit.
WARNING! Risk of Fire or Explosion! Damaged
parts could impair safe operation. DO NOT install damaged,
incomplete or substitute components. Keep appliance dry.
Hearth & Home Technologies • Installation Manual • 4004-901 Rev D • 04/25
11
A
C
D
B

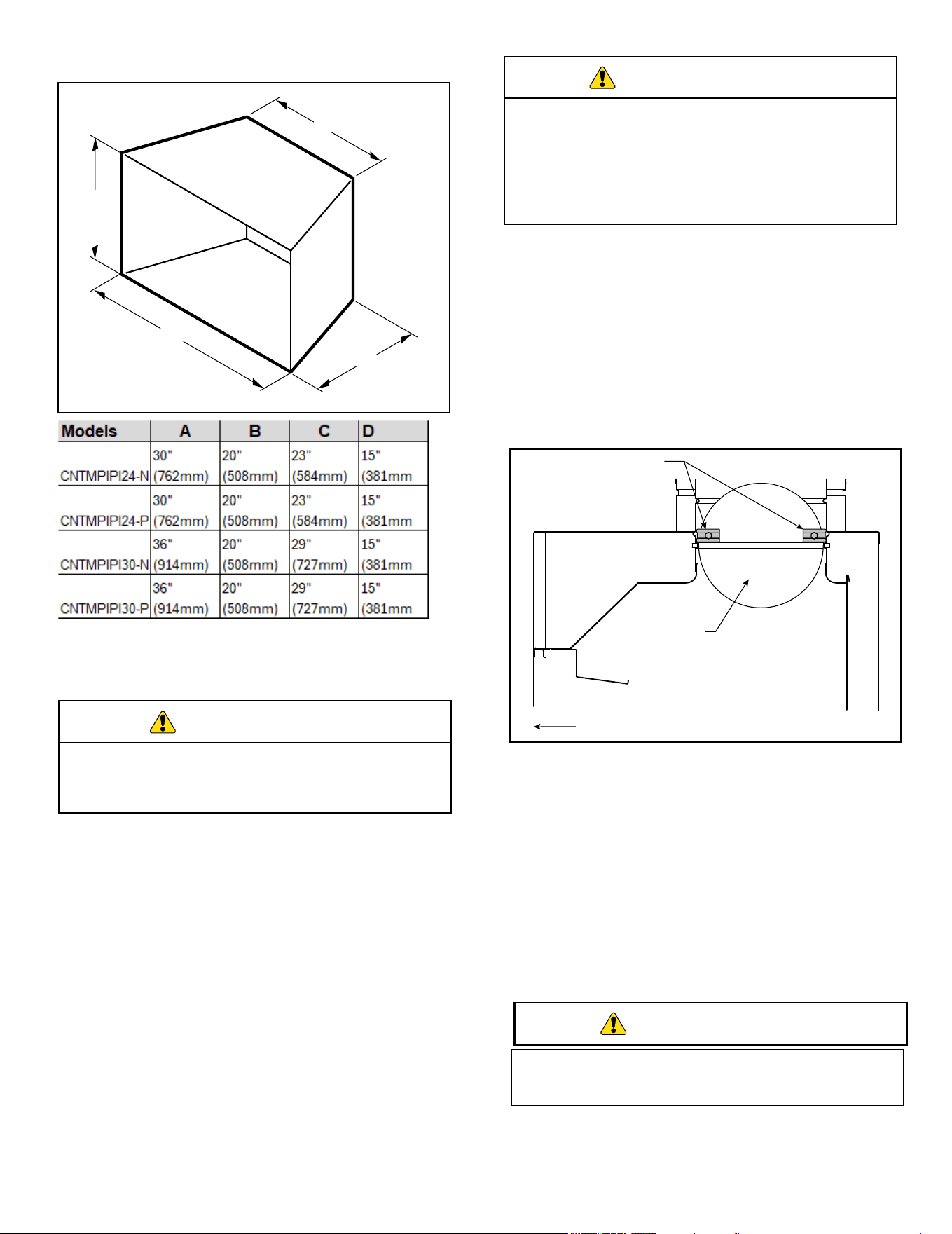

E. Minimum Hearth Dimensions
Do not install the applaince:
• Where curtains, furniture, clothing, or other
flammable objects are less than 36" from the
front of the heater.
• In high traffic areas.
• In windy or drafty areas.
Note: Use manufacturer’s installation and clearance re-
quirements as defined in their manual.
BEFORE INSTALLING THE APPLIANCE:
• Turn off gas supply to masonry fireplace or manufac-
tured wood burning firebox.
• Have the fireplace floor and chimney professionally
cleaned to remove ash, soot, creosote or other ob-
structions. Have this cleaning performed annually af-
ter installation.
• Seal any fresh air vents or ash clean-out doors lo-
cated on floor or wall of fireplace. If not, drafting may
cause pilot outage or sooting. Use a heat-resistant
sealant.
WARNING
WARNING
Masonry Fireplace Example
Continued on page 12
WARNING
Improper installation or use of the appliance can
cause serious injury or death from fire, burns,
explosion or carbon monoxide poisoning.
Recommended
Damper Stop
Location
Damper
Blade
Front of Fireplace
Damper Stop Installation
A damper stop is provided with this appliance. The damp-
er stop MUST be installed to prevent full closure of the
fireplace damper blade and provide a minimum flue
open-ing. See Table 4.2.
Factory Built Fireplace: Position damper stop on the top
half of the damper blade, slide stop towards the center
of the damper blade to create an interference with
the bead on the flue collar and tighten bolt. Either side of
the damper blade is acceptable. See Figure 4.2.
This appliance is for installation only in a solid-fuel
burning masonry or UL127 factory-built fireplace.
It has been design certified for these installations.
Figure 4.1 Minimum Hearth Dimensions
F. Installation Information
Figure 4.2 Factory Fireplace Example
Note: Should the stop not fit, or provide the required per-
manent opening from the table have the damper blade cut
to provide minimum permanent opening or a permanent
stop installed.
Hearth & Home Technologies • Installation Manual • 4004-901 Rev D • 04/25
12
For Massachusetts Residents Only
Installation of this vented gas log set in the Common-
wealth of Massachusetts requires the damper be perma-
nently removed or welded in the fully open position. In
addition, a naturally vented gas log may not be installed
in a bedroom or bathroom in the Commonwealth of Mas-
sachusetts.
WARNING
The fireplace and gas logs function as a system. If
the fireplace is spilling into the room (check with
a match or smoke stick), reposition the damper
clamp until a positive draft is obtained, by opening
the damper. If negative pressure in the home pre-
vents having a positive draft contact your dealer.
FP2727
damper
Damper
Stop
Damper
Blade
Damper Stop Installation (cont.)
H. Adequate Combustion Ventilation Air
This appliance shall not be installed in a confined space or
unusually tight construction unless provisions are provided
for adequate combustion and ventilation air.
The National Fuel Gas Code, (ANSI Z223.1/NFPA54),
defines a confined space as a space whose volume is less
than 50 cubic feet per 1,000 BTU per hour (4.8m
3
per kw)
of the aggregate input rating of all appliances installed in
that space. Rooms communicating directly with the space
in which the appliances are installed, through openings not
furnished with doors, are considered a part of a confined
space.
If the area in which the appliance may be
operated does not meet the required volume
for indoor combustion air, combustion and
ventilation air shall be provided by one of the
methods described in the National Fuel Gas
Code, ANSI Z223.1/NFPA 54, the International
Fuel Gas Code or applicable local codes.
WARNING
G. Negative Pressure
Negative pressure results from the imbalance of air avail-
able for the fireplace to operate properly. Possible causes
for this imbalance include:
• Exhaust fans (kitchen, bath, etc.)
• Range hoods
• Combustion air requirements for furnaces, water heaters
and other combustion appliances
• Clothes dryers
• Location of return-air vents to furnace or air
conditioning.
• Imbalances of the HVAC air handling system
• Upper level air leaks: recessed lighting, attic hatch
opening, duct leaks.
Figure 4.3 Masonary Fireplace Example
Hearth & Home Technologies • Installation Manual • 4004-901 Rev D • 04/25
Table 4.1
Combustion tables for Masonry and Factory Built
13
Hearth & Home Technologies • Installation Manual • 4004-901 Rev D • 04/25
14
55

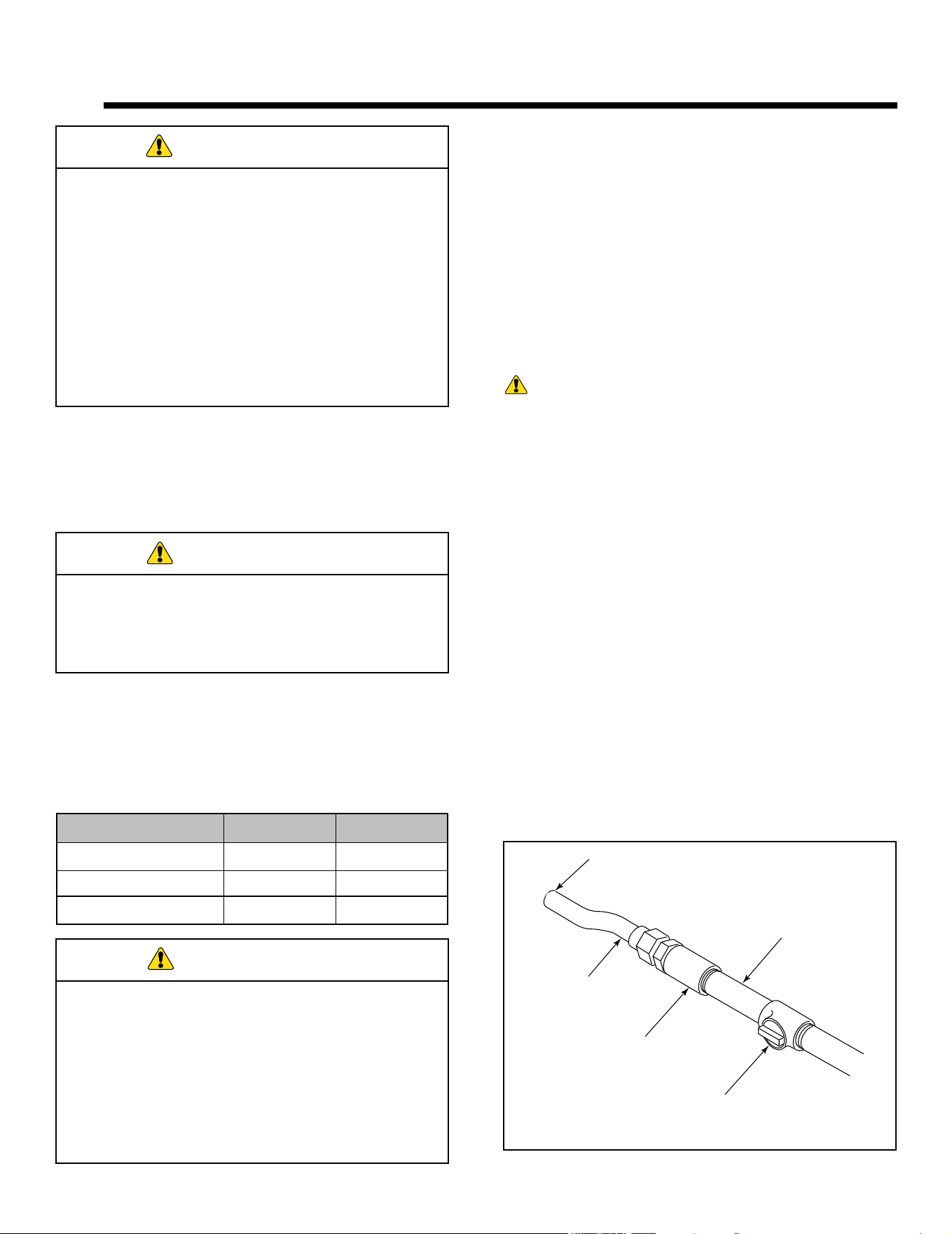

Gas Information
Use new black iron or steel pipe. Internally tinned
copper or copper tubing can be used per National
Fuel Code, providing gas meets hydrogen sulfide
limits, and where permitted by local codes. Gas
piping system must be sized to provide minimum
inlet pressure (Listed on Data Plate) at the maximum
flow rate (BTU/hr). Undue pressure loss will occur if
the pipe is too small.
A manual shutoff valve must be installed upstream
of the appliance. Union tee and plugged 1/8” NPT
pressure tapping point should be installed upstream
of the appliance.
C. Gas Connection
A 3/8 in. flared fitting has been installed on the gas valve
inlet at the factory. Ensure fittings are of the appropriate
size and type on the gas line connection. If the tubing has
to be cut to length be sure to use the proper cutting and
flaring tool. Also, be careful not to crimp the tubing while
bending. If the tubing becomes crimped, do not use for
installation.
IMPORTANT: When tightening up the joint to the valve,
hold the valve securely to prevent movement.
Test all gas joints from the gas meter to the appliance
valve for leaks using a gas analyzer or soap and water
solution after completing connection. DO NOT USE AN
OPEN FLAME. Check the gas pressure with the appli-
ance burning.
Fire Risk!
Explosion Hazard!
High pressure will damage valve!
• Disconnect gas supply piping BEFORE pres-
sure testing gas line at test pressures above
1/2 psig.
• Close the manual shutoff valve BEFORE pres-
sure testing gas line at test pressures equal to
or less than 1/2 psig.
Manual
Shutoff Valve
Coupling
To Control Valve
Flexible
Connector
Gas Supply
Line
A. Fuel Type
The gas supply must be the same as stated on the appli-
ance rating plate. If the gas supply is different, DO NOT
INSTALL THE APPLIANCE. Contact your dealer for the
correct model.
Note: Have the gas supply line installed in accordance
with local codes, if any. If not, follow ANSI Z223.1. Instal-
lation should be done by a qualified installer approved
and/or licensed as required by the locality (In the Com-
monwealth of Massachusetts installation must be per-
formed by a licensed plumber or gas fitter).
Note: A listed (and Commonwealth of Massachusetts ap-
proved) 1/2 in. (13 mm) T-handle manual shut-off valve
must be installed upstream of the appliance.
IMPORTANT: Install manual shutoff valve in an acces-
sible location. The manual shutoff valve is for turning on
or shutting off the gas to the appliance.
WARNING! Risk of Fire or Explosion! High
pressure will damage valve. Low pressure could cause
explosion.
• Verify inlet pressures. Verify minimum pressures
when other household gas appliances are operating.
• Install regulator upstream of valve if line pressure is
greater than 1/2 psig.
CHECK GAS TYPE: The gas supply must be the
same as stated on the appliance rating plate. If the
gas supply is different, DO NOT INSTALL THE
APPLIANCE. Contact your dealer for the correct
model.
WARNING
Natural Propane (LP)
Inlet Minimum 5.0” wc 11.0” wc
Inlet Maximum 10.0” wc 13.0” wc
Manifold Pressure 3.5” wc 10.0” wc
• Optimum appliance performance requires proper in-
put pressures.
• Gas line sizing requirements will be determined in
ANSI Z223.1 National Fuel Gas Code in the USA.
• Pressure requirements are:
B. Gas Pressure
WARNING
WARNING
Hearth & Home Technologies • Installation Manual • 4004-901 Rev D • 04/25
Outlet
Gas Valve
Inlet
D. Verify Gas Pressure
The valve regulator controls the burner pressure. Gas
pressure must be verified at both the inlet and outlet
pressure test ports.
1. Turn captured screw counterclockwise two or three
turns. See Figure 5.2.
2. Place tubing from pressure gauge over test port.
3. After taking pressure readings, be sure and turn
captured screw clockwise firmly to re-seal. Do not
over torque.
4. Check for gas leaks.
Figure 5.2 Pressure Test Ports
15
Hearth & Home Technologies • Installation Manual • 4004-901 Rev D • 04/25
16
66

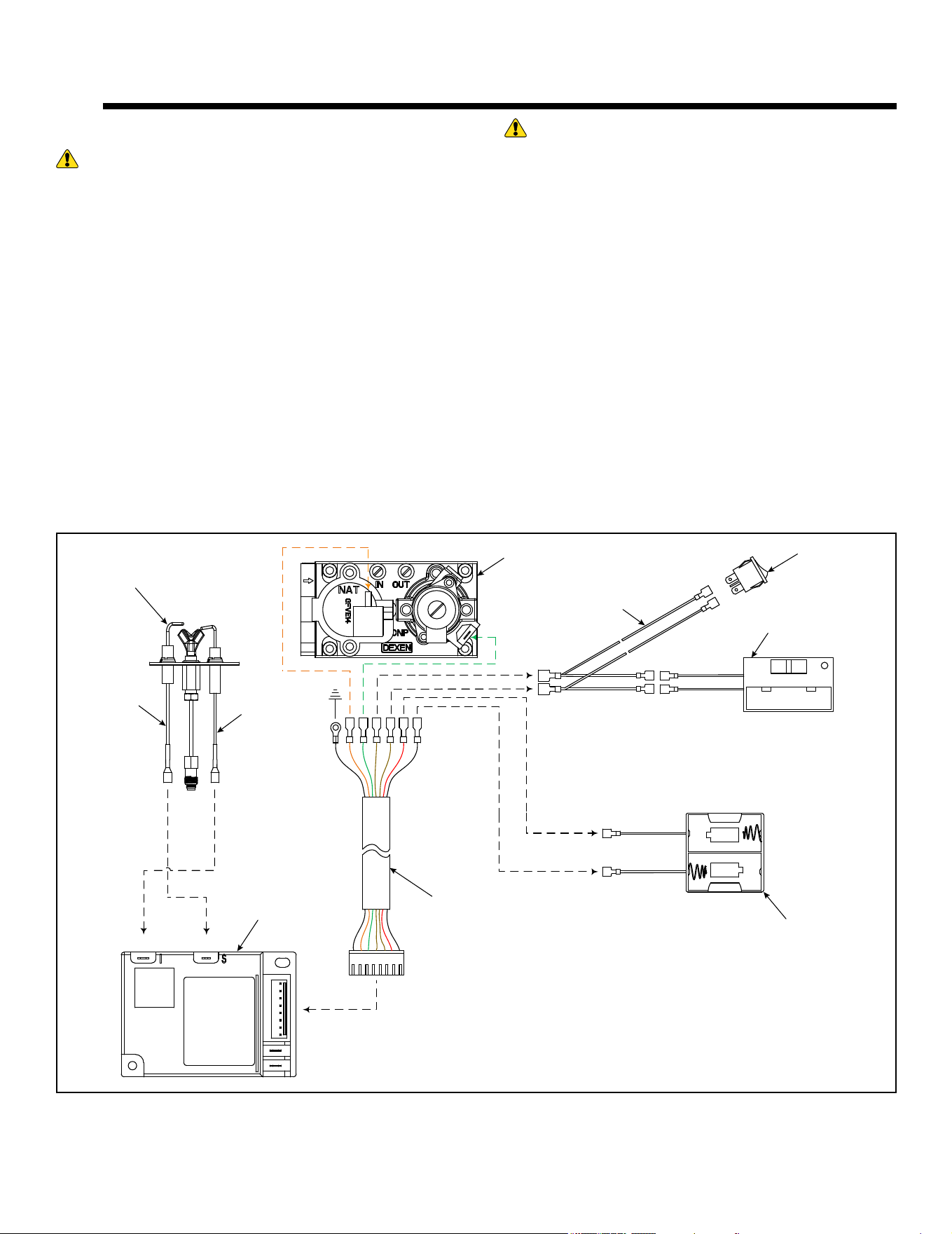

Electrical Information
WARNING! Risk of Shock or Explosion! DO NOT
wire 110-120 VAC to the valve. Incorrect wiring will dam-
age controls.
• The intermittent pilot ignition system (IPI) on the Sta-
dium series gas log set comes standard with an inte-
grated battery pack, that holds (2) D size batteries.
• The appliance does NOT require 110 VAC for opera-
tion. If the vented fireplace/firebox the appliance is
installed in is electrically wired, it must be wired and
grounded in accordance with local codes or, in the
absence of local codes, with National Electric Code
ANSI/NFPA 70-latest edition.
• An ON/OFF Switch and Remote Control are supplied
with the appliance. The Remote Control can be incor-
porated into this system by connecting to the remote
switch wires as shown. See Figure 6.1
NOTE: The use of a thermostat is prohibited in vented
log installations.
I S
PILOT
ON
RS
OFF
WHITE
ORANGE
CONTROL
MODULE
GAS VALVE
BATTERY
PACK
WIRE
HARNESS
REMOTE
CONTROL
ON/OFF
SWITCH
WIRE HARNESS:
BLACK = GROUND
ORANGE = VALVE
GREEN = VALVE
BROWN = SWITCH
BLACK = BATTERY (-)
RED = BATTERY (+)
WARNING! Risk of Shock! Label all wires prior to
disconnection when servicing controls. Wiring errors can
cause improper and dangerous operation. Verify proper
operation after servicing. Replace damaged wire with
type 105º C rated wire. Wire must have high temperature
insulation.
A. Wiring Requirements
Figure 6.1 Wiring Diagram
Hearth & Home Technologies • Installation Manual • 4004-901 Rev D • 04/25
77
Appliance Installation and Set-up
A. Positioning the Appliance
The appliance is assembled with the gas controls installed
at the factory, and is designed to connect the 3/8” supply
line before making final placement inside the fireplace.
You must secure the gas log appliance to the
fireplace floor. If not, the entire unit may move when
you adjust the controls. Movement of unit may cause
shifting of the gas logs which leads to sooting and
improper burning. Grate movement could cause a
gas leak.
WARNING
Figure 7.1 On/Off Switch
• The burner is assembled with the controls installed at the
factory and is designed to connect one end of the 3/8 in.
supply line before placing inside the fireplace. Ensure the
connection is tightened using a 3/4 in. wrench.
• Place the burner towards the rear and center of the
fireplace and connect to the gas line. Follow instructions
in “F. Gas Pressure” to check for gas leaks.
• IPI models include a battery box which holds 2 “D” size
batteries. See Figure 2 for location of battery holder.
Battery Holder
Figure 2
B. On/Off Switch
This vented burner comes supplied with an On/Off Switch.
• The On/Off switch is located on the front right side of
the burner assembly as shown in Figure 7.1
C.
Installation
• Ensure that the pilot cover is in place before you install
the glass See Figure 4 .Pour glass into the burner pan to
the point where the burner pipe is covered. See Figure 5.
Level the glass from right to left to ensure an even flame
pattern.
• The gas burns at the point of the least resistance. In
case of an uneven flame pattern it may be necessary to
adjust the materials in the pans (using an object such as
a screwdriver) to achieve the desired effect.
Figure 4
Pilot Screen
Warning! Important. To insure proper lighting, do
not place glass over the pilot screen.
Figure 5
Pilot Screen
17
Hearth & Home Technologies • Installation Manual • 4004-901 Rev D • 04/25
18
Figure 7.8 IPI Pilot Flame
Main Burner Flame:
Operate the appliance at full rate for 45 minutes, the fol-
lowing flame appearances should be observed.
Burner will have a random pattern of yellow flames, with
glowing embers covering the main burner.
Note: This appliance is a vented burner, therefore
some flame impingement and soot is normal.
Avoid any drafts that alter burner flame patterns. Do not
allow fans to
blow directly on the appliance. Do not place
a blower inside the burn area of the fireplace. Ceiling
fans may create drafts that alter flame patterns. Sooting
and improper burning will result.
• Verify all shipping material have been removed from
inside and/or underneath the gas log set.
• Review proper placement of logs.
• Ensure there are no gas leaks.
• Caution: This appliance must NOT be operated with
glass doors in the closed position.
• The burner should run three to four hours continu-
ously on high.
• Turn the burner off and allow it to completely cool.
This cures the materials used to manufacture the burner.
NOTICE! Open windows for air circulation during appli-
ance break-in.
• Some people may be sensitive to smoke and odors.
• Smoke detectors may activate.
E. Before Lighting Appliance
Before operating this appliance for the first time, have a
qualied service technician:
F. Flame Appearance
Flames from the pilot and burner should be visually
checked as soon as the appliance is installed. In addition,
periodically check the flames visually during operation.
Pilot Flame:
The IPI pilot flame must always be present
when the
appli-ance is in operation. Pilot flame should engulf the
flame sensor rod. See Figure 7.8.
If the pilot flame does not touch the flame sensor, then
the main burner cannot function reliably.
G. Initial Use
Initial Break-in Procedure:
D. Glass Placement
For Glass placement instructions refer to Figure 5
NOTE: The appliance is designed to be operated with
Glass installed. Do NOT operate this appliance without
the glass installed.
Hearth & Home Technologies • Installation Manual • 4004-901 Rev D • 04/25
19
88

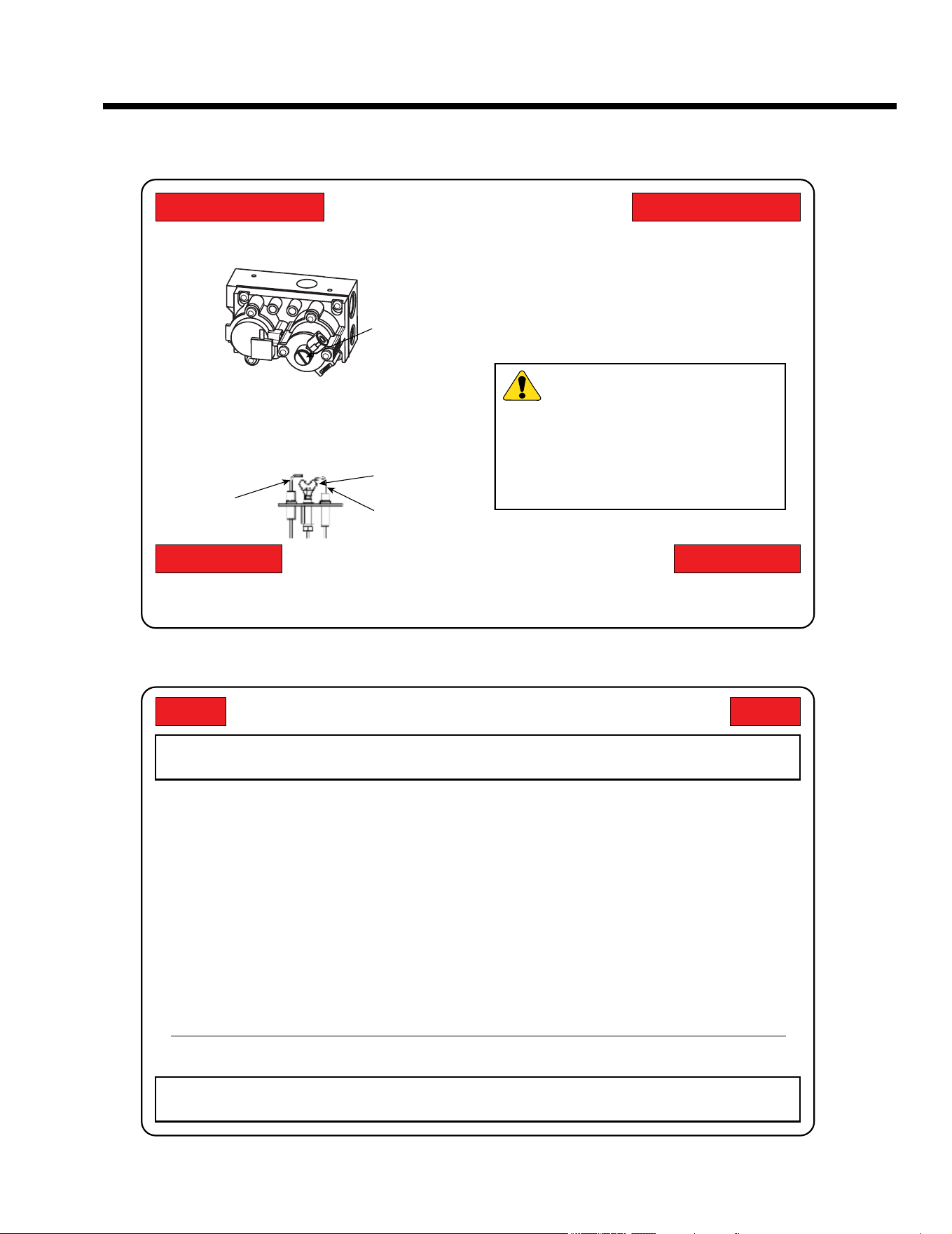

Lighting Instructions
A. Intermittent Pilot (IPI)
LIGHTING INSTRUCTIONS
1. STOP! Read the safety instruction label.
2. Turn wall switch to the “OFF” position.
3. Wait five minutes to clear out any gas. If you
smell gas, STOP! Follow “B” on the safety
information label. If you don’t smell gas, go to
next step.
4. Locate pilot assembly inside unit.
GAS
CONTROL
KNOB
FLAME
SENSOR
PILOT
BURNER
IGNITOR
TO TURN OFF GAS TO APPLIANCE
5. To light pilot and main burner, turn wall switch to
“ON”. Don not light by hand.
6. If appliance will not operate, follow the
instructions “TO TURN OFF GAS TO APPLI-
ANCE” and call your service technician or gas
supplier.
1. Turn on/off switch to “OFF”
WARNING: This product and the fuels
used to operate this product (liquid
propane or natural gas), and the products of
combustion of such fuels, can expose you to
chemicals including benzene, which is
known to the State of California to cause
cancer and reproductive harm. For more
information go to: www.P65Warnings.ca.gov.
FOR YOUR SAFETY READ BEFORE LIGHTING
WARNING: If you do not follow these instructions exactly, a fire or explosion may
result causing property damage, personal injury or loss of life.
A. This appliance has an intermittent pilot. When
lighting the pilot, follow these instructions
exactly.
B. BEFORE LIGHTING smell all around the
appliance area for gas. Be sure to smell next to
the floor bacause some gas is heavier than air
and will settle to the floor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do not
use any phone in your building.
• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas
supplier’s instructions.
• If you cannot reach your gas supplier, call
the fire department.
C. Do not use this appliance if any part has been
under water. Immediately call a qualified service
technician to inspect the appliance and to
replace any part of the control system and any
gas control whcih has been under water.
FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
Due to high surface temperatures, keep children, clothing and furniture away.
Keep burner and control compartment clean. See installation instructions accompanying the appliance.
Hearth & Home Technologies • Installation Manual • 4004-901 Rev D • 04/25
20
Any safety screen removed for servicing must be replaced
prior to operating the appliance.
Task
Frequency To be completed by
Pilot Inspection &
Cleaning
Annually
Qualified Service
Technician
Firebox Inspection
Annually
Burner Ignition &
Operation
Annually
When properly maintained, your appliance will give you
many years of trouble-free service. Contact your dealer
to answer questions regarding proper operation, trouble-
shooting and service for your appliance.
Visit www.hearthnhome.com to locate a dealer. We rec-
ommend annual service by a qualified service technician.
A. Maintenance: Frequency and Tasks
The matrix below is an overview of maintenance tasks to
be performed on the appliance. Section B gives details
and instructions needed to assist the appropriate person
in performing the tasks.
The following tasks must be performed by a qualified ser-
vice technician.
Pilot Inspection & Cleaning
Frequency: Annually
By: Qualified Service Technician
Tools needed: Small soft brush, pipe cleaner
• Inspect and remove dust, spider webs and lint
• Gently run pipe cleaner through air intake port
• Inspect IPI flame sensing rod for soot, corrosion an
deterioration. Polish with 320 grit Emery cloth and/or
3M™ Scotch-Brite Abrasive Hand Pad.
Firebox Inspection
Frequency: Annually
By: Qualified Service Technician
Tools needed: Protective gloves, sandpaper, steel wool,
cloths, mineral spirits, primer and touch-up paint.
• Inspect for paint condition, warped surfaces, corrosion
or perforation. Sand and repaint as necessary.
• Replace fireplace if firebox has been perforated.
Burner Ignition and Operation
Frequency: Annually
By: Qualified Service Technician
Tools needed: Protective gloves, vacuum cleaner, whisk
broom, flashlight, voltmeter, indexed drill bit set, and a
manometer.
•
•
Verify burner is properly secured and aligned with pilot
or igniter.
Clean off burner top, inspect for plugged ports,
corrosion or deterioration. Replace burner if necessary
•
•
Inspect for lifting or other flame problems.
Inspect orifice for soot, dirt and corrosion. Verify orifice

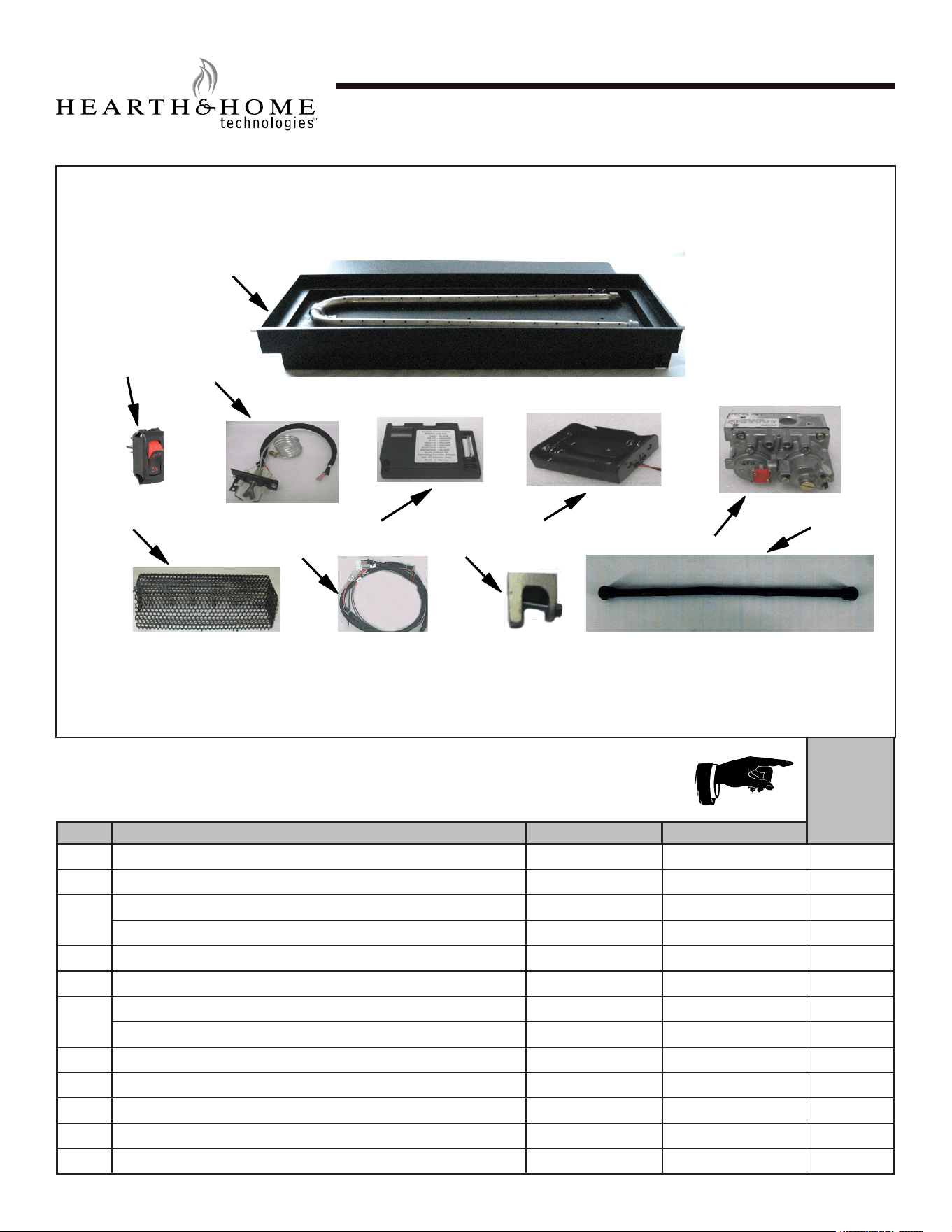

size is correct. See Service Parts List for proper orifice
sizing.
•
•
Verify manifold and inlet pressures. Adjust regulator
as required.
Inspect pilot flame pattern and strength. Clean or
replace orifice spud as necessary.
99
Maintenance and Service
B. Maintenance Tasks: Qualied Service
Technician
C. Cleaning and Servicing
Annual inspection and cleaning by your dealer or quali-
fied service technician is recommended to prevent mal-
function and/or sooting.
Caution! Before cleaning make sure the appliance
is cool and the power to the unit is turned off.
Note: During normal operation it is common that some
sooting may occur the internal panels. This can be more
prevalent with propane (LP). Clean soot from the
appliance as frequently as necessary to eliminate a
buildup of soot or permanent discoloration.
If not using the appliance for an extended period (e.g.:
summer months, vacation/trips, etc.):
• Remove batteries from remote and battery pack
to avoid corrosion.
Task
Frequency To be completed by
Pilot Inspection &
Cleaning
Annually
Qualified Service
Technician
Log Inspection
Annually
Firebox Inspection
Annually
Burner Ignition &
Operation
Annually
Remote and
Battery Pack
Annually
Hearth & Home Technologies • Installation Manual • 4004-901 Rev D • 04/25
21
B. Troubleshooting
With proper installation, operation and maintenance your gas appliance will provide years of trouble-free service. If you
do experience a problem, this troubleshooting guide will assist a qualified service technician in the diagnosis of a problem
and the corrective action to be taken. This troubleshooting guide should only be used by a qualified service technician.
Contact a dealer to arrange a service call by a qualified service technician.
IntelliFire™ Ignition System
ISSUE SOLUTION
Odor from appliance
When first operated, this appliance may release an odor for the first several hours. This
is caused by the burning off of any oils remaining from manufacturing. Odor may also be
released from finishing materials and adhesives used around the appliance.
Metallic noise
Noise is cause by metal expanding and contracting as it heats up and cools down, similar
to the sound produced by a furnace or heating duct. This noise does not affect the opera-
tion or longevity of the appliance.
Wall above appliance feels
hot to the touch
The area around, specifically above the firebox opening will become hot to the touch dur-
ing operation. This is normal, no action is necessary.
SYMPTOM POSSIBLE CAUSE CORRECTIVE ACTION
Pilot won’t light. The igni-
tion/module makes noise,
but no spark.
Incorrect Wiring
Verify sensor wire (white) and igniter wire (orange) are con-
nected to correct terminals on module and pilot assembly.
Loose connections or elec-
trical shorts in the wiring
Verify no loose connections or electrical shorts in wiring from
module to pilot assembly. Verify connections underneath
pilot assembly are tight; also verify igniter and flame sense
wires are not grounding out to metal chassis, pilot burner,
pilot enclosure, mesh screen if present, or any other metal
object.
Ignitor gap is too large
Verify gap of igniter to right side of pilot hood. The gap
should be approximately .125 in. or 1/8 in. (3 mm).
Pilot won’t light. There is
no noise or spark.
Bad/Dead Batteries
Replace (2) D size batteries, located on the right side of ap-
pliance.
A shorted or loose connec-
tion in wiring configuration
or wire harness.
Remove and reinstall the wiring harness that plugs into mod-
ule. Verify there is a tight fit. Verify pilot assembly wiring to
module. Remove and verify continuity of each wire in wiring
harness. Replace any damaged components.
Module not grounded
Verify black ground wire from module wire harness is
grounded to metal chassis of appliance.
1010
Troubleshooting
A. Frequently Asked Questions
Hearth & Home Technologies • Installation Manual • 4004-901 Rev D • 04/25
22
IntelliFire™ Ignition System (Continued)
SYMPTOM POSSIBLE CAUSE CORRECTIVE ACTION
Pilot sparks, but will not
light.
Pilot covered with
media.
Verify that the pilot is clear of all media. If covered, remove
media and restart.
No gas supply.
Verify that incoming gas line ball valve is “open”. Verify that
inlet pressure reading is within acceptable limits.
Ignitor gap is too large.
Verify gap of igniter to right side of pilot hood. The gap
should be approximately .125 in. or 1/8 in. (3 mm).
Module is not grounded.
Verify module is securely grounded to metal chassis of appli-
ance.
Pilot valve solenoid
Verify that 1.5 to 1.8 VDC is supplied to pilot solenoid from
module. If below 1.5 volts, replace module. If 1.5 volts or
greater, replace valve.
Pilot lights but continues
to spark, and burner will
not ignite. (If the pilot
continues to spark after
the pilot flame has been
lit, flame rectification
has not occurred).
A short or loose con-
nection in flame sensing
rod.
Verify all connections to wiring diagram in manual. Verify
connections underneath pilot assembly are tight. Verify con-
nections are not grounding out to metal chassis, pilot burner,
pilot enclosure or screen if present, or any other metal
object.
Poor flame rectification
or contaminated flame
sensing rod.
Verify correct pilot orifice is installed and gas inlet is set to
pressure specifications. Check pilot for soot. Clean if neces-
sary.
Module is not grounded.
Verify module is securely grounded to metal chassis of ap-
pliance. Verify that wire harness is firmly connected to the
module.
Damaged pilot assem-
bly or contaminated
flame sensing rod.
Verify that ceramic insulator around the flame sensing rod
is not cracked, damaged, or loose. Verify connection from
flame sensing rod to white sensor wire. Polish flame sens-
ing rod with fine steel wool to remove any contaminants that
may have accumulated on flame sensing rod. Verify continu-
ity with a multimeter with ohms set at lowest range. Replace
pilot if any damage is detected.
Module
Turn wall control to OFF position. Remove ignitor wire “I”
from module. Turn wall control to "ON" position. If there is no
spark at “I” terminal module must be replaced. If there is a
spark at “I” terminal, module is fine.
Contact your dealer for additional information regarding operating and troubleshooting.
Visit www.hearthnhome.com to locate a dealer
Hearth & Home Technologies • Installation Manual • 4004-901 Rev D • 04/25
Service Parts
CNTMPIPI24-N / CNTMPIPI24-P
Beginning Manufacturing Date:Feb 2025
Ending Manufacturing Date: Active
Contemporary 24” Hearth Kit
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth
and Home Technologies does not sell directly to consumers. Provide model number and serial number
when requesting service parts from your dealer or distributor.
Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
1 Burner Pan Assembly BPA-850-24
2 Switch 01-1070
3
NG Pilot 07-1024
LP Pilot 07-1023
4 Control Module SRV593-592 Y
5 Battery Holder SRV593-594 Y
6
NG Valve SRV593-500 Y
LP Valve SRV593-501 Y
7 Pilot Cover MT-850-PC
8 Wiring Harness SRV593-590 Y
9 Damper Stop Assembly SRV500-SC
10 Gas Line Connector F10ANW-5858-14
Installation Manual 4004-901
6
7
1
2
4
5
9
3
8
10
23
Hearth & Home Technologies • Installation Manual • 4004-901 Rev D • 04/25
Service Parts
CNTMPIPI30-N / CNTMPIPI30-P
Beginning Manufacturing Date:Feb 2025
Ending Manufacturing Date: Active
Contemporary 30” Hearth Kit
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth
and Home Technologies does not sell directly to consumers. Provide model number and serial number
when requesting service parts from your dealer or distributor.
Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
1 Burner Pan Assembly BPA-850-30
2 Switch 01-1070
3
NG Pilot 07-1024
LP Pilot 07-1023
4 Control Module SRV593-592 Y
5 Battery Holder SRV593-594 Y
6
NG Valve SRV593-500 Y
LP Valve SRV593-501 Y
7 Pilot Cover MT-850-PC
8 Wiring Harness SRV593-590 Y
9 Damper Stop Assembly SRV500-SC
10 Gas Line Connector F10ANW-5858-14
Installation Manual 4004-901
6
7
1
2
4
5
9
3
8
10
24
Hearth & Home Technologies • Installation Manual • 4004-901 Rev D • 04/25
25
