User Manual
Smart TP10 WI-FI Treadmill
SF-T724964
EN
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US.
1
Important Safety Information
When using an electrical appliance, basic precautions should always be followed,
including the following:
Read all instructions before using (this appliance).
DANGER –To reduce the risk of electric shock:
Always unplug this appliance from the electrical outlet immediately after using and
before
cleaning.
WARNING – To reduce the risk of burns, fire, electric shock, or injury to persons:
1. An appliance should never be left unattended when plugged in. Unplug from outlet
when not in use, and before putting on or taking off parts.
2. This appliance is not intended for use by persons with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for
their safety. Keep children under the age of 13 away from this machine.
3. Use this appliance only for its intended use as described in this manual. Do not use
attachments not recommended by the manufacturer.
4. Never operate this appliance if it has a damaged cord or plug, if it is not working
properly, if it has been dropped or damaged, or dropped into water. Please contact
5. Do not carry this appliance by supply cord or use cord as a handle.
6. Keep the cord away from heated surfaces.
7. Never operate the appliance with the air openings blocked. Keep the air openings free
of lint, hair, and the like.
8. Never drop or insert any object into any opening.
9. Do not use outdoors. Household use only.
10.Do not operate where aerosol (spray) products are being used or where oxygen is
being administered.
11.To disconnect, turn all controls to the off position, then remove plug from outlet.
12.CAUTION: Risk of Injury to Persons – To Avoid Injury, use extreme caution when
stepping onto or off of a moving belt. Read Instruction Manual Before Using.
13.Connect this appliance to a properly grounded outlet only. See Grounding
Instructions.
14.REMOVE CONTROL BOX (OR KEY, OR SAFETY PIN, AS APPLICABLE) WHEN NOT IN USE,
AND STORE OUT OF REACH OF CHILDREN.
SAVE THESE INSTRUCTIONS
2
CAUTION:
To avoid Injury, use extreme caution when stepping onto or off the running belt. Read the
instruction manual before using.
IC CAUTION: This device contains licence-exempt transmitter(s)/receiver(s) that comply
with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s).
Operation is subject to the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause
undesired operation of the device.
FCC & IC Radiation Exposure Statement:
This equipment complies with FCC and Canada radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with a
minimum distance of 20cm between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
3
Important Safety Information
We thank you for choosing our product. To ensure your safety and health, please use this
equipment correctly. It is important to read this entire manual before assembling and
using the equipment. Safe and effective use can only be achieved if the equipment is
assembled, maintained and used properly. It is your responsibility to ensure that all users
of the equipment are informed of all warnings and precautions.
1. Before starting any exercise program, you should consult your physician to determine
if you have any medical or physical conditions that could put your health and safety at
risk or prevent you from using the equipment properly. Your physician’s advice is
essential if you are taking medication that affects your heart rate, blood pressure, or
cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your
health. Stop exercising if you experience any of the following symptoms: pain,
tightness in your chest, irregular heartbeat, shortness of breath, lightheadedness,
dizziness, or feelings of nausea. If you do experience any of these conditions, you
should consult your physician before continuing with your exercise program.
3. Keep children and pets away from the equipment.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or
carpet. To ensure safety, the equipment should have at least 8 feet (240 cm) of free
space behind it and 2 feet (60 cm) on each side. Do not place the treadmill on any
surface that blocks air openings. To protect the floor or carpet from damage, place a
mat under the treadmill.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The
safety of the equipment can only be maintained if it is regularly examined for damage
and/or wear and tear.
6. Always use the equipment as indicated. If you find any defective components while
assembling or checking the equipment, or if you hear any unusual noises coming from
the equipment during exercise, discontinue use of the equipment immediately and
do not use until the problem has been rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that
may become entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 245 lbs (110 kg).
10.This equipment is not suitable for therapeutic use.
11.To avoid bodily injury and/or damage to the product or property, proper lifting and
moving are required.
12.Your product is intended for use in cool and dry conditions. You should avoid storage
in extreme cold, hot, or damp areas as this may lead to corrosion and other related
problems.
13.This equipment is designed for indoor and home use only; it is not intended for
commercial use!
4
6
Important Operating Information
1. Insert the power plug directly into the socket.
2. Read the manual before operating the equipment.
3. Changes in speed do not occur immediately. Set your desired speed using the
adjustment keys on the main console. The speed will increase gradually.
4. While on the treadmill, move with caution as distractions may cause you to lose
balance and stray from walking in the center of the belt. This may result in serious
injury.
5. This unit starts at a very low speed. To begin use, hold onto the handrails and stand on
the side rails while it starts up, then step onto the belt once it’s in motion.
6. A safety key is provided for emergency use. The machine will function only if the safety
key is inserted into the computer console. In case of emergency, remove the safety key
to immediately stop the belt and shut off the treadmill. The display screen will reset
once the safety key is reinserted.
7. This equipment is designed for adult use only! Children should not be allowed to use
or play near this equipment. When present, children should always be supervised by
an adult.
8. Women who are pregnant or nursing should consult a physician before attempting to
begin any exercise program.
9. Always stay hydrated during and after exercise.
10.Do not lift the treadmill.
11.The treadmill will automatically stop after about 15 minutes, if not in use.
IMPORTANT NOTE:
The running belt must be lubricated before the first use! Please see
Page 11
for instructions on
how to properly apply lubricant.
Statement of Purpose
The treadmill is a cardio workout machine that provides indoor running at various speeds.
Waste Disposal
Sunny Health & Fitness products are recyclable. At the end of its useful life please dispose of this article
correctly and safely (local refuse sites).
EU Declaration of Conformity
You can find the declaration of conformity at the following link:
https://sunnyhealthfitness.com/pages/declaration-of-conformity
Technical Data
Connectivity: Bluetooth LE
Frequency Range: 2400~2483.5Mhz
Transmitting Power: 0dBm
5

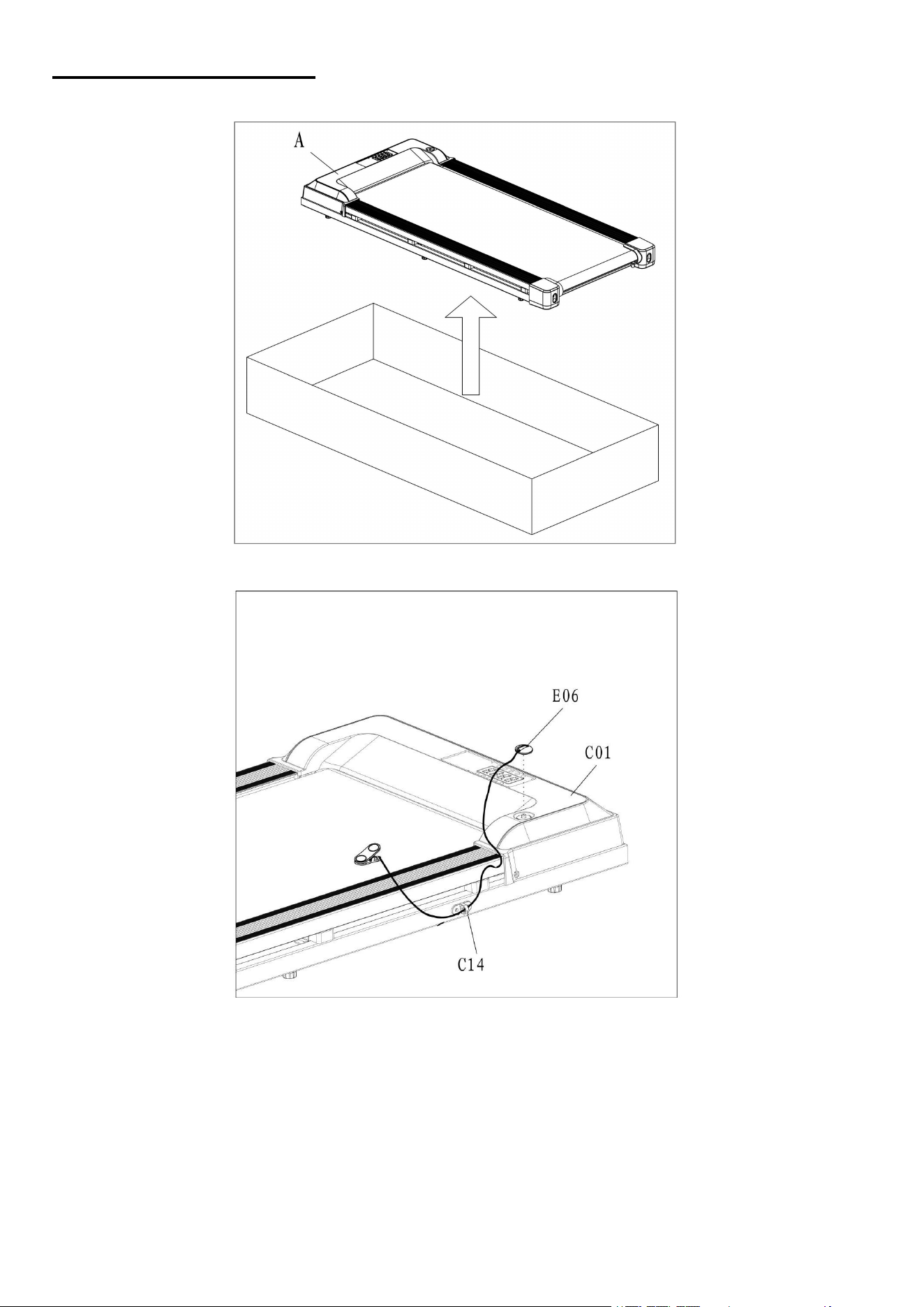

Pre-Assembly Check List

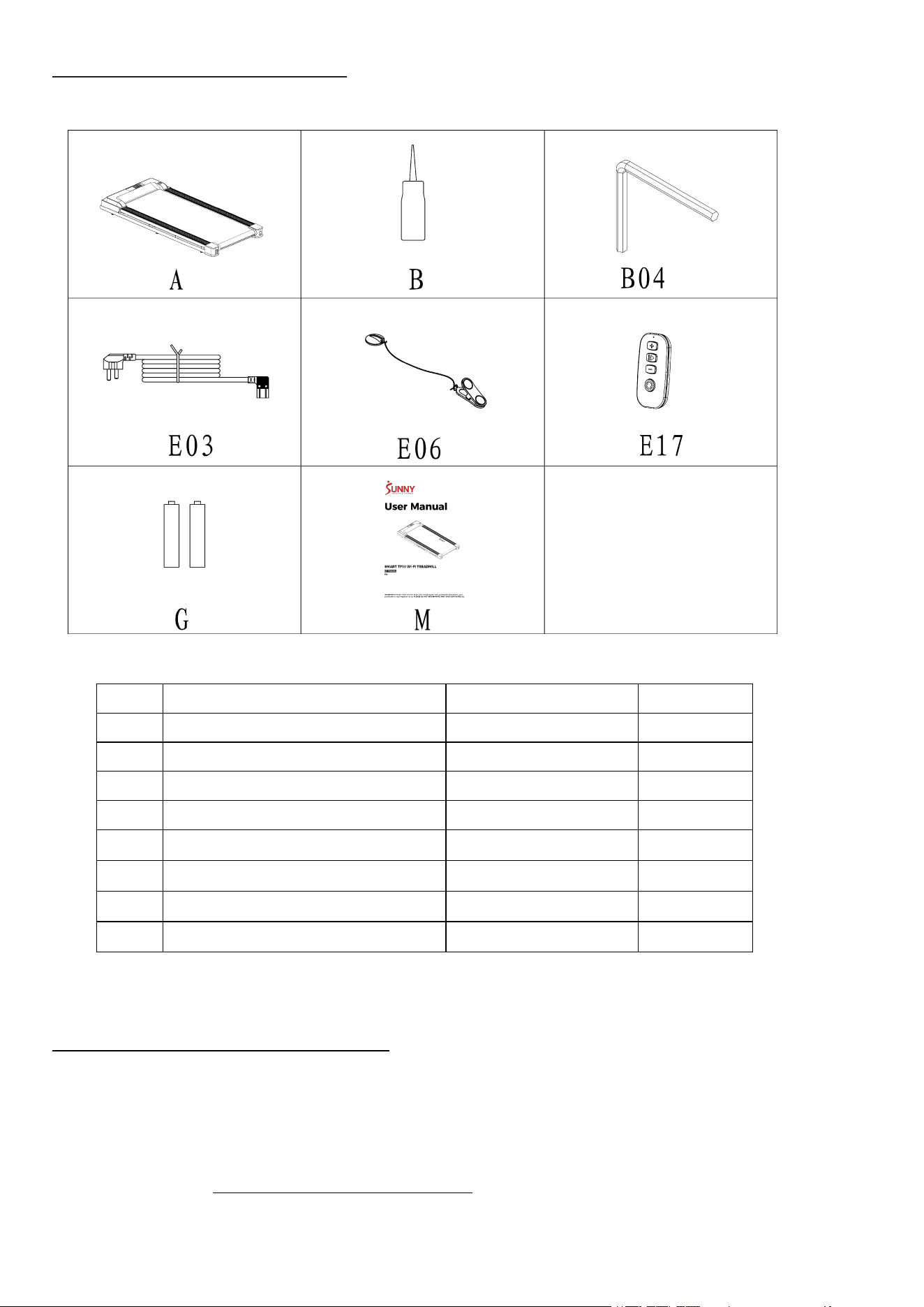

When you open the carton, you will find the following parts:
Ordering Replacement Parts
Please provide the following information in order for us to accurately identify the part(s) needed:
The model number
The product name
The part number
Please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669)
No.
Description
Spec.
Qty.
A
Main Frame
1
B
Lubricant Oil
1
B04
Wrench
1
E03
Power Wire
1
E06
Safety Key
1
E17
Remote Control
1
G
Battery
2
M
Manual
1

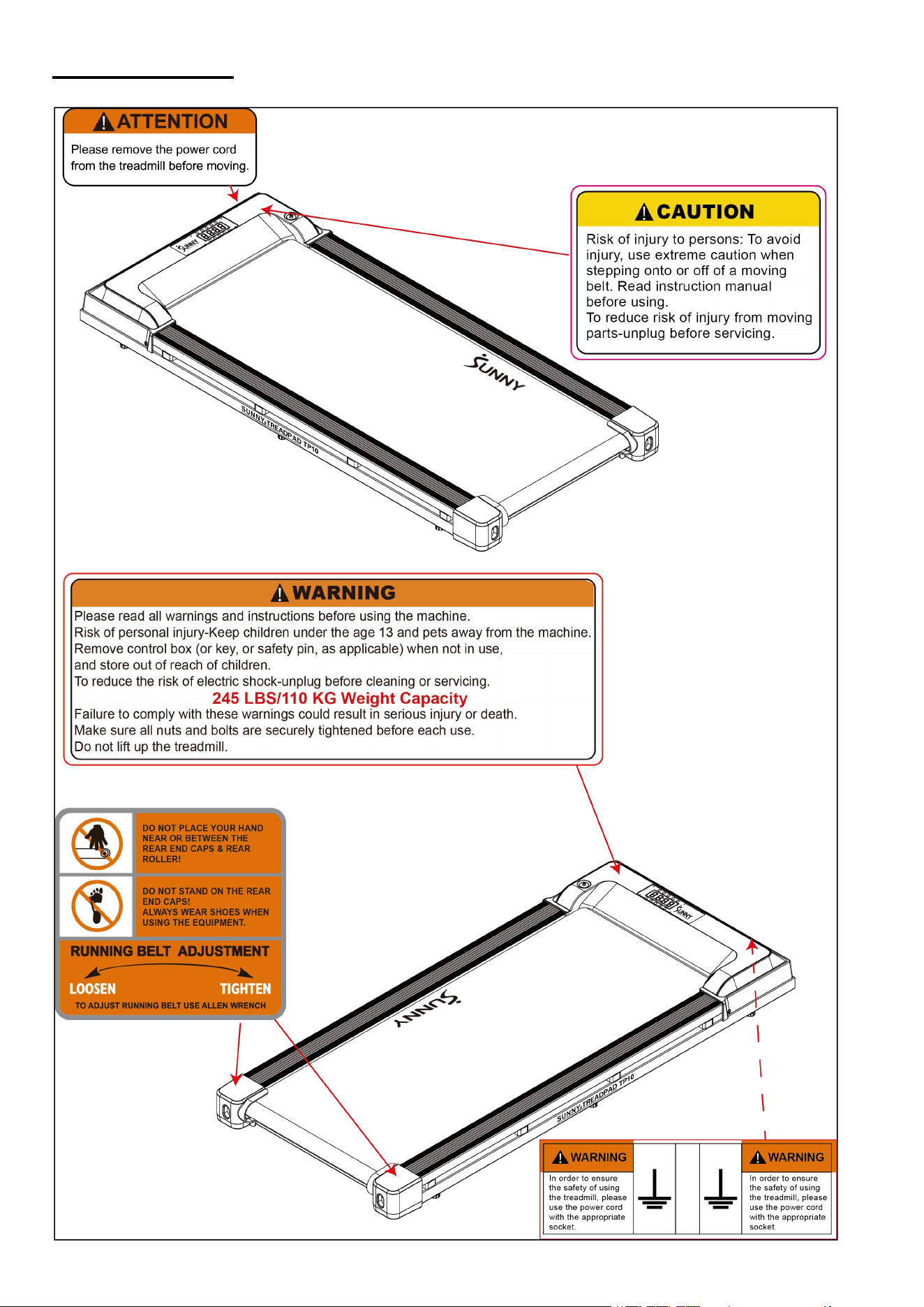

6
Warning Labels
7
Assembly Instructions
8

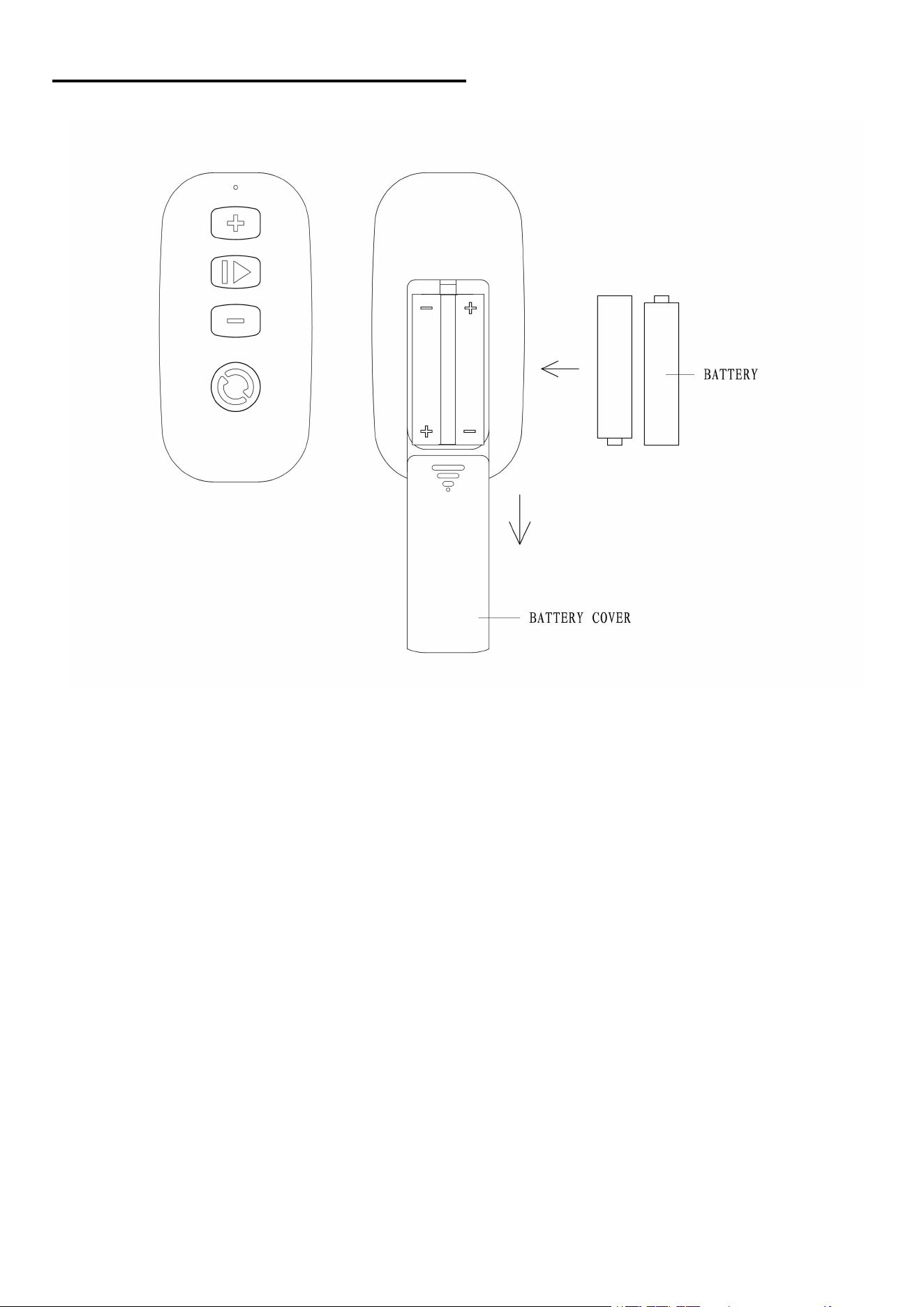

Battery Installation & Replacement
Dispose the old battery (1.5V, AAA) according to your regional guidelines.
9

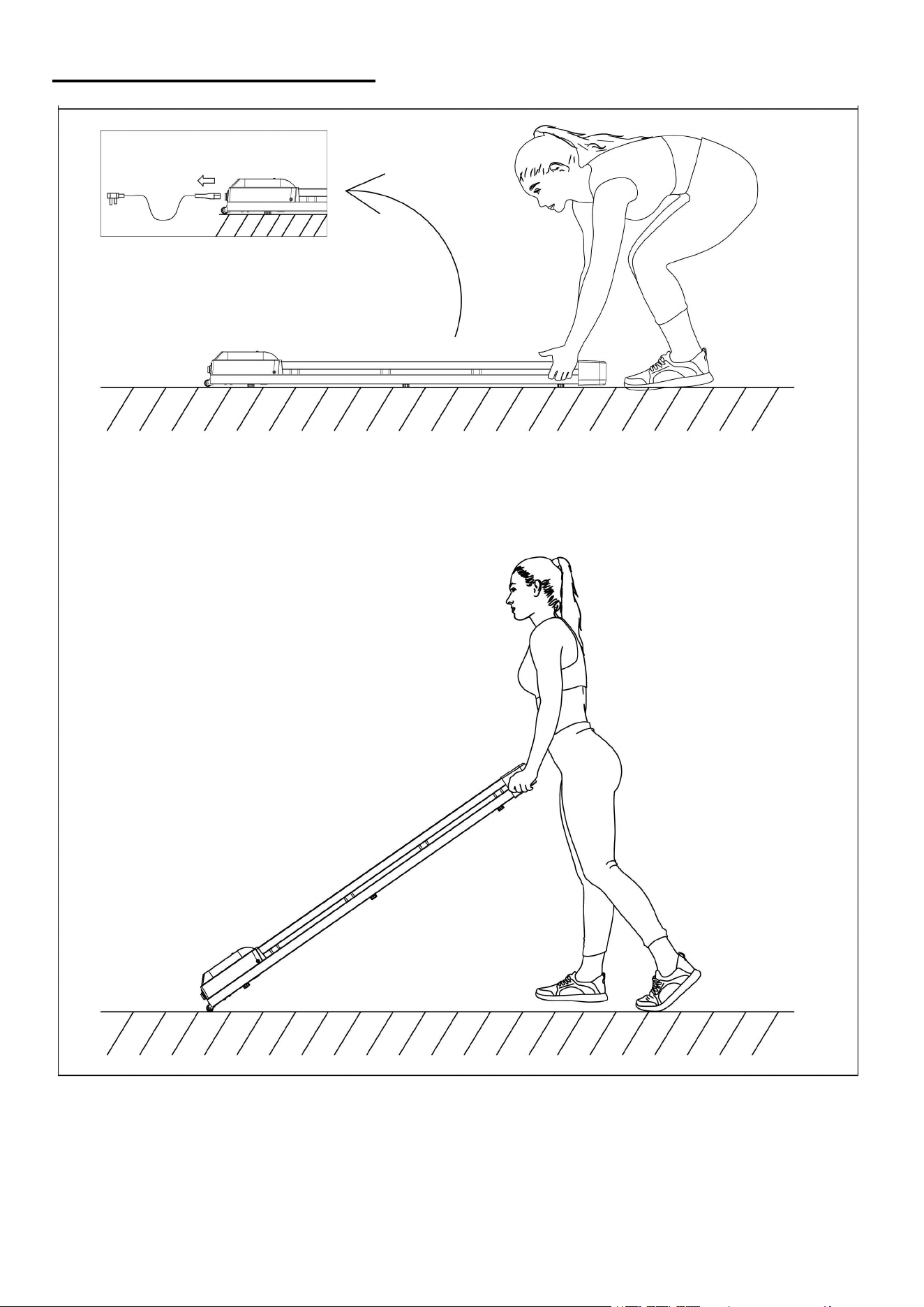

How To Move the Treadmill
10
Maintenance & Care
General cleaning will help prolong the life and performance of your treadmill. Keep the
unit clean and maintained by dusting the components on a regular basis. Clean both
sides of the running belt to prevent dust from accumulating underneath the belt. Keep
your running shoes clean so that dirt from your shoes does not wear out the Running
Board and Running Belt. Clean the surface of the Running Belt with a clean damp cloth.
Keep liquids away from electrical parts and Running Belt.
To better maintain the treadmill and prolong its life, it is suggested that the treadmill
be powered off for 10 minutes every 1 hour of use and fully powered off whenever not in
use.

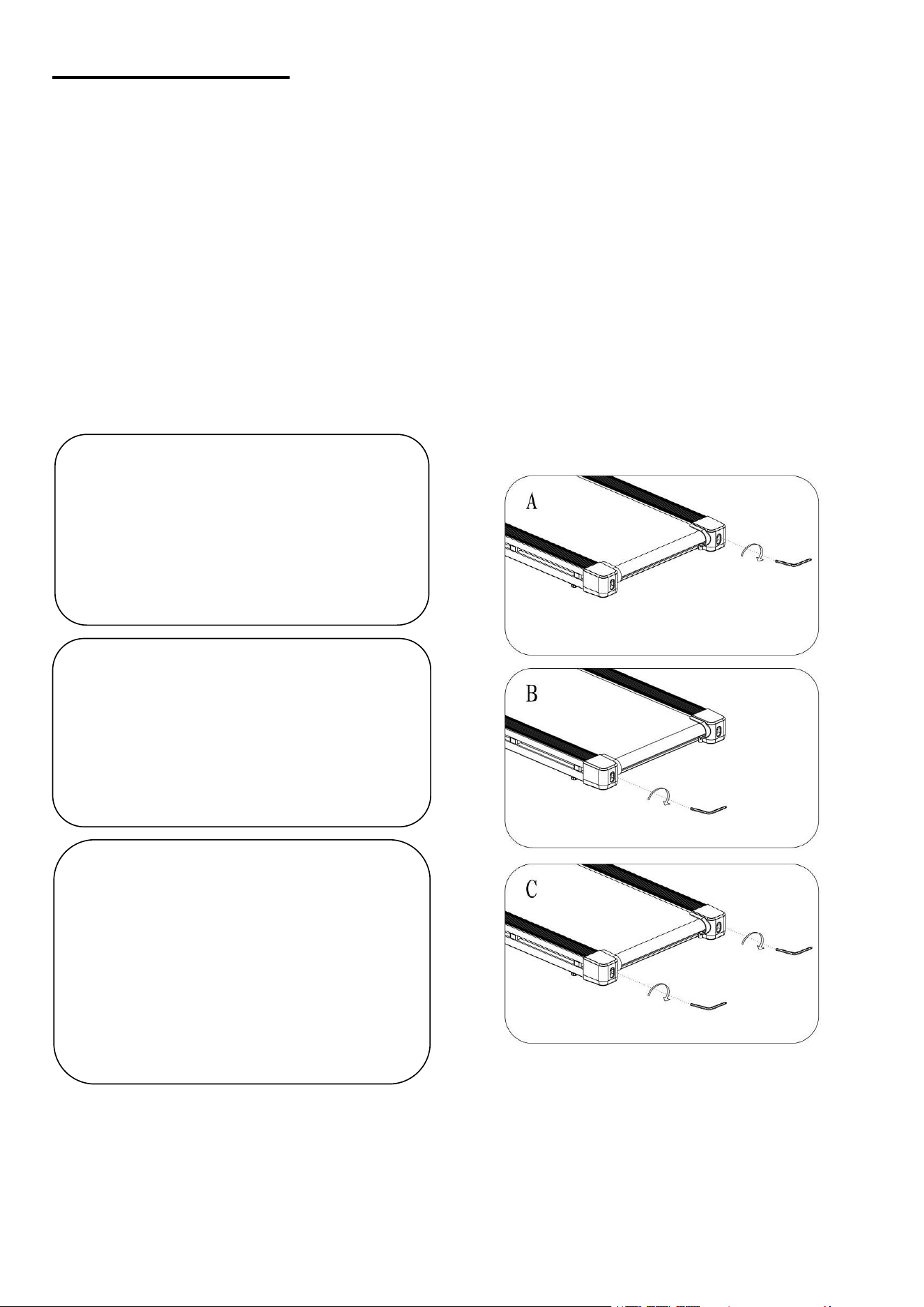

CENTERING THE RUNNING BELT:
Place the treadmill on level ground and set it at 2mph or 3-4 km/h to check if the
Running Belt drifts.
1. If the Running Belt moves to the
right, turn the right adjusting bolt ¼
turn
clockwise
, then turn the left
adjustment bolt ¼ turn
counter-clockwise
. If the belt does
not move, repeat this step until it
centers. Refer to Figure A.
2. If the Running Belt moves to the
left, turn the left adjusting bolts ¼ of
a turn
clockwise
, then turn the right
adjustment bolt ¼ turn
counter-clockwise
. If the belt does
not move, repeat this step until it
centers. Refer to Figure B.
3. Over time the Running Belt will
loosen. To tighten the belt, turn the
Left & Right sides adjustment bolts
one full turn
clockwise
, check the
tension of the belt. Continue this
process until belt is at the correct
tension. Make sure to adjust both
sides equally to ensure correct belt
alignment. Refer to Figure C.
11
Lubricating The Treadmill
IMPORTANT NOTE:
You will need to lubricate your treadmill before the first use. Clean the Running Belt and
Running Board before lubricating.
RUNNING BELT & TREADMILL LUBRICANT:
Lubricating the Running Board and Running Belt is essential as the friction between the
two affects the life span and function of the treadmill. Therefore, it is suggested that the
Running Board and Running Belt be inspected regularly. Should you find any wear on the
Running Board, please contact us at: support@sunnyhealthfitness.com.
WARNING: Always unplug the treadmill from the electrical outlet before cleaning,
lubricating or repairing the unit.
HOW TO LUBRICATE:

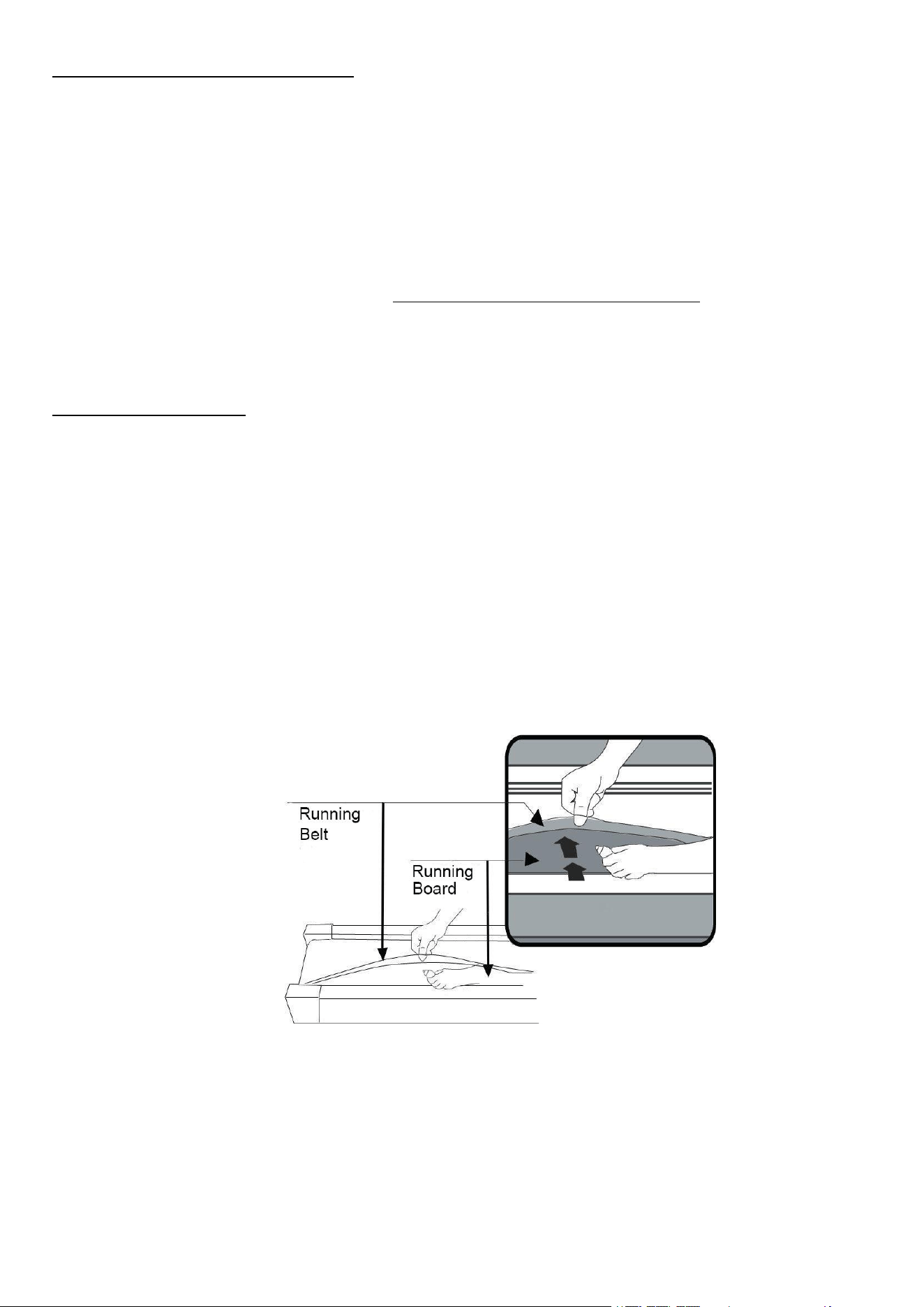

1. To apply lubricant, lift one side of the Running Belt and apply oil to the middle of the
Running Board. Next, start the treadmill and place it at the lowest speed setting and
allow the oil to spread over the Running Board. Repeat this process for the other side.
2. The moving parts should turn freely and quietly. Abnormal moving parts will affect the
safety of the equipment. Inspect and tighten bolts regularly.
3. To better maintain the treadmill and prolong its lifespan, it is suggested that
maintenance be done on a regular basis.
4. DO NOT LOOSEN OR MAKE ANY ADJUSTMENTS TO THE RUNNING BELT WHILE
APPLYING LUBRICANT. A loose Running Belt will result in the runner sliding off during
use, while too tight of a Running Belt will negatively affect the motor’s performance
and create more friction between the roller and Running Belt. The most suitable
tightness for the Running Belt is when it is pulled out 50-75mm from the Running
Board.
The following time table is recommended:
Light user (less than 3 hours/ week)
every six months
Medium user (3-5 hours/ week)
every three months
Heavy user (more than 5 hours/ week)
every two months
12
Important Electrical Information
WARNING: This treadmill requires a power source of 3.65 amps in order to properly
operate. For your safety, as well as the safety of others, verify that the power source is
correct before plugging in the equipment. Any power source above or below this level
could cause significant damage to the equipment and/or user.
GROUNDING METHODS:
This product must be grounded. Grounding provides the least resistance for electrical
current and will reduce the risk of electric shock. The plug must be plugged into an
appropriate outlet that is properly installed and grounded in accordance with all local
codes and ordinances. Ensure that the product is connected to an outlet which contains
the same configuration as the plug. Do not use an adaptor for this product.
This product is for use on a nominal 120V circuit and has a grounding plug that looks like

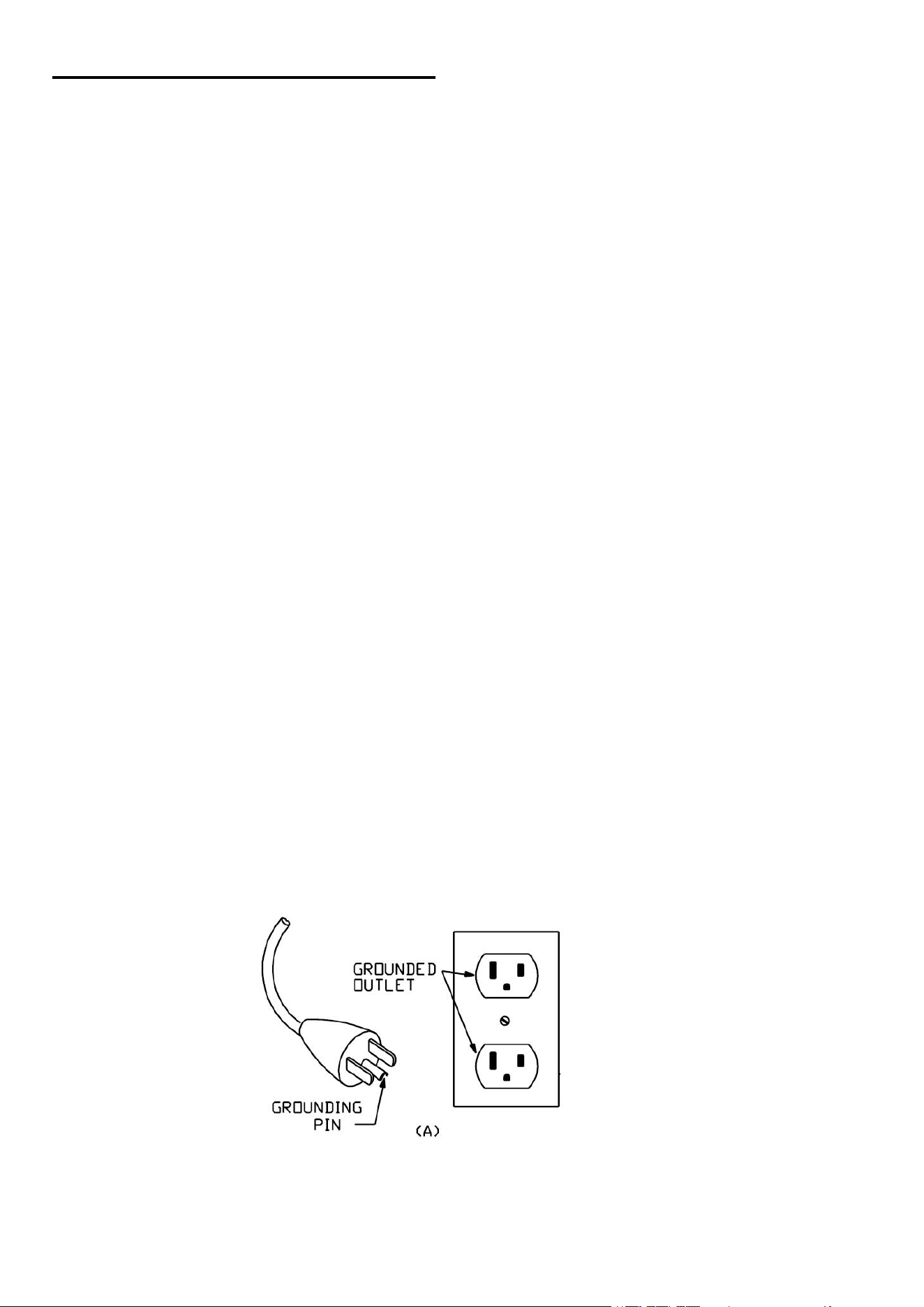

the plug illustrated in sketch A. Make sure that the product is connected to an outlet
having the same configuration as the plug. No adapter should be used with this product.
DANGER:
Improper connection of the equipment-grounding conductor can result in a risk of
electrical shock. Check with a certified electrician if you are in doubt as to whether the
product is properly grounded. Do not modify the plug provided with the product. If it will
not fit the outlet, have a proper outlet installed by an electrician.
WARNING!
1. NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. Route
the power cord away from any moving part of the treadmill including the elevation
mechanism and transportation wheels.
2. NEVER operate the treadmill using a generator or UPS power supply.
3. NEVER remove any cover without first disconnecting AC power.
4. NEVER expose the treadmill to rain or moisture. This treadmill is not designed for use
outdoors, near pools, or in any other high humidity environment.
GROUNDING METHOD
13
The Display Console

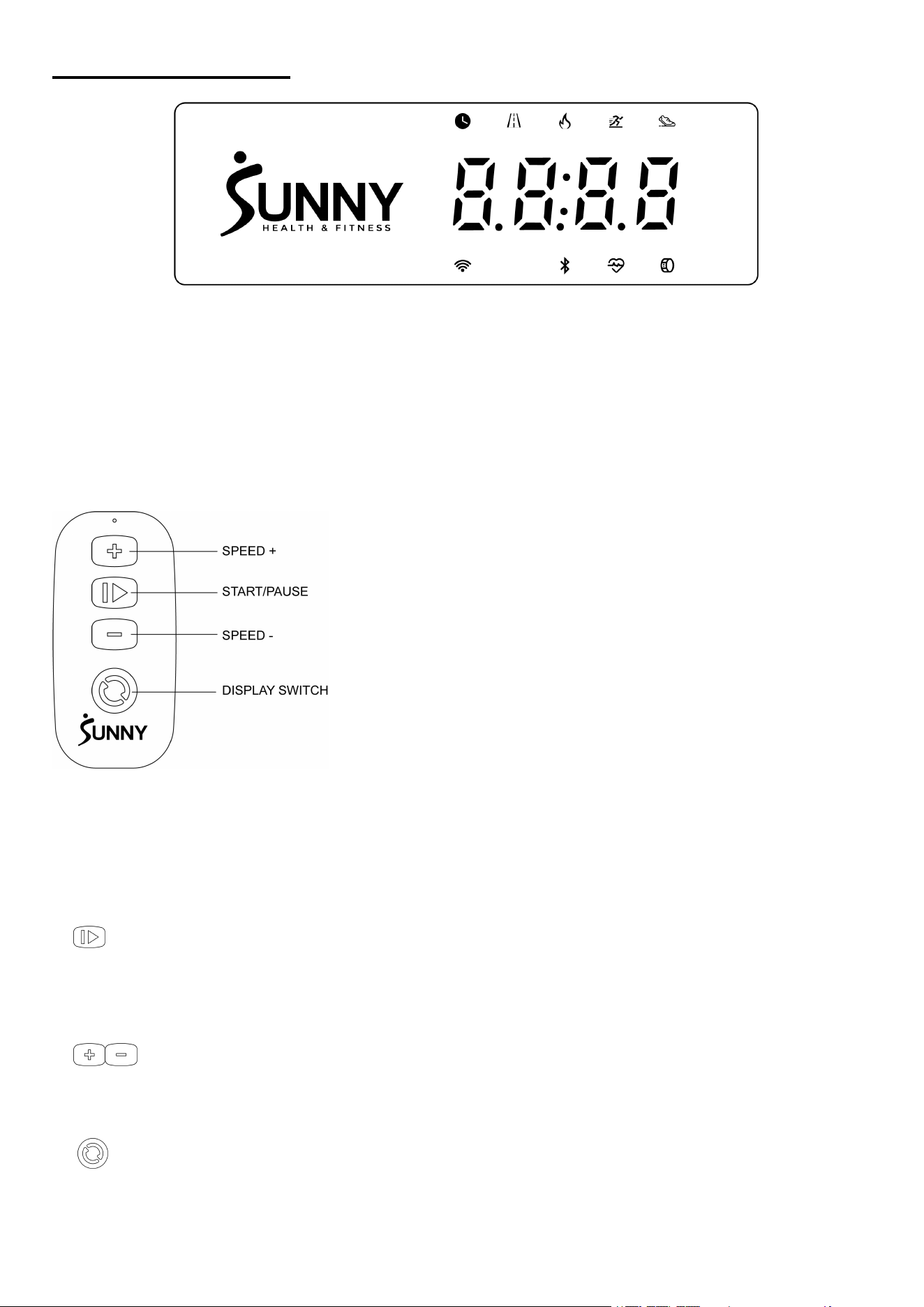

Window Display:
Displays time, distance, calories, steps, pulse and speed value every 5 seconds. Pulse will
display when wireless heartrate monitor is connected.
Remote Control Functions:
NOTE: If the treadmill does not respond to the remote control, you will need to resync
the treadmill and remote control. To sync the remote control with the treadmill, hold
the start/pause button on the remote control and turn on the treadmill. Now keep
holding the start/pause button for five seconds, until you will hear a “beep” sound, that
means the remote control has resynced with the treadmill.
1. START/PAUSE BUTTON: Press the START button to start the treadmill. 0.5 MPH or
0.8KM/H is the default start speed. During exercise, you can press this button to pause
the machine. In “PAUSE” mode, tap this button to restart exercise. Press this button
longer to stop the machine.
2. SPEED +/– BUTTONS: Press the +/- buttons to increase or decrease the speed in
increments of 0.1 MPH or KM/H. Pressing and holding either of these buttons for over ½
a second will increase or decrease the speed continuously.
3. DISPLAY SWITCH BUTTON: When in use, you can press this button to switch the
display between Time, Distance, Calories, Steps, Pulse and Speed value.
*NOTE: The maximum speed on this treadmill is 3.7 MPH or 6 KM/H.
14
How To Switch Between Metric and Imperial System:
Pull out the safety key, long press the Display Switch for 5 seconds, until you hear a
“beep” sound.
Lubrication Reminder:
Your treadmill needs lubrication maintenance every 188 miles/300km. The system will
release a beeping sound every 10 seconds and display an “OIL” icon on your display to
remind you when it’s time. Please read the LUBRICATING THE TREADMILL instructions to
learn the proper steps to lubricate your treadmill. After application, press and hold the
STOP button for 3 seconds to clear the reminder.
Power Save Function:
When the treadmill has been idle for 10 minutes, it will enter Power Saving Mode. While
the treadmill is in this mode, the window display of the console will be turned off. To turn
it back on, press any button.
NOTE: The machine will stop automatically after 15 minutes, if not in use.
POWER ON:
Flick the power switch to this symbol to turn on the treadmill.
POWER OFF:
Flick the power switch to this symbol to turn the treadmill off at any time. This includes
during exercise.
Safety Lock Function:
To stop the treadmill immediately, you can remove the Safety Key from the Motor Top
Cover while the treadmill is running. Once the treadmill reaches a full stop, the window
display on the console will show "----". To start the treadmill again, insert the magnet end
of the Safety Key into the Motor Top Cover and press the START button.
BLUETOOTH :
1. The Bluetooth icon will flash when the console is on or wakes from power saving mode.
If no Bluetooth connection is established within 3 minutes, the Bluetooth icon will turn
off.
2. The Bluetooth icon will stay on when it is connected.
PROGRAMS
Initial
Default Value
Set Range
Display Range
TIME (MIN: SECOND)
0
-
-
0:00—99:59
SPEED(MPH-KM/H)
0.0
0.5MPH
0.8KM/H
0.5-3.7MPH
0.8-6KM/H
0.5－3.7MPH
0.8-6KM/H
DISTANCE(MILES-KM)
0
-
-
0.00--99.9
STEP
0
-
-
0-9999
CALORIE(KCAL)
0
-
-
0.0--9999
15
WIRELESS HEART RATE :
1. The wireless heart rate icon will stay on when the heart rate monitor is connected.
2. The console can be connected to the heart rate monitor at any time except in power
saving mode.
3. The wireless heart rate icon will flash when the console is on. If the heart rate monitor
is not connected within 3 minutes, the wireless heart rate icon will turn off.
NOTE: The heart rate monitor is not included. Wireless heart rate function works with
SunnyFit Heart Rate Monitor HR200.
WIFI :
1. If access point is not configured or fails to be configured, the WIFI indicator light will
turn off.
2. After configuring access point, the WIFI indicator light will flash during the
connection to the server.
3. The WIFI indicator light will stay on when the server is successfully connected.
NOTE:
1. WIFI function only supports 2.4G frequency, not 5G frequency.
2. Please use SunnyFit APP to configure WIFI and configure it according to the wizard on
SunnyFit APP.
Exercise Instructions
Getting Started:
Before starting any exercise program, you should consult your physician to determine if
you have any medical or physical conditions that could put your health and safety at risk
or prevent you from using the equipment properly.
Be aware of your body’s signals. Incorrect or excessive exercise can damage your health.
Stop exercising immediately if you experience any of the following symptoms: pain,
tightness in your chest, irregular heartbeat, shortness of breath, lightheadedness,
dizziness, or feelings of nausea.
Get to know your treadmill. Before attempting to use the treadmill take some time to
stand alongside and familiarize yourself with the controls.
1. Before beginning exercise, stand on side rails.
2. Next, attach the clip end of the Safety Key to your clothes and insert the magnetic
end to the console.
3. Press the START button to start the machine.
4. The machine will start at the system default setting speed of 0.5 MPH
or 0.8 KM/H
.
When you feel comfortable, you may slowly increase the speed.
5. When you are finished with your exercise, press the STOP button or you can remove
the magnetic end of the Safety Key to stop the machine.
16
APP Connection:
Connect Smart Equipment to SunnyFit App:
1. Scan to download SunnyFit from the app store:
2. Ensure that the Bluetooth function is turned on from your mobile device.
3. If this is your first time using the SunnyFit app, follow the in-app instructions to
register for your free SunnyFit account and log in.
4. Begin any workout activity that matches your smart equipment, then follow the
onscreen prompts to search for and connect to your smart equipment.
5. When connected, your stats and records will be displayed at the end of your
course/session and recorded in your account profile!
App Troubleshooting:
If you are having trouble connecting your smart equipment, visit
www.sunnyfit.com/guide or scan the QR code below:
If you require additional support, please contact support@sunnyfit.com.
17
Troubleshooting
PROBLEM
POSSIBLE CAUSE
SUGGESTED ACTION
Treadmill will not
start
Not plugged in.
Plug cord into outlet.
Safety Key not inserted.
Insert Safety Key.
Running belt not
centered
Running belt tension not
correct on the left or right
sides of the running board.
Tighten the adjustment bolts on the left
and right side of the rear roller.
Console not working
Wires from the console and
bottom control board are
not properly connected.
Check wire connections
from the console to the control board.
Transformer is damaged.
If the transformer is damaged, contact
customer service.
E01/E13 ERROR:
Message failure
Wires from the console
and bottom control board
are not properly connected.
Check wire connections from the console
to the control board. If the wire has been
punctured or damaged, you will need to
replace it. If the problem is not rectified,
you may need to replace the control
board.
E02 ERROR: Burst
clash protection
Incoming voltage is lower
than 50% of the required
voltage.
Check that the incoming power supply is
the correct voltage.
E05 ERROR: Current
overload protection
(Self Protecting
System)
The incoming voltage is too
low or too high. The control
board is damaged.
Restart the treadmill. Check the
incoming voltage to ensure its correct.
Check the control board, replace if
damaged.
A moving part on the
treadmill is stuck and
therefore the motor is
unable to rotate properly.
Inspect moving parts on the treadmill to
ensure that they are operating correctly.
Check the motor, listen for any strange
noises and check for a burning smell.
Replace the motor if necessary.
E06 ERROR: Motor
abnormality
The motor wire is not
connected, or the motor is
damaged.
Check motor wires to see if the motor is
connected. If the wire has been
punctured or damaged, you will need to
replace it. If the problem is not rectified,
you may need to replace the motor.
18
E08 ERROR: Control
board abnormality
The control board is not
connected.
Check the upper and middle wires to see
if the control board is connected. If the
wire has been punctured or damaged,
you will need to replace it. If the problem
is not rectified, you may need to replace
the control board.
E09 ERROR: Inversion
error
The treadmill sets upright or
not placed horizontally.
Adjust the treadmill and place it
horizontally.
If the wires of the control board do not
connect well, replace to a new control
board.
E10 ERROR: Motor
abnormality
The motor is damaged, or a
moving part of the treadmill
is stuck and therefore the
motor is unable to rotate
properly.
Inspect moving parts of the treadmill to
ensure that they are operating correctly.
Replace the motor if necessary.
19

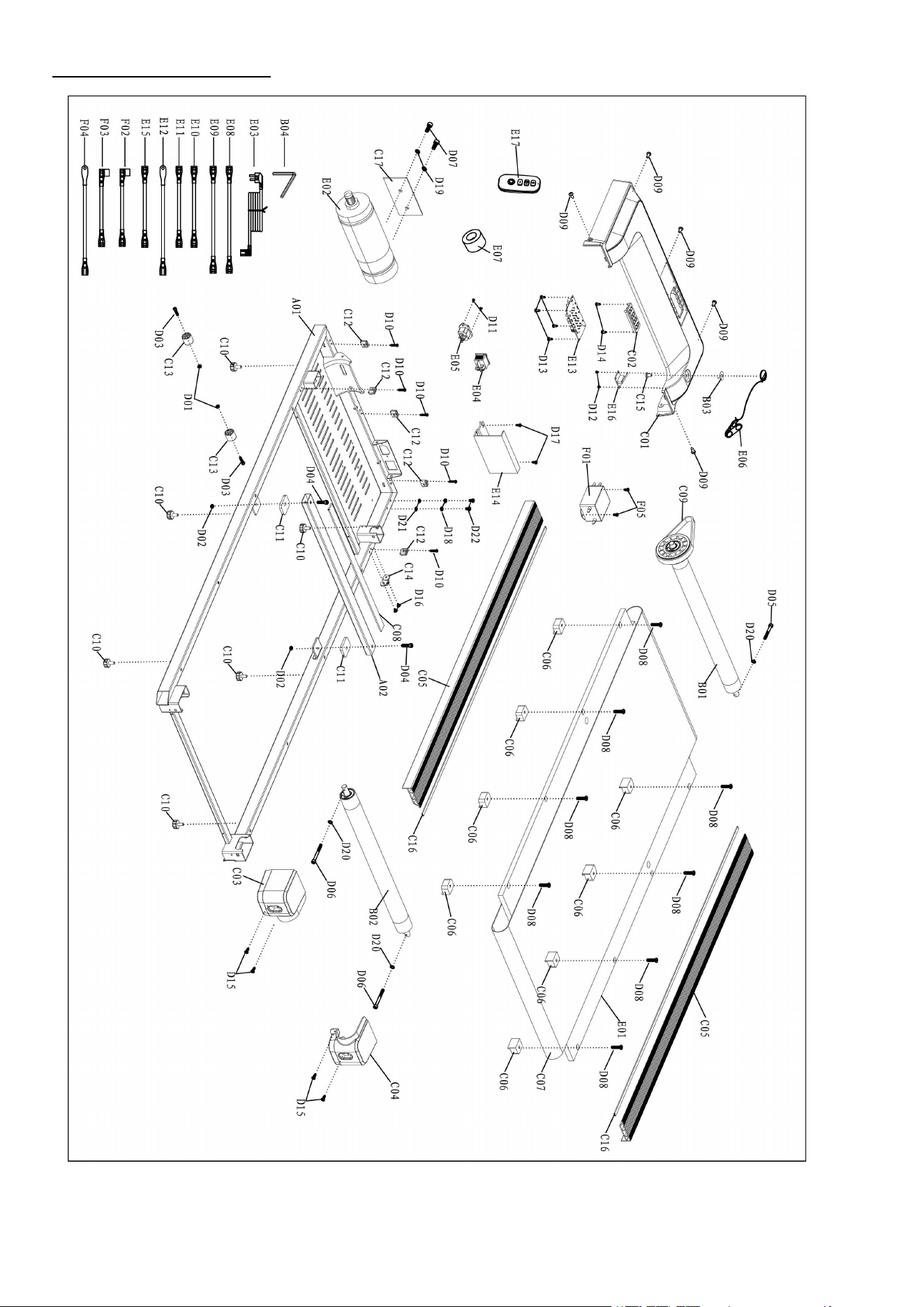

Exploded Diagram
20
Parts List
Version 2.0
No.
Description
Specification
Qty.
No.
Description
Specification
Qty.
A01
Main Frame
1
D12
Screw
ST2.5*6
2
A02
Running Board
Strengthen Tube
1
D13
Screw
ST2.2*8
4
B01
Front Roller
1
D14
Screw
ST2.0*8
2
B02
Rear Roller
1
D15
Screw
ST4.2*12
4
B03
Safety Key Plate
1
D16
Screw
ST4.2*12
2
B04
Allen Wrench
5mm
1
D17
Bolt
M5*12
2
C01
Motor Top Cover
1
D18
Spring Washer
5
2
C02
Optical Grating
1
D19
Spring Washer
8
2
C03
Left End Cap
1
D20
Locking Washer
6
3
C04
Right End Cap
1
D21
Locking Washer
5
2
C05
Side Rail
2
D22
Bolt
M5*12
2
C06
Cushion
8
E01
Running Board
1
C07
Running Belt
1
E02
DC motor
1
C08
EVA pad 1
1
E03
Power Cord
1
C09
Motor Belt
1
E04
Square Switch
1
C10
Foot Pad
6
E05
Power Socket
1
C11
Rubber Cushion
2
E06
Safety Key
1
C12
Fixed Plate
5
E07
Magnetic Core
1
C13
Transportation Wheel
2
E08
AC Single Line 350mm
Brown
1
C14
Lead Wire Buckle
1
E09
AC Single Line 350mm
Blue
1
C15
Safety Key Marble
1
E10
AC Single Line 200mm
Brown
1
C16
EVA Pad 2
2
E11
AC Single Line 200mm
Blue
1
C17
EVA Pad 3
1
E12
Grounding Wire
1
D01
Nut
M5
2
E13
Console
1
D02
Nut
M6
2
E14
Control Board
1
D03
Bolt
M5*35
2
E15
Console Communication
Wire
1
D04
Bolt
M6*30
2
E16
Induction Switchboard
1
D05
Bolt
M6*35
1
E17
Remote Control
1
D06
Bolt
M6*65
2
F01
Filter
1
D07
Bolt
M8*12
2
F02
AC Single Line 350mm
Blue
1
D08
Bolt
M6*60
8
F03
AC Single Line 350mm
Brown
1
D09
Screw
ST4.2*12
5
F04
Grounding Wire
1
D10
Screw
ST4.2*20
5
F05
Bolt
M4*6
2
D11
Screw
ST2.9*8
2
21
Register
Register your product and verify warranty terms:
Sunnyhealthfitness.com/warranty
Download
Track your fitness progress & join FREE workout courses!
Download SunnyFit App today!
Follow
Find us on social media
Contact
Get in touch with us for any questions
1-877-90SUNNY (877-907-8669)
support@sunnyhealthfitness.com
www.sunnyhealthfitness.com
