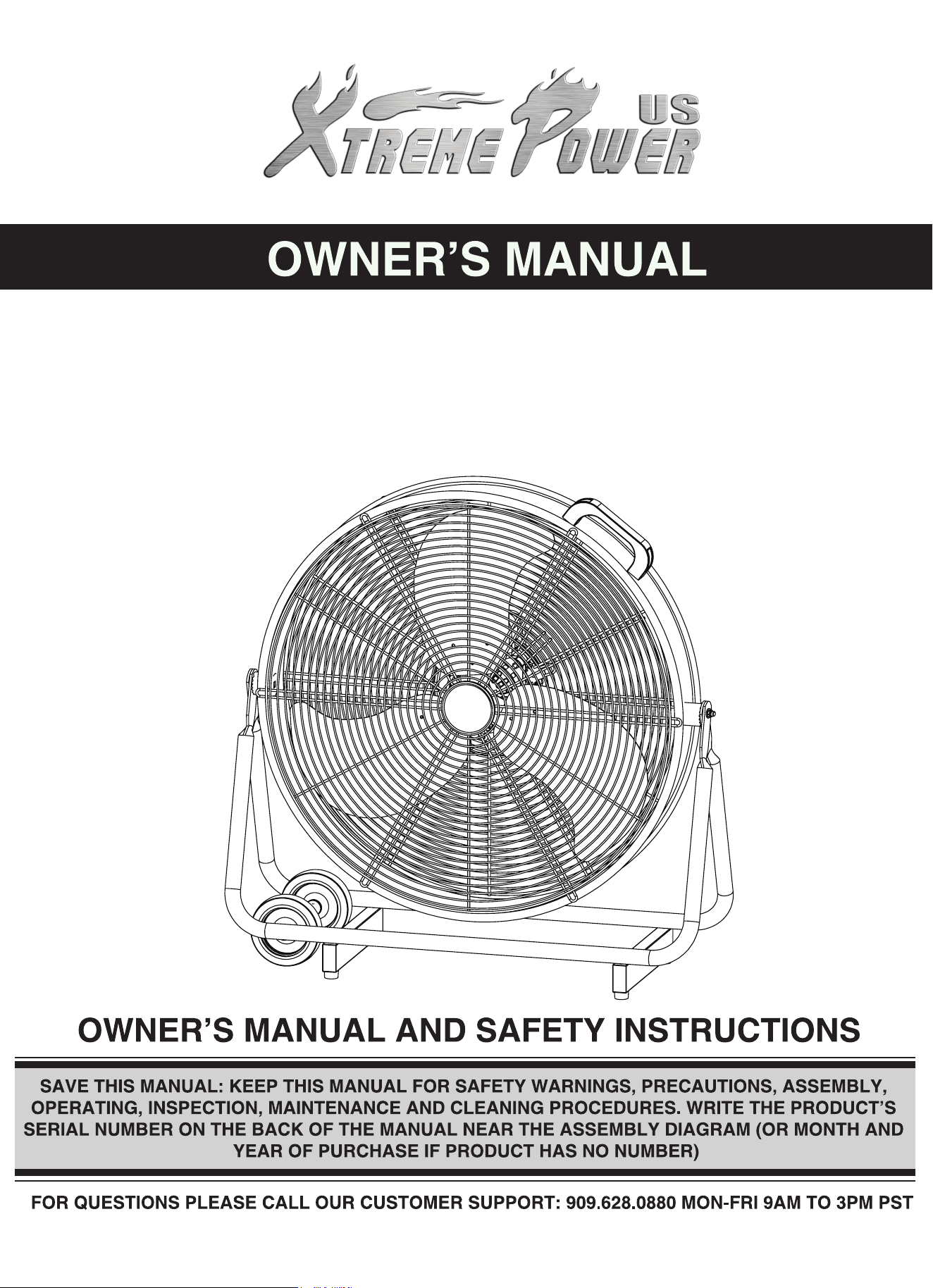

24 IN. DRUM FAN
SKU: 92024
WARNING
CAUTION
1. Read and save these instructions. Do not operate fan unless you have
read these instructions.
2. Unplug the fan before moving it or performing maintenance. Do not
touch the fan when your hands are wet.
3. Those who are not qualified electricians should not disassemble, repair
or rebuild the fan.
4. Unplug the fan when it is not in use.
5. DO NOT unplug the fan by pulling the cable cord. Unplug by holding
the plug and pulling.
6. DO NOT use the fan when there is damage to the cable cord or plug.
If the supply cord is
damaged, it has to be replaced by the manufacturer,
its service agent or similarly qualified persons.
7. DO NOT use the fan with an extension cord.
8. DO NOT use the fan close to fires or flammable material.
9. DO NOT insert your hand or other objects into the grill or the movable
parts.
10. To reduce the risk of fire or electric shock, do not use this fan with
any solid-state speed control device.
11. DO NOT use this fan outdoors, this fan is designed for indoor use only.
1. Unplug the fan from the socket and clean it with a soft cloth.
2. DO NOT immerse the fan in liquid.
3. Fit the guard onto the fan before starting up the fan.
4. This fan is not intended for use by people (including children) with
reduced physical, sensory or mental capabilities or lack of experience
and knowledge unless they have been given supervision or instruction
concerning use of the fan by a person responsible for their safety.
Supervise children to ensure they do not play with the fan.
SAFETY INFORMATION
1
2
This fan is completely assembled upon delivery- no assembly required.
ASSEMBLY INSTRUCTION
1. Place the fan on a safe, flat surface where it can not fall or be pulled by
the cord.
2. Adjust the desired speed by rotating the switch knob at the back of fan.
3.
Tilt the fan head up or down for desired direction of air flow.
OPERATION INSTRUCTION
0 Stop 1 Low 2 Medium 3 High
Unplug the appliance before cleaning. Don’t use any water for cleaning
metal surfaces. Slightly moisten a cloth and then wipe off the surfaces of
the fan. In order to remove dust from the grill, use a vacuum cleaner or
remove the front grill by removing the securing screws on the edge of the
grill. After cleaning, remount the grill. After doing this, fasten the screws on
the edge of the grill.
CARE AND CLEANING
PART LIST
3
PART DESCRIPTION PART #
92024-01
92024-08
92024-02
92024-03
92024-04
92024-05
A
B
C
D
E
Front Grill
Drum
Blade
Rear Grill
Motor
92024-06
92024-07
92024-09
92024-10
92024-11
92024-12
F
G
H
I
J
K
L
Switch Box
Switch Flange
Switch Knob
Capacitor
Base Assembly
Wheel Assembly
Switch
J
K
L
A B C E F G H ID
PRODUCT MADE IN CHINA
3
IO
4
