1 Overview
ATBM6162-44PE-02 series module is a highly integrated 2.4&5GHz dual band, Wi-Fi 4/5/6 (802.11 a/b/g/n/ac/ax),
20MHz and 40MHz bandwidth Wireless LAN (WLAN) device with SDIO 2.0 interface, based on AltoBeam’s
ATBM6162 chip. Optional support for IPEX connector and shielding case. ATBM6162-44PE supports Bluetooth LE
v5.0, Long range (Coded PHY), and Wi-Fi paring with BLE.
ATBM6162-44PE series modules consist of the following models.
Module models
Shielding case
IPEX connector
ATBM6162-44PE-02
Yes
No

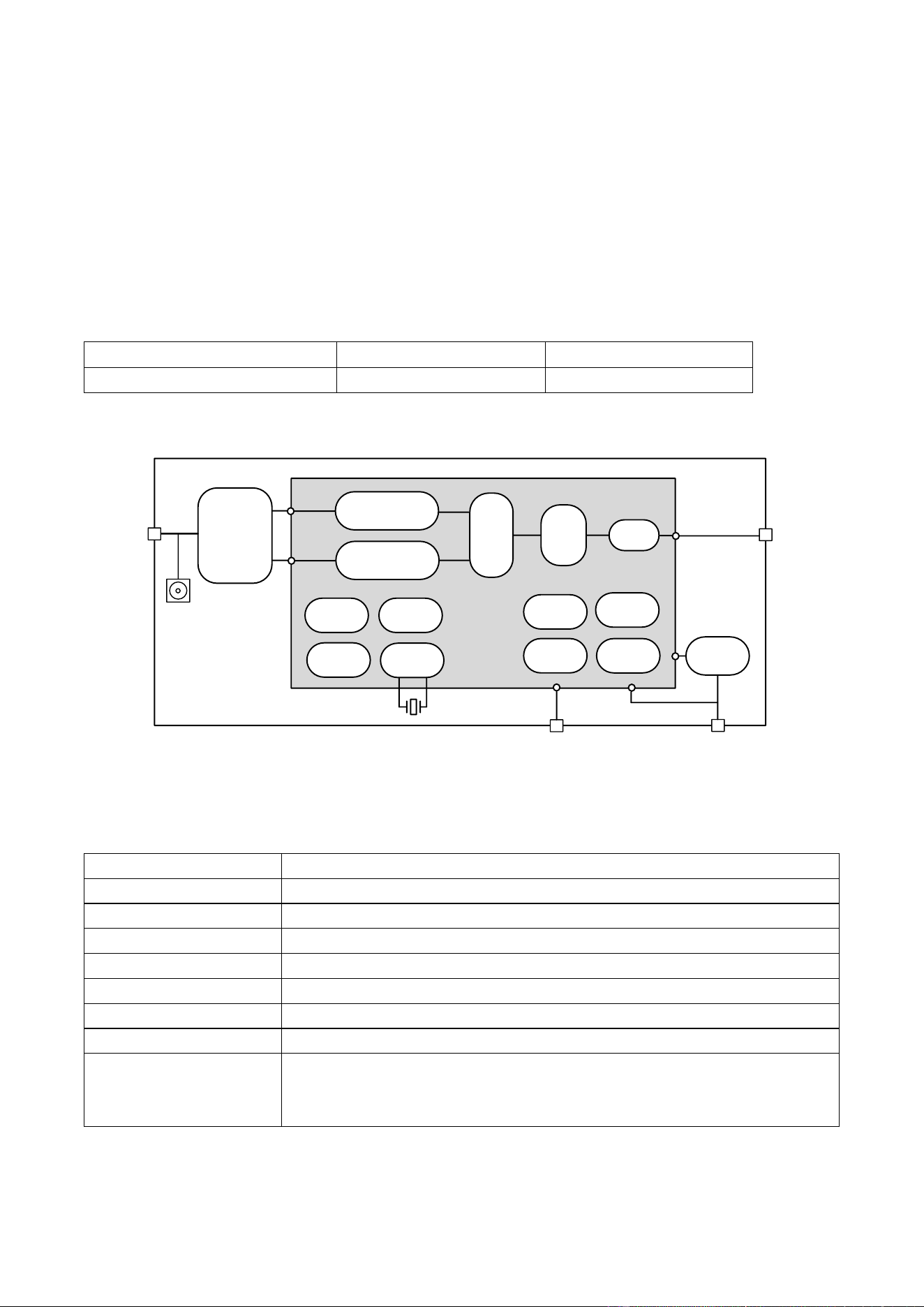

The block diagram of ATBM6162-44PE-02 series modules is shown below.
SDIO
Host
3.3V power supply
SDIO
2.0
MACBBP
RAM
ROM
OTP
2.4GHz RF
DCXO
40MHz
XTAL
Diplexer &
Matching
circuit
LDOs
POR
5GHz RF
External
DC/DC
ANT
ATBM6162-44PE Module
ATBM6162
ADC PLL
IPEX
(Optional)
1.8V or 3.3V
SDIO power supply
1.1 General specifications
Wi-Fi chip
AltoBeam ATBM6162
Host interface
SDIO 2.0
RF antenna
External 2.4&5GHz dual band antenna
Security
WPA, WPA2, WPA3 personal
Power supply requirement
3.3VDC 800mA
Operating temperature
-40 ~ +85℃ ambient temperature
Storage temperature
-50~ +125℃ ambient temperature
Humidity
5% to 90% maximum (non-condensing)
Dimension
ATBM6162-44PE: Typical L12.00*W12.00*H1.80mm (±0.2mm)
ATBM6162-44PE-01: Typical L12.00*W12.00*H2.00mm (±0.2mm)
ATBM6162-44PE-02/03: Typical L12.00*W12.00*H2.40mm (±0.2mm)
AltoBeam Inc. Confidential Document 2
1.2 2.4GHz Wi-Fi RF specifications
General specification
Operating frequency
2.412 ~ 2.484 GHz
Channel
CH1 ~ CH14 (20MHz channels)
Standard
IEEE 802.11b/g/n/ax 1T1R
Modulation
802.11b (DSSS/CCK): DBPSK, DQPSK, BPSK, QPSK
802.11g/n/ax (OFDM): BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM
Bandwidth
802.11b/g: ≤20MHz
802.11n/ax: ≤40MHz
PHY data rates
802.11b: 1, 2, 5.5, 11Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
802.11n: MCS0~7, up to 150Mbps
802.11ax: MCS0~11, up to 286.8Mbps
Frequency offset
≤ ±10ppm
Rx performance
Mode
Min. Sensitivity (dBm)
Max. Sensitivity (dBm)
802.11b, 1Mbps
-99.7
-10
802.11b, 11Mbps
-91.7
-10
802.11g, 6Mbps
-96.5
-10
802.11g, 54Mbps
-79.1
-10
802.11n, MCS0, HT20
-96.8
-10
802.11n, MCS7, HT20
-78.2
-10
802.11ax, MCS0, HE20
-97.7
-10
802.11ax, MCS11, HE20
-66.3
-10
802.11n, MCS0, HT40
-93.7
-10
802.11n, MCS7, HT40
-74.9
-10
802.11ax, MCS0, HE40
-94.5
-10
802.11ax, MCS11, HE40
-62.3
-10
AltoBeam Inc. Confidential Document 3
1.3 5GHz Wi-Fi RF specifications
General specification
Operating frequency
5.15 ~ 5.25GHz; 5.25 ~ 5.35GHz; 5.47~5.73GHz; 5.735~5.835GHz
Channel
CH36, CH40, CH44, CH48, CH52~CH64,
CH100~CH140, CH149~CH165 (20MHz channel)
Standard
IEEE 802.11a/n/ac/ax 1T1R
Modulation
802.11a/n/ac/ax (OFDM): BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM
Bandwidth
802.11a: ≤20MHz
802.11n/ac/ax: ≤40MHz
PHY data rates
802.11a: 6, 9, 12, 18, 24, 36, 48, 54Mbps
802.11n: MCS0~7, up to 150Mbps
802.11ac: MCS0~9, up to 200Mbps
802.11ax: MCS0~11, up to 286.8Mbps
Frequency offset
≤±10ppm
Rx performance at CH36
Mode
Min. Sensitivity (dBm)
Max. Sensitivity (dBm)
802.11a, 6Mbps
-94.5
-10
802.11a, 54Mbps
-76.7
-10
802.11n, MCS0, HT20
-95.4
-10
802.11n, MCS7, HT20
-76.0
-10
802.11ac, MCS0, VHT20
-95.2
-10
802.11ac, MCS8, VHT20
-72.2
-10
802.11ax, MCS0, HE20
-94.7
-10
802.11ax, MCS11, HE20
-63.2
-10
802.11n, MCS0, HT40
-92.3
-10
802.11n, MCS7, HT40
-72.9
-10
802.11ac, MCS0, VHT40
-92.3
-10
802.11ac, MCS9, VHT40
-67.0
-10
802.11ax, MCS0, HE40
-92.3
-10
802.11ax, MCS11, HE40
-59.1
-10
Rx performance at CH100
Mode
Min. Sensitivity (dBm)
Max. Sensitivity (dBm)
802.11a, 6Mbps
-94.9
-10
802.11a, 54Mbps
-77.1
-10
802.11n, MCS0, HT20
-95.8
-10
802.11n, MCS7, HT20
-76.4
-10
802.11ac, MCS0, VHT20
-95.8
-10
802.11ac, MCS8, VHT20
-72.6
-10
802.11ax, MCS0, HE20
-95.9
-10
802.11ax, MCS11, HE20
-63.1
-10
802.11n, MCS0, HT40
-92.7
-10
802.11n, MCS7, HT40
-73.3
-10
802.11ac, MCS0, VHT40
-92.7
-10
AltoBeam Inc. Confidential Document 4
802.11ac, MCS9, VHT40
-67.4
-10
802.11ax, MCS0, HE40
-92.7
-10
802.11ax, MCS11, HE40
-59.3
-10
Rx performance at CH161
Mode
Min. Sensitivity (dBm)
Max. Sensitivity (dBm)
802.11a, 6Mbps
-93.3
-10
802.11a, 54Mbps
-75.7
-10
802.11n, MCS0, HT20
-94.4
-10
802.11n, MCS7, HT20
-75.0
-10
802.11ac, MCS0, VHT20
-94.4
-10
802.11ac, MCS8, VHT20
-71.2
-10
802.11ax, MCS0, HE20
-94.3
-10
802.11ax, MCS11, HE20
-62.1
-10
802.11n, MCS0, HT40
-91.3
-10
802.11n, MCS7, HT40
-71.9
-10
802.11ac, MCS0, VHT40
-91.3
-10
802.11ac, MCS9, VHT40
-66.0
-10
802.11ax, MCS0, HE40
-91.5
-10
802.11ax, MCS11, HE40
-59.1
-10
1.4 BLE RF specifications
Standard
Bluetooth LE v5.0
Operating frequency
2.402 ~ 2.480GHz
Rx Sensitivity
1Mbps: -100.0dBm
2Mbps: -97.0dBm
Coded PHY, S=2: -102.0dBm
Coded PHY, S=8: -107.0dBm
AltoBeam Inc. Confidential Document 5
2 Mechanical Specification
2.1 Outline drawing
The typical module size of ATBM6162-44PE module is L12.00*W12.00*H1.80mm (±0.2mm).
The typical module size of ATBM6162-44PE-01 module is L12.00*W12.00*H2.00mm (±0.2mm).
The typical module size of ATBM6162-44PE-02/03 module is L12.00*W12.00*H2.40mm (±0.2mm).

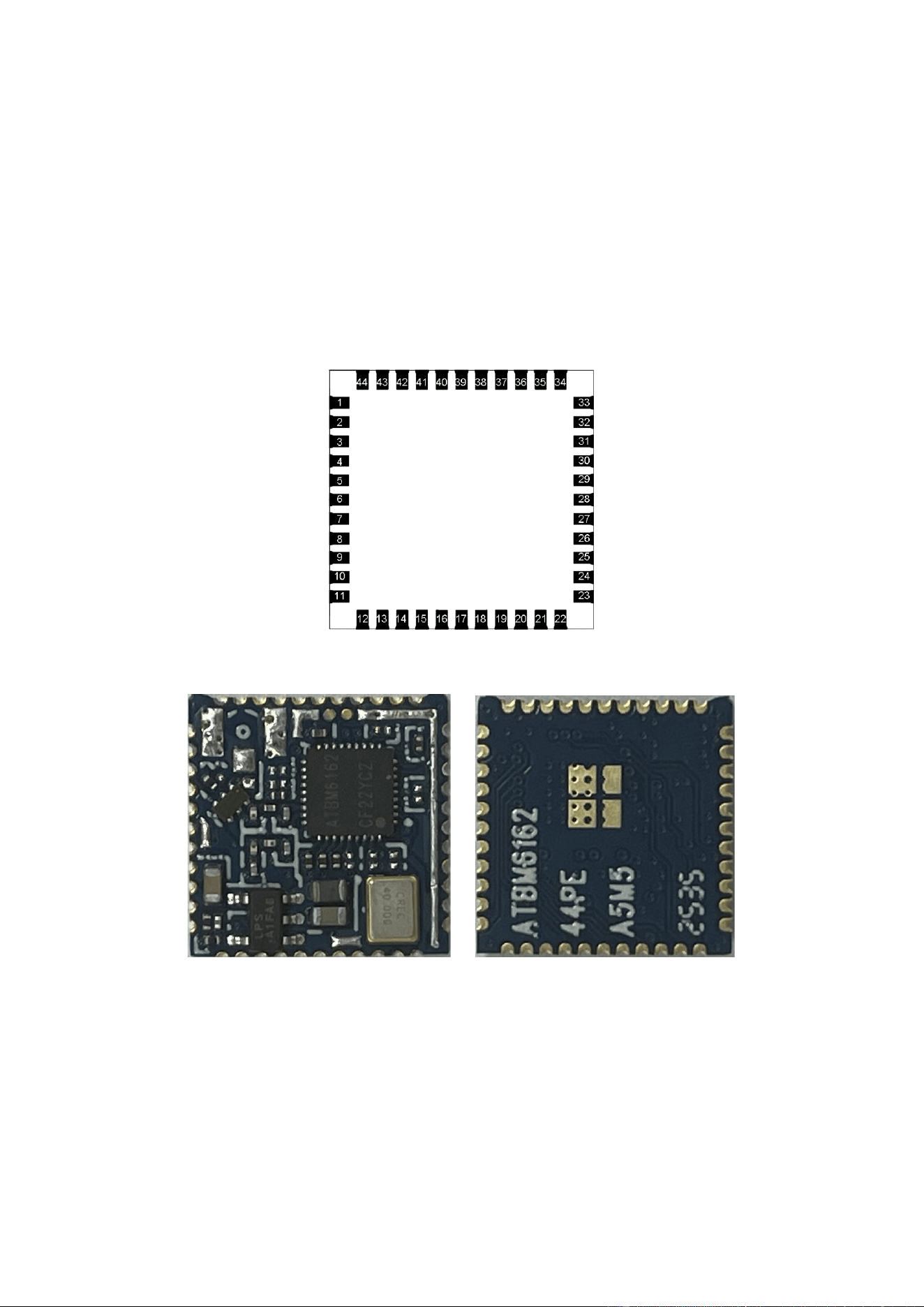

Outline drawing (Top View)
ATBM6162-44PE module appearance
AltoBeam Inc. Confidential Document 6

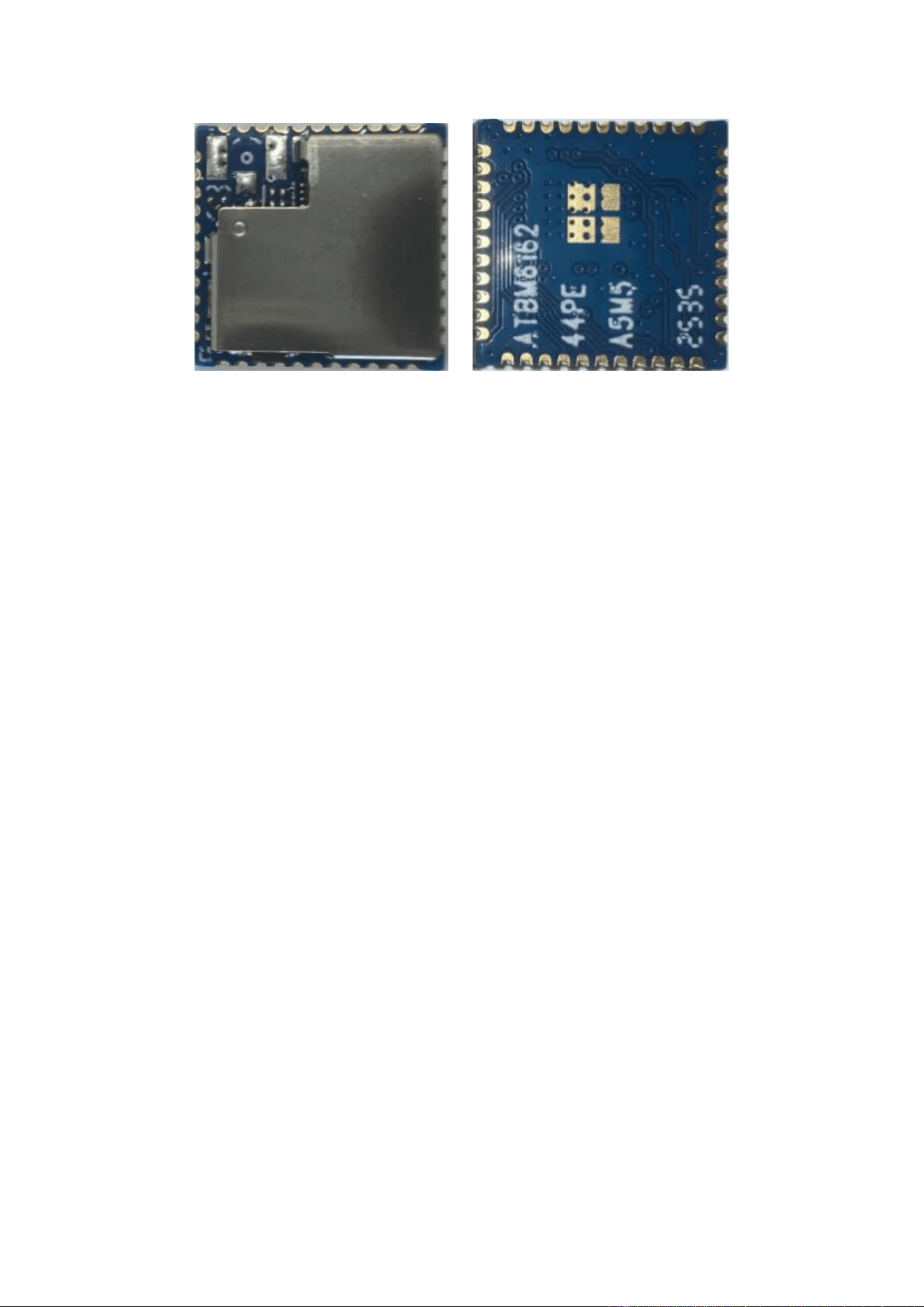

ATBM6162-44PE-02 module appearance
AltoBeam Inc. Confidential Document 7
2.2 Pin definition
Pin Number
Pin Name
Pin Description
1
GND
Ground
2
ANT1
External Antenna (2.4&5GHz 50Ohm)
3
GND
Ground
4
NC
5
NC
6
NC
7
BT_WAKE_HOST
BLE wakes up host, connected to GPIO18
8
NC
9
VDD
DC 3.3V power supply
10
NC
11
NC
12
CS
Hardware reset pin, low level will reset chip.
Note: The high level is 3.3V and doesn’t vary with VDDIO
voltage.
13
WL_WAKE_HOST
Wi-Fi wakes up host, connected to GPIO19
14
SDIO_DAT2
SDIO data 2
15
SDIO_DAT3
SDIO data 3
16
SDIO_CMD
SDIO command
17
SDIO_CLK
SDIO clock
18
SDIO_DAT0
SDIO data 0
19
SDIO_DAT1
SDIO data 1
20
GND
Ground
21
NC
22
VDDIO
1.8V or 3.3V SDIO interface power supply
Note: Even if SDIO interface is powered by 1.8V, the other
digital I/Os are still 3.3V.
23
NC
I2C SDA for debug
24
NC
I2C SCL for debug
25
NC
26
NC
27
NC
28
NC
29
NC
30
NC
31
GND
Ground
32
NC
33
GND
Ground
34
NC
35
NC
AltoBeam Inc. Confidential Document 8
Pin Number
Pin Name
Pin Description
36
GND
Ground
37
NC
38
NC
39
NC
40
NC
41
GND
Ground
42
NC
43
NC
44
NC
-
ANT2
Optional IPEX connector to external 2.4&5GHz antenna
AltoBeam Inc. Confidential Document 9

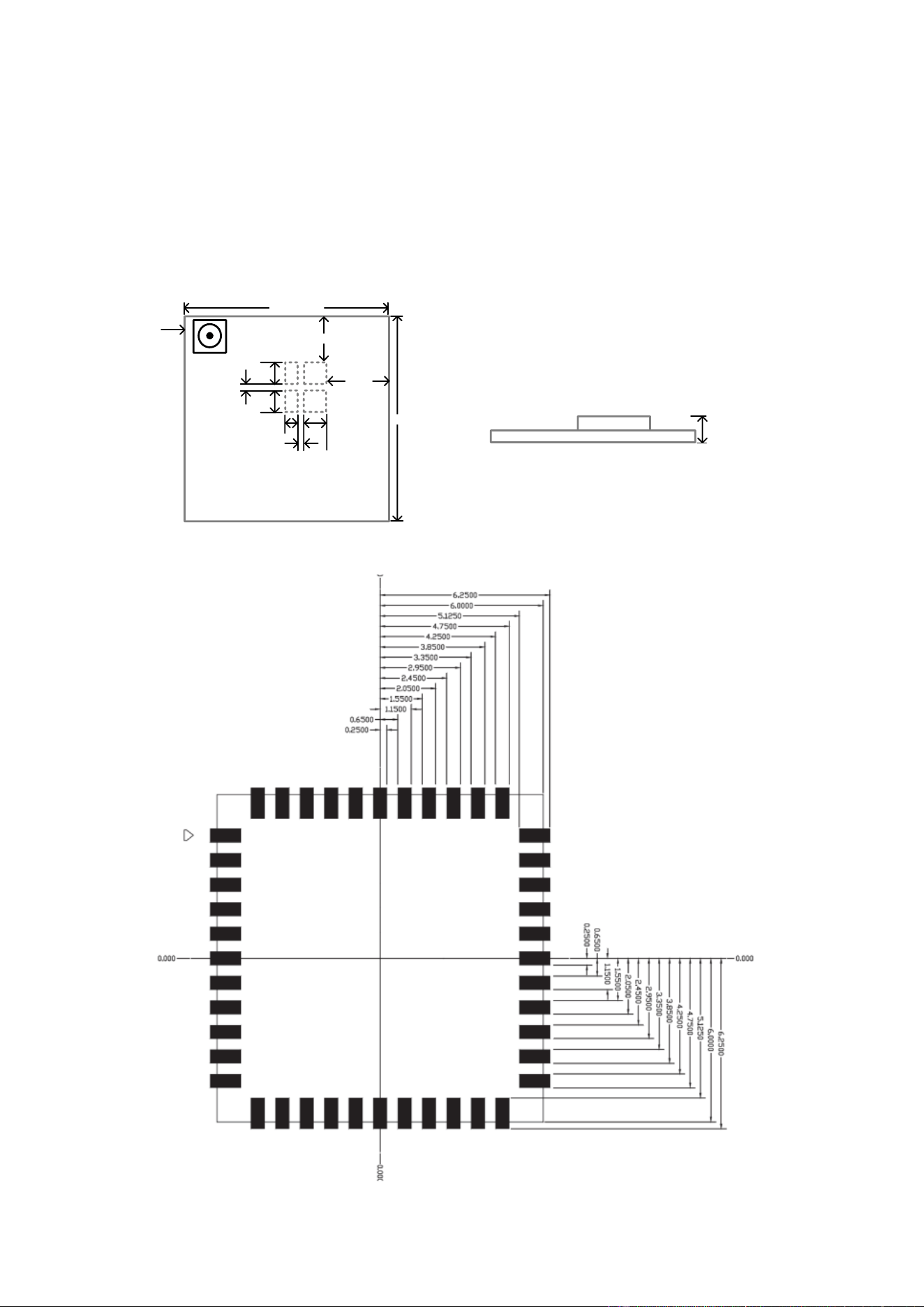

3 Dimensions (Unit: mm)
Note: The solder mask opening is located on the bottom of module, the location of solder mask opening is top view
position.
12 ±0.2
12 ±0.2
<Top View>
<Side View>
1.80 ±0.2
<Top View>
2.40 ±0.2
to
3.05
4.30
0.28
Pin #1
0.90 1.32
1.32
0.28
1.32
AltoBeam Inc. Confidential Document 10

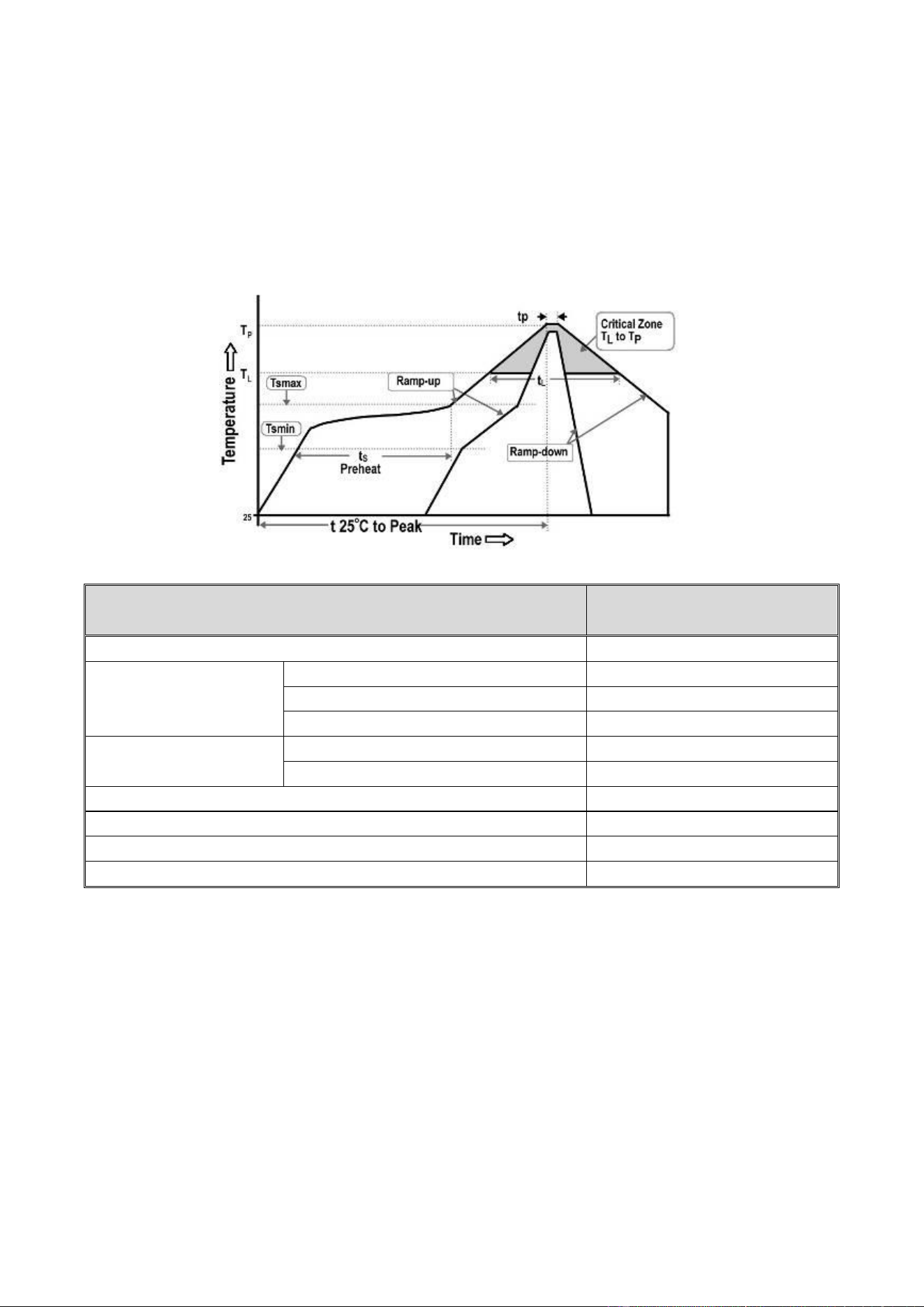

4 Solder Reflow Profile
Referred to IPC/JEDEC standard.
Peak Temperature: ≤260℃
Number of Times: ≤2 times
Profile Feature
Specification
Average ramp-up rate (Tsmax to T
P
)
2℃/second max.
Pre-heat
Minimal temperature (Tsmin)
150℃
Maximal temperature (Tsmax)
200℃
Time (ts)
60~120 seconds
Time maintained above
Temperature (T
L
)
217℃
Time (t
L
)
40~60 seconds
Peak/Classification temperature (T
P
)
260℃
Time within 5℃ of actual peak temperature (t
P
)
10~20 seconds
Ramp-down rate
2.5℃/second max.
Time 25℃ to peak temperature
8 minutes max.
5 Packing Information
Packing: Tape and Reel
MPQ (Minimum Packing Quantity): 1,500pcs
AltoBeam Inc. Confidential Document 11
FCC WARNING
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This device and its antenna(s) must not be co-located or operating in conjunction
with any other antenna or transmitter.
15.105 Information to the user.
(b) For a Class B digital device or peripheral, the instructions furnished the
user shall include the following or similar statement, placed in a prominent
location in the text of the manual:
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20 cm between the radiator and your body.
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
The availability of some specific channels and/or operational frequency bands
are country dependent and are firmware programmed at the factory to match
the intended destination.
The firmware setting is not accessible by the end user.
The final end product must be labelled in a visible area with the following:
“Contains Transmitter Module FCC ID:2BN5S-2602B”
Requirement per KDB996369 D03
2.2 List of applicable FCC rules
AltoBeam Inc. Confidential Document 12
List the FCC rules that are applicable to the modular transmitter. These are the rules that
specifically establish the bands of operation, the power, spurious emissions, and operating
fundamental frequencies. DO NOT list compliance to unintentional-radiator rules (Part 15 Subpart
B) since that is not a condition of a module grant that is extended to a host manufacturer. See also
Section 2.10 below concerning the need to notify host manufacturers that further testing is
required.3
Explanation: This module meets the requirements of FCC part 15C(15.247).FCC Part 15.407
2.3 Summarize the specific operational use conditions
Describe use conditions that are applicable to the modular transmitter, including for example any
limits on antennas, etc. For example, if point-to-point antennas are used that require reduction in
power or compensation for cable loss, then this information must be in the instructions. If the use
condition limitations extend to professional users, then instructions must state that this information
also extends to the host manufacturer’s instruction manual. In addition, certain information may also
be needed, such as peak gain per frequency band and minimum gain.
Explanation: The EUT only have one FPC antenna, Yes, the module contains a permanently attached
antenna, The antenna gain is BLE/BT/WIFI 2.4G:4.87dBi,and WIFI 5G:6.91dBi.The use condition of the
prototype is mobile.
2.4 Limited module procedures
If a modular transmitter is approved as a “limited module,” then the module manufacturer
isresponsible for approving the host environment that the limited module is used with. The
manufacturer of a limited module must describe, both in the filing and in the installation instructions,
the alternative means that the limited module manufacturer uses to verify that the host meets the
necessary requirements to satisfy the module limiting conditions.
A limited module manufacturer has the flexibility to define its alternative method to address the
conditions that limit the initial approval, such as: shielding, minimum signaling amplitude, buffered
modulation/data inputs, or power supply regulation. The alternative method could include that the
limited module manufacturer reviews detailed test data or host designs prior to giving the host
manufacturer approval.
This limited module procedure is also applicable for RF exposure evaluation when it is necessary to
demonstrate compliance in a specific host. The module manufacturer must state how control of the
product into which the modular transmitter will be installed will be maintained such that full
compliance of the product is always ensured. For additional hosts other than the specific host
originally granted with a limited
AltoBeam Inc. Confidential Document 13
module, a Class II permissive change is required on the module grant to register the additional host
as a specific host also approved with the module.
Explanation: The module is a single module.
2.5 Trace antenna designs
For a modular transmitter with trace antenna designs, see the guidance in Question 11 of KDB
Publication 996369 D02 FAQ – Modules for Micro-Strip Antennas and traces. The integration
information shall include for the TCB review the integration instructions for the following aspects:
layout of trace design, parts list (BOM), antenna, connectors, and isolation requirements.
a) Information that includes permitted variances (e.g., trace boundary limits, thickness, length, width,
shape(s), dielectric constant, and impedance as applicable for each type of antenna);
b) Each design shall be considered a different type (e.g., antenna length in multiple(s) of frequency,
the wavelength, and antenna shape (traces in phase) can affect antenna gain and must be
considered);
c) The parameters shall be provided in a manner permitting host manufacturers to design the
printed circuit (PC) board layout;
d) Appropriate parts by manufacturer and specifications;
e) Test procedures for design verification; and
f) Production test procedures for ensuring compliance.
The module grantee shall provide a notice that any deviation(s) from the defined parameters of the
antenna trace, as described by the instructions, require that the host product manufacturer must
notify the module grantee that they wish to change the antenna trace design. In this case, a Class II
permissive change application is required to be filed by the grantee, or the host manufacturer can
take responsibility through the change in FCC ID (new application) procedure followed by a Class II
permissive change application.
Explanation: No, The module has no tracking antenna design, is FPC antenna.
2.6 RF exposure considerations
It is essential for module grantees to clearly and explicitly state the RF exposure conditions that
permit a host product manufacturer to use the module. Two types of instructions are required for RF
exposure information: (1) to the host product manufacturer, to define the application conditions
(mobile, portable – xx cm from a person’s body); and (2) additional text needed for the host product
manufacturer to provide to end users in their end-product manuals. If RF exposure statements and
use conditions are not provided, then the host product manufacturer is required to take responsibility
of the module through a change in FCC ID (new application).
Explanation: This module complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment, This equipment should be installed and operated with a minimum
distance of 20 centimeters between the radiator and your body." This module is designed to comply
with the FCC statement, FCC ID: 2BN5S-2602B
2.7 Antennas
AltoBeam Inc. Confidential Document 14
A list of antennas included in the application for certification must be provided in the instructions. For
modular transmitters approved as limited modules, all applicable professional installer instructions
must be included as part of the information to the host product manufacturer. The antenna list shall
also identify the antenna types (monopole, PIFA, dipole, etc. (note that for example an “omni-
directional antenna” is not considered to be a specific “antenna type”)).
For situations where the host product manufacturer is responsible for an external connector, for
example with an RF pin and antenna trace design, the integration instructions shall inform the
installer that unique antenna connector must be used on the Part 15 authorized transmitters used in
the host product. The module manufacturers shall provide a list of acceptable unique connectors.
Explanation: The EUT only have one FPC antenna, Yes, the module contains a permanently
attached antenna, The antenna gain is BLE/BT/WIFI 2.4G:4.87dBi,and WIFI 5G:6.91dBi.
2.8 Label and compliance information
Grantees are responsible for the continued compliance of their modules to the FCC rules. This
includes advising host product manufacturers that they need to provide a physical or e-label stating
“Contains FCC ID” with their finished product. See Guidelines for Labeling and User Information for
RF Devices – KDB Publication 784748.
Explanation:The host system using this module, should have label in a visible area indicated the following
texts: "Contains FCC ID: 2BN5S-2602B.
2.9 Information on test modes and additional testing requirements5
Additional guidance for testing host products is given in KDB Publication 996369 D04 Module
Integration Guide. Test modes should take into consideration different operational conditions for a
stand-alone modular transmitter in a host, as well as for multiple simultaneously transmitting
modules or other transmitters in a host product.
The grantee should provide information on how to configure test modes for host product evaluation
for different operational conditions for a stand-alone modular transmitter in a host, versus with
multiple, simultaneously transmitting modules or other transmitters in a host.
Grantees can increase the utility of their modular transmitters by providing special means, modes,
or instructions that simulates or characterizes a connection by enabling a transmitter. This can
greatly simplify a host manufacturer’s determination that a module as installed in a host complies
with FCC requirements.
Explanation: WiFiRanger, A CHINA DRAGON TECHNOLOGY LIMITED can increase the utility of our
modular transmitters by providing instructions that simulates or characterizes a connection by
enabling a transmitter.
2.10 Additional testing, Part 15 Subpart B disclaimer
The grantee should include a statement that the modular transmitter is only FCC authorized for the
specific rule parts (i.e., FCC transmitter rules) listed on the grant, and that the host product
manufacturer is responsible for compliance to any other FCC rules that apply to the host not
covered by the modular transmitter grant of certification. If the grantee markets their product as
being Part 15
Subpart B compliant (when it also contains unintentional-radiator digital circuity), then the grantee
shall provide a notice stating that the final host product still requires Part 15 Subpart B compliance
testing with the modular transmitter installed.
Explanation: The host shoule be evaluated by the FCC Subpart B.
AltoBeam Inc. Confidential Document 15
This product uses FPC antenna with a maximum antenna gain of BLE/BT/WIFI 2.4G:4.87dBi,and WIFI
5G:6.91dBi.
2.11 Note EMI Considerations
Note that a host manufacture is recommended to use D04 Module Integration Guide recommending as "best
practice" RF design engineering testing and evaluation in case non-linear interactions generate additional non-
compliant limits due to module placement to host components or properties
For standalone mode, reference the guidance in D04 Module Integration Guide and for simultaneous mode7; see
D02 Module Q&A Question 12, which permits the host manufacturer to confirm compliance.
Explanation: The customer is an independent module and has been implemented in accordance with D04.
2.12 How to make changes
Since . only Grantees are permitted to make permissive changes, it is recommended that module manufactures
provide contact information and some guidance to host providers in the integration instructions if they expect their
module will be used differently than granted.
Explanation: Contact Information: We have provided our technical support contact (email: chenyx2@reolink.com.cn)
for host manufacturers to reach us regarding any proposed changes to the module's operational conditions or
integration method.
AltoBeam Inc. Confidential Document 16
IC statement
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science
and Economic DevelopmentCanada’s licence-exempt RSS(s). Operation is subject to the following
two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired
operation of the device.
Cet appareil contient un émetteur (S)/ récepteur (S) exempté (S) de licence qui est conforme
Avec l’innovation, la Science
Et les RSS exemptées de permis de développement économique Canada. Le fonctionnement est
Sous réserve de ce qui suit
Deux conditions:
(1) ce dispositif ne peut pas causer d’interférence.
(2) ce dispositif doit accepter toute interférence, y compris l’interférence qui peut
Provoquer un fonctionnement indésirable de l’appareil.
This transmitter must not be co-located or operating in conjunction with any other antenna
ortransmitter. This equipment should be installed and operated with a minimum distance of
20centimeters between the radiator and your body.
Cet émetteur ne doit pas être Co-placé ou ne fonctionnant en même temps qu'aucune autre
antenne ouémetteur. Cet équipementdevrait être installé et actionné avec une distance minimum
de 20 centimètres entre le radiateur et votre corps.
The radio transmitter IC: 33667-2602B has been approved by The Ministry of Innovation, Science and Economic
Development of Canada to use the following antenna types with the specified maximum allowed gain. Antenna
types not included in this list, whose gain is higher than the maximum gain of any type listed, are strictly
prohibited from use with this device.
Cet émetteur radio IC : 33667-2602B a été approuvé par Innovation, Sciences et Développement économique
Canada pour fonctionner avec les types d'antenne énumérés ci-dessous, avec le gain maximal admissible
indiqué. Les types d'antenne non inclus dans cette liste qui ont un gain supérieur au gain maximum indiqué
pour tout type répertorié sont strictement interdits pour une utilisation avec cet appareil.
Type of antenna:
FPC antenna
Antenna Gain:
2.4G :2400-2500(4.87dBi)
5G :5150-5850MHz(6.91dBi)
AltoBeam Inc. Confidential Document 17
Impedance:
50hm
Manufacture:
SHENZHEN LINRONG TECHNOLOGY CO.,LTD
Model:
ATBM6162-44PE-02
