model
PROFILE
vornado.com
WINDOW FAN
OWNER’S GUIDE
READ AND SAVE
THESE INSTRUCTIONS
2 English
vor nado.com
800-234-0604
help@vor nado.com
We expect this
product to be
perfect.
If it is not, we
will make it
right.
3
English
Important Safety Instructions ............................................................. 4
Features ..............................................................................................7
Getting Started ................................................................................... 8
Controls ...............................................................................................9
Cleaning ............................................................................................ 10
Troubleshooting ............................................................................... 11
Warranty ............................................................................................ 12
CONTENTS
4 English
READ AND SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
This owner’s guide and any additional inserts are considered part of
the product. They contain important information about safety, use
and disposal. Before using the product, please familiarize yourself
with all operating and safety instructions. Please keep all documents
for future reference and pass these documents on, together with
the product, to any future owner. See www.vornado.com to view,
download and print the most current version of these instructions.
INTENDED USE: This product is intended to circulate indoor
and outdoor air only in a window installation in the United States.
This product is not intended for commercial or industrial use. The
manufacturer assumes no responsibility for damage or injury due to
unauthorized use or product modication. Failure to follow these
directions will void the product warranty.
WARNING: Risk to Children and Impaired Persons
Supervision is required during the installation, operation, cleaning
and maintenance of this product by children 12 years of age and
younger and anyone with reduced physical, sensory or mental
capabilities. Children should be supervised to ensure that they do not
play with the appliance, its parts and packaging material.
INSTALLATION WARNING—To reduce risk of re, electrical
shock and injury to persons, observe the following:
- This product is intended for window installation only. Only use
with product controls facing indoors (not exposed to elements).
Do not use this product in a manner other than indicated by the
manufacturer in the window installation instructions below.
- Pull back and secure all curtains and draperies and place this product
away from tablecloths, blankets, and other fabrics, since they may
be drawn into the fan, damage the motor and/or cause a re.
- No part of this product (the appliance, power cord, plug,
packaging, etc.) should be placed near furnaces, replaces, stoves
or other high temperature heat sources. Do not use this product on
an uneven or unstable surface, or near water.
- The appliance, power supply, power cord and plug cannot come
into contact with water. Do not use this product on wet surfaces.
Do not use this product in a bathtub or shower or position product
where it may fall into a bathtub, laundry, swimming pool or other
water container. Do not use this product outdoors or expose it to
weather or elements.
- Do not run cord under carpeting. Do not cover cord with throw
rugs, runners, or similar coverings. Do not route cord under
furniture or appliances. Arrange cord away from trafc area and
where it will not be tripped over. The cord should not hang over
edges of counters or be placed where it can be crimped or closed
in doors. Place appliance near an easily accessible outlet so the
product can be unplugged quickly during an emergency.
SAFE USE WARNING—To reduce risk of re, electrical shock
and injury to persons, observe the following:
- WARNING: To reduce likelihood of circuit overload, re and
electric shock, do not operate with a solid state speed device, such
as a dimmer control switch.
- Do not operate any fan with a damaged cord or plug. Discard fan
or return to an authorized service facility for examination and/or
repair.
- Do not operate unit if the unit has been dropped or damaged.
Do not use this product if it has a damaged power cord or
5
English
plug. To avoid risk of electrical shock, do not attempt to repair
or replace parts. Only original replacement parts may be used.
If the power cord is damaged, it must be replaced by the
manufacturer, its service agent, or similarly qualied persons in
order to avoid a hazard. For information about available products
and parts replacement, visit vornado.com/support or contact
Vornado Consumer Service by phone (1-800-234-0604) or email
- Before plugging power cord into electrical outlet, be sure that
all electrical information on the rating label, including voltage, is
compatible with your outlet’s power supply.
- Do not sit or stand on product.
- Never use the cord as a handle or otherwise yank, strain or stretch
the power cord.
- While the product is plugged in, do not insert or allow foreign
objects to enter any input or output opening as this may cause risk
of electric shock or re, or damage the product.
- A loose t between wall outlet (receptacle) and plug may cause
overheating and distortion of the plug. Discontinue use of the
product in this outlet. Contact a qualied electrician to replace
loose or worn outlets.
- This appliance has a polarized plug (one blade is wider than the
other.) To reduce the risk of electric shock, this plug is intended to
t in a polarized outlet only one way. If the plug does not t fully in
the outlet, reverse the plug. If it still does not t, contact a qualied
electrician. Do not attempt to defeat this safety feature.
- Before moving, repositioning, servicing, cleaning and when not in
use, use the product controls to turn off the power and then unplug.
To disconnect from outlet, grasp and pull only the plug. Also, power
off and unplug if the product will be left unattended for an extended
period of time or during electrical storms.
SERVICING WARNING—To reduce risk of re, electrical shock
and injury to persons, observe the following:
- Clean your product regularly, only as is instructed in this manual.
Prior to cleaning, turn off the power on your product and unplug. Do
not use gasoline, thinners, solvents, ammonias or other chemicals
for cleaning. Refer to the CLEANING instructions provided.
- WARNING: To Reduce The Risk Of Fire, Electric Shock Or Injury
To Persons, Do Not Use Replacement Parts That Have Not Been
Recommended By The Manufacturer (e.g. Parts Made At Home
Using A 3D Printer).
- Do not open appliance housing. To avoid risk of shock, all
service and/or repairs must be done by a Vornado Authorized
Service Center.
- This product employs overload protection (fuse). A blown fuse
indicates an overload or short-circuit situation. If the fuse blows,
unplug the product from the outlet. Replace the fuse as per the user
servicing instructions (follow product marking for proper fuse rating)
and check the product. If the replacement fuse blows, a short-circuit
may be present and the product should be discarded or returned to
an authorized service facility for examination and/or repair.
User Servicing Instructions
1. Using the product controls, turn off the appliance.
2. Grasp the plug (not the cord) and disconnect from the outlet.
3. Risk of Fire. Replace fuse only with 2.5 Amp, 125 Volt fuse as
approved by Vornado Consumer Service. For an authorized
replacement fuse, please contact Vornado Consumer Service.

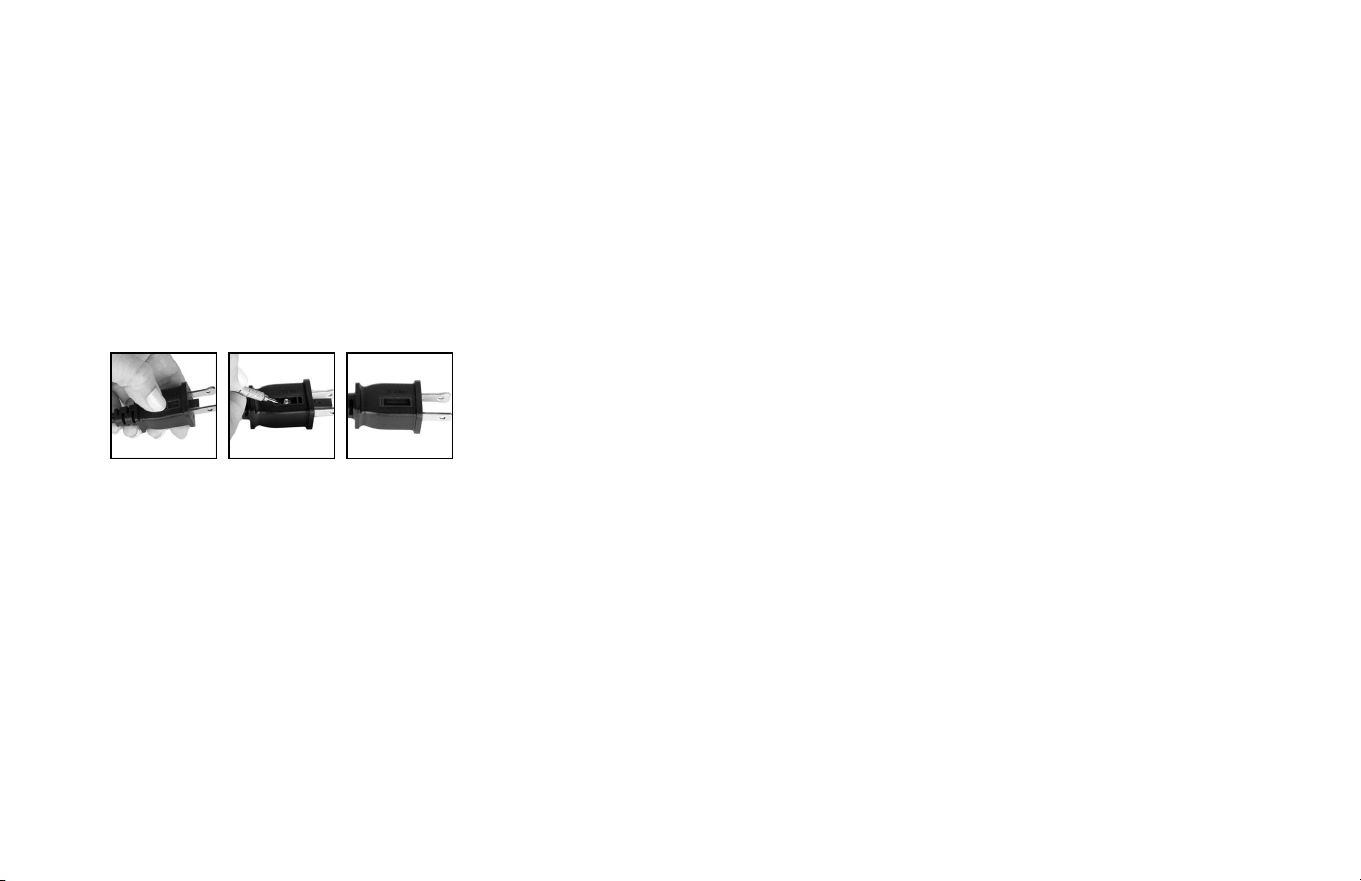

4. Once the replacement is received, use a small at-head
screwdriver to slide open the fuse cover (located on the plug)
(See Fig. A).
5. Remove fuse by using the screwdriver to gently lift each end of
6 English
the fuse (See Fig. B).
6. Install the replacement fuse by using the screwdriver to gently
push each metal end of the fuse into the receptacle one at a
time. Do not push on the center of the fuse—it is fragile and
may break.
7. Slide the fuse cover closed using the screwdriver. When
closed, the cover should t completely in the plug. No part of
the cover should stick out (See Fig. C).
8. Plug your appliance into the outlet and turn the power on.
9. If the replacement fuse blows, a short-circuit may be present
and the product should be discarded or returned to an
authorized service facility for examination and/or repair.
Fig. A Fig. B Fig. C
Risk of re. Do not replace attachment plug. Contains a safety device
(fuse, AFCI, LCDI) that should not be removed. Discard product if the
attachment plug is damaged.
FCC Compliance Statement
NOTE: This equipment has been tested and complies with Part 15 of
the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may
cause undesired operation.
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This product
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this product does cause harmful interference
to radio or television reception, which can be determined by turning
the product off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the product and the receiver.
- Connect the product into an outlet on a circuit different from that to
which the receiver is connected.
- Contact Vornado Consumer Service or dealer or an experienced
radio/TV technician for help.
Changes or modications to this unit not expressly approved by the
party responsible for compliance could void the user’s authority to
operate the product.
Supplier’s FCC Declaration of Conformity
Unique Identier: Vornado Model PROFILE
Responsible Party: Vornado Air LLC
Mailing Address : 415 E. 13th St., Andover, KS 67002
Contact: www.vornado.com
SAVE THESE INSTRUCTIONS
7
English

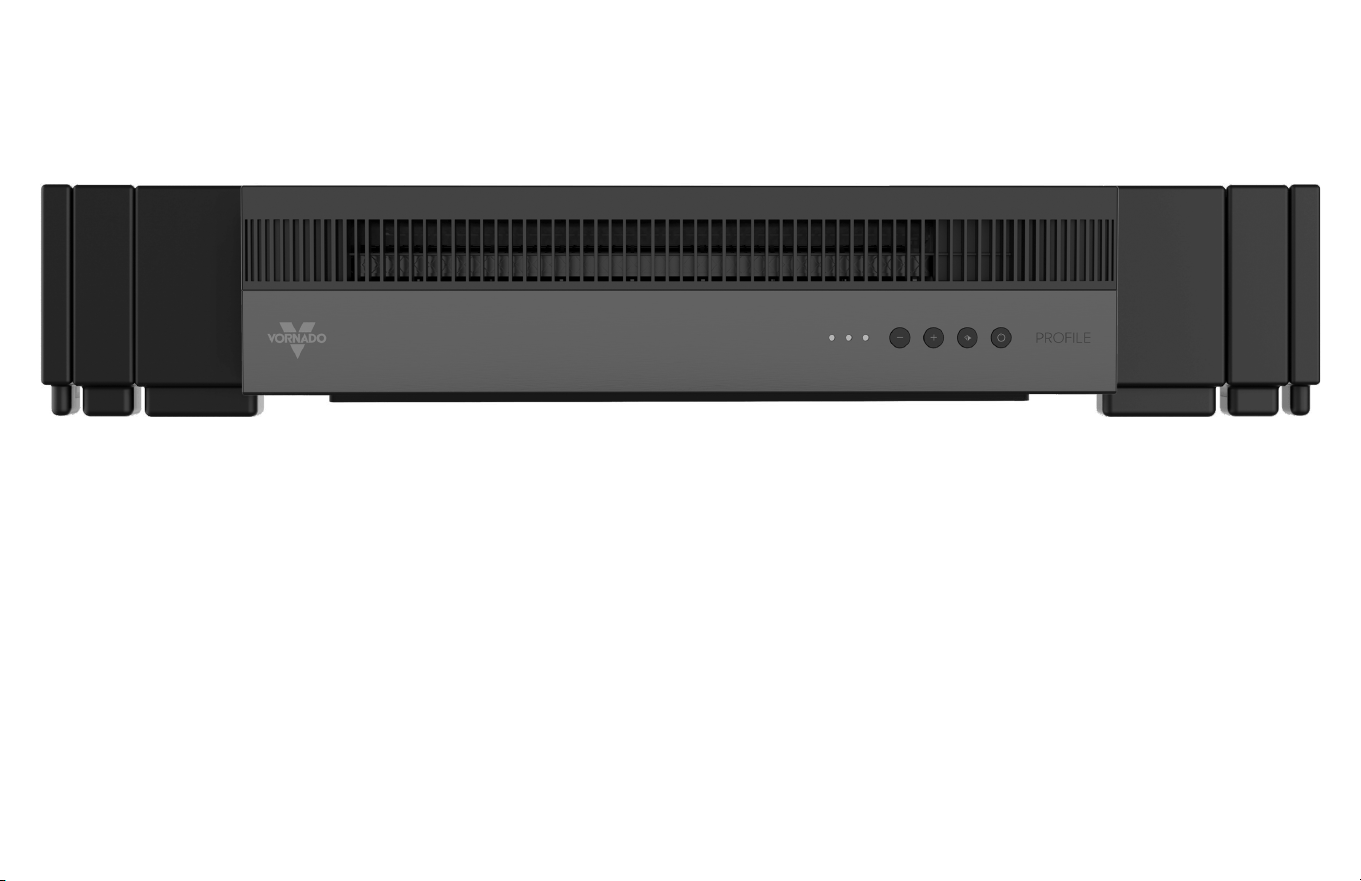

FEATURES
ACCESSORIES
To order replacement soft-t modular foam blocks, please contact Vornado consumer service at [email protected] or 800-234-0604.
INTEGRATED HANDLES
Side handles for easy carrying and installation
ELECTRONIC REVERSIBLE FAN/EXHAUST
One button, quick transition from fan to
exhaust
3 SPEED TOUCH CONTROLS
A setting for every comfort level
SOFT-FIT MODULAR FOAM BLOCK SYSTEM
Easy installation creating barrier against
outside noises & temperatures
LOW PROFILE SILHOUETTE
Allows for greater visibility through window
EXTRA LONG 8’ POWER CORD
Ample cord length
WEATHER RESISTANT ENCLOSURE
8 English

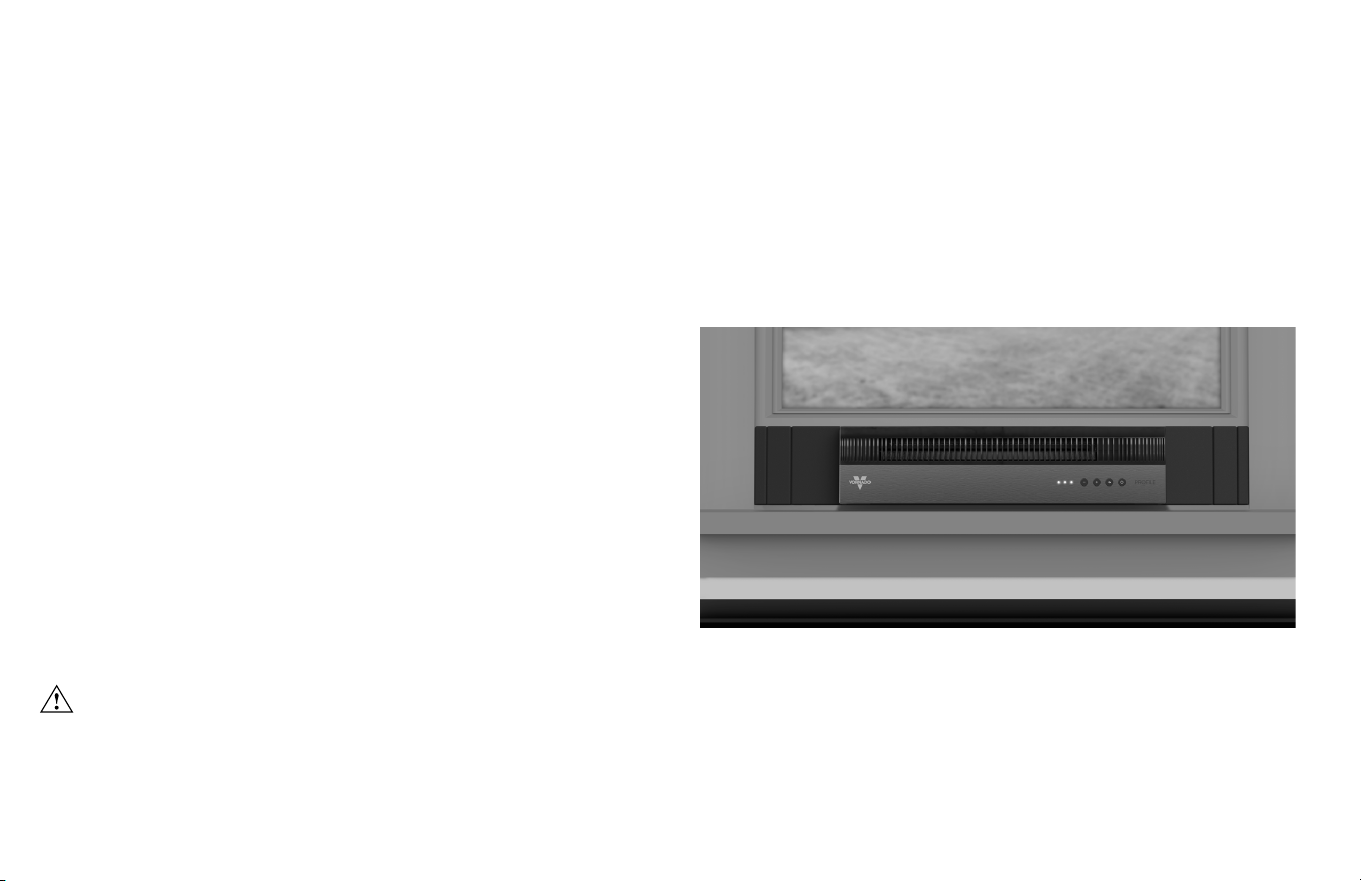

1. We recommend keeping the window screen in place.
2. Center the PROFILE in the window, ensuring that the foam on
the bottom of the product is snugly secured in the bottom of the
window casing.
3. Close the window to secure the product in place.
4. Tuck the optional Soft-Fit foam blocks on either side of the
product, tucking them securely into the window casing.
Optional: Route the powercord as needed, using the clips
provided to secure cord in place.
NOTE: the PROFILE has been designed for use with single-hung and double-hung windows. It will accommodate windows 26 to 38 inches wide
and require a window opening of at least 8 inches tall.
FOR HORIZONTAL INSTALLATION ONLY. DO NOT ATTEMPT VERTICAL WINDOW INSTALLATION.
DURING PRODUCT AND FOAM BLOCK INSTALLATION, KEEP ONE HAND ON PRODUCT AT ALL TIMES.
WARNING - Choking hazard. Keep small parts, like clips, away from children and pets.
GETTING STARTED
WINDOW INSTALLATION
9
English
CONTROLS
FAN SPEED LIGHTS
FAN SPEED DECREASE
FAN SPEED INCREASE
DIRECT MODE BUTTON
POWER ON/OFF
1. Press ( ) to power unit ON or OFF.
2. Select desired speed by pressing or . There are three (3) speeds: LOW, MEDIUM, HIGH. Speed is indicated by number of Fan Speed
Lights illuminated.
3. Press ( ) to change from direct airow to exhaust. Touch the button again to change from exhaust to direct airow.
10 English
CLEANING
Because your product moves a substantial amount of air, it will need
regular cleaning. If service is required, return your unit to Vornado
(see WARRANTY for instructions).
WARNING: To reduce the risk of electrical shock and injury to
persons, unplug the unit before cleaning.
REGULAR CLEANING
1. Unplug unit before cleaning.
2. Use the brush attachment on your household vacuum cleaner to
vacuum any accumulated dust off the unit.
3. Wipe down the entire unit with a soft cloth.
Note: Do not use gasoline, thinners, solvents or other chemicals for
cleaning.
11
English
TROUBLESHOOTING
POSSIBLE CAUSE AND SOLUTIONPROBLEM
Unit is not plugged in. Plug Power Cord into electrical outlet.
Unit is damaged or in need of repair. Cease usage and unplug. Contact Consumer Service for assistance.
Fuse needs to be replaced. See IMPORTANT SAFETY INSTRUCTIONS for how to replace the fuse or
contact Consumer Service.
Ensure unit is set to highest setting for maximum air circulation.
Allow the unit to fully circulate the air throughout the room, this may take several minutes.
Ensure all air inlets and outlet grille are unobstructed.
Switch the direction of the airow from DIRECT to EXHAUST (or EXHAUST to DIRECT). If problem
persists, turn unit OFF and ON and adjust settings as needed.
Preset temperature in AUTO might be set too high. Lower the set temperature or turn AUTO off.
Unit fails to
power on.
Unit is not producing
sufcient amount of air.
Air is not moving in the
desired direction.
Unit is on but there is no air
moving.
12 English
Vornado Air LLC (“Vornado”) warrants to the original consumer or purchaser this Vornado®
Whole Room Circulator (“Product”) is free from defects in material or workmanship for a
period of ve (5) years from the date of purchase. If any such defect is discovered within
the warranty period, Vornado, at its discretion, will repair or replace the Product at no cost.
For warranty service: Call 1-800-234-0604 or email [email protected] to obtain a Return
Authorization (“RA”). Please have or include your Product’s model number and serial
number, as well as your name, address, city, state, zip code, e-mail, and phone number
when contacting Vornado for warranty service. To le a contactless warranty claim, visit
vornado.com/contact-us.
After receiving the RA form, ship your Product to: Vornado Air LLC Attn: Warranty & Repair
415 East 13th Street Andover, KS 67002. For your convenience, please have your model
number and serial number when contacting Vornado with service inquiries. To assure
proper handling, packages must be clearly marked with the RA number. Packages not
clearly marked with the RA number may be refused at the receiving dock. Please allow 2-3
weeks for warranty service and return of your Product after the Product is received.
This warranty does not apply to defects resulting from abuse of the Product, modication,
alteration, mishandling, improper maintenance, commercial use or repair or service of the
Product by anyone other than Vornado; damages which occur in shipment or are attributed
to acts of God. Improper product use, which includes using an external device that
alters or converts the voltage or frequency of electricity, or shipping a Vornado product
to a country not intended for use will void all warranties. Any unauthorized product
modication, repair by unauthorized repair center, or use of non-approved replacement
parts is not recommended and any consequences will not be covered by support services
or product warranties. The product warranty will be honored only on models that are being
used in the country intended. REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS
WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER. VORNADO SHALL NOT
BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF
ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. EXCEPT TO THE EXTENT
PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN
DURATION TO THE DURATION OF THIS WARRANTY. Some states do not allow the
exclusion or limitation of incidental or consequential damages, or allow limitations on how
long an implied warranty lasts, so the above limitations or exclusions may not apply to you.
This warranty gives you specic legal rights, and you may have other rights that vary from
state to state. The manufacturer assumes no responsibility for damage caused by failure
to follow these instructions or improper product use. Any such actions will invalidate the
product warranty.
All company names and product names are trademarks of their respective owners. ©
All rights reserved. All technical information, data, and instructions for the installation,
connection, and operation contained in these instructions for use correspond to the latest
available information at time of printing. The contents of this manual may differ slightly
from the actual product. Observe any additional supplements.
WARRANTY
We expect this product to be perfect. If you’re not satised with this product, let us know.
We’re Here To Help
800.234.0604
vornado.com
© 2024 Vornado Air LLC Andover, KS 67002 Specifications subject to change without notice.
Vornado® is a trademark owned by Vornado Air LLC.
Designed, engineered and supported in Andover, KS
CL3-1051 R-, V00
Vornado Air, LLC
415 East 13th Street, Andover, Kansas 67002
800.234.0604 | vornado.com
