BG-USX-WP100BC
Dual-Host USB 3.2 Type-A/B/C Wall Plate Switcher & HDBaseT 3.0
Extender Kit with Bi-Directional PoC/RS-232 up to 328ft
User Manual
BZBGEAR BG-USX-WP100BC PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 2
BZBGEAR BG-USX-WP100BC PRODUCT MANUAL
TABLE OF CONTENTS
Statement 4
Safety Precaution 4
Introduction 5
Features 5
Packing List 5
Specifications 6
Operation Controls and Functions 7

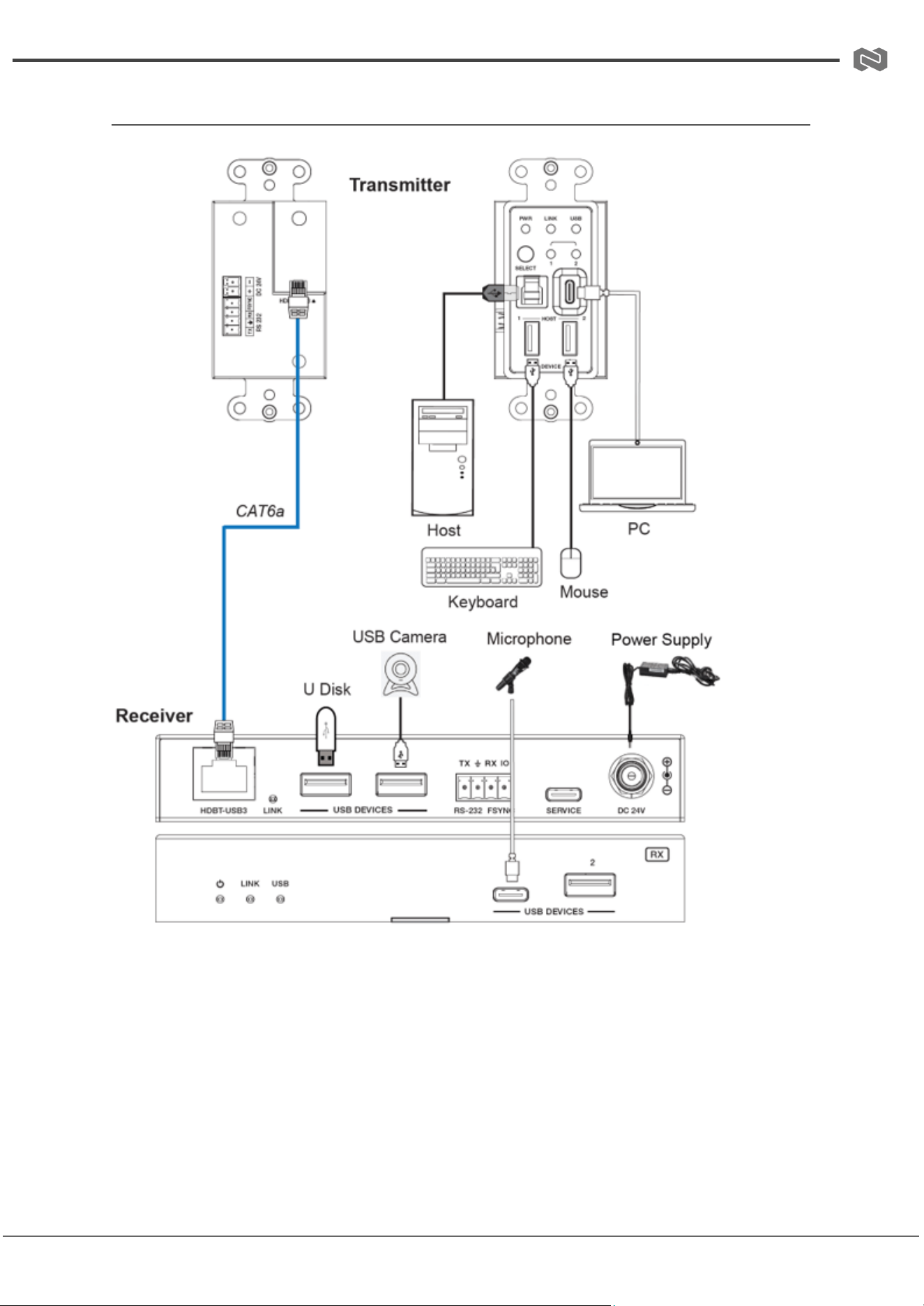

Connection Diagram 8
Troubleshooting 9
Tech Support 10
Warranty 10
Mission Statement 11
Copyright 12
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 3
BZBGEAR BG-USX-WP100BC PRODUCT MANUAL
Statement
Please read these instructions carefully before connecting, operating, or configuring this
product. Please save this manual for future reference.
Safety Precaution
● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion
during transportation, storage, and installation.
● The housing of this product is made of organic materials. Do not expose to any liquid,
gas, or solids which may corrode the shell.
● Do not expose the product to rain or moisture.
● To prevent the risk of electric shock, do not open the case. Installation and maintenance
should only be carried out by qualified technicians.
● Do not use the product beyond the specified temperature, humidity, or power supply
specifications.
● This product does not contain parts that can be maintained or repaired by users.
Damage caused by dismantling the product without authorization from BZBGEAR is not
covered under the warranty policy.
● Installation and use of this product must strictly comply with local electrical safety
standards.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 4
BZBGEAR BG-USX-WP100BC PRODUCT MANUAL
Introduction
The BG-USX-WP100BC is a USB 3.2 Gen 1 extender system designed to transmit
high-speed USB signals up to 100m (328ft) over a single CAT6A F/FTP cable. It
consists of a 1-gang wall-plate transmitter and a compact receiver unit, supporting
up to 5Gbps data transfer with backward compatibility to USB 2.0 and USB 1.1.
The transmitter includes selectable USB-C and USB-B host inputs along with dual
USB-A loop-out ports, while the receiver provides one USB-C and three USB-A
device ports for connecting peripherals such as webcams, PTZ cameras, storage
devices, keyboards, and other USB equipment used in professional AV and control
environments.
The system supports bi-directional 24V PoC, allowing either end to power the entire
link, simplifying installation and reducing cabling requirements. It includes RS-232
pass-through, FSYNC GPIO synchronization for camera or industrial applications,
and API-based control for integration into managed systems. Hardware acceleration
ensures stable handling of isochronous and bulk USB traffic, while LED indicators
provide real-time status for power, link, and USB activity. With plug-and-play
operation and firmware upgrade support via USB-C service port, the
BG-USX-WP100BC is designed for reliable, long-distance USB extension in
commercial and enterprise installations.
Features
● USB 3.2 Gen 1 100m Extension: Extends USB 3.2 Gen 1 signals up to 100m (328ft)
over a single CAT6A F/FTP cable with stable high-speed performance up to 5Gbps.
● High-Speed 5Gbps Data Transfer: Supports full USB 3.2 Gen 1 bandwidth for fast
and reliable transmission of high-throughput USB devices.
● Dual Host Input Selection: Transmitter includes USB-C and USB-B host inputs
with selectable switching for flexible source connection.
● Multiple USB Device Ports: Receiver provides 1× USB-C and 3× USB-A ports to
support multiple peripherals such as cameras, storage devices, and input devices.
● USB Device Loop-Out on TX: Transmitter includes dual USB-A ports for local
device connection or signal loop-through use cases.
● Bi-Directional 24V PoC: Power over Cable allows either transmitter or receiver to
power the entire system, reducing installation complexity.
● RS-232 Pass-Through Control: Enables serial command transmission between
endpoints for integration with control systems.
● FSYNC GPIO Pass-Through: Supports synchronization signals for professional
video and industrial camera applications.
● API Control Support: Provides command-based control for system configuration,
switching, and status monitoring via RS-232 or service port.
● Plug-and-Play Operation: No drivers or software required, enabling quick
deployment and compatibility across major operating systems.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 5
BZBGEAR BG-USX-WP100BC PRODUCT MANUAL
● Firmware Upgrade via USB-C: Includes dedicated USB-C service port for firmware
updates and long-term system maintenance.
● LED Status Indicators: Provides real-time monitoring of power, link status, and
USB signal activity for easy diagnostics.
Packing List
● 1× USB 3.2 Gen 1 Wall-Plate Extender
(Transmitter)
● 1× USB 3.2 Gen 1 Box Extender (Receiver)
● 1× 24V/3.75A Power Supply
● 1× 2-pin 3.5mm Phoenix Connector (Male)
● 2× 4-pin 3.5mm Phoenix Connector (Male)
● 2× Mounting Ears
● 4× Machine Screws (KM3×4)
● 2× Machine Screws (6#-32×3/4)
● 1× Top Panel Cover
● 1× User Manual
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 6
BZBGEAR BG-USX-WP100BC PRODUCT MANUAL
Specifications
Technical
USB Protocol
USB 3.2 Gen 1
Data Rate
Up to 5Gbps
Transmission Distance
Up to 100m (328ft) via CAT6a (F/FTP); up to 1.5m (4.9ft) via USB cable
ESD Protection
IEC 61000-4-2: ±8kV (air discharge), ±4kV (contact discharge)
Power Supply
DC 24V / 3.75A (AC 100–240V, 50/60Hz adapter)
Max Power
Consumption
62W
Transmitter Connections
USB HOST Inputs
1× USB-C (24-pin female), 1× USB-B (9-pin female)
USB DEVICE Outputs
2× USB-A (5V/1A)
Link Interface
1× RJ45 (HDBT-USB3, PoC)
Control Ports
1× RS-232 (3-pin Phoenix), 1× FSYNC (1-pin Phoenix), 1× USB-C
SERVICE (firmware update)
Receiver Connections
Link Input
1× RJ45 (HDBT-USB3, PoC)
USB Outputs
1× USB-C DEVICE, 3× USB-A DEVICE (5V/1A & 5V/1.5A)
Control Ports
1× RS-232 (3-pin Phoenix), 1× FSYNC (1-pin Phoenix), 1× USB-C
SERVICE (firmware update)
Mechanical
Housing
TX: Plastic front panel + metal enclosure; RX: Metal enclosure
Color
TX: White + Black; RX: Black
Dimensions
TX: 45 × 42 × 103.5 mm; RX: 140 × 75 × 23 mm
Weight
TX: 115g; RX: 318g
Environmental
Operating Temperature
32°F ~ 104°F / 0°C ~ 40°C
Storage Temperature
-4°F ~ 140°F / -20°C ~ 60°C
Operating Humidity
20% ~ 80% RH (non-condensing)
Storage Humidity
10% ~ 90% RH (non-condensing)
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 7
BZBGEAR BG-USX-WP100BC PRODUCT MANUAL
Operation Controls and Functions

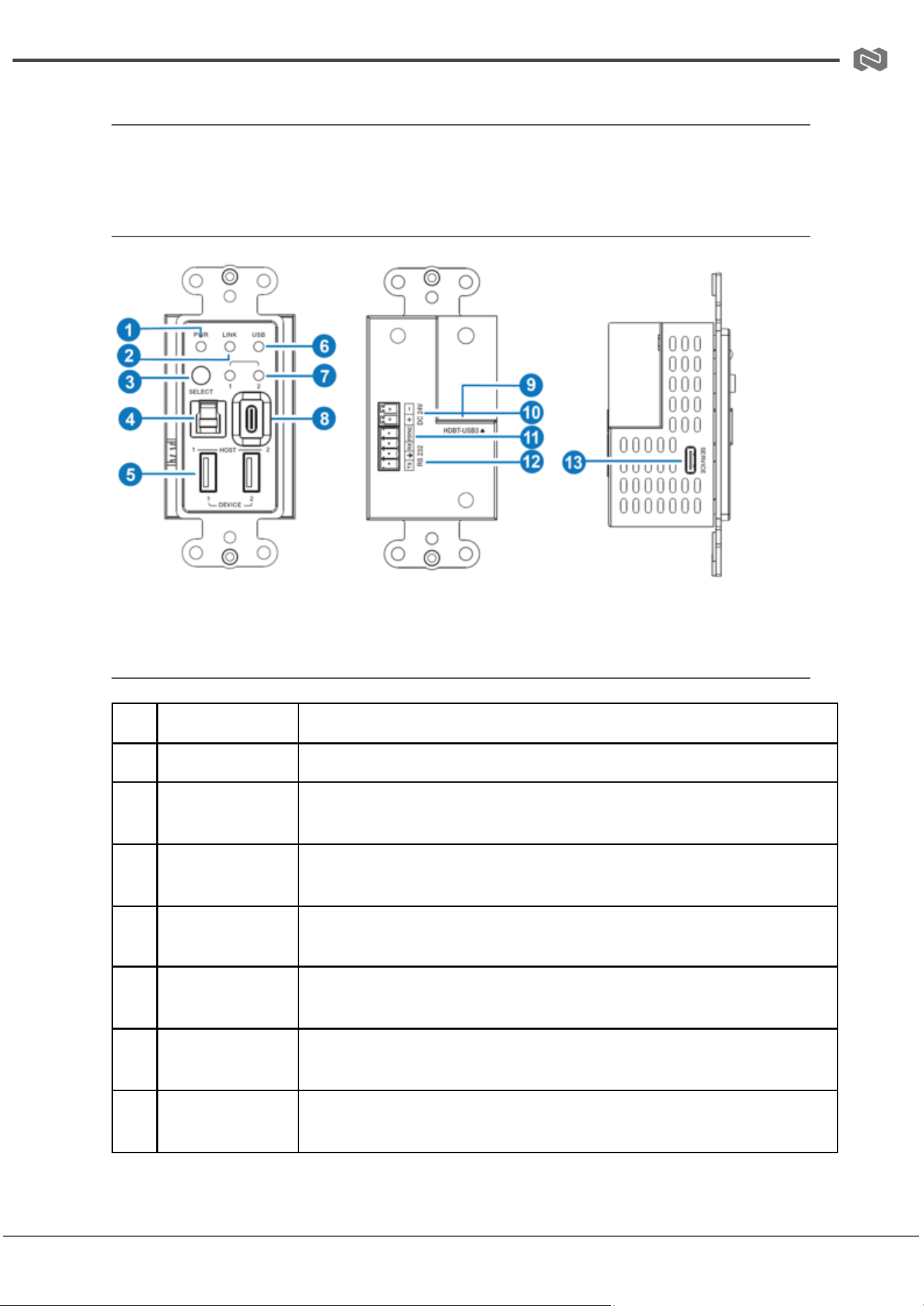

Transmitter Panel
Front and Rear Panel
Transmitter (Wall Plate) Front Panel
No.
Name
Function Description
1
PWR LED
Indicates power status. Green LED is ON when the unit is powered.
2
LINK LED
Indicates link status. ON when TX and RX are successfully connected.
3
SELECT Button
Cycles between USB HOST 1 and HOST 2 input selection.
4
HOST 1 (USB-B)
USB host input port for connection to a PC or host device.
5
USB-A DEVICE
1/2
USB device ports for peripherals (e.g., flash drives, storage devices).
Supports up to 5V/1A power output.
6
USB Status LED
USB signal indicator: ON = USB 3.0, Blinking = USB 2.0, OFF = no USB
signal detected.
7
HOST LEDs 1/2
Indicates active USB host selection (HOST 1 or HOST 2).
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 8
BZBGEAR BG-USX-WP100BC PRODUCT MANUAL
Transmitter (Wall Plate) Rear/Side Panel
No.
Name
Function Description
8
HOST 2 (USB-C)
Alternative USB host input for connection to a PC or host device.
9
HDBT-USB3 (RJ45)
Single CAT6a link connection to Receiver; supports USB extension and
PoC.
10
DC 24V
24V power input port (required if powering TX side).
11
FSYNC
GPIO-style signal pass-through for external device synchronization (0–5V
level).
12
RS-232
3-pin Phoenix connector for serial command pass-through/control
system integration.
13
SERVICE (USB-C)
Firmware update port and service interface connection.
Receiver Panel

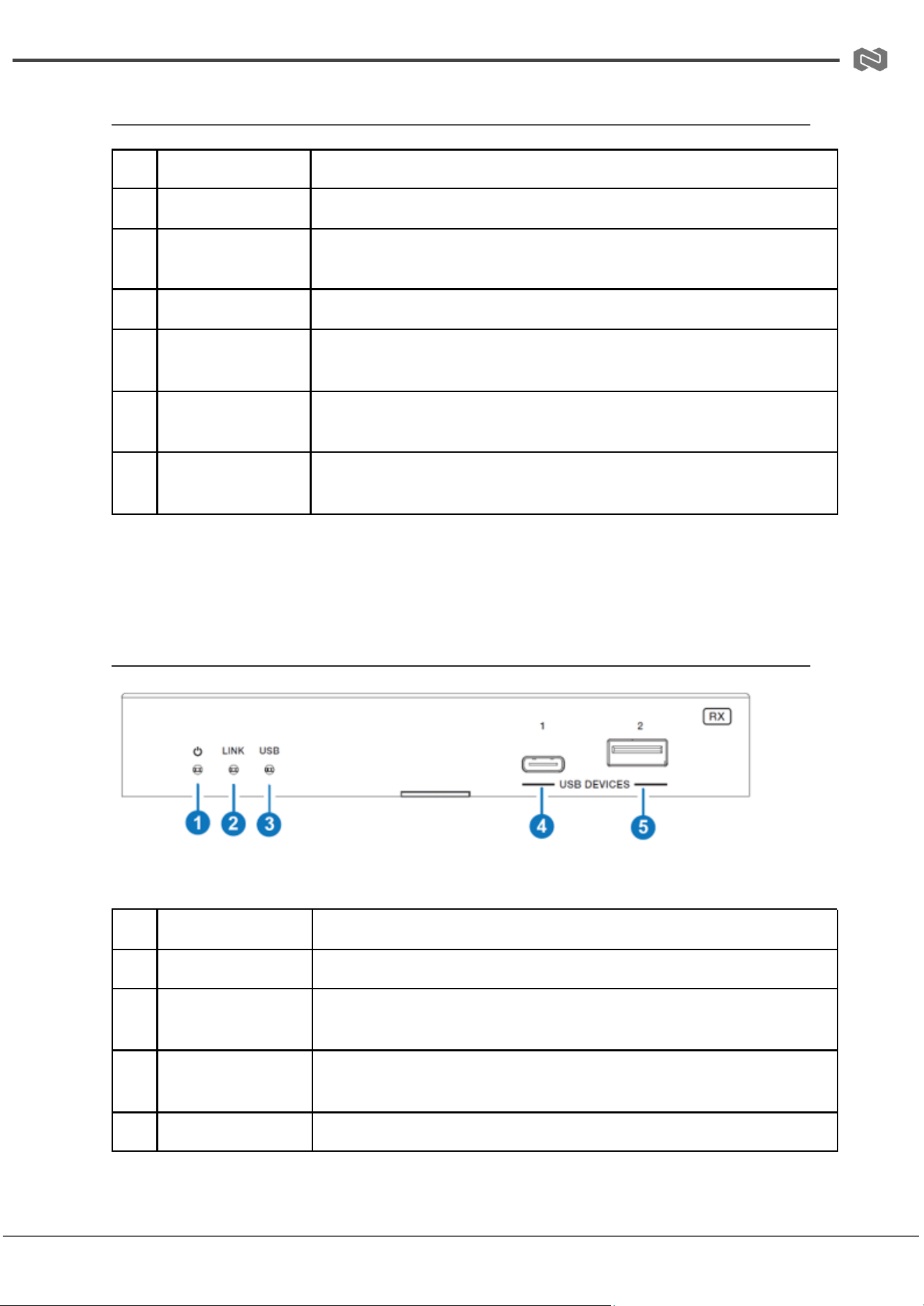

Receiver Front Panel
Front Panel
No.
Name
Function Description
1
Power LED
Indicates power status. ON when receiver is powered.
2
LINK LED
Indicates connection status between TX and RX. ON = linked, OFF = no
link.
3
USB LED
USB activity indicator: ON = USB 3.0, Blinking = USB 2.0, OFF = no USB
signal.
4
USB-C DEVICE
USB device port for peripherals (e.g., storage, cameras, controllers).
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 9
BZBGEAR BG-USX-WP100BC PRODUCT MANUAL
5
USB-A DEVICE 2
USB device port for peripherals. Supports up to 5V/1A.
6
USB-A DEVICE 3/4
High-power USB device ports for peripherals. Supports up to 5V/1.5A.

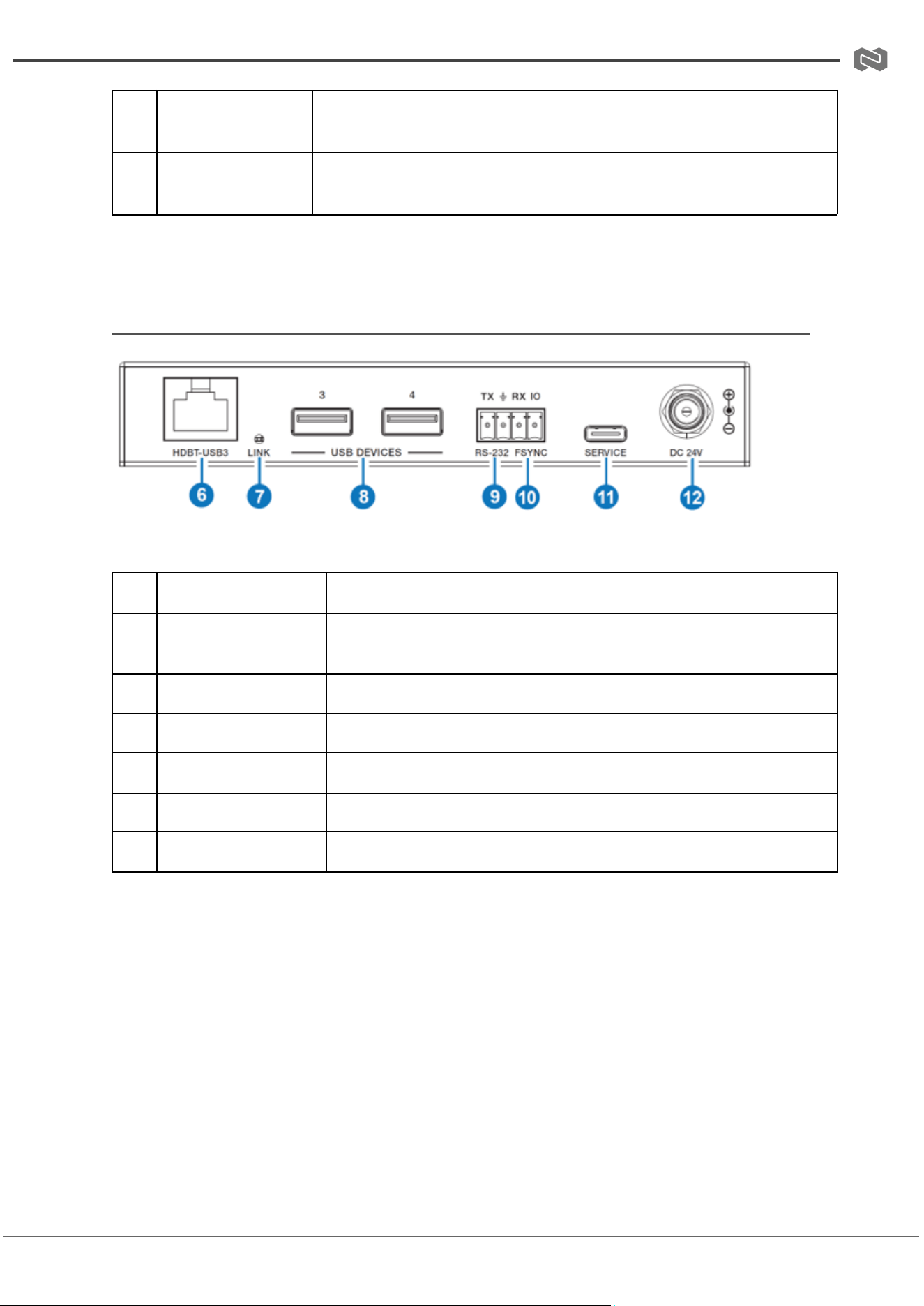

Receiver Rear Panel
Rear Panel
No.
Name
Function Description
7
HDBT-USB3 (RJ45)
CAT6a link input from transmitter; carries USB data and PoC power.
8
LINK LED
Secondary link status indicator confirming TX/RX connection.
9
RS-232
3-pin Phoenix connector for serial control pass-through.
10
FSYNC
GPIO signal pass-through for external synchronization (0–5V).
11
SERVICE (USB-C)
Firmware upgrade and service port.
12
DC 24V
24V power input (optional if powering from TX via PoC).
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 10
BZBGEAR BG-USX-WP100BC PRODUCT MANUAL
API Command Information
The BG-USX-WP100BC supports API control via RS-232 and USB-C Service Port (virtual
COM). Commands are used for device control, status monitoring, and configuration.
ASCII Commands
1. Service port (USB-C virtual RS-232) communication protocol (Internal debug) Baud rate: 115200
(fixed), Data bit: 8, Stop bit: 1, Parity bit: none
The end mark of command is “<CR><LF>”
2. Phoenix RS-232 port communication protocol (Connect to control system) Baud rate:
4800~115200 (configurable), Data bit: 8, Stop bit: 1, Parity bit: none The end mark of command is
“<CR><LF>”
Comman
d
Function
Example
Feedback
Default
?
Get the list of all commands
?
help
Get the list of all commands
help
get fw
version
Get firmware version
get fw
version
1.0.0
set
reboot
Reboot the device
set reboot
Reboot…
System Initializing...
Initialization Finished! FW:
1.0.0
set reset
Reset to factory defaults
set reset
Sure to RESET to default
settings? Type "Yes" after next
prompt to confirm…
get status
Get system status
get status
Please refer to the note at the
end of the list.
set key
on/off
Set front panel key on/off
set key on set
key off
Set key on Set key off
on
get key
Get front panel key on/off status
get key
Key on
set baud
x
Set RS-232 baud rate to x bps
x=1: 4800
x=2: 9600
x=3: 19200
x=4: 38400
x=5: 57600
x=6: 115200
set baud 6
Set baud rate 115200
115200
get baud
Get RS-232 baud rate
get baud
Baud rate 115200
Comman
d
Function
Example
Feedback
Default
set input
x
Set USB host input port (x=1~2)
x=1: USB host 1 (USBB)
x=2: USB host 2 (USBC)
set input 1
Set input USB host 1
1
get input
Get USB host input port
get input
Input USB host 1
get usb5v
x
Get USB host input port 5V
(x=0~2)
x=0: all USB host inputs x=1:
USB host 1 (USBB) x=2: USB
host 2 (USBC)
get usb5v 0
USB host 1: 5V USB host 2:
none
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 11
BZBGEAR BG-USX-WP100BC PRODUCT MANUAL
set
autoswitc
h x
Set auto-switching on/off (USB
5V detection) x=On, Off
set
autoswitch on
Set autoswitch on
on
get
autoswitc
h
Get auto-switching status
get
autoswitch
Autoswitch on
Set TX USB device ports
(x=0~2) power to (y=0~2)
set tx
usbd x
power y
x=0: TX all USB device ports
x=1: TX USB device 1 (USBA)
x=2: TX USB device 2 (USBA)
y=0: Force power off
set tx usbd 0
power 1
Set TX all USB device ports
power follow USB host power
1
y=1: Follow USB host power
y=2: Force power on
get tx
usbd x
power
Get TX USB device ports
(x=0~2) power status
x=0: TX all USB device ports
x=1: TX USB device 1 (USBA)
x=2: TX USB device 2 (USBA)
get tx usbd 0
power
TX all USB device ports power
follow USB host power
set rx
usbd x
power y
Set RX USB device ports
(x=0~4) power to (y=0~2) x=0:
RX all USB device ports
x=1: RX USB device 1 (USBA)
x=2: RX USB device 2 (USBC)
x=3: RX USB device 3 (USBA)
x=4: RX USB device 4 (USBA)
y=0: Force power off
y=1: Follow USB host power
y=2: Force power on
set rx usbd 0
power 1
Set RX all USB device ports
power follow USB host power
1
set hdbt
update
Set service port to HDBT UART
for FW update
set hdbt
update
HDBT update
Comman
d
Function
Example
Feedback
Default
get rx
usbd x
power
Get RX USB device ports
(x=0~4) power status
x=0: RX all USB device ports
x=1: RX USB device 1 (USBA)
x=2: RX USB device 2 (USBC)
x=3: RX USB device 3 (USBA)
x=4: RX USB device 4 (USBA)
get rx usbd 0
power
RX all USB device ports power
follow USB host power
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 12
BZBGEAR BG-USX-WP100BC PRODUCT MANUAL
Connection Diagram
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 13
BZBGEAR BG-USX-WP100BC PRODUCT MANUAL
Troubleshooting
Problems
Causes
Solutions
No Power / All LED off
Power supply not connected,
connected fully, or wrong power
supply.
Check if the power supply is
connected correctly and the
output voltage value is within
recommended specifications.
No sound or sound issues
The HDMI connection is faulty,
the audio format is not
supported by the displays, or
the source player is set to
another port for audio output
Check if the HDMI cables are
connected correctly.
Check if the audio format is
supported by the display and
that a user has not changed the
supported audio format on the
player`s audio output. Ensure
output settings from the HDMI
source device as set correctly.
No picture or picture flickers
The HDMI cable may be faulty
or the category cable quality is
faulty.
Check if the HDMI
and category cable connections
are correct and undamaged.
Change to another good
working HDMI cable or category
cable (CAT6 or better cable is
recommended).
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 14
BZBGEAR BG-USX-WP100BC PRODUCT MANUAL
Tech Support
Have technical questions? We may have answered them already!
Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and
tips regarding our products. Here you will find our Knowledge Base
(bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step
troubleshooting instructions. Or explore our YouTube channel, BZB TV
(youtube.com/c/BZBTVchannel), for help setting up, configuring, and other helpful how-to
videos about our gear.
Need more in-depth support? Connect with one of our technical specialists directly:
Phone
1.888.499.9906
Email
support@bzbgear.com
Live Chat
bzbgear.com
Limited Product Warranty Terms
Pro Line: 5-year warranty from the date of purchase for AV/Broadcasting products bought
on or after August 1, 2024.
Essential Line: 3-year warranty from the date of purchase for AV/Broadcasting products
bought on or after August 1, 2024.
Cables: Lifetime Limited Product Warranty.
For complete warranty information, please visit bzbgear.com/warranty.
For questions, please call 1.888.499.9906 or email support@bzbgear.com.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 15
BZBGEAR BG-USX-WP100BC PRODUCT MANUAL
Mission Statement
BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment
ranging from AVoIP, professional broadcasting, conferencing, home theater, to live
streaming solutions. We pride ourselves on unparalleled customer support and services.
Our team offers system design consultation, and highly reviewed technical support for all
the products in our catalog. BZBGEAR delivers quality products designed with users in
mind.
Copyright
All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed
to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual
contains no guarantee, standpoint expression or other implies in any form. Product
specification and information in this manual is for reference only and subject to change
without notice.
All rights reserved. No reproducing is allowed without acknowledgement.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 16
