REMOVAL/INSTALL OF IGNITION LOCK CYLINDER (989-714)
Ford F150 2004
General Tech Tips:
• This lock cylinder kit consists of an ignition lock with keys and a programming tool. There are 3 keys provided
in this kit; 2 transponder security keys and 1 non-transponder security key. The 2 transponder keys will need
to be programmed to your car to avoid a no-start condition.
PLEASE WEAR
SAFETY GLASSES!
Removal Instructions
STEP 1: Disconnect battery.
STEP 2: Rotate lock cylinder to the run position.

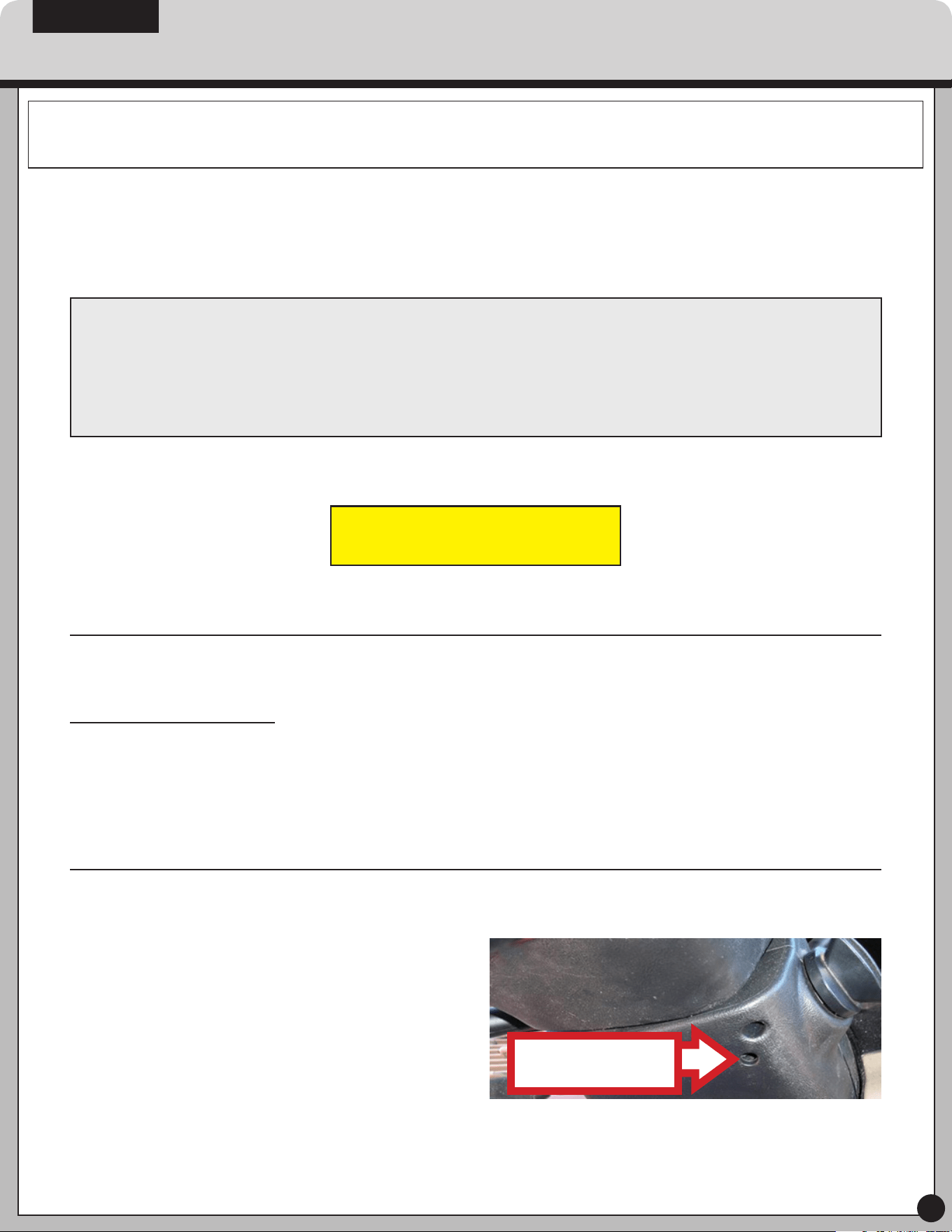

STEP 3: Push a small screwdriver or small
drift punch in hole in trim shroud under lock
cylinder. Push retaining pin in while pulling
on lock cylinder to remove from column.
Insert pin or tool here
to release lock
INSTALL/REMOVAL INSTRUCTIONS: IGNITION LOCK CYLINDER
989-714
Disclaimer:
Even though every attempt is made to ensure this information is complete and accurate, it is impossible to account for all possible circumstances or situations. Please consult with a qualied auto technician
before attempting to perform any work you are not qualied to do. Automobiles can be hazardous to work on; be sure to take all necessary safety precautions. Failure to do so may result in property damage
or personal injury. Certain motor vehicle standards and performance requirements may apply to your motor vehicle (such as Federal Motor Vehicle Safety Standards by the National Highway Trac Safety
Administration). Be sure that your work is performed in accordance with such standards and that you do not disable any motor vehicle safety feature.
ATTENTION: Refer to the appropriate shop manual for your vehicle to obtain specic service procedures for this part. If you do not have
a service manual or lack the skill to install this part, it is recommended that you seek the services of a qualied technician. Pay special
attention to all cautions and warnings included in the shop manual. Read and follow all instructions carefully.
2
©2018 Dorman Products, Inc.
No reproductions in whole or in part without prior written approval.
Installation Instructions

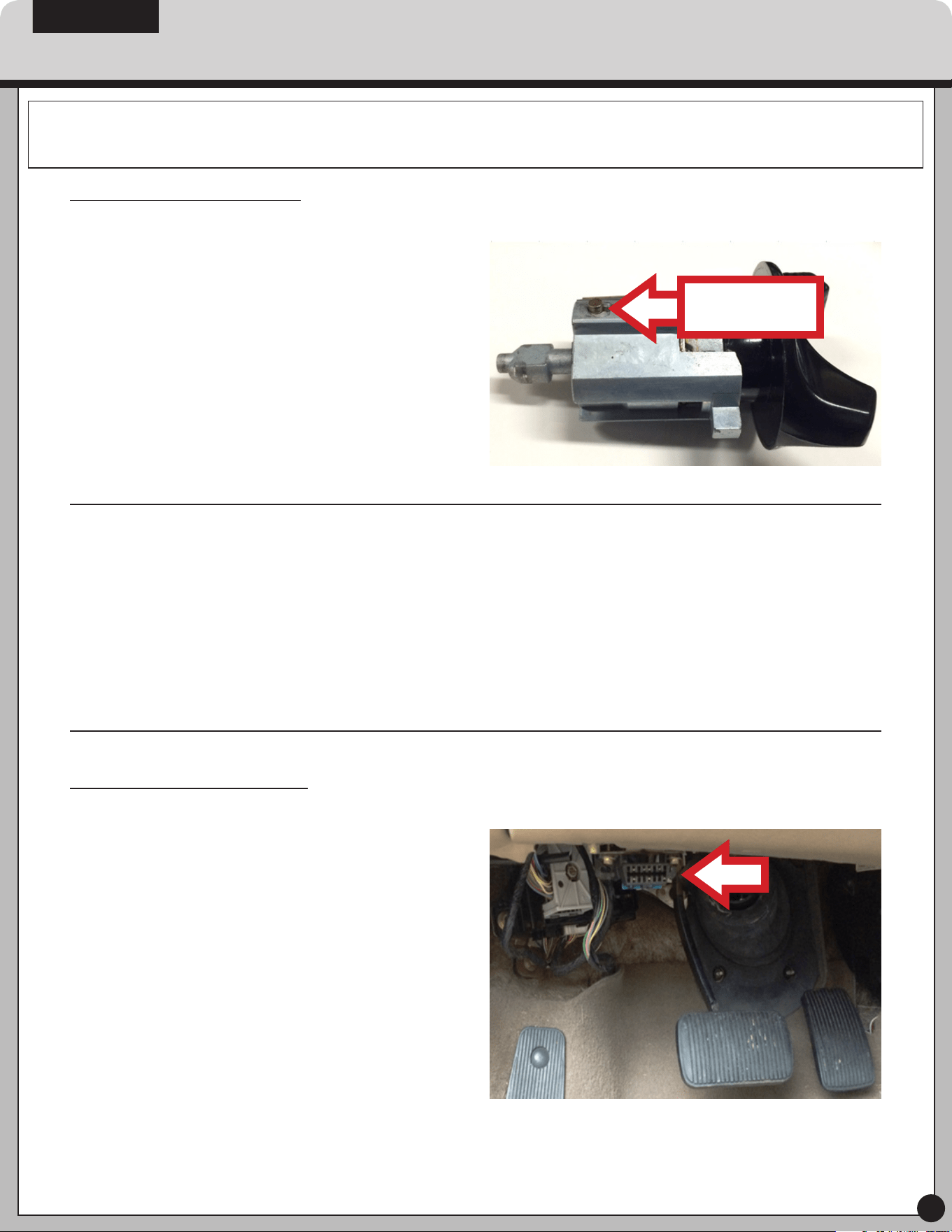

STEP 1: Install lock cylinder by rotating the
new lock to the run position and pressing
down on retaining pin.
Press in retaining
pin to install.
STEP 2: Insert lock into column. Ensure that cylinder is fully seated and aligned in
interlocking washer before turning key to the o position. This will enable the lock
retaining pin to extend into cylinder housing.
STEP 3: Rotate new lock cylinder using key to ensure proper operation in all positions.
STEP 4: Reconnect battery.
Programming Procedure
STEP 1: Plug programmer into OBD2 port
and wait for programmer to beep.
INSTALL/REMOVAL INSTRUCTIONS: IGNITION LOCK CYLINDER
989-714
Disclaimer:
Even though every attempt is made to ensure this information is complete and accurate, it is impossible to account for all possible circumstances or situations. Please consult with a qualied auto technician
before attempting to perform any work you are not qualied to do. Automobiles can be hazardous to work on; be sure to take all necessary safety precautions. Failure to do so may result in property damage
or personal injury. Certain motor vehicle standards and performance requirements may apply to your motor vehicle (such as Federal Motor Vehicle Safety Standards by the National Highway Trac Safety
Administration). Be sure that your work is performed in accordance with such standards and that you do not disable any motor vehicle safety feature.
ATTENTION: Refer to the appropriate shop manual for your vehicle to obtain specic service procedures for this part. If you do not have
a service manual or lack the skill to install this part, it is recommended that you seek the services of a qualied technician. Pay special
attention to all cautions and warnings included in the shop manual. Read and follow all instructions carefully.
3
©2018 Dorman Products, Inc.
No reproductions in whole or in part without prior written approval.

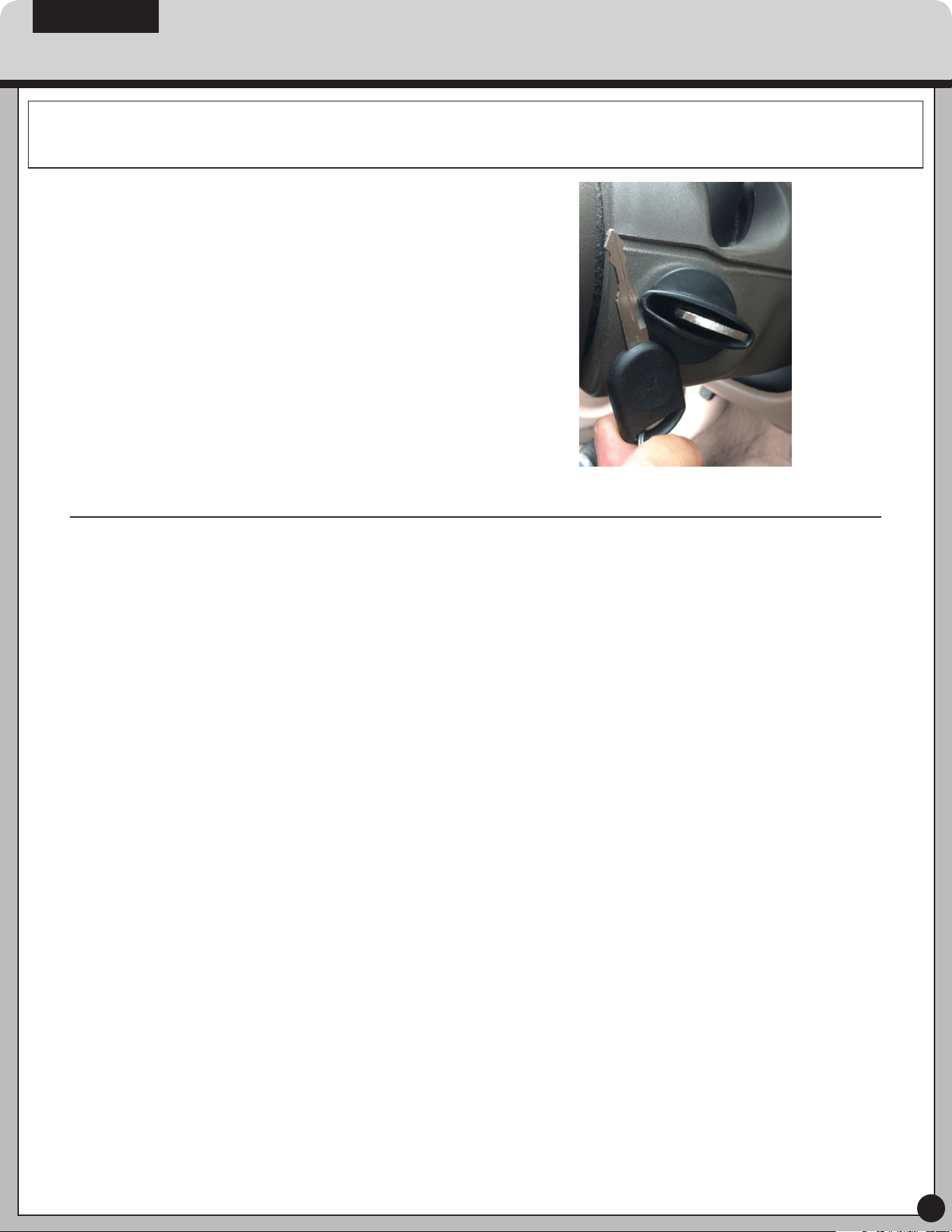

STEP 2: Insert the non-transponder key into
