Instruction Manual
Amplified Wireless Repeater
K200R
Revision 3 15
th
July 2026
K200R Amplified Repeater .................................................................................................................. 3
1 Part Description: K200R Wireless Amplified Repeater ........................................................... 3
2 General Description and Purpose ............................................................................................. 3
3 LED Indications ....................................................................................................................... 4
Green LED ................................................................................................................................... 4
Orange LED ................................................................................................................................. 5
4 Specification............................................................................................................................. 6
5. REGULATORY INFORMATION ........................................................................................... 7
FCC compliance statement .......................................................................................................... 7
ISED Canada compliance statement ............................................................................................ 8
Revision 3 15
th
July 2026
K200R Amplified Repeater
1 Part Description: K200R Wireless Amplified Repeater
2 General Description and Purpose
The K200R is designed to extend the Kelsius RF network by receiving and transmitting RF
packets. It should be directly mounted within the Kelsius WAN to enhance the RF
performance of Kelsius low power battery sensors, these units might be located in
basements, large warehouses or outbuildings.
Its main power source is 5V USB Type-C, the K200R also contains a rechargeable battery
that will power the device in the event of mains power failure.
The K200R is activated by operation of the recessed on/off switch at the bottom of the
device. (left position On, right Position Off)
This equipment design typically applies to commercial or industrial equipment expected
to be installed in locations by Kelsius trained engineers and where only adults are normally
present.

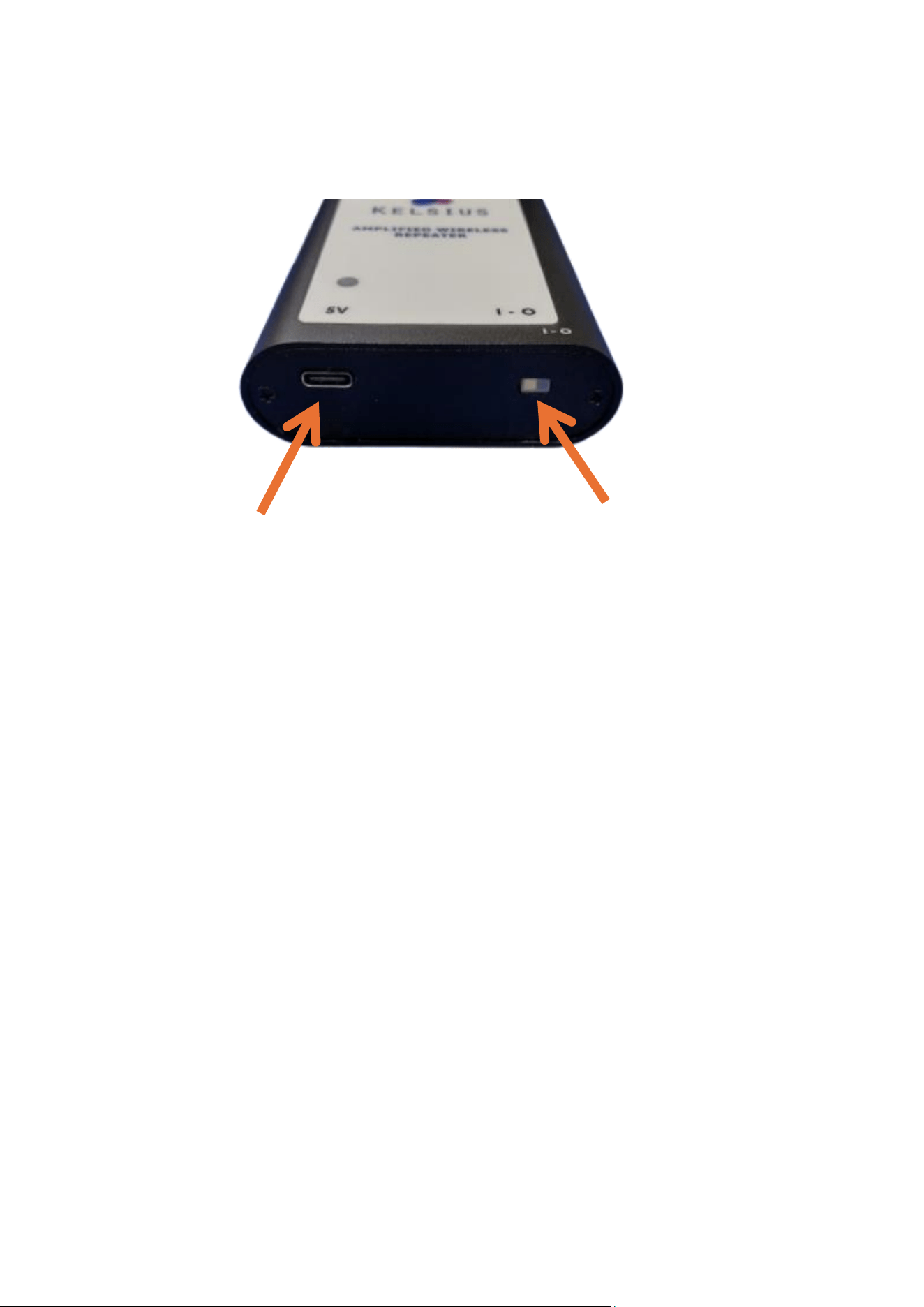

5V USB-C Power Supply

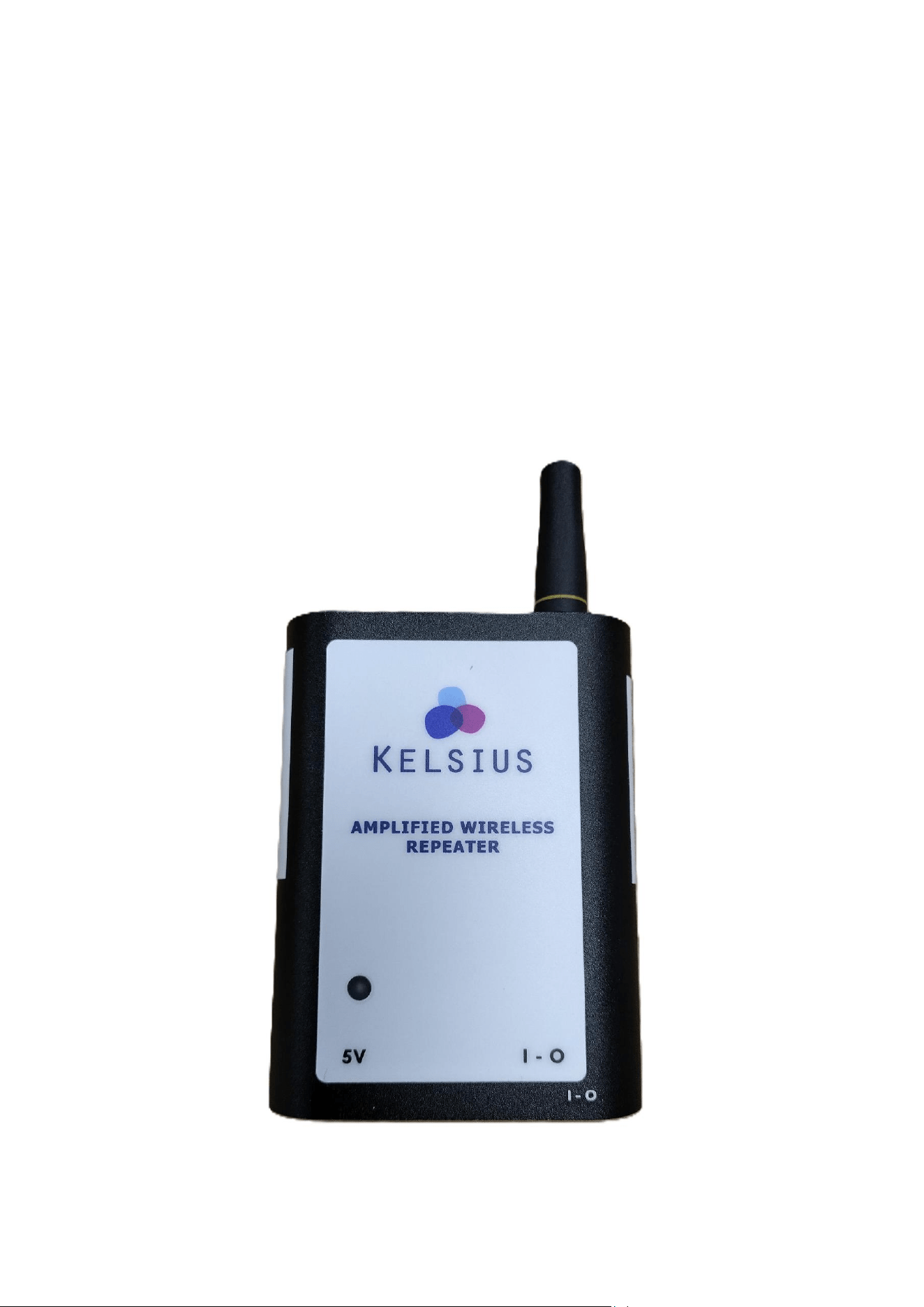

Fig.1 K200R
ON/OFF Switch
Revision 3 15
th
July 2026
3 LED Indications
Green LED
The Green Led (Fig.2) will indicate the power up sequence and if an established
communication link has been discovered.
On power up the device will illuminate two times. After power up it will indicate if the
device is communicating with a network controller.
If the K200R is installed and communicated to a Kelsius Network Controller, the green LED
will flash six times.
If the K200R is not installed on a network controller the green LED will flash once.

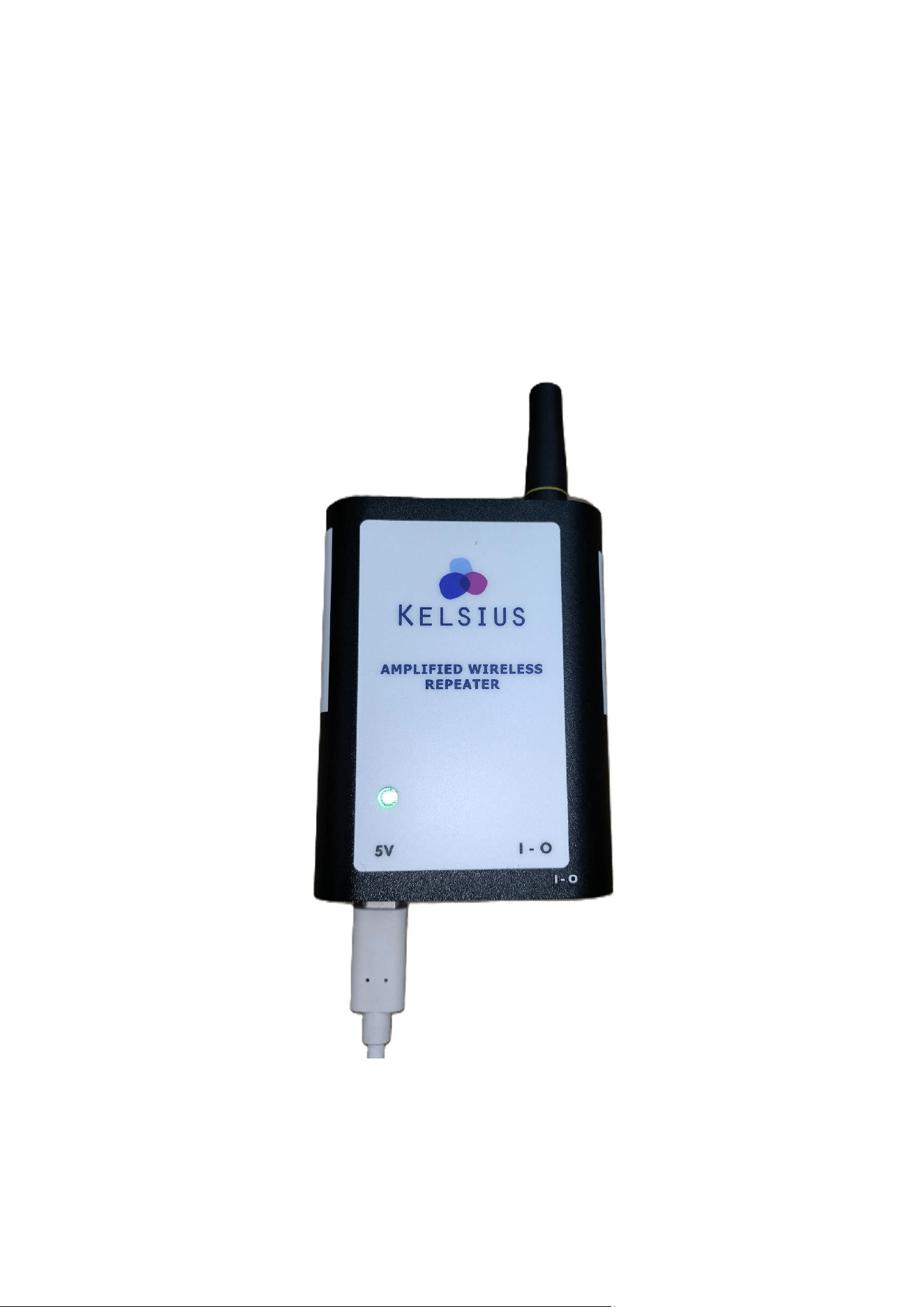

Fig.2 K200R Green LED
Revision 3 15
th
July 2026
Orange LED
The orange LED (Fig.3) is used to report the battery status.
Solid orange LED will indicate the battery is charging.

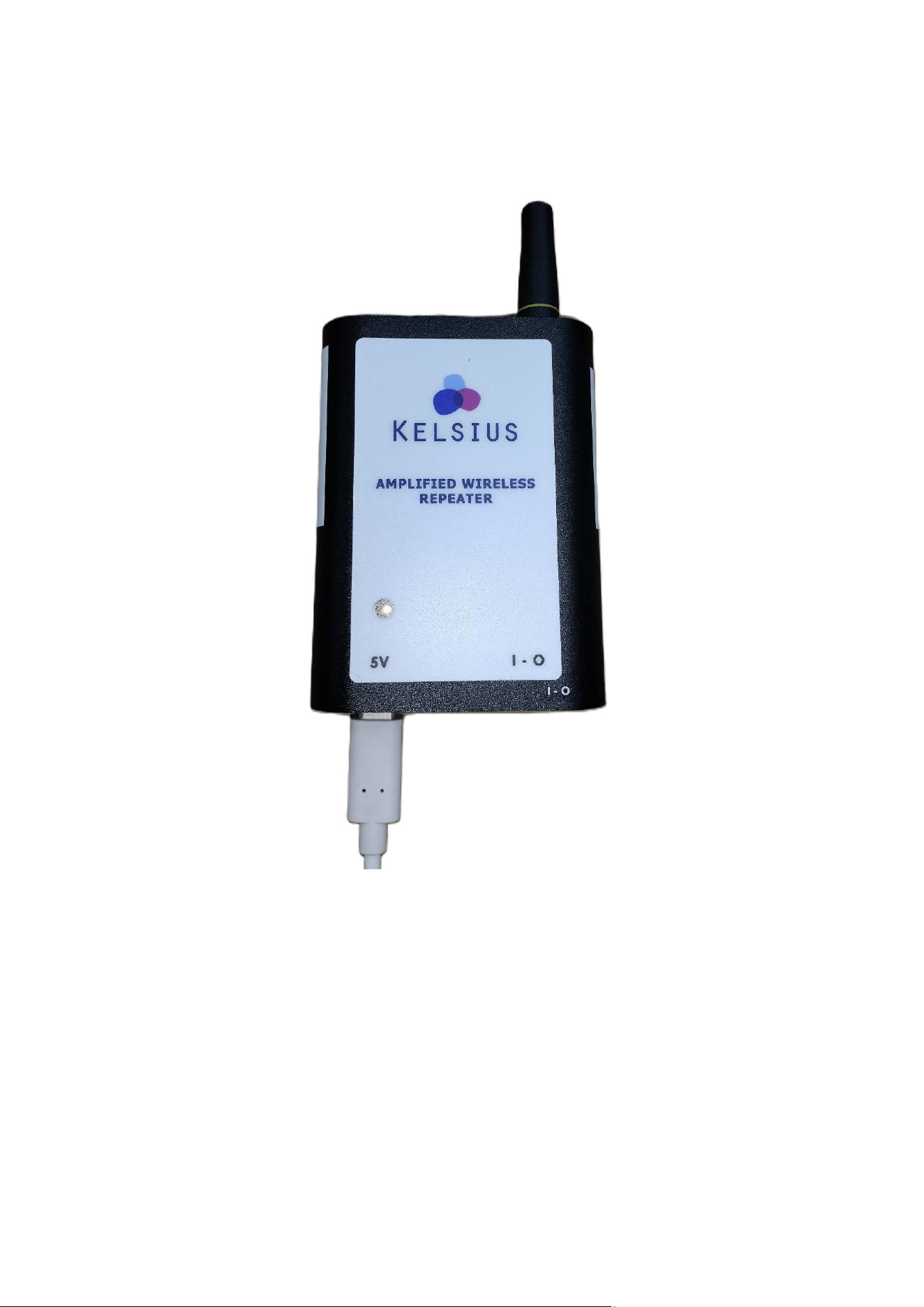

Fig.3 K200R Orange LED
Revision 3 15
th
July 2026
4 Specification
Specification
Power Supply
5V USB-C
Radio Range (line of sight)
700m
Frequency Band
902–928 MHz FHSS
Antenna
Linx ANT-916-PW-LP
[1]
Remote Configuration
Application settings and firmware
updatable over RF
[2]
Battery
Lithium-polymer 3.7V 1500mAh
Battery Backup Duration
50 Hours
Size
Width: 70.3mm
Height: 126.1mm
Depth: 24.5mm
Enclosure
Aluminum
Weight
134g
[1] Antenna datasheet
[2] The device accepts firmware updates only via the system's managed update process. Radio
parameters are factory-set and not user-adjustable.
Installation Conditions
Ambient Temperature
-30ºC to +40ºC
Relative Humidity
20% to 80%
Atmospheric Pressure
870hPa to 1085hPa
Revision 3 15
th
July 2026
5. Regulatory Information
Product identification:
Model
FCC ID
IC
K200R
2BWIPK200R
35798-K200R
FCC Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Revision 3 15
th
July 2026
ISED Canada Interference Statement
ISED Canada — Licence -Exempt Notice (RSS-Gen, English)
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and
Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two
conditions: (1) This device may not cause interference. (2) This device must accept any interference,
including interference that may cause undesired operation of the device.
ISED Canada — Avis d'exemption de licence (CNR-Gen, Français)
L'émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR
d'Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts
de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) L'appareil ne doit pas
produire de brouillage ; (2) L'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.
RF Exposure Statement (FCC / ISED RSS-102)
This equipment complies with FCC and ISED radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20 cm
between the radiator and any person.
Cet équipement est conforme aux limites d'exposition aux rayonnements de la FCC et d'ISDE établies
pour un environnement non contrôlé. Cet équipement doit être installé et utilisé en maintenant une
distance minimale de 20 cm entre la source de rayonnement et toute personne.
