Product Description
The Spider Systems IoT units are 4G network-based systems, enhanced with
Bluetooth for access and management control. Through on board relays, users can
control the unit via either a dedicated application or an easy-to-use web portal. This
device seamlessly integrates with electric gates, doors, lighting systems, or any other
appliance that would benefit from remote control and management.
Key Benefits
• Remote Access - Complete and secure control of the unit anytime, and from
anywhere.
• Peace of mind - Ensures access even during rare cellular network downtimes.
• "Nearby only" Feature - Allows specific users to operate the unit only when
in proximity.
• Automatic opening – PalGate App can operate the gate automatically when
arriving at the gate by car, this feature will work only when the PalGate App is
connected to a vehicle’s multimedia system via Bluetooth.
• Compact Size - The unit has a small footprint, measuring just 80X53 mm.
• Management and control – using the free "PalGate" App and an easy to use
management WEB portal.
• Visual Indicators - Features 4 LED lights (1 to indicate that the SIM is active
and 3 to indicate reception strength).
• Customizable Access – Ability to set up multiple administrators and
authorized users for tailored access and control.
• Real time notifications - Receive instant email or push notifications to the
PalGate App.
• Voice Control – Voice-controlled operation via Siri or Google Assistant.
• Customization – Ability to set timers, events, astronomic clocks and more.
• User Management - Easily import and export data using Excel.
• Programmable relay pulse width
PAL ELECTRONICS SYSTEMS LTD.
Pal electronics systems
Pal electronics systems, 15 HaTidhar St., Ra'anana, POB 2516 Israel 4366517
Tel:972-9-7920667, Website: www.pal-es.com, Email: info@pal-es.com.
Page 3 of 12
• Supports 50 PalGate App users
• 1 output relays (N.O./N.C.)
• 1 input channels with real-time notifications
to Email and push to PalGate App
• Multiple opening methods: Proximity, App, Dialing, Siri,
and Google Assistant
• Allows customization of opening distance
• Manage with a free App or user-friendly web interface*
• API integration available*
• Provides unlimited logs*
• Features timers and event scheduling
• Equipped with a programmable astronomical clock
• Capability to import and export data via Excel files
• Adjustable relay pulse width
• Compatible with 4G networks
• Operates on an input voltage of 12VDC
• Compact dimensions: 53x80 mm
•
Variants
Model
Spider - 50 Spider -i Spider - B Spider– i-WRL Spider– i-WR Spider B-WR Spider -
Wiegand 26
Control with
application IOS
& Android
✓ ✓ ✓ ✓ ✓ ✓ ✓
Control by
WEB interface
✓ ✓ ✓ ✓ ✓ ✓ ✓
User definition
Nearby only or
unlimited
distance
✓ ✓ ✓ ✓ ✓ ✓ ✓
Excel
import/export
✓ ✓ ✓ ✓ ✓ ✓ ✓
Schedule
management
control
✓ ✓ ✓ ✓ ✓ ✓ ✓
Supports
smart remote
control &
Wireless vehicle
detector
-- -- --
10,000 10,000 10,000 10,000
Output
(N.O/N.C)
1 1 2 1 1 2 1
Input
(N.O/N.C)
1 1 2 1 1 2 2
Max users
50 20,000 20,000 3 20,000 20,000 20,000
Wiegand 26 bit
reader
-- -- -- -- -- -- ✓
Size and Weight
of pakege
8*5.3*2.5CM
83 gr
8*5.3*2.5CM
83 gr
8*5.3*2.5CM
83 gr
8*5.3*2.5CM
87 gr
8*5.3*2.5CM
87 gr
8*5.3*2.5CM
87 gr
8*5.3*2.5CM
87 gr
P/N
USA SP100 SP101 SP102 SP110 SP111 SP112 SP113
Australia SP200 SP201 SP202 SP210 SP211 SP212 SP213
Europe SP300 SP301 SP302 SP310 SP311 SP312 SP313

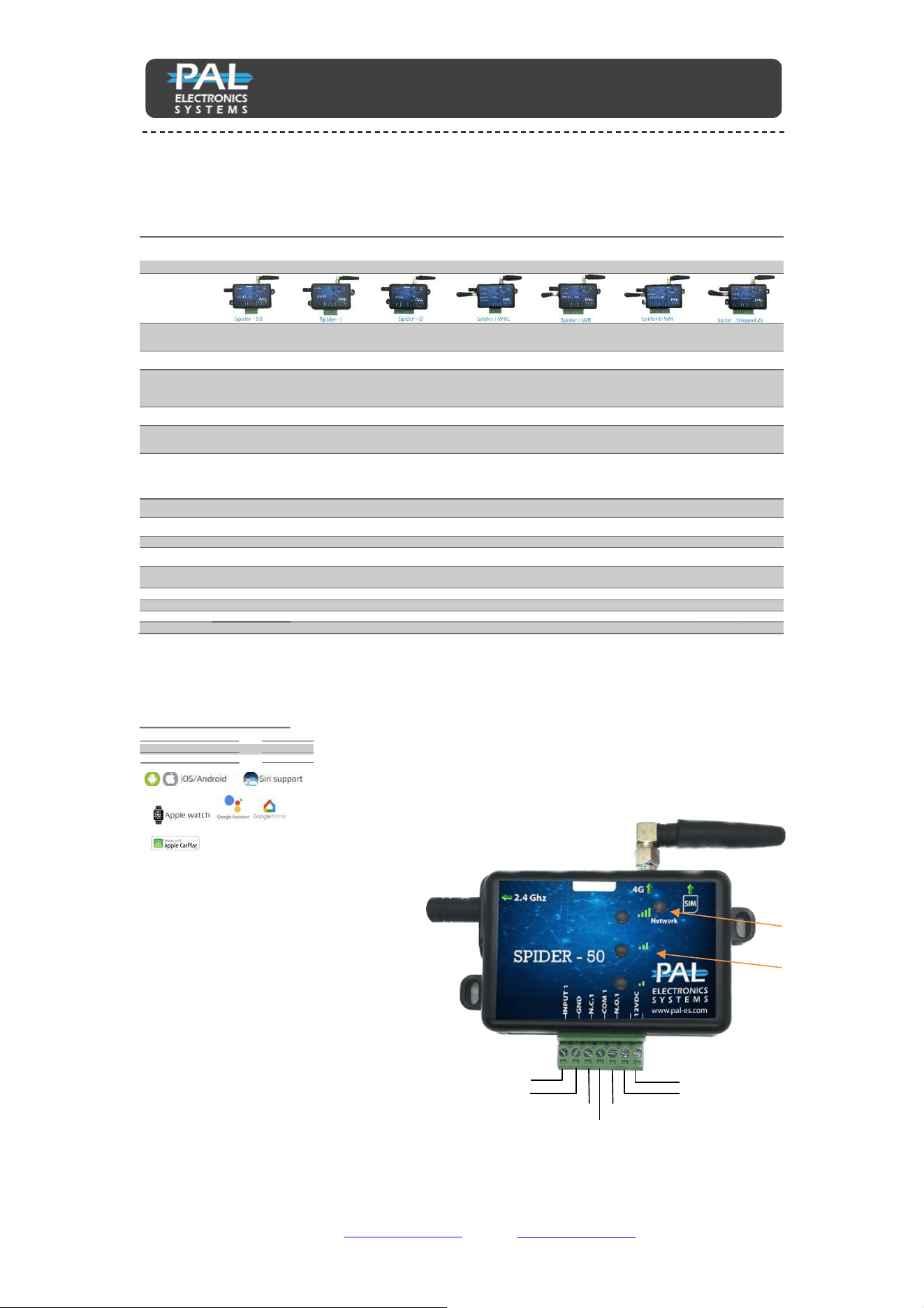

Spider – 50
USA
SP100
Australia
SP200
Europe
SP300
COM
Relay
input alert
Input voltage 12VDC / 1A
N.C
N.O

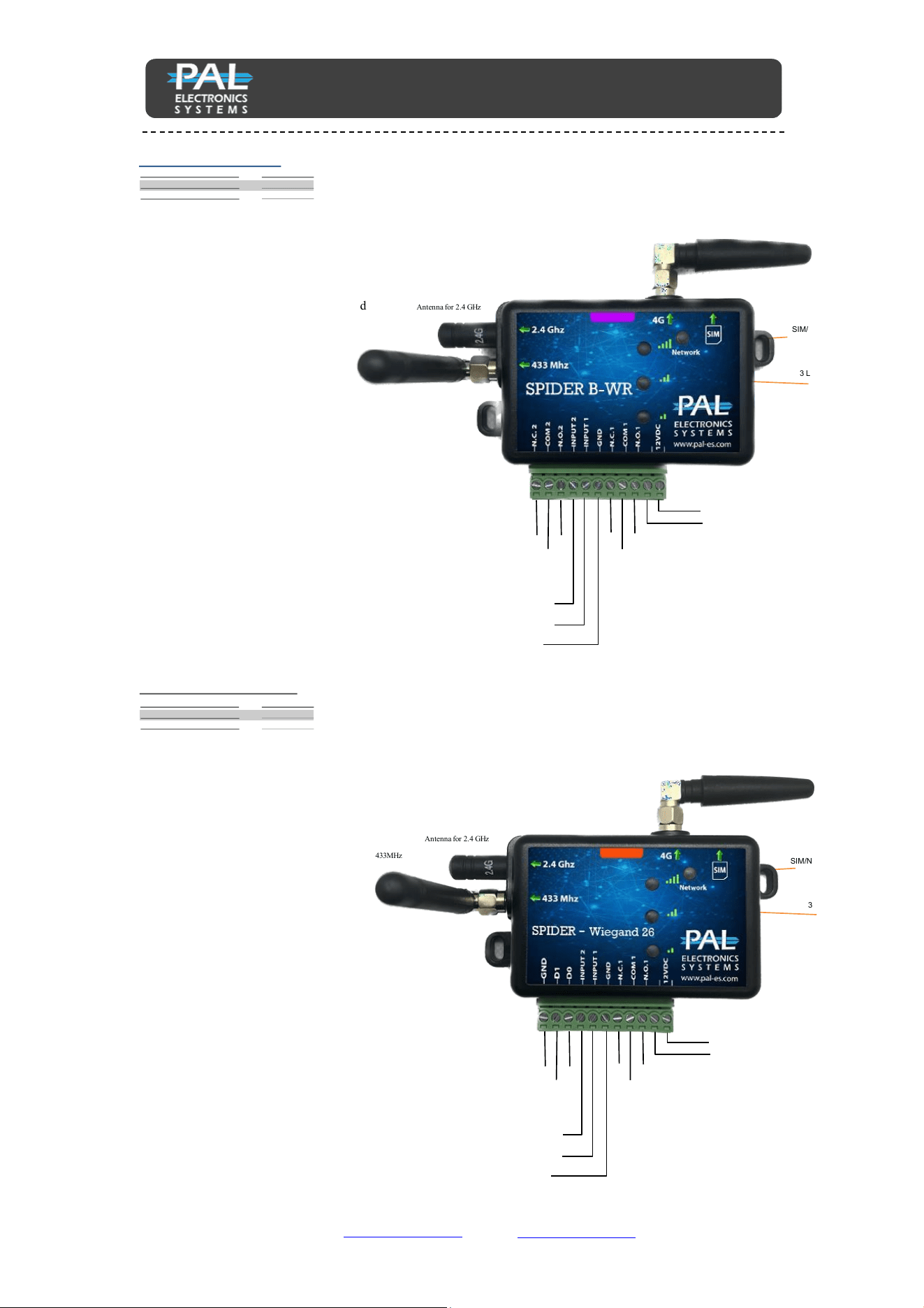

Antenna for the 4G cellular network
Antenna for 2.4 GHz
SIM/Network Status LED
3 LEDs Cellular reception level
PAL ELECTRONICS SYSTEMS LTD.
Pal electronics systems
Pal electronics systems, 15 HaTidhar St., Ra'anana, POB 2516 Israel 4366517
Tel:972-9-7920667, Website: www.pal-es.com, Email: info@pal-es.com.
Page 4 of 12
input alert
Input voltage 12VDC / 1A
Antenna for the 4G cellular network
SIM/Network Status LED
3 LEDs Cellular reception level
Antenna
for 2.4 GHz
N.C
N.O
COM
Relay
• Supports unlimited PalGate App users
• 1 output relays (N.O./N.C.)
• 1 input channels with real-time notifications to Email
and push to PalGate App
• Multiple opening methods: Proximity, App, Dialing,
Siri, and Google Assistant
• Allows customization of opening distance
• Manage with a free application or user-friendly web
interface*
• API integration available*
• Provides unlimited logs*
• Features timers and event scheduling
• Equipped with a programmable astronomical clock
• Capability to import and export data via Excel files
• Adjustable relay pulse width
• Compatible with 4G networks
• Operates on an input voltage of 12VDC
• Compact dimensions: 53x80 mm
•
• Supports unlimited PalGate App users
• 2 output relays (N.O./N.C.)
• 2 input channels with real-time notifications to Email
and push to PalGate App
• Multiple opening methods: Proximity, App, Dialing,
Siri, and Google Assistant
• Allows customization of opening distance
• Manage with a free application or user-friendly web
interface*
• API integration available*
• Provides unlimited logs*
• Features timers and event scheduling
• Equipped with a programmable astronomical clock
• Capability to import and export data via Excel files
• Adjustable relay pulse width
• Compatible with 4G networks
• Operates on an input voltage of 12VDC
• Compact dimensions: 53x80 mm

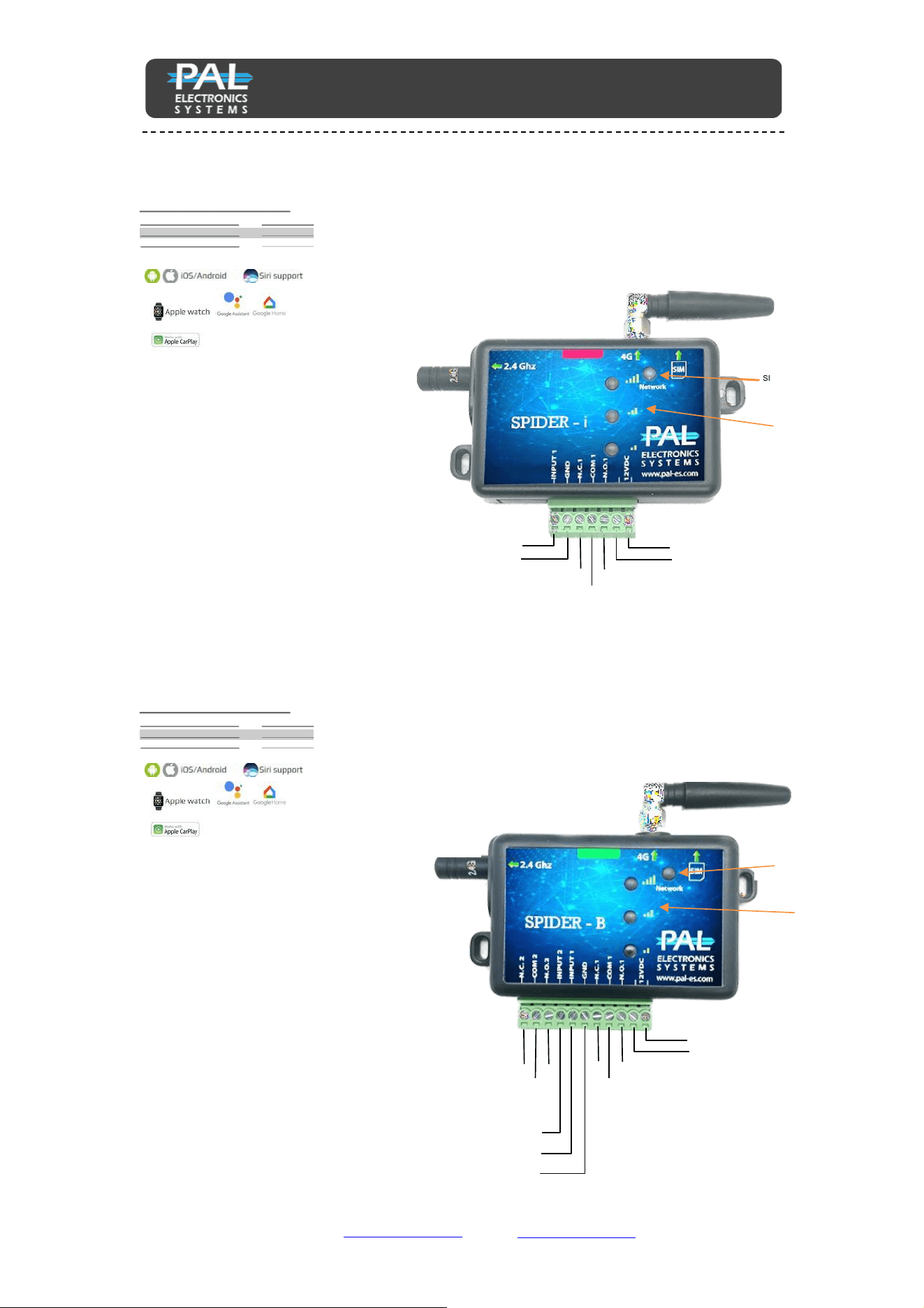

Spider – i
USA
SP101
Australia
SP201
Europe
SP301
Spider – B
USA
SP102
Australia
SP202
Europe
SP302
Input voltage 12VDC / 1A
Antenna for the 4G cellular network
SIM/Network Status LED
3 LEDs Cellular reception level
Antenna for 2.4 GHz
N.C2 N.O2
N.C1
N.O1
COM1
Relay 1
COM2
Relay 2
input alert 2
input alert 1
GND
PAL ELECTRONICS SYSTEMS LTD.
Pal electronics systems
Pal electronics systems, 15 HaTidhar St., Ra'anana, POB 2516 Israel 4366517
Tel:972-9-7920667, Website: www.pal-es.com, Email: info@pal-es.com.
Page 5 of 12
• Supports 3 PalGate App users
• 1output relays (N.O./N.C.)
• 1 input channels with real-time notifications to Email
and push to PalGate App
• Wireless receiver 433Mhz.
• Multiple opening methods: Proximity, App, Dialing,
Siri, and Google Assistant
• Allows customization of opening distance
• Manage with a free application or user-friendly web
interface*
• API integration available*
• Provides unlimited logs*
• Features timers and event scheduling
• Equipped with a programmable astronomical clock
• Capability to import and export data via Excel files
• Adjustable relay pulse width
• Compatible with 4G networks
• Operates on an input voltage of 12VDC
• Compact dimensions: 53x80 mm
•
• Unlimited PalGate App users
• 1output relays (N.O./N.C.)
• 1 input channels with real-time notifications to
Email and push to PalGate App
• Wireless receiver 433Mhz.
• Multiple opening methods: Proximity, App,
Dialing, Siri, and Google Assistant
• Allows customization of opening distance
• Manage with a free application or user-friendly web
interface*
• API integration available*
• Provides unlimited logs*
• Features timers and event scheduling
• Equipped with a programmable astronomical clock
• Capability to import and export data via Excel files
• Adjustable relay pulse width
• Compatible with 4G networks
• Operates on an input voltage of 12VDC
• Compact dimensions: 53x80 mm

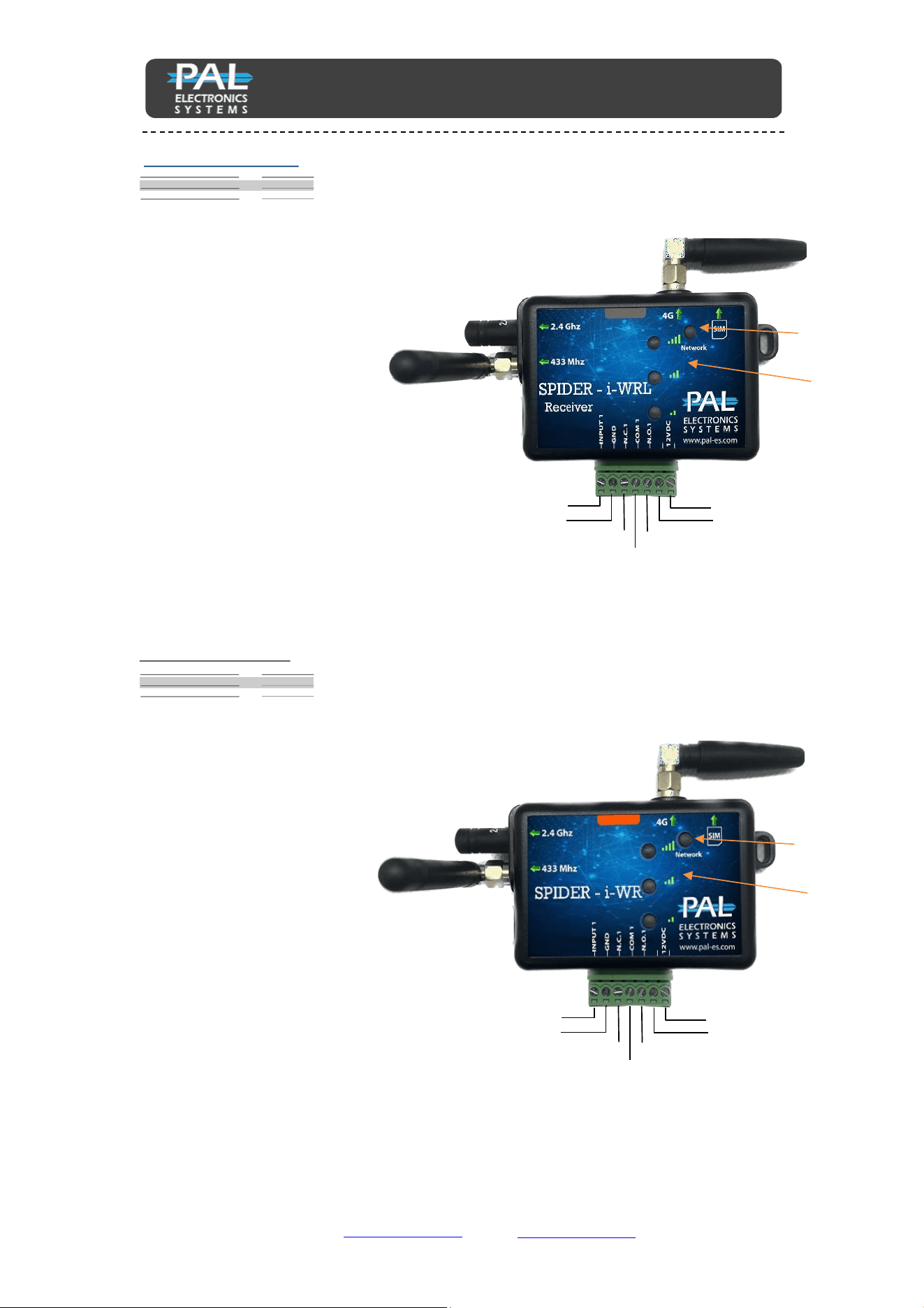

Spider– i-WRL
USA
SP110
Australia
SP210
Europe
SP310
Spider i-WR
USA
SP111
Australia
SP211
Europe
SP311
input alert
Input voltage 12VDC / 1A
N.O
Antenna for the 4G cellular network
SIM/Network Status
LED
Antenna for 2.4 GHz
Antenna for 433MHz
3 LEDs Cellular reception level
N.C
COM
input alert
Input voltage 12VDC / 1A
N.O
Antenna for the 4G cellular network
SIM/Network Status LED
Antenna for 2.4 GHz
Antenna for 433MHz
3 LEDs Cellular reception level
N.C
COM
PAL ELECTRONICS SYSTEMS LTD.
Pal electronics systems
Pal electronics systems, 15 HaTidhar St., Ra'anana, POB 2516 Israel 4366517
Tel:972-9-7920667, Website: www.pal-es.com, Email: info@pal-es.com.
Page 6 of 12
• Unlimited PalGate App users
• 2output relays (N.O./N.C.)
• 2input channels with real-time notifications to Email and
push to PalGate App
• Wireless receiver 433Mhz.
• Multiple opening methods: Proximity,
App, Dialing, Siri, and Google Assistant
• Allows customization of opening distance
• Manage with a free application or user-friendly web
interface*
• API integration available*
• Provides unlimited logs*
• Features timers and event scheduling
• Equipped with a programmable astronomical clock
• Capability to import and export data via Excel files
• Adjustable relay pulse width
• Compatible with 4G networks
• Operates on an input voltage of 12VDC
• Compact dimensions: 53x80 mm
• Unlimited PalGate App users
• 1 output relays (N.O./N.C.)
• 2 input channels with real-time notifications
to Email and push to PalGate App
• Wireless receiver 433Mhz.
• Wiegand 26 bit reader.
• Multiple opening methods: Proximity,
App, Dialing, Siri, and Google Assistant
• Allows customization of opening distance
• Manage with a free application or user-
friendly web interface*
• API integration available*
• Provides unlimited logs*
• Features timers and event scheduling
• Equipped with a programmable astronomical
clock
• Capability to import and export data via
Excel files
• Adjustable relay pulse width
• Compatible with 4G networks
• Operates on an input voltage of 12VDC
• Compact dimensions: 53x80 mm
Spider B-WR
USA
SP112
Australia
SP212
Europe
SP312
Spider – Wiegand 26
USA
SP113
Australia
SP213
Europe
SP313
Input voltage 12VDC / 1A
N.C1
N.O1
COM1
Relay 1
Antenna for the 4G cellular network
Antenna for 2.4 GHz
SIM/Network Status LED
3 LEDs Cellular reception level
input alert 2
input alert 1
GND
N.C2 N.O2
COM2
Relay 2
Antenna for 433MHz
Input voltage 12VDC / 1A
N.C1
N.O1
COM1
Relay 1
Antenna for the 4G cellular network
Antenna for 2.4 GHz
SIM/Network Status LED
3 LEDs Cellular reception level
input alert 2
input alert 1
GND
D1
GND D0
Wiegand 26
Antenna for 433MHz
PAL ELECTRONICS SYSTEMS LTD.
Pal electronics systems
Pal electronics systems, 15 HaTidhar St., Ra'anana, POB 2516 Israel 4366517
Tel:972-9-7920667, Website: www.pal-es.com, Email: info@pal-es.com.
Page 7 of 12
LEDs key:
SIM/Network LED
Fast Flashing: System is booting
Slow Flashing: Module is searching for a cellular network
All LEDs Flashing: SIM card not recognized
LED 1
Blinking Twice: Connecting to the internet
Blinking Four Times: Connecting to the servers
Signal Strength
4G Signal Strength Indicator
LED #1 ON: Low signal
LED #1 and #2 ON: Good signal
LED #1, #2, and #3 ON: Very good signal
Specifications:
Supply Voltage Range: 12V DC
Average Standby current consumption: ~70mA
Relay Contact Current Rating: 1A, 30V AC/DC (Resistive)
Antenna: 50Ω SMA Antenna interface
Temperature Range: -20°C to +70°C (-4°F to +158°F).
Exterior Dimensions: 53mm x 80 mm (2.09 in. x 3.15 in).
Net Weight: 87 gr (3.07 ounces)
Voice Support: VoLTE
Frequency Bands:
U.S.A Market (SP1XX): 4G bands: B2, B4, B12, B66
Australia Market (SP2XX): 4G bands: B1, B3, B5, B8, B9, B18(B26), B19, B28
Europe Market (SP3XX): 4G bands: B1, B3, B7, B8, B20, B28
2G bands:B3, B8
2.4G Wi-Fi: 2412-2472MHz/2422-2462MHz(CE certification)
BLE: 2402-2480MHz
SRD RX: 433.877MHz (This product belongs to receiver category 2)
RF-Output Power:
4G: Band 1: 23.19dBm
Band 3: 22.84dBm
Band 7: 23.41dBm
Band 8: 22.97dBm
Band 20: 22.87dBm
Band 28: 23.02dBm
2G: EGSM 900: 32.22dBm(GMSK), 27.14dBm(8PSK)
DCS1800: 30.23dBm(GMSK), 25.71dBm(8PSK)
2.4G Wi-Fi: 13.03dBm
BLE: 2.21dBm
PAL ELECTRONICS SYSTEMS LTD.
Pal electronics systems
Pal electronics systems, 15 HaTidhar St., Ra'anana, POB 2516 Israel 4366517
Tel:972-9-7920667, Website: www.pal-es.com, Email: info@pal-es.com.
Page 8 of 12
Optional
Magnetic Sensor -
Installation allows you to
receive a gate status
notification.
Optional
Magnetic Sensor -
Installation allows you
to receive a gate status
notification.
Gate Operator
Control Board

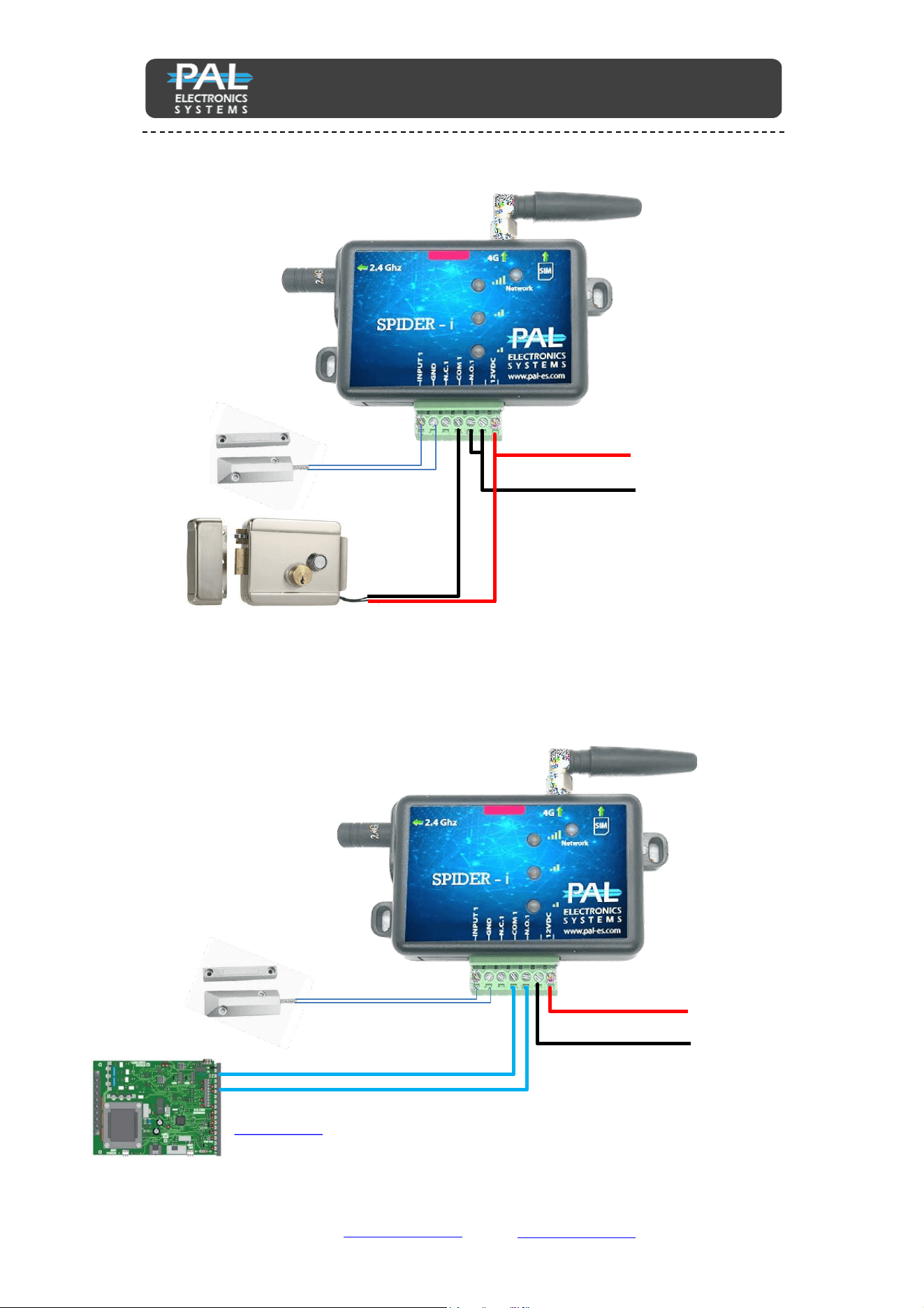

Typical wiring connection to an Electronic Lock:
Maximum load 2A/30VDC; 0.5A/125VAC
Typical wiring connection to a Gate:
Input voltage 12VDC / 3A
Input voltage 12VDC / 1A
PAL ELECTRONICS SYSTEMS LTD.
Pal electronics systems
Pal electronics systems, 15 HaTidhar St., Ra'anana, POB 2516 Israel 4366517
Tel:972-9-7920667, Website: www.pal-es.com, Email: info@pal-es.com.
Page 9 of 13

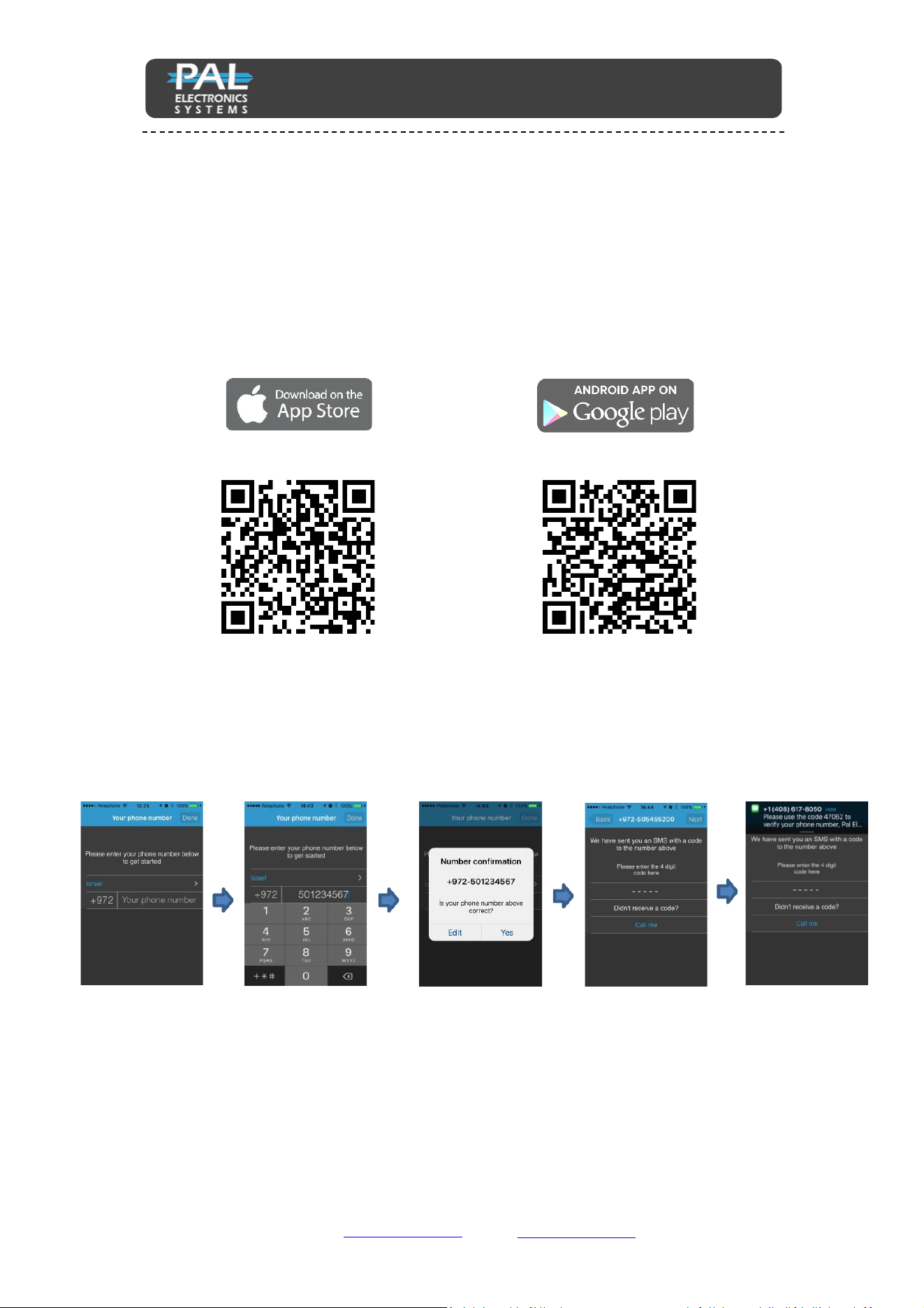

System settings using the PalGate App
You may download our App from either the Apple App Store or from Google Play by
searching for the name “PalGate”. If you prefer, you can access a direct link by
scanning the QR codes below:
The PalGate App installation process
After adding your
phone number, you
will be sent a
verification code
Confirm your phone
number
Enter the
verification code.
Add your cellphone
number
PAL ELECTRONICS SYSTEMS LTD.
Pal electronics systems
Pal electronics systems, 15 HaTidhar St., Ra'anana, POB 2516 Israel 4366517
Tel:972-9-7920667, Website: www.pal-es.com, Email: info@pal-es.com.
Page 10 of 12
New device setup
Add a new user
Important Information for optimal operation:
• Installation: If the device will be installed in a metal cabinet, the installer must connect an
external 4G antenna to the device that will reach the outside of the cabinet.
• Power Requirements: The unit requires a stable power source of 12Vdc/1A.
• Environment: Protect the unit from excessive humidity and prevent insect infiltration.
• Network Compatibility: The Spider Systems unit operates using 4G and Bluetooth
technology. For optimal performance, prior to installation ensure the availability of acceptable
4G signal strength in the installation area. PAL ELECTRONICS SYSTEMS LTD. is not
responsible for the quality of cellular network coverage. It is the installer’s/user's responsibility
to ensure adequate 4G reception in the area.
• Maintenance: Any maintenance or repairs should only be conducted by authorized installers.
* Optional feature. Payment may apply

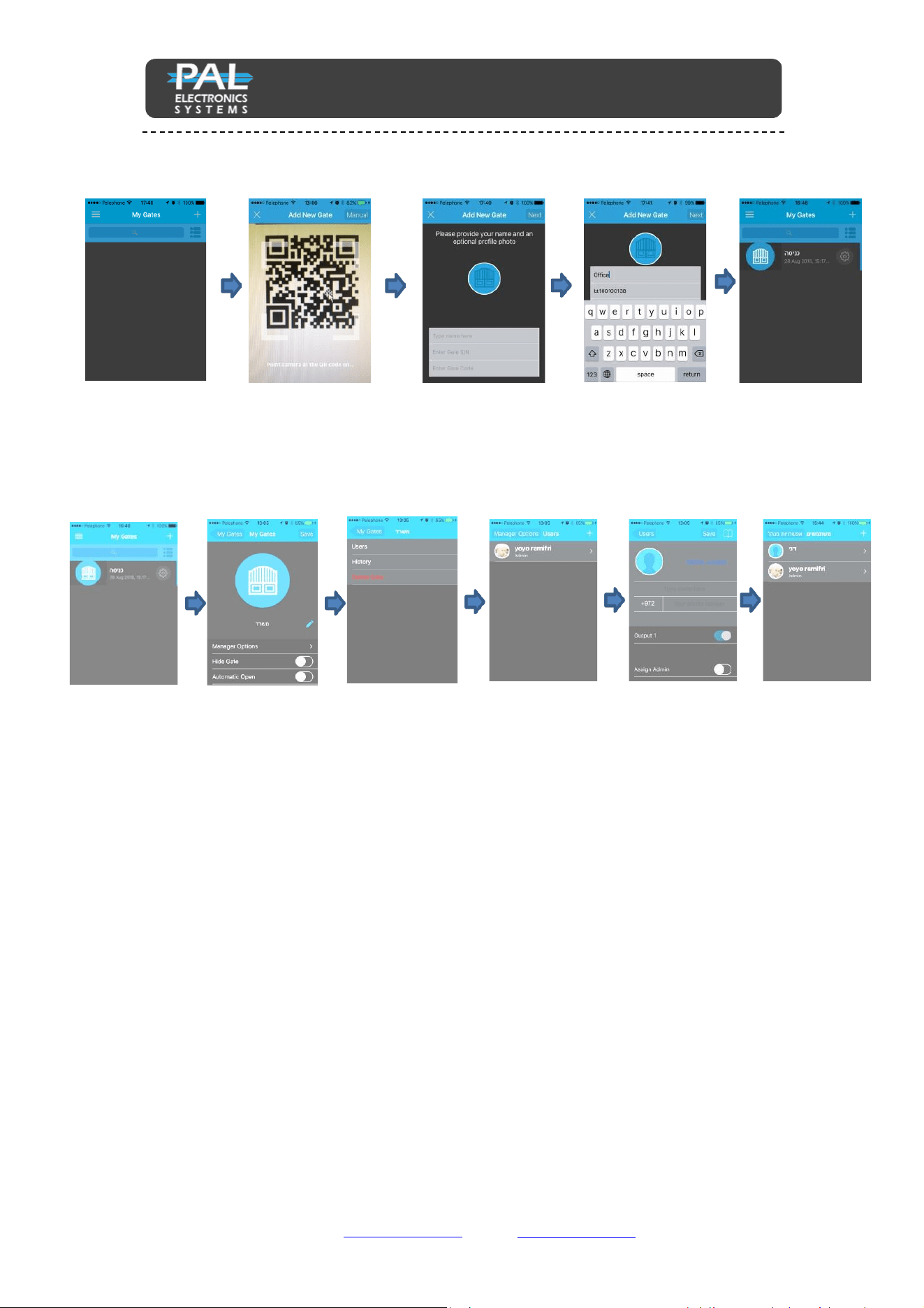

Click the + button to
add a new device
You can scan the
QRcode or add
device manually
Device details -Serial
number and code are
printed on the device
and should be added
as printed
After adding the
device details
click next
The added gate will
appear on the "My
gates" screen
Click on the
Gate Settings
button
Click on
Manager
Options
Click on Users
Click on + to
add user
Type in a name or
select the new user
from your contact
list and click save
The new user will
receive a message that
he is being added and
the name will appear on
the list
PAL ELECTRONICS SYSTEMS LTD.
Pal electronics systems
Pal electronics systems, 15 HaTidhar St., Ra'anana, POB 2516 Israel 4366517
Tel:972-9-7920667, Website: www.pal-es.com, Email: info@pal-es.com.
Page 11 of 12
Professional Installation Notice
1. Mandatory Professional Installation Notice
IMPORTANT: This device must be professionally installed. This product is not intended for
sale to the general public and must be distributed exclusively through authorized dealers,
value-added resellers (VARs), or certified system integrators. No end-user self-installation is
permitted under FCC regulations.
2. Installer Qualification Requirements
Only personnel who have completed Pal electronics systems product-specific installation
training are authorized to install this device. This training, provided through Pal electronics
systems technical support team, covers commercial wiring, overs RF system integration,
antenna installation and positioning, relay and power supply integration, gate/door automation
systems, and the device's configuration software. Personnel who have not completed this
training are not authorized installers. Ordinary consumers do not have the necessary skills or
professional tools to ensure the device is installed in full compliance with FCC regulatory
requirements.
3. Authorized Antenna & RF Accessory List
Only the following pre-approved antennas and RF accessories are permitted for use with this
device. Unauthorized modifications or use of unlisted components will void the user's
operational authorization:
All RF cables and adapters used must
maintain a total system insertion loss equal to or higher
than the value documented in the FCC certification filing. Installers are responsible for
verifying that the final antenna gain does not exceed the maximum approved value.
4. RF Radiation Exposure Compliance
This equipment must be installed with a minimum separation distance of 25cm between the
radiating antenna and all nearby people. The antenna must not be co-located or operated in
conjunction with any other transmitting antenna, to fully comply with FCC RF exposure limits
for an uncontrolled environment.
5. Installation Compliance Restrictions
Follow the
complete step-by-step installation procedure provided in this manual to ensure the
final deployed configuration matches the exact
test state documented in the FCC certification.
This device is restricted to commercial/industrial/professional deployment
scenarios only, and
must not be made available for general consumer use. Any changes or modifications not
expressly approved by the compliance responsible party will revoke the user's FCC
authorization to operate this equipment.
Pal electronics systems
Antenna
Manufacturer
Antenna Type
Operating Band
Maximum
Antenna Gain
SXN
MONOPOLE
2412~2462MHz
2402-2480MHz
3dBi
Pal electronics systems, 15 HaTidhar St., Ra'anana, POB 2516 Israel 4366517
Tel:972-9-7920667, Website: www.pal-es.com, Email: info@pal-es.com.
Page 12 of 12
