Fujifilm 600023914 INSTAX PAL Digital Camera Lavender User Manual

User’s Guide (Full version)

NA_EN

model number: FI026 FI026-EN-NA-02

Digital Camera

2

Table of contents

NOTICE ��3

Battery disposal ��3

Preparation for the camera .....................................................4

Before use ��4

Part names ��4

Using the multi-use detachable ring ��5

To use the multi-use detachable ring as a finger carrying

strap: ��5

Using the SD card ��5

Inserting a Micro SD Card (sold separately) ��5

Charging the battery ��6

Charging status ��6

Turning on/off the power��7

The camera status with the LED ��7

Preparation for the app ............................................................ 8

Installing the app ��8

Connecting to the app ��8

Overview of the app ............................................................... 11

Screen on the app ��11

Main screen ��11

Menu screen ��11

Settings screen ��12

Preparing for shooting ........................................................... 13

Pairing with the app �� 13

Naming the camera�� 13

Selecting pre-shutter sound �� 14

Selecting a shooting format �� 15

Saving images transferred to the app on the camera �� 15

Shooting data...........................................................................16

Captured data save destination�� 16

When not inserting the SD card �� 16

When SD card is inserted �� 16

Number of shots/storable �� 16

Shooting flow with app ..........................................................17

When shooting by connecting to the app �� 17

Shooting flow without app ...................................................18

When shooting without connecting to the app�� 18

Transferring shooting data to the app �� 18

Shooting ....................................................................................19

Precautions on shooting �� 19

About the mode selector switch on the bottom ��19

How to hold the camera ��19

Taking photos �� 19

Simple photo taking ��19

Continuous shooting �� 20

About flash photography �� 20

Taking photos using the provided multi-use detachable ring

as a viewfinder �� 20

Using the multi-use detachable ring as a base for your

camera �� 20

Remote shooting using the app �� 21

Interval shooting using the app �� 21

Gallery and INSTAX Animation .............................................22

Viewing/editing captured images �� 22

Creating an INSTAX Animation �� 23

Printing ...................................................................................... 24

Printing images from the app �� 24

Printing images directly from your camera via your

INSTAX LINK Series Smartphone printer device ��25

Specifications �� 26

Troubleshooting �� 27

IMPORTANT SAFETY NOTICE ��28

Simple camera care �� 29

Camera care �� 29

Bluetooth® Devices: Cautions �� 29

3

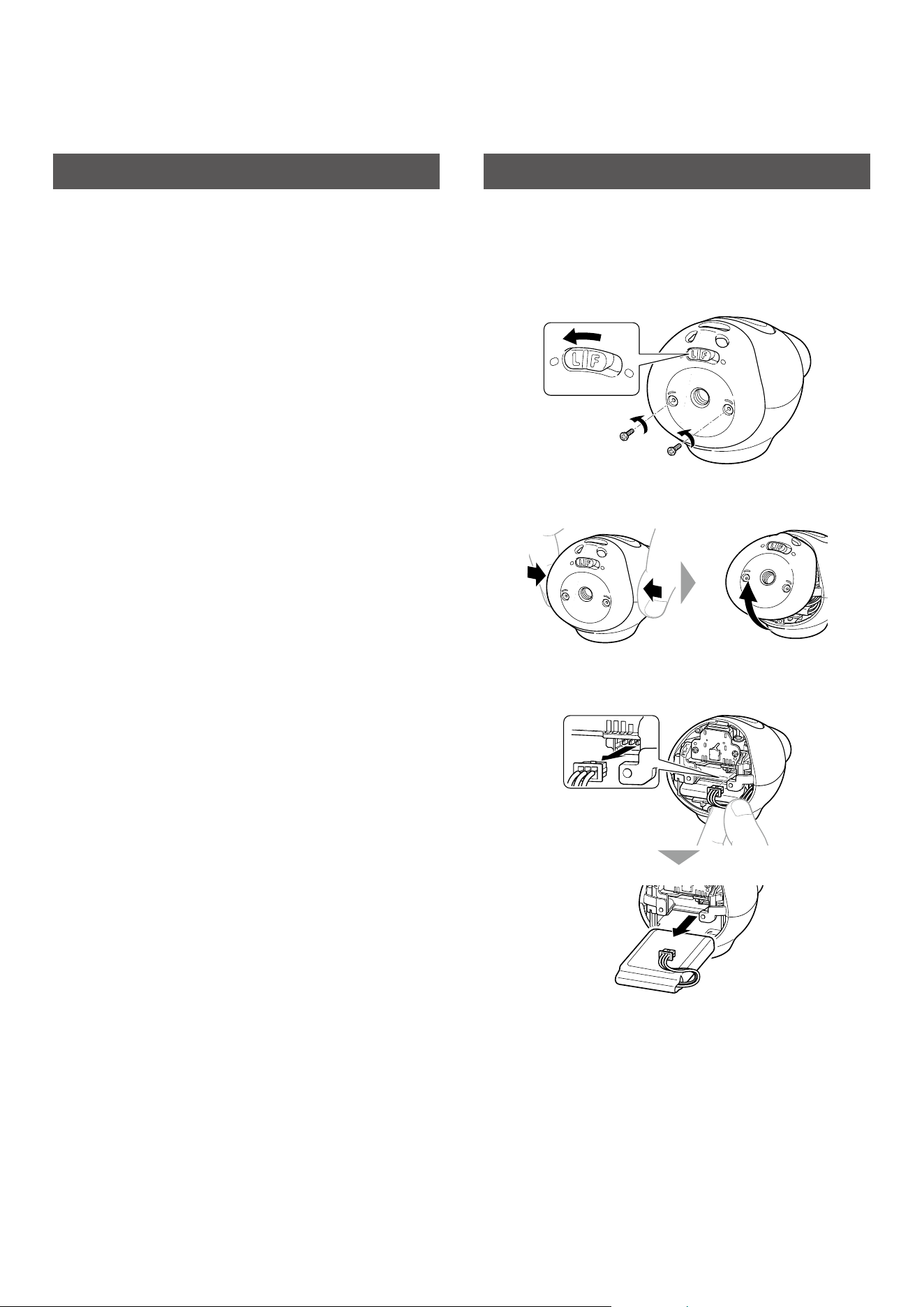

Battery disposal

■

Caution

Do not disassemble the INSTAX PAL product except when

disposing of it�

1

Select the “L” mode at the bottom of the camera and

loosen the two screws as indicated in the image

below.

2

Press and hold both ends of the camera to release

and remove the cover.

3

Pull out the wiring, remove the connector, and pull

the battery out.

• Dispose of the battery according to community disposal

guidelines, local law, and any applicable battery recycling

recommendations�

NOTICE

• Smartphone download of INSTAX PAL App required prior to use�

• Camera does not itself print INSTAX instant photos�

• Images may only be printed on INSTAX instant film (sold

separately) LINK Series, EVO, or LIPLAY devices (each sold

separately)� To print, Smartphone download of applicable

INSTAX device App also required�

• INSTAX PAL camera has limited internal storage capacity (50

images, prior to transfer of images via INSTAX PAL App)� Camera

also accepts Micro SD card (not included)�

• Smartphone not included�

• For ages 13+

• Micro SD Card image transfer limitations apply, and only images

taken with the INSTAX PAL may be transferred from Micro SD

card to the INSTAX PAL App when the INSTAX PAL sets “Fun

mode”�

4

1

3

4

2

Front

6

9

7

8

Rear

10

11

5

Preparation for the camera

Before use

Before using the camera, check the following has been included

with your camera�

Supplied accessories

• USB Type-C cable

for charging

(1)

(YG059291QBU0000)

• Multi-use detachable ring (1)

• Quick Start Guide (1)

The battery is not fully charged at the factory� Be sure to

charge the battery before using the camera�

Read “IMPORTANT SAFETY NOTICE” (page 28) for safety use�

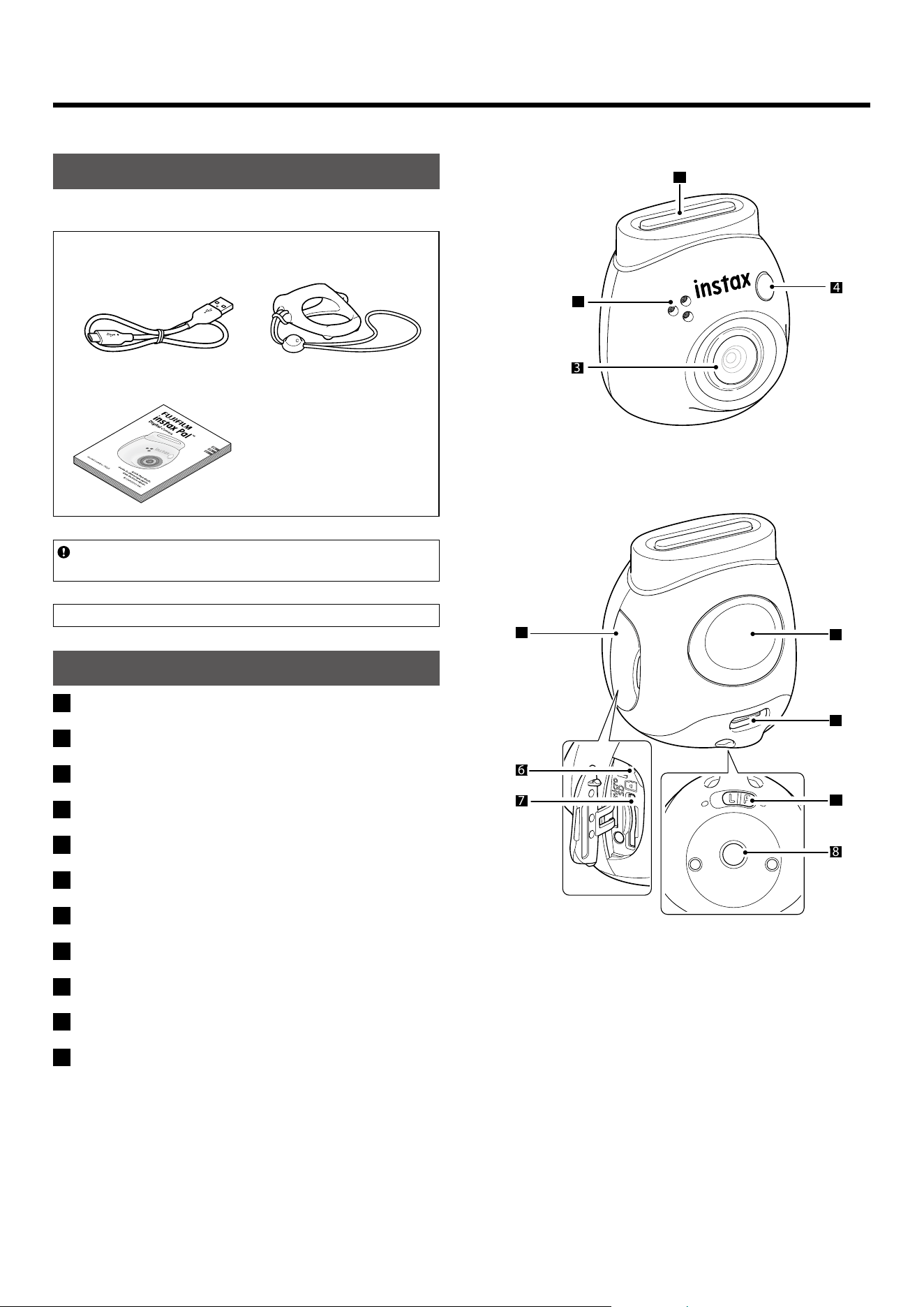

Part names

1

Power button/LED*

2

Speaker

3

Lens

4

Flash lamp

5

microSD card cover

6

Reset button

7

microSD card slot

8

Tripod slot

9

Mode selector switch

10

USB Type-C port

11

Shutter button

* For details on the LED indication status, see pages 6 and

7�

5

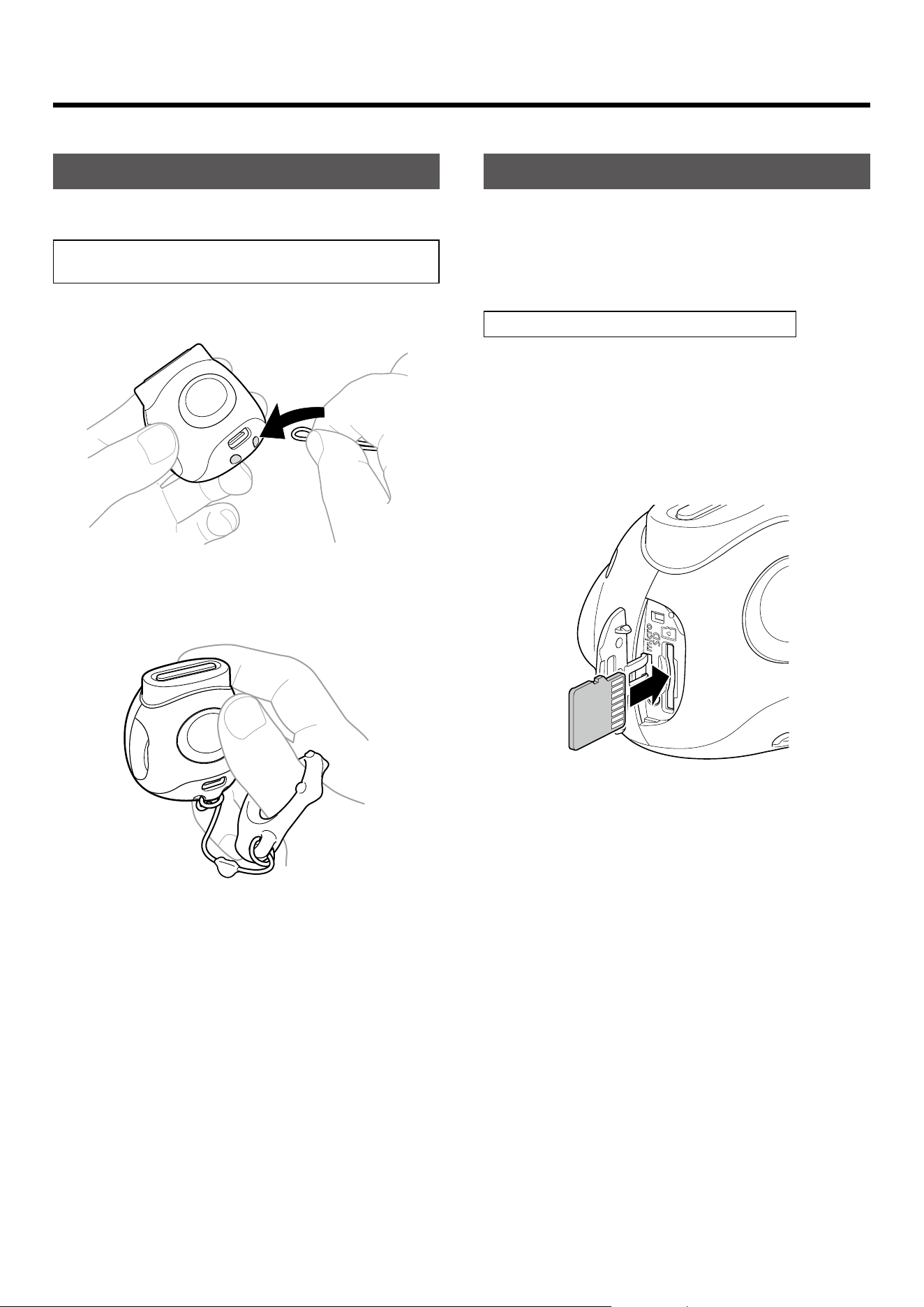

Using the multi-use detachable ring

The multi-use detachable ring can be used not only as a strap, but

also as a simple viewfinder or base for the camera� (page 20)

To use the multi-use detachable ring as a finger

carrying strap:

1

Pass the provided strap through the strap holes on

the camera.

2

Pass the other end of the strap through the strap

holes on the multi-use detachable ring. Insert your

desired finger through the multi-use detachable

ring.

Using the SD card

The camera’s internal memory can store about 50 still images, but

you can store more images by using an SD card� You will also need

an SD card to upgrade the firmware� Please prepare an SD card in

advance�

* The latest firmware will be published on the product website�

* SD card is sold separately�

Inserting a microSD card (sold separately)

Open the cover on the side of the camera, and insert a microSD

card into the microSD card slot� Once a microSD card is inserted,

all further photos will be stored on the microSD card rather than

to the internal camera memory�

When removing the microSD card, gently push the card in until it

“clicks” and then release it to allow ejection� Gently remove the

microSD card from the slot�

• microSD card is sold separately�

Precautions regarding SD cards

• This camera is compatible with microSD cards and microSDHC

cards� Using other types of SD cards may cause damage to the

camera�

• SD cards are small and may be accidentally swallowed by infants�

Keep them out of the reach of infants� In the unlikely event that

an infant swallows an SD card, consult a physician immediately�

• Do not turn off the camera or remove the SD card during

formatting or while recording/deleting data� The SD card may be

damaged�

• Do not use or store SD cards in an environment that is prone to

strong static electricity or electrical noise�

• Inserting an SD card charged with static electricity into the

camera may cause the camera to malfunction� If this happens,

turn the camera off and then on again�

• Do not carry an SD card in the pocket of your pants� A strong

force may be applied when you sit down, which may cause the

SD card to break�

• The SD card may become hot to the touch after prolonged use,

but this is not a fault�

• Do not put any labels on SD cards� If the label comes off, it may

cause the camera to malfunction�

Preparation for the camera

6

Precautions regarding using an SD card on a PC

Always format an unused SD card or an SD card that has been

used on a PC or other device by inserting it into the camera and

using the INSTAX Pal app before using it in the camera�

* You can format the SD card from the Media settings on the app�

When an SD card is formatted and used for shooting and

recording, folders are automatically created� Do not use your PC to

rename or delete folders or files on the SD card� Doing so may

make the SD card in the camera unusable�

• Do not use your PC to delete images on the SD card� Always use

the INSTAX Pal app�

• If you want to edit an image file, copy or move the image file to a

hard disk or similar device, and then edit the copied or moved

image file�

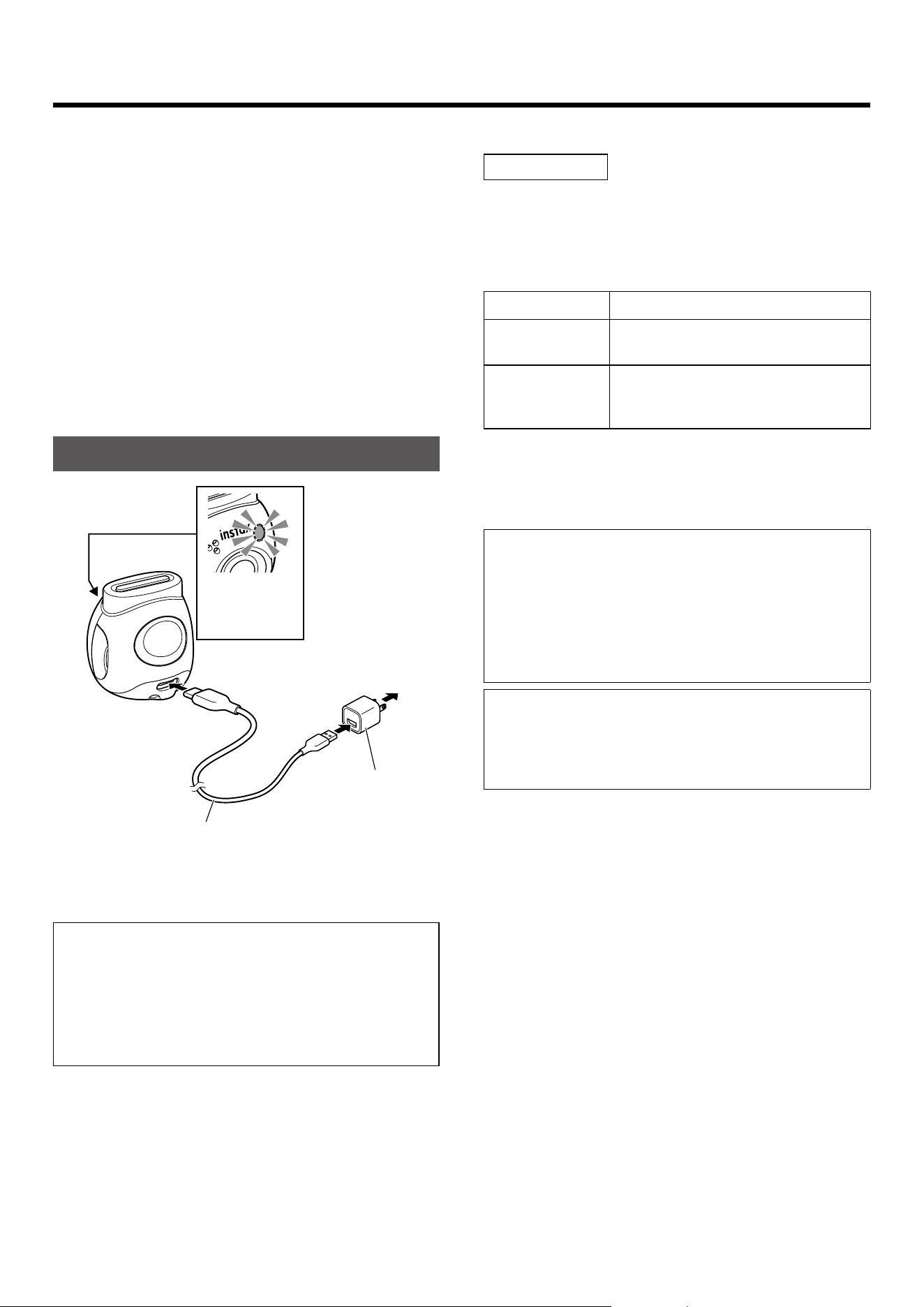

Charging the battery

Round lamp on

front of camera

lights up during

charging�

Plug USB AC adapter into an indoor

power outlet

Not supplied

Supplied

Connect the camera using the included USB Type-C Charging

Cable to a USB AC adapter (sold separately), and then connect the

USB AC adapter to an indoor electrical outlet / power supply�

• Charging time is approximately 2 to 3 hours�

• The round lamp on the front of the camera will light up when

the camera is charging�

• The power delivered by the charger must be between a

minimum of 1�4 Watts and a maximum of 2�5 Watts in order to

minimize required charging time�

• Charging times may increase at very low or very high

temperatures�

Charging status

If the camera is not turned on, the light will turn off after the

battery is fully charged� When the camera is turned on without

being connected to the app, the light turns white after the battery

is fully charged�

FRONT CAMERA LAMP

Charging The light flashes�

Charging

completed

The light stops flashing�

Charging error The light flashes fast� Check the cables�

Unplug and then re-plug in cables to try

again�

* If the camera is turned off, the lamp disappears after the battery

is fully charged� When the camera is turned on without being

connected to the app, the lamp lights white after the battery is

fully charged�

Charging from a PC:

• Connect the camera and PC directly� Do not connect via a USB

hub or keyboard�

• If the PC goes into sleep mode while charging, charging is

paused� To continue charging, exit sleep mode and then

reconnect the

USB Type-C cable

�

• The battery may not be able to charge depending on the

specifications, settings or conditions of the PC�

Notes

• The battery is not fully charged at the factory� Be sure to

charge the battery before using the camera�

• For notes about the battery, see “Simple camera care” (page

29)�

Preparation for the camera

7

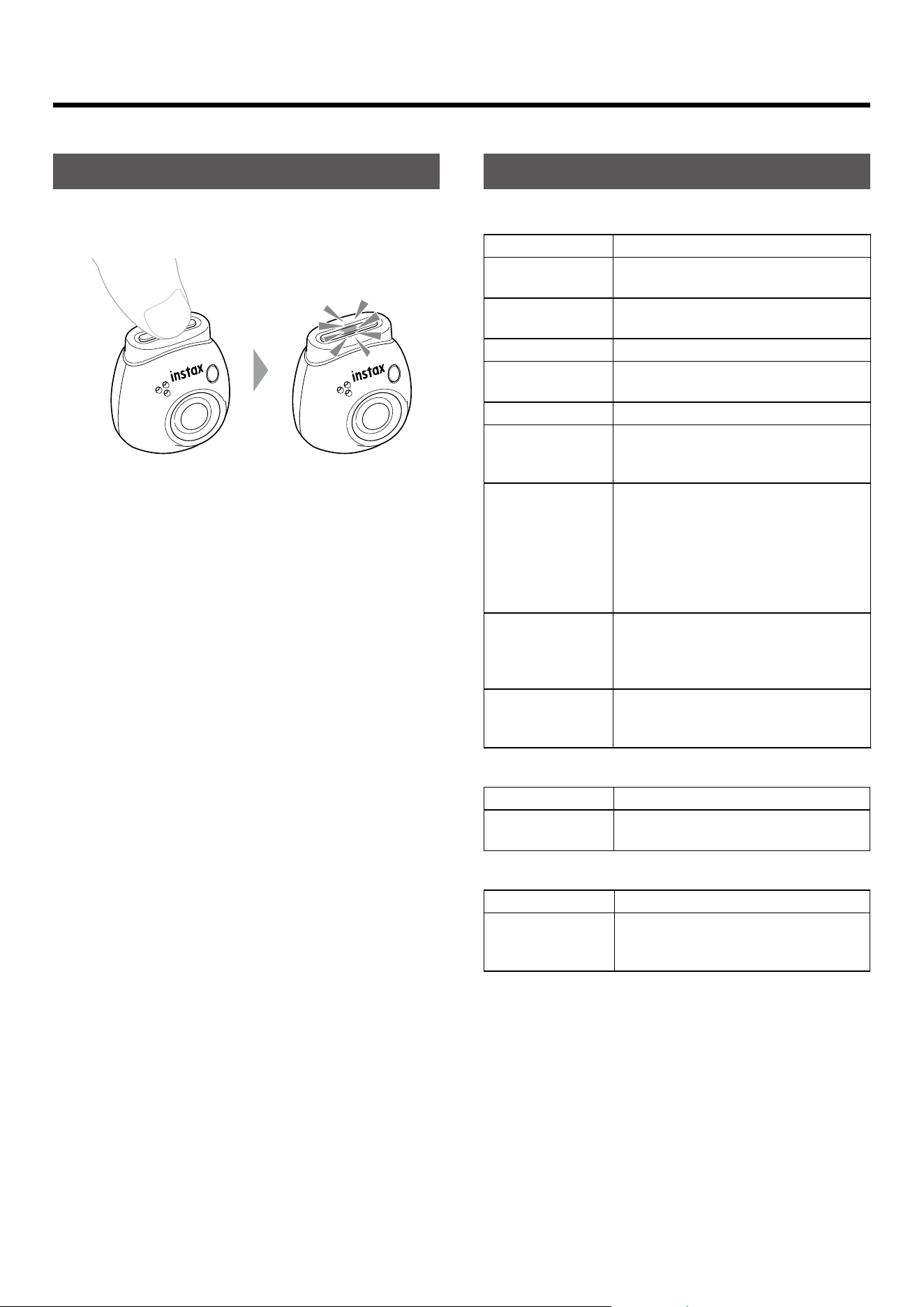

Turning on/off the power

1

Press the power button on top of the camera and

hold for 2 seconds.

The LED lights up, and the power turns on�

■

When turning off the power

Press and hold the power button� LED light turns off, and then the

power turns off�

The camera will automatically be turned off after 2 minutes of

inactivity (default setting)� You can change the setting to “5 min” /

“OFF” in the app menu�

The camera status with the LED

You can check the status of the camera with the LED�

In both Fun/Link mode

LED state Meaning

White pulsing light Bluetooth connection is not established,

but battery level is sufficient�

Red pulsing light Bluetooth connection is not established,

and battery level is low� Charge PAL unit�

Pink light Displayed while taking a photo

Purple pulsing light Displayed during image transfer to the

PAL App�

Blue slow flash Displayed during firmware updating�

Blue fast flash Firmware update error� Recommence

firmware update or contact Fujifilm

customer service / repair center�

Yellow fast flash

(for 3 seconds)

The Micro SD card is full, or the PAL

camera’s internal memory has reached the

50 photo limit of untransferred images�

Connect the PAL camera to the

downloaded INSTAX PAL Smartphone App

via Bluetooth and transfer images via the

App�

Yellow light

(for 3 seconds)

The battery level is low� Charge PAL unit� If

Yellow Light LED state continues even

after charging, contact your local Fujifilm

customer service / repair center�

Red fast flash

(for 3 seconds)

PAL unit has become overheated� The

camera will automatically power off after

3 seconds� Allow unit to cool�

In Fun mode

LED state Meaning

Blue pulsing light Bluetooth connection with the INSTAX

PAL App is complete�

In Link mode

LED state Meaning

Green pulsing light Bluetooth connection with an INSTAX

LINK Series of Smartphone printer is

complete�

Preparation for the camera

8

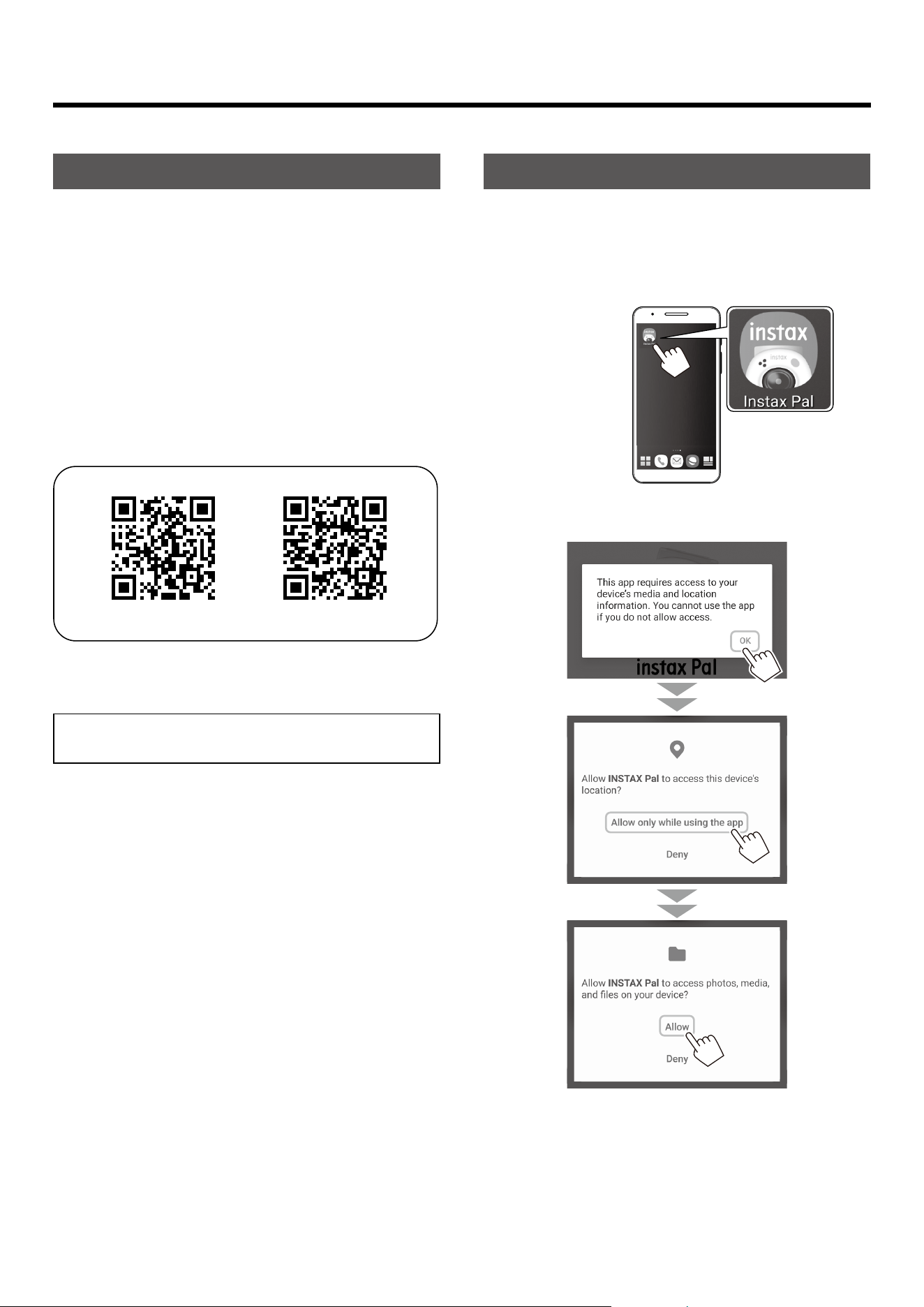

Installing the app

Please install the INSTAX Pal app on your smartphone before

using the camera�

• If you are using an Android OS smartphone, please search for the

INSTAX Pal app in the Google Play Store and install it�

* Requirements for Android OS smartphones: Android Ver� 10�0 or

higher with Google Play Store installed

• If you are using an iOS smartphone, please search for the INSTAX

Pal app in the App Store and install it�

* Requirements for iOS smartphones: iOS Ver� 14�0 or higher

• Even if you have downloaded the app and your smartphone

meets the above requirements, you may not be able to use the

INSTAX Pal app� This is dependent upon your smartphone

model�

Access the INSTAX Pal app download site for the latest

information on system requirements.

Android OSiOS

Scan to download the INSTAX Pal Smartphone app

The text QR Code itself is a registered trademark and wordmark of

Denso Wave Incorporated�

Depending on the version upgrade of the app, the screen

configuration, functions, and specifications may change.

Connecting to the app

You can enjoy creating various prints such as adding text and

applying filters to images with the functions of the INSTAX Pal app�

For details on how to use the app, refer to the following site�

https://instax�com/pal/en/

1

Open the “INSTAX Pal” app.

2

Set up the app as indicated below.

Preparation for the app

9

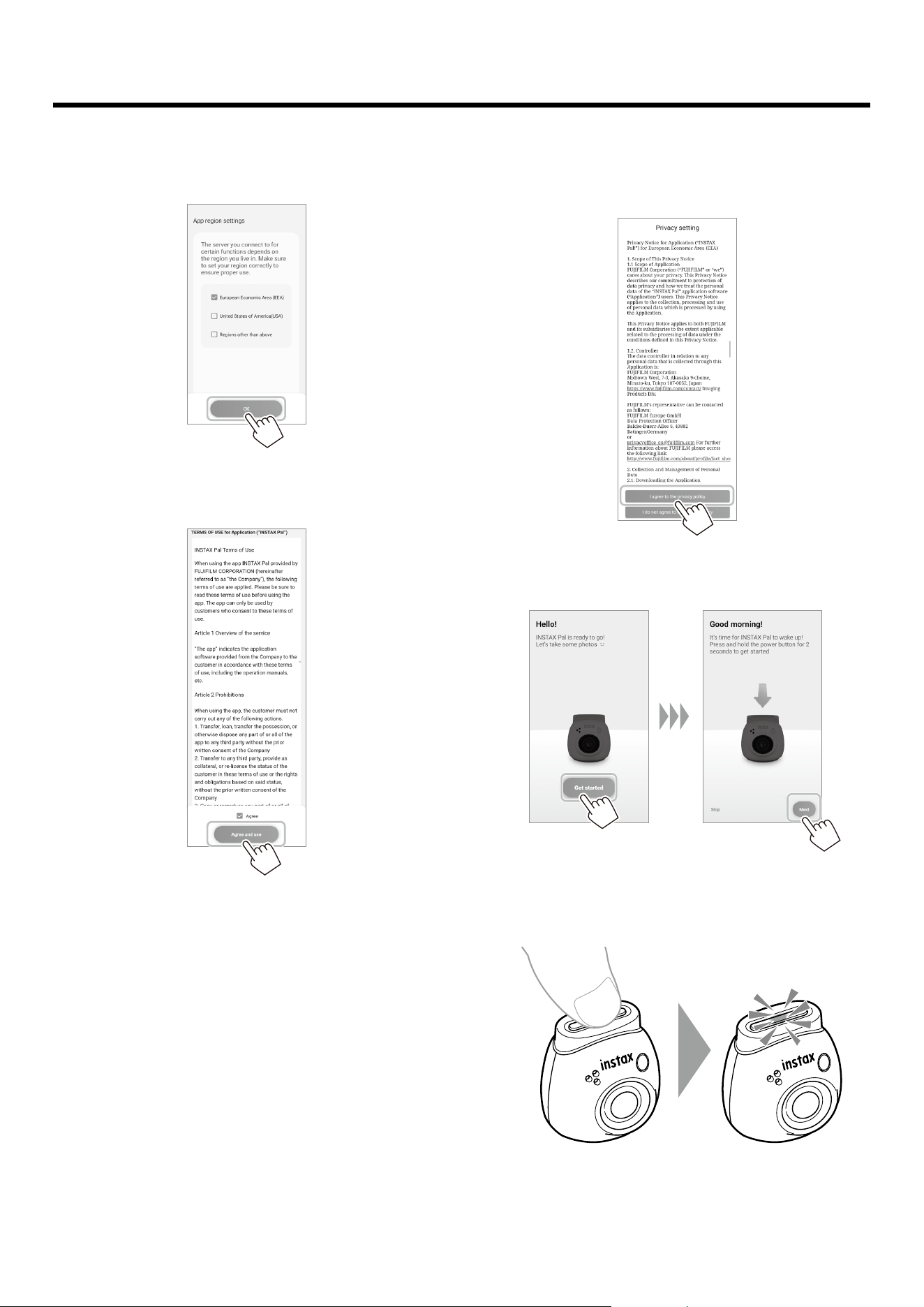

3

Check the region where you want to use the app,

and tap [OK].

4

Read the terms of use, then put a check mark in the

[Agree] box, and tap [Agree and use].

5

Confirm the privacy settings and tap [I agree to the

privacy policy].

6

Tap [Get started], then tap [Next].

7

Press and hold the Power button for approximately 2

seconds to turn the camera on.

The LED lights up�

Preparation for the app

10

8

When a camera is detected, tap [Connect].

If multiple cameras are detected, select the camera to

connect from the list�

The camera’s identifier (device name) is located on the

bottom of the camera�

Note

When your smartphone’s Bluetooth is switched off, tap

[Please turn on Bluetooth] to turn the Bluetooth settings on�

9

When a camera is connected, tap [Close].

10

Tap [Next] and give the camera a name of your

choice.

To name it later, tap [Skip]�

For details on how to name the camera, see “Naming the

camera” (page 13)�

11

Tap [Set this name].

12

Quick instructions are displayed. Read the

instructions and tap [Let’s Play!].

Preparation for the app

11

Depending on the version upgrade of the app, the screen

configuration, functions, and specifications may change.

Screen on the app

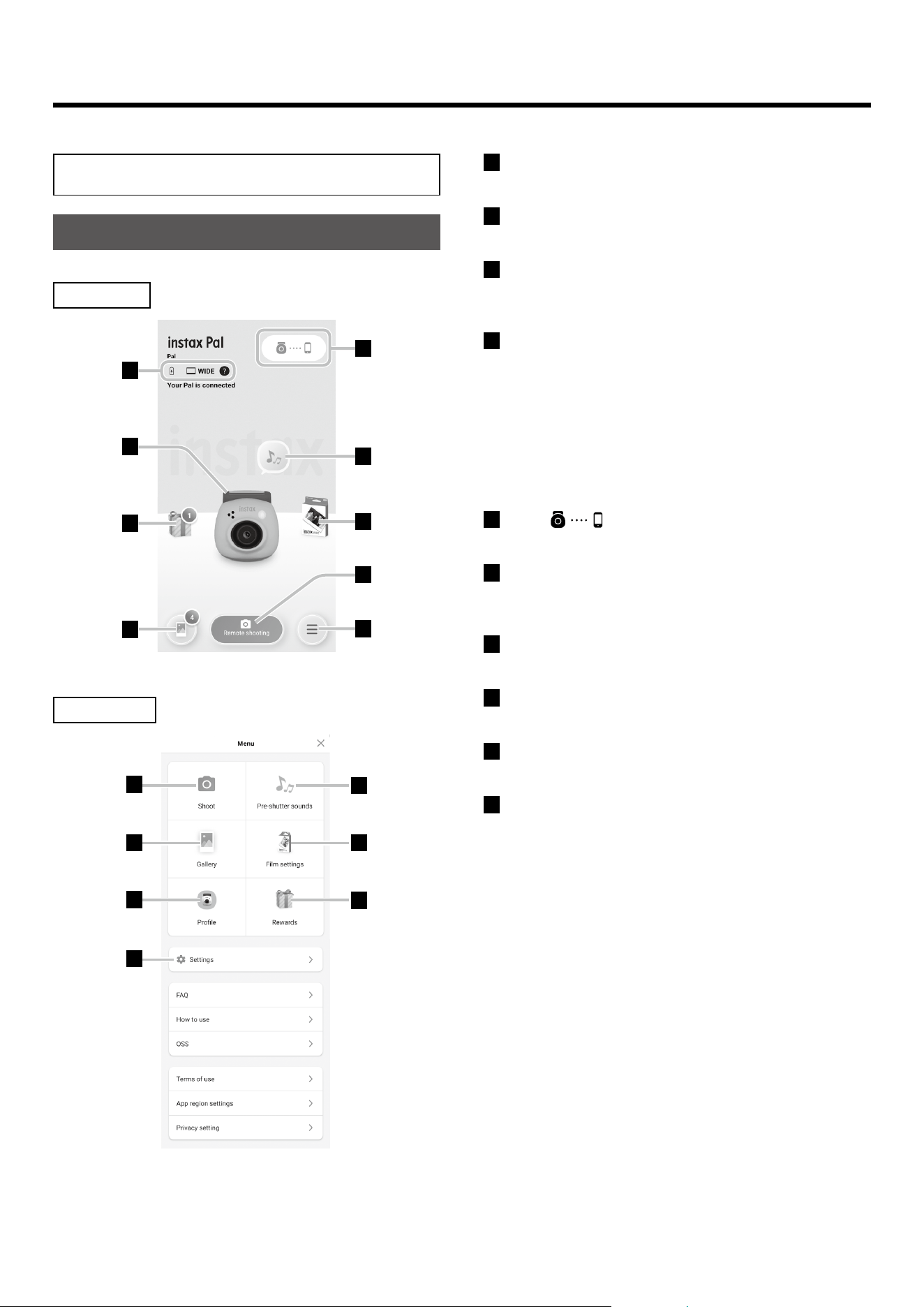

When you launch the app, you will see the main screen below�

Main screen

1

4

3

5

6

7

9

8

2

Menu screen

8

4

2

6

7

3

10

1

Status of the camera

Displays remaining battery level and current shooting format�

2

Profile

You can check the remaining battery level and “Reward Level”�

3

Rewards

You will receive “INSTAX Animation”� When “INSTAX Animation”

arrives, the number of arrivals will be displayed on the icon�

4

Gallery

Images taken with the camera are transferred to the gallery�

During and after image transfer, the number of images is

displayed on the icon� Gallery allows you to browse, edit, and

select images for printing�

* When connecting to the app, images that have not been

transferred will be transferred from the camera to the

smartphone� The maximum number of shots that can be taken

when not connected to the app is 50�

5

Pairing

Pair with your camera�

6

Pre-shutter sounds

You can set the sound that plays before the shutter sound� For

details, see “Selecting pre-shutter sound” (page 14)�

7

Film settings

Select the shooting format from “mini”, “SQUARE”, and “WIDE”�

8

Remote shooting

Select when shooting with the app�

9

Menu

Display the menu screen�

10

Settings

Make various settings� For details, see “Settings screen” (page

12)�

* “Remote shooting”, “Gallery”, “Profile”, “Pre-shutter sounds”, “Film

settings”, and “Rewards“ on the menu screen are the same as

those on the main screen�

Overview of the app

12

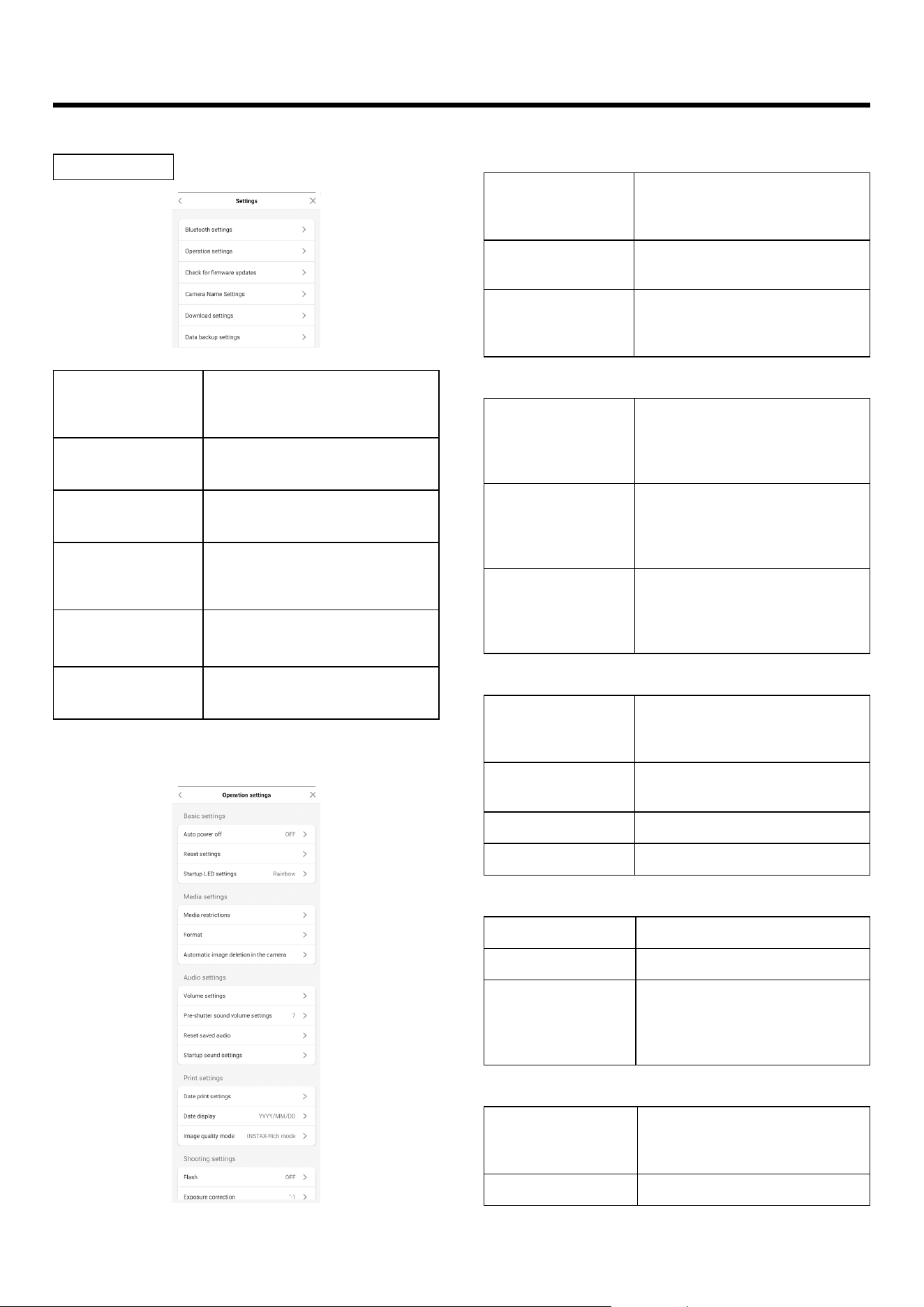

Settings screen

Bluetooth settings You can check the camera pairing

with the app, and disconnect/

connect the pairing�

Operation settings See “Operation settings” below�

Check for firmware

updates

Updates firmware�

Camera name settings Names your camera�

For details, see “Naming the camera”

(page 13)�

Download settings Set whether to allow downloading of

INSTAX Animation�

Data backup settings You can back up and restore data

when changing models�

Operation settings

The main unit operation setting items are as follows�

Basic settings

Auto power off Set the time until the power turns off

automatically when the camera is not

operated�

Reset settings Restores the settings to the default

settings�

Startup LED settings Sets the pattern of how the LED

lights up when the power is turned

on�

Media settings

Media restrictions You can check original recording

data saved on the camera or SD card,

and download data to your

smartphone�

Format Format the SD card inserted in the

camera’s internal memory or

microSD card slot� All saved

recording data will be deleted�

Automatic image

deletion in the camera

You can set whether or not to keep

the recording data transferred to the

app in the camera’s internal memory

or SD card�

Audio settings

Volume settings Set the volume of the operation

sound, shutter sound, and startup

sound�

Pre-shutter sound

volume settings

Sets the shutter sound group

volume�

Reset saved audio Initialize the registered sound�

Startup sound settings Choose a startup sound�

Print settings

Date print settings Write the date on the image�

Date display Set how the date is displayed�

Image quality mode Set to [INSTAX-Natural mode] for

conventional image quality or

[INSTAX-Rich mode] for rich color

expression (default setting)�

Shooting settings

Flash Make flash settings� You can select

from [Automatic] (fires the flash

automatically), [OFF], and [ON]�

Exposure correction Set the exposure value�

Overview of the app

13

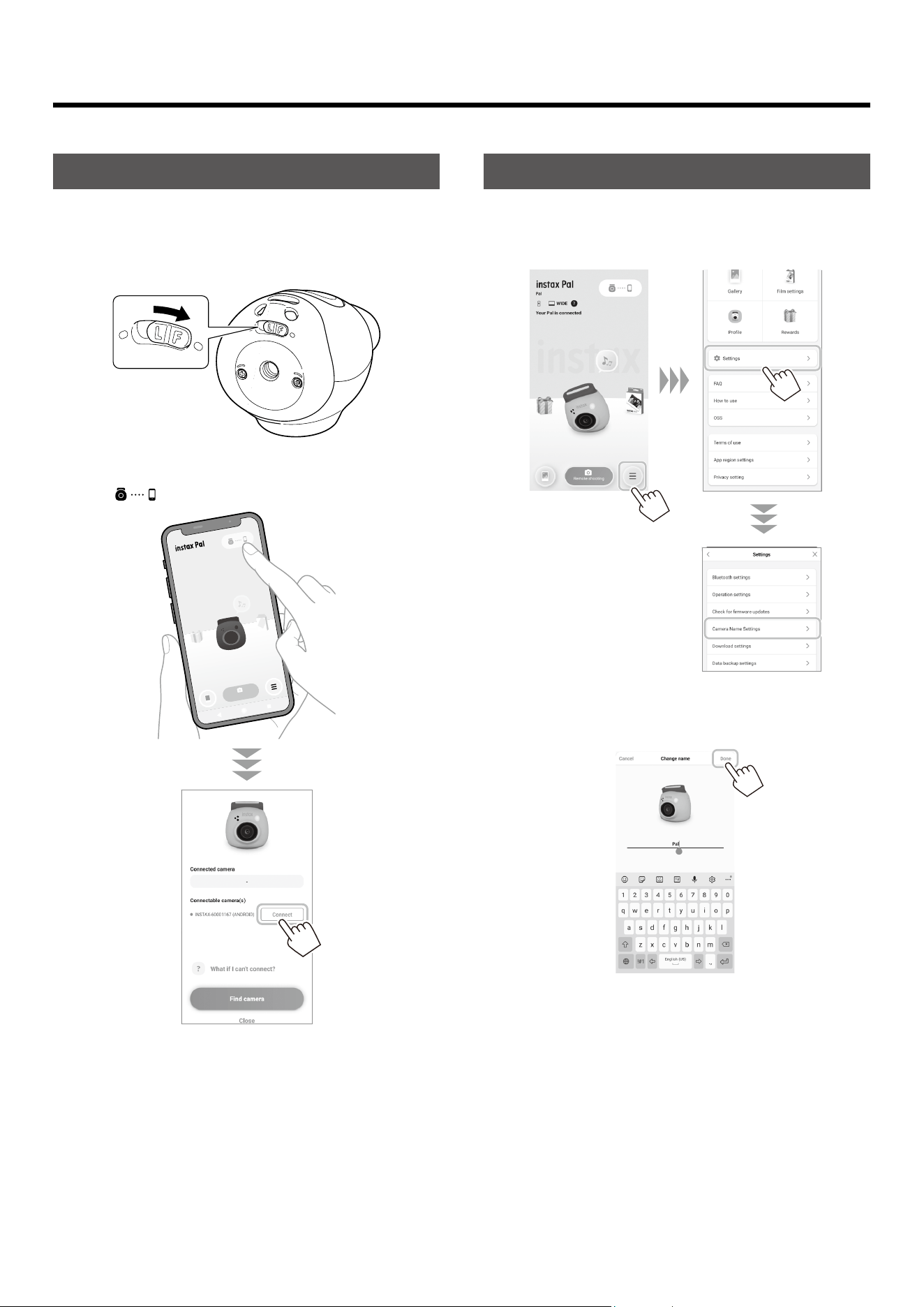

Pairing with the app

You can shoot from your smartphone by linking the camera and

the app�

1

Set the mode selector switch on the bottom to “F”.

The camera enters “Fun” mode�

2

Operate the app.

Tap [ ], then tap [Connect] on the next screen�

Naming the camera

You can name the camera whatever you like�

1

Tap the setting icon → [Settings] → [Camera Name

Settings].

2

After entering the characters and giving it a name,

tap [Done].

Preparing for shooting

14

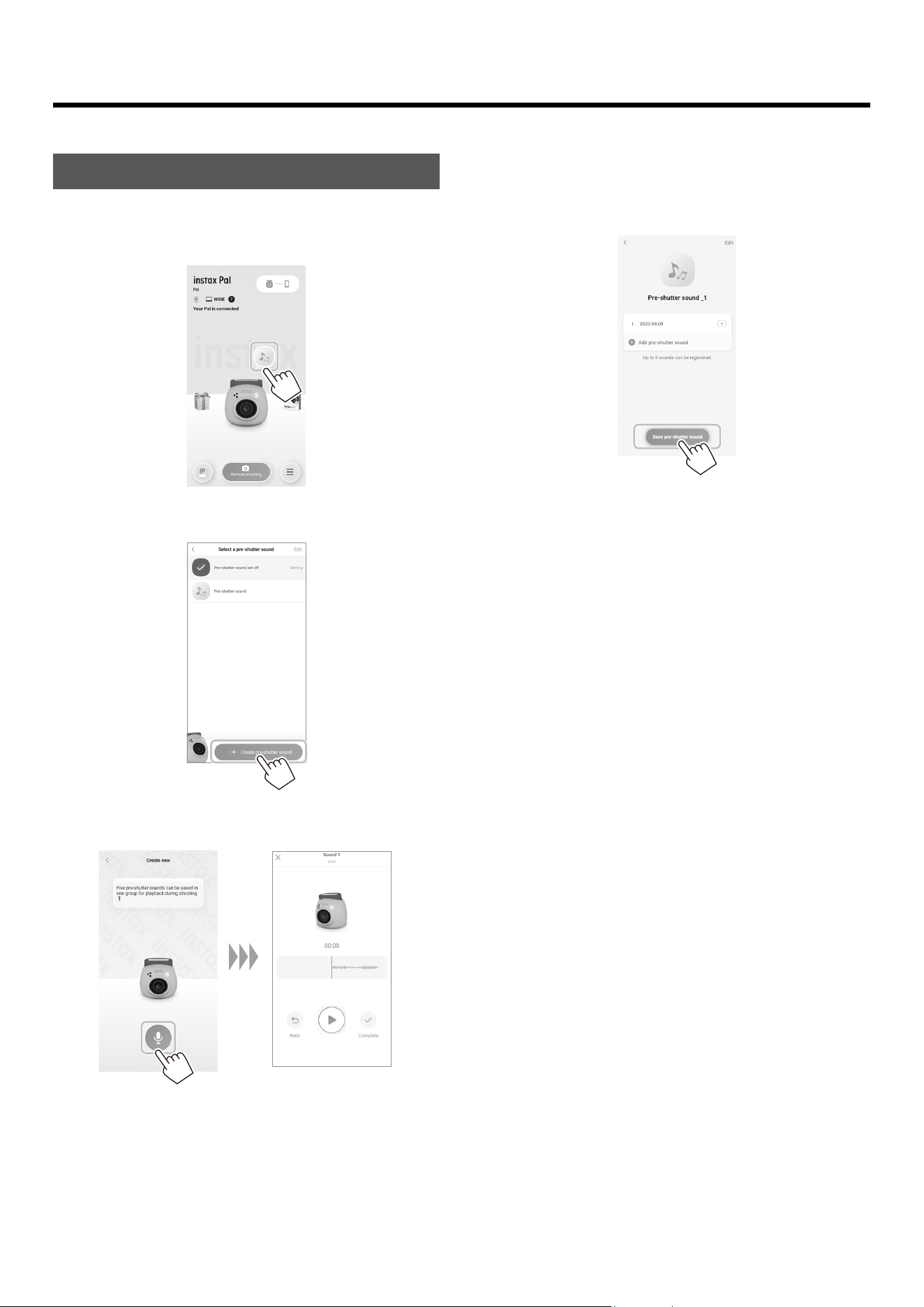

Selecting pre-shutter sound

You can set the sound that plays before the shutter sound�

* You cannot change the shutter sound when shooting�

1

Tap “Pre-shutter sounds”.

2

Tap [Create pre-shutter sound].

3

Record audio.

• You can check the recorded sound by tapping the play button�

• If you want to redo the recording, tap [Redo]�

4

Tap [Save pre-shutter sound].

When “Completed” is displayed on the screen, it is

completed�

You can register up to 5 pre-shutter sounds�

Preparing for shooting

15

Preparing for shooting

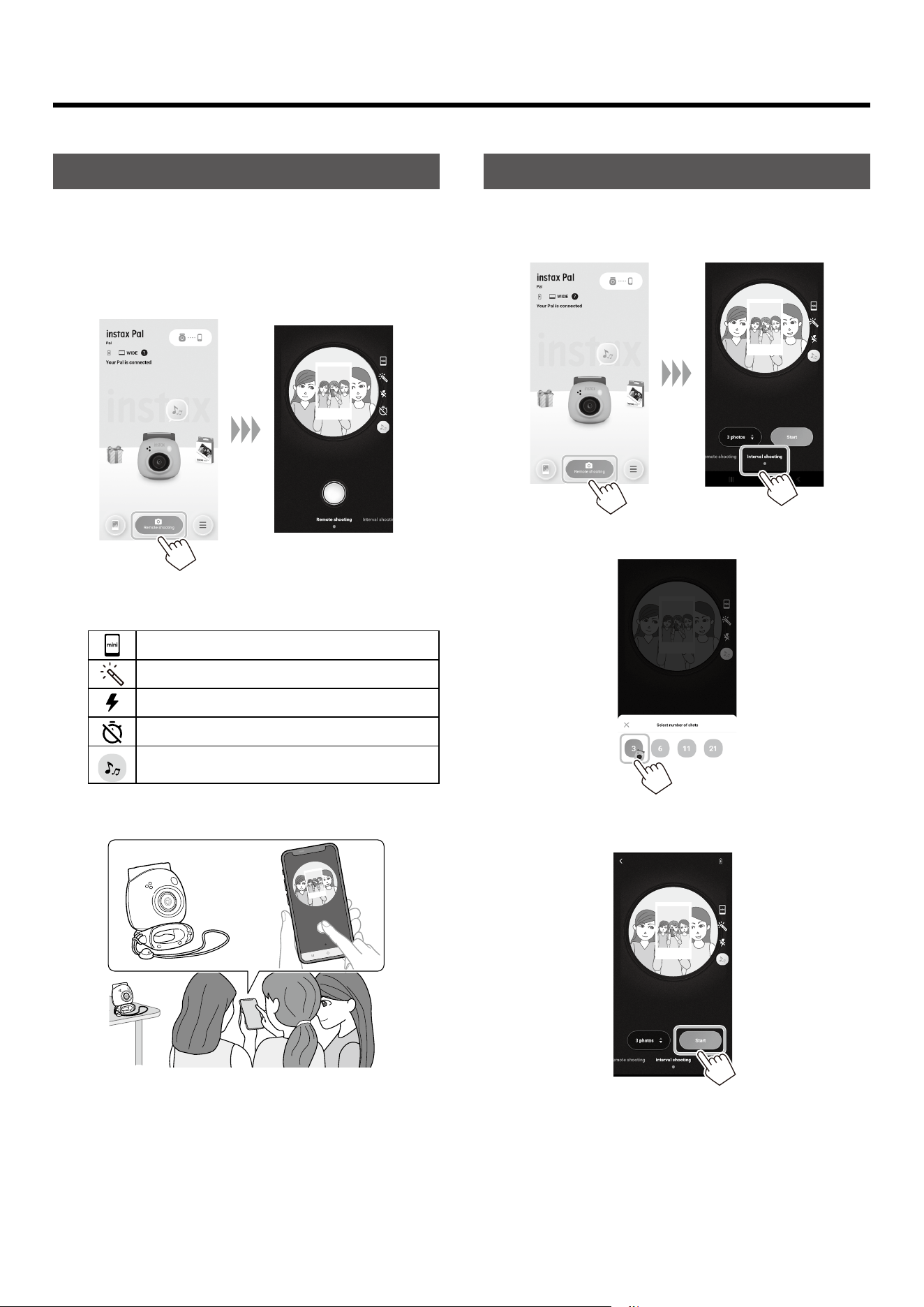

Selecting a shooting format

You can select the size of the image to be shot from three types:

“mini”, “SQUARE”, and “WIDE”� We recommend that you use the

settings that match your printer�

* If you edit and adjust the image on the app before printing, you

can print in a size different from the printer size�

1

Tap “Film settings”.

2

Select the shooting format and tap [Set].

Saving images transferred to the app on the

camera

By default, the data on the camera side will be deleted when the

shooting data is transferred to the app� If you want to keep the

data in the camera even after transferring the shooting data to the

app, make the following settings�

1

Tap the setting icon → [Settings] → [Operation

settings] → [Automatic image deletion in the

camera].

2

Set [Automatic image deletion in the camera] to on/

off.

When set to off, the data will remain in the camera even

after it has been transferred to the app�

For the number of images that can be saved, see “Number

of shots/storable” (page 16)�

16

Captured data save destination

The data save destination changes depending on whether the SD

card is inserted or not�

When not inserting the SD card

If you shoot without inserting an SD card, the shooting data will

be saved in the camera’s internal memory�

• Be aware of the maximum number of images in the internal

memory�

When SD card is inserted

When an SD card is inserted, data is saved to the SD card and not

saved to the camera’s internal memory�

When connected to the app, shooting data will be transferred to

the app regardless of whether an SD card is present or not� The

data on the camera is deleted by default, but you can leave them

by setting (page 15)�

Number of shots/storable

The number of images that can be shot and the number of images

that can be saved are shown below�

You can check the shooting data saved in the internal memory or

SD card from the setting “Media settings”�

• Please pay attention to the upper limit of the capacity when

setting to keep the original shooting data in the camera�

• If there is a lot of shooting data that has not been transferred,

transfer them to the app frequently�

• Shooting is not possible while shooting data is being transferred�

Number of possible shots

Internal

memory

When SD card

is inserted

When the app is not

connected

50 shots 50 shots

When connecting to the

app

([Automatic image deletion

in the camera] is set to on)

No limit No limit

When connecting to the

app

([Automatic image deletion

in the camera] is set to off)

About 50

shots

You can shoot

up to the

capacity limit

of the SD card

• The maximum number of shots that can be taken when the app

is not connected is 50�

• When connected to the app, the images are automatically

transferred to the app�

• Once transferred to the app, the original shooting data of the

camera will be deleted (when [Automatic image deletion in the

camera] is set to [Off])�

Storable number

[Automatic image

deletion in the

camera] settings

Internal memory SD card

On Does not save

(Transfer to app)

Does not save

(Transfer to app)

Off About 50 shots Saves up to the

maximum

capacity of the SD

card

Shooting data

17

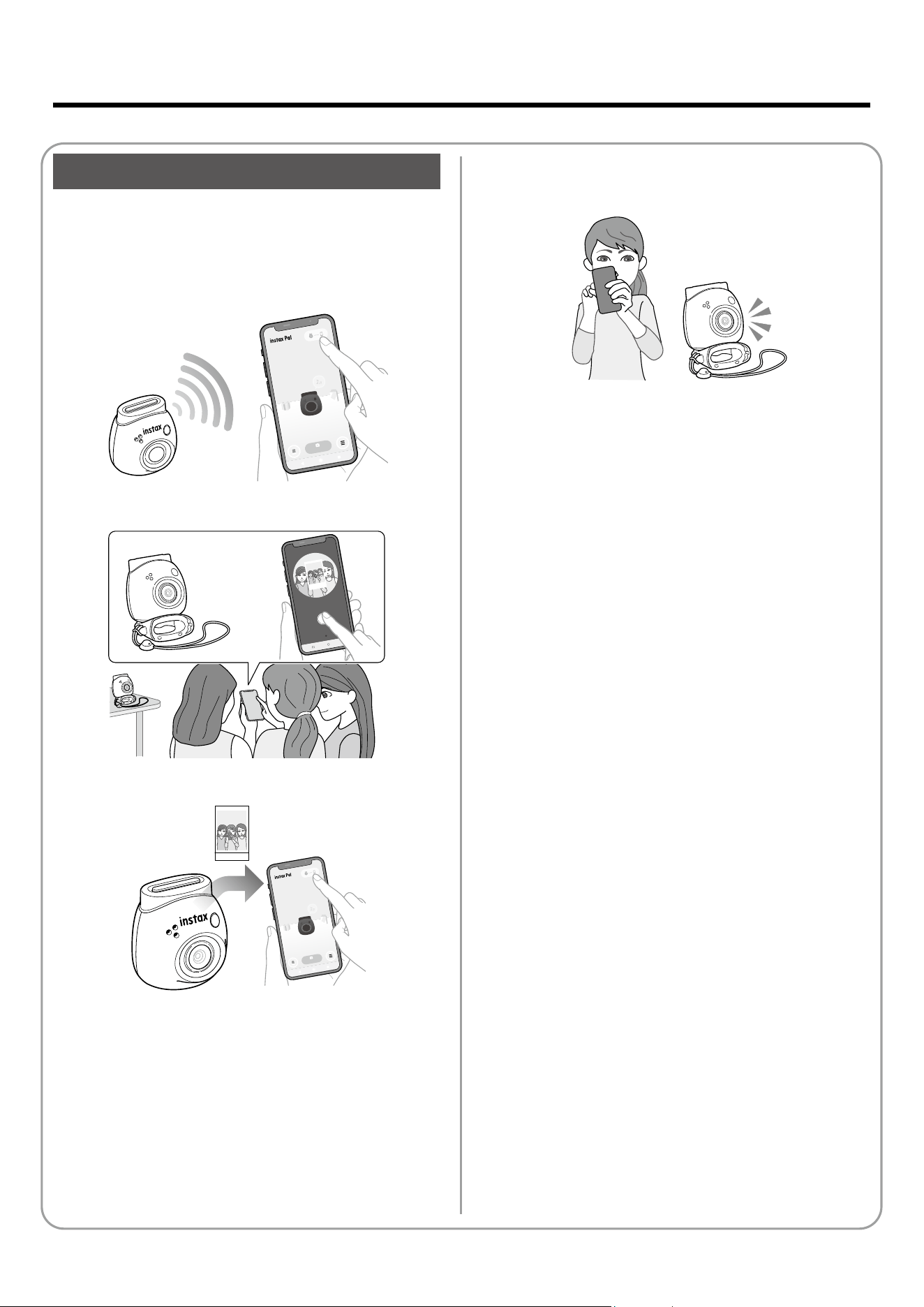

When shooting by connecting to the app

Captured images are automatically transferred when the app is

connected� Therefore, you can continue shooting without

worrying about the upper limit of memory capacity�

Pair the camera with the app.

* Be sure to set the mode selector switch on the bottom to “F”�

Take a picture with your camera or app.

The captured image is transferred to the app for each shot�

There is no upper limit to the number of shots taken, as each shot

is transferred to the app� You can continue shooting without

worrying about the capacity of the internal memory or SD card�

If you want to keep the shooting data in the internal memory

or SD card

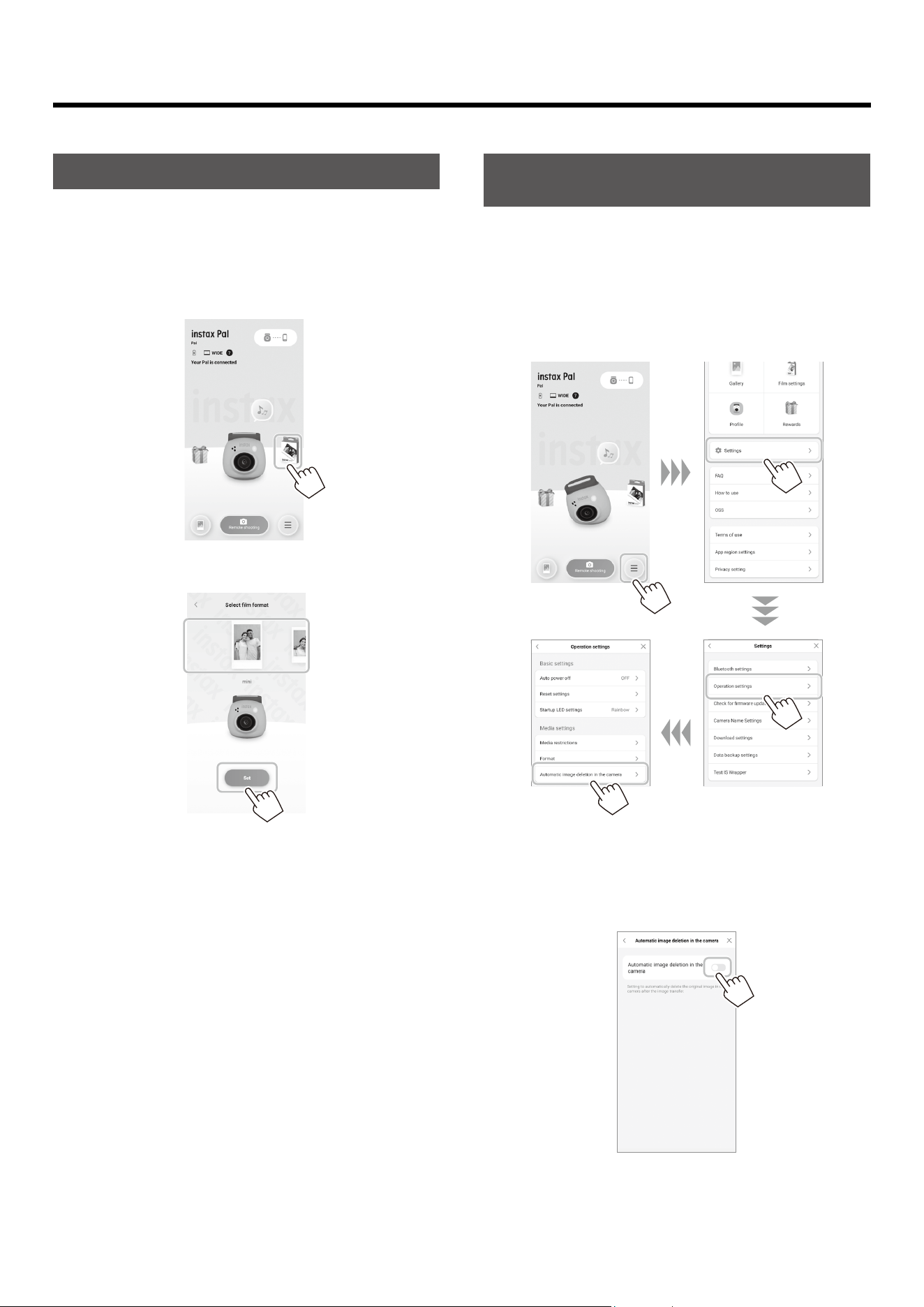

By default, when you transfer captured images to the app, the

captured data on the camera side will be deleted� If you want to

keep the original shooting data on the camera, see “Saving images

transferred to the app on the camera” (page 15)�

Shooting flow with app

18

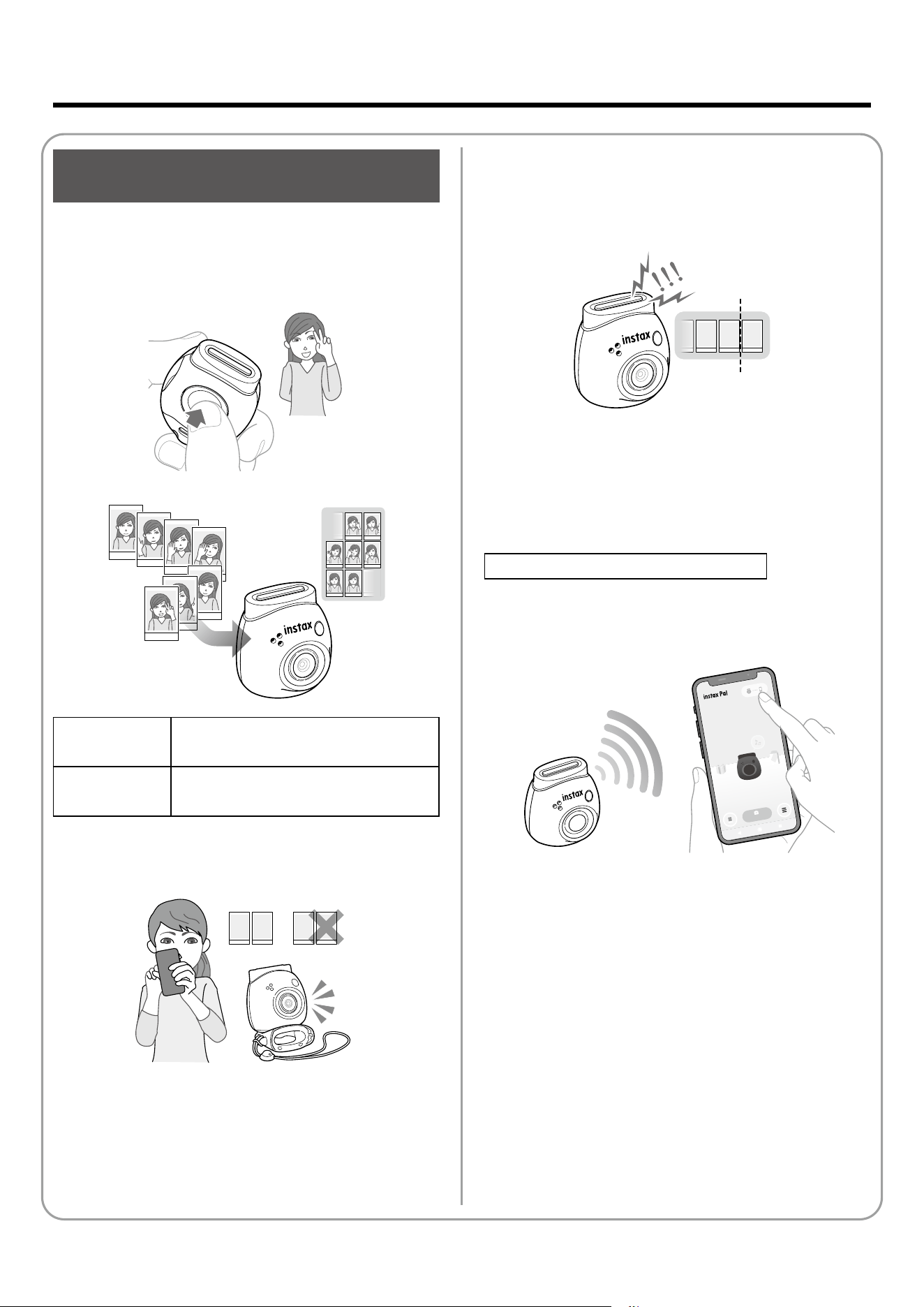

When shooting without connecting to the

app

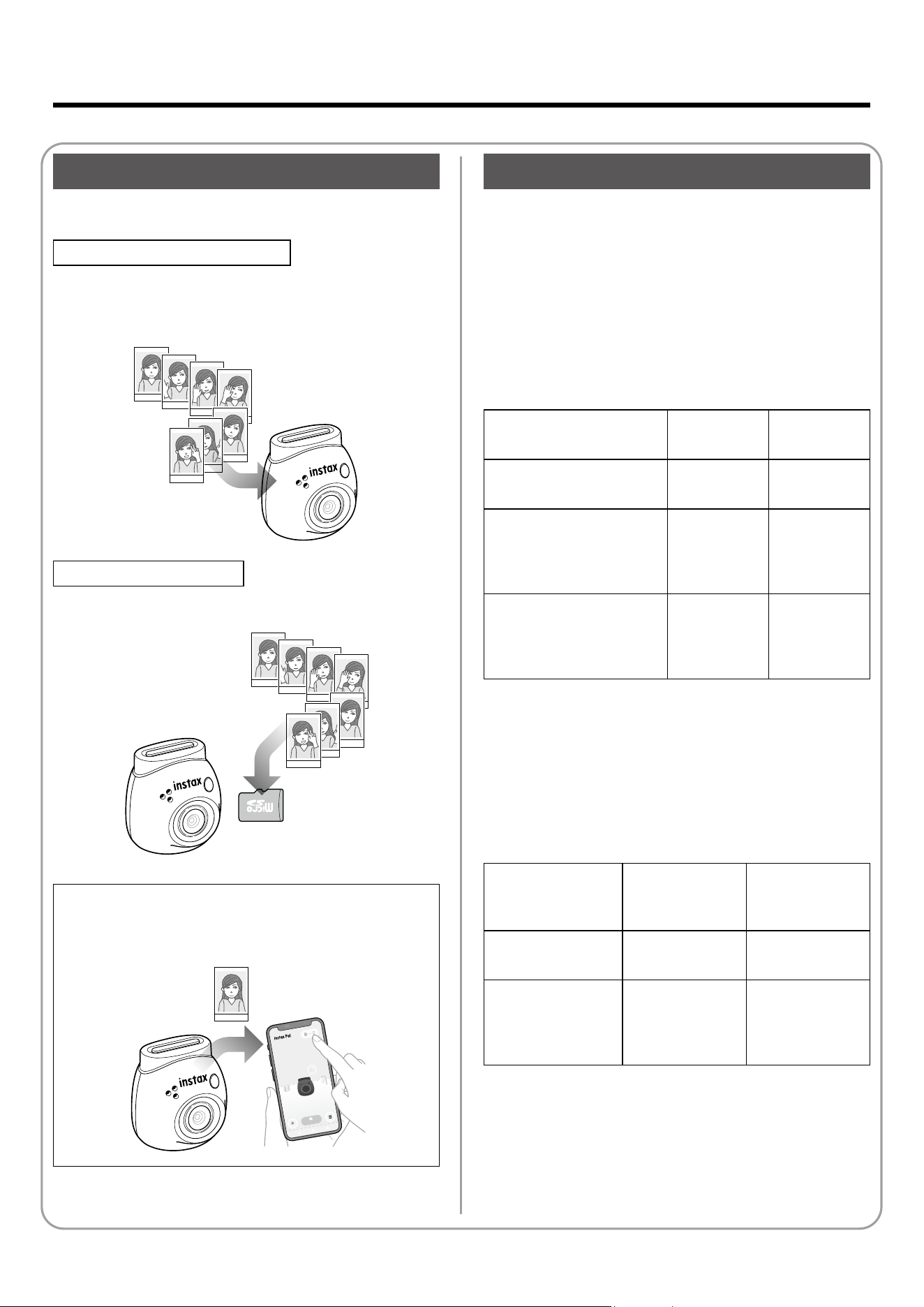

Shooting data is saved in the internal memory or SD card� When

the maximum number of shots (50 shots) is reached, a warning

announcement will be played and you will not be able to continue

shooting�

Press the shutter button to shoot.

The shooting data is saved in the internal memory or SD card�

When SD card is

not inserted

Shooting data is saved in the internal

memory and accumulates�

When SD card is

inserted

Shooting data is saved on the SD card, not

the internal memory�

Number of shots that can be taken with the camera alone

The number of shots that can be taken without transferring to the

app is 50 regardless of whether an SD card is used or not�

1 2 ••• 5150

When the number of untransferred images reaches the upper

limit

A warning announcement will be played from the camera� To

continue shooting, transfer the untransferred shooting data to the

app� See “Transferring shooting data to the app” below�

515049

If you want to keep the shooting data in the internal memory

or SD card

By default, when you transfer shot data to the app, the shot data

on the camera side will be deleted� If you want to keep the original

shooting data on the camera, see “Saving images transferred to

the app on the camera” (page 15)�

Transferring shooting data to the app

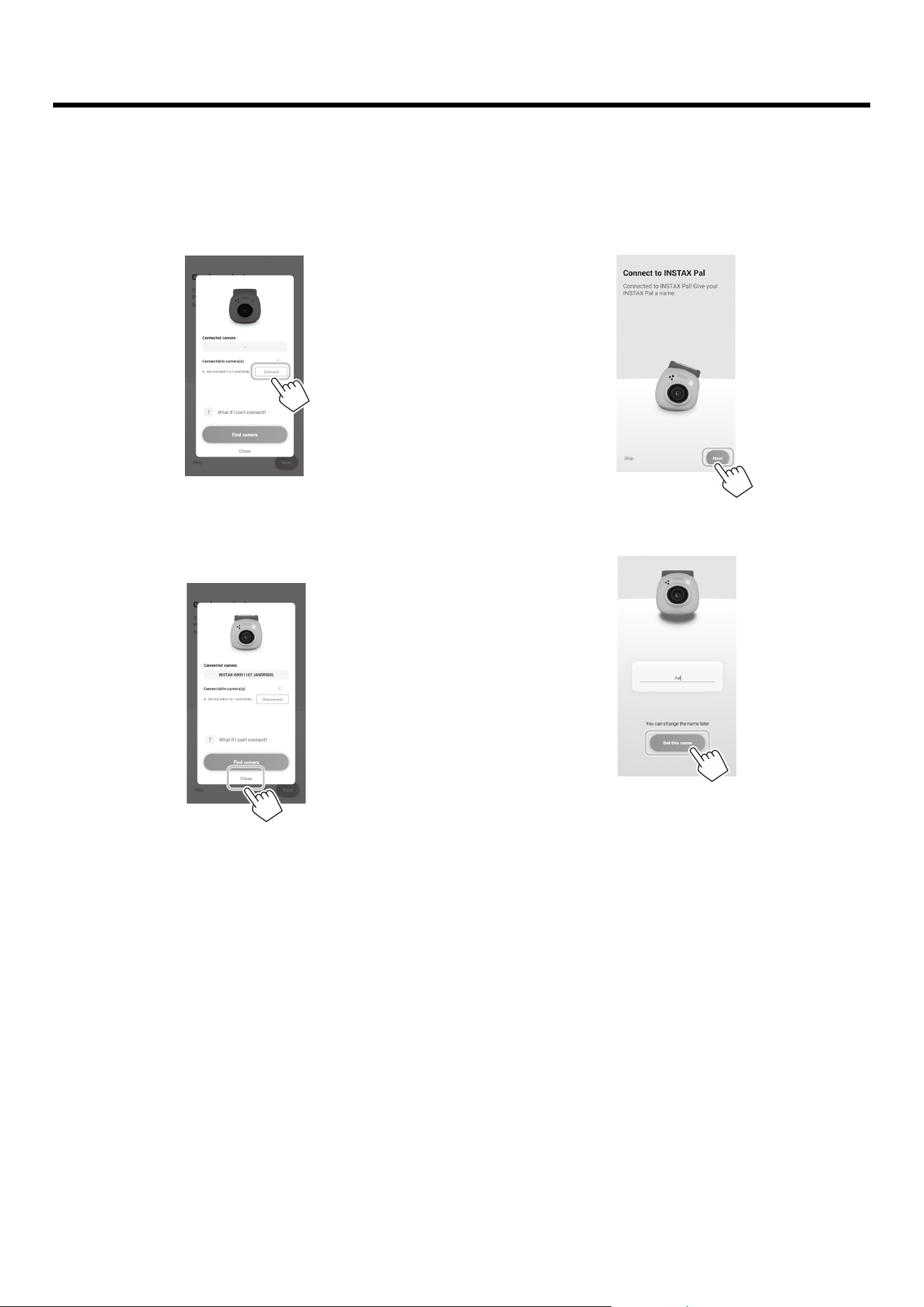

Pair the camera with the app.

When pairing is completed, untransferred shooting data will be

automatically transferred to the app�

* Be sure to set the mode selector switch on the bottom to “F”�

During transfer

An announcement will be displayed on the app screen until the

transfer is completed�

* During transfer, the camera operation buttons are disabled and

cannot be operated�

Once the transfer is complete

The original shooting data on the camera will be deleted�

You can check the shooting data from the gallery or rewards box�

Shooting flow without app

19

Precautions on shooting

• When connected to the app, the shooting data is automatically

transferred to the app and the original image in the camera

disappears�

• If there is a lot of shooting data that has not been transferred,

transfer it to the app frequently�

• Shooting is not possible while shooting data is being transferred�

• Please pay attention to the upper limit of the capacity when

setting to keep the original shooting data in the camera�

About the mode selector switch on the bottom

Switch between “Fun” mode and “Link” mode with the mode

selector switch on the bottom�

Be sure to set the mode selector switch to “F” when shooting�

Set to “L” only if you want to print the captured image directly

from the printer�

For information on “Link” mode, see “Printing images directly

from your camera via your INSTAX LINK Series Smartphone printer

device” (page 25)�

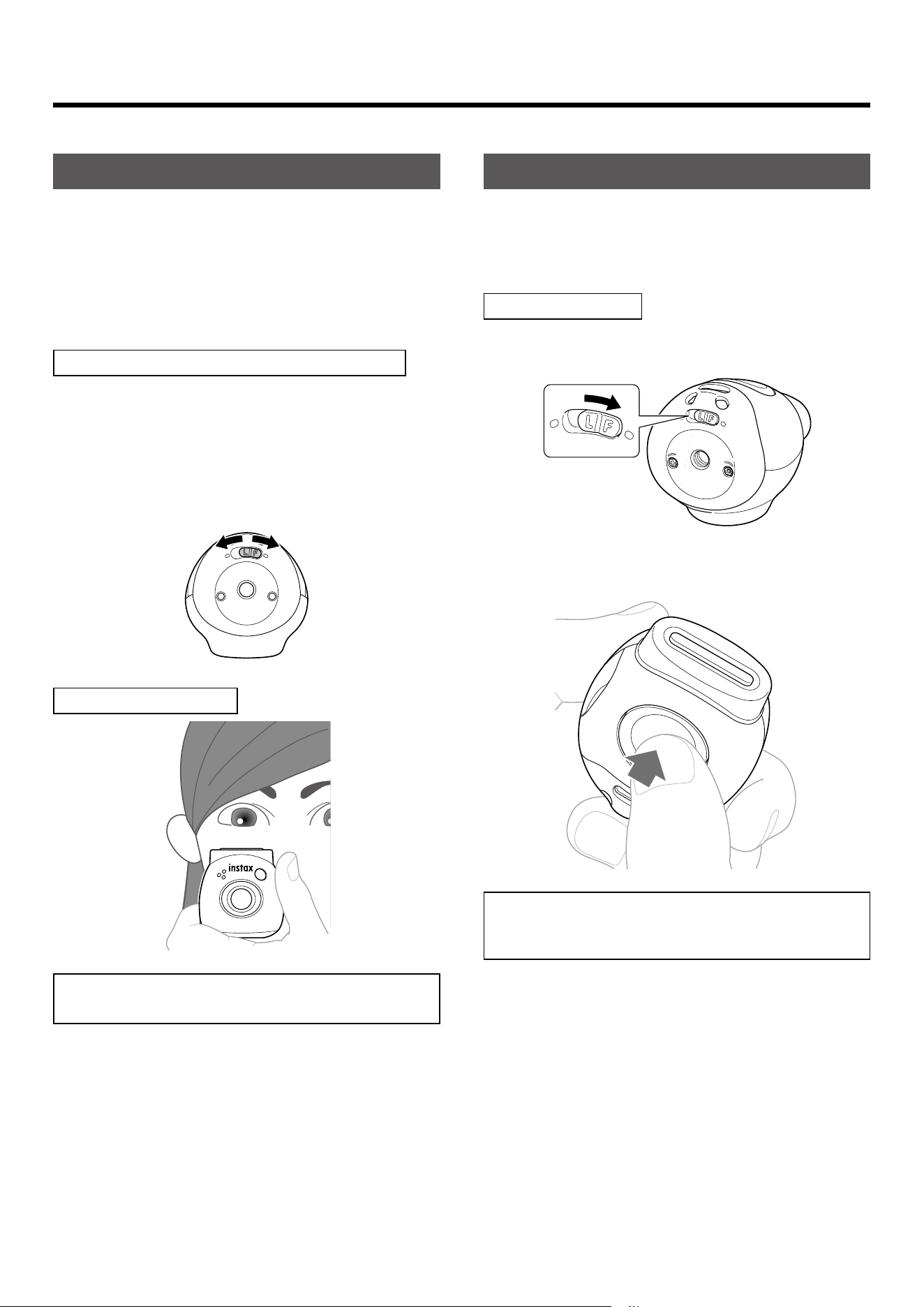

How to hold the camera

• Be careful not to catch the multi-use detachable ring or

fingers on the lens�

Taking photos

Point the PAL camera at your subject and press the shutter button

on the back of the camera to take a photo� Captured images will

be stored on an inserted Micro SD card (sold separately) or if no

Micro SD card has been inserted, on the built-in media (up to 50

images)�

Simple photo taking

1

Set the mode selector switch to “F”.

The camera enters “Fun” mode�

2

Press the shutter button.

An image is taken and transferred to the app�

When not connected to the app

• Shooting data is saved in the internal memory or SD card�

• The maximum number of shots is 50�

Shooting

20

Continuous shooting

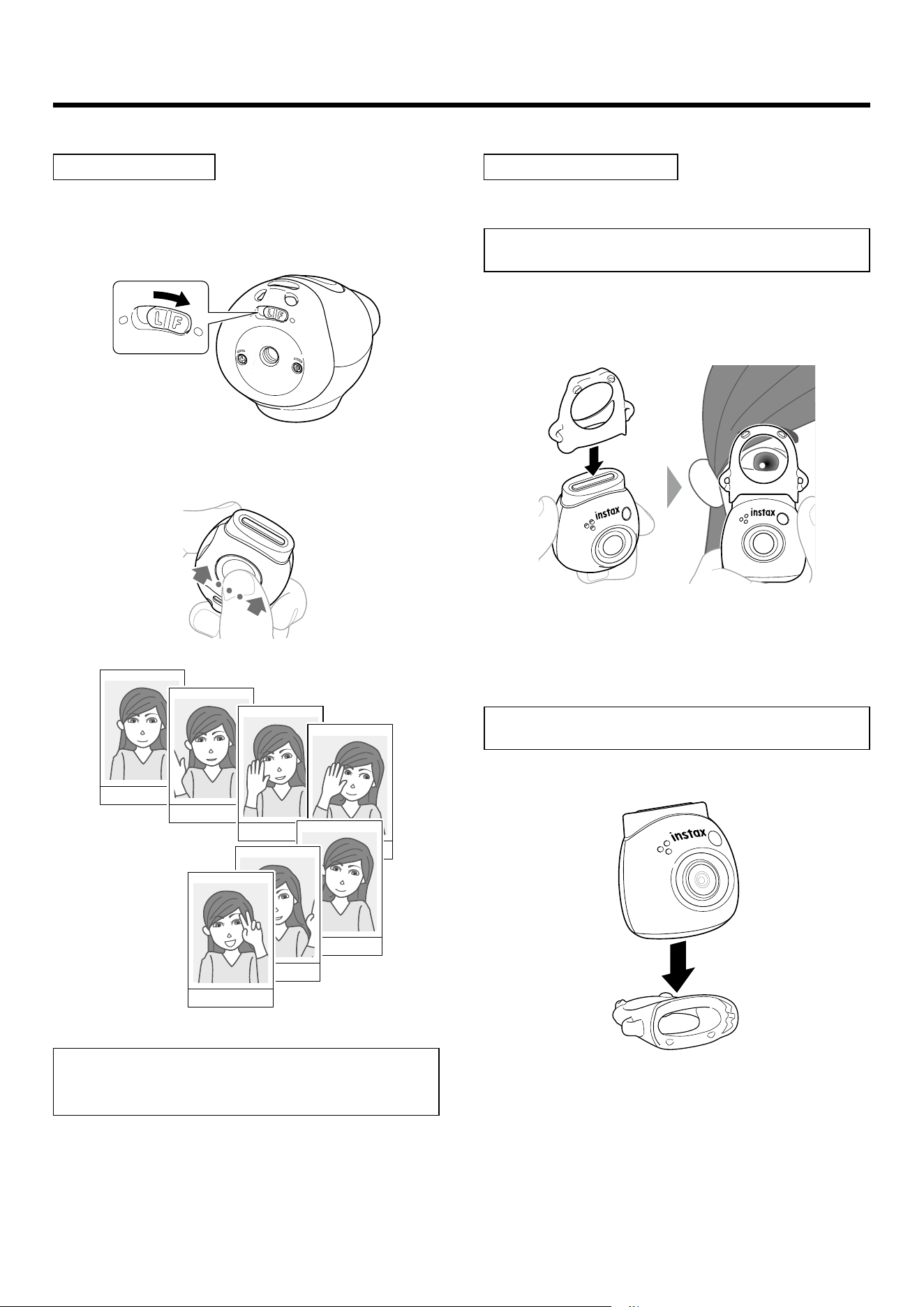

You can take up to 7 continuous shots by pressing and holding

down the shutter button�

1

Set the mode selector switch to “F”.

The camera enters “Fun” mode�

2

Hold the shutter button.

Up to 7 images will be taken and transferred to the app�

When not connected to the app

• Shooting data is saved in the internal memory or SD card�

• The maximum number of shots is 50�

About flash photography

The flash fires automatically when it’s dark, but you can turn it off�

Please set in [Flash] of the menu�

Taking photos using the provided multi-use

detachable ring as a viewfinder

This is a guideline and not what you can see�

1

Attach the provided multi-use detachable ring to

the top of the camera by snapping it over the power

button area (as shown below).

2

Take a photo.

Look through the multi-use detachable ring, using the ring

as a general viewfinder for your PAL photos� Note that the

final image will be slightly off center from the viewfinder

view�

Using the multi-use detachable ring as a base for

your camera

You can also use the multi-use detachable ring as a base by

setting the camera in the recess of the multi-use detachable ring�

Shooting

21

Remote shooting using the app

You can shoot from your smartphone by linking the camera and

the app�

You can shoot after checking the through image on the app

screen�

1

Tap “Remote shooting” on the main screen.

A through image of the camera is displayed on the screen�

Image editing

You can set the camera before shooting�

Selects a shooting format�

Applies filter�

Sets the flash�

Sets the self-timer�

Sets the pre-shutter sound�

2

Tap the app button to shoot.

Interval shooting using the app

You can shoot continuously at regular intervals�

1

Tap “Remote shooting” on the main screen, then tap

“Interval shooting” on the next screen.

2

Select the number of images to shoot.

3

Tap [Start] to start shooting.

To end shooting in the middle

Tap [Finish shooting]� Shooting ends�

Shooting

22

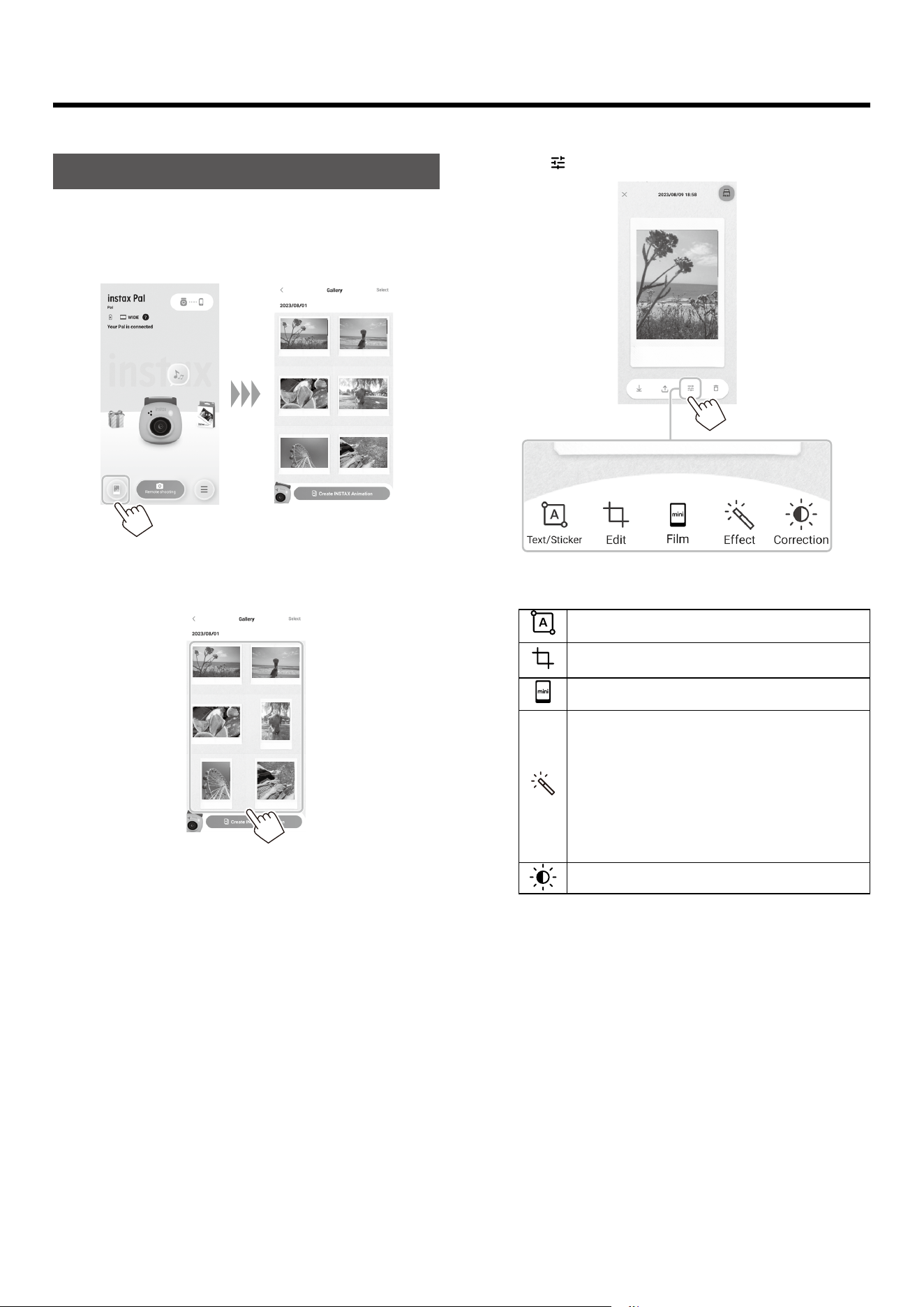

Viewing/editing captured images

You can browse the images you have taken in the gallery�

Editing such as applying filters and effects is also possible�

1

Tap “Gallery”.

Thumbnails of captured images are displayed�

2

Tap the image thumbnail.

The captured image is displayed�

3

Tap [ ] to edit the image.

Image editing

Menus such as filters and character input are available�

You can enter text or attach stickers�

You can scale and rotate the image�

You can choose an image format�

You can applies filter�

You can adjust the image�

4

After editing is complete, tap [Done].

Gallery and INSTAX Animation

23

Creating an INSTAX Animation

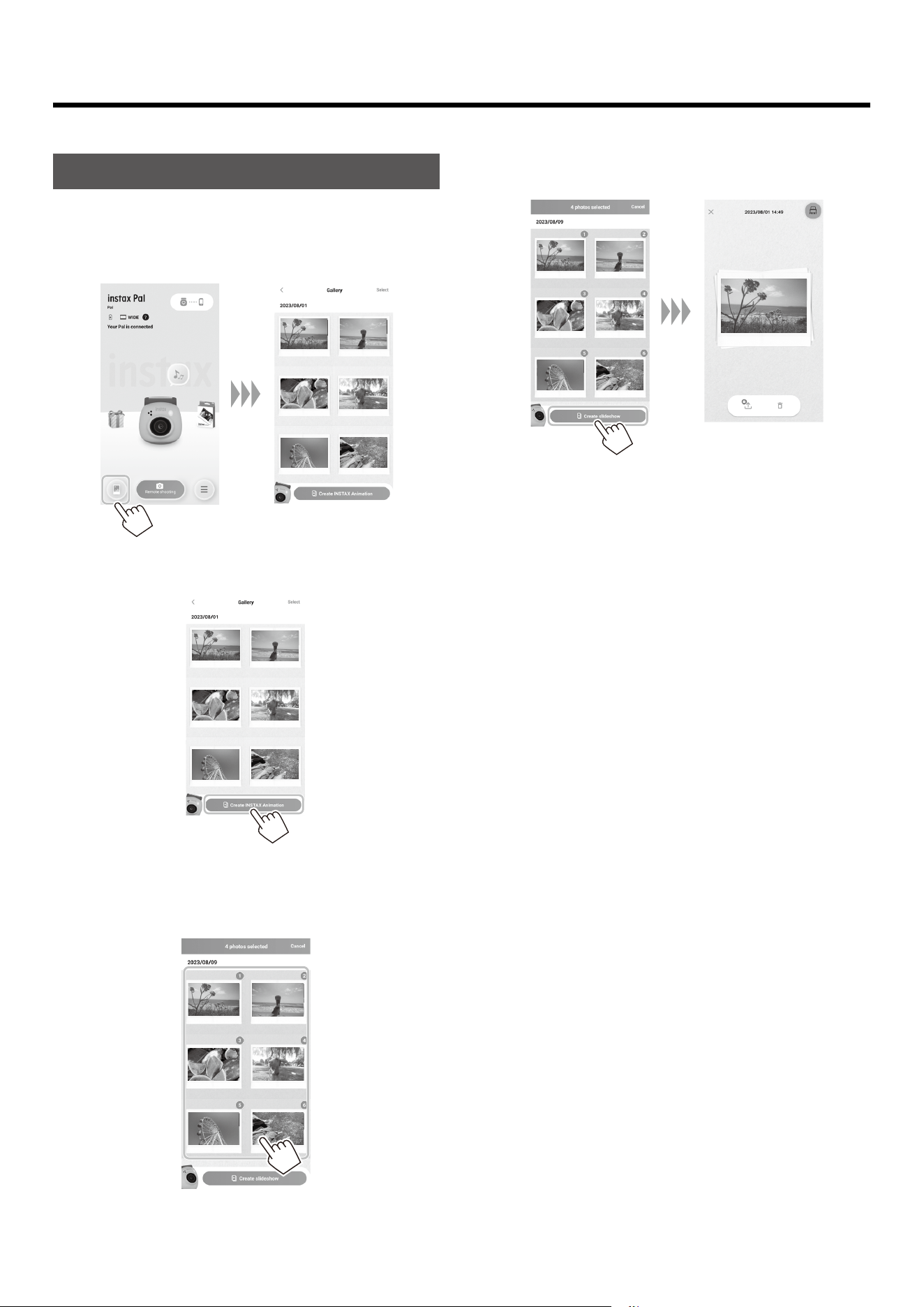

“INSTAX Animation” is a function that allows you to create an

animation by selecting several images you like from the gallery�

1

Tap “Gallery”.

Thumbnails of captured images are displayed�

2

Tap [Create INSTAX Animation].

3

Select an image by tapping the thumbnail for the

animation.

Select multiple images�

Gallery and INSTAX Animation

4

Tap [Create slideshow].

An animation is created with the selected image�

24

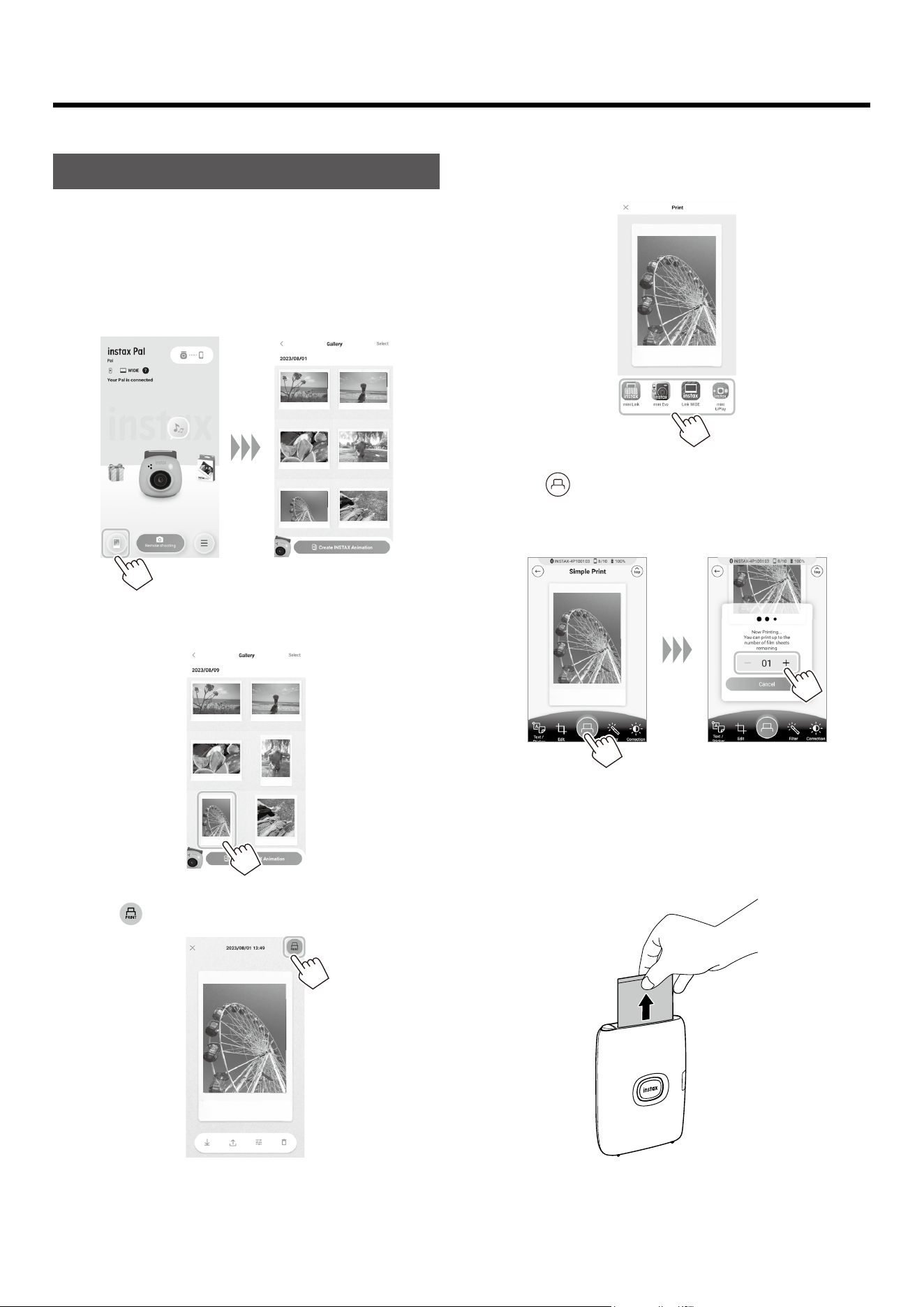

Printing images from the app

You can print photos from the app� You can apply effects to your

photos before printing�

The following procedure is an example when connecting with

INSTAX mini Link�

1

Tap “Gallery”.

Thumbnails of captured images are displayed�

2

Select the photo you want to print.

3

Tap [ ].

4

Choose a printer.

The app for the selected printer will start�

5

Tap or swipe up on the screen.

The printer will start printing�

You can also select the number of copies to print during

image transfer�

Simple Print

6

Pair your printer with your smartphone.

7

When the film has been ejected (the printer stops

making a sound), hold the edge of the film and

remove from the printer.

You can view the number of prints remaining in the app�

Printing

25

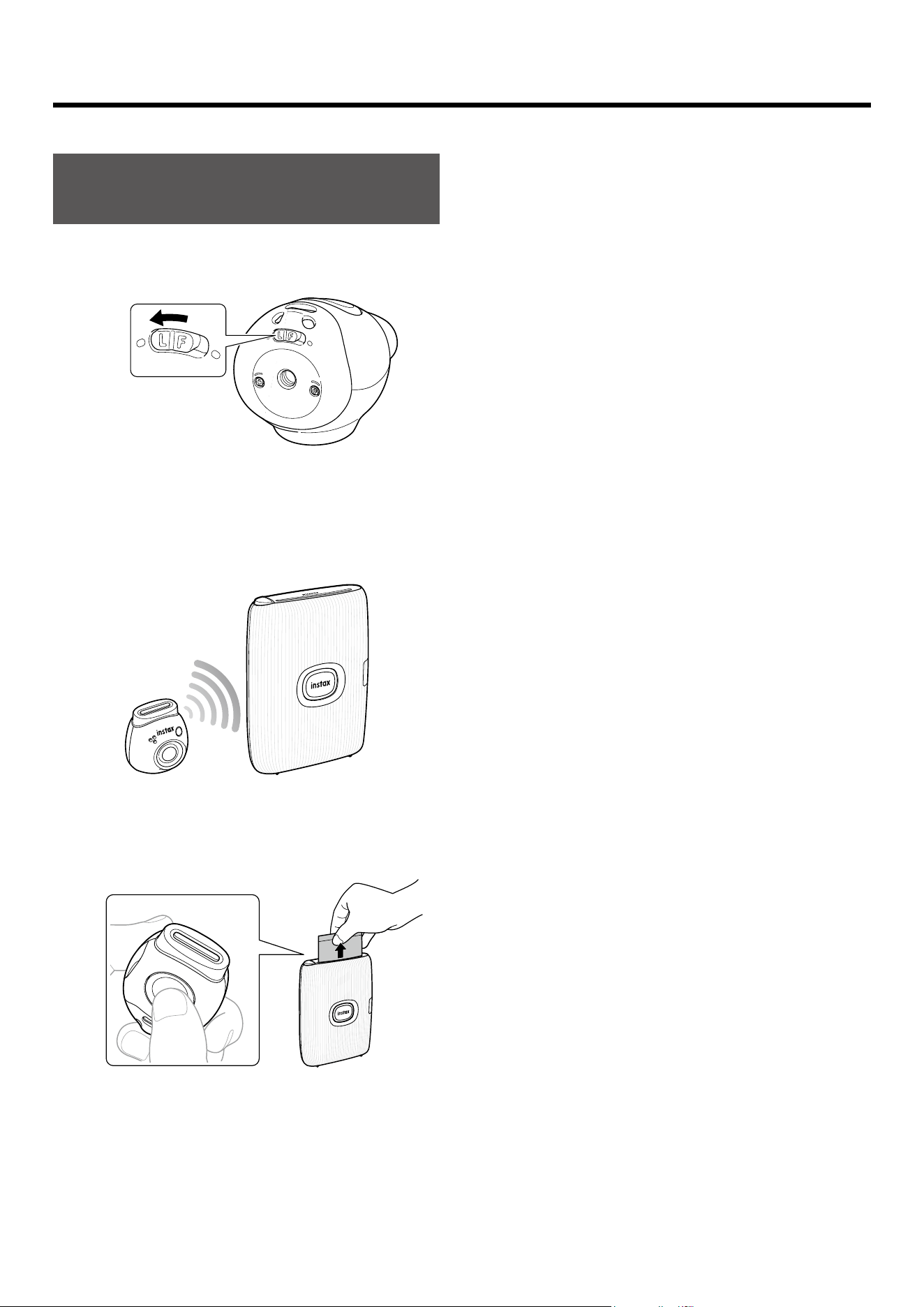

Printing images directly from your camera

via your INSTAX LINK Series Smartphone

printer device

1

Set the mode selector switch on the bottom of the

camera to “L”.

The camera enters “Link” mode�

2

Connect the camera to an INSTAX LINK Smartphone

printer.

When the INSTAX PAL camera and the INSTAX LINK Series

printer are both turned on and placed close together, the

device LED lights will turn Green, and the devices will

automatically be paired via Bluetooth�

3

Shoot an image.

When the camera is in “Link” mode, and you take a photo

with the PAL camera, the captured image will be

automatically transferred to the printer, and printing starts�

Printing

26

Specifications

■

Camera function

Image sensor 1/5-inch CMOS with primary color filter

Number of recorded

pixels

2560 × 1920

Storage media Internal memory,

microSD/microSDHC memory card

Storage capacity Approximately 50 images in internal

memory, approximately 850 images per

1GB in microSD/microSDHC memory

card

Maximum number

of shots when the

app is not

connected

50 shots

Recording method JPEG (DCF compliant Exif Ver 2�3)

Focus distance f = 16�25 mm (35 mm film equivalent)

Aperture F2�2

Shooting distance 19�4 cm to ∞

Shutter speed 1/4 second to 1/8000 second (automatic

switching)

Shooting sensitivity ISO100 to 1600 (automatic switching)

Exposure control Program AE

Exposure

compensation

−2�0 EV to +2�0 EV (1/3 EV step)

Metering method TTL 256 split metering, multi metering

White balance Auto

Flash Automatic/OFF/ON

Shooting range with flash:

Approximately 23�6 in to 59�1 in

(60 cm to 1�5 m)

Self-timer Approximately 2 seconds /

approximately 10 seconds

Zoom Not equipped

■

Other function

External interface USB Type-C port (for charging only)

Power supply Lithium ion battery (built-in type)

Charging time Approximately 2 to 3 hours

* Charging time depends on the

temperature�

Main unit

dimensions

1�67 in × 1�75 in × 1�69 in (42�3mm ×

44�4mm × 43�0mm) (excluding

projecting parts)

Main unit weight Approximately 1�45 oz (41 g)

Operating

environment

Temperature: 41°F to 95°F (5°C to 35°C)

Humidity: 20% to 80% (no condensation)

Direct print

compatible models

INSTAX mini Link

INSTAX mini Link 2

INSTAX SQUARE Link

INSTAX Link WIDE

Models that can

print via the app

INSTAX mini Link

INSTAX mini Link 2

INSTAX SQUARE Link

INSTAX Link WIDE

INSTAX mini Evo

INSTAX mini Liplay

Shooting format INSTAX mini

INSTAX SQUARE

INSTAX WIDE

Number of transfer

data pixels

mini: W600 × H800 pixels

SQUARE: W800 × H800 pixels

WIDE: W1260 × H840 pixels

Image transfer time mini: Approx� 10 sec/shot

SQUARE: Approx� 15 sec/shot

WIDE: Approx� 20 sec/shot

* The above specifications are subject to change for better

performance�

27

Troubleshooting

Please check the following items before considering a problem to

be a malfunction� If the problem persists even after taking action,

please contact the FUJIFILM service center for repair in your

country or visit the website below�

FUJIFILM website: http://www�fujifilm�com/

If the following problem occurs...

Problem Possible causes and solutions

I cannot turn on

the camera�

The battery may not be charged� Please

charge the camera�

The battery loses

its charge

quickly�

If you use the camera in a very cold

environment, the battery will drain quickly�

Please keep the camera warm before

shooting�

The power cut

off during use�

The battery level may be low� Please charge

the camera�

Charging does

not start�

Make sure that the USB power adapter plug

is properly connected to the power outlet�

The camera

takes too long

to charge�

At low temperatures, charging may take

longer�

The LED flashes

red during

charging�

Charge the battery in a temperature range

of 41°F to 104°F (+5°C to +40°C)� If you

cannot charge the camera in this range,

contact your FUJIFILM dealer or support

center�

I cannot shoot

when I press the

shutter button�

• Make sure that the power is on�

• If the battery level is low, please charge the

camera�

• If the internal memory or SD card is full,

transfer the data to the app or delete

unnecessary images�

• Use a SD card formatted with this unit�

• If the contact surface of the SD card (gold

part) is dirty, wipe it with a soft, dry cloth�

The flash does

not fire�

Check that the flash setting is set to OFF�

Select a setting other than OFF on the app�

Even though the

flash fired, the

image is dark�

• Check that you are too far from the subject�

Please shoot within the flash range�

• Hold the camera correctly so that you do

not obstruct the flash with your fingers�

The image is

blurred�

If the lens has dirt on it such as fingerprints,

clean the lens�

Problem Possible causes and solutions

The camera

does not work

properly�

• There may be a temporary malfunction�

Please turn off/on the camera�

• The battery may be exhausted� Please

charge the camera�

• If it still does not work properly, please

press the reset button located above the

microSD card slot�

* If you press the reset button, the setting

data saved in the camera will be deleted�

(Shooting data will be remained�)

I cannot connect

to the app�

• Make sure the mode selector switch on the

bottom is set to “Fun” mode�

• Check your smartphone’s Bluetooth

connection�

• Please check the latest version of the app�

I cannot connect

to an INSTAX

printer�

• Make sure the mode selector switch on the

bottom is set to “Link” mode�

• Make sure your INSTAX printer is turned

on�

I can’t transfer

the shooting

data to the

gallery�

• If there is shooting data in the internal

memory, connect to the app and

transfer the shooting data before

inserting or replacing the SD card. If you

insert the SD card without transferring

the data, you will not be able to move

the data you have shot so far to the

gallery.

• When shooting in “Link” mode without

connecting to an INSTAX printer, the

shooting data will be saved, but the data

cannot be transferred to the gallery�

* Data can be moved and viewed from the

Media settings menu in the app�

The captured

data is not

automatically

transferred to

the app�

Check if the camera is turned on and is

properly connected to the app�

It will not be transferred automatically in the

following cases:

• Data taken in “Link” mode

• The SD card was replaced with

untransferred images remained�

The camera

turns off while

connected to

the app�

The camera turns off after a certain period of

time, regardless of whether the app is

connected or not� The default is 2 minutes�

You can change it in the settings�

Firmware

update fails�

When updating the firmware via the app,

change the time or communication

environment and try again�

I want to check

the image data

in the internal

memory or SD

card on the

camera�

You can check the data in the internal

memory and SD card with “Media

restrictions” in the Media settings menu� It

also supports data movement and

downloading to the smartphone itself�

28

IMPORTANT SAFETY NOTICE

• Do not use this product and its accessories for a purpose other

than taking photos�

• This product has been designed with safety in mind, but please

read the following safety precautions carefully and then use the

product correctly�

• After reading the Quick Start Guide, be sure to keep it in an

easy-to-access place where you can refer to it whenever

necessary�

WARNING

This symbol indicates danger, which could result in injury or death�

Please follow these instructions�

If one of the following cases occur, immediately unplug the

dedicated charging cable, turn the camera off and refrain from

any further use of the camera� Call the applicable Fujifilm

customer service center:

• If you notice anything abnormal, such as the camera (or

battery) becoming hot, emitting smoke or a burning smell�

• If you drop the camera and the outer shell is cracked or

damaged, or if for whatever reason the camera is exposed to

rain, snow, ice, water or other liquids, sand, dirt, dust, or other,

foreign objects�

Since the battery is installed in the camera, do not heat the

camera, throw the camera in a fire, drop the camera, or shake

the camera� The battery may rupture, causing injury�

Do not take flash photographs of people riding bicycles, driving

cars, skateboarding, riding horses, etc� The flash can be startling

and distracting to others, which can cause an accident�

Do not use this camera in places where there is flammable gas

or near open gasoline, benzine, paint thinner or other unstable

substances which can give off dangerous vapors� Use in these

environments could result in failure to do this could result in

explosion or fire�

Do not cover or wrap the camera in a cloth or blanket, and do

not leave the camera in a hot car or in direct sunlight� This can

cause heat to build up and distort the casing, cause the battery

to overheat, and/or cause a fire�

CAUTION

This indicates a matter that may lead to injury or physical damage

if ignored or incorrectly handled�

Never attempt to disassemble this product except at end of life

when and for the purpose of disposing of the battery�

If the camera is not functioning correctly, to avoid injury and to

ensure the Limited Product Warranty remains in effect, do not

attempt to repair it yourself� Contact Fujifilm’s applicable

customer service / repair center�

If the camera is dropped and the outer cover opens, be careful

not to touch the inside of the camera� Injury may occur�

Do not handle this product with wet hands� Electric shock may

occur�

When the charging is completed, please unplug the dedicated

charging cable�

The PAL camera is intended for ages 13+� Keep the product out

of the reach of infants and small children� Injury may occur�

Problem Possible causes and solutions

Images were

saved with

different

shooting

formats (“mini”,

“SQUARE”,

“WIDE”) from

the target

INSTAX Link

printer�

→ Can I print

images?

Even if the data saved in the camera and the

film settings in the printer are different, the

output will match the shape of the film on

the printer (“mini“ for mini Link 2, “SQUARE ”

film for SQUARE Link)� Before printing, adjust

the position and size of the image data using

the printer app�

29

Using a flash too close to a person’s eyes may for the short term

affect their eyesight� Take care when taking pictures of infants

and young children�

Simple camera care

■

Handling the camera and battery

• CAUTION - Do not expose to excessive heat such as sunshine, fire

or the like� This can result in an explosion or the leakage of

flammable liquid or gas during use, storage, transportation or

disposal�

• CAUTION - Do not dispose of a battery into fire or a hot oven� Do

not mechanically crush or cut the battery� This can result in an

explosion�

• CAUTION - Do not subject to extremely low air pressure at high

altitude, this may result in an explosion or the leakage of

flammable liquid or gas�

Camera care

• Your camera is a fragile object� Do not expose it to water, sand or

gritty materials�

• Do not use solvent such as thinner or alcohol to remove dirt�

• Do not leave your camera in direct sunlight or hot places such as

the inside of a car� Do not leave the camera in damp places for

prolonged periods�

• Moth repellent gas such as naphthalene may affect your camera

and prints� Take care to keep your camera and prints in a safe,

dry place�

• Note that the temperature range within which your camera can

be used is +41°F to +95°F (+10°C to +35°C)�

• Take great care to ensure that printed materials do not violate

copyright, image rights, privacy or other personal rights and do

not offend public decency� Actions that violate the rights of

others, are contrary to public decency or constitute a nuisance

may be punishable by law or otherwise legally actionable�

■

Charging the Battery

• The battery is not fully charged during manufacture. Please

charge the battery fully before first use.

• Charge the battery using the supplied USB Type-C cable�

Charging times will increase at ambient temperatures below

+41°F (+10°C) or above +104°F (+40°C)�

• When charging outside the temperature range of +41°F to +95°F

(+10°C to +35°C), the charging time may be longer to prevent

deterioration of battery performance� Charge the battery within

the temperature range of +41°F to +95°F (+10°C to +35°C)�

■

Battery Life

• At normal temperatures, the battery can be recharged about

500 times� A noticeable decrease in the length of time the

battery will hold a charge indicates that it has reached the end of

its service life�

■

Caution: Handling the battery

The battery and camera body may become warm to the touch

after extended use� This is normal�

Bluetooth® Devices: Cautions

IMPORTANT: Read the following notices before using the product’s

built-in Bluetooth transmitter�

■

Use only as part of a Bluetooth network.

Fujifilm does not accept liability for damages resulting from use in

a manner not authorized or intended� Do not use in applications

requiring a high degree of reliability, for example in medical

devices or other systems that may directly or indirectly impact

human life� When using the device in connection with a computer

and other systems that demand a greater degree of reliability than

Bluetooth networks, be sure to take all necessary precautions to

ensure safety and prevent malfunction�

■

Use only in the country in which the device was purchased.

This device conforms to regulations governing Bluetooth devices

in the country in which it was purchased� Observe all location

regulations when using the device� Fujifilm does not accept

liability for problems arising from use in other jurisdictions�

■

Wireless data (images) may be intercepted by third parties.

The security of data transmitted over wireless networks is not

guaranteed and Fujifilm does not accept liability for interception

of data or images at any time�

■

Do not use the device in locations subject to magnetic fields,

static electricity, or radio interference.

Do not use the transmitter in the vicinity of microwave ovens or in

other locations subject to magnetic fields, static electricity, or

radio interference that may prevent reception of wireless signals�

Mutual interference may occur when the transmitter is used in the

vicinity of other wireless devices operating in the 2�4 GHz band�

■

The Bluetooth transmitter operates in the 2.400GHz –

2.4835GHz. The maximum radio-frequency power is

8.05mW.

■

This device operates on the same frequency as commercial,

educational, and medical devices and wireless transmitters.

It also operates on the same frequency as licensed transmitters

and special unlicensed low-voltage transmitters used in radio-

frequency identification tracking systems for assembly lines and

in other similar applications�

■

To prevent interference with the above devices, observe the

following precautions.

Confirm that the radio-frequency identification transmitter is not

in operation before using this device� If you notice that this device

causes interference in low-voltage radio-frequency identification

tracing systems, contact a Fujifilm representative�

■

The following may violate, and be punishable, under

applicable law:

– Disassembly or modification of this device�

– Removal of device certification labels�

30

For customers in the USA:

FCC ID : W2Z-03000011

FCC Statement

This device complies with part 15 of the FCC Rules�

Operation is subject to the following two conditions: (1) this

device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that

may cause undesired operation�

For more information, access the website below�

https://instax�com/pal/en/spec/

CAUTION

This device has been tested and found to comply with the limits

for a Class B digital device, pursuant to Part 15 of the FCC Rules�

These limits are designed to provide reasonable protection

against harmful interference in a residential installation�

This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio

communications�

However, there is no guarantee that interference will not occur in

a particular installation�

If this equipment does cause harmful interference to radio or

television, which can be determined by turning the product off

and on, the user is encouraged to try to correct the interference

by one or more of the following measures:

• Reorient or relocate the receiving antenna�

• Increase the separation between the product and receiver�

• Connect the product into an outlet on a circuit different from

that to which the receiver is connected�

• Consult the dealer or an experienced radio/TV technician for

help�

FCC CAUTION

Changes or modifications not expressly approved by Fujifilm

could void the user’s authority to operate the equipment�

This transmitter must not be co-located or operated in

conjunction with any other antenna or transmitter�

Radiation Exposure Statement

This device meets the government’s requirements for exposure to

radio waves� This device is designed and manufactured not to

exceed the emission limits for exposure to radio frequency (RF)

energy set by the Federal Communications Commission of the U�S�

Government�

The exposure standard employs a unit of measurement known as

the Specific Absorption Rate, or SAR� The SAR limit set by the FCC

is 1�6 W/kg� Tests for SAR are conducted using standard operating

positions accepted by the FCC with the device transmitting at its

highest certified power level in all tested frequency bands�

Notes on the Grant

To comply with Part 15 of the FCC Rules, this product must be

used with a Fujifilm-specified USB Type-C cable�

For customers in CANADA:

IC : 7736B-03000010

ISED statement:

This device complies with Innovation, Science and Economic

Development Canada’s licence-exempt RSS(s)� Operation is

subject to the following two conditions:

(1) This device may not cause interference, and

(2) This device must accept any interference, including

interference that may cause undesired operation of the device�

CAUTION:

CAN ICES-003 (B)/NMB-003 (B)

This Class B digital apparatus complies with Canadian ICES-003�

Radiation Exposure Statement

The available scientific evidence does not show that any health

problems are associated with using low power wireless devices�

There is no proof, however, that these low power wireless devices

are absolutely safe� Low power wireless devices emit low levels of

radio frequency energy (RF) in the microwave range while being

used� Whereas high levels of RF can produce health effects (by

heating tissue), exposure of low-level RF that does not produce

heating effects causes no known adverse health effects�

Many studies of low-level RF exposures have not found any

biological effects� Some studies have suggested that some

biological effects might occur, but such findings have not been

confirmed by additional research� This device has been tested and

found to comply with ISED radiation exposure limits set forth for

an uncontrolled environment and meets RSS-102 of the ISED radio

frequency (RF) exposure rules�

31

Proper Disposal – US, Canada and Latin America

Disposal of Electric and Electronic Equipment

in Private Households

Disposal of used Electrical & Electronic

Equipment

(Applicable in the European Union and other

European countries with separate collection

systems)

This symbol on the product, or in the manual and in the warranty,

and/or on its packaging indicates that this product shall not be

treated as household waste�

Instead it should be taken to an applicable collection point for the

recycling of electrical and electronic equipment�

By ensuring this product is disposed of correctly, you will help

prevent potential negative consequences to the environment and

human health, which could otherwise be caused by inappropriate

waste handling of this product�

The recycling of materials may help to conserve natural resources�

For more detailed information about recycling of this product,

please contact your local city recycling office, your household

waste disposal service or the authorized FUJIFILM dealer from

which you purchased the product�

For proper disposal in the United States at product end-of-life,

please contact Fujifilm at 1-800-800-3854 Option #1 INSTAX�

For proper disposal in Canada at product-end-of-life, please

contact Fujifilm at 1-800-461-0416�

For proper disposal in Latin America at product end-of-life, please

contact your local FUJIFILM distributor or dealer for disposal

instructions�

Information for Fujifilm in the United States

FUJIFILM North America Corp�

200 Summit Lake Drive

Valhalla, New York 10595, USA

1-800-800-3854 Option #1 INSTAX

Information for Fujifilm in Canada

FUJIFILM Canada Inc�

600 Suffolk Court

Mississauga, Ontario L5R 4G4, Canada

1-800-461-0416

If you have any inquiries about this product, please contact the

applicable Fujifilm customer service center, or access the website

below�

https://instax�com/pal

The Bluetooth® word mark and logos are registered trademarks

owned by the Bluetooth SIG, Inc�, and any use of such marks by

Fujifilm is under license�

Independent JPEG Group (IJG) Licenses

The software used in the INSTAX PAL Digital Camera is based in

part on the work of the Independent JPEG Group�

FUJIFILM, INSTAX, and INSTAX PAL, INSTAX LINK, INSTAX MINI EVO,

and INSTAX MINI LIPLAY are trademarks of FUJIFILM Corporation

and its affiliates�

Fujifilm 600023914 INSTAX PAL Digital Camera Lavender

Product's Documents

User Manual9.9 MB

Specifications

Fujifilm 600023914 Questions and Answers
