Models: KBF420C
KBF420MB
KBF420SS
COMPONENT LIST QTY
1 - Faucet Body 1
2 - O-Ring 1
3 - Rubber Washer 1
4 - Metal Washer 1
5 - Mounng Hardware 1
6 - Screw 2
1
2
3
5
6
4
1

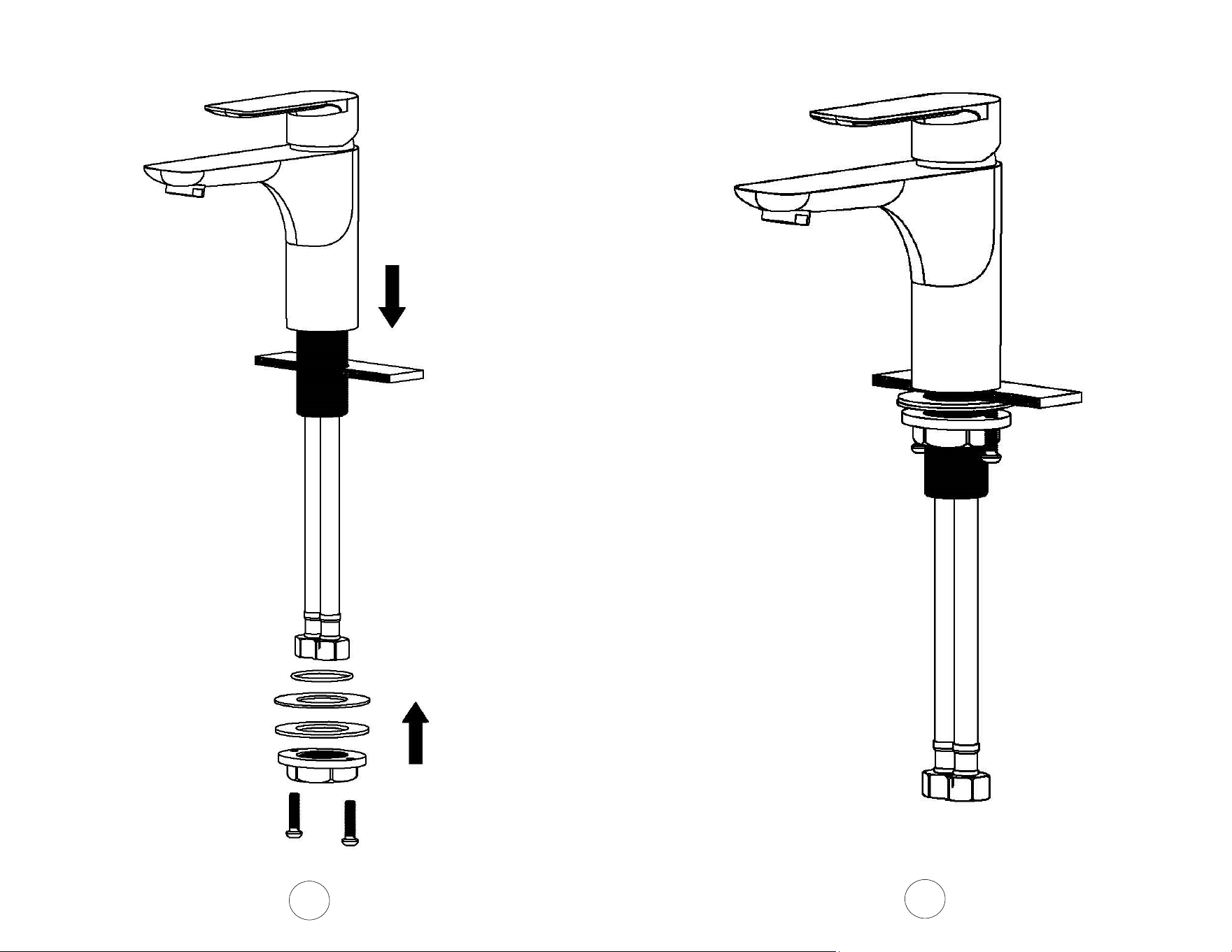

INSTALLATION GUIDE
Karran USA Tel: 866.452.7726 www.karran.com [email protected]
3
2
5-13/16”
4-1/2”
3-13/16”
4-13/16”
1-3/4”
1-1/4” to 1-3/8”
3-3/8”
5
4
7
6
1 - Handle
2 - Screw
3 - Color Buon
4 - Cover
5 - Nut
6 - Cartridge
7 - Faucet Body
8 - Gasket
9 - Aerator
10 - Aerator Cover
11 - Base
12 - O-Ring
13 - Rubber Washer
14 - Metal Washer
15 - Mounng Hardware
16 - Screw
17 - Water Lines
