DF-12L, DF-12L/2
Electric Fryers
This manual contains important information regarding your
Admiral Craft unit. Please read this manual thoroughly prior
to equipment set-up, operation and maintenance. Failure to
comply with regular maintenance guidelines outlined in
this manual may void the warranty. MUST READ!!!
WARNINGS
• Do not touch any hot surfaces
• Do not immerse unit, cord or plug in liquid at any time
• Unplug cord from outlet when not in use and before cleaning
• It is recommended that the fryer not be moved when it contains hot oil or any other hot liquid
• Do not use this unit for anything other than intended use
• Do not use outdoors
• Always cook on a firm, dry and level surface
• High temperature will cause scalding. Do not stand over fryer when operating and do not touch any part of machine
while in operation, other than handle of basket and power controls
• Do not use unit with a damaged cord or plug, in the event the appliance malfunctions, or has been damaged in any
manner
• Keep children and animals away from fryer
• Any incorrect installation, alterations, adjustments and/or improper maintenance can lead to property loss and injury.
All repairs should be done by authorized professionals only
• Keep all flammable and combustible materials away from this unit
• This machine must be placed on a level surface
• Volume of food should be limited to avoid overflowing
• Foods that do not absorb oil easily should be limited to avoid overflow
• Use caution when placing large foods in fryer
• When transporting the unit, the machine should be handled carefully, and held by the side handles
FEATURES
1. These fryers are available in 2 different models. One is a 1-tank fryer (DF-12L); another is a 2-tank fryer (DF-12L/2).
The 2-tank fryer is able fry two different kinds of foods at the same time.
2. The oil temperature is regulated by the temperature regulator and includes a yellow (hot light) which cycles on and off
to indicate when the desired temperature has been reached.
3. The automatic shut off feature cuts power to the unit when the oil has reached 446°F (the maximum allowable
temperature).
4. There is an automatic micro-switch on the bottom of the unit head. This will cut power to the unit if the head has been
separated from the base of the unit without the power switch turned off or the power cord unplugged.
5. The stainless steel tank has a convenient spot for draining oil easily.
6. The heating coils are protected by a stainless steel panel base at the bottom of the unit.
TO USE
1. Make sure the power supply you are using is adequate for continual fryer use and voltage is adequate. The use of a
surge protector or circuit breaker is advisable.
2. Make sure that the temperature regulator knob is set to the off position
3. Remove basket from the machine.
4. Make sure the oil valve is closed
5. Fill oil receptacle with vegetable oil somewhere between the minimum and maximum levels, allowing room for food
volume.
5. Plug the machine in.
6. A green “Power Light” will come on. Rotate the temperature regulator knob clockwise to the desired temperature.
When the desired temperature has been reached, the yellow "Hot Light" will turn off and cycle and the temperature
controller will maintain the temperature automatically.
7. Load food into basket, and carefully place loaded basket into machine to avoid splash.
8. Gently shake off excess oil from food when removing from tank after frying.
9. The enclosed frying basket is intended to hold small foods such as French fries and onion rings. Large food can be
placed directly into the basket or oil tank.
CLEANING
After fryer usage, turn power controller counterclockwise to the “OFF” position and remove plug from power supply. The
procedure is as follows:
1. Carefully remove unit head from box and place in a safe dry place.
2. Put an oil container under the oil drain and open the drain valve to empty oil into the oil container
3. Gently wipe oil tank removing any excess oil or sludge. Dry completely and place back on machine
For best results, cover the fryer when oil is cool and not in use. This will keep unwanted debris from falling into the oil. For
best results, always use fresh vegetable oil with each use. It is recommended that you inspect the unit before each use to check
that the power cord is not frayed or damaged in any way.

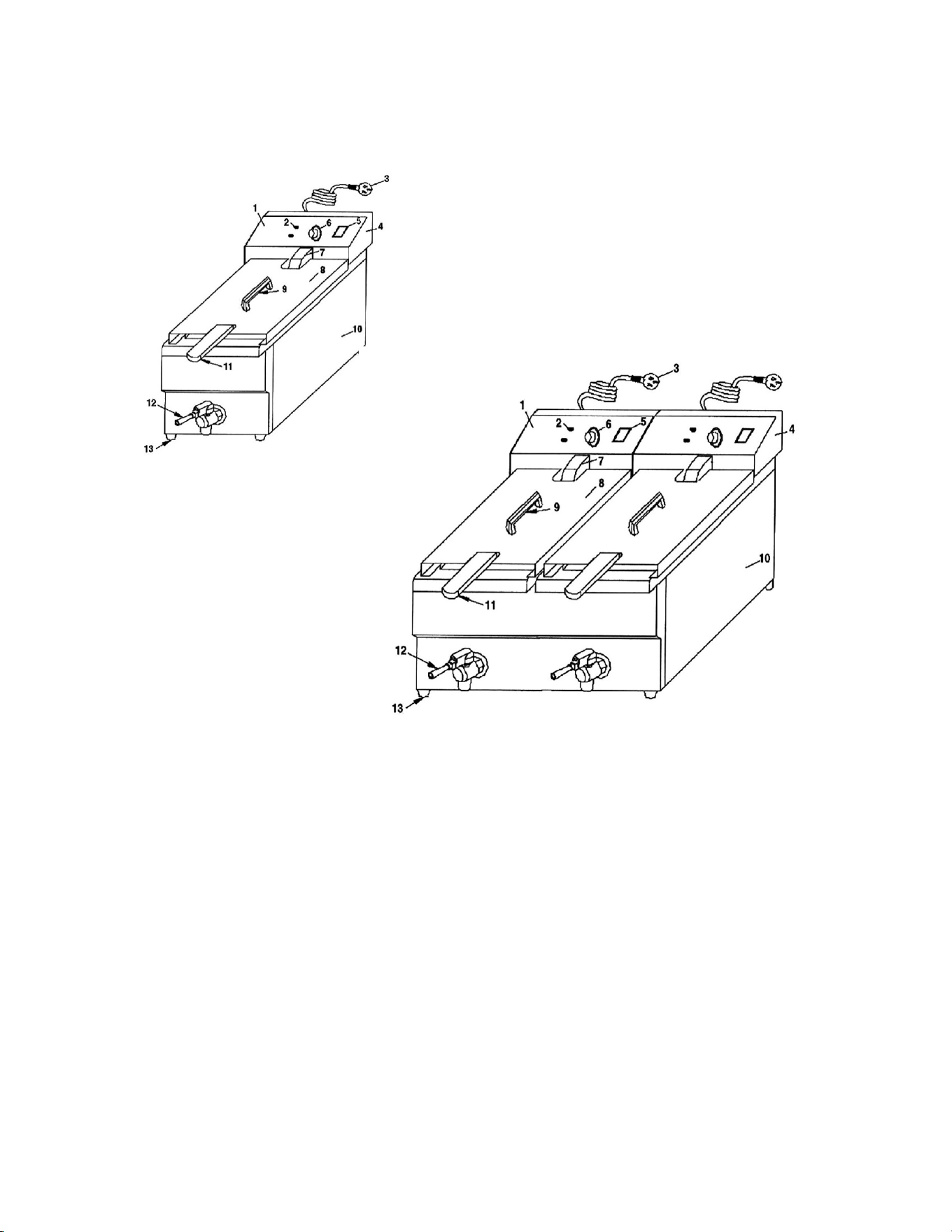

PARTS OF THE FRYER
1. Control panel
2. Indicator lights
3. Power cords(s)
4. Electrical circuit enclosure
5. Power switch
6. Temperature controller
7. Heater element cover
8. Cover
9. Cover handle
10. Outer case
11. Fryer basket
12. Oil drain
13. Rubber feet

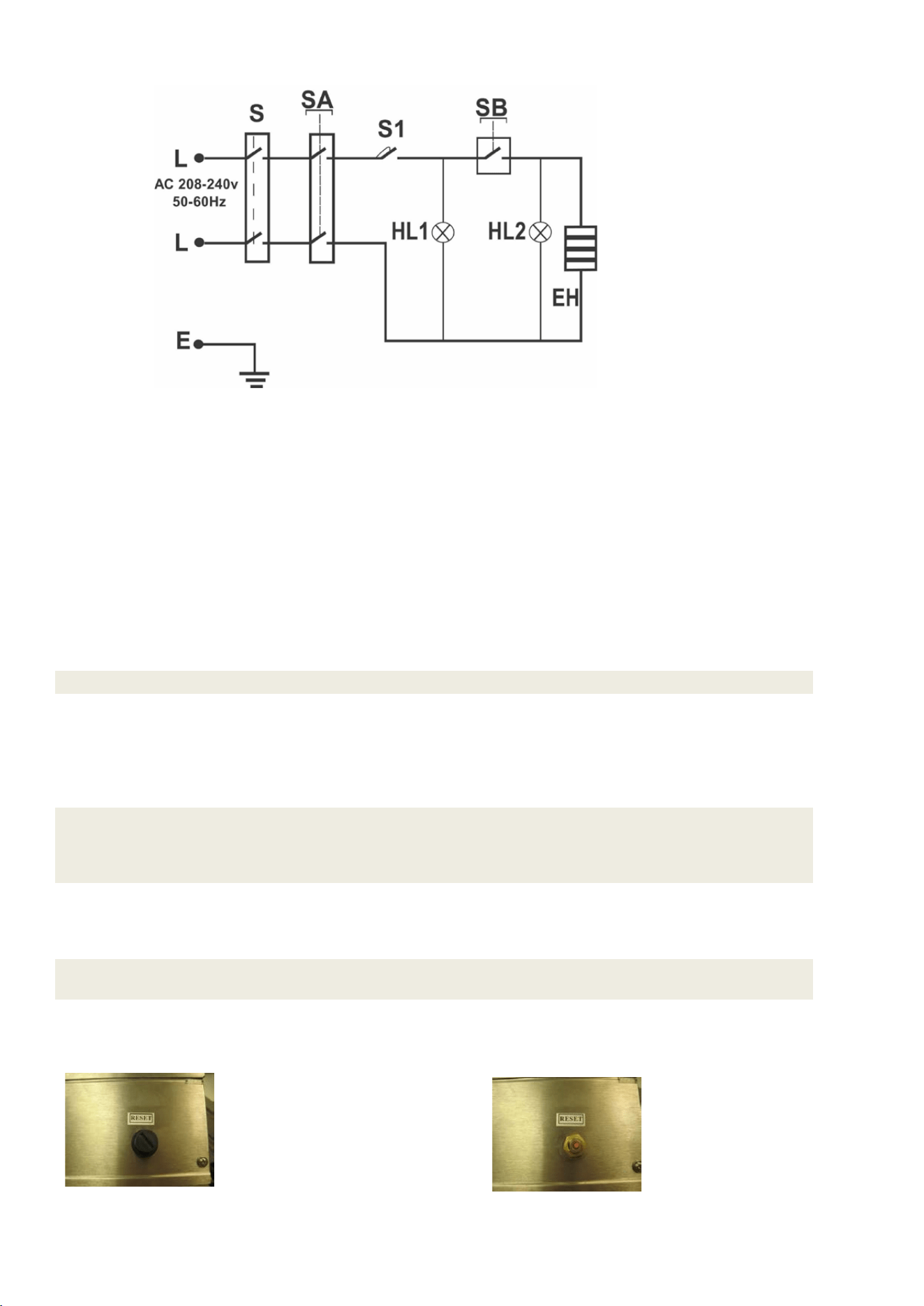

CIRCUIT DIAGRAM
S1 - Micro-switc
h
SA - Overheat switch
EH - Heater element
HL 1 - Power-on indicator
HL 2 - Heater-on cycling indicator
SB - Temperature regulator
E
-
Ground connection
NOTE: THE CIRCUITS OF THE TWO FRYERS ARE IDENTICAL. THE DIFFERENCE IS THAT THE TWO
TANK FRYER HAS TWO SEPARATE ELECTRICAL UNIT BOXES AND RECEPTICLES.
T
ROUBLESHOOTING - Troubles listed are for reference. If any fault occurs, please discontinue use. Do not attempt to
repair yourself. This will void the warranty.
Problem
Cause
Solution
Not working as well as
expected
Unit is not on a dedicated circuit
Unplug unit, plug into a dedicated line and
retry
Basket is overloaded
Too much product will bring down the
temperature of the oil bringing it to a boil
rather than a frying temperature. Use less
product.
Stopped working
Reset button was tripped
There is a reset button located on the back
of the head. Unscrew the cap and push the
button to reset. (Be sure to replace black
cap)
Micro/safety switch is not making
contact
Make sure that the unit is on a level surface
and that switch is sitting flush making
contact with the metal on the back of the
body
Indicator light won’t turn on
and unit will not heat
Plug not properly inserted into outlet
Reinsert the plug
TO
RESET:
Located on the back of the fryer head, it will read ‘reset’
W
ith the unit unplugged and fully cooled off, Press red button in to reset
unscrew the know to expose red button
1-YEAR LIMITED WARRANTY
Admiral Craft Equipment Corp. (the “Company”) warrants this product (the “Product”) will be free from
failures in material and workmanship for one (1) year from the date of original purchase with proof of
purchase, provided that the Product is operated and maintained in conformity with the Owner’s Manual.
This Limited Warranty is non-transferable. During this period, your exclusive remedy is repair or replacement
without charge of the Product or any component found to be defective at the Company’s discretion. If
the Product or any component is no longer available, the Company will replace it with a similar one of
equal or greater value. This Limited Warranty is void if the Product is used with voltage other than 120
Volts. THIS WARRANTY IS IN LIEU OF ALL IMPLIED WARRANTIES, INCLUDING WARRANTIES
OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, PERFORMANCE, OR
OTHERWISE, WHICH ARE HEREBY EXCLUDED. IN NO EVENT SHALL THE COMPANY BE
LIABLE FOR ANY DAMAGES, WHETHER DIRECT, INDIRECT, INCIDENTAL, FORSEEABLE,
CONSEQUENTIAL, OR SPECIAL ARISING OUT OF OR IN CONNECTION WITH THIS PRODUCT
INCLUDING DAMAGES ARISING FOR FOOD OR BEVERAGE SPOILAGE CLAIMS.
You may have other legal rights depending upon where you live. Some States or Provinces do not allow
limitations on warranties so the foregoing may not apply to you.
WARRANTY EXCLUSIONS WARRANTY EXCLUSIONS
IMPROPER ELECTRICAL CONNECTIONS:
The Company is not responsible for the repair or replacement of failed or damaged components resulting
from electrical power failure, the use of extension cords, low voltage, or voltage spikes to the Product.
IMPROPER USAGE:
This Limited Warranty does not cover failure or other damages to the Product resulting from (i) improper
usage or installation or failure to clean and/or maintain the Product as set forth in the Owner’s Manual; or (ii)
accident, misuse, abuse, negligence, or modication or alteration of the Product.
CONSUMABLES:
This Limited Warranty does not include consumables or wear-and-tear items such as legs, feet, plastic
component parts, splash shields, lters, gaskets, and non-stick cooking surfaces.
ADJUSTMENTS & CALIBRATIONS:
Leveling, tightening of fasteners, or utility connections normally associated with the original installation are
the responsibility of the dealer, installer, or the end user and not the responsibility of the Company and will
not be considered warranty issues.
If you think the Product has failed, or requires service, within its warranty period, please contact the
Company’s Customer Care Department through our website at: www.admiralcraft.com
“Service” --> “Technical Support Request”. A receipt proving the original purchase date will be required for
all warranty claims, handwritten receipts are not accepted. You may also be required to return the Product
for inspection and evaluation. Return shipping costs are not refundable. The Company is not responsible for
returns lost in transit.
This Limited Warranty is Valid only in the USA and Canada.
