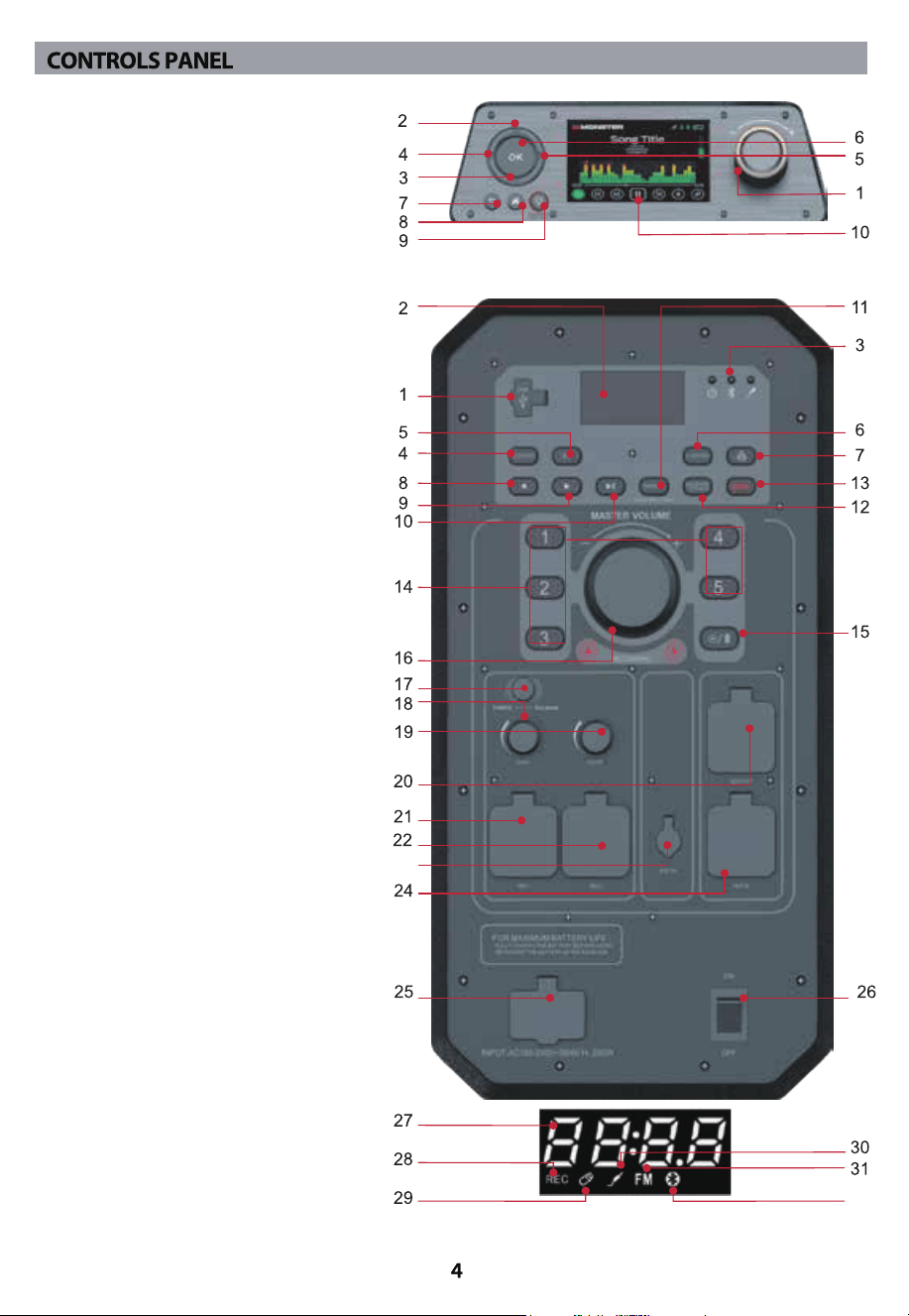

1. USB player
2. Segment LED display
3. LED Indicator
4. Source button
5. BT button
6. Lighting button

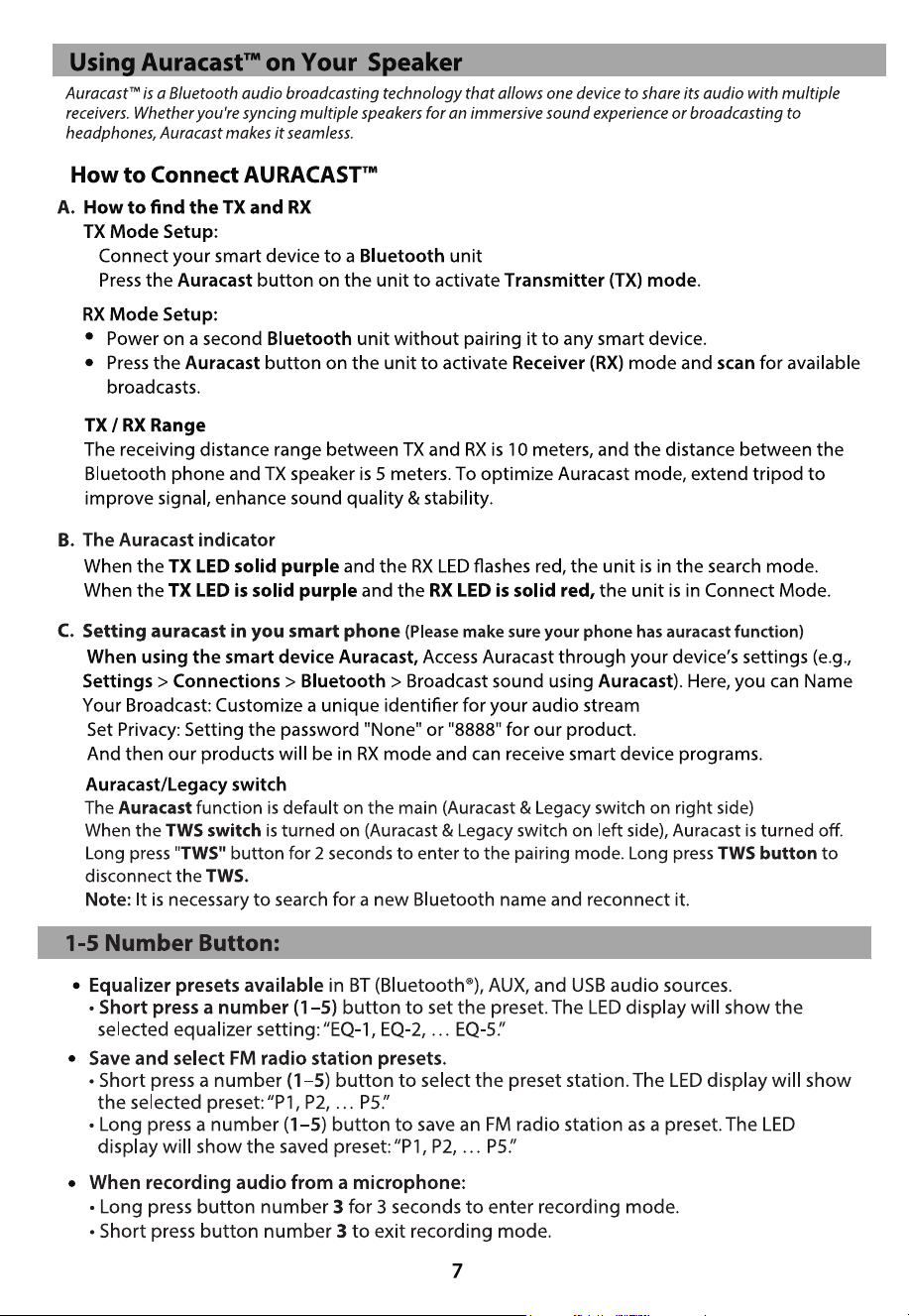

7. Auracast button

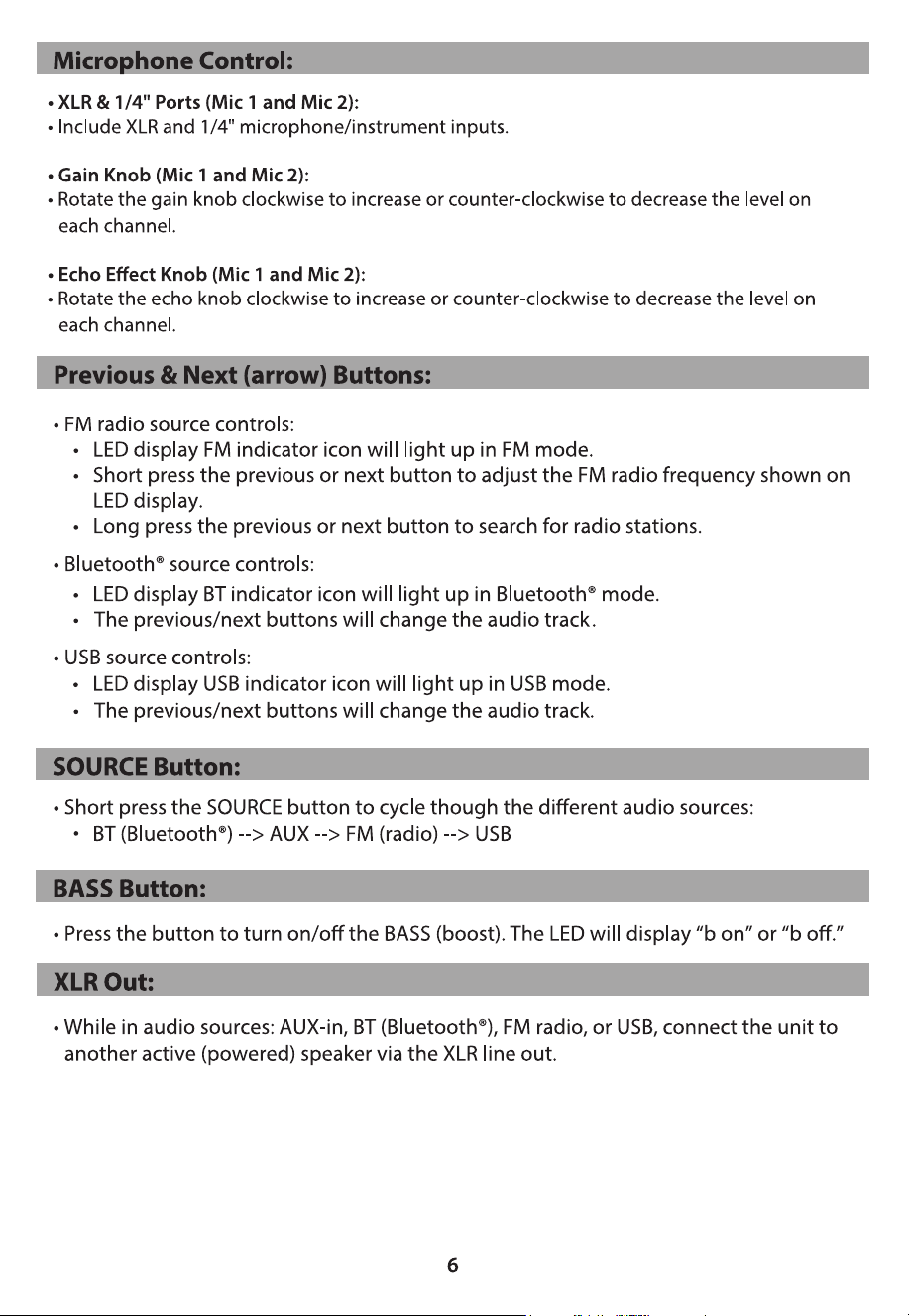

8. Previous button
9. Next button
10. Play/Pause button
11. Repeat/Microphone Pairing button
12. Bass/Mid/Treble button
13. Bass button
14. Number buttons

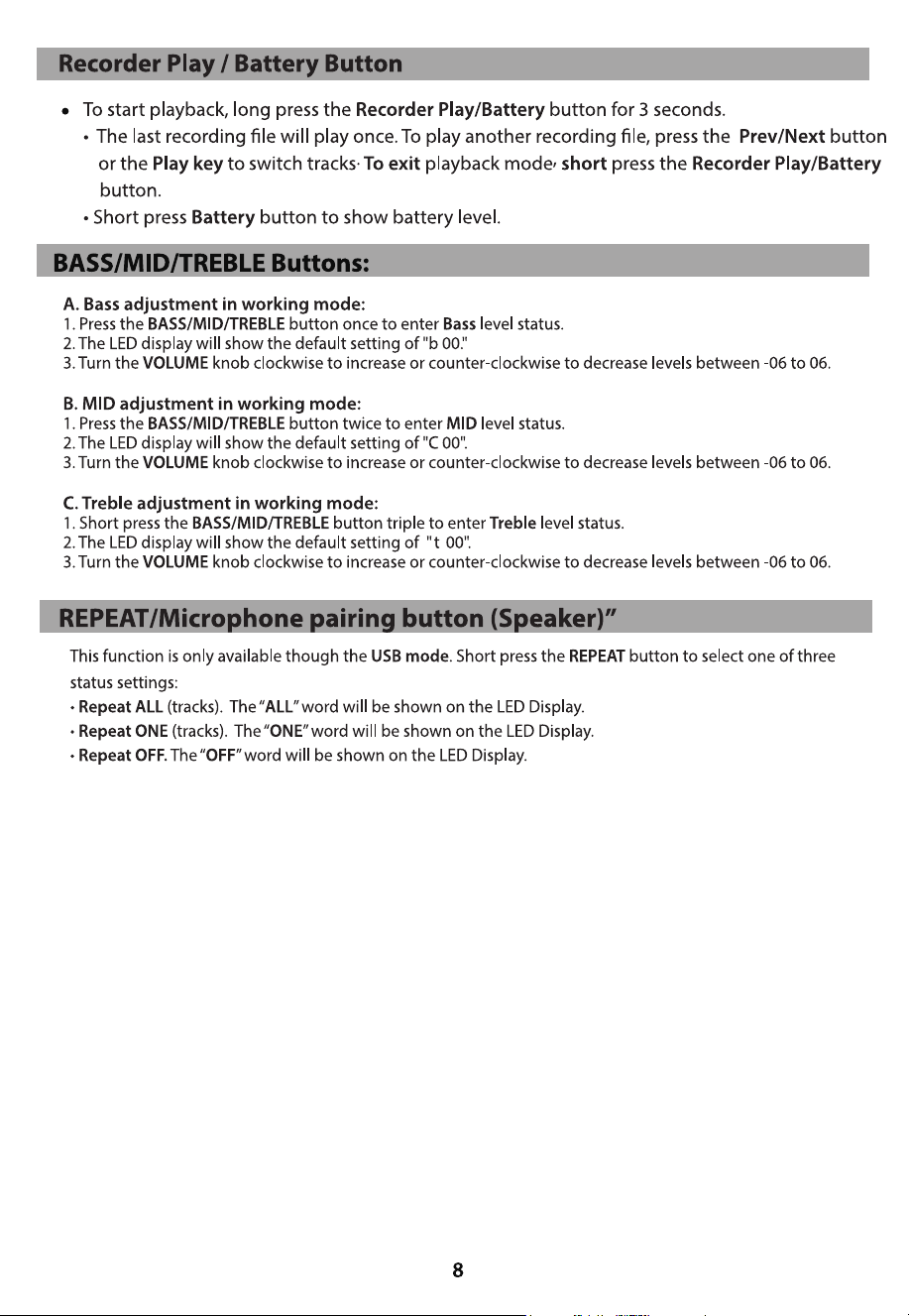

15. Recorder Play / Battery button
16. Master volume knob
17. Legacy /Auracast switch
18. Mic Gain knob
19. Mic Echo knob
20. XLR OUT
21. ¼" Input and XLR MIC IN 1
22. ¼" Input and XLR MIC IN 2
23. 3.5mm Aux IN
24. XLR IN
25. AC IN

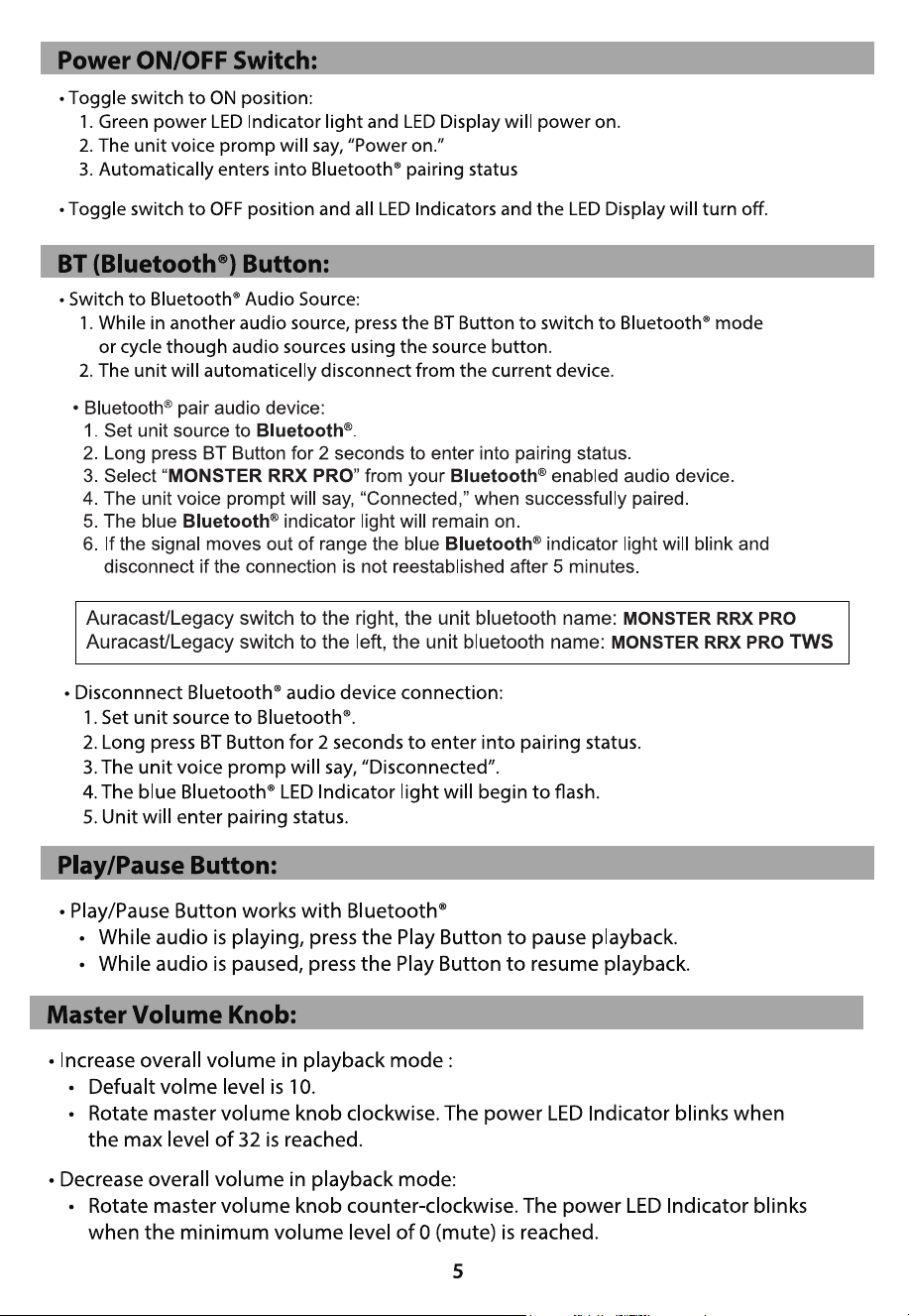

26. Power rocker switch
Front View
Back View
1. Vol ± knob
2. Up key
3. Down key
4. PREV key
5. Next key
6. OK key
7. Back key
8. Home key

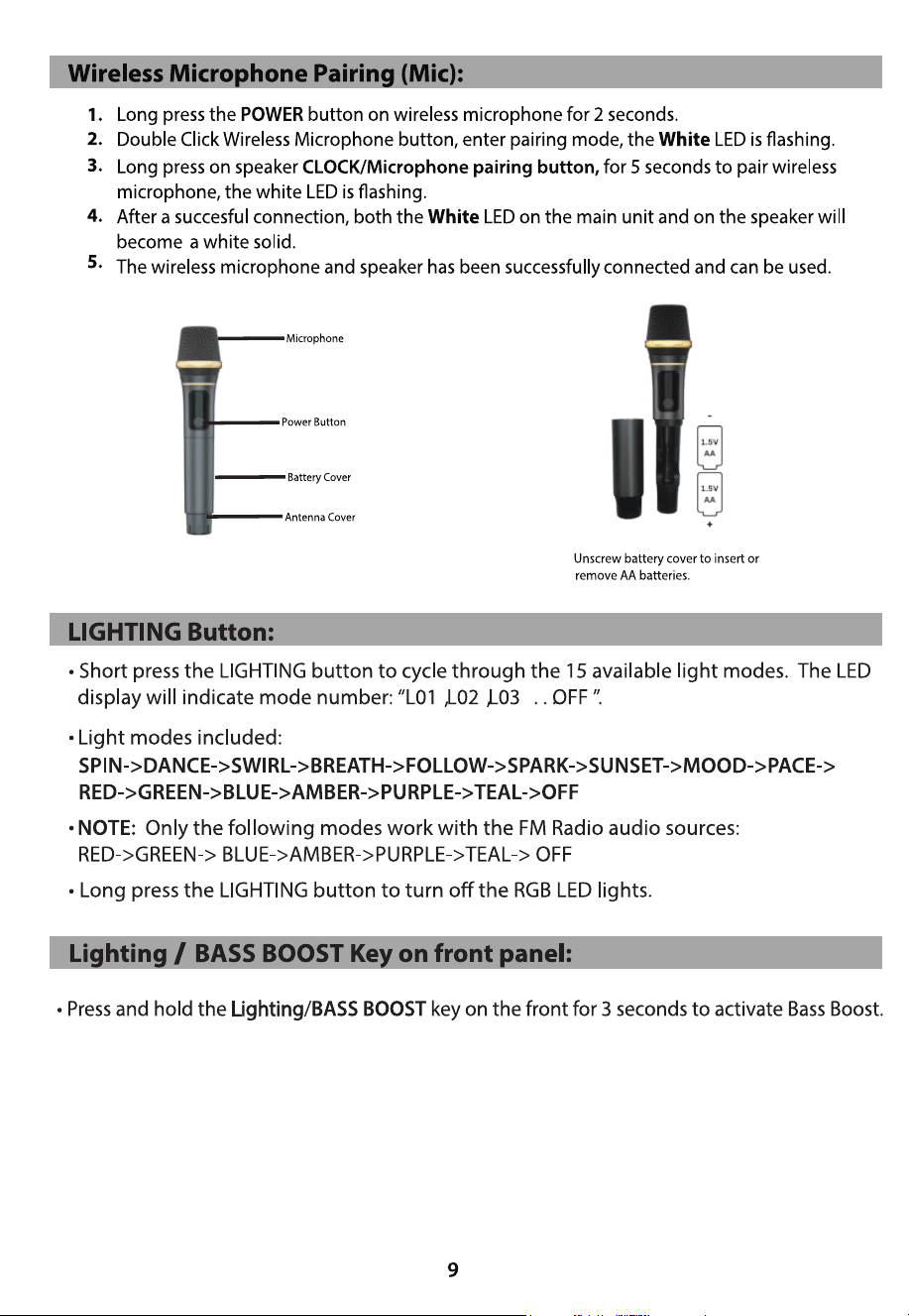

9. Lighting key / BASS BOOST Key

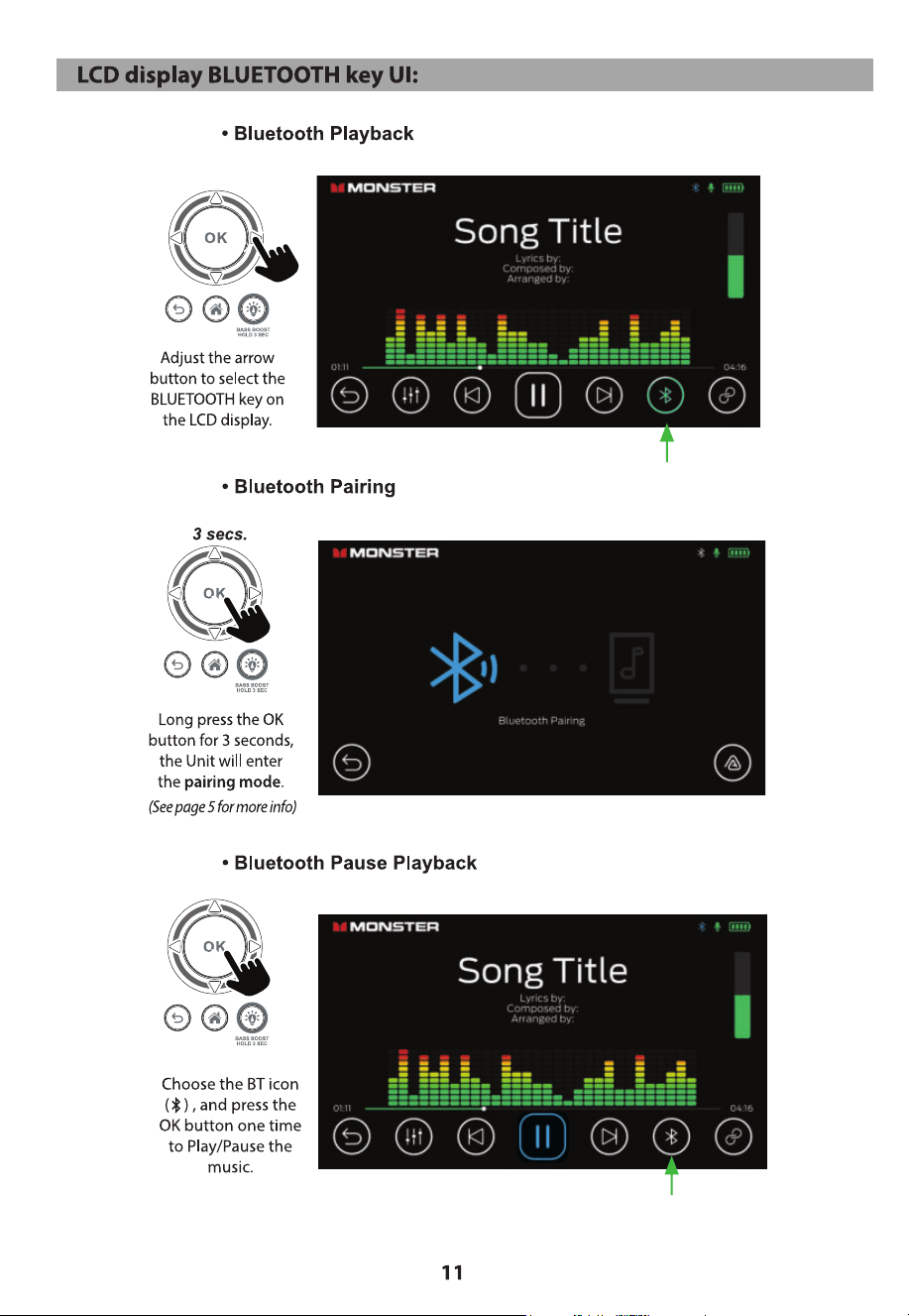

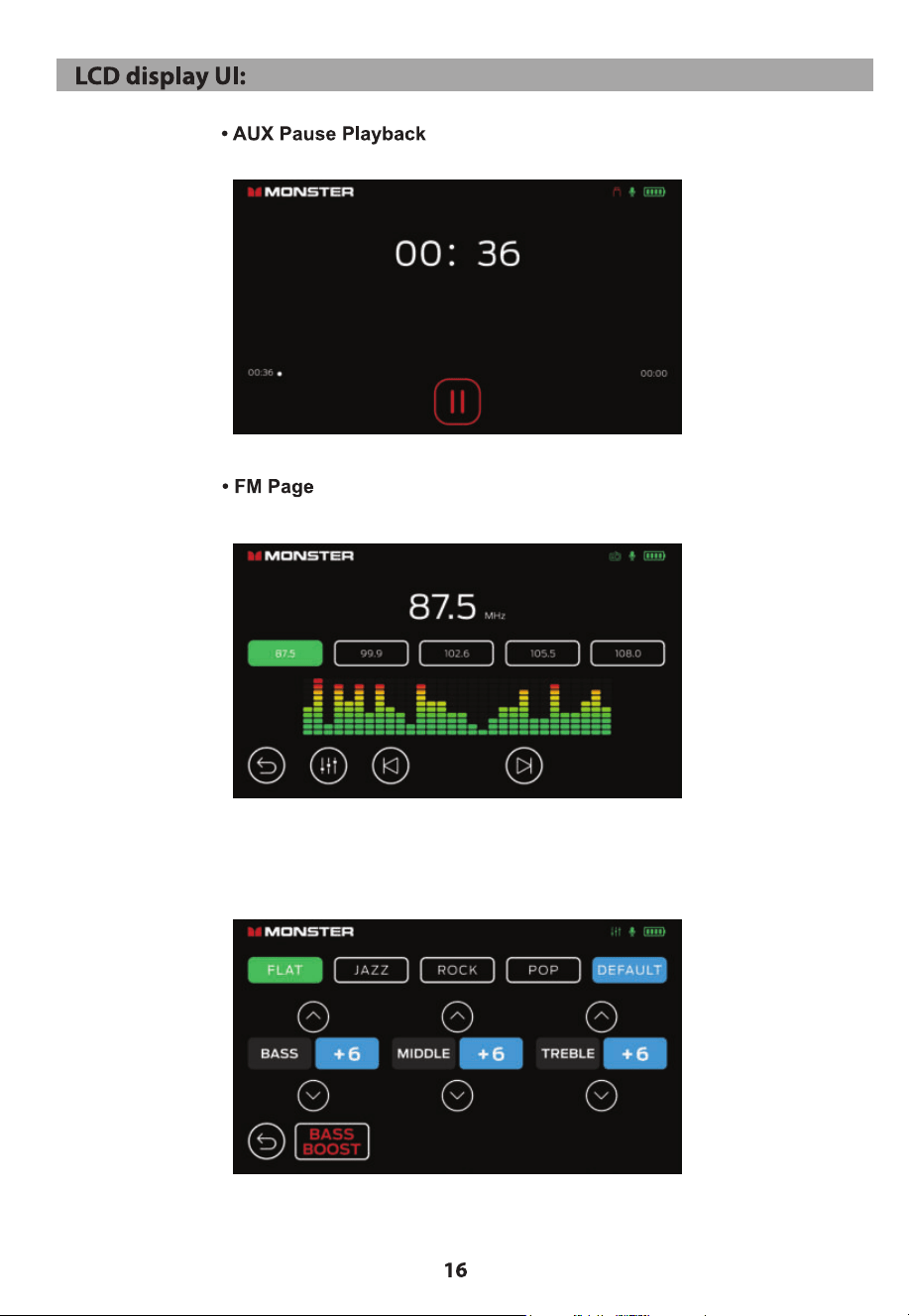

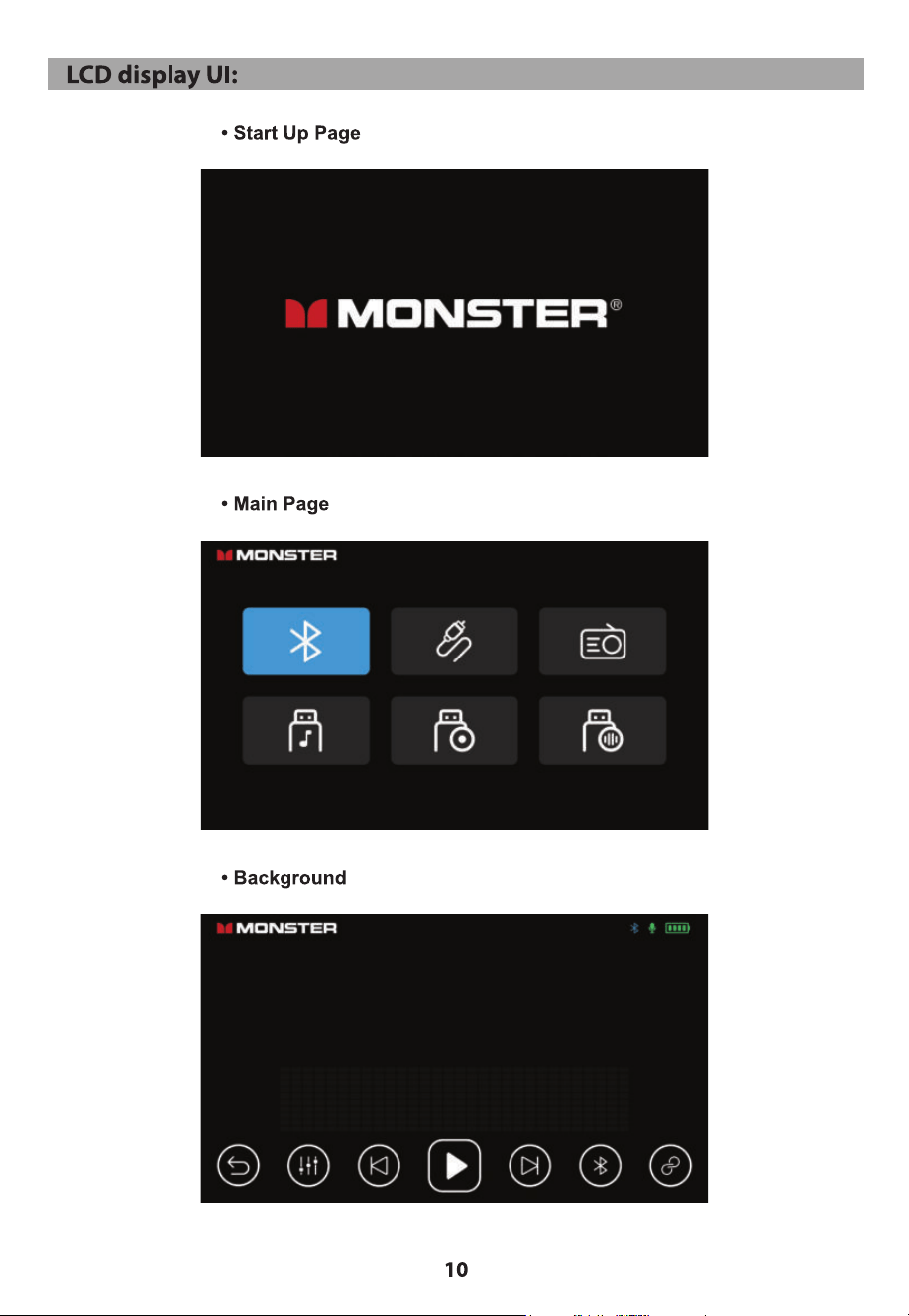

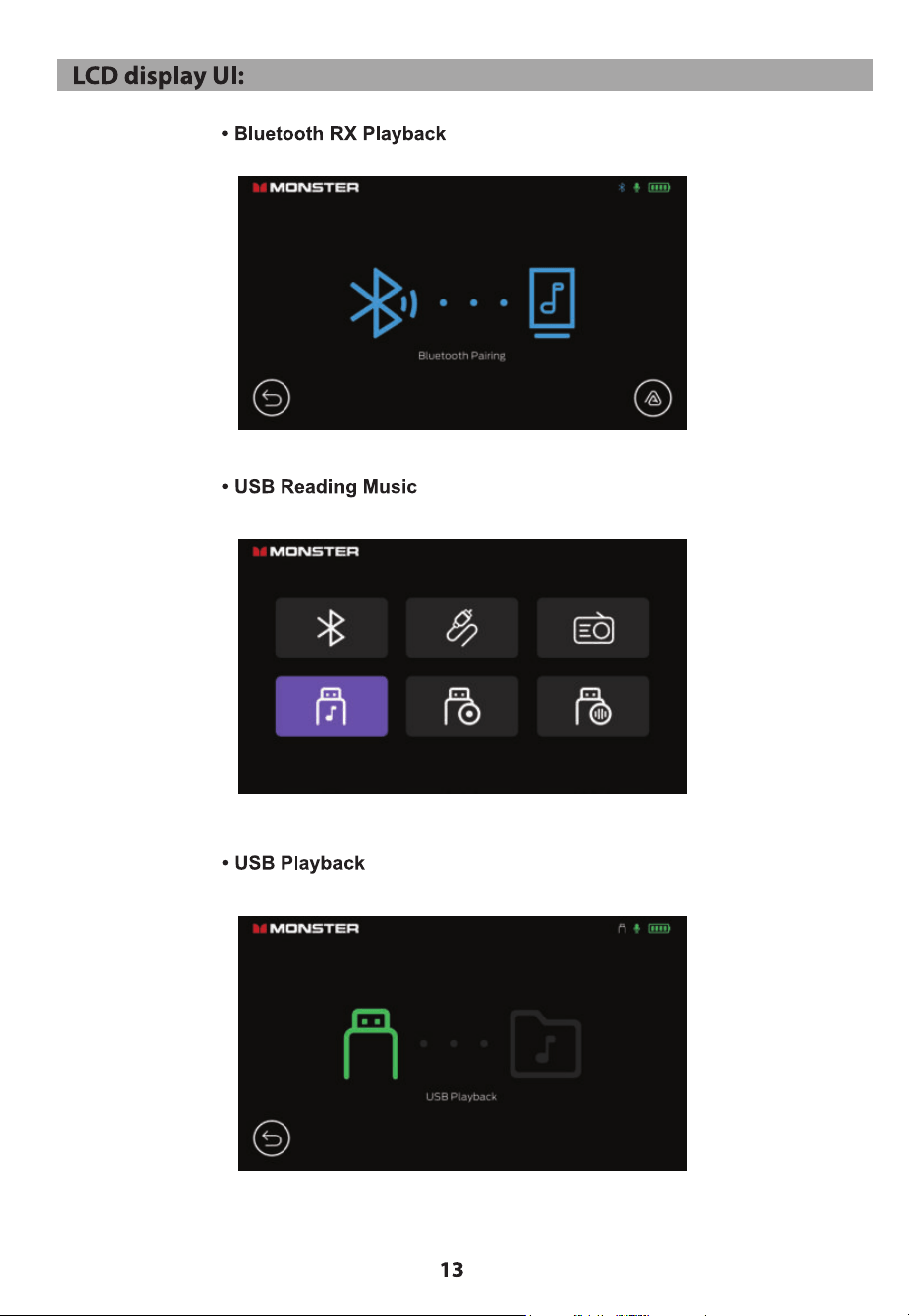

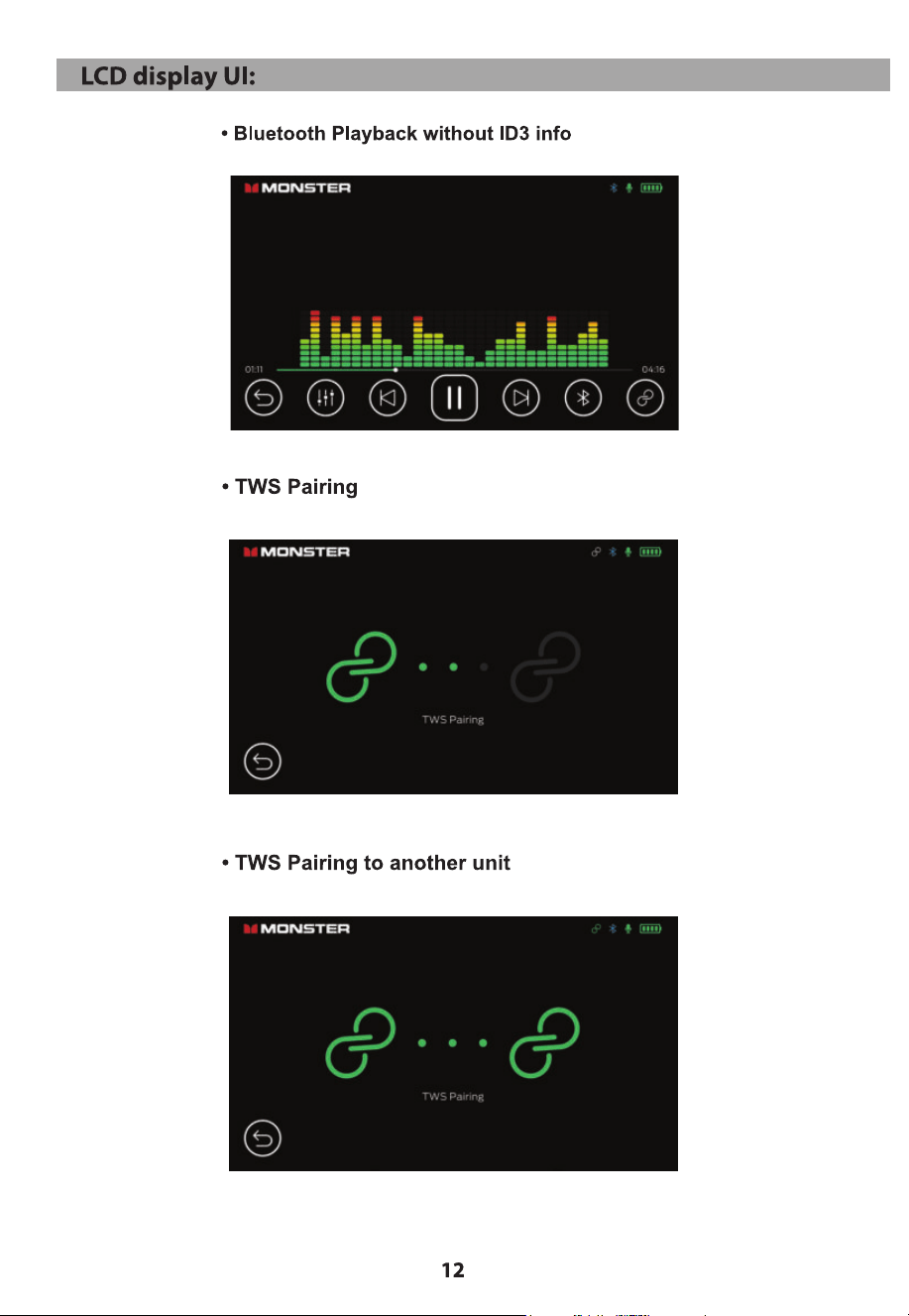

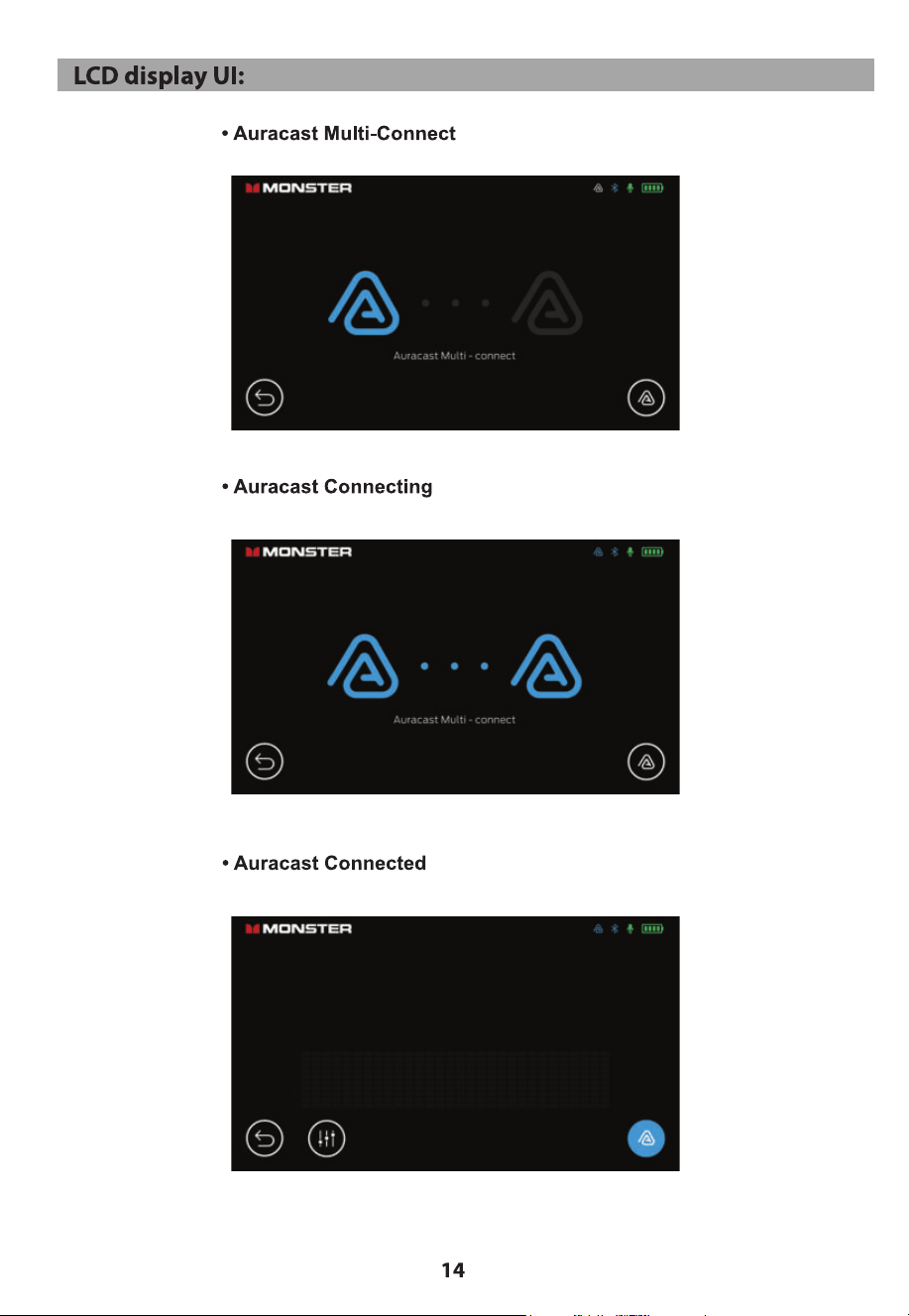

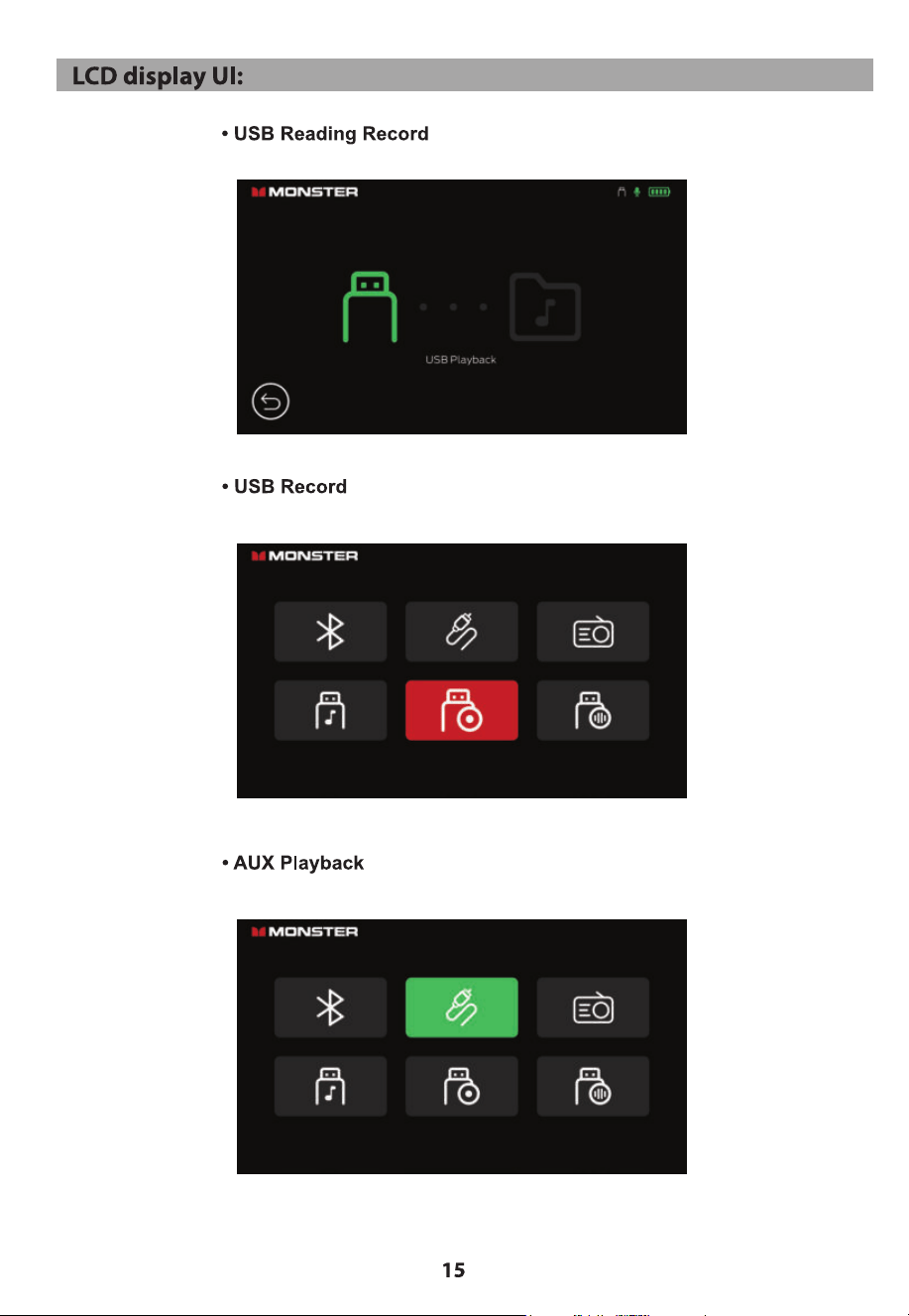

10. LCD display
27. Segmant LED
28. Recording icon
29. USB audio source icon
30. AUX-IN source icon
31. FM radio icon
32. Bluetooth source icon
Segment LED display
23
32
• Activating Bass Boost
