TPMS
TX-M Series User's Manual
Frequency
TX-M001 / TX-M003 315 MHz
TX-M002 / TX-M004 433.92 MHz
Pressure Range
100~900 kPa
Temperature Range
-40 ~125℃
Operating Humidity
Max. 95%
Operating Temperature
-40 ~105℃
Storage Temperature
-40 ~125℃
(1) Dismount tire and sensor from the wheel. And clear valve stem hole in rim of
Dismount tire and sensor from the wheel.

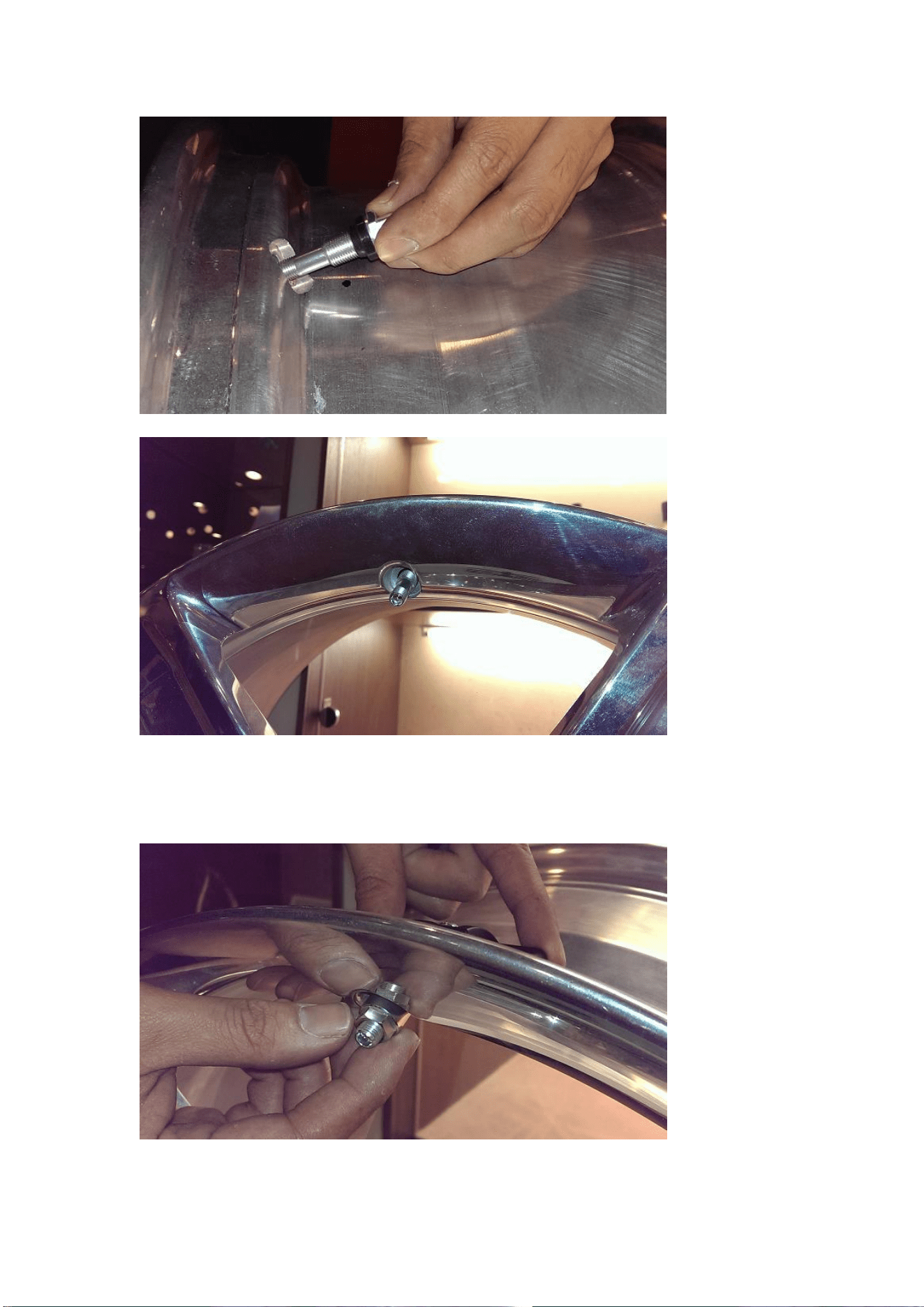

Push the valve stem thru the rim, install the washer and nut, then tighten the nut to
36 in-lb
Hold the sensor body against the rim and install then tighten the screw to 20 in-lb
Mount the tire back to vehicle
FCC Notices
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
--Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1) this device may not cause harmful interference, and
2) this device must accept any interference received, including interference that may
cause undesired operation of the device.
CAUTION:
Any changes or modifications not expressly approved by the grantee of this device could void
the user's authority to operate the equipment.
RF exposure warning:
The equipment complies with FCC RF exposure limits set forth for an uncontrolled
environment.
The equipment must not be co-located or operating in conjunction with any other antenna or
transmitter.
IC statement:
Canada, Industry Canada (IC)
This Class B digital apparatus complies with Canadian ICES-003
Cet appareil numérique de classe B est conforme à la norme NMB-003.
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the Le present appareil est
conforme aux CNR d'Industrie Canada applicables auxappareils radio exempts de
licence.L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage adioélectrique subi, même si
le brouillage est susceptible d'en compromettre le fonctionnement.
Conformité des appareils de radiocommunication aux limites
d'exposition humaine aux radiofréquences (CNR-102)
L'ordinateur utilise des antennes intégrales à faible gain qui n'émettent pas un
champ électromagnétique supérieur aux normes imposées par Santé Canada pour
la population. Consultez le Code de sécurité 6 sur le site Internet de Santé
Canada à l'adresse suivante : http://www.hc-sc.gc.ca/
L'énergie émise par les antennes reliées aux cartes sans fil respecte la limite
d'exposition aux radiofréquences telle que définie par Industrie Canada dans la
clause 4.1 du document CNR-102, version 4.
ISED RF Radiation Exposure Statement:
Cet équipement est conforme aux limites d'exposition aux rayonnements RSS 102
établies pour un environnement non contrôlé. Les utilisateurs finaux doivent suivre
les instructions d'utilisation spécifiques pour satisfaire à la conformité d'exposition RF.
Cet émetteur ne doit pas être co-localisé ou fonctionner en conjonction avec une
autre antenne ou un autre émetteur.
