Panasonic KX-TF200 Essentials Mobile Phone - Black

Product's Documents

Below are documents related to this product, you can read online or download:
Main documentSpecificationQuestions and answersRelateds Products
KX-TF200 photo

KX-TF200 Operating Instructions

This is the main product document for model KX-TF200.

The file format is pdf, 26 pages, you can download this manual here .

background
– USB charging cable (Part No. XYT-2P15): 1 pc
– Rechargeable battery (Part No. 523450AR-E): 1 pc
– Headset (Part No. JYK-E112): 1 pc
Supplied accessories
Operating Instructions
KX-TF200 Model No.
Mobile Phone
Thank you for purchasing a Panasonic product.
Please read these operating instructions before using the unit and
save them for future reference.
Before initial use, see “Important Information” on page 4.
Importer for UK:
Panasonic UK, a branch of Panasonic Marketing Europe GmbH,
Maxis 2, Western Road, Bracknell, Berkshire. RG12 1RT
2023_05_26 Panasonic KX TF200_operating_EN_v06.indd 12023_05_26 Panasonic KX TF200_operating_EN_v06.indd 1 18.10.2023 8:55:4818.10.2023 8:55:48
background
Contents
1 Important Information ..................................................................................... 4
2 Important safety instructions ........................................................................ 6
3 For best performance ..................................................................................... 7
4 Other information ............................................................................................ 7
5 Specications .................................................................................................. 9
6 General information ........................................................................................ 9
6.1Prole .....................................................................................10
6.2 Safety Information .................................................................10
6.3 Safety warning and Attentions ..............................................10
6.4 Precautions ...........................................................................11
7 Your phone .....................................................................................................12
7.1 Phone overview ....................................................................12
7.2 Status icons ...........................................................................12
7.3 Functions of Keys ................................................................. 13
7.4Technicalspecications........................................................ 14
8 Getting started ................................................................................................15

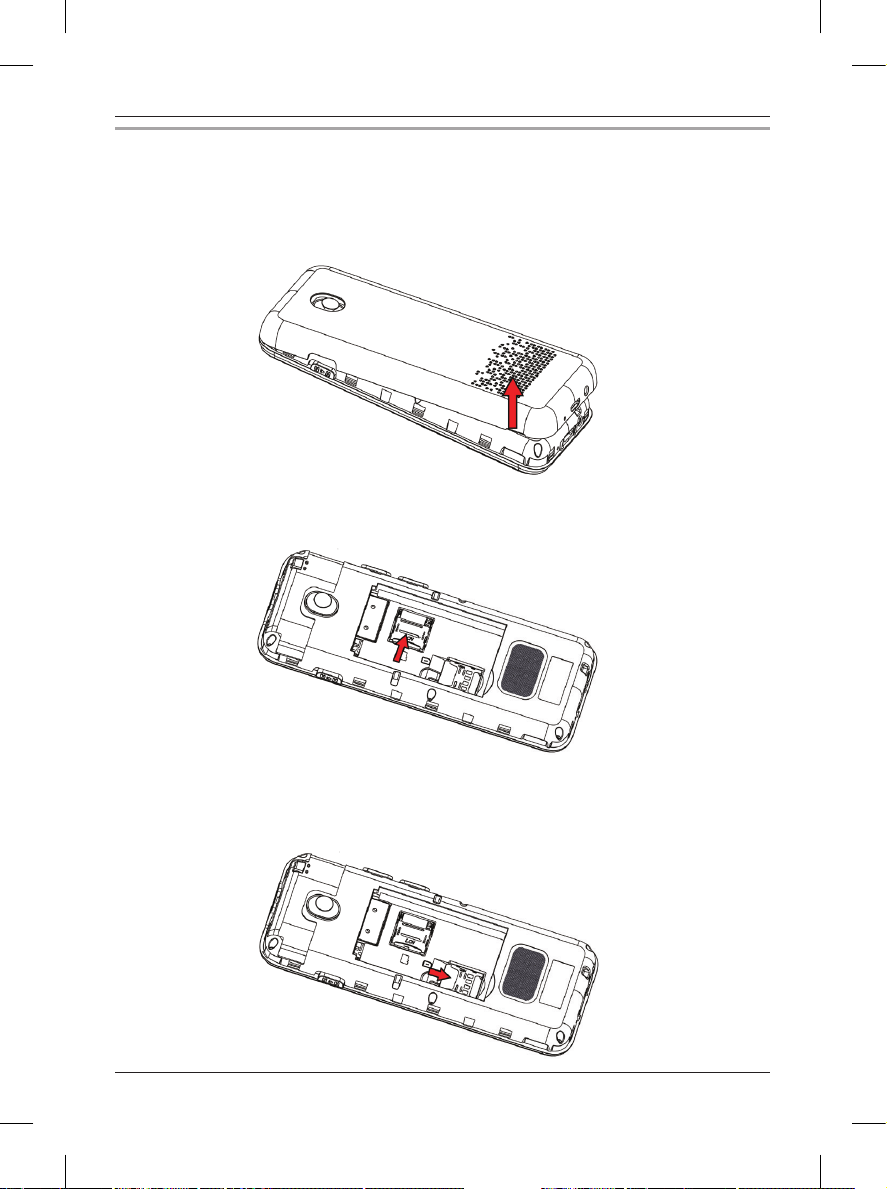

8.1 Installing the Micro SIM Cards and the Battery ....................15
8.2 Using code ............................................................................15
8.3 Installing Memory Card .........................................................16
8.4 Charging the Battery .............................................................16
8.5PoweringOn/O󰀨theMobilePhone ......................................17
8.6 Linking to the Network ..........................................................17
8.7 Dialling Calls ..........................................................................17
8.8 Answering Incoming Calls ....................................................18
8.9 Using Options during a Conversation ...................................18
8.10 Using the Headset ...............................................................18
2023_05_26 Panasonic KX TF200_operating_EN_v06.indd 22023_05_26 Panasonic KX TF200_operating_EN_v06.indd 2 18.10.2023 8:55:4818.10.2023 8:55:48
background
9 Input method .................................................................................................... 18
9.1 Icons for Input Methods ....................................................... 18
9.2 To Shift Entry Methods ........................................................ 18
9.3 Numeric Input ....................................................................... 18
9.4 English Input and Numeric Input ......................................... 18
9.5 Inserting a Symbol ............................................................... 19
10 Using the Menus ............................................................................................ 19
10.1 Multim edia .......................................................................... 19
10.2 Messaging .......................................................................... 19
10.3 Phonebook ......................................................................... 20
10.4 Settings .............................................................................. 20
10.5 Call center .......................................................................... 22
10.6 Fun ..................................................................................... 23
10.7 Organizer............................................................................ 23
10.8 File manager ...................................................................... 23
10.9 Camera............................................................................... 23
11 Appendix..... .................................................................................................... 24
2023_05_26 Panasonic KX TF200_operating_EN_v06.indd 32023_05_26 Panasonic KX TF200_operating_EN_v06.indd 3 18.10.2023 8:55:4818.10.2023 8:55:48
background
4
For your safety
Power connection
Installation
Battery
WARNING
Read this section carefully before using the product to ensure proper and safe operation. Failure
to read them carefully may cause severe injury, loss of life/property, or be illegal.
Please read enclosed instructions completely before operating this unit.
●
Use only the power source marked on the product.
●
Donotoverloadpoweroutletsandextensioncords.Thiscanresultintheriskofreorelectric
shock.
●
Completely insert the USB charging cable into the power outlet. Failure to do so may cause electric
shockand/orexcessiveheatresultinginare.
●
Unplug the product from power outlets and remove the battery from the phone if it emits
smoke,anabnormalsmell,ormakesanunusualnoise.Theseconditionscancausereor
electricshock.Conrmthatsmokehasstoppedemittingandcontactanauthorisedservice
centre.
●
Unplug from power outlets and never touch the inside of the product if its casing has been
broken open.
●
Never touch the plug with wet hands. Danger of electric shock exists.
●Thisproductisnotwater-resistant.Topreventtheriskofreorelectricalshock,donotexpose
the product to rain or any type of moisture.
●Keepallaccessories,includingtheSIMcardandmicroSDcard,outofthereachofchildrento
prevent swallowing.
●Thisproductemitsradiowavesandmaycauseinterferencetootherelectronicdevices.
●DonotallowtheUSBchargingcabletobeexcessivelypulled,bentorplacedunderheavyobjects.
●Topreventseriousdamagetothisproduct,avoidstrongimpactsandroughhandling.
●Toavoiddamageormalfunction,donotmodifytheSIMcardormicroSDcardortouchthe
card’s gold-coloured contacts.
●Useonlythebatteryspecied.
●Riskofexplosionifbatteryisreplacedwithanincorrecttype.Disposeofusedbatteries
according to the instructions.
●Donotopen,puncture,crush,ordropthebattery.Adamagedbatterymustnotbeused.This
canresultintheriskofre,explosion,overheating,andleakingoftheelectrolyte.
●Stopusingthebatteryimmediatelyandkeepawayfromreifitemitsanabnormalsmellor
leakselectrolyte.Releasedelectrolytemaycausereorburns.
●Donottouchreleasedelectrolyteifthebatteryleaks.Itmaycauseburnsorinjurytotheeyes
or skin. The electrolyte is toxic and may be harmful if swallowed. If you touch it, immediately
washthea󰀨ectedareaswithwaterandseekmedicalhelp.
1 Important Information
2023_05_26 Panasonic KX TF200_operating_EN_v06.indd 42023_05_26 Panasonic KX TF200_operating_EN_v06.indd 4 18.10.2023 8:55:4818.10.2023 8:55:48
background
5
●Exercisecarewhenhandlingthebattery.Donotallowconductivematerialssuchasrings,
bracelets, or keys to touch the battery, otherwise a short circuit may cause the battery and/or
the conductive material to overheat and cause burns.
●Donotuseorchargeawetbattery.Thiscanresultintheriskofre,explosion,overheating,
and leaking of the electrolyte.
●Chargethebatteryprovidedwithoridentiedforusewiththisproductonly,inaccordancewith
theinstructionsandlimitationsspeciedinthismanual.
●Onlyuseacompatiblechargertochargethebattery.Donottamperwiththecharger.Failure
to follow these instructions may cause the battery to swell or explode.
●Donotputanyconductivematerialssuchascoinsorhairpinsontothechargecontacts.This
can result in the risk of overheating.
●Avoidtheuseinthefollowingconditions:
- High or low extreme temperatures during use, storage or transportation.
- Replacement of a battery with an incorrect type that can defeat a safeguard.
-Disposalofabatteryintoreorahotoven,ormechanicallycrushingorcuttingof
a battery, that can result in an explosion.
- Extremely high temperature and/or extremely low air pressure that can result in an
explosionortheleakageofammableliquidorgas.
1.Donotputthebatteryintothere.
2. Do not drop the battery.
3. Do not disassemble the battery.
4. Do not allow baby to play with battery.
Operating safeguards
●Unplugtheproductfrompoweroutletsbeforecleaning.Donotuseliquidoraerosolcleaners.
●Donotdisassembletheproduct.
●Donotallowliquidssuchaswater,orforeignmaterialssuchasmetalpiecesorammablematerials
togetintotheSIMcardholder.Thiscanresultintheriskofre,electricshock,ormalfunction.
●Donotleavethisproductnearheatsources(suchasradiators,cookers,etc.),indirect
sunlight, or in a car under blazing sun. It should not be placed in rooms where the temperature
is less than 0 °C or greater than 40 °C.
●Youareadvisednottousethephoneinanaircraft.Turnthephoneo󰀨beforeboardingan
aircraft.Setthealarmfunctiono󰀨sothatthephonecannotbeautomaticallyturnedon.Using
this phone in an aircraft may be hazardous to the aircraft’s operation and disrupt wireless
communication. It may also be illegal.
●Youareadvisednottousethisproductatrefuellingpoints.Usersareremindedtoobserve
restrictionsontheuseofradioequipmentinfueldepots,chemicalplantsorwhereblasting
operations are in progress.
●Itisimperativethatdriversexercisepropercontrolofvehiclesatalltimes.Donotuseaphone
whileyouaredriving;ndasafeplacetostoprst.Donotspeakintoahands-freemicrophone
ifitwilltakeyourmindo󰀨theroad.Alwaysacquaintyourselfthoroughlywithrestrictions
concerning the use of phones within the area where you are driving and observe.
●RFsignalsmaya󰀨ectelectronicsystemsinmotorvehicles(forexample,fuelinjection,airbag
systems)thathavebeenimproperlyinstalledorareinadequatelyshielded.Formore
information,consultthemanufacturerofyourvehicleoritsequipment.
●Theuseofexcessivesoundvolumethroughearphones,headphones,orheadsetsmaycause
hearing loss.
●Topreventpossiblehearingdamage,donotlistenathighvolumelevelsforlongperiods.
●DonotshinetheLEDlightclosetoanybody’seyesorturntheLEDlightinthe
direction of car drivers. This can result in the risk of injuries or accident.
2023_05_26 Panasonic KX TF200_operating_EN_v06.indd 52023_05_26 Panasonic KX TF200_operating_EN_v06.indd 5 18.10.2023 8:55:4818.10.2023 8:55:48
background
6
Medical
Installation
Operating environment
●Consultthemanufacturerofanypersonalmedicaldevices,suchaspacemakersorimplanted
cardioverterdebrillatorstodetermineiftheyareadequatelyshieldedfromexternalRF(radio
frequency)energy.
●WirelessTechnologyResearch(WTR)recommendsaminimumseparationof15.3cm
between a wireless device and an implanted medical device such as pacemaker or implanted
cardioverterdebrillatortoavoidpotentialinterferencewiththemedicaldevice.Ifyouhaveany
reason to suspect that your phone is interfering with a pacemaker or other medical devices,
turno󰀨thephoneimmediatelyandcontactthemanufactureofpacemakerorothermedicaldevices.
●Turno󰀨thephoneinhospitalsorhealthcarefacilitieswhenanyregulationspostedinthearea
instructyoutodoso.Hospitalsorhealthcarefacilitiesmaybeusingequipmentthatcouldbe
sensitive to external RF energy.
●Itisrecommendedthatyoukeepawrittenrecordofanyimportantdatawhichyoustorein
your phone or SIM card in order to avoid accidental loss.
●Donotplacemagneticcardsorsimilarobjectsnearthephone.Magneticdataoncashcards,
creditcards,telephonecardsandoppydisks,etc.maybedeleted.
●Donotputmagneticsubstancesclosetothephone.Strongmagnetismmighta󰀨ectoperation.
CAUTION
2 Important safety instructions
When using your product, basic safety precautions should always be followed to reduce
theriskofre,electricshock,andinjurytopersons,includingthefollowing:
1.
Do not use this product near water. For example, avoid areas near a bathtub, washbowl,
kitchen sink, laundry tub, or swimming pool.
2.
Avoid using the phone if charging during an electrical storm. There may be a remote risk of
electric shock from lightning.
3.
Do not use the phone to report a gas leak in the vicinity of the leak.
4.
Use only the USB charging cable and battery indicated in this manual. Do not dispose
ofthebatteryinare.Itmayexplode.Checkwithlocalcodesforpossiblespecialdisposalinstructions.
5.
Do not paint or attach a thick sticker to the phone. This may prevent proper operation.
SAVE THESE INSTRUCTIONS
2023_05_26 Panasonic KX TF200_operating_EN_v06.indd 62023_05_26 Panasonic KX TF200_operating_EN_v06.indd 6 18.10.2023 8:55:4818.10.2023 8:55:48
background
7
4 Other information
3 For best performance
Environment
Notice for product disposal, transfer, or return
For business users in the European Union
Disposal of Old Equipment and Batteries
(Only for European Union and countries with recycling systems)
Routine care
●Theproductshouldbekeptfreefromexcessivesmoke,dust,moisture,hightemperatureand
vibration.
●Toavoiddamage,chargethebatteryonlyintemperaturesrangingfrom5°Cto35°C.
●ThisproductandSIMcardcanstoreyourprivate/condentialinformation.Toprotectyour
privacy/condentiality,werecommendthatyoueraseinformationsuchascontactsstoredin
the contacts list, call logs, and SMS messages from the memory before you dispose of, transfer,
or return the product.
Ifyouwishtodiscardelectricalandelectronicequipment,pleasecontactyourdealerorsupplier
for further information.
These symbols ( , ) on the products, packaging, and/or accompanying documents mean that
used electrical and electronic products and batteries must not be mixed with general household
waste.
For proper treatment, recovery and recycling of old products and used batteries, please take them to
applicable collection points in accordance with your national legislation.
By disposing of them correctly, you will help to save valuable resources and prevent
anypotentialnegativee󰀨ectsonhumanhealthandtheenvironment.
For more information about collection and recycling, please contact your local authority.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national
legislation.
●Wipe the outer surface of the product and/or charge contacts with a soft and dry cloth.
●Donotusebenzine,thinner,oranyabrasivepowder.
1
1
2
2
2023_05_26 Panasonic KX TF200_operating_EN_v06.indd 72023_05_26 Panasonic KX TF200_operating_EN_v06.indd 7 18.10.2023 8:55:4818.10.2023 8:55:48
background
8
Information on Disposal in other Countries outside the
European Union
These symbols ( , ) are only valid in the European Union. If you wish to discard these items,
please contact your local authorities or dealer and ask for the correct method of disposal.
1
2
Note for the battery symbol
SAR
Ecodesign information
Trademarks
Notice
Note for the battery removal procedure
This symbol ( ) might be used in combination with a chemical symbol. In this case it complies
withtherequirementsetbytheDirectiveforthechemicalinvolved.
ThismodelmeetsinternationalguidelinesandEUrequirementsforexposuretoradiowaves.
Your wireless device is a radio transmitter and receiver. It is designed not to exceed radio wave
exposure limits recommended by international guidelines. These guidelines were developed by
theindependentscienticorganisationICNIRPandincludesafetymarginsdesignedtoassure.
The protection of all persons, regardless of age and health. These guidelines also form the
basis of international regulations and standards on RF Exposure. The guidelines use a unit of
measurementknownastheSpecicAbsorptionRate,orSAR.
Ecodesign information under EU Regulation (EC) No. 1275/2008 amended by (EU)
Regulation No. 801/2013.
“ErP Free Web Product Information” is available at the following URL:
https://www.ptc.panasonic.eu/compliance-documents
Power consumption in networked standby and guidance are mentioned in the web site above.
Formoreinformationabouttheenergye󰀩ciencyoftheproduct,pleasevisitourwebsite,
www.panasonic.com, and enter the model number in the search box.
●microSDHCLogoisatrademarkofSD-3C,LLC.
●TheBluetooth
®
word mark and logos are registered trademarks owned by Bluetooth SIG, Inc.,
and any use of such marks by Panasonic Holdings Corporation is under licence.
●Allothertrademarksidentiedhereinarethepropertyoftheirrespectiveowners.
●ThephonesupportsmicroSDandmicroSDHCmemorycards.Inthisdocument,theterm
“microSD card” is used as a generic term for any of the supported cards.
Remove the phone’s cover ( ), and lift the
battery ( ), then remove it ( ).
2
1
2 3
Note for the battery removal procedure
2023_05_26 Panasonic KX TF200_operating_EN_v06.indd 82023_05_26 Panasonic KX TF200_operating_EN_v06.indd 8 18.10.2023 8:55:4818.10.2023 8:55:48
background
9
The SAR limit for wireless devices is 2 W/kg.
The highest SAR value for this device tested at the head was: 0.63 W/kg
The highest SAR value for this device tested on the body was: 1.23 W/kg*1
This SAR limit at the limb for wireless devices is 4 W/kg.
The highest SAR value for this device tested on the handheld was: 1.32 W/kg*2
As SAR is measured utilizing the devices highest transmitting power the actual SAR of this unit
while operating is typically below that indicated above. This is due to automatic changes to the
powerlevelofthedevicetoensureitonlyusestheminimumlevelrequiredtocommunicate
with the network. ICNIRP (http://www.icnirp.org)
*1 This device was tested for typical body-worn operation with the back of the phone kept 0.5
cm from the body.
*2 This device was tested for typical body-worn operation with the back of the phone kept 0 cm
from the body.
●ThisphoneisdesignedtooperateonGSMnetwork-GSM900/1800/MHz.
●ThisequipmentisdesignedforuseinEuropeanUnion.
●Intheeventofproblems,youshouldcontactyourequipmentsupplierintherstinstance.
●Foruseinothercountries,pleasecontactyourequipmentsupplier.
5 Specications
6 General information
*1 Operating time is dependent upon usage environment, battery age and condition.
Values were calculated according to GSMA TS 09.
*2 Theincomingcallindicatorandmessageindicatorashwhenthereismissedcallornew
messagereceived.Thestandbytimewillbeshortenedwhenyouleavetheindicatorashing.
•
Standard:
Dual band GSM 900/1800 MHz
Bluetooth version 3.0, Class 1
USB version 2.0
•
Display: TFT colour2.4-inch
(QVGA:240×320 pixels)
•
Camera: 0.3 MP
•
Frequency range:
GSM900 880-915 MHz
925-960 MHz
DCS1800 1710-1785 MHz
1805-1880 MHz
Bluetooth: 2.402-2.48 GHz
•
RF transmission power:
GSM900: 35dBm (max.)
DCS1800: 32dBm (max.)
Bluetooth: 6.0dBm (max.)
•
Power supply: DC 5 V, 500 mA
•
Charging terminal: USB Type-C Shape
•
USB charging cable: Approx 1.5m
(Input plug: USB Type-A Shape, Output
plug: USB Type-C Shape)
•
Operating/Charging conditions:
Operating0°C‒40°C,20%‒80%
relative air humidity (dry)
Charging:5°C‒35°C
•
Battery: Li-lon 3.7 V/1000 mAh
•
Battery performance (supplied):
Talk time: Approx. 5.0 hours
Standby time: Approx. 250 hours *1,*2
•
Antenna: Internal
•
SIM card type: Micro card, Single SIM
•
Memory card type: microSD,
microSDHC up to 32GB (not supplied)
Declaration of Conformity
Hereby,PanasonicMarketingEuropeGmbHdeclaresthattheradioequipmenttypeMobilePhone
KX-TF200 is in compliance
withDirective2014/53/EU(forEU)andTheRadioEquipmentRegulations
2017 (for UK). The full text of the EU and UK declaration
of conformity is available at the following internet
address: https://www.ptc.panasonic.eu/compliance-documents
2023_05_26 Panasonic KX TF200_operating_EN_v06.indd 92023_05_26 Panasonic KX TF200_operating_EN_v06.indd 9 18.10.2023 8:55:4918.10.2023 8:55:49
background
10
Ifyourphonehaslostorbeenstolen,notifythetelecommunicationo󰀩cetheSIMcardisdisabled
(Networksupportisrequired).Thiscanavoideconomiclosscausedbyunauthorizeduse.
Please take measures as following to avoid your phone being unauthorized use:
Set PIN code of SIM card
Set phone password
6.2 Safety Information
Please read this pamphlet carefully in order to make your phone in perfect condition.
Ourcompanymaychangethismobilephonewithoutpriorwrittennoticeandreservesthenal
right to interpret the performance of this mobile phone.
Duetodi󰀨erentsoftwareandnetworkoperators,displayonyourphonemaybedi󰀨erent,refer
to your phone for details.
6.1 Prole
Safety warning
● Road safety comes rst
Donotuseahand-heldphonewhiledriving.Usehands-freettingswhencallsare
unavoidable while driving. In some countries, dialling or receiving calls while driving is illegal!
● Switch o󰀨 in aircraft
Wirelessdevicescancauseinterferenceinaircraft.Usingamobilephoneinightisillegalandrisky.
Pleasemakesurethatyourmobilephoneispoweredo󰀨inight.
● Switch o󰀨 before entering risky areas
Strictly observe the relevant laws, codes, and regulations on the use of mobile phones in
riskyareas.Turno󰀨yourmobilephonebeforeenteringaplacesusceptibletoexplosion,
such as an oil station, oil tank, chemical plant or a place where a blasting process is under way.
● Observe all special regulations
Followanyspecialregulationsinforceinanyareasuchashospitalsandalwaysswitcho󰀨
your phone whenever it is forbidden to use it or, when it may cause interference or danger.
Properly use your mobile phone near medical apparatuses, such as pacemakers, hearing aids and
some other electronic medical devices, as it may cause interference to such apparatuses.
● Interference
Theconversationqualityofanymobilephonemaybea󰀨ectedbyradiointerference.An
antenna is built inside the mobile phone and located below the microphone. Do not touch the
antennaareaduringaconversation,lestthattheconversationqualitydeteriorate.
● Qualied service
Onlyqualiedpersonnelmayinstallorrepairphoneequipment.Installingorrepairingthe
mobile phone on your own may bring great danger and violates the warranty rules.
● Accessories and batteries
Use only approved accessories and batteries.
● Use sensibly
Use only in a normal and proper manner.
● Emergency calls
Ensure the phone is switched on and in service, enter the emergency number, e.g. 112, then
presstheDialkey.Giveyourlocationandstateyoursituationbriey.Donotendthecalluntil
told to do so.
Note: Just like all other mobile phones, this mobile phone does not necessarily support all the
features described in this manual due to network or radio transmission problems. Some networks
even do not support the emergency call service. Therefore, do not rely solely on the mobile
phone for critical communications such as first aid. Please consult the local network operator.
6.3 Safety warning and Attentions
2023_05_26 Panasonic KX TF200_operating_EN_v06.indd 102023_05_26 Panasonic KX TF200_operating_EN_v06.indd 10 18.10.2023 8:55:4918.10.2023 8:55:49
background
11
Thismobilephoneiswelldesignedwithneart.Pleaseexercisespecialcarewhenusingit.
The following suggestions will help your mobile phone survive the warranty period and extend
its service life:
● Keepthemobilephoneandallitsttingsbeyondchildren’sreach.
● Keepthemobilephonedry.Keepawayfromrain,moisture,liquidorothersubstancesthat
may corrode electronic circuits.
● Do not use or store the mobile phone in dusty places, lest that active parts of the mobile
phone be damaged.
● Do not store the mobile phone in a high-temperature place. High temperature will shorten the
life of electronic circuits and damage the battery and some plastic parts.
● Do not store the mobile phone in a chilly place. Otherwise, moistures will be formed inside
the mobile phone to damage electronic circuits when the mobile phone is moved to
a constant temperature place.
● Do not throw, knock or shock the mobile phone, as that will destroy the internal circuits and
high-precision components of the mobile phone.
6.4 Precautions
2023_05_26 Panasonic KX TF200_operating_EN_v06.indd 112023_05_26 Panasonic KX TF200_operating_EN_v06.indd 11 18.10.2023 8:55:4918.10.2023 8:55:49
background
12
7.2 Status icons
The table below lists various icons that might appear on the status bar while using the phone.
Apart from the icons for signal strength level and the power, other icons are displayed as per the
current mode and priority of the phone.
7 Your phone
7.1 Phone overview
Icon
Description
Indicates the network signal strength.
Indicates the current battery capacity.
Indicates that there is an unread message.
Indicates that there is missed call.
Indicates that the current Sound Status is the Ring only.
Indicates that the current Sound Status is the Vibrate only.
Indicates that the current Sound Status is the Silent only.
IndicatesthatthecurrentprolemodeistheHeadsetmode.
Indicates that the current alarm clock is set as activated.
Indicates the current keypad-locked state.
Indicates that the Bluetooth is turn on.
2023_05_26 Panasonic KX TF200_operating_EN_v06.indd 122023_05_26 Panasonic KX TF200_operating_EN_v06.indd 12 18.10.2023 8:55:5018.10.2023 8:55:50
background
13
7.3 Functions of Keys
The mobile phone provides the following keys:
●Left and Right key
The bottom line on the screen displays the functions of the Left and Right key.
●Dial key
Press it to originate a call by entering the called number or selecting a contact from
the phonebook; or press it to receive an incoming call; or press it in standby state to show
the latest call records.
●End/Power key
Press it to end a call being dialled or end an ongoing call; or press it to exit the menu
andreturntothestandbystate.Youcanholditfortwoorthreesecondscanpoweron/o󰀨
the mobile phone
●Navigation key
Press them to scroll the options when browsing a function list. In edit state, press direction
keys to navigate.
●OK key (Left key)
Pressittoconrmaselection.
●Number keys, * key and # key
Press number keys 0 through 9 to input or edit state to input numbers and characters;
The#keyandthe*keyrepresentdi󰀨erentfunctionsindi󰀨erentstatesordi󰀨erentfunction
menus.
Hold the # key up to 2s in standby state to activate or deactivate the silent mode.
Press the # key in edit state to switch between input methods.
Pressing the * key in edit status to select a symbol.
In idle screen, you can press left soft key then * key to lock keypad. When the keypad is
locked, you can press left soft key then * key to unlock it.
Press and hold the 0 key up to 2s to input “+” in standby interface.
Whenthesymbol“+ˮappears,pressthe0keyquicklytoinput“Pˮor“Wˮareusedforcalling
theextension;“+ˮareusedfordiallinganinternationalcall.
●1 (
)
key
Long press it to dial the voicemail number, if you have set voicemail number.
●2-9 key
Speed dial, you can assign number keys 2 to 9 as shortcuts to important phone numbers.
Press and hold a corresponding number key in idle screen to dial the number.
2023_05_26 Panasonic KX TF200_operating_EN_v06.indd 132023_05_26 Panasonic KX TF200_operating_EN_v06.indd 13 18.10.2023 8:55:5018.10.2023 8:55:50
background
14
7.4 Technical speci cations
Phone Dimensions:Approx.127ˣ52ˣ15mm
Weight: Approx. 98 g (With battery)
Lithium Ion battery
Rated capacity: 1000 mAh
GSM Talk time: Approx. 5 hours
Standby time: Approx. 250 hours
Please refer to their labels for other data related to the battery and the charger
1
Side key
9
Right Key
2
Centre Key
10
End/Power Key
3
Left Key
11
Keypad
4
Dial Key
12
USB Jack
5
Headset Jack
13
Torch Key
6
Earpiece
14
Camera
7
Display
15
Speaker
8
Navigation Key
16
Torch
2023_05_26 Panasonic KX TF200_operating_EN_v06.indd 142023_05_26 Panasonic KX TF200_operating_EN_v06.indd 14 18.10.2023 8:55:5118.10.2023 8:55:51
background
15
8.1 Installing the Micro SIM Cards and the Battery
A SIM card carries useful information, including your mobile phone number, PIN (Personal
IdenticationNumber),PIN2,PUK(PINUnlockingKey),PUK2(PIN2UnlockingKey),IMSI
(International Mobile Subscriber Identity), network information, contacts data, and short
messages data.
Note:Afterpoweringo󰀨yourmobilephone,waitforafewsecondsbeforeremovingorinsertingaSIMcard.
Exercise caution when operating a SIM card, as friction or bending will damage the SIM card.
ProperlykeepthemobilephoneanditsttingssuchastheSIMcardsbeyondchildren’sreach.
Installation
●HoldtheEndkeyforawhiletopoweroffthemobilephone.
●Apower-offanimationappearsonthedisplayscreenandthephonesounds*
1
.
●Pushthebackcoverabovethebatteryandremoveit.
●Pulltheleftbatterybuckleoutwardandthenliftthebatteryaway.
●InserttheSIMcardintotheSIMcardslotlightlyandthegoldplateofthecardfacing
download, till the SIM card cannot be further pushed in.
●Withthemetalliccontactsofthebatteryfacingthemetalliccontactsinthebatteryslot,
press the battery down until it locks into place.
*1 The preset melodies in the product are used with permission of © 2014 Copyrights Vision Inc.
8.2 Using code
The mobile phone and the SIM cards support sorts of passwords, in order to prevent the phone
and the SIM cards from being misused. When you are prompted to input any of the codes mentioned
below, just input the correct code and then press the OK key. If you input a wrong code, press
the Right key to clear it and then input the correct code.
Phone lock code
The phone lock code may be set to prevent your mobile phone from being misused. In general,
this code is provided along with the mobile phone by the manufacturer. The initial phone lock
code is set to 1122 by the manufacturer. If the phone lock code is set, you need to input the
phone lock code when powering on the mobile phone.
PIN
ThePIN(Personalidenticationnumber,4to8digits)codepreventsyourSIMcardfrombeing
used by unauthorized people. In general, the PIN is supplied with SIM card by the network
operator. If PIN check is enabled, you need to input the PIN each time when you power on your
mobile phone. The SIM card will be locked if you input wrong PIN code for three times.
Unlocking methods as follows:
-Input the correct PUK according to the screen tips to unlock the SIM card.
-Then input the new PIN and press the OK key.
-Input the new PIN again and then press the OK key.
-If the input PUK is correct, the SIM card will be unlocked and the PIN will be reset.
Note: In general, the PUK can be obtained from the network operator.
PIN
ThePUKcode(PersonalUnlockingKey)isrequiredtochangeablockedPIN.Itissupplied
with SIM card. If not, contact your network operator. If you input wrong PUK code for 10 times,
SIM card will be invalid. Please contact the network operator to replace the SIM card.
Barring code
Abarringcodeisrequiredforsettingthecallbarringfunction.Youcanobtainthiscodefromthe
network operator to set the call barring function.
8 Getting started
2023_05_26 Panasonic KX TF200_operating_EN_v06.indd 152023_05_26 Panasonic KX TF200_operating_EN_v06.indd 15 18.10.2023 8:55:5118.10.2023 8:55:51
background
16
8.3 Installing Memory Card
8.4 Charging the Battery
The memory card is a pluggable mobile storage card inside the mobile phone.
To install the memory card, insert the card into the card slot.
To remove the memory card, take the card out.
Note:
The memory card is a miniature object. Keep it out of the reach of children for fear that children swallow it!
The lithium battery delivered with the mobile phone can be put into use immediately after being
unpacked.
●Yourmobilephonecanmonitoranddisplaythebatterystate.
●Normallytheremainingenergyofthebatteryisindicatedbythebatteryleveliconatthe
upper right corner of the display screen.
●Whenthebatteryenergyisinsu󰀩cient,themobilephoneprompts“Lowbattery”.
●Acharginganimationappearswhenthebatteryisbeingcharged.Whenthechargingis
complete, the animation disappears.
Using a travel adapter
●Installthebatteryintothemobilephonebeforechargingthebattery.
●Connecttheadapterofthetravelchargerwiththechargingslotinthemobilephone.
Ensure that the adapter is fully inserted
●Inserttheplugofthetravelchargertoanappropriatepoweroutlet.
●Duringthecharging,thebatterylevelgridsinthebatteryiconkeepickeringtillthe
battery is fully charged.
●Itisnormalwhenthebatteryisbecomehotduringthechargingperiod.
●Thebatteryicondoesnolongerickerwhenthechargingprocessends.
Note: Ensure that the plug of the charger, the plug of the earphone, and the plug of the USB
cable are inserted in the right direction. Inserting them in a wrong direction may cause charging
failure or other problems.
Beforethecharging,ensurethatthestandardvoltageandfrequencyofthelocalmainssupply
match the rated voltage and power of the travel charger.
Using the Battery
Theperformanceofabatteryissubjecttomultiplefactors:radionetworkconguration,signal
strength,ambienttemperature,chosenfunctionsorsettings,phonettings,andthevoicedata,
or other application mode you choose to use.
To guarantee the optimal performance of your battery, please stick to the following rules:
●Useonlythebatteryprovidedbythevendor.Otherwise,damagesoreveninjuriescould
be caused during the charging.
●Poweroffthemobilephonebeforeremovingthebattery.
●Thechargingprocesslastsalongertimeforanewbatteryorabatterynotinusefor
long. If the battery voltage is too low to enable the mobile phone to be powered on, charge
the battery for a longer time. In this case, the battery icon does not flicker until a long time
after the battery enters the charge status.
●Duringthecharging,ensurethebatteryisplacedinaroomtemperatureenvironmentor
in an environment close to room temperature.
●Immediatelystopusingthebatteryifthebatteryproducesodor,overheats,cracks,distortsor
has other damage, or if the electrolyte leaks.
2023_05_26 Panasonic KX TF200_operating_EN_v06.indd 162023_05_26 Panasonic KX TF200_operating_EN_v06.indd 16 18.10.2023 8:55:5118.10.2023 8:55:51
background
17
●Thebatterywearsoutwithuse.Alongerchargingtimeisrequiredasthebatteryisput
into use for a long time. If the total conversation duration decreases but the charging time
increases even though the battery is properly charged, purchase a standard battery from the
OEMoruseabatteryapprovedbyourcompany.Usinganypoor-qualityfittingswillcause
harm to your mobile phone or even incur danger!
Note: To guarantee your personal safety and protect the environment, do not litter the battery!
Return the old battery to the mobile phone manufacturer or place it in specified battery
reclamation areas. Do not litter any battery with other rubbish.
Warning: Short-circuits of the battery may cause explosion, fire, personal injury or other
severeconsequences!
8.5 Powering On/O󰀨 the Mobile Phone
8.6 Linking to the Network
8.7 Dialling Calls
Hold the End key for a while to power on the mobile phone. A power-on animation appears on
the display screen and the phone sounds*
1
.
Input the phone lock code and press the OK key if the mobile phone prompts you to input the
phone lock code. The original code is 1122.
Input the PIN and press the OK key if the mobile phone prompts you to input the PIN. The PIN
is provided by the network operator for new opening SIM card.
Enter the standby interface.
Topowero󰀨themobilephone,holdtheEndkeyforawhile.Apower-o󰀨animationappearson
the display screen and the phone sounds*
1
.
*1 The preset melodies in the product are used with permission of © 2014 Copyrights Vision Inc.
After the SIM card and the mobile phone are successfully unlocked, the mobile phone automatically
searchesforanavailablenetwork.Afterndinganetwork,themobilephoneentersthestandby
state. When the mobile phone is registered in the network, the name of the network operator is
displayed on the screen. Then you can dial or receive a call.
In the standby interface, press number keys to input the area code and the telephone number,
and then press the Dial key to dial a call. To end the call, press the End key.
●Dialling an international call
Hold the 0 key and input “+”. Then input the country code, the area code and the telephone
number. Finally, press the Dial key.
●Dialling a call to a number in the phonebook
Enter the phonebook and use the up or down direction keys to find the telephone number
you want to call.
Press the Dial key. The mobile phone automatically dials the chosen telephone number.
●Redialling the last number
In the standby interface, press the dial key to show the dialled calls.
Press the up or down direction keys to select a number you want to dial and then
press the Dial key.
●Answering incoming calls
Press the Dial key or the Left soft key to answer an incoming call.
Press the End key to end the current conversation.
To reject an incoming call, press the End key or the Right soft key.
2023_05_26 Panasonic KX TF200_operating_EN_v06.indd 172023_05_26 Panasonic KX TF200_operating_EN_v06.indd 17 18.10.2023 8:55:5118.10.2023 8:55:51
background
18
5.4 English input and numeric input:
Key Character or Function Remarks
Number key 1 . , - ? ! ‘ @ : # $ / _ 1
Number key 2 ABCabc2
Number key 3 DEFdef3
Number key 4 GHIghi4
Number key 5 JKLjkl5
Number key 6 MNOmno6
Number key 7 PQRSpqrs7
8.8 Answering Incoming Calls
8.9 Using Options during a Conversation
8.10 Using the Headset
Press the Dial key or the Left key to answer an incoming call.
Press the End key to end the current conversation.
To reject an incoming call, press the End key or the Right key.
If ringing, when press Right key, unit becomes silent. After that, reject.
Select Options during a conversation, to pause, to end ongoing call, to browse phonebook, to
view information, to set mute or perform other operations. For details, refer to the menu guide.
It would enter headset mode automatically when you insert headset to the slot. Make sure of
inserting it at the bottom of the slot, or you can’t use it normally.
9.1 Icons for Input Methods
9.2 To Shift Entry Methods
9.3 Numeric Input
9.4 English Input and Numeric Input
After you enter an edit window such as a window for editing the phonebook, short messages,
an icon is displayed to indicate the current input method:
Numeric input:“123”
English input in upper case:“ABC”
English input in lower case “abc”
Press the # key to switch between input methods.
You can input numbers with the numeric input method. Press a number key to input
the corresponding number.
ThekeyboardsforEnglishinputandNumericInputaredenedinthefollowingtable:
This mobile phone provides multiple input methods, including English input and numeric input.
You can use these input methods when editing the phonebook, short messages and files.
9 Input method
2023_05_26 Panasonic KX TF200_operating_EN_v06.indd 182023_05_26 Panasonic KX TF200_operating_EN_v06.indd 18 18.10.2023 8:55:5118.10.2023 8:55:51
background
19
English input:
●Eachkeyisusedtorepresentmultiplecharacters.Quicklyandcontinuouslypressakeytill
the character you want appears. Input the next character after the cursor moves.
●Pressthe#keytoswitchbetweeninputmethods.
●Toinputablank,switchtotheEnglishinputmode(inupperorlowercase)andthenpress
number key 0.
●Clearwronginputs,presstheRightsoftkey.
9.5 Inserting a Symbol
Press the * key to enter the Select symbol interface, use direction keys to select a symbol you want.
Number key 8 TUVtuv8
Number key 9 WXYZwxyz9
Number key 0
⎵ 0
* key Press the key to input a
symbol
# key Press the key to switch
between input methods
End key Press the key to return
to standby interface
10.1 Multimedia
1. Image viewer
View the content of the images.
2. Video recorder
This function enables you to record video. In the capture interface, you can press up
or down direction key to zoom in and zoom out, press Center key to capture videos clip.
The video recording can not be done without a memory card.
10.2 Messaging
If the short message memory is full, a blinking message icon appears on the top of the screen.
To normally receive short messages, you need to delete some of the existing short messages.
If the destination user has received the short message you sent and the short message delivery
report function is activated, the phone will give off a message report alert tone.
1. Write message
Access this menu to create a text message.
2. Inbox
Received Messages are listed in this menu.
3. Drafts
Draft messages are listed in this menu.
4. Outbox
The messages which are sent failed are stored in the Outbox.
5. Sent messages
Sent messages are listed in this menu.
6. Broadcast messages
Access this menu to control Broadcast message Channel subscriptions.
7. SMS settings
This function enables you to set the default features about the text message and service message.
10 Using the Menus
2023_05_26 Panasonic KX TF200_operating_EN_v06.indd 192023_05_26 Panasonic KX TF200_operating_EN_v06.indd 19 18.10.2023 8:55:5118.10.2023 8:55:51
background
20
10.3 Phonebook
The mobile phone can store up to 300 telephone numbers. The number of telephone numbers that a
SIM card can store depends on the storage capacity of the SIM card. The telephone numbers stored in
the mobile phone and in the SIM cards from a phonebook.
Add new contact: Create new contact to phonebook.
After selecting a telephone number in the phonebook, select Options to perform the following operations:
1. View
View the content of the telephone number.
2. Sent text message
Sent text message to the selected number.
3. Call
Call the current number of the SIM.
4. Edit
Edit the selected number and name.
5. Delete
Delete the telephone number from the phonebook.
6. Copy
Duplicate the telephone number from the mobile phone to the SIM card or from the SIM card
to the mobile phone.
7. Groups
You can assign contacts to the default caller groups. For each group, you can edit group name.
8. Phonebook settings
You can choose your preferred storage, check memory status and delete all contacts.
1. Proles
Themobilephoneprovidesmultipleuserproles,sothatyoucancustomizesomesettings
toadapttothespeciceventsandenvironments.
Customizetheuserprolesaccordingtoyourpreferenceandthenactivatetheuserproles.
Theuserprolesfallintofourscenarios:General,Silent,MeetingandOutdoor.
When you insert an earphone to the mobile phone, the mobile phone automatically enters
the Headset mode. There is no option for activating the Headset mode on the screen. For
details on operation, refer to General.
Activate
Select Activate to activate the selected mode.
Customize
After choosing one of the above four modes, select Customize to edit the following items:
Alert type, Ring type, Ringtone*1, Ringtone volume, Message, Keypad, Keytone volume
and System alert.
*1 The preset melodies in the product are used with permission of © 2014 Copyrights Vision Inc.
Reset
Usethisfunctiontorestorefactorysettingsofuserprole.
Note: In idle screen, hold and press the # key can switch to the silent mode. To switch back
to the original mode, hold the # key again.
2. Phone settings
1.Time and date
Set the date format, the time format, and detail time of the location.
Note: If you remove the battery from the mobile phone or if the battery energy was
exhausted a long time ago, you may need to reset the date and time when re-inserting
the battery or powering on the mobile phone after recharging.
10.4 Settings
2023_05_26 Panasonic KX TF200_operating_EN_v06.indd 202023_05_26 Panasonic KX TF200_operating_EN_v06.indd 20 18.10.2023 8:55:5118.10.2023 8:55:51
background
21
2. Language
Select the display language for the mobile phone.
3. Writing language
Select writing language as needed.
4. Display
Users can access this item to set wallpaper, show date and time, etc.
5. Dedicated keys
You can set shortcuts for those functions you often use.
6. Auto update time
Activate/deactivate this function as per your need.
7. Flight mode
Youcanturno󰀨allwirelessconnectionssoyourphonecannotcauseanyinterferencewith
sensitiveequipmentinaplaneorahospital.
8. Misc. settings
You can set the LCD backlight brightness and time.
3. Network settings
Contact the network operator to obtain the following network services:
1.Network selection
Set Network selection mode to Automatic or Manual. Automatic is recommended.
When Network selection mode is set to Automatic, the mobile phone will prefer the
network where the SIM card is registered. When Network selection mode is set to Manual,
you need to select the network operator’s network where the SIM card is registered.
2.GPRS connection
Select When needed or Always.
3.GPRS transfer pref.
Select Data prefer or Call prefer.
4. Security settings
This function provides you with related settings about safety use
1. SIM security
PIN lock: To activate PIN lock, you need to input the correct PIN code. If you set PIN
lock to on, you need to input the PIN each time you power on the mobile phone. In the
case you input a wrong PIN for three consecutive times; you need to input the PIN
Unblocking Key (PUK). The PUK is used to unlock and change the locked PIN.
To obtain the PUK, contact the network operator.
Change PIN: To change PIN code of SIM card.
Change PIN2: To change PIN2 code of SIM card.
2. Phone security
Phone lock: The function enables you to lock/unlock the phone. Entering password
toswitchonoro󰀨thephone.Passwordisrequiredwhenthephoneislocked.
The initial password is 1122.
Change password: to change phone password.
3. Screen auto lock
The function enables you to lock/unlock the keypad. Setting the auto locking time that
15 secs, 30 secs, 1 min or 5 mins are available. The keypad will be auto locked with no
operation during the period.
4. Privacy protection
In this menu, you can set password-protected on the need of menu. For the menu open the
private protection, need to input a phone password when you entered. Enter the other
module which has opened the function, do not input the password again until return
to idle to give up operation of authority.
5. Restore settings
Use this function to restore factory settings. The preset password is 1122.
2023_05_26 Panasonic KX TF200_operating_EN_v06.indd 212023_05_26 Panasonic KX TF200_operating_EN_v06.indd 21 18.10.2023 8:55:5118.10.2023 8:55:51
background
22
10.5 Call center
Call history
1. Missed calls
You can view a list of the latest missed calls.
Note: When the mobile phone indicates that some calls are missed, you can select View
to enter the missed calls list. Navigate to a missed call and then press the Dial key to dial
the number that originated that call.
2. Dialled calls
You can view the latest dialled calls. Choose dialled calls and then select a dialled call
to delete, save, dial, or send a short message to it.
3. Received calls
You can view the latest received calls. Choose received calls and then select a received call
to delete, save, dial, or send a short message to it.
4. All calls
A complete list of all missed, outgoing and incoming calls is displayed here.
5. Delete call logs
You can delete the latest call records. Choose Delete call logs and then select to delete all
the numbers in the call history, or delete only the numbers in the missed calls list, the dialled
calls list or the received calls list.
6. Call timers
Choose Call timers to view the last call time, the total time of all dialled calls, the total time
of all received calls and the total time of call history, and/or to reset all the time.
Call settings
Call waiting: After you choose Activate, the mobile phone will contact the network. A moment
later, the network will make a response and send a message to acknowledge your operation. If
the call waiting function is activated, the network will alert you and the mobile phone screen will
display the incoming call number if others are calling you while you are already in a conversation.
Call divert: this network function enables you to forward incoming calls to another number you
havepreviouslyspecied.
Call barring: The call barring function enables you to bar calls as needed. When setting this
function, you need to use a network barring code, which can be obtained from the network
operator. If the code is wrong, an error message will be prompted on the screen. After selecting a
call barring option, continue to select Activate or Deactivate. The mobile phone will prompt you to
input the call barring code and then contact the network. A moment later, the network will make a
response and send the operation
results to the mobile phone.
Advanced settings
Auto redial:SetittoOnorO󰀨toenableordisableautoredial.IfyousetAutoredialtoOn,the
mobile phone will automatically redial the number a moment later if the called party does not
reply. The number of auto redial times can be set to a maximum of 10. In the auto redial period,
you cannot dial other numbers. To end the auto redial process, press the End key.
Note:ThisfunctionrequiressupportfromthenetworkoperatortowhichtheSIMcardisregis-
tered.
Call time reminder: To set single or periodic tone in a call to make you know the time.
Answer mode: Select an answer mode as per your need.
2023_05_26 Panasonic KX TF200_operating_EN_v06.indd 222023_05_26 Panasonic KX TF200_operating_EN_v06.indd 22 18.10.2023 8:55:5218.10.2023 8:55:52
background
23
10.7 Organizer
10.8 File manager
10.6 Fun
1. Alarm
Five alarm clocks are set but deactivated by default. You can activate one, multiple or all
of them as needed. For each alarm clock, the ringing time can be set.
2. Calendar
To view dates in the calendar.
3. World clock
To view world clock.
4. Bluetooth
With Bluetooth, you can make a wireless connection to other compatible devices, such as
mobile phones, computers, headsets and car kits.
5. Shortcuts
Toassignspecicoptionstoashortcutkey,thetopnavigationkey.
The default options are Write message, Messaging, Add new contact and Alarm.
6. SIM toolkit
SIM toolkit service is the tool kit of SIM card. This phone supports the service function.
ThespecicitemsaredependedbySIMcardandnetwork.Servicemenuwillbeautoadded
to the phone menu when supported by network and SIM card.
Thephoneprovidesacertainspaceforuserstomanagelesandsupportsthememorycard.
Thecapacityofthememorycardisselectable.Youcanusethelemanagertoconveniently
managevariousdirectoriesandlesonthephoneandthememorycard.ChooseFilemanager
to enter the root directory of the memory. The root directory will list the default folders, new
foldersanduserles.Whenthemobilephoneispoweredonforthersttimeorwhenyou
have not changed the directory, the root directory contains the default folders only.
To access the F1 race game, enter Games. The whole game can be controlled with navigation
key or number keys 2, 4, 6 and 8.
10.9 Camera
The phone is provided with a camera, which supports the photographing functions. Roll the
phone to align the camera to the picture and then press Center key to capture photos. Pictures
willbesavedinthelesystemofthephoneorthememorycard.Inthecaptureinterface,
you can press up or down direction key to zoom in and zoom out.
2023_05_26 Panasonic KX TF200_operating_EN_v06.indd 232023_05_26 Panasonic KX TF200_operating_EN_v06.indd 23 18.10.2023 8:55:5218.10.2023 8:55:52
background
24
11 Appendix
Appendix 1: How to handling the battery and SIM card
●Remove the back cover above the battery
●Lift and remove the battery away.
●To install the MicroSD card, place its indented side downward, insert the card into the card slot.
●Insert the SIM card into the SIM card slot lightly with the corner cutting of the card aligning to
the notch of the slot and the gold plate of the card facing downward, till the SIM card cannot be
further pushed in.
2023_05_26 Panasonic KX TF200_operating_EN_v06.indd 242023_05_26 Panasonic KX TF200_operating_EN_v06.indd 24 18.10.2023 8:55:5318.10.2023 8:55:53
background
25
Appendix 2: Troubleshooting
Fault Cause Solution
SIM card error
The SIM card is damaged
Contact your network service
provider
The SIM card is not in position Check the SIM card
The metal face of the SIM card
is polluted
Clean the SIM card
with a clean cloth
Poor received
signalquality
Signals are obstructed, For
instance, radio waves cannot be
e󰀨ectivelytransmittednearbyahigh
building or in a basement
Move to a place where signals
canbee󰀨ectivelytransmitted
Line congestions occur when you
usethemobilephoneinhigh-tra󰀩c
hours
Avoid use the mobile phone in
hightra󰀩chours
The mobile
phone cannot be
powered on
The battery energy
is exhausted
Charge the battery
Calls cannot be
dialled
Call barring is activated Cancel call barring
The mobile
phone cannot
connect the
network
The SIM card is invalid
Contact your network service
provider
The mobile phone is not in a service
area of the GSM network
Move to the network operator´s
service area
The signal is weak
Move to a place where the
signalqualityishigh
The battery
cannot be
charged
The charging voltage does not
match the voltage range indicated
on the charger
Ensure the charging voltage
matches the voltage range
indicated on the charger
An improper charger is used
Use the charger specially
designed for the mobile phone
Poor contact
Ensure the charger plug is in
good contact with the mobile
phone
2023_05_26 Panasonic KX TF200_operating_EN_v06.indd 252023_05_26 Panasonic KX TF200_operating_EN_v06.indd 25 18.10.2023 8:55:5318.10.2023 8:55:53
background
26
Appendix 6: Graphical symbol
Panasonic Marketing Europe GmbH
Hangenauer Straße 43, D-65203 Wiesbaden
Authorised Representative in EU:
Panasonic Marketing Europe GmbH
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Germany
www.panasonic.com
© Panasonic Marketing Europe GmbH 2023
Symbol Explanation Symbol Explanation
1) Alternating current (A.C.)
7)ClassIIequipment
(equipmentinwhichprotectionagainst
electric shock relies on Double Insulation
or Reinforced Insulation.)
2) Direct current (D.C.) 8) “ON” (power)
3) Protective earth 9) “OFF” (power)
4) Protective bonding earth 10) Stand-by (power)
5) Caution, risk caused by
visible radiation
11) “ON”/“OFF”
(power; push-push)
6) For indoor use only 12) Caution, risk of electric shock
2023_05_26 Panasonic KX TF200_operating_EN_v06.indd 262023_05_26 Panasonic KX TF200_operating_EN_v06.indd 26 18.10.2023 8:55:5318.10.2023 8:55:53

Specifications

Panasonic KX-TF200 Questions and Answers

Find answers or ask new question.
See other models: ER-GN300K503 KX-TU550EXR KX-TU550EXC KX-TU550EXB SC-PM250EB-S
Questions and Answers
