Installation Manual
Additional Digital Cordless Handset
Model No. KX-TGBA85
Thank you for purchasing a Panasonic product.
This unit is an additional handset compatible with the following series of
Panasonic Digital Cordless Phone:
– KX-TGB850
(The corresponding models are subject to change without notice.)
You must register this handset with your base unit before it can be used.
This installation manual describes only the steps needed to register and
begin using the handset. Please read the base unit’s operating
instructions for further details.
Please read this installation manual before using the unit and save it for
future reference.
For assistance, visit our Web site: http://shop.panasonic.com/support
for customers in the U.S.A. (English only).
Printed in China PNQE1139ZA SS0120MU0
2
For assistance, please visit http://shop.panasonic.com/support
Accessory information
Supplied accessories
Accessory item/Part number Quantity
Charger/PNWYAB810S02 1
AC adaptor/PNWYAB810S00 1
Rechargeable batteries/HHR-4DPA 2
Handset cover
*1
/PNWYAB810S01 1
*
1
The handset cover comes attached to the handset.
Note:
● Please read the base unit’s operating instructions for additional/
replacement accessories.
● Please read “Graphical symbols for use on equipment and their
descriptions” of the base unit’s operating instructions.
For your safety
To prevent severe injury and loss of life/property, read this section carefully
before using the product to ensure proper and safe operation of your product.
WARNING
Power connection
● Completely insert the AC adaptor/power plug into the power outlet. Failure
to do so may cause electric shock and/or excessive heat resulting in a re.
● Regularly remove any dust, etc. from the AC adaptor/power plug by pulling
it from the power outlet, then wiping with a dry cloth. Accumulated dust
may cause an insulation defect from moisture, etc. resulting in a re.
● Unplug the product from power outlets if it emits smoke, an abnormal
smell, or makes an unusual noise. These conditions can cause re or
electric shock. Conrm that smoke has stopped emitting and contact us at
http://shop.panasonic.com/support
Installation
3
For assistance, please visit http://shop.panasonic.com/support
Installation
Installation
● To prevent the risk of re or electrical shock, do not expose the product to
rain or any type of moisture.
● Do not place or use this product near automatically controlled devices such
as automatic doors and re alarms. Radio waves emitted from this product
may cause such devices to malfunction resulting in an accident.
CAUTION
Installation and location
● The AC adaptor is used as the main disconnect device. Ensure that the AC
outlet is installed near the product and is easily accessible.
● The product is only used for mounting at heights ≤ 2 m.
Note:
● This height is not guaranteed for product reliability.
● To prevent serious injuries due to the product unexpectedly falling, the
product must be installed at a height of 1.5 m or lower.
Battery
● We recommend using the supplied batteries or additional/replacement
batteries noted on page 2 for replacement battery information. USE ONLY
rechargeable Ni-MH batteries AAA (R03) size.
● Do not mix old and new batteries.
● Do not open or mutilate the batteries. Released electrolyte from the
batteries is corrosive and may cause burns or injury to the eyes or skin.
The electrolyte is toxic and may be harmful if swallowed.
● Exercise care when handling the batteries. Do not allow conductive
materials such as rings, bracelets, or keys to touch the batteries, otherwise
a short circuit may cause the batteries and/or the conductive material to
overheat and cause burns.
● Charge the batteries provided with or identied for use with this product
only, in accordance with the instructions and limitations specied in this
manual.
● Only use a compatible charger to charge the batteries. Do not tamper with
the charger. Failure to follow these instructions may cause the batteries to
swell or explode.
4
For assistance, please visit http://shop.panasonic.com/support
Installation
● Avoid the use in the following conditions
– High or low extreme temperatures during use, storage or transportation.
– Replacement of a battery with an incorrect type that can defeat a safeguard.
– Disposal of a battery into re or a hot oven, or mechanically crushing or
cutting of a battery, that can result in explosion.
– Extremely high temperature and/or extreme low air pressure that can
result in an explosion or the leakage of ammable liquid or gas.
Attention:
A nickel metal hydride battery that is recyclable
powers the product you have purchased. Please call
1-800-8-BATTERY (1-800-822-8837) for information on
how to recycle this battery.
Important safety instructions
When using your product, basic safety precautions should always be followed
to reduce the risk of re, electric shock, and injury to persons, including the
following:
1 Do not use this product near water for example, near a bathtub,
washbowl, kitchen sink, or laundry tub, in a wet basement or near a
swimming pool.
2 Do not use the telephone to report a gas leak in the vicinity of the leak.
3 Use only the power cord and batteries indicated in this manual. Do not
dispose of batteries in a re. They may explode. Check with local codes
for possible special disposal instructions.
SAVE THESE INSTRUCTIONS
5
For assistance, please visit http://shop.panasonic.com/support
Installation
Other information
● Operating the product near electrical appliances may cause interference.
Move away from the electrical appliances.
CAUTION: Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions.
Routine care
● Wipe the outer surface of the product with a soft moist cloth.
● Do not use benzine, thinner, or any abrasive powder.
Notice for product disposal, transfer, or return
● This product can store your private/condential information. To protect your
privacy/condentiality, we recommend that you erase information such as
phonebook or caller list entries from the memory before you dispose of,
transfer, or return the product.
6
For assistance, please visit http://shop.panasonic.com/support
Installation
Setting up
Connections/Wall mounting
1 Connect the AC adaptor to the unit by
pressing the plug rmly.
2 Fasten the cord by hooking it.
3 Connect the AC adaptor to the power outlet.
4 Drive the screws (not supplied) into
the wall, if necessary.
Note:
● Use only the supplied AC
adaptor MN0063-L060040.
● The AC adaptor must remain
connected at all times.
(It is normal for the adaptor
to feel warm during use.)
● Make sure that the wall and
the xing method are strong
enough to support the weight
of the unit.
1
2
3
25.4 mm (1 inch)
USE SPECIFIED AC ADAPTOR
ONLY
6 V DC
1
2
3
Hook
4
7
For assistance, please visit http://shop.panasonic.com/support
Installation

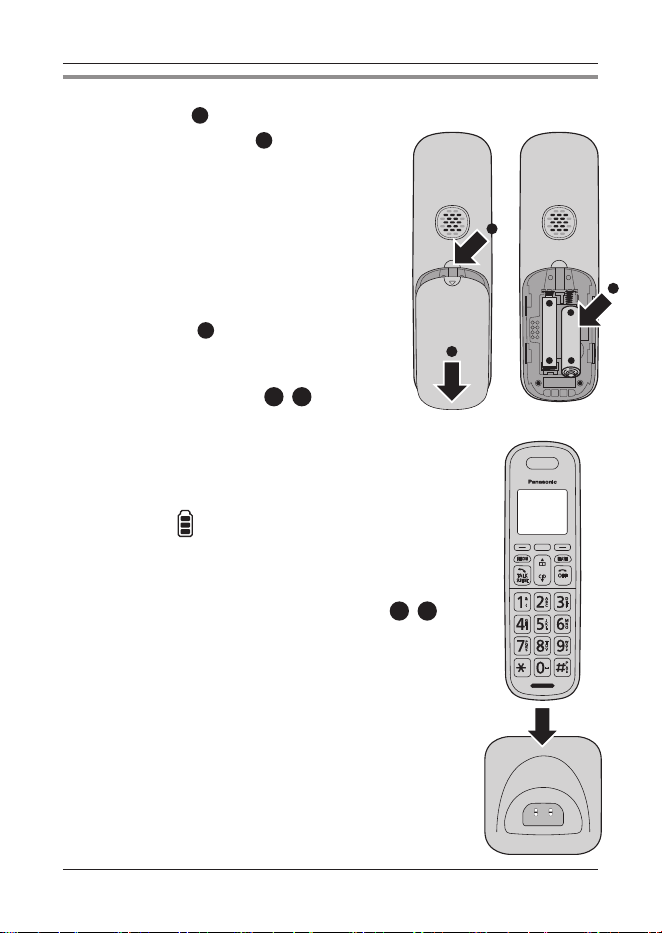

Battery installation/ Battery charging
1 Press down at
1
.
2 Slide the handset cover
2
.
3 Insert the batteries, then close the
handset cover.
Important:
● Use the supplied rechargeable batteries.
For replacement, we recommend using
the Panasonic rechargeable batteries
noted on page 2.
● USE ONLY rechargeable Ni-MH batteries
AAA (R03) size (
A
).
● Do NOT use alkaline/manganese/
Ni-Cd batteries.
● Conrm correct polarities (
+
,
–
).
Charge for about at least 7 hours.
When the handset needs charging, the display shows
“Low battery” and there is a warning beep every 2 minutes
during a call, recharge the handset before using it again.
When charging, will scroll on the display.
Note:
● If the batteries are fully charged, but the operating time
seems to be shorter, clean the battery ends (
+
,
–
) and
the charge contacts with a dry cloth and charge again.
1
2
A
+
–
+
–
CALL BLOCK
8
For assistance, please visit http://shop.panasonic.com/support
Installation
Registering a handset to a base unit
Base unit:
1 Press and hold
L
LOCATOR/INTERCOM
R
for 5 seconds. The base unit will
remain in registration mode for 120 seconds.
Handset:
2 “Register your Handset”, press
L
OK
R
. “Press locator Key for 5 sec”,
press
L
OK
R
and then enter the 4-digit PIN code (default = 0000),
L
OK
R
.
Note:
If an error tone sounds, or if is displayed, register the handset according to
the base unit’s operating instructions.
Display language (Handset) (default: “English”)
1
L
Menu
R
,
L
d
R
“Personal set”,
L
OK
R
.
2
L
d
R
“Language”,
L
OK
R
.
3
LsR
: Select the preferred language,
L
OK
R
.
FCC and other information
This equipment is hearing aid compatible as dened by the FCC in 47 CFR
Section 68.316.
When you hold the phone to your ear, noise might be heard in your Hearing Aid.
Some Hearing Aids are not adequately shielded from external RF (radio frequency)
energy. If noise occurs, use an optional headset accessory or the speakerphone
option (if applicable) when using this phone. Consult with your audiologist or
Hearing Aid manufacturer about the availability of Hearing Aids which provide
adequate shielding to RF energy commonly emitted by digital devices.
WHEN PROGRAMMING EMERGENCY NUMBERS AND(OR) MAKING
TEST CALLS TO EMERGENCY NUMBERS:
1) Remain on the line and briey explain to the dispatcher the reason for the call.
2) Perform such activities in the off-peak hours, such as early morning or
late evenings.
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause
undesired operation.
9
For assistance, please visit http://shop.panasonic.com/support
Installation
Privacy of communications may not be ensured when using this phone.
CAUTION:
Any changes or modications not expressly approved by the party
responsible for compliance could void the user’s authority to operate this
device.
NOTE:
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
FCC RF Exposure Warning:
● This product complies with FCC radiation exposure limits set forth for an
uncontrolled environment.
● This handset may not be collocated or operated in conjunction with any
other antenna or transmitter.
● For body-worn operation, the handset must be used only with a non-
metallic accessory. Use of other accessories may not ensure compliance
with FCC RF exposure requirements.
10
For assistance, please visit http://shop.panasonic.com/support
Installation
Notice:
LThis product is designed for use in the United States of America. Sale or use
of this product in other countries may violate local laws.
L
Cet appareil est conçu pour être utilisé aux États-Unis d’Amérique. La vente
ou l’emploi de cet appareil dans certains autres pays peut constituer une
infraction à la législation locale.
L
Este producto está diseñado para usarse en los Estados Unidos de América.
La venta o el empleo de este producto en ciertos países puede constituir
violación de la legislación local.
L
ҏࠢட࣏ٺҢՄ೩Ȅӵڏтড়୵ܖٺҢȂџོႂІ࿋ӴݲٽȄ
L
ߎߩຠߪޔᣣᧄ࿖ᄖߢߩ↪ࠍ⋡⊛ߣߒߡ⸳⸘ߐࠇߡ߅ࠅޔᣣᧄ࿖ౝߢߩ
↪ߪᴺᓞ㆑ߣߥࠅ߹ߔޕᓥߞߡޔᒰ␠ߢߪᣣᧄ࿖ౝߦ߅ߡߪේೣߣߒ
ߡୃℂߥߤߩࠨࡆࠬߪ⥌ߒ߆ߨ߹ߔޕ
11
For assistance, please visit http://shop.panasonic.com/support
Appendix
Customer services
Accessories!
hp://shop.panasonic.com/support
Customer Services Directory
Shop
for all your Panasonic gear
Go to
Get everything you need to get the most out of
your Panasonic products
Accessories & Parts for your Camera, Phone, A/V
products, TV, Computers & Networking, Personal
Care, Home Appliances, Headphones, Baeries,
Backup Chargers & more…
For Product Informaon, Operang Assistance,
Parts, Owner’s Manuals, Dealer and Service info
go to
hp://shop.panasonic.com/support
For the hearing or speech impaired TTY: 1- 877-833-8855
As of June 2015
12
For assistance, please visit http://shop.panasonic.com/support
Appendix
Limited Warranty Coverage (For USA Only)
Labor
One (1) Year
Parts
One (1) Year
To submit a new repair request and for quick repair status visit our Web Site at
http://shop.panasonic.com/support
Panasonic Products Limited Warranty
Online Repair Request
Mail-In Service--Online Repair Request
If your product does not work properly because of a defect in materials or workmanship,
Panasonic Corporation of North America (referred to as “the warrantor”) will, for the length
of the period indicated on the chart below, which starts with the date of original purchase
(“warranty period”), at its option either (a) repair your product with new or refurbished parts,
(b) replace it with a new or a refurbished equivalent value product, or (c) refund your
purchase price. The decision to repair, replace or refund will be made by the warrantor.
During the “Labor” warranty period there will be no charge for labor. During the “Parts”
warranty period, there will be no charge for parts. This Limited Warranty excludes both
parts and labor for non-rechargeable batteries, antennas, and cosmetic parts (cabinet).
This warranty only applies to products purchased and serviced in the United States.
This warranty is extended only to the original purchaser of a new product which was
not sold “as is”.
Telephone
When shipping the unit, carefully pack, include all supplied accessories listed in the
Owner’s Manual, and send it prepaid, adequately insured and packed well in a carton box.
When shipping Lithium Ion batteries please visit our Web Site at
http://shop.panasonic.com/support as Panasonic is committed to providing the most up to
date information. Include a letter detailing the complaint, a return address and provide a
daytime phone number where you can be reached. A valid registered receipt is required
under the Limited Warranty.
IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD, THE PURCHASER WILL
BE REQUIRED TO FURNISH A SALES RECEIPT/PROOF OF PURCHASE INDICATING
DATE OF PURCHASE, AMOUNT PAID AND PLACE OF PURCHASE. CUSTOMER WILL
BE CHARGED FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT SUCH PROOF
OF PURCHASE.
Product or Part Name
Limited Warranty (ONLY FOR U.S.A.)
13
For assistance, please visit http://shop.panasonic.com/support
Appendix
Limited Warranty Limits and Exclusions
(As examples, this excludes damages for lost time, travel to and from the servicer,
loss of or damage to media or images, data or other memory or recorded content.
The items listed are not exclusive, but for illustration only.)
This warranty ONLY COVERS failures due to defects in materials or workmanship,
and DOES NOT COVER normal wear and tear or cosmetic damage. The warranty
ALSO DOES NOT COVER damages which occurred in shipment, or failures which
are caused by products not supplied by the warrantor, or failures which result from
accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty
installation, set-up adjustments, misadjustment of consumer controls, improper
maintenance, power line surge, lightning damage, modification, introduction of sand,
humidity or liquids, commercial use such as hotel, office, restaurant, or other business
or rental use of the product, or service by anyone other than a Factory Service Center
or other Authorized Servicer, or damage that is attributable to acts of God.
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER
“LIMITED WARRANTY COVERAGE”.
THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT
OF ANY BREACH OF THIS WARRANTY.
ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF
MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.
PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY,
ARE YOUR RESPONSIBILITY.
Some states do not allow the exclusion or limitation of incidental or consequential damages,
or limitations on how long an implied warranty lasts, so the exclusions may not apply to you.
This warranty gives you specific legal rights and you may also have other rights which vary
from state to state. If a problem with this product develops during or after the warranty period,
you may contact your dealer or Service Center. If the problem is not handled to your
satisfaction, then write to:
Panasonic Corporation of North America
Consumer Affairs Department 8th FI.
Two Riverfront Plaza
Newark NJ 07102-5490
As of January 2020
Appendix
1 Reconnect AC adaptor to the base unit.
2 Check if telephone line cord is connected.
3 Use rechargeable Ni-MH batteries.
(Alkaline/Manganese/Ni-Cd batteries CANNOT be used.)
4 Read troubleshooting page in the base unit’s
Operating Instructions.
IMPORTANT!
If your product is not working properly. . .
Visit our Web site: http://shop.panasonic.com/support
LFAQ and troubleshooting hints are available.
Two Riverfront Plaza, Newark, NJ 07102-5490
© Panasonic Corporation 2020
6
Notas
5
Instalación
Cómo registrar un auricular a una unidad base
Unidad base:
1 Mantenga oprimido
L
LOCATOR/INTERCOM
R
durante 5 segundos. La unidad base
permanecerá en el modo de registro durante 120 segundos.
Auricular:
2 “Registrar su Auricular”, oprima
L
OK
R
. “Presione loclzdr. Durante 5
seg.”, oprima
L
OK
R
y, a continuación, introduzca el código PIN de 4 dígitos
(predeterminado = 0000),
L
OK
R
.
Nota:
Si suena un tono de error, o si se muestra
, registre el auricular de acuerdo con las
instrucciones de operación de la unidad base.
Idioma mostrado en pantalla (Auricular) (predeterminado: “English”)
1
L
Menu
R
,
L
d
R
“Personal set” (Ajuste personal),
L
OK
R
.
2
L
d
R
“Language” (Idioma),
L
OK
R
.
3
LsR
: Seleccione el idioma de su preferencia,
L
OK
R
.
4
Instalación
Instalación y carga de la batería
1
Presione
1
hacia abajo.
2 Deslice la tapa del auricular
2
.
3 Inserte las baterías y, a continuación, cierre
la tapa del auricular.
Importante:
● Utilice las baterías recargables que se suministran.
Para reemplazarlas, recomendamos el uso
de las baterías recargables Panasonic
que se especican en la página 2.
● UTILICE SOLO baterías recargables de Ni-MH
tamaño AAA (R03) (
A
).
● NO utilice baterías alcalinas, de manganeso
ni de Ni-Cd.
● Conrme que las polaridades estén correctas (
+
,
–
).
Cárguelas durante al menos 7 horas.
Cuando el auricular necesite carga, la pantalla mostrará el mensaje
“Batería baja” y se emitirá un pitido de advertencia cada 2 minutos
durante una llamada. Recargue el auricular antes de usarlo
nuevamente.
Cuando se esté cargando el dispositivo, se mostrará el
icono
con sus barras en movimiento.
Nota:
● Si las baterías están completamente cargadas pero el tiempo
de funcionamiento parece ser más corto, limpie los extremos
de las baterías (
+
,
–
) y los contactos de carga con un
paño seco y cárguelas de nuevo.
1
2
A
+
–
+
–
CALL BLOCK
3
USE SPECIFIED AC ADAPTOR
ONLY
6 V DC
1
2
3
Instalación
Instalación
Conexiones/Montaje en la pared
1 Conecte el adaptador de corriente alterna a la
unidad presionándolo rmemente.
2 Enganche el cable para jarlo.
3 Conecte el adaptador de corriente a la toma de
corriente.
4 Coloque los tornillos (no se suministran) en
la pared en caso necesario.
Nota:
● Use solo el adaptador de corriente
MN0063-L060040 que se incluye.
● El adaptador de corriente debe permanecer
conectado todo el tiempo.
(Es normal que el adaptador
se caliente durante su uso.)
● Asegúrese de que la pared y
el método de colocación sean lo
su cientemente resistentes para soportar el
peso de la unidad.
1
2
3
25.4 mm (1 pulgada)
4
Gancho
2
Información de los accesorios
Accesorios que se suministran
Accesorio/Pieza número Cantidad
Cargador/PNWYAB810S02 1
Adaptador de corriente/PNWYAB810S00 1
Baterías recargables/HHR-4DPA 2
Tapa del auricular
*1
/PNWYAB810S01 1
*
1
La tapa del auricular viene unida a él.
Nota:
● Lea las instrucciones de operación de la unidad base para obtener información
sobre accesorios adicionales o de repuesto.
● Lea la sección “Símbolos grácos para utilizar en el equipo y sus descripciones” de
las instrucciones de operación de la unidad base.
Instalación
®
Manual de instalación
Auricular Inalámbrico Digital Adicional
Modelo n.°
KX-TGBA85
Gracias por adquirir un producto Panasonic.
Esta unidad es un auricular adicional compatible con la siguiente serie de
teléfonos inalámbricos digitales Panasonic:
– KX-TGB850
(Los modelos correspondientes están sujetos a cambios sin previo aviso.)
Debe registrar este auricular en su unidad base antes de poder usarlo.
Este manual de instalación solo describe los pasos necesarios para registrar y
comenzar a usar el auricular. Lea las instrucciones de operación de la unidad
base para obtener más detalles.
Lea este manual de instalación antes de usar la unidad y guárdelo para consultarlo
en el futuro.
Para obtener ayuda, visite nuestro sitio web: http://shop.panasonic.com/support
para clientes de EE. UU. (Solamente en inglés).
