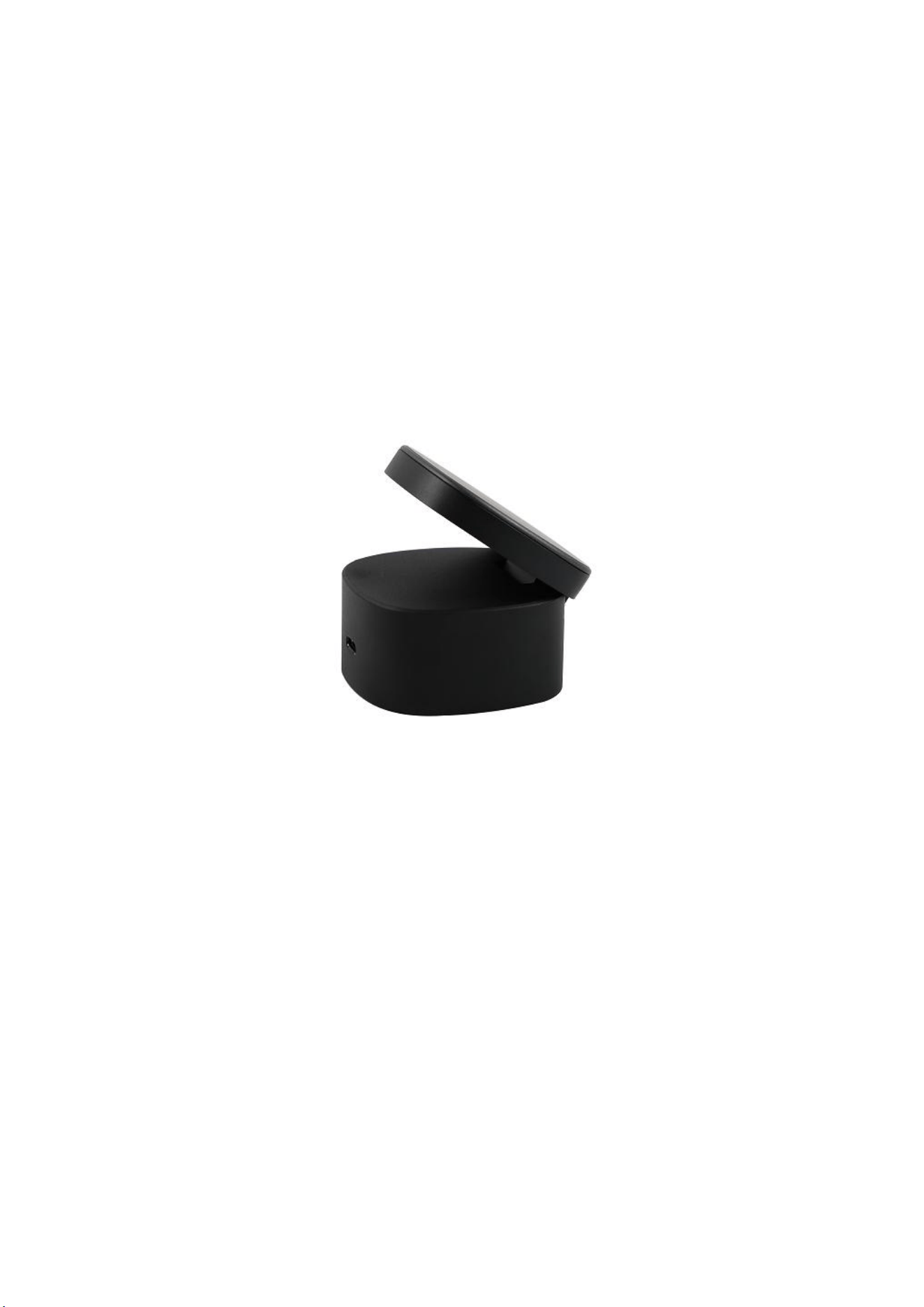

35W Travel Charger with 25W
Wireless Charger
User Manual
Contents
1.0 Introduction ................................................... 1
2.0 Features ........................................................ 1
3.0 Specifications ................................................. 3
4.0 Package Contents ........................................... 4
5.0 Operation ....................................................... 4
6.0 Connection Diagram ........................................ 5
35W Travel Charger with 25W Wireless Charger
1
35W Travel Charger with 25W
Wireless Charger
DEAR CUSTOMER,
Thank you for purchasing this product. For optimum performance
and safety, please read these instructions carefully before connecting,
operating or using this product. Please keep this manual for future
reference.
1.0 INTRODUCTION
This product is a high-performance travel charger. Type-C port
output support 35W. Wireless Charger output support 25W. It is
compatible with various USB protocols (such as iPhone and other
smart phones). It is helpful for long-distance travel as well as
convenient for business!
2.0 FEATURES
Internal chip allows 100-240VAC of input voltage
Type-C port output supports 35W
Wireless charger output support 25W
Precise current-limiting output, overload protection and automatic
restart after troubleshooting make the product safer and give you
more peace of mind.
Over Current Protection
35W Travel Charger with 25W Wireless Charger
2
Over Voltage Protection
Short Circuit Protection with Auto-recovery
Over Temperature Protection with Auto-recovery
Product shell is made of fireproof material.
Intelligent and convenient to use.
35W Travel Charger with 25W Wireless Charger
3
3.0 SPECIFICATIONS
Input
100～240V AC 50/60Hz 1.2A
USB C:9V3A,12V3A,15V2.33A
Input Frequency
50/60Hz
Standby Input Power
0.8W
Output
Type-C:
5V3A, 9V/3A, 12V2.91A, 15V2.33A
PPS:5-11V/3A
Wireless charger: 25W
USB C+Wireless:20W+15W
Over Current Protection
Yes
Over Voltage Protection
Yes
Short Circuit Protection
Yes
Over Temperature Protection
Yes
Port
Type-C Port & Wireless charger
Socket
US
Operating Temperature Range
-10～25°C
Storage Temperature Range
-20～85°C
Operating Relative Humidity
20%～90% RH
Storage Relative Humidity
5%～95% RH
Ripple And Noise
≤ 200mVp-p
Rise Time
20ms
Turn-on Delay
3s
Line Regulation
±3%
Efficiency
Output ≥ 82%
Color
35W Travel Charger with 25W Wireless Charger
4
Size(L*W*H)
59.9mm *59.9mm* 40mm
Weight
183.2g
User Manual
English Version
4.0 PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging
and make sure the following items are contained in the shipping
carton:
Main unit×1
User Manual×1
5.0 OPERATION
Operation Procedures
1. Plug the travel charger into a socket.
2. Plug one Type-C connector of the cable into the Type-C interface of
travel charger and plug the other connector of the cable into the
electronic device (mobile phone, tablet PC, etc)
3. Please unplug the travel charger after the electronic device is fully
charged.
Operation Notes
1. For optimum performance, please use the travel charger
according to the user manual.
2. Please plug the travel charger into socket which voltage
range should be 100-240VAC.
3. Please unplug the travel charger after using.
35W Travel Charger with 25W Wireless Charger
5
Note: Our products have protection functions and the two tips above are suggestions just
for safety.
4. Do not use the travel charger with an electronic product
which is not in conformity with the specifications, so as to avoid
any problem caused by specification mismatching.
5. It’s normal that travel charger will be a little overheated in
the use process.
6. When the travel charger stops working under over-current,
over- temperature or short-circuit protection, please unplug the
device after it automatically returns to work, then you need to
check whether the device is compatible with this charger.
7. Do not let the travel charger close to fire, such as stove,
candles and etc.
8. Do not let the travel charger soak into liquid, such as
swimming pool, bathtub, etc.
9. Do not wash the travel charger with corrosive cleaner.
10. If the travel charger cannot work properly, please
contact the store or distributor in your area.
6.0 Connection Diagram
35W Travel Charger with 25W Wireless Charger
6
FCC STATEMENT
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
2. Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential
installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
