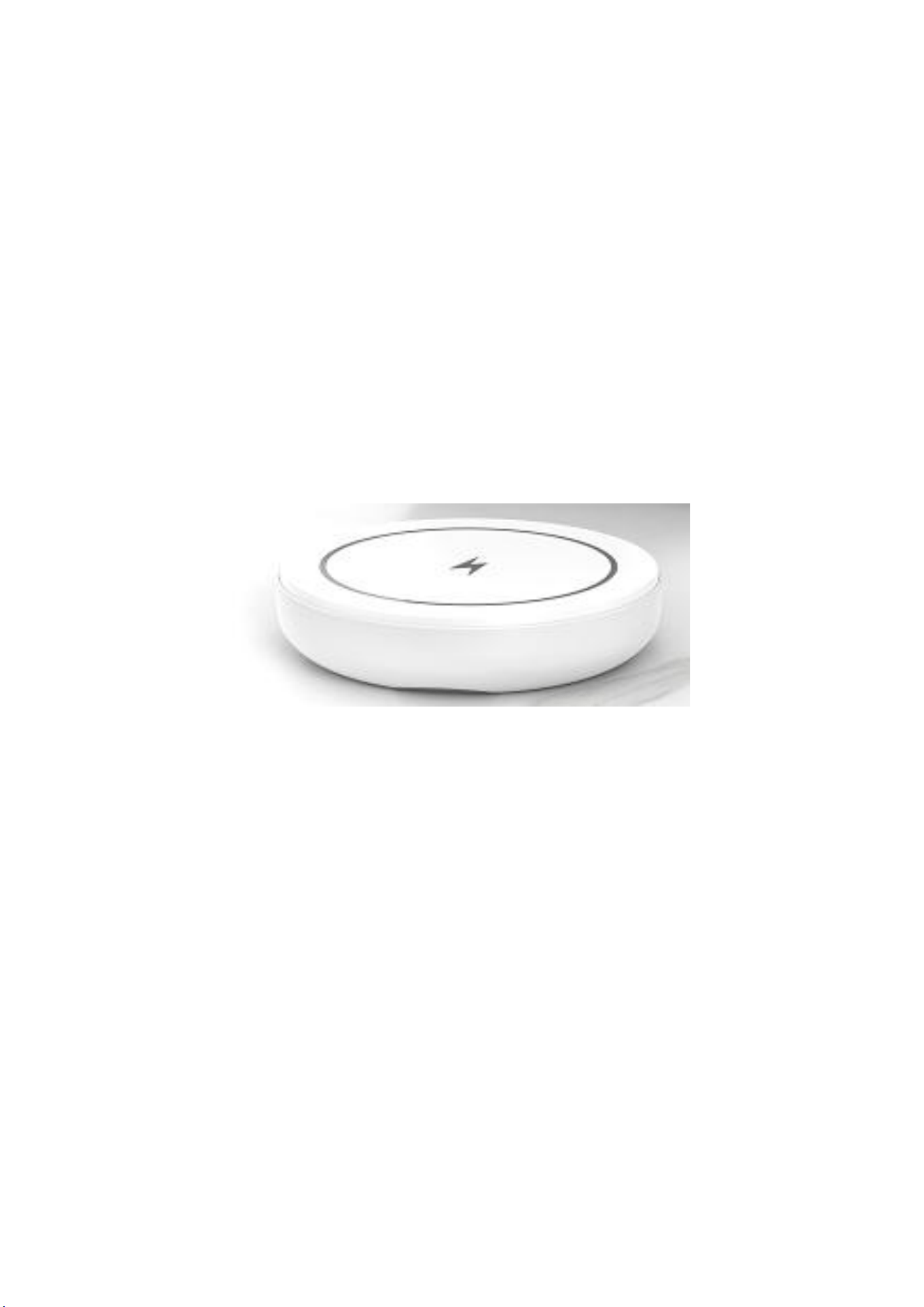

Wireless charger with
QI2.2 Module
MPP25-1TENA
User Manual
CONTENTS
1.0 INTRODUCTION .............................................................. 2
2.0 Features ......................................................................... 2
3.0 Specifications ................................................................. 3
4.0 PACKING LIST ................................................................ 4
5.0 OPERATION .................................................................... 4
6.0 CONNECTION DIAGRAM ................................................. 5
Wireless charger with
QI2.2 Module
DEAR CUSTOMER
Thank you for purchasing this product. For optimum performance
and safety, please read these instructions carefully before using this
product. Please keep this manual for reference in the future.
1.0 INTRODUCTION
This product is a wireless charging device in accordance with the
QI protocol which is suitable for mobile phones, and other devices
based on wireless charging 5W /7.5W/10W/15W or 25W. Connect the
wireless charger to a power supply and then you can charge your
device which is supported wireless charging (mobile phones, etc.) by
putting it on the wireless charger directly.
2.0 FEATURES
Input: Type-C PD: 5V3A, 9V3A, 15V2.4A 36W
Transmitting terminal output: 5W/7.5W/10W/15W/25W
It is light, smart and convenient to use
Compatibility: iPhone 17/16/15 / 14 / 13 / 12 Series
Galaxy S25 Ultra, Galaxy S25+, Galaxy S25[using a magnetic
Qi2 or MagSafe compatible case]
Brand
Phone Model
Wireless Output
Google
Pixel 10
QI2-15W
Pixel 10 Pro XL
QI2-25W
Samsung
Galaxy S25
QI2 Ready-15W
Galaxy S25+
QI2 Ready-15W
Galaxy S25 Ultra
QI2 Ready-15W
Galaxy S25 Edge
QI2 Ready-15W
Apple
iPhone 17
QI2-25W
iPhone Air
QI2-20W
iPhone 17 Pro
QI2-25W
iPhone 17 Pro Max
QI2-25W
iPhone 16
QI2-22W
iPhone 16 Plus
QI2-25W
iPhone 16 Pro
QI2-22W
iPhone 16 Pro Max
QI2-25W
iPhone 15
QI2-15W
iPhone 15 Plus
QI2-15W
iPhone 15 Pro
QI2-15W
iPhone 15 Pro Max
QI2-15W
iPhone 14
QI2-15W
iPhone 14 Plus
QI2-15W
iPhone 14 Pro
QI2-15W
iPhone 14 Pro Max
QI2-15W
iPhone 13
QI2-15W
iPhone 13 mini
QI2-12W
iPhone 13 Pro
QI2-15W
iPhone 13 Pro Max
QI2-15W
iPhone 12
QI2-15W
iPhone 12 mini
QI2-12W
iPhone 12 Pro
QI2-15W
iPhone 12 Pro Max
QI2-15W
3.0 SPECIFICATIONS
Input
Type-C PD: 5V3A, 9V3A, 15V2.4A 36W
Output
5W/7.5W/10W/15W/25W
Wireless Charging Frequency
128kHz / 360kHz
Operation Temperature Range
0 ~ 35°C
Operation Humidity
10% ~ 90%RH
Magnetic Force
7.6 ~ 10N with the device
Over Voltage Protection
Yes
Under Voltage Protection
Yes
Size
59.8 × 16.9mm
User Manual
English Version
4.0 PACKING LIST
Before attempting to use this unit, please check the packaging
and make sure the following items are contained in the shipping
carton:
Main unit×1
User Manual×1
5.0 OPERATION
Operation Procedures
1. Connect the wireless charger to the power adapter, and connect
the power adapter to the power supply.
2. Place your device (which supports wireless charging) on the
wireless charger.
3. Please take out the device after it is fully charged.
Operation Notes
1. For optimum performance, please use the wireless charger
according to this user manual.
2. Please connect the wireless charger to the power adapter which
the output should be 5V3A, 9V3A, 15V2.4A. It is also compatible
with PD protocol.
3. Please unplug the wireless charger after using.
4. Do not use the wireless charger with an electronic product which is
not in conformity with the specifications, so as to avoid any
problems caused by specification mismatching.
5. It’s normal that wireless charger will be a little overheated in the
use process.
6. When the wireless charger stops working under some accidents,
you need to check whether the device is compatible with this
charger.
7. Do not let the wireless charger close to fire, such as stove, candles
and etc.
8. Do not let the wireless charger soak into liquid, such as swimming
pool, bathtub, etc.
9. Do not wash the wireless charger with corrosive cleaner.
10. If the wireless charger cannot work properly, please contact the
store or distributor in your area.
11. Do not place metal objects on the back of the phone while it is
charging wirelessly.

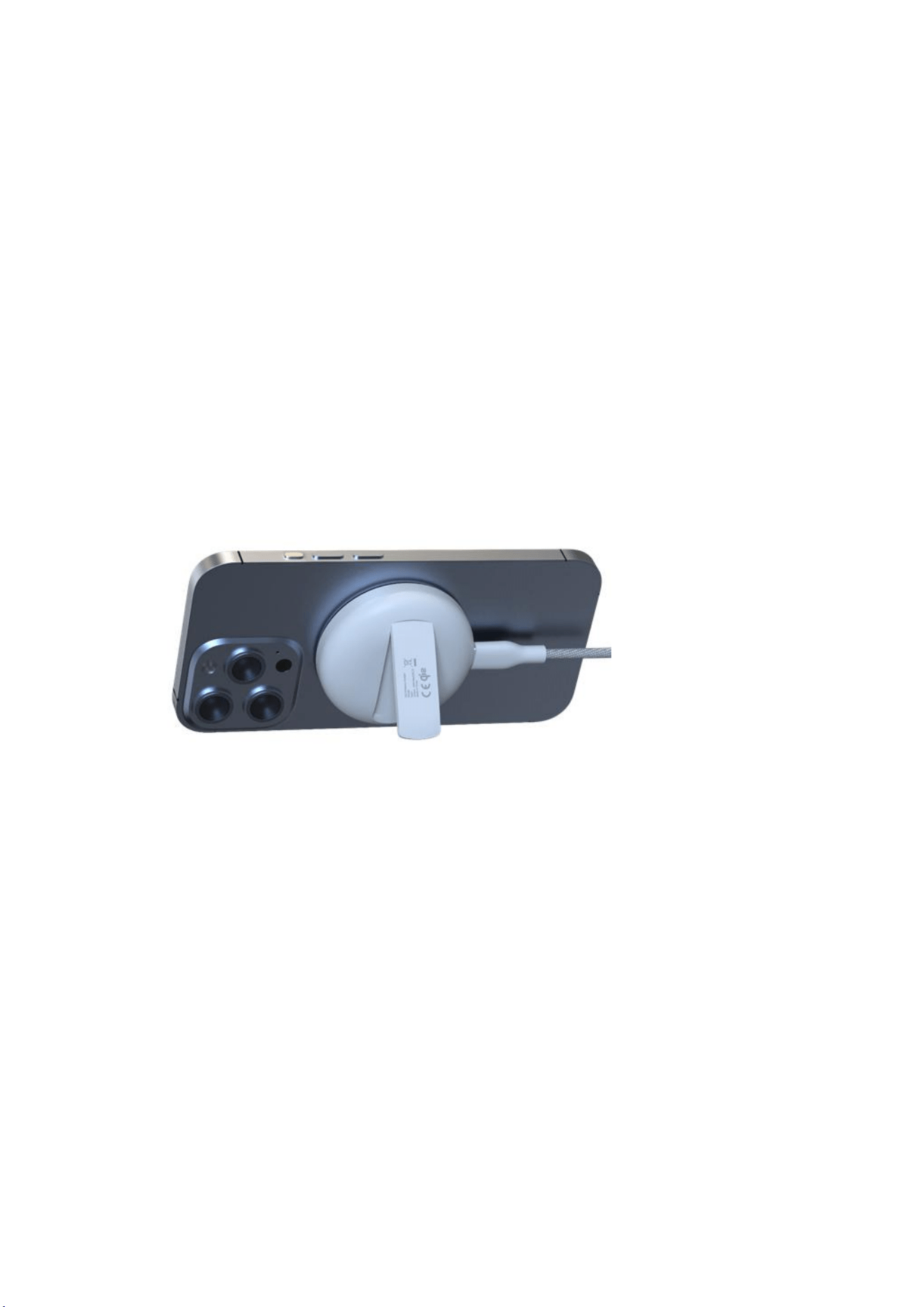

6.0 CONNECTION DIAGRAM
FCC Warning
1. This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that
may cause undesired operation.
2. Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
(1) Reorient or relocate the receiving antenna.
(2) Increase the separation between the equipment and receiver.
(3) Connect the equipment to an outlet on a circuit different from the connected
receiver.
(4) Consult a dealer or an experienced radio / TV technician for help.
FCC RF Exposure Statement
This equipment complies with FCC Radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
IC Warning
-English
This device contains licence-exempt transmitter(s) / receiver(s) that comply with
Innovation, Science and Economic Development Canada’s licence-exempt
RSS(s). Operation is subject to the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may
cause undesired operation of the device.
RF Warning Statement
This equipment complies with IC Radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 10cm between the radiator & your body.
-French
L’émetteur / récepteur exempt de licence contenu dans le présent appareil est
conforme aux CNR d’Innovation, Sciences et Développement économique
Canada applicables aux appareils radio exempts de licence. L’exploitation est
autorisée aux deux conditions suivantes:
(1) L’appareil ne doit pas produire de brouillage.
(2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d’en compromettre le fonctionnement.
Avertissement RF:
Cet appareil est conforme à IC l’exposition aux rayonnements limites fixées pour
un environnement non contrôlé. Cet appareil doit être installé et utilisé avec une
distance minimale de 10 cm entre le radiateur et votre corps. Cet transmetteur ne
doit pas être co-situé ou opérant en liaison avec toute autre antenne ou
transmetteur.
