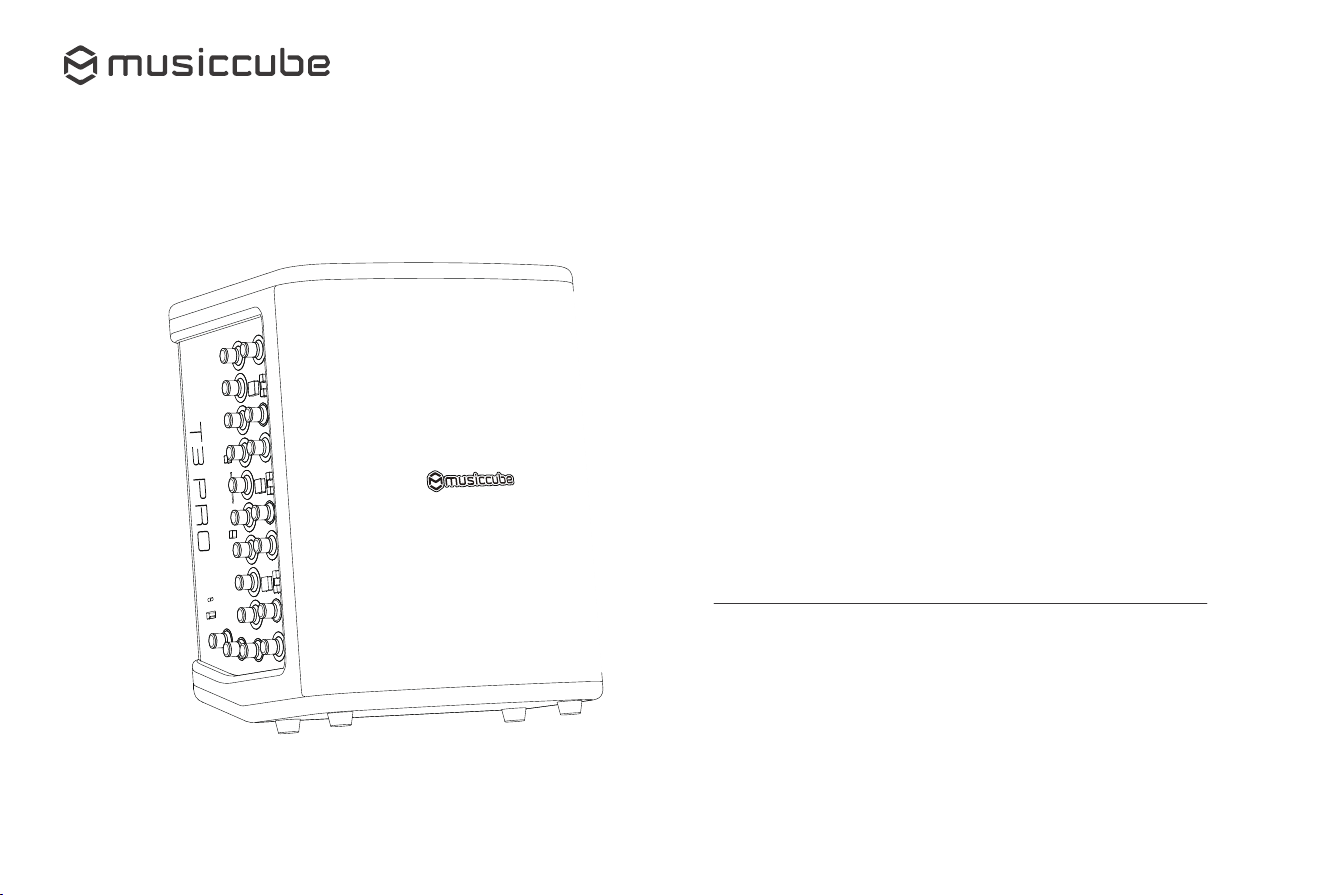

Multifunctional Portable PA System
Musiccube T3 Pro
User Manual
Thank you for choosing and purchasing the Musiccube T3 Pro.
Specifications
01
Model: Musiccube T3 Pro
Power: Peak Power: 350W/Rated Power: 260W
Frequency Response: 50hz-20khz
Audio Inputs: 3 x Microphone/Line Inputs (XLR/TRS)
1 AUX Input (3.5mm)
1 Bluetooth Input
1 USB Input
1 Stereo Line Input
Driver Units: 2 x 5"x7" Low-Frequency Drivers
4 x 2" Mid-High Frequency Drivers
Preset Modes: Mute / Live / Music
Effects: Reverb 1 / Reverb 2 / Delay / Chorus
Additional Features: OTG Live Streaming / Stereo Linking / Balanced Output
/ Headphone Monitoring
Dimensions: 270 x 285 x 357mm
Weight: 8.65kg (without power supply)）
Battery Capacity: 4850mAh x 2
Power Supply: AC：100V 240V（Power Supply）
DC：26V 4.8A（Internal Battery）
Product Introduction
Thank you for choosing the Musiccube T3 Pro.
The T3 Pro is a multifunctional portable PA system designed for live performances, outdoor
events, and mobile sound reinforcement applications. It features two 5 × 7-inch elliptical
low-frequency drivers and four 2-inch mid/high-frequency drivers arranged in an
acoustically coaxial design. This configuration allows the drivers to work together as a
coherent sound source, delivering balanced coverage, clear sound reproduction, and
consistent performance across the listening area.
The integrated three-channel mixer supports microphones, instruments, and line-level audio
sources. Each channel provides independent gain, three-band EQ, effect level adjustment,
and selectable input modes, allowing users to optimize the sound for different audio sources
and performance requirements.
Powered by an ADI high-fidelity digital signal processor, the T3 Pro delivers accurate signal
processing, detailed sound reproduction, and a natural tonal response. Three selectable
operating modes allow the system to be quickly adjusted for different performance and
music playback scenarios.
Continue enjoying the exceptional experience with the Musiccube T3 Pro!
Product structure
02
Speaker Mesh
Front Panel
Footpads
Removable battery
Knob
Rear Panel
Front Panel
Handle

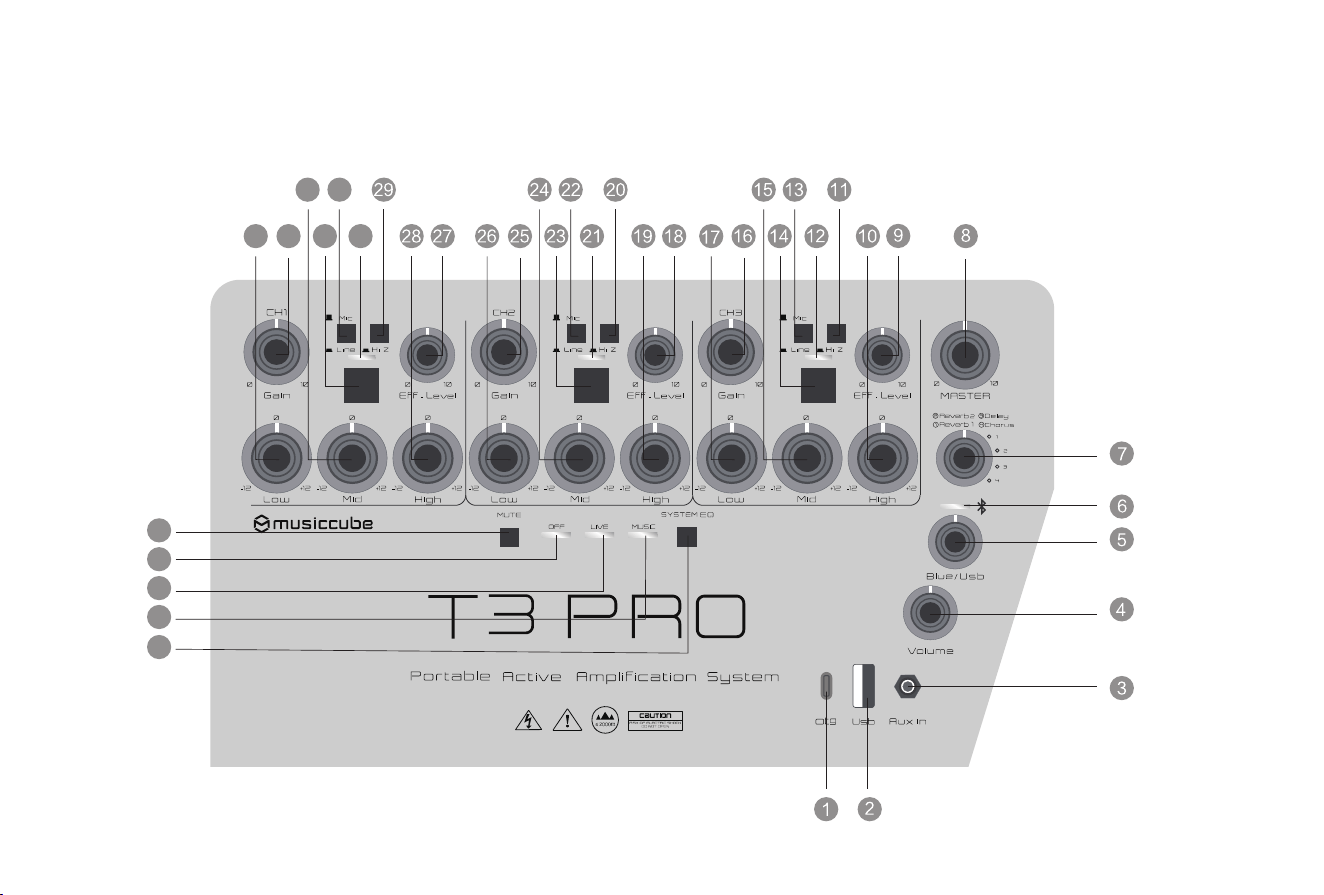

Front Panel Function Introduction (I)
03
HD HD HD
30
31
32
33
3435
37
39
38
36
40
Front Panel Function Introduction (II)
04
Name
Live Streaming via USB-C
USB Port
3.5mm AUX IN
AUX IN Volume Control
Bluetooth/USB Control Knob
Bluetooth Indicator
Channel Gain Control
Effect Volume Control
High EQ Control
Mid EQ Control
Low EQ Control
Mic/Line Input Selector
Hi-Z Input Selector
HD Indicator
HD Enhancement Button
Mute Button
Mode Indicator
Mode Selector Button
No.
1
2
3
4
5
6
7
8
9
18
27
10
19
28
11
20
29
12
21
30
13
22
31
14
23
32
16
25
34
17
26
35
36
37
38 39
40
15
33
24
Effect Selector
Master Volume Control
Description
Connect the USB-C input for live streaming with audio and mobile devices.
Connects to a USB storage device to stream music files.
Connects mobile phones or other audio devices.
Adjusts channel gain. Turn left to decrease, right to increase.
Switches between microphone and line input. Press to toggle.
Switches between high and low impedance input.
Turns HD sound enhancement on or off.
Lights when HD enhancement is active.
Press to mute/unmute the audio system.
Indicates the current audio mode.
Press to switch between Mute, Live, and Music modes.
Adjusts high frequency. Turn left to decrease, right to increase.
Adjusts mid frequency. Turn left to decrease, right to increase.
Adjusts low frequency. Turn left to decrease, right to increase.
Adjusts effect volume. Turn left to decrease, right to increase.
Press and hold for 3 seconds to power on Bluetooth, Rotate the knob to skip tracks, Press to pause/play.
Indicates Bluetooth connection status. Flashing indicates readiness to connect.
Selects the applied audio effect.
Controls the overall volume level.
Adjusts the volume for audio input via USB/3.5mm auxiliary.
Main Control
Channel Controls
Mode Selector

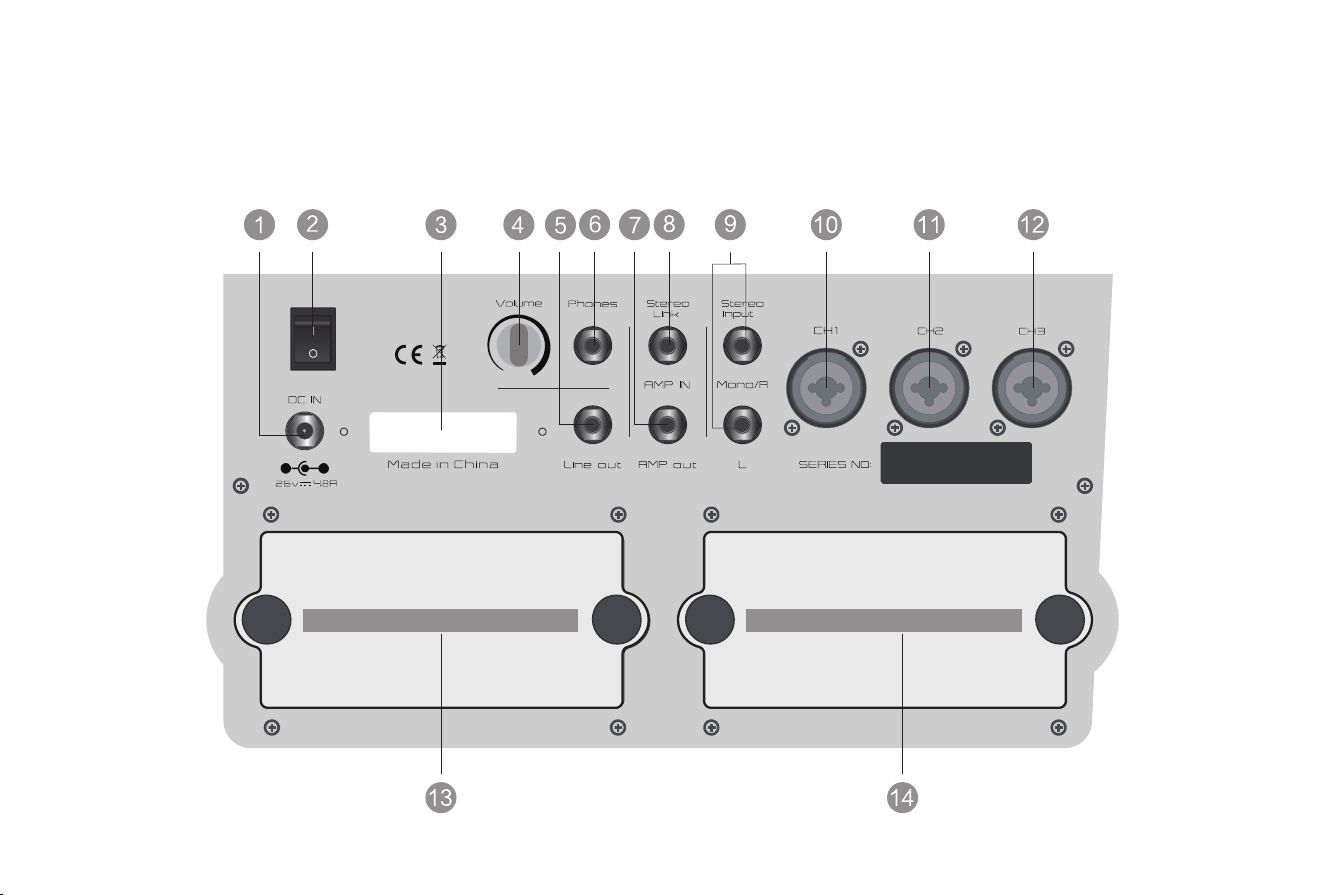

Rear Panel Function Introduction (I)
05
Rear Panel Function Introduction (II)
06
No. Description Name
Charging Port
Connects the power adapter for battery charging or DC operation.
Turns the power on/off.
Displays the current battery level.
Power Switch
Battery Level Display
Headphone Volume Control
Line Output Jack
Headphone Output
Stereo Link Output
Stereo Link Input
Stereo Line Input
Channel 1 Input Jack
Channel 2 Input Jack
Channel 3 Input Jack
Removable Battery Packs
1
2
3
4
5
6
7
11
12
14
13
10
9
8
Input for microphone, guitar, or other audio devices.
Input for microphone, guitar, or other audio devices.
Each battery pack can be charged separately and replaced as needed.
Accepts a stereo line-level signal through the L and Mono/R inputs.
Input for microphone, guitar, or other audio devices.
Connects headphones with a standard 6.35 mm plug.
Receives an audio signal from another speaker for stereo linking.
Adjusts the volume level for headphone output.
Connects to other audio equipment via 6.35mm output jack.
Use the 6.35mm jack to connect headphones.
1:GND2:HOT
3:COLD
TIP
RING
SLEEVE
HOT
COLD
GND
*The device connection interface is balanced (XLR/TRS). Please check the wiring
diagram of the connected device before making the connection.
07
1. Connect the power adapter to the speaker before plugging it into an AC outlet.
2. Before powering on, switch off all connected equipment and set the Master Volume and all Channel
Gain controls to minimum.
3. Use a moderate volume level. Do not set both the Channel Gain and Master Volume controls to
maximum, as this may damage the speaker system.
4. After extended use, allow the speaker to cool before operating it again.
5. Do not use or store the speaker in humid, hot, or extremely cold environments.
6. Keep the enclosure and ventilation openings clean and unobstructed.
7. If a malfunction occurs, stop using the speaker immediately and contact qualified service personnel.
Operating Precautions
08
Precautions
Usage Limitations
Cleaning & Maintenance
Power Supply Precautions
Battery Precautions
- Do not place this product on an unstable, damp surface, or near open flames or heat sources (such as stoves).
- Avoid placing the product near devices that may cause interference.
- Only use the power adapter and battery supplied with the product. Do not use non-original chargers or batteries.
- Only use the provided power adapter and cable supplied with this product.
- If the power adapter or cable is damaged, replace it with the original adapter and cable to prevent insufficient power supply or damage
to the circuit board.
- Do not excessively twist, bend, or pull the AC power cord, as this may expose or break the internal wiring.
- Do not use the power adapter and cable provided with this product on other devices.
- Do not allow children to operate this product alone. Keep it out of reach of infants to prevent risks of electric shock or burns.
- Do not insert or remove the power adapter plug with wet hands to avoid electric shock or injury.
- Do not disassemble the built-in rechargeable battery pack.
- Only use the original rechargeable battery pack provided with the product.
- Do not subject the rechargeable battery pack to impact or external force.
- Please charge the speaker when the battery level is below 20%.
- If the product will not be used for an extended period, recharge periodically to prevent battery damage.
Operating Environment
-As this product has a wooden structure, avoid using it in humid or direct sunlight conditions to prevent the enclosure from cracking.
- Do not submerge this product in water or expose it to moisture.
-Avoid using hard objects to wipe the surface, as this may cause scratches.
- Use a soft cloth for cleaning.
09
Additional Precautions
Troubleshooting and Issues
- Do not drop the product or strike it against hard objects, as this may cause injury or malfunction.
- Do not use the product if it is structurally damaged to avoid injury or other accidents.
- Do not modify or attempt repairs. Only qualified technicians should perform repairs to prevent fire, electric shock, or injury.
- If any abnormality or malfunction occurs, stop using the product immediately to avoid fire, electric shock, or injury.
- Abnormal heating of the power cord, power adapter, or plug during use.
- Smoke emission or a burning odor from the speaker.
- Cracking, looseness, or unusual sounds from any part of the speaker.
- Other abnormalities or malfunctions.
FCC Compliance Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the
equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and
can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and
operated with minimum distance 20cm between the radiator & your body.
10
Precautions
I. Warranty Policy
II. About Warranty
III. Non-Warranty Coverage
Type
Warranty Coverage
Warranty period
1 year
1 year
Speaker Components
Power Adapter / Power Cable / Battery
Main Unit
Accessories
1. The product's serial number and warranty card number serve as proof of warranty.
2. The warranty period starts from the date the customer receives the product.
3. Backpack, mobile device connection cables, and packaging materials are not covered under warranty.
1. Damage caused by improper transportation, usage, maintenance, or storage by the customer.
2. Damage resulting from repairs by unauthorized service centers, including self-installation or disassembly by the customer.
3. Lack of warranty card, serial number, or valid proof of purchase, or inability to verify the product is within the warranty period.
4. Tampering with or alteration of the product's serial number.
5. Damage due to unavoidable natural disasters.
6. Product exceeding the warranty period.
Follow Us for More Updates
Official Website ：www.musiccube.com.cn
Service Hotline：+86 0755-82730091
Manufacturer：Shenzhen Liping Technology Co., Ltd.
Address ：9F,Building 2,Baolong Specialized and Sophisticated Industrial Park,Baolong Street,Longgang District,Shenzhen,China
