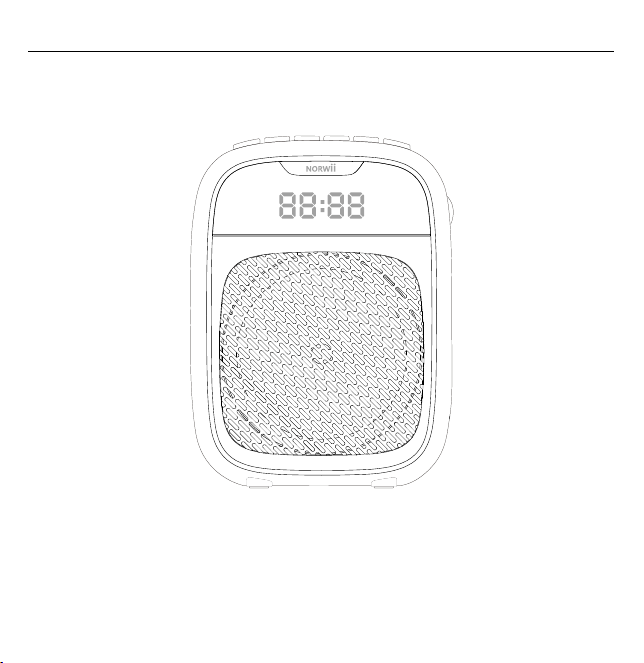

Portable Digital Voice Amplifier
S328 Bluetooth Edition User Manual
Battery Specification:
□2000mAh
□4000mAh
2
Welcome to use the Bluetooth version of the digital voice amplifier S328, the lithium battery
capacity can reach 4000mAh. With double battery life and long standby capacity, it is suitable for
teaching, conferences, training, tour guides, singing, square dancing, sales promotion, outdoor
activities, etc. Please read the instructions carefully before use in order to operate the amplifier
correctly and obtain the ideal performance.
Product functional features:
1. FM radio function, with FM wireless microphone to achieve wireless amplification.
2. he built-in capacity of voice amplifier is 2000mAh or 4000mAh.
3. Equipped with mainstream USB-C charging port.
4. With Bluetooth function, you can connect to your mobile phone to listen to music, and you
can also answer and reject calls.
5. Support TF card, U disk play, AUX-in, support MP3, WMA, WAV files, support cycle play.
Computer speaker function, it can transmit audio through USB port.
6. Clear and accurate voice tips for mode switch.
7. Memorizing the status and playback location, enter the state before shutdown automatically
every time you turn it on.
8. Digital amplifier technology, 5W rated power, 10W maximum peak power.
3

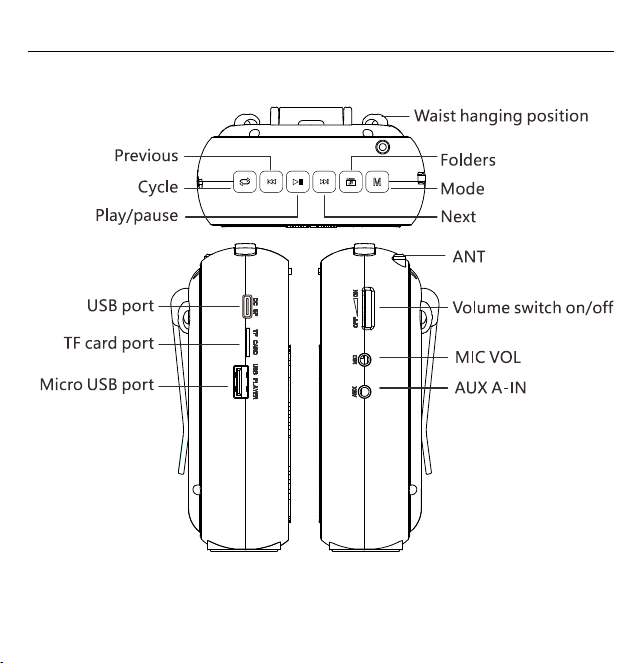

Function map:
4
Keys and Ports instruction：
Mode
In power-on mode, short press to switch mode, mode switching
sequence: standby mode → MP3 mode (U disk) →MP3 mode
(TF card) →AUX mode (the audio cable plugged in) →radio
mode →Bluetooth mode →recording mode→PC mode（use the
USB-C charging data cable to connect to the computer）; Some
modes will be skipped when the relevant functional interfaces
are not in use.
Pause/Play
Search radio
channel
MP3, USB sound card and Bluetooth mode, short press to pause
(FM is to mute), short press again to play (FM is to cancel mute).
In the recording mode, short press to start recording and short
press again to pause recording, long press to stop recording and
play the recording file. In FM mode, long press to search radio
channels.
Next
In MP3 Mode or Bluetooth mode, short press to play the next
song. In MP3 Mode, long press to fast forward, and in FM mode
to play the next radio channel.
Previous
In MP3 Mode or Bluetooth mode, short press to play the previous
song. In MP3 Mode, long press to fast backward, and in FM
mode to play the previous radio channel.
Folders
In MP3 mode, switch between folders of U disk or TF card; in
FM mode for FM recording and recording exit
Cycle/Coding
In MP3 mode, short press cycle button to switch between full
cycle and single cycle mode; For UHF wireless version in UHF
mode, short press to do pairing.
5
Mic-in
In Standby mode, insert microphone to 3.5mm microphone
interface to amplify; In recording mode, insert microphone to
record.
Aux-in
3.5mm audio interface, support music play, when audio cable
plugged in, it will switch to AUX mode automatically
USB Port
When USB disk inserted, it will play MP3 file automatically.
When the voice amplifier is connected to a computer, you can
read and write USB disk through the computer.
TF Card
Port
When TF card inserted, it will play MP3 file automatically.
When the voice amplifier is connected to a computer, you can
read and write TF card through the computer.
Charging
Data Port
The charging interface supports a 5V mobile phone charger and
computer USB port; Connecting the port to a computer, it will be
a USB sound card speaker. You can read and write USD disk or
TF card through a computer.
Dial Volume
Switch
Rotating the dial can switch on/off the amplifier and adjust the
volume. Rotate the switch counterclockwise (push up) to turn on
the amplifier and increase volume, rotate the switch clockwise
(pull down) to decrease volume till turn off the power.
LED digital screen illustration:
1. Press “mode” key to “Standby mode”, display status like this:
6
2. Short press “cycle” key
till the LED screen becomes light, display status like this:
3. Press “mode” key to “Radio mode”, display status like this:
4. Press “mode” key to “Bluetooth mode”, display status like this:
5. In “standby mode” insert TF card or U disk to “MP3 mode”, display status like this:
6. In “standby mode” insert AUX cable to switch to “AUX mode”, display status like this:
7. Through USB-C charging port to connect computer, display status like this:
7
8. Press “mode” key to “recording mode” display status like this:
Operation description:
1. Power switch: Push up the switch counterclockwise, turn on the amplifier when you hear a
"click". Voice broadcast the current mode and the LED screen displays the current mode. Pull
down the switch clockwise, turn off the amplifier when you hear a "click". When it is switched
off, the amplifier will remember the current mode and automatically load the mode when it
turn on the next time.
2. Volume control: Rotate the volume dial to adjust the volume. Push the round button
counterclockwise to increase the volume and pull down clockwise to reduce the volume.
3.
Microphone amplification:
Insert the microphone plug into the MIC interface, and press
to switch to Standby mode to amplify. Please wear the microphone well and properly
adjust the microphone position and keep about 50cm distance from amplifier to avoid howling.
8
4.
MP3 play:
In “Standby mode” insert U disk or TF card saved with audio files in MP3, WMA
and WAV formats, it will play the audio files automatically. Short press / to switch
to next song/previous song, long press / fast forward / fast backward. Short press
switch to single loop, directory loop and all cycle.
5.
FM radio:
Pull-out the antenna to the longest. Press switch to “radio mode”. Long
press can search radio channels automatically and broadcast the first radio channel
automatically after searching. Press or can switch your favorite channels
randomly after searching. Insert TF card and U disk, press can record the current
displaying content, short press can stop the recording, and the recording file is stored
in TF card or U disk. FM receives frequency range:
87.5-108MHz.
6.
Bluetooth mode：
In Bluetooth mode,
after pairing the mobile phone and the voice amplifier,
you can play music or other audio files in the phone, short press / to switch to
next song/previous song, short press to answer the call, long press to reject the
call. If you press this key during the call, it will hang up the call.
7. Aux mode: In “standby mode”, through the 3.5mm AUX audio cable, the amplifier can be
connected with computers, mobile phones, PAD, MP3，MP4 and other devices, it will switch
9
to AUX mode automatically and the LED screen will display LINE, and it can be used as
external speaker at this time.
8. Connect the computer: When you connect the computer through USB-C charging interface,
it displays “Hdd” on the LED screen. You can read and write the U disk or TF card inserted in
the amplifier at this time. Note that when the U disk and TF card are inserted into it
simultaneously, the U disk will be identified preferentially.
9.
Recording:
When recording, a USB flash drive or TF card must be inserted, and the amplifier
has a built-in recording microphone, so there is no need to insert a microphone. Short press
switch to “recording mode”, short press and start recording at the power switch.
LED screen displays the recording time, short press again to pause recording. Long
press
to save the recording and exit recording mode. You can play the recording file
in MP3 mode.
10.
Low battery:
When the red LED of the voice amplifier flashes quickly and there is a prompt
tone, it means that the power is low. Please charge the voice amplifier. It will take 3-4 hours
to be fully charged.
11. Charging: Connect the amplifier to the computer, 5V mobile phone charger, mobile power
10
bank and other devices through the USB-C charging data cable that is randomly configured,
and then charge. After turning on the device and charging it, it will enter PC mode, and the
battery symbol in the LED display will appear once every second. When the battery is fully
charged, the battery symbol will go out; when the battery is turned off and charged, the LED
display will directly display the power data. For example, if the number 82 is displayed on the
display, it means that the power supply is 82% charged. After fully charged, the battery symbol
in the LED display goes out.
Tips and cautions:
1. The pickup head should be covered with a sponge cover, and the microphone is placed 1 to 2
centimeters in front of your mouth when you use microphone to amplify sound. It is suggested
that the sponge cover should not be removed, because the sponge cover can weaken the air
flow, reduce the noise, and make the voice be clear.
2. This product can only be charged with standard voltage 5V. It does not support all kinds of
quick charging. Charging with a voltage higher than 5V may burn the product or fail to charge.
3. Microphone should not be close to the amplifier, and it’s better if place the amplifier against
the microphone. If howling occurs you can reduce the volume appropriately or enlarge the
11
distance between the microphone and the amplifier. The microphone pickup head should not
be grasped by hand, otherwise it will be easily howling because of resonance.
4. When you use it for the first time, or for a long time before you use it again, please keep the
amplifier be fully charged to ensure battery life.
5. In order to avoid distortion or damage caused by excessive voltage or current, please do not
insert the external sound source signal into the MIC interface.
6. Please don’t disassemble, or repair it by non-professional technical personnel. If there are any
problems, please contact our company for after sale service
7. In order to prevent the danger of short-circuiting, please keep products or accessories away
from water, moisture, rain or splash.
8. Do not use the amplifier in inflammable and explosive areas or in areas where radio equipment
is prohibited. When you entering dangerous areas or prohibited areas, power should be turned
off to avoid potential safety hazards.
9. Do not use it in high temperature, high pressure and high humidity environment (such as
sunshine exposure, stove, heater, humidifier, water pool, etc.). Do not place it or close to
dangerous sources (fire source, liquid, explosive, high-speed machinery, etc.) in order to avoid
12
damage and danger.
Product specification:
1. Battery capacity 4000m Ah parameter:
Rated power
5W
Peak power
10W
Loudspeaker
3-inch 2ohmic magnetic
speaker
Frequency response
120Hz-15KHz
Battery
2 x 3.7V/2000mAh lithium
batteries in parallel
Charging voltage
USB/DC 5V 1A
Charging
time
4-6 hours
Using time
35-38hours
Size
125*92.5*48.5mm
Net weight
254.5g
2. Battery capacity 2000m Ah parameter:
Rated power
5W
Peak power
10W
Loudspeaker
3-inch 2ohmic magnetic
speaker
Frequency response
120Hz-15KHz
Battery
3.7 v/2000mAh, 1 lithium
battery
Charging voltage
USB/DC 5V 1A
Charging
time
2-3 hours
Using time
16-18hours
Size
125*92.5*48.5mm
Net weight
208.5g
Packing List
Voice amplifier *1，3.5mm audio cable *1，USB-C cable*1，Head wear microphone*1，
Hanging rope*1，User manual *1.
13
Declaration：
Hereby, Norwii declares that the radio equipment type S328 is in compliance with Directive
2014/53/EU. The full text of the EU declaration of conformity is available at the following internet
address: http://www.norwii.com/downloads/downloads/eu_doc/eu.doc
