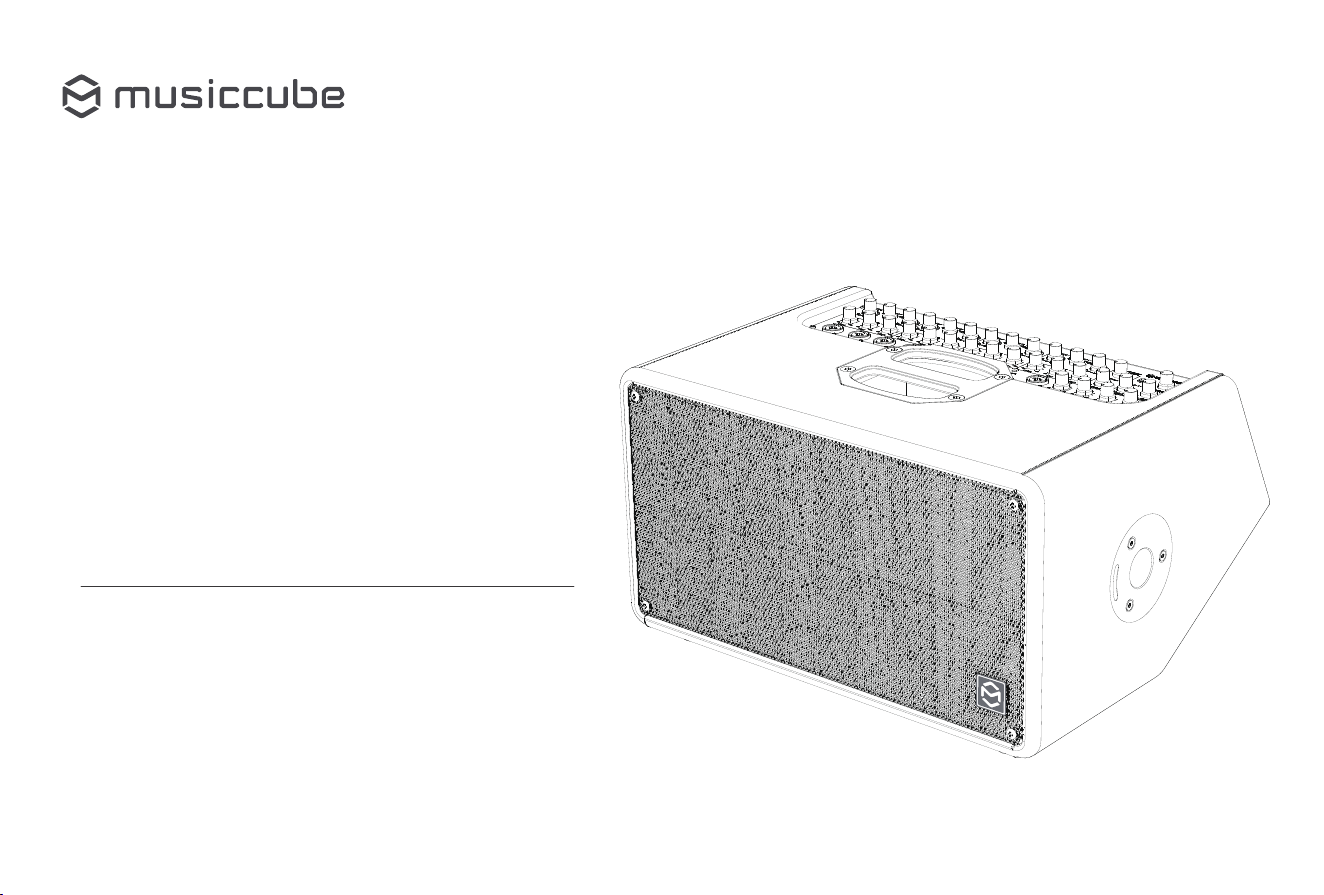

Multifunctional Portable PA System
Musiccube T2 Max
User Manual
Product Introduction Specifications
Thank you for choosing Musiccube T2 Max.
The T2 Max is a high-performance portable PA system designed for mobile performances
and sound reinforcement applications. It features nine high-efficiency neodymium drivers
and a line-array acoustic design, delivering controlled directivity, strong sound projection,
and clear, balanced coverage over extended distances.
The system provides multiple input channels, each offering four source-specific voicing
presets: Vocal, Electric Guitar, Acoustic Guitar, and Keyboard. These presets allow the
sound response to be quickly optimized for different input sources.
Four built-in effects are available: Reverb 1, Reverb 2, Delay, and Echo. The Dry/Wet mix
and effect depth can be adjusted independently, providing flexible sound processing for a
wide range of instruments, vocals, and performance environments.
Featuring a lightweight and portable design, the T2 Max provides approximately 6–8
hours of battery-powered operation, depending on the volume level and operating
conditions. It is suitable for outdoor rehearsals, street performances, small live events, and
other mobile sound reinforcement applications.
Continue exploring and enjoying the remarkable experience of the Musiccube T2 Max!
Model
Power
Frequency range
Audio input
Additional Features
Effects
Speaker Units
Dimensions
Net Weight
Power supply
Musiccube T2 Max
Rated Power 320W / Peak Power 480W
50Hz-20kHz
4 x Microphone/Line Inputs (XLR/TRS)
1 x Microphone Input (XLR/TRS)
1 × 3.5 mm AUX Input
1 x RCA Audio Input
1 x Bluetooth Input
1 x USB Input
OTG Live Streaming and Internal Recording / Balanced Output /
Headphone Monitoring
Reverb 1 / Reverb 2 / Delay / Echo
2 × 8-inch Low-Frequency Drivers
6 × 2-inch Mid/High-Frequency Drivers
1 × 3-inch Full-Range Monitor Driver
470 × 371 × 264 mm
12.65 kg
AC: 100V 240V
DC: 26V 4.8A
01

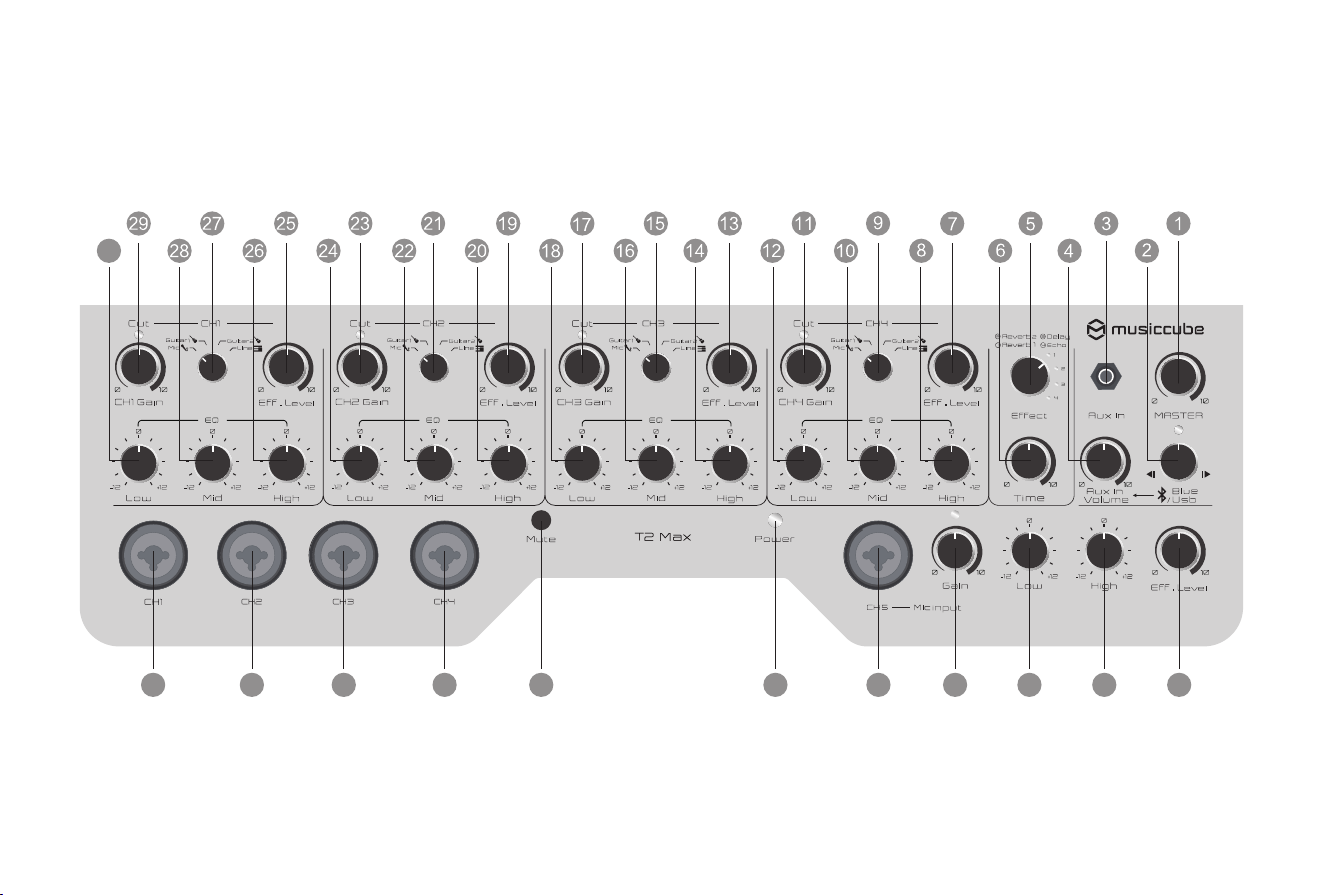

Front Panel Function Introduction (I)
30
31
32
33
34 35 40
41
37 393836
02
Front Panel Function Introduction (II)
DescriptionName
Bluetooth/USB Control
Press and hold for 3 seconds to enable Bluetooth. Turn to select the previous or next track.
Press briefly to play or pause.
Adjusts the overall output volume.Master Volume
AUX Volume
3.5 mm AUX Input
Effect Selector
Effect Time
Channel Gain
Channel Effect Level
High EQ
Mid EQ
Low EQ
Voicing Selector
Channel 1 Input
Channel 2 Input
Channel 3 Input
Channel 4 Input
Channel 5 Input
Mute Button
Status Indicator
Adjusts the gain for Channels 1–5. Turn counterclockwise to decrease and clockwise to increase.
Selects Vocal, Instrument 1, Instrument 2, or Line mode.
Connects a microphone, guitar, or other electronic instrument.
Connects a microphone, guitar, or other electronic instrument.
Connects a microphone, guitar, or other electronic instrument.
Connects a microphone, guitar, or other electronic instrument.
Connects a dynamic microphone, condenser microphone, or other compatible device.
Mutes or restores the speaker output.
White: normal operation. Red: muted.
Adjusts the high-frequency level.
Adjusts the mid-frequency level.
Adjusts the low-frequency level.
Adjusts the effect level for Channels 1–5. Turn counterclockwise to decrease and clockwise to increase.
Connects a smartphone or other external audio source.
Selects Hall, Concert Hall, Delay, or Echo.
Adjusts the time parameter of the selected effect.
Adjusts the volume for Bluetooth, USB, and the 3.5 mm AUX input.
No.
1
2
3
4
5
6
10
16
22
28
9
15
21
27
32
33
34
37
36
35
17
11
23
29
38
12 18 24
30
39
7
19
13
25
41
31
8
14
20
40
26
Main Controls
Channel Controls
Channel Inputs
03

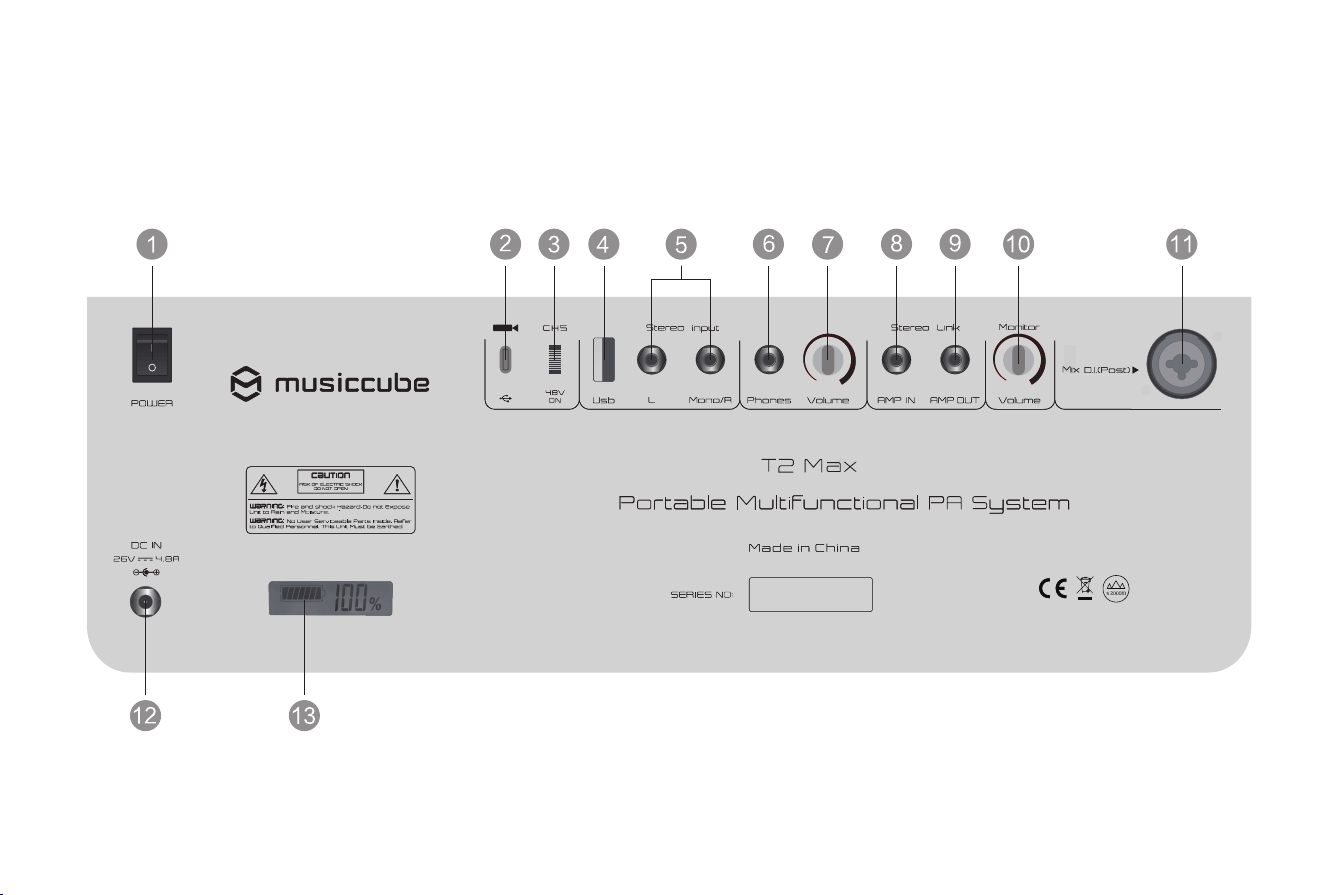

Rear Panel Function Introduction (I)
04
Rear Panel Function Introduction (II)
No. DescriptionName
Power Switch
Turns the power on or off.
Connects the speaker to a mobile device using a USB-C recording cable.
Supports live streaming and internal recording.
Turns 48 V phantom power on or off for Channel 5.
OTG Live Streaming / Internal
Recording Port
48 V Phantom Power Switch
USB Port
Stereo Line Input
Headphone Monitor Output
Headphone Volume Control
Stereo Link Input
Stereo Link Output
Monitor Speaker Volume
Balanced Output
DC Power / Charging Input
1
2
3
4
5
6
7
11
12
13
10
9
8
Main Controls
Connects to an audio interface or mixing console.
Connects the power adapter for battery charging or DC operation.
Battery Level Display
Displays the current battery level.
Independently adjusts the built-in monitor speaker volume.
Receives an audio signal through a 6.35 mm cable.
Sends an audio signal through a 6.35 mm cable.
Connects monitoring headphones with a 6.35 mm plug.
Adjusts the headphone monitoring volume.
Connects a USB flash drive for audio playback.
Accepts a stereo audio signal.
05
1. Connect the power adapter to the speaker before plugging it into an AC outlet.
2. Before powering on, switch off all connected equipment and set the Master Volume and all Channel
Gain controls to minimum.
3. Use a moderate volume level. Do not set both the Channel Gain and Master Volume controls to
maximum, as this may damage the speaker system.
4. After extended use, allow the speaker to cool before operating it again.
5. Do not use or store the speaker in humid, hot, or extremely cold environments.
6. Keep the enclosure and ventilation openings clean and unobstructed.
7. If a malfunction occurs, stop using the speaker immediately and contact qualified service personnel.
Operating Precautions
06
07
Precautions
Usage Limitations
Cleaning & Maintenance
Power Supply Precautions
Battery Precautions
- Do not place this product on an unstable, damp surface, or near open flames or heat sources (such as stoves).
- Avoid placing the product near devices that may cause interference.
- Only use the power adapter and battery supplied with the product. Do not use non-original chargers or batteries.
- Only use the provided power adapter and cable supplied with this product.
- If the power adapter or cable is damaged, replace it with the original adapter and cable to prevent insufficient power supply or damage
to the circuit board.
- Do not excessively twist, bend, or pull the AC power cord, as this may expose or break the internal wiring.
- Do not use the power adapter and cable provided with this product on other devices.
- Do not allow children to operate this product alone. Keep it out of reach of infants to prevent risks of electric shock or burns.
- Do not insert or remove the power adapter plug with wet hands to avoid electric shock or injury.
- Do not disassemble the built-in rechargeable battery pack.
- Only use the original rechargeable battery pack provided with the product.
- Do not subject the rechargeable battery pack to impact or external force.
- Please charge the speaker when the battery level is below 20%.
- If the product will not be used for an extended period, recharge periodically to prevent battery damage.
Operating Environment
-As this product has a wooden structure, avoid using it in humid or direct sunlight conditions to prevent the enclosure from cracking.
- Do not submerge this product in water or expose it to moisture.
-Avoid using hard objects to wipe the surface, as this may cause scratches.
- Use a soft cloth for cleaning.
08
Additional Precautions
Troubleshooting and Issues
- Do not drop the product or strike it against hard objects, as this may cause injury or malfunction.
- Do not use the product if it is structurally damaged to avoid injury or other accidents.
- Do not modify or attempt repairs. Only qualified technicians should perform repairs to prevent fire, electric shock, or injury.
- If any abnormality or malfunction occurs, stop using the product immediately to avoid fire, electric shock, or injury.
- Abnormal heating of the power cord, power adapter, or plug during use.
- Smoke emission or a burning odor from the speaker.
- Cracking, looseness, or unusual sounds from any part of the speaker.
- Other abnormalities or malfunctions.
FCC Compliance Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated
with minimum distance 20cm between the radiator & your body.
Precautions
I. Warranty Policy
II. About Warranty
III. Non-Warranty Coverage
Type
Warranty Coverage
Warranty period
1 year
1 year
Speaker Components
Power Adapter / Power Cable / Battery
Main Unit
Accessories
1. The product's serial number and warranty card number serve as proof of warranty.
2. The warranty period starts from the date the customer receives the product.
3. Backpack, mobile device connection cables, and packaging materials are not covered under warranty.
1. Damage caused by improper transportation, usage, maintenance, or storage by the customer.
2. Damage resulting from repairs by unauthorized service centers, including self-installation or disassembly by the customer.
3. Lack of warranty card, serial number, or valid proof of purchase, or inability to verify the product is within the warranty period.
4. Tampering with or alteration of the product's serial number.
5. Damage due to unavoidable natural disasters.
6. Products that are outside the warranty period.
09
Follow Us for More Updates
Official Website ：www.musiccube.com.cn
Service Hotline：+86 755-82730091
Manufacturer：Shenzhen Liping Technology Co., Ltd.
Address ：9F, Gate 4, Building 2, Baolong Specialized and Sophisticated Industrial Park, Longgang District, Shenzhen, China
