ITEM #5519820
5645680
Español p. 20
ATTACH YOUR RECEIPT HERE
ADJUNTE SU RECIBO AQUÍ
Purchase Date
1
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 800-527-1292, 8:30 a.m. - 5 p.m., CST, Monday - Friday.
MODEL #HAY52BNK7LR
HAY52MBK7LR
HAYWARD LED CEILING FAN
4009218
APPROVED FOR USE IN
DAMP LOCATIONS
2
Safety Information ...........................................................................................................................
.
. 2
Package Contents ...........................................................................................................................
.
. 5
Hardware Contents
..........................................................................................................................................
6
Preparation ......................................................................................................................................... 6
Initial Installation ................................................................................................................................. 6
Downrod-Style Fan Mounting .............................................................................................................
.
8
Closemount-Style Fan Mounting .......................................................................................................10
Wiring ................................................................................................................................................11
Final Installation ............................................................................................................................... 13
Operating Instructions ...................................................................................................................... 16
Care and Maintenance ................................................................................................................
.
.... 18
Troubleshooting ............................................................................................................................... 18
Limited Lifetime Warranty ................................................................................................................ 19
Replacement Parts List .................................................................................................................... 19
TABLE OF CONTENTS
CAUTION: Changes or modifications not approved by the party responsible for compliance could
void the user's authority to operate the equipment.
*NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Distributed by: Litex Industries Inc., P.O. Box 535639, Grand Prairie, TX, 75050; 800-527-1292
The device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference; (2) this device must accept any interference
received, including interference that may cause undesired operation.
NOTE: Dimmable to 10%
SAFETY INFORMATION
3
READ AND SAVE THESE INSTRUCTIONS
Please read and understand this entire manual before attempting to assemble, install or operate
the product. Review the accompanying assembly diagrams.
• Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for repairs,
it must be shipped in its original packaging to ensure proper protection against damage that might
exceed the initial cause for return.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical Code
and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you
are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to the
floor and at least 30 in. from the end of the blades to any obstruction.
• After you install the fan, make sure all connections are secure to prevent the fan from falling.
• The net weight of this fan including the light kit is: 29 lbs.
SAFETY INFORMATION
To reduce the risk of fire, electrical shock or personal injury, mount fan to outlet box
marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS. OR LESS" and use mounting
screws provided with the outlet box. Most outlet boxes commonly used for the support of
lighting fixtures are not acceptable for fan support and may need to be replaced. Consult a qualified
electrician if in doubt.
When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box; do NOT use a plastic
outlet box. Secure the outlet box directly to the building structure. The outlet box and its support must
be able to support the moving weight of the fan (at least 35 lbs.).
To avoid personal injury, the use of gloves may be necessary while handling fan parts with sharp
edges.
To reduce the risk of fire, electrical shock or personal injury, wire connectors provided with this fan are
designed to accept only one 12-gauge house wire and two lead wires from the fan. If your house wire
is larger than 12-gauge or there is more than one house wire to connect to the corresponding fan lead
wires, consult an electrician for the proper size wire connectors to use.
WARNING
DANGER
When using an existing outlet box, make sure the outlet box is securely attached to the building
structure and can support the full weight of the fan. Failure to do this can result in serious injury or
death. The stability of the outlet box is essential in minimizing wobble and noise in the fan after
installation is complete.
To reduce the risk of serious bodily injury, DO NOT use power tools to assemble any part of the fan,
including the blades.
4
SAFETY INFORMATION
CAUTION
Be sure outlet box is properly grounded and that a ground wire (green or bare) is present.
Once installation is complete, carefully check all screws, bolts and nuts on fan motor assembly to
ensure that they are secured.
Do NOT tamper with or attempt to repair LED component. The light source is designed for this specific
application and should not be serviced by untrained personnel. If any servicing is required, call our
customer service department.
To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed control
device or control fan speed with a full range dimmer switch.
To reduce the risk of fire, electrical shock or personal injury, do not bend the blades when installing or
balancing them or when cleaning the fan. Do not insert objects between the rotating fan blades.
To reduce the risk of personal injury, use only parts provided with this fan. The use of parts OTHER
than those provided with this fan will void the warranty.
Before installation, be sure to shut off electricity at main switch or circuit breaker in order to avoid
electrical shock.
WARNING
The DC Motor will not operate until blades are installed.

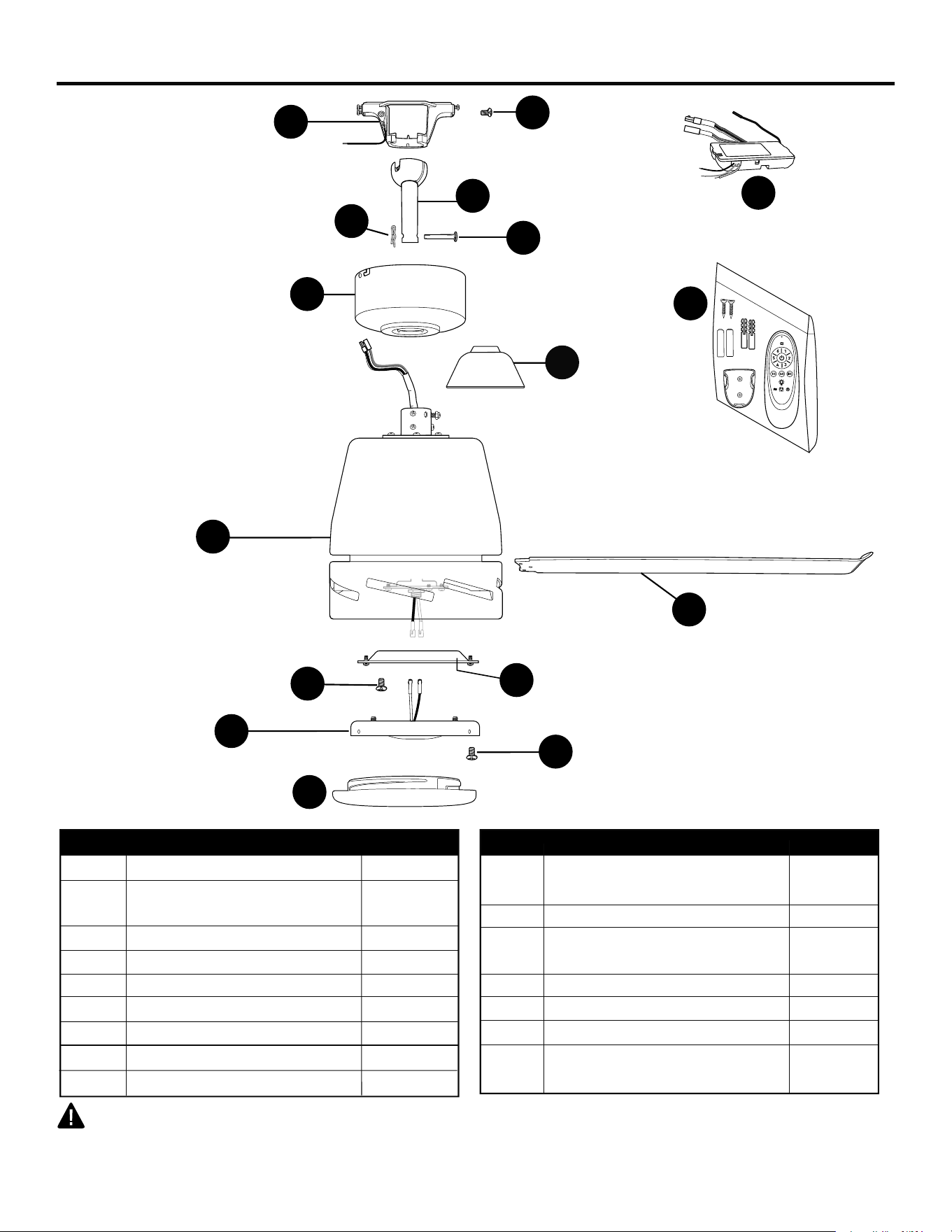

PACKAGE CONTENTS
5
IMPORTANT REMINDER: You must use the
parts provided with this fan for proper installation
and safety.
A Downrod 1
B Mounting Bracket 1
(preassembled)
C Canopy 1
D Motor Housing 1
E Shade 1
F LED Light Kit 1
G Remote Control Receiver 1
H Pin (preassembled) 1
I Clip (preassembled) 1
DESCRIPTIONPART
QUANTITY
J Motor Plate Screw 3
(preassembled)
K Fitter Plate 1
L Canopy Mounting Screw 4
(preassembled)
M Blade 7
N Yoke Cover 1
O Remote Pack 1
P Fitter Plate Screw 3
(preassembled)
DESCRIPTION
QUANTITY
PART
D
F
J
I
H
G
A
N
E
C
B
P
L
O
M
K
6

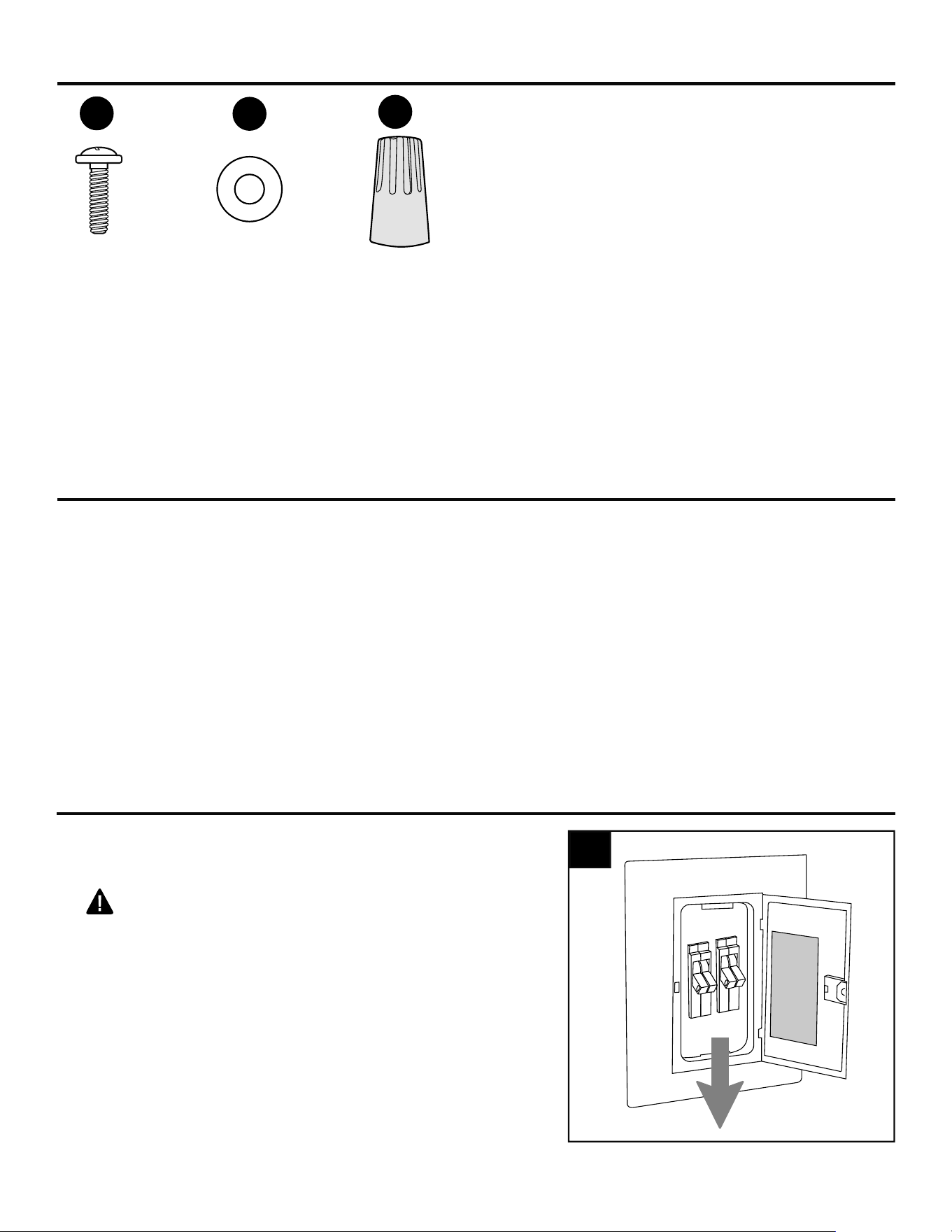

HARDWARE CONTENTS (shown actual size)
ON
OFF
ON
OFF
1
Turn off circuit breakers and wall switch to the fan
supply line leads.
DANGER: Failure to disconnect power supply
prior to installation may result in serious injury or
death.
1.
INITIAL INSTALLATION
Before beginning assembly of product, make sure all parts are present. Place motor on carpet or on
foam to avoid damage to finish. Compare parts with package contents list and hardware contents list. If
any part is missing or damaged, do not attempt to assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Stepladder and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself Wiring Handbook and Wire
Cutters
PREPARATION
Blade
Screw
Qty. 21
+ 1 extra
CC
Wire
Connector
Qty. 4
AA
BB
CC
Rubber
Blade
Washer
Qty. 21
+ 1 extra
INITIAL INSTALLATION
7

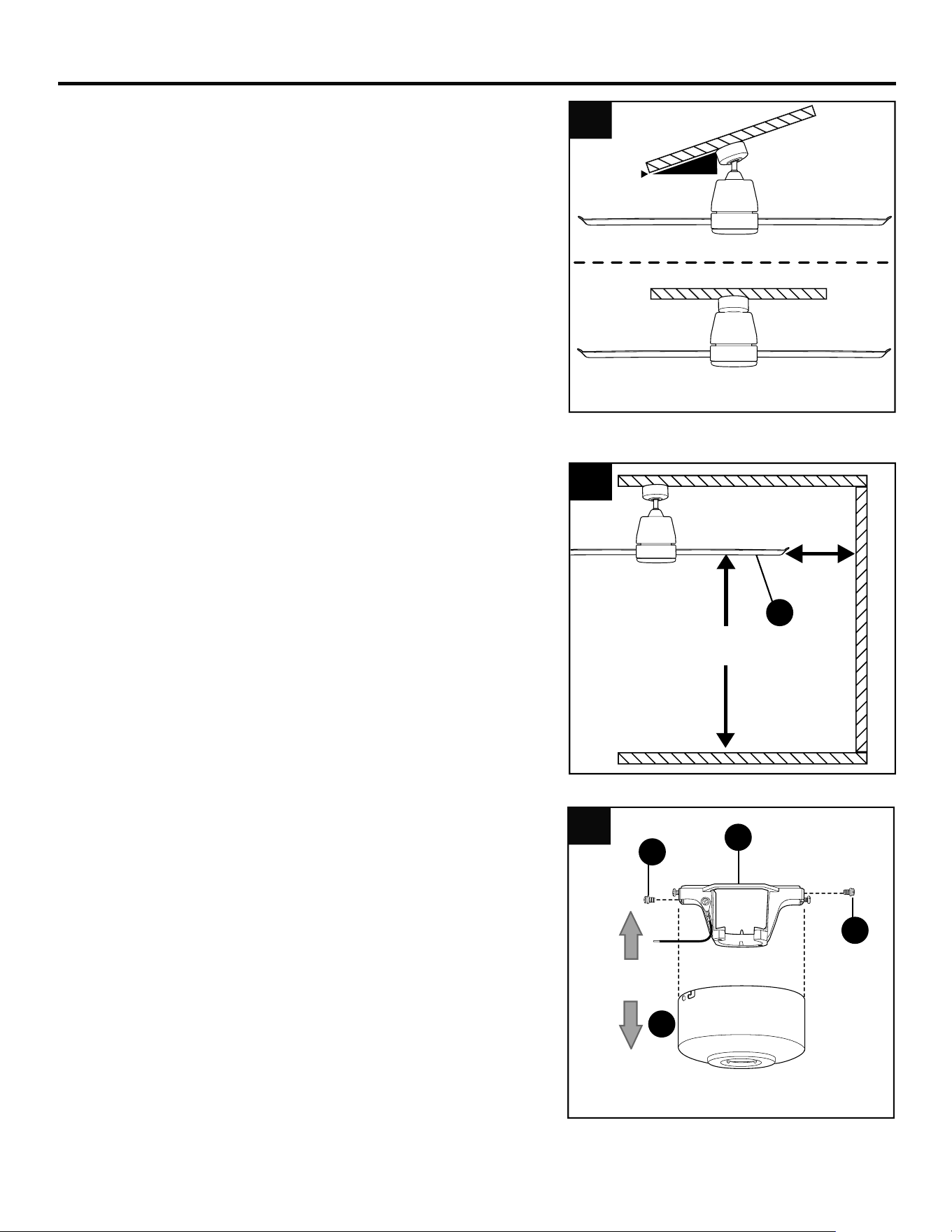

2.
Determine mounting method to use.
A. Downrod mount (standard or angled ceiling).
B. Closemount (standard ceiling only).
IMPORTANT: If using the angle mount, check to
make sure the ceiling angle is not steeper than 19°.
*Helpful Hint: Downrod-style mounting is best
suited for ceilings 8 ft. or higher. For taller ceilings
you may want to use a longer downrod (not
included). Angle-style mounting is best suited for
angled or vaulted ceilings. A longer downrod is
sometimes necessary to ensure proper blade
clearance. Closemount mounting is more suitable
for ceilings lower than 8 ft. high.
Check to make sure blades (M) will be at least
30 inches from any obstruction. Check downrod
(A) length to ensure blades (M) will be at least 7 ft.
above the floor.
3.
7 ft.
min.
30 in.
min.
3
M
2
A
B
19° max.
4
B
C
L
L
4.
Loosen canopy mounting screws (L) in slotted
holes of canopy (C) and remove the other two
canopy mounting screws (L); save for later use.
Remove mounting bracket (B) from canopy (C).

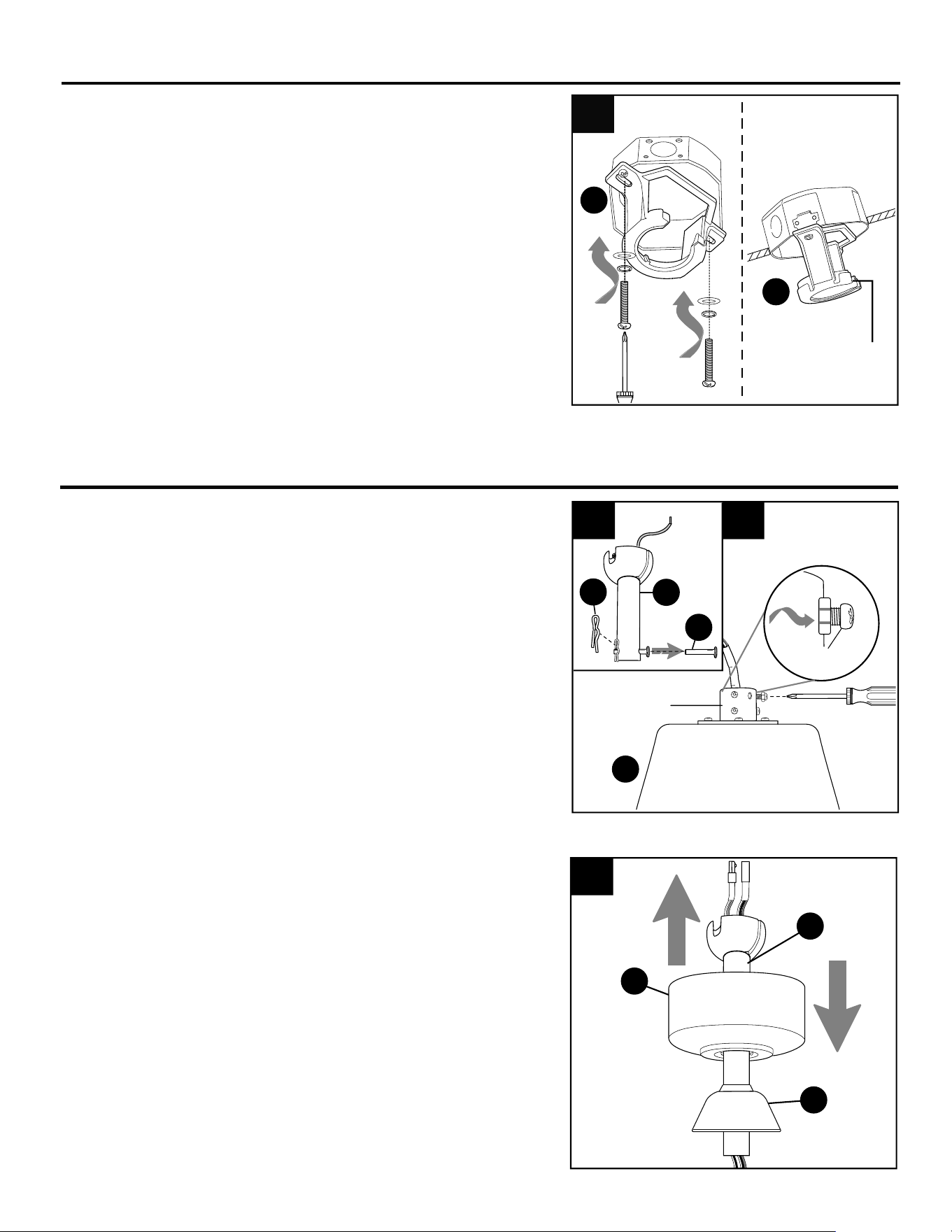

8
Remove pin (H) and clip (I) from downrod (A).
Partially loosen preassembled set screws and nut
in yoke at top of motor housing (D).
1a.
1a
I
1b
Set Screw
Sideview
H
Yoke
2.
Insert downrod (A) through canopy (C) and yoke
cover (N).
Then, thread wiring from motor housing (D)
through downrod (A).
1b.
DOWNROD-STYLE FAN MOUNTING
D
A
INITIAL INSTALLATION
Secure mounting bracket (B) to outlet box (not
included) using screws, spring washers and flat
washers provided with the outlet box.
*NOTE: It is very important you use the proper
hardware when installing the mounting bracket (B) as
this will support the fan.
IMPORTANT: If using the angle mount, make sure
open end of mounting bracket (B) is installed facing the
higher point of the ceiling, and ensure the ceiling angle
is not steeper than 19°.
Open End
4
B
B
ANGLE MOUNTSTANDARD
MOUNT
5.
5
For DOWNROD-STYLE FAN MOUNTING, proceed to
Step 1 below.
For CLOSEMOUNT-STYLE FAN MOUNTING, skip to
page 10.
2
N
A
C
9

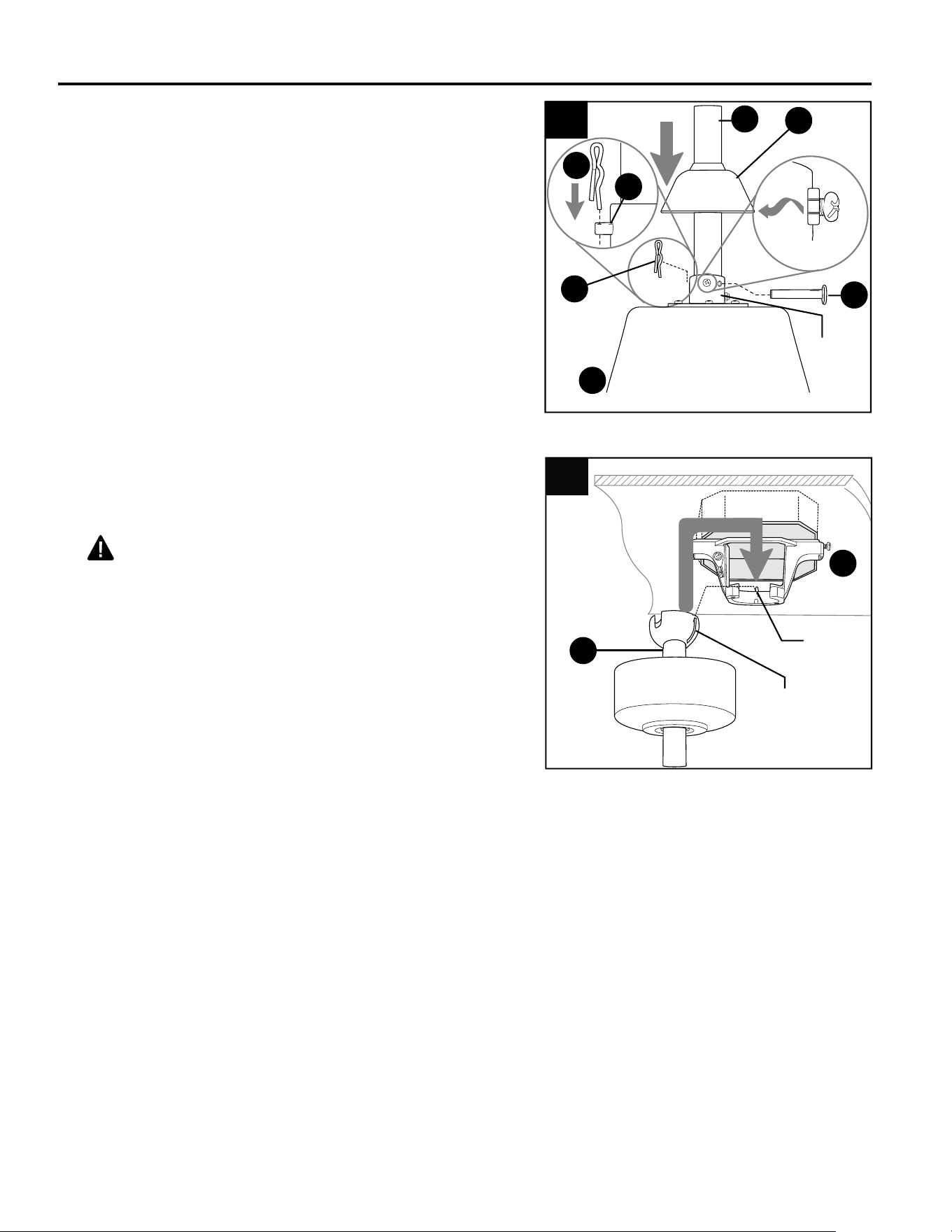

DOWNROD-STYLE FAN MOUNTING
Install hanging ball of downrod (A) into opening of
mounting bracket (B). Align one of the slots in
hanging ball with tab in mounting bracket (B).
DANGER: Failure to align one of the slots in
the ball with the tab may result in serious injury or
death.
Continue to WIRING on page 11.
B
4.
Slot
4
A
Tab
3.
Slip downrod (A) into motor housing yoke, align
holes and re-install pin (H) and clip (I). Tighten set
screws in motor housing yoke and then tighten
preassembled nut on one of the set screws. Then,
slide yoke cover (N) down until it rests on top of
motor housing (D).
3
Set Screw
and Nut
Sideview
D
N
A
H
I
I
H
Yoke
10

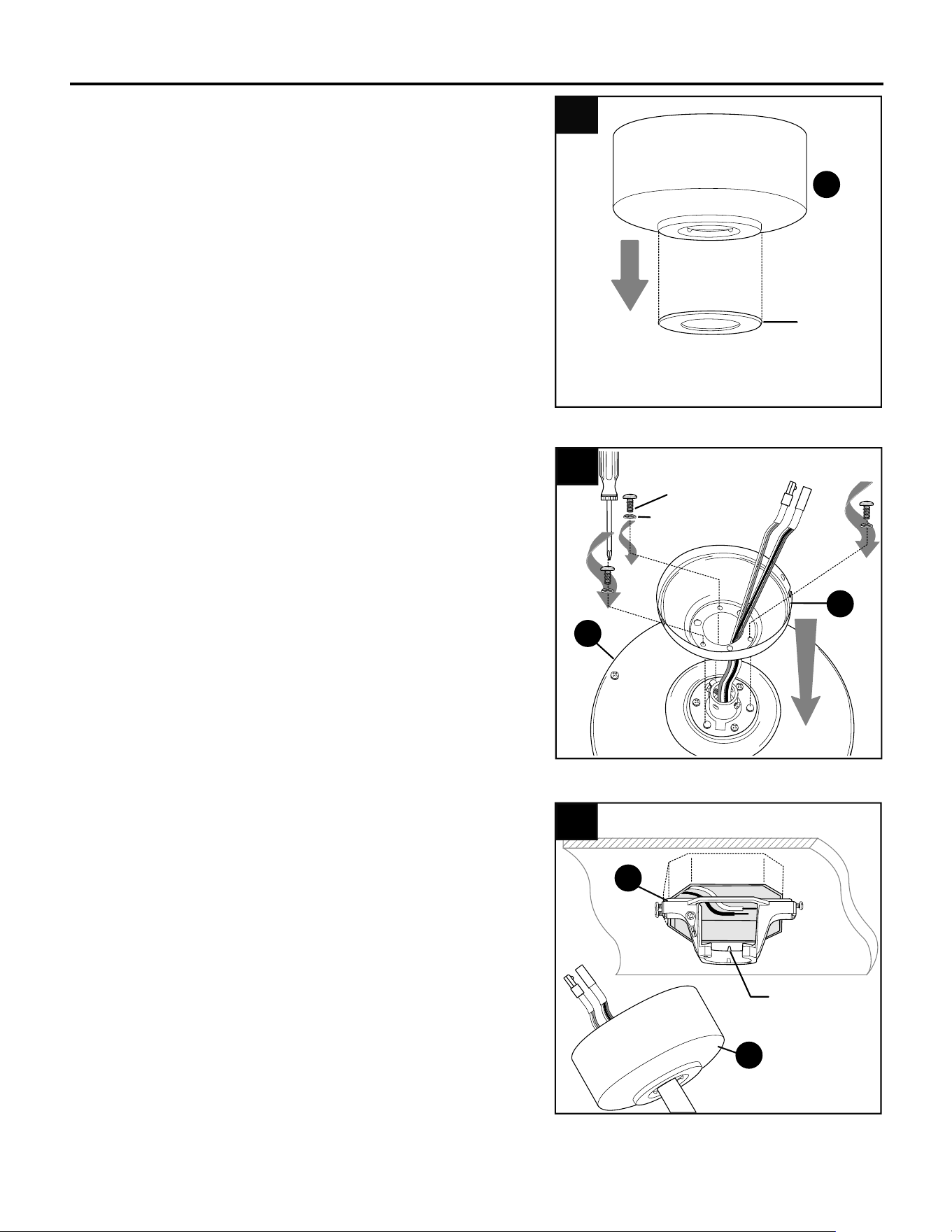

CLOSEMOUNT-STYLE FAN MOUNTING
Remove preassembled canopy cover from bottom
of canopy (C). NOTE: It may be necessary to use
the handle end of a screwdriver (not included) to
remove the canopy cover by tapping on the
canopy cover from the inside of the canopy (C).
NOTE: The downrod (A), yoke cover (N) and
canopy cover are not used in this type of
installation.
1.
1
Canopy
Cover
Remove every other preassembled screw and
lock washer from top of motor housing (D).
Pull wires up through hole in the middle of the
canopy (C) and attach canopy (C) to motor
housing (D) using the three previously removed
screws and lock washers.
2.
C
3.
Temporarily hang fan on the tab on the mounting
bracket (B) using one of the non-slotted holes in
the canopy (C).
Tab
3
B
C
2
D
Screw
Lock Washer
C
11

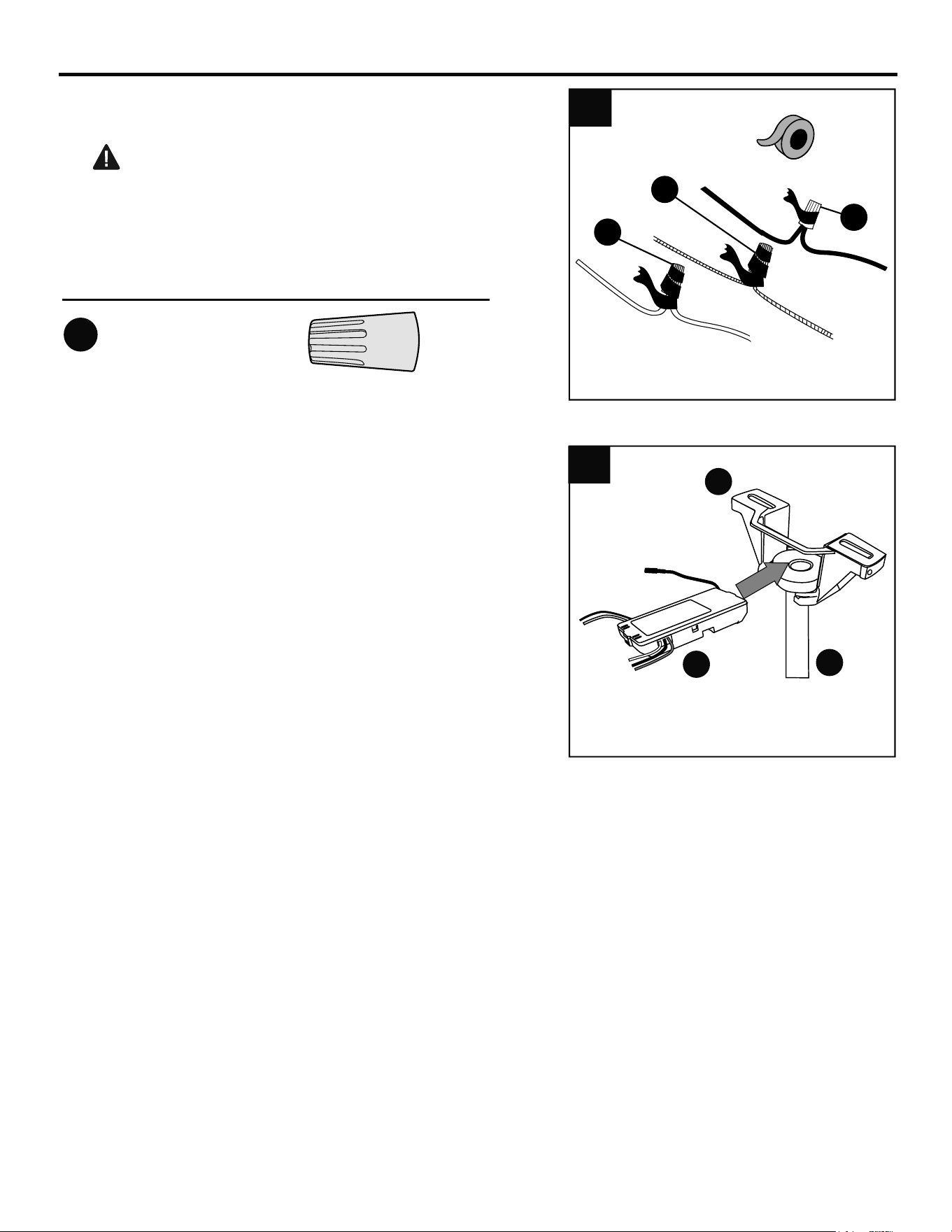

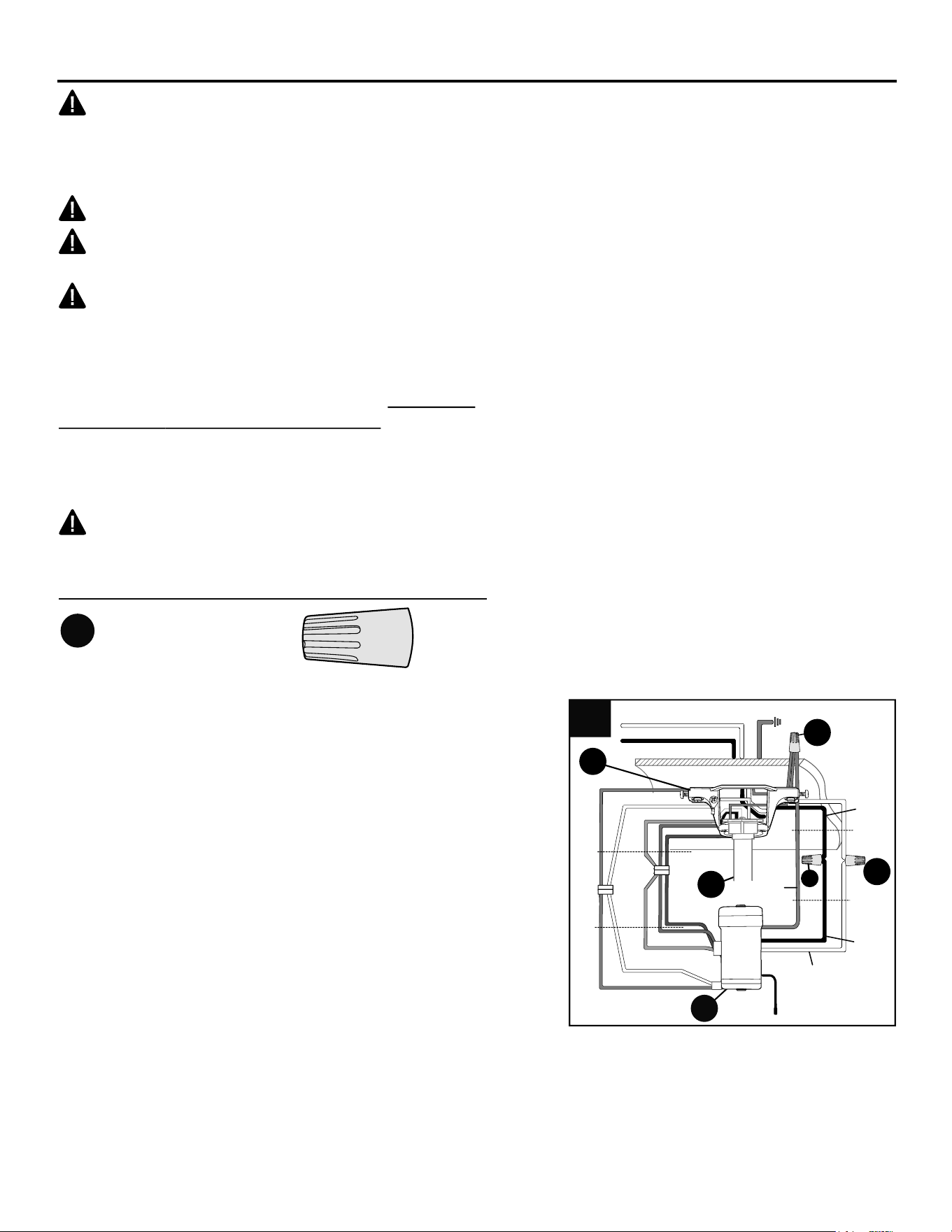

WIRING
WARNING: To reduce the risk of fire, electrical shock or personal injury, wire connectors provided
with this fan are designed to accept only one 12-gauge house wire and two lead wires from the fan.
If your house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
CAUTION: Be sure outlet box is properly grounded and that a ground (green or bare) wire is present.
WARNING: If house wires are different colors than referred to in the following steps, stop
immediately. A professional electrician is recommended to determine wiring.
WARNING: Using a full range dimmer switch (not included) to control fan speed will cause a loud
humming noise from fan. To reduce the risk of fire or electrical shock, do NOT use a full range dimmer
switch to control fan speed.
IMPORTANT: Make the necessary wiring
connections for remote control operation as detailed
below and in the accompanying drawing. For each
wire connection that requires a wire connector (CC),
make sure to screw each wire connector (CC) on in a
clockwise direction.
CAUTION: Assistance from another person is
recommended for this step.
Connect all GROUND (GREEN) wires from fan (on
downrod (A) and mounting bracket (B)) and remote
control receiver (G) to BARE/GREEN supply wire from
ceiling.
Connect BLACK wire (labeled AC IN L) from remote
control receiver (G) to BLACK supply wire from
ceiling.
Connect WHITE wire (labeled AC IN N) from remote
control receiver (G) to WHITE supply wire from ceiling.
Connect molex connection with RED, BROWN and
YELLOW wires (labeled TO MOTOR) from remote
control receiver (G) to molex connection with RED,
BROWN and YELLOW wires from motor housing (D).
Connect molex connection with WHITE wire (labeled
FOR LIGHT N) and BLUE wire (labeled FOR LIGHT L)
from remote control receiver (G) to molex connection
with BLUE and WHITE wires from motor housing (D).
1.
G
1
WHITE SUPPLY WIRE
BLACK SUPPLY WIRE
RED
RED
BROWN
BROWN
YELLOW
YELLOW
WHITE
BLUE
BLUE
WHITE
BLACK
AC IN L
WHITE
AC IN N
WHITE
GROUND (GREEN OR BARE)
BLACK
FROM
RECEIVER
FROM
FAN
FROM
RECEIVER
FROM
CEILING
A
GREEN/
GROUND
B
GROUND
(GREEN OR BARE)
CC
Hardware Used
Wire Connector
x 3
AA
CC
CC
12
WIRING
Wrap electrical tape (not included) around each
individual wire connector (CC) down to the wire.
WARNING: Make sure no bare wire or wire
strands are visible after making connections. Place
GREEN and WHITE connections on opposite side
of the outlet box from the BLACK and BLUE (if
applicable) connections.
2.
2
Hardware Used
Wire Connector
x 4
CC
CC
Gently slide remote control receiver (G) flat-side up
into mounting bracket (B). Turn spliced/taped wires
upward and gently push wires and wire connectors
(CC) into outlet box. Let antenna from remote
control receiver (G) hang to the side.
NOTE: The remote control included with this fan
meets the following requirements:
a. Not for use with solid state fans.
b. Electrical rating: 120V / 60 Hz;
motor: 65W MAX.
3.
Antenna
CC
CC
3
A
B
G
FINAL INSTALLATION
13
1.

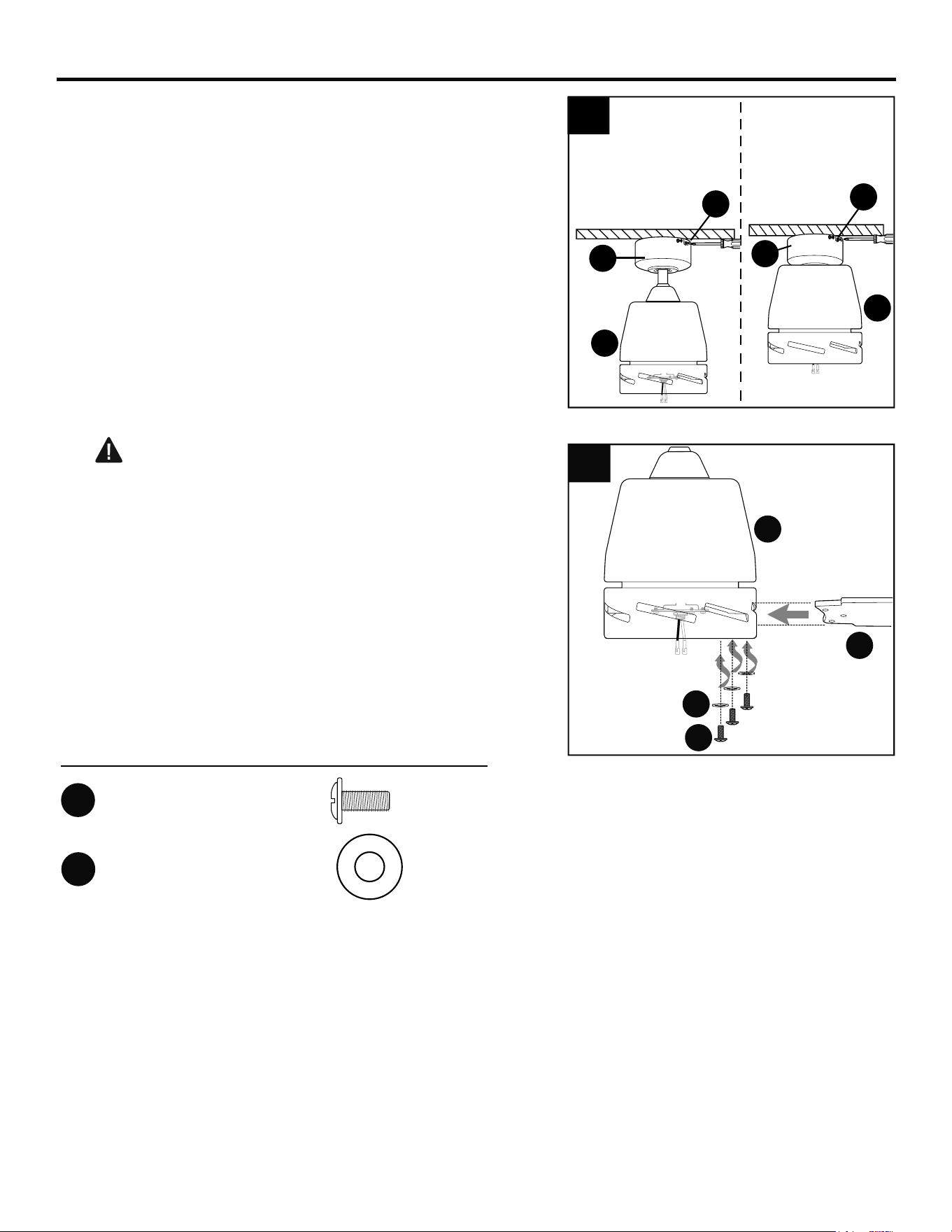

Lift canopy (C) to mounting bracket (B), aligning
slotted holes in canopy (C) with loosened canopy
mounting screws (L) in mounting bracket (B). Twist
canopy (C) clockwise to lock. Re-insert the two
canopy mounting screws (L) that were previously
removed (Step 4, Page 7) and tighten all canopy
mounting screws (L) securely.
DANGER: To reduce the risk of serious bodily
injury, DO NOT use power tools to assemble the
blades (M). If screws are overtightened, blades (M)
may crack and break.
Note label on blade (M) indicating THIS SIDE UP. Insert
the blade (M) through the slot on the band of the
motor housing (D). Align holes in blade (M) with
holes in plate on underside of motor. Attach the
blade (M) with blade screws (AA) and rubber blade
washers (BB). Then, tighten each blade screw (AA),
starting with the one in the middle. Repeat for
remaining blades (M).
2.
3
2
D
M
BB
AA
AA
Blade Screw x 21
Rubber Blade Washer x 21
BB
Hardware Used
1
Downrod
Option
Closemount
Option
G
D
G
D
C
C
14
FINAL INSTALLATION
3.

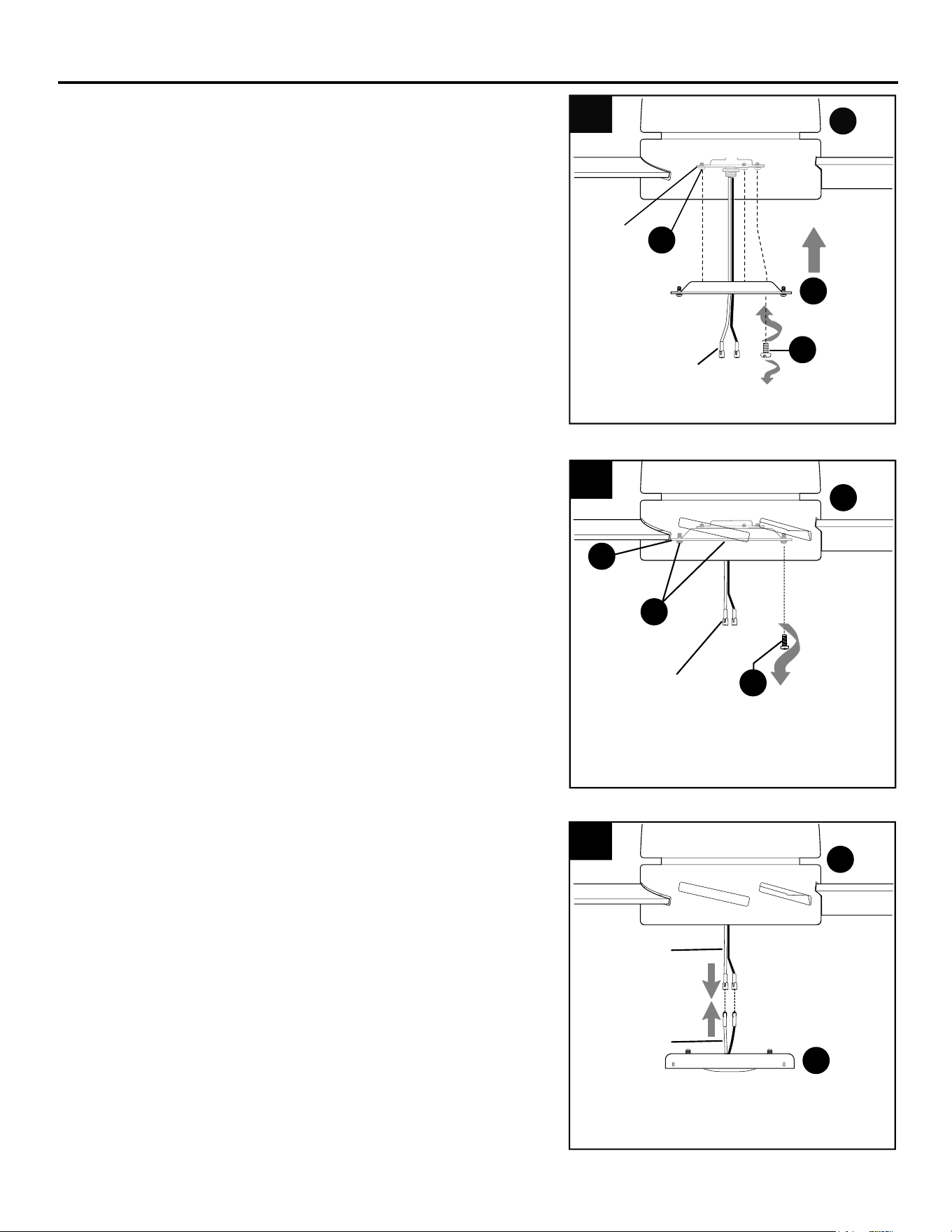

Remove one motor plate screw (J) in motor plate
on underside of motor housing (D) and partially
loosen the other two motor plate screws (J). Align
slotted holes in fitter plate (K) with loosened motor
plate screws (J), allowing molex connections from
motor housing (D) to come through hole in the
middle of the fitter plate (K). Twist fitter plate (K) to
lock. Re-insert the motor plate screw (J)
previously removed and securely tighten all three
motor plate screws (J).
3
K
D
4.
Motor
Plate
I
J
I
J
Remove one fitter plate screw (P) from underside
of the fitter plate (K) and partially loosen the other
two fitter plate screws (P).
Locate molex connections from motor housing (D)
and remove plastic that holds these two wires
together.
4
Molex
Connections
P
D
K
P
5.
Connect WHITE wire from LED light kit (F) to
WHITE wire from motor housing (D). Connect
BLACK wire from LED light kit (F) to BLUE (or
BLACK) wire from motor housing (D). Make sure
molex connections snap together securely.
5
WHITE
BLUE (or BLACK)
WHITE
BLACK
F
D
Molex
Connections
15
FINAL INSTALLATION
6.

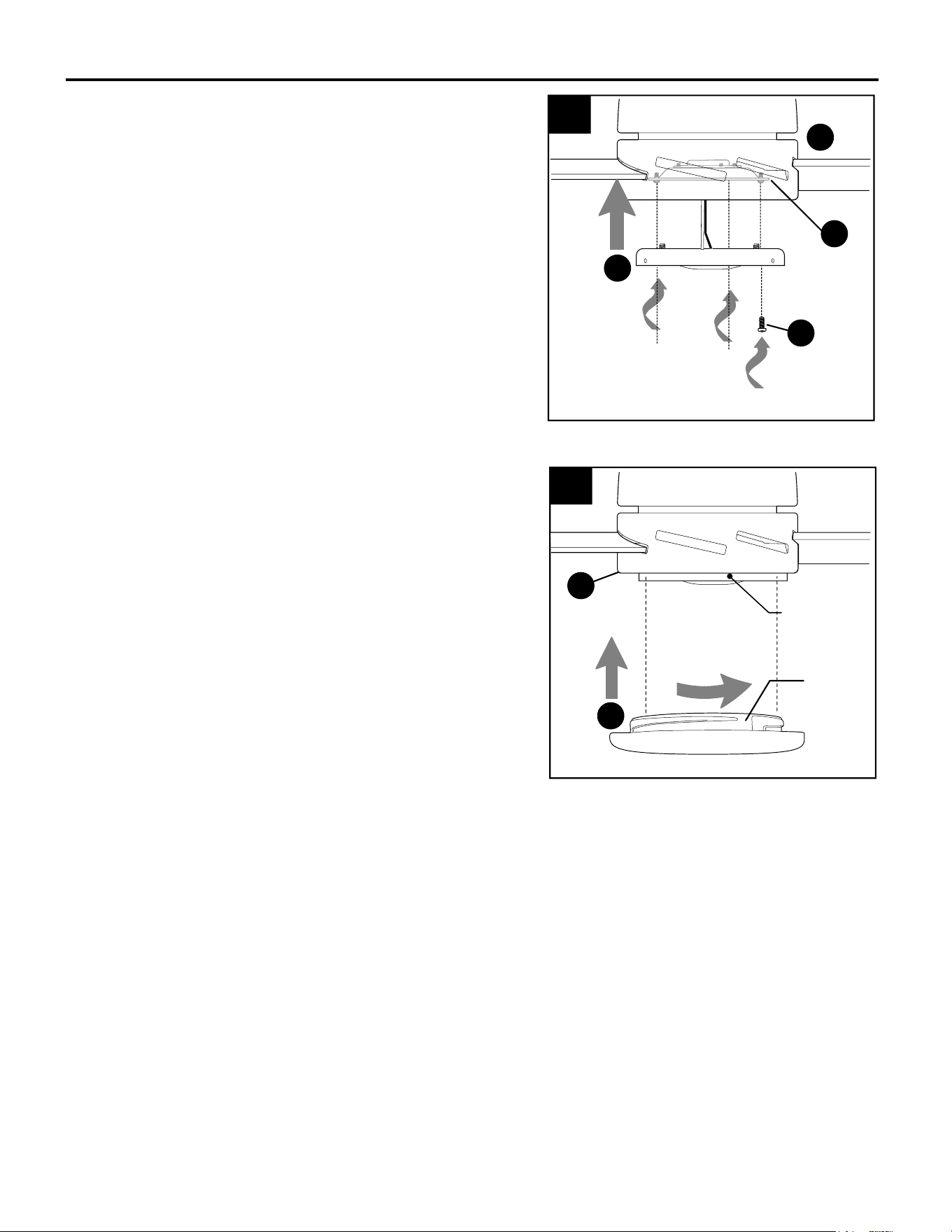

Carefully arrange wiring within the fitter plate (K)
to ensure wires do not get pinched when
attaching the LED light kit (F).
Align slotted holes in LED light kit (F) with
loosened fitter plate screws (P) on fitter plate (K).
Twist LED light kit (F) to lock. Re-insert the
previously removed fitter plate screw (P) (Step 4,
page 14) and securely tighten all fitter plate
screws (P).
6
K
F
P
7.
Align slots on shade (E) with protrusions on
inside border of LED light kit (F). Turn shade (E)
clockwise until it no longer turns.
NOTE: Pull down gently on the shade (E) to
make sure it is completely secured.
7
Slot
Protrusion
E
F
D
16
Locate remote control transmitter in remote pack (O).
Remove battery cover. Install two AAA batteries from
remote pack (O). Observe diagram inside battery
compartment to install batteries correctly.
WARNING: Batteries are to be inserted with
correct polarity.
WARNING: Choking/Ingestion Hazard - Small
parts. Keep batteries away from children.
NOTE: DO NOT mix old and new batteries; DO NOT
mix alkaline, standard (carbon - zinc) or rechargeable
(nickel - cadmium) batteries or equivalent.
NOTE: Batteries are NOT rechargeable. Remove
batteries with low or no charge and dispose of
properly.
1.
1
Battery
Cover
Remote Control
Transmitter (back side)
Batteries
AAA
-
+
-
+
AAA
O
CAUTION: “DO NOT DISPOSE OF BATTERIES IN FIRE, BATTERIES MAY EXPLODE OR
LEAK.” - When disposing of household alkaline batteries, it is best to check with your local and state
recycling or household hazardous waste coordinators concerning the specifics of the program in your
area. You may also locate a recycling center by calling 1-800-8-BATTERY or 1-877-2-RECYCLE or
visit www.epa.gov/epawaste/index.htm or www.earth911.org for more information.
OPERATING INSTRUCTIONS
CAUTION: The remote control transmitter can be programmed to multiple receivers or fans. If
this is not desired, turn wall switch off to any other programmable receiver or fan.
FCC Compliance Notice for Remote Control and LED Light Kit
CAUTION: Changes or modifications not approved by the party responsible for compliance
could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, (2) this device must accept any
interference received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio/TV technician for help.
Distributed by: Litex Industries Inc., P.O. Box 535639, Grand Prairie, TX, 75053; 800-527-1292
17
OPERATING INSTRUCTIONS
2.

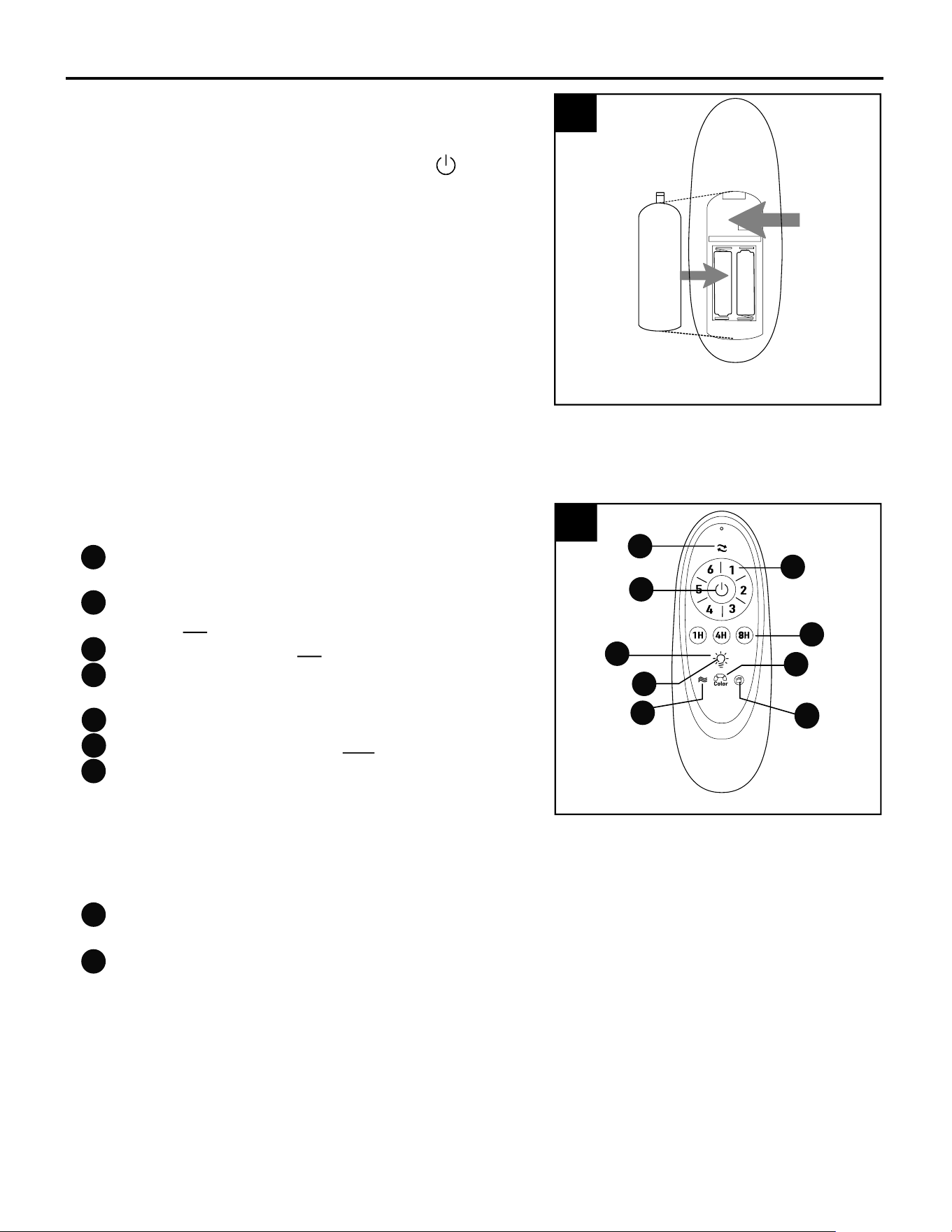

Replace battery cover on remote control transmitter.
Restore electrical power. Within 30 seconds of
powering fan, press and hold OFF button ( )
on remote control transmitter for 5 seconds or until
fan beeps once in order to synchronize remote with
fan motor. Use the remote control transmitter to test
the light and fan functions to confirm the learning
process is complete.
IMPORTANT: To prevent damage to remote control
transmitter, remove the battery if not used for long
periods. Store the remote control transmitter away
from excess heat or humidity.
NOTE: If fan and/or remote control fail(s) to operate
or you have purchased a new remote control
transmitter, make sure to turn the power off first.
Remote Control Transmitter
(back side)
2
3.
Operation buttons on the front panel of the remote
control transmitter:
- Reverse function ─ fan must be set on low before
reversing blade direction
- Fan speeds: 1 (lowest) to 6 (highest) and
to turn fan ON
- OFF power button for fan and learning function
- Timer mode: fan may be set to run for
– 1 hour / 4 hours / 8 hours
- Dimmer mode: press and hold to dim light
- ON / OFF, power button for light
- Color mode: change/select light color
– soft white
– warm white
– cool white
– daylight
– cool daylight
- Breeze mode: fan automatically cycles between
all 6 different fan speeds
- Vacation mode: light kit switches on for 5 minutes
every 2 hours
3
1
2
4
5
6
8
9
7
Remote Control Transmitter
3
1
3
8
9
2
4
7
5
6
18
CARE AND MAINTENANCE
At least twice each year, lower canopy to check downrod assembly, and then tighten all screws on fan.
Clean motor housing with only a soft brush or lint-free cloth to avoid scratching the finish. Clean blades
with a lint-free cloth. If applicable, you may occasionally apply a light coat of furniture polish to wood
blades for added protection.
IMPORTANT: Shut off main power supply before beginning any maintenance. Do not use water or a
damp cloth to clean the ceiling fan.
Total wattage for this fan is 18 watts; do not attempt to replace the LEDs.
WARNING: Before beginning work, shut off the power supply to avoid electrical shock.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan does not move.
1. Power is off or fuse is blown.
2. Faulty wire connection.
3. Wires in LED light kit not wired
correctly.
4. Blades are not installed.
1. Turn power on or check fuse.
2. Turn power off. Loosen canopy and
check all connections.
3. Check that molex connections in LED
light kit are connected properly
according to instructions on page 14.
4. Install all blades (see page 13).
Noisy operation.
1. Blades are loose.
2. Cracked blade.
3. Fan is new.
1. Tighten all blade screws.
2. Replace blade.
3. Allow fan a “break in” period of a few
days, especially when running the fan
at Medium and High speeds.
Excessive wobbling.
1. Blades are loose.
2. Unbalanced blades.
3. Fan not securely mounted.
4. Fan too close to vaulted ceiling.
5. Set screw(s) on motor housing yoke is
(are) not tightened properly.
6. Set screw on hanging ball is not
tightened properly.
1. Tighten all blade screws.
2. Switch one blade with a blade from the
opposite side.
3. Turn power off. Carefully loosen
canopy and verify that mounting
bracket is secure.
4. Use a longer downrod or move fan to
another location.
5. Tighten yoke set screw(s) securely.
6. Carefully loosen and lower canopy and
verify that set screw on hanging ball is
tightened securely.
TROUBLESHOOTING
Fan operates but
light fails.
1. Wires in canopy not wired properly.
2. Wall switch to fan is off.
3. Wires from LED light kit not wired
correctly.
1. Check wires in canopy and, if
necessary, re-wire according to
instructions on pages 11 - 12.
2. Make sure wall switch to fan is on.
3. Check wires from LED light kit and, if
necessary, re-wire according to
instructions on page 14.
Remote control fails
to operate.
1. Remote control transmitter not synced
with fan.
2. Batteries not installed correctly.
3. Battery/Batteries no longer working.
1. Refer to instructions in Step 2 on
page17.
2. Check that batteries have been
installed with correct polarity.
3. Replace both batteries according to
instructions on page 16.
NOTE: A small amount of "wobble" is normal and should not be considered a defect.
KHLI2309
LIMITED LIFETIME WARRANTY
REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 800-527-1292, 8:30 a.m. - 5 p.m., CST,
Monday - Friday.
Printed in China
19
Set forth below, the manufacture warrants the fan motor for this ceiling fan to be free from defects in
workmanship and material for the life of the product. Also, subject to the limitations below, the manufacturer
warrants all ceiling fan parts (“ceiling fan parts” excludes the motor and parts made in whole or in part with
glass) to be free from defects in workmanship and material for a period of one year after the date of
purchase by the original purchaser at retail.
All claims must be made by the original purchaser, whether such purchaser purchased the product through
a store or contractor. Ceiling fan part defects must be reported within the first year from the date of
purchase. Parts made in whole or in part with glass and the finishes of metal and other surfaces are not
warranted.
Purchasers are responsible for all costs of removing and reinstalling the product. Any damage to any part
caused by ordinary wear and tear, accident, misuse, or improper installation, is not covered by this warranty.
The manufacturer assumes no responsibility whatsoever for fan installation. Any service performed by a
non-licensed electrician will render the warranty invalid.
The manufacturer’s sole responsibility shall be to repair or replace the motor, parts, or product within the
terms stated above. The manufacturer shall not be liable for any loss or damage of any kind, including any
incidental or consequential damages resulting directly or indirectly, from any breach
of warranty, express or implied, or any other failure of this product. Some states do not allow the exclusion
or limitation of incidental or consequential damages so this limitation may not apply to you.
If the original purchaser ceases to own the fan, this warranty is voided.
Should the purchaser encounter a problem with your fan related to defects in workmanship or materials
within the warranty period associated with the defective part, the manufacturer agrees to replace the
defective part without charge, or at its option, to replace the ceiling fan with a comparable or superior model.
The manufacturer’s warranties are limited to the written warranties set out in this ceiling fan limited lifetime
warranty. All other express and implied warranties, including, without limitation, the implied warranty of
fitness for a particular purpose and the implied warranty of merchantability are disclaimed. Some states do
not allow the disclaimer of implied warranties, so this disclaimer may not apply to you.
A
B
M
E
C
5519820-A
5519820-B
5519820-C
5519820-E
5519820-M
PART DESCRIPTION
#5519820
PART #
#5645680
PART #
5645680-A
5645680-B
5645680-C
5645680-E
5645680-M
A Downrod
B Mounting Bracket
C Canopy
E Shade
M Blade
