ST25096
1
ITEM #6030893
MODEL #FOX52MBK3R
FOXWOOD
Español p. 20
APPROVED FOR USE
IN DAMP LOCATIONS
ATTACH YOUR RECEIPT HERE
Thank you for purchasing this HARBOR BREEZE product.
Questions, problems, missing parts?
Before returning, contact us on:
Purchase Date
HARBOR BREEZE and logo design are trademarks or
registered trademarks of LF, LLC. All rights reserved.
2
CAUTION: Changes or modifications not approved by the party responsible for compliance could
void the user's authority to operate the equipment.
*NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
The device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, (2) this device must accept any interference
received, including interference that may cause undesired operation.
Distributed by: Litex Industries Inc., P.O. Box 535639, Grand Prairie, TX, 75050; 800-527-1292
SAFETY INFORMATION
TABLE OF CONTENTS
Safety Information .................................................................................................................................... 2
Package Contents .................................................................................................................................... 5
Hardware Contents .................................................................................................................................. 6
Preparation ............................................................................................................................................... 6
Initial Installation ....................................................................................................................................... 6
Downrod-Style Fan Mounting ................................................................................................................... 9
Closemount-Style Fan Mounting ............................................................................................................ 11
Wiring ..................................................................................................................................................... 13
Final Installation ..................................................................................................................................... 15
Operating Instructions ............................................................................................................................ 16
Care and Maintenance ........................................................................................................................... 18
Troubleshooting ...................................................................................................................................... 18
Limited Lifetime Warranty ....................................................................................................................... 19
Replacement Parts List .......................................................................................................................... 19
3
SAFETY INFORMATION
READ AND SAVE THESE INSTRUCTIONS
Please read and understand this entire manual before attempting to assemble, install or operate
the product. Review the accompanying assembly diagrams.
• Do not discard fan carton or inserts. Should this fan need to be returned to the factory for repairs, it
must be shipped in its original packaging to ensure proper protection against damage that might
exceed the initial cause for return.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical Code
and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you
are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to the
floor and at least 30 in. from the end of the blades to any obstruction.
• After you install the fan, make sure all connections are secure to prevent the fan from falling.
• The net weight of this fan including the light kit is: 9 lbs.
To reduce the risk of fire, electrical shock or personal injury, mount fan to outlet box
marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS. OR LESS" and use mounting
screws provided with the outlet box. Most outlet boxes commonly used for the support of
lighting fixtures are not acceptable for fan support and may need to be replaced. Consult a qualified
electrician if in doubt.
To reduce the risk of fire, electrical shock or personal injury, lever wire connectors provided with this
fan are designed to accept only one 12-gauge house wire and one lead wires from the fan. If your
house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size lever wire connectors to use.
To avoid personal injury, the use of gloves may be necessary while handling fan parts with sharp
edges.
WARNING
DANGER
When using an existing outlet box, make sure the outlet box is securely attached to the building
structure and can support the full weight of the fan. Failure to do this can result in serious injury or
death. The stability of the outlet box is essential in minimizing wobble and noise in the fan after
installation is complete.
To reduce the risk of serious bodily injury, DO NOT use power tools to assemble any part of the fan,
including the blades.
Before proceeding, be sure to shut off electricity at main switch or circuit breaker in order to avoid
electrical shock.
4
SAFETY INFORMATION
The DC Motor will not operate until blades are installed.
CAUTION
Be sure outlet box is properly grounded and that a ground wire (GREEN or BARE) is present.
Once installation is complete, carefully check all screws, bolts and nuts on fan motor assembly to
ensure that they are secured.
When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box; do NOT use a plastic
outlet box. Secure the outlet box directly to the building structure. The outlet box and its support must
be able to support the moving weight of the fan (at least 35 lbs.).
To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed control
device or control fan speed with a full range dimmer switch.
To reduce the risk of fire, electrical shock or personal injury, do not bend the blades when installing or
balancing them or when cleaning the fan. Do not insert objects between the rotating fan blades.
To reduce the risk of personal injury, use only parts provided with this fan. The use of parts OTHER
than those provided with this fan will void the warranty.
WARNING
5
PACKAGE CONTENTS
IMPORTANT REMINDER: You
must use the parts provided with
this fan for proper installation and
safety.
G
F
I
K
J
H
C
B
D
E
L
M
A

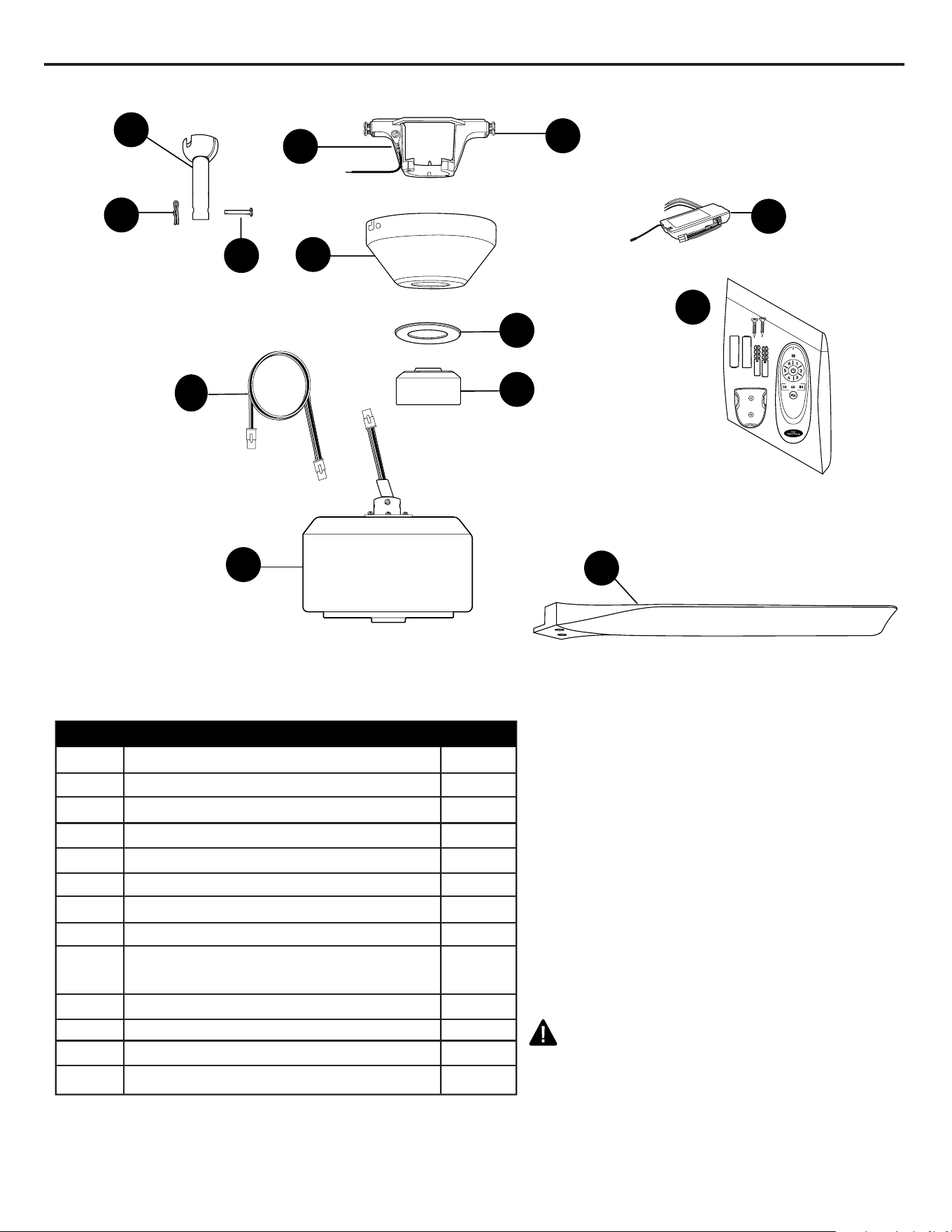

DESCRIPTIONPART
QUANTITY
A Mounting Bracket (preassembled) 1
B Downrod 1
C Clip (preassembled) 1
D Pin (preassembled) 1
E Canopy 1
F Motor Housing 1
G Blade 3
H Yoke Cover 1
I Canopy Mounting Screw 4
(preassembled)
J Canopy Cover (preassembled) 1
K Remote Pack 1
L Remote Control Receiver 1
M Additional Wiring 1
AAA
AAA
6
HARDWARE CONTENTS (shown actual size)
Blade Screws/
Lock Washer
Qty. 6
+1 extra
Lever Wire
Connector
Qty. 3
BBAA
ON
OFF
ON
OFF

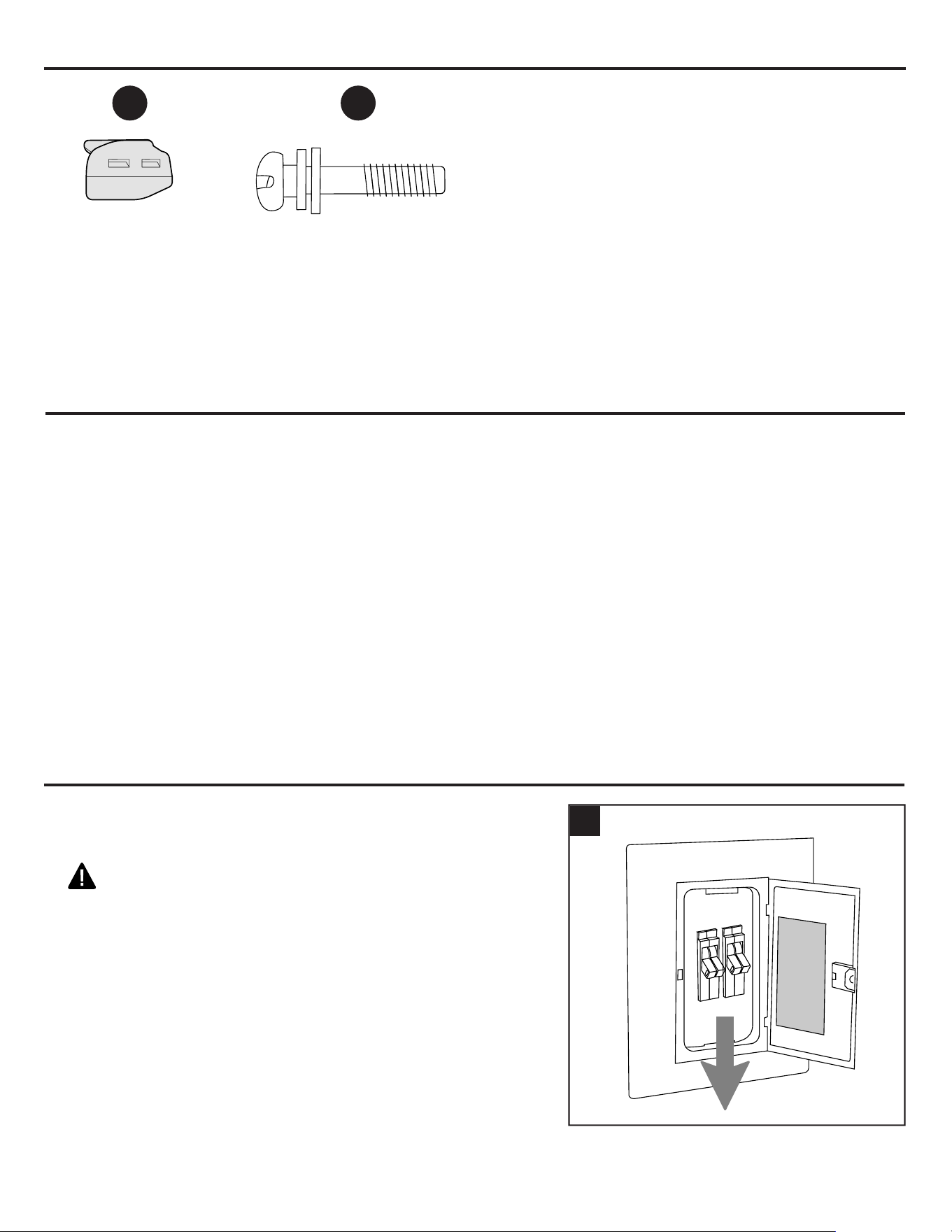

Turn off circuit breakers and wall switch to the
fixture supply line leads.
DANGER: Failure to disconnect power
supply prior to installation may result in serious
injury or death.
1
1.
INITIAL INSTALLATION
PREPARATION
Before beginning assembly of product, make sure all parts are present. Place motor on carpet or on
foam to avoid damage to finish. Compare parts with package contents list and hardware contents list. If
any part is missing or damaged, do not attempt to assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety Glasses,
Stepladder and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself Wiring Handbook and Wire
Cutters
2
4
7
3
INITIAL INSTALLATION
If applicable, remove existing fan and fan parts,
including the mounting bracket, from outlet box
and disconnect all electrical wiring.
WARNING: To reduce the risk of personal
injury, use ONLY parts provided with your new
fan. The use of parts OTHER than those
provided with this fan will void the warranty.
Set aside screws, spring washers and flat
washers (provided with the outlet box) for fan
installation.
2.
A
B
19° max.
7 ft.
min.
30 in.
min.
G
3.
Determine mounting method to use.
A. Downrod mount (standard or angled ceiling).
B. Closemount (standard ceiling only).
IMPORTANT: If using the angle mount, check to
make sure the ceiling angle is not steeper than 19°.
*Helpful Hint: Downrod-style mounting is best
suited for ceilings 8 ft. or higher. For taller ceilings
you may want to use a longer downrod (not
included). Angle-style mounting is best suited for
angled or vaulted ceilings. A longer downrod is
sometimes necessary to ensure proper blade
clearance. Closemount mounting is more suitable
for ceilings lower than 8 ft. high.

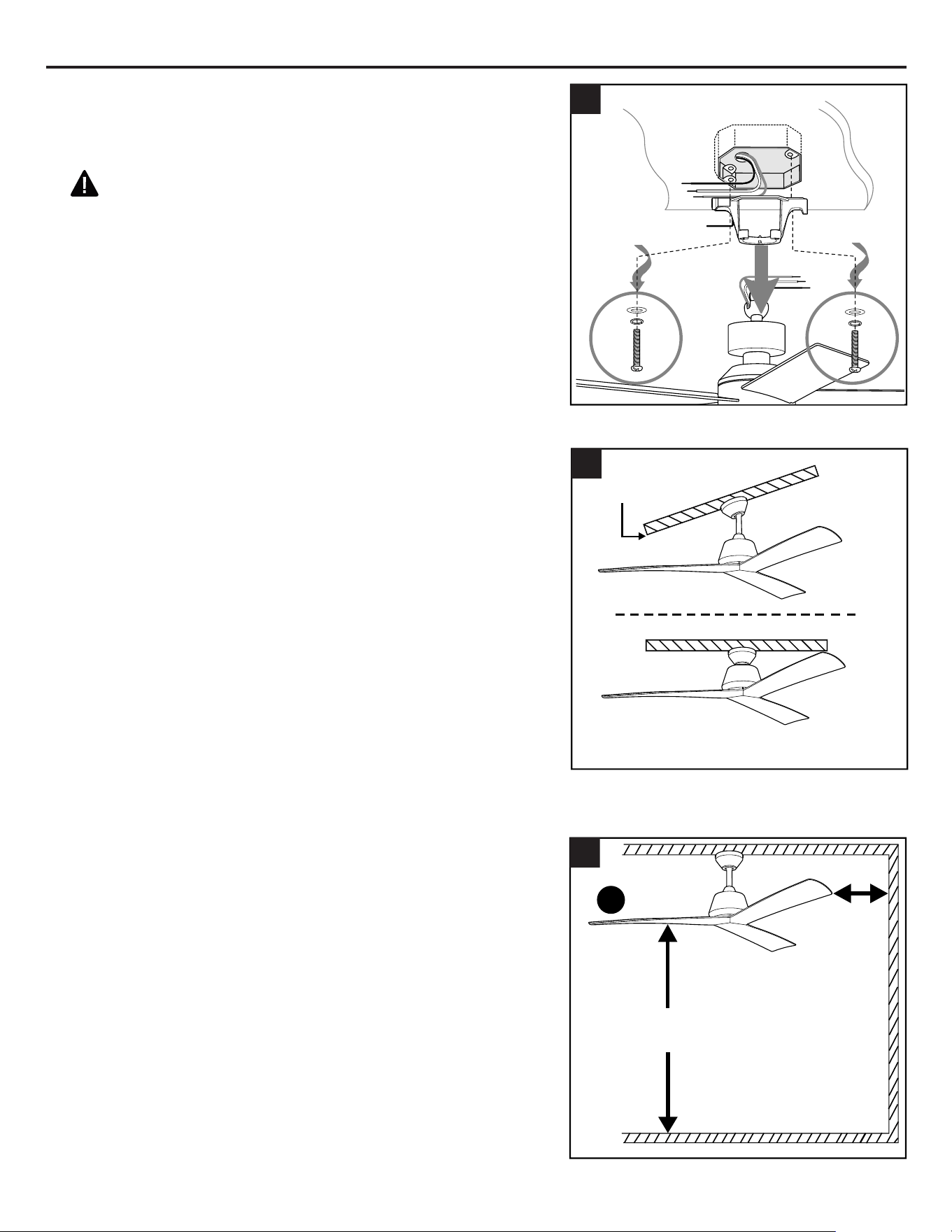

Check to make sure blades (G) will be at least
30 in. from any obstruction and at least 7 ft.
above the floor.
4.
STANDARD MOUNT
Outlet Box
Screws
7
A
(view from underside)
Open End
6
INITIAL INSTALLATION
8
5
6.
5.
Loosen canopy mounting screws (I) in slotted
holes of canopy (E) and remove the other two
canopy mounting screws (I) -- save for later use.
Remove mounting bracket (A) from canopy (E).
A
E
I
Open End
A
A

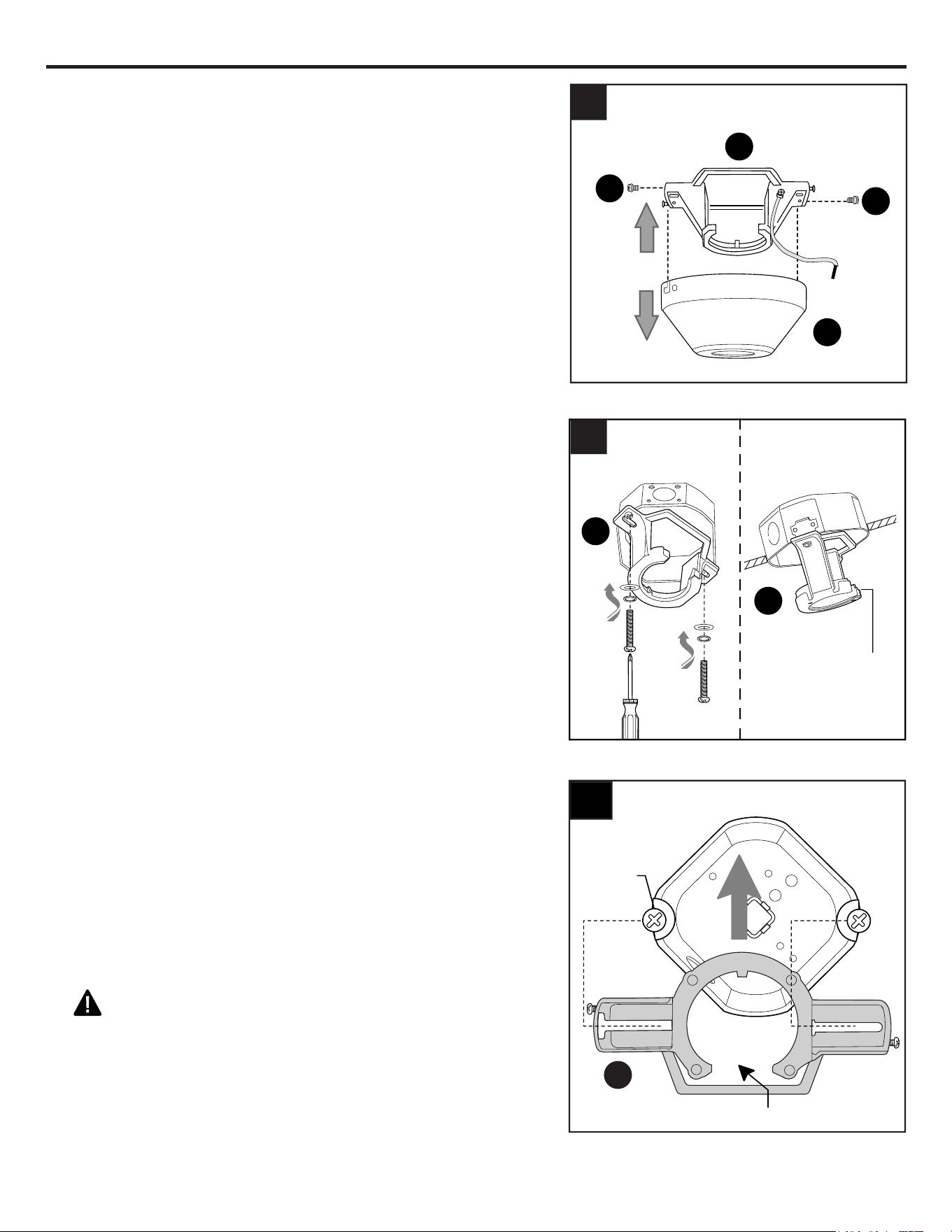

Secure mounting bracket (A) to outlet box (not
included) using screws, spring washers and flat
washers provided with the outlet box. [These may
have been previously removed in Step 2, page
7.]
*NOTE: It is very important you use the proper
hardware when installing the mounting bracket
(A) as this will support the fan.
IMPORTANT: If using the angle mount, make
sure open end of mounting bracket (A) is
installed facing the higher point of the ceiling, and
ensure the ceiling angle is not steeper than 19°.
ANGLE
MOUNT
STANDARD
MOUNT
I
If attaching mounting bracket (A) to an existing
outlet box (not included) with pre-installed
screws, spring washers and flat washers, slide
mounting bracket (A) over the screws. Then proceed
to the following paragraph. If attaching mounting
bracket (A) to outlet box where screws/washers
were removed, secure mounting bracket (A) to
outlet box using the screws, spring washers and flat
washers previously removed in (Step 5, page 8).
WARNING: It is very important you use the
proper hardware when installing the mounting
bracket as this will support the fan.
7.
Wall
CORRECT Screw Position
VS
INCORRECT Screw Position
7a
A
Wall
7b
(underside)
A
(view from underside)
Screw
Screw
Screw
Position
Screw
Position
1b1a
INITIAL INSTALLATION
9
DOWNROD-STYLE FAN MOUNTINGDOWNROD-STYLE FAN MOUNTING
Remove pin (D) and clip (C) from downrod (B).
Partially loosen preassembled set screws and
nut in yoke at top of motor housing (F).
1a.
1b.
D
F
C
B
Yoke
Set Screw
& Nut
Sideview

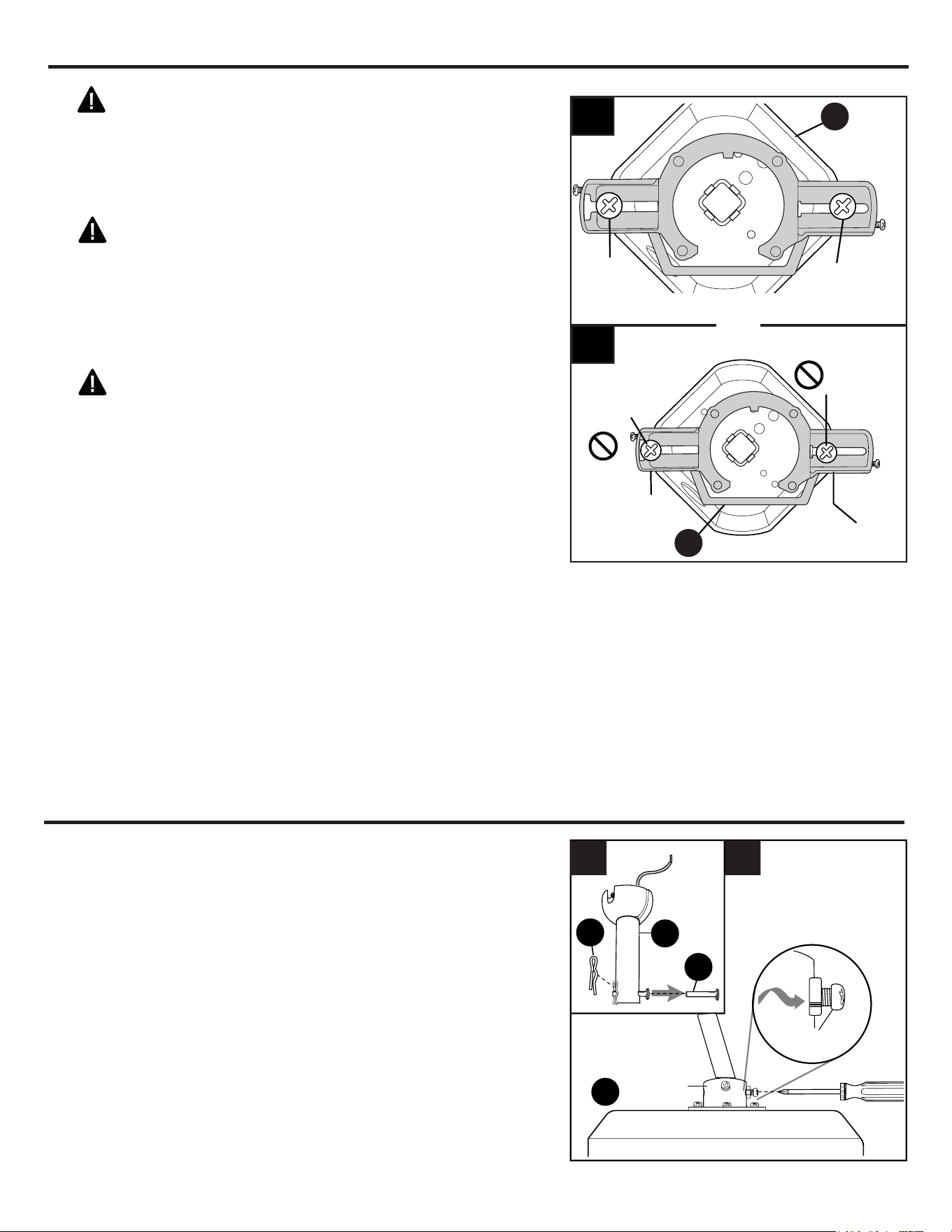

DANGER: To reduce the risk of serious injury or
death, the outlet box screws MUST be installed
somewhere within the long slots of the mounting
bracket and then TIGHTENED DOWN
COMPLETELY. [Refer to Fig. 6a.]
DANGER: To reduce the risk of fire, electrical
shock, serious personal injury or damage to the fan,
make sure outlet box screws DO NOT get installed
on or near the wall that separates the keyhole and
the long, narrow slot on each side of the mounting
bracket. [Refer to Fig. 6b.]
WARNING: If using the angle mount, make sure
open end of mounting bracket (A) is installed facing
the higher point of the ceiling, and ensure the ceiling
angle is not steeper than 19°.
For DOWNROD-STYLE FAN MOUNTING, proceed
to Step 1 below.
For CLOSEMOUNT-STYLE FAN MOUNTING, skip
to page 10.
7a.
7b.
DOWNROD-STYLE FAN MOUNTING
10
2
2.

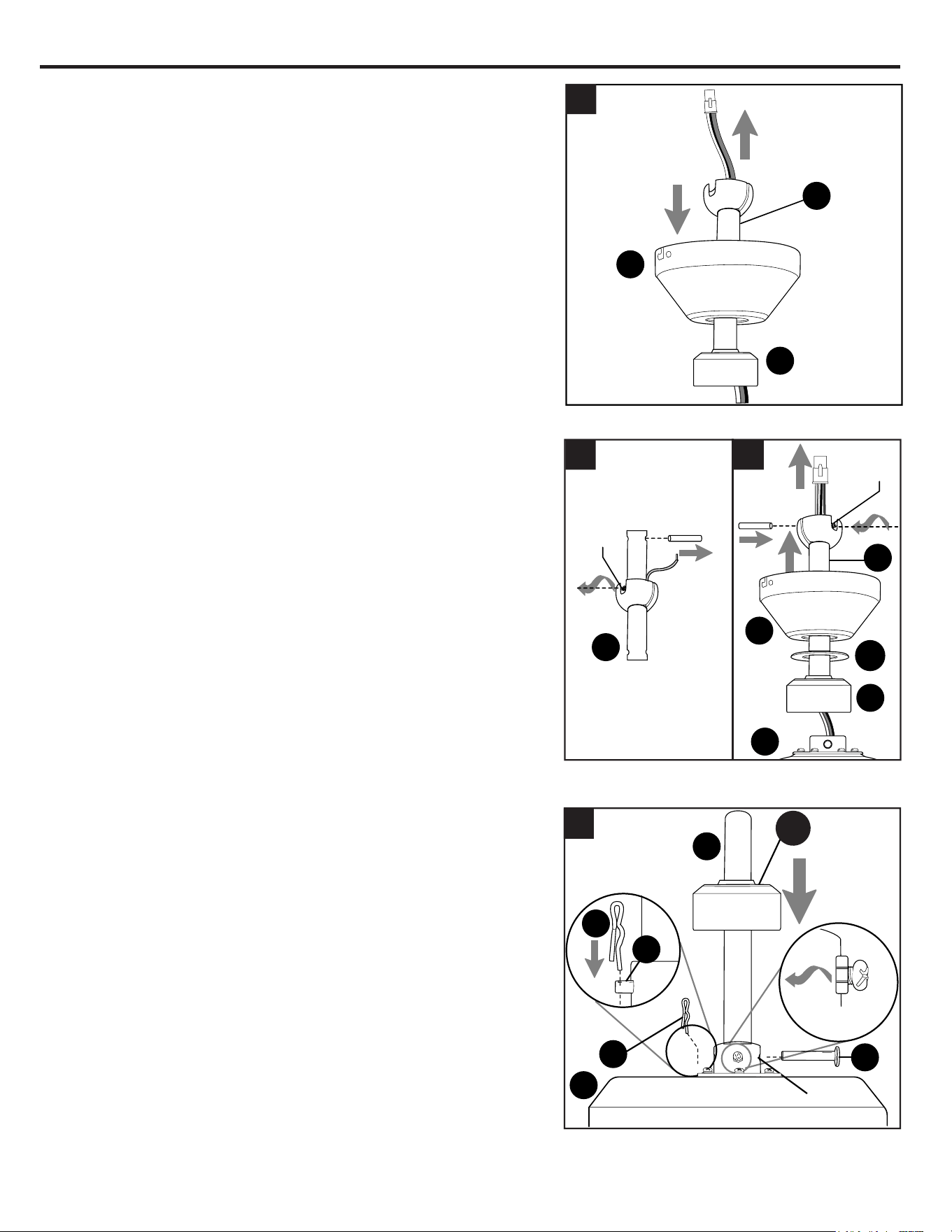

Insert downrod B) through yoke cover (H) and
canopy (E). Thread wiring from motor housing
(F) up through downrod (B).
B
E
H
3b.
3a.
B
B
E
J
H
F
Remove stop pin from downrod (B) by loosening
set screw on hanging ball. Lower hanging ball
and remove stop pin.
Insert downrod (B) through canopy (E), canopy
cover (J) and yoke cover (H). NOTE: Canopy
cover (J) must be turned with the shiny side
toward the motor housing (F).
Thread wires from motor housing (F) through
downrod (B). Raise hanging ball, replace stop
pin and tighten set screw.
Set
Screw
Hanging
Ball
Stop Pin
Stop Pin
Set
Screw
4.
Slip downrod (B) into yoke, align holes and
re-install pin (D) and clip (C). Tighten set screws
in yoke and then tighten nut. Then slide yoke
cover (H) down over the motor housing (F).
D
C
F
B
C
D
Set Screw
and Nut
Sideview
Yoke
H
3b3a
4
11
DOWNROD-STYLE FAN MOUNTING
6.
5
6
Install hanging ball of downrod (B) into
opening of mounting bracket (A). Align one of
the slots in hanging ball with the tab in
mounting bracket (A).
DANGER: Failure to align one of the slots
in hanging ball with the tab in mounting
bracket (A) may result in serious injury or
death.
Continue to WIRING on page 12.
Tab
A
B
Slot
5.

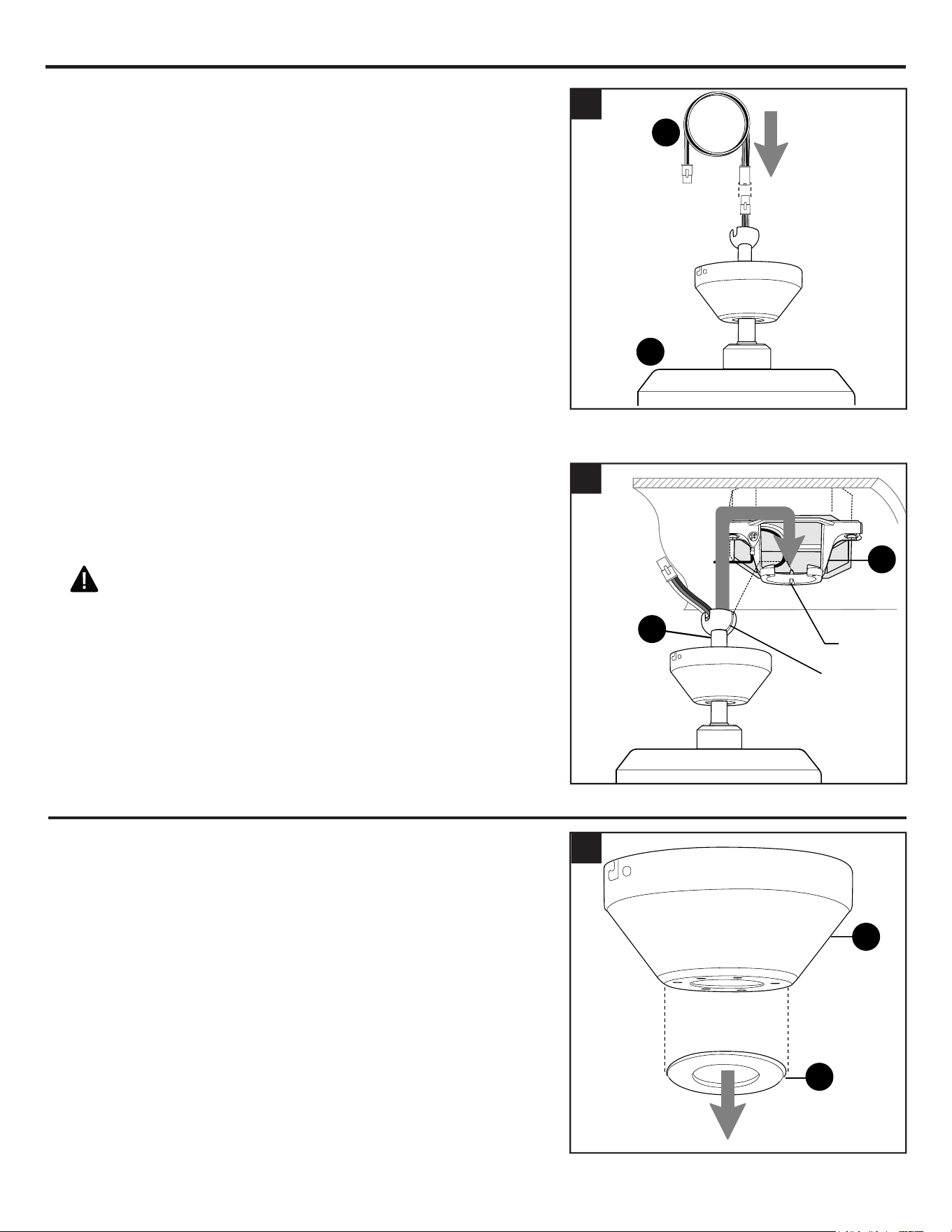

Depending on the length of downrod you use,
you may need to use the additional wiring (M).
Connect male plug from motor housing (F) to the
end of additional wiring (M) with female plug.
Make sure plugs connect tightly.
NOTE: If you do not use additional wiring (M),
Step 5 is not necessary and you may proceed
to Step 6 instead.
M
F
1
CLOSEMOUNT-STYLE FAN MOUNTING
Remove preassembled canopy cover (J)
from bottom of canopy (E).
NOTE: It may be necessary to use the
handle end of a screwdriver (not included) to
remove the canopy cover (J) by tapping on
the canopy cover from the inside of the
canopy (E).
NOTE: The downrod (B), yoke cover (H) and
canopy cover (J) are not used in this type of
installation.
1.
J
E
12
4
3
2
CLOSEMOUNT-STYLE FAN MOUNTING
2.

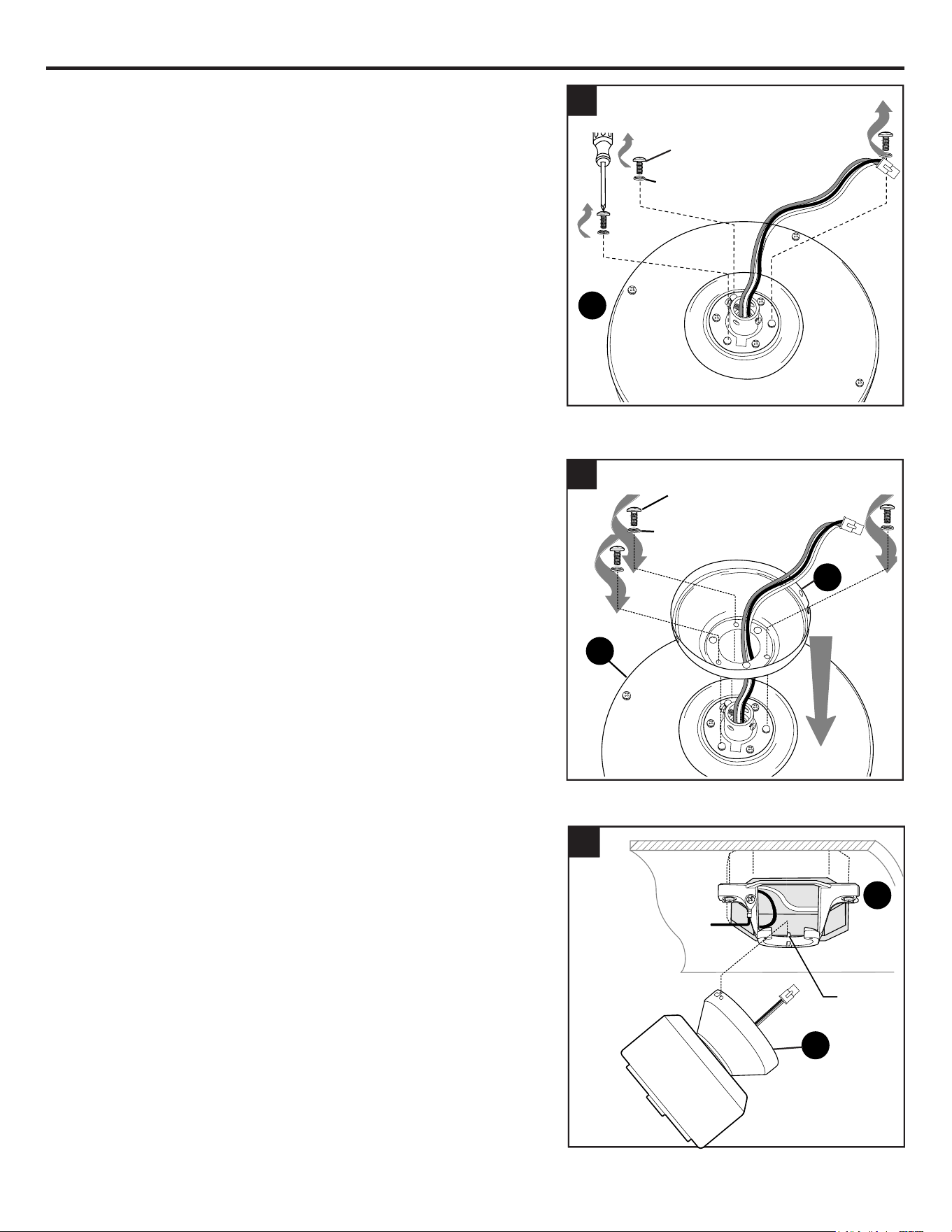

Remove every other preassembled
screw/lock washer from top of motor housing
(F).
F
Screw
Lock Washer
3.
Pull wires up through hole in the middle of the
canopy (E) and attach canopy (E) to motor
housing (F) using the three screws/lock
washers previously removed.
E
F
Screw
Lock
Washer
Temporarily hang fan on the tab on the
mounting bracket (A) using one of the
non-slotted holes in the canopy (E).
Continue to WIRING on the following page.
4.
Tab
E
A
13
1a
WARNING: To reduce the risk of fire, electrical shock or personal injury, wire connectors provided
with this fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If
your house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
CAUTION: Be sure outlet box is properly grounded and that a ground (GREEN or BARE) wire is
present.
WARNING: If house wires are different colors than referred to in the following steps, stop
immediately. A professional electrician is recommended to determine wiring.
WARNING: Using a full range dimmer switch (not included) to control fan speed will cause a loud
humming noise from fan. To reduce the risk of fire or electrical shock, do NOT use a full range dimmer
switch to control fan speed.
WIRING
AA
L
WHITE SUPPLY WIRE
BLACK SUPPLY WIRE
BLACK
AC IN L
WHITE AC IN N
WHITE
GROUND (GREEN OR BARE)
GROUND
(GREEN OR BARE)
GREEN
BLACK
FROM
RECEIVER
FROM
FAN
FROM
RECEIVER
FROM
CEILING
A
AA
AA
B
1b
1b.
1a.

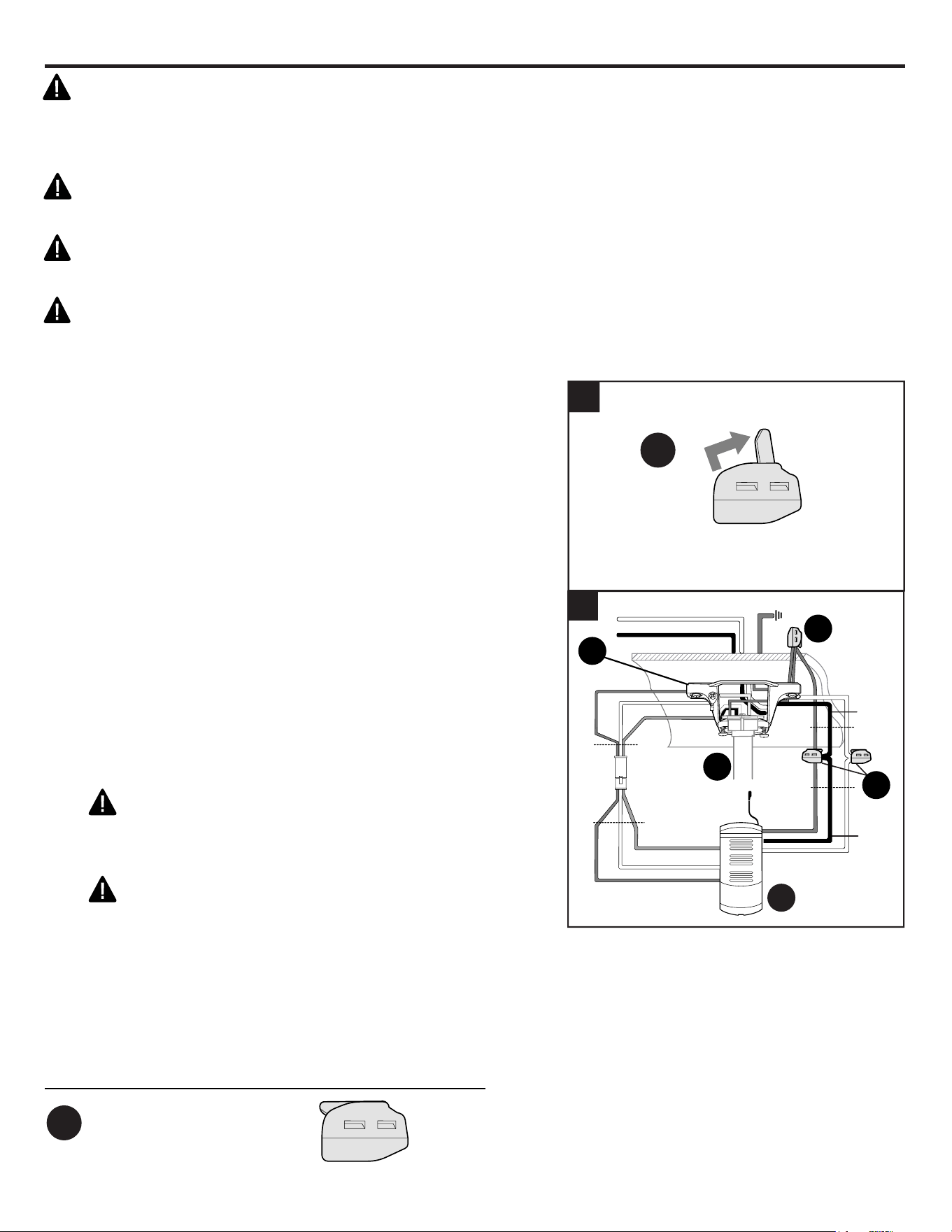

IMPORTANT: Each wire connection is made by firmly
raising the levers on each lever wire connector (AA),
as shown. Then, ONE wire is inserted into each
opening.
Insert each GROUND (GREEN) wire from fan (on
downrod (B), if applicable, mounting bracket (A) and
remote control receiver (L)) and the BARE/GREEN
wire from ceiling to lever wire connector (AA) with
four levers.
Connect plug-in from motor housing (F) to plug-in
from remote control receiver (L).
Insert BLACK wire from fan and BLACK wire from
ceiling to lever wire connector (AA). Insert WHITE
wire from fan and WHITE wire from ceiling to lever
wire connector (AA).
Connect plug from remote control receiver (L) to plug
from motor housing (F).
WARNING: GENTLY pull on wires in each lever
wire connector (AA) to confirm the lock is engaged
and that wires are secure.
WARNING: In order for wire connections to be
secure, all levers on the lever wire connectors (AA)
must be completely returned to their original position
as shown in Step 1b.
NOTE: Black wire is hot power for fan. White wire is
common for fan and light kit. Green or bare wire is
ground.
Lever Wire Connector x 3
Hardware Used
AA
14
WIRING
3.

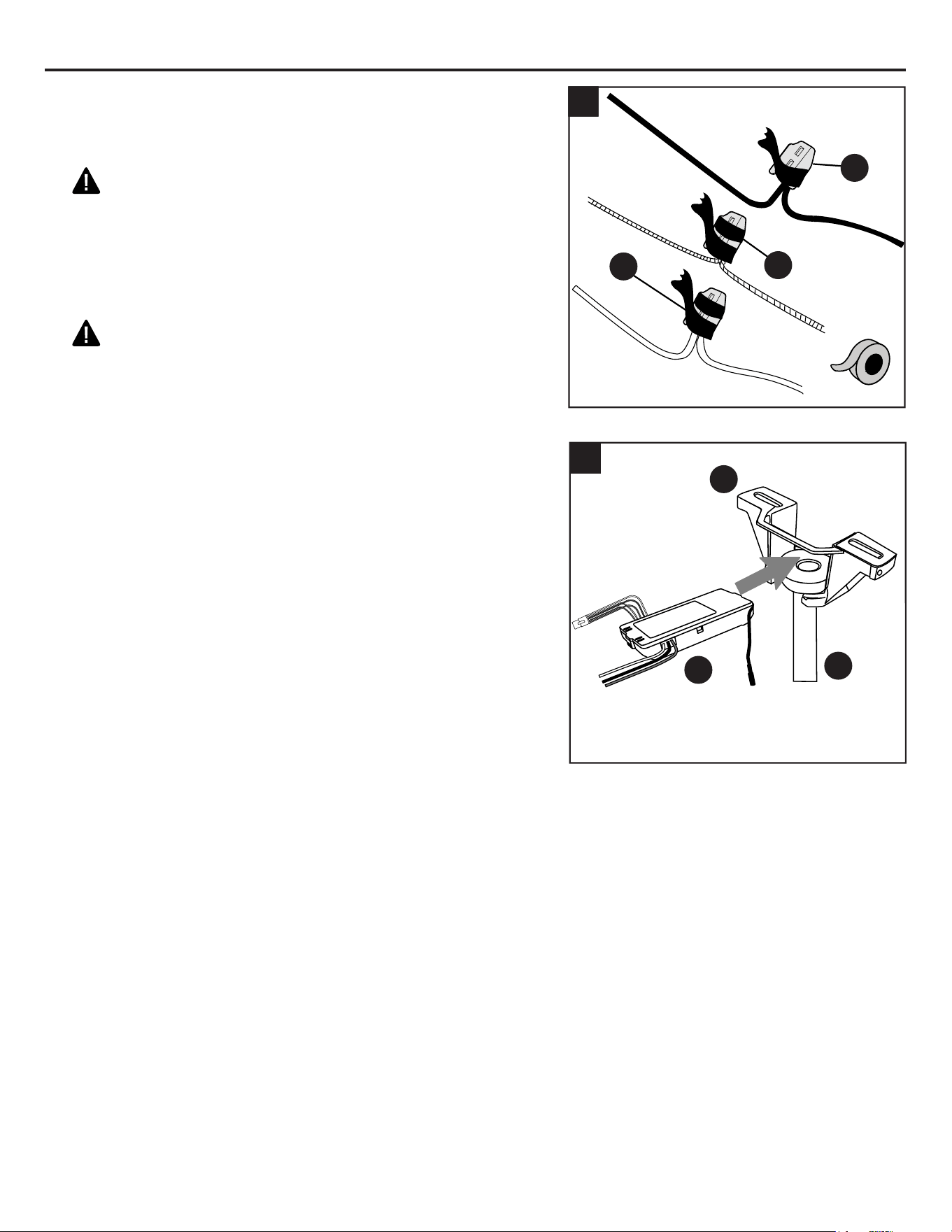

Wrap electrical tape (not included) around each
individual lever wire connector (AA) down to the
wire.
WARNING: Make sure no bare wire or
wire strands are visible after making
connections. Place GREEN and WHITE
connections on opposite side of the outlet box
from the BLACK and BLUE (if applicable)
connections.
WARNING: GENTLY pull on wires in each
lever wire connector (AA) to confirm the lock is
engaged and that wires are secure.
AA
AA
AA
Gently slide remote control receiver (L) flat-side
up into mounting bracket (A). Turn spliced/taped
wires upward and gently push wires and lever
wire connectors (AA) into outlet box. Let antenna
from remote control receiver (L) hang to the side.
NOTE: The remote control included with this fan
meets the following requirements:
a. Not for use with solid state fans.
b. Electrical rating: 120V / 60 Hz;
motor amps:1.25 MAX.
Should you choose to use a different remote
control with this fan, it must also meet these
same requirements.
4.
Antenna
B
L
A
4
3
15
2.
Lift canopy (E) to mounting bracket (A), aligning
slotted holes in canopy (E) with loosened canopy
mounting screws/lock washers (I) in mounting
bracket (A). Twist canopy (E) clockwise to lock.
Re-insert the two canopy mounting screws/lock
washers (I) that were previously removed (Step
5, page 8) and tighten all canopy mounting
screws/lock washers (I) securely.
1
Downrod
Option
Closemount
Option
E
I
I
E
2
FINAL INSTALLATION

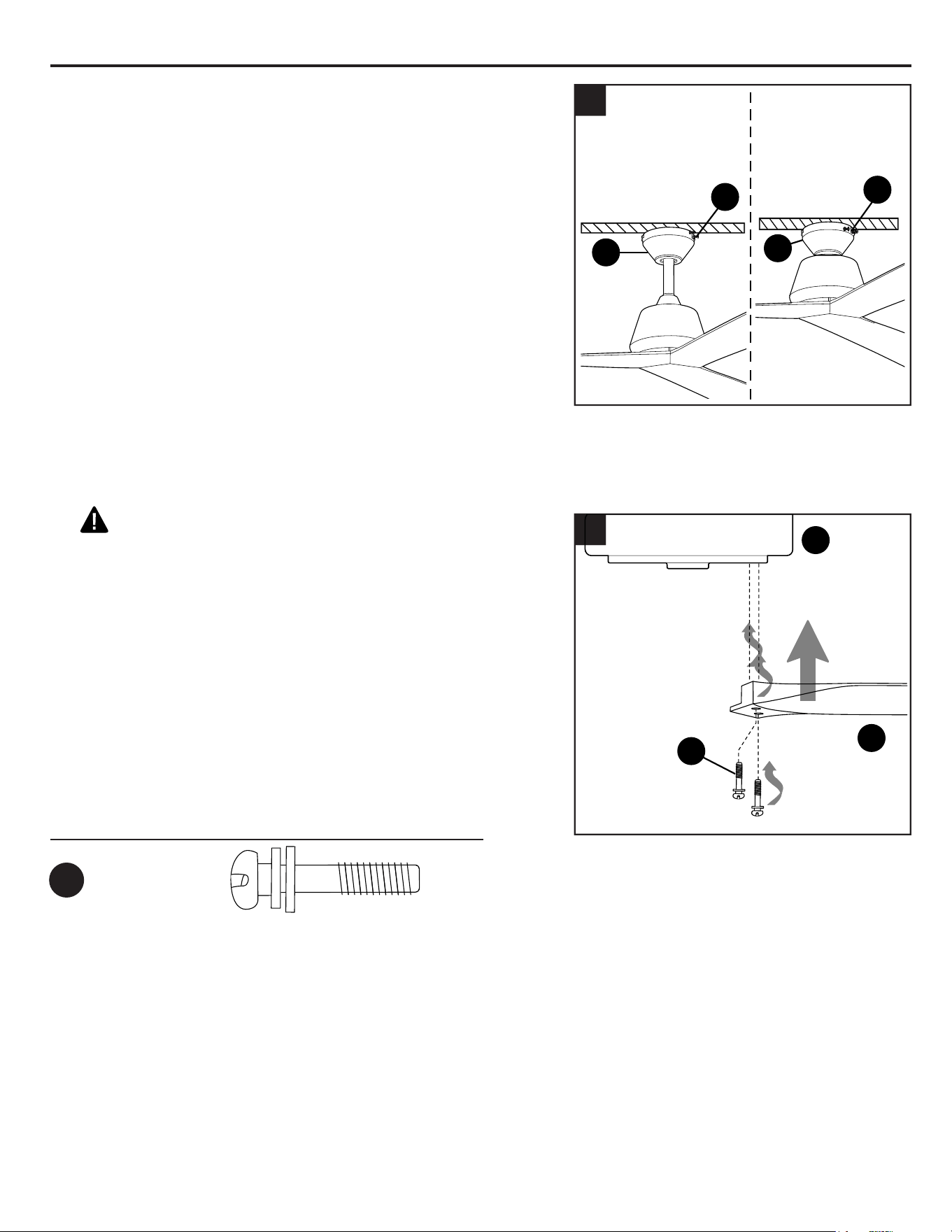

1.
WARNING: To reduce the risk of serious
bodily injury, DO NOT use power tools to
assemble the blades (G). If screws are
overtightened, blades (G) may crack and break.
Insert two blade screws/lock washers (BB) in
holes in blade (G) and align holes in blade (G)
with holes on the bottom of motor housing (F).
Tighten blade screws/washers (BB) securely.
Repeat for remaining blades (G).
NOTE: Make sure to completely secure each
blade (G) before proceeding to the next.
BB
Hardware Used
x 6
Blade Screw/
Lock Washer
BB
G
F
16
OPERATING INSTRUCTIONS
CAUTION: The remote control transmitter can be programmed to multiple receivers or fans. If this is
not desired, turn wall switch off to any other programmable receiver or fan.
FCC Compliance Notice for Remote Control.
CAUTION: Changes or modifications not approved by the party responsible for compliance could
void the user's authority to operate the equipment.
*NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
Litex Industries Inc., P.O. Box 535639, Grand Prairie, TX, 75050; 800-527-1292

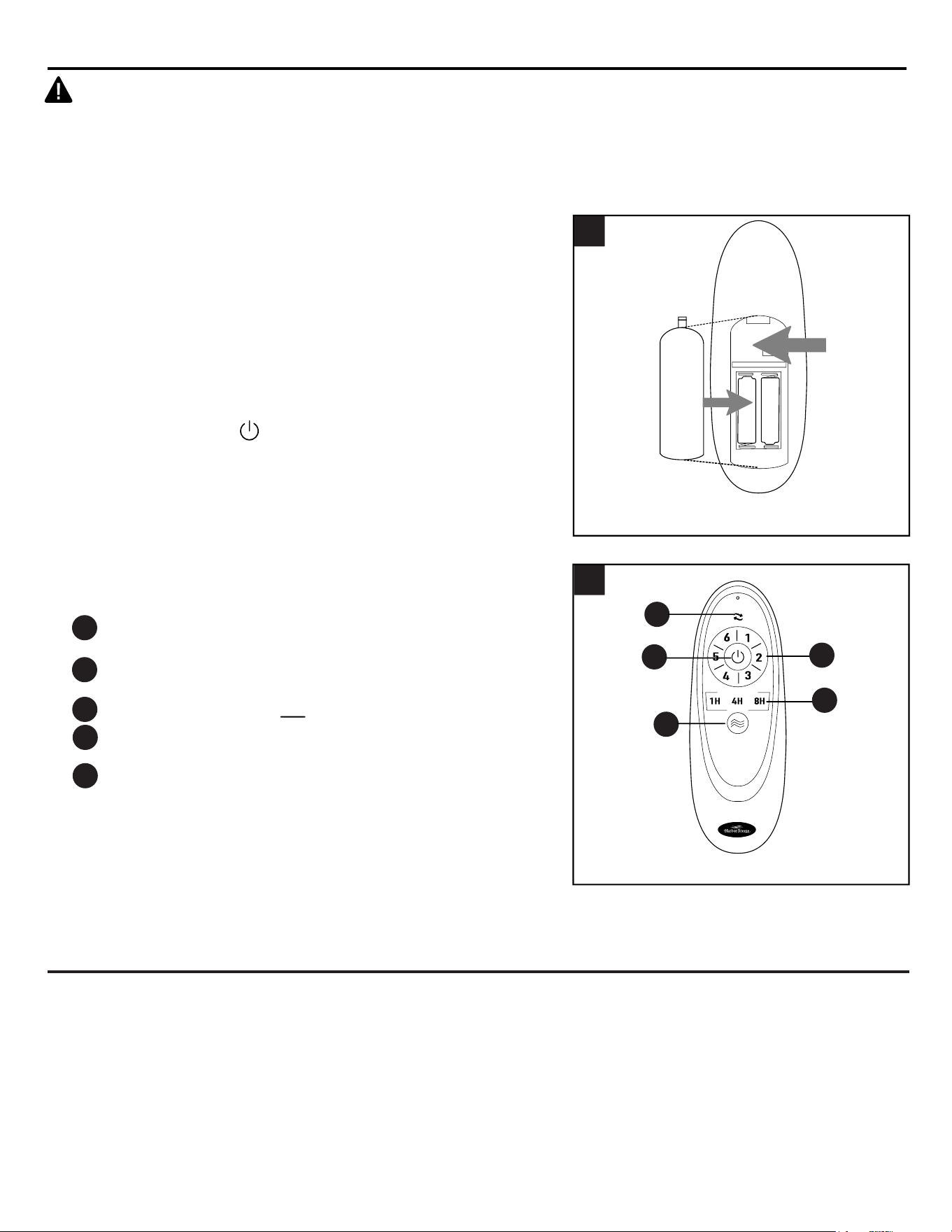

Locate remote control transmitter in remote pack (K).
Remove battery cover. Install two AAA batteries from
remote pack (K). Observe diagram inside battery
compartment to install batteries correctly.
WARNING: Batteries are to be inserted with
correct polarity.
WARNING: Choking/Ingestion Hazard - Small
parts. Keep batteries away from children.
NOTE: DO NOT mix old and new batteries; DO NOT
mix alkaline, standard (carbon - zinc) or rechargeable
(nickel - cadmium) batteries or equivalent.
NOTE: Batteries are NOT rechargeable. Remove
batteries with low or no charge and dispose of
properly.
1.
Battery
Cover
Remote Control
Transmitter (back side)
Batteries
AAA
-
+
-
+
AAA
K
1
3
17
CARE AND MAINTENANCE
At least twice each year, lower canopy (E) to check downrod (B) assembly, if applicable, and tighten all
screws on fan. Clean motor housing (F) with only a soft brush or lint-free cloth to avoid scratching the
finish. Clean blades (G) with a lint-free cloth.
IMPORTANT: Shut off main power supply before beginning any maintenance. Do not use water or a
damp cloth to clean the ceiling fan.
OPERATING INSTRUCTIONS
CAUTION: “DO NOT DISPOSE OF BATTERIES IN FIRE, BATTERIES MAY EXPLODE OR LEAK.” - When
disposing of household alkaline batteries, it is best to check with your local and state recycling or household
hazardous waste coordinators concerning the specifics of the program in your area. You may also locate a
recycling center by calling 1-800-8-BATTERY or 1-877-2-RECYCLE or visit www.epa.gov/epawaste/index.htm or
www.earth911.org for more information.
2.
Restore electrical power. Replace battery cover.
IMPORTANT: To prevent damage to remote control
transmitter, remove the battery if not used for long
periods. Store the remote control transmitter away from
excess heat or humidity.
NOTE: If fan and/or remote control fail(s) to operate or
you have purchased a new remote control transmitter,
make sure to turn the power off first. Restore electrical
power. Within 30 seconds of powering fan, press and
hold ON/OFF button ( ) on remote control transmitter
for 5 seconds until fan beeps once in order to
synchronize remote with fan motor. Use the remote
control transmitter to test the fan functions to confirm
the learning process is complete.
Remote Control Transmitter
(back side)
3.
Operation buttons on the front panel of the remote
control transmitter:
- Reverse function: fan must be set on low before
reversing blade direction
- Fan speeds: 1 (lowest) to 6 (highest) and
to turn fan ON
- OFF power button for fan.
- Timer mode: fan may be set to run for
– 1 hour / 4 hours / 8 hours
- Breeze mode: fan automatically cycles between all
6 different speeds
3
1
2
4
5
Remote Control Transmitter
1
3
2
4
5
2
18
WARNING: Before beginning work, shut off the power supply to avoid electrical shock.
TROUBLESHOOTING
NOTE: A small amount of "wobble" is normal and should not be considered a defect.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan does not
move.
Noisy
operation.
1. Blades are loose.
2. Cracked blade.
3. Full range dimmer switch.
4. Fan is new.
1. Tighten all blade screws.
2. Replace blade.
3. Replace with an approved speed
control device.
4. Allow fan a “break in” period of a
few days, especially when
running the fan at Medium and
High speeds.
Excessive
wobbling.
1. Blades are loose.
2. Blades incorrectly attached.
3. Unbalanced blades.
4. Fan not securely mounted.
5. Fan too close to vaulted ceiling.
6. Set screw(s) on motor housing yoke
is (are) not tightened properly.
7. Set screw on hanging ball is not
tightened properly.
1. Tighten all blade screws.
2. Re-install blades.
3. Switch one blade with a blade
from the opposite side.
4. Turn power off. Carefully loosen
canopy and verify that mounting
bracket is secure.
5. Use a longer downrod or move
fan to another location.
6. Tighten yoke set screw(s)
securely.
7. Carefully loosen and lower
canopy and verify that set screw
on hanging ball is tightened
securely.
Remote control fails
to operate.
1. Remote control transmitter not synced
with fan.
2. Battery not installed correctly.
3. Battery no longer working.
1. Refer to instructions in Step 2 on
page 16.
2. Check that battery has been
installed with correct polarity.
3. Replace battery according to
instructions on page 15.
1. Power is off or fuse is blown.
2. Faulty wire connection.
3. Blades are not installed.
1. Turn power on or check fuse.
2. Turn power off. Loosen canopy
and check all connections.
3. Install all blades (see page 14).
