ITEM #6594781/6594782/6594783
REIDSPORT LED
Español p. 21
MODEL #RDS52MW6LR/RDS52MBK6LR/RDS52BNK6LR
ATTACH YOUR RECEIPT HERE
4009218
APPROVED FOR USE
IN DAMP LOCATIONS
Purchase Date
1
ST25004
Questions, problems, missing parts? Before returning to your retailer,
call our customer service department at 800-527-1292, 8:30 a.m. - 5 p.m.,
CST, Monday - Friday.
2
TABLE OF CONTENTS
Safety Information ................................................................................................................................ 2
Package Contents ................................................................................................................................ 5
Hardware Contents .............................................................................................................................. 6
Preparation ........................................................................................................................................... 6
Initial Installation ................................................................................................................................... 6
Downrod-Style Fan Mounting ............................................................................................................... 8
Closemount-Style Fan Mounting ........................................................................................................ 10
Wiring ................................................................................................................................................. 11
Final Installation ................................................................................................................................. 13
Operating Instructions ....................................................................................................................... 16
Care and Maintenance ....................................................................................................................... 18
Troubleshooting ................................................................................................................................. 19
Limited Lifetime Warranty .................................................................................................................. 20
Replacement Parts List ...................................................................................................................... 20
SAFETY INFORMATION
CAUTION: Changes or modifications not approved by the party responsible for compliance could void
the user's authority to operate the equipment.
*NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
The device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, (2) this device must accept any interference received,
including interference that may cause undesired operation.
Distributed by: Litex Industries Inc., P.O. Box 535639, Grand Prairie, TX, 75050; 800-527-1292
NOTE: Dimmable to 10%.
3
READ AND SAVE THESE INSTRUCTIONS
• Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for
repairs, it must be shipped in its original packaging to ensure proper protection against damage
that might exceed the initial cause for return.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical
Code and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring
handbook if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to
the floor and at least 30 in. from the end of the blades to any obstruction.
• After you install the fan, make sure all connections are secure to prevent the fan from falling.
• The net weight of this fan including the light kit is: 18.48 lbs.
SAFETY INFORMATION
DANGER
When using an existing outlet box, make sure the outlet box is securely attached to the building
structure and can support the full weight of the fan. Failure to do this can result in serious injury or
death. The stability of the outlet box is essential in minimizing wobble and noise in the fan after
installation is complete.
To reduce the risk of serious bodily injury, DO NOT use power tools to assemble any part of the
fan, including the blades.
Before installation, be sure to shut off electricity at main switch or circuit breaker in order to avoid
electrical shock.
To reduce the risk of fire, electrical shock or personal injury, mount fan to outlet box
marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS. (15.87 KG) OR LESS" and
use mounting screws provided with the outlet box. Most outlet boxes commonly used
for the support of lighting fixtures are not acceptable for fan support and may need to be replaced.
Consult a qualified electrician if in doubt.
When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box; do NOT use a
plastic outlet box. Secure the outlet box directly to the building structure. The outlet box and its
support must be able to support the moving weight of the fan (at least 35 lbs.).
To avoid personal injury, the use of gloves may be necessary while handling fan parts with sharp
edges.
To reduce the risk of fire, electrical shock or personal injury, lever wire connectors provided with
this fan are designed to accept only one 12-gauge house wire and one lead wires from the fan. If
your house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size lever wire connectors to
use.
WARNING
4
SAFETY INFORMATION
To reduce the risk of fire, electrical shock or personal injury, do not bend the blades when
installing them, balancing the blades or cleaning the fan. Do not insert objects between the
rotating fan blades.
To reduce the risk of personal injury, use ONLY parts provided with this fan. The use of parts
OTHER than those provided with this fan will void the warranty.
To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed control
device or control fan speed with a full range dimmer switch.
WARNING
CAUTION
Be sure outlet box is properly grounded and that a ground wire (GREEN or BARE) is present.
Once installation is complete, carefully check all screws, bolts and nuts on fan motor assembly to
ensure that they are secured.
Read all instructions and safety information before installing your new fan. Review the
accompanying assembly diagrams.
Do NOT tamper with or attempt to repair LED component. The light source is designed for this
specific application and should not be serviced by untrained personnel. If any servicing is
required, call our customer service department.
5

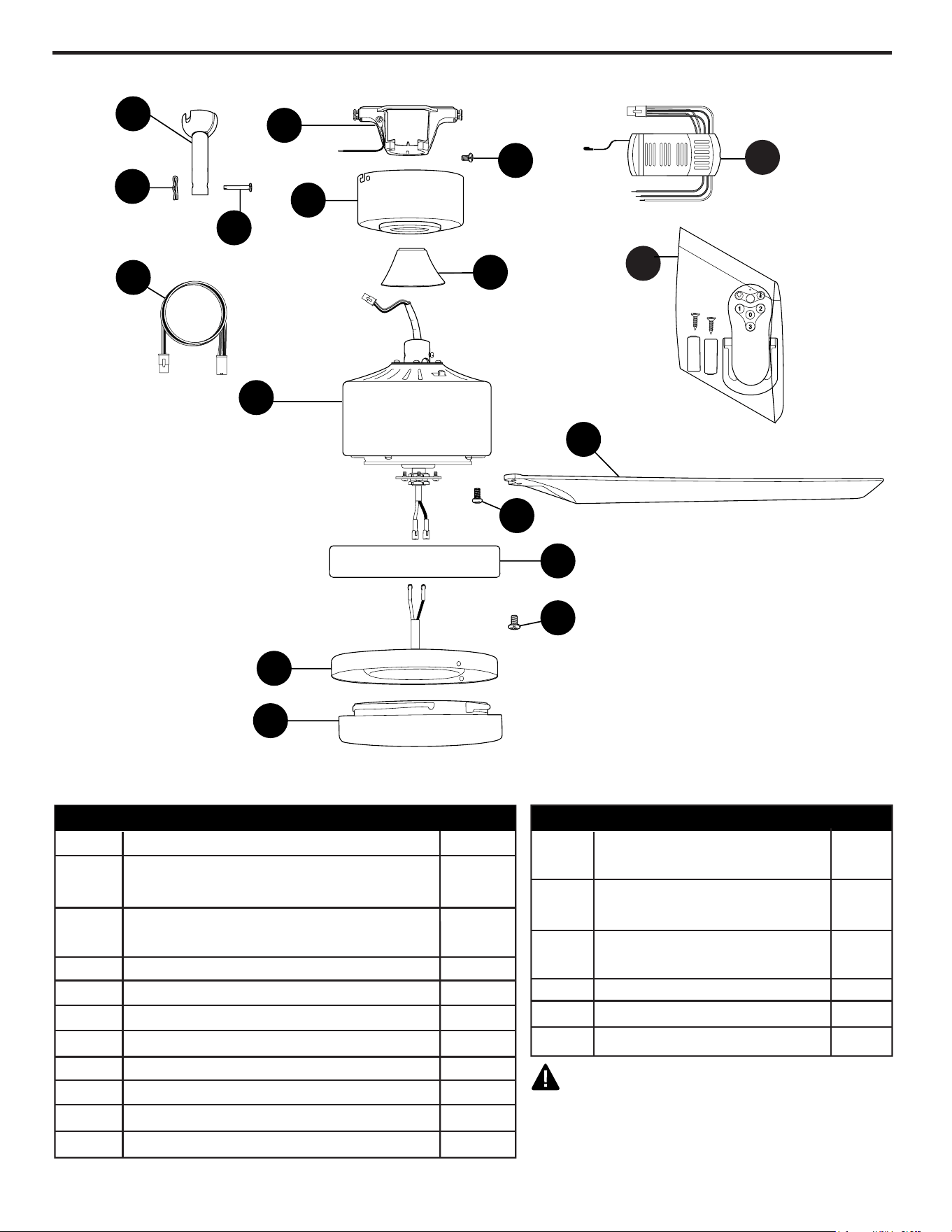

PACKAGE CONTENTS
G
F
N
I
H
C
B
D
Q
E
M
K
J
A
L
O
P
IMPORTANT REMINDER: You must
use the parts provided with this fan for
proper installation and safety.
DESCRIPTIONPART
QUANTITY
DESCRIPTION
QUANTITY
PART
A Downrod 1
B Mounting Bracket 1
(preassembled)
C Canopy 1
(preassembled)
D Yoke Cover 1
E Motor Housing 1
F Shade 1
G LED Light Kit 1
H Fitter Plate 1
I Blade 5
J Pin (preassembled) 1
K Clip (preassembled) 1
L Motor Plate Screw 3
(preassembled)
M Fitter Plate Screw 3
(preassembled)
N Canopy Mounting Screw 4
(preassembled)
O Remote Control Receiver 1
P Remote Pack 1
Q Additional Wiring 1
6
HARDWARE CONTENTS (shown actual size)
Before beginning assembly of product, make sure all parts are present. Place motor on carpet or on
foam to avoid damage to finish. Compare parts with package contents list and hardware contents list.
If any part is missing or damaged, do not attempt to assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Stepladder, Wire Strippers and Precision Screwdriver (2 in.)
Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself Wiring Handbook and
Wire Cutters
PREPARATION
AA
BB
CC
Lever Wire
Connector
Qty. 3
ON
OFF
ON
OFF
1

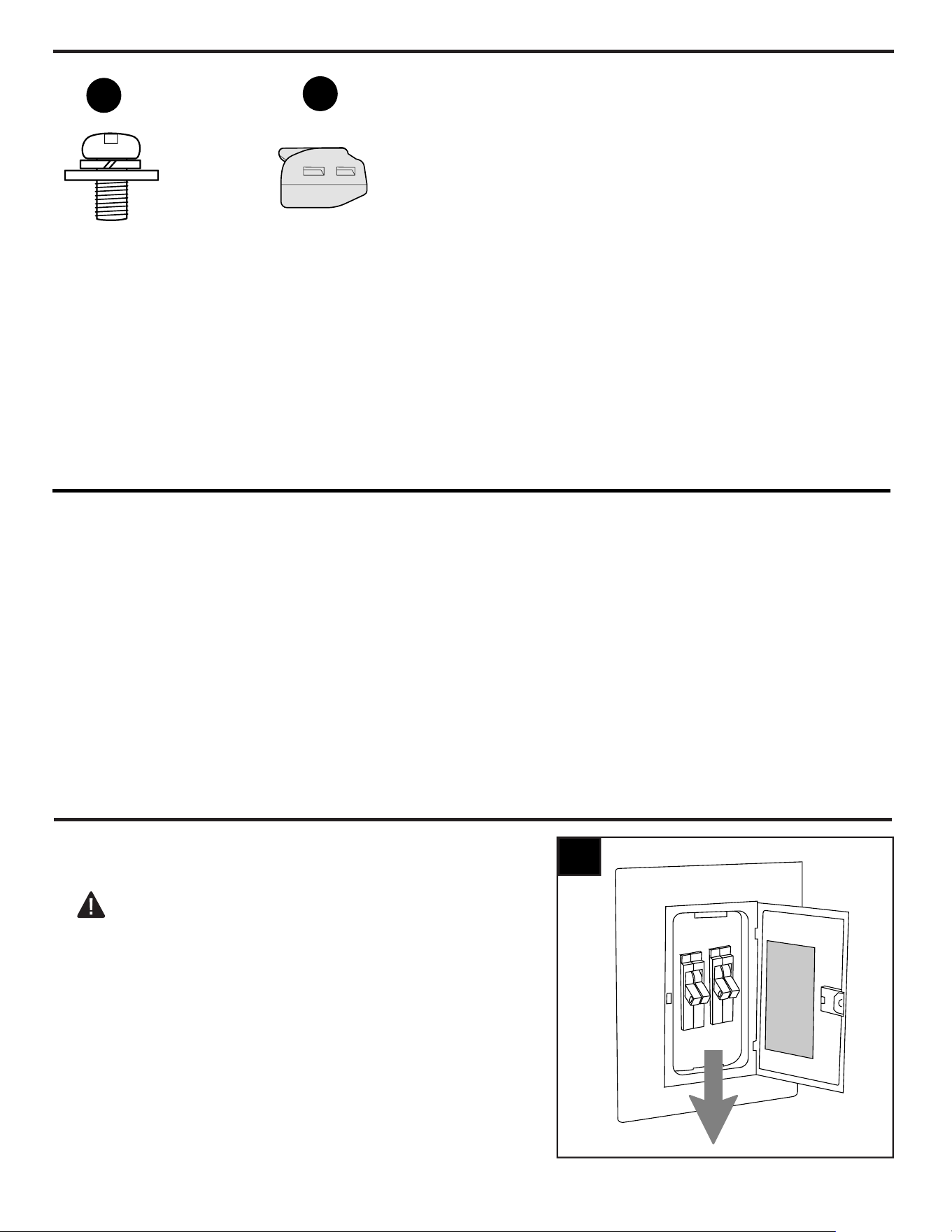

Turn off circuit breakers and wall switch to the
fan supply line leads.
DANGER: Failure to disconnect power
supply prior to installation may result in serious
injury or death.
1.
INITIAL INSTALLATION
Blade Screw/
Lock Washer/
Flat Washer
Qty. 10
+ 1 extra
INITIAL INSTALLATION
7
4.
Loosen canopy mounting screws (N) in slotted
holes of canopy (C) and remove the other two
canopy mounting screws (N); save canopy
mounting screws (N) for later use.
Remove mounting bracket (B) from canopy (C).
4
B
C
N
N
2.

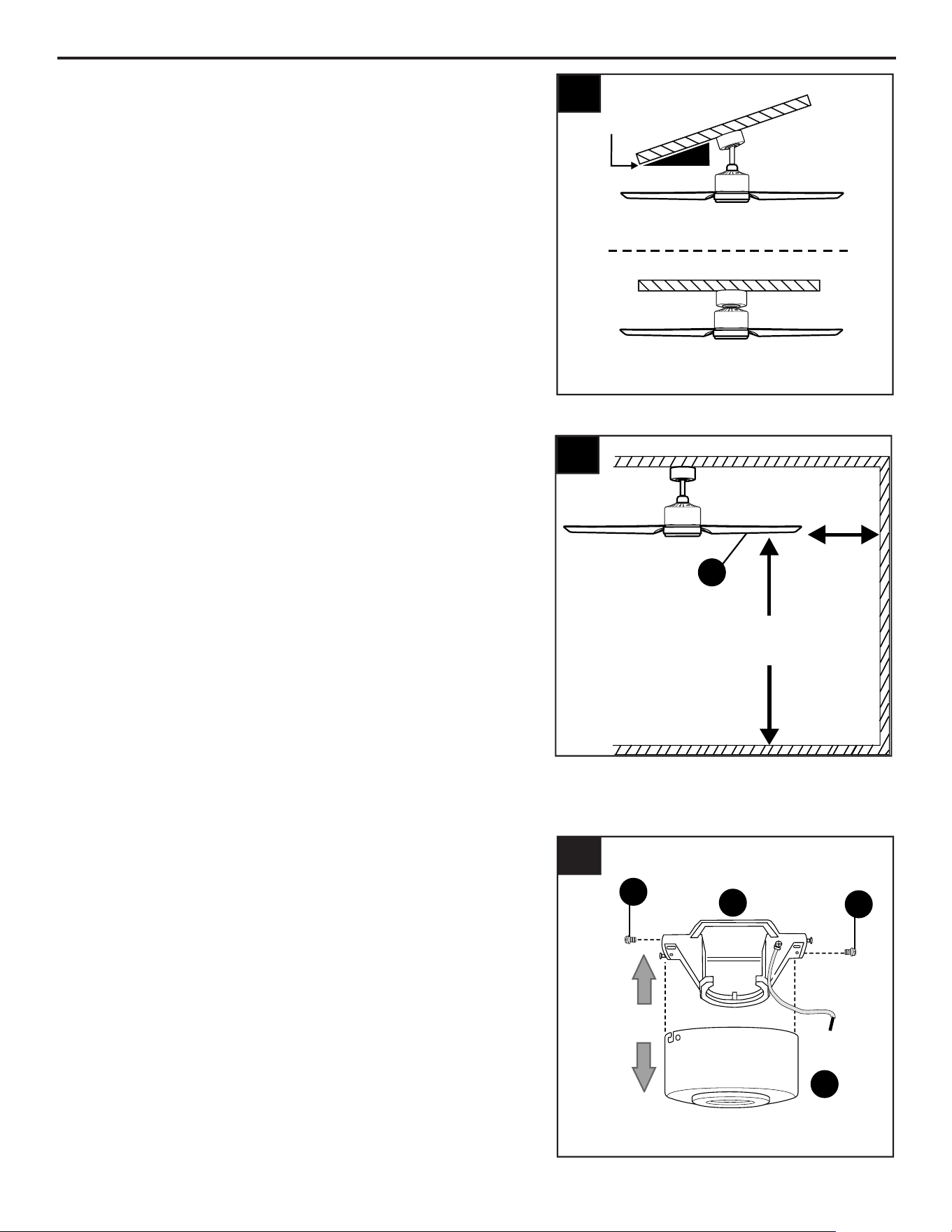

Determine mounting method to use.
A. Downrod mount (standard or angled ceiling).
B. Closemount (standard ceiling only).
IMPORTANT: If using the angle mount, check to
make sure the ceiling angle is not steeper than 19°.
*Helpful Hint: Downrod-style mounting is best
suited for ceilings 8 ft. or higher. For taller ceilings
you may want to use a longer downrod (not
included). Angle-style mounting is best suited for
angled or vaulted ceilings. A longer downrod is
sometimes necessary to ensure proper blade
clearance. Closemount mounting is more suitable
for ceilings lower than 8 ft. high.
Check to make sure blades (I) will be at least
30 inches from any obstruction. Check
downrod (A) length to ensure blades (I) will be
at least 7 ft. above the floor.
3.
A
B
19° max.
7 ft.
min.
30 in.
min.
I
2
3
INITIAL INSTALLATION
8

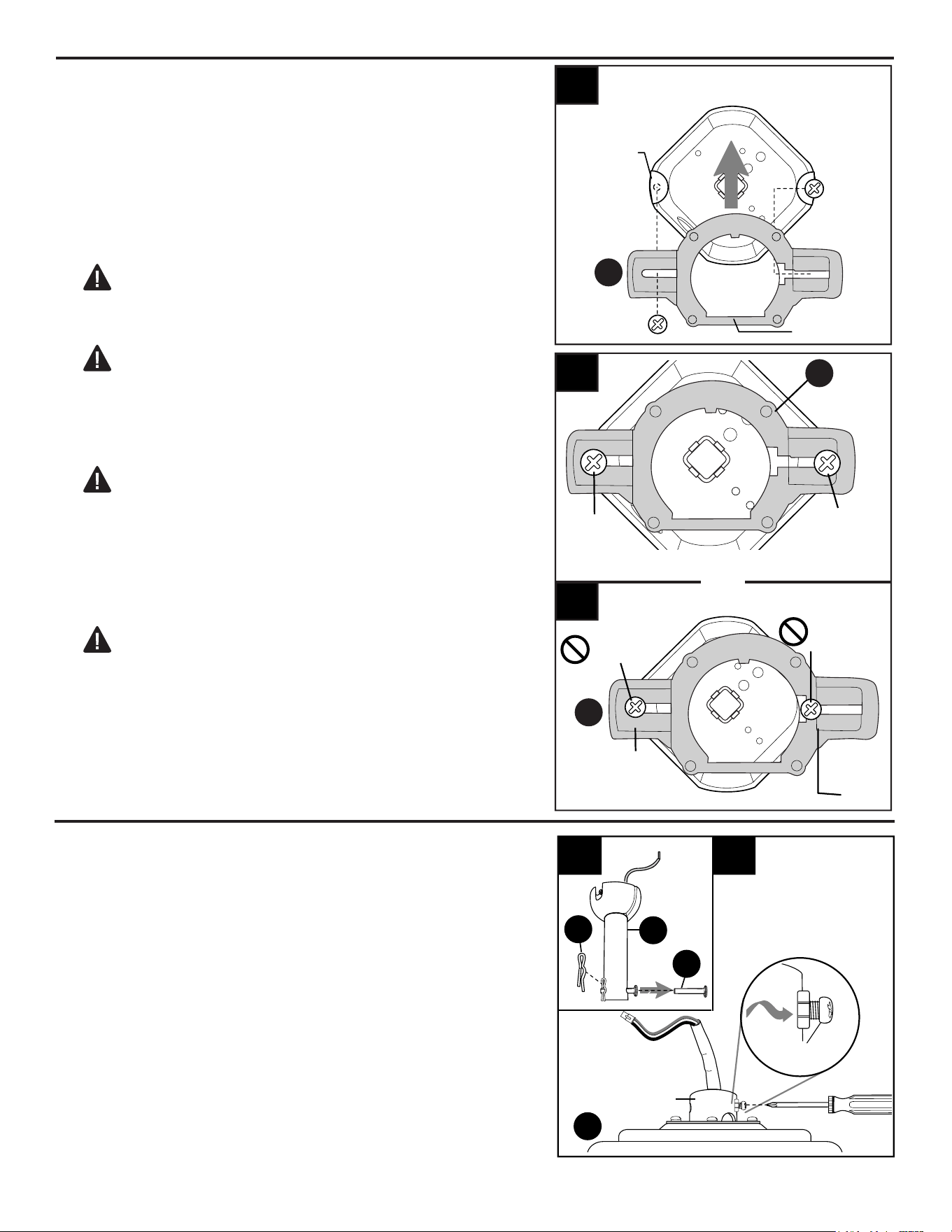

If attaching mounting bracket (B) to an
existing outlet box (not included) with
pre-installed screws, spring washers and flat
washers, slide mounting bracket (B) over the
screws. Then proceed to the following paragraph.
If attaching mounting bracket (B) to outlet box
where screws/washers were removed, secure
mounting bracket (B) to outlet box using the
screws, spring washers and flat washers.
WARNING: It is very important you use the
proper hardware when installing the mounting
bracket as this will support the fan.
DANGER: To reduce the risk of serious
injury or death, the outlet box screws MUST be
installed somewhere within the long slots of the
mounting bracket and then TIGHTENED DOWN
COMPLETELY. [Refer to Fig. 5a.]
DANGER: To reduce the risk of fire,
electrical shock, serious personal injury or
damage to the fan, make sure outlet box screws
DO NOT get installed on or near the wall that
separates the keyhole and the long, narrow slot
on each side of the mounting bracket. [Refer to
Fig. 5b.]
WARNING: If using the angle mount, make
sure open end of mounting bracket (B) is
installed facing the higher point of the ceiling, and
ensure the ceiling angle is not steeper than 19°.
5b.
5a.
5.
DOWNROD-STYLE FAN MOUNTING

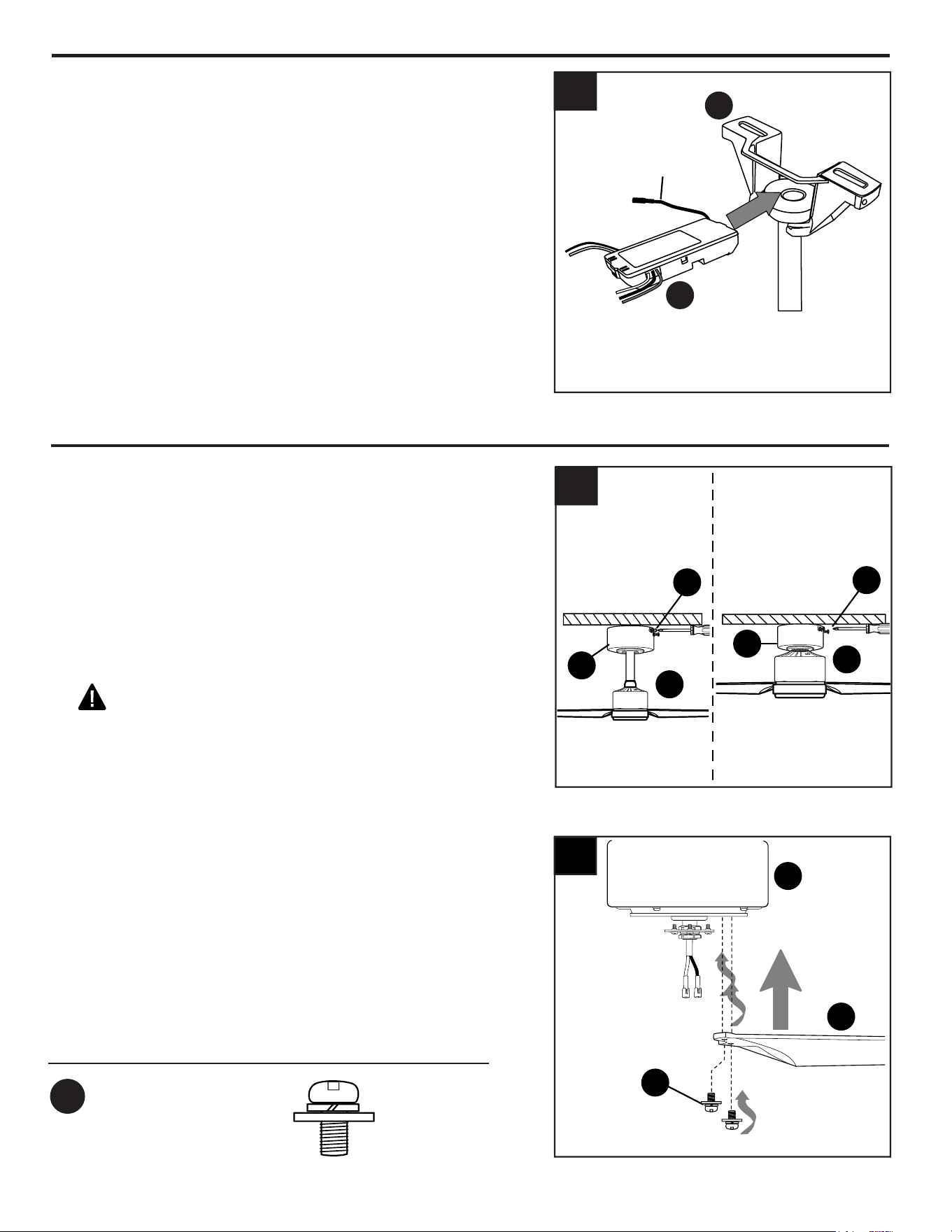

Remove pin (J) and clip (K) from downrod (A).
Partially loosen preassembled set screws and
nut in yoke at top of motor housing (E).
1a.
1b.
1a
K
E
J
1b
A
Yoke
Set Screw
& Nut
Sideview
5b
5a
5
STANDARD MOUNT
Outlet Box
Screws
Wall
CORRECT Screw Position
VS
INCORRECT Screw Position
B
B
B
Wall
(underside)
(view from underside)
Screw
Screw
Screw
Position
Screw
Position
(view from underside)
Open End
9
DOWNROD-STYLE FAN MOUNTING
2.

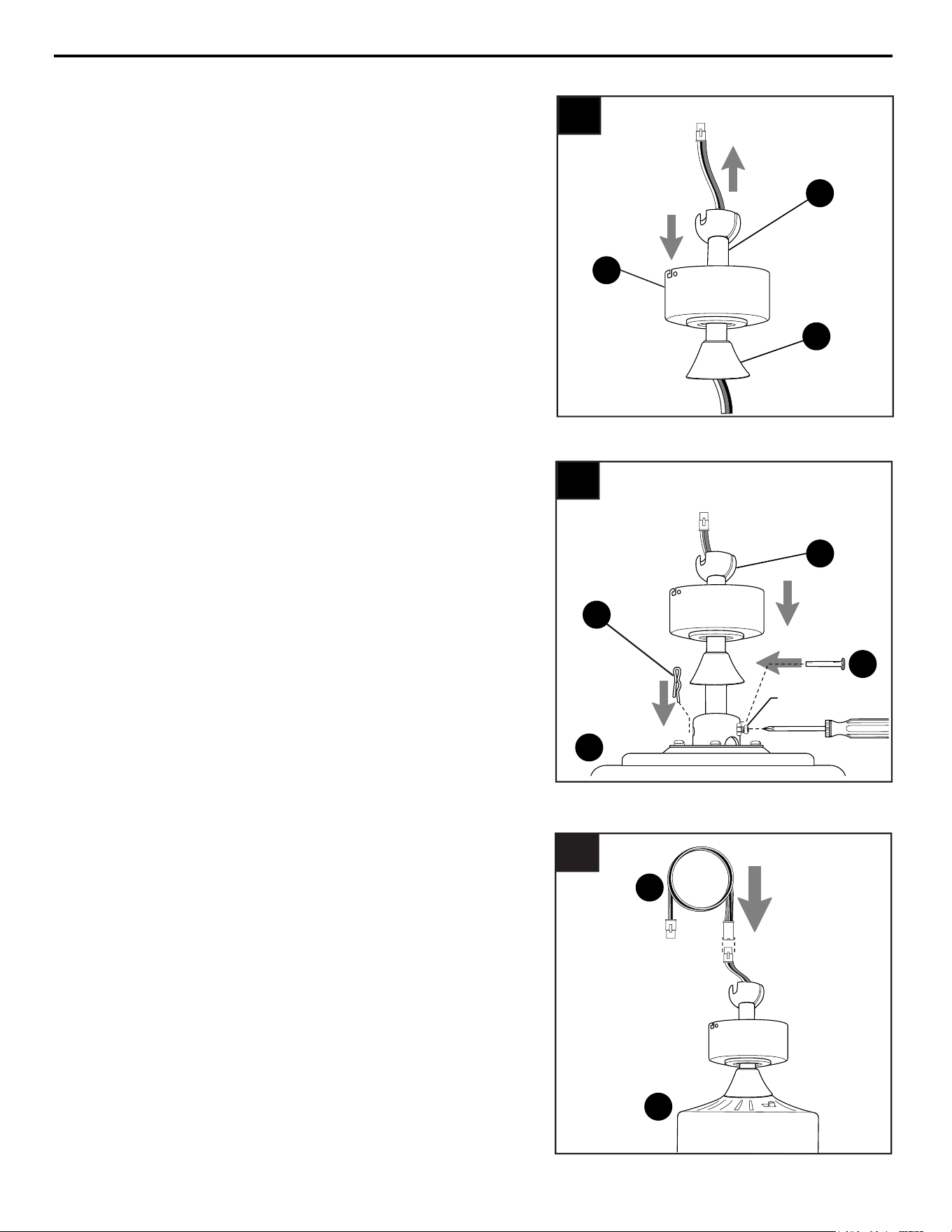

Insert downrod (A) through yoke cover (D) and
canopy (C). Thread wires from motor housing
(E) up through downrod (A).
A
2
C
D
4.
4
3.
Slip downrod (A) into yoke, align holes and
re-install pin (J) and clip (K). Tighten downrod
set screws and then tighten nut.
3
K
J
Set Screw
and Nut
E
A
Depending on the length of downrod you use,
you may need to use the additional wiring (Q).
Connect male plug from motor housing (E) to
the end of additional wiring (Q) with female
plug. Make sure plugs connect tightly.
NOTE: If you do not use additional wiring (Q),
Step 4 is not necessary and you may
proceed to Step 5 instead.
Q
E
10

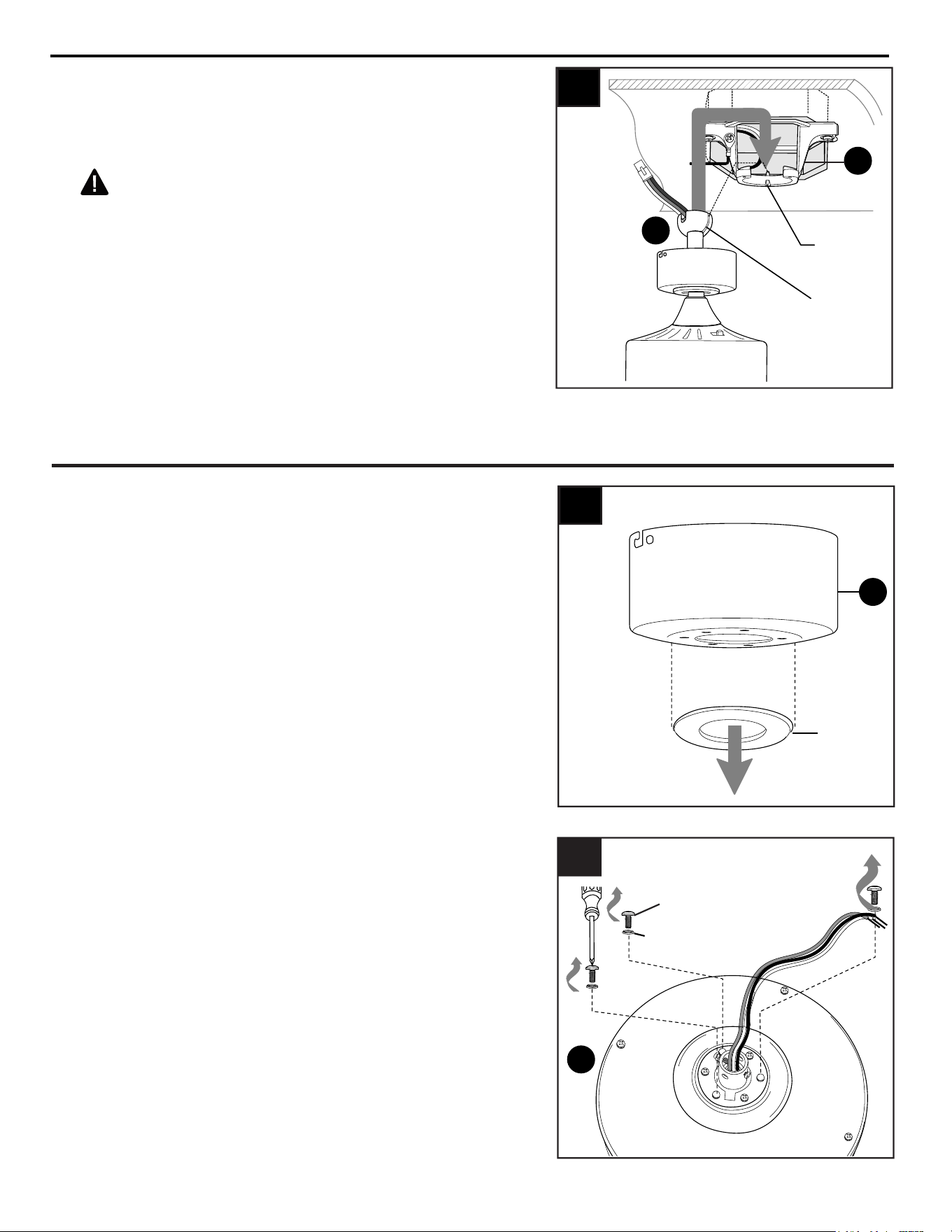

DOWNROD-STYLE FAN MOUNTING
CLOSEMOUNT-STYLE FAN MOUNTING
5.
5
Remove preassembled canopy cover from
bottom of canopy (C).
NOTE: It may be necessary to use the
handle end of a screwdriver (not included) to
remove the canopy cover by tapping on the
canopy cover from the inside of the canopy
(C).
NOTE: The downrod (A), yoke cover (D) and
canopy cover are not used in this type of
installation.
1.
Canopy
Cover
1
C
Install hanging ball of downrod (A) into
opening of mounting bracket (B). Align one of
the slots in hanging ball with the tab in
mounting bracket (B).
DANGER: Failure to align one of the slots
in hanging ball with the tab in mounting
bracket (B) may result in serious injury or
death.
Continue to WIRING on page 12.
Tab
B
A
Slot
Remove every other preassembled screw/lock
washer from top of motor housing (E).
E
Screw
Lock Washer
2.
2
11

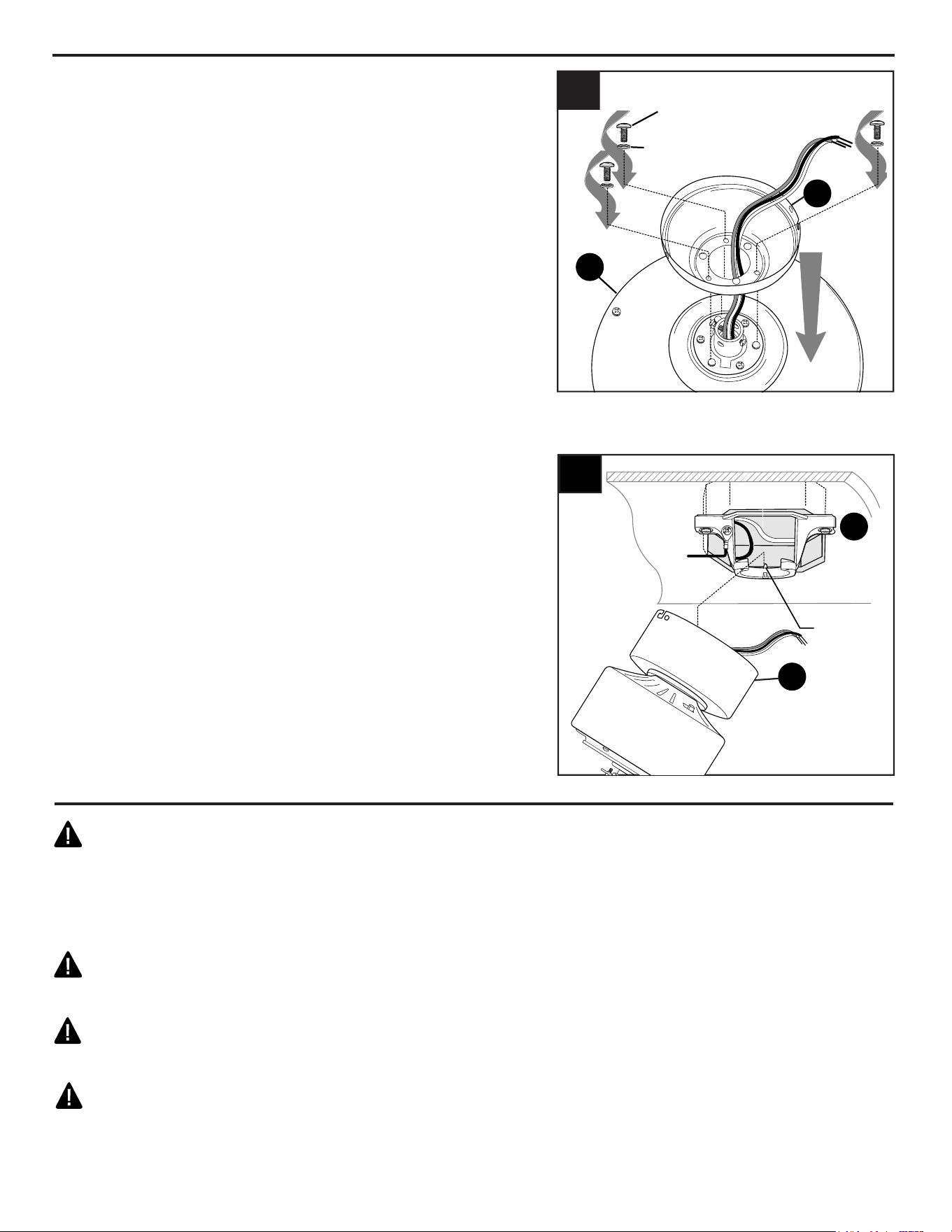

WARNING: To reduce the risk of fire, electrical shock or personal injury, lever wire connectors
provided with this fan are designed to accept only one 12-gauge house wire and one lead wire from
the fan. If your house wire is larger than 12-gauge or there is more than one house wire to connect to
the corresponding fan lead wires, consult an electrician for the proper size lever wire connectors to
use.
CAUTION: Be sure outlet box is properly grounded and that a ground (GREEN or BARE) wire is
present.
WARNING: If house wires are different colors than referred to in the following steps, stop
immediately. A professional electrician is recommended to determine wiring.
WARNING: Using a full range dimmer switch (not included) to control fan speed will cause a loud
humming noise from fan. To reduce the risk of fire or electrical shock, do NOT use a full range
dimmer switch to control fan speed.
CLOSEMOUNT-STYLE FAN MOUNTING
3.
3
Temporarily hang fan on the tab on the
mounting bracket (B) using one of the
non-slotted holes in the canopy (C).
Continue to WIRING on the following page.
Tab
4.
Pull wires up through hole in the middle of the
canopy (C) and attach canopy (C) to motor
housing (E) using the three screws/lock
washers previously removed.
C
B
4
C
E
Screw
Lock
Washer
WIRING
12
WIRING

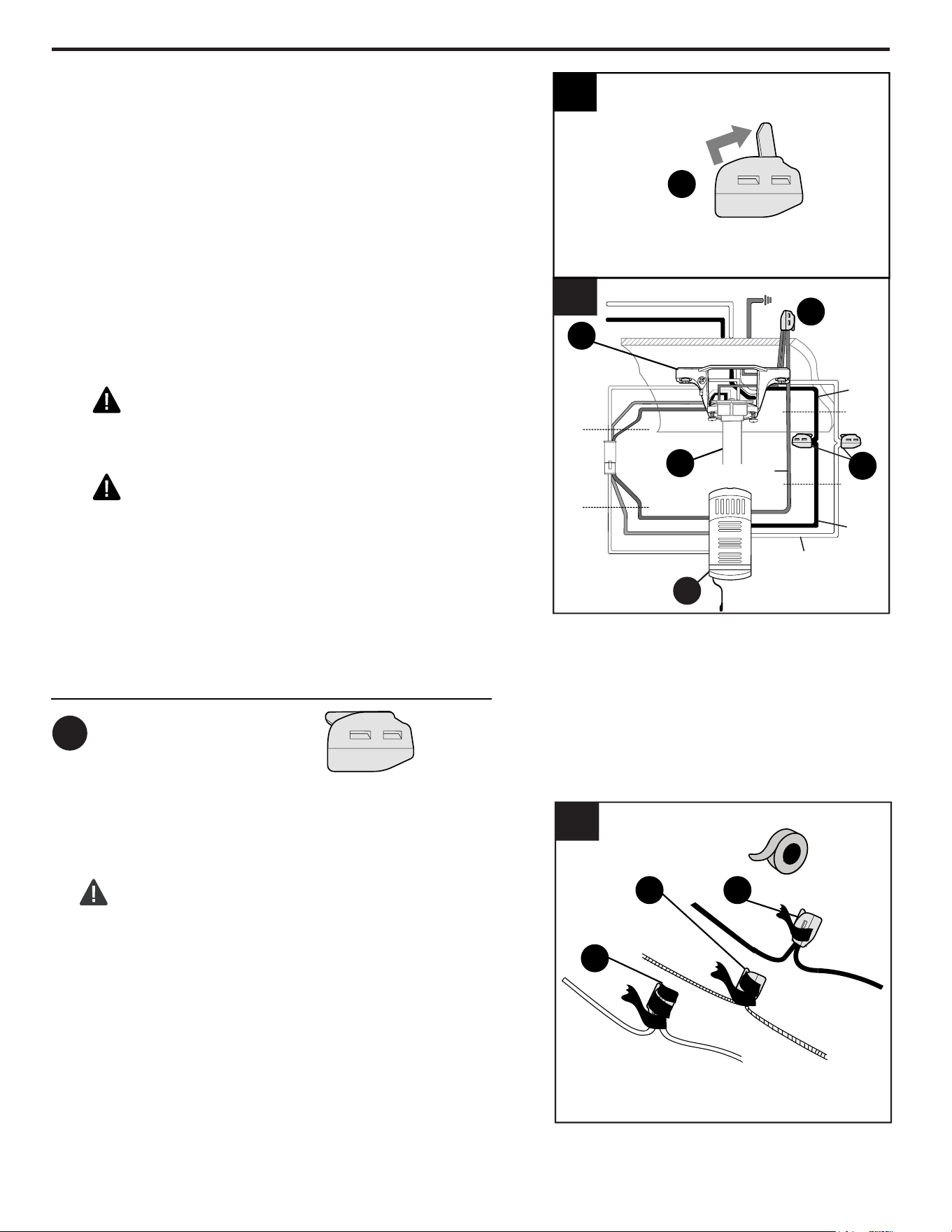

Wrap electrical tape (not included) around each
individual lever wire connector (BB) down to the
wire.
WARNING: Make sure no bare wire or wire
strands are visible after making connections.
Place GREEN and WHITE connections on
opposite side of the outlet box from the BLACK
and BLUE (if applicable) connections.
2.
2
BBBB
BB
1b
O
WHITE SUPPLY WIRE
BLACK SUPPLY WIRE
BLACK
AC IN L
WHITE
AC IN N
WHITE
GROUND (GREEN OR BARE)
GROUND
(GREEN OR BARE)
BLACK
FROM
RECEIVER
FROM
FAN
FROM
RECEIVER
FROM
CEILING
B
GREEN/
GROUND
BB
A
1a
BB
BB
1b.
1a.
IMPORTANT: Each wire connection is made by
firmly raising the levers on each lever wire
connector (BB), as shown. Then, ONE wire is
inserted into each opening.
Insert each GROUND (GREEN) wire from fan
(on downrod (A), mounting bracket (B) and
remote control receiver (O)) and the
BARE/GREEN wire from ceiling to lever wire
connector (BB) with three levers.
Insert BLACK wire from fan and BLACK wire
from ceiling to lever wire connector (BB). Insert
WHITE wire from fan and WHITE wire from
ceiling to lever wire connector (BB).
WARNING: GENTLY pull on wires in each
lever wire connector (BB) to confirm the lock is
engaged and that wires are secure.
WARNING: In order for wire connections to
be secure, all levers on the lever wire
connectors (BB) must be completely returned to
their original position as shown in Step 1b.
NOTE: BLACK wire is hot power for fan. WHITE
wire is common for fan and light kit. GREEN or
BARE wire is ground.
Lever Wire Connector x 3
Hardware Used
AA
FINAL INSTALLATION
13
WIRING
1.
2.
Lift canopy (C) to mounting bracket (B) aligning
slotted holes in canopy (C) with loosened canopy
mounting screws (N) in mounting bracket (B).
Twist canopy (C) clockwise to lock. Re-insert the
two canopy mounting screws (N) that were
previously removed (Step 4, Page 7) and tighten
all canopy mounting screws (N) securely.
DANGER: To reduce the risk of serious
bodily injury, DO NOT use power tools to
assemble the blades (I). If screws are
overtightened, blades (I) may crack and break.
Noting the THIS SIDE UP label on blade (I), align
holes in blade (I) with holes on the bottom of
motor housing (E). Partially insert two blade
screws/lock washers/flat washers (AA) to attach
blade (I) to motor housing (E). Tighten blade
screws/washers (AA) securely. Repeat Step 2 for
remaining blades (I).
NOTE: Make sure to completely secure each
blade (I) before proceeding to the next.
2
AA
1
C
E
N
E
C
Downrod
Option
Closemount
Option
N
Hardware Used
Blade Screw/ x 10
Lock Washer/
Flat Washer
AA
I
E
3
Gently slide remote control receiver (O) flat-side
up into mounting bracket (B). Turn spliced/taped
wires upward and gently push wires and wire
connectors into outlet box. Let antenna from
remote control receiver (O) hang to the side.
NOTE: The remote control included with this fan
meets the following requirements:
a. Not for use with solid state fans.
b. Electrical rating: 120V / 60 Hz;
motor amps:1.25 MAX.
Should you choose to use a different remote
control with this fan, it must also meet these
same requirements.
3.
Antenna
O
B
14
FINAL INSTALLATION

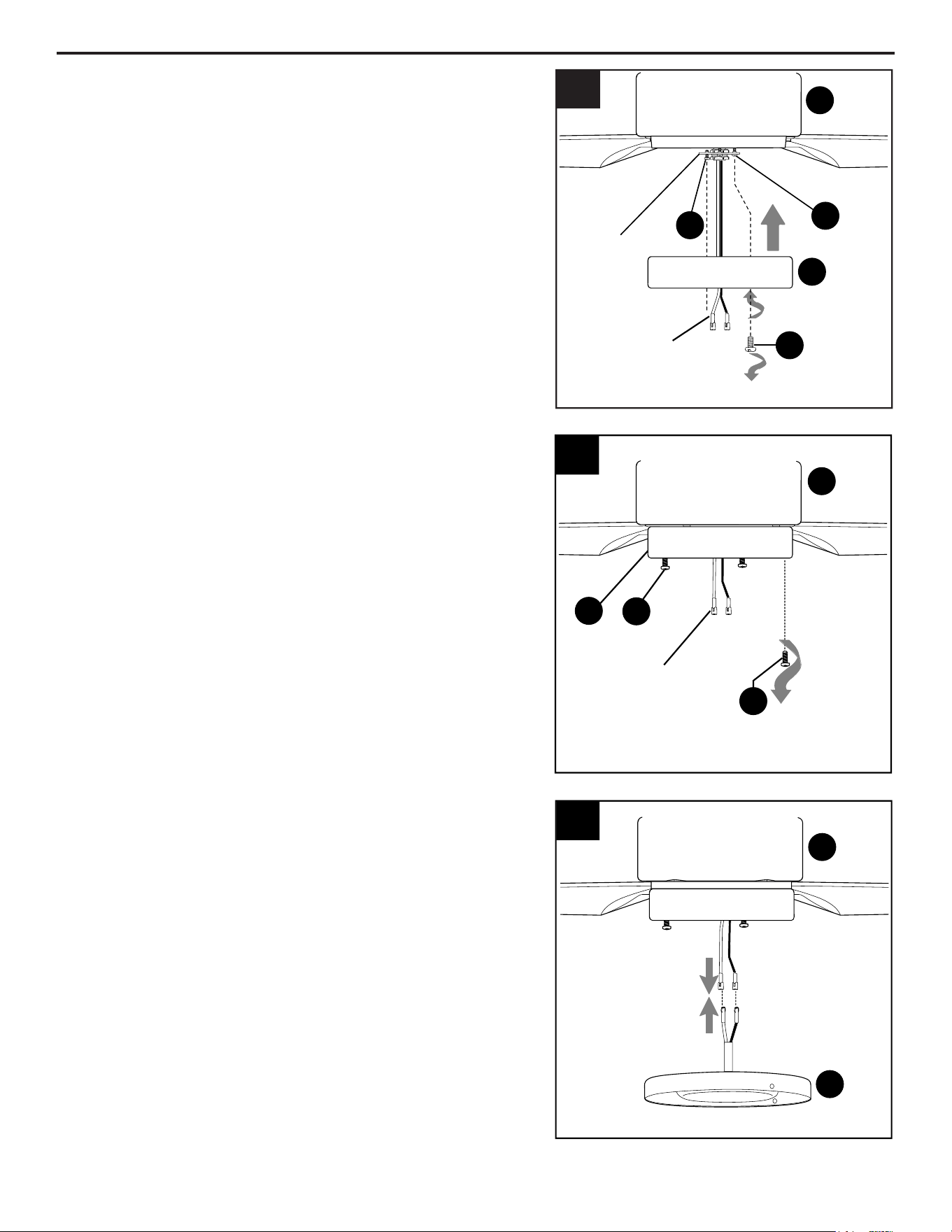

3.
Partially loosen 2 motor plate screws (L) in
motor plate on underside of motor housing (E)
and remove the other motor plate screw (L).
Align slotted holes in fitter plate (H) with
loosened motor plate screws (L), allowing
molex connections from motor housing (E) to
come through hole in fitter plate (H). Twist
fitter plate (H) to lock. Re-insert the motor
plate screw (L) previously removed and
securely tighten all 3 motor plate screws (L).
3
Motor
Plate
Molex
Connections
I
H
E
I
L
I
L
I
L
4.
Partially loosen two fitter plate screws (M) in
metal posts on underside of the fitter plate (H)
and remove the other fitter plate screw (M).
Locate molex connections from motor housing
(E) and remove plastic that holds these wires
together.
H
4
Molex
Connections
M
E
5.
Connect WHITE wire from LED light kit (G) to
WHITE wire from motor housing (E). Connect
BLACK wire from LED light kit (G) to BLUE (or
BLACK) wire from motor housing (E). Make sure
molex connections snap together securely.
NOTE: It may be necessary to pull back the
sleeve on the wires to observe the wire color.
G
5
WHITE BLUE (or BLACK)
WHITE
BLACK
E
M
FINAL INSTALLATION

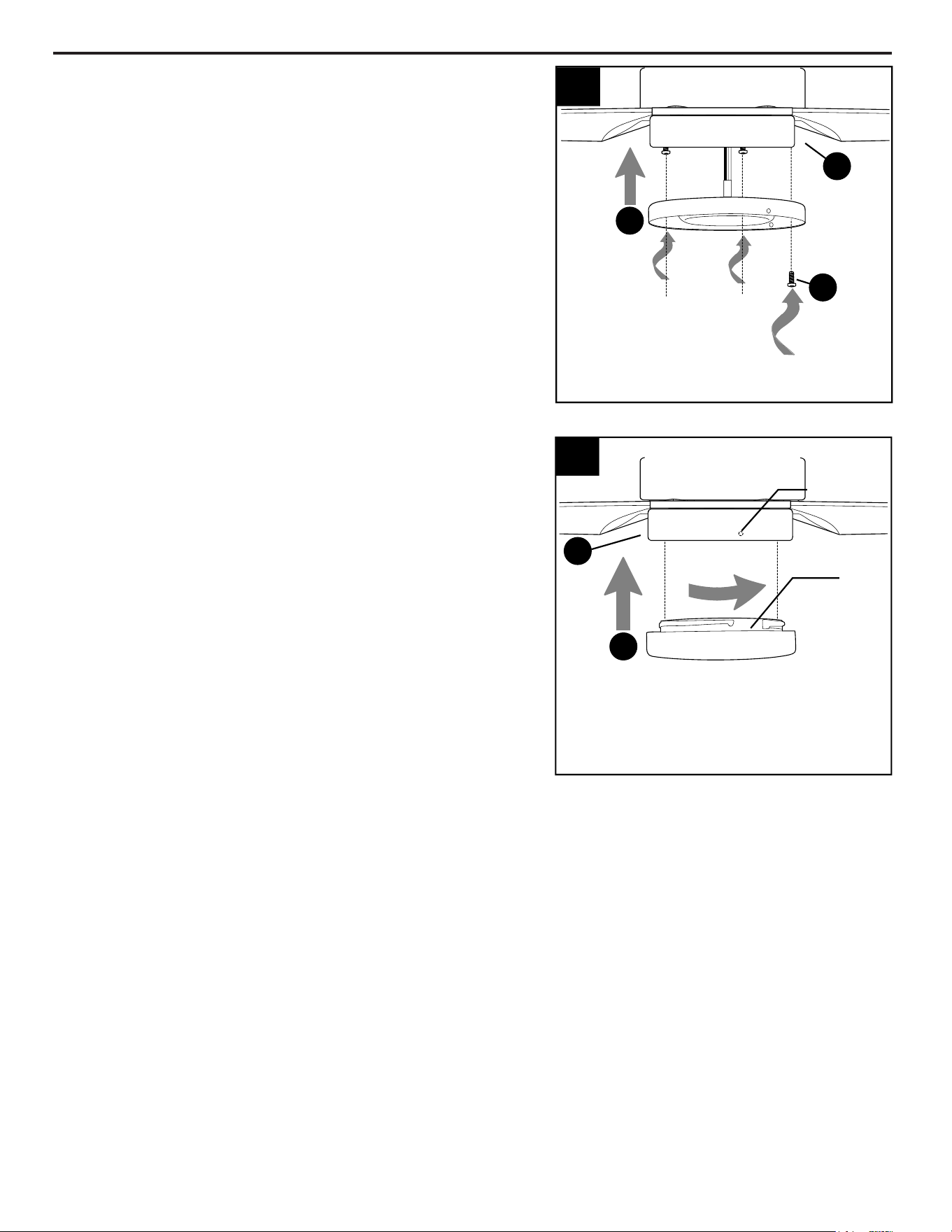

15
H
G
M
6.
Carefully arrange wiring within the fitter plate
(H) to ensure wires do not get pinched when
attaching the LED light kit (G).
Align slotted holes in LED light kit (G) with
loosened fitter plate screws (M) on posts on
fitter plate (H). Twist LED light kit (G) to lock.
Re-insert the previously removed fitter plate
screw (M) (step 4, Page 15) and securely
tighten all fitter plate screws (M).
6
7.
Align slots on shade (F) with protrusions on
inside of fitter plate (H). Turn shade (F)
clockwise until it no longer turns.
NOTE: Pull down gently on the shade (F) to
make sure it is secured completely.
7
H
Slot
F
Protrusion
16
OPERATING INSTRUCTIONS
CAUTION: The remote control transmitter can be programmed to multiple receivers or fans. If
this is not desired, turn wall switch off to any other programmable receiver or fan.
FCC Compliance Notice for Remote Control and LED Light Kit
CAUTION: Changes or modifications not approved by the party responsible for compliance could
void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, (2) this device must accept any
interference received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
* Consult the dealer or an experienced radio/TV technician for help.
Distributed by: Litex Industries, Inc., P.O. Box 535639, Grand Prairie, TX, 75053; 800-527-1292

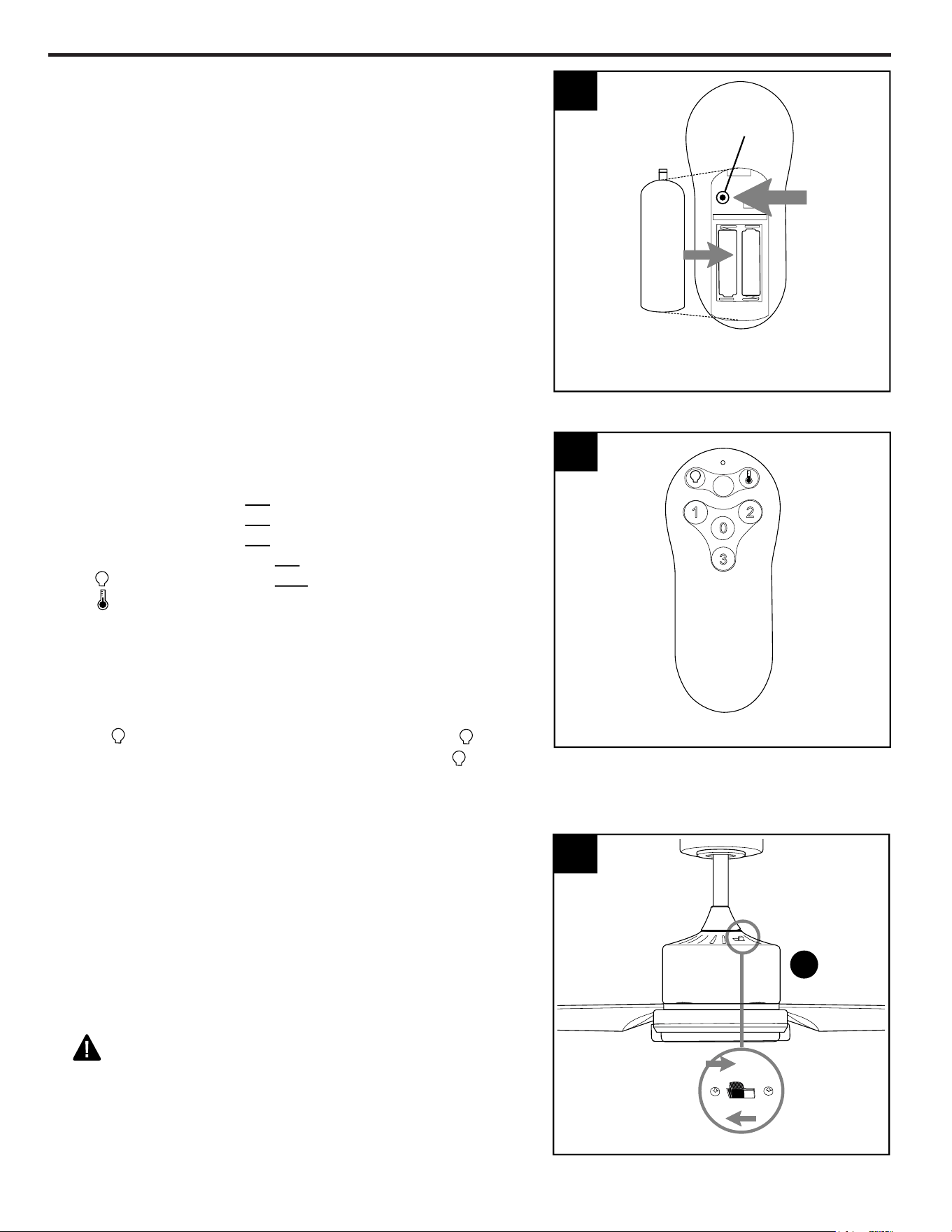

Locate batteries and remote control transmitter in
remote pack (P). Remove protective covering from
each one and discard protective covering. Remove
battery cover from back of remote control transmitter.
Install two AAA batteries (included).
WARNING: Batteries are to be inserted with
correct polarity.
WARNING: Choking Hazard/Ingestion - Small
parts. Keep batteries away from children.
NOTE: DO NOT mix old and new batteries; DO NOT
mix alkaline, standard (carbon - zinc) or rechargeable
(nickel - cadmium) batteries or equivalent.
NOTE: Batteries are NOT rechargeable. Remove
batteries with low or no charge and dispose of
properly.
1.
1
Battery
Cover
Remote Control
Transmitter (back side)
Batteries
AAA
-
+
-
+
AAA
P
CAUTION: “DO NOT DISPOSE OF BATTERIES IN FIRE, BATTERIES MAY EXPLODE OR
LEAK.” - When disposing of household alkaline batteries, it is best to check with your local and state
recycling or household hazardous waste coordinators concerning the specifics of the program in your
area.
17
OPERATING INSTRUCTIONS
(back side)
LEARN
button
2.
Restore electrical power. Within 30 seconds of
powering fan, press and hold LEARN button on the
back of remote control transmitter for 5 seconds (or
until light turns on) in order to synchronize remote
with fan motor. Use the remote control transmitter to
test the light and fan functions to confirm the learning
process is complete.
Replace battery cover on remote control transmitter
IMPORTANT: To prevent damage to remote control
transmitter, remove the battery if not used for long
periods. Store the remote control transmitter away
from excess heat or humidity.
NOTE: If fan and/or remote control fail(s) to operate
or you have purchased a new remote control
transmitter, make sure to turn the power off first.
Remote Control Transmitter
2
Operation buttons on the panel of the remote control
transmitter:
3 button for fan HIGH speed
2 button for fan MEDIUM speed
1 button for fan LOW speed
0 button to turn fan OFF
button to turn light ON or OFF
button to change/select color mode:
– warm white
– bright warm white
– natural white
– bright white
– daylight
Tap button quickly to turn light off or on. Hold button
down to increase or decrease light. If you press button
in excess of 0.7 seconds, it becomes a dimmer. The light
varies cyclically in 8 seconds. The light button has an auto
resume function, which keeps the light at the same
brightness as the last time it was turned off.
3.
3
Remote Control Transmitter
4.
Use the fan reverse switch, located on the top of the
motor housing (E), to optimize the fan for seasonal
performance. A ceiling fan will allow you to raise your
thermostat setting in summer and lower your
thermostat setting in winter without feeling a difference
in your comfort.
CAUTION: Turn fan off at wall switch and let
blades (I) come to a complete stop before manually
activating the reverse switch.
4
Reverse Switch
E
18
OPERATING INSTRUCTIONS
CARE AND MAINTENANCE
At least twice each year, lower canopy (C) to check downrod (A) assembly, and then tighten all
screws on fan. Clean motor housing assembly (E) with only a soft brush or lint-free cloth to avoid
scratching the finish. Clean blades (I) with a lint-free cloth.
IMPORTANT: Shut off main power supply before beginning any maintenance. Do not use water or a
damp cloth to clean the ceiling fan.
Total wattage for the LED light kit on this fan is 18 watts; do not attempt to replace the LEDs.
4A
4B
4C

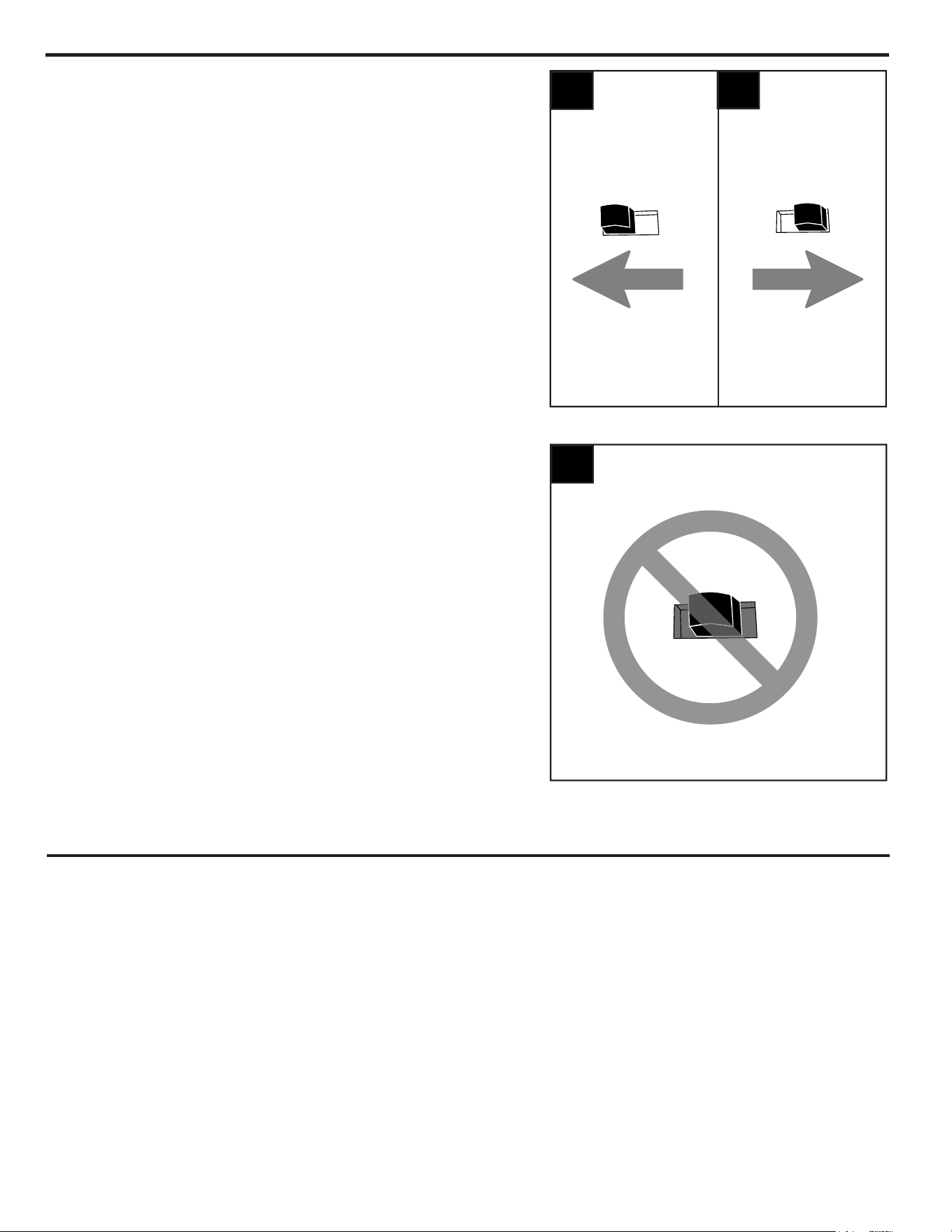

In warmer weather, setting the reverse
switch in the LEFT position will result in
downward airflow creating a wind chill effect.
In cooler weather, setting the reverse switch
in the RIGHT position will result in upward
airflow that can help move stagnant, hot air
off the ceiling area.
IMPORTANT: Reverse switch must be set
either completely LEFT or completely
RIGHT for fan to function. If the reverse
switch is set in the middle position, fan will
not operate.
4A.
4C.
4B.
WARNING: Before beginning work, shut off the power supply to avoid electrical shock.
TROUBLESHOOTING
NOTE: A small amount of "wobble" is normal and should not be considered a defect.
19
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan does not move.
1. Reverse switch not engaged.
2. Power is off or fuse is blown.
3. Faulty wire connection.
1. Push switch firmly either left or
right.
2. Turn power on or check fuse.
3. Turn power off. Loosen canopy
and check all connections.
Noisy operation.
1. Blades are loose.
2. Cracked blade.
3. Full range dimmer switch.
4. Fan is new.
1. Tighten all blade screws.
2. Replace blade.
3. Replace with an approved speed
control device.
4. Allow fan a “break in” period of a
few days, especially when running
the fan at Medium and High speeds.
Excessive wobbling. 1. Blades are loose.
2. Blades incorrectly attached.
3. Unbalanced blades.
4. Fan not securely mounted.
5. Fan too close to vaulted ceiling.
6. Set screw(s) on motor housing yoke is
(are) not tightened properly.
7. Set screw on hanging ball is not
tightened properly.
1. Tighten all blade screws.
2. Re-install blades.
3. Switch one blade with a blade from
the opposite side.
4. Turn power off. Carefully loosen
canopy and verify that mounting
bracket is secure.
5. Use a longer downrod or move fan
to another location.
6. Tighten yoke set screw(s) securely.
7. Carefully loosen and lower canopy
and verify that set screw on hanging
ball is tightened securely.
Fan operates but
light fails
1. Wires in canopy not wired properly.
2. Wall switch to fan is off.
3. Wires from LED light kit not wired
correctly.
1. Check wires in canopy and, if
necessary, re-wire according to
instructions on pages 11 - 13.
2. Make sure that wall switch to fan
is on.
3. Check wires from LED light kit
and, if necessary, re-wire according
to instructions on page 14.
Remote control fails
to operate.
1. Remote control transmitter not synced
with fan.
2. Battery not installed correctly.
3. Battery no longer working.
1. Refer to instructions in Step 2 on
page 17.
2. Check that battery has been
installed with correct polarity.
3. Replace battery according to
instructions on page 16.
A
C
B
I
G

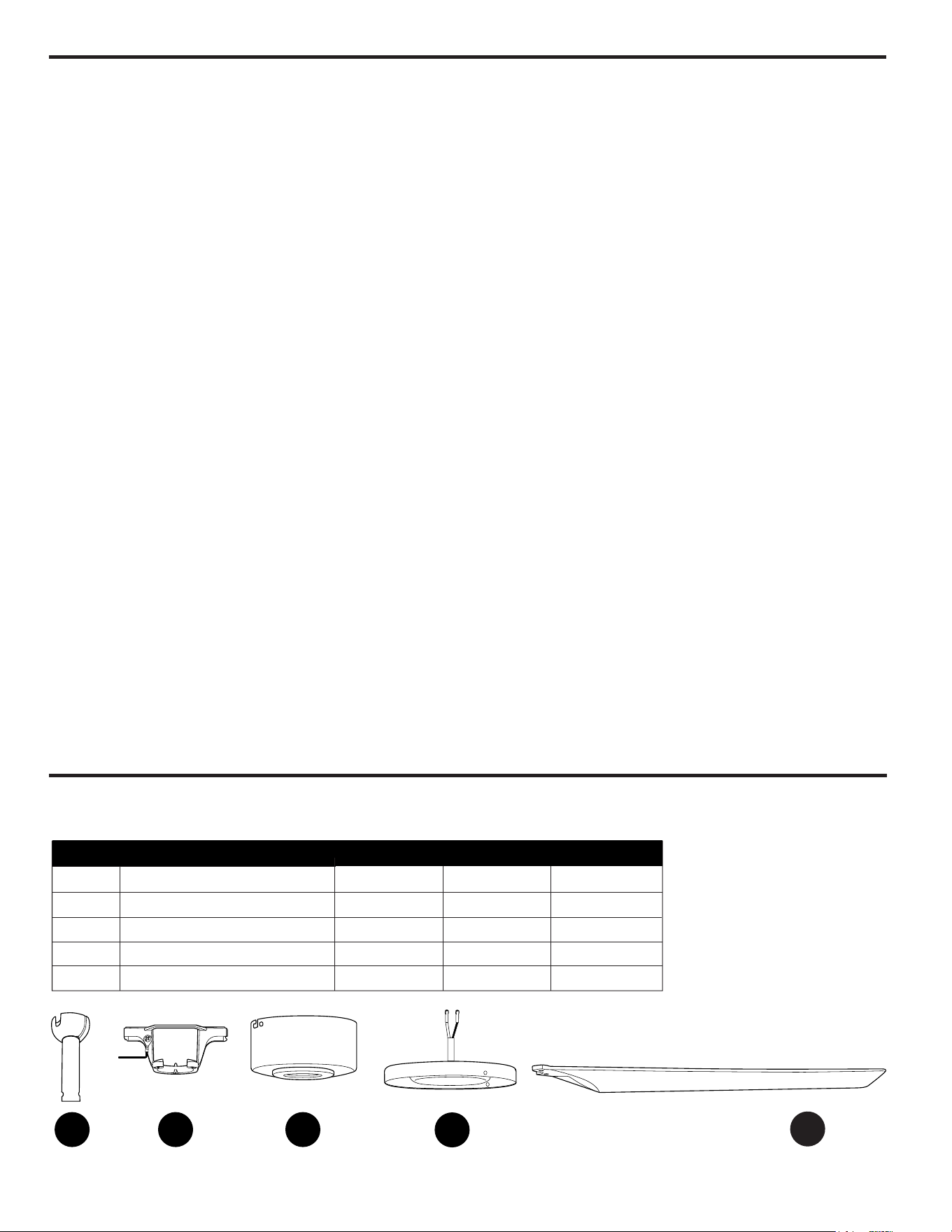

PART DESCRIPTION PART# PART# PART#
A Downrod
B
Mounting Bracket
C Canopy
G Light Kit Fitter
I Blade
6594783-A
6594783-B
6594783-C
6594783-G
6594783-I
6594782-A
6594782-B
6594782-C
6594782-G
6594782-I
6594781-A
6594781-B
6594781-C
6594781-G
6594781-I
DRLI2501
Printed in China
20
REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 800-527-1292, , 8:30 a.m. - 5 p.m.,
CST, Monday - Friday.
LIMITED LIFETIME WARRANTY
Set forth below, the manufacture warrants the fan motor for this ceiling fan to be free from defects in
workmanship and material for the life of the product. Also, subject to the limitations below, the
manufacturer warrants all ceiling fan parts (“ceiling fan parts” excludes the motor and parts made in
whole or in part with glass) to be free from defects in workmanship and material for a period of one
year after the date of purchase by the original purchaser at retail.
All claims must be made by the original purchaser, whether such purchaser purchased the product
through a store or contractor. Ceiling fan part defects must be reported within the first year from the
date of purchase. Parts made in whole or in part with glass and the finishes of metal and other
surfaces are not warranted.
Purchasers are responsible for all costs of removing and reinstalling the product. Any damage to any
part caused by ordinary wear and tear, accident, misuse, or improper installation, is not covered by
this warranty. The manufacturer assumes no responsibility whatsoever for fan installation. Any
service performed by a non-licensed electrician will render the warranty invalid.
The manufacturer’s sole responsibility shall be to repair or replace the motor, parts, or product within
the terms stated above. The manufacturer shall not be liable for any loss or damage of any kind,
including any incidental or consequential damages resulting directly or indirectly, from any breach of
warranty, express or implied, or any other failure of this product. Some states do not allow the
exclusion or limitation of incidental or consequential damages so this limitation may not apply to you.
If the original purchaser ceases to own the fan, this warranty is voided.
Should the purchaser encounter a problem with your fan related to defects in workmanship or
materials within the warranty period associated with the defective part, the manufacturer agrees to
replace the defective part without charge, or at its option, to replace the ceiling fan with a comparable
or superior model.
The manufacturer’s warranties are limited to the written warranties set out in this ceiling fan limited
lifetime warranty. All other express and implied warranties, including, without limitation, the implied
warranty of fitness for a particular purpose and the implied warranty of merchantability are
disclaimed. Some states do not allow the disclaimer of implied warranties, so this disclaimer may not
apply to you.
